Sensors 2014, 14(2), 3207-3226; doi:10.3390/s140203207

Article
Mapping and Evaluating the Urbanization Process in Northeast China Using DMSP/OLS Nighttime Light Data
Kunpeng Yi 1,*, Hiroshi Tani 2, Qiang Li 3, Jiquan Zhang 4, Meng Guo 3, Yulong Bao 5, Xiufeng Wang 2 and Jing Li 6
1
Graduate School of Agriculture, Hokkaido University, Hokkaido 060-8589, Japan
2
Research Faculty of Agriculture, Hokkaido University, Hokkaido 060-8589, Japan; E-Mails: tani@env.agr.hokudai.ac.jp (H.T.); wang@env.agr.hokudai.ac.jp (X.W.)
3
School of Urban and Environmental Science, Northeast Normal University, Changchun 130024, China; E-Mails: liq672@nenu.edu.cn (Q.L.); guom521@nenu.edu.cn (M.G.)
4
School of Environmental Sciences, Northeast Normal University, Changchun 130117, China; E-Mail: zhangjq022@nenu.edu.cn
5
College of Geographical Science, Inner Mongolia Normal University, Hohhot 010022, China; E-Mail: baoyulong@imnu.edu.cn
6
Northeast Institute of Geography and Agricultural Ecology, CAS, Changchun 130102, China; E-Mail: lijingsara@neigae.ac.cn
Author Contributions The work presented in this paper is a collaborative development by all the authors. Kunpeng Yi, Hiroshi Tani and Jiquan Zhang defined the research line. Kunpeng Yi and Qiang Li interpreted the data and drafted the manuscript. Meng Guo and Yulong Bao contributed to most of mapping work. Xiufeng Wang and Jing Li directed the research and gave initial input.
*
Author to whom correspondence should be addressed; E-Mail: yikp@env.agr.hokudai.ac.jp; Tel.: +81-011-706-2553; Fax: +81-011-706-2494.
Received: 27 December 2013; in revised form: 7 February 2014 / Accepted: 11 February 2014 /
Published: 18 February 2014

Abstract

: In this paper, an Urban Light Index (ULI) is constructed to facilitate analysis and quantitative evaluation of the process of urbanization and expansion rate by using DMSP/OLS Nighttime Light Data during the years from 1992 to 2010. A unit circle urbanization evaluation model is established to perform a comprehensive analysis of the urbanization process of 34 prefecture-level cities in Northeast China. Furthermore, the concept of urban light space is put forward. In this study, urban light space is divided into four types: the core urban area, the transition zone between urban and suburban areas, suburban area and fluorescent space. Proceeding from the temporal and spatial variation of the four types of light space, the pattern of morphologic change and space-time evolution of the four principal cities in Northeast China (Harbin, Changchun, Shenyang, Dalian) is analyzed and given particular attention. Through a correlation analysis between ULI and the traditional urbanization indexes (urban population, proportion of the secondary and tertiary industries in the regional GDP and the built-up area), the advantages and disadvantages as well as the feasibility of using the ULI in the study of urbanization are evaluated. The research results show that ULI has a strong correlation with urban built-up area (R2 = 0.8277). The morphologic change and history of the evolving urban light space can truly reflect the characteristics of urban sprawl. The results also indicate that DMSP/OLS Nighttime Light Data is applicable for extracting urban space information and has strong potential to urbanization research.
Keywords:
Urban light index ULI; urban light space; urbanization; DMSP/OLS; Northeast China; unit circle model

1. Introduction

Urbanization is a spatial and demographic process and refers to the increased importance of towns and cities as a concentration of the population within a particular economy and society [1]. In China, urbanization is characterized by a large migration of rural populations to urban areas, which might result in the constant expansion of these urban areas. The constant construction in the new city or economic development zones are currently the mainstream sources of urban growth in China. China has undergone the highest rates of landscape changes in the World due to its changing demographics and land use practices over the last few decades [2]. By the end of 2012, the mainland of the People's Republic of China had a total urban population of 712 million or 52.6% of the total population, rising from 26% in 1990 [3]. These data indicate that cities in China have become the actual driving force for the rise of China. As the economy is developing by leaps and bounds, urban space is also expanding rapidly. Therefore, urbanization is not only of interest as a research field in economics but also falls within the scope of geography as it examines the spatial expansion of built-up areas and the morphologic characteristics of the patterns of urban area evolution.

There are presently three main types of studies on urbanization: (1) qualitative studies [48], which mainly study the dynamic mechanisms, regional urbanization characteristics and problems brought by urbanization (e.g., disorderly urban expansion; increased impervious surfaces in the urban areas, profound changes in the land-use type; insufficient fresh water resources, large amounts of greenhouse gas emissions and urban heat island effects) from the perspective of the population, economy and ecologic environment; (2) quantitative studies based on statistical data [9,10], in which a quantitative evaluation is conducted on regional urbanization by quantifying a series of urbanization indicators (increase of the urban population, the proportion of secondary and tertiary industries in the regional GDP and the area percentage of the built-up areas) to establish quantitative urbanization evaluation models (e.g., the urbanization rate); (3) quantitative studies based on remote sensing data [1114], in which medium and high spatial resolution remote sensing images (e.g., Landsat TM/ETM+, SPOT HRV) are used for substantial cities. The images are employed to classify the urban landscape to study the urbanization scale and the ecologic and environmental problems produced in the process of urbanization from the perspectives of urban expansion, changes in land utilization and the evolution of urban ecologic landscape patterns. However, the qualitative evaluations cannot provide practical and effective theoretical support for urban planning department and urban decision-makers. Although the urbanization evaluation methods based on statistical data increase the scientificity of the studies on urbanization, the statistical data lacks spatial characteristics, which confine this method to the field of demography and regional economics. Thus, the crucial spatial characteristics of urbanization cannot be expounded and proved effectively. Therefore, the study of urbanization is in urgent need of precise data with spatial and temporal continuity acting as support.

Remote sensing satellite images can track the evolution of urban development in time and space. This spatial and temporal characteristic of remote sensing data compensates well for the defects of existing urbanization studies, making such data the best choice to break out of this deadlock on urbanization research [15]. Previous studies of urbanization at the regional level mainly used high resolution spatial remote sensing images, e.g., Landsat TM/ETM+, SPOT HRV, Ikonos and Worldview. However, high and medium resolution datasets are often less popular for global and national level studies. Firstly, using these datasets for national level studies involves high costs for acquiring the datasets. Secondly, these images record too much spectral information detail of urban surfaces without any screening, so massive manual handling and computer processing, time and labour are required for processing and interpreting the images [16,17]. Therefore, it is imperative to develop new approaches to timely and accurately map urban dynamics on regional and global scales with coarse spatial resolution images.

The Operational Line scan System (OLS) sensor carried by the Defense Meteorological Satellite Program (DMSP) has provided a new data approach for the study of urbanization at a large scale [1820]. The scanning in DMSP/OLS is different from that of LANDSAT TM, SPOT HRV and NOAA AVHRR sensors, which use the reflection and radiation of surface features against the sunlight. DMSP/OLS datasets are used to map aggregate measures of urban areas such as total area extent, their ability to characterize inter-urban variation is limited due to saturation of the data values, especially in urban cores [21,22]. The purposes of this paper are the following: (1) DMSP/OLS Nighttime Light Data during 1992–2010 are utilized to extract an ULI so that analysis and quantitative evaluation of the speed and process of urbanization can be conducted; (2) through correlation analysis between ULI and the traditional urbanization indicators (urban population, proportion of the secondary and tertiary industries in the regional GDP and area of built-up area), the advantages and disadvantages as well as the feasibility of using an ULI in the study of urbanization are evaluated [23]; the unit circle model is established to make a comprehensive analysis of the urbanization process of 34 prefecture-level cities in Northeast China during the past 20 years (1992–2010). This paper is organized as follows: Section 2 describes the data and methods; Section 3 presents the results of this study; in Section 4, variation in Urban Light Indices (ULI) and urban spaces were discussed as well as the relationship between and traditional urbanization indicators; Section 5 presents conclusions and the limitations of this study.

2. Data and Methods

2.1. Study Area

In this study, we focus on the Northeast region of China excluding the eastern region of Inner Mongolia (Figure 1). Northeast China contains 89 established cities with a total population of 120 million and an urban population of 31.66 million in 2010. The urbanization development is mainly thanks to its well-established railway logistics network, abundant resources and the advantages of location. After several years of development, Northeast China has become a zone of large cities located along the Harbin-Dalian railway axis. It is also a resource cities group. Meanwhile, newly emerging tourist trade cities and port cities neighboring the border and coastal areas have gradually developed too in Northeast China.

2.2. Data

2.2.1. DMSP/OLS Night Light Data

The Defense Meteorological Satellite Program (DMSP) has an Operational Line-scan System (OLS), which is a new data source for extracting the dynamics of urban expansion at a large spatial scale [24]. The OLS sensor was placed on the DMSP Block 5D-1 satellite F-1 in September, 1976. There are two channels in the OLS sensor: (1) a visible and near-infrared channel (VNIR, 0.4–1.0 μm, 6-bit spectral resolution); (2) a thermal infrared channel (TIR, 10–13 μm, 8 bit spectral resolution). The OLS is an oscillating scan radiometer which generates images with a swath width of 3,000 km and the spatial resolution of full-resolution data is 0.56 km [25,26]. The satellite completes 14 orbits a day, and each OLS sensor can obtain all-day images covering the globe. The whole satellite system can provide observed data of the globe in four time periods: dawn, daytime, dusk and night.

In this study, we assess the urban development in Northeast China using the Version 4 global DMSP/OLS Nighttime Lights series data products that consist of 131 datasets from the six satellites in the DMSP system: F10 (1992–1994), F12 (1994–1999), F14 (1997–2003), F15 (2000–2007), F16 (2004–2009) and F18 (2010-Present). They can be obtained from National Geophysical 130 Data Center (NGDC) website ( http://www.ngdc.noaa.gov/dmsp/downloadV4composites.html).

2.2.2. Statistical Data

The study period (1992–2010) was divided into three periods (1992–1998; 1998–2004; 2004–2010) with an interval of 6 years. F12 1998 and F15 2004 were selected due to higher coefficients than the other alternative F14 1998 and F15 2004 (Table 1). Socio-economic indicators such as urban population, proportion of secondary and tertiary industries in the regional GDP and area of built-up area are from the China Urban Statistical Yearbook (1993, 1999, 2005, 2011) [2730].

2.3. Methods

2.3.1. Unit Circle Model

Many urbanization literatures focus on the administrative scale in China. However, there are big variations of cities in China either in administrative spatial extent or administrative population due to some geographical, historical and political reasons. For example, HulunBuir (located in Inner Mongolia) with the administrative area of 2.6 × 105 km2 represents the largest extent city in China, while, the administrative area in Tongling city (located in Anhui Province) is only 1,113 km2. Although both are prefecture-level cities, HulunBuir is 233 times larger than Tongling in administrative area. Similarly, the population of Fuyang (located in Anhui Province) is 13 million compared with the population of only 230,000 in Jiayuguan City (located in Gansu Province). These are only two notable cases, but regional variations are extremely ubiquitous in China. Therefore, it is too hard to compare the urbanization level among various cities based on administrative area due to these regional variations and we must build a ‘universal ruler’. To address this problem, a unit circle model is established in this paper, which is used to make a comparison about the scales, expansion rates of the built-up areas and the urbanization processes of different cities under the same standard. Most of the urban main train stations were constructed at city centers, and to some extent, many cities shape their spatial patterns surrounding the main train station in China. In the early stages of urbanization in Northeast China the Central Business District (CBD) is always adjacent to the main railway station due to large consumption demands of passengers, convenient transportation and information. Therefore, in this study, urban center was defined as the location of main train station of each city. With each urban center (the location of main train station) as the center, we buffered three concentric circles with a radius of 5, 10 and 30 km, respectively. Thus, instead of using the urban administrative area each city was regarded as a 20 km circle region, which can cover most cities. This circle was divided into three zonal areas from inner to outer: CBD (Central Business District) or core urban; urban area and peri-urban area (Figure 2).

2.3.2. Intercalibration of the Nighttime Light Annual Composites

Recently, there has been a renewed interest in using nighttime images of Earth that show visible light emissions, providing a dramatic picture of urbanization through long term city lights monitoring [31]. Although NTL data do not measure land cover directly and many non-urban places are lit at night, including agricultural fields and fishing vessels, it has been shown to be strongly correlated with population density [32]. However, the DMSP-OLS NTL time series dataset cannot be directly used to study urbanization due to the absence of on-board calibration in the OLS [25,33]. For each year, NTL data acquired by different satellites has no strict intercalibration. The lack of continuity and comparability means that these data cannot be directly used to extract the dynamics of global and regional urban expansion. In order to reduce these discrepancies and impart comparability to the NTL dataset it is essential that the data should be intercalibrated first.

In order to improve the consistency and comparability of the NTL time series dataset in China from 1992 to 2010, we followed an empirical procedure which is the so-called second order regression model proposed by Elvidge in 2009 [34]. We created 20 random points within each zonal area of the unit circle, so we got 60 random points for each city (Figure 2). The 34 total prefecture-level cities in Northeastern China were treated in the same way. Then, all the random points were taken as the samples to establish the empirical relationship for intercalibration. These sample cities and towns were extracted from each zonal area (CBD, urban area and peri-urban). In reviewing the NTL time series dataset, it was found that the data from the satellite year F162007 captured with maximum number of lit pixels in the region of China (Table 1). Therefore, F16 2007 was used as the reference and the data from all other satellite years were adjusted to match the F162007 data range. The highly conformal Digital Number (DN) values along the time series for the pixels in the calibration area will ensure high R2 values for the empirical equation. Intercalibration was conducted by using second order polynomial regression (Equation 1), with the dependent variable as the reference image and the independent variable as images to be calibrated (Table 1). The model parameters a, b and c were estimated with ordinary least square regression for individual NTL image. The regression equation was then applied to individual DMSP-OLS NTL image to calculate the adjusted DN values [35]:

DN calibrated = a × DN 2 + b × D N + c

2.3.3. Urban Light Index (ULI)

Each grid of Version 4 DMSP/OLS nighttime light data products has a radian of 30 s, and the coverage area is −180°∼180°E, −65°∼75°N. The range of Digital Number (DN) values of each pixel is 0–63. The DN value directly indicates the intensity of the area's light. The DN value of the pixels in non-lit areas is zero. A pixel with a DN value of 63 is a saturation pixel and most of saturation is found in the core urban area [3638]. The nighttime light grid data images record the light intensity (indicated by the DN value) and spatial extent information of cities (indicated by the lit pixel counts). The lit areas representing urban area may “grow” slightly around their light source due to “blooming” and noisy data associated with the urban fringe areas. This has the effect of enlarging small towns and expanding the boundaries of large cities [39]. Using all the data in the NGDC city-lights data with DN > 7 were believed to represent urban areas [40]. By comparing many cities and rural areas, we consider DN > 10 as the city lights in this work. Therefore, these two attributes are adopted to construct area light indices. The calculation formula is:

ULI = 100 i = 10 max D N DN i max DN × C i sumC
where ULI is the nighttime urban light index and DNi is the calibrated DN value by Equation (1). Ci and sum C are the count of DNi and all lit pixels in a unit circle area, respectively. Here, DN i maxDN indicates the brightness which reflects the light intensity of each urban area, while C i sumC reflects the weight of DNi in unit circle extent. According to Equation (2), the Urban Light Indices (ULI) of the 34 prefecture-level cities were calculated within the unit circle extent.

3. Results

3.1. Urban Light Index (ULI)

As mentioned above, it is too hard to compare the urbanization level among various cities based on administrative area due to great differences either in spatial extent or population. In order to address this problem, a unit circle model is established in this paper, which is used to make a comparison about the scales, expansion rate of the built-up areas and the urbanization processes of different cities under the same standard. With each urban center as the center we buffered a circle area with a radius of 20 km in order to cover the built-up areas of each city.

Figure 3 shows the ULI results of the 34 prefecture-level cities in Northeastern China. As the most developed regional central cities in China, Harbin, Changchun, Shenyang and Dalian are also centers of economic and social development in the northeastern region. The evolution in population, economy and social activities in these four cities represents the urbanization level and progress in Northeast China. The systems of the northeastern cities are mainly divided into the following three levels: the first level, Harbin and Dalian traffic axis zone, integrates developed railways, highways, airports, ports and information network systems. In past twenty years, this axis city zone has further developed and become the backbone of urban and economic development in Northeastern China. In the second level are the mineral resource-based industrial cities, including Daqing, Shuang yashan, Qitaihe, Jilin, Siping, Fushun, Anshan, Benxi and Tieling. In the third level, some newly emerging tourist trade cities and port cities appear taking advantage of their proximity to the coastal area and borders. These cities mainly include Heihe, Dandong, Yingkou, Jinzhou and Huludao.

3.2. Urban Light Space

From the perspective of geographical space, two expansion forms in the built-up area, vertical continuation and horizontal development, happen in the urbanization process. The former enhances the intensity of urban light; while the later enlarges the extent of urban light. In this paper, the so-called Urban Light Space is the space illuminated by urban lights at night, and is not the actual urban area; rather, it is the spatial range of the urban light area observed by satellite at night. In accordance with different distributions in urban light intensity, the Urban Light Space is classified into four types: core urban area (DN 57–63), urban and suburban transition zone (DN 45–57), suburban area (DN 26–45) and urban fluorescence space (DN 11–25). Table2 shows the transformations and expansion ratio of urban light space types from 1992 to 2010.

3.3. The ULI and Traditional Urbanization Indicators

The urbanization level has become an important criterion for measuring the economic activities in a country or district and the level of social progress. Urbanization mainly includes three dynamic variations, i.e., population, economy and urban building areas. Three important urbanization indicators, population (proportion of non-agricultural population to total population), economy (proportion of output value of secondary and tertiary industries) and urban building area (built-up area), are selected in this paper to compare the variation in ULI. For statistical and remote sensing data, four sub-provincial cities, Harbin, Changchun, Shenyang and Dalian, were selected to analyze the characteristics of temporal and spatial urbanization process from 1992 to 2010 (Table 3).

4. Discussion

4.1. Spatial and Temporal Pattern Variation in Urban Light Indices (ULI)

During the past twenty years, the ULI in these four central cities underwent a fluctuating increase (Figure 4). The differences between the ULI increases of Harbin, Changchun and Shenyang are small, while that of Dalian increased greatly during the period from 1992 to 1998. That is because unprecedented and large-scale urban construction projects were completed in Dalian in the early and middle 1990s. After 20 years of development, a new pattern of urban space has formed around the bay of Dalian, including the old city, and two new districts, Jinzhou and Jingang.

The formation process of this pattern is based on urban population, economic activities and the dynamic variation of urban sizes. Meanwhile, urban nighttime light satellite images have objectively recorded the development track of temporal-spatial pattern variation of these cities. The urbanization level is higher than the average national level, and the dynamic mechanism is typical and of distinct characteristics during the urbanization process. Thirty four prefecture-level cities in Northeast China were selected to analyze the development of large cities in this region during the past twenty years (1992–2010). Four sub-provincial cities, Harbin, Changchun, Shenyang and Dalian are selected to analyze the characteristics of the temporal and spatial urbanization process on aspects of spatial expansion of urban lights and dynamic variation in urbanization indices (Figure 5).

The ULI of the 34 prefecture-level cities in Northeast China can reflect the development levels of these cities. In the ULI ranking of the 34 prefecture-level cities, it is no surprise that the four sub-provincial cities, Shenyang, Changchun, Harbin and Dalian, are on top of the ranking. Meanwhile, it can be noticed that the ULI of Daqing and Anshan unexpectedly rank in the second and the fifth place, respectively. That is because Daqing is a city growing up from the first oil field in China and there are approximately 3,500 (2010 data) oil wells working throughout the day and night in each district of the city. In addition, many petrochemical plants of this city are also lit, which makes ULI in Daqing much higher than in other cities. However, it can be found from the nighttime light images that the ULI range in Daqing is remarkable, as there are many discontinuous areas with low light intensity values, and the urban space structure has discrete multicenter characteristics (Figure 6). Similarly, Anshan is also a newly emerging industrial urban like Daqing. High-intensity lights from factories and workshops of the Anshan Iron and Steel Group and rock quarries around the urban area also lit at night, therefore, the light index of Anshan is listed in fifth place among 34 the northeastern cities.

These results suggest that urbanization level will be overestimated in industrial cities by using ULI. During the years from 1992 to 2010, the ULI of nearly all of the 34 prefecture-level cities in Northeast China had increased during different periods, especially from 2004 to 2010, when the ULI of all cities rose dramatically to varying degrees. There are two reasons: on one hand, the increase in urban light index is the result of urbanization. On the other hand, the lighting projects (also known as urban lights projects, which means lights in places with intensive population, such as malls, scenic spots and streets, to beautify the urban environment and improve the whole image of the city) have lit entire cities since the turn 21st century, with the improvement in economic level and further improvements of urban infrastructures during the period from 2004 to 2010, therefore, the ULI in large cities has risen sharply.

4.2. Trajectories and Scenarios of Urban Light Space Evolution

With the center of each city as the center of a circle, a circular region with a radius of 20 km is established in each Urban Light Space. Figure 7 shows the morphological characteristics and spatial and temporal evolution of four sub-provincial cities. At the same time, the Urban Light Spaces of these four cities in each stage show a trend of obvious expansion from 1992 to 2010 (Figure 8).

Shenyang is a core city in the northeast area, and its Urban Light Space area is also listed at the top of these four cities. The light space in the Shenyang core urban area has undergone two rapid expansion periods, from 1992 to 1998 and from 2004 to 2010. The light space in the core urban reaches 834 km2. The urban process has further quickened since the proposal of the Shenyang and Fushun development plan. The ecological landscape corridor, with Hun River as the axis and the new city of Shenfu (the fusion of the cities of Shenyang and Fushun) make these two cities closely related, and the effect of urban integration of “one urban, two districts and an area” has become increasingly more obvious.

Judging from the spatial-temporal evolution of the light space, the urban spatial morphology of Dalian has developed dramatically in past twenty years along Liaodong Peninsula. The expansion of light space in the core urban area reached the peak in the 1990s, after which it gradually slowed down. However, the light space Dalian city as a whole continues to display a stable rising tendency. Dalian is located at the southernmost point of the Liaodong Peninsula. The urban space can only be expanded along the axis of the peninsula to north and developed vertically to the south due to the geographical space limitations. Large-scale urban construction and reconstruction projects were carried out in Dalian in the 1990s. After twenty years of development, a new urban space pattern connecting the old city of Dalian and the new cities of Jinzhou and Jingang has formed around Dalian Bay. Changchun City rapidly developed from 2004 to 2010. The original concentric circle surface structure form of expansion changed to a dispersed group development trend. With the transfer of the city center, Xinlong, Jingyue and Fufeng groups were formed around the old urban space. Viewed from the Urban Light Space of the evolution process diagram (Figure 8), the urban space of Harbin is farther south and north and has a flourishing central area. During the recent twenty years, the light area of the core city has increased from 154 km2 to 579 km2. The suburban transition zone is gradually expanding outwards, and the rate of suburban urbanization has further increased since the beginning of the 21st century.

Due to light scattering and diffraction effects, fluorescence spaces with large areas have formed around the cities. Generally speaking, the spatial area of urban light is much larger than the actual range of the urban areas. However, the history of the formation and evolution of Urban Light Space can faithfully reflect the objective features of urban space evolution. Meanwhile, we must admit that the lighting projects in cities will inevitably influence the Urban Light Space, which is also one reason of uncertainty in this research.

4.3. Relevance Analysis between the ULI and Traditional Urbanization Indicators

Urbanization is a comprehensive human activity phenomenon accompanying the process in which a large rural population migrates to the city, the city economy develops rapidly, and the urban space constantly expands in the horizontal and vertical directions. Population, economic activity and built-up are significant indicators for the regional urbanization process. Some scholars have proposed that urban population, economic activities, built-up area and Urban Light Space range are of high relevance [4143].

Various urbanization indicators of the four sub-provincial northeastern cities from 1992 to 2010 are analyzed in this paper along with urban light indices. Table 2 and Figure 8 further illustrate that ULI has a strong correlation with urban built-up area (R2 = 0.8277) but low correlation with an urban population and economic activities. In China, government policy plays a crucial role in the build-up areas which is the key factor of city light. In areas with a high level of economic development, both the intensity of city light and the area of Urban Light Space can be clearly observed in the remote sensing images of night lights. Due to the existence of light scattering and diffraction effects, the Urban Light Space, more often than not, exceeds the range of the real city space. It is worth noting that DMSP/OLS night light images can still accurately show the features of variation in city space structures. Moreover, the city light index and the built-up area are of high relevance for statistical data (Figure 9a).

5. Conclusions

The urbanization process exhibits obvious geographical spatial attributes. DMSP/OLS night light data has become a better choice for urbanization research than other daytime satellite data for the following two reasons: (1) the spatial resolution of DMSP/OLS night light data is 1 km, it is are able to cover all human residential areas in the World and are applicable for regional urbanization research [44,45]; (2) against a dark background, the night light data images remove the disturbances of redundant information on city surface landscapes in daytime images so they can sensitively capture the outline of the cities, which is beneficial for extracting city space information.

In this paper, an ULI is constructed to analyze and quantitatively evaluate the speed and process of urbanization by using DMSP/OLS Nighttime Light Data from the period from 1992 to 2010. The urban light intensity is able to reflect the agglomeration level of a city's population and economic activities, while, the variation in Urban Light Space records the trace of urban space expansion.

To compare the urbanization levels in different cities under the same standard, a unit circle urbanization evaluation model is established in this paper to comprehensively analyze the urbanization process in 34 prefecture cities in Northeast China during the recent twenty years (1992–2010). Influenced by factors such as location, history and politics, there are considerable regional differences in the administrative areas of the different cities and population sizes, with no transverse comparability. Therefore, urbanization research with the administrative area as the evaluation unit cannot objectively reflect the true development rate and evolution. To a large extent, the unit circle model removes the disadvantages of urbanization research with the administrative area as the evaluation unit. Comparatively speaking, the unit circle model is more applicable to the evaluation and research of urbanization level among cities within a region.

By comparing the relevance analysis on ULI and traditional urbanization indices (urban population, proportion of GDP in the secondary and tertiary industries and the built-up area), Urban Light Indices (ULI) are evaluated to research the advantages and disadvantages as well as the feasibility of urbanization research. The research results show that ULI, urban population, economic indicators and area of built-up areas in cities are of strong relevance. The form of Urban Light Space and the history of development can faithfully reflect the objective features of urban space evolution. There is linear relevance among the urban population, economic activity, built-up area and linearity of ULI (the correlation coefficients are 0.3, 0.2 and 0.8, respectively). The concept of Urban Light Space is put forward in this paper for the first time. The Urban Light Space is divided into core urban area, suburban transition zone, suburban area and urban fluorescence space. In accordance with different distributions in urban light intensity, the Urban Light Space is divided into core urban area (DN 57–63), suburban transition zone (DN 45–57), suburban area (DN 25–45) and urban fluorescence space (DN 15–25). Viewed from the temporal and spatial variation of these four light space types, the urban forms and temporal and spatial evolution patterns of the four northeastern cities of Harbin, Changchun, Shenyang and Dalian, are paid particular attention in this paper. The results revealed that the ULI and Urban Light Space can accurately reflect the features of temporal and spatial pattern of cities in the urbanization process. It is further illustrated that DMSP/OLS night light data is more applicable to urban space information extraction and urbanization process research.

This study would not have been possible without the financial support from the Mitsui & Co., Ltd., Environment Fund Research Grants (R09-C076), Japan. We would like to thank NOAA-NGDC for providing DMSP data used in this research. The authors are grateful to the anonymous reviewers for their insightful and helpful comments to improve the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bhatta, B.; Saraswati, S.; Bandyopadhyay, D. Quantifying the degree-of-freedom, degree-of-sprawl, and degree-of-goodness of urban growth from remote sensing data. Appl. Geogr. 2010, 30, 96–111. [Google Scholar]
  2. Chaolin, G.U.; Liya, W.U.; Cook, I. Progress in research on Chinese urbanization. Front. Archit. Res. 2012, 1, 101–149. [Google Scholar]
  3. Han, J.; Hayashi, Y.; Cao, X.; Imura, H. Application of an integrated system dynamics and cellular automata model for urban growth assessment: A case study of Shanghai, China. Landsc. Urban Plan. 2009, 91, 133–141. [Google Scholar]
  4. Chang, G.H.; Brada, J.C. The paradox of China's growing under-urbanization. Econ. Syst. 2006, 30, 24–40. [Google Scholar]
  5. Feng, Y.; Kugler, J.; Zak, P.J. Population growth, urbanisation and the role of government in China: A political economic model of demographic change. Urban Stud. 2002, 39, 2329–2343. [Google Scholar]
  6. Shen, J.F.; Wong, K.Y.; Feng, Z.Q. State-sponsored and spontaneous urbanization in the Pearl River Delta of South China 1980–1998. Urban Geogr. 2002, 23, 674–694. [Google Scholar]
  7. Chen, A.M.; Gao, J. Urbanization in China and the coordinated development model-the case of Chengdu. Soc. Sci. J. 2011, 48, 500–513. [Google Scholar]
  8. Monda, K.L.; Gordon-Larsen, P.; Stevens, J.; Popkin, B.M. China's transition: The effect of rapid urbanization on adult occupational physical activity. Soc. Sci. Med. 2007, 64, 858–870. [Google Scholar]
  9. Song, S.F.; Zhang, K.H. Urbanization and city size distribution in China. Urban Stud. 2002, 39, 2317–2327. [Google Scholar]
  10. Li, S.M. Population migration and urbanization in China: A comparative analysis of the 1990 population census and the 1995 national one percent sample population survey. Int. Migr. Rev. 2004, 38, 655–685. [Google Scholar]
  11. Michishita, R.; Jiang, Z.B.; Xu, B. Monitoring two decades of urbanization in the Poyang Lake area, China through spectral unmixing. Remote Sens. Environ. 2012, 117, 3–18. [Google Scholar]
  12. Xiong, Y.Z.; Huang, S.P.; Chen, F.; Ye, H.; Wang, C.P.; Zhu, C.B. The impacts of rapid urbanization on the thermal environment: A remote sensing study of Guangzhou, South China. Remote Sens. 2012, 4, 2033–2056. [Google Scholar]
  13. Jin, M.S.; Kessomkiat, W.; Pereira, G. Satellite-observed urbanization characters in Shanghai, China: Aerosols, urban heat island effect, and land-atmosphere interactions. Remote Sens. 2011, 3, 83–99. [Google Scholar]
  14. Ng, C.N.; Xie, Y.J.; Yu, X.J. Measuring the spatio-temporal variation of habitat isolation due to rapid urbanization: A case study of the Shenzhen River cross-boundary catchment, China. Landsc. Urban Plan. 2011, 103, 44–54. [Google Scholar]
  15. Thapa, R.B.; Murayama, Y. Examining spatiotemporal urbanization patterns in Kathmandu Valley, Nepal: Remote sensing and spatial metrics approaches. Remote Sens. 2009, 1, 534–556. [Google Scholar]
  16. Rahman, A.; Agarwal, S.; Sarkar, A. Assessing urbanization and quality of urban environment using remote sensing and GIS in east Delhi. Epidemiology 2007, 18, S80–S81. [Google Scholar]
  17. Spies, T.A.; Lindenmayer, D.B.; Gill, A.M.; Stephens, S.L.; Agee, J.K. Challenges and a checklist for biodiversity conservation in fire-prone forests: Perspectives from the Pacific Northwest of USA and Southeastern Australia. Biol. Conserv. 2012, 145, 5–14. [Google Scholar]
  18. Chowdhury, P.K.R.; Maithani, S.; Dadhwal, V.K. Estimation of urban population in Indo-Gangetic Plains using night-time OLS data. Int. J. Remote Sens. 2012, 33, 2498–2515. [Google Scholar]
  19. Chowdhury, P.K.R.; Maithani, S. Monitoring growth of built-up areas in indo-gangetic plain using multi-sensor remote sensing data. J. Indian Soc. Remote 2010, 38, 291–300. [Google Scholar]
  20. Elvidge, C.D.; Baugh, K.E.; Dietz, J.B.; Bland, T.; Sutton, P.C.; Kroehl, H.W. Radiance calibration of DMSP-OLS low-light imaging data of human settlements. Remote Sens. Environ. 1999, 68, 77–88. [Google Scholar]
  21. Imhoff, M.L.; Bounoua, L.; DeFries, R.; Lawrence, W.T.; Stutzer, D.; Tucker, C.J.; Ricketts, T. The consequences of urban land transformation on net primary productivity in the United States. Remote Sens. Environ. 2004, 89, 434–443. [Google Scholar]
  22. Ma, T.; Zhou, C.; Pei, T.; Haynie, S.; Fan, J. Quantitative estimation of urbanization dynamics using time series of DMSP/OLS nighttime light data: A comparative case study from China's cities. Remote Sens. Environ. 2012, 124, 99–107. [Google Scholar]
  23. Zhang, Q.; Seto, K.C. Mapping urbanization dynamics at regional and global scales using multi-temporal DMSP/OLS nighttime light data. Remote Sens. Environ. 2011, 115, 2320–2329. [Google Scholar]
  24. Milesi, C.; Elvidge, C.D.; Nemani, R.R.; Running, S.W. Assessing the impact of urban land development on net primary productivity in the southeastern United States. Remote Sens. Environ. 2003, 86, 401–410. [Google Scholar]
  25. Liu, Z.; He, C.; Zhang, Q.; Huang, Q.; Yang, Y. Extracting the dynamics of urban expansion in China using DMSP-OLS nighttime light data from 1992 to 2008. Landsc. Urban Plan. 2012, 106, 62–72. [Google Scholar]
  26. Small, C.; Pozzi, F.; Elvidge, C. Spatial analysis of global urban extent from DMSP-OLS night lights. Remote Sens. Environ. 2005, 96, 277–291. [Google Scholar]
  27. National Bureau of Statistics of China. Urban Statistical Yearbook of China 1993; China Statistics Press: Beijing, China, 1993. [Google Scholar]
  28. National Bureau of Statistics of China. Urban Statistical Yearbook of China 1999; China Statistics Press: Beijing, China, 1999. [Google Scholar]
  29. National Bureau of Statistics of China. Urban Statistical Yearbook of China 2005; China Statistics Press: Beijing, China, 2005. [Google Scholar]
  30. National Bureau of Statistics of China. Urban Statistical Yearbook of China 2011; China Statistics Press: Beijing, China, 2011. [Google Scholar]
  31. Small, C.; Elvidge, C.D.; Balk, D.; Montgomery, M. Spatial scaling of stable night lights. Remote Sens. Environ. 2011, 115, 269–280. [Google Scholar]
  32. Lo, C.P. Modeling the population of China using DMSP operational linescan system nighttime data. Photogramm. Eng. Remote Sens. 2001, 67, 1037–1047. [Google Scholar]
  33. Miller, J.D.; Knapp, E.E.; Key, C.H.; Skinner, C.N.; Isbell, C.J.; Creasy, R.M.; Sherlock, J.W. Calibration and validation of the Relative differenced Normalized Burn Ratio (RdNBR) to three measures of fire severity in the Sierra Nevada and Klamath Mountains, California, USA. Remote Sens. Environ. 2009, 113, 645–656. [Google Scholar]
  34. Elvidge, C.; Ziskin, D.; Baugh, K.; Tuttle, B.; Ghosh, T.; Pack, D.; Erwin, E.; Zhizhin, M. A fifteen year record of global natural gas flaring derived from satellite data. Energies 2009, 2, 595–622. [Google Scholar]
  35. Pandey, B.; Joshi, P.K.; Seto, K.C. Monitoring urbanization dynamics in India using DMSP/OLS night time lights and SPOT-VGT data. Int. J. Appl. Earth Obs. Geoinf. 2013, 23, 49–61. [Google Scholar]
  36. Elvidge, C.D.; Baugh, K.E.; Kihn, E.A.; Kroehl, H.W.; Davis, E.R. Mapping city lights with nighttime data from the DMSP operational linescan system. Photogramm. Eng. Remote Sens. 1997, 63, 727–734. [Google Scholar]
  37. Owen, T.W. Using DMSP-OLS light frequency data to categorize urban environments associated with US climate observing stations. Int. J. Remote Sens. 1998, 19, 3451–3456. [Google Scholar]
  38. Letu, H.; Hara, M.; Tana, G.; Nishio, F. A Saturated Light Correction Method for DMSP/OLS Nighttime Satellite Imagery. IEEE Trans. Geosci. Remote Sens. 2012, 50, 389–396. [Google Scholar]
  39. Imhoff, M.L.; Lawrence, W.T.; Stutzer, D.C.; Elvidge, C.D. A technique for using composite DMSP/OLS “City Lights” satellite data to map urban area. Remote Sens. Environ. 1997, 61, 361–370. [Google Scholar]
  40. Sutton, P.C. A scale-adjusted measure of Urban sprawl using nighttime satellite imagery. Remote Sens. Environ. 2003, 86, 353–369. [Google Scholar]
  41. He, C.Y.; Shi, P.J.; Li, J.G.; Chen, J.; Pan, Y.Z.; Li, J.; Zhuo, L.; Toshiaki, I. Restoring urbanization process in China in the 1990s by using non-radiance calibrated DMSP/OLS nighttime light imagery and statistical data. Chin. Sci. Bull. 2006, 51, 1614–1620. [Google Scholar]
  42. Lo, C.P. Urban indicators of China from radiance-calibrated digital DMSP-OLS nighttime images. Ann. Assoc. Am. Geogr. 2002, 92, 225–240. [Google Scholar]
  43. Imhoff, M.L.; Lawrence, W.T.; Elvidge, C.D.; Paul, T.; Levine, E.; Privalsky, M.V. Using nighttime DMSP/OLS images of city lights to estimate the impact of urban land use on soil resources in the United States. Remote Sens. Environ. 1997, 59, 105–117. [Google Scholar]
  44. He, C.Y.; Ma, Q.; Li, T.; Yang, Y.; Liu, Z.F. Spatiotemporal dynamics of electric power consumption in Chinese Mainland from 1995 to 2008 modeled using DMSP/OLS stable nighttime lights data. J. Geogr. Sci. 2012, 22, 125–136. [Google Scholar]
  45. Wang, W.; Cheng, H.; Zhang, L. Poverty assessment using DMSP/OLS night-time light satellite imagery at a provincial scale in China. Adv. Space Res. 2012, 49, 1253–1264. [Google Scholar]
Sensors 14 03207f1 1024
Figure 1. Northeast China is a geographical region of China, consisting of the three provinces of Liaoning, Jilin and Heilongjiang. There are four sub-provincial cities (Harbin, Changchun, Shenyang, Dalian) and 34 prefecture-level cities in the study region.

Click here to enlarge figure

Figure 1. Northeast China is a geographical region of China, consisting of the three provinces of Liaoning, Jilin and Heilongjiang. There are four sub-provincial cities (Harbin, Changchun, Shenyang, Dalian) and 34 prefecture-level cities in the study region.
Sensors 14 03207f1 1024
Sensors 14 03207f2 1024

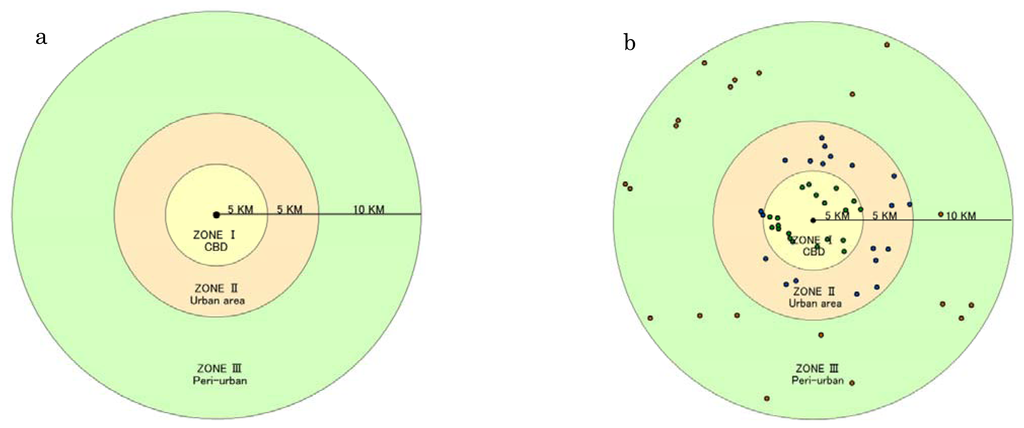

Figure 2. Unit circle model (a) and sample points (b).

Click here to enlarge figure

Figure 2. Unit circle model (a) and sample points (b).
Sensors 14 03207f2 1024
Sensors 14 03207f3 1024

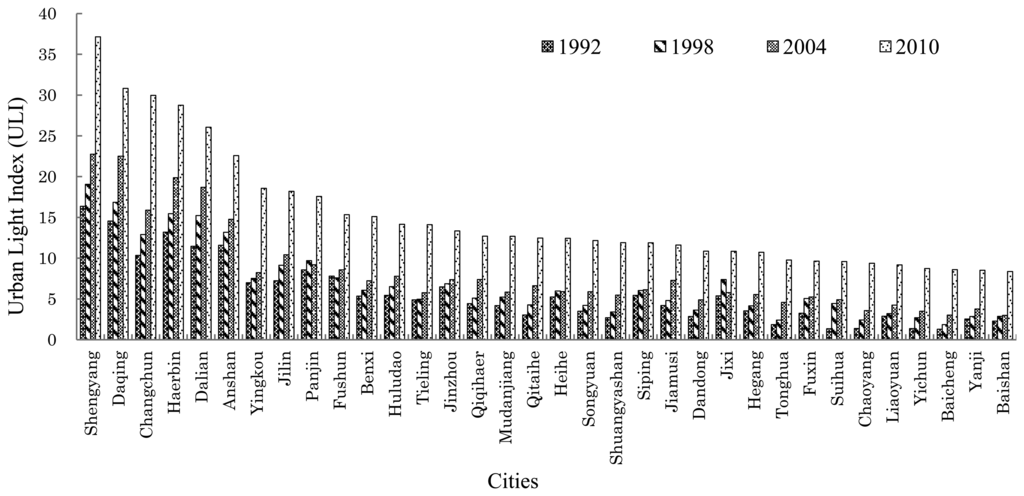

Figure 3. ULI dynamics in the Northeast region of China.

Click here to enlarge figure

Figure 3. ULI dynamics in the Northeast region of China.
Sensors 14 03207f3 1024
Sensors 14 03207f4 1024

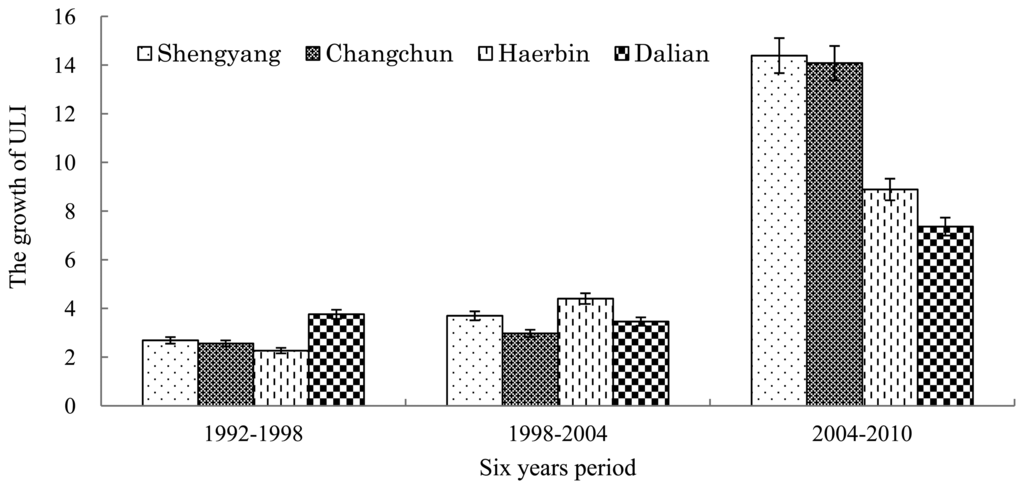

Figure 4. ULI growth of four sub-provincial cities.

Click here to enlarge figure

Figure 4. ULI growth of four sub-provincial cities.
Sensors 14 03207f4 1024
Sensors 14 03207f5 1024

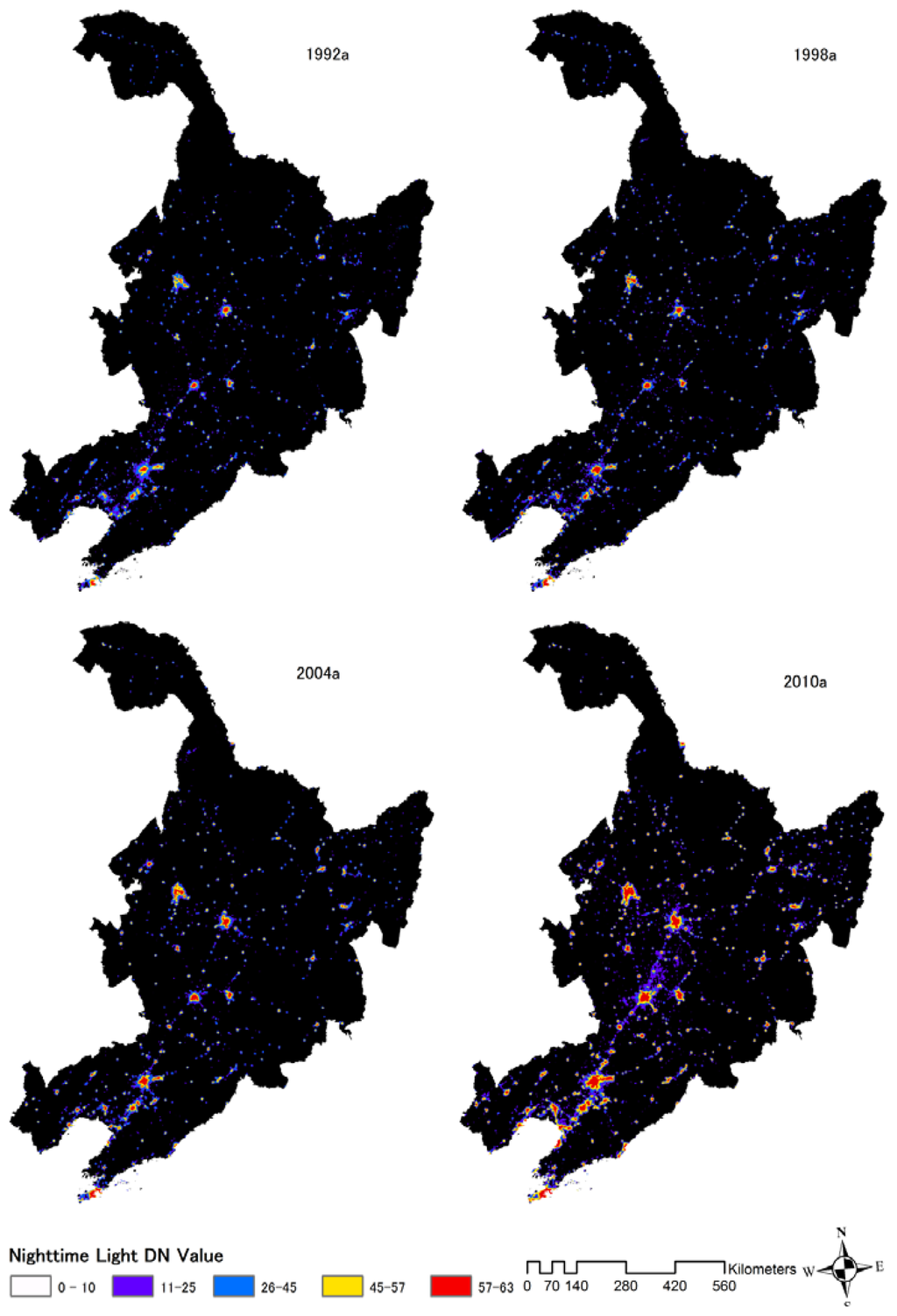

Figure 5. Urban nighttime light dynamics in the Northeast of China from 1992 to 2010.

Click here to enlarge figure

Figure 5. Urban nighttime light dynamics in the Northeast of China from 1992 to 2010.
Sensors 14 03207f5 1024
Sensors 14 03207f6 1024

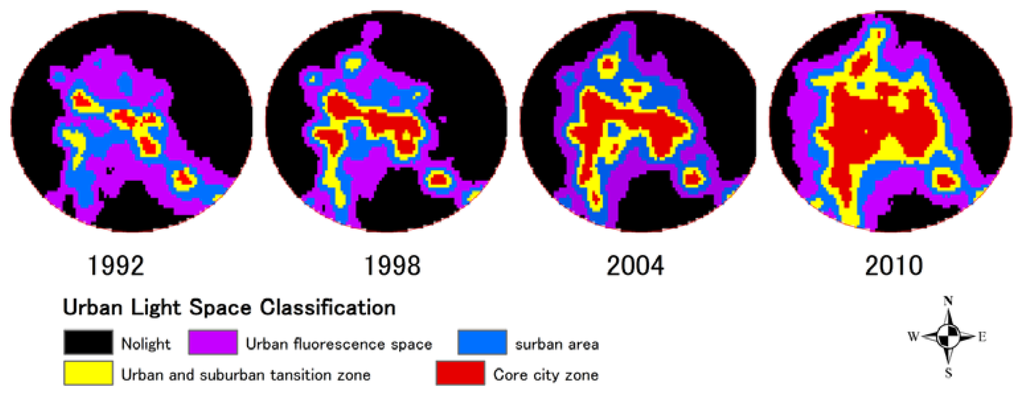

Figure 6. The trajectories of multicenter city in the urbanization process (such as Daqing city).

Click here to enlarge figure

Figure 6. The trajectories of multicenter city in the urbanization process (such as Daqing city).
Sensors 14 03207f6 1024
Sensors 14 03207f7 1024
Figure 7. Maps of the morphology evolutions of four sub-provincial cities.

Click here to enlarge figure

Figure 7. Maps of the morphology evolutions of four sub-provincial cities.
Sensors 14 03207f7 1024
Sensors 14 03207f8 1024

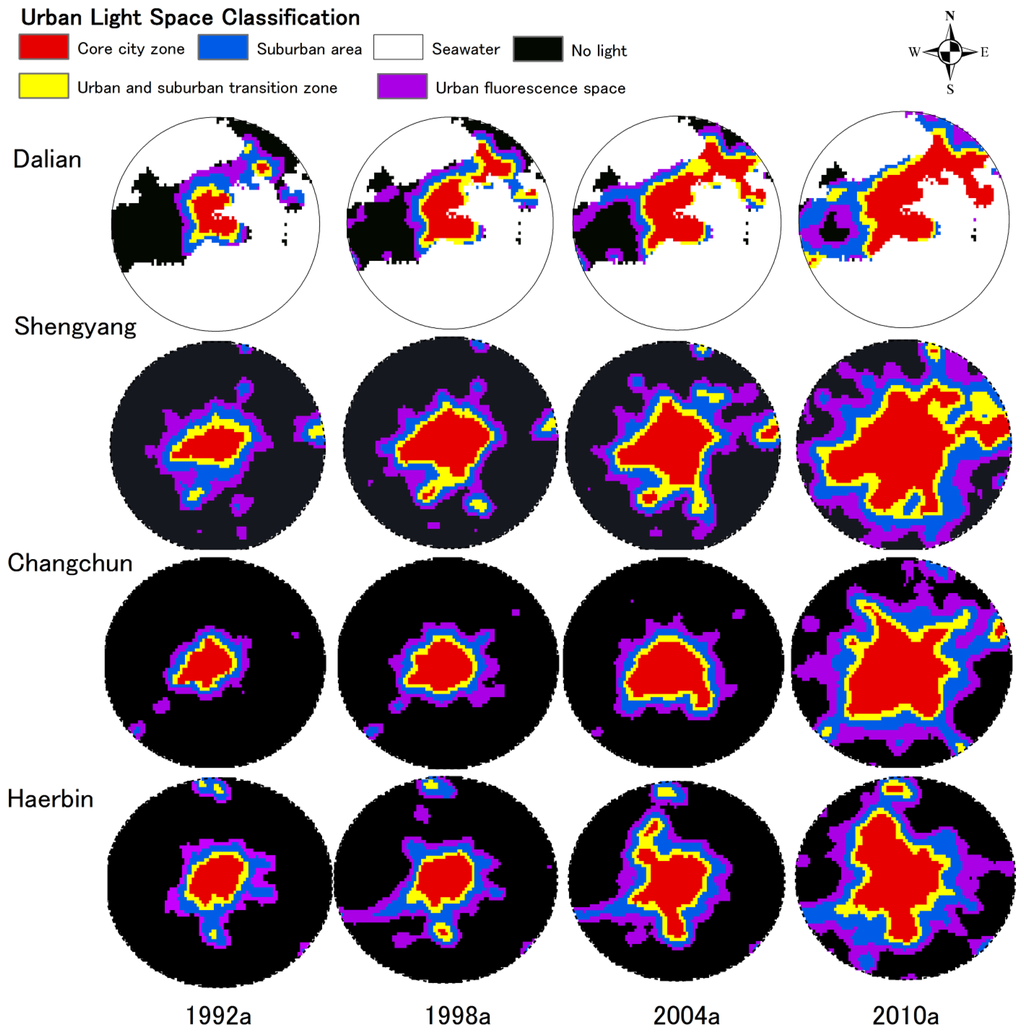

Figure 8. Urban light space sprawl scenarios of four sub-provincial cities from 1992 to 2010.

Click here to enlarge figure

Figure 8. Urban light space sprawl scenarios of four sub-provincial cities from 1992 to 2010.
Sensors 14 03207f8 1024
Sensors 14 03207f9 1024

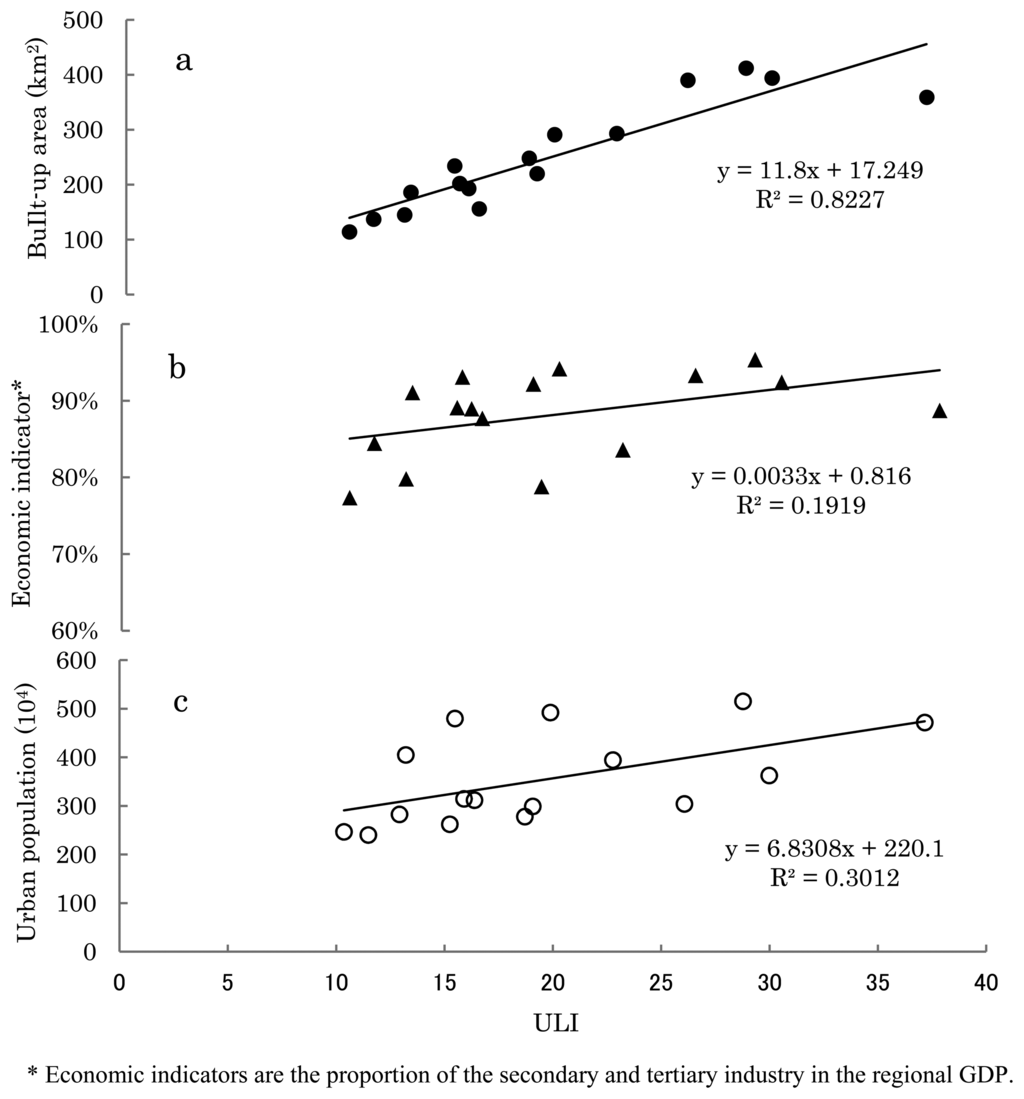

Figure 9. Correlation between nighttime light index and common urbanization indicators. (a) BuIlt-up area, (b) Economic indicator, (c) Urban population.

Click here to enlarge figure

Figure 9. Correlation between nighttime light index and common urbanization indicators. (a) BuIlt-up area, (b) Economic indicator, (c) Urban population.
Sensors 14 03207f9 1024
Table Table 1. Equations for intercalibrating the annual nighttime lights products. The adjusted digital number (DN) is created by the application of this formula. The coefficients are empirically derived by comparing images of China region with F162007.

Click here to display table

Table 1. Equations for intercalibrating the annual nighttime lights products. The adjusted digital number (DN) is created by the application of this formula. The coefficients are empirically derived by comparing images of China region with F162007.
SatelliteYearcbaR2Second-Order Regression
F1019921.02870.08950.00850.721y = 0.0085x2 + 0.0895x + 1.0287
19931.31810.06610.00840.747y = 0.0084x2 + 0.0661x + 1.3181
19941.24650.06290.00910.751y = 0.0091x2 + 0.0629x + 1.2465

F1219940.80220.21500.00850.795y = 0.0085x2 + 0.215x + 0.8022
19951.30610.17060.00900.808y = 0.009x2 + 0.1706x + 1.3061
19961.19850.17100.00870.808y = 0.009x2 + 0.171x + 1.1985
19971.17410.25260.00840.827y = 0.0084x2 + 0.2526x + 1.1741
19981.18380.29280.00810.849y = 0.0081x2 + 0.2928x + 1.1838
19990.93260.29280.00840.858y = 0.0084x2 + 0.2985x + 0.9326

F1419971.29300.03260.01070.795y = 0.0107x2 + 0.0326x + 1.293
19981.45490.05810.01060.822y = 0.0106x2 + 0.0581x + 1.4549
19991.41910.07380.01080.838y = 0.0106x2 +0.0738x + 1.4191
20001.39430.12750.01010.848y = 0.0101x2 + 0.1275x + 1.3943
20011.25230.20120.00970.872y = 0.0097x2 + 0.2012x + 1.2523
20020.93660.29670.00930.901y = 0.0093x2 + 0.2967x + 0.9366
20030.63640.41010.00830.933y = 0.0083x2 + 0.4101x + 0.6364

F1520001.43300.33340.00790.868y = 0.0079x2 + 0.3334x + 1.433
20011.36630.36120.00760.881y = 0.0076x2 + 0.3612x +1.3663
20021.08140.52670.00600.917y = 0.006x2 + 0.5267x + 1.0814
20030.90640.27740.00960.923y = 0.0096x2 + 0.2774x + 0.9064
20040.63440.40760.00830.946y = 0.0083x2 + 0.4076x +0.6344
20050.62810.48500.00710.955y = 0.0071x2 + 0.485x + 0.6281
20060.25040.60420.00570.979y = 0.0057x2 + 0.6042x + 0.2504
20070.17750.63080.00490.983y =0.0049x2 +0.6308x + 0.1775

F1620040.75640.64030.00500.936y = 0.005x2 + 0.6403x + 0.7564
20050.86150.46480.00730.963y = 0.0073x2 + 0.4648x + 0.8615
20060.21730.78220.00290.976y = 0.0029x2 + 0.7822x + 0.2173
20070.00001.00000.00001.000y = x
2008−0.08701.0258−0.00030.983y = −0.0003x2 + 1.0258x − 0.0870
20090.00571.0388−0.00170.897y = −0.0017x2 + 1.0388x + 0.0057

F1820101.37430.12770.01210.848y = 0.0121x2 + 0.1277x + 1.3743
Table Table 2. Nighttime urban light space classes and their dynamics.

Click here to display table

Table 2. Nighttime urban light space classes and their dynamics.
CityYearCore Urban AreaTransition
Zone
Suburban
Area
Fluorescence
Space
Light Space of Whole
Urban

Area
(km2)
Expansion
Ratio (%)
Area
(km2)
Area
(km2)
Area
(km2)
Total Area
(km2)
Expansion
Ratio (%)
Haerbin1992154.5690.39242.19222.18709.5
1998181.4717.4%105.57284.97328.44901.227.0%
2004319.4776.0%186.3360.87350.521219.335.3%
2010579.681.4%247.71557.52585.811972.861.8%

Changchun1992124.8953.82103.5144.9427.2
1998184.9248.1%75.21155.94224.25641.950.2%
2004283.5953.4%104.19171.12224.94785.122.3%
2010580.98104.9%273.24552644.462056.1161.9%

Shenyang1992134.55123.51271.86345875.1
1998304.98126.7%157.32244.95282.9991.813.3%
2004376.7423.5%224.25371.22382.951356.736.8%
2010834.21121.4%405.03612.03578.912433.579.4%

Dalilan1992112.4781.42184.92144.21523.2
1998233.22107.4%124.89154.56144.21658.525.9%
2004349.8350.0%132.48145.59152.49781.118.6%
2010460.9231.8%131.1260.82146.971001.228.2%
Table Table 3. ULI and urbanization indicators of four cities.

Click here to display table

Table 3. ULI and urbanization indicators of four cities.
CityYearULITraditional Urbanization Indicators

Urban Population (104)Economic Indicators *(%)Built-up Area (km2)
Shenyang199216311.9887.7%156
199819.07299.1678.8%220
200422.77394.5483.6%293
201037.16471.7988.7%359

Changchun199210246.8177.4%114
199812.92282.6979.8%145
200415.90314.789.0%193
201029.98362.7592.4%394

Haerbin199213405.191.1%186
199815.48479.9993.1%202
200419.89492.3494.2%291
201028.77515.4295.4%412

Dalilan199211240.3384.5%137
199815.24262.489.1%234
200418.71278.0992.2%248
201026.07304.2693.3%390

*Economic indicator is the proportion of the secondary and tertiary industry in the regional GDP.

Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
