Sensors 2014, 14(12), 23337-23347; doi:10.3390/s141223337

A High-Performance LC Wireless Passive Pressure Sensor Fabricated Using Low-Temperature Co-Fired Ceramic (LTCC) Technology

1
Key Laboratory of Instrumentation Science & Dynamic Measurement, Ministry of Education, North University of China, Tai Yuan 030051, China
2
Science and Technology on Electronic Test & Measurement Laboratory, North University of China, Tai Yuan 030051, China
*
Authors to whom correspondence should be addressed.
Received: 21 October 2014 / Revised: 18 November 2014 / Accepted: 27 November 2014 / Published: 5 December 2014
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [6133 KB, uploaded 5 December 2014]   |

Abstract

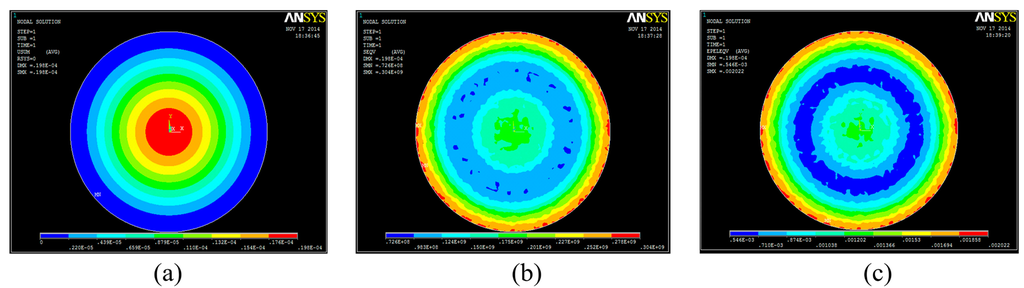

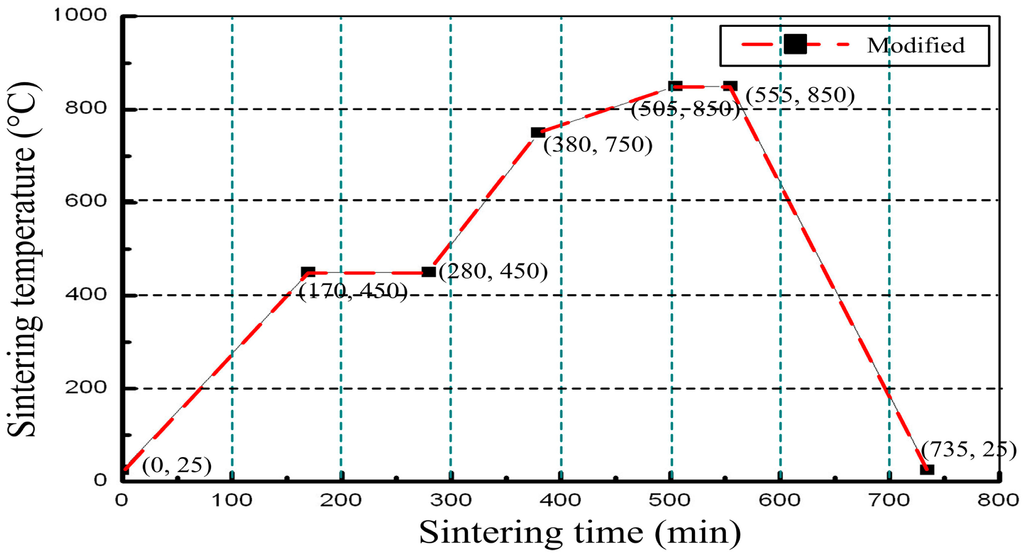

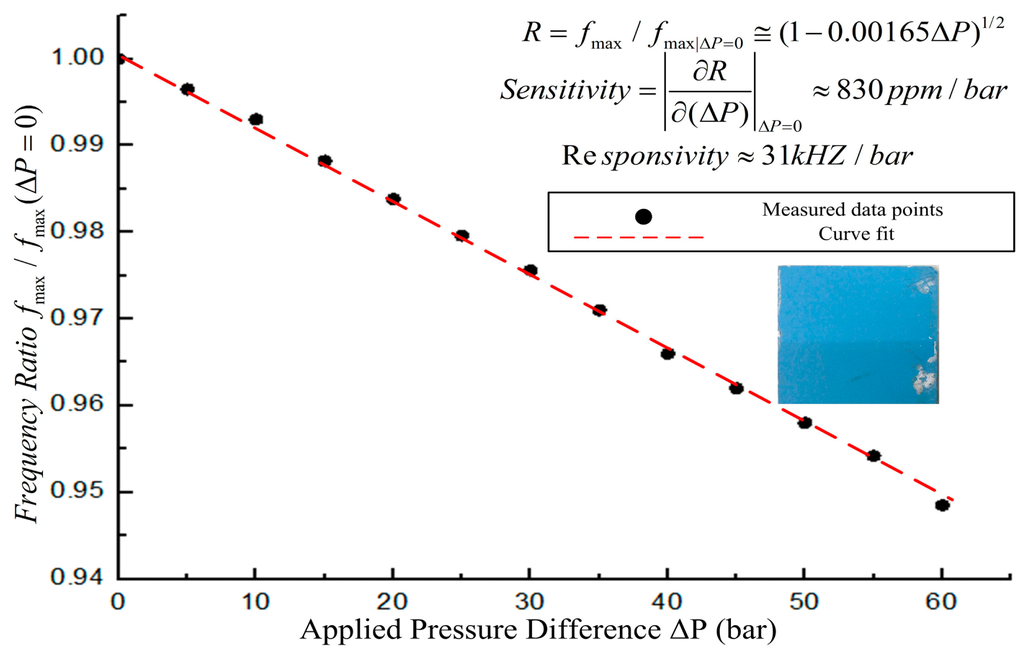

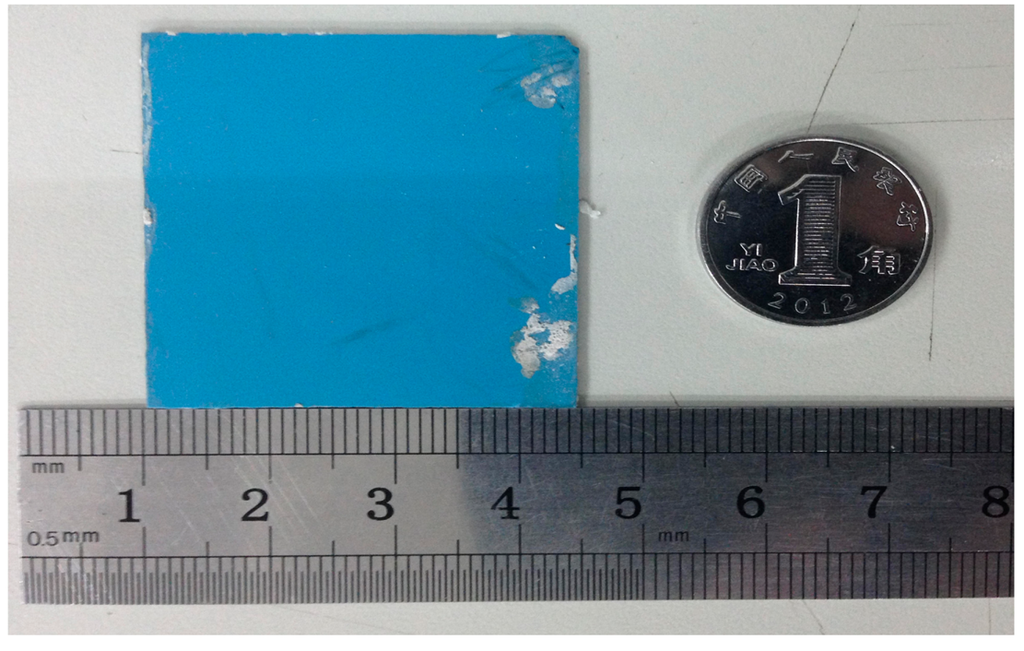

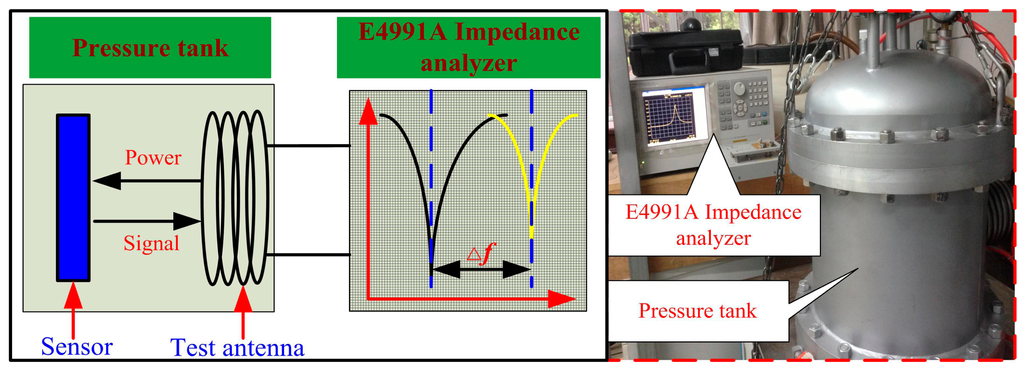

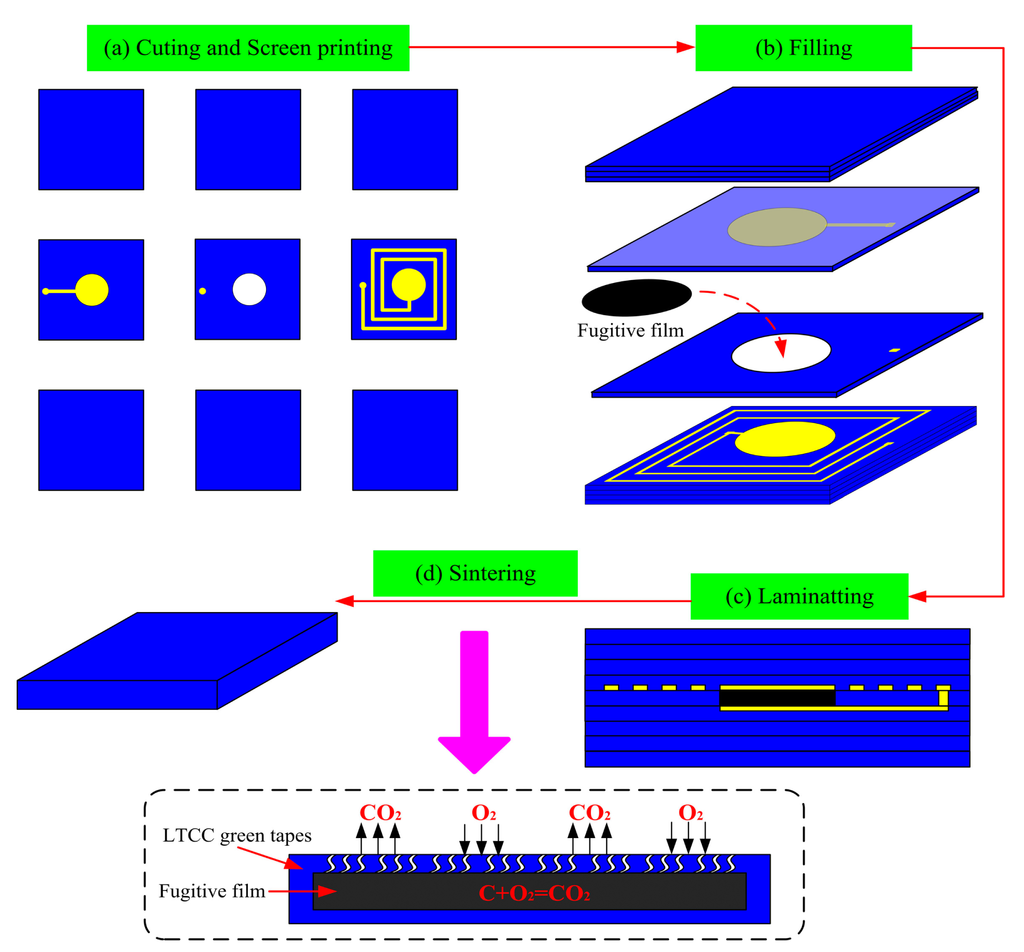

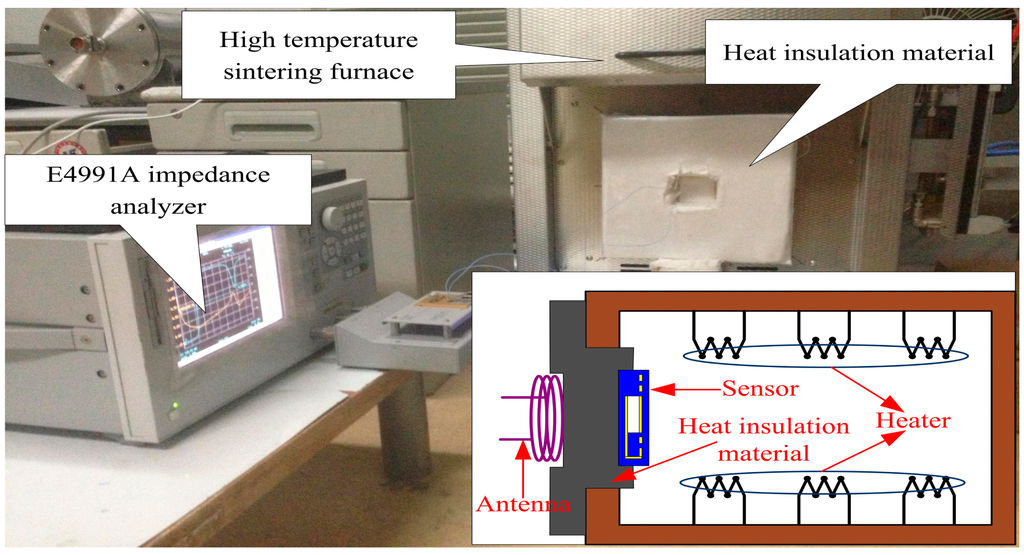

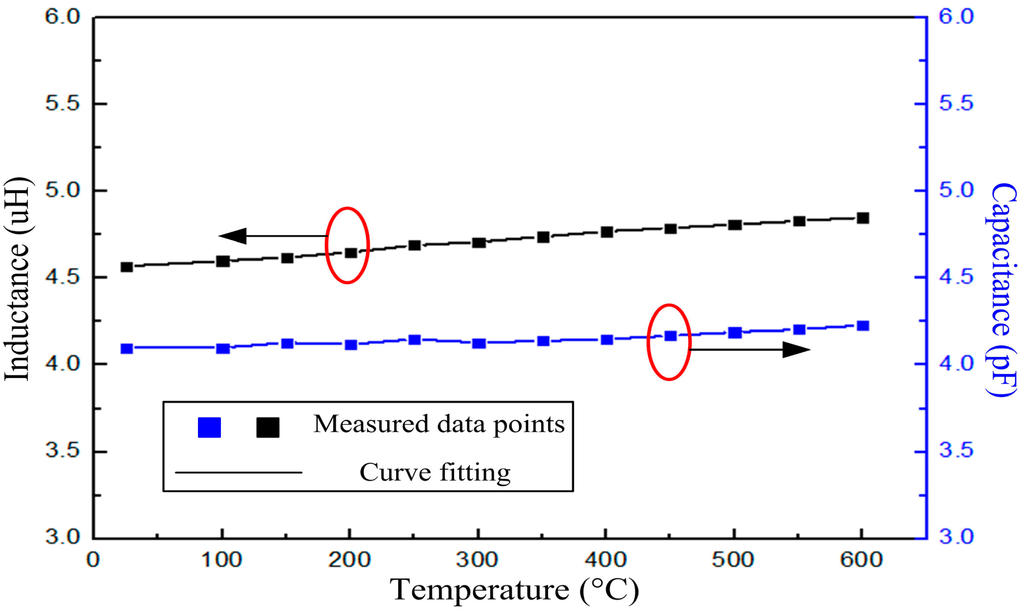

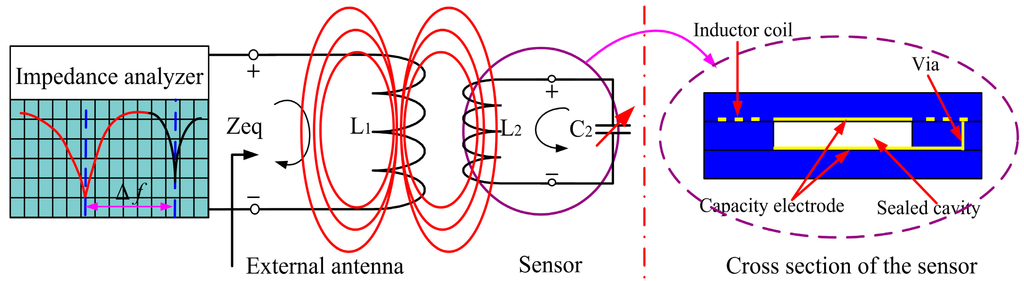

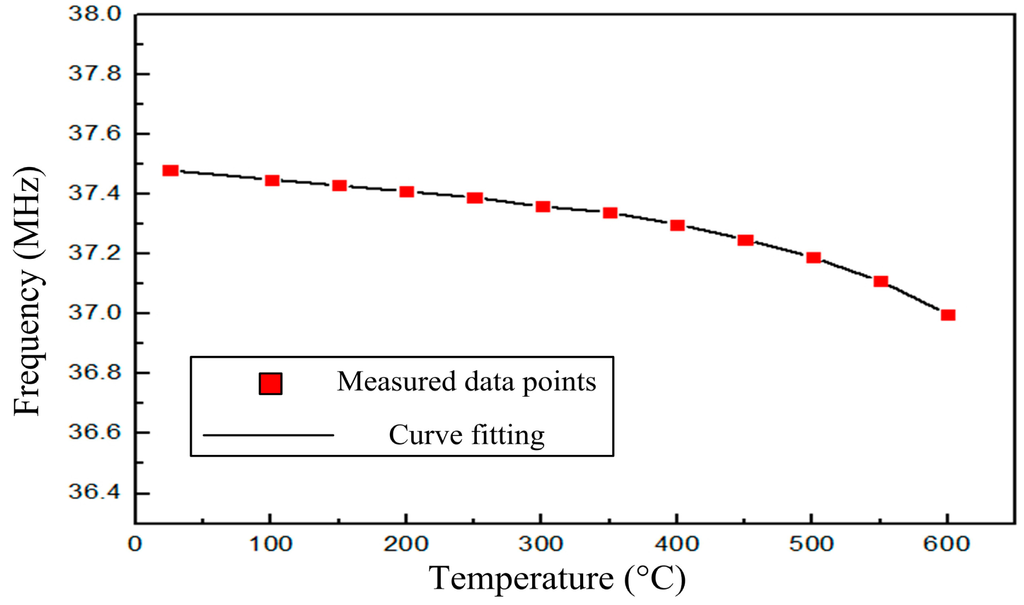

An LC resonant pressure sensor with improved performance is presented in this paper. The sensor is designed with a buried structure, which protects the electrical components from contact with harsh environments and reduces the resonant-frequency drift of the sensor in high-temperature environments. The pressure-sensitive membrane of the sensor is optimized according to small-deflection-plate theory, which allows the sensor to operate in high-pressure environments. The sensor is fabricated using low-temperature co-fired ceramic (LTCC) technology, and a fugitive film is used to create a completed sealed embedded cavity without an evacuation channel. The experimental results show that the frequency drift of the sensor versus the temperature is approximately 0.75 kHz/°C, and the responsivity of the sensor can be up to 31 kHz/bar within the pressure range from atmospheric pressure to 60 bar. View Full-Text
Keywords: wireless passive pressure sensor; LTCC technology; high temperature characterization; high pressure characterization wireless passive pressure sensor; LTCC technology; high temperature characterization; high pressure characterization
