Sensors 2014, 14(10), 19639-19659; doi:10.3390/s141019639

A Novel Low-Cost Open-Hardware Platform for Monitoring Soil Water Content and Multiple Soil-Air-Vegetation Parameters

1
School of Agriculture, Forestry, Food and Environmental Sciences, University of Basilicata, Potenza 85100, Italy
2
Consiglio per la Ricerca e la sperimentazione in Agricoltura—Research Unit for Cropping Systems in Dry Environments (CRA-SCA), Bari 70125, Italy
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed.
Received: 6 August 2014 / Revised: 14 September 2014 / Accepted: 26 September 2014 / Published: 21 October 2014
(This article belongs to the Special Issue Agriculture and Forestry: Sensors, Technologies and Procedures)
View Full-Text   |   Download PDF [950 KB, uploaded 23 October 2014]   |

Abstract

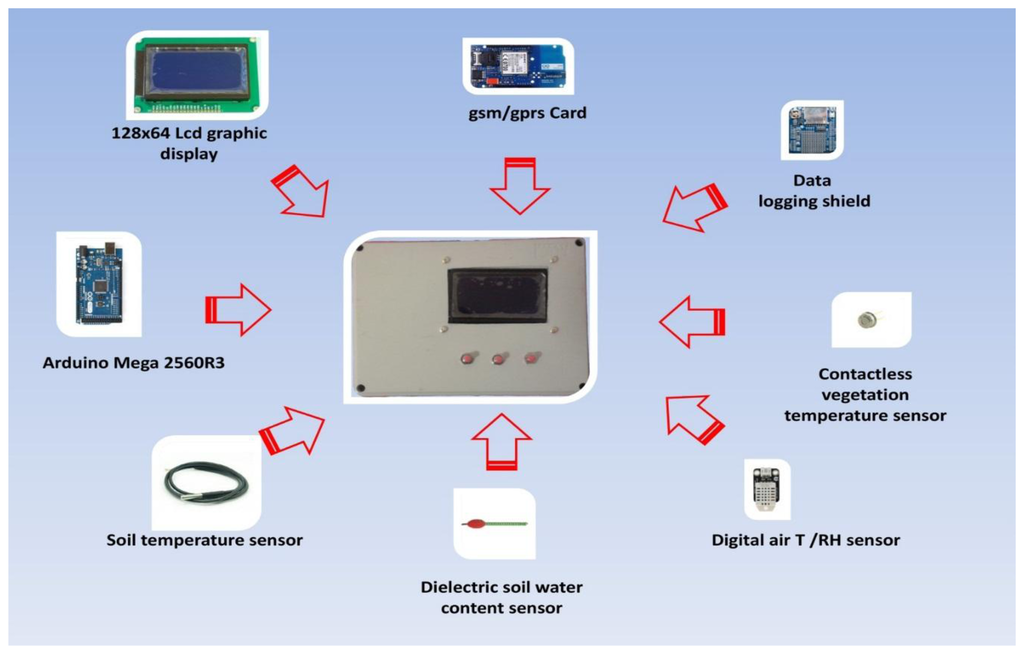

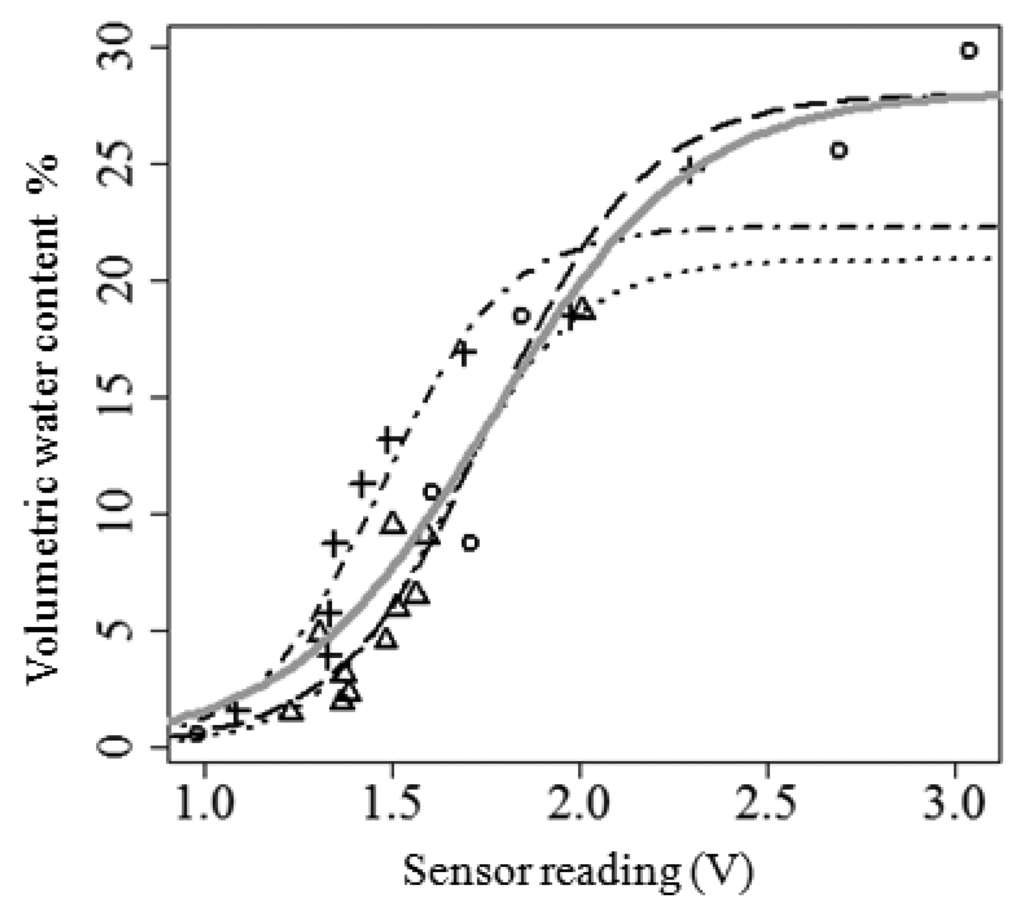

Monitoring soil water content at high spatio-temporal resolution and coupled to other sensor data is crucial for applications oriented towards water sustainability in agriculture, such as precision irrigation or phenotyping root traits for drought tolerance. The cost of instrumentation, however, limits measurement frequency and number of sensors. The objective of this work was to design a low cost “open hardware” platform for multi-sensor measurements including water content at different depths, air and soil temperatures. The system is based on an open-source ARDUINO microcontroller-board, programmed in a simple integrated development environment (IDE). Low cost high-frequency dielectric probes were used in the platform and lab tested on three non-saline soils (ECe1: 2.5 < 0.1 mS/cm). Empirical calibration curves were subjected to cross-validation (leave-one-out method), and normalized root mean square error (NRMSE) were respectively 0.09 for the overall model, 0.09 for the sandy soil, 0.07 for the clay loam and 0.08 for the sandy loam. The overall model (pooled soil data) fitted the data very well (R2 = 0.89) showing a high stability, being able to generate very similar RMSEs during training and validation (RMSEtraining = 2.63; RMSEvalidation = 2.61). Data recorded on the card were automatically sent to a remote server allowing repeated field-data quality checks. This work provides a framework for the replication and upgrading of a customized low cost platform, consistent with the open source approach whereby sharing information on equipment design and software facilitates the adoption and continuous improvement of existing technologies. View Full-Text
Keywords: Arduino; multi-sensor platform; open-hardware; microcontroller; soil water content; contactless temperature sensor; infrared thermometry; wireless data Arduino; multi-sensor platform; open-hardware; microcontroller; soil water content; contactless temperature sensor; infrared thermometry; wireless data
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
