Sensors 2013, 13(9), 12192-12217; doi:10.3390/s130912192

Article
Fast Thermal Calibration of Low-Grade Inertial Sensors and Inertial Measurement Units
Xiaoji Niu , You Li , Hongping Zhang *, Qingjiang Wang and Yalong Ban
GNSS Research Center, Wuhan University, No.129, Luoyu Rd., Wuhan 430079, Hubei, China; E-Mails: xjniu@whu.edu.cn (X.N.); liyou@whu.edu.cn (Y.L.); qjwangwhu@whu.edu.cn (Q.W.); ylban@whu.edu.cn (Y.B.)
*
Author to whom correspondence should be addressed; E-Mail: hpzhang@whu.edu.cn; Tel.: +86-1862-7096-946; Fax: +86-27-6877-8890.
Received: 28 June 2013; in revised form: 11 August 2013 / Accepted: 5 September 2013 /
Published: 12 September 2013

Abstract

: The errors of low-cost inertial sensors, especially Micro-Electro Mechanical Systems (MEMS) ones, are highly dependent on environmental conditions such as the temperature. Thus, there is a need for the development of accurate and reliable thermal compensation models to reduce the impact of such thermal drift of the sensors. Since the conventional thermal calibration methods are typically time-consuming and costly, an efficient thermal calibration method to investigate the thermal drift of a full set of gyroscope and accelerometer errors (i.e., biases, scale factor errors and non-orthogonalities) over the entire temperature range in a few hours is proposed. The proposed method uses the idea of the Ramp method, which removes the time-consuming process of stabilizing the sensor temperature, and addresses its inherent problems with several improvements. We change the temperature linearly for a complete cycle and take a balanced strategy by making comprehensive use of the sensor measurements during both heating and cooling processes. Besides, an efficient 8-step rotate-and-static scheme is designed to further improve the calibration accuracy and efficiency. Real calibration tests showed that the proposed method is suitable for low-grade IMUs and for both lab and factory calibration due to its efficiency and sufficient accuracy.
Keywords:
MEMS inertial sensors; IMU; thermal calibration; turntable; temperature chamber

1. Introduction

Integrated Global Navigation Satellite System (GNSS)/Inertial Navigation Systems (INS) systems are becoming widely used techniques to provide precise and reliable navigation information (i.e., position, velocity, attitude, etc.) in fields such as surveying and mapping, spatial information systems and intelligent transport [1]. A GNSS receiver is mainly used to provide high absolute position accuracy with long-term stability in ideal conditions, but has certain limitations in challenging areas (e.g., city downtowns, inside tunnels, under heavy tree canopies, etc.). On the contrary, as fully self-contained systems, INS measures the specific forces and angular rates by inertial sensors [i.e., accelerometers and gyroscopes (gyros)] and determines the motion of a body with respect to an inertial frame of reference [2]. Due to the integration of the inertial measurement, the sensor errors will accumulate and grow, resulting in increasing position and velocity errors. Since GNSS and INS are complementary systems, they can be integrated to give a system that has several advantages over each individual component separately. In such integration, the GNSS-derived positions and velocities are updating information through a Kalman Filter (KF) while the IMU is used to provide the navigation information during GNSS signal outages and for fast GNSS signal reacquisition [3]. However, traditional INS devices are bulky, expensive and complex, which often precludes their use outside specialized application fields, especially in civilian areas [4].

During these decades, advances in Micro-Electro-Mechanical Systems (MEMS) technology combined with the miniaturization of electronics have made it possible to produce chip-based inertial sensors. These MEMS chips have become ideal candidates for various applications since they are small, light-weight, low power and are extremely low-cost and reliable [5]. At the same time, the cost reduction of GNSS receivers has also promoted the development of low-cost navigation techniques. Accordingly, low-cost GNSS receiver-chip/MEMS INS integrated systems are becoming widely-used navigation techniques.

However, the errors of the low-cost sensors, especially the MEMS ones, will change with time and are highly dependent on environmental conditions such as temperature [6]. Therefore, even though in-lab calibration at room temperature is known to be a useful way to remove the major part of the deterministic sensor errors, the actual values of the sensor errors can be different from those obtained through calibration processes due to the difference between the operational and calibration temperatures. In real tests, we find that the IMU sensor errors, not only biases, but also scale factors and non-orthogonalities, may vary significantly with temperature. These changes reach thousands of deg/h and many thousands of μg for gyros and accelerometers biases, and thousands of ppm for the sensor scale factors and non-orthogonalities. Such errors, if not compensated for, will accumulate and lead to attitude and position drifts [7]. Approximately, for 2-D navigation, uncompensated gyros and accelerometers biases result in position errors of (1/6)bg (T)gt3 and (1/2)ba (T)t2, respectively [5], where bg(T) and ba(T) are the gyro and accelerometer biases at temperature T; t is the time that INS work alone; g is the local gravity value. Also, the uncompensated sensor scale factor errors may introduce position errors proportional to time squared. Thus it is important to do thermal calibration for MEMS IMUs so as to develop accurate and reliable thermal models.

However, the conventional thermal calibration methods are typically time-consuming and costly. In this paper, an efficient thermal calibration method to investigate the thermal drift of a full set of gyroscope and accelerometer errors (i.e., biases, scale factor errors and non-orthogonalities) over the entire temperature range in a few hours is proposed.

2. Previous Works

2.1. Calibration and Modeling of Sensor Errors

The inertial sensor errors can be divided into two types: deterministic (systematic) errors and stochastic errors. Calibration is an important way to remove the major part of the deterministic IMU sensor errors. Various IMU calibration methods have been proposed according to different grades of IMUs and different applications [2,812]. On the contrary, the stochastic errors can only be modeled instead of being calibrated and removed. Among various stochastic modeling methods, Allan Variance is commonly used to determine the characteristic of the underlying random processes [13].

The thermal drifts of the sensor errors are normally regarded as deterministic errors. To reduce the thermal drift of the sensor errors, the following two processes are needed: (1) Thermal calibration: to develop accurate and reliable thermal models of the sensor errors, i.e., build the relationship between the sensor errors and the sensor temperature; (2) Thermal compensation: to compensate the thermal drift of the sensor errors according to their online temperature during the operation process of the IMUs. Both these processes are dependent on the temperature provided by the internal temperature sensors of the IMUs.

Official thermal calibration needs professional equipment such as a thermal chamber and a turntable (optional). Such professional equipment can be used to get reliable thermal calibration results over a large temperature range. However, when using these high-cost equipments, it is also important to improve the calibration efficiency, so as to reduce the equipment cost.

The purpose of thermal calibration is to determine the IMU sensor errors under different temperature points. Therefore, thermal calibration is commonly used based on the following assumption: the thermal drift of a sensor error is only related to the temperature of the sensor core. That is, corresponding to a certain temperature, the sensor errors will have the same values. Based on this assumption, the relationship between the sensor errors and the temperature can be built directly through either curve fit (as used in this paper) or a lookup table, if the corresponding sensor errors at different temperatures are known.

There are currently two main approaches for thermal calibration: the Soak method and the Ramp method [2]. The Soak method works on the premise of stable sensor temperature while the Ramp method works based on time-varying sensor temperature.

2.2. Temperature Soak Method

The Soak method calibration works as follows: (a) Stabilize the temperature of the sensors or IMUs at a certain temperature point; (b) Record the sensor measurements and calculate the sensor errors corresponding to such point; (c) Repeat this process at several typical temperature points, then a series of sensor errors along with temperature data can be obtained. After that, the IMU sensor errors at other temperature points can be calculated by interpolation [14]. The Soak method is used for both the calibration of deterministic errors and the modeling of stochastic errors [1521]. By stabilizing the temperature, the Soak method can provide most reliable values of the sensor errors at the chosen temperature points. The main fact which restricts the use of the Soak method is the time required and the corresponding costs related to the equipment, time and manpower. The process of stabilizing the sensor temperature inside a MEMS IMU is usually time-costing.

2.3. Temperature Ramp Method

Different from the Soak method, the Ramp method calibration works as follows: (a) Control the temperature of the thermal chamber while it is continuously linearly increased or decreased to cover the full temperature range; (b) During this process the IMU measurements are recorded and the IMU sensor errors are calibrated [22,23]. The Ramp method is fundamentally faster in principle because it removes the stabilization process, and works based on linearly changed sensor temperature. However, there are two main inherent problems of the Ramp method, especially when it is used for the calibration of the IMUs, instead of the sensors:

  • Issue #1: It is not realistic to get the real temperature of the inertial sensors: there are temperature differences between the inertial sensors and the temperature sensors inside the IMUs because they have different cores. What we can get is the temperature at the core of the temperature sensor, not that of the inertial sensors. Moreover, such temperature differences will be different under various temperature changing conditions. This issue is similar to the hysteresis effect.

  • Issue #2: The chamber temperature changes during a calibration scheme (one set of IMU motions, with which the IMU outputs can be used to calculate for a set of IMU sensor errors; during the whole temperature calibration process, the turntable repeats the calibration scheme at different temperatures). This will lead to the changes of the IMU sensor errors to be calibrated, which in turn cause the calibration errors because the raw sensor data is not collected at the same temperature.

Both these two problems can impair the performance of the Ramp method. This can also explain why the process of stabilizing the temperature is needed in the Soak method. In this paper, we use the idea of the Ramp method, which removes the time-consuming process of stabilizing the temperature. Also, several ways to ease its inherent problems are considered. The details of the proposed method are shown in the next section.

3. Methodology

This section includes the basic idea of the proposed thermal calibration method, including the ways to deal with the inherent issues of the Ramp method, the calibration equipment used and the corresponding calibration scheme.

3.1. Basis Idea

We use the idea of the Ramp method, but consider the following ways to mitigate its inherent problems for improvement:

  • Improvement #1: take a balanced heating-and-cooling strategy to compensate the thermal calibration errors. To be specific, we change the temperature linearly for a complete cycle, and make comprehensive use of the sensor measurements under both the linear heating and cooling processes at the same changing rate to get the final thermal calibration results at the same temperature point.

  • Improvement #2: use the same calibration scheme during the whole calibration process. This can compensate the errors caused by the temperature changes during each calibration scheme to some extent after considering the heating and cooling processes comprehensively. In another word, the impact of the temperature changes in the calibration scheme during the heating process can be somehow cancelled with the impact during the cooling process at the same temperature point.

  • Improvement #3: narrow down the temperature change during each calibration scheme. One possible way for this is to calibrate the IMU sensor errors within the shortest period while the temperature is changing. We designed an efficient 8-step rotate-and-static scheme, which can calibrate the gyro and accelerometer biases, scale factors and non-orthogonalities of MEMS IMUs within only 2.5 min.

The corresponding explanations to these improvements can be stated as below:

  • Explanation #1: under the heating and cooling processes at the same temperature changing rate, the effects of the corresponding temperature differences between the inertial sensors and the temperature sensors can cancel each other approximately (i.e., they have the similar value but opposite signs).

  • Explanation #2: using the same calibration scheme means that the impact of the temperature change at each sensor error can be cancelled to the maximum extent. For example, assume it is under heating process and the nominal temperature of the calibration scheme (i.e., the average temperature during a scheme) is T1; when the IMU is rotated around the x-axis gyro clockwise, the temperature is T1 + dT1. Then, for the cooling process at the same temperature changing rate at T1, the IMU rotation around the x-axis gyro clockwise will happen at the temperature of T1 − dT1. Therefore the impacts of the temperature variations from the nominal temperature of the calibration scheme can be cancelled by using the heating and cooling results.

  • Explanation #3: If the calibration scheme is well designed to be more efficient, one set of calibration motions can be finished in a shorter period and the temperature change during the scheme will be smaller. Therefore the disturbance of the temperature change to the calibration result at the temperature point can be mitigated accordingly.

Both Improvement #1 and #2 are utilized to mitigate Issue #1, while Improvement #2 and #3 aim to ease Issue #2. With such improvements, the inherent problems of the Ramp method can be mitigated.

3.2. Calibration Scheme

A dual-axis position turntable equipped with a thermal chamber (see Figure 1) located at Wuhan University is used to calibrate the IMU sensor errors over a wide temperature range. The performance characteristics of both the turntable and the thermal chamber are shown in Table 1.

The turntable is accurate enough to provide reference for the calibration of low-grade IMUs. Besides, there are high-precision locating pins on the mounting plate of the turntable to keep the IMUs axes align with the turntable axes.

Considering both the characteristics of the equipment and the calibration efficiency, the following 8-step calibration scheme is designed (see Figure 2). This scheme allows the IMUs to experience all necessary orientations and rotations with minimum calibration actions.

In each calibration scheme, each sensing axis of every sensor is pointed alternately up and down precisely (except z-axis due to the mechanical structure of the turntable), and the IMUs are rotated around each gyro axis both clockwise and counter-clockwise at accurately known angles. There are in total eight static positions and eight rotations.

In our test, each static position takes 10 s and the rate of rotation is about 10 deg/s, i.e., about 9 s for each rotation. Due to such settings, the calibration scheme is highly efficient, and can provide enough calibration accuracy for low-grade IMUs, as shown in Section 3.3 for the calculation of the calibration errors caused by sensor noises. Each calibration scheme takes only about (10 + 9) × 8 = 152 s to estimate a full set of IMU sensor errors.

During the whole calibration process, the thermal chamber keeps on changing its temperature linearly. At the same time, the turntable repeats the calibration scheme in Figure 2 again and again. Due to the efficiency of the scheme, we obtain abundant data of IMU sensor errors together with temperatures over the whole temperature cycle.

3.3. Sensor Error Models and Calibration Computation

The error models for the accelerometers and the can be written as

f ^ = b a + S a f + N a f + v a
ω ^ = b g + S g ω + N g ω + v g
where and ω̂ are the error vectors of the accelerometer-derived specific forces and the gyro-derived angular velocities, f and ω are the true specific forces and the true angular velocities, ba and bg are the biases of the accelerometers and the gyros, Sa and Sg are the diagonal matrices containing the scale factor errors, Na and Ng are the skew-symmetric matrix containing the non-orthogonalities, νa and νg represent the a ccelerometer and gyro noises.

In each calibration scheme, the IMU sensor errors, including biases, scale factor errors and non-orthogonalities, are determined. The IMU data is sufficiently used: the static data (i.e., the IMU outputs at eight static positions) is used to calibrate the gyro biases and all the accelerometer errors, while the dynamic data (i.e., the IMU outputs during eight rotation steps) is used to calibrate gyro scale factors and non-orthogonalities. The accelerometer errors can be estimated by the least-square method [2], while the gyro errors are estimated through a two-step method [24]. The details of calibration computations are shown in Appendix A.

The calibration errors caused by sensor noises can be calculated as follows [25]. Since there are eight static positions, gyro noises can lead to calibration error of gyro biases σ b g noise = ARW 8 . t static ( 1 σ ), where ARW are the angular random walk of gyros, tstatic is the time for each static position. Similarly, the calibration error of accelerometer errors caused by accelerometer noises can be calculated. For the calibration of gyro scale factors and non-orthogonalities, there are at least two rotations (positive and negative) for each gyro. Thus the gyro noise can cause calibration error of gyro scale factors or non-orthogonalities σ s g noise = ARW t rotate 2 · 90 °, where trotate is the time for each rotation. For example, assuming the gyro ARW is 0.05 deg / s / HZ (refer to that of typical MEMS gyros), the errors caused by gyro noise are about 20 deg/h for gyro biases, and about 1,200 ppm for gyro scale factors or non-orthogonalities, which is much smaller than the thermal drifts of the sensor errors of low cost MEMS gyros.

3.4. Establishment of the Thermal Variation Models

Based on the calibrated IMU sensor errors at different temperatures, the curve fit method was used to determine the continuous global temperature compensation models (i.e., the relationship between the sensor errors, i.e., biases, scale factors and non-orthogonalities, and the temperature). A 3rd-order polynomial is used to fit the calibration results obtained from each scheme:

W ( T ) = A 0 + A 1 T + A 2 T 2 + A 3 T 3
where W(T)is the calculated value of the sensor errors, T is the IMU core temperature in real operation process, A0, A1, A2 and A3 are the fitting parameters. The established thermal model can be used to calculate the thermal drifts of the IMU sensor errors at each temperature and then remove such thermal drifts from the IMU outputs.

4. Thermal Calibration Tests and Results

4.1. Temperature Change Strategy

To evaluate the accuracy of the proposed method, we carried out the tests of the conventional Soak method to get the reference. The IMU calibration results at more than 10 temperature points were collected to provide accurate reference value, even though the Soak method does not need so many points and so much time for common uses. We also designed three different chamber temperature profiles to test the repeatability of the proposed method. Table 2 describes the detail of the chamber temperature changes. Figures 3 and 4 show the temperature profiles and how the internal temperatures of the two tested IMUs (Xsens MTi-G and NV-IMU100) changed. In both Figures 3 and 4, the dashed lines are the chamber temperatures, while the solid lines are the temperature provided by the internal temperature sensors of the two tested IMUs. It is clear to see the temperature lags of the IMU cores. Besides, Figure 3 shows that the IMU temperatures were higher than the chamber temperature after stabilization due to the heat generated inside the IMUs.

4.2. IMUs Used in the Tests

Two MEMS IMUs, i.e., Xsens MTi-G [26] and NV-IMU100 [27], were chosen to be the representative of low-grade IMUs to be tested. Their photos in the test and their characteristics are illustrated in Figure 5 and Table 3, respectively. Here we used the raw sensor data of MTi-G (without factory compensation). The NV-IMU100 has three vibrating ring gyros, and its output data had been partly compensated after factory calibration.

4.3. Calibration Results of MTi-G

Figure 6 shows the results of the biases and scale factor errors of gyros with the Soak method, as the example results of this conventional method.

The thin solid lines in Figure 6 show that even when using the Soak method, there were some non-repeatabilities between the results during Part 1 (from −30 to 70 °C with 10 °C step) and Part 2 (from 70 to −30 °C with 10 °C step;. After checking the temperature data of the IMUs, we found that it is because the sensor temperature inside the IMUs had not been fully stabilized even after the chamber temperature outside the IMUs had been stabilized for 1 h. This means that more than 1 h is needed for each temperature point to get the ideal result of the Soak calibration method for MTi-G. However, we cannot afford more than 1 h (e.g., 2 h; for each point for in-lab tests. Thus, we finally used 1 h per point, but fitted the results of Part 1 and Part 2 (i.e., heating and cooling profiles) at the same temperature point to calculate the final IMU sensor errors at this temperature. This is the best result we can get and was regarded as the reference for the evaluation of the proposed method.

Figure 7 shows the results of gyro biases and scale factor errors with the proposed method, as the example results of this new method.

The raw results of the proposed method (the thin dashed lines) have some non-repeatabilities during heating and cooling processes. This might be caused by different temperature change rates. However, after fitting the raw results, we got the final result (the thick dashed line), which fit well with the reference result in Figure 6.

To test the repeatability of the proposed method, we run the chamber temperature as the three different profiles described in Table 2. Figure 8 shows the final results of the three tests of the proposed method with different profiles (three dashed lines) as well as that of the Soak method (the solid line). Figure 8a–f show the curves of biases, scale factor errors, and non-orthogonalities of gyros and those of accelerometers.

It is clear that the sensor errors of MTi-G varied significantly with temperature, especially the gyro biases and scale factors. Over the entire temperature range, the changes reached 2,000 deg/h, 10,000 ppm for MTi-G gyro biases and scale factor errors, and 3,000 μg and 400 ppm for accelerometer biases and scale factor errors. There were also changes of about 5,000 ppm and 1,000 ppm for gyro and accelerometer non-orthogonalities, which were beyond our intuition. These curves indicate that thermal calibration is important not only for biases and scale factors, but also for non-orthogonalities, at least in the case of MEMS IMUs.

To evaluate how much the final results provided by the proposed method (the three dashed lines) fit with that of the Soak method (the solid line), we picked some typical temperature points and calculated the Root Mean Square (RMS) errors (using the results of the Soak method as reference) of the three temperature profiles, as shown in Table 4. The first 12 rows are the results of the gyro biases, scale factor errors and non-orthogonalities, while the last 12 rows are those of the accelerometers of MTi-G. Columns 2–6 show the RMS of the sensor errors under typical temperature points and column 7 picks up the max values among them.

Over the entire temperature range, their RMS with respect to the result of the Soak method reached 360 deg/h, 1,500 ppm and 1,300 ppm for gyro biases, scale factors and non-orthogonalities; and 1,200 μg, 100 ppm, and 400 ppm for accelerometer biases, scale factor errors and non-orthogonalities. The accuracy of the proposed method is shown in Table 5. Also, the original thermal drift levels of each sensor error over −10 ∼ +70 °C are shown to make a comparison.

The overall accuracy levels are much lower than the levels of the original thermal drifts of the MEMS sensor errors. The proposed calibration method has enough accuracy to significantly reduce the original temperature variations of the MEMS IMU sensor errors.

The thermal calibration results of MTi-G also indicate that not all the sensors errors can be reduced significantly through calibration, since the errors of each sensor are randomly distributed in the range of its specifications and some errors may be small originally. What we can expect is that through calibration and compensation, the overall levels of IMU sensor errors can be reduce to a much lower level.

4.4. Calibration Results of NV-IMU100

Similarly, we calibrated the thermal drift of NV-IMU100 with both the proposed method (using three different profiles) and the Soak method. Figure 9 shows the results provided by both the proposed method (the three dashed lines) and the Soak method (the solid line).

There were small gyro biases (less than 15 deg/h) due to the symmetry of vibrating ring gyros and the factory compensation. However, the change for gyro scale factor (e.g., y-axis) exceeded 10,000 ppm. These characteristics matched the inherent feature of the vibrating ring gyros.

Like Table 4, Table 6 shows the RMS errors (using the results of the Soak method as reference) of the proposed method at some typical temperature points.

Over the entire temperature range, the RMS errors reached 5 deg/h, 2,200 ppm and 900 ppm for gyro biases, scale factor errors and non-orthogonalities; and 4,200 μg, 700 ppm, and 600 ppm for accelerometer biases, scale factor errors and non-orthogonalities, respectively. The accuracy of the proposed method is shown in Table 7 as well as the original thermal drift ranges of each sensor error over −10 ∼ +70 °C. The overall accuracy levels are much lower than the levels of the possible thermal drift of the MEMS sensor errors.

The proposed thermal calibration method can provide results close to those of the conventional Soak method, and can significantly reduce the calibration time. Thus it is especially useful for MEMS IMUs, which require low cost and efficient calibration. Please note that the thermal calibration accuracy not only depend on the calibration method itself, but also is affected by the stochastic errors of the calibrated inertial sensors. This can explain why the same method got different calibration accuracies for the two tested IMUs. For example, the calibration accuracy of gyro biases of NV-IMU100 can reach 5 deg/h because the original gyro biases are relatively stable. To further investigate the effect of thermal calibration, another kind of tests called thermal compensation tests were performed, as described in Section 5.

5. Thermal Compensation Tests and Results

5.1. Test Description

The thermal compensation tests were designed to check how much the performance of the inertial sensors can be improved by compensating their outputs with the established thermal models. There were totally six tests, including three dynamic tests and three static tests, which are described in Table 8. For each test, the thermal chamber was utilized to provide different temperature environment (from −10 °C to +70 °C;, and the turntable was used to provide precisely known reference. Every epoch of IMU outputs was corrected using the full set of IMU sensor errors provided by the thermal model at the same temperature (i.e., the thermal compensation). Then the effect of the thermal compensation was evaluated by comparing the output errors (i.e., the difference between the sensor outputs and the reference input) before and after the thermal compensation. To evaluate the performance of all the sensors before and after compensation, every accelerometer axis was kept on pointing downwards precisely for about an hour respectively. Besides, the IMUs were kept on rotating around each gyro axis at an angular rate of 10 deg/s, which was set according to the dynamic of land vehicles, for about an hour. The whole process took about six hours. In each test, we focused on the output error of one sensor. For example, we investigated the x-axis gyro output with a reference input of 10 deg/s in the dynamic test 1; and investigated the x-axis accelerometer output with a reference input of the local gravity in the static test 1. The IMU outputs were averaged during each second to reduce the impact of the noises. The thermal models established through thermal calibration test 2 using the 2nd temperature profile were used in this test, since the results provided by test 2 seemed to have the largest differences comparing with those of the Soak method. The parameters of the 3rd order polynomial thermal models of applied in the compensation tests, i.e., A0, A1, A2 and A3 in Equation (3), for the sensor errors of the two tested IMUs are shown in Table 9. The test results of MTi-G and NV-IMU100 are shown in Section 5.2 and 5.3, respectively.

5.2. Compensation Results of MTi-G

Figures 10 and 11 show the compensation results of MTi-G. The blue and red lines are the output errors without and with the compensation using the established thermal models.

It is clear that the original output error of the z-axis gyro was significantly larger and changed with some long-term trends. After compensation, such error was significantly reduced, and the long-term trends were eliminated. However, there was no significant improvement for x-axis and y-axis gyros, since their original output errors were relatively small. As for the accelerometers, the improvement was significant along x-axis and z-axis. However, the y-axis accelerometer got an output error of about 2,000 μg after compensation. As has been explained in Section 4.3, not all the sensors errors can be reduced significantly through the thermal compensation, because the thermal drift level of each sensor are randomly distributed in the range of its specifications and some may be small originally. The thermal compensation can reduce the overall thermal drifts of the IMU outputs to a much lower level.

The statistical values (i.e., the mean and the RMS values) of the IMU output errors over the entire temperature range were calculated and shown in Table 10. Without compensation, the RMS values were 279, 197 and 2,167 deg/h for gyros and 3,697, 1,097 and 11,130 μg for accelerometers. After the compensation, the RMS values became 189, 254 and 418 deg/h for gyros and 2,342, 2,259 and 1,055 μg for accelerometers. Both the gyro and accelerometer along the z-axis and x-axis were improved significantly, while those along the y-axis became worse. Generally speaking, with the thermal compensation, the output errors of MTi-G were reduced to within 420 deg/h and 2,400 μg for gyros and accelerometers over the entire temperature range. To make it clear, the RMS values were shown in Figure 12. The blue and red bars were the values without and with thermal compensation, respectively.

5.3. Compensation Results of NV-IMU100

Similarly, Figures 13 and 14 show the NV-IMU100 output errors without and with thermal compensation. The NV-IMU100 has small gyro biases due to the symmetry of the vibrating ring gyros and the factory compensation. However, there were also gyro output errors caused by the scale factor errors and non-orthogonalities, especially for the y-axis gyro, whose scale factor varied for thousands of ppm over the entire temperature range. Consequently, the gyro output error reached several hundred deg/h when the input angular velocity was 10 deg/h. Clearly, such output errors were reduced significantly after the thermal compensation. The errors of accelerometers, especially the x-axis and y-axis accelerometers, were also reduced dramatically. The systematic errors in the outputs were corrected, and long-term trends in the outputs were eliminated. The statistical values of the NV-IMU100 output errors were shown in Table 11, and the RMS values were illustrated in Figure 15.

6. Conclusions

An efficient thermal calibration method is proposed to investigate the thermal drift of a full set of IMU sensor errors (i.e., biases, scale factor errors and non-orthogonalities) over the entire temperature range in 4 h. Results of thermal calibration tests with two MEMS IMUs over the temperature range of −10 ∼ +70 °C showed that the proposed method provided results close to those of the conventional Soak method, and significantly reduced the calibration time. The accuracy of the proposed method over the entire temperature range (reference to the Soak method; was shown in Table 12.

Results of the separate thermal compensation tests showed that the performance of the inertial sensors can be significantly improved by compensating their outputs using the established thermal models. The max RMS values of the IMU output errors without and with thermal compensation were shown in Table 13.

Due to the high efficiency and sufficient accuracy of the proposed thermal calibration method, it is especially useful for both factory and lab calibrations of low-cost IMUs (e.g., MEMS), which require low-cost and efficient calibration. It can also promote better utilizations of low-cost MEMS-based sensors and IMUs.

The authors would like to thank Kunlun Yan and Xin Yang for the help during the tests and the help of Xiangyi Zhou for polishing the language of the paper. They would also like to thank the reviewers for their beneficial comments and suggestions. This work was supported in part by the National Natural Science Foundation of China (41174028), the Key Laboratory Development Fund from the Ministry of Education of China (618-277176), the National High Technology Research and Develop Program of China (2012AA12A206), the LIESMARS Special Research Fund, the Research Start-up Fund from Wuhan University (618-273438), and the Fundamental Research Fund for the Central Universities (2012618020203).

Appendix A. Calibration computation of the proposed calibration scheme

Estimation of Accelerometer Errors

To estimate a full set of accelerometer errors, the output of a triad of accelerometers is represented in matrix form:

[ f ˜ x f ˜ y f ˜ z ] = [ s x m y x m z x b a x m x y s y m z y b a y m x z m y z s z b a z ] M [ f x f y f z 1 ]

The diagonal s elements are the scale factors, the off diagonal m elements represent the non-orthogonalities and the b components are the biases. Assume S1, S2, S3, S4, and S5 are the IMU positions with x-axis upwards, x-axis downwards, y-axis upwards, y-axis downwards and z-axis downwards. Since the IMU is perfectly aligned with the turntable axes through the location pins on the mounting plate, the given specific forces of the five positions can be represented as follows:

f 1 = [ g 0 0 ] , f 2 = [ g 0 0 ] , f 3 = [ 0 g 0 ] , f 4 = [ 0 g 0 ] , f 5 = [ 0 0 g ]

Then the design matrix can be denoted by A and the measured specific force of the accelerometer is denoted by U:

A = [ f 1 1 f 2 1 f 3 1 f 4 1 f 5 1 ]
U = [ u 1 u 2 u 3 u 4 u 5 ]

In this case the column vector of the U matrix should be:

u 1 = [ f ˜ x f ˜ y f ˜ z ] x axis pointing up , u 2 = [ f ˜ x f ˜ y f ˜ z ] X axis pointing down

u3, u4 and u5 are similar with u1 and u2 Then the M matrix can be estimated by the least-square method:

M = U A T ( A A T ) 1

Estimation of Gyro Biases

The gyro biases are calculated using static gyro outputs.

Let ω̃i =[ω̃ixω̃iyω̃iz]Ti=1,2,3,4,5 are the mean of gyro output angular velocities under static positions S1, S2, S3, S4, and S5. The elements of the vector represent the components along three axes. By averaging a couple of measurements, e.g., ω̃1 and ω̃2 or ω̃3 and ω̃4, the impact of the rotational angular velocity of the earth can be cancelled. The gyro biases are calculated as:

b g x = 1 4 k = 1 4 ω ˜ k x , b g y = 1 4 k = 1 4 ω ˜ k y

When the z-axis of the IMU is pointed downward, the z-axis gyro bias can be calculated using the gyro output minus the reference input when the gyro points vertically (which is not depend on the north finding of the turntable):

b g z = ω ˜ 5 x + ω e sin φ
where ωe is the rotational angular velocity of the earth, φ is the latitude.

Estimation of Gyro Scale Factors and Non-orthogonalities

Let i = [ixiyiz]Ti=1,2,3,4,5,6 be the integration of the gyro outputs when the IMU is rotated counterclockwise and clockwise around x-axis, counterclockwise and clockwise around y-axis, and counterclockwise and clockwise around z-axis for the angle of Lref, respectively. There are two factors that eliminate the impact of the rotational angular velocity of the earth: (a) In the designed calibration scheme, when the IMU is rotated around one axis both counterclockwise and clockwise, this axis is pointed toward its specific direction (as shown in Figure 2). (b) The rotation data (counterclockwise and clockwise) with the same time length is used for the calibration computation.

The gyro scale factors can be calculated as:

s g x = L ˜ 1 x L ˜ 2 x 2 L ref , s g y = L ˜ 3 y L ˜ 4 y 2 L ref , s g z = L ˜ 5 z L ˜ 6 z 2 L ref

The value of Lref is 90 deg in our calibration scheme. The non-orthogonalities cause each axis to be affected by the signal of the other two axes. When the IMU is rotated around one axis, the gyro output of another axis will be affected by this rotation due to the non-orthogonalities between these two axes. The non-orthogonalities can be calculated as:

n x y = L ˜ 1 y L ˜ 2 y 2 L ref , n x z = L ˜ 1 z L ˜ 2 z 2 L ref , n y x = L ˜ 3 x L ˜ 4 x 2 L ref , n y z = L ˜ 3 z L ˜ 4 z 2 L ref , n z x = L ˜ 5 x L ˜ 6 x 2 L ref , n z y = L ˜ 5 y L ˜ 6 y 2 L ref ,
where nij is the non-orthogonalities of i-axis to j-axis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. El-Sheimy, N. An Overview of Mobile Mapping Systems. Proceedings of American Society for Photogrammetry and Remote Sensing Annual Conference (ASPRS), Cairo, Egypt, 16–21 April 2005.
  2. Titterton, D.; Weston, J.L. Strapdown Inertial Navigation Technology, 2nd ed.; American Institute of Aeronautics and Astronomy Press: Reston, VA, USA, 2004. [Google Scholar]
  3. Niu, X.; Nassar, S.; El-Sheimy, N. An accurate land-vehicle mems IMU/GPS navigation system using 3D auxiliary velocity updates. J. Inst. Navig. 2007, 54, 177–188. [Google Scholar]
  4. Chen, K.; Liu, C. The Performance Evaluation of Low Cost MEMS IMU/GPS Integrated Positioning and Orientation Systems Using Novel DBPNNs Embedded Fusion Algorithms. Proceedings of the 24th International Technical Meeting of The Satellite Division of the Institute of Navigation (ION GNSS 2011), Portland, OR, USA, 20–23 September 2011; pp. 979–993.
  5. El-Sheimy, N. Inertial Techniques and INS/DGPS Integration. In Engo 623-Course Notes; Department of Geomatics Engineering, University of Calgary: Calgary, AB, Canada, 2006. [Google Scholar]
  6. Aggarwal, P.; Syed, Z.F.; Niu, X.; El-Sheimy, N. A standard testing and calibration procedure for low cost mems inertial sensors and units. J. Navigation 2008, 61, 323–336. [Google Scholar]
  7. Shcheglov, K.; Evans, C.; Gutierrez, R.; Tang, T.K. Temperature Dependent Characteristics of the JPL Silicon MEMS Gyroscope. Proceedings of IEEE Aerospace Conference Proceedings, Big Sky, MT, USA, 18–25 March 2000; pp. 403–411.
  8. Syed, Z.F.; Aggarwal, P.; Goodall, C.; Niu, X.; El-Sheimy, N. A new multi-position calibration method for MEMS inertial navigation systems. Meas. Sci. Technol. 2007, 18. [Google Scholar] [CrossRef]
  9. Fong, W.T.; Ong, S.K.; Nee, A. Methods for in-field user calibration of an inertial measurement unit without external equipment. Meas. Sci. Technol. 2008, 19. [Google Scholar] [CrossRef]
  10. Nieminen, T.; Kangas, J.; Suuriniemi, S.; Kettunen, L. An enhanced multi-position calibration method for consumer-grade inertial measurement units applied and tested. Meas. Sci. Technol. 2010, 21. [Google Scholar] [CrossRef]
  11. Zhang, H.; Wu, Y.; Wu, W.; Wu, M.; Hu, X. Improved multi-position calibration for inertial measurement units. Meas. Sci. Technol. 2010, 21. [Google Scholar] [CrossRef]
  12. Li, Y.; Niu, X.; Zhang, Q.; Zhang, H.; Shi, C. An in situ hand calibration method using a pseudo-observation scheme for low-end inertial navigation units. Meas. Sci. Technol. 2012, 13. [Google Scholar] [CrossRef]
  13. Hou, H.; El-Sheimy, N. Inertial Sensors Errors Modeling Using Allan Variance. Proceedings of the 16th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GPS/GNSS 2003), Portland, OR, USA, 9–12 September 2003; pp. 2860–2867.
  14. InvenSense Inc. Temperature Compensating the IDG Series Gyroscopes. 2008. Available online: www.invensense.com (accessed on 3 January 2013).
  15. Bhatt, D.; Aggarwal, P.; Bhattacharya, P.; Devabhaktuni, V. An enhanced mems error modeling approach based on nu-support vector regression. Sensors 2012, 12, 9448–9466. [Google Scholar]
  16. El-Diasty, M.; Pagiatakis, S. A rigorous temperature-dependent stochastic modelling and testing for mems-based inertial sensor errors. Sensors 2009, 9, 8473–8489. [Google Scholar]
  17. Naranjo, C.C.M. Analysis and Modeling of MEMS Based Inertial Sensors. M.S. Thesis, School of Electrical Engineering, Kungliga Tekniska Hgskolan, Stockholm, Sweden, 2008. [Google Scholar]
  18. El-Diasty, M.; El-Rabbany, A.; Pagiatakis, S. Temperature variation effects on stochastic characteristics for low cost MEMS-based inertial sensor error. Meas. Sci. Technol. 2007, 18, 3321–3328. [Google Scholar]
  19. Abdel-Hamid, W. An ANFIS-Based Modeling of Thermal Drift of MEMS-Based Inertial Sensors. Proceedings of the 17th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS 2004), Long Beach, CA, USA, 21–24 September 2004; pp. 784–791.
  20. Aggarwal, P.; Syed, Z.; Niu, X.; El-Sheimy, N. Cost-Effective Testing and Calibration of Low Cost MEMS Sensors for Integrated Positioning, Navigation and Mapping Systems. Proceedings of XXIII FIG Congress, Munich, Germany, 8–13 October 2006.
  21. Abdel-Hamid, W.; El-Sheimy, N.; Lachapelle, G. Thermal and Noise Characteristics of MEMS Inertial Sensors. Proceedings of the 2003 National Technical Meeting of The Institute of Navigation, Anaheim, CA, USA, 22–24 January 2003; pp. 641–648.
  22. Berman, Z. Inertial Sensors: Further Developments in Low-Cost Calibration and Testing. Proceedings of IEEE /ION Position Location and Navigation Symposium (PLANS), Myrtle Beach, SC, USA, 23–26 April 2012; pp. 837–848.
  23. Berman, Z. Inertial Sensors-A New Approach for Low Cost Calibration and Testing. Proceedings of Inertial Sensors and Systems, Karlsruhe, Germany, 20 Sept 2011.
  24. Li, Y.; Niu, X.J.; Zhang, H.P. An IMU Calibration Method Using Simple Machinary and the Comprehensive Error Analysis (in Chinese). Proceedings of China Satellite Navigation Conference (CSNC), Shanghai, China, 18–21 May 2011; pp. 1426–1433.
  25. Maybeck, P.S. Stochastic Models, Estimation, and Control; Academic Press: New York, NY, USA, 1982. [Google Scholar]
  26. Xsens. MTi-G GPS-aided MEMS-Based Attitude and Heading Reference System (AHRS). Available online: http://www.xsens.com/en/general/mti-g (accessed on 23 January 2011).
  27. NAV Technology Co., Ltd. NV-IMU100 Inertial Measurement Units. Available online: http://www.nav.cn/UpFile/2009922153819.pdf (accessed on 23 January 2011).
Sensors 13 12192f1 1024

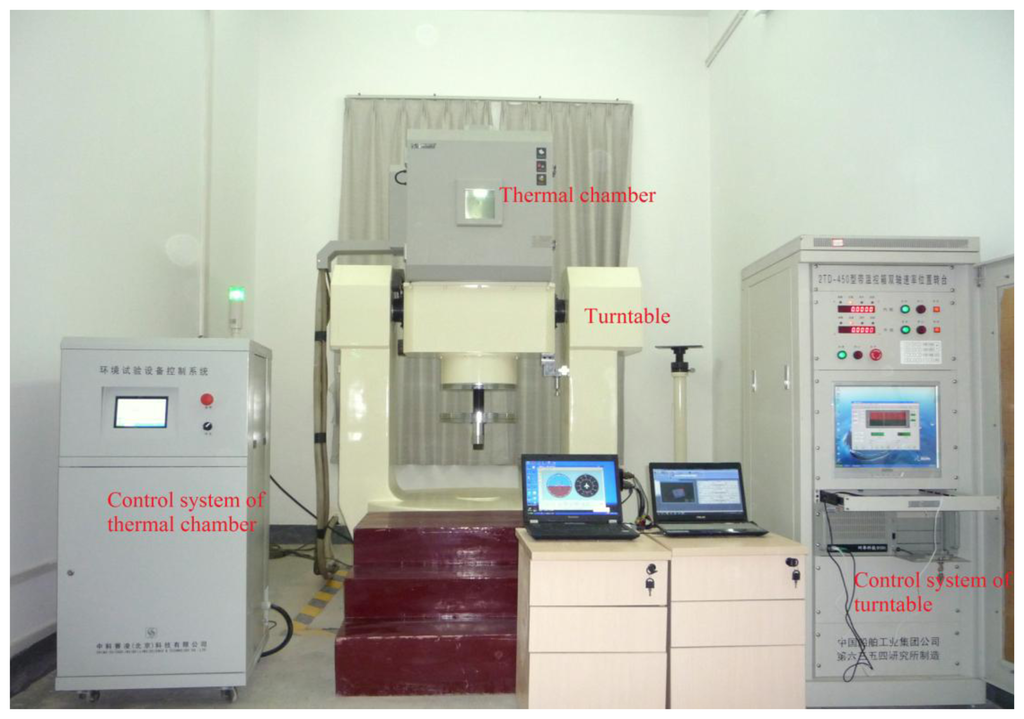

Figure 1. Thermal calibration equipment.

Click here to enlarge figure

Figure 1. Thermal calibration equipment.
Sensors 13 12192f1 1024
Sensors 13 12192f2 1024

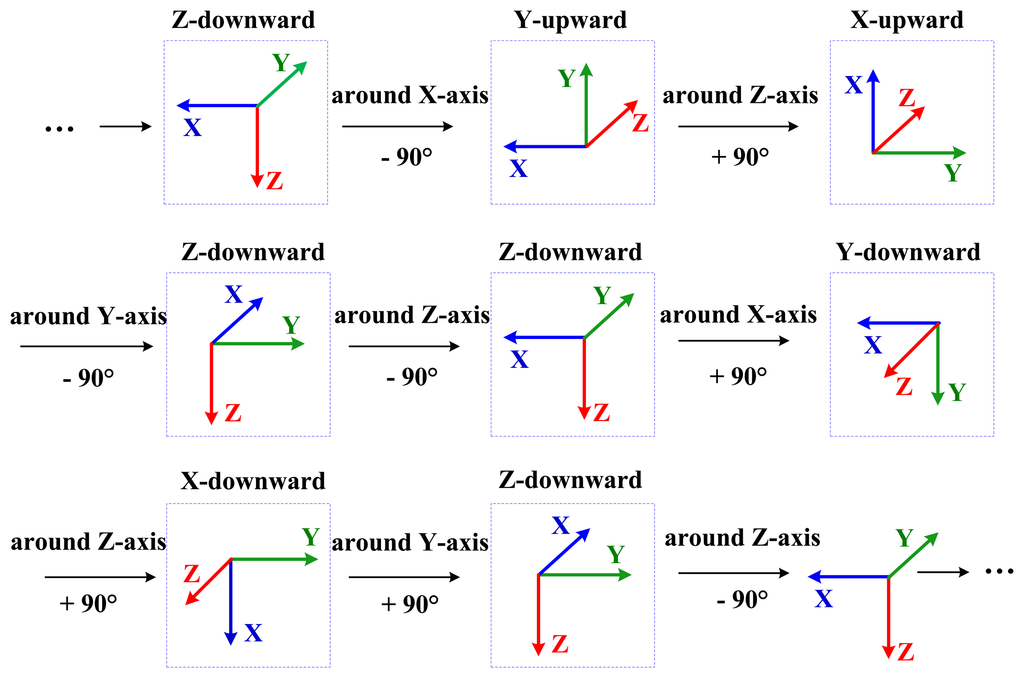

Figure 2. IMU actions in an 8-step calibration scheme.

Click here to enlarge figure

Figure 2. IMU actions in an 8-step calibration scheme.
Sensors 13 12192f2 1024
Sensors 13 12192f3 1024

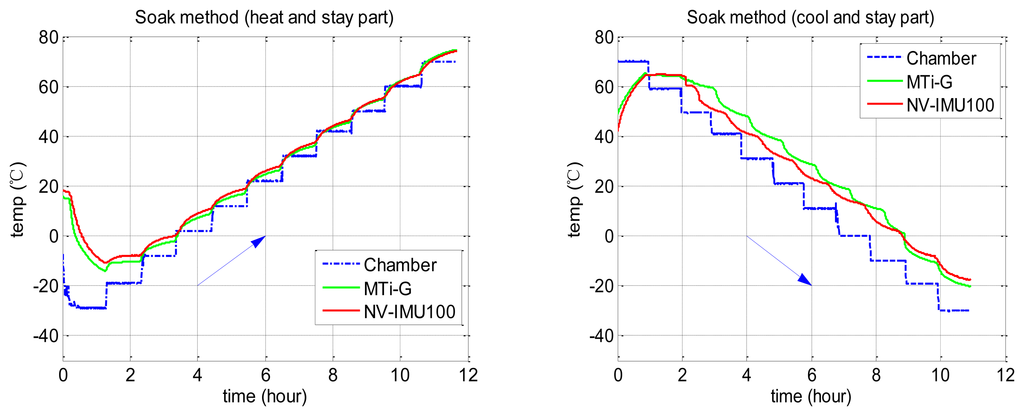

Figure 3. Temperature profile in Soak method test.

Click here to enlarge figure

Figure 3. Temperature profile in Soak method test.
Sensors 13 12192f3 1024
Sensors 13 12192f4 1024
Figure 4. Temperature profiles in proposed method tests.

Click here to enlarge figure

Figure 4. Temperature profiles in proposed method tests.
Sensors 13 12192f4 1024
Sensors 13 12192f5 1024

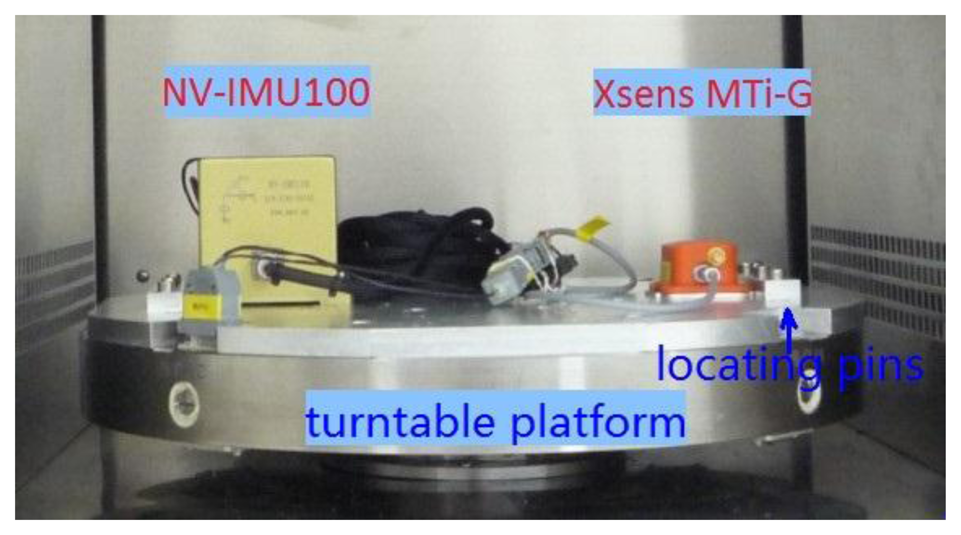

Figure 5. Two tested MEMS IMUs and the installation on the mounting plate of the turntable.

Click here to enlarge figure

Figure 5. Two tested MEMS IMUs and the installation on the mounting plate of the turntable.
Sensors 13 12192f5 1024
Sensors 13 12192f6 1024

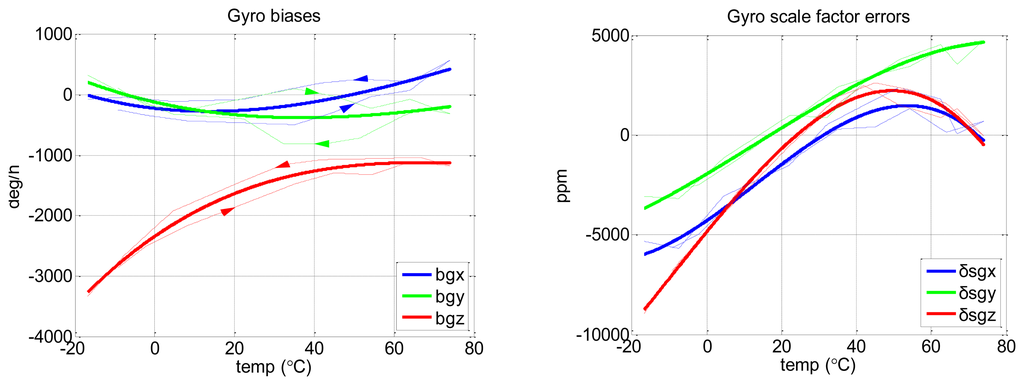

Figure 6. Thermal calibration results of MTi-G gyro biases and scale factor errors with Soak method. The thin solid lines are the results under separated heating and cooling processes (rightward and leftwards arrows indicate heating and cooling processes, respectively). The thick lines are the final curve fitted result (3rd-order polynomial fit).

Click here to enlarge figure

Figure 6. Thermal calibration results of MTi-G gyro biases and scale factor errors with Soak method. The thin solid lines are the results under separated heating and cooling processes (rightward and leftwards arrows indicate heating and cooling processes, respectively). The thick lines are the final curve fitted result (3rd-order polynomial fit).
Sensors 13 12192f6 1024
Sensors 13 12192f7 1024

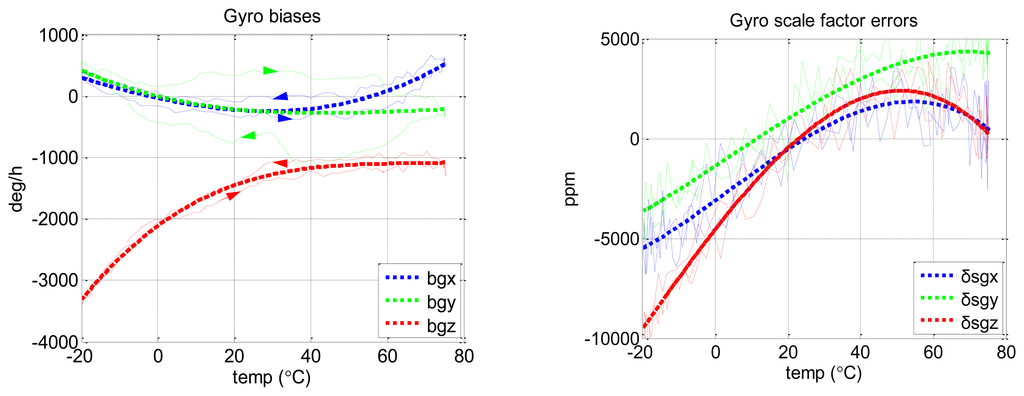

Figure 7. Thermal calibration results of MTi-G gyro biases and scale factor errors with proposed method. The thin dashed lines show the raw calibration results (i.e., the result of each calibration scheme). Rightward and leftwards arrows indicate heating and cooling processes, respectively. The thick dashed lines are the final fitted results (3rd-order polynomial fit).

Click here to enlarge figure

Figure 7. Thermal calibration results of MTi-G gyro biases and scale factor errors with proposed method. The thin dashed lines show the raw calibration results (i.e., the result of each calibration scheme). Rightward and leftwards arrows indicate heating and cooling processes, respectively. The thick dashed lines are the final fitted results (3rd-order polynomial fit).
Sensors 13 12192f7 1024
Sensors 13 12192f8 1024

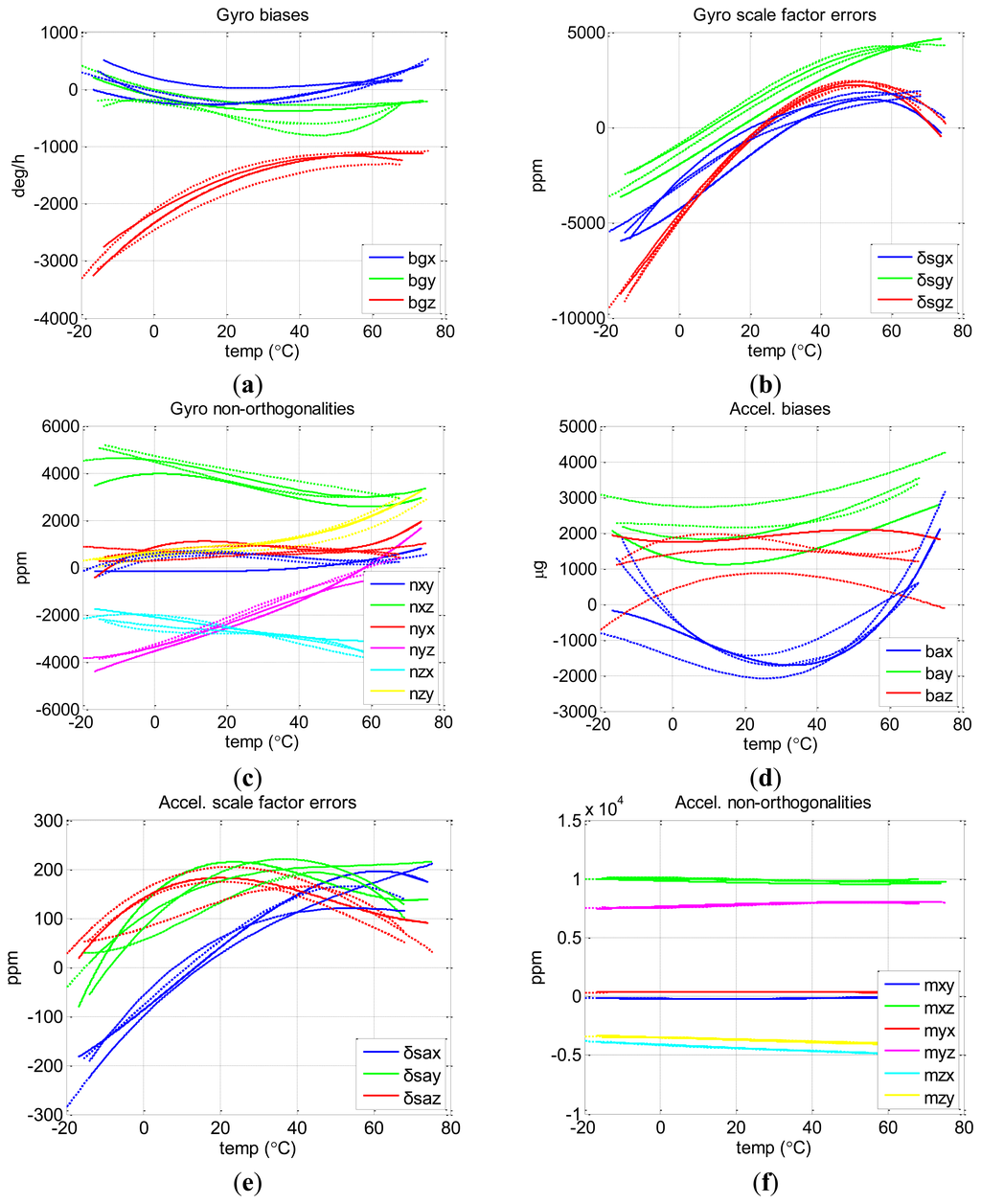

Figure 8. Thermal calibration results of MTi-G. In each subplot, three dashed lines correspond to the results of the proposed method with three different temperature profiles, and the solid line is the result of the Soak method.

Click here to enlarge figure

Figure 8. Thermal calibration results of MTi-G. In each subplot, three dashed lines correspond to the results of the proposed method with three different temperature profiles, and the solid line is the result of the Soak method.
Sensors 13 12192f8 1024
Sensors 13 12192f9 1024
Figure 9. Thermal calibration results of NV-IMU100. In each subfigure, three dashed lines correspond to the results of the proposed method with three different temperature profiles, and the solid line is the result of the Soak method.

Click here to enlarge figure

Figure 9. Thermal calibration results of NV-IMU100. In each subfigure, three dashed lines correspond to the results of the proposed method with three different temperature profiles, and the solid line is the result of the Soak method.
Sensors 13 12192f9 1024
Sensors 13 12192f10 1024

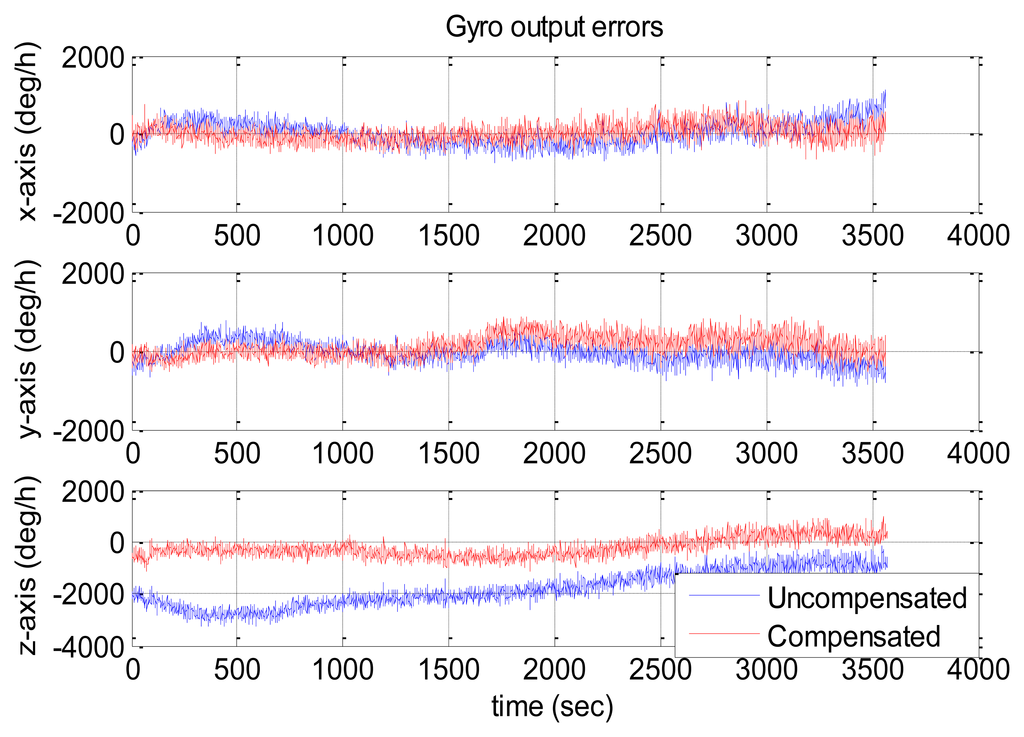

Figure 10. MTi-G gyro output errors with and without compensation.

Click here to enlarge figure

Figure 10. MTi-G gyro output errors with and without compensation.
Sensors 13 12192f10 1024
Sensors 13 12192f11 1024

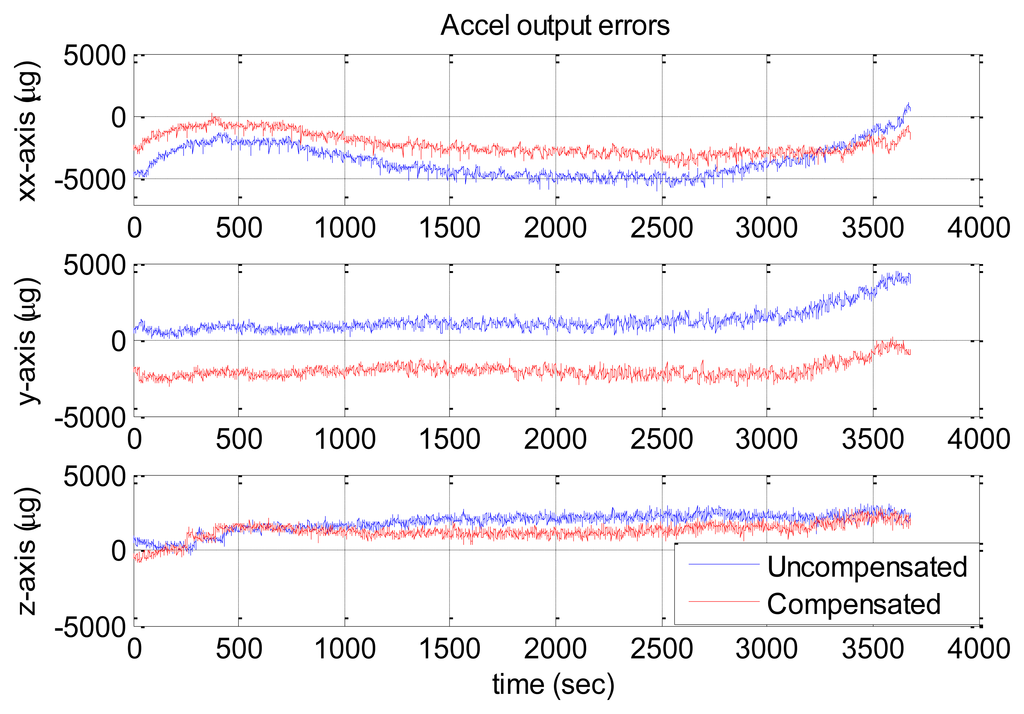

Figure 11. MTi-G accelerometer output errors with and without compensation.

Click here to enlarge figure

Figure 11. MTi-G accelerometer output errors with and without compensation.
Sensors 13 12192f11 1024
Sensors 13 12192f12 1024

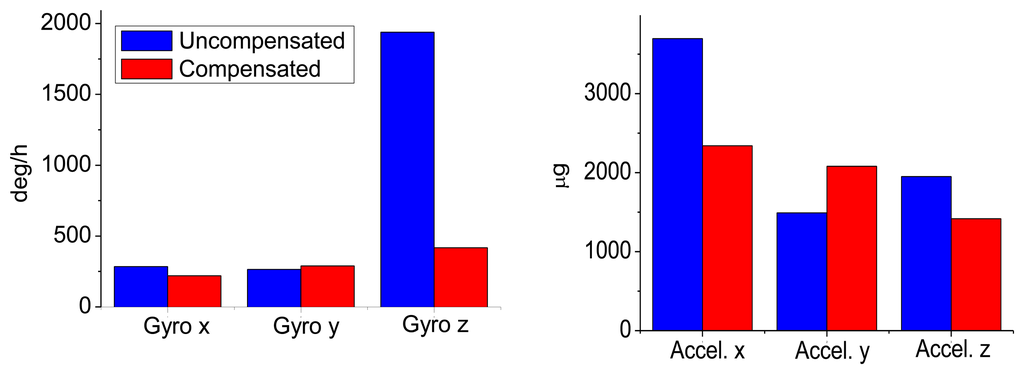

Figure 12. RMS values of MTi-G output errors with and without compensation.

Click here to enlarge figure

Figure 12. RMS values of MTi-G output errors with and without compensation.
Sensors 13 12192f12 1024
Sensors 13 12192f13 1024

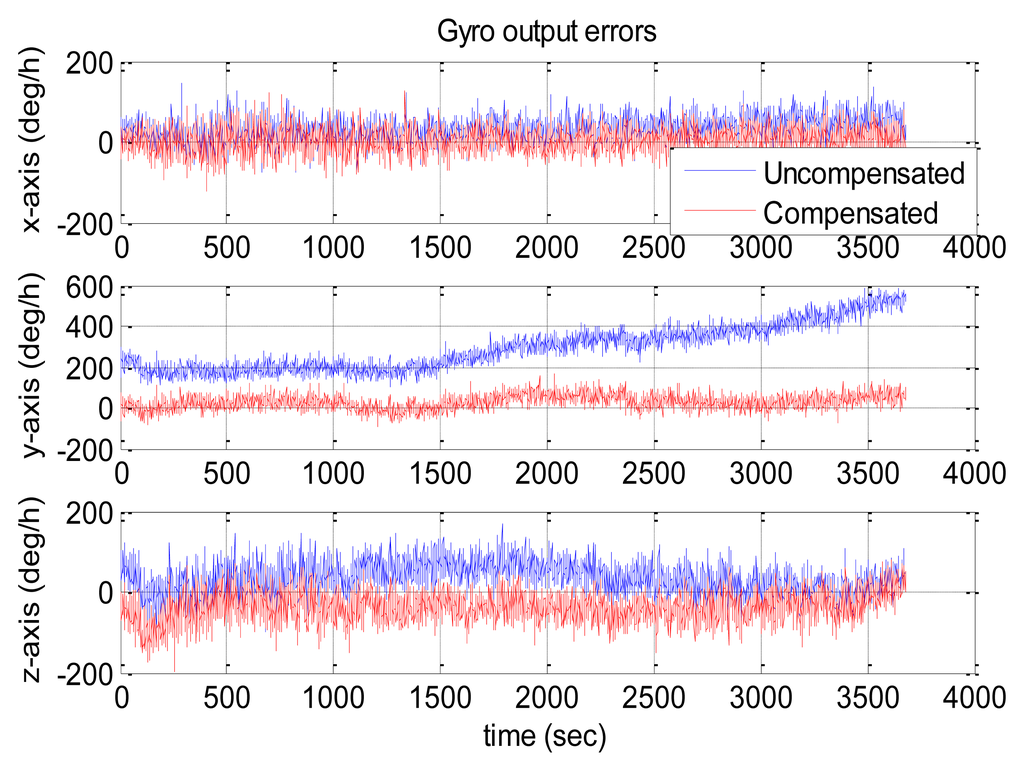

Figure 13. NV-IMU100 gyro output errors with and without compensation.

Click here to enlarge figure

Figure 13. NV-IMU100 gyro output errors with and without compensation.
Sensors 13 12192f13 1024
Sensors 13 12192f14 1024

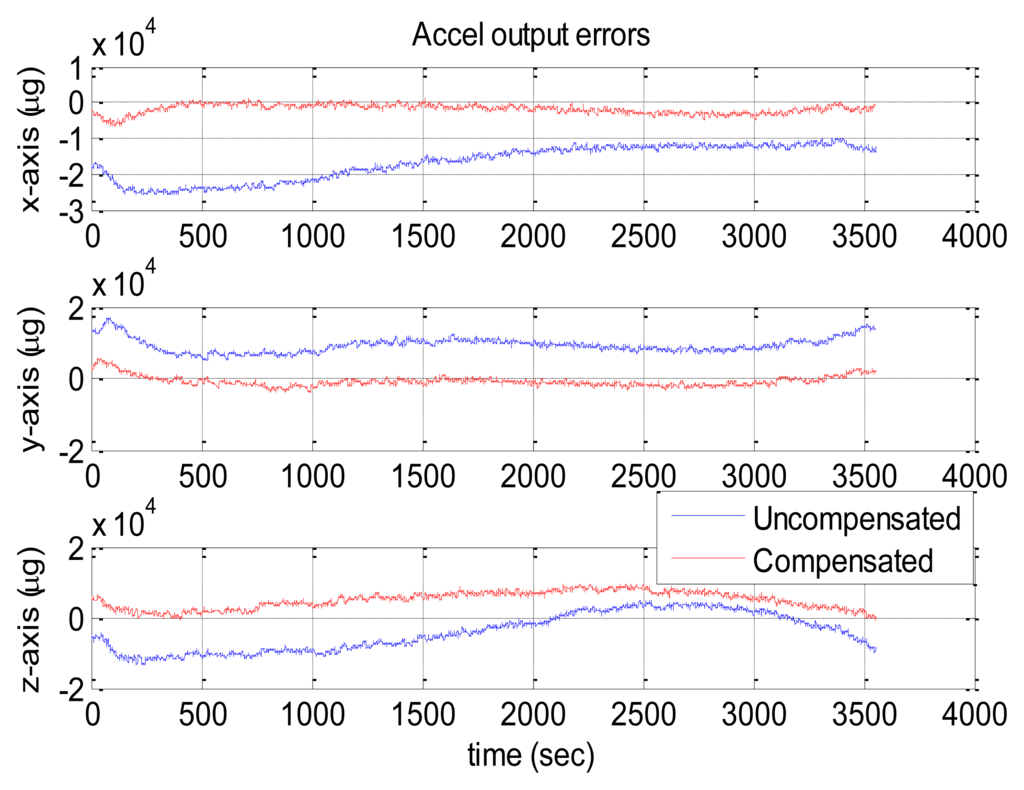

Figure 14. NV-IMU100 accelerometer output errors with and without compensation.

Click here to enlarge figure

Figure 14. NV-IMU100 accelerometer output errors with and without compensation.
Sensors 13 12192f14 1024
Sensors 13 12192f15 1024
Figure 15. RMS values of NV-IMU100 output errors with and without compensation.

Click here to enlarge figure

Figure 15. RMS values of NV-IMU100 output errors with and without compensation.
Sensors 13 12192f15 1024
Table Table 1. Performance of thermal calibration equipment.

Click here to display table

Table 1. Performance of thermal calibration equipment.
Turntable
Principal axis rotation rangeContinuous infinite
Principal axis angular position accuracy±5″
Tilting axis rotation range±95°
Tilting axis angular position accuracy±5″
Non-orthogonalities between axes±5″
Thermal Chamber

Temperature range−55 ∼ +100 °C
Temperature change rate±0.1 ∼ ±5 °C/min linear
Table Table 2. Description of temperature changes in tests of both Soak and proposed method.

Click here to display table

Table 2. Description of temperature changes in tests of both Soak and proposed method.
MethodChamber Temperature Changes
Soak method (as reference: provides the best reference of IMU sensor errors we can get)Consists of two parts: Part 1 (heat-and-stay part): increased from −30 °C to +70 °C using 10 °C steps (i.e., step at −30, −20, (x02212)10, 0, 10, 20, 30, 40, 50, 60 and 70 °C). Kept fixed at each step for 1 h. Part 2 (cool-and- stay part;: decreased from +70 °C to (x02212;30 °C using 10 °C steps. Also 1 h per step.
Proposed methodChanged linearly at ±2 °C/min for a complete cycle over −35 °C ∼ +75 °C. Kept the temperature fixed for a period at both −35 °C and +75 °C to expand the temperature range inside the IMUs to nearly (x02212;10 °C ∼ +70 °C.
A full calibration cycle took about hours.
Used the following three profiles to test the repeatability of the proposed method.
Profile 125 °C → −35 °C (keep 30 min) → +75 °C (keep 60 min) →−35 °C (keep 30 min;
Profile 225 °C → +75 °C (keep 30 min) → −35 °C (keep 30 min)→+75 °C (keep 30 min;
Profile 325 °C →+75 °C (keep 40 min) → 25 °C (keep 20 min) →−35 °C (keep 30 min) → 25 °C (keep 30 min)
Table Table 3. Characteristics of tested IMUs.

Click here to display table

Table 3. Characteristics of tested IMUs.
CharacteristicsMTi-GNV-IMU100
Data Rate100 Hz166 Hz
Operating Range−40∼85 °C−40∼80 °C
Gyro Bias (1σ)3,600 deg/h4,000 deg/h
Gyro White Noise (ARW)3.0 deg/√h1.8 deg/√h
Gyro Scale factor error (1σ)-5,000
Accel. Bias (1σ)2,000 μg9,000 μg
Accel. White Noise (VRW)0.002 m/s2/√Hz0.01 m/s2/√Hz
Accel. Scale factor error (1σ)3,000 ppm2,000 ppm
Table Table 4. Errors (RMS) of MTi-G thermal calibration at typical temperature points (using the results of the Soak method as reference).

Click here to display table

Table 4. Errors (RMS) of MTi-G thermal calibration at typical temperature points (using the results of the Soak method as reference).
Sensor Errors−10 °C10 °C30 °C50 °C70 °CMax
bb_gx (deg/h)35321413787158353
b_gy (deg/h)224852042865286
b_gz (deg/h)215182144114130215
δs_gx (ppm)8911,4426552861,2551,442
δs_gy (ppm)90610059365284021,005
δs_gz (ppm)256307155180953953
n_xy (ppm)364778612157361778
n_xz (ppm)1,0703934295252591,070
n_yx (ppm)35351226539949949
n_yz (ppm)3452713752091,2241,224
n_zx (ppm)412307833391,0711,071
n_zy (ppm)14596108221287287
b_ax (μg)1,0503672714426621,050
b_ay (μg)8011,1761,1661,0499491,176
b_az (μg)1,1466396881,0301,1661,166
δs_ax (ppm)202317445050
δs_ay (ppm)216426334564
δs_az (ppm)183919213439
m_xy (ppm)162117253333
m_xz (ppm)142229250259310310
m_yx (ppm)372832363437
m_yz (ppm)291046631121121
m_zx (ppm)124921209191
m_zy (ppm)85415567123123
Table Table 5. Calibration accuracy of proposed method (reference to Soak method) and the original thermal drift levels of the IMU errors over the whole temperature range (with MTi-G).

Click here to display table

Table 5. Calibration accuracy of proposed method (reference to Soak method) and the original thermal drift levels of the IMU errors over the whole temperature range (with MTi-G).
Sensor ErrorsAccuracy of Thermal CalibrationOriginal Drifts over−10 ∼ +70 °C
Gyro biases360 deg/h2,100 deg/h
Gyro scale factor errors1,500 ppm11,000 ppm
Gyro non-orthogonalities1,300 ppm6,000 ppm
Accel. biases1,200 μg3,800 μg
Accel. scale factor errors100 ppm400 ppm
Accel. non-orthogonalities400 ppm1,000 ppm
Table Table 6. Errors (RMS) of NV-IMU100 thermal calibration at typical temperature points (using the results of the Soak method as reference).

Click here to display table

Table 6. Errors (RMS) of NV-IMU100 thermal calibration at typical temperature points (using the results of the Soak method as reference).
Sensor Errors−10 °C10 °C30 °C50 °C70 °CMax
b_gx (deg/h)511025
b_gy (deg/h)011233
b_gz (deg/h)321444
δs_gx (ppm)41158532872363585
δs_gy (ppm)2,1432,0391,3103721902,143
δs_gz (ppm)297467544353792792
n_xy (ppm)598571473430578598
n_xz (ppm)40924414137141
n_yx (ppm)874522497538403874
n_yz (ppm)57412047113113
n_zx (ppm)10381404230103
n_zy (ppm)4051404230103
b_ax (μg)4,1333,5203,4173,0361,3374,133
b_ay (μg)1,6341,3687049242,3252,325
b_az (μg)8292,1701,5141,1013,8603,860
δs_ax (ppm)956249689095
δs_ay (ppm)115607450120265607
δs_az (ppm)179146135153226226
m_xy (ppm)380443490523511523
m_xz (ppm)223106411616223
m_yx (ppm)547398472521313521
m_yz (ppm)16914912450134169
m_zx (ppm)1618310287135161
m_zy (ppm)20511210011069205
Table Table 7. Calibration accuracy of proposed method (reference to Soak method) and the original thermal drift ranges of the sensor errors over the whole temperature range (with NV-IMU100).

Click here to display table

Table 7. Calibration accuracy of proposed method (reference to Soak method) and the original thermal drift ranges of the sensor errors over the whole temperature range (with NV-IMU100).
Sensor ErrorsAccuracy of Thermal CalibrationOriginal Drifts over −10 ∼ +70 °C
Gyro biases5 deg/h *13 deg/h
Gyro scale factor errors2,200 ppm10,000 ppm
Gyro non-orthogonalities900 ppm1,000 ppm
Accel. biases4,200 μg14,000 μg
Accel. scale factor errors700 ppm1,800 ppm
Accel. non-orthogonalities600 ppm600 ppm

*The NV-IMU100 has three vibrating ring gyros, and the thermal drifts of its gyro biases had been partly compensated by factory calibration.

Table Table 8. Descriptions of the six thermal compensation tests.

Click here to display table

Table 8. Descriptions of the six thermal compensation tests.
Motions of the IMUs (Provided by the Turntable)
Dynamic test 1IMUs kept rotating around their x-axis at 10 deg/s.
Dynamic test 2IMUs kept rotating around their y-axis at 10 deg/s.
Dynamic test 3IMUs kept rotating around their z-axis at 10 deg/s.
Static test 1IMUs kept static with x-axis pointed upwards.
Static test 2IMUs kept static with y-axis pointed upwards.
Static test 3IMUs kept static with z-axis pointed upwards.
Chamber Temperature

Before each test, the temperature was stabilized at −10 °C;
During each test, the temperature was changed from −10 °C to 70 °C in one hour.
Table Table 9. The parameters of the 3rd order polynomial thermal models of the IMU errors applied in the thermal compensation tests, i.e., A0, A1, A2 and A3 in Equation (3). The thermal models can be used to calculate the thermal drifts of the IMU sensor errors at each temperature and then remove such thermal drifts from the IMU outputs.

Click here to display table

Table 9. The parameters of the 3rd order polynomial thermal models of the IMU errors applied in the thermal compensation tests, i.e., A0, A1, A2 and A3 in Equation (3). The thermal models can be used to calculate the thermal drifts of the IMU sensor errors at each temperature and then remove such thermal drifts from the IMU outputs.
Sensor ErrorsMTi-GNV-IMU1

A0A1A2A3A0A1A2A3
b_gx (deg/h)−31−13.650.1770.00142−4−0.060.003−3.24712
b_gy (deg/h)1−15.330.260−0.0013650.03−0.0021.56754
b_gz (deg/h)−2,11245.24−0.6820.0035210.10−0.0090.00012
δs_gx (ppm)−3,1081.310.232−0.0178375214.18−1.2880.02144
δs_gy (ppm)−1,380119.620.107−0.00931−377−44.184.715−0.02033
δs_gz (ppm)−4,541232.23−1.134−0.01477−2,21171.962.405−0.01435
n_xy (ppm)61117.20−0.9060.00896−2,30411.76−0.069−0.00083
n_xz (ppm)4,527−18.12−0.7330.010234833.400.234−0.00288
n_yx (ppm)701−8.140.0770.001113,344−0.770.053−0.00069
n_yz (ppm)−3,37139.470.620−0.008101,08111.43−0.2290.00277
n_zx (ppm)−2,017−10.81−0.7830.00761−1,6993.480.201−0.0023
n_zy (ppm)5936.73−0.2930.00813−1,9394.98−0.0080.00038
b_ax (μg)−1,472−37.020.1200.01575−23,074365.76−0.808−0.03441
b_ay (μg)2,758−6.760.443−0.001287,069169.46−7.2470.07519
b_az (μg)41138.25−0.8760.00360−16,897−27.5113.616−0.17003
δs_ax (ppm)−1007.71−0.0730.00034−3,00325.52−0.4720.00350
δs_ay (ppm)1025.25−0.0900.00055−2,650−8.41−0.3610.00814
δs_az (ppm)1574.32−0.1080.00038−3,50912.560.565−0.00513
m_xy (ppm)−174−1.770.0260.00052−6,614−6.55−0.2210.00287
m_xz (ppm)9,996−1.75−0.1290.00149−10,5394.260.195−0.00179
m_yx (ppm)3721.50−0.037−0.000033,858−10.070.429−0.00387
m_yz (ppm)7,6488.420.017−0.000889,9565.03−0.2570.00261
m_zx (ppm)−4,158−15.850.095−0.000345,713−11.620.127−0.00103
m_zy (ppm)−3530−7.14−0.0320.00018−5912−4.28−0.1090.00071
Table Table 10. Statistical results of MTi-G output errors with and without compensation.

Click here to display table

Table 10. Statistical results of MTi-G output errors with and without compensation.
SensorsCompensatedUncompensated


RMSMeanRMSMean
Gyro x (deg/h)2201528423
Gyro y (deg/h)289124264−37
Gyro z (deg/h)418−2792164−1974
Accel. x (μg)2341−21473697−3287
Accel. y (μg)2081−202314901256
Accel. z (μg)1416121919511852
Table Table 11. Statistical results of NV-IMU100 output errors with and without compensation.

Click here to display table

Table 11. Statistical results of NV-IMU100 output errors with and without compensation.
SensorsCompensatedUncompensated

RMSMeanRMSMean
Gyro x (deg/h)2944129
Gyro y (deg/h)4427314294
Gyro z (deg/h)48−365032
Accel. x (μg)2253−610517356−16665
Accel. y (μg)1687−82395169287
Accel. z (μg)541047816894−4403
Table Table 12. Accuracy of proposed method (reference to Soak method).

Click here to display table

Table 12. Accuracy of proposed method (reference to Soak method).
Sensor ErrorsXsens MTi-GNV-IMU100
Gyro biases360 deg/h5 deg/h *
Gyro scale factor errors1,500 ppm2,200 ppm
Gyro non-orthogonalities1,300 ppm900 ppm
Accel. biases1,200 μg4,200 μg
Accel. scale factor errors100 ppm700 ppm
Accel. non-orthogonalities400 ppm600 ppm

*The NV-IMU100 has three vibrating ring gyros with stable bias inherently, and the thermal drifts of its gyro biases had been partly compensated by factory calibration.

Table Table 13. RMS of IMU output errors with and without thermal compensation.

Click here to display table

Table 13. RMS of IMU output errors with and without thermal compensation.
SensorsXsens MTi-GNV-IMU100

CompensatedUncompensatedCompensatedUncompensated
Max Gyro output error (deg/h)4182,16448314
Max Accel. output error (μg)2,3423,6975,41017,356
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
