Video-Based Fingerprint Verification
Wei Qin , Yilong Yin * and Lili Liu
School of Computer Science and Technology, Shandong University, Jinan 250101, Shandong, China; E-Mails: weiqin_wq@163.com (W.Q.); ll_liu@aliyun.com (L.L.)
*
Author to whom correspondence should be addressed; E-Mail: ylyin@sdu.edu.cn; Tel.: +86-531-8839-1367.
Received: 30 June 2013; in revised form: 23 July 2013 / Accepted: 26 August 2013 /
Published: 4 September 2013

Abstract

: Conventional fingerprint verification systems use only static information. In this paper, fingerprint videos, which contain dynamic information, are utilized for verification. Fingerprint videos are acquired by the same capture device that acquires conventional fingerprint images, and the user experience of providing a fingerprint video is the same as that of providing a single impression. After preprocessing and aligning processes, “inside similarity” and “outside similarity” are defined and calculated to take advantage of both dynamic and static information contained in fingerprint videos. Match scores between two matching fingerprint videos are then calculated by combining the two kinds of similarity. Experimental results show that the proposed video-based method leads to a relative reduction of 60 percent in the equal error rate (EER) in comparison to the conventional single impression-based method. We also analyze the time complexity of our method when different combinations of strategies are used. Our method still outperforms the conventional method, even if both methods have the same time complexity. Finally, experimental results demonstrate that the proposed video-based method can lead to better accuracy than the multiple impressions fusion method, and the proposed method has a much lower false acceptance rate (FAR) when the false rejection rate (FRR) is quite low.
Keywords:
fingerprint; fingerprint verification video; dynamic information; similarity; relative match score

1. Introduction

In ancient China and many other countries and districts, people had been aware that a fingerprint can be used for identity authentication [1]. However, it was not until 1880 that Henry Fauld first scientifically suggested the individuality of fingerprints based on empirical observations [2]. In 1892, Galton published the well-known book entitled Fingerprints, in which he discussed the basis of contemporary fingerprint science, including persistence, uniqueness and classification of fingerprints [3]. In the early twentieth century, fingerprint recognition was formally accepted as a valid personal identification method and became a standard routine in forensics [1]. With the rapid expansion of fingerprint recognition in forensics, operational fingerprint databases became so huge that manual fingerprint identification became infeasible, which led to the development of Automatic Fingerprint Identification Systems (AFIS) using a computer for fingerprint verification [2].

Fingerprint verification is one of the most popular and reliable biometric techniques for automatic personal identification [4]. Unlike the conventional possession-based (e.g., passport) or knowledge-based (e.g., passwords) identity authentication schemes, the fingerprint identifier cannot be misplaced, forgotten, guessed or be easily forged. During recent years, fingerprint verification has received more and more attention and has been widely used in both forensic and commercial applications. Despite the brilliant achievements it has made, its wider-scale deployment has been hindered, due to challenging problems in fingerprint verification technology.

The main challenge of fingerprint verification is its less than satisfactory accuracy in some application domains. To improve the accuracy of fingerprint systems, three aspects of work are undertaken. Firstly, researchers focus on improving the performance of one or more steps of AFIS based on a single impression. The steps include segmentation [5,6], enhancement [79], representation and feature extraction (minutia-based [10], Ridge-based [11,12], texture-based [13,14], correlation-based [15,16]), matching [17,18], etc. Secondly, researchers try to use multiple sources of fingerprints to access higher accuracy. These sources include multiple biometric traits [19,20], multiple sensors [21], multiple representations and matchers [13,22,23], multiple fingers [23] and multiple impressions of the same finger [2426]. Thirdly, new features are explored for matching beyond traditional features. Level 3 features, such as pores and ridge contours extracted from high resolution fingerprint images, are employed for fingerprint recognition, and the performance gain by introducing level 3 features is also studied [3,2730].

All of these methods use static information (information from one static impression or from several temporal-independent static impressions), and no dynamic information (information from a video) is introduced. Dorai et al. [31,32] acquired a fingerprint video while a finger was interacting with the sensor. Then, they detected the distortion of fingerprint impressions due to excessive force and the positioning of fingers during image capture. They also investigate two aspects of dynamic behaviors from video and propose a new type of biometrics, named “resultant biometrics”. This offers us the enlightenment that we can use videos for fingerprint verification to achieve higher accuracy. Dorai et al. [31,32] focused on detecting distortion generated during the impression acquisition process and investigated the transformation of a user's biometrics over time. However, they did not directly use video for fingerprint verification.

In recent years, hardware technologies have matured to the point that we are able to transmit, store, process and view video signals that are stored in digital formats [33]. In fact, most of the currently used fingerprint capture devices have the capability to acquire fingerprint videos if the capturing software is modified accordingly. In the book [33], Bovik states that “this (from static image to video, see Figure 1) is a natural evolution, since temporal change, which is usually associated with motion of some type, is often the most important property of a visual signal”. Firstly, from fingerprint video, we can explore more useful information, which can be used to improve the accuracy of fingerprint verification. Secondly, the user experience of providing a fingerprint video is the same as that of providing a single impression. Thirdly, there are many ways a hacker can obtain fingerprint data of a specific user. For example, a latent fingerprint left on physical surfaces that the user has touched can be lifted and used for attacking a fingerprint system. However, the fingers' pressing process and the dynamic behaviors contained in the process cannot be left on the surface. Therefore, there may be potential benefits of using fingerprint video with respect to alleviating security issues. Therefore, investigating video-based fingerprint verification is meaningful and interesting work.

This paper is a significant extension of an earlier and much shorter version presented in [34]. The rest of this paper is organized as follows: In Section 2, we give analysis of a fingerprint video. Section 3 presents one video-based fingerprint verification method. Section 4 describes the experimental procedure and presents the experimental results. Finally, conclusions and future work are given in Section 5.

2. Fingerprint Video Analysis

2.1. Fingerprint Video Capturing

Nowadays, video capturing technology is mature enough to be able to deliver images at a relative high frame rate and the frame rate can be adjusted according to the demands of applications. During a capturing procedure, we can acquire a fingerprint video that records the whole process, from a finger touching the sensor surface to the finger leaving the surface. Actually, many single impression capture devices that use the touch method (non-sweep method) have the capability to generate images at a certain time interval. However, only one impression that satisfies some conditions is saved. In the same scenario, a fingerprint video can be acquired if we save more impressions in the capturing procedure. Therefore, there is no difference between providing a single impression and providing a fingerprint video from the user's point of view. The capture device and time cost of acquiring a single impression and a fingerprint video are the same.

2.2. Dynamic Information

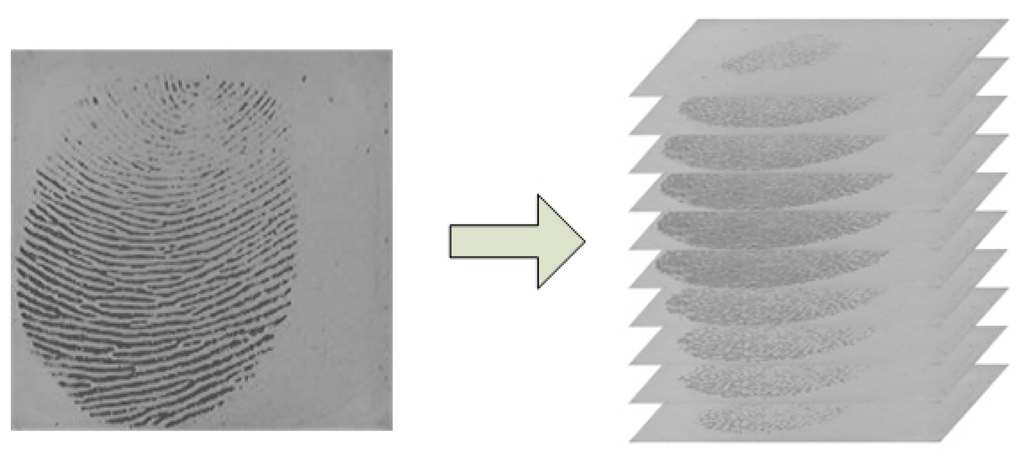

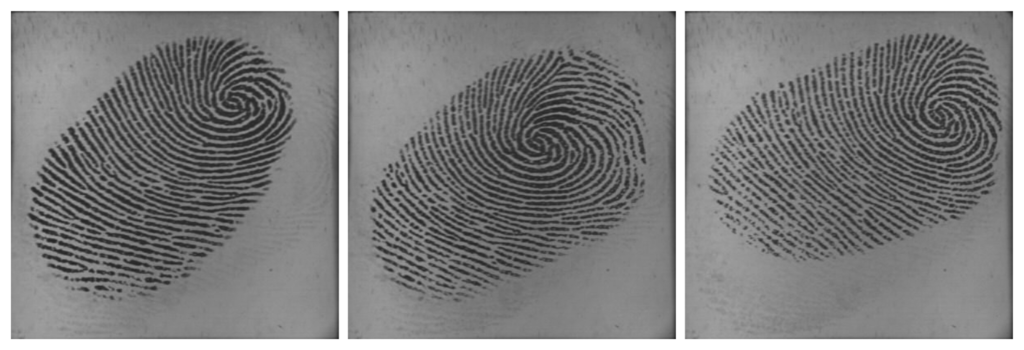

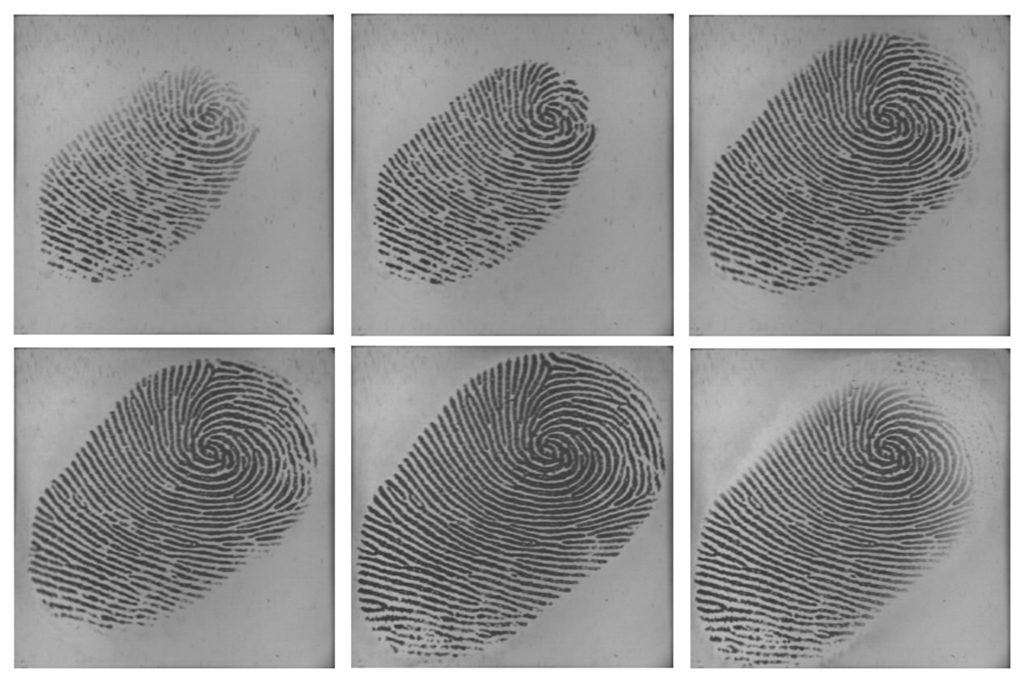

A fingerprint video consists of a sequence of fingerprint impressions. On the one hand, impressions in a fingerprint video vary, due to distortion, deformation and the changing of the fingerprint area. On the other hand, there is strong correlation between fingerprint impressions inside a video, if there is no significant distortion and deformation. It can be inferred that the match score between two impressions in the same fingerprint video should be quite high.

One advantage of using video is that we can select the impression with better image quality, e.g., the impression with the largest fingerprint area. The other advantage is that there exist impressions different from each other in a video. Therefore, more information is introduced, and fusion methods can be taken to use these impressions for higher accuracy. These all make use of static information. More importantly, we can also take advantage of the strong correlation between impressions inside a fingerprint video, which is a kind of dynamic information.

2.3. Fingerprint Video Versus Multiple Impressions

Utilizing multiple impressions from the same finger has been proven to be effective to improve the accuracy of fingerprint systems [25,26]. Fingerprint video also contains a sequence of impressions; however, multiple impressions and fingerprint video are quite different. Firstly, multiple impressions of the same finger are acquired in multiple independent capturing procedures, while a fingerprint video is acquired in one capturing procedure. Secondly, multiple impressions of the same finger are relatively independent, i.e., they may capture different regions of the finger. Even if they capture the same region of the finger, the signal-to-noise ratio may be quite different. However, impressions in a fingerprint video have strong correlation, as they are temporal-dependent and vary gradually. The strong correlation is a kind of dynamic information, which can be used to improve fingerprint verification accuracy. Figures 2 and 3 give examples of multiple impressions of the same finger and a fingerprint video, respectively.

3. Video-Based Fingerprint Verification Method

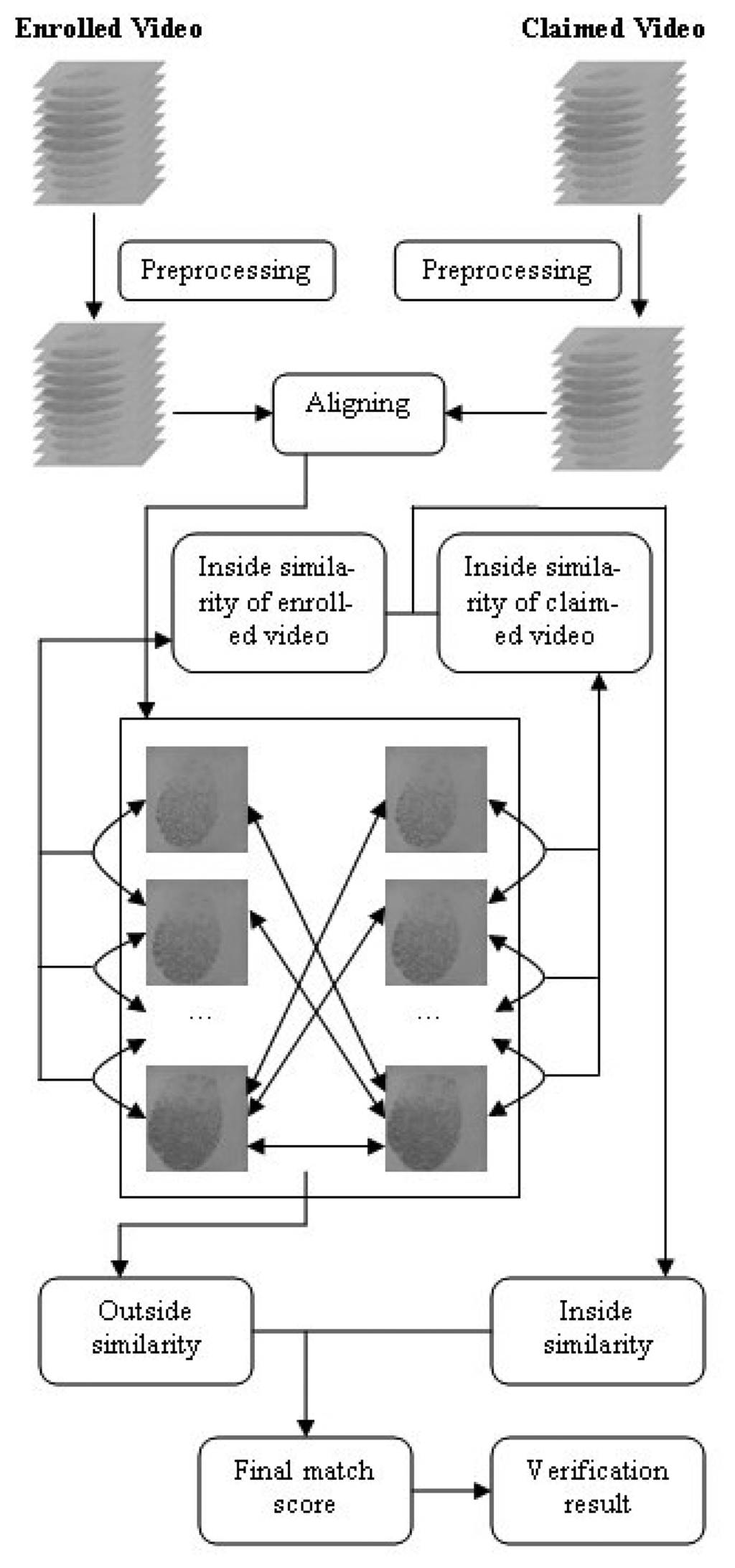

The proposed video-based fingerprint verification method contains the following steps: video preprocessing, videos aligning, calculating the inside similarity, calculating the outside similarity, combining the two kinds of similarities and, finally, verification. The flow chart of the schemes is shown in Figure 4.

3.1. Preprocessing of Fingerprint Video

The raw enrolled fingerprint videos cannot be used for verification directly, as there may exist fingerprint images that have limited benefits (such as impressions with too small of a fingerprint area) for recognition. Additionally, the computational cost will be reduced if fewer images are used for verification. Therefore, a preprocessing step is needed to select fingerprint images that will be used for verification. There are many rules to select effective fingerprint images, i.e., foreground size and gray-value contrast [35]. For different purposes, researchers choose different selection criteria. For example, for a system using a single impression for verification, the image should be large and clear; for a system using multiple impressions, the diversity of the impressions should be considered. Considering that a fingerprint video contains many adjacent duplicate images, reserving one copy of them will not lose any useful information. Besides, as a fingerprint video has strong correlation, which is beneficial for verification, we have to reserve the continuity of the chosen images. Therefore, in this paper, the foreground size is applied as the criterion to decide which image should be reserved in a fingerprint video. It should be noted that the adjacent images, which have the same foreground size, are considered as duplicate images, and the foreground size is measured by foreground blocks. The process of determining the reserved images is illustrated as follows:

Suppose the set of fingerprint images in an enrolled fingerprint video is represented as:

R = { F i R i = 1 , 2 , m }
where m is the number of images in the fingerprint video and F i R is the ith image. First, each fingerprint image, F i R, in the raw video is segmented under the block-level using the segmentation method in [36], and the number of blocks in the foreground of F i R is represented by FP_Block_Numi. Images with a FP_Block_Numi value smaller than a certain threshold, λ, will be abandoned. Besides, adjacent images with the same number of foreground blocks are considered as the same image, and only one of them will remain. After preprocessing, the set of remaining fingerprint images in the enrolled fingerprint video is represented as:
E = { F i E i = 1 , 2 , n }
where n(nm) is the number of remaining images and F i E is the ith image. The image with the largest fingerprint area in this sequence is represented as F max _ e E ( 1 max _ e n ). The remaining images are then used for verification. The preprocessing algorithm is summarized in Algorithm 1.

Similarly, we can also get the set of fingerprint images in the claimed video after preprocessing:

C = { F i C i = 1 , 2 l }
where l is the number of images and F i C is the ith image. The image with the largest fingerprint area in this sequence is represented as F max _ c C ( 1 max _ c l ).


Algorithm 1 Fingerprint video preprocessing algorithm.

Input: Image set R and E, FP_Block_Numi(i=1, 2,…, m), threshold λ
Procedure:
1.Set: E = Ø, FP_Block _Num0= -1, j = 1
2.for (i=1 to m)
3. if (FP_Block_Numi ≥ λ and FP_Block_NumiFP_Block_Numi−1)
4. F j E is inserted into set E and represented as ;
5.j=j + l;
Output: Set E

3.2. Aligning Algorithm

Considering the computational complexity, we have to use the fewest impressions in a fingerprint video to get as high an accuracy as possible. Here, we propose an aligning method to reduce the number of impressions according to the characteristics of fingerprint videos.

Generally speaking, from the finger contacting the sensor surface to the finger leaving the surface, the fingerprint area of the impressions first enlarges gradually and then decreases gradually, as shown in Figure 3. The impression with the largest fingerprint area could be seen as the “datum point”. Suppose there is a pair of matching videos: the frame sequences after preprocessing are E and C, as described in Equations (2) and (3), respectively. We select F max _ e E and F max _ c C as datum impressions and let F max _ e E correspond to F max _ c C, F max _ e j E correspond to F max _ c j C (j = 1, 2, ⋯, min{max_e, max_c} − 1; and F max _ e + j E correspond to F max _ c + j C (j = 1, 2, ⋯, min{nmax_e, mmax_c}). Impressions that have no correspondences will not be used for verification. After aligning, there will be the same number of remaining impressions in both videos. An example of our aligning method is shown in Figure 5.

3.3. Inside Similarity and Outside Similarity

To use fingerprint videos for verification, we must define the similarity between two matching videos. The match score is used to measure the similarity between two videos. The proposed method uses both “inside similarity” and “outside similarity” to calculate the final match score between two videos. Outside similarity is calculated in the same way as the fusion method using multiple impressions of the same finger, and thus, the static information of a fingerprint video is utilized. However, the innovation of this paper is reflected in the definition of inside similarity, which takes advantage of the dynamic information of a fingerprint video. The proposed video-based method has been named Video Matching Score Calculation (VMSC), as it defines and calculates the match score between fingerprint videos.

There are two stages in fingerprint verification: enrollment and verification. During the enrollment stage, fingerprint videos are captured and stored as templates. Then, the inside similarity of each enrolled video can be calculated. During the verification stage, a new fingerprint video is acquired and compared to a stored template to verify whether they are from the same finger. In this stage, outside similarity is calculated, and the inside similarity of the claimed video can also be calculated.

3.3.1. Inside Similarity

After aligning, the sequence of remaining impressions in an enrolled fingerprint video V can be represented as:

E = { F i E i = 1 , 2 , k }
where k is the number of impressions and F i E is the ith impression; the sequence of remaining impressions in the claimed fingerprint video, V', which matches against V, can be represented as:
C = { F i C i = 1 , 2 , k }
where k is the number of impressions and F i C is the ith impression.

In the enrollment stage, we can calculate the match score, SE, which represents the inside similarity of the enrolled video. In the verification stage, match score SC, which represents the inside similarity of the claimed video, can be calculated. Here, we select two strategies to calculate SC according to different time complexity:

(1)

Strategy IS-1:

S C = 1 k 1 i = 1 k 1 S i , i + 1 C
where S i , i + 1 C is the match score between F i C and F i + 1 C.

(2)

Strategy IS-2:

S C = 1 k * ( k 1 ) / 2 j = 1 k 1 i = j + 1 k S i , j C
where S i , j C is the match score between F i C and F j C.

SE can also be calculated by the two strategies described in Equations (6) and (7). It is worth noting that the calculation of SE is offline, and thus, the time complexity of calculating SE is not a main issue. The final inside similarity represented by match score SI can be calculated as:

S I = S E
or:
S I = ( S E + S C ) / 2
according to different time complexity.

We also have to notice that the fingerprint area of impressions may be quite different; so, correspondingly, the number of minutia in a pair of matching impressions may vary greatly. In order to eliminate the effect of this difference, the following equation is used to calculate the match score between a pair of impressions:

score = num _ succ min { num _ 1 , num _ 2 }
where num_succ is the number of matched minutia and num_1 and num_ 2 are the number of minutia in the two impressions, respectively. This equation will be used in all of the one-on-one matches in this paper.

3.3.2. Outside Similarity

In the verification stage, outside similarity represented by the match score, SO, can be calculated. We select two strategies to calculate SO according to different time complexity:

(1)

Strategy OS-1:

S O = S max _ e , max _ c
where Smax_e,max_c is the match score between F max _ e E and F max _ c C.

(2)

Strategy OS-2:

S O = 1 2 k ( i = 1 k S i , mac _ c + j = 1 k S max _ e , j )
where Si,max_c is the match score between F i E and F max _ c C (1 ≤ ik) and Smax_e,j is the match score between F max _ e E and F j E (1 ≤ jk).

3.4. Combination of Inside and Outside Similarity

Considering an enrolled fingerprint video, V, and a claimed fingerprint video, V', the inside similarity and outside similarity are represented by SI and SO, respectively If this is a genuine match, outside similarity can be represented by S g O; if this is an impostor match, outside similarity can be represented by S i O.

There is a priori information that all the matches between two impressions in the same fingerprint video are genuine. As described in Section 2.2, the match score between two impressions in the same fingerprint video can be quite high, due to their strong correlation. Therefore, for a genuine match, inside similarity, SI, is an approximate representation of the maximum value of the outside similarity, S g O. Thus, if SI is not high, we have no reason to expect S g O to be much higher than SI. Then, a relative match score, ∆S, can be introduced to improve the accuracy of verification.

Suppose ∆S = SO - SI:

(1)

if ∆S ≥ 0, the larger ∆S is, the more certain V' is genuine;

(2)

if ∆S < 0, the larger the absolute value of ∆S is, the more certain V' is an impostor. For a genuine match, although the absolute match score, S g O, may be too low to lead to false rejection, the relative match score, ∆S, may be high enough to lead to correct verification. Table 1 shows the benefits of using the relative match score for verification.

In summary, the larger ∆S is, the more V' is certain to be genuine. Therefore, ∆S can be used to measure the similarity between two matching videos.

We propose to calculate the final match score, S, between two matching videos as follows:

S = S O + f ( Δ S ) = S O + f ( S O S I )
where f (●) is an increasing function. We can use the simplest form as follows:
S = S O + ω * Δ S = S O + ω * ( S O S I )
where ω is the weight of ∆S and ω > 0.

We have to notice that the foundation of this method is that the match score between two impressions in a same fingerprint video is quite high due to their strong correlation and SI is an approximate representation of the maximum value of S g O.

4. Experiments and Analysis

4.1. Database

We collected fingerprint videos from 50 individuals using an optical fingerprint capture device. The frame rate is 25 frames/sec, and the frame size is 400 × 400 pixels with 72 dpiand 256 gray levels. The subjects mainly consisted of volunteers from the students and staff at Shandong University. Therefore, the database was named SDU-FV database. There were 20 females and 30 males in this database. Each volunteer provided 10 fingerprint videos from the same finger, and our database contained a total of 500 (50 × 10) videos. During the data acquisition process, we did not supervise or assist the subjects, in order to simulate the real situation as best as possible. Additionally, the subjects were not informed that they were providing fingerprint videos. The fingerprint images in the SDU-FV database vary in quality and type, including incompleteness, creases, scars and smudges in the ridges or dryness and blurs of the fingers. Some fingerprint samples are listed in Figure 6.

To our knowledge, the NIST24 database is the only public database of fingerprint videos. However, the fingerprint videos in this database are with deliberate distortions and deformations, which may lead the foundation of our method to not be satisfied. Moreover, the purpose of distributing the NIST 24 database is to determine how well the system tolerates significant plastic distortions, not to directly use videos for verification, which is quite different from the purpose of this paper. Therefore, the NIST 24 database is not suitable for testing our video-based method.

4.2. Analysis of the Proposed Method

4.2.1. Data and Its Distribution

In the conventional single impression-based verification method, the similarity between two matching impressions used to make the final match decision is one-dimensional. In this paper, inside similarity, SI, and outside similarity, SO, are calculated and, thus, a two-dimensional similarity (SI, SO) between a pair of matching videos is introduced. Figure 7 shows the two-dimensional distributions of (SI, SO) for all the genuine and impostor matches.

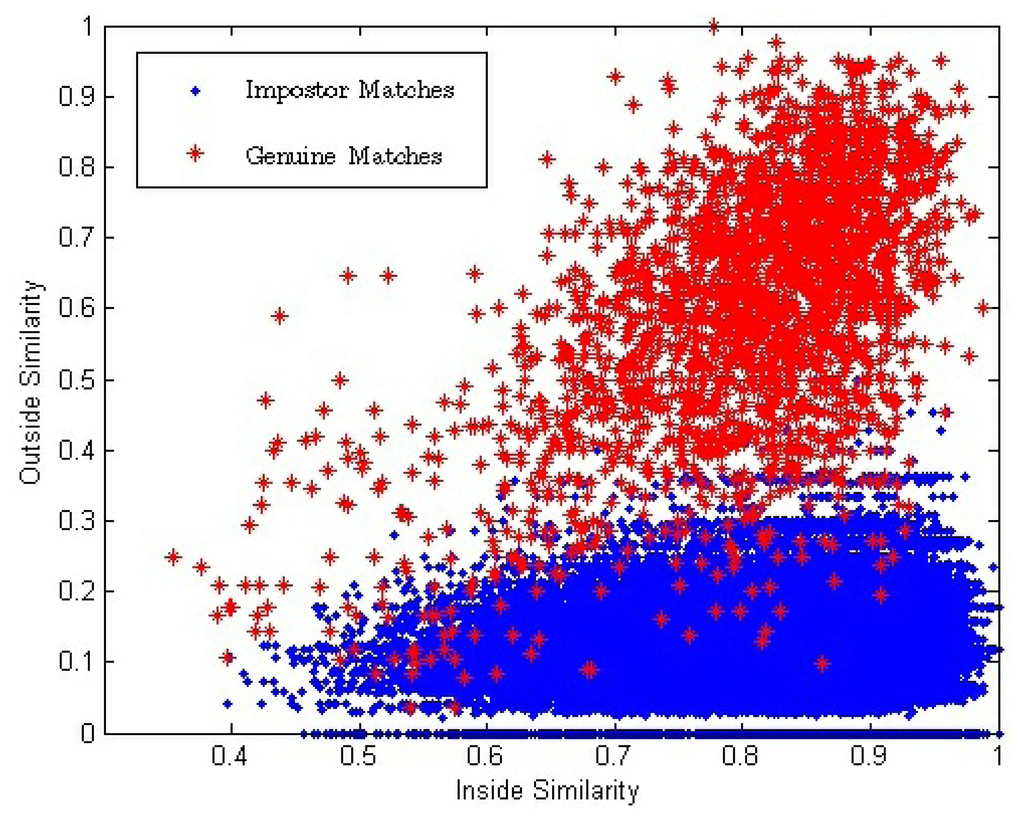

Figure 7 shows that with the decrease of SI, both S i O and S g O also decrease. We use E(●) to represent the mathematical expectation. Because there exists strong correlation between the impressions inside a fingerprint video, we can conclude that:

E ( S i O ) < E ( S g O ) < E ( S I )
Therefore, S i O and S g O. decrease with the decreasing of SI.

4.2.2. Analysis of Proposed Equation

Equation (14), which is proposed to combine inside and outside similarity, is equal to Z = SO + ω * (SOSI) = (1 + ω) * SOSI. In fact, in two-dimension space (SI, SO), Equation (14) is a linear classifier which is determined by two parameters: the slope and the value of Z. The slope of the linear classifier is 1/(1 + ω), and the value of Z is the chosen threshold that is used to get the final verification result. Examples of a linear classifier in two-dimension space (SI, SO) are given in Figure 8. Classifiers 1 to 3 are three examples with a different ω value or a different Z value.

For the single impression-based method using only one-dimensional similarity, SO, the classifier used to determine the verification result is the one-dimensional chosen threshold. In two-dimension space, the classifier can be represented as a line with the slope value of zero. Classifier 4 is an example, which is also shown in Figure 8.

4.2.3. When and Why is the Proposed Method Effective

SI has positive correlation with fingerprint image quality. Suppose the value range of the match score is between zero and one. Let Pg be the probability of a genuine match score being one, which represents the high genuine match score probability. Let Pi be the probability of the impostor match score being one, which represents the high impostor match score probability. When SI is high, fingerprint image quality is, respectively, high. Therefore, the fingerprint image will have, respectively, clearer ridges and more fingerprint minutia. As a result, Pg and Pi will both be higher compared to the probability with lower fingerprint image quality. With the decreasing of SI, fingerprint image quality becomes lower, and Pg and Pi will become lower, too. The above analysis is consistent with the data distribution shown in Figure 8. The video-based method introduces another dimension compared to the traditional method. The traditional fingerprint verification method is equal to using Classifier 4, while the proposed method in this manuscript is equal to using Classifier 1 to Classifier 3; so, better verification results are acquired.

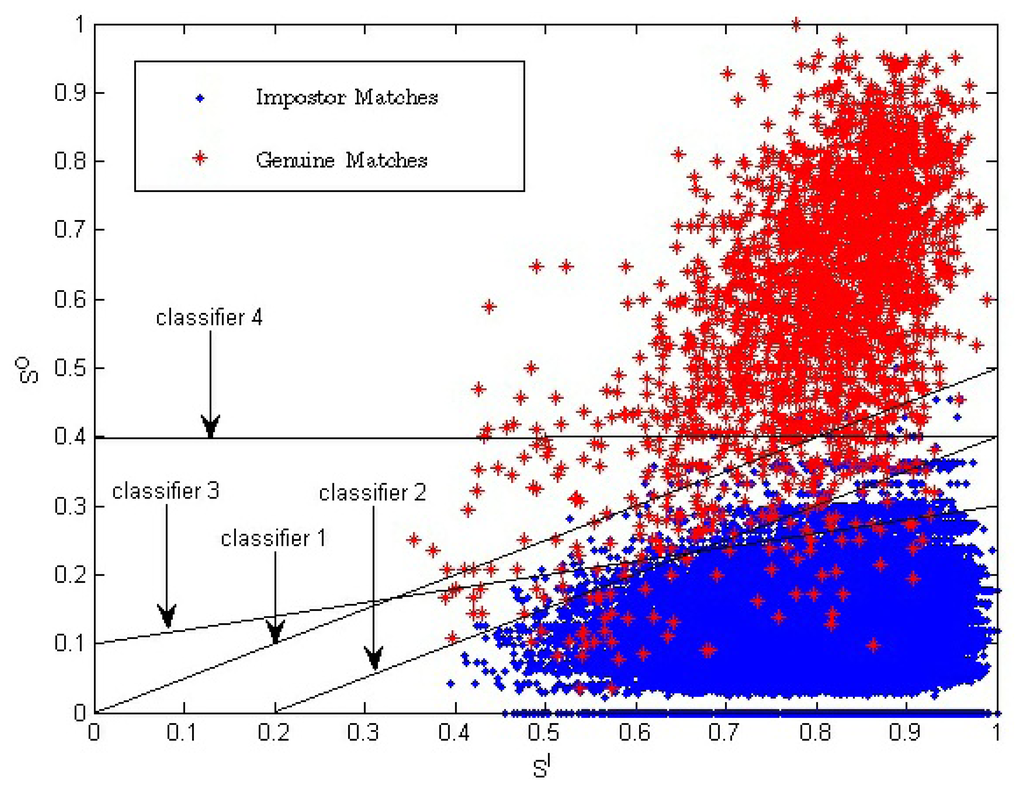

From Figure 8, we can see that classifiers corresponding to our proposed method have a better effect, especially in the region of SI < 0.7.

4.3. Verification

To measure the verification accuracy of our video-based method, each of the fingerprint videos is matched with all the other videos in the database. For the 50 × 10 videos, there will be a total number of 124, 750 matches, with 2, 250 genuine matches and 122, 500 impostor matches. After preprocessing, the number of frames in a video is 8.8 on average, and after aligning, the average number of frames decreases to six.

The minutiae-based matching method proposed in [10] is used for completing one-on-one matching. The minutiae-based method is a classic fingerprint verification method, which has profound influence in the fingerprint research area. The performance of a fingerprint verification system is mainly described by two values, i.e., false acceptance rate (FAR) and false rejection rate (FRR). FAR and FRR are defined as:

FAR = P ( D 1 ω 2 )
and:
FRR = P ( D 2 ω 1 )
where ω1 and ω2 represent the classes of true genuine matches and impostor matches, respectively, and D1 and D2 denote the decisions of genuine matches and impostor matches, respectively. The equal error rate (EER) is computed as the point where FAR = FRR.

4.3.1. Effect of Outside Similarity and Inside Similarity

In this section, we would like to study the effect on verification accuracy by using only outside similarity and the effect by introducing inside similarity.

Firstly, we carry out verification only using outside similarity, SO, which is calculated by Strategy OS-1 and Strategy OS-2, respectively. In order to make a more comprehensive contract, we also calculate outside similarity with the maximum rule, the minimum rule and the median rule, which are defined in Equations (18-20). The match scores of these three rules are represented by Smax, Smin and Smed, respectively. As a reference for comparison, experiments using the single impression-based method are also carried out. We choose F i E and F j C from two matching impression sequences to calculate the single impression-based match score, SR, where i = j = (1 + k)/2, and k is the number of impressions in each of the aligned matching videos. Figure 9 shows the receiver operating curves (ROC) of SR and SO on the SDU-FV database plotting FAR versus FRR. The EER of using SR and SO calculated by Strategy OS-1, Strategy OS-2, maximum rule, minimum rule and median rule are 3.65%, 2.95%, 2.33%, 2.28%, 5.14% and 2.58%, respectively.

S max = max ( S 1 , max _ c , , S k , max _ c , S max _ e , 1 , , S max _ e , k )
S min = min ( S 1 , max _ c , , S k , max _ c , S max _ e , 1 , , S max _ e , k )
S max = med ( S 1 , max _ c , , S k , max _ c , S max _ e , 1 , , S max _ e , k )

Secondly, the k-nearest neighbor (k-NN) method is used to test whether the two-dimensional similarity (SI, SO) can lead to better performance than the one-dimensional similarity, SO. We treat each pair of matching fingerprint videos as an instance; the inside similarity and outside similarity are considered as two features (i.e., the SI feature and SO feature) of an instance. The instance labels are assigned as one, for genuine matching pairs, and zero, for impostor matching pairs. We then test the k-NN error rates using the SO feature only and using two-dimensional features, i.e., (SI, SO), respectively. Ten-fold cross-validation is employed to obtain unbiased error estimation. Three strategies are used to calculate SI: (i) using only SE to calculate SI by Equation (8); (ii) using Strategy IS-1 to calculate SC, and SI is calculated by Equation (9); and (iii) using Strategy IS-2 to calculate SC, and SI is calculated by Equation (9). SE is calculated by Strategy IS-2 in all these three strategies. Experimental results are provided in Tables 2 and 3, where SO is calculated by Strategy OS-1 and Strategy OS-2, respectively.

It can be found from Tables 2 and 3 that the k-NN test performance is significantly improved by introducing the SI feature, no matter how many neighbors are used.

4.3.2. Effect of the Final Match Score

The final match score between two matching fingerprint videos is calculated by Equation (14). Therefore, we have to determine the value of ω. From Section 3.4, we can conclude that ω should be no less than zero or it will have an adverse effect to verification. If ω = 0, only SO is used. Here, we choose six possible values of ω, changing from zero to four. Figure 10 shows the ROC of the final match score, S, with different ω values, where both SE and SC are calculated by Strategy IS-2 and SO is calculated by Strategy OS-1, while Figure 11 shows the ROC of S using the same strategies, except that SO is calculated by Strategy OS-2.

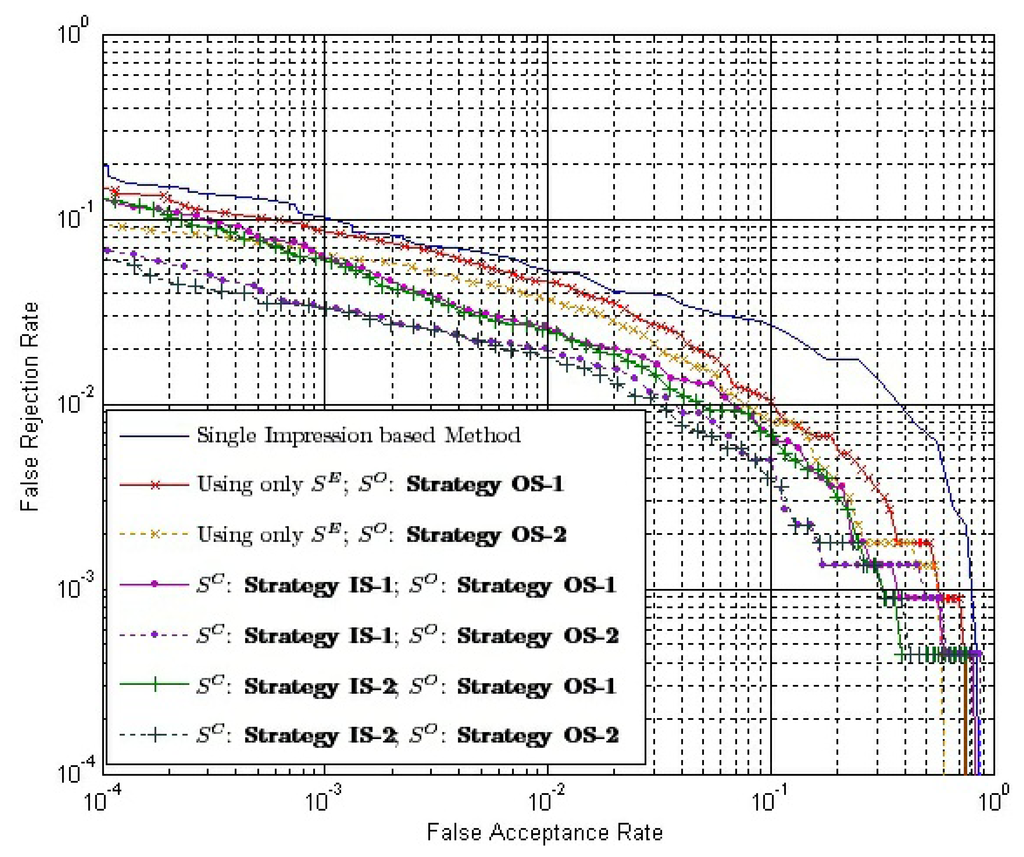

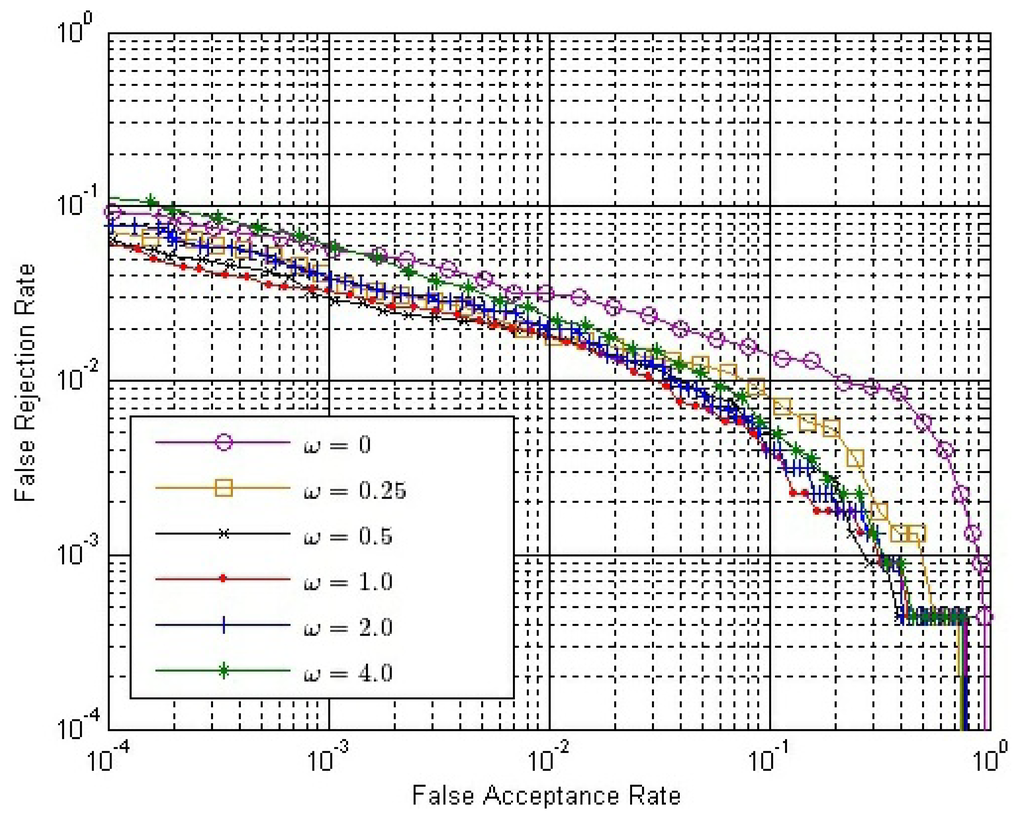

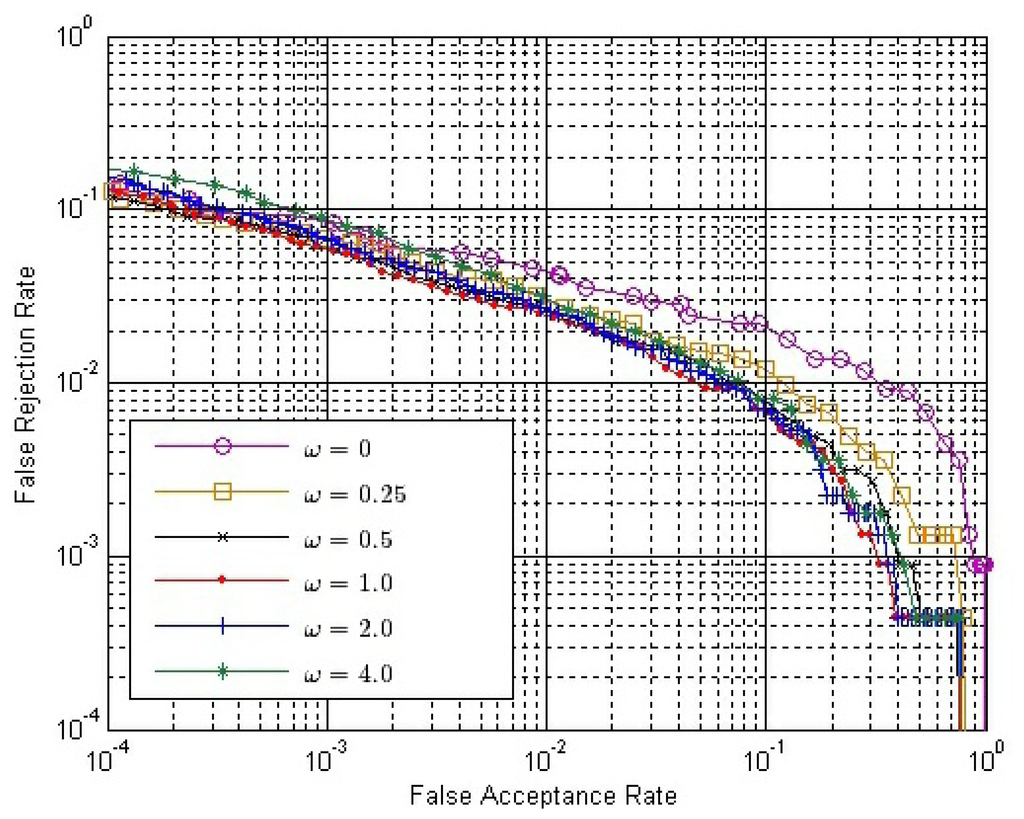

In both Figures 10 and 11, the performance is improved gradually, with the ω value increased from zero to one; while the performance is degraded gradually, with the ω value increased from one to four. Therefore, we can conclude that the performance of our method is affected by the value of ω, and the approximately best performance will be achieved when ω is around one.

We select ω = 1.0 and make comparisons between the conventional single impression-based method and our method. SO is calculated by Strategy OS-1, Strategy OS-2, maximum rule, minimum rule and median rule. SI is calculated by Equation (9), where both SE and SC are calculated by Strategy IS-2. ROC of the conventional method and our method are shown in Figure 12. EER of the conventional method, our method using Strategy OS-1, Strategy OS-2, maximum rule, minimum rule and media rule are 3.65%, 1.92%, 1.50%, 1.83%, 3.07% and 1.65%, respectively. Therefore, there is a relative reduction of 60 percent in the EER when the fingerprint video is introduced for verification. As there exists strong correlation between impressions inside a fingerprint video, using only outside similarity for verification leads to a minor improvement. However, if we take advantage of the correlation between impressions to define inside similarity and use both outside similarity and inside similarity for verification, a significant improvement will be achieved.

4.3.3. Runtime

Suppose the time complexity of calculating a one-on-one matching between two impressions is O(1); then, the time complexity of calculating SC using Strategy IS-1 and Strategy IS-2 is O(k) and O(k2), respectively, while the complexity of calculating SO using Strategy OS-1 and Strategy OS-2 is O(1) and O(k), respectively, where k is the number of impressions in each of the aligned matching videos. Note that the calculation of SE is offline. We can use only SE to calculate inside similarity, i.e., using Equation (8). Therefore, the time complexity of calculating inside similarity will be reduced to O(1). Table 4 provides the time complexity of different combinations of strategies to calculate the final match score. Figure 13 shows the ROC of the final match score using these combinations with ω = 1.0.

From the ROC, we can conclude that:

(1)

Our method outperforms the conventional method, even if the time complexities of both methods are equal to O(1), i.e., the inside similarity using only SE and the outside similarity using Strategy OS-1.

(2)

When inside similarity is calculated by the same strategy, the final match score using Strategy OS-1 to calculate outside similarity outperforms that using Strategy OS-2.

(3)

When outside similarity is calculated by the same strategy, the final match score using both SE and SC outperforms that using only SE.

(4)

When outside similarity is calculated by the same strategy, using Strategy IS-1 or Strategy IS-2 to calculate SC leads to almost the same performance.

Another factor affecting the runtime is the value of k. Suppose the average number of impressions in every matching video is ; then, the value of is six after aligning. We can change the number of impressions in every aligned video to get a larger or smaller value of from six.

The values are expected to be four, eight and 8.8, which is the largest value that can achieve. Therefore, we try to abandon two impressions (not including the impression with the largest fingerprint area; at the beginning of every aligned video to let the value be four. We also try to reintroduce two conjoint impressions, which are abandoned during the aligning procedure to let the value be eight. Finally, we use all the remaining impressions in the preprocessed video. After these three aspects of processing, the value becomes 4.2, 7.1 and 8.8, respectively.

Let both SE and SC be calculated by Strategy IS-2 and ω = 1.0. The ROC of the final match score with different values are shown in Figures 14 and 15, where SO is calculated by Strategy OS-1 and Strategy OS-2, respectively.

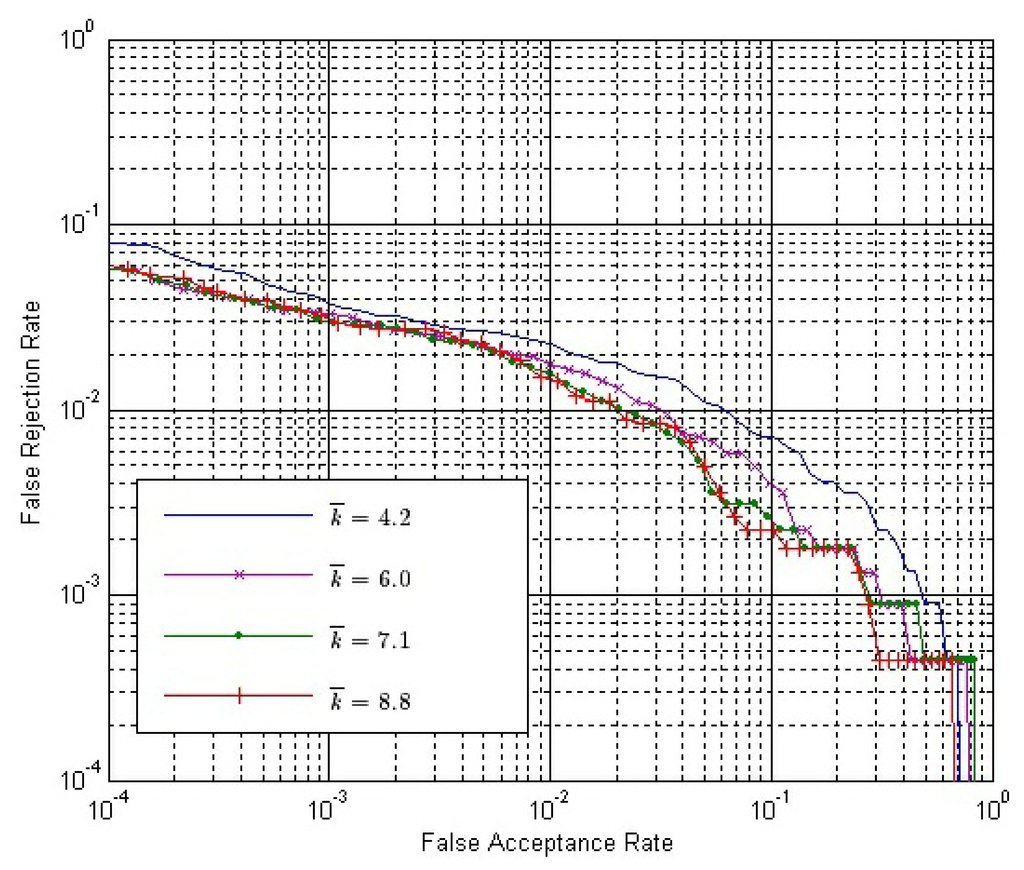

From Figures 14 and 15, we can conclude that:

(1)

With the same value, the performance is better if Strategy OS-2 rather than Strategy OS-1 is used to calculate SO.

(2)

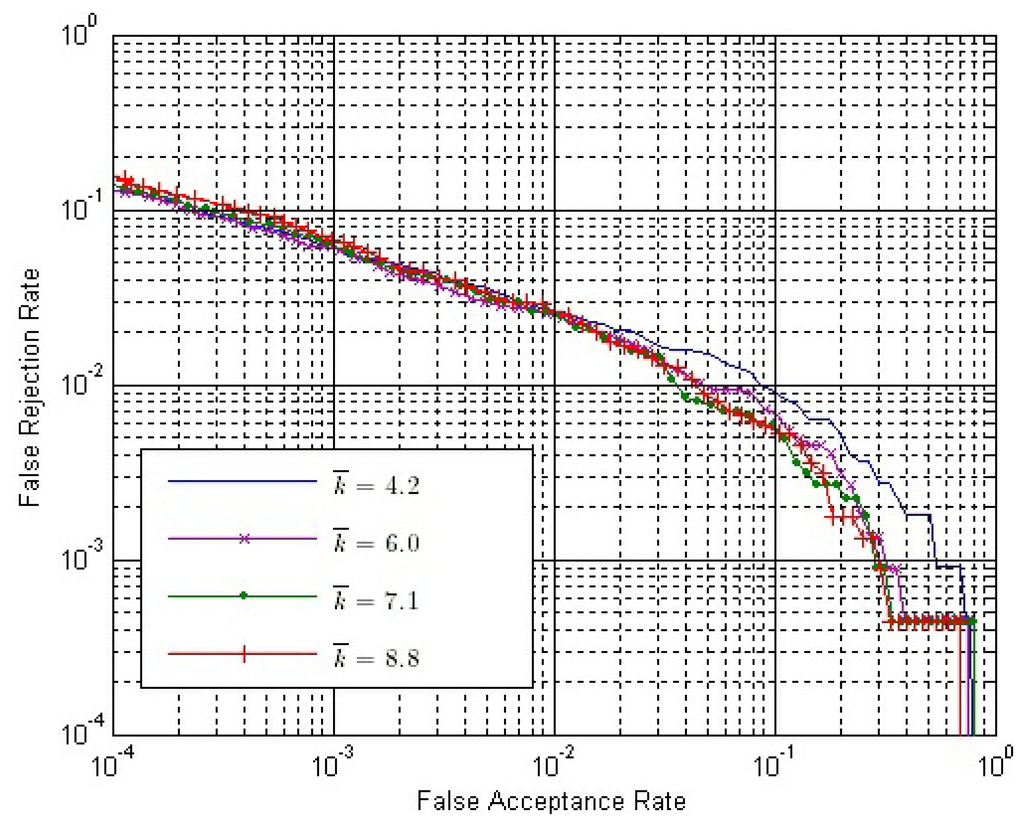

In both figures, the performance is gradually improved, with the value getting larger. However, the improvement is gradually weaker, and the performance is almost the same when is 7.1 and 8.8.

(3)

The improvement by using a larger value is more apparent if the Strategy OS-2 is used to calculate SO.

4.3.4. Comparisons with the Fusion of Multiple Impressions

The calculation of outside similarity uses the same idea with the fusion of multiple impressions from the same finger. However, the proposed video-based method is quite different with the multiple impressions fusion method, because the most important part of our method is taking advantage of the dynamic information, i.e., strong correlation between impressions inside a fingerprint video. Additionally, experimental results show that the largest part of the accuracy improvement is due to the introduction of inside similarity. In this section, new experiments are designed and carried out to make comparisons between the proposed video-based method and the multiple impressions fusion method.

Suppose the individuals in the SDU-FV database are represented by Ij (j = 1, 2, …, 50), and the fingerprint videos from individual Ij are represented by Vj,i (i = 1, 2, …, 10). We will select three templates for fusion in the multiple impressions fusion method. We separate the ten fingerprint videos of each individual, Ij, to three groups. Group 1 consists of Vj,1, Vj,2 and Vj,3; group 2 consists of Vj,4, Vj,5 and Vj,6; the remaining videos belong to group 3.

(1)

Experiments of the multiple impressions fusion method:

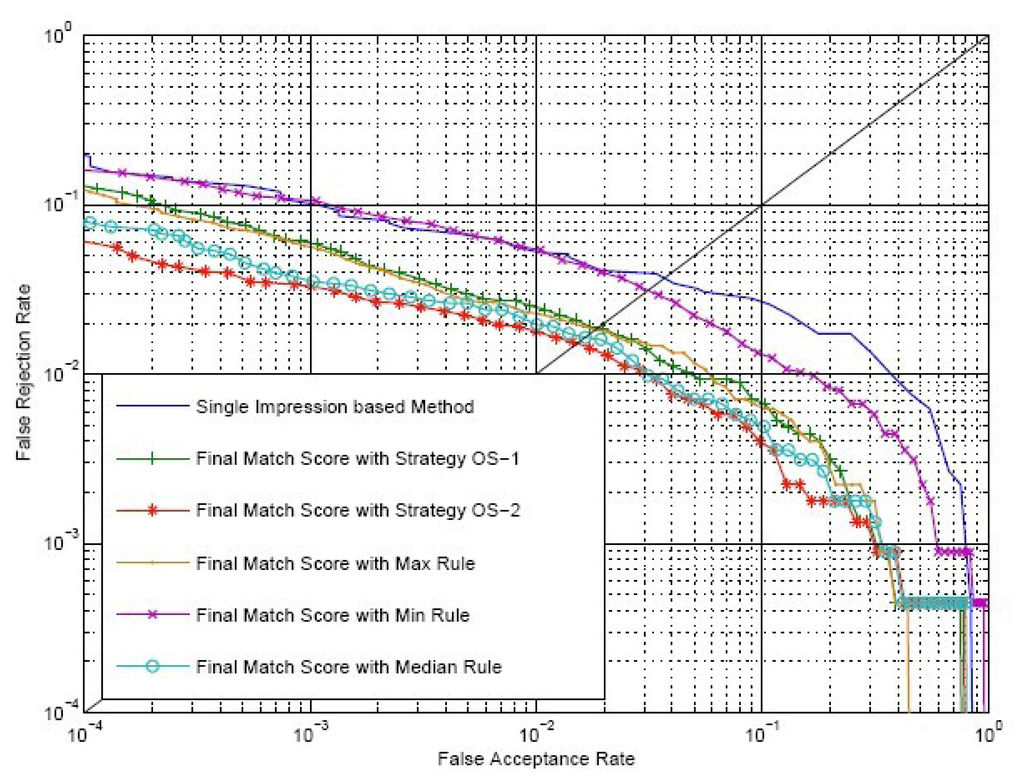

From Figure 9, we conclude that using the impression with the largest fingerprint area in a fingerprint video can access better performance. For individual Ij, the impressions with the largest fingerprint area in Vj,1, Vj,2 and Vj,3 respectively, are selected as three templates. The impression with the largest fingerprint area in Vk,l (k = 1, 2, …, 50; 7 ≤ l ≤ 10) is selected as the claimed impression. Firstly, the three templates match against the claimed impression, and three match scores are calculated. Secondly, we take the average, maximum and minimum of the three match scores, respectively, as the score-level fusion result. Therefore, there are 4 × 50 = 200 genuine matches and 4 × 49 × 50 = 9800 impostor matches. Similarly, the impressions with the largest fingerprint area in Vj,4, Vj,5 and Vj,6, respectively, are selected as three templates. The following steps are the same as described above. Therefore, the total number of matches are 20,000, with 2 × 200 = 400 genuine matches and 2 × 9800 = 19,600 impostor matches.

(2)

Experiments of the proposed video-based method:

Individual Ij, Vj,1 and Vj,4 are selected as enrolled videos, respectively, and Vk,l (k = 1, 2, …, 50; 7 ≤ l ≤ 10) is selected as the claimed video. Therefore, the number of genuine matches and impostor matches are the same as that in the experiments of the multiple impressions fusion method. Both SE and SC are calculated by Strategy IS-2.

Besides, we also carry out an experiment of single impression-based matching, which uses the impression with the largest fingerprint area in a fingerprint video. The results of all these experiments are shown in Figure 16.

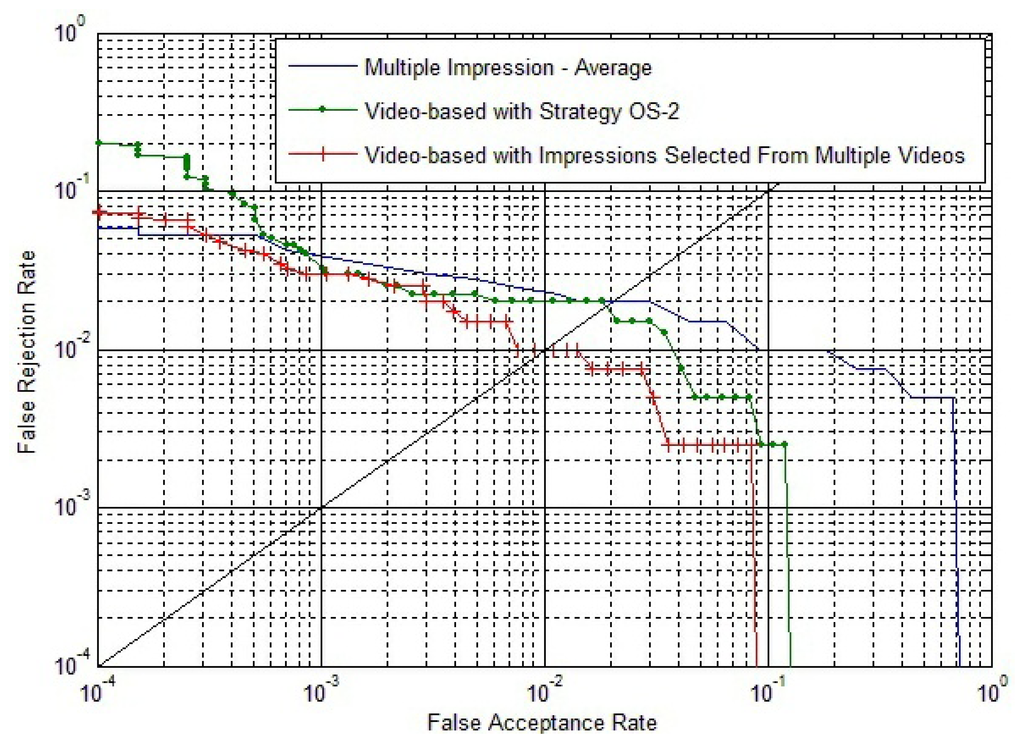

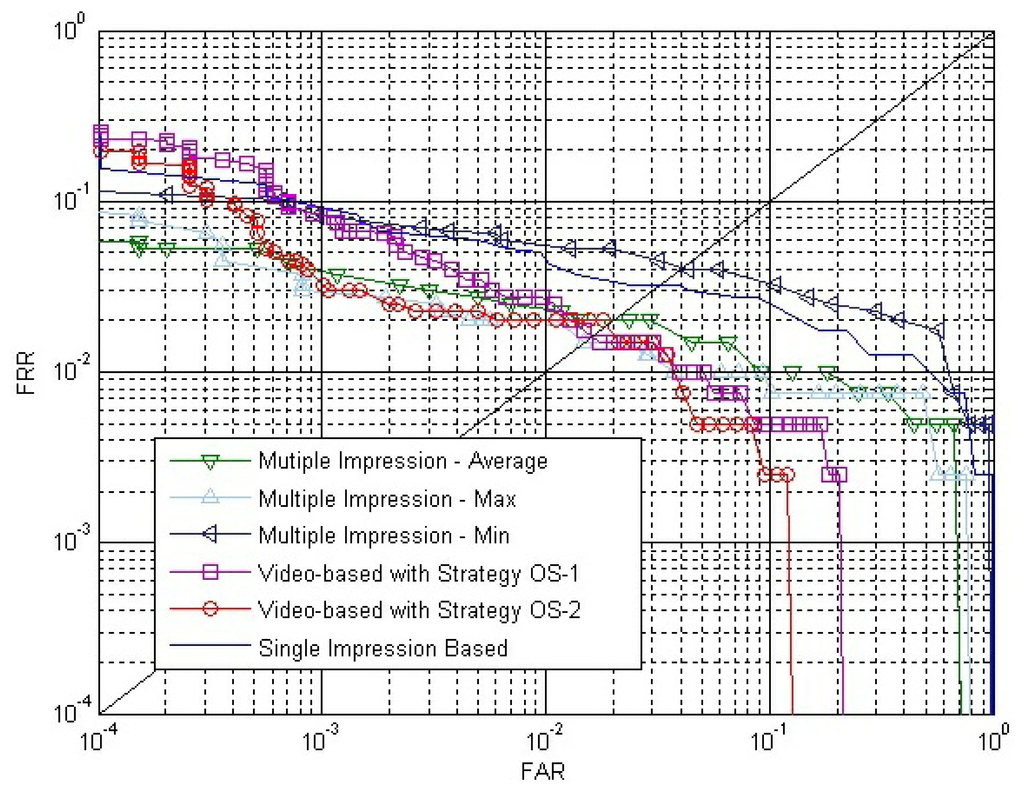

From Figure 16, we can conclude that the video-based method can lead to better accuracy than the multiple impressions fusion method, especially since the proposed method gets much lower FAR when FRR is quite low.

(3)

Experiments of the video-based method with impressions selected from multiple videos:

The impression with the largest foreground size from Vj,1, Vj,2 and Vj,3, respectively, are selected to compose a template fingerprint video, FVj,1. FVj,1 will match against each fingerprint video in group 3. Similarly, the impression with the largest foreground size from Vj,4, Vj,5 and Vj,6 is selected to compose a template fingerprint video, FVj,2, to match against each fingerprint video in group 3. Therefore, there will be eight genuine matches for each individual. And there will be 400 genuine matches for all the 50 individuals. For the impostor matches, FVj,1 and FVj,2 will match against other individuals' fingerprint video in group 3. Therefore, there will be 50 × 49 × 8 = 19,600 impostor matches.

Experiments of the video-based method with impressions selected from multiple fingerprint videos are carried out. For comparison, experimental results of multiple impression matches and fingerprint video matches that have been described above are also shown in Figure 17.

The EER of the multiple impression method, the video-based method with Strategy OS-2 and the video-based method with impressions selected from multiple videos are, respectively, 2.0%, 1.9% and 1.0%. We can conclude that the proposed video-based method can access a much better result than the multiple impression fusion method.

The video-based method with impressions selected from multiple videos leads to better accuracy than the video-based method with Strategy OS-2. This is because impressions with the largest foreground size in each video are selected to compose a template video. The fingerprint image quality is much better than the impressions selected from the same video. Additionally, the similarity of fingerprint videos acquired from the same individual are quite high, as there is no significant plastic distortions in the acquiring process.

Significant plastic distortions in the fingerprint video will lead to quite low inside similarity of the fingerprint video. To improve that, since if all the fingerprint videos have quite a low inside similarity, the video-based method will no longer be effective, we carried out experiments on the fingerprint video database, NIST 24. Experimental results are shown in Figure 18.

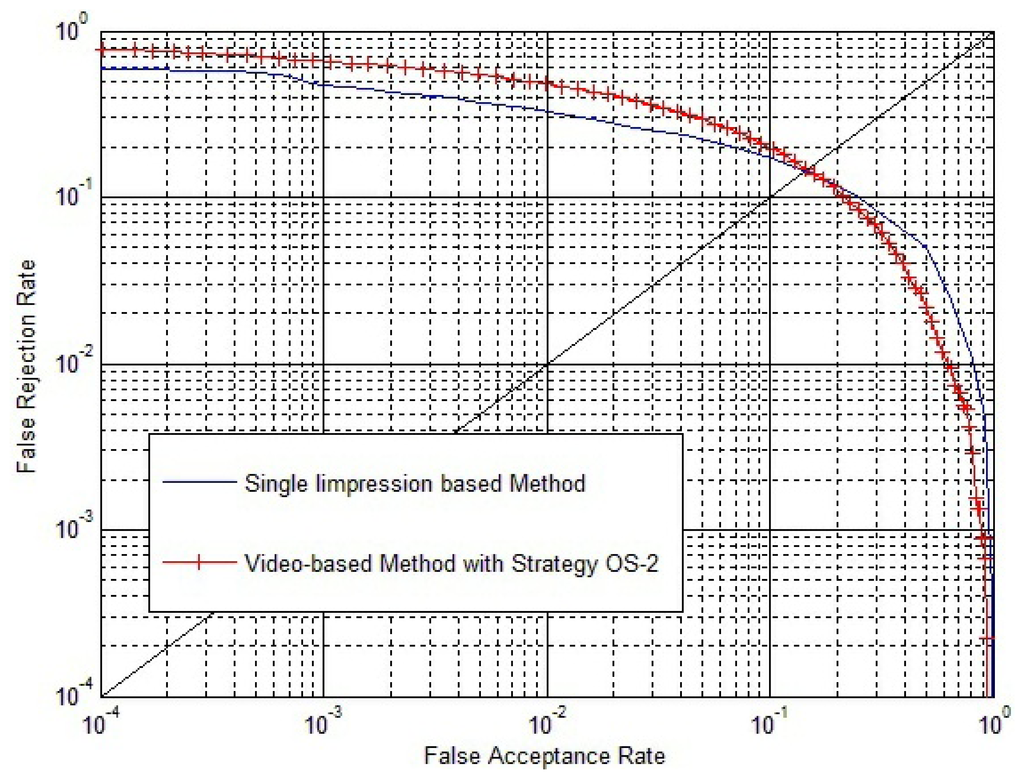

From Figure 18, we can conclude that if there are significant plastic distortions in fingerprint videos that lead to quite low inside similarity for all the fingerprint videos, the video-based method will no longer be effective. This confirms our argument in Section 3.4: “We have to notice that the foundation of this method is that the match score between two impressions in the same fingerprint video is quite high, due to their strong correlation, and SI is an approximate representation of the maximum value of S g O”.

5. Conclusions and Future Work

We proposed to utilize videos for fingerprint verification. After preprocessing and aligning processes, “inside similarity” and “outside similarity” were defined to take advantage of dynamic and static information contained in fingerprint videos. Then, the match score between two matching fingerprint videos was calculated by combining the two kinds of similarity. In fact, the proposed video-based method is a wrapped method that is based on one-on-one matching. Experimental results show that the video-based method leads to a significant accuracy improvement in comparison to the conventional single impression-based method. More importantly, our method outperforms the conventional method, even if the time complexities of both methods are equal. Besides, experimental results also demonstrate that the proposed video-based method outperforms the multiple impressions fusion method. Therefore, fingerprint video is more informative and has higher accuracy.

Future work includes selecting an optimized equation to calculate the match score of two matching fingerprint videos. Additionally, currently, we are exploring more useful information from fingerprint video for verification and acquiring a larger database for testing. We are also investigating the potential of alleviating security issues by using fingerprint videos.

The authors would like to thank Guangtong Zhou and Chengfu Huo for their valuable suggestions. This research was supported in part by the National Natural Science Foundation of China under Grant (No. 61070097, 61173069), the Program for New Century Excellent Talents at the University of the Ministry of Education of China (NCET-11-0315) and the Shandong Natural Science Funds for Distinguished Young Scholar.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, H.C.; Gaensslen, R.E. Advances in Fingerprint Technology, 2nd ed. ed.; Elsevier: New York, NY, USA, 2001.
  2. Maltoni, D.; Maio, D.; Jain, A.K.; Prabhakar, S. Handbook of Fingerprint Recognition, 2nd ed. ed.; Springer: New York, NY, USA, 2009.
  3. Jain, A.K.; Chen, Y.; Demirkus, M. Pores and ridges: High resolution fingerprint matching using level 3 features. IEEE Trans. Pattern Anal. Mach. Intell 2007, 29, 15–27.
  4. Jain, A.K. Biometric recognition: Q & A. Nature 2007, 449, 38–40.
  5. Bazen, A.M.; Gerez, S.H. Segmentation of Fingerprint Images. Proceedings of Annual Workshop on Circuits Systems and Signal Processing, Veldhoven, The Netherlands, 29–30 November 2001; pp. 276–280.
  6. Zhu, E.; Yin, J.; Hu, C.; Zhang, G. A systematic method for fingerprint ridge orientation estimation and image segmentation. Pattern Recognit 2006, 39, 1452–1472.
  7. Hong, L.; Wan, Y.; Jain, A.K. Fingerprint image enhancement: Algorithms and performance evaluation. IEEE Trans. Pattern Anal. Mach. Intell 1998, 20, 777–789.
  8. Chikkerur, S.; Cartwright, A.N.; Govindaraju, V. Fingerprint enhancement using STFT analysis. Pattern Recognit 2007, 40, 198–211.
  9. Fronthaler, H.; Kollreider, K.; Bigun, J. Local features for enhancement and minutiae extraction in fingerprints. IEEE Trans. Image Process 2008, 17, 354–363.
  10. Jain, A.K.; Hong, L.; Bolle, R.M. Online fingerprint verification. IEEE Trans. Pattern Anal. Mach. Intell 1997, 19, 302–314.
  11. Marana, A.N.; Jain, A.K. Ridge-Based Fingerprint Matching Using Hough Transform. Proceedings of Brazilian Symposium on Computer Graphics and Image Processing, Natal, Brazil, 9–12 October 2005; pp. 112–119.
  12. Feng, J.; Ouyang, Z.; Cai, A. Fingerprint matching using ridges. Pattern Recognit 2006, 39, 2131–2140.
  13. Jain, A.K.; Prabhakar, S.; Hong, L.; Pankanti, S. Filterbank-based fingerprint matching. IEEE Trans. Image Process 2000, 9, 846–895.
  14. Ross, A.; Jain, A.K.; Reisman, J. A hybrid fingerprint matcher. Pattern Recognit 2003, 36, 1661–1673.
  15. Bazen, A.M.; Verwaaijen, G.T.B.; Gerez, S.H.; Veelenturf, L.P.J.; van der Zwaag, B.J. A. Correlation-based Fingerprint Verification System. Proceedings of 11th Annual Workshop on Circuits Systems and Signal Processing, Veldhoven, The Netherlands, 29–30 November 2001; pp. 205–213.
  16. Nandakumar, K.; Jain, A.K. Local Correlation-based Fingerprint Matching. Proceedings of Indian Conference on Computer Vision, Graphics and Image Processing, Kolkata, India, 16–18 December 2004; pp. 503–508.
  17. Ross, A.; Dass, S.; Jain, A.K. A deformable model for fingerprint matching. Pattern Recognit 2005, 38, 95–103.
  18. He, Y.; Tian, J.; Li, L.; Chen, H.; Yang, X. Fingerprint matching based on global comprehensive similarity. IEEE Trans. Pattern Anal. Mach. Intell. 2006 , 28, 850–862.
  19. Hong, L.; Jain, A.K.; Pankanti, S. Can multibiometrics improve performance? Proc. AutoID 1999, 2, 59–64.
  20. Nandakumar, K.; Chen, Y.; Dass, S.C.; Chen, H.; Jain, A.K. Likelihood ratio based biometric score fusion. IEEE Trans. Pattern Anal. Mach. Intell 2008, 30, 342–347.
  21. Marcialis, G.L.; Roli, F. Fingerprint verification by fusion of optical and capacitive sensors. Pattern Recognit. Lett. 2004, 25, 1315–1322.
  22. Nanni, L.; Lumini, A. Local binary patterns for a hybrid fingerprint matcher. Pattern Recognit 2008, 41, 3461–3466.
  23. Parbhakar, S.; Jain, A.K. Decision-level fusion in fingerprint verification. Pattern Recognit 2002, 35, 861–874.
  24. Jain, A.K.; Ross, A. Fingerprint Mosaicking. Proceedings of International Conference on Acoustic Speech and Signal Processing, Orlando, FL, USA, 13–17 May 2002; pp. 4064–4067.
  25. Yang, C.; Zhou, J. A comparative study of combining multiple enrolled samples for fingerprint verification. Pattern Recognit 2006, 39, 2115–2130.
  26. Ren, C.; Yin, Y.; Ma, J.; Yang, G. A Novel Method of Score Level Fusion Using Multiple Impressions for Fingerprint Verification. Proceedings of IEEE International Conference on Systems, Man and Cybernetics, San Antonio, TX, USA, 11–14 October 2009; pp. 5196–5201.
  27. Chen, Y.; Jain, A.K. Beyond Minutiae: A Fingerprint Individuality Model with Pattern, Ridge and Pore Features. Proceedings of International Conference on Biometrics, Alghero, Italy, 2–5 June 2009; pp. 523–533.
  28. Zhao, Q.; Jain, A.K. On The Utility of Extended Fingerprint Features: A Study on Pores. Proceedings of IEEE Conference on Computer Vision and Pattern Recognition, Workshop on Biometrics, San Francisco, CA, USA, 13–18 June 2010; pp. 9–16.
  29. Zhao, Q.; Zhang, D.; Zhang, L.; Luo, N. High resolution partial fingerprint alignment using pore-valley descriptors. Pattern Recognit 2010, 43, 1050–1061.
  30. Zhao, Q.; Zhang, D.; Zhang, L.; Luo, N. Adaptive fingerprint pore modeling and extraction. Pattern Recognit 2010, 43, 2833–2844.
  31. Dorai, C.; Ratha, N.; Bolle, R. Detecting Dynamic Behavior in Compressed Fingerprint Videos: Distortion. Proceedings of IEEE Conference on Computer Vision and Pattern Recognition, Hilton Head, SC, USA, 15 June 2000; Volume 2, pp. 320–326.
  32. Dorai, C.; Ratha, N.; Bolle, R. Dynamic behavior analysis in compressed fingerprint videos. IEEE Trans. Circuits Syst. Video Technol. 2004, 14, 58–73.
  33. Bovik, A. Handbook of Image and Video Processing, 2nd ed. ed.; Academic Press: Waltham, MA, USA, 2005.
  34. Qin, W.; Yin, Y.; Ren, C.; Liu, L. Video-based Fingerprint Verification. Proceeding of IEEE International Conference on Acoustics, Speech, and Signal Processing, Dallas, TX, USA, 14-19 March 2010; pp. 1426–1429.
  35. Alonso-Fernandez, F.; Fierrez, J.; Ortega-Garcia, J.; Gonzalez-Rodriguez, J.; Fronthaler, H.; Kollreider, K.; Bigun, J. A comparative study of fingerprint image quality estimation methods. IEEE Trans. Inf. Forensics Secur. 2007, 2, 734–743.
  36. Yin, Y.; Wang, Y.; Yang, X. Fingerprint Image Segmentation Based on Quadric Surface Model. Proceedings of International Conference on Audio and Video Based Biometric Person Authentication, Hilton Rye Town, NY, USA, 20-22 July 2005; pp. 647–655.
Sensors 13 11660f1 200
Figure 1. From static image (a single impression) to video (a fingerprint video).

Click here to enlarge figure

Figure 1. From static image (a single impression) to video (a fingerprint video).
Sensors 13 11660f1 1024
Sensors 13 11660f2 200
Figure 2. Three impressions from the same finger.

Click here to enlarge figure

Figure 2. Three impressions from the same finger.
Sensors 13 11660f2 1024
Sensors 13 11660f3 200
Figure 3. Six impressions in a fingerprint video. The fingerprint area of the first one enlarges gradually and, then, decreases.

Click here to enlarge figure

Figure 3. Six impressions in a fingerprint video. The fingerprint area of the first one enlarges gradually and, then, decreases.
Sensors 13 11660f3 1024
Sensors 13 11660f4 200
Figure 4. Flow chart of the video-based fingerprint verification method.

Click here to enlarge figure

Figure 4. Flow chart of the video-based fingerprint verification method.
Sensors 13 11660f4 1024
Sensors 13 11660f5a 200Sensors 13 11660f5b 200

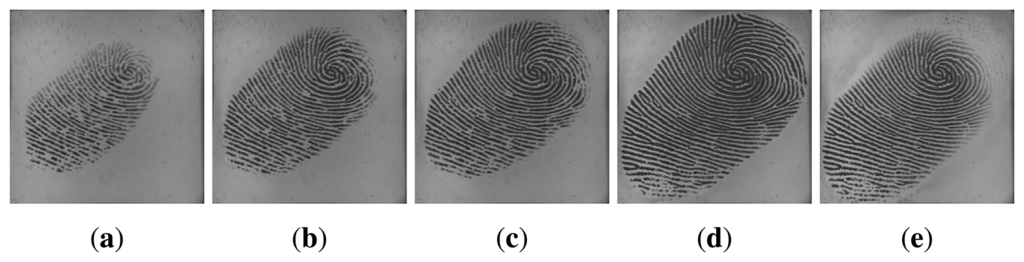

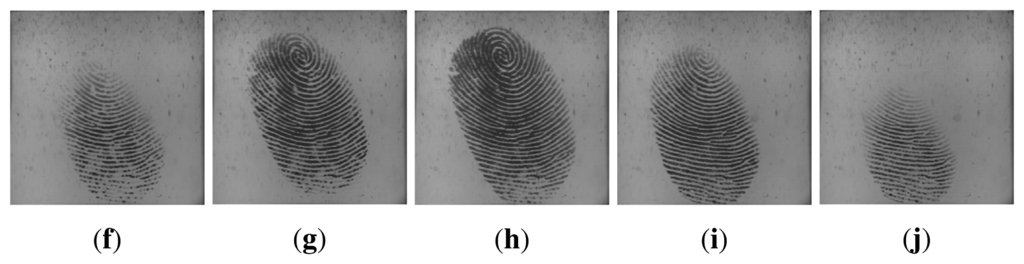

Figure 5. An example of our aligning method. (a-e) are impressions in the enrolled video after preprocessing; (f-j) are impressions in the claimed video after preprocessing. Impression (d) and impression (h) are images with the largest fingerprint area in the enrolled and claimed videos, respectively. Impressions (b-e) correspond to (f-i), while impressions (a,j) have no correspondences. After aligning, impressions (a,j) will be abandoned.

Click here to enlarge figure

Figure 5. An example of our aligning method. (a-e) are impressions in the enrolled video after preprocessing; (f-j) are impressions in the claimed video after preprocessing. Impression (d) and impression (h) are images with the largest fingerprint area in the enrolled and claimed videos, respectively. Impressions (b-e) correspond to (f-i), while impressions (a,j) have no correspondences. After aligning, impressions (a,j) will be abandoned.
Sensors 13 11660f5a 1024Sensors 13 11660f5b 1024
Sensors 13 11660f6 200
Figure 6. Sample fingerprint images in the SDU-FV database with various types and quality.

Click here to enlarge figure

Figure 6. Sample fingerprint images in the SDU-FV database with various types and quality.
Sensors 13 11660f6 1024
Sensors 13 11660f7 200
Figure 7. Two-dimensional distributions of (SI, SO) for all the genuine and impostor matches.

Click here to enlarge figure

Figure 7. Two-dimensional distributions of (SI, SO) for all the genuine and impostor matches.
Sensors 13 11660f7 1024
Sensors 13 11660f8 200
Figure 8. Example of classifiers of the proposed video-based method and the single impression-based method. Classifiers 1 to 3 are examples of the classifiers used in the proposed method. The ω values are 1.0, 1.0 and 4.0, respectively, and the threshold values of Z are zero, −0.2 and 0.5, respectively. Classifier 4 is an example of a classifier used in the single impression-based method.

Click here to enlarge figure

Figure 8. Example of classifiers of the proposed video-based method and the single impression-based method. Classifiers 1 to 3 are examples of the classifiers used in the proposed method. The ω values are 1.0, 1.0 and 4.0, respectively, and the threshold values of Z are zero, −0.2 and 0.5, respectively. Classifier 4 is an example of a classifier used in the single impression-based method.
Sensors 13 11660f8 1024
Sensors 13 11660f9 200
Figure 9. Receiver operating curves (ROC) of SR and SO.

Click here to enlarge figure

Figure 9. Receiver operating curves (ROC) of SR and SO.
Sensors 13 11660f9 1024
Sensors 13 11660f10 200
Figure 10. ROC of the final match score with different ω values, where both SE and SC are calculated by Strategy IS-2 and SO is calculated by Strategy OS-1.

Click here to enlarge figure

Figure 10. ROC of the final match score with different ω values, where both SE and SC are calculated by Strategy IS-2 and SO is calculated by Strategy OS-1.
Sensors 13 11660f10 1024
Sensors 13 11660f11 200
Figure 11. ROC of the final match score with different ω values, where both SE and SC are calculated by Strategy IS-2 and SO is calculated by Strategy OS-2.

Click here to enlarge figure

Figure 11. ROC of the final match score with different ω values, where both SE and SC are calculated by Strategy IS-2 and SO is calculated by Strategy OS-2.
Sensors 13 11660f11 1024
Sensors 13 11660f12 200
Figure 12. ROC of the final match score of our method with ω = 1.0, maximum rule, minimum rule, media rule and the conventional single impression-based method for comparison.

Click here to enlarge figure

Figure 12. ROC of the final match score of our method with ω = 1.0, maximum rule, minimum rule, media rule and the conventional single impression-based method for comparison.
Sensors 13 11660f12 1024
Sensors 13 11660f13 200
Figure 13. ROC of the final match score using different combinations of strategies with ω = 1.0 and the conventional method using single impressions for comparison.

Click here to enlarge figure

Figure 13. ROC of the final match score using different combinations of strategies with ω = 1.0 and the conventional method using single impressions for comparison.
Sensors 13 11660f13 1024
Sensors 13 11660f14 200
Figure 14. ROC of the final match score with different values, where both SE and SC are calculated by Strategy IS-2 and SO is calculated by Strategy OS-1.

Click here to enlarge figure

Figure 14. ROC of the final match score with different values, where both SE and SC are calculated by Strategy IS-2 and SO is calculated by Strategy OS-1.
Sensors 13 11660f14 1024
Sensors 13 11660f15 200
Figure 15. ROC of the final match score with different values, where both SE and SC are calculated by Strategy IS-2 and SO is calculated by Strategy OS-2.

Click here to enlarge figure

Figure 15. ROC of the final match score with different values, where both SE and SC are calculated by Strategy IS-2 and SO is calculated by Strategy OS-2.
Sensors 13 11660f15 1024
Sensors 13 11660f16 200
Figure 16. ROC of the single impression-based method, the multiple impressions fusion method and the proposed video-based method.

Click here to enlarge figure

Figure 16. ROC of the single impression-based method, the multiple impressions fusion method and the proposed video-based method.
Sensors 13 11660f16 1024
Sensors 13 11660f17 200
Figure 17. ROC of the multiple impressions fusion method, the proposed video-based method and the video-based method with impressions selected from multiple videos.

Click here to enlarge figure

Figure 17. ROC of the multiple impressions fusion method, the proposed video-based method and the video-based method with impressions selected from multiple videos.
Sensors 13 11660f17 1024
Sensors 13 11660f18 200
Figure 18. ROC of the single impression-based method and the video-based method with Strategy OS-2.

Click here to enlarge figure

Figure 18. ROC of the single impression-based method and the video-based method with Strategy OS-2.
Sensors 13 11660f18 1024
Table 1. An example that shows the benefits of using the relative match score for verification. We can get the correct verification result if SOSI is used, while we cannot if SO is used. (SO and SI are all from zero to 100).

Click here to display table

Table 1. An example that shows the benefits of using the relative match score for verification. We can get the correct verification result if SOSI is used, while we cannot if SO is used. (SO and SI are all from zero to 100).
SOSISOSI
A genuine match2580−55
An impostor match3090−60
Table 2. The k-nearest neighbor (k-NN) error rates (%) of using the SO feature only and using two-dimensional features, i.e., (SI, SO), respectively. SE is calculated by Strategy IS-2, and SO is calculated by Strategy OS-1.

Click here to display table

Table 2. The k-nearest neighbor (k-NN) error rates (%) of using the SO feature only and using two-dimensional features, i.e., (SI, SO), respectively. SE is calculated by Strategy IS-2, and SO is calculated by Strategy OS-1.
kvalues1591317
strategies
SO69.5143.6517.667.4842.462
(SO, SI), using only SE2.3530.18040.17400.17720.1780
(SO, SI), SC: Strategy IS-10.45220.19890.19560.19000.1892
(SO, SI), SC: Strategy IS-20.43460.19240.19080.18680.1804
Table 3. The k-NN error rates (%) of using the SO feature only and using two-dimensional features, i.e., (SI, SO), respectively. SE is calculated by Strategy IS-2 and SO is calculated by Strategy OS-2.

Click here to display table

Table 3. The k-NN error rates (%) of using the SO feature only and using two-dimensional features, i.e., (SI, SO), respectively. SE is calculated by Strategy IS-2 and SO is calculated by Strategy OS-2.
kValues1591317
strategies
SO0.92930.17480.16920.16840.1636
(SO, SI), using only SE0.41450.11870.11950.11790.1203
(SO, SI), SC: Strategy IS-10.36400.11070.10740.10820.1050
(SO, SI), SC: Strategy IS-20.36320.11070.10660.10500.1058
Table 4. Different combinations of strategies to calculate the final match score and their time complexities. SE is calculated by Strategy IS-2, and the computation is offline.

Click here to display table

Table 4. Different combinations of strategies to calculate the final match score and their time complexities. SE is calculated by Strategy IS-2, and the computation is offline.
Inside similarityUsing onlySE(offline)SC:Strategy IS-1 (O(k))SC:Strategy IS-2 (O(k2))
Outside similarity
Strategy OS-1 (O(1))O(1)O(1) + O(k)O(1) + O(k2)
Strategy OS-2 (O(2k))O(2k)O(2k) + O(k)O(2k) + O(k2)
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
