This paper presents an evaluation of the map-matching scheme of an integrated GPS/INS system in urban areas. Data fusion using a Kalman filter and map matching are effective approaches to improve the performance of navigation system applications based on GPS/MEMS IMUs. The study considers the curve-to-curve matching algorithm after Kalman filtering to correct mismatch and eliminate redundancy. By applying data fusion and map matching, the study easily accomplished mapping of a GPS/INS trajectory onto the road network. The results demonstrate the effectiveness of the algorithms in controlling the INS drift error and indicate the potential of low-cost MEMS IMUs in navigation applications.

A critical component of a navigation system is the Global Positioning System (GPS). However, outages and multi-path phenomenon of GPS signals frequently occur in urban areas. Another navigation system, the inertial navigation system (INS), is an interesting complementary navigation system [

To obtain a robust navigation system, mapping the position onto a spatial road map is necessary [

The main purpose of this study is to conduct KF and map matching by integrating GPS and INS data to identify the right trajectory and robust navigation, and to improve the matching navigation accuracy. In addition, this study compares the point-to-curve and curve-to-curve matching approaches in the process of using a road network map. Result shows that the curve-to-curve matching approach is more effective in navigation applications.

KF is used for data fusion in this study. KF addresses the general problem to estimate the state _{k}_{−1;}_{k}_{k}

The measurement model is:

Since the aiding measurements from GPS are position and velocity, ^{e}^{e}^{e}^{e}^{T}_{R}_{V}

In a KF-based system, the system noise (_{k}_{k}_{k}_{k}_{k}_{k}

Now, let's define
_{k}_{k}

The linear combination between the _{k}_{k}

The associated covariance matrix P_{k} is determined as:

The KF estimates a process by using a form of feedback control—the filter estimates the process state at some time and then obtains feedback in the form of measurements. As such, the KF updates in two steps each stage: time update and measurement update. The time update estimates the current state and error covariance for the next time step. The measurement update incorporates a new measurement into the

The purpose of developing the curve-to-curve algorithm was to reduce the position error drift during GPS outages. The method used in the study is modified from [

Integrate GPS and IMU data using the KF: Extended KF (EKF) is used to integrate GPS and INS data based on a loosely coupled scheme. The details of EKF can be found in previous researches [

Search candidate road links in a 30-m trajectory buffer and project points to links: The purpose of this step is to determine all link candidates and project signal points to candidate links for map matching. Firstly, the buffer is created based on the GPS/ INS trajectory. All links within the buffer will be defined as the candidate road links.

Cluster point sets considering projected link azimuth and point ID continuity: Signal points and candidate road links are stored in a database of a GIS. When the position errors in some points are large, the projected link azimuth and point ID are vital information to facilitate dividing links into point clusters. _{i}_{ij}_{2}_{1}_{11}_{12}

Determine the closest link in each point set: The objective is to determine the minimum distance from a point set to a link as the map matching indicator. If the minimum distance from a point set to a candidate link is determined, the link with the minimal distance is identified as the matching link:
_{ij}_{11}_{2}_{12}

Reduce redundancy: When the testing motorcycle stops, the redundancy is a large amount of duplicated random points. In the model, redundancy can be identified and removed automatically based on velocity information:
_{i}_{thres}

Tests were performed in Tainan City to assess the efficacy of both algorithms. The test trajectory length was approximately 6 km and the total experiment time was about 1,500 s. The MIDG II low-cost IMU and single frequency GPS receiver were mounted on a motorcycle to collect data (

Most of the limitations of existing algorithms have been explained in [

This study applies data fusion and a map-matching model in identifying the relationship between GPS/INS measured data and road map data for a robust navigation solution. The algorithm is suitable for integrating GPS and INS data into map matching in urban areas, and improves the incorrect routes based on the point-to-curve map matching. Therefore, even using a low-cost IMU or an unstable platform, the curve-to-curve map-matching algorithm can identify the right routes. Consequently, the proposed scheme can provide consistent navigation solutions with improved sustainability in GPS-denied environments. The best routes of map matching can be determined by reducing the irrational routes in GPS-denied environments. Future studies will be conducted to extend the procedure from 2-D to 3-D in land vehicular navigation systems. In addition, further study of personal mobile devices for real-time pedestrian navigation will be undertaken.

The authors thank the financial supporting this research under Contract No. 101-2119-M-006-013. The authors also would like to thanks Deng and Lin for treatments of paper editing. This research received funding from the Headquarters of University Advancement at the National Cheng Kung University, which is sponsored by the Ministry of Education, Taiwan.

The authors declare no conflict of interest.

The map-matching algorithm.

Two-step signal point clustering.

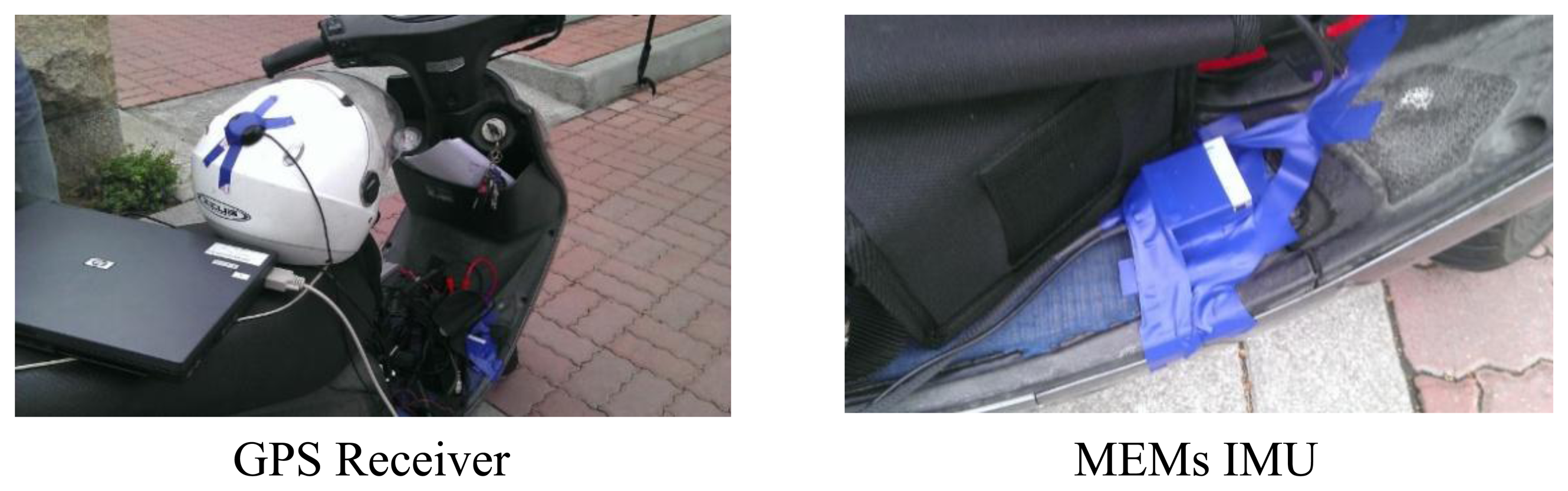

The GPS Receiver and MEMs IMU mounted on a motorcycle.

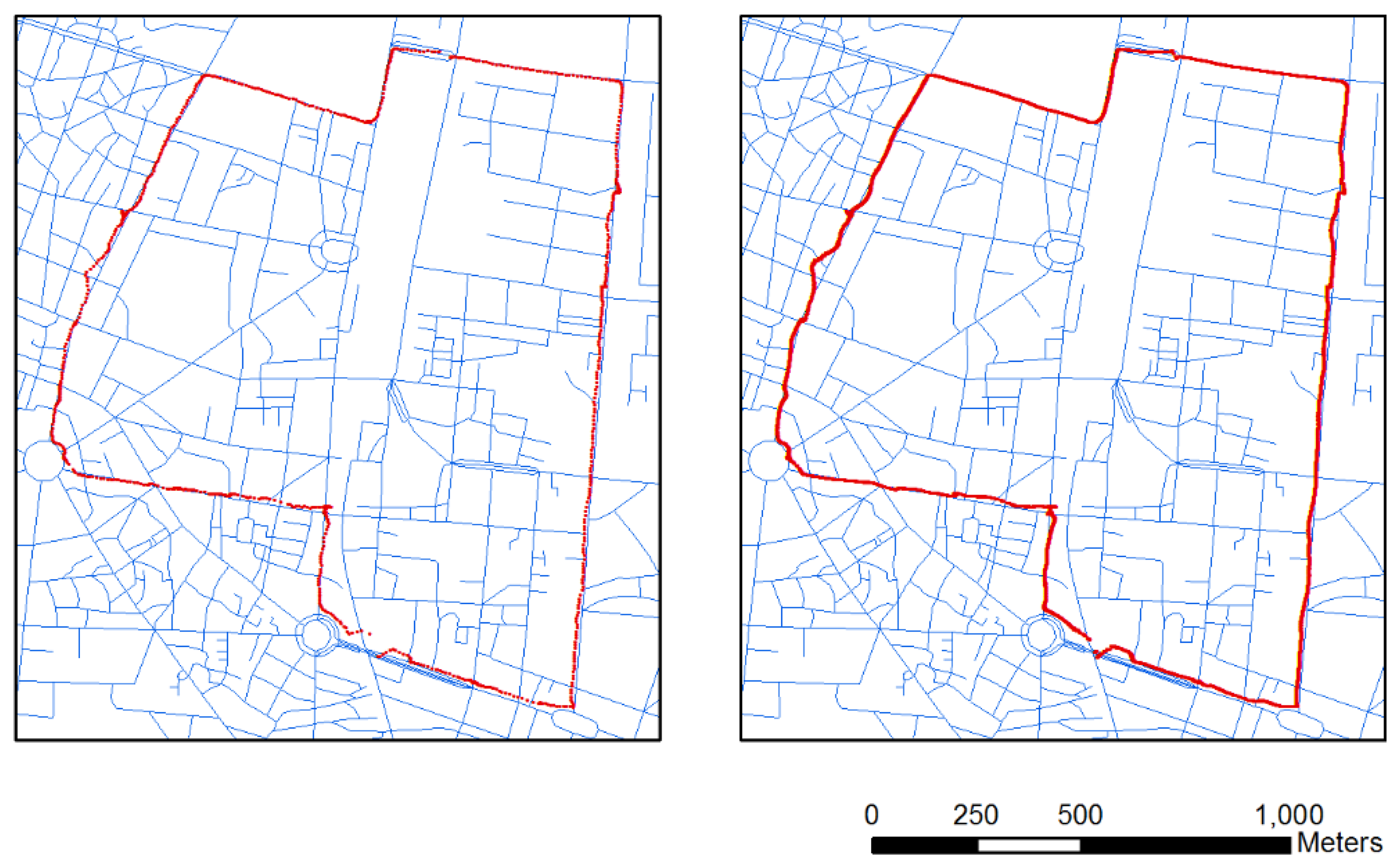

Raw GPS (

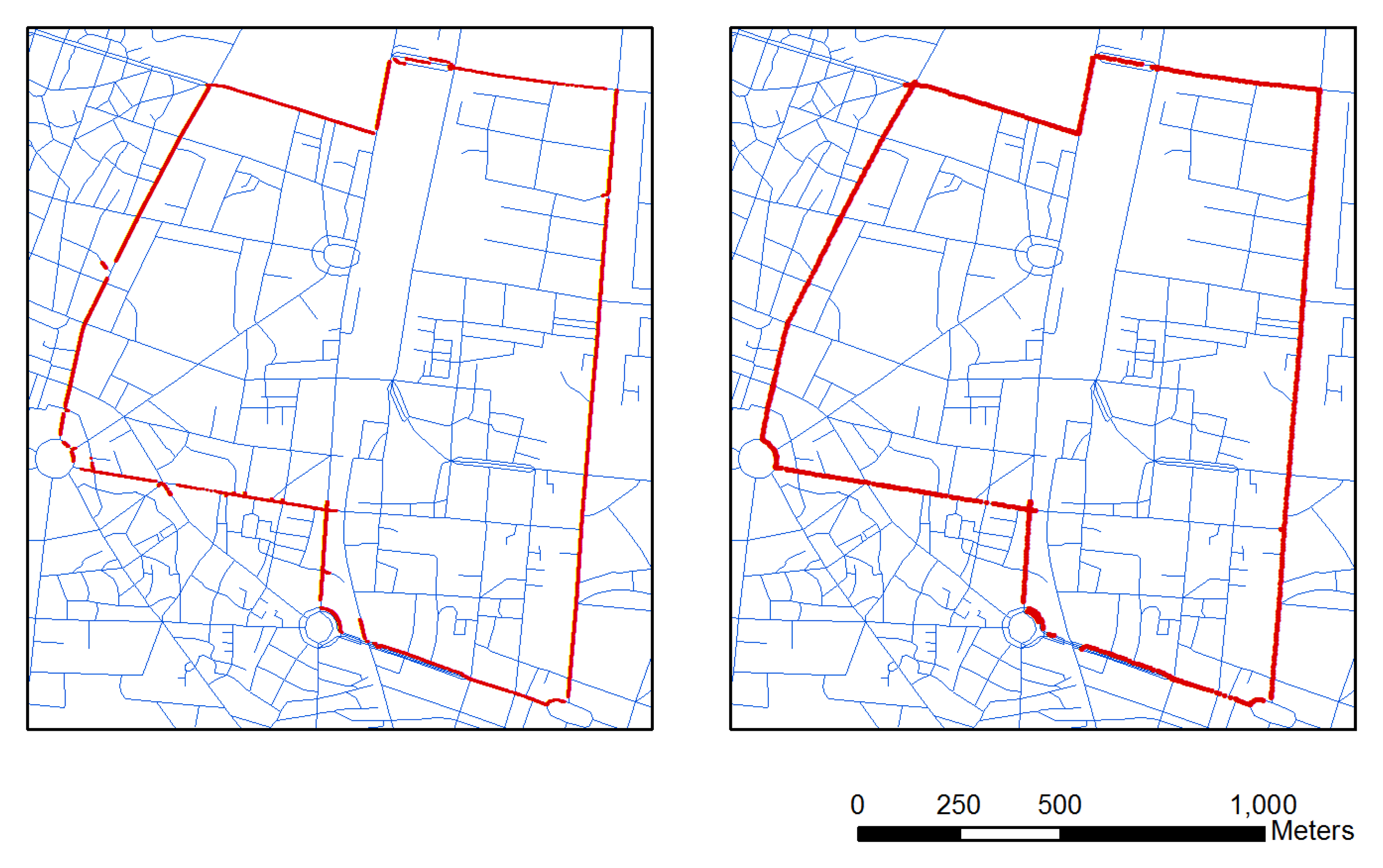

Point-to-curve (

Details of point-to-curve (

Map matching before (

MIDG II specification.

Output rate (Hz) | 50 |

Gyro bias (degree/h) | 47 |

Gyro scale factor (ppm) | 5,000 |

Accelerometer bias (mg) | 6.0 |

Accelerometer scale factor (ppm) | 19,700 |
