A Practical Data Recovery Technique for Long-Term Strain Monitoring of Mega Columns during Construction
Se Woon Choi , EunMi Kwon , Yousok Kim , Kappyo Hong and Hyo Seon Park *
Department of Architectural Engineering, Yonsei University, Seoul 110-732, Korea; E-Mails: watercloud@yonsei.ac.kr (S.W.C.); eunmi228@yonsei.ac.kr (E.K.); yskim1220@yonsei.ac.kr (Y.K.); kappyo@yonsei.ac.kr (K.H.)
*
Author to whom correspondence should be addressed; E-Mail: hspark@yonsei.ac.kr; Tel.: +82-2-2123-2794; Fax: +82-2-365-4668.
Received: 31 May 2013; in revised form: 12 August 2013 / Accepted: 16 August 2013 /
Published: 19 August 2013

Abstract

: A practical data recovery method is proposed for the strain data lost during the safety monitoring of mega columns. The analytical relations among the measured strains are derived to recover the data lost due to unexpected errors in long-term measurement during construction. The proposed technique is applied to recovery of axial strain data of a mega column in an irregular building structure during construction. The axial strain monitoring using the wireless strain sensing system was carried out for one year and five months between 23 July 2010 and 22 February 2012. During the long-term strain sensing, three different types of measurement errors occurred. Using the recovery technique, the strain data that could not be measured at different intervals in the measurement were successfully recovered. It is confirmed that the problems that may occur during long-term wireless strain sensing of mega columns during construction could be resolved through the proposed recovery method.
Keywords:
strain sensing; wireless sensor system; vibrating wire strain gages; structural health monitoring

1. Introduction

As the shapes of building structures become irregular or their height and size increase, mega columns, whose cross sectional area is larger than that of conventional members, are used more frequently. A mega column, a vertical member that comprises the resisting system against a lateral load such as earthquake or wind load, is placed at perimeter of a building plane in order to efficiently control the lateral displacement of the structure [1,2].

For structures in which relatively large mega columns have been used, the safety of the members are managed during construction through structural health monitoring (SHM) using various sensors, including axial strain sensors [35]. Various sensing methods have been developed for field measurements of strains in buildings and infrastructures [610]. Recent significant developments of new strain sensors and their applications can be found in [1114]. A wireless sensor network is preferred for the SHM of large-scale structures under construction because of the potential instability of the electricity supply and possibility of unexpected damage to the sensors and transceiver lines, and the real-time evaluation of the safety of structural members should be taken into account [15,16].

However, it is difficult for a wireless sensor network system not to lose data measured by the sensors for various unexpected reasons such as communication problems, noise, failure or abnormal installation of the sensors, harsh weather conditions, and hardware failures [17,18]. Various studies on the recovery of lost data have mostly been focused on the failure tolerance of the wireless sensor networks [19,20]. The concept of large-scale neuron sensor networks or a carbon nanotubes (CNT)-based artificial neural system (ANS) [11,12,21] or the use of artificial neural networks in management of strain data in a sensor network [22,23] may be used in estimation of strain data without recovery of abnormal sensors.

In this study, a practical data recovery method is proposed for the data loss that occurred during the safety monitoring of mega columns in a large-scale irregular structure that was actually under construction. The on-site safety monitoring of the constructed mega columns was accomplished by measuring the longitudinal strains with four wireless vibrating wire strain gauges (VWSG) installed vertically on the same cross section [15]. In this study, the analytical correlation among the longitudinal strains measured by the four wireless VWSG sensors was derived for the recovery of lost data. Based on the correlations, the strain data that could not be measured at each of the measurement intervals in the measurement data for a total of one year and five months between 23 July 2010 and 2 February 2012 were recovered, and the errors contained in the data measured by the damaged sensors were modified.

2. Strain Sensing System for a Mega Column in the Irregular Building under Construction

A practical monitoring system is applied to wireless strain sensing of the mega column in an irregular building (Figure 1) composed of three basement levels and four levels above the ground. As shown in Figure 1, a 26.1 m long mega column is used to support the mega truss. Since the structure is mainly used for exhibitions, large-scale structural members such as mega columns and mega trusses were employed to secure sufficiently large open spaces.

Due to the advantages of simplicity in the operating principles and the low cost of installation compared to other sensors, VWSGs are the most frequently used sensors in the construction field and for static strain monitoring of building structures. In this study, Geokon's VSM-400 model [24] with a length of 150 mm as the VWSG was used, installed at the centers of the section of the mega column on the fourth basement level of the irregular building shown in Figure 1.

The measurement system for the sensing of longitudinal strain of the mega column consisted of four VWSGs installed on the mega column, a sensor node that transmits the information measured by the sensors to the master node through a wireless transmission system, and a master node that transmits all the measurement data received from the sensor node to the monitoring server through the long distance wireless transmission system shown in Figure 2.

As shown in Figure 3a, the wireless sensor node for the 4-channel VWSG system consists of a sensor processing module, processor, memory, communication module, and power supply unit [15]. During construction, the sensor node inevitably requires batteries where continuous power supply through a wire is impossible. The low power consumption technology (LPCT) was adopted to resolve the power supply problem. The LPCT is realized by controlling the nodes through the active-sleep mode. In active mode, a sensor node performs every function. To minimize power consumption, sleep mode makes a sensor node inactive, which means that transmitting and receiving of the data is disabled. In addition, the transceiver and peripheral circuit are inserted into a single chip (CC1020 transceiver by Chipcon) which is used in communication with 424 MHz UHF within the Industrial Scientific and Medical (ISM) bandwidth, to operate with low power consumption [25]. In this study, the sensor node is designed to consume an electric current of 50 mA in active mode and 200 μA in sleep mode. In addition, the sensor nodes are also operated by external DC power.

A master node (Figure 3b) serves the role of transmitting the data to the monitoring server located at a long distance by mobile communication after receiving the measured values from sensor nodes. A master node also has power issues. Thus, LPCT with active-sleep mode, which is already applied in the sensor nodes, was also adopted in the master node. If sensor nodes are in active mode, but the master node is in sleep mode, data cannot be transmitted to a monitoring server. Thus, the setting of active-sleep mode among sensor-master node should be in identical manner for successful transmission.

The data is transmitted between the master node and the monitoring server by some mobile communication technology. The master node consists of two parts; a receiver module and Code-Division Multiple Access (CDMA) transmitter. The receiver module of the master node is directly connected with a commercially available CDMA transmitter through a short cable. After the receiver module receives and delivers the measurement data from the sensor nodes to the cable, the data is transmitted at the CDMA transmitter by means of the mobile communication system, as shown in Figure 2.

3. Analytical Relationship among Measured Longitudinal Strains

The longitudinal strain εi (i = 1 to 4) measured at the four sensors of S1, S2, S3, and S4 installed on the cross section of a mega column in Figure 4 can be expressed as the sum of the strains generated by the axial force, ε0, and the strains generated by the bending moment applied on the x and y axes, εMx and εMy. Since the strain due to the bending moment is proportional to the distance from the neutral axis, a compression strain and a tensile strain of the same magnitude are generated simultaneously. In Figure 4, the compression strain was denoted as positive while the tensile strain is negative. In the case where individual sensors are installed at the neutral axis of the cross section, the effect of the biaxial bending moment does not need to be taken into consideration; thus, the effect of the bending moment with respect to the y axis ±εMy is negligible for the sensors of S1 and S3. Likewise, only the effect of the bending moment with respect to the y axis needs to be taken into consideration for the strain measured at the sensors S2 and S4. Table 1 shows the combined stresses at each sensor location.

In such cases, three unknown variables are needed to determine the strain at the arbitrary sensors installed on the mega column: ε0, εMx, and εMy. Hence, the three unknowns may be determined by randomly choosing three out of the four sensors. With the measurements from the sensors of S1 and S3 or those from the sensors of S2 and S4, the strain due to the axial force, ε0, can be obtained from Equation (1):

ε 0 = ε 1 + ε 3 2 = ε 2 + ε 4 2

If ε0 is calculated using the strains ε1 and ε3 in Equation (1), then εMx can be expressed as in Equation (2), and εMy as in Equation (3) or Equation (4):

ε M x = ε 1 ε 0 = ε 0 ε 3 = ε 1 ε 3 2
ε M y = ε 0 ε 2 = ε 1 + ε 3 2 ε 2
ε M y = ε 4 ε 0 = ε 4 ( ε 1 + ε 3 2 )

In the same manner, if ε0 is calculated using the strains ε2 and ε4 in Equation (1), then εMx can be expressed as in Equation (5) or Equation (6), and εMy as in Equation (7):

ε M x = ε 1 ε 0 = ε 1 ε 2 ε 4 2
ε M x = ε 0 ε 3 = ε 2 + ε 4 2 ε 3
ε M y = ε 0 ε 2 = ε 4 ε 0 = ε 4 ε 2 2

When Equations (1)(7) are used, even if the measurements have not been normally carried out by one of the four sensors installed to the four sides of the mega column, the non-measured data is recovered based on the strain data normally measured by the other three sensors. For instance, if the strain ε1 was not measured at the sensor S1, the axial strain ε0 can be calculated as the mean of the strains ε2 and ε4 measured at the sensors S2 and S4. With the strains from the sensors of S2 and S4, the remaining unknowns εMx and εMy can be obtained from Equations (6) and (7), respectively. Then, the lost measurement data, ε1, can be recovered according to the first row of Table 1.

4. Application to Recovery of Longitudinal Strains in Mega Columns

4.1. Measurement of Axial Strain during Construction

During the construction of the irregular building structure in Figure 1, axial strain sensing using the wireless VWSG-based strain sensing system in Figure 2 was carried out for one year and five months between 23 July 2010, and 22 February 2012. The plot in Figure 5 shows the measurement values over the total sensing period of the four VWSGs, S1–S4, installed on the mega column. A total of 21,808 measurement values were obtained from the four VWSGs during the sensing period. For the monitoring, the distinctive procedures that took place during the sensing period can be classified into five types of events:

a.

Installation of VWSGs (S1,S2,S3)

b.

Installation of the edge truss block, 30 October 2010

c.

Installation of VWSG S4, 20 December 2010

d.

Pouring concrete on the 4th floor cantilever slab, 11 March 2011

e.

Removal of supporters (bend in Figure 1) for the edge truss, 25 April 2011

As shown in Figure 5, the structural response of the mega-column is directly observed through the changes in the measurement values caused by the procedures during the construction period, including the addition of materials and increase of the self-loading, which were reflected by the measurement values and plots obtained from monitoring.

The overall monitoring period was divided into three zones with reference to the major events. Zone 1 is the interval in which, among the four measurement sensors, the measurement sensor S4 was not installed from 23 July 2010 to 20 December 2010. Zone 2 is the interval from 20 December 2010 to 28 August 2011 during which all the measurement sensors (S1∼S4) operated normally. Finally, Zone 3 is the interval in which there was an anomaly in the S2 measurement sensor from 28 August 2011 to 22 February 2012.

4.2. Recovery of Strain Data

In this study, the measurement data of the S4 sensor, which was not installed in Zone 1, were reconstructed with the data of the other three installed sensors. In Zone 2, the S4 sensor measurement data, which were newly started for measurements, were converted into the strains accumulated from the initial measurements using the S4 data reconstructed in Zone 1. The normally obtained data of the four VWSGs were used to compare the values of one sensor predicted on the basis of the data of three randomly chosen sensors with their actual measurement values. In Zone 3 in which the S2 sensor showed an anomaly, the S2 sensor values were modified using the data of the S1, S3, and S4 sensors.

4.2.1. Zone 1

Only three sensors out of a total of four sensors were installed in Zone 1 during the entire sensing period. Hence, the strain ε4 at the S4 sensor location, which could not be measured, was estimated. To determine the strain values of the S4 sensor that was not installed, the values of ε0 and εMy were required, as shown in the fourth row of Table 1. As in Equation (1), ε0 is calculated as the mean of ε1 and ε3. According to Equation (3), εMy is determined with the values of ε1, ε2, and ε3. The strain values at the S1, S2, and S3 sensors as well as the ε0, εMy, and ε4 values estimated using the strain values at the three sensors are shown in Table 2 at monthly intervals from the first day of the sensing. Figure 6 shows the S1–S3 measurements that were obtained through the constant monitoring and the S4 estimations during the period from 23 July 2010, the day when the monitoring started, to the time when the S4 sensor was installed.

4.2.2. Zone 2

Figure 7 shows the measurements of the S4 sensor that was installed on 20 December 2010, about five months after the start of the measurements, and the measurements of the sensors S1–S3 in Zone 2. The period represented by Zone 2 is from 20 December 2010, when sensor S4 was installed, to 28 August 2011, when sensor S2 showed an abnormality. The measurements of S4 were different from those of the S1–S3 sensors that had initially been installed. It is necessary to modify the measurement data of S4 in Zone 2 into the strain accumulated from the initial measurement.

The starting value of S4 in Zone 2, estimated through the S1, S2, and S3 measurements in Zone 2, was compared with the final value of S4 in Zone 1 estimated using the S1, S2, and S3 measurements in Zone 1. The estimated value for S4 value in Zone 1 was 91.52 με, and that in Zone 2 was 96.31 με. With the consistency of about 95% in the two values, the measurement data on the day of 20 December 2010 when the S4 sensor was installed were transferred in parallel as much as the S4 value which was 91.52 με In Figure 7, the S4 measurement values in Zone 2 were modified by considering the estimation of the S4 sensor at the last period of Zone 1.

The variance accounted for (VAF) in Equation (8) was applied to investigate the accuracy of the estimations and measurements [26,27]:

VAF = [ 1 var ( y m e y e s ) var ( y m e ) ] × 100

The estimated and measured data are denoted as yes and yme, respectively. “var” denotes variance. Table 3 shows the result of the quantitative evaluation of the estimations and measurements, indicating that the values of S1, S2, and S3 are all consistent by more than 98%.

In Figure 8, for example, the estimated strain data based on the S2, S3, and S4 sensors are compared the measured data from S1. It is found that the estimated data matched well with the measured data.

4.2.3. Zone 3

In Zone 3, where the anomaly of the S2 sensor was found, increases in the measurements due to the increased load were found in the S1, S3, and S4 sensors. However, the measurements of the S2 sensor were decreasing abnormally in Zone 3 as shown in Figure 9. The reason for the S2 measurement anomaly is not known. Thus, in Figure 9, the S2 value was estimated on the basis of the measurement data of the S1, S3 and S4 sensors that were normally operating so that the estimated S2 value could replace the previous measurement data. Finally, Figure 10 shows the estimation values of the S4 sensor that was not installed in Zone 1, the parallel transfer of the S4 value in Zone 2, and the modified measurement of the abnormal S2 sensor in Zone 3.

5. Conclusions

In this study, a strain data recovery technique is proposed for the data losses during structural health monitoring of a mega column in a large-scale irregular building structure. The monitoring was done for one year and five months. During the monitoring, problems such as non-installation of a measurement sensor and abnormal sensor operation occurred. The entire period was divided into three zones: Zone 1 when the S4 sensor had not been installed, Zone 2 when the monitoring was performed normally because the S1–S4 sensors were installed and Zone 3 when the anomaly of the S2 sensor was found. Based on the analytical relations among the measured stains, the measurements of the S4 sensor, which had not been installed in Zone 1, were estimated with a simple estimation method. Additionally, the values measured after the installation of the S4 sensor were transferred in parallel as much as the S4 value measured in Zone 2, and then the structural response of the S1–S4 sensors was monitored. Finally, the measurement of the S2 sensor in which the anomaly was found in Zone 3 was replaced by the estimation based on the S1, S3 and S4 sensor measurements. The problems that may occur during long-term wireless sensor monitoring during construction could be resolved through the estimation method. In addition, the safety of structural members during the monitoring may be evaluated by estimating the axial force and moments of the structural members. It is noted that analytical correlation among the strains from strain sensors is required for the application of the data recovery method.

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (Ministry of Education, Science and Technology, MEST) (No. 2011-0018360).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Taranath, B.S. Structural Analysis and Design of Tall Buildings: Steel and Composite Construction; CRC Press: Boca Raton, FL USA, 2012; pp. 79–104.
  2. Park, H.S.; Hong, K.; Seo, J.H. Drift design of steel-frame shear-wall systems for tall buildings. Struct. Des. Tall Spec. Build. 2002, 11, 35–49.
  3. Su, J.Z.; Xia, Y.; Chen, L.; Zhao, X.; Zhang, Q.L.; Xu, Y.L.; Chen, A.R. Long-term structural performance monitoring system for the Shanghai Tower. J. Civil. Struct. Health Monit. 2013, 3, 49–61.
  4. Ji, L.; Zhang, J. The Application of GPRS Remote Wireless Automatic Monitoring System to Health Monitoring in Guangdong Science Center. Proceedings of the Second International Conference on Mechanic Automation and Control Engineering, Hohhot, China, 15–17 July 2011.
  5. Park, H.S.; Son, S.; Choi, S.W.; Kim, Y. Wireless laser range finder system for vertical displacement monitoring of mega-trusses during construction. Sensors 2013, 13, 5976–5813.
  6. Chan, P.K.C.; Jin, W.; Gong, J.M.; Demokan, M.S. Multiplexing of fiber Bragg grating sensors using an FMCW technique. IEEE Photonic. Tech. Lett. 1999, 11, 1470–1472.
  7. Ansari, F. Practical implementation of optical fiber sensors in civil structural health monitoring. J. Intell. Mater. Syst. Struct. 2007, 18, 879–889.
  8. Park, H.S.; Lee, H.M.; Adeli, H.; Lee, I. A new approach for health monitoring of structures: Terrestrial laser scanning. Comput. Aided Civil. Infrastr. Eng. 2007, 22, 19–30.
  9. Choi, S.W.; Lee, J.; Kim, J.M.; Park, H.S. Design and application of a field sensing system for ground anchors in slopes. Sensors 2013, 13, 3739–3752.
  10. Park, H.S.; Shin, Y.; Choi, S.W.; Kim, Y. An integrative structural health monitoring system for the local/global responses of a large-scale irregular building under construction. Sensors 2013, 13, 9085–9103.
  11. Alamusi, H.N.; Fukunaga, H.; Atobe, S.; Liu, Y.; Li, J. Piezoresistive strain sensors made from carbon nanotubes based polymer nanocomposites. Sensors 2011, 11, 10691–10723.
  12. Hu, B.; Hu, N.; Cai, Y.; Yuan, W.; Yan, C.; Cai, Y.; Furukawa, M.; Matsushita, M. Performance characterization of VGCF/epoxy nanocomposite sensors under multiple load cycles and in static structural health monitoring. Smart. Mater. Struct. 2013, 22, doi:10.1088/0964-1726/22/4/045008.
  13. Hu, N.; Karube, Y.; Arai, M.; Watanabe, T.; Yan, C.; Li, Y.; Liu, Y.; Fukunaga, H. Investigation on sensitivity of a polymer/carbon nanotube composite strain sensor. Carbon 2000, 48, 680–687.
  14. Nair, R.V.; Vijaya, R. Photonic crystal sensors: An overview. Prog. Quant. Electron. 2010, 34, 89–134.
  15. Lee, H.M.; Kim, J.M.; Sho, K.; Park, H.S. A wireless vibrating wire sensor node for continuous structural health monitoring. Smart. Mater. Struct. 2010, 19, doi:10.1088/0964-1726/19/5/055004.
  16. Bao, Y.; Li, H.; Sun, X.; Yu, Y.; Ou, J. Compressive sampling-based data loss recovery for wireless sensor networks used in civil structural health monitoring. Struct. Health Monit. 2013, 12, 78–95.
  17. Lee, J.-H.; Jung, I.-B. Adaptive-compression based congestion control technique for wireless sensor networks. Sensors 2010, 10, 2919–2945.
  18. Kim, S.; Brendle, C.; Lee, H.-Y.; Walter, M.; Gloeggler, S.; Krueger, S.; Leonhardt, S. Evaluation of a 433 MHz band body sensor network for biomedical applications. Sensors 2013, 13, 898–917.
  19. Qiu, X.; Liu, H.; Li, D.; Yick, J.; Ghosal, D.; Mukherjee, B. Efficient aggregation of multiple classes of information in wireless sensor networks. Sensors 2009, 9, 8083–8108.
  20. Lee, J.-H.; Jung, I.-B. Speedy routing recovery protocol for large failure tolerance in wireless sensor networks. Sensors 2010, 10, 3389–3410.
  21. Kang, I.; Schulz, M.J.; Kim, J.H.; Shanov, V.; Shi, D. A carbon nanotube strain sensor for structural health monitoring. Smart. Mater. Struct. 2006, 15, 737–748.
  22. Efendioglu, H.S.; Yildirim, T.; Fidanboylu, K. Prediction of force measurements of a microbend sensor based on an artificial neural network. Sensors 2009, 9, 7167–7176.
  23. Baladrón, C.; Aguiar, J.M.; Calavia, L.; Carro, B.; Sánchez-Esguevillas, A.; Hernández, L. Performance study of the application of artificial neural networks to the completion and prediction of data retrieved by underwater sensors. Sensors 2012, 12, 1468–1481.
  24. Geokon. Available online: http://www.geokon.com/strain-gages/ (accessed on 27 May 2013).
  25. Texas Instruments. Single Chip Very Low Power RF Transceiver with 8051-Compatible Microcontroller, Available online: http://www.ti.com/product/cc1010 (accessed on 28 May 2013).
  26. Mittal, H.; Bhatia, P. Optimization criteria for effort estimation using fuzzy technique. CLEI Electron. J. 2007, 10, 1–11.
  27. Mitchell, R.; Kim, Y.; El-Korchi, T. System identification of smart structures using a wavelet neuro-fuzzy model. Smart Mater. Struct. 2012, 21, doi:10.1088/0964-1726/21/11/115009.
Sensors 13 10931f1 200

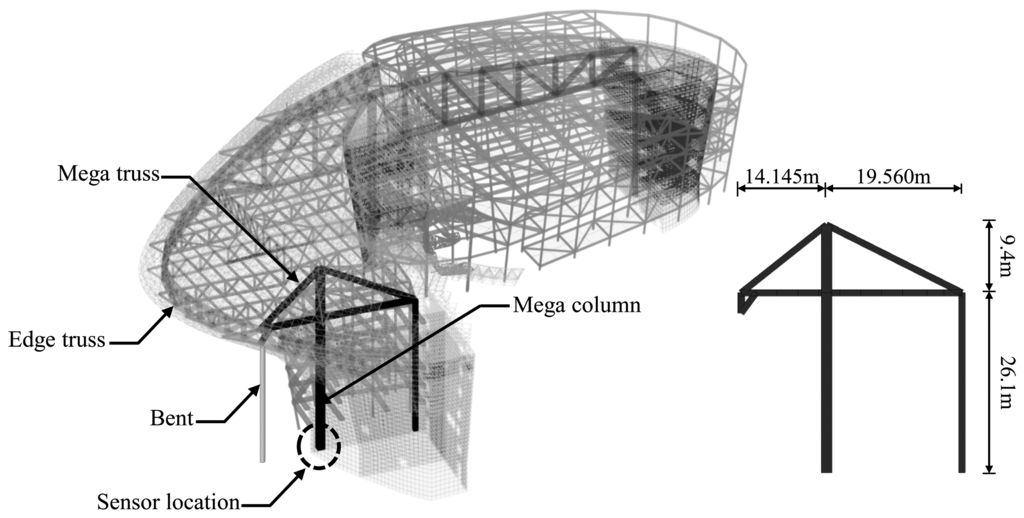

Figure 1. Mega column in a large-scale irregular building structure.

Click here to enlarge figure

Figure 1. Mega column in a large-scale irregular building structure.
Sensors 13 10931f1 1024
Sensors 13 10931f2 200

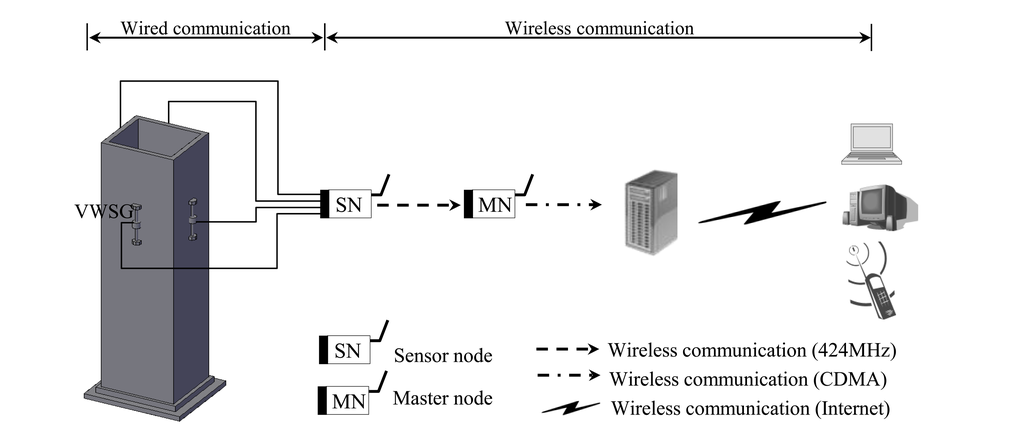

Figure 2. Wireless strain sensing system for the mega-column based on VWSG.

Click here to enlarge figure

Figure 2. Wireless strain sensing system for the mega-column based on VWSG.
Sensors 13 10931f2 1024
Sensors 13 10931f3 200

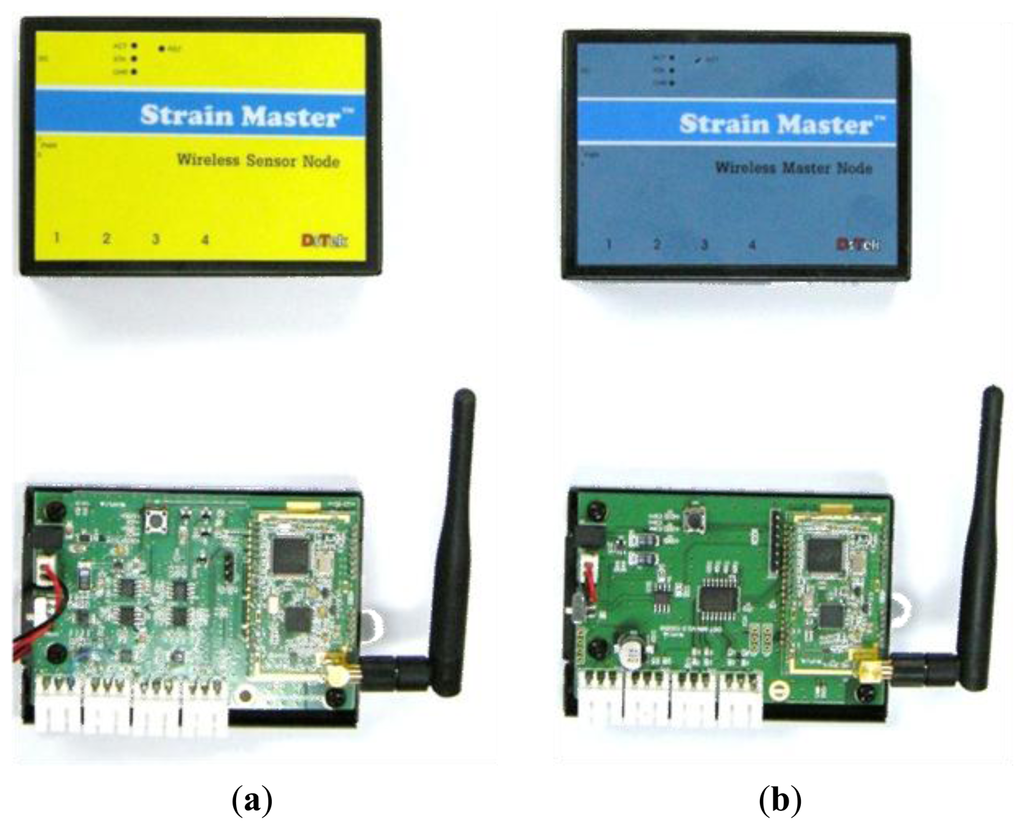

Figure 3. Sensor node and master node for wireless sensing system. (a) Sensor node (b) Master node.

Click here to enlarge figure

Figure 3. Sensor node and master node for wireless sensing system. (a) Sensor node (b) Master node.
Sensors 13 10931f3 1024
Sensors 13 10931f4 200

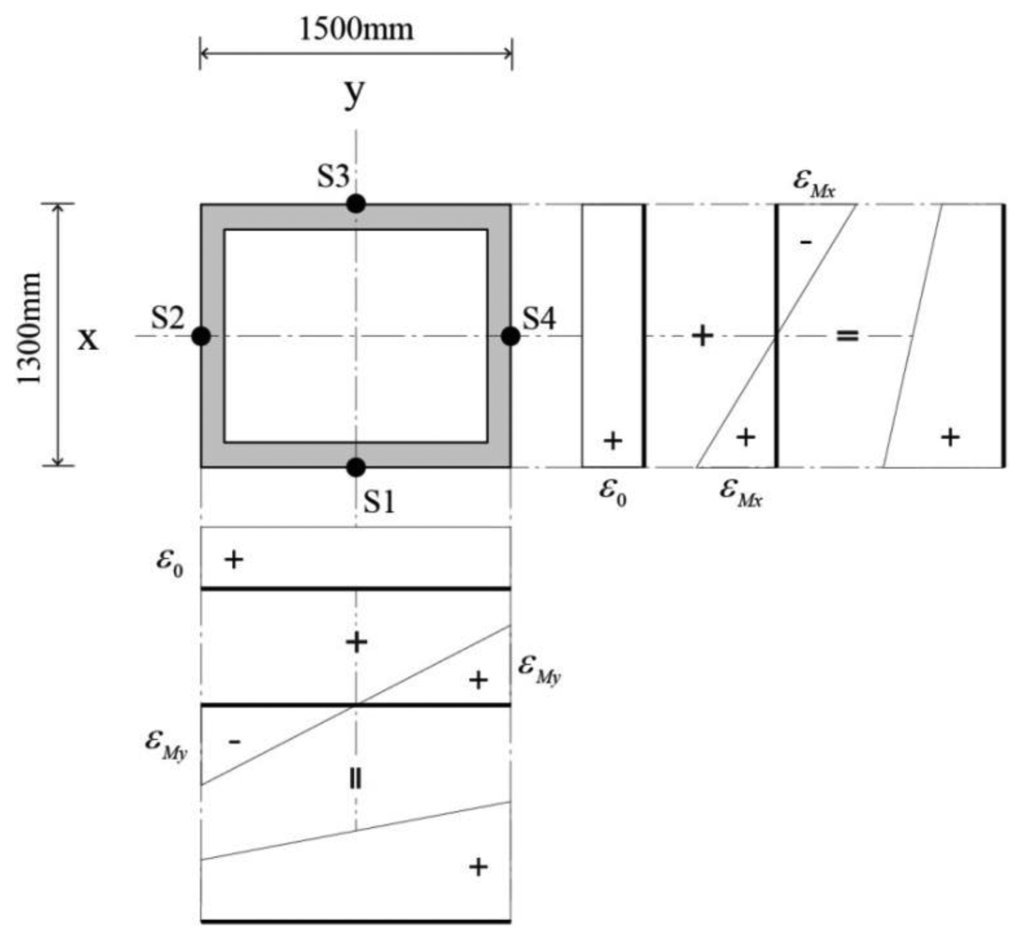

Figure 4. Stress distribution of the mega column subjected simultaneously to an axial force and bending moments.

Click here to enlarge figure

Figure 4. Stress distribution of the mega column subjected simultaneously to an axial force and bending moments.
Sensors 13 10931f4 1024
Sensors 13 10931f5 200

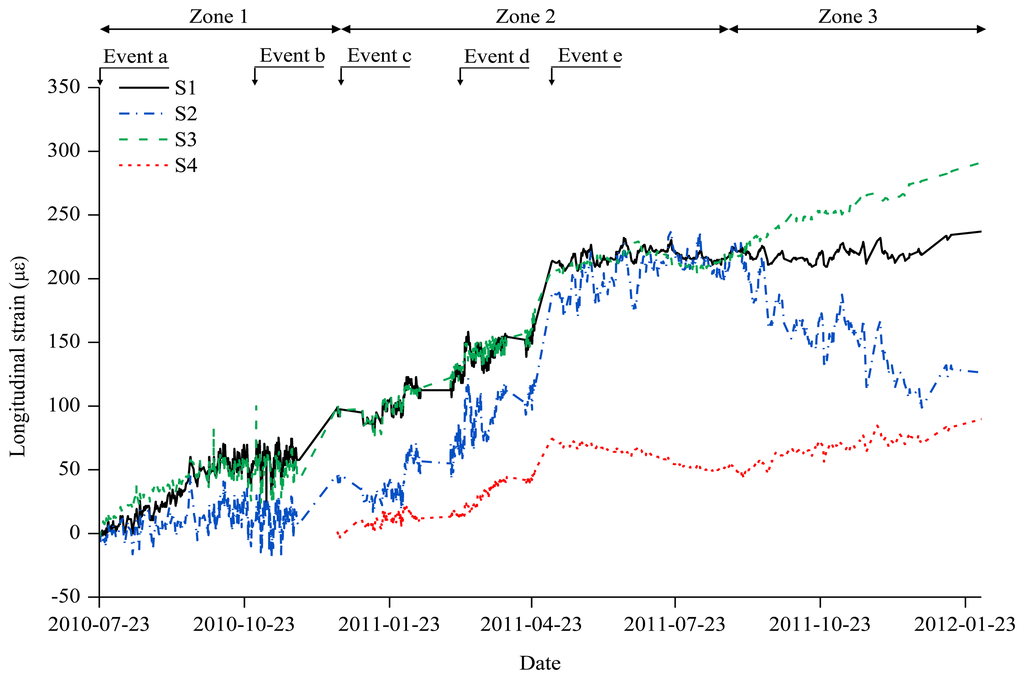

Figure 5. Measurement histories of axial strains in the mega-column during construction.

Click here to enlarge figure

Figure 5. Measurement histories of axial strains in the mega-column during construction.
Sensors 13 10931f5 1024
Sensors 13 10931f6 200
Figure 6. Estimated data for S4 and measurement data for S1, S2, and S3 (Zone 1).

Click here to enlarge figure

Figure 6. Estimated data for S4 and measurement data for S1, S2, and S3 (Zone 1).
Sensors 13 10931f6 1024
Sensors 13 10931f7 200

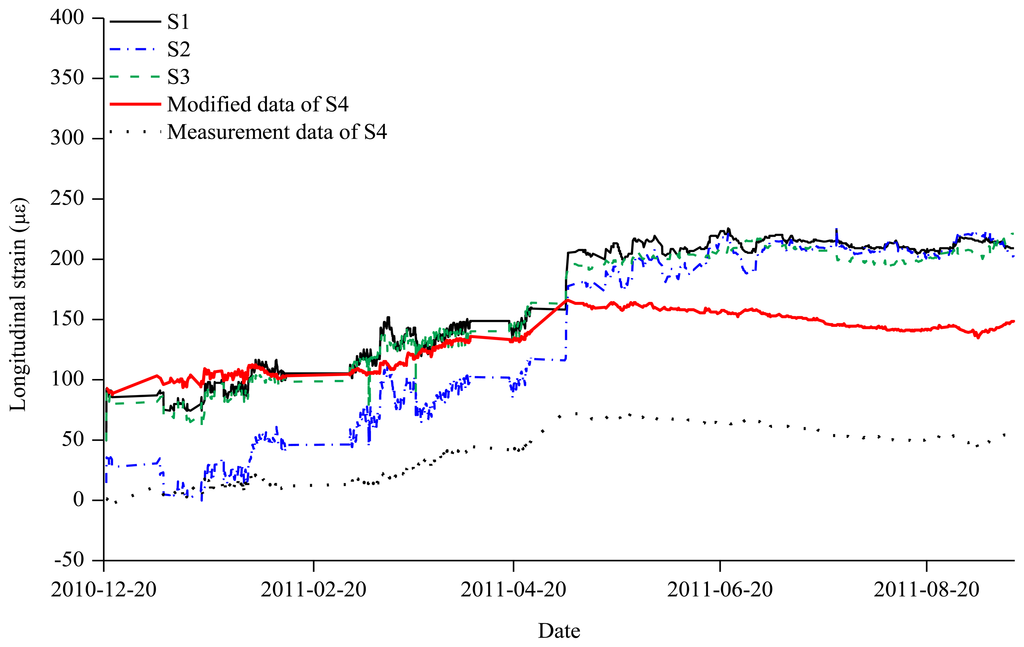

Figure 7. Measured strains from S1, S2, S3, and S4 and modified strain by adding the accumulated strain of 91.52 με for S4 (Zone 2).

Click here to enlarge figure

Figure 7. Measured strains from S1, S2, S3, and S4 and modified strain by adding the accumulated strain of 91.52 με for S4 (Zone 2).
Sensors 13 10931f7 1024
Sensors 13 10931f8 200

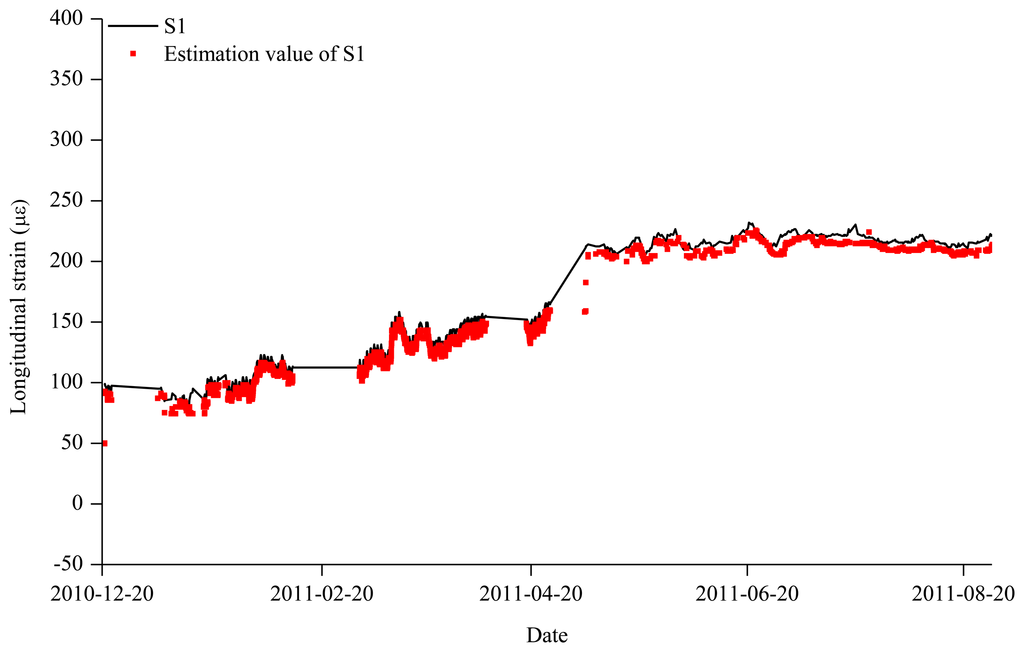

Figure 8. Comparison of estimated and measured strain data for S1 (Zone 2).

Click here to enlarge figure

Figure 8. Comparison of estimated and measured strain data for S1 (Zone 2).
Sensors 13 10931f8 1024
Sensors 13 10931f9 200

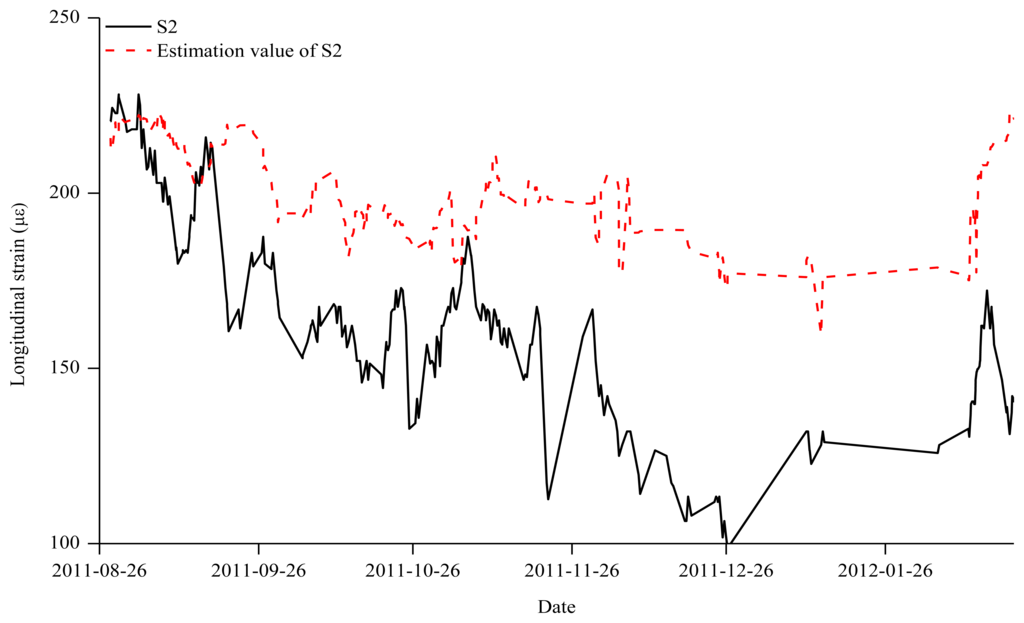

Figure 9. Estimated and measured strain data for S2 (Zone 3).

Click here to enlarge figure

Figure 9. Estimated and measured strain data for S2 (Zone 3).
Sensors 13 10931f9 1024
Sensors 13 10931f10 200

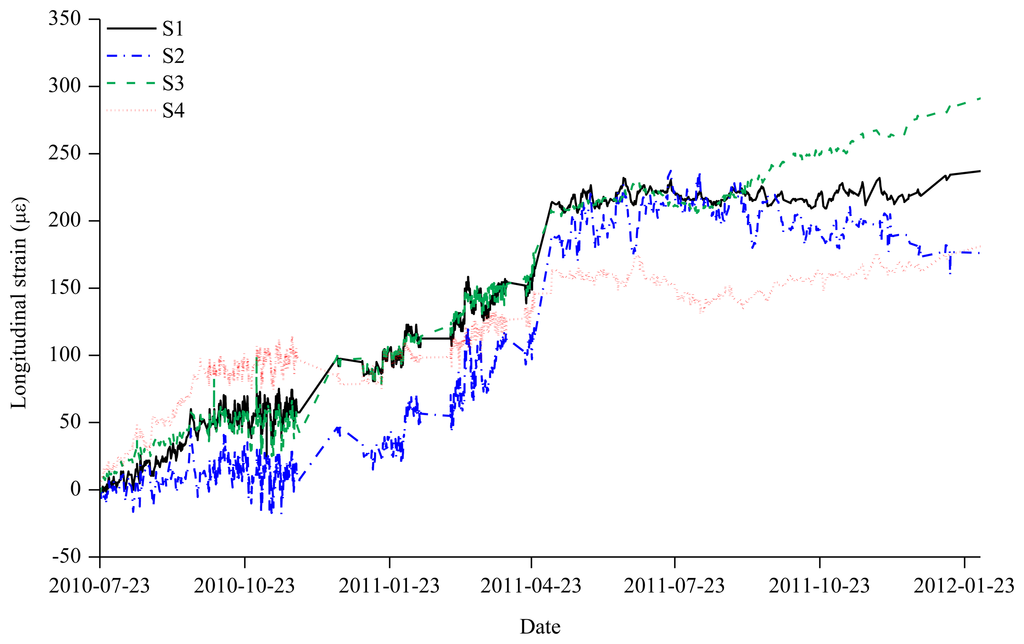

Figure 10. Strain histories for the mega column based on the recovery technique during construction.

Click here to enlarge figure

Figure 10. Strain histories for the mega column based on the recovery technique during construction.
Sensors 13 10931f10 1024
Table 1. Combined strain at each sensor location.

Click here to display table

Table 1. Combined strain at each sensor location.
Sensor LocationAxial StrainBending StrainCombined Strain
S1ε0εMxε1=ε0+εMx
S2ε0εMyε2=ε0εMy
S3ε0εMxε3=ε0εMx
S4ε0εMyε4=ε0 + εMy
Table 2. Measured strains and estimated strain of ε4 in Zone 1.

Click here to display table

Table 2. Measured strains and estimated strain of ε4 in Zone 1.
TimeMeasured Strains (με)Estimated Strains (με)Combined Strain (με)



ε1ε2ε3ε0εMyε4
2010-07-230.000.000.000.000.000.00
2010-07-23−1.62−2.36−1.58−1.600.75−0.85
2010-08-2320.8417.3427.3424.096.7430.83
2010-08-2320.0714.9928.1124.099.1033.19
2010-09-2336.88−5.4840.1338.5143.9982.50
2010-09-2342.450.8144.1543.3042.4985.79
2010-10-2469.5834.6157.7263.6529.0492.69
2010-10-2469.5835.3857.7263.6528.2791.92
2010-11-2657.646.3442.5350.0843.7593.83
2010-11-2657.647.8841.7649.7041.8291.52
Table 3. The VAF of each sensor.

Click here to display table

Table 3. The VAF of each sensor.
S1 (%)S2 (%)S3 (%)
VAF of Zone 299.3698.6999.09
