Sensors 2013, 13(7), 8403-8411; doi:10.3390/s130708403
Article

Novel RF Interrogation of a Fiber Bragg Grating Sensor Using Bidirectional Modulation of a Mach-Zehnder Electro-Optical Modulator

1
, 2
 and 1,*
Received: 10 April 2013; in revised form: 20 June 2013 / Accepted: 28 June 2013 / Published: 2 July 2013
(This article belongs to the Special Issue Laser Sensing and Imaging)
View Full-Text   |   Download PDF [540 KB, uploaded 21 June 2014]   |   Browse Figures

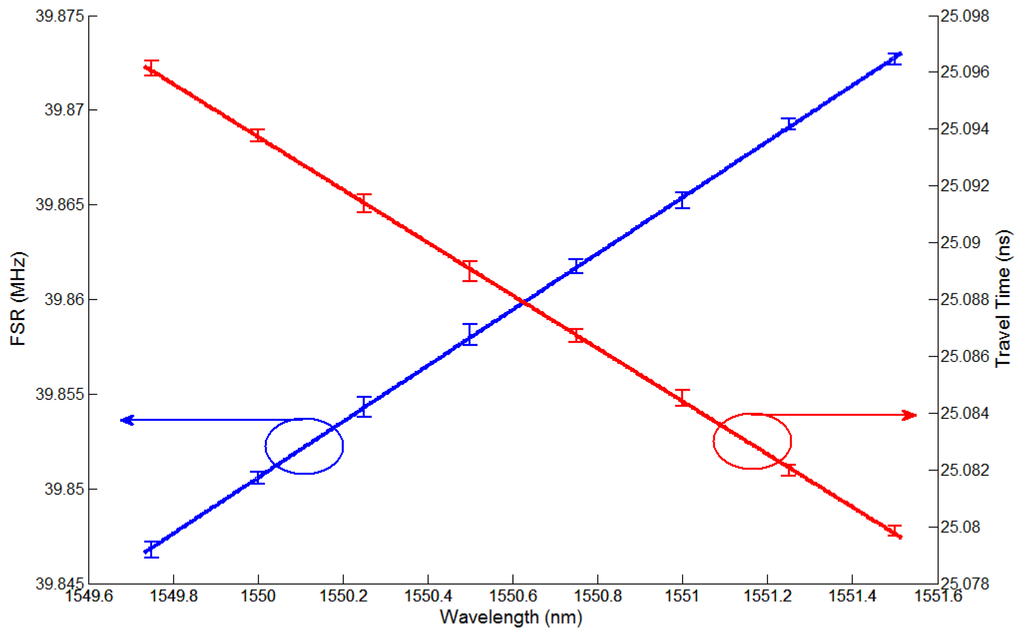

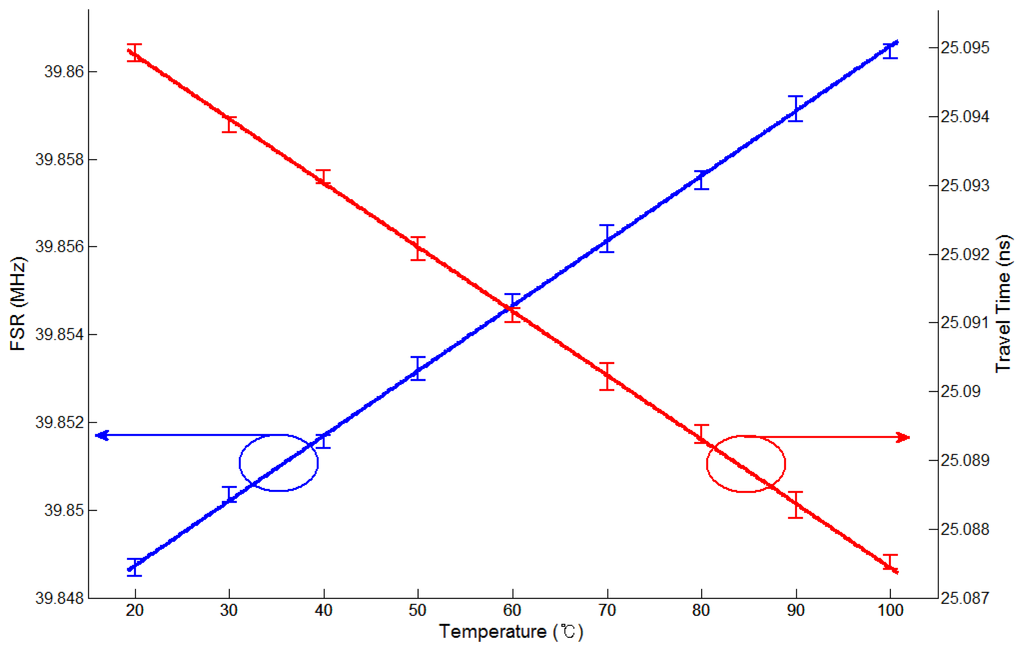

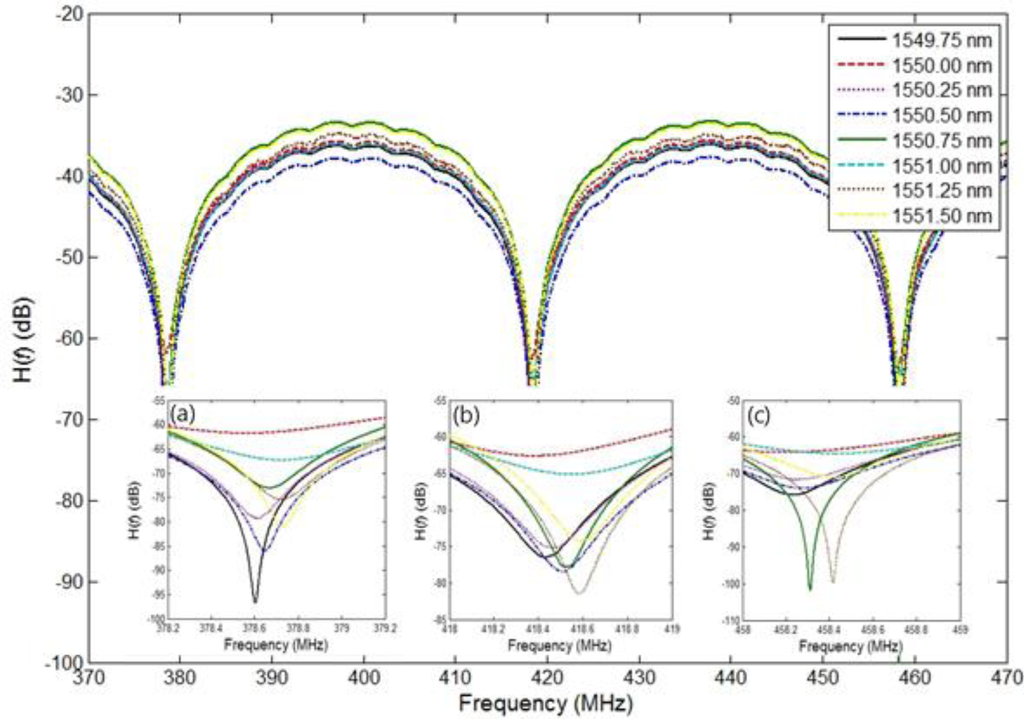

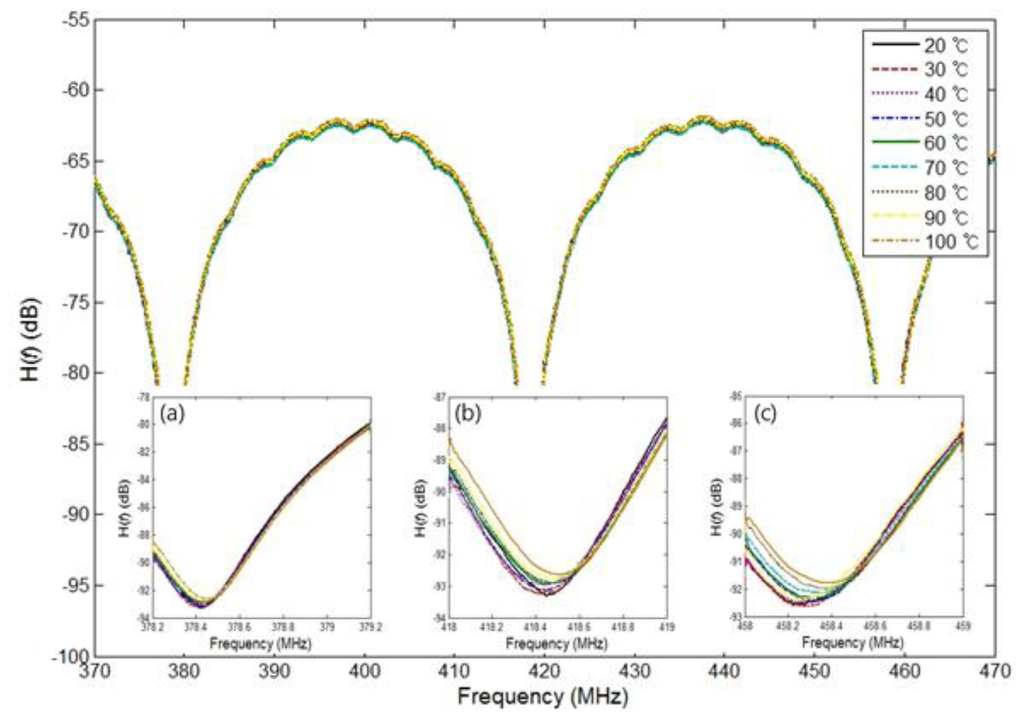

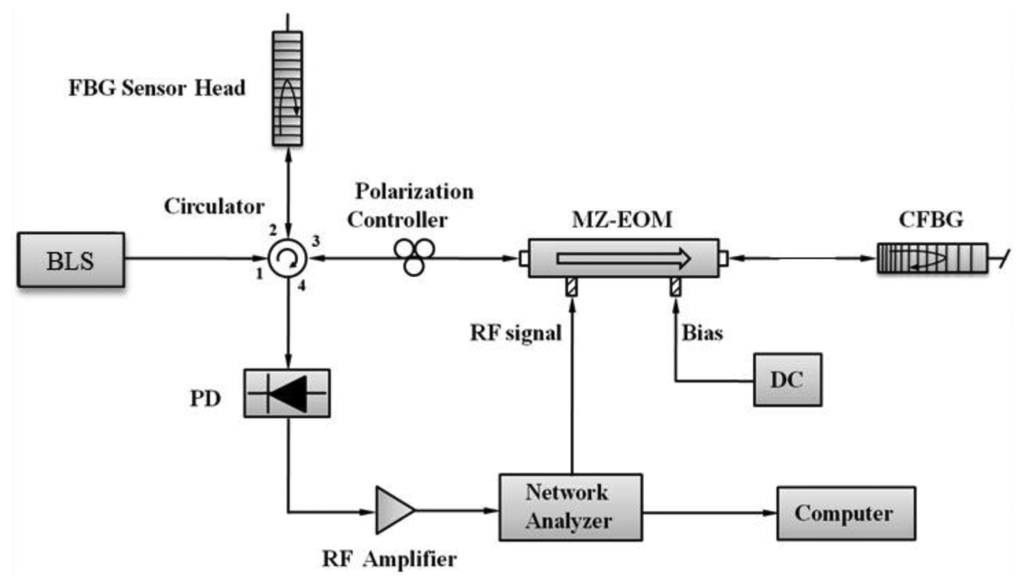

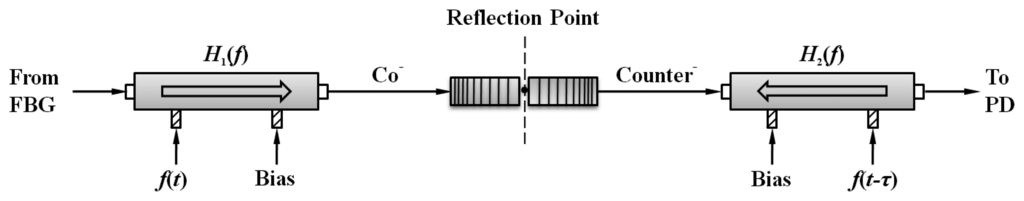

Abstract: We propose and experimentally demonstrate the novel radio-frequency (RF) interrogation of a fiber Bragg grating (FBG) sensor using bidirectional modulation of a Mach-Zehnder electro-optical modulator (MZ-EOM). Based on the microwave photonic technique and active detection, the transfer function of the proposed system was obtained, and the time delay was calculated from the change in the free spectral range (FSR) at different wavelengths over the optimal measuring range. The results show that the time delay and the wavelength variation have a good linear relationship, with a gradient of 9.31 ps/nm. An actual measurement taken with a sensing FBG for temperature variation shows the relationship with a gradient of 0.93 ps/10 °C. The developed system could be used for FBG temperature or strain sensing and other multiplexed sensor applications.
Keywords: radio-frequency (RF) interrogation; fiber Bragg grating (FBG); chirped fiber Bragg grating (CFBG); Mach-Zehnder electro-optical modulator (MZ-EOM) radio-frequency (RF) interrogation; fiber Bragg grating (FBG); chirped fiber Bragg grating (CFBG); Mach-Zehnder electro-optical modulator (MZ-EOM)
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Choi, S.-J.; Mao, W.; Pan, J.-K. Novel RF Interrogation of a Fiber Bragg Grating Sensor Using Bidirectional Modulation of a Mach-Zehnder Electro-Optical Modulator. Sensors 2013, 13, 8403-8411.

AMA Style

Choi S-J, Mao W, Pan J-K. Novel RF Interrogation of a Fiber Bragg Grating Sensor Using Bidirectional Modulation of a Mach-Zehnder Electro-Optical Modulator. Sensors. 2013; 13(7):8403-8411.

Chicago/Turabian Style

Choi, Sang-Jin; Mao, Wankai; Pan, Jae-Kyung. 2013. "Novel RF Interrogation of a Fiber Bragg Grating Sensor Using Bidirectional Modulation of a Mach-Zehnder Electro-Optical Modulator." Sensors 13, no. 7: 8403-8411.
