Sensors 2013, 13(7), 8352-8376; doi:10.3390/s130708352
Article

Data Communications Using Guided Elastic Waves by Time Reversal Pulse Position Modulation: Experimental Study

1,* , 2
 and 3
Received: 19 March 2013; in revised form: 21 June 2013 / Accepted: 26 June 2013 / Published: 1 July 2013
(This article belongs to the Special Issue Piezoelectric Sensors and Actuators)
View Full-Text   |   Download PDF [1039 KB, updated 21 June 2014; original version uploaded 21 June 2014]   |   Browse Figures

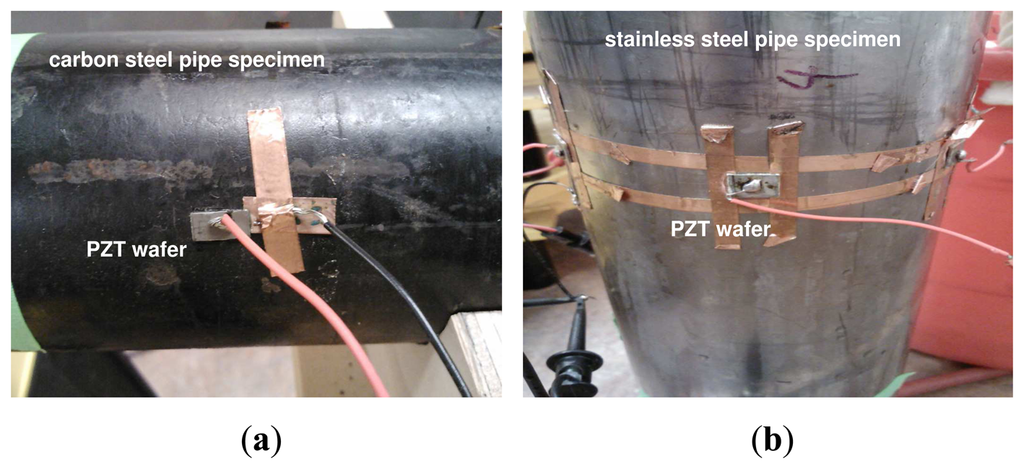

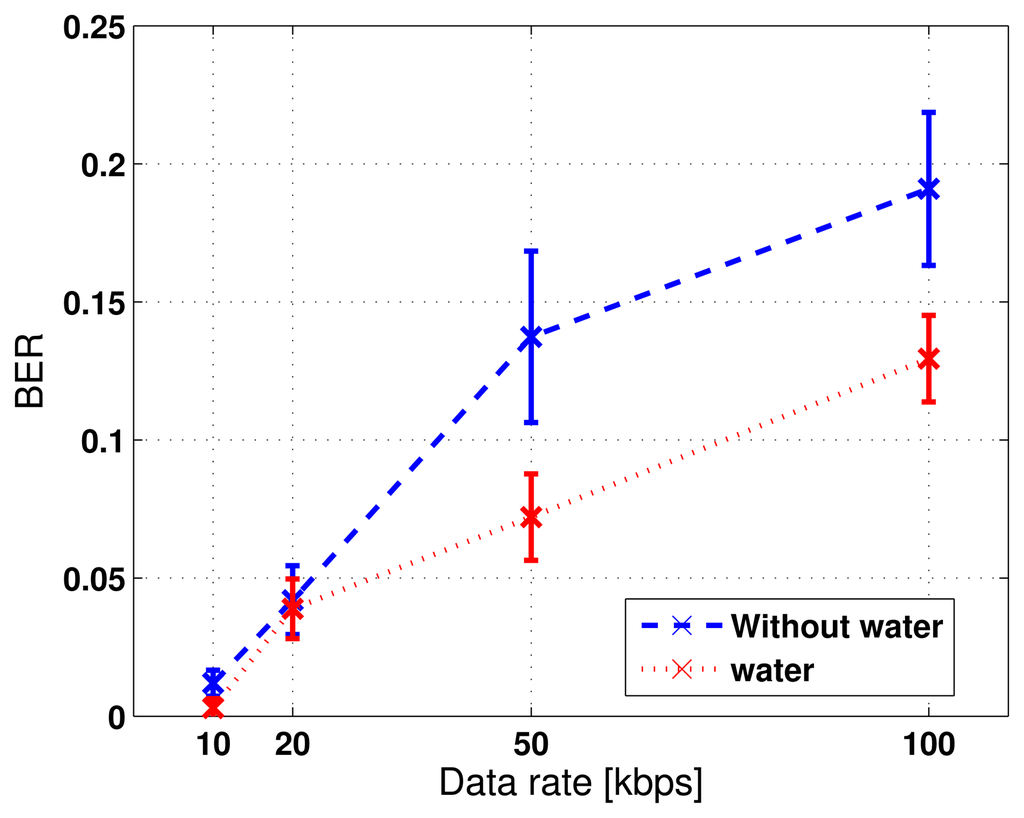

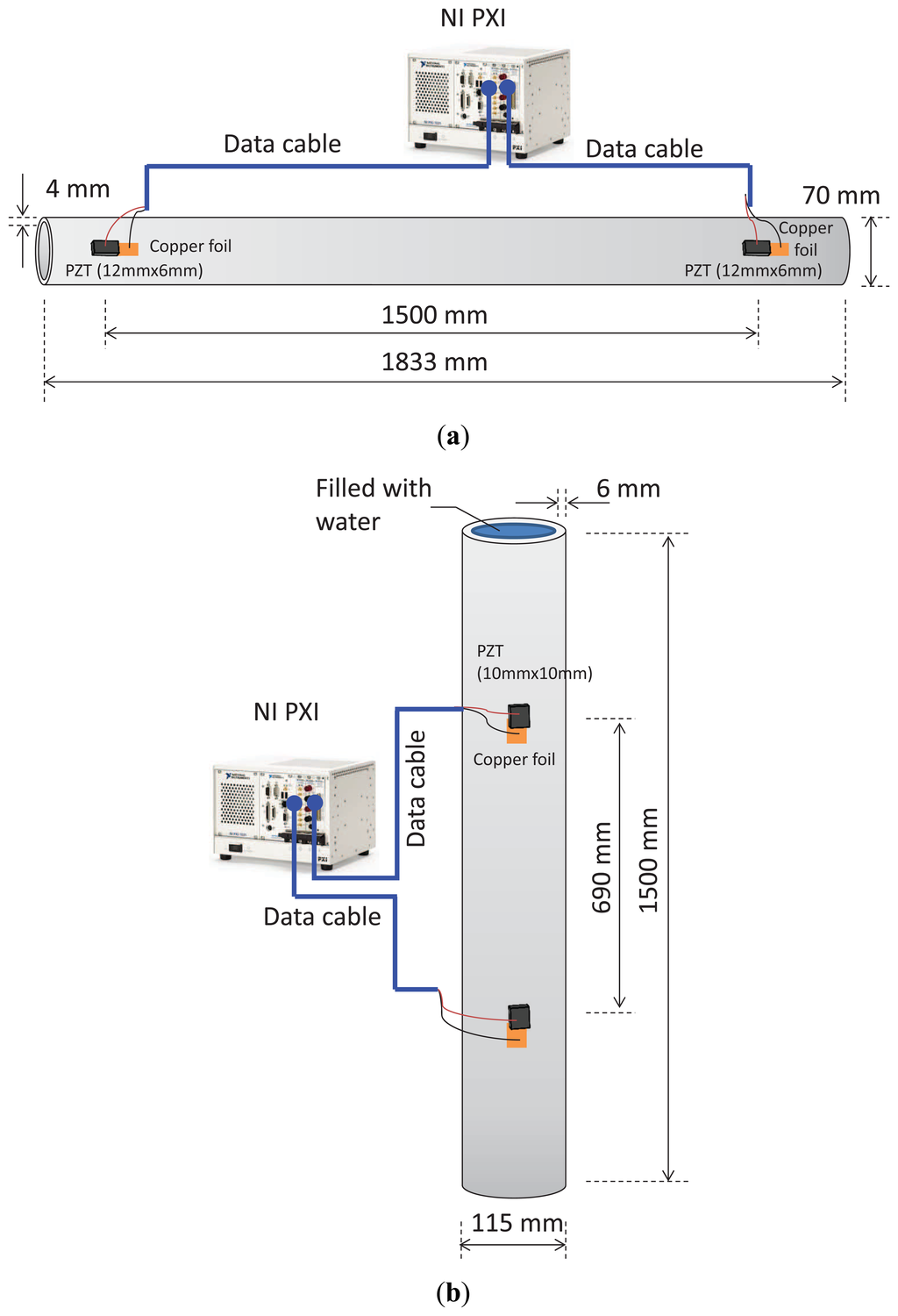

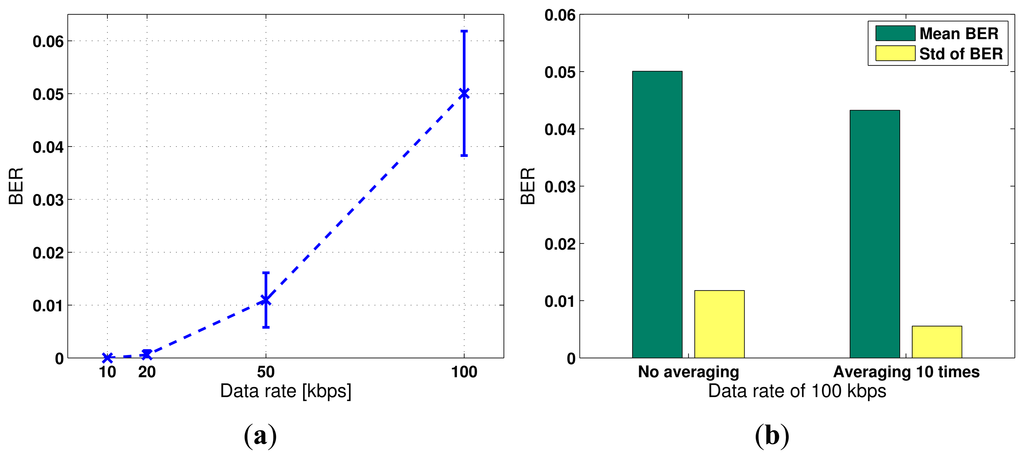

Abstract: In this paper, we present and demonstrate a low complexity elastic wave signaling and reception method to achieve high data rate communication on dispersive solid elastic media, such as metal pipes, using piezoelectric transducers of PZT (lead zirconate titanate). Data communication is realized using pulse position modulation (PPM) as the signaling method and the elastic medium as the communication channel. The communication system first transmits a small number of training pulses to probe the dispersive medium. The time-reversed probe signals are then utilized as the information carrying waveforms. Rapid timing acquisition of transmitted waveforms for demodulation over elastic medium is made possible by exploring the reciprocity property of guided elastic waves. The experimental tests were conducted using a National Instrument PXI system for waveform excitation and data acquisition. Data telemetry bit rates of 10 kbps, 20 kbps, 50 kbps and 100 kbps with the average bit error rates of 0, 5.75 × 10−4, 1.09 × 10−2 and 5.01 × 10−2, respectively, out of a total of 40, 000 transmitted bits were obtained when transmitting at the center frequency of 250 kHz and a 500 kHz bandwidth on steel pipe specimens. To emphasize the influence of time reversal, no complex processing techniques, such as adaptive channel equalization or error correction coding, were employed.
Keywords: piezoelectric sensors; structural health monitoring; communication; telemetry; time reversal; guided elastic waves; timing acquisition; steel pipes piezoelectric sensors; structural health monitoring; communication; telemetry; time reversal; guided elastic waves; timing acquisition; steel pipes
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
