Airborne Light Detection and Ranging (LIDAR) has become a mainstream technology for terrain data acquisition and mapping. High sampling density of LIDAR enables the acquisition of high details of the terrain, but on the other hand, it results in a vast amount of gathered data, which requires huge storage space as well as substantial processing effort. The data are usually stored in the LAS format which has become the

Light Detection and Ranging (LIDAR) is an optical remote sensing technique that measures the distance to the surface of a distant object. Like radar technology, the distance is determined by illuminating the target by a light source, typically a laser, and measuring the time between the light emission and the detection of the reflection. Since LIDAR uses electromagnetic radiation with much shorter wavelength then radar, it can detect much smaller objects and has finer resolution [

LIDAR data scanners used for collecting terrain data are usually mounted on airplanes. Shooting over 100,000 laser pulses per second to the terrain surface, the measurement resolution exceeds one point per square meter. This way, a huge amount of high precision spatial data [

The scanner monitors the reflection signal for each laser pulse that was sent out. The intensity peaks of the signal correspond to the objects that were hit by the laser beam and reflected a portion of the beam back to the scanner. The notable width of the laser beam can cause partial reflections on several objects such as branches, leaves, birds, wires, before reaching the ground, which results in several intensity peaks for a single shot. Each peak that exceeds certain threshold is called a return. The coordinates of the objects, that caused the returns, together with the intensity, GPS time, return number, etc. are recorded by the scanner. They are needed for subsequent off-line processing.

LIDAR scanners usually store the acquired data in a binary, vendor specific format. These data formats are proprietary, vary from vendor to vendor, and thus they are not suitable for data processing and exchange. To achieve interoperability between different LIDAR vendors and users, the American Society for Photogrammetry and Remote Sensing (ASPRS) developed a simple binary exchange file format known as the LAS format [

Due to the scanner high resolution, the amount of collected LIDAR data is vast and may amount to millions or even billions of points. This presents a serious problem for data exchange, distribution, and even for the storage of data. Data compression may remedy these problems. In general, data compression can be either lossless, where the original data set can be fully restored during decompression, or lossy, where some information is discarded during the compression. Lossy data compression can achieve better compression ratio and is typically used for data visualization where a lot of details may be omitted. However, for the processing and distribution of the LIDAR data, lossless methods are required. Furthermore, the LIDAR data has to be compressed without any modification, which means that reordering of points is not permitted.

Data compression efficiently reduces the problems of storing and distribution of LIDAR data but it also introduces additional load to the processing unit and consequently increases processing time. In order to tackle the problem we developed a FPGA based hardware LIDAR compressor. The compressor is based on the LAScompression algorithm [

In the following, data compression techniques are briefly reviewed. In Section 3 a brief overview of the LAS data format is given and in Section 4 the LAScompression algorithm is described. In Section 5 the proposed hardware implementation is described. The results are presented in Section 6, and Section 7 concludes the paper.

General purpose compression schemes such as ZIP or RAR are lossless and could be applied for LIDAR data compression. They are, however, not very effective, because they do not have any insight into the LIDAR data structure to accurately model the probabilities of data patterns. Dedicated schemes for compression of geometric data would be expected to give better compression ratios as well as better performance, yet they have drawbacks which prevent their application in the case of LIDAR data compression. For example, compression methods developed for triangular meshes such as those described in References [

LAScompression [^{®} LiDAR compressor™ [^{®} LiDAR compressor™ is commercial.

As regards hardware implementations, no LIDAR data compressor has yet been reported. There are some off-the-shelf hardware compressors on the market that implement general purpose compression algorithms but such compression methods are not efficient for LIDAR data compression. For the hardware implementation in our case, the LAScompression algorithm was selected because of its high efficiency and the availability of algorithm details.

The LAS binary exchange format [

A header, which contains general information of the LIDAR data, such as version of the LAS format, number of acquired points, scaling factor for the coordinates,

Variable-length records with additional information such as projection, meta-data, user data,

A set of fixed-length point data records, where the coordinates

The header of the LAS file as well as a variable length additional information describe the LIDAR data file as a whole and represent only a small fraction of the LAS file. Therefore it is the set of point data records that are targeted by the compression method. The LAS format version 1.1 defines two different point data record formats shown in

Linear transformation of the coordinates is used in the LAS format to achieve specified precision and the scaling factors and offsets are stored in the header. This way the data producer can select the representation quantization while taking into account the actual acquisition precision. In order to reduce the noise,

In LIDAR data acquisition, points are acquired and recorded in series by moving and tilting the laser gun. The LAScompression algorithm [

Predictive coding, where the difference between the point attribute estimations and the actual values is determined,

Variable length encoding (VLC) of the obtained error values,

Entropy based compression of results of VLC encoding by arithmetic coding [

Predictive coding is an efficient compression technique when the data stream is correlated. The efficiency of the predictive coder depends on the quality of the predictor. LIDAR data are recorded and stored in order with respect to the laser beam movement. Consequently, the estimation of a future point can be determined from the previous points. In general, all previous points could be used in the estimation of the future point however it is obvious that only the recent points have a significant correlation with the future point. Hence in the prediction of a future point only a few recent points are used.

Let _{i}_{i}_{i}

As mentioned before, the LAScompression method splits LAS point attributes into different streams hence there are different predictors for each stream. LAS compression method uses four different predictors [

When acquiring LIDAR data, we distinguish between two different cases regarding the way the terrain points are generated. Two successive points originate

From the reflections of two successive laser bursts from the same plane, usually from the ground, or

From the reflections of a single laser burst from different planes

When two successive points correspond to the reflections of successive laser bursts on the same plane, the distance of both points is relatively small. Furthermore, since the LIDAR resolution is very high, the distance is almost invariant in such cases. On the other hand, when the successive points correspond to multiple reflections, the point distances could differ significantly, which in turn results in larger distance between the points. Such a distance cannot be predicted hence only the first option is covered by the predictor. The points corresponding to the reflections from other planes would mislead the prediction of the next point. Consequently the points which vary significantly from the current set of points are ignored.

The estimation of the next coordinate ^{′}_{i}_{i-1}_{x}

From the experimental studies it was concluded that it is sufficient if the number of previous distances _{x}

The correlations presented for the prediction of

If a similar _{y}

If there are no such differences, a linear prediction based on Δ

The predictor for y coordinate is given by

Like in the case of predictor for _{y}

The same scheme used in the prediction of the

If there are two successive points with similar _{z}

If the previous predictions based on

Otherwise, linear prediction based on

In order to select linear prediction rule based on

The predictor for the

Like in the case of the _{z}

Other attributes like source ID and scan angle rarely change. When they do, they change by a constant amount, so for them, a linear predictor can be used. The last difference of the attribute is used as the displacement from the previous value. The predictor for such attributes is given by

The result of the predictive coding are streams of prediction errors for each LAS format attribute and are fed into variable-length coder. From the description of the coordinate predictors it is obvious that the

The presented prediction coding significantly reduces the absolute values of the attributes. While the absolute values in the data stream are reduced, the size of the stream remains intact. Thus the resulting stream has a lot of null values which can be omitted using variable length encoding.

The attributes in LAS format are signed integer values stored in at most 4 bytes. The variable-length encoding of an input stream is performed in the following steps:

The input stream is split into two streams: the description stream and the absolute value stream.

With each value

For each value

The leading zero bytes in the absolute value stream are removed and the stream is further decomposed into four byte streams with respect to byte significance.

By this procedure the variable length encoding splits the stream of integer values into five streams: the description stream and four data byte streams. These streams are then individually fed to the arithmetic coder in the predefined order: the description stream is fed first followed by the other streams with respect of their byte significance.

Arithmetic coding is an entropy coding method that is superior to the well-known Huffman coding and achieves near entropy limit compression ratios for a long data sequence [

The arithmetic coding allows separation of input symbol model and compression algorithm which in turn allows more sophisticated model implementation like high-order models and adaptive models. While these model implementations may increase the compression efficiency they also increase the computational complexity. The input of the arithmetic coder in the LAScompression algorithm is a byte stream therefore the arithmetic coder with byte alphabet and static input symbol model is used.

The main objective of developing hardware LIDAR data compression is to relieve the processor of the additional processing load introduced by software compression. Moreover it is also desirable that the compression doesn't reduce the throughput of the file transfer hence the speed of the hardware architecture was an important factor during its development.

The general architecture of the hardware compressor resembles the structure of the LIDAR compressor depicted in

The arithmetic coder defined by the LAScompression algorithm employs static probability model, hence a two-pass processing is required. This can be achieved in three ways:

Storing the original LIDAR data in the memory and performing two consecutive prediction and variable length encodings. The source model used for arithmetic coding is determined in the first pass, and the arithmetic coding is performed in the second pass.

Storing the results of the prediction in a memory for subsequent processing. In the first pass the variable length encoding is performed and the source model is determined. In the second pass the variable length encoding is repeated and the arithmetic coding is performed,

Storing the results of prediction and variable length encoding in a memory for subsequent arithmetic coding. The source model used for arithmetic coding is determined in the first pass, and the arithmetic coding is performed in the second pass.

The second method was chosen since it requires minimal storage resources and it enables parallel as well as sequential processing of the LIDAR data attributes.

The LIDAR data compression algorithm [

The set of fixed-length point data records of the LAS format represents the input data stream of the hardware LIDAR data compressor. The format of the point data record varies with versions of the LAS format, however all versions of LAS format share a common part [

The prediction of _{x}

In order to calculate the average last _{x}_{x}

The most difficult task in the prediction of _{x}

The retiring cell is on the left of the new value position: the cell values between retiring cell and the new value position are shifted left,

The retiring cell is on the right of the new value position: the cell values between the location of new value and retiring cell are shifted right,

The retiring cell is at the location of the new value: the new value overwrites the retiring cell and its retire count is reset.

Note that the retire count must be shifted alongside with the value of the cell. The given structure maintains the sorted array in a single clock period. The extreme values are acquired at the output of the first and the last cell of the sort array with FIFO capabilities. They are subtracted from the current sum of the last _{x}

To calculate the average the sum has to be divided by the number of the summed values. While the division operation is difficult to implement and it may require several clock cycles, the result can be obtained by multiplication with the inverse of number of elements in FIFO. Since the denominator changes only until the FIFO buffer is full and its size _{x}

The prediction of

Finding the latest _{y}

Linear prediction based on the last coordinate changes.

Like in the _{y}

In the case when there is no similar ∆

The structure of the

The prediction of the _{y}_{z}_{z}y

When both the _{z}

The structure of the

The prediction of other attributes of a LIDAR point is determined by a linear or constant predictor depending on the behavior of the attribute. While the constant prediction coder uses the last value as an approximation the linear predictor uses the last attribute change for the estimation of the following attribute change. Both predictors are very simple and use a single register.

The variable length coder encodes the 32-bit integer values into a description stream and four byte streams corresponding to a particular byte within the word. The structure of the coder is shown in

At the input there is a sign detector which is used for the description value calculation as well as for the calculation of the absolute value. The modified LZC module determines the number of non-zero bytes within the word value in order to determine the description value.

The hardware arithmetic coder uses a static 256-symbol model [

Source model includes a small RAM with additional logic required to determine the cumulative probabilities of each symbol in the first pass. Since the number of the input symbols is arbitrary, a divider is needed to calculate the probabilities. In the second pass the source model behaves as a plain RAM device.

The Rescale and Bit-Stuff modules of the arithmetic coder [

The LIDAR data compressor was implemented on a Field Programmable Gate Array (FPGA)-based platform manufactured by Xilinx Inc. (San Jose, CA, USA). FPGA is an integrated circuit composed of an array of logic blocks connected through interconnection switches. Both logic blocks and interconnections can be configured by the user using the dedicated equipment in order to implement the required logic functionality. Contemporary FPGA devices contain a substantial number of logic blocks and RAMs and can implement complex digital designs like multiprocessor systems and even networks-on-chip. Compared to traditional integrated circuits like microprocessors or application-specific integrated circuits (ASICs) their functionality can be tailored for a specific application. While their costs are higher than the costs of microprocessors, they are especially suitable for prototyping and they are cost effective in the case of low-volume production.

The hardware LIDAR data compressor must be implemented on a platform with suitable communication interface in order to take advantage of its speed. A PCI interface is a suitable interface for implementation of an acceleration device. The latest Xilinx FPGA families like Virtex5, Virtrex6, and Spartan6 support such high speed interfaces. The chosen platform for hardware LIDAR compressor was Xilinx XUPV5 development board, which is equipped with PCI-E interface and is populated with a mid-range Virtex-5 XC5VLX110T FPGA device. The hardware LIDAR data compressor was synthesized using Xilinx ISE 14.2 development environment. The fully parallel structure of the LIDAR compressor is shown in

Initially all individual modules were synthesized separately. The resource utilization and the corresponding maximal clock frequency are given in

As can be seen in

A fully parallel structure yields the highest data throughput since the whole data of a LIDAR point is processed within two clock periods: one clock period for building the source model, and another for the arithmetic encoding. In this case, the width of the data bus is 160 bits. The data throughput is slightly below 4 Gb/s which is in the range of the data throughput of PCI-E 2.0 as well as SATA 3.0 interface. In the fully parallel architecture the communication interface might present a bottleneck. Such architecture also consumes a lot of FPGA resources and might not fit onto a mid-range Virtex5 devices.

An architecture, where a single LIDAR point coordinate is compressed at once presents a good trade-off between the processing speed and the size of the design. Since the size of the LIDAR data record is five times bigger than the size of a single coordinate the data throughput is 5 times smaller. Such architecture also easily fits into the mid-range Virtex5 device leaving non-occupied resources for PCI interface implementation.

The data throughput of the hardware LIDAR compressor was compared with software compression algorithm implemented in C++ on a Linux operating system with a 2.40 GHz Intel Core2 Quad Q6600 processor and 8 GB RAM. The comparison results for compression of the 840,000 LIDAR data points and are shown in

In the case that smaller FPGA devices were used and the LIDAR data compressor along with PCI interface doesn't fit in the device, some tradeoffs among the data throughput and resource utilization must be considered. The coordinate predictor should be redesigned to use FIFO scans in order to reduce the design size. However such design would be significantly slower.

Developed hardware LIDAR compressor is fully compatible with the existing software compression algorithm. Consequently, the two alternatives are interchangeable in practice. In hardware compression, the user can chose among the implementations with different levels of parallelism which, on the other hand, require different amount of hardware resources and impact the selection of the target FPGA device. In a fully parallel version, the hardware compression is about 250 times faster than software processing. The compression of the LIDAR data is implemented on a FPGA development platform thus it is primarily applicable to data servers used to store the acquired LIDAR data. While the above solution may be regarded as an important step in speeding up LIDAR data compression, an additional improvement can be obtained by a modification of LAS algorithm, in which arithmetic coding with adaptive source model is used. Development of the adaptive source model with high data throughput remains subject of our current research.

This paper has been developed within activities of the project “Processing of massive geometric LIDAR data”, L2-3650, supported by the Slovenian Research Agency.

The authors declare no conflict of interest.

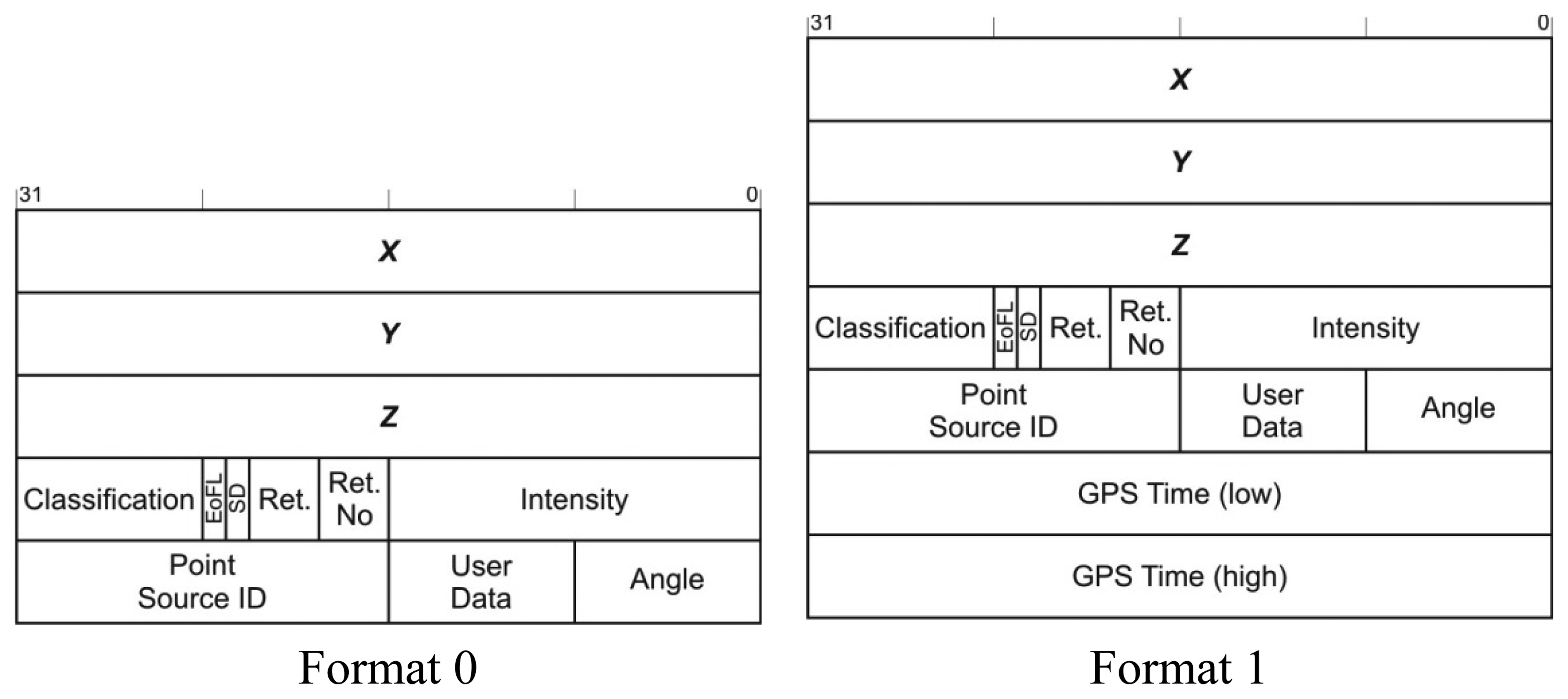

LIDAR point data record structures defined by LAS format version 1.1.

The structure of LAScompression algorithm.

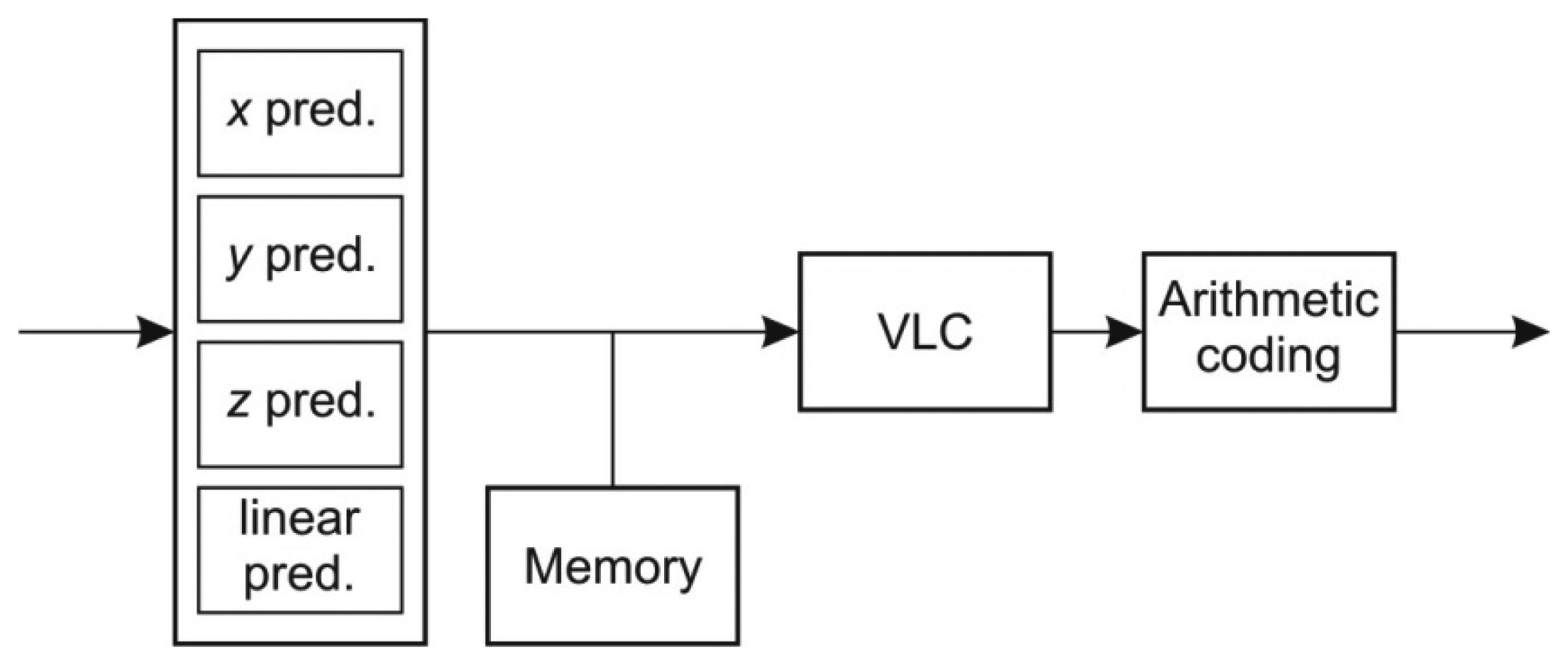

The structure of the hardware LIDAR data compressor.

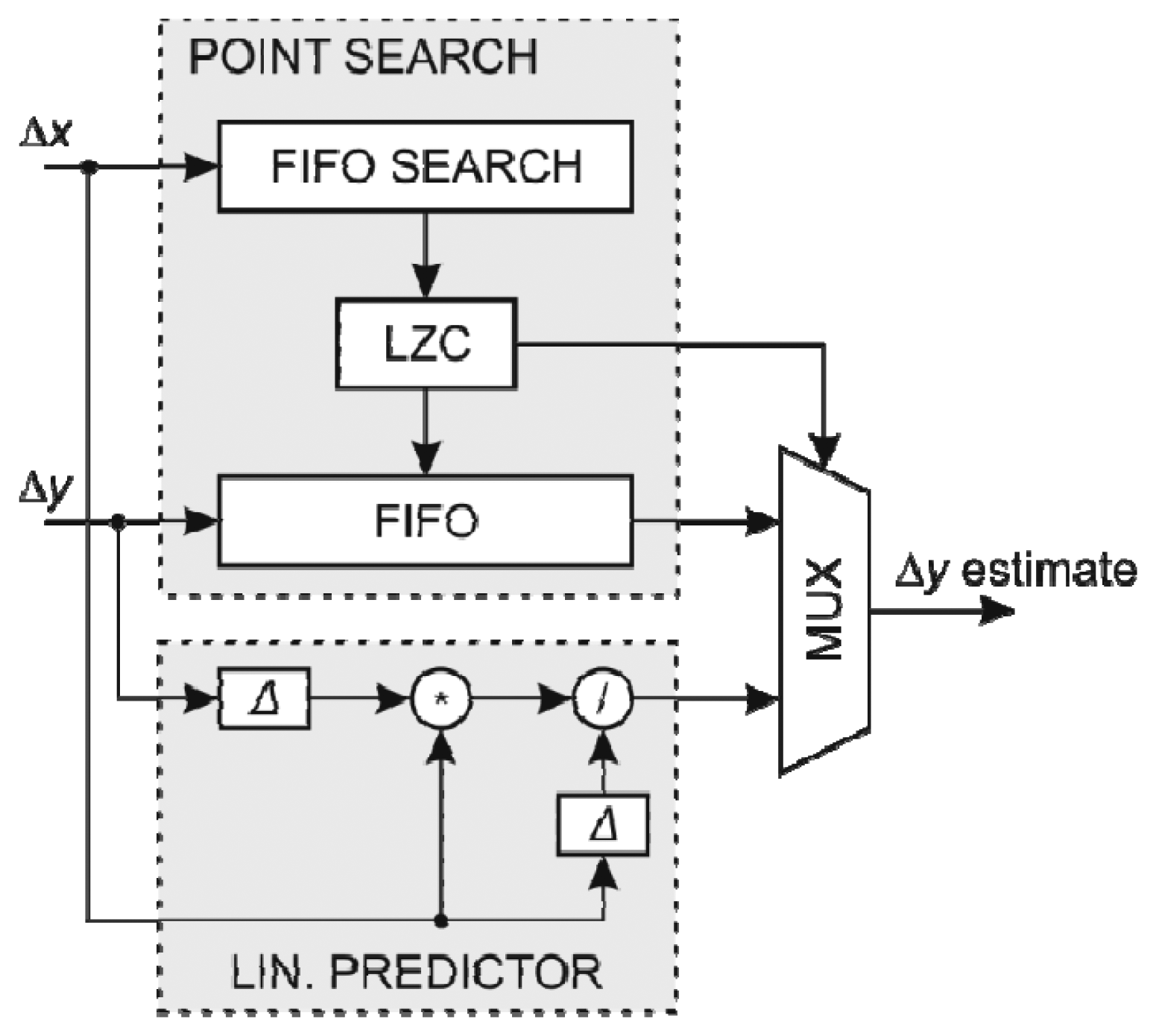

The structure of

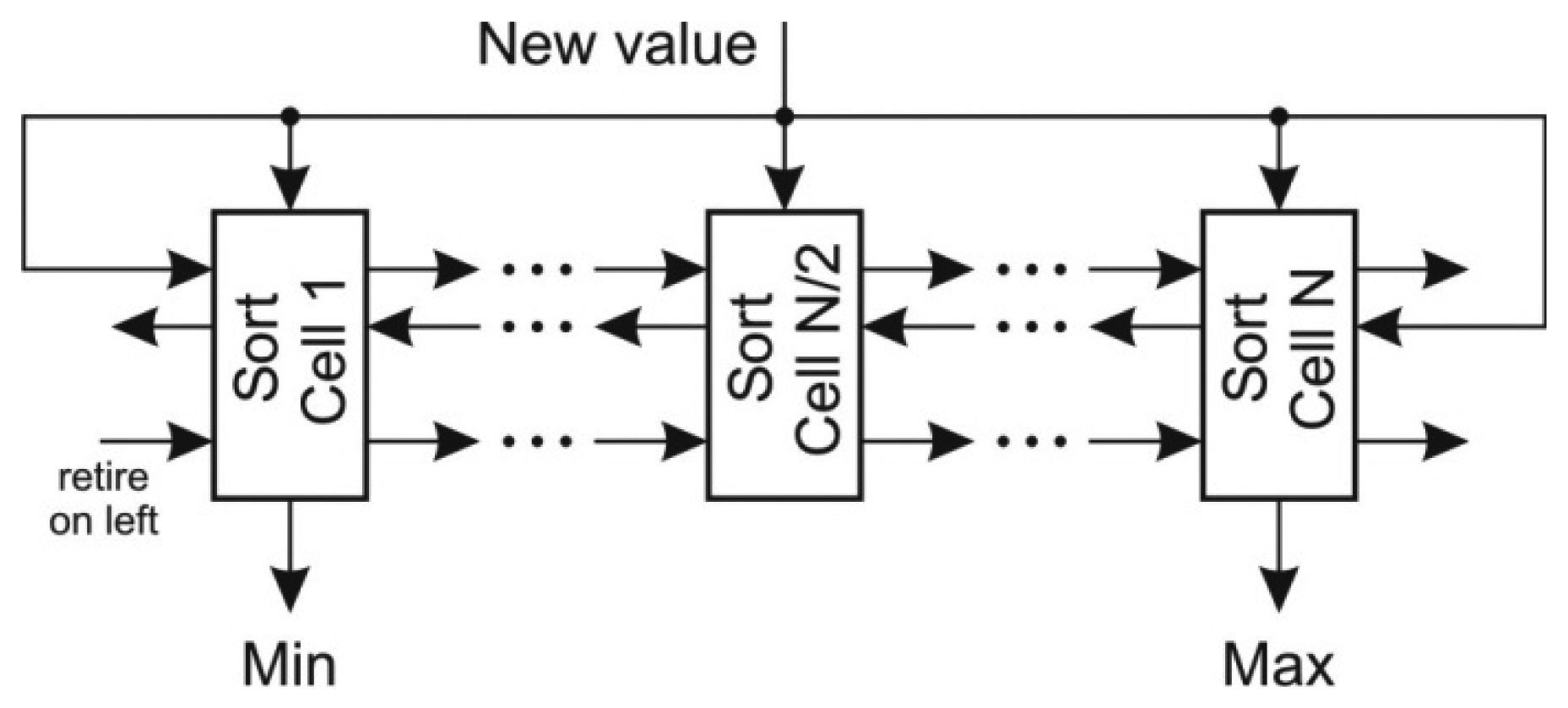

Insertion sort structure.

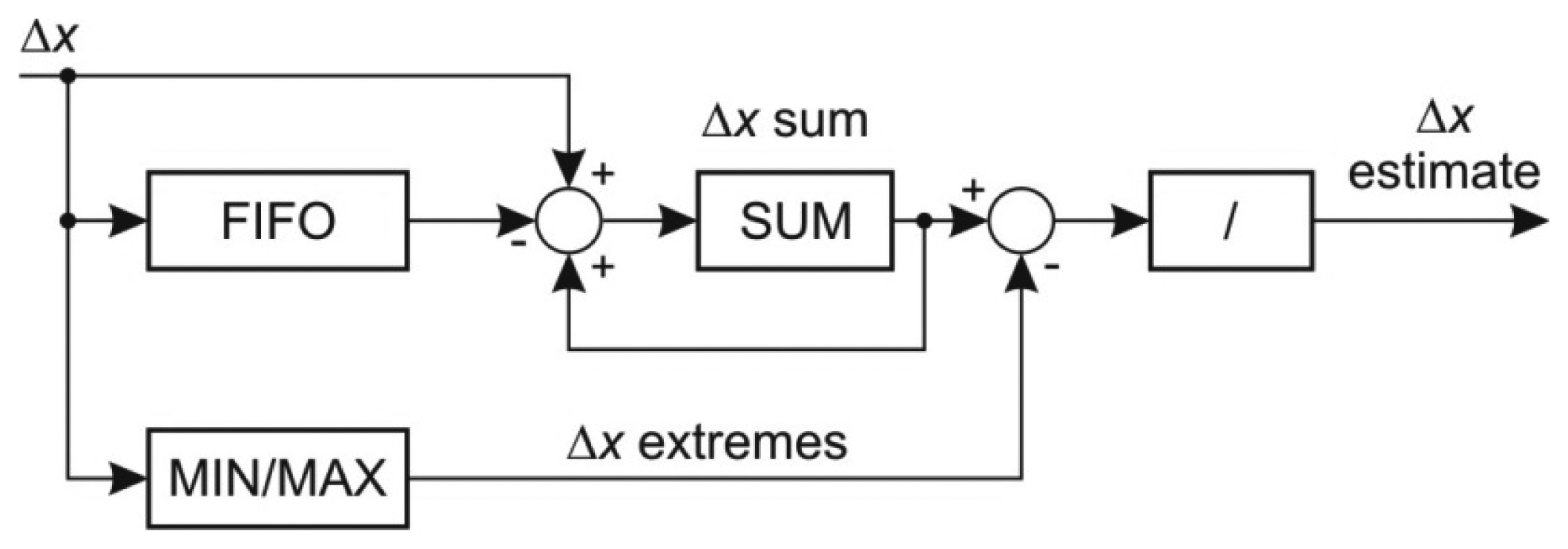

The structure of

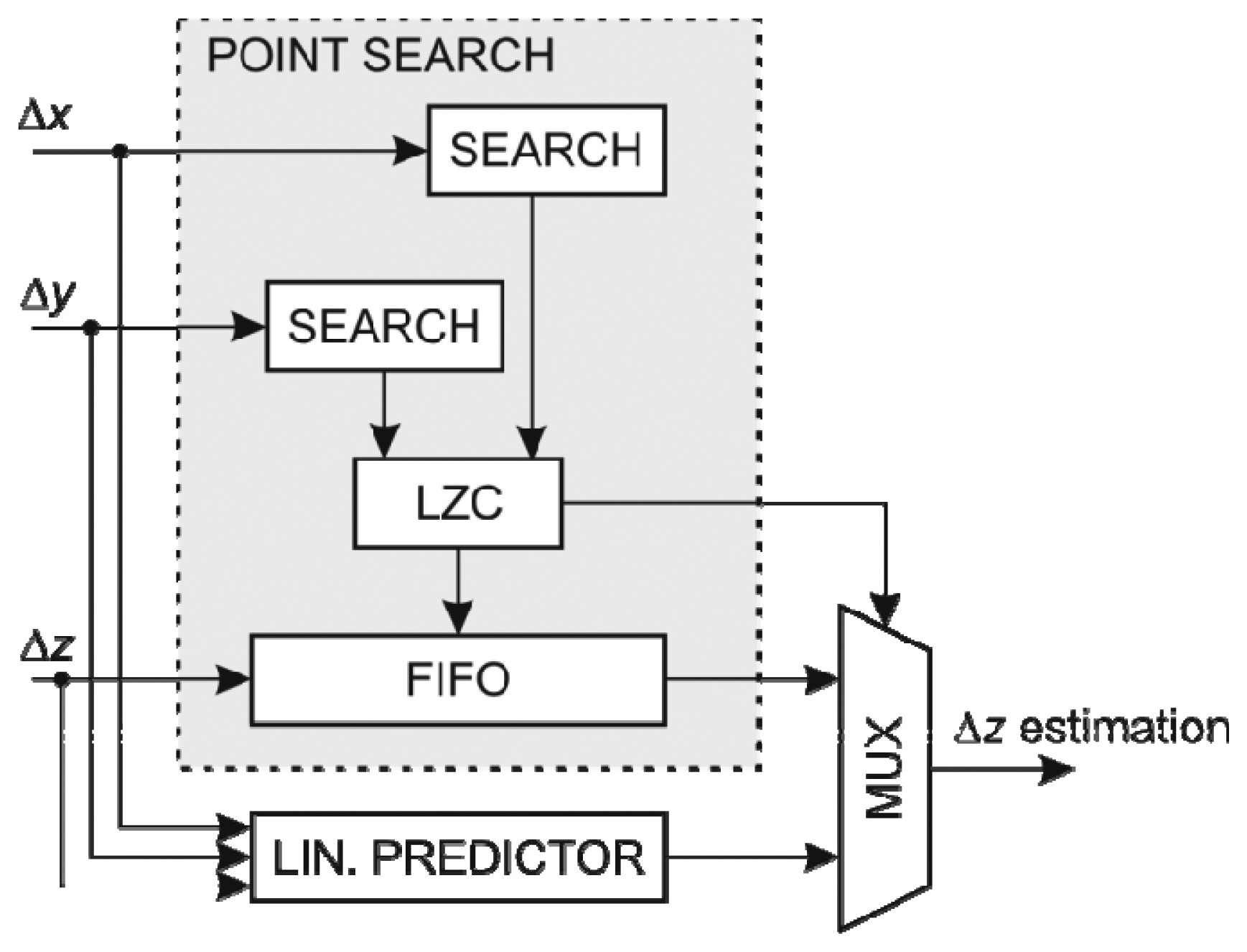

The structure of
