Sensors 2013, 13(3), 2911-2928; doi:10.3390/s130302911

Article
Experimental Study on the Precise Orbit Determination of the BeiDou Navigation Satellite System
Lina He 1,2,*, Maorong Ge 2, Jiexian Wang 1, Jens Wickert 2 and Harald Schuh 2
1
Department of Surveying and Geo-informatics, Tongji University, Shanghai 200092, China; E-Mail: wangjiexian@mail.tongji.edu.cn
2
Department of Geodesy and Remote Sensing, German Research Center for Geosciences, Potsdam 14473, Germany; E-Mails: maor@gfz-potsdam.de (M.G.); wickert@gfz-potsdam.de (J.W.); schuh@gfz-potsdam.de (H.S.)
*
Author to whom correspondence should be addressed; E-Mail: 85hlnyh@tongji.edu.cn; Tel.: +86-138-1863-5182.
Received: 22 January 2013; in revised form: 25 February 2013 / Accepted: 27 February 2013 /
Published: 1 March 2013

Abstract

: The regional service of the Chinese BeiDou satellite navigation system is now in operation with a constellation including five Geostationary Earth Orbit satellites (GEO), five Inclined Geosynchronous Orbit (IGSO) satellites and four Medium Earth Orbit (MEO) satellites. Besides the standard positioning service with positioning accuracy of about 10 m, both precise relative positioning and precise point positioning are already demonstrated. As is well known, precise orbit and clock determination is essential in enhancing precise positioning services. To improve the satellite orbits of the BeiDou regional system, we concentrate on the impact of the tracking geometry and the involvement of MEOs, and on the effect of integer ambiguity resolution as well. About seven weeks of data collected at the BeiDou Experimental Test Service (BETS) network is employed in this experimental study. Several tracking scenarios are defined, various processing schemata are designed and carried out; and then, the estimates are compared and analyzed in detail. The results show that GEO orbits, especially the along-track component, can be significantly improved by extending the tracking network in China along longitude direction, whereas IGSOs gain more improvement if the tracking network extends in latitude. The involvement of MEOs and ambiguity-fixing also make the orbits better.
Keywords:
BeiDou; tracking network; precise orbit determination; ambiguity-fixing

1. Introduction

China has been developing its own independent satellite navigation system for decades. Now the COMPASS system, also known as BeiDou, is emerging and gaining more and more attention in the worldwide GNSS communities. The system is designed as a global system, but with special concern for service in China and its surroundings [1]. Its development is scheduled into three phases: the demonstration system, the regional system, and the global system. Presumably, such a special schedule “from regional to global” will result in the utilization of Geostationary Earth Orbit (GEO) and Inclined Geosynchronous Earth Orbit (IGSO) satellites as a new feature of the BeiDou system. The demonstrational system was established as the BeiDou-1, with three GEO satellites providing positioning and short message communication services. The regional system comprises five GEOs, five IGSOs and four MEO satellites and provides positioning services for users in China and its surroundings. Afterwards, the whole constellation of the global system, which will consist of five GEOs, three IGSOs and 27 MEO satellites, is expected to be completed by the end of 2020 [13]. Up to now, the constellation of the regional system is completed and its operational service was officially announced by the BeiDou authorities at the end of 2012.

Due to the similar signal structure and analogous frequencies of BeiDou with respect to that of the American GPS and the European Galileo systems, BeiDou-capable multi-GNSS receivers were already developed by US and European manufacturers even before the Interface Control Document (ICD) was publicly disclosed. This enabled a number of investigations being carried out since the first experimental satellite M1 (C30) was launched in 2007. These research projects addressed the aspects of the signal decoding method [4], receiver hardware and software analysis [5], satellite visibility and dilution of position precision [6], precise relative positioning, and measurement quality analysis [3].

Precise orbit determination (POD) and precise clock determination (PCD) are essential functions of any global satellite navigation system. Their performance in terms of accuracy and time latency decides the capacity of the system services to some extent. Hence, POD and PCD of BeiDou are also hot topics for GNSS scientists as well. In general, a long orbit arc is needed for BeiDou POD using its own phase and range observations in order to obtain a stable solution because of the special constellation and the corresponding regional tracking network. The detailed dynamic and observation models are almost the same as for the GPS system except the phase center corrections of receivers and satellites are unknown, and satellite attitude control mechanics is not yet clear.

There are mainly two different strategies for POD data processing: (1) simultaneous observations from other systems or their derived products are strongly involved [2,79], and (2) only BeiDou data are employed [10,11]. In the former one, data from the other system, typically GPS, put very strong constraints on receiver clocks and tropospheric delays besides station coordinates, whereas the latter one is able to demonstrate the capacity of BeiDou as an independent navigation system. Using the first strategy Steigenberger et al. [9] presented POD results with an accuracy of a few meters for GEOs and 10 to 20 cm for IGSO satellites with data from an Asian-Pacific regional tracking network comprising six stations out of the Chinese territory. In their study, the impacts of both data arc length and parameterization of radiation pressure force model are also investigated. As most of the scientists pay more attention on the performance of BeiDou system alone as an independent system, POD and PCD are carried out using only BeiDou data from a regional tracking network consisting of about twelve stations [10,11]. The results confirm that orbit accuracy in 3D-RMS is better than 3 m for GEOs and 20 cm for IGSOs, and the accuracy of satellite clocks is 0.23 ns in STD and 0.56 ns in RMS. The products are validated by being applied to Precise Point Positioning (PPP) in both static and kinematic mode.

From the current achievements, there must be a large space for improvement on BeiDou POD, especially for the GEOs, due to the weak tracking geometry of the regional constellation. Montenbruck et al. [12] have also considered that substantial progress in the quality of BeiDou products can be expected in the future from a densified tracking network, the ambiguity fixing application and available parameters of the space segments. The BeiDou Experimental Test Service (BETS) network deployed by the GNSS research center at Wuhan University and including stations not only in China, but also worldwide, provides an opportunity for experimental studies on the above-mentioned issues. Hence, in this contribution we investigate the impact of network coverage on the POD products by comparing results from tracking networks over the Chinese territory, Asian-Pacific, Asian area and at a global scale. Furthermore, POD results with and without MEOs are compared to estimate the improvement of involving MEOs. Finally, integer ambiguity resolution, which brings significant improvement on orbits and positions with GPS data, is also carried out and its effect on POD products is assessed and discussed in detail.

After an introduction of the satellite constellation and the ground tracking network used in the experimental study, the POD strategy and processing procedure are described in Section 3 with the aspects of the observation model, satellite dynamical model, and parameter estimation. Section 4 illustrates the data processing scheme for the impact study. Afterwards the results and their comparison are discussed in Section 5.

2. Experimental Data Set

In this section we will illustrate the details of the data set used for this study. It includes the constellation, the tracking network, data availability and quality, so that the tracking geometry is clearly revealed.

2.1. Satellite Constellation

The designed constellation of the BeiDou regional system is composed of 14 satellites, including five GEOs, five IGSOs, and four MEO satellites. Up to November 2012, the constellation of the second development phase has been completed to provide service for areas in China and its surroundings. The five GEO satellites are positioned at 140°E (G1), 80°E (G3), 160°E (G4), 58.75°E (G5), and 110.5°E (G6), respectively [1], with an inclination of 0.7°–1.7°. The IGSO satellites have an inclination of about 55° and are located at various longitude bands from 90° to 125°. The MEO satellites fly in 21,528 km orbit plane with a period of 12 h 53 m. All the three types of satellites transmit triple-frequencies navigation signals, i.e., 1,561.098 MHz, 1,207.140 MHz and 1,268.520 MHz for the B1, B2 and B3 bands, respectively. As the B3 signal can only be accessed by authorized users, it was not available for this study. The details of the 16 satellites in space are shown in Table 1.

Among the 16 satellites, G2 is drifting unstably and unusable, and M1 was for signal testing and validation only and is no longer used because of its clock problem [13]. During the period of the test data (Section 2.3) satellites M5, M6, and G6 were not yet launched. Therefore, in total eleven operational satellites were involved in this experiment.

2.2. Tracking Network

The BETS network with BeiDou and GPS capacity has been deployed for scientific Positioning, Navigation and Time (PNT) service purposes. Since March 2011, 14 stations have already been established in China and its neighboring regions. Among these, 13 stations are employed in this contribution, eight of them located inside of China and five overseas. The stations in China are CENT in Wuhan, CHDU in Chengdu, HRBN in Harbin, HKTU at Hong Kong, NTSC and XIAN at Xi'an city, SHAO in Shanghai, and LASA in Tibet. The five overseas stations are SIGP (Singapore), PETH (Australia), DHAB (the United Arab Emirates), LEID (Netherlands), and JOHA (South Africa). The station distribution is shown in Figure 1. All the stations are equipped with the UR240 dual-frequency and GPS/BeiDou dual-system receivers and the UA240 antennas manufactured by the UNICORE Company in China [10]. As this is a newly developed receiver, some built-in attributes of the receiver antennas are unknown, for example, phase center offset (PCO) and phase center variation (PCV).

2.3. Data Set

More than seven weeks of tracking data from days 130 to 180 in 2012 were made available for this study by the GNSS Research Center at Wuhan University, with the permission of the BeiDou authorities. During this period, two satellites G2 and M1 were unavailable and three satellites G6, M5, and M6 were not yet launched. Therefore, there were eleven satellites in operation: four GEOs (C01, C03, C04, C05), five IGSOs (C06, C07, C08, C09, C10), and two MEOs (C11, C12). The ground tracks of the operational satellites are illustrated in Figure 1 together with the tracking stations for a better understanding of the observing geometry. For example, C01 and C04 are at the eastern edge and C03 and C05 on the western side of the tracking network, so the international stations on the western side improve the tracking geometry for C03 and C05 much more significantly than for C01 and C04. During the test time, maneuvers were detected on satellite C01 on days 149 and 179, C03 on 154, C04 on 144, C07 on 137, C08 on day 173, and C12 on 139.

Currently, the daily files are transferred from each station to the GNSS research center automatically. Details of data availability of each station during the selected test period are given in Figure 2. Because most of the stations were set up shortly before the data period and running in a test mode, long gaps exist due to hardware and software failures and communication problems as well. Several stations, for example, XIAN, SIGP, and LASA just have data at the beginning of the test period. On some days, there is half number of the stations without data, which should be considered carefully in the impact study of network geometry.

3. Precise Orbit Determination Strategy

The Position and Navigation Data Analyst (PANDA) Software [14,15] developed at the GNSS Research Center in Wuhan University is adapted for BeiDou data analysis for this study. The processing strategy including observation modeling, parameterization and satellite dynamic models, and processing procedure are discussed in this section.

3.1. Three-Day Solution

In order to obtain a stable solution, long data arc is needed for POD based on a regional tracking network because of the weak observing geometry. For the BeiDou regional system, GEO satellites have almost no movement with respect to the ground network and IGSOs are restricted within a certain longitude zone. Therefore, long arc estimation is even more important for the current regional BeiDou system. In this study we use three-day data in a batch estimation to obtain a three-day solution, instead of combining three daily solutions on the level of normal equations [9]. The orbit quality is assessed by the orbit consistency of two adjacent three-day solutions over the overlapping time: the orbit of the last day in one three-day solution is compared with that of the middle day in the next, as illustrated in Figure 3. Although the overlapping consistency, measured by the RMS of the orbit differences over the overlapping day, cannot fully represent the true orbit accuracy because two-thirds common data is involved in two adjacent solutions, from the validation using satellite laser range [9,11] it is still an useful orbit quality index for the related study.

3.2. Models

As the BeiDou system is very similar in signal structure and frequencies to GPS, the observation models and satellite force models for GPS can be utilized directly for BeiDou with very slight modifications. Therefore, similar observation models and dynamical models to the operational International GNSS Service (IGS) data processing at GFZ are selected for each three-day solution and they are listed in Tables 2 and 3, respectively.

3.3. Processing Procedure

For each three-day solution, the processing procedure is illustrated in Figure 4. First of all, data pre-processing is carried out station by station to remove outliers and to flag cycle slips. Then, an initial orbit is generated by orbit integration. With the initial orbits and pre-processed observations least-squares adjustment is performed to estimate the parameters. Data editing based on post-fit residuals is undertaken to detect any possibly problematic observations. The last three steps must be run iteratively to obtain a free solution until the solution is converged with no more cycle slips and outliers are detected. Afterwards, ambiguity fixing can be carried out to obtain the fixed solution. After each adjustment, estimates including satellite orbits, station coordinates, and clocks of both stations and satellites should be updated for the next iteration or as final results.

It should be mentioned that for the newly launched MEOs M3 and M4, there were no broadcast navigation information. Their initial orbit conditions are estimated from BeiDou range observations with receiver clock and station coordinates derived from GPS.

4. Data Processing Scheme

There are a number of issues which have critical impact on POD of GNSS satellites, such as tracking geometry, force models, and estimating approaches. Thanks to the excellent activities of IGS, most of them are well-known. Here we concentrate on some of the issues which are special for the BeiDou regional system, and are achievable with the available data set. Aimed at possible improvements in BeiDou POD, we identified three topics for investigation: impact of the tracking network coverage, benefit of involving MEO satellites, and contribution of integer ambiguity-fixing. The corresponding data processing schemata are defined here and carried out for the selected data set and the results are discussed later on for possible further improvement.

4.1. Tracking Networks

The tracking network plays a very important role in POD. Thus IGS puts a large effort into optimizing its tracking network in terms of station density and distribution. In general, a tracking network with about 100 globally even distributed stations is used for POD of the GPS and/or GLONASS systems. For the BeiDou regional system, its constellation consists mainly of GEO and IGSO satellites whose movement is restricted over a dedicated region instead of around the Earth like MEOs. Obviously, these satellites can only be tracked by stations in a certain region and each station may contribute quite differently to different satellites. Therefore, the impact of tracking geometry is different from POD for GPS and further investigation is necessary for possible improvement. From Figure 1, the BETS network has five stations outside the Chinese territory. Among them SIGP and PETH extend the network towards the southern hemisphere and LEID, JOHA, and DHAB enlarge the network westward towards Europe and South Africa.

For the impact study of the tracking geometry, we selected four tracking networks displayed in Figure 5: the Chinese regional network (violet), Asian-Pacific network (red), Asian network (green), and the global network (yellow). The four networks will be processed with the same strategy and the orbits are compared to assess the impact of network geometry on satellite orbits.

4.2. Involvement of MEOs

According to the development schedule of BeiDou, GEOs and IGSOs are now the base of the current regional system and will still play a significant role for the region in the future global system. Nowadays, there are already four MEO satellites in operation and more and more will come into service. As MEOs can be tracked globally and their PODs can easily reach an accuracy of few cm from the IGS expertise, it is obviously an interesting question whether orbits of the GEO and IGSO satellites can be improved if MEOs are involved in POD processing.

In order to have a preliminary impression of such possible improvement, we process the global network with and without the two MEOs C11 and C12, respectively. The estimated GEO and IGSO orbits are assessed to show the effect of the involvement of MEOs. The result is presented in sub-Section 5.4.

4.3. Ambiguity-Fixing

As is well known, integer ambiguity resolution is critical in GPS data processing for obtaining the most accurate result. It improves orbit accuracy for GPS satellites significantly [18]. However, due to the very small movement of GEOs and IGSOs with respect to the tracking network, ambiguities could be biased differently, so that the integer property cannot be recovered by forming double-differenced ambiguity. Even if the ambiguities can be fixed to integer, its improvement on orbits is not definitely comparable to that of GPS. Because of the very small change of the tracking geometry, GEOs and IGSOs are usually tracked continuously or over a long time. Theoretically, there should be one ambiguity for each satellite-station pair in each solution. Then ambiguity estimates must be rather stable thanks to the long continuous data and the ambiguity-fixing may bring nearly no improvement. Anyway, we employ the fixing approach developed by [19] and adapted by [20] based on an ionosphere-free solution and the Melbourne-Wübbena combination. In this test, we try to fix ambiguities of different satellite types sequentially in order to confirm their fixing efficiencies and impact on satellite orbits. The details are in subsequent discussions in sub-Section 5.5.

5. Results

5.1. Measurement Quality

The post-fit residual is a key indicator of accuracy or precision of observations and their modeling. RMS of the post-fit residuals of ionosphere-free range (PC) and phase (LC) observations are listed in Table 4 and illustrated in Figure 6. For each station, RMS of the three satellite types are shown for comparison.

From Table 4 or Figure 6, phase residuals of GEO, IGSO and MEO satellites are very similar and increase from 7 mm for GEOs to 10 mm for MEOs and the differences among stations are also very slight. However, the range observations of the stations located outside of China have a larger noise. JOHA has the largest RMS of about 4.1 m, 3.1 m and 2.4 m for GEO, IGSO and MEO satellites, respectively, and LEID has a very similar performance. The other three overseas stations DHAB, PETH and SIGP are rather close to China and show only a slightly larger RMS. Comparing with the results of Galileo [7], the phase accuracy of BeiDou is of a comparable quality, whereas range is slightly noisier.

The distance-dependent range noise might be caused by the lower elevations of the GEO and IGSO satellites for the stations far away from China. As an example, Figure 7 provides a sky plot of the tracked GEO and IGSO satellites over one day at four particular stations for comparison: SHAO in China and three overseas stations: LEID, JOHA and DHAB. For the farthest station LEID the satellites come rarely above an elevation higher than 30 degrees and satellites C01, C03 and C04 are almost invisible. For station JOHA, the situation is slightly improved. At DHAB all satellites are tracked and even with a much higher elevation, but all satellites are on the east edge of the sky. This special satellite distribution and the low elevation might be the reason of the larger range RMS due to larger multi-path effects and inaccurate modeling of atmospheric delays.

5.2. Orbit Quality

In order to assess the quality of the estimated clocks and orbits, the differences over the overlapping time of two adjacent three-day solutions are utilized as usual. As shown on Figure 3, the orbit of the last day in a three-day solution is compared with that of the middle day of the next three-day solution. The RMS of the differences in along-track, cross-track and radial directions are taken as orbit quality indicator. The statistical results for orbits and clocks are listed in Table 5.

From the orbit RMS in Table 5, the along-track RMS is significantly larger than that of the other two directions, as expected. GEOs have the largest RMS in along-track direction of 114 cm compared to 24 cm and 45 cm for IGSOs and MEOs, respectively. RMS in cross-track and radial are very similar for the three types of satellites, i.e., 10 cm and 6 cm for GEOs, 15 cm and 7 cm for IGSOs, and 13 cm and 12 cm for MEOs. In general, the orbit quality can still be further improved by optimizing the tracking geometry. For example, along-track RMS for GEOs can be reduced by extending the network. The larger RMS in across-track and radial for IGSOs and MEOs could be caused by inaccurate modeling of the satellite antenna phase center correction and the satellite attitude control.

5.3. Impact of Tracking Geometry

In order to investigate the impact of the tracking geometry, we defined four tracking networks: Chinese regional network (CHN), Asian-Pacific network (AP), Asian network (ASIA), and global network (ALL). The data are processed using an identical strategy. The resulting orbit overlaps RMS for each satellite over the seven weeks, are listed in Table 6, where the columns are sorted first by components then by networks. The 3D-RMS are also illustrated in Figure 8.

From the averaged 3D-RMS, in the AP network (adding PETH and SIGP to CHN network) the overlapping RMS for GEOs gets even slightly worse, but brings about 15% improvement for IGSOs. From Figure 1, it is obvious that PETH and SIGP enhance the tracking geometry to IGSOs significantly. Although the two stations also observe all the GEOs from the elevations to GEOs in Table 7 the observations can hardly strengthen the constraint in along-track, as these two stations locate in the same narrow longitude zone of the CHN network.

On the contrary, the ASIA network (adding DHAB to CHN network) extends the coverage of the CHN network to the west remarkably. Thus the 3D-RMS of GEOs drops from above 3.0 m to 1.3 m on average and IGSO orbits are also improved, but only slightly. Furthermore, from the RMS of each GEO satellite we notice that the 3D-RMS for C03 and C05 is reduced from several meters to decimeter-level, being very close to that of IGSOs, whereas very small changes for C01 and C04 are observed. If we examine the RMS in components, the improvement is taken place on the along-track direction. From the sky plot of DHAB in Figure 7 and the elevations in Table 7, C03 and C05 have a rather high elevation to DHAB while C01 and C04 are not visible because they are on the other (eastern) side and far away from DHAB.

For the ALL network with all the tracking stations, the RMS of IGSOs are reduced on average by about 50% compared with the other three networks, for example, 3D-RMS drops from about 60 cm to 32 cm. Compared with CHN and AP, ALL brings a dramatic improvement for C03 and C05 in along-track direction as ASIA does. There are about 10% further improvements in GEOs orbits compared to the ASIA network.

Furthermore, Figure 9 shows the relationship of the orbit RMS of the ALL and CHN network with the upper panel for GEOs and bottom panel for IGSOs. On each sub-panel, x-axis is the orbit RMS of the CHN network and y-axis for that of the ALL network. Therefore, any point lays under the red diagram means an improvement on RMS by extending CHN to ALL. The closer a point lays to the x-axis, the larger the improvement rate is. A point very close to the origin means that the RMS in network CHN is rather small and it is not changed very much in the global network. A point far away from the origin and close to the x-axis means a significant improvement. From the plots in Figure 9, such improvement is obvious for both GEO and IGSO satellites.

5.4. Improvement of Including MEOs

As described in sub-Section 4.2, POD with and without MEOs are carried out using the global network (ALL). 3D RMS for GEOs and IGSOs of the two schemata are presented in Figure 10.

According to the 3D-RMS shown in Figure 10, the two MEOs bring almost no improvement on GEOs. On the contrary, a 10% improvement is found for IGSOs on average. Although the improvement is not as much as that of network geometry, it does further increase the orbit quality of the global network. Further investigations should be carried out if more simultaneously observed MEOs can be involved to provide stronger constraints on receiver clocks and tropospheric delay parameters.

5.5. Effect of Integer Ambiguity-Fixing

Considering the rather large orbit bias in the along-track direction of the GEO satellites and their poor tracking geometry, the double-differenced ambiguities of GEOs might not be fixed. Therefore, besides fixing ambiguities of all satellites, we also carried out ambiguity fixing of IGSOs and MEOs only to avoid any possible negative effect of GEOs.

On average there are approximately one to two ambiguities for each station-satellite pair for GEOs over the three-day session while IGSO or MEO has two to three times more. For both scenarios, the fixing percentages are almost the same of about 80% after two iterations.

For the scenario where all ambiguities are considered in the fixing procedure, satellite orbits become slightly worse than the free solutions in terms of the overlapping RMS. Unfortunately, we have not found any hint about the cause of this degradation and this topic thus remains under investigation. The major reason could be the poor tracking geometry that results in a large orbit bias in the along-track direction, up to several meters. Such orbit bias may contaminate ambiguities from this satellite to various stations but in a different way due to the different station locations. Consequently, the bias cannot be removed in the double-differenced ambiguities.

In the second scenario where only ambiguities of IGSO and MEO satellites are considered, ambiguity fixing shows a positive contribution from the overlapping RMS listed in Table 8 with that of the free solution for comparison. Compared RMS of the free and fixed solutions, 3D-RMS of IGSOs and MEOs are improved by 30% and 6%, respectively. The largest improvement occurs in the along-track direction.

6. Conclusions

With about seven weeks BeiDou data of the BETS network, BeiDou POD is carried out using the three-day solution strategy. The results are assessed by the orbit differences over the overlapped time span of the adjacent three-day solutions.

A number of processing scenarios are identified and data are processed to investigate the impact of tracking networks, by involving MEOs and by introducing integer ambiguity resolution for possible improvement on POD of the current BeiDou regional system.

From the post-fit observation residuals, BeiDou has similar phase accuracy as GPS and Galileo but a slightly larger range noise. In the tracking geometry investigation, extending the Chinese network to Australia brings rather small improvement on GEOs, whereas adding the United Arab Emirates station DHAB to the west of the Chinese network along-track RMS of C03 and C05 on the same side are reduced from several meters to decimeter level, but not for C01 and C04 on the eastern side as they are not observed from the newly added stations. Further improvement is also achieved if more western stations are included. From these results, we can conclude that deploying tracking stations on the eastern side, for example in New Zealand and/or in Hawaii will significantly reduce along-track RMS of C01 and C04.

Moreover, including the current two MEOs C11 and C12 brings further improvement on IGSO orbits by up to 10%, but no improvement on GEOs. Further tests should be carried out if more MEO satellites are available and involved.

Performing ambiguity-fixing to all satellites brings almost no improvement on the orbit quality. However, if only ambiguities of IGSOs and MEOs are considered, the along-track RMS is reduced. In general, ambiguity-fixing does not show a significant contribution as for GPS. This may be improved after a more stable and accurate free solution being achieved by a stronger tracking geometry.

We thank the GNSS Research Center at Wuhan University and the BeiDou Authorities for providing the tracking data for this study. The first author is financially supported by the China Scholarship Council (CSC) for her study at the German Research Center for Geosciences (GFZ). This work is also supported by the National Nature Science Foundation of China (No: 41174023).

References

  1. China Satellite Navigation Office. BeiDou Navigation Satellite System Signal in Space Interface Control Document, Available online: http://gge.unb.ca/test/beidou_icd_english.pdf (Accessed on December 2012).
  2. Shi, C.; Zhao, Q.; Li, M.; Tang, W.; Hu, Z.; Lou, Y.; Zhang, H.; Niu, X.; Liu, J. Precise orbit determination of BeiDou Satellites with precise positioning. Sci. China Earth Sci. 2012, 55, 1079–1086. [Google Scholar]
  3. Shi, C.; Zhao, Q.; Hu, Z.; Liu, J. Precise relative positioning using real tracking data from COMPASS GEO and IGSO satellites. GPS Solut. 2013, 17, 103–119. [Google Scholar]
  4. Gao, G.; Chan, A.; Lo, S.; De, L.D.; Walter, T.; Enge, P. COMPASS-M1 broadcast codes in E2, E5b and E6 frequency bands. IEEE J. Sel. Top. Signal Process. 2009, 3, 599–612. [Google Scholar]
  5. De, W.W.; Boon, F.; Sleewaegen, J.M.; Wilms, F. More Compass points: Tracking China's MEO satellite on a hardware receiver. Inside GNSS 2007, 2, 44–48. [Google Scholar]
  6. Greilier, T.; Dantepal, J.; Delatour, A.; Ghion, A.; Enge, P. Initial observations and analysis of Compass MEO satellite signals. Inside GNSS 2007, 2, 39–43. [Google Scholar]
  7. Steigenberger, P.; Hugentobler, U.; Montenbruck, O.; Hauschild, A. Precise orbit determination of GIOVE-B based on the CONGO network. J. Geod. 2011, 85, 357–365. [Google Scholar]
  8. Zhou, S.S.; Hu, X.G.; Wu, B.; Liu, L.; Qu, W.; Guo, R.; He, F.; Cao, Y.; Wu, X.; Zhu, L.; Shi, X.; Tan, H. Orbit determination and time synchronization for a GEO/IGSO satellite navigation constellation with regional tracking network. Sci. China Phys. Mech. Astron. 2011, 54, 1089–1097. [Google Scholar]
  9. Steigenberger, P.; Hauschild, A.; Montenbruck, O.; Hugentobler, U. Performance Analysis of COMPASS Orbit and Clock Determination and COMPASS-Only PPP. IGS Workshop 2012, Olsztyn, Poland, 23–27 July 2012; p. 84.
  10. Ge, M.; Zhang, H.P.; Jia, X.L.; Song, S.L.; Wickert, J. What is achievable with the current compass constellation? GPS World 2012, 1, 29–34. [Google Scholar]
  11. Zhao, Q.; Guo, J.; Li, M.; Qu, L.; Hu, Z.; Shi, C.; Liu, J. Initial results of orbit and clock determination for COMPASS navigation satellite system. J. Geod. 2013. in press. [Google Scholar]
  12. Montenbruck, O.; Hauschild, A.; Steigenberger, P.; Hugentobler, U.; Teunissen, P.; Nakamura, S. Initial assessment of the COMPASS/BeiDou-2 regional navigation satellite system. GPS Solut. 2012, 16, 1–12. [Google Scholar]
  13. Hauschild, A.; Montenbruck, O.; Sleewaegen, J.M.; Huisman, L.; Teunissen, P.J.G. Characterization of compass M-1 signals. GPS Solut. 2012, 16, 117–126. [Google Scholar]
  14. Liu, J.; Ge, M. PANDA software and its preliminary result of positioning and orbit determination. Wuhan Univ. J. Nat. Sci. 2003, 8, 603–609. [Google Scholar]
  15. Shi, C.; Zhao, Q.; Geng, J.; Lou, Y.; Ge, M.; Liu, J. Recent development of panda software in gnss data processing. Proc. SPIE 2008, 7285. [Google Scholar] [CrossRef]
  16. Wu, J.T.; Wu, S.C.; Hajj, G.A.; Bertiger, W.I.; Lichten, S.M. Effects of antenna orientation on GPS carrier phase. Manuscr. Geod. 1993, 18, 91–98. [Google Scholar]
  17. McCarthy, D.; Petit, G. IERS Conventions (2003); IERS technical note No. 32. Publisher of the Federal Agency for Cartography and Geodesy: Frankfurt am Main, Germany, 2004. [Google Scholar]
  18. Ge, M.; Gendt, G.; Rothacher, M.; Shi, C.; Liu, J. Resolution of GPS carrier-phase ambiguities in Precise Point Positioning (PPP) with daily observations. J. Geod. 2008, 82, 389–399. [Google Scholar]
  19. Dong, D.-N.; Bock, Y. Global positioning system network analysis with phase ambiguity resolution applied to crustal deformation studies in California. J. Geophys. Res. 1989, 94, 3949–3966. [Google Scholar]
  20. Ge, M.; Gendt, G.; Dick, G.; Zhang, F.P. Improving carrier-phase ambiguity resolution in global GPS network solutions. J. Geod. 2005, 79, 103–110. [Google Scholar]
Sensors 13 02911f1 1024
Figure 1. Ground tracks of the BeiDou satellites and distribution of the experimental tracking stations (for details see text).

Click here to enlarge figure

Figure 1. Ground tracks of the BeiDou satellites and distribution of the experimental tracking stations (for details see text).
Sensors 13 02911f1 1024
Sensors 13 02911f2 1024

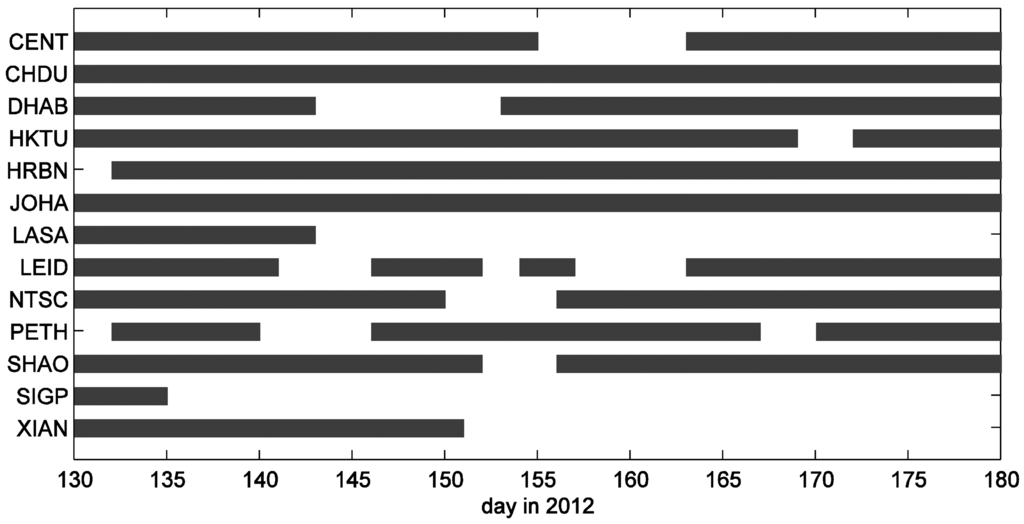

Figure 2. Daily data availability of the 13 selected tracking stations over the testing period.

Click here to enlarge figure

Figure 2. Daily data availability of the 13 selected tracking stations over the testing period.
Sensors 13 02911f2 1024
Sensors 13 02911f3 1024

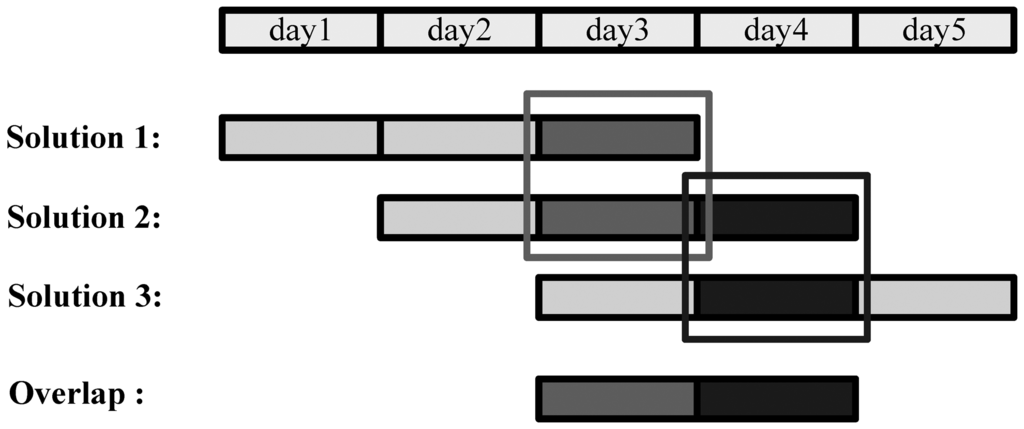

Figure 3. Three-day solution and orbit overlap comparison.

Click here to enlarge figure

Figure 3. Three-day solution and orbit overlap comparison.
Sensors 13 02911f3 1024
Sensors 13 02911f4 1024

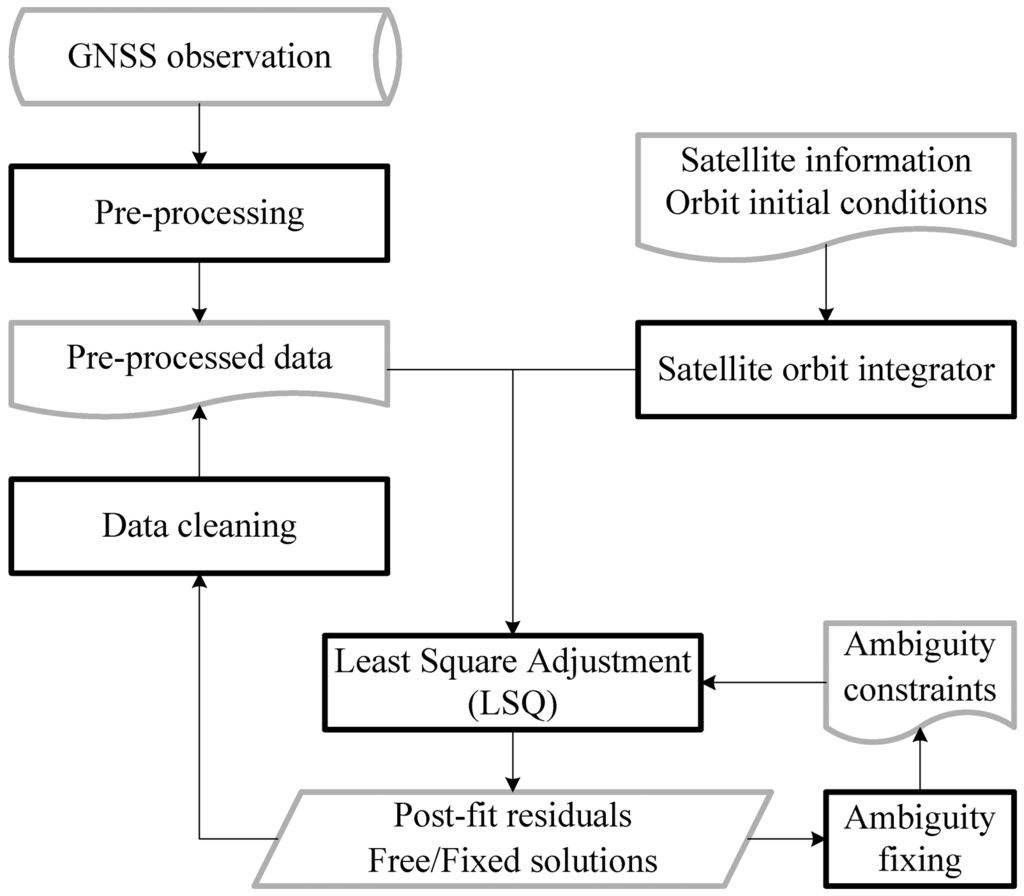

Figure 4. Procedure for precise orbit determination processing.

Click here to enlarge figure

Figure 4. Procedure for precise orbit determination processing.
Sensors 13 02911f4 1024
Sensors 13 02911f5 1024

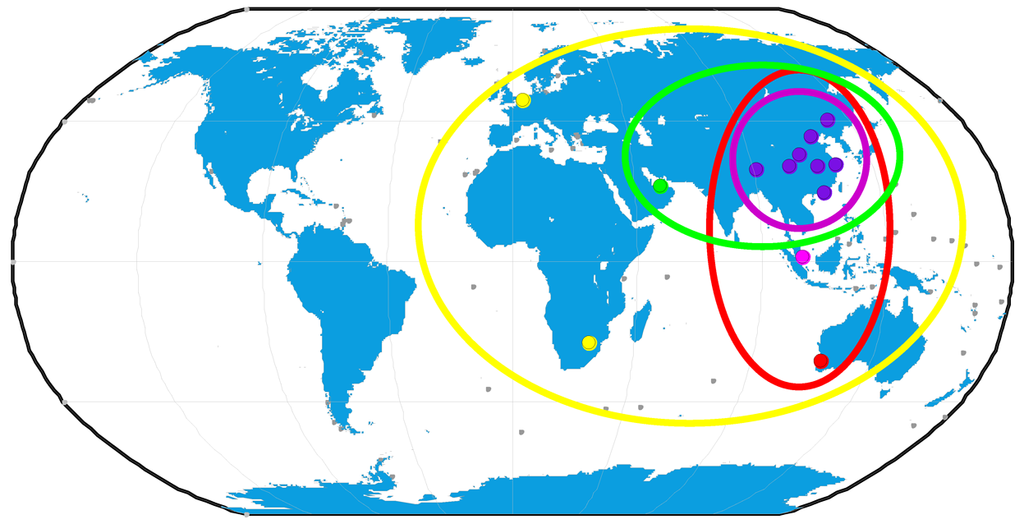

Figure 5. Tracking networks defined for the impact study of tracking geometry on satellite orbits. The Chinese regional network is indicated by a violet cycle, Asian-Pacific network in red, Asian network in green, and global network in yellow.

Click here to enlarge figure

Figure 5. Tracking networks defined for the impact study of tracking geometry on satellite orbits. The Chinese regional network is indicated by a violet cycle, Asian-Pacific network in red, Asian network in green, and global network in yellow.
Sensors 13 02911f5 1024
Sensors 13 02911f6 1024

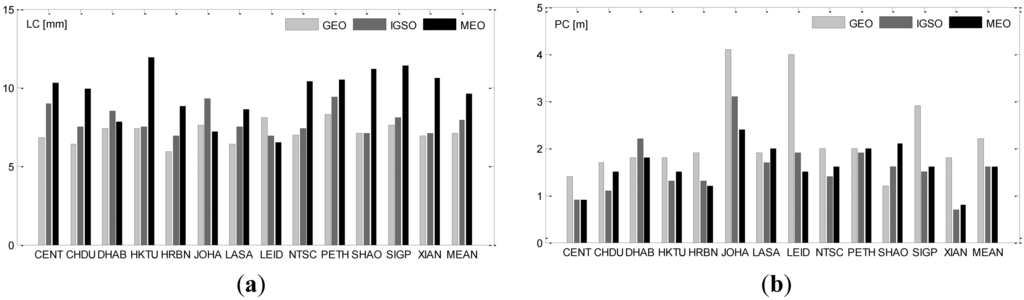

Figure 6. (a) The averaged RMS of LC observation residuals for each station-satellite pair. (b) The averaged RMS of PC observation residuals for each station-satellite pair.

Click here to enlarge figure

Figure 6. (a) The averaged RMS of LC observation residuals for each station-satellite pair. (b) The averaged RMS of PC observation residuals for each station-satellite pair.
Sensors 13 02911f6 1024
Sensors 13 02911f7a 1024

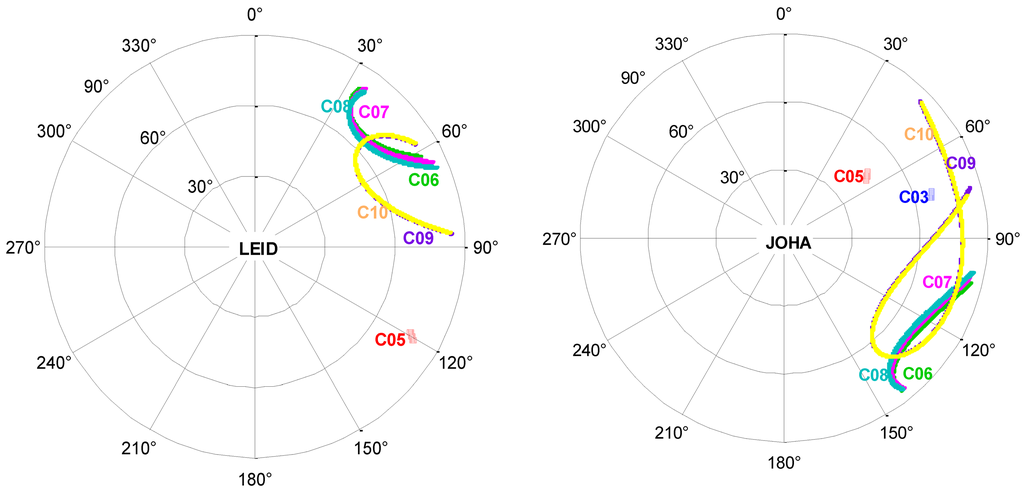

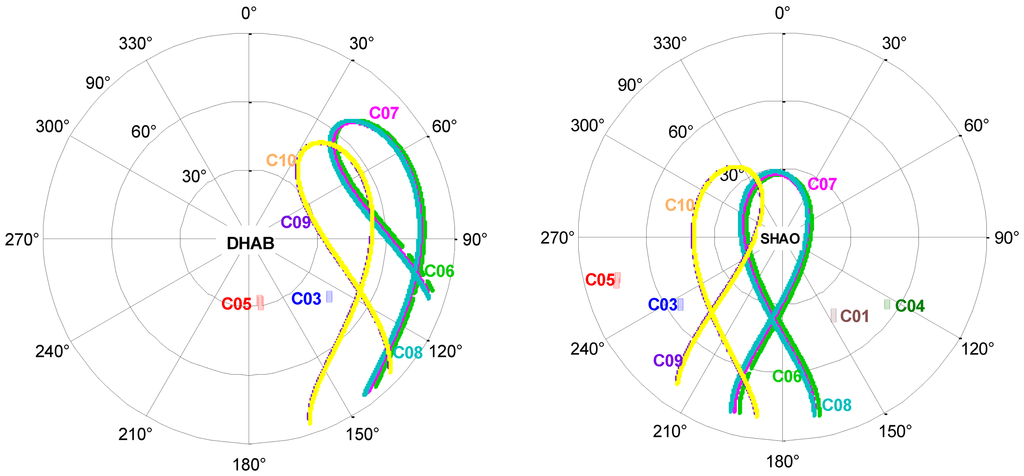

Figure 7. Sky plot of tracked satellites at four particular stations, LEID (51.9°, 44.0°), JOHA (−25.8°, 27.9°), DHAB (24.2°, 54.5°), and SHAO (121.5°, 30.9°) on day 171 in 2012. It is denoted by azimuth and zenith for four GEOs: C01, C03, C04, C05 and five IGSOs: C06, C07, C08, C09, C10. For some of the overseas stations, satellites can only be tracked on a rather low elevation and some of them are even not visible compared to station SHAO.

Click here to enlarge figure

Figure 7. Sky plot of tracked satellites at four particular stations, LEID (51.9°, 44.0°), JOHA (−25.8°, 27.9°), DHAB (24.2°, 54.5°), and SHAO (121.5°, 30.9°) on day 171 in 2012. It is denoted by azimuth and zenith for four GEOs: C01, C03, C04, C05 and five IGSOs: C06, C07, C08, C09, C10. For some of the overseas stations, satellites can only be tracked on a rather low elevation and some of them are even not visible compared to station SHAO.
Sensors 13 02911f7a 1024Sensors 13 02911f7b 1024
Sensors 13 02911f8 1024
Figure 8. (a) 3D-RMS for GEOs of different networks. (b) 3D-RMS for IGSOs of different networks.

Click here to enlarge figure

Figure 8. (a) 3D-RMS for GEOs of different networks. (b) 3D-RMS for IGSOs of different networks.
Sensors 13 02911f8 1024
Sensors 13 02911f9 1024

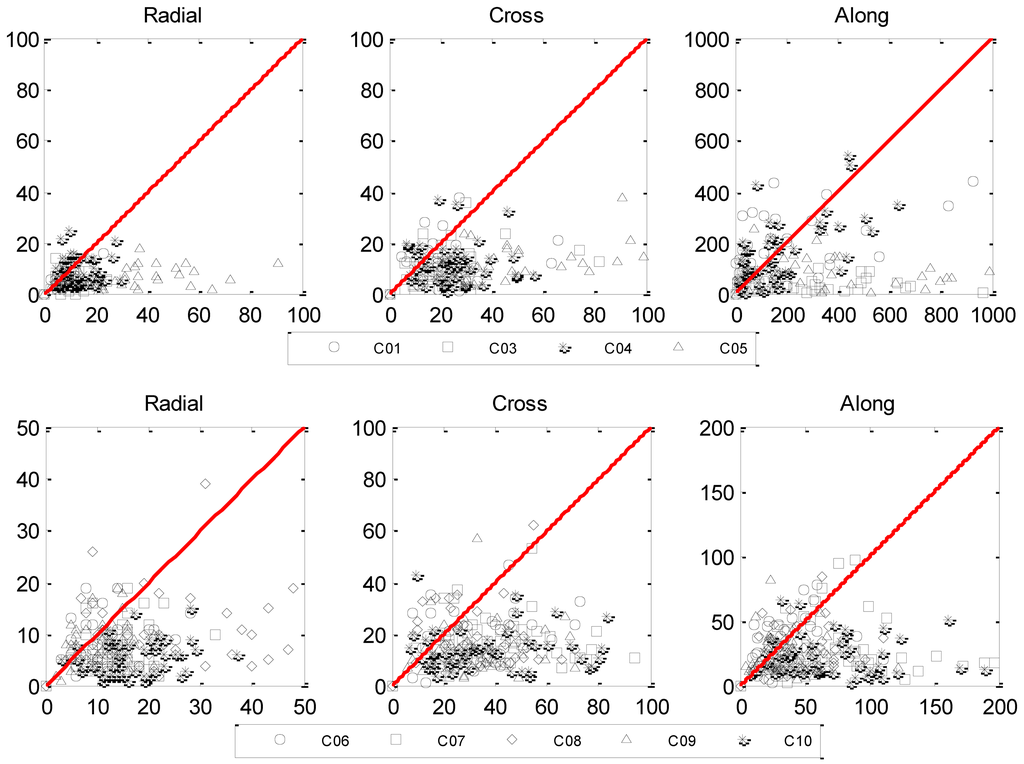

Figure 9. Relationship of the orbit RMS from the Chinese regional network (CHN) and the global networks (ALL). x-axis denotes the RMS of CHN, while y-axis represents orbit RMS of ALL. The red line with slope rate 1.0 divides each figure into two parts, of which the right down stands for the improvement.

Click here to enlarge figure

Figure 9. Relationship of the orbit RMS from the Chinese regional network (CHN) and the global networks (ALL). x-axis denotes the RMS of CHN, while y-axis represents orbit RMS of ALL. The red line with slope rate 1.0 divides each figure into two parts, of which the right down stands for the improvement.
Sensors 13 02911f9 1024
Sensors 13 02911f10 1024

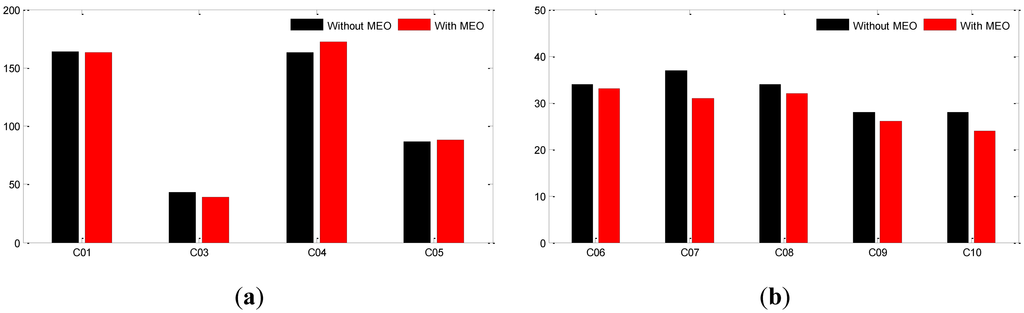

Figure 10. (a) 3D-RMS of GEO orbits estimated with MEOs and without MEOs. (b) 3D-RMS of IGSO orbits estimated with MEOs and without MEOs. Unit is cm.

Click here to enlarge figure

Figure 10. (a) 3D-RMS of GEO orbits estimated with MEOs and without MEOs. (b) 3D-RMS of IGSO orbits estimated with MEOs and without MEOs. Unit is cm.
Sensors 13 02911f10 1024
Table Table 1. Satellites of the current BeiDou constellation.

Click here to display table

Table 1. Satellites of the current BeiDou constellation.
SatellitePRNNORAD-IDCOSPAR-IDLaunch DateMean Longitude and Inclination
G1C01362872010-001A16/01/2010140.0°E
G2C02347792009-017A14/04/2009Drift
G3C03365902010-024A02/06/201080.0°E
G4C04372102010-057A31/10/2010160.0°E
G5C05380912012-008A14/02/201258.75°E
G6unknown389532012-059A25/10/2012110.5°E

I1C06368282010-036A31/07/2010122°E (55°)
I2C07372562010-068A17/12/2010119°E (55°)
I3C08373842011-013A09/04/2011120°E (55°)
I4C09377632011-038A26/07/201196.5°E (55°)
I5C10379482011-073A01/12/201192.5°E (55°)

M1C30311152007-011A13/04/2007Discarded
M3C11382502012-018A29/04/201255°
M4C12382512012-018B29/04/201255°
M5C13387742012-050A18/09/201255°
M6C14387752012-050B18/09/201255°
Table Table 2. Summary of observation models and parameters applied in POD.

Click here to display table

Table 2. Summary of observation models and parameters applied in POD.
ItemModels
ObservationsUndifferenced ionosphere-free code and phase combination of B1 and B2 with 60 seconds sampling
Elevation cutoff
Weight for observationsElevation dependent weight
Phase-windup effectApplied [16]
Earth rotation parameterEstimated with tight constraint
Tropospheric delayInitial model + random-walk process
Ionospheric delayEliminated by ionosphere free combination
Satellite and receiver clockWhite noise
Station displacementSolid Earth tide, pole tide, ocean tide loading
IERS Convention 2003 [17]
Satellite antenna PCO and PCVNot corrected
Receiver antenna PCO and PCVNot corrected
Table Table 3. Dynamic models involved for BeiDou orbit determination.

Click here to display table

Table 3. Dynamic models involved for BeiDou orbit determination.
ItemModels
GeopotentialEGM96 model (12 × 12)
TideSolid Earth tide, pole tide, ocean tide
IERS Conventions 2003
M-body gravitySun, Moon and all planets (JPL DE405)
Solar Radiation PressureReduced BERN five parameters with no initial value
Relativistic EffectApplied
Velocity breaksEvery other 12 hours
Attitude modelAssuming the same as GPS satellite of Block IIR
Table Table 4. Averaged RMS of the ionosphere-free phase (LC) and range (PC) observation residuals for each station-satellite pair.

Click here to display table

Table 4. Averaged RMS of the ionosphere-free phase (LC) and range (PC) observation residuals for each station-satellite pair.
LC (mm)PC (m)


GEOsIGSOsMEOsGEOsIGSOsMEOs
CENT6.89.010.31.40.90.9
CHDU6.47.59.91.71.11.5
DHAB7.48.57.81.82.21.8
HKTU7.47.511.91.81.31.5
HRBN5.96.98.81.91.31.2
JOHA7.69.37.24.13.12.4
LASA6.47.58.61.91.72.0
LEID8.16.96.54.01.91.5
NTSC7.07.410.42.01.41.6
PETH8.39.410.52.01.92.0
SHAO7.17.111.21.21.62.1
SIGP7.68.111.42.91.51.6
XIAN6.97.110.61.80.70.8
MEAN7.17.99.62.21.61.6
Table Table 5. Averaged overlapping RMS of the estimated orbits and clocks for each individual satellites and the mean of each satellite type.

Click here to display table

Table 5. Averaged overlapping RMS of the estimated orbits and clocks for each individual satellites and the mean of each satellite type.
TypeSatellitesOrbits (cm)Clocks (ns)


AlongCrossRadial3DSTDRMS
GEOC011631061630.250.45
C0337105390.290.39
C041711181710.290.74
C0587106870.230.40

Mean1141061150.270.49

IGSOC0627177330.310.39
C0726167310.180.25
C08251710320.320.39
C0921147260.290.35
C1020135240.430.49

Mean24157290.310.37

MEOC11481312510.430.48
C12421211450.390.44

Mean451312480.410.46
Table Table 6. Orbit RMS [cm] comparison for four networks: Chinese regional network (CHN), Asian-Pacific network (AP), Asian network (ASIA), and global network (ALL).

Click here to display table

Table 6. Orbit RMS [cm] comparison for four networks: Chinese regional network (CHN), Asian-Pacific network (AP), Asian network (ASIA), and global network (ALL).
ComponentAlongCrossRadial3D

ALLASIAAPCHNALLASIAAPCHNALLASIAAPCHNALLASIAAPCHN
GEOC01164169169176111816226788164170170178
C0341574603311117202156994360461332
C04162208171182122417249121312163210172184
C058680485529112623486826318784486532

Mean11312832130411211929781415114130322306

IGSOC062836413917233233811111234445352
C073169408318312945714101537775096
C0827504348182826321126182434635362
C092330393614222633810101128394850
C102475397314282740617111728824985

Mean2752495616262837816121632605869
Table Table 7. GEOs elevation (in degrees) for tracking stations. Red cross for not visible.

Click here to display table

Table 7. GEOs elevation (in degrees) for tracking stations. Red cross for not visible.
C01C03C04C05
DHAB Sensors 13 02911t146 Sensors 13 02911t161
PETH43403019
JOHA Sensors 13 02911t122 Sensors 13 02911t144
LEID Sensors 13 02911t1 Sensors 13 02911t1 Sensors 13 02911t113
SIGP48662638
Table Table 8. Orbit RMS for IGSO and MEO satellites of free and fixed solutions, unit is cm.

Click here to display table

Table 8. Orbit RMS for IGSO and MEO satellites of free and fixed solutions, unit is cm.
SatelliteSolutionAlongCrossRadial3D
IGSOFree2415729
Fixed1413720

MEOFree45131248
Fixed41141245
