Thermal Strain Analysis of Optic Fiber Sensors
Shiuh-Chuan Her * and Chih-Ying Huang
Department of Mechanical Engineering, Yuan Ze University, Chung-Li 320, Taiwan; E-Mail: s907219@mail.yzu.edu.tw
*
Author to whom correspondence should be addressed; E-Mail: mesch@saturn.yzu.edu.tw; Tel.: +886-3-463-8800; Fax: +886-3-455-8013.
Received: 16 January 2013; in revised form: 24 January 2013 / Accepted: 28 January 2013 /
Published: 31 January 2013

Abstract

: An optical fiber sensor surface bonded onto a host structure and subjected to a temperature change is analytically studied in this work. The analysis is developed in order to assess the thermal behavior of an optical fiber sensor designed for measuring the strain in the host structure. For a surface bonded optical fiber sensor, the measuring sensitivity is strongly dependent on the bonding characteristics which include the protective coating, adhesive layer and the bonding length. Thermal stresses can be generated due to a mismatch of thermal expansion coefficients between the optical fiber and host structure. The optical fiber thermal strain induced by the host structure is transferred via the adhesive layer and protective coating. In this investigation, an analytical expression of the thermal strain and stress in the optical fiber is presented. The theoretical predictions are validated using the finite element method. Numerical results show that the thermal strain and stress are linearly dependent on the difference in thermal expansion coefficients between the optical fiber and host structure and independent of the thermal expansion coefficients of the adhesive and coating.
Keywords:
optic fiber sensor; thermal strain; thermal expansion coefficient

1. Introduction

The use of optical fiber sensors in structural health monitoring has increased rapidly. These sensors can be used to monitor both strain and damage development [13]. This ability is essentially due to their capability of performing direct strain measurements inside host structures at desired locations, thus providing valuable information on the local strain state within complex structures. The primary benefits of optical fiber sensors over conventional electrical sensors are their light weight, high temperature endurance, dielectric nature, immunity to electromagnetic interference and excellent multiplexing capabilities. Optical fiber sensors based on the fiber Bragg grating (FBG) have been demonstrated successively in monitoring structures. Mulle et al. [4] used FBG sensors to measure the residual strain in carbon-epoxy composite laminates. Zhang et al. [5] proposed an improved FBG sensor for the simultaneous measurements of force and temperature. Interferometric type fiber optical sensors have the advantages of high sensitivity and potentially high spatial resolution, therefore, they can be used for health monitoring in composite structures [6,7]. As a sensor, it is expected that the strains between the optical fiber and host structure are the same. However, due to the existence of the adhesive layer and protective coating, part of the energy would convert into shear deformation. Thus, the strain of the optical fiber would be different from that in the host structure. Lau et al. [8] developed a simple model to calculate the percentage of strain applied to the host structure actually transferred to the embedded fiber optical sensor. For optical fiber strain sensors to be accurate and practical, it is necessary to separate the mechanical strain from the thermal effect. Several techniques have been proposed for the mechanical strain and temperature discrimination, such as the reference-grating technique [9], the dual-wavelength technique [10] and the hybrid-grating technique [11]. To separate the mechanical strain from the temperature effect, it is necessary to determine the thermal strain of the optical fiber sensor when the host structure is subjected to a temperature change. Lu et al. [12] investigated theoretically and experimentally the distribution of thermal residual strain in optical fibers based on Brillouin optical time-domain reflectometry system. Lo and Chuang [13] measured the thermal expansion coefficient using a surface-mounted FBG sensor. Mueller et al. [14] proposed a high-precision thermal strain measurement model using surface bonded FBG sensors. Kim et al. [15] used FBG sensors to measure the thermal deformation of space structures by installing the test specimen in a vacuum chamber to simulate space environment. Yablon [16] revealed the influences of frozened-in stresses and strains on the optical and mechanical performance of optical fibers. Kim et al. [17] proposed a new FBG model to investigate the effect of transverse strain on the measurement of thermal strain in composite materials. Yoon et al. [18] performed experimental test to valid this model by measuring thermal expansion of anisotropic composite specimens and an isotropic invar specimen. In this investigation, the optical fiber sensor is surface bonded onto the host structure. An analytical expression of the thermal strain in the optical fiber induced by the host structure is presented. The theoretical prediction of the thermal strain in the surface bonded optical fiber sensor is validated using the finite element method.

2. Thermal Analysis

In this investigation, the thermal strain of the optical fiber induced by the temperature change of the host structure is derived based on the following assumptions:

  • All interfaces are perfectly bonded i.e., displacement continuity along the interface.

  • The thermal strain of the host structure due to the temperature change is transferred to the optical fiber via the adhesive layer and protective coating. This assumption is reasonable since the Young's moduli of the coating and adhesive are significantly smaller than that for the host structure and optical fiber.

  • The temperature change in the host structure is uniform.

  • All the material properties remain constant during the temperature change.

The analytical model is shown in Figure 1 with a cylindrical optical fiber and coating on the top and the host material under the bottom with adhesive in between. The host material is subjected to an uniform temperature change of ΔT. Thermal stresses can be generated due to the mismatch in thermal expansion coefficients between the optical fiber and host structure. The thermal strain of the optical fiber induced by the host structure due to the temperature change is transferred via the adhesive layer and protective coating.

The equilibrium equation for coating is:

r p 0 2 π τ p ( r p , θ , x ) d θ d x r f 0 2 π τ p ( r f , θ , x ) d θ d x = 0
where rp and rj are the radii of the coating and optical fiber, respectively; τp represents the shear stress in the coating which is inverse to the radius and can be expressed as:
τ p ( r , θ , x ) = r p r τ p ( r p , θ , x )

The shear strain in the coating is:

γ p = u σ p ( r , θ , x ) r = τ p ( r , θ , x ) G p
where u σ p is the mechanical displacement of the coating induced by the thermal stress.

Substituting Equation (3) into Equation (2), yields:

u σ p ( r , θ , x ) r = 1 G p r p r τ p ( r p , θ , x )
where Gp represent the shear modulus of the coating. Integration with respective to radius gives:
u σ p ( r , θ , x ) = r p G p ln ( r ) τ p ( r p , θ , x ) + C 1

Enforcing the displacement continuity at the interface between the coating and optical fiber, yields:

u σ p ( r f , θ , x ) + α p Δ Tdx = u σ f ( r f , θ , x ) + α f Δ Tdx
where u σ f represents the mechanical displacement of the optical fiber induced by the thermal stress; αp and αf denote the thermal expansion coefficients of the coating and optical fiber, respectively.

The mechanical displacement of the coating Equation (5) can be rewritten as:

u σ p ( r , θ , x ) = r p G p ln ( r r f ) τ p ( r p , θ , x ) + u σ f ( r f , θ , x ) + α f Δ Tdx α p Δ Tdx
where u σ f ( r f , θ , x ) is the mechanical displacement of the optical fiber induced by the thermal stress. The displacement continuity at the interface between the coating and adhesive can be written as:
u σ p ( r p , θ , x ) + α p Δ Tdx = u σ a ( r p , θ , x ) + α a Δ Tdx
where u σ a represents the mechanical displacement of the adhesive induced by the thermal stress; αα denote the thermal expansion coefficients of the adhesive.

Substituting Equation (6) into Equation (7) yields:

u σ a ( r p , θ , x ) = r p G p ln ( r p r f ) τ p ( r p , θ , x ) + u σ f ( r f , θ , x ) + α f Δ Tdx α a Δ Tdx

The thickness of adhesive is angular dependent as shown in Figure 1:

t ( θ ) = r p r p sin θ

The shear strain and stress in the adhesive are:

γ a = u σ h + α h Δ Tdx u σ a ( r p , θ , x ) α a Δ Tdx r p r p sin θ
τ a = u σ h + α h Δ Tdx u σ a ( r p , θ , x ) α a Δ Tdx r p r p sin θ G a
where u σ h represents the mechanical displacement of the host material induced by the thermal stress; αh and ΔT denote the thermal expansion coefficient of the host structure and temperature change, respectively.

Substituting Equation (8) into Equation (10b) yields:

τ a = G a r p r p sin θ [ u σ h r p G p ln r p r f τ p ( r p , θ , x ) u σ f ( r f , θ , x ) + ( α h α f ) Δ Tdx ]

The continuity of shear stress at the interface between the adhesive and coating leads:

τ p ( r p , θ , x ) = τ a = G a G p G p r p ( 1 sin θ ) + G a r p ln ( r p / r p ) [ u σ h u σ f + ( α h α f ) Δ Tdx ]

Substituting Equation (12) into Equation (1), yields:

0 2 π τ p ( r p , θ , x ) d θ = r p r f 0 π 1 [ r p ( 1 sin θ ) G a + r p G p ln ( r p r f ) ] ( [ u σ h u σ f + ( α h α f ) Δ Tdx ] ) d θ

The adhesive is filled between the host material and coating with a small gap b as shown in Figure 1. Thus Equation (13) can be rewritten as:

0 2 π τ p ( r f , θ , x ) d θ = 2 r p r f 0 cos 1 ( b / r p ) 1 [ r p ( 1 sin θ ) G a + r p G p ln ( r p r f ) ] ( [ u σ h u σ f + ( α h α f ) Δ Tdx ] ) d θ

The equilibrium equation of optical fiber in the x-axis as shown in Figure 1 is:

σ 1 f π r f 2 = ( σ 1 f + d σ 1 f ) π r f 2 + r f [ 0 2 π τ p ( r f , θ , x ) d θ ] d x

Now, we differentiate Equation (15) with respect to x twice and incorporate into Equation (14), which leads to:

d 2 σ 1 f d x 2 + 2 r p π r f 2 ( σ 1 h E h σ 1 f E f + α h Δ T α f Δ T ) 0 cos 1 ( b r p ) 1 [ r p ( 1 sin θ ) G a + r p G c ln ( r p r f ) ] d θ = 0
where σ 1 f, σ 1 h are the thermal stresses in the optical fiber and host material, respectively; Ef, and Eh are the Young's moduli of the optical fiber and host material, respectively.

Thermal stresses are self-equilibrium stresses supported by a body in the absence of external loads. Enforcing the self-equilibrium equation of the system, leads to the following thermal stress relationship between the optical fiber and host material:

σ 1 h = π r f 2 2 h r p σ 1 f

Substituting Equation (17) into Equation (16), yields:

d 2 σ 1 f d x 2 λ 1 2 σ 1 f = 2 r p ( α h α f ) Δ T π r f 2 0 cos 1 ( b r p ) 1 r p ( 1 sin θ ) G a + r p G p ln ( r p r f ) d θ λ 1 = [ 2 r p π r f 2 ( π r f 2 2 h r p E h + 1 E f ) 0 c o s 1 ( b r p ) 1 r p ( 1 sin θ ) G a + r p G p l n ( r p r f ) d θ ]

The solution of differential Equation (18) can be expressed as:

σ 1 f = A cosh ( λ 1 x ) + B sinh ( λ 1 x ) + 2 r p ( α h α f ) Δ T π r f 2 λ 1 2 0 cos 1 ( b r p ) 1 [ r p ( 1 sin θ ) G a + r p G c ln ( r p r f ) ] d θ
where the constants A and B can be determined by the boundary conditions at the ends of the bonded region as follows:
σ 1 f = 0 x = ± L f L f : half of the bonded length

By enforcing the boundary conditions Equation (20), the thermal stress of the optical fiber Equation (19) can be obtained as:

σ 1 f = ( α h α f ) Δ T ( π r f 2 2 h r p E h + 1 E f ) [ 1 cosh ( λ 1 x ) cosh ( λ 1 L f ) ]

The thermal strain in the optical fiber is:

ε 1 f = ( α h α f ) Δ T E f ( π r f 2 2 h r p E h + 1 E f ) [ 1 cosh ( λ 1 x ) cosh ( λ 1 L f ) ] + α f Δ T

It should be noted that the thermal stress [Equation (21)] and strain [Equation (22)] are derived on the basis of uniform temperature changes in the host structure and material properties remaining constant during the temperature change. For the optical fiber sensor, it is reasonable to assume constant material properties within the temperature range of 20∼70 °C.

3. Finite Element Validation

The theoretical prediction of the thermal strain in the optical fiber [Equation (22)] is validated by the finite element method using the commercial software ANSYS. Eight node elements (solid 45) were used to generate meshes. Three different meshes as shown in Figure 2 are employed to conduct the convergence test. The Young's moduli for the host material, adhesive, coating and optical fiber used in the numerical study are Eh = 72 GPa, Eα = 2 GPa, Ep = 0.0067 GPa and Ef = 72 GPa, respectively; while the thermal expansion coefficients are αh = 23 με/°C, αα = 20 με/°C, αp = 76 με/°C, αf = 0.5 με/°C, respectively.

The outer radii of the optical fiber and coating are rf = 62.5 μm and rp = 125 μm, respectively. The thickness of the host material and bonded length are h = 8 mm and Lf = 20 mm, respectively. The index of refraction and Pockel's constants are n0 = 1.45, p11 = 0.12, p12 = 0.27, respectively. The thermal strain of the optical fiber along the surface bonded length calculated using Equation (22) and the finite element method are plotted in Figure 3. The thermal strain εf in the optical fiber shown in Figure 3 is normalized by the thermal strain of the host material ε0 = αhΔT. It shows that the theoretical predictions are in good agreement with the FEM results. A close agreement among these three different meshes demonstrates that the mesh is fine enough to converge toward the correct solution. The strain distribution of the optical fiber shows that the maximum thermal strain occurs in the middle of the surface bonded optical fiber and decreases to zero at both ends of the bonded length. The theoretical prediction of thermal strain Equation (22) is linearly dependent on the difference (αhαf) of the thermal expansion coefficients between the host material and optical fiber and is independent of the thermal expansion coefficients of the coating and adhesive. The thermal strain of the optical fiber obtained using the finite element method with four different thermal expansion coefficients for the coating αp = 0, 76, 100 and 1,000 με/°C are presented in Figure 4. It shows that the thermal expansion coefficient of the coating does not affect the thermal strain of the optical fiber, which is in agreement with the theoretical prediction. Similar results were obtained while the thermal expansion coefficient of the adhesive was varied from αα = 0, 76, 100 and 1,000 με/°C as shown in Figure 5. In this investigation, the thermal strain is assumed to transfer from the host structure to the optical fiber via the shear deformations of the adhesive layer and protective coating. Thus, the thermal strain of the optical fiber can be dependent on the shear moduli of the adhesive layer and protective coating. Basing on the thermal analysis as described in Section 2, the thermal expansions of the adhesive and protective coating are cancelled out, leads to the optical fiber thermal strain independent of the thermal expansion coefficients of the adhesive and protective coating.

4. Conclusions

An analytical expression of the thermal strain of surface bonded optical fiber induced by the host structure was presented. The percentage of thermal strain in the host structure actually transferred to the optical fiber is dependent on the bonding characteristics, which include the protective coating, adhesive layer and the bonding length. Three-dimensional finite element analysis was conducted using commercial software ANSYS and compared with the theoretical prediction. Good agreement was observed between the numerical result and theoretical prediction. The parametric study showed that the thermal strain and stress are linearly dependent on the difference in thermal expansion coefficients between the optical fiber and host structure and are independent of the thermal expansion coefficients of the adhesive and coating.

The authors are thankful for the finical support by the National Science Council, Taiwan, under the grand NSC 101-2622-E-155-015-CC3.

References

  1. Botsis, J.; Humbert, L.; Coplo, F.; Giaccari, P. Embedded fiber Bragg grating sensor for internal strain measurements in polymeric. Opt. Laser Eng. 2005, 43, 491–510. [Google Scholar]
  2. Ling, H.Y.; Lau, K.T.; Li, C. Determination of dynamic strain profile and delamination detection of composite structures using embedded multiplexed fibre-optic sensors. Compos. Struct. 2004, 66, 317–326. [Google Scholar]
  3. Takeda, S.; Minakuchi, S.; Okabe, Y.; Takeda, N. Delamination monitoring of laminated composites subjected to low-velocity impact using small-diameter FBG sensors. Compos. Part A 2005, 36, 903–908. [Google Scholar]
  4. Mulle, M.; Collombet, F.; Olivier, P.; Grunevald, Y.H. Assessment of cure residual strains through the thickness of carbon–epoxy laminates using FBGs, Part I: Elementary specimen. Compos. Part A 2009, 40, 94–104. [Google Scholar]
  5. Zhang, W.; Dong, X.; Zhao, Q.; Kai, G.; Yuan, S. FBG-type sensor for simultaneous measurement of force (or displacement) and temperature based on bilateral cantilever beam. IEEE Photon. Technol. Lett. 2001, 13, 1340–1342. [Google Scholar]
  6. Zhou, Z.; Sim, L.M.; Loughlan, J. Damage evaluation of smart composite beams using embedded extrinsic Fabry-Perot interferometric strain sensors: Bending stiffness assessment. Smart Mater. Struct. 2004, 13, 1291–1302. [Google Scholar]
  7. Oliveira, R.; Ramos, C.A.; Marques, A.M. Health monitoring of composite structures by embedded FBG and interferometric Fabry-Pérot sensors. Comput. Struct. 2008, 86, 340–346. [Google Scholar]
  8. Lau, K.T.; Yuan, L.; Zhou, L.M.; Wu, J.; Woo, C.H. Strain monitoring in FRP laminates and concrete beams using FBG sensors. Compos. Struct. 2001, 51, 9–20. [Google Scholar]
  9. Kersey, A.D.; Berkoff, T.A.; Morey, W.W. Fiber-optic Bragg grating strain sensor with drift-compensated high-resolution interferometric wavelength-shift detection. Opt. Lett. 1993, 18, 72–74. [Google Scholar]
  10. Xu, M.G.; Archambault, J.L.; Reekie, L.; Dakin, J.P. Discrimination between strain and temperature effects using dual-wavelength fibre grating sensors. Electron. Lett. 1994, 30, 1085–1087. [Google Scholar]
  11. Guo, Z.S. Strain and temperature monitoring of asymmetric composite laminate using FBG hybrid sensors. Struct. Health Monit. 2007, 6, 191–197. [Google Scholar]
  12. Lu, Y.; Li, C.; Zhang, H.; Yam, S. Determination of thermal residual strain in cabled optical fiber with high spatial resolution by Brillouin optical time-domain reflectometry. Opt. Lasers Eng. 2011, 49, 1111–1117. [Google Scholar]
  13. Lo, Y.L.; Chuang, H.S. Measurement of Thermal Expansion Coefficients Using an in-Fibre Bragg-Grating Sensor. Meas. Sci. Technol. 1998, 9, 1543–1547. [Google Scholar]
  14. Mueller, U.C.; Both, J.; Roths, J.; Baier, H. High-precision thermal strain measurements using surface-mounted fiber bragg grating sensors. Proc. SPIE 2010, 7648, 764807. [Google Scholar]
  15. Kim, H.I.; Yoon, J.S.; Kim, H.B.; Han, J.H. Measurement of the thermal expansion of space structures using fiber Bragg grating sensors and displacement measuring interferometers. Meas. Sci. Technol. 2010, 21, 085704. [Google Scholar]
  16. Yablon, A.D. Optical and mechanical effects of frozen-in stresses and strains in optical fibers. IEEE J. Sel. Top. Quantum Electron. 2004, 10, 300–311. [Google Scholar]
  17. Kim, H.I.; Youn, J.S.; Han, J.H. Transverse Strain Effects on the Measurement of the Thermal Expansion of Composite Structure using Surface Mounted Fiber Bragg Grating Sensors. J. Intell. Mater. Syst. Struct. 2011, 22, 1141–1147. [Google Scholar]
  18. Yoon, J.S.; Kim, H.I.; Han, J.H. Transverse Strain Effects on the Thermal Expansion Measurement of Composite Structure Using FBG Sensors: Experimental Validation. J. Intell. Mater. Syst. Struct. 2013. [Google Scholar] [CrossRef]
Sensors 13 01846f1 1024

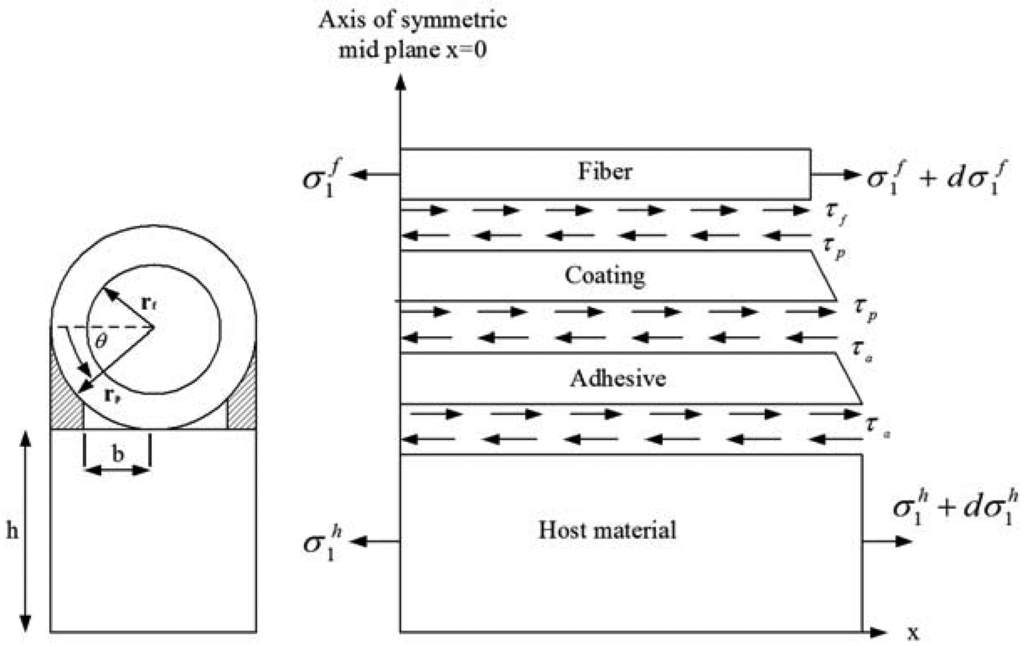

Figure 1. Analytical model of surface bonded optical fiber.

Click here to enlarge figure

Figure 1. Analytical model of surface bonded optical fiber.
Sensors 13 01846f1 1024
Sensors 13 01846f2 1024
Figure 2. Three different finite element meshes.

Click here to enlarge figure

Figure 2. Three different finite element meshes.
Sensors 13 01846f2 1024
Sensors 13 01846f3 1024
Figure 3. Thermal strain of the optical fiber obtained by Equation (22) and ANSYS.

Click here to enlarge figure

Figure 3. Thermal strain of the optical fiber obtained by Equation (22) and ANSYS.
Sensors 13 01846f3 1024
Sensors 13 01846f4 1024

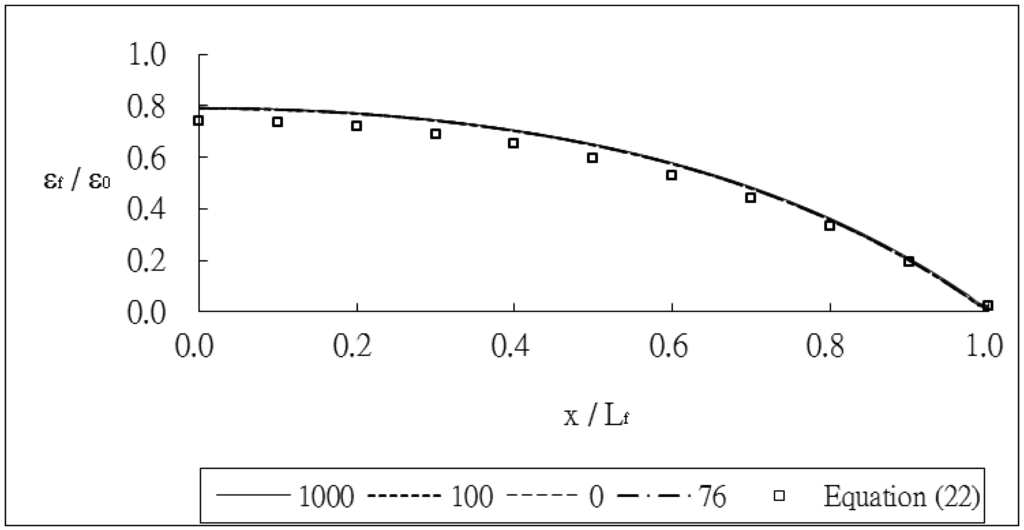

Figure 4. Thermal strain of the optical fiber with different thermal expansion coefficient for the coating.

Click here to enlarge figure

Figure 4. Thermal strain of the optical fiber with different thermal expansion coefficient for the coating.
Sensors 13 01846f4 1024
Sensors 13 01846f5 1024

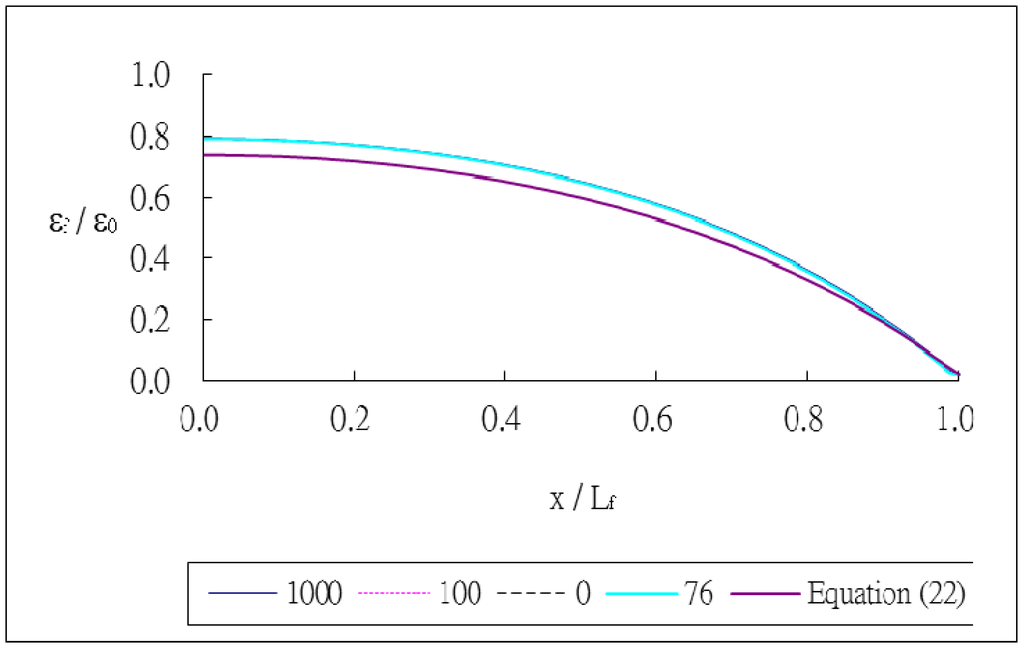

Figure 5. Thermal strain of the optical fiber with different thermal expansion coefficients for the adhesive.
