Sensors 2013, 13(1), 1004-1020; doi:10.3390/s130101004
Article

Registration of 3D and Multispectral Data for the Study of Cultural Heritage Surfaces

Camille Simon Chane 1,2 email, Rainer Schütze 1 email, Frank Boochs 1 email and Franck S. Marzani 2,* email
1 i3mainz, Fachhochschule Mainz, Lucy-Hillebrand-Straße 2, 55128 Mainz, Germany 2 le2i, Université de Bourgogne, B.P. 47870, 21078 Dijon CEDEX, France
* Author to whom correspondence should be addressed.
Received: 13 November 2012; in revised form: 24 December 2012 / Accepted: 7 January 2013 / Published: 15 January 2013
(This article belongs to the Section Physical Sensors)
PDF Full-text Download PDF Full-Text [11521 KB, Updated Version, uploaded 17 January 2013 16:41 CET]
The original version is still available [11517 KB, uploaded 15 January 2013 09:31 CET]

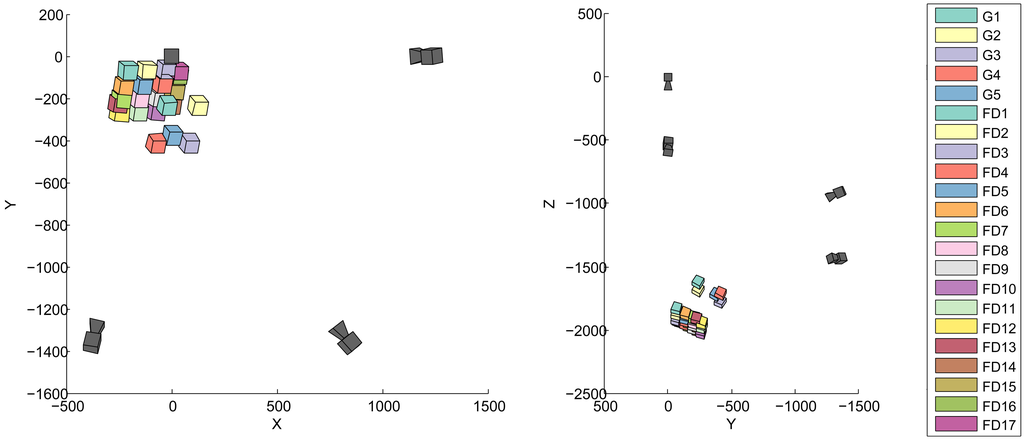

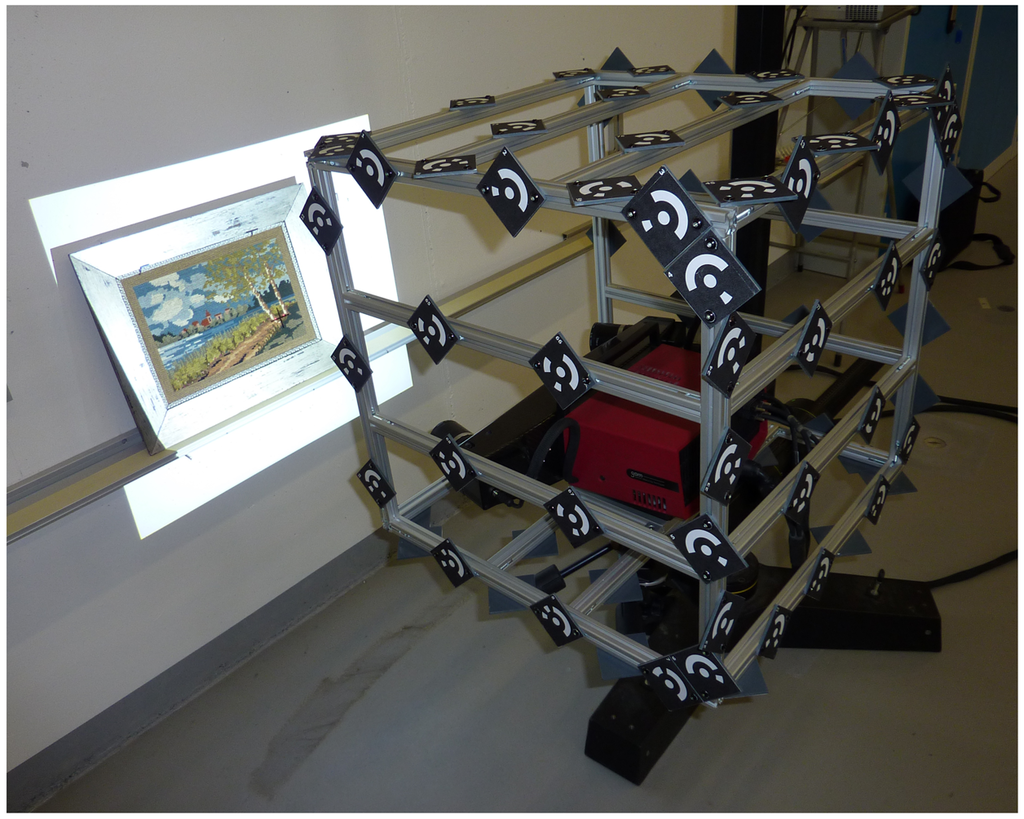

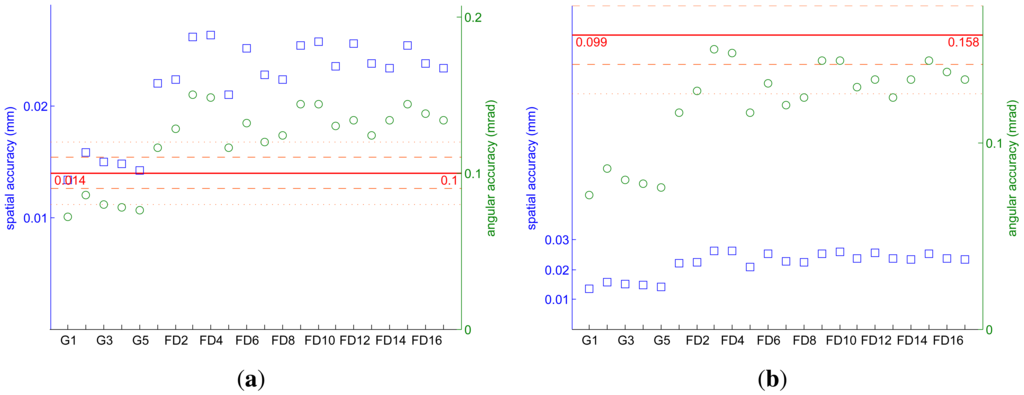

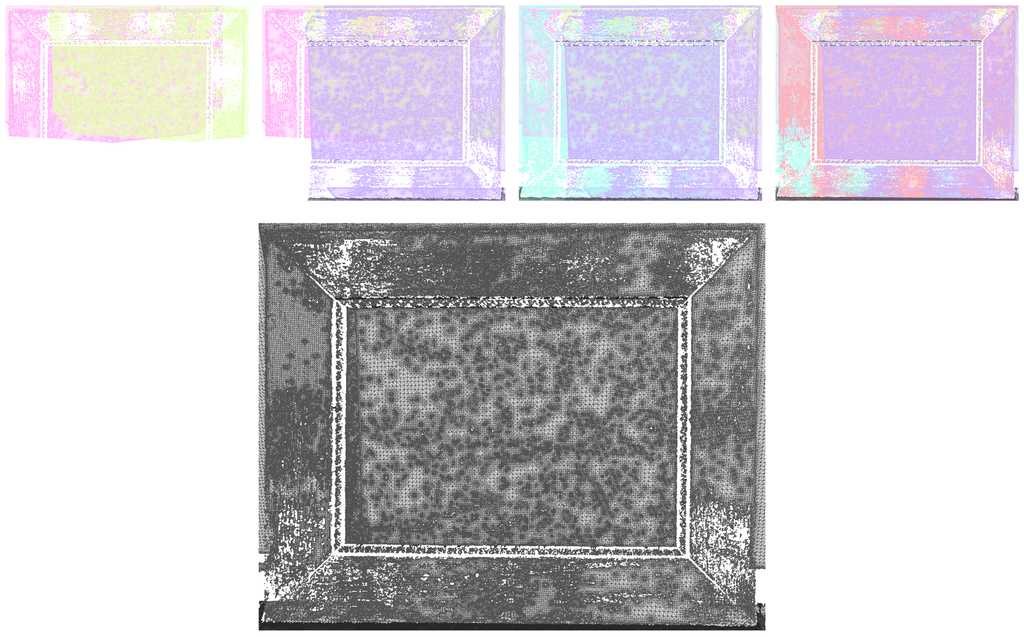

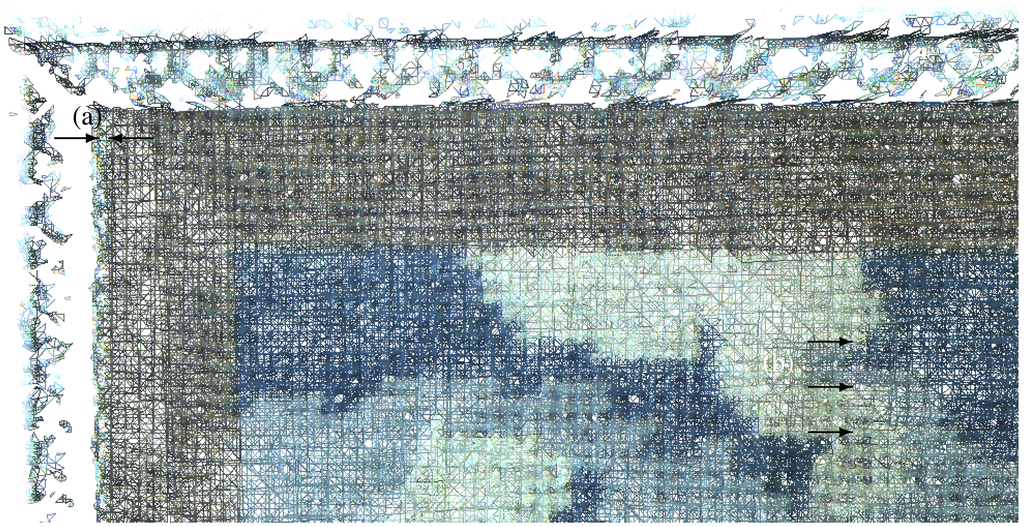

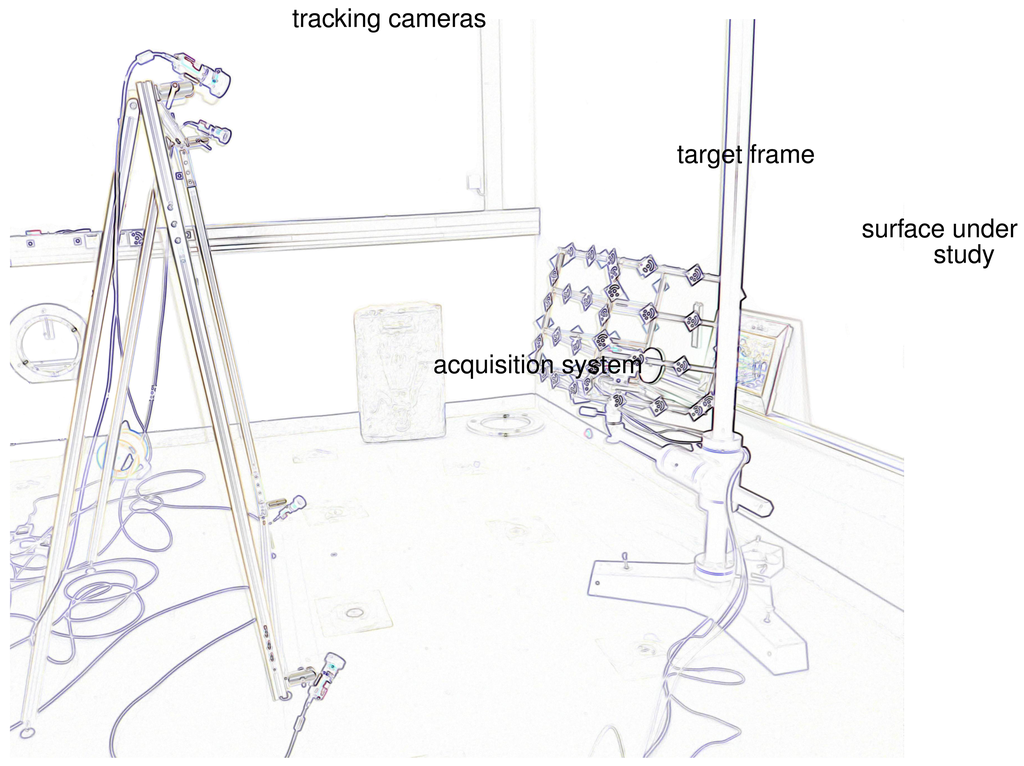

Abstract: We present a technique for the multi-sensor registration of featureless datasets based on the photogrammetric tracking of the acquisition systems in use. This method is developed for the in situ study of cultural heritage objects and is tested by digitizing a small canvas successively with a 3D digitization system and a multispectral camera while simultaneously tracking the acquisition systems with four cameras and using a cubic target frame with a side length of 500 mm. The achieved tracking accuracy is better than 0.03 mm spatially and 0.150 mrad angularly. This allows us to seamlessly register the 3D acquisitions and to project the multispectral acquisitions on the 3D model.
Keywords: 2D-3D registration; close range photogrammetry; optical calibration; 3D digitization; multispectral imaging; cultural heritage
