Sensors 2012, 12(7), 9586-9602; doi:10.3390/s120709586
Article

Study on Elastic Helical TDR Sensing Cable for Distributed Deformation Detection

1,2email, 1email and 2,* email
1 School of Information Science & Technology, East China Normal University, No. 500, Dong-Chuan Road, Shanghai 200241, China 2 College of Mechanical and Electrical Engineering, China Jiliang University, Hangzhou 310018, China
* Author to whom correspondence should be addressed.
Received: 31 May 2012; in revised form: 30 June 2012 / Accepted: 9 July 2012 / Published: 13 July 2012
(This article belongs to the Section Physical Sensors)
PDF Full-text Download PDF Full-Text [765 KB, uploaded 13 July 2012 11:55 CEST]

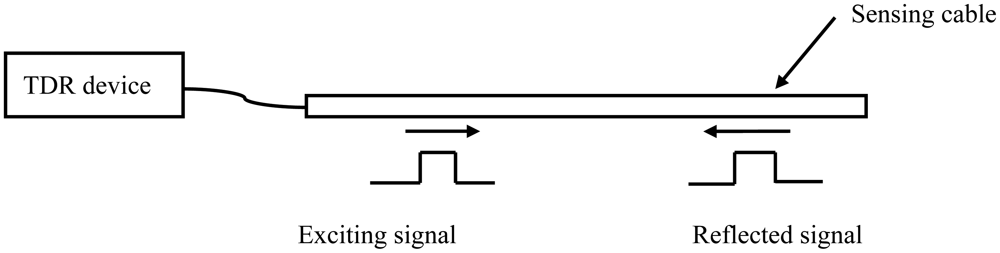

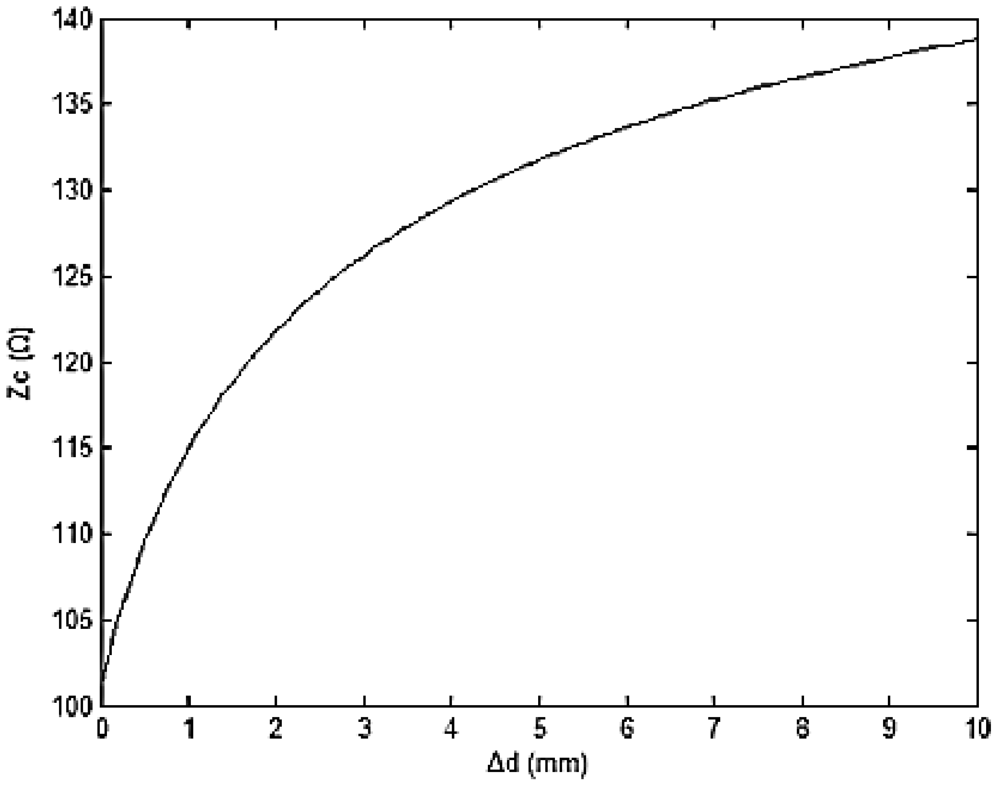

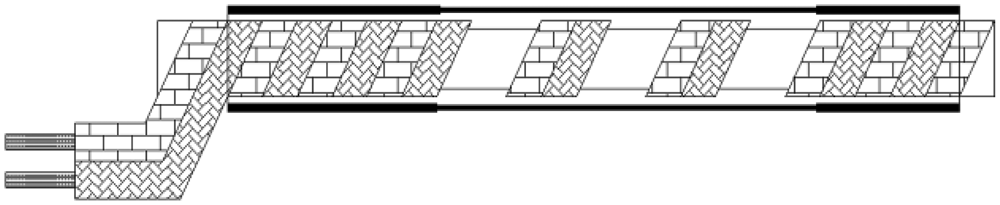

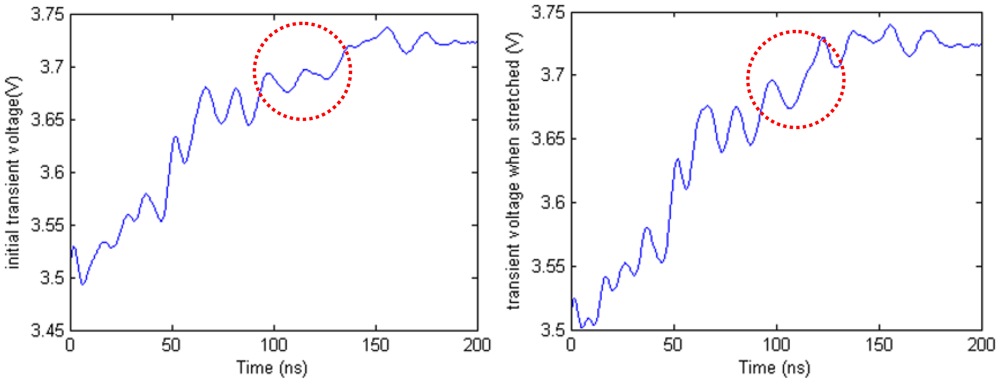

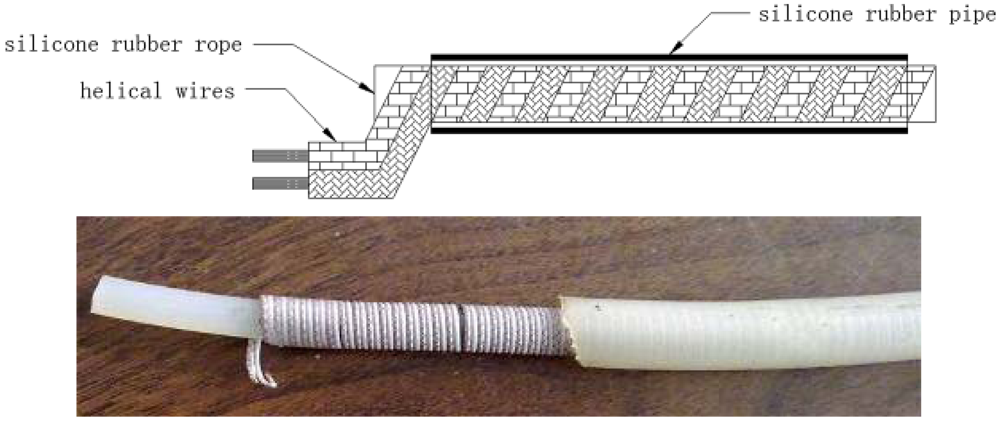

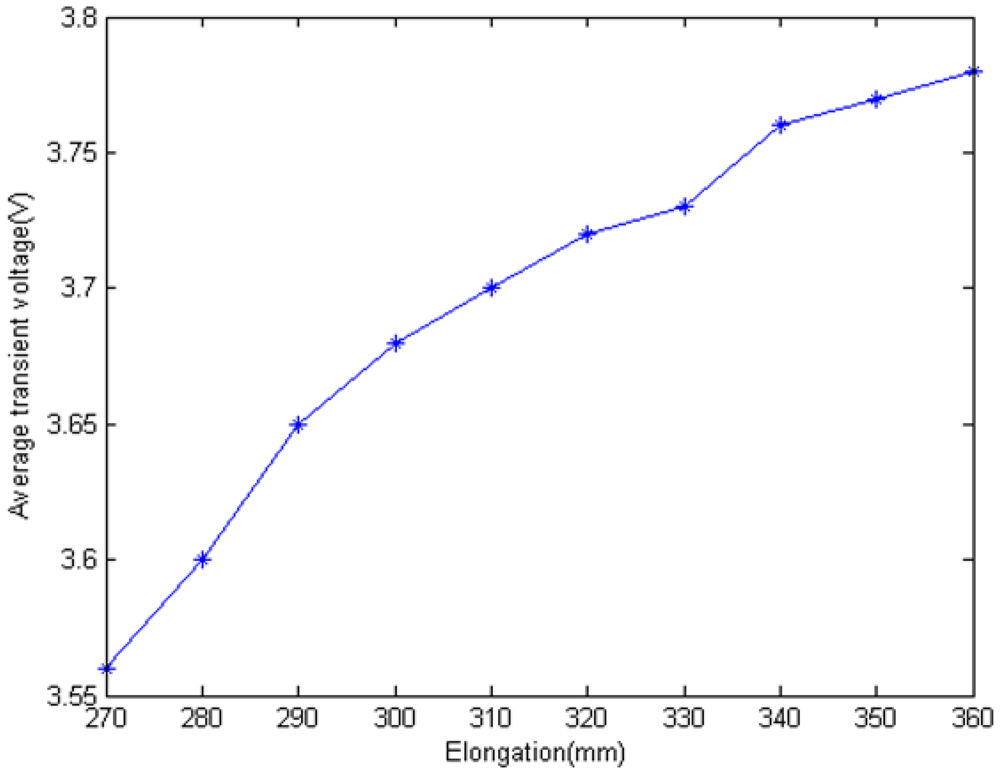

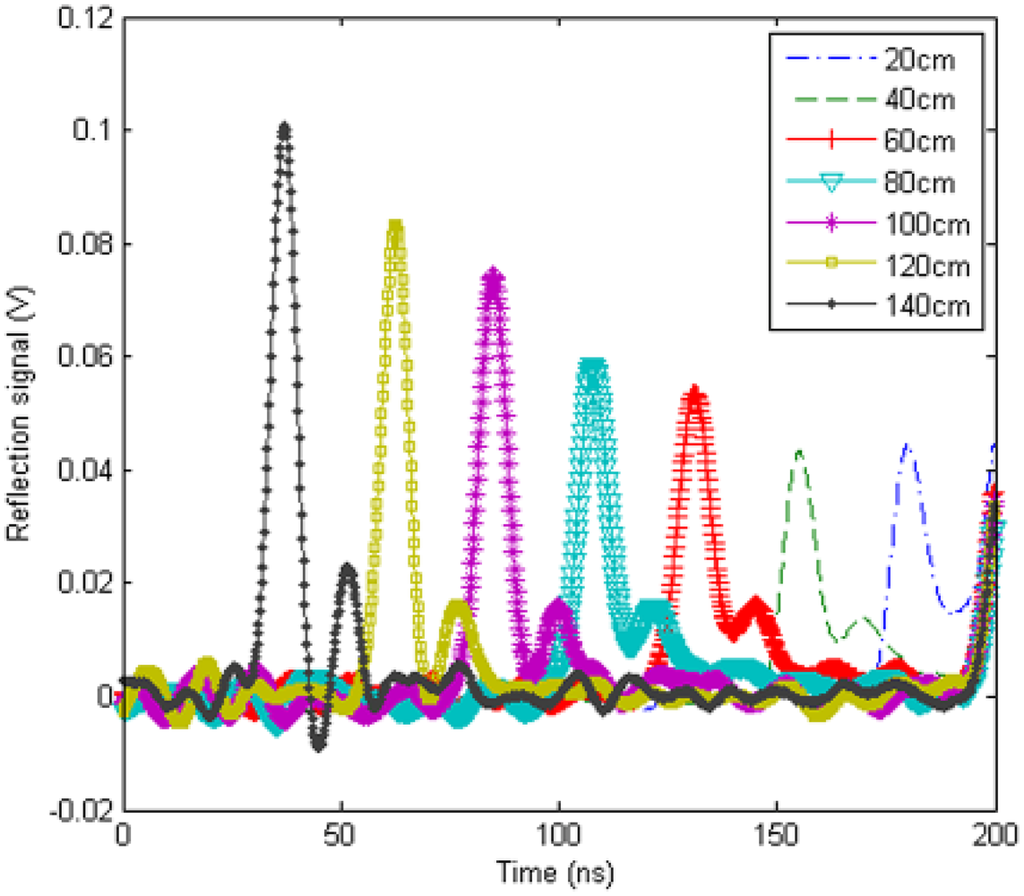

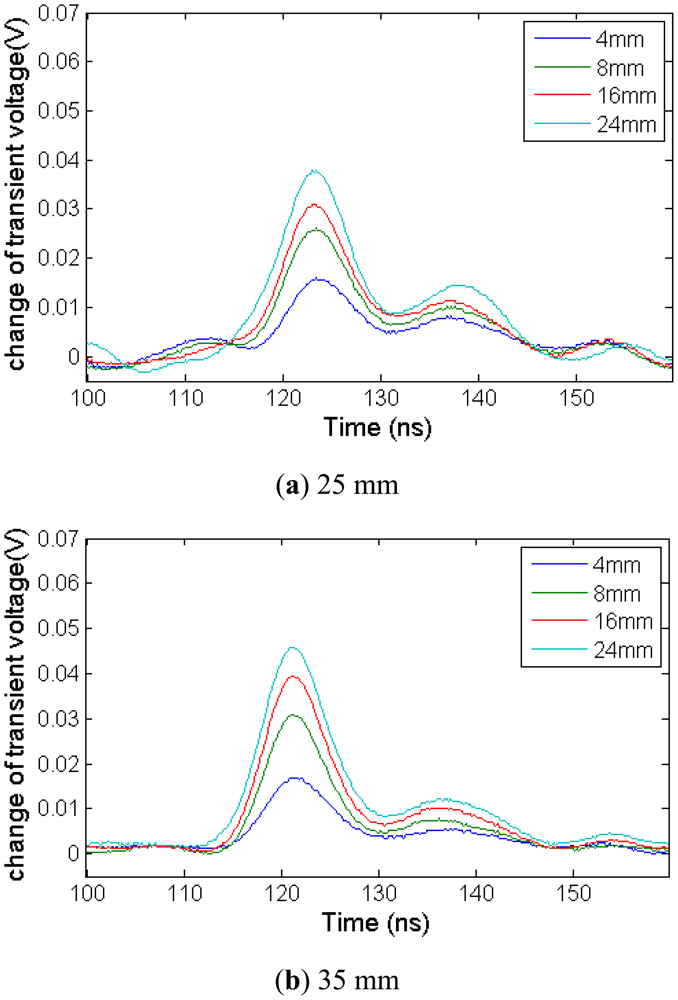

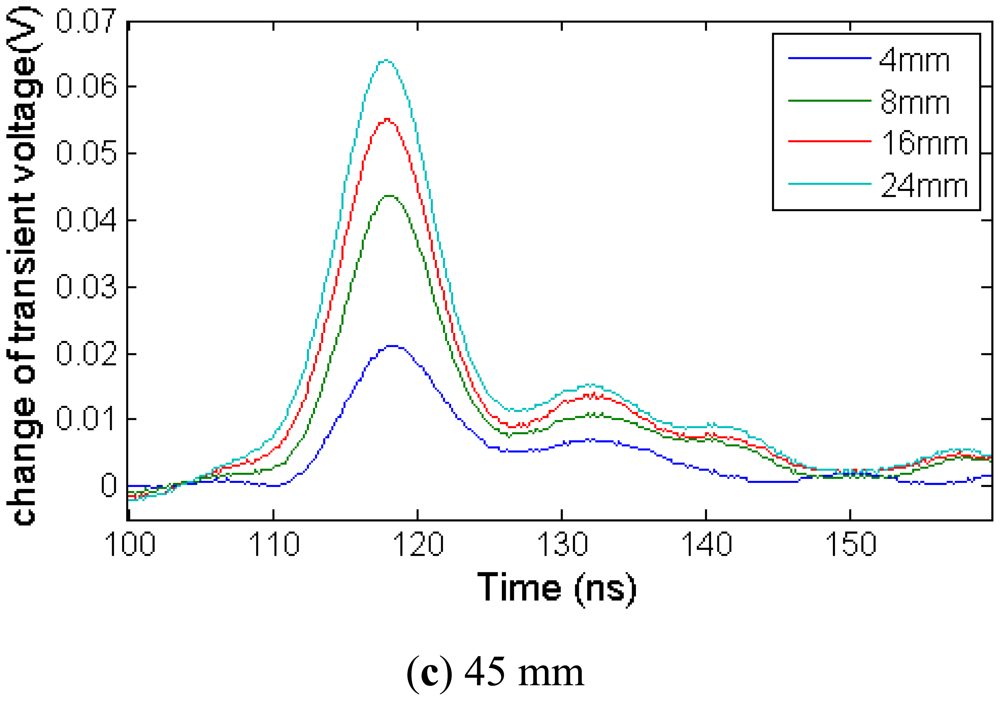

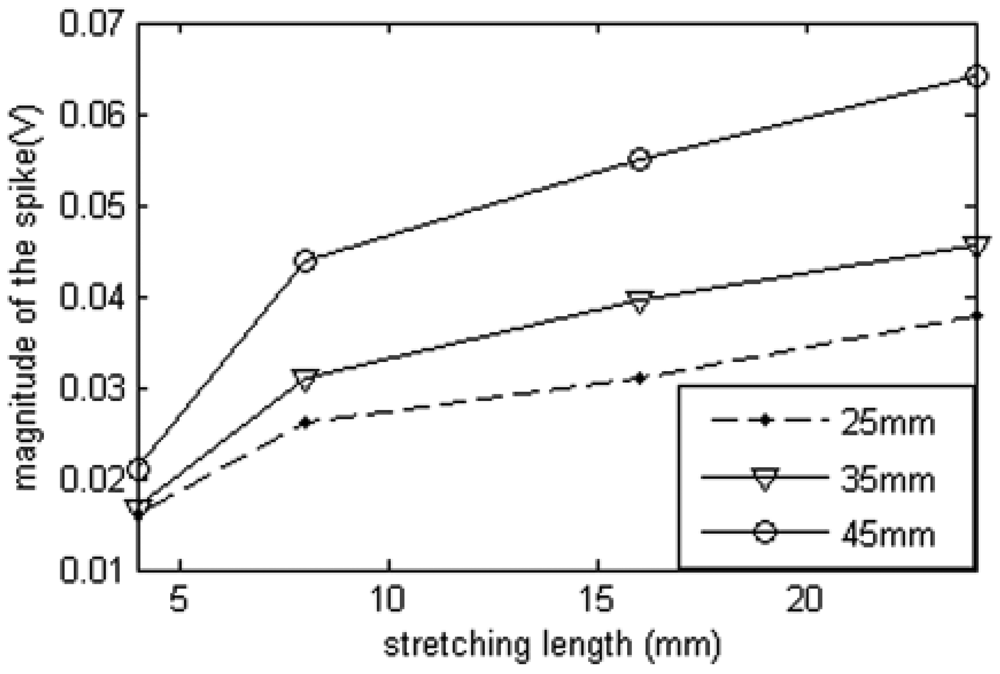

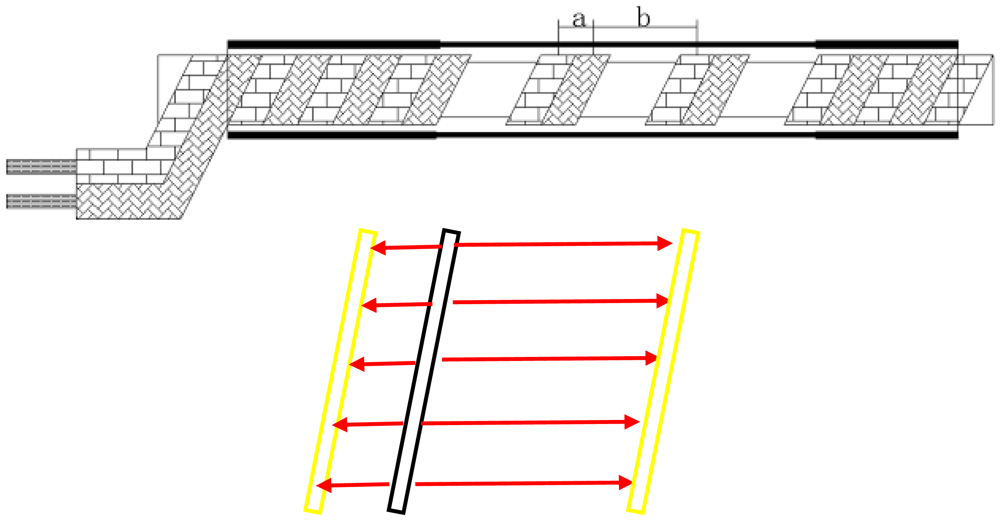

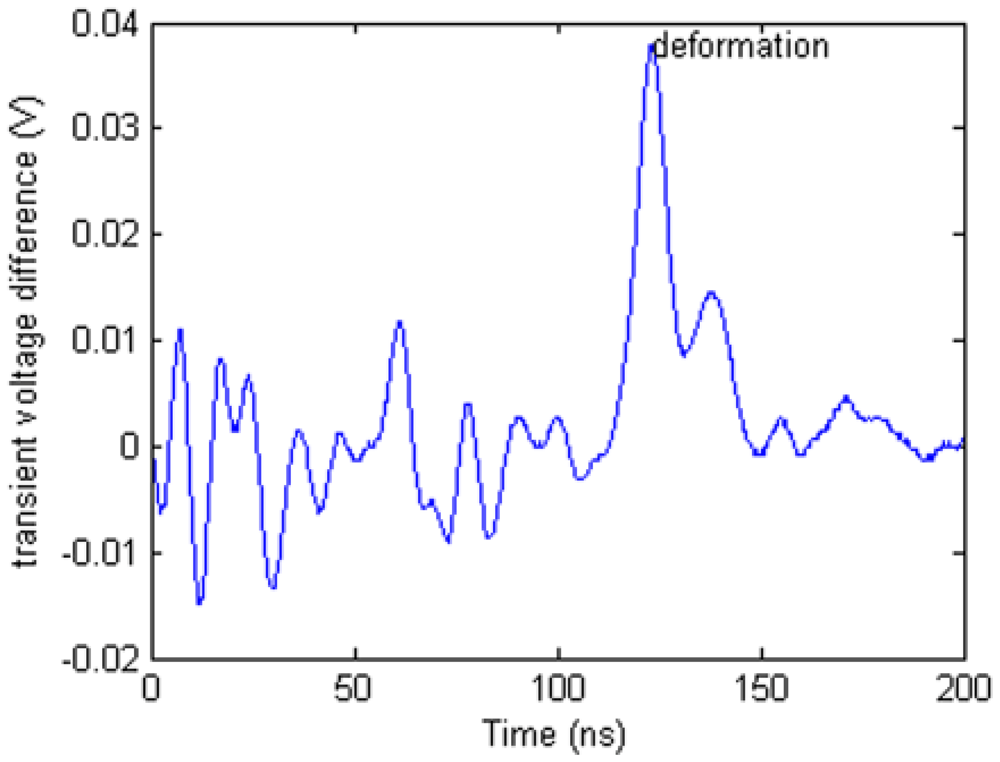

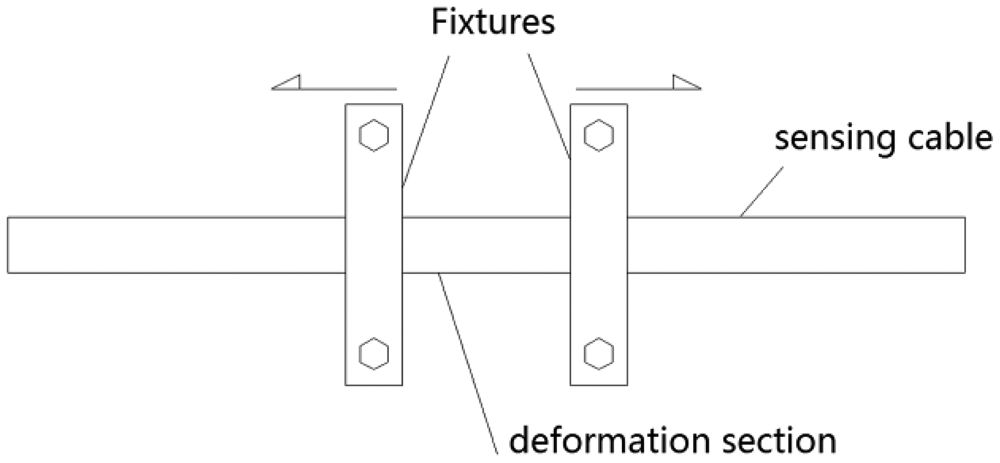

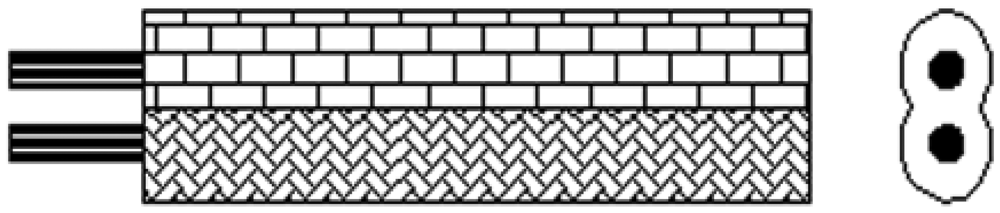

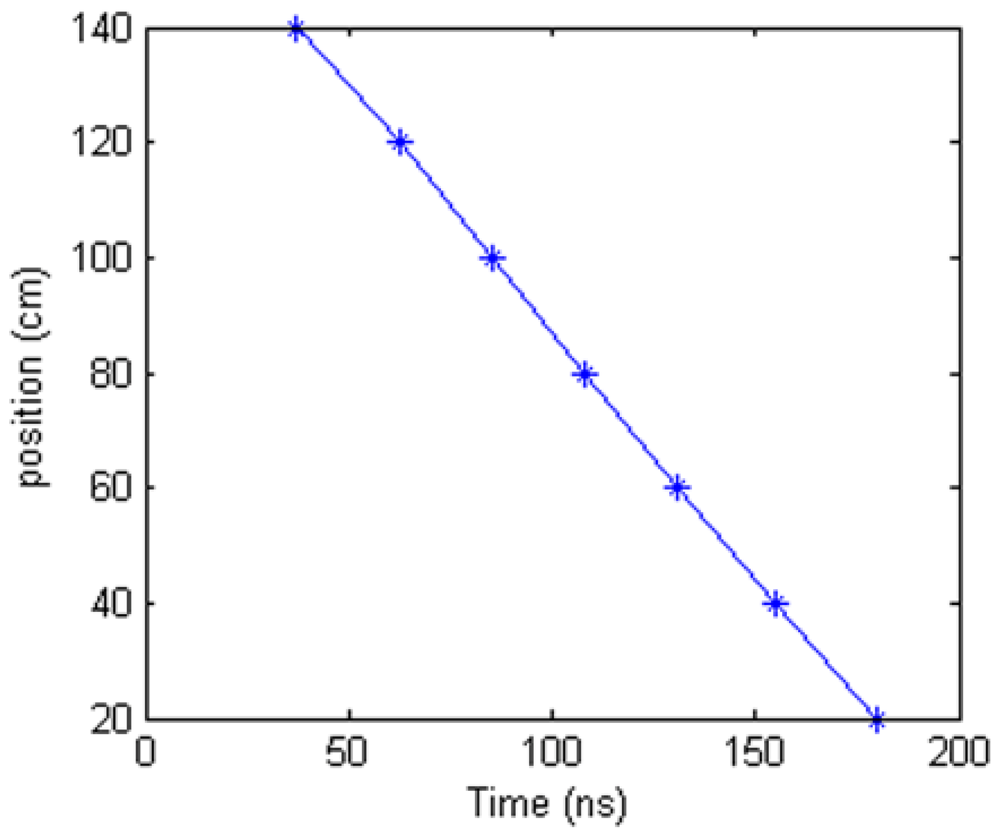

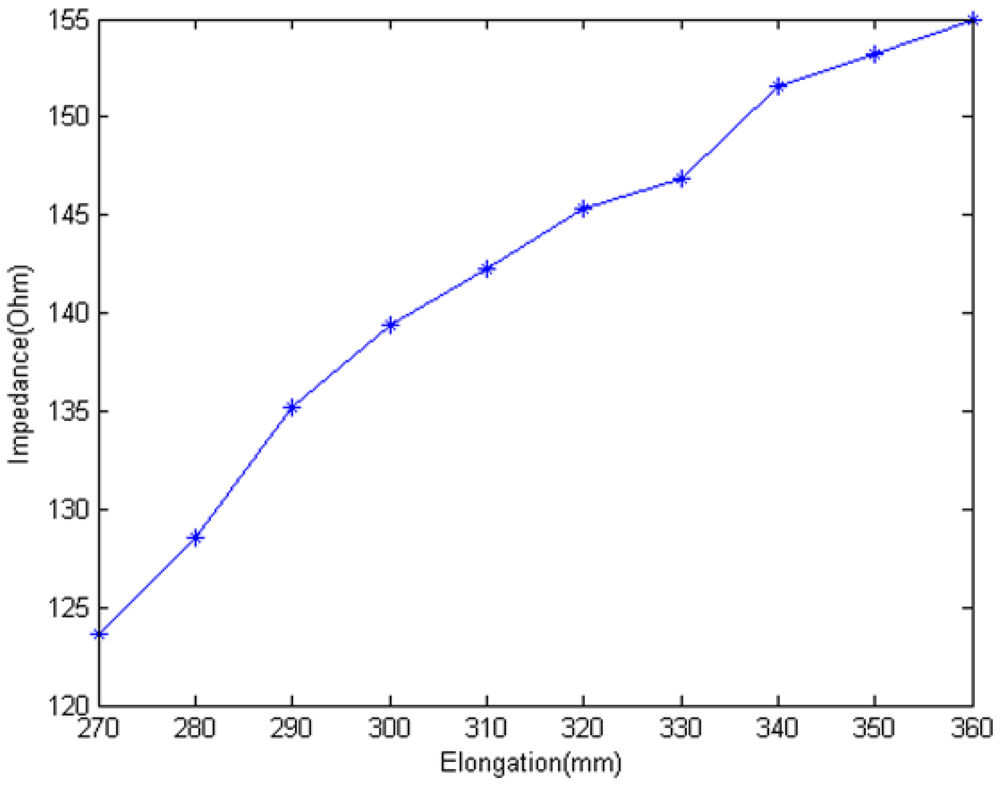

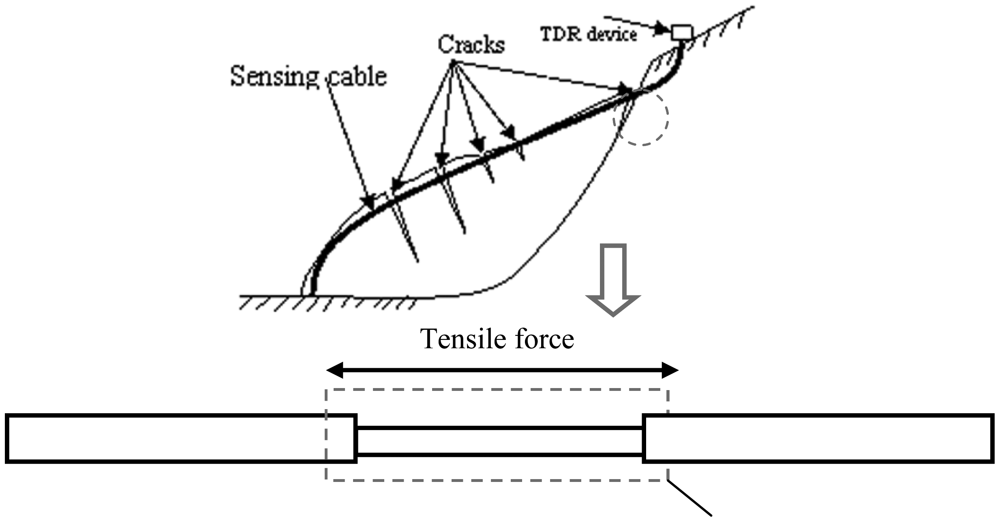

Abstract: In order to detect distributed ground surface deformation, an elastic helical structure Time Domain Reflectometry (TDR) sensing cable is shown in this paper. This special sensing cable consists of three parts: a silicone rubber rope in the center; a couple of parallel wires coiling around the rope; a silicone rubber pipe covering the sensing cable. By analyzing the relationship between the impedance and the structure of the sensing cable, the impedance model shows that the sensing cable impedance will increase when the cable is stretched. This specific characteristic is verified in the cable stretching experiment which is the base of TDR sensing technology. The TDR experiment shows that a positive reflected signal is created at the stretching deformation point on the sensing cable. The results show that the deformation section length and the stretching elongation will both affect the amplitude of the reflected signal. Finally, the deformation locating experiments show that the sensing cable can accurately detect the deformation point position on the sensing cable.
Keywords: elastic helical; distributed detection; TDR sensing cable; geological hazard monitoring
