Sensors 2012, 12(5), 6685-6694; doi:10.3390/s120506685

Article
Flexible Graphite-on-Paper Piezoresistive Sensors
Tian-Ling Ren 1,2,*, He Tian 1,2, Dan Xie 1,2 and Yi Yang 1,2
1
Institute of Microelectronics, Tsinghua University, Beijing 100084, China; E-Mails: tianh10@mails.tsinghua.edu.cn (H.T.); xiedan@tsinghua.edu.cn (D.X.); yiyang@tsinghua.edu.cn (Y.Y.)
2
Tsinghua National Laboratory for Information Science and Technology (TNList), Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed; E-Mail: RenTL@tsinghua.edu.cn; Tel.: +86-10-6278-9151 (ext. 311); Fax: +86-10-6277-1130.
Received: 20 March 2012; in revised form: 3 May 2012 / Accepted: 14 May 2012 /
Published: 22 May 2012

Abstract

: We demonstrate novel graphite-on-paper piezoresistive devices. The graphite was used as sensing component. The fabrication process can be finished in a short time with simple tools (e.g., a scissor and a pencil). A small array of six paper-based piezoresistive devices is made. The whole device is flexible. The test results showed that the change of resistance was proportional to the applied force. A paper-based weighing balance was also made as an example of applications. This novel array of paper-based piezoresistive devices will open wide applications in force and acceleration sensing areas.
Keywords:
flexible; paper-based; graphite; piezoresistive devices

1. Introduction

Flexible sensors and actuators are the cutting edge technology [117], which can interface well with humans and have wide applications in the medicine and biology areas. Conventional CMOS technology [18] uses silicon as the substrate, but the original silicon substrate can't be flexible. In order to be flexible, chemical-mechanical polishing is used to reduce the silicon substrate to submicron thickness [19], however this method is challenging and high cost. Despite recent attempts at utilizing polymer materials as flexible substrates [2024], the cost of these materials is still relatively high. In addition, the fabrication process needs to be done in clean room and takes several days. The high cost and complex process are the main drawbacks which have limited the applications and markets for flexible devices, so it is desirable to find a new low cost substrate material and develop a new process to easily fabricate flexible devices.

Due to the softness, lost cost and lightweight properties of paper materials, flexible devices can be made from them easily, such as paper-based sound source devices [25], microfluidics systems [26], etc. This may open a new venue of technologies. In particular Liu et al. have made pioneering contributions making paper-based sensors [27] to be inexpensive, simple to fabricate, lightweight, and disposable. Inspired by the work of the reference [27], we decide to conduct an in-depth study to improve the device performance to become more inexpensive, simpler to fabricate, more lightweight, and more disposable.

Here, we chose A4 paper (88 μm thick) as the substrate and developed a new process to fabricate flexible piezoresistive devices in a short time. Graphite is used as the sensing component. In order to realize good control of the shape of carbon resistor, pencil marks are directly drawn on the paper. In order to realize good electrical connections and shaped electrodes, copper foil was used as the electrode material. The fabrication process was reduced into less than half an hour of work with simple tools. The cost is just $0.01 per device. A small array of six paper-based force sensors is made. The whole device is flexible. A paper-based weighting balance is also made based on the same idea.

2. Experimental Section

2.1. Working Principle

The working principle of the paper-based force sensor is based on the piezoresistive effect. The conventional silicon-based force sensor usually uses a cantilever beam inducing strain/stress. Based on the piezoresistive effect, the strain/stress can be converted into a resistance change by the sensing component, which is easily detected by the electrical instrument. In order to realize a flexible system, a paper substrate is used instead. The paper cantilever beam is made to let the force apply on it. The graphite located on the cantilever beam functions as the sensing component. When force is applied on the cantilever beam, the stress of the beam will change sensitively.

2.2. Device Structure

The schematic structure of the paper-based force sensor is shown in Figure 1. In this structure, a graphite resistor is located at the root of the cantilever beam. When a force is applied to the beam structure, the graphite resistor will experience a mechanical strain/stress, which then induces a change in the resistance of the resistor. Measuring the change in resistance can reflect the magnitude of the applied force.

2.3. Fabrication Process

The fabrication process of the paper-based force sensors is shown in Figure 2. Firstly, A4 paper (88 μm thick) is used as the original substrate material. We fabricated paper cantilever beams by cutting the paper using scissors. We manually drew graphite resistors using B2 pencil, and applied contact pads using low-resistivity copper foil. Silver ink is used to enhance the electrical connection between the graphite resistors and the copper foil. The paper device was baked at 80 °C for 30 minutes. Fabricating a small array of six paper-based force sensors (Figure 3) typically takes less than one hour.

2.4. Test Platform

In order to apply force, we attach a wire to the cantilever beam. As shown in Figure 4, the wire connects with a plastic box, which can support weights. In order to detect the change in resistance of the sensor, a Keithley 2400 source meter is used for signal processing in our piezoresistive sensing systems.

3. Results and Discussion

3.1. Mechanical Properties of the Paper Cantilever Beam

The dimensions of the paper cantilever beam are 45 mm long, 8 mm wide and 88 μm thick. As shown in Figure 5, forces applied to the free end of a paper cantilever are measured as a function of the beam deflections. The stiffness of the paper cantilever was calculated to be 0.5 mN/mm. The Young's modulus of the paper material can also be calculated by using the beam equation [27]:

E = 4 L 3 F δ W H 3
where E is the Young's modulus of the paper material, F is the applied force, δ is the beam deflection, and E, W, and H are length, width, and thickness of the paper cantilever beam. The Young's modulus of the paper material was calculated to be 0.03 GPa, which is 5,000 times lower than that of silicon (typically, 150 GPa for single crystal silicon).

3.2. Electrical Properties of the Carbon Resistor

The current-voltage (I-V) characteristic of the carbon resistors was measured using the Keithley 2400 source meter under ambient conditions (25 °C temperature and 50% relative humidity). As shown in Figure 6, the measured resistors reveal a linear, ohmic I-V behavior, and the resistance of the resistors is 500 Ω.

3.3. Paper-Based Force Sensor

Figure 7(a) shows a sensitivity curve of resistance as a function of the applied force. The range of force measurement was 50 mN, and the resolution of force measurement was 500 μN. In order to convert the change in resistance of the sensor into a more readable electrical signal (voltage), a Wheatstone bridge circuit is commonly used for signal processing in MEMS piezoresistive sensing systems. Figure 7(b) illustrates a calibration curve of the paper-based sensor with an integrated Wheatstone bridge circuit. The operate voltage of the Wheatstone bridge circuit is 5 V. The sensitivity of the sensor was 0.9 mV/mN.

3.4. Paper-Based Weighting Balance

A paper-based weighting balance is also developed using the same working principle. As shown in Figure 8(a), four sides of paper-based force sensing beams can combine together to form a weighing balance. When an object was placed on the top of the weighting plate, its gravity will induce stress/stain on the sensing beams. Figure 8(b) is the top view photograph of a balance prototype, where four force sensing beams are combined together. An actual image of this prototype is shown in Figure 8(c).

We calibrated the balance by measuring the change in resistance of the graphite resistor from one sensing beam as a function of the applied weight (Figure 9(a)). As shown in Figure 9(b), the measurement range of the balance was 20 g, and the measurement resolution was 50 mg.

3.5. Comparison of Our Paper-Based Sensor with Other's Work

Compared with the Liu's pioneering work using paper in reference [27], we have made in-depth work to improve the device to become more inexpensive, simpler to fabricate, more lightweight, and more disposable. We have listed the originality of this work compared with the previous studies in Table 1.

4. Conclusions

In this work, we have demonstrated flexible paper-based force sensors. A4 paper (88 μm thick) was used as the substrate. Graphite was used as the sensing component. In order to realize good control of the shape of carbon resistor, pencil traces were directly drawn on the paper. In order to realize good electrical connection and shaped electrodes, copper foil was used. The fabrication process can be finished in a short time with simple tools (e.g., scissors and a pencil), without the need of a clean room. The cost is just $0.01 per device. A small array of six paper-based piezoresistive devices was made. The whole device was flexible. The test results show that the change of resistance was proportional to the force applied. A paper-based weighting balance was also made as an example of applications. This novel array of paper-based piezoresistive devices should open wide applications in the force and acceleration sensing areas.

This work is supported by National Natural Science Foundation (61025021, 60936002, 51072089), and National Key Project of Science and Technology (2009ZX02023-001-3, 2011ZX02403-002).

References

  1. Cochrane, C.; Koncar, V.; Lewandowski, M.; Dufour, C. Design and development of a flexible strain sensor for textile structures based on a conductive polymer composite. Sensors 2007, 7, 473–492. [Google Scholar]
  2. Cochrane, C.; Lewandowski, M.; Koncar, V. A flexible strain sensor based on a conductive polymer composite for in situ measurement of parachute canopy deformation. Sensors 2010, 10, 8291–8303. [Google Scholar]
  3. Desai, M.M.; Aron, M.; Gill, I.S.; Pascal-Haber, G.; Ukimura, O.; Kaouk, J.H.; Stahler, G.; Barbagli, F.; Carlson, C.; Moll, F. Flexible robotic retrograde renoscopy: Description of novel robotic device and preliminary laboratory experience. Urology 2008, 72, 42–46. [Google Scholar]
  4. Deutsch, F. Flexible coupling and overload safety device. J. Sci. Instrum. 1961. [Google Scholar] [CrossRef]
  5. Duarte, J.; del Canizo, J.F.; Antoranz, J.C. Flexible input cannula in ventricular assist device. Ann. Thorac. Surg. 2000, 69, 976–976. [Google Scholar]
  6. Glette, K.; Torresen, J. A flexible on-chip evolution system implemented on a xilinx virtex-ii pro device. Lect. Notes Comput. Sci. 2005, 3637, 66–75. [Google Scholar]
  7. Glynne-Jones, P.; Boltryk, R.J.; Hill, M.; Zhang, F.; Dong, L.Q.; Wilkinson, J.S.; Melvin, T.; Harris, N.R.; Brown, T. Flexible acoustic particle manipulation device with integrated optical waveguide for enhanced microbead assays. Anal. Sci. 2009, 25, 285–291. [Google Scholar]
  8. Hohne, D.N.; Younger, J.G.; Solomon, M.J. Flexible microfluidic device for mechanical property characterization of soft viscoelastic solids such as bacterial biofilms. Langmuir 2009, 25, 7743–7751. [Google Scholar]
  9. Hong, S.K.; Kim, J.E.; Kim, S.O.; Choi, S.Y.; Cho, B.J. Flexible resistive switching memory device based on graphene oxide. IEEE Electron. Dev. Lett. 2010, 31, 1005–1007. [Google Scholar]
  10. Hwang, E.S.; Yoon, Y.R.; Yoon, H.R.; Shin, T.M.; Kim, Y.J. Flexible contact force sensing device using metal/polymer multilayer structure for robotic applications. Sens. Mater. 2008, 20, 55–69. [Google Scholar]
  11. Iftikhar, N.; Pedersen, T.B. Flexible exchange of farming device data. Comput. Electron. Agric. 2011, 75, 52–63. [Google Scholar]
  12. Jeong, H.Y.; Kim, Y.I.; Lee, J.Y.; Choi, S.Y. A low-temperature-grown tio(2)-based device for the flexible stacked rram application. Nanotechnology 2010. [Google Scholar] [CrossRef]
  13. Kawamura, M.; Tanaka, Y.; Kita, T.; Wada, O.; Nakamura, H.; Yanagi, H.; Magario, A.; Noguchi, T. Flexible field emission device using carbon nanofiber nanocomposite sheet. Appl. Phys. Express 2008, 1, 074004:1–074004:3. [Google Scholar]
  14. Kim, G.; Kim, K.I.; Yang, S.S.; Oh, S.G. A micromachined flexible hollow cathode discharge device. Jpn. J. Appl. Phys. 2009, 48, 06FK07:1–06FK07:4. [Google Scholar]
  15. Kim, J.M.; Nam, T.; Lim, S.J.; Seol, Y.G.; Lee, N.E.; Kim, D.; Kim, H. Atomic layer deposition zno:N flexible thin film transistors and the effects of bending on device properties. Appl. Phys. Lett. 2011, 98. [Google Scholar] [CrossRef]
  16. Kim, M.J.; Shin, D.W.; Kim, J.Y.; Park, S.H.; Han, I.T.; Yoo, J.B. The production of a flexible electroluminescent device on polyethylene terephthalate films using transparent conducting carbon nanotube electrode. Carbon 2009, 47, 3461–3465. [Google Scholar]
  17. Kim, S.; Kwon, H.J.; Lee, S.; Shim, H.; Chun, Y.; Choi, W.; Kwack, J.; Han, D.; Song, M.; Kim, S.; Mohammadi, S.; Kee, I.; Lee, S.Y. Low-power flexible organic light-emitting diode display device. Adv. Mater. 2011, 23, 3511–3516. [Google Scholar]
  18. Fedder, G.K.; Santhanam, S.; Reed, M.L.; Eagle, S.C.; Guillou, D.F.; Lu, M.S.C.; Carley, L.R. Laminated high-aspect-ratio microstructures in a conventional cmos process. Sens. Actuators A 1996, 57, 103–110. [Google Scholar]
  19. Ju, Y.S.; Goodson, K.E. Phonon scattering in silicon films with thickness of order 100 nm. Appl. Phys. Lett. 1999, 74, 3005–3007. [Google Scholar]
  20. Vo, D.Q.; Shin, E.W.; Kim, J.S.; Kim, S. Low-temperature preparation of highly conductive thin films from acrylic acid-stabilized silver nanoparticles prepared through ligand exchange. Langmuir 2010, 26, 17435–17443. [Google Scholar]
  21. Ferrell, N.; Yang, Y.Y.; Hansford, D.J. Micropatterning of sulfonated polyaniline using a soft lithography based lift-off process. Microsyst. Technol. 2010, 16, 1951–1956. [Google Scholar]
  22. He, Y.; Wang, J.A.; Zhang, W.F.; Song, J.Z.; Pei, C.L.; Chen, X.B. Zno-nanowires/pani inorganic/organic heterostructure light-emitting diode. J. Nanosci. Nanotechnol. 2010, 10, 7254–7257. [Google Scholar]
  23. Hong, S.H.; Bae, B.J.; Lee, H.; Jeong, J.H. Fabrication of high density nano-pillar type phase change memory devices using flexible aao shaped template. Microelectron. Eng. 2010, 87, 2081–2084. [Google Scholar]
  24. Kondo, Y.; Tanabe, H.; Otake, T. Novel electrochromic polymer for electronic paper. IEICE Trans. Electron. 2010, E93–C, 1602–1606. [Google Scholar]
  25. Tian, H.; Ren, T.L.; Xie, D.; Wang, Y.F.; Zhou, C.J.; Feng, T.T.; Fu, D.; Yang, Y.; Peng, P.G.; Wang, L.G.; Liu, L.T. Graphene-on-paper sound source devices. ACS Nano 2011, 5, 4878–4885. [Google Scholar]
  26. Martinez, A.W.; Phillips, S.T.; Whitesides, G.M. Three-dimensional microfluidic devices fabricated in layered paper and tape. Proc. Natl. Acad. Sci. USA 2008, 105, 19606–19611. [Google Scholar]
  27. Liu, X.Y.; Mwangi, M.; Li, X.J.; O'Brien, M.; Whitesides, G.M. Paper-based piezoresistive mems sensors. Lab Chip 2011, 11, 2189–2196. [Google Scholar]
Sensors 12 06685f1 1024

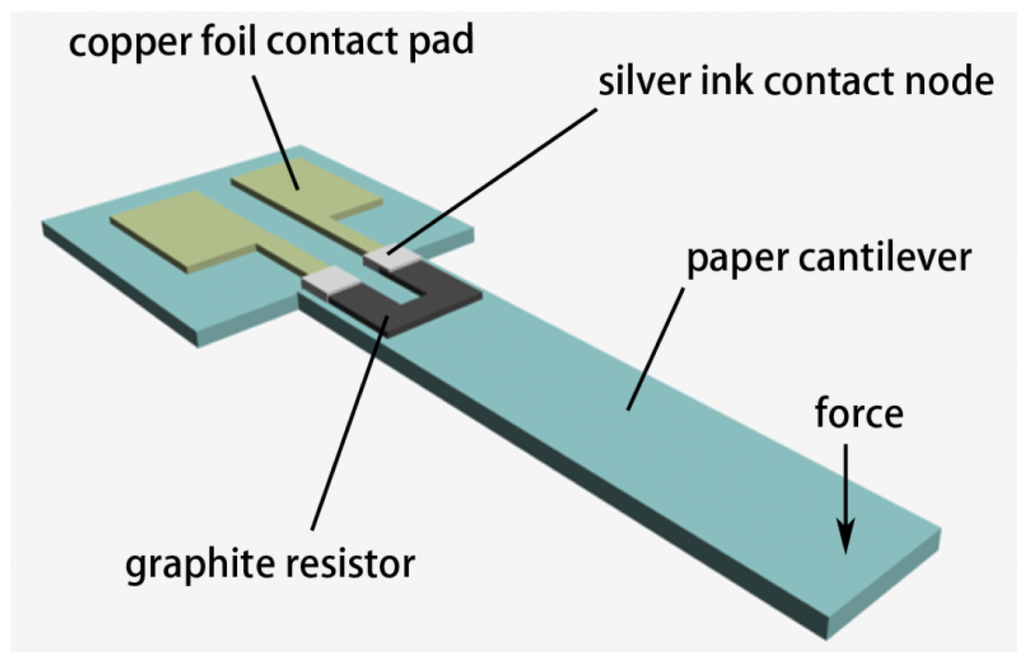

Figure 1. Schematic structure of a paper-based force sensor. Graphite is used as the sensing component.

Click here to enlarge figure

Figure 1. Schematic structure of a paper-based force sensor. Graphite is used as the sensing component.
Sensors 12 06685f1 1024
Sensors 12 06685f2 1024

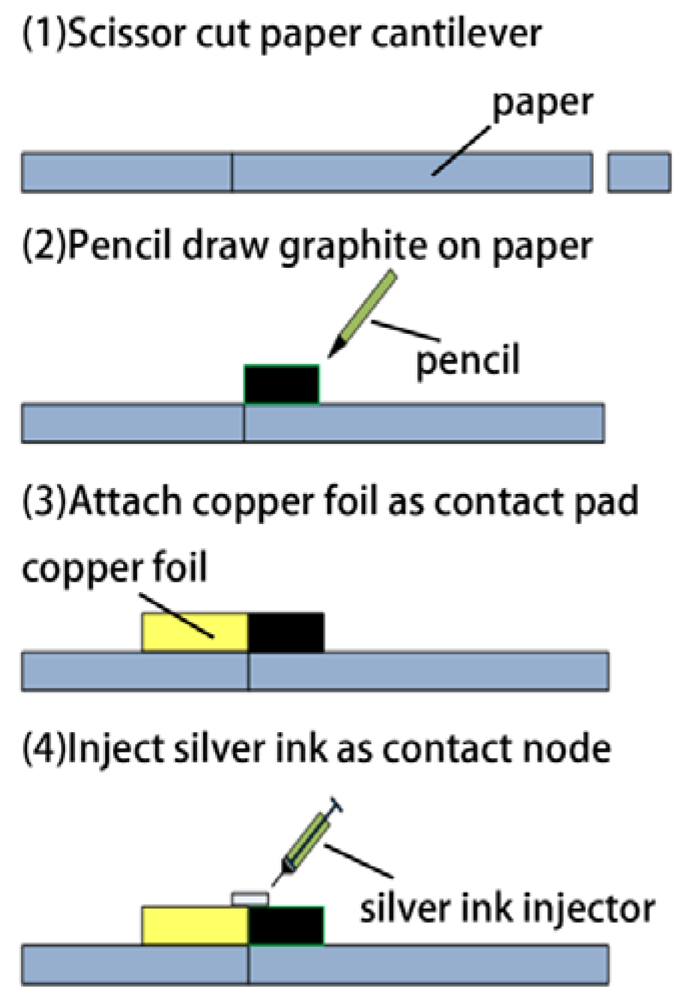

Figure 2. Fabrication process of the paper-based force sensors.

Click here to enlarge figure

Figure 2. Fabrication process of the paper-based force sensors.
Sensors 12 06685f2 1024
Sensors 12 06685f3 1024

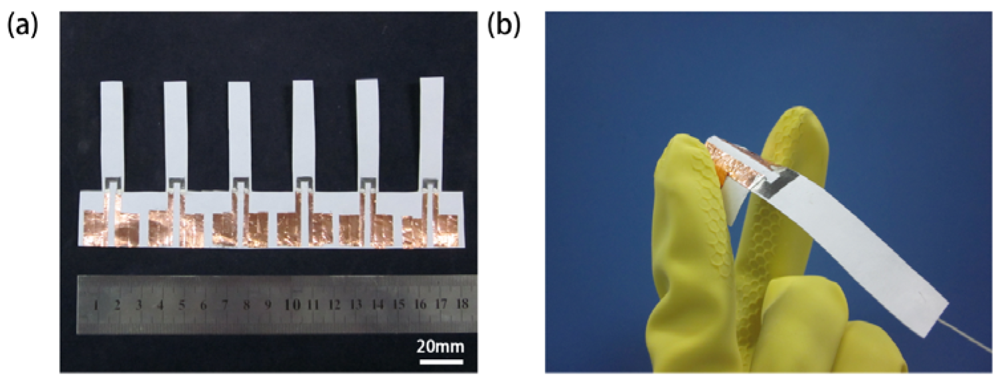

Figure 3. A photograph of paper-based piezoresistive devices. (a) A small array of six paper-based piezoresistive devices; and (b) A flexible paper-based piezoresistive device.

Click here to enlarge figure

Figure 3. A photograph of paper-based piezoresistive devices. (a) A small array of six paper-based piezoresistive devices; and (b) A flexible paper-based piezoresistive device.
Sensors 12 06685f3 1024
Sensors 12 06685f4 1024
Figure 4. The test bench of the paper-based piezoresistive devices.

Click here to enlarge figure

Figure 4. The test bench of the paper-based piezoresistive devices.
Sensors 12 06685f4 1024
Sensors 12 06685f5 1024

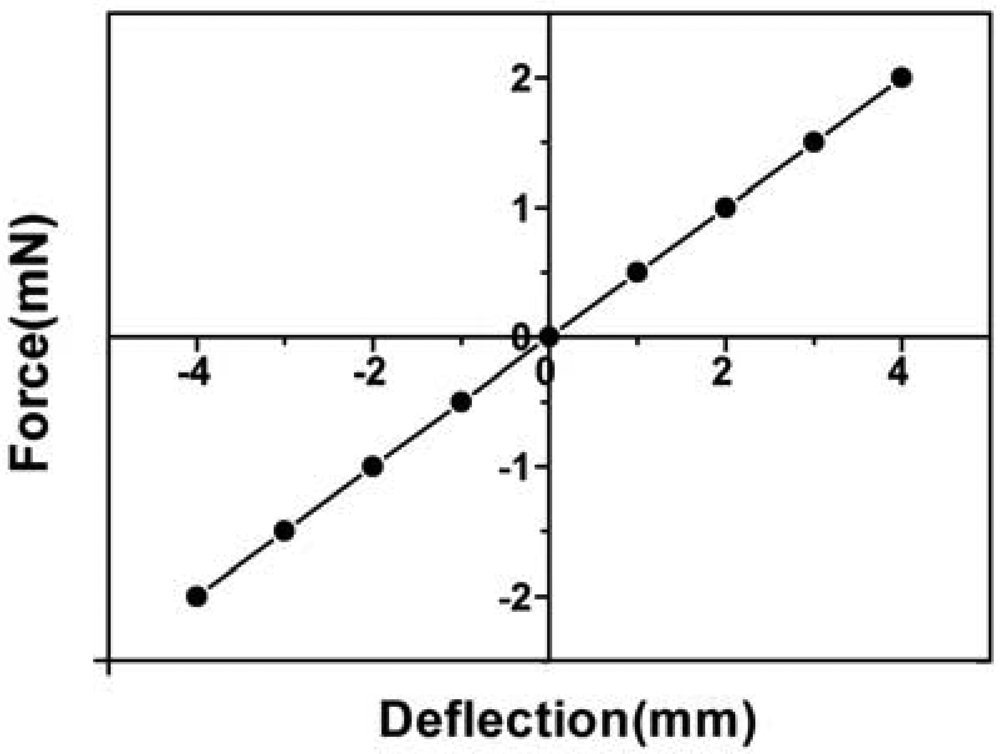

Figure 5. The mechanical properties of the paper cantilever beam.

Click here to enlarge figure

Figure 5. The mechanical properties of the paper cantilever beam.
Sensors 12 06685f5 1024
Sensors 12 06685f6 1024

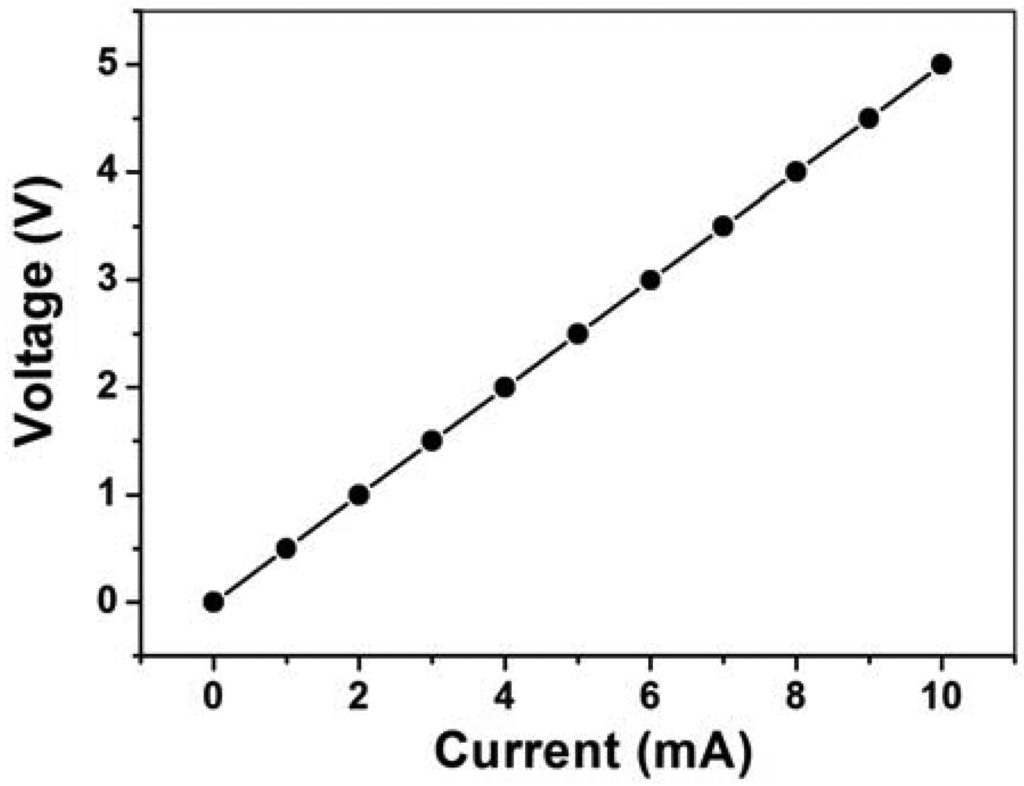

Figure 6. The electrical properties of the carbon resistor.

Click here to enlarge figure

Figure 6. The electrical properties of the carbon resistor.
Sensors 12 06685f6 1024
Sensors 12 06685f7 1024
Figure 7. The test results of paper-based piezoresistive devices. (a) The plot of the relative resistance change vs. the applied force. (b) The plot of the output voltage vs. the applied force.

Click here to enlarge figure

Figure 7. The test results of paper-based piezoresistive devices. (a) The plot of the relative resistance change vs. the applied force. (b) The plot of the output voltage vs. the applied force.
Sensors 12 06685f7 1024
Sensors 12 06685f8 1024
Figure 8. A paper-based weighting balance. (a) Schematic cross section of the device; (b) Schematic 3D structure of the device; and (c) Photograph of the device.

Click here to enlarge figure

Figure 8. A paper-based weighting balance. (a) Schematic cross section of the device; (b) Schematic 3D structure of the device; and (c) Photograph of the device.
Sensors 12 06685f8 1024
Sensors 12 06685f9 1024

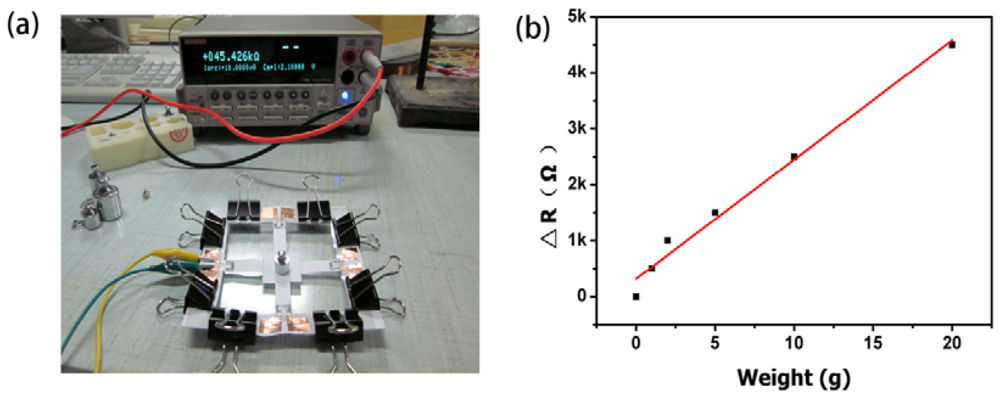

Figure 9. Test bench and test results of paper-based weighting balance. (a) The test bench is used to test the change of resistance when the device is applied with different weighting magnitude; and (b) Plot of the relative resistance change vs. the applied weight.

Click here to enlarge figure

Figure 9. Test bench and test results of paper-based weighting balance. (a) The test bench is used to test the change of resistance when the device is applied with different weighting magnitude; and (b) Plot of the relative resistance change vs. the applied weight.
Sensors 12 06685f9 1024
Table Table 1. Comparison of specifications of our paper-based MEMS sensor to the Liu's work in Reference [27].

Click here to display table

Table 1. Comparison of specifications of our paper-based MEMS sensor to the Liu's work in Reference [27].
SpecificationsPaper-Based MEMS Sensor (This Work)Paper-Based MEMS Sensor (Reference [27])
SubstrateA4 paper (88 μm thick)Whatman 3MM chromatography paper (340 mm thick)
Parrten method for substrateScissorLaser equipment
Beam size (L × W × H)45 mm × 8 mm × 0.088 mm44.5 mm × 7.7 mm × 0.34 mm
Beam stiffness0.5 mN·mm−12 mN·mm−1
Natural frequency∼15 Hz∼25 Hz
Force range50 mN16 mN
Force resolution500 μN120 μN
Sensitivity0.9 mV/mN0.84 mV/mN
Sensing materialGraphite pencilGraphite ink
Parrten method for sensing materialDirectly draw carbon resistor by using pencilScreen print carbon resistor by using stencil
Electrode materialCopper foilSilver ink
Fabrication process<half an hour in any place<1 hour in laboratory
Device cost$0.01 per device$0.04 per device
