Sensors 2012, 12(2), 2162-2174; doi:10.3390/s120202162

A Highly Sensitive CMOS Digital Hall Sensor for Low Magnetic Field Applications

1
School of Electronic Science & Engineering, Nanjing University, Nanjing 210093, China
2
College of Electronic Science & Engineering, Nanjing University of Posts and Telecommunications, Nanjing 210003, China
*
Author to whom correspondence should be addressed.
Received: 22 December 2011 / Revised: 20 January 2012 / Accepted: 21 January 2012 / Published: 15 February 2012
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [366 KB, uploaded 21 June 2014]   |

Abstract

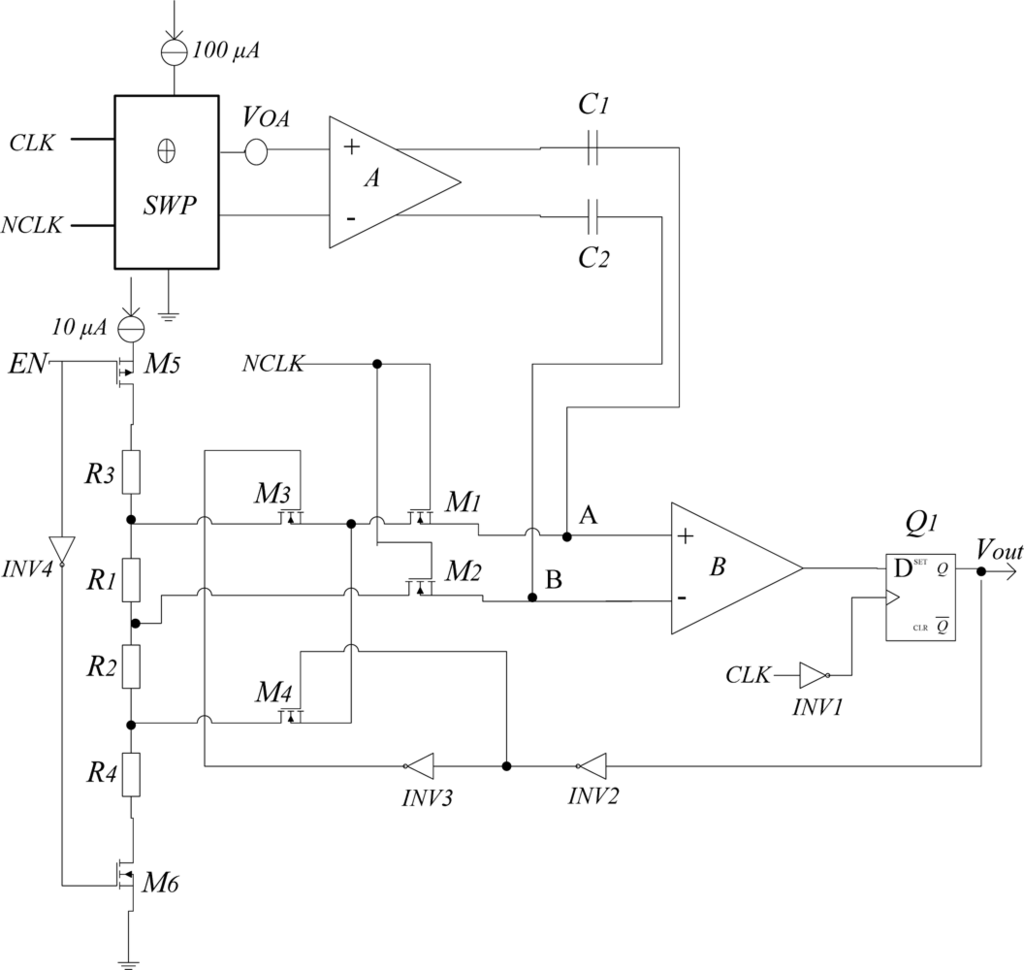

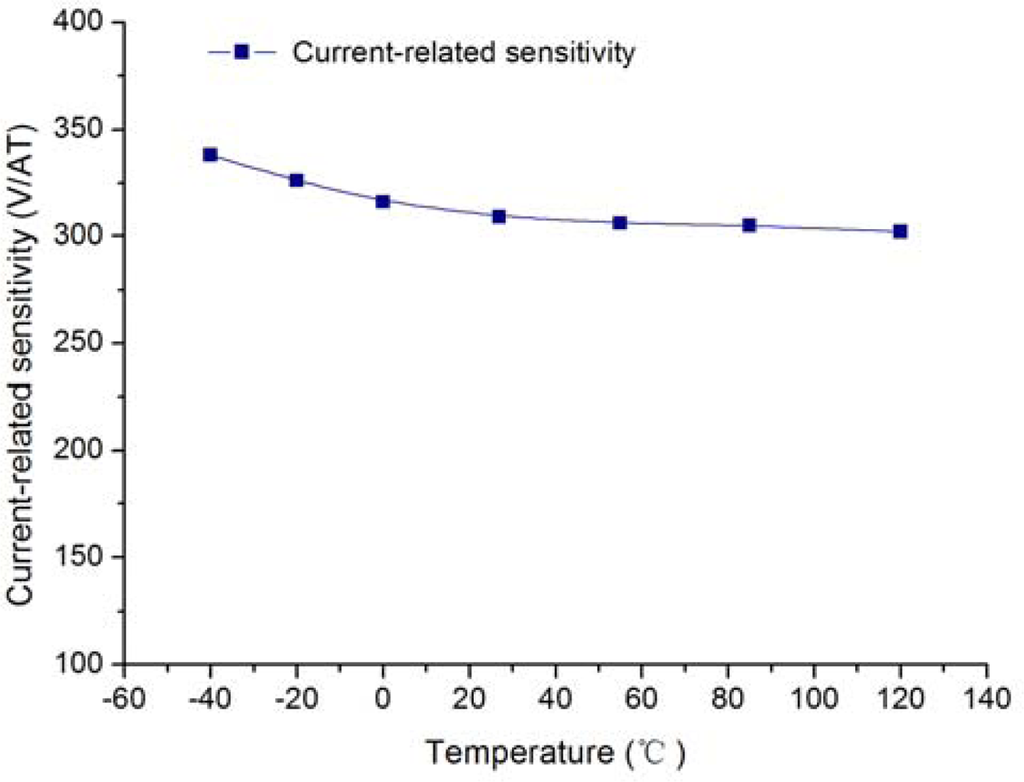

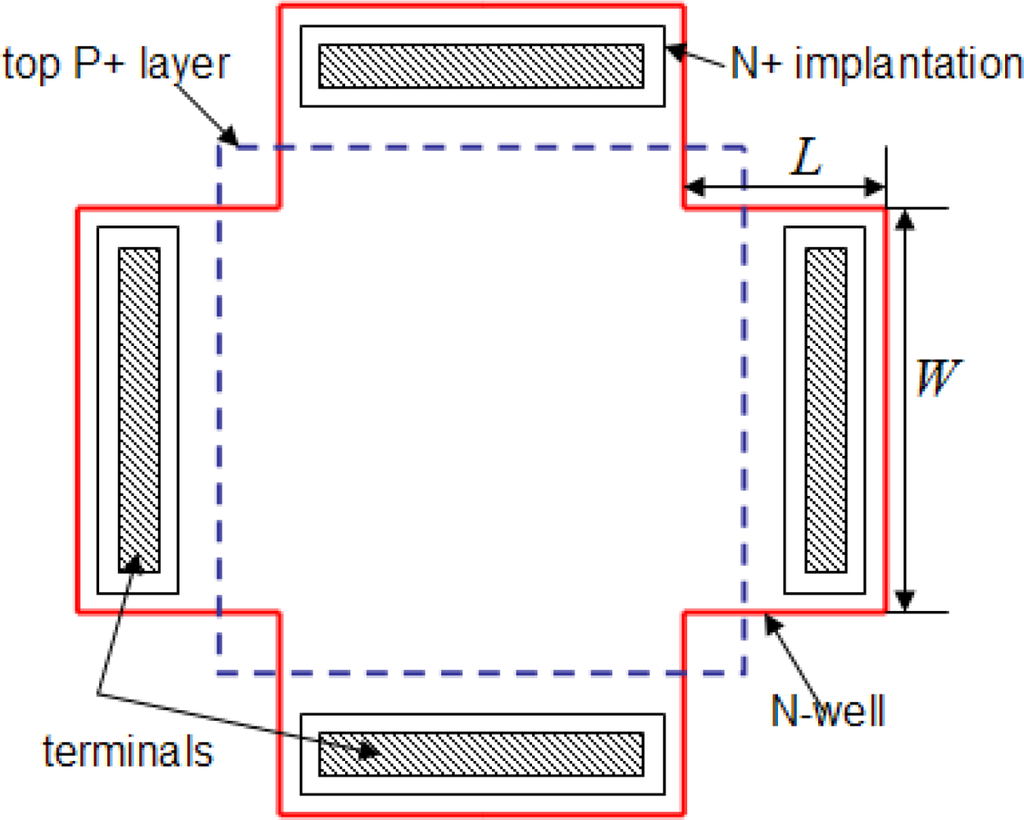

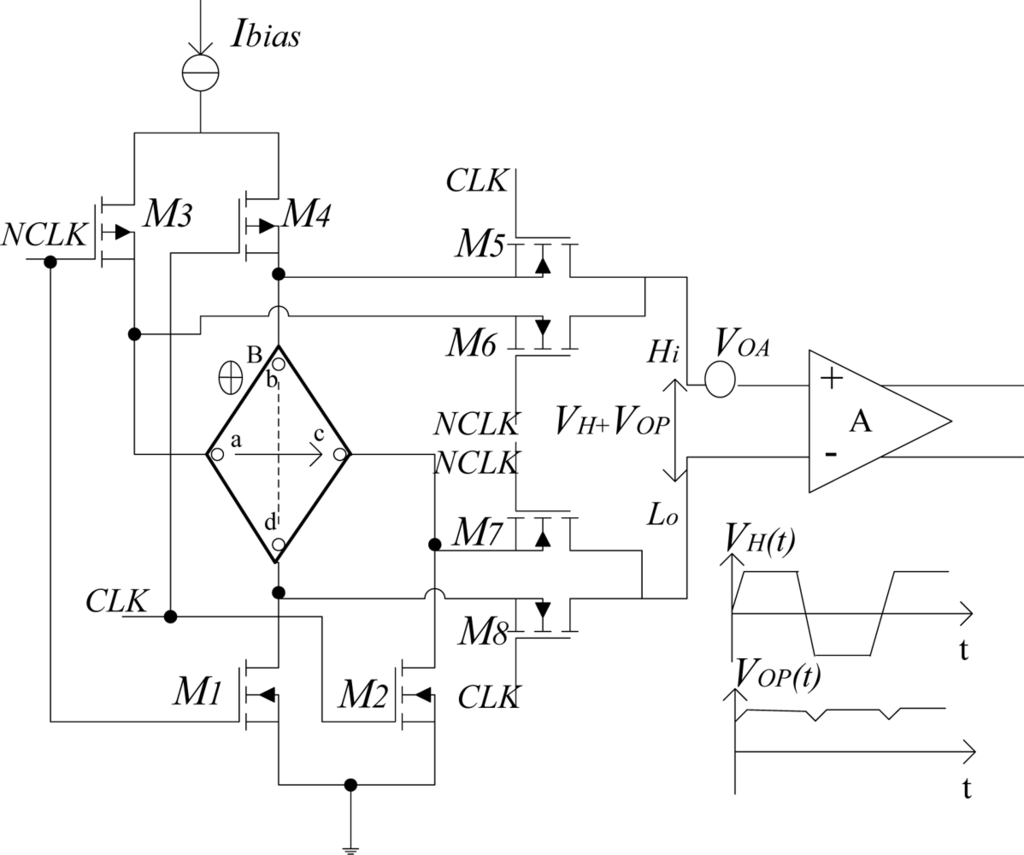

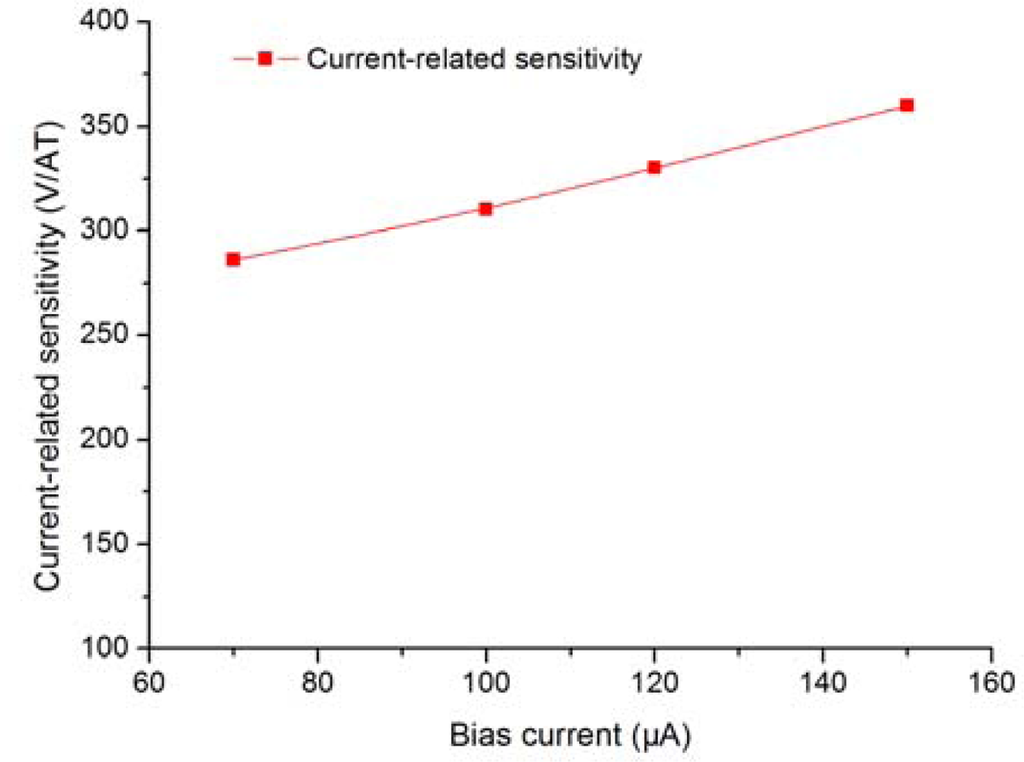

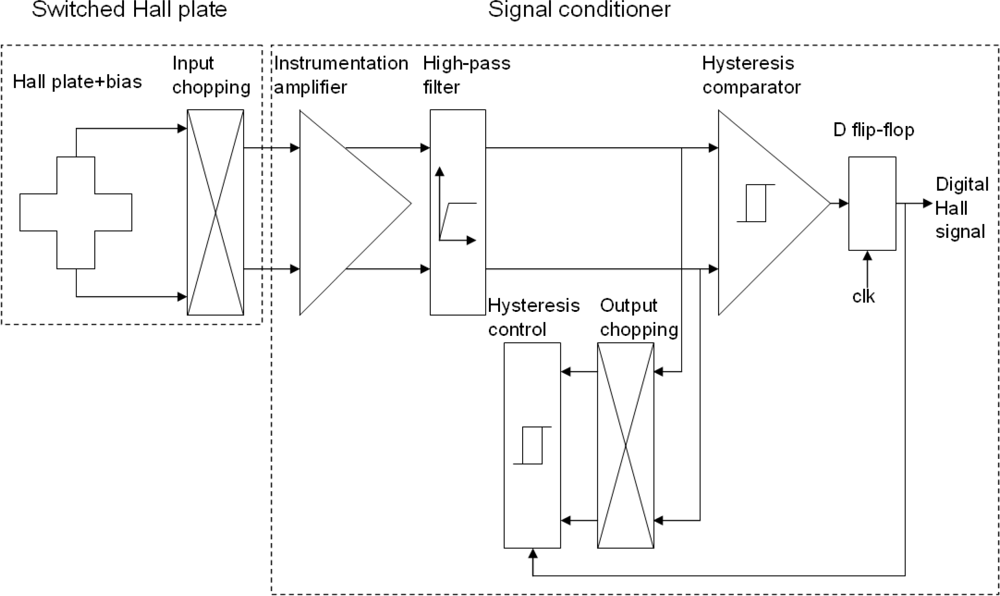

Integrated CMOS Hall sensors have been widely used to measure magnetic fields. However, they are difficult to work with in a low magnetic field environment due to their low sensitivity and large offset. This paper describes a highly sensitive digital Hall sensor fabricated in 0.18 μm high voltage CMOS technology for low field applications. The sensor consists of a switched cross-shaped Hall plate and a novel signal conditioner. It effectively eliminates offset and low frequency 1/f noise by applying a dynamic quadrature offset cancellation technique. The measured results show the optimal Hall plate achieves a high current related sensitivity of about 310 V/AT. The whole sensor has a remarkable ability to measure a minimum ±2 mT magnetic field and output a digital Hall signal in a wide temperature range from −40 °C to 120 °C. View Full-Text
Keywords: Hall sensor; CMOS technology; dynamic offset cancellation; chopped technique Hall sensor; CMOS technology; dynamic offset cancellation; chopped technique
