Simple, Fast and Selective Detection of Adenosine Triphosphate at Physiological pH Using Unmodified Gold Nanoparticles as Colorimetric Probes and Metal Ions as Cross-Linkers
Dehua Deng 1, Ning Xia 1,2,*, Sujuan Li 1, Chunying Xu 1, Ting Sun 1, Huan Pang 1,* and Lin Liu 1,*
1
College of Chemistry and Chemical Engineering, Anyang Normal University, Anyang 455000, Henan, China; E-Mails: ddh@aynu.edu.cn (D.D.); lisujuan1981@gmail.com (S.L.); chunyingxu@126.com (C.X.); sunt725726@163.com (T.S.)
2
College of Chemistry and Chemical Engineering, Central South University, Changsha 410083, Hunan, China
*
Authors to whom correspondence should be addressed; E-Mails: xianing82414@csu.edu.cn (N.X.); huanpang@hotmail.com (H.P.); liulin@aynu.edu.cn (L.L.); Tel.: +86-732-3300-297 (N.X.).
Received: 8 October 2012; in revised form: 24 October 2012 / Accepted: 2 November 2012 /
Published: 6 November 2012

Abstract

: We report a simple, fast and selective colorimetric assay of adenosine triphosphate (ATP) using unmodified gold nanoparticles (AuNPs) as probes and metal ions as cross-linkers. ATP can be assembled onto the surface of AuNPs through interaction between the electron-rich nitrogen atoms and the electron-deficient surface of AuNPs. Accordingly, Cu2+ ions induce a change in the color and UV/Vis absorbance of AuNPs by coordinating to the triphosphate groups and a ring nitrogen of ATP. A detection limit of 50 nM was achieved, which is comparable to or lower than that achievable by the currently used electrochemical, spectroscopic or chromatographic methods. The theoretical simplicity and high selectivity reported herein demonstrated that AuNPs-based colorimetric assay could be applied in a wide variety of fields by rationally designing the surface chemistry of AuNPs. In addition, our results indicate that ATP-modified AuNPs are less stable in Cu2+, Cd2+ or Zn2+-containing solutions due to the formation of the corresponding dimeric metal-ATP complexes.
Keywords:
gold nanoparticles; adenosine triphosphate; colorimetric assay; metal ions

1. Introduction

Adenosine triphosphate (ATP) is known to be the universal energy currency in all biological systems and to contribute to cell metabolism, biochemical reactions and active transport. Measurement of cellular ATP level is crucial as this allows us to assess its metabolic state and the degree of contamination of food and medical instruments [1]. For the accurate detection of ATP, the currently used methods, such as high performance liquid chromatography (HPLC) [2], chemiluminescence [3], fluorescence [4], electrochemistry [5], mass spectrometry [6], and enzymatic assays [7], are usually time-consuming, lacking sensitivity or needing complicated instruments. In addition, ATP is an unstable molecule that rapidly hydrolyses to adenosine diphosphate (ADP) and phosphate. Thus, development of a simple, fast and selective ATP detection method remains a great challenge. Recently, molecular-recognition and sensing systems for biological species analysis has attracted much attention from researchers and some aptamer methods have been established for the detection of ATP [820]. Unfortunately, these sensors display low selectivity and/or sensitivity or require relatively complicated processes for ATP detection.

Due to the unique size-dependent optical properties of gold nanoparticles (AuNPs), AuNP-based colorimetric assays have been widely applied in a variety of research fields, such as the screening of kinase activity and the measurement of the concentrations of nucleic acid, proteins, metal ions and other small molecules [2130]. Such methods are very promising in that they involve very simple sample handling procedures and minimum instrumental investments and can be conducted in the field with portable devices. Herein, we report the simple, fast and selective detection of ATP based on the aggregation and color change of AuNPs. This method is based on the following facts: (1) the adenine group of ATP can absorb onto the surface of AuNPs by coordinating interactions between the electron-rich nitrogen atoms and the electron-deficient surface of AuNPs [3134], and (2) ATP is prone to form dimeric [M2(ATP)]2 complexes, where M represents a bivalent metal ion (e.g., Cd2+, Cu2+ and Zn2+) [3539]. Aggregation and color change of the AuNPs were anticipated to occur when ATP and Cu2+ were supplemented successively to a solution of AuNPs. The present method is selective to ATP and is much faster and simpler than the existing methods, without the need for expensive and complicated instruments.

2. Experimental Section

2.1. Apparatus

The photographs were taken with a Sony Cyber-shot digital camera. The UV/Vis spectra were recorded using a Cary 50 spectrophotometer with a 1 cm quartz spectrophotometer cell. The morphology of AuNPs was observed by a FEI Tecnai G2 T20 transmission electron microscope (TEM). Deionized water was purified by a Millipore system (Simplicity Plus, Millipore Corp.).

2.2. Reagents

ATP, adenosine diphosphate (ADP), adenosine monophosphate (AMP), guanosine triphosphate (GTP), cytidine triphosphate (CTP), NTP mixture and boric acid were purchased from Sangon Biotech Co., Ltd. (Shanghai, China). Other reagents were obtained from Beijing Chemicals, Ltd. (Beijing, China). All of the chemicals were analytical-grade reagents and were used without further purification. Phosphate (NaH2PO4 and Na2HPO4) was used to adjust the pH of boric acid to the desired values, as reported previously [40,41]. NTP mixture was diluted 1,000 fold with borate buffer before assay.

2.3. Synthesis of AuNPs

All glassware used in the following procedures was cleaned in a bath of freshly prepared 1:3 HNO3–HCl, rinsed thoroughly with water and dried in air prior to use. The citrated-stabilized AuNPs were prepared using a trisodium citrate reduction method as reported previously [42]. Briefly, trisodium citrate (5 mL, 38.8 mM) was rapidly added to a boiling solution of HAuCl4 (50 mL, 1 mM), and the solution was boiled continually for an additional 30 min to yield a wine-red solution. After filtering the solution through a 0.45-μm membrane filter to remove the precipitate, the filtrate was stored in a refrigerator at 4 °C for use.

2.4. Detection of ATP

A 500 μL dispersion of AuNPs was added to 1 mL 5 mM buffer solution (pH 7.0). ATP at the desired concentration was introduced into the AuNP solution. The incubation time for AuNPs and ATP was 15 min at shake. Then, 30 μM Cu2+ was added to the ATP-containing AuNPs solution. Color change and absorption spectra were observed with the naked eye and recorded with UV/Vis spectrometer, respectively. Reaction and detection were conducted at room temperature.

3. Results and Discussion

3.1. Mechanism of ATP Detection

Recently, unmodified AuNPs have been applied to detect DNA, metal ions and other small molecules as a simple, fast and label-free colorimetric method [26,4347]. The ring nitrogen of hybrid aromatics and primary amines with electron-rich nitrogen atoms are more likely to be bound onto the surface of metal nanoparticles through the coordinating interactions with the electron-deficient surface of metal nanoparticles [43]. ATP with multiple binding sites, including one exocyclic amino group and/or two double-nitrogen hybrid rings, can strongly coordinate to AuNPs by ligand exchange with weakly surface-bound citrate ions [32]. Metal ions, especially Cu2+, Cd2+ and Zn2+, can form dimeric metal-ATP complexes by coordinating to the triphosphate groups and an adenine ring nitrogen [39]. The stability of AuNPs will decrease drastically after the addition of ATP and Cu2+, resulting in the occurrence of AuNP aggregation (Figure 1). The molecular linker-based aggregation offers a possible approach to a simple and fast colorimetric assay for the detection of ATP, which does not require specific acceptors.

3.2. Color Assay for ATP

As shown in Figure 2, the AuNPs were red in color and exhibited an absorption peak at 520 nm (A520), which was ascribed to its surface plasmon resonance (vial 1 and black curve). No obvious change was observed upon the addition of ATP (vial 2) or Cu2+ (vial 3) alone. However, when ATP and Cu2+ successively were added to an aqueous suspension of AuNPs, an obvious color change from red to blue was observed (vial 4). Meanwhile, the ATP-induced aggregation of AuNPs was also monitored by UV/Vis spectroscopy (Figure 2(B)). With the addition of Cu2+ and ATP, the original absorbance of AuNPs at 520 nm decreased while a new absorbance at ~650 nm (A650) increased obviously. These results were further confirmed by the TEM observations: the monodisperse AuNPs in the absence of ATP and Cu2+ (Figure 2(C)) and the significant aggregation of AuNPs in the presence of ATP and Cu2+ (Figure 2(D)).

3.3. Effect of pH

Solution pH affects not only the stability of AuNPs and ATP as well as the binding of ATP to AuNPs, but also the formation of the dimeric metal-ATP complex [39]. Therefore, the effect of pH on the A650/A520 ratio was examined over a range from 5.5 to 7.5. As shown in Figure 3, A650/A520 reaches a maximum at pH 7.0. Thus, we chose pH 7.0 borate buffer solution as the reaction medium. The signal decreases remarkably at pH values below 6.5, probably due to the lesser stability of ATP and poor binding of ATP to AuNPs and /or Cu2+ at low pH.

3.4. Sensitivity of AuNPs Suspension to ATP

To demonstrate the performance of the sensor for naked eye detection of ATP by the mechanism mentioned above, different amounts of ATP were added to the solution of AuNPs followed by addition of Cu2+ and the results are presented in Figure 4(A). Upon the addition of increasing concentrations of ATP, the color of AuNPs gradually changed initially from wine red, then to purple, and finally to blue. These results were further conformed by UV/Vis spectroscopy. As shown in Figure 4(B), with the addition of an increasing concentration of ATP to the solution of AuNPs, an obvious decrease in the absorption peak at 520 nm and a strong increase in the absorption peak at 650 nm were clearly detected. The A650/A520 ratio increased with the increase of ATP concentration (Figure 4(C)). A linear relationship was found between the A650/A520 ratio and concentration of ATP over the range of 0.1–12 μM: the A650/A520 ratio slightly increased in the ATP concentration range of 0.1–2 μM and a much more significant intensity increase was observed in the concentration range of 2–12 μM. The detection limit for ATP was determined to be approximately 50 nM (n = 11). This value is comparable to (or even lower than) conventional analytical methods, such as HPLC, chemiluminescence, fluorescence, electrochemistry and mass spectrometry [26].

3.5. Sensitivity of AuNPs Suspension to ATP

Furthermore, the selectivity of the present approach was evaluated by monitoring the absorbance of the AuNPs in the presence of other biomolecules with similar structures. Our results showed excellent selectivity for ATP over ADP, AMP, GTP, and CTP (Figure 5(A)). We also found that phosphate derivatives such as pyrophosphate phosphate did not induce the aggregation and color change of AuNPs at a concentration of 15 μM. This excellent selectivity was mainly attributable to the metal-binding property of triphosphate groups of ATP with Cu2+ [39] and the high adsorption of adenine onto the surface of the AuNPs [33,34]. Moreover, the effect of other metal ions that can bind to ATP on the aggregation of ATP-capped AuNPs was also investigated and the results are shown in Figure 5(B).

3.6. Detection of ATP in NTP Mixture

To demonstrate the viability of the assay to measure real ATP samples, we carried out the measurement of amounts of ATP in commercial NTP mixtures. The mixture was treated as in the aforementioned procedures. The level of ATP in the sample was found to be 9.7 ± 0.5 mM, which is close to the expected content of 10 mM.

4. Conclusions/Outlook

In conclusion, we reported that ATP can be detected based on the aggregation and color change of bare AuNPs with the aid of metal ions as molecular cross-linkers. A detection limit of 50 nM was achieved, which is comparable to or lower than that achievable by currently used electrochemical, spectroscopic or chromatographic methods. The theoretical simplicity and high selectivity reported herein demonstrate that our AuNPs-based colorimetric assay could be applied in a wide variety of fields by rationally designing the surface chemistry of AuNPs. In addition, our results indicate that ATP-modified AuNPs are less stable in Cu2+, Cd2+ or Zn2+-containing solutions due to the formation of the dimeric metal-ATP complexes.

Partial support of this work by the National Natural Science Foundation of China (Nos. 21105002, 21205003, 21201010) and the Science & Technology Foundation of Henan Province (122102310517) is gratefully acknowledged.

References

  1. Liang, A.; Ouyang, H.; Jiang, Z. Resonance scattering spectral detection of trace ATP based on label-free aptamer reaction and nanogold catalysis. Analyst 2011, 136, 4514–4519. [Google Scholar]
  2. Mora, L.; Hernández-Cázares, A.S.; Aristoy, M.C.; Toldrá, F. Hydrophilic interaction chromatographic determination of adenosine triphosphate and its metabolites. Food Chem. 2010, 123, 1282–1288. [Google Scholar]
  3. Pérez-Ruiz, T.; Martínez-Lozano, C.; Tomás, V.; Martín, J. Determination of ATP via the photochemical generation of hydrogen peroxide using flow injection luminol chemiluminescence detection. Anal. Bioanal. Chem. 2003, 377, 189–194. [Google Scholar]
  4. Corriden, R.; Insel, P.A.; Junger, W.G. A novel method using fluorescence microscopy for real-time assessment of ATP release from individual cells. Am. J. Physiol. Cell Physiol. 2007, 293, C1420–C1425. [Google Scholar]
  5. Davis, G.; Green, M.J.; Hill, H.A.O. Detection of ATP and creatine kinase using an enzyme electrode. Enzyme Microb. Technol. 1986, 8, 349–352. [Google Scholar]
  6. Huang, Y.F.; Chang, H.T. Aptamer-functionalized gold nanoparticles for turn-on light switch detection of platelet-derived growth factor. Anal. Chem. 2007, 79, 4852–4859. [Google Scholar]
  7. Ishida, A.; Yamada, Y.; Kamidate, T. Colorimetric method for enzymatic screening assay of ATP using Fe(III)-xylenol orange complex formation. Anal. Bioanal. Chem. 2008, 392, 987–994. [Google Scholar]
  8. Nutiu, R.; Li, Y. Structure-switching signaling aptamers. J. Am. Chem. Soc. 2003, 125, 4771–4778. [Google Scholar]
  9. Zayats, M.; Huang, Y.; Gill, R.; Ma, C.; Willner, I. Label-free and reagentless aptamer-based sensors for small molecules. J. Am. Chem. Soc. 2006, 128, 13666–13667. [Google Scholar]
  10. Liu, J.; Lu, Y. Fast colorimetric sensing of adenosine and cocaine based on a general sensor design involving aptamers and nanoparticles. Angew. Chem. Int. Ed. 2006, 45, 90–94. [Google Scholar]
  11. Jhaveri, S.D.; Kirby, R.; Conrad, R.; Maglott, E.J.; Bowser, M.; Kennedy, R.T.; Glick, G.; Ellington, A.D. Designed signaling aptamers that transduce molecular recognition to changes in fluorescence intensity. J. Am. Chem. Soc. 2000, 122, 2469–2473. [Google Scholar]
  12. Wang, J.; Jiang, Y.; Zhou, C.; Fang, X. Aptamer-based ATP assay using a luminescent light switching complex. Anal. Chem. 2005, 77, 3542–3546. [Google Scholar]
  13. Zuo, X.; Song, S.; Zhang, J.; Pan, D.; Wang, L.; Fan, C. A target-responsive electrochemical aptamer switch (TREAS) for reagentless detection of nanomolar ATP. J. Am. Chem. Soc. 2007, 129, 1042–1043. [Google Scholar]
  14. Ojida, A.; Takashima, I.; Kohira, T.; Nonaka, H.; Hamachi, I. Turn-on fluorescence sensing of nucleoside polyphosphates using a xanthene-based Zn(II) complex chemosensor. J. Am. Chem. Soc. 2008, 130, 12095–12101. [Google Scholar]
  15. Ojida, A.; Park, S.; Mito-oka, Y.; Hamachi, I. Efficient fluorescent ATP-sensing based on coordination chemistry under aqueous neutral conditions. Tetrahedron Lett. 2002, 43, 6193–6195. [Google Scholar]
  16. Schneider, S.E.; O'Neil, S.N.; Anslyn, E.V. Coupling rational design with libraries leads to the production of an ATP selective chemosensor. J. Am. Chem. Soc. 2000, 122, 542–543. [Google Scholar]
  17. Jose, D.A.; Mishra, S.; Ghosh, A.; Shrivastav, A.; Mishra, S.K.; Das, A. Colorimetric sensor for ATP in aqueous solution. J. Am. Chem. Soc. 2000, 122, 542–543. [Google Scholar]
  18. Ojida, A.; Nonaka, H.; Miyahara, Y.; Tamaru, S.; Sada, K.; Hamachi, I. Bis(Dpa-ZnII) appended xanthone: Excitation ratiometric chemosensor for phosphate anions. Angew. Chem. Int. Ed. 2006, 45, 5518–5521. [Google Scholar]
  19. Sancenón, F.; Descalzo, A.B.; Martínez-Mánñz, R.; Miranda, M.A.; Soto, J. A colorimetric ATP sensor based on 1,3,5-triarylpent-2-en-1,5-diones. Angew. Chem. Int. Ed. 2001, 40, 2640–2643. [Google Scholar]
  20. Lee, D.H.; Kim, S.Y.; Hong, J.-I. A fluorescent pyrophosphate sensor with high selectivity over ATP in water. Angew. Chem. Int. Ed. 2004, 43, 4777–4780. [Google Scholar]
  21. Wang, Z.; Lévy, R.; Fernig, D.G.; Brust, M. Kinase-catalyzed modification of gold nanoparticles: A new approach to colorimetric kinase activity screening. J. Am. Chem. Soc. 2006, 128, 2214–2215. [Google Scholar]
  22. Elghanian, R.; Storhoff, J.J.; Mucic, R.C.; Letsinger, R.L.; Mirkin, C.A. Selective colorimetric detection of polynucleotides based on the distance-dependent optical properties of gold nanoparticles. Science 1997, 277, 1078–1081. [Google Scholar]
  23. Niemeyer, C.M. Nanoparticles,proteins,and nucleic acids: Biotechnology meets materials science. Angew. Chem. Int. Ed. 2001, 40, 4128–4158. [Google Scholar]
  24. Lee, J.-S.; Han, M.S.; Mirkin, C.A. Colorimetric detection of mercuric ion (Hg2+) in aqueous media using DNA-functionalized gold nanoparticles. Angew. Chem. Int. Ed. 2007, 46, 4093–4096. [Google Scholar]
  25. Han, M.S.; Lytton-Jean, A.K.R.; Mirkin, C.A. A gold nanoparticle based approach for screening triplex DNA binders. J. Am. Chem. Soc. 2006, 128, 4954–4955. [Google Scholar]
  26. Jiang, Y.; Zhao, H.; Zhu, N.; Lin, Y.; Yu, P.; Mao, L. A simple assay for direct colorimetric visualization of trinitrotoluene at picomolar levels using gold nanoparticles. Angew. Chem. Int. Ed. 2008, 47, 8601–8604. [Google Scholar]
  27. Kong, B.; Zhu, A.; Luo, Y.; Tian, Y.; Yu, Y.; Shi, G. Sensitive and selective colorimetric visualization of cerebral dopamine based on double molecular recognition. Angew. Chem. Int. Ed. 2011, 50, 1837–1840. [Google Scholar]
  28. Zhou, Y.; Wang, S.; Zhang, K.; Jiang, X. Visual detection of copper(II) by azide- and alkyne-functionalized gold nanoparticles using click chemistry. Angew. Chem. Int. Ed. 2008, 47, 7454–7456. [Google Scholar]
  29. Zhu, Z.; Wu, C.; Liu, H.; Zou, Y.; Zhang, X.; Kang, H.; Yang, C.J.; Tan, W. Aptamer-crosslinked hydrogel as a colorimetric platform for visual detection. Angew. Chem. Int. Ed. 2010, 49, 1052–1056. [Google Scholar]
  30. Liu, L.; Li, S.; Liu, L.; Deng, D.; Xia, N. Simple, sensitive and selective detection of dopamine using dithiobis(succinimidylpropionate)-modified gold nanoparticles as colorimetric probes. Analyst 2012, 137, 3794–3799. [Google Scholar]
  31. Singh, P.; Parent, K.L.; Buttry, D.A. Electrochemical solid-state phase transformations of silver nanoparticles. J. Am. Chem. Soc. 2012, 134, 5610–5617. [Google Scholar]
  32. Kim, S.; Lee, N.H.; Seo, S.H.; Eom, M.S.; Ahn, S.; Han, M.S. Selective colorimetric sensor for Hg2+ ions using a mixture of thiourea derivatives and gold nanoparticles stabilized with adenosine triphosphate. Chem. Asian J. 2010, 5, 2463–2466. [Google Scholar]
  33. Zhao, W.; Gonzaga, F.; Li, Y.; Brook, M.A. Highly stabilized nucleotide-capped small gold nanoparticles with tunable size. Adv. Mater. 2007, 19, 1766–1771. [Google Scholar]
  34. Zhao, W.; Lee, T.M.H.; Leung, S.S.Y.; Hsing, I. -M. Tunable stabilization of gold nanoparticles in aqueous solutions by mononucleotides. Langmuir 2007, 23, 7143–7147. [Google Scholar]
  35. Sigel, H. Adenosine 5′-triphosphate (ATP4−): Aspects of the coordination chemistry of a multitalented biological substrate. Pure Appl. Chem. 2004, 76, 375–388. [Google Scholar]
  36. Wang, P.; Izatt, R.M.; Oscarson, J.L.; Gillespie, S.E. 1H NMR study of protonation and Mg(II) coordination of AMP, ADP, and ATP at 25, 50, and 70 °C. J. Phys. Chem. 1996, 100, 9556–9560. [Google Scholar]
  37. Scheller, K.H.; Hofstetter, F.; Mitchell, P.R.; Prijs, B.; Sigel, H. Macrochelate formation in monomeric metal ion complexes of nucleoside 5′-triphosphates and the promotion of stacking by metal ions. Comparison of the self-association of purine and pyrimidine 5′-triphosphates using proton nuclear magnetic resonance. J. Am. Chem. Soc. 1981, 103, 247–260. [Google Scholar]
  38. Wilson, J.; Chin, A. Chelation of divalent cations by ATP, studied by titration calorimetry. Anal. Biochem. 1991, 193, 16–19. [Google Scholar]
  39. Sigel, H. Metal ion-assisted stacking interactions and the facilitated hydrolysis of nucleoside 5′-triphosphates. Pure Appl. Chem. 1998, 70, 969–976. [Google Scholar]
  40. Cao, R.; Li, B.; Zhang, Y.; Zhang, Z. A simple and sensitive method for visual detection of heparin using positively-charged gold nanoparticles as colorimetric probes. Chem. Commun. 2011, 47, 12301–12303. [Google Scholar]
  41. Xia, N.; Shi, Y.; Zhang, R.; Zhao, F.; Liu, F.; Liu, L. Simple, rapid and label-free colorimetric assay for arsenic based on unmodified gold nanoparticles and a phytochelatin-like peptide. Anal. Methods 2012. [Google Scholar] [CrossRef]
  42. Grabar, K.G.; Freeman, R.G.; Hommer, M.B.; Natan, M.J. Preparation and characterization of Au colloid monolayers. Anal. Chem. 1995, 67, 735–743. [Google Scholar]
  43. Chi, H.; Liu, B.; Guan, G.; Zhang, Z.; Han, M.-Y. A simple, reliable and sensitive colorimetric visualization of melamine in milk by unmodified gold nanoparticles. Analyst 2010, 135, 1070–1075. [Google Scholar]
  44. Lee, J.H.; Wang, Z.D.; Liu, J.W.; Lu, Y. Highly sensitive and selective colorimetric sensors for uranyl (UO22+): Development and comparison of labeled and label-free DNAzyme-gold nanoparticle systems. J. Am. Chem. Soc. 2008, 130, 14217–14226. [Google Scholar]
  45. Li, D.; Wieckowska, A.; Willner, I. Optical analysis of Hg(2+) ions by oligonucleotide-gold-nanoparticle hybrids and DNA-based machines. Angew. Chem. Int. Ed. 2008, 47, 3927–3931. [Google Scholar]
  46. Liu, C.-W.; Hsieh, Y.-T.; Huang, C.-C.; Lin, Z.-H.; Chang, H.-T. Detection of mercury(II) based on Hg(2+)-DNA complexes inducing the aggregation of gold nanoparticles. Chem. Commun. 2008. [Google Scholar] [CrossRef]
  47. Li, H.X.; Rothberg, L. Colorimetric detection of DNA sequences based on electrostatic interactions with unmodified gold nanoparticles. Proc. Natl. Acad. Sci. USA 2004, 101, 14036–14039. [Google Scholar]
Sensors 12 15078f1 1024

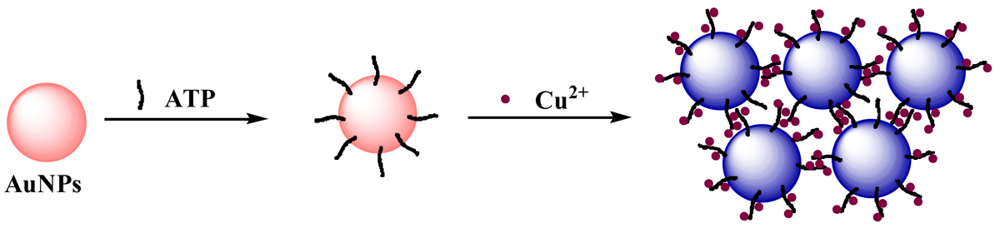

Figure 1. Schematic illustration of the strategy of ATP detection using AuNPs as indicators and Cu2+ ions as cross-linkers.

Click here to enlarge figure

Figure 1. Schematic illustration of the strategy of ATP detection using AuNPs as indicators and Cu2+ ions as cross-linkers.
Sensors 12 15078f1 1024
Sensors 12 15078f2 1024

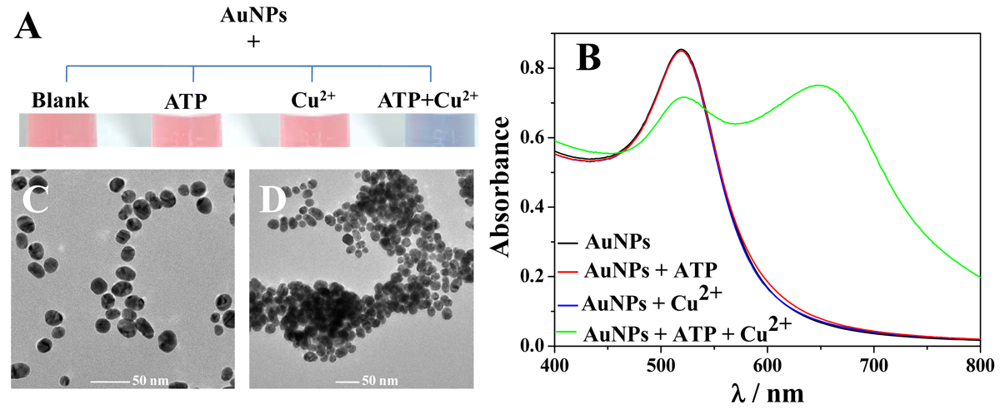

Figure 2. Visual color change (A), UV/Vis absorption spectra (B) and TEM images (C,D) of AuNPs in the absence and presence of ATP and/or Cu2+. The concentrations of ATP and Cu2+ are 15 and 30 μM respectively.

Click here to enlarge figure

Figure 2. Visual color change (A), UV/Vis absorption spectra (B) and TEM images (C,D) of AuNPs in the absence and presence of ATP and/or Cu2+. The concentrations of ATP and Cu2+ are 15 and 30 μM respectively.
Sensors 12 15078f2 1024
Sensors 12 15078f3 1024
Figure 3. Effect of pH on the A650/A520 ratio.

Click here to enlarge figure

Figure 3. Effect of pH on the A650/A520 ratio.
Sensors 12 15078f3 1024
Sensors 12 15078f4 1024

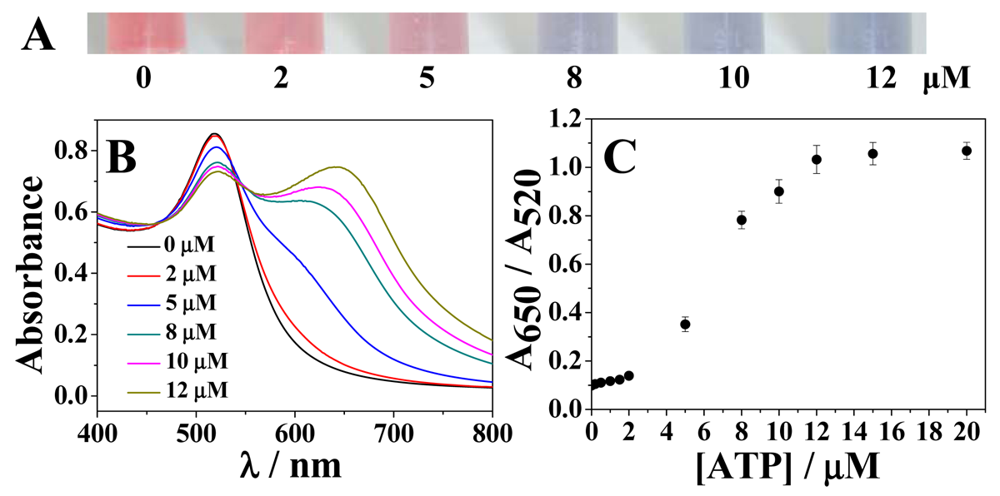

Figure 4. (A) Color change with the increase of ATP concentrations. (B) Absorbance response for different concentrations of ATP. (C) The corresponding plot of A650/A520 versus ATP concentration from 0, 0.1, 0.2, 0.5, 1.0, 1.5, 2, 5, 8, 10, 12, 15 to 20 μM.

Click here to enlarge figure

Figure 4. (A) Color change with the increase of ATP concentrations. (B) Absorbance response for different concentrations of ATP. (C) The corresponding plot of A650/A520 versus ATP concentration from 0, 0.1, 0.2, 0.5, 1.0, 1.5, 2, 5, 8, 10, 12, 15 to 20 μM.
Sensors 12 15078f4 1024
Sensors 12 15078f5 1024

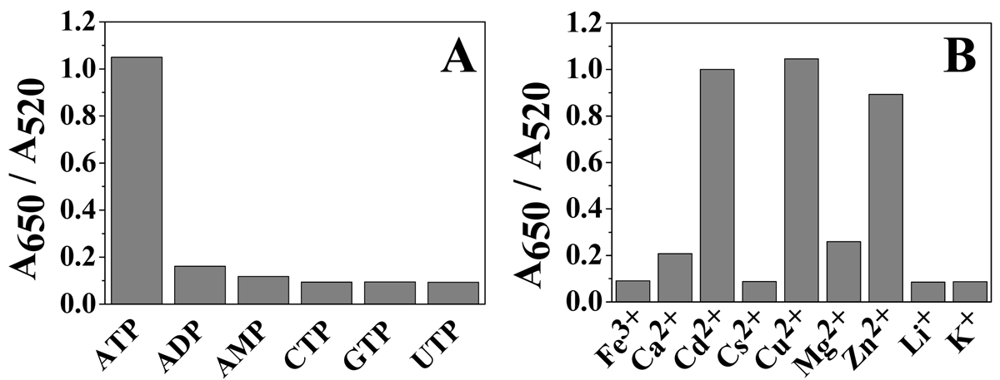

Figure 5. The A650/A520 ratio of AuNPs in different systems: (A) ATP/interferences + Cu2+ and (B) ATP + different metal ions. The concentrations of ATP, ATP analogs and metal ions are 15, 15 and 30 μM, respectively.
