Sensors 2011, 11(8), 8127-8142; doi:10.3390/s110808127

Dual-Functional On-Chip AlGaAs/GaAs Schottky Diode for RF Power Detection and Low-Power Rectenna Applications

1
Material Innovations and Nanoelectronics Research Group, Faculty of Electrical Engineering, Universiti Teknologi Malaysia, 81310 Skudai, Johor, Malaysia
2
Ibnu Sina Institute for Fundamental Science Studies, Universiti Teknologi Malaysia, 81310 Skudai, Johor, Malaysia
*
Author to whom correspondence should be addressed.
Received: 15 July 2011 / Revised: 8 August 2011 / Accepted: 12 August 2011 / Published: 18 August 2011
(This article belongs to the Section Chemical Sensors)
View Full-Text   |   Download PDF [938 KB, uploaded 21 June 2014]   |

Abstract

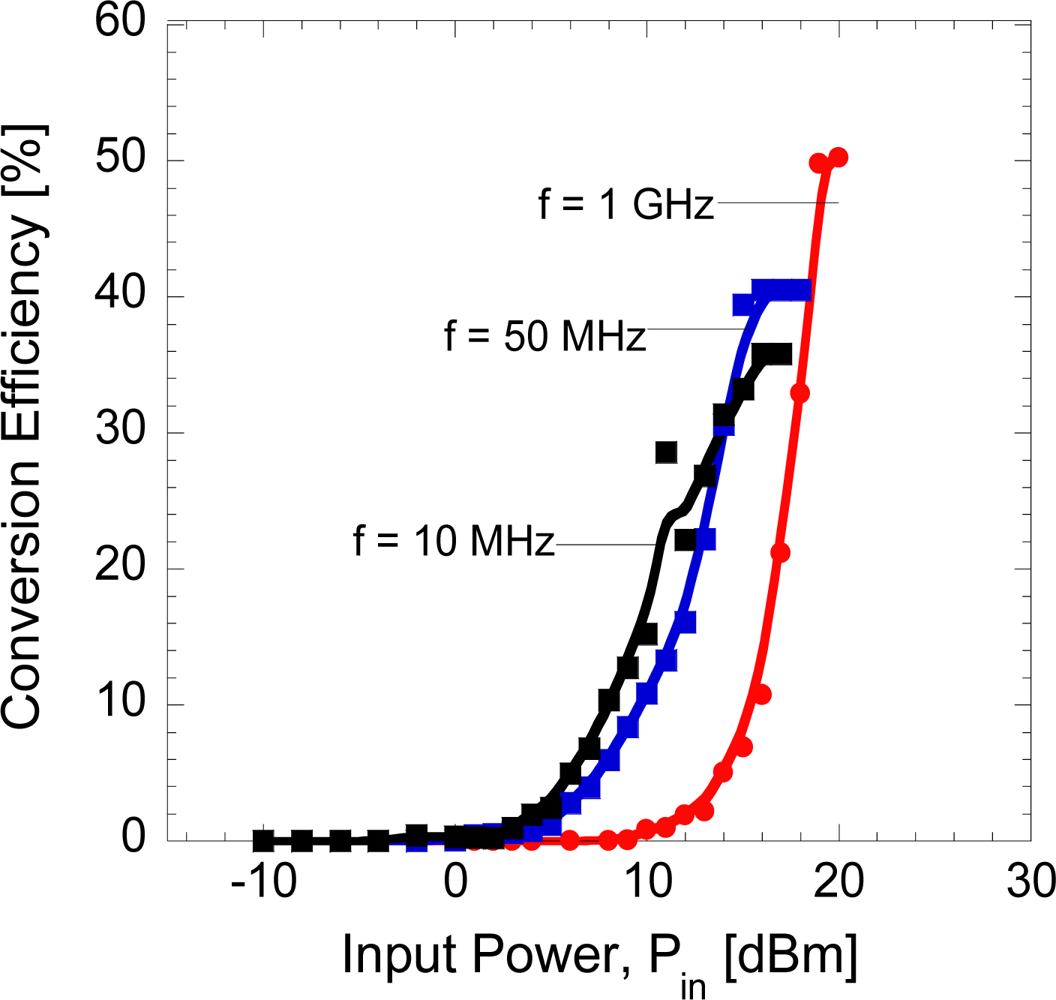

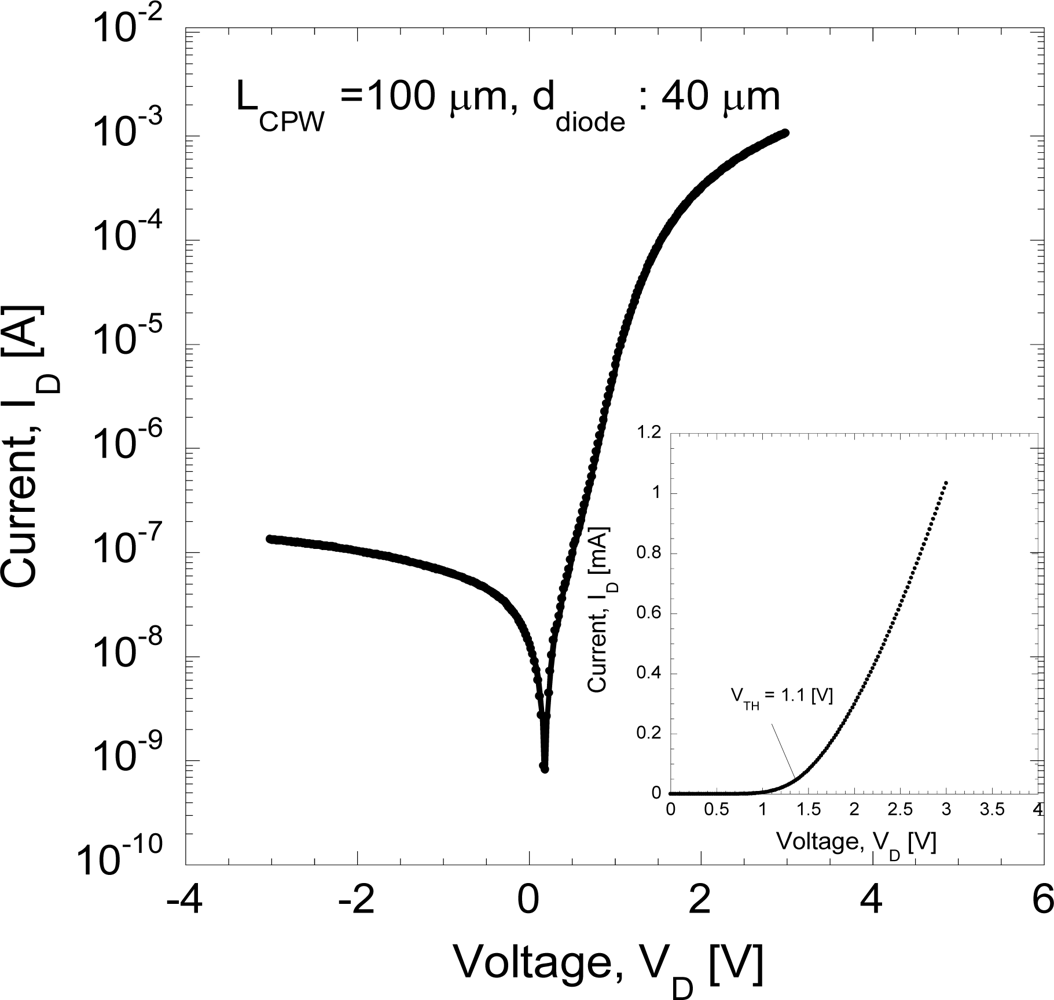

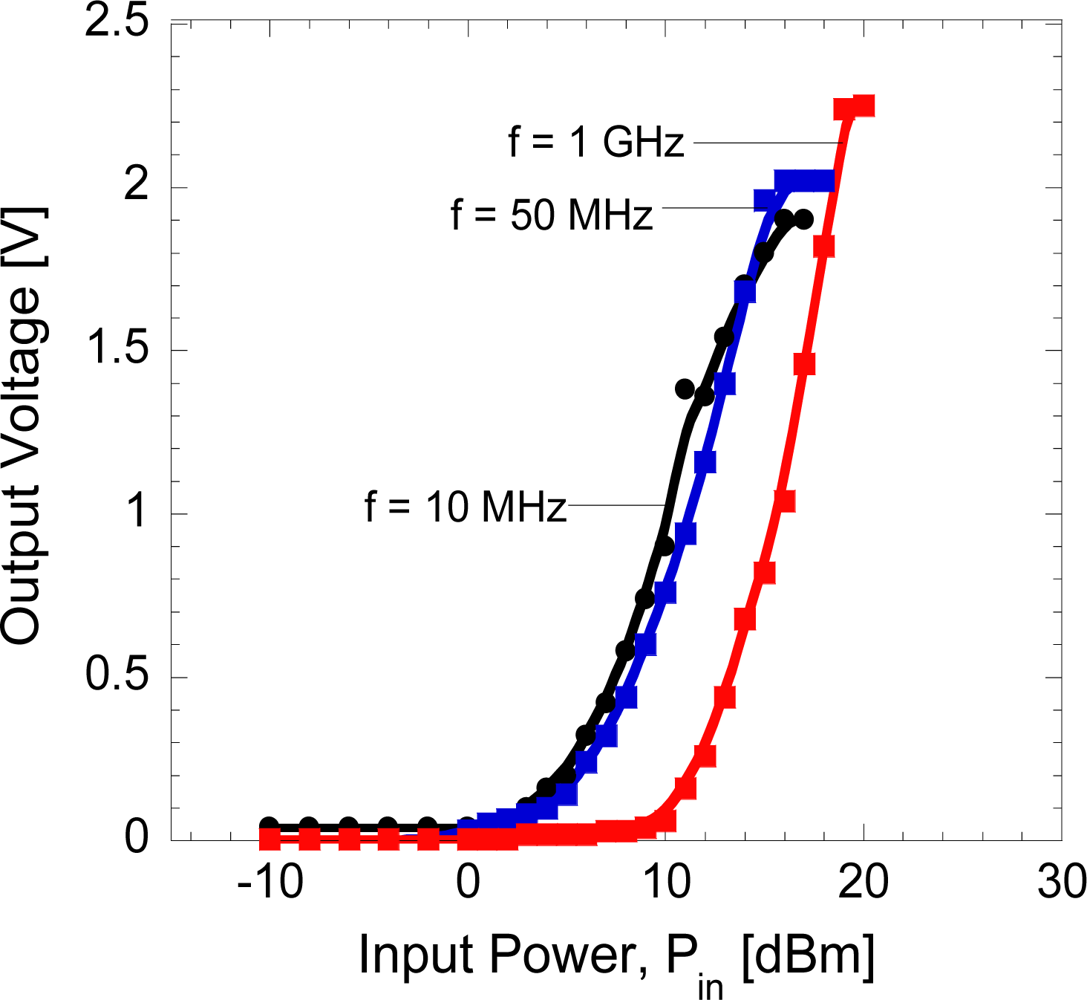

A Schottky diode has been designed and fabricated on an n-AlGaAs/GaAs high-electron-mobility-transistor (HEMT) structure. Current-voltage (I-V) measurements show good device rectification, with a Schottky barrier height of 0.4349 eV for Ni/Au metallization. The differences between the Schottky barrier height and the theoretical value (1.443 eV) are due to the fabrication process and smaller contact area. The RF signals up to 1 GHz are rectified well by the fabricated Schottky diode and a stable DC output voltage is obtained. The increment ratio of output voltage vs input power is 0.2 V/dBm for all tested frequencies, which is considered good enough for RF power detection. Power conversion efficiency up to 50% is obtained at frequency of 1 GHz and input power of 20 dBm with series connection between diode and load, which also shows the device’s good potential as a rectenna device with further improvement. The fabricated n-AlGaAs/GaAs Schottky diode thus provides a conduit for breakthrough designs for RF power detectors, as well as ultra-low power on-chip rectenna device technology to be integrated in nanosystems.
Keywords: AlGaAs/GaAs; HEMT; Schottky diode; RF power detector; rectenna AlGaAs/GaAs; HEMT; Schottky diode; RF power detector; rectenna
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
