Sensors 2011, 11(8), 7892-7907; doi:10.3390/s110807892

Article
A Low-Cost CMOS-MEMS Piezoresistive Accelerometer with Large Proof Mass
Mohd Haris Md Khir , Peng Qu and Hongwei Qu *
Department of Electrical and Computer Engineering, Oakland University, Rochester, MI 48309, USA; E-Mail: pqu@oakland.edu
*
Author to whom correspondence should be addressed; E-Mail: qu2@oakland.edu; Tel.: +1-248-370-2205; Fax: +1-248-370-4633.
Current address: Electrical & Electronics Department, Universiti Teknologi Petronas, 31750 Tronoh, Perak, Malaysia; E-Mail: harisk@petronas.com.my.
Received: 15 June 2011; in revised form: 3 August 2011 / Accepted: 5 August 2011 /
Published: 11 August 2011

Abstract

: This paper reports a low-cost, high-sensitivity CMOS-MEMS piezoresistive accelerometer with large proof mass. In the device fabricated using ON Semiconductor 0.5 μm CMOS technology, an inherent CMOS polysilicon thin film is utilized as the piezoresistive sensing material. A full Wheatstone bridge was constructed through easy wiring allowed by the three metal layers in the 0.5 μm CMOS technology. The device fabrication process consisted of a standard CMOS process for sensor configuration, and a deep reactive ion etching (DRIE) based post-CMOS microfabrication for MEMS structure release. A bulk single-crystal silicon (SCS) substrate is included in the proof mass to increase sensor sensitivity. In device design and analysis, the self heating of the polysilicon piezoresistors and its effect to the sensor performance is also discussed. With a low operating power of 1.5 mW, the accelerometer demonstrates a sensitivity of 0.077 mV/g prior to any amplification. Dynamic tests have been conducted with a high-end commercial calibrating accelerometer as reference.
Keywords:
CMOS-MEMS; piezoresistive; polysilicon; deep reactive ion etching (DRIE)

1. Introduction

The piezoresistive effect is one of the most exploited physical effects in sensors. Since the discovery of the excellent mechanical properties and late on the manufacturability of silicon and other semiconductors, a large array of MEMS piezoresistive sensors have been developed [13]. MEMS piezoresistive accelerometers have also been extensively attempted [4]. According to the topological configurations of the sensing elements, the reported piezoresistive accelerometers can be classified into the following four thing listed categories [5]:

  • Single-clamped beams, where the seismic mass is suspended with only one beam, and the bending of the beam leads to stress and strain on both sides of the beam with opposite polarity; whereas the neutral axis itself is stress free;

  • Double-clamped beams, where the seismic mass is suspended by two (or more) beams and the mechanical stress is mainly concentrated in four areas in each beam;

  • Axially loaded beams, where the seismic mass is accelerated in the axial direction of the beam, and the acceleration leads to a stretching of the beam instead of a bending;

  • Some special sensing structures with combination of the above configurations, including asymmetrical beams [6,7].

CMOS-MEMS technology provides a viable means for monolithic integration of MEMS elements with mainstream CMOS electronics, for an overall improved device performance and possible lower cost [8]. Post-CMOS MEMS has been proven as a strong competitor in the integration [9]. Numerous CMOS-MEMS piezoresistive accelerometers using these above four topologies have been investigated. Thus far most of the reported CMOS-MEMS piezoresistive accelerometers use thin film structures as proof mass [10,11]. Although the surface micromachining processes employed for the creation of these devices are quite simple, due to the small structure thickness, the devices suffer from low sensitivity and other shortcomings. Moreover, the residual stress in the CMOS thin films often causes large structure curling. Thus, the area and mass of the proof mass structure is also limited. DRIE based dry bulk CMOS-MEMS technology has paved pathways for microfabrication of various devices with robust MEMS structures and desired device sizes [12,13]. Compared with the wet process for SCS proof mass manufacturing [14,15], the DRIE method is more effective and environmentally-friendly.

In this work, a low cost, high sensitivity CMOS-MEMS piezoresistive accelerometer is designed, fabricated and tested. Compared to the reported devices, higher sensor sensitivity and larger process tolerance are achieved by using a maskless bulk DRIE CMOS-MEMS microfabrication to include SCS as proof mass. Inherent CMOS SiO2/Aluminum laminated composite layers are employed to form cantilevers in which the CMOS polysilicon layer as the sensing elements are embedded. On the other end of the cantilevers, a large proof mass with SCS attached is connected to increase the stress induced in the cantilevers upon the application of an out-of-plane acceleration. Using multiple CMOS metal layers, the four poly resistors are conveniently wired to form a full sensing Wheatstone bridge for even higher sensitivity.

2. Device Design and Simulation

2.1. Device Design

Figure 1 shows a 3-D structural model of the fabricated accelerometer with the inset showing the cross-sectional view of the CMOS composite beams in which the sensing polysilicon piezoresistors are embedded. Inset “A” and “B” show cross-sections of the folded polysilicon resistors that are arranged in longitudinal and transverse direction, respectively. The sensor has a SCS proof mass of 500 μm × 500 μm in size and approximately a 40 μm thickness. The SCS proof mass is anchored through the four cantilever beams that consist of the inherent CMOS SiO2/Al thin films with a total thickness of approximately 5 μm. The planar dimension of each composite beam is 200 μm × 13 μm. The inherent CMOS polysilicon layer, which is used as the piezoresistive sensing material, has a thickness of approximately 0.35 μm, according to the standard ON 0.5 μm CMOS technology used in this project. The schematic cross-section of the CMOS thin films and their spatial locations are illustrated in Figure 2. The typical thin film parameters of the ON 0.5 μm technology is listed in Table 1 [16].

When the sensor is subject to an out-of-plane motion, the induced stress on the longitudinal and transverse polysilicon resistors will result in the relative change of resistance δR/R given by:

Δ R R = ( Δ R R ) l = G polyl ɛ x
where the subscripts “l” and “t” denote the longitudinal and transverse relative change of resistance, respectively; v is the Poisson’s ratio of the silicon having the value of 0.27; Gpolyl and Gpolyt are the longitudinal and transverse gauge factors. In the ON 0.5 μm technology used in this work, the polysilicon layer has a nominal sheet resistance ρs of 26.1 Ω/□ [16], which is equivalent to a resistivity of 9.14 × 10−4 .cm and a boron doping concentration of 1.42 × 1019 cm−3. This amount of doping concentration corresponds to estimated longitudinal and transverse gauge factor of 40 and −15, respectively [3]. The resistivity of the polysilicon can be determined using:
ρ poly = ρ s t poly
Δ R R = ( Δ R R ) t = G polyt ɛ y
where tpoly is 0.35 μm. The relationship between the axial (y-direction) and transverse strains can be evaluated using the following equation:
ɛ t = ν ɛ x

The axial strain, εx in the direction of x, which occurs on the composite beam is given by:

ɛ y = z R c
where z is the distance from the neutral axis; and Rc is the radius of curvature of the bending beam. The Young’s modulus of aluminum and silicon dioxide (SiO2) material are close. According to the ON 0.5 μm technology, the total thickness of the cantilever is approximately 5.3 μm, with the 0.35 μm polysilicon being located above the 0.4 μm field oxide at the bottom of the cantilever [16]. As the 0.4 μm thickness is much smaller than the half thickness of the beam, it is acceptable to assume that the neutral axis is at the center of the cantilever beam. The beam bending moment can be obtained by the integration of the stress through the thickness of the beam, Hb and is given by [17]:
M = H b / 2 H b / 2 [ ( W b dz ) σ x ] z
where σx is the axial stress of the beam. Since the relation between the stress and strain is σx = Eεx:
M = H b / 2 H b / 2 [ ( W b d z ) E z 2 R c ] = E W b R c H b / 2 H b / 2 z 2 d z = E W b H b 3 12 R c
which can be further simplified to:
1 R c = 12 M E W b H b 3 = M EI
where I is the beam moment of inertia and is given by:
I = W b H b 3 12

It should be noted that due to the composite nature of the cantilevers, the Young’s Modulus E in the above equations is the effective value of the beams that are comprised of SiO2 and top aluminum layer in the CMOS stack. Since the SiO2 is much thicker than the Al layer in the composite beam, and the Young’s Modulus of SiO2 is slightly greater than aluminum’s, E can be approximated as SiO2 Young’s Modulus of 70 GPa [17]. The same E applies to the following derivations.

Referring to Figure 3, the solution of the bending beam with proof mass results in the maximum bending stress at the beam support to substrate (y = 0), which is given by:

1 R c = d 2 w d y 2 = M EI = ma EI ( L b + L pm 2 )
and from Equation (5), the strain occurs at the top (tension) and bottom (compression at polysilicon layer) of the beam surface is:
ɛ poly = z R c = H b 2 R c
Inserting Equation (10) to Equation (11) yields:
ɛ poly = H b 2 ma EI ( L b + L pm 2 ) = 6 m E W b H b 2 ( L b + L pm 2 ) a

The complete solution of the relative change of resistance due to the acceleration applied to the four cantilever beams can be then computed by substituting Equation (12) into Equations (1) and (2), which yields:

( Δ R R ) l = G polyl 1.5 m EW b H b 2 ( L b + L pm 2 ) a
( Δ R R ) t = G polyt 1.5 m ν EW b H b 2 ( L b + L pm 2 ) a
R = ρ poly L poly W poly t poly = ρ s L poly W poly
where R is the original resistance of each poly resistor without acceleration, which is calculated to be 1.1 kΩ using Equation (15). The resonant frequency, f of the sensor is calculated as 1.85 kHz using the equation given by:
f = 1 2 π k m
where k is the stiffness coefficient of the composite beam calculated to be 14.21 N·m−1 which is defined as:
k = E W b H b 3 4 L b 3

Other parameters such as the sensor geometric and material properties used in Equations (1) and (2) and their values are given in Table 2.

Using Equations (13) and (14), the longitudinal and transverse relative change of resistance with acceleration from 1 g to 10 g are estimated and the results are shown in Figure 4. The calculation results show that the longitudinal relative change of the piezoresistance +4.26 × 10−4 %/g or +4.3 mΩ/g, while the transverse relative change of the piezoresistance has a sensitivity of −0.46 × 10−4 %/g or −0.46 mΩ/g.

2.2. Self Heating Effect of the Piezoresistors

Self heating effect of the polysilicon resistors is estimated to evaluate its impact on the performance of the sensor fabricated particularly using ON Semiconductor 0.5 μm CMOS technology used in this project. When a biasing voltage is applied to a polysilicon piezoresistor, the Joule heat generated will raise the temperature of the resistor which consequently changes the sensing resistance. The resistance change caused by this self heating is superposed to the sensing resistance caused by the acceleration to be measured. The lumped-element thermal circuit in Figure 5 can be used to estimate the temperature rise and in turn the resistance variations resulted from the Joule heating.

In Figure 5, the electric circuit consists of a voltage source and a resistor which is the original resistance of the polysilicon piezoresistors. The thermal circuit consists of three elements: the diamond shape represent a dependent current source that provides the Joule heat power V2/R; the capacitor CT represents the heat capacity of the resistor; and the resistor RT represents the heat resistance from the polysilicon resistor to the thermal ground—the substrate on which the piezoresistive cantilevers are attached. T0 = TR is the substrate temperature which is assumed as the room temperature of 25 °C or 293 K. In the thermal circuit, the current (heat flux) is denoted as IQ. The relative change of resistance due to self heating effect in the polysilicon resistor can be then estimated as:

( Δ R R ) thermal = α poly ( T ss T R ) = α poly Δ T
where αpoly is the temperature coefficient of resistance (TCR) of polysilicon as listed in Table 2; TSS represents the final steady state temperature of the sensing element. The transient response of the temperature, Ttr is derived as:
T tr = T R + R T V 2 R R ( 1 + α poly R T V 2 R R ) ( 1 e ( 1 R T C T ) t )

RR = R = 1.1 kΩ is the designed resistance of the polysilicon resistor at room temperature and is calculated using Equation (15). Due to the great thermal conductivity difference among the thin films in the system and the layer sequence in the cantilevers, it is assumed that the heat flux generated on the polysilicon resistors travels in the following path: polysilicon resistors → SiO2 layer → metal 3 layer → substrate. The corresponding thermal resistance, RT and capacitance, CT can be calculated using Equations (20) and (21) as:

R T = R Tpoly + R TSiO 2 + R TAl = H poly κ poly A poly + H ox κ ox A ox + L Al κ Al W Al H Al
1 C T = 1 C Tpoly + 1 C TSiO 2 + 1 C TAl

The values used and calculated are listed in Table 3.

Based on the material properties and dimensions, the temperature change due to the self-heating effect discussed above is found to be ∼17 °K using Equation (19) which is under a biasing voltage of 1.0 V that results in approximately 1 mA driving current. These results are further verified by the numerical simulations. The thermal transient response of the polysilicon resistor is plotted in Figure 6, as a result of Equation (19).

2.3. Device Simulation

CoventorWare, a comprehensive finite element analysis (FEA) tool dedicated for MEMS design and simulation, is used to validate the relative resistance change of the piezo resistors design. From CoventorWare simulation, as shown in Figure 7, it is found that the relative piezoresistance change in longitudinal direction can be as high as 1.8 × 10−4%/g or 1.7 mΩ/g. The FEA simulation results are in good agreement with the theoretical calculation as shown in Figure 4.

Figure 8 shows the CoventorWare simulation results of the heat flux distribution from the polysilicon sensing element to the substrate.

A 1 mA driving current is applied through the polysilicon resistor. From the contour representing the direction and value of the flux, a heat dissipation path of Z → Y → X can be derived, as predicted in Equation (20). The simulated self-heating caused temperature rise ∼12 °K. This result is in good agreement with the theoretical calculation. The relative change of resistance due to the self heating effect is 0.1639 %. This change is even larger than the resistance change due to acceleration as shown in Figure 7. It should be noted that the self heating is a universal effect, happening to all the resistors monotonously. Consequently this effect can be largely canceled due to the Wheatstone configuration of the polysilicon sensors. Yet it is noteworthy to gain insights into the sensing mechanism in this composite structured CMOS-MEMS sensor.

3. Device Fabrication

The ON Semiconductor 0.5 μm CMOS technology has been utilized for CMOS fabrication of the sensor through MOSIS. The post-CMOS process, with a flow as illustrated in Figure 9, has been used to release the structure. The process starts with a back side selective DRIE process that produce a SCS membrane with a thickness of ∼40 μm, as illustrated in Figure 9(a). Anisotropic SiO2 RIE is then performed on front side of the device to open patterns of the composite beams and proof mass, as shown in Figure 9(b). Next, silicon DRIE process is used to etch through the structure, as in Figure 9(c). Finally, an isotropic silicon etching undercuts the silicon underneath the composites and releases the device, as illustrated in Figure 9(d). During the isotropic undercut process, a small portion of the proof mass and the substrate will also be undercut. This problem will not have a large effect to the sensor performance due to the large proof mass dimension. The backside photoresist used in the process can be removed by oxygen ashing.

Figure 10 shows a SEM photograph of the fabricated sensor with inset showing close-up of the cantilever beams. The structure curling observed in Figure 10 is due to the residual stress existing among the CMOS thin films. This curling is much smaller than that in the thin film sensors [11].

4. Device Characterization

The resistance of the polysilicon resistor in each beam is measured as ∼1.32 kΩ. With a 1 mA biasing current, the sensor demonstrates a sensitivity of ∼0.077 mV/g prior to amplification, much larger than what were reported in [2,10,11]. The greatly increased sensitivity is mainly due to the large proof mass attached to the ends of composite cantilever beams. This attribute is particularly enabled by the bulk CMOS-MEMS microfabrication process we have developed, as described in reference [12]. It’s also noteworthy that due to the complete protection of polysilicon sensing elements in post-CMOS process, the device structure allows considerable process variations in microfabrication. The piezoresistors are immune to the slight over-etching in device release that is necessary for complete undercut of the beams. Other sensor characterizations are performed with an external instrumentation amplifier that has a voltage gain of 52 dB. In the dynamic test, a LMT-100 shaker from Ling Electronics is used to provide standard acceleration. A Kistler type 8692B50 accelerometer is used as a reference. It is calibrated using a 394C06 hand-held shaker from PCB Piezotronics, which generates a standard 1 g acceleration at a nominal frequency of 159.2 Hz. Figure 11 shows the test board on which the device under test (DUT) is assembled with the reference accelerometer. The DUT is packaged in a standard ceramic 16-pin DIP package. The board is screwed to the threaded pole of the shaker.

The resonant frequency of the sensing element has been identified as 1.34 kHz through an impulse test. The dynamic response spectrum of the sensor is shown in Figure 12. The lower resonant frequency of the structure compared to the simulation result is caused by the following combined effects: the thicker proof mass than the designed value; the undercut around the composite beams; and the thickness reduction of the top aluminum layer resulted from the physical milling effect in the DRIE etching.

Figure 13 shows an output waveform under a 3 g excitation at 160 Hz. With a 52 dB amplification gain, the sensor produces an output of 192 mVp − p. The testing frequency of 160 Hz is chosen to be in consistence with the frequency at which the reference accelerometer has been calibrated. Figure 14 compares the output of the fabricated sensor with the reference accelerometer output in an acceleration range from 1 g to 7 g. The piezoresistive accelerometer reported in this work demonstrates a better linearity than the reference device.

The merits of the piezoresistive accelerometer demonstrated in this work are further summarized in Table 4. A comparison between the device in this work and that is reported in reference [10] is also made. It should be noted that in the device in reference [10], the CMOS thin film structures are fabricated using wet bulk micromachining process, which requires careful protection of the CMOS region in wet etching. Whereas the dry etching based process in this work has better process tolerance due to the complete protection of the polysilicon sensing element.

5. Conclusions

A low-cost, high-sensitivity z-axis CMOS-MEMS piezoresistive accelerometer with large proof mass has been successfully demonstrated. The accelerometer has a 0.077 mV/g mechanical sensitivity with a very low power consumption of ∼1.5 mW for operation. Common issues associated with CMOS-MEMS thin film accelerometers such as large structural curling and low sensitivity have been solved by incorporating SCS in the proof mass. The four cantilever beams employed in the sensor has significantly improved the sensor stability by allowing sorely the out-of-plane motion of the proof mass and minimizing the in-plane motion. Multiple CMOS metal layer permits flexible wiring of the sensing elements for full Wheatstone bridge configuration, which further increases the sensitivity of the accelerometer. While monolithic integration of amplification and signal conditioning circuits in progress, the demonstrated z-axis accelerometer provides a low cost solution for out-of-plane sensing that is normally more challenging for capacitive sensors. This device can find many applications such as in portable electronics.

The CMOS fabrication of the device was carried out at MOSIS; and post-CMOS microfabrication was performed at the Lurie Nanofabrication Facility (LNF), a national nanotechnology infrastructure network (NNIN) site located at the University of Michigan, Ann Arbor. The authors would also like to thank Kai Sun at the Electron Microbeam Analysis Laboratory (EMAL) at the University of Michigan for assistance in SEM imaging of the device.

References

  1. Petersen, KE. Silicon Sensor Technologies. Proceedings of the International Electron Devices Meeting, Washington, DC, USA, 1–4 December 1985; pp. 2–7.
  2. Barlian, AA; Park, WT; Mallon, JR; Rastegar, AJ; Pruitt, BL. Review: Semiconductor piezoresistance for microsystems. Proc. IEEE 2009, 97, 513–552.
  3. French, PJ. Polysilicon: A versatile material for microsystems. Sens. Actuat. A 2002, 99, 3–12.
  4. Yazdi, N; Ayazi, F; Najafi, KN. Micromachined inertial sensors. Proc. IEEE 1998, 86, 1640–1659.
  5. Engesser, M; Franke, AR; Maute, M; Meisel, DC; Korvink, JG. Miniaturization limits of piezoresistive MEMS accelerometers. Microsyst. Technol 2009, 15, 1835–1844.
  6. Li, Y; Zheng, Q; Hu, Y; Xu, Y. Micromachined piezoresistive accelerometers based on an asymmetrically gapped cantilever. J. Microelectromech. Syst 2011, 20, 83–94.
  7. Li, X; Cheng, B; Wang, Y; Gu, L; Dong, J; Yang, H; Song, Z. A Trench-Sidewall single-Wafer-MEMS Technology and Its Typical Application in High-Performance Accelerometers. Proeedings of the Technical Digest of the IEEE International Electron Devices Meeting, San Francisco, CA, USA, 13–15 December 2004; pp. 43–46.
  8. Baltes, H; Brand, O; Hierlemann, A; Lange, D; Hagleitner, C. CMOS MEMS-Present and Future. Proceedings of the 5th IEEE International Conference on MEMS, Las Vegas, NV, USA, January 2002; pp. 459–466.
  9. Fedder, GK; Howe, RT; Liu, TJK; Quevy, EP. Technologies for cofabricating MEMS and electronics. Proc. IEEE 2008, 96, 306–322.
  10. Chaehoi, A; Latorre, L; Nouet, P; Baglio, S. Piezoresistive CMOS beams for inertial sensing. Proc. IEEE Sens 2003, 1, 451–456.
  11. Kruglick, EJ; Warneke, BA; Pister, KS. CMOS 3-Axis Accelerometers with Integrated Amplifier. Proceedings of the 11th International Workshop on MEMS, Heidelberg, Germany, 25–29 January 1998; pp. 631–636.
  12. Xie, H; Erdmann, L; Xu, Z; Gabriel, KJ; Fedder, GK. Post-CMOS processing for high-aspect-ratio integrated silicon microstructures. J. Microelectromech. Syst 2002, 11, 93–101.
  13. Qu, H; Xie, H. Process development for CMOS-MEMS sensors with robust electrically isolated bulk silicon microstructures. J. Microelectromech. Syst 2007, 16, 1152–1161.
  14. Kal, S; Das, S; Maurya, DK; Biswas, K; Sankar, A; Lahiri, SK. CMOS compatible bulk micromachined silicon piezoresistive accelerometer with low off-axis sensitivity. Microelectron. J 2006, 37, 22–30.
  15. Plaza, JA; Collado, A; Cabruja, E; Esteve, J. Piezoresistive accelerometers for MCM package. J. Microelectromech. Syst 2002, 11, 794–801.
  16. MOSIS. MOSIS Wafer Acceptance Tests, Available online: http://www.mosis.com/cgi-bin/cgiwrap/umosis/swp/params/ami-c5/t91t-params.txt (accessed on 3 August 2011).
  17. Senturia, SD. Microsystem Design; Kluwer Academic Publisher: Norwell, MA, USA, 2001.
Sensors 11 07892f1 200
Figure 1. 3D model of the piezoresistive sensor showing the embedded polysilicon resistors in the composite beams.

Click here to enlarge figure

Figure 1. 3D model of the piezoresistive sensor showing the embedded polysilicon resistors in the composite beams.
Sensors 11 07892f1 1024
Sensors 11 07892f2 200
Figure 2. Schematic cross-section of a released sensor showing the CMOS thin films and their relative locations.

Click here to enlarge figure

Figure 2. Schematic cross-section of a released sensor showing the CMOS thin films and their relative locations.
Sensors 11 07892f2 1024
Sensors 11 07892f3 200

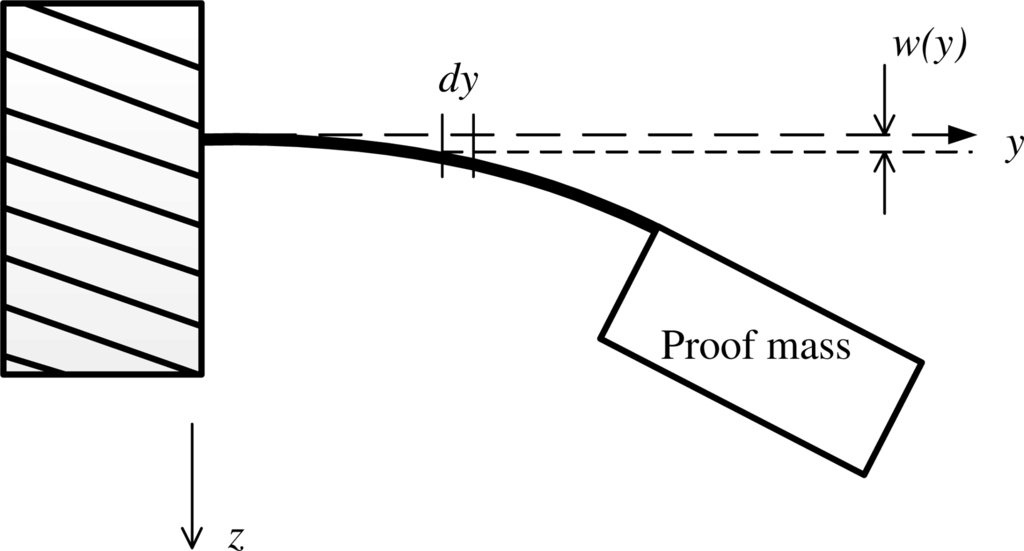

Figure. 3. Illustrative deformation of the sensing structure subject to a downward acceleration.

Click here to enlarge figure

Figure. 3. Illustrative deformation of the sensing structure subject to a downward acceleration.
Sensors 11 07892f3 1024
Sensors 11 07892f4 200
Figure 4. (a) Coventor simulation results of piezoresistance change in longitudinal direction as a function of out-of-plane acceleration; and (b) Piezoresistance change in transverse direction versus out-of-plane acceleration.

Click here to enlarge figure

Figure 4. (a) Coventor simulation results of piezoresistance change in longitudinal direction as a function of out-of-plane acceleration; and (b) Piezoresistance change in transverse direction versus out-of-plane acceleration.
Sensors 11 07892f4 1024
Sensors 11 07892f5 200

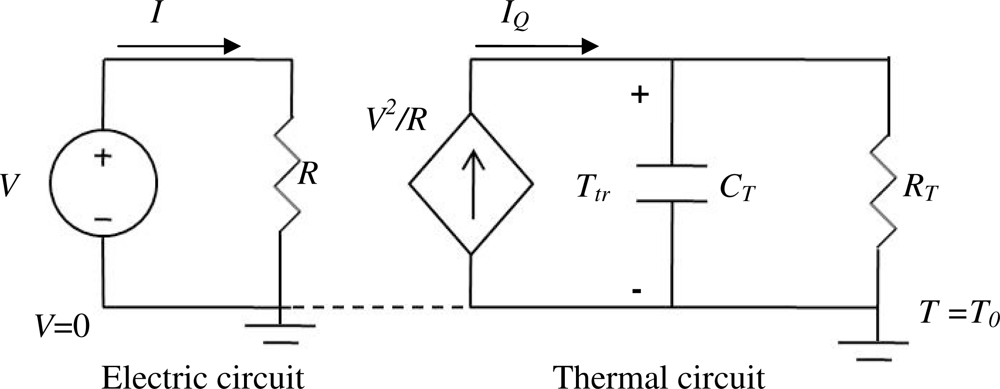

Figure 5. Circuit model for the self heating of a resistor driven by a voltage source.

Click here to enlarge figure

Figure 5. Circuit model for the self heating of a resistor driven by a voltage source.
Sensors 11 07892f5 1024
Sensors 11 07892f6 200

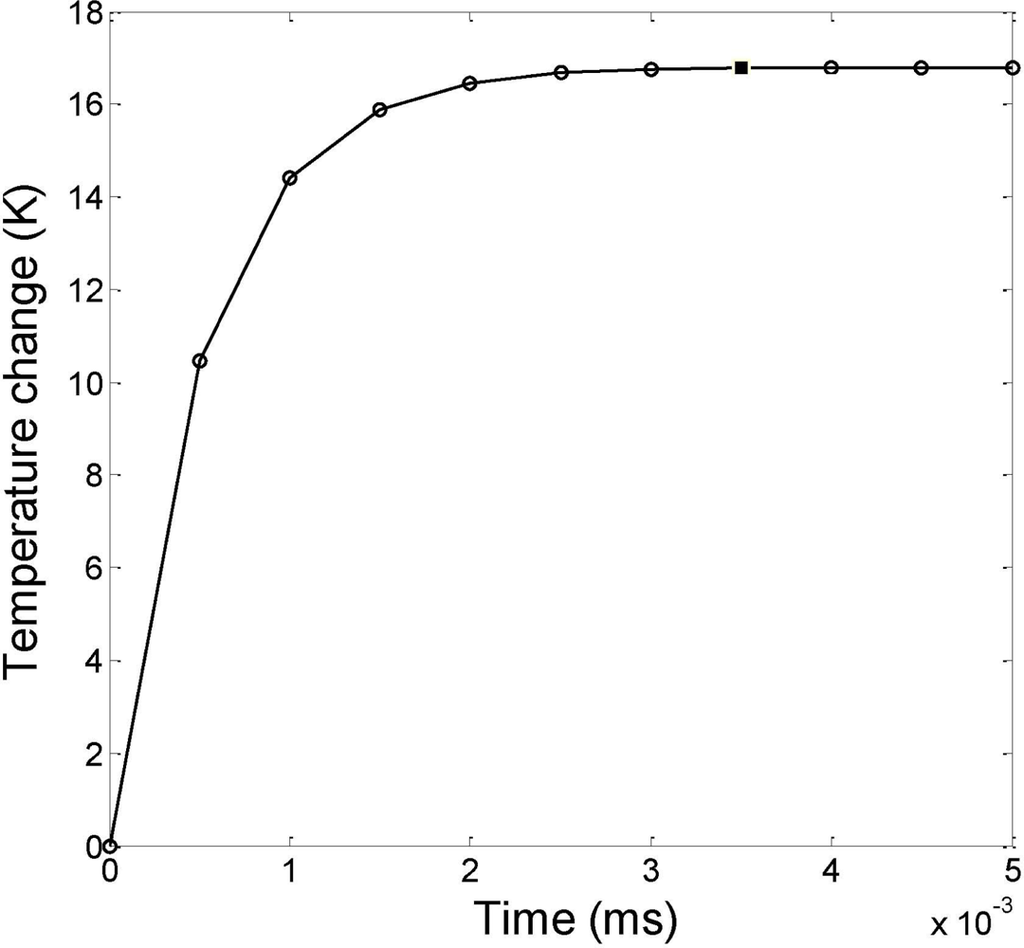

Figure 6. Transient response of the temperature on the cantilever beam simulated using Matlab.

Click here to enlarge figure

Figure 6. Transient response of the temperature on the cantilever beam simulated using Matlab.
Sensors 11 07892f6 1024
Sensors 11 07892f7 200
Figure 7. CoventorWare simulation of the piezoresistance change in longitudinal direction as a function of out-of-plane acceleration.

Click here to enlarge figure

Figure 7. CoventorWare simulation of the piezoresistance change in longitudinal direction as a function of out-of-plane acceleration.
Sensors 11 07892f7 1024
Sensors 11 07892f8 200

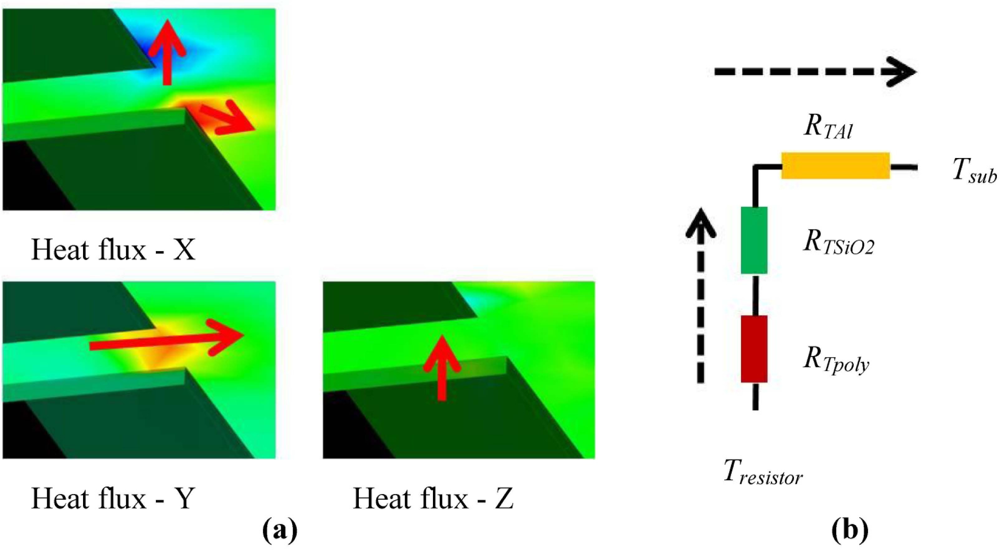

Figure 8. (a) CoventorWare simulation results showing the heat flux between the polysilicon sensors and the substrate; and (b) the equivalent thermal resistance in the system.

Click here to enlarge figure

Figure 8. (a) CoventorWare simulation results showing the heat flux between the polysilicon sensors and the substrate; and (b) the equivalent thermal resistance in the system.
Sensors 11 07892f8 1024
Sensors 11 07892f9 200

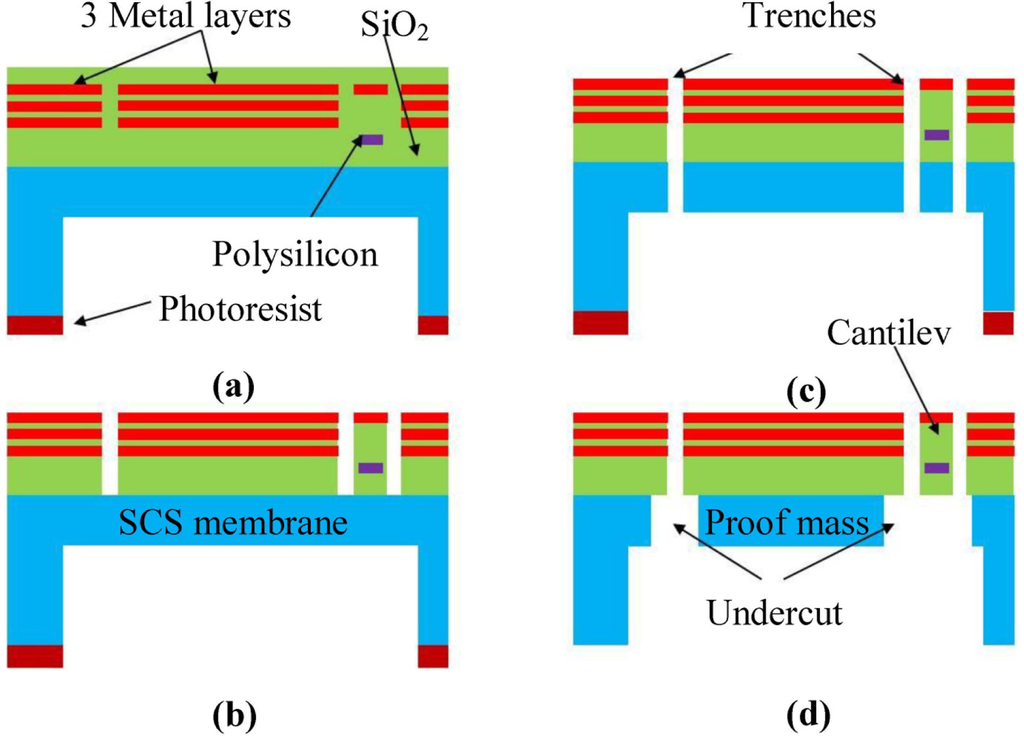

Figure 9. Post-CMOS microfabrication process flow.

Click here to enlarge figure

Figure 9. Post-CMOS microfabrication process flow.
Sensors 11 07892f9 1024
Sensors 11 07892f10 200

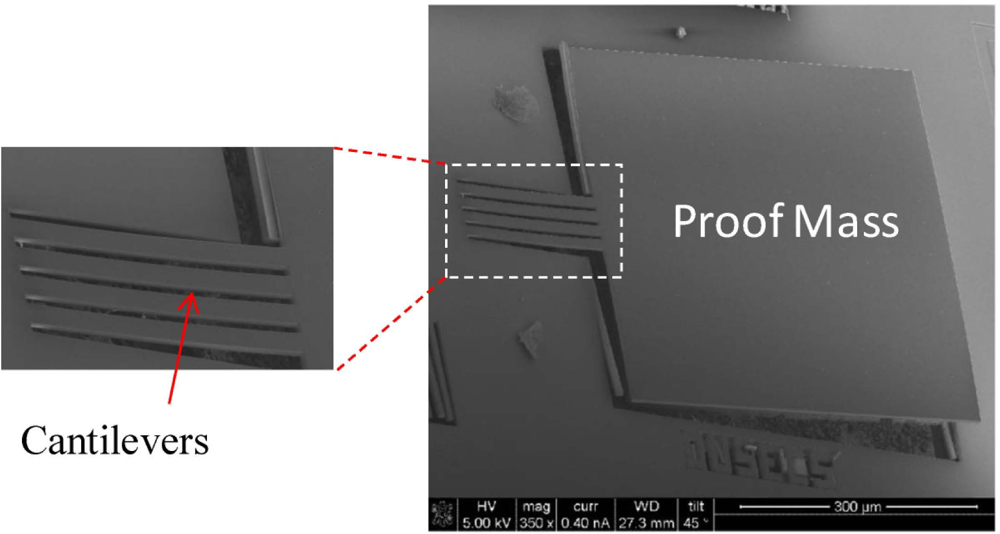

Figure 10. SEM image of the fabricated CMOS-MEMS accelerometer with the inset showing the composite beams where piezoresistors are located.

Click here to enlarge figure

Figure 10. SEM image of the fabricated CMOS-MEMS accelerometer with the inset showing the composite beams where piezoresistors are located.
Sensors 11 07892f10 1024
Sensors 11 07892f11 200
Figure 11. Test board on which the DUT and the reference accelerometer are mounted.

Click here to enlarge figure

Figure 11. Test board on which the DUT and the reference accelerometer are mounted.
Sensors 11 07892f11 1024
Sensors 11 07892f12 200

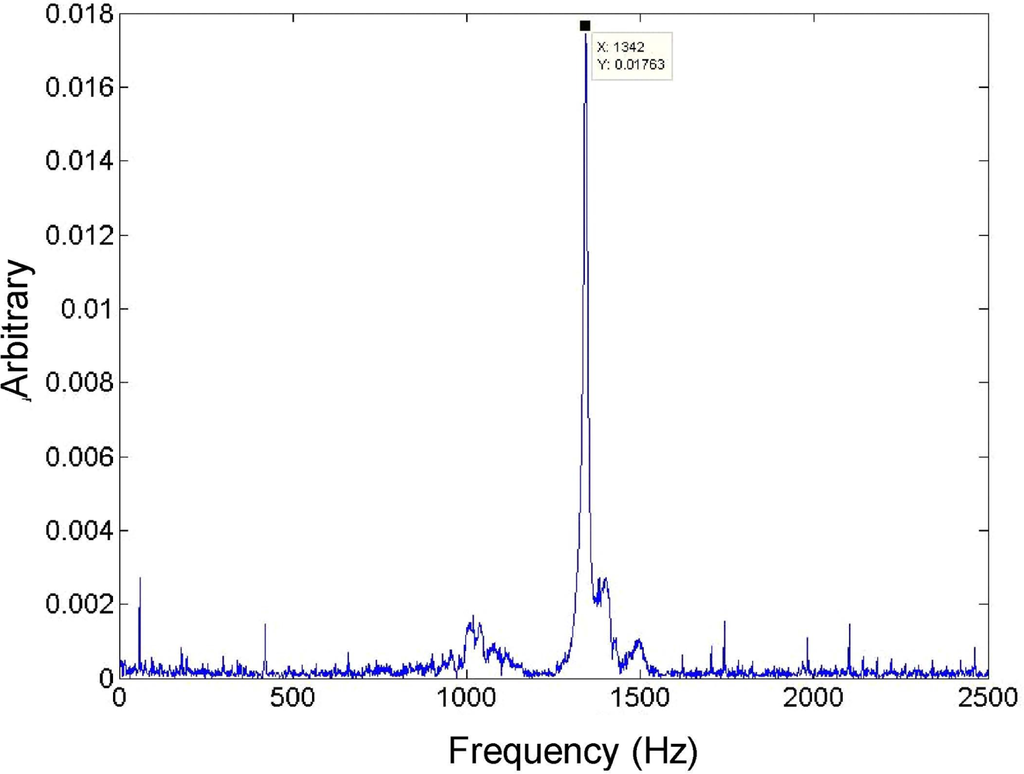

Figure 12. Spectrum of the sensor response to an impulse excitation.

Click here to enlarge figure

Figure 12. Spectrum of the sensor response to an impulse excitation.
Sensors 11 07892f12 1024
Sensors 11 07892f13 200

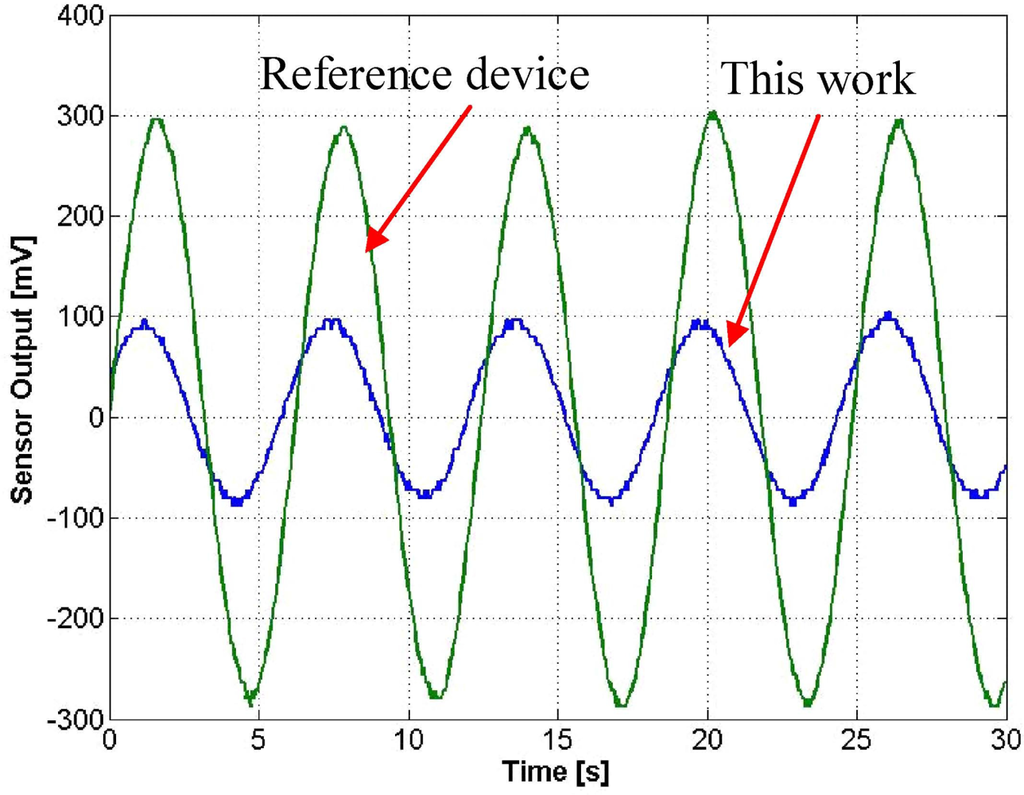

Figure 13. Waveforms of the DUT and reference accelerometer to a sinusoidal 3 g excitation.

Click here to enlarge figure

Figure 13. Waveforms of the DUT and reference accelerometer to a sinusoidal 3 g excitation.
Sensors 11 07892f13 1024
Sensors 11 07892f14 200

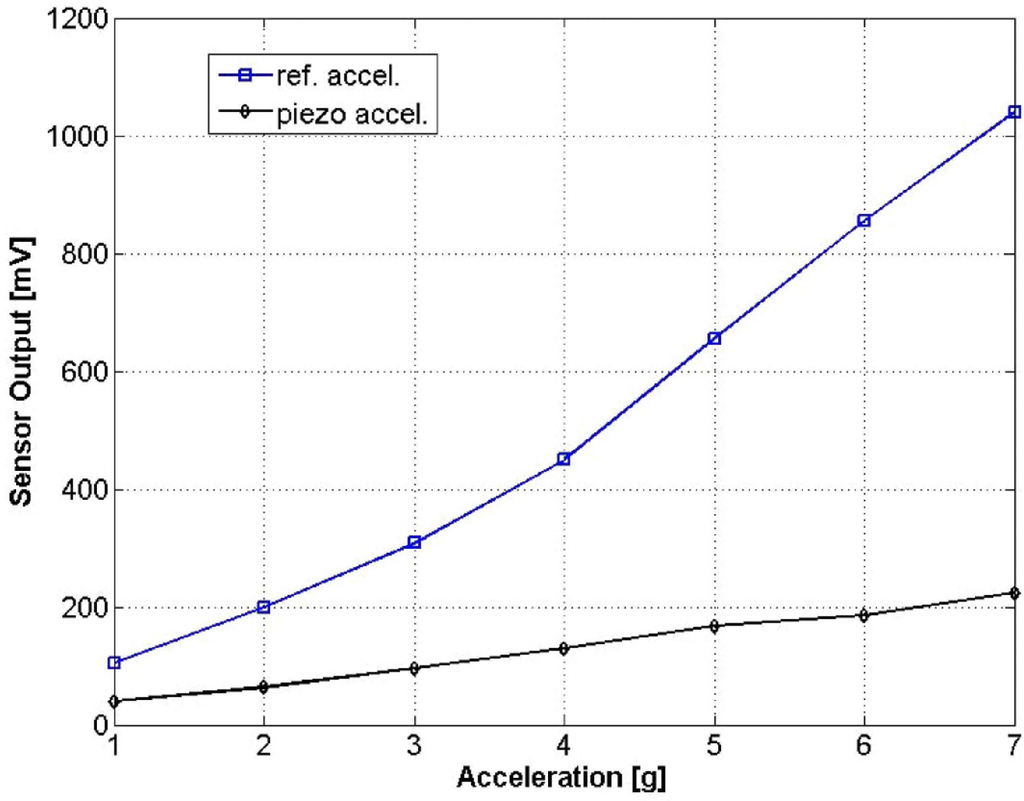

Figure 14. Sensor responses to accelerations ranging from 1 g to 7 g.

Click here to enlarge figure

Figure 14. Sensor responses to accelerations ranging from 1 g to 7 g.
Sensors 11 07892f14 1024
Table Table 1. Typical CMOS Layers Thickness in the ON 0.5 μm Technology Used.

Click here to display table

Table 1. Typical CMOS Layers Thickness in the ON 0.5 μm Technology Used.
LayersThickness (μm)
Single Crystal Silicon (SCS)∼250
Field Oxide under Poly, Hox0.4
Field Oxide under Metal 10.375
Gate Oxide0.0135
Polysilicon, tpoly0.35
Metal, HAl0.77
Boron-phosphorus-silicate-glass (BPSG)0.7
Table Table 2. Sensor Dimension and Material Properties.

Click here to display table

Table 2. Sensor Dimension and Material Properties.
SymbolDescriptionValue
Mechanical:
EpolyPolysilicon Young’s modulus160 GPa
EEffective Young’s modulus of the beam70 GPa
mProof mass weight105 μg
Geometric:
WbCantilever beam width13 μm
HbCantilever thickness from polysilicon layer4.2 μm
LbCantilever beam length200 μm
LpmProof mass length500 μm
WpmProof mass width500 μm
LpolyLength of poly resistor49.4 μm
WpolyWidth of poly resistor1.2 μm
Electrical:
ρsPolysilicon sheet resistance26.1 Ω/square
αpolyPolysilicon temperature coefficient of resistance (TCR)2.1 × 10−3 K−1*
ρpolyPolysilicon resistivity9.14 Ωμm
Thermal:
κAlAluminum thermal conductivity237 W/(K.m)
κoxSiO2 thermal conductivity1.1 W/(K.m)
κSiSilicon thermal conductivity170 W/(K.m)
κpolyPolysilicon thermal conductivity29 W/(K.m)

*Note: This data is obtained from the temperature characterization on the fabricated device.

Table Table 3. Calculated Thermal Resistances and Capacitances.

Click here to display table

Table 3. Calculated Thermal Resistances and Capacitances.
SymbolDescriptionValues
ApolyArea of the Polysilicon resistor5.93 × 10−11 m2
AoxArea of the Polysilicon resistor1.37 × 10−10 m2
WAlArea of the oxide13.4 × 10−6 m
LAlWidth of the metal10.2 × 10−6 m
RTpolyThermal resistance of polysilicon layer233 K/W
RTSiO2Thermal resistance of silicon dioxide layer1.2 × 104 K/W
RTAlThermal resistance of aluminum layer4.6 × 103 K/W
CTpolyThermal capacitance of polysilicon layer3.88 × 10−11 J/K
CTSiO2Thermal capacitance of silicon dioxide layer3.80 × 10−10 J/K
CTAlThermal capacitance of aluminum layer2.32 × 10−10 J/K
RTTotal thermal resistance1.7 × 104 K/W
CTTotal thermal capacitance3.1 × 10−11 J/K
Table Table 4. Summary of the merits of the demonstrated device and comparisons with the device demonstrated in Reference [10].

Click here to display table

Table 4. Summary of the merits of the demonstrated device and comparisons with the device demonstrated in Reference [10].
SpecificationsThis workDevice in Reference [10]
Proof mass230 μg0.96 μg
Cantilever beam length200 μm500 μm
Proof mass size500 μm × 500 μm280 μm × 280 μm
Sensitivity∼77 μV/g∼2.0 μV/g
Power consumption1.5 mWN/A
Fabrication processDRIE and RIEFront side wet bulk micromachining
Process toleranceGoodNeed front side protection
Structure curlingMediocreLarge
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
