Sensors 2011, 11(6), 5886-5899; doi:10.3390/s110605886
Article

Simulation and Analysis of a Metamaterial Sensor Based on a Microring Resonator

1 School of Information Science and Engineering, Yunnan University, Kunming 650091, China 2 Faculty of Materials and Metallurgical Engineering, Kunming University of Science and Technology, Kunming 650093, China
* Authors to whom correspondence should be addressed.
Received: 30 March 2011; in revised form: 15 May 2011 / Accepted: 18 May 2011 / Published: 31 May 2011
(This article belongs to the Special Issue Metamaterials for Sensing)
PDF Full-text Download PDF Full-Text [2564 KB, Updated Version, uploaded 1 June 2011 08:39 CEST]
The original version is still available [826 KB, uploaded 31 May 2011 14:48 CEST]

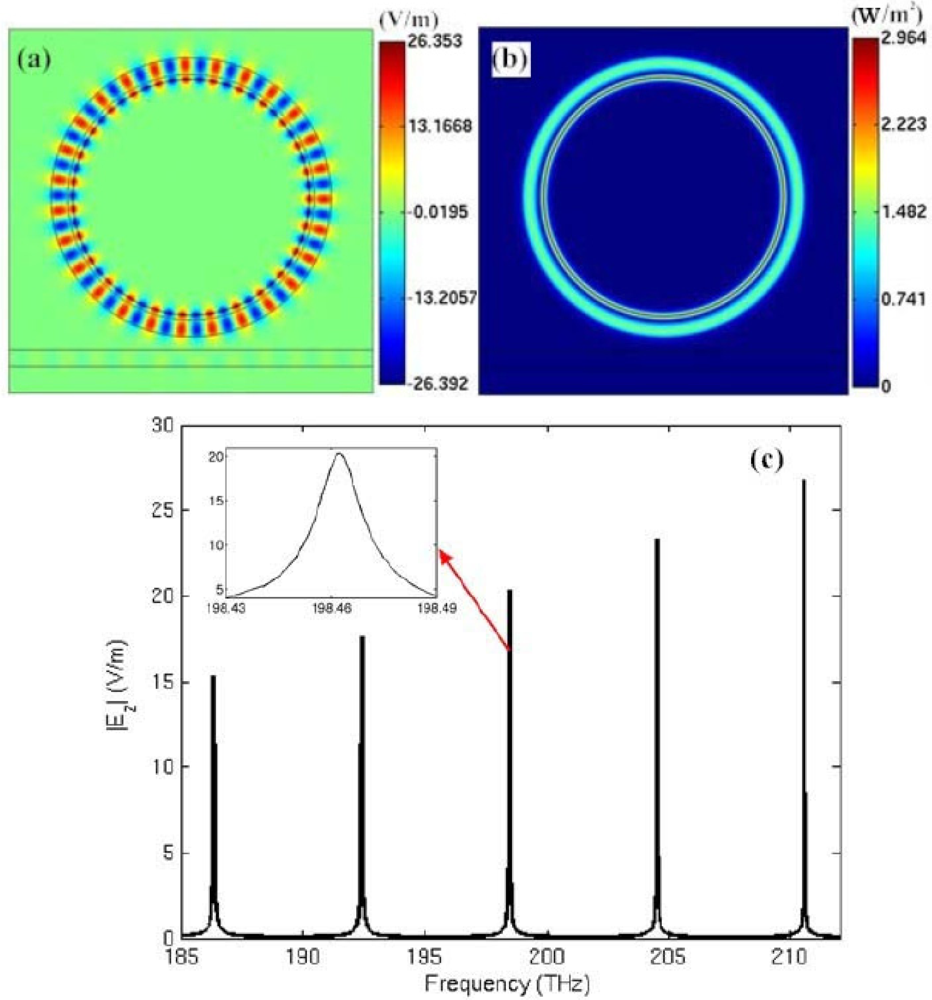

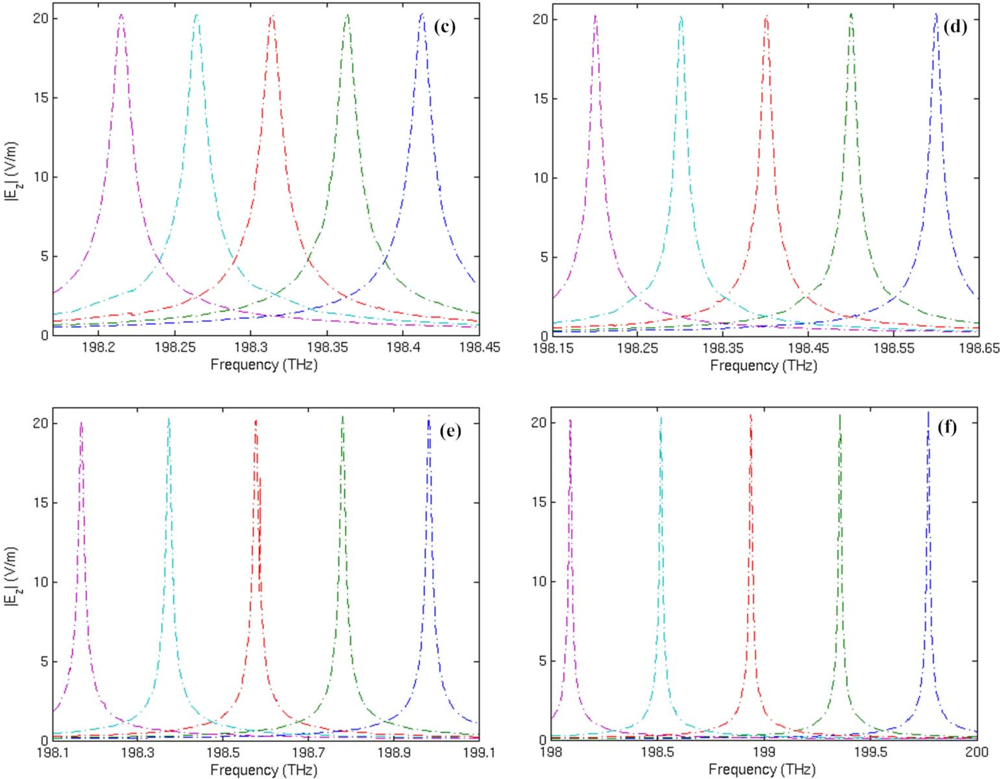

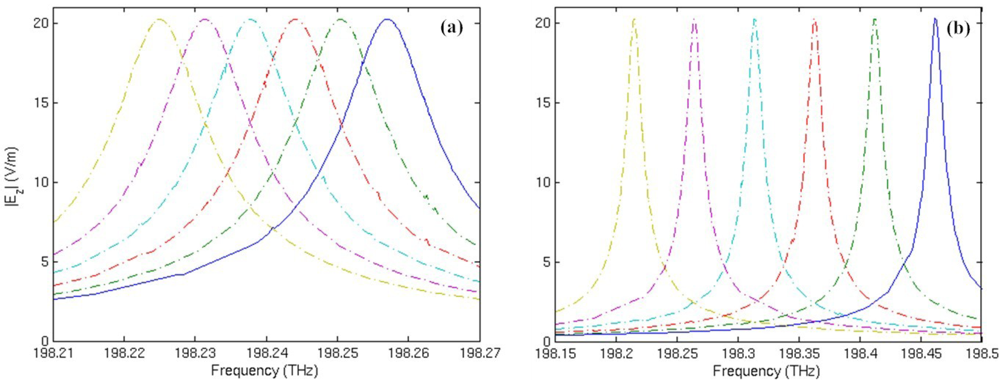

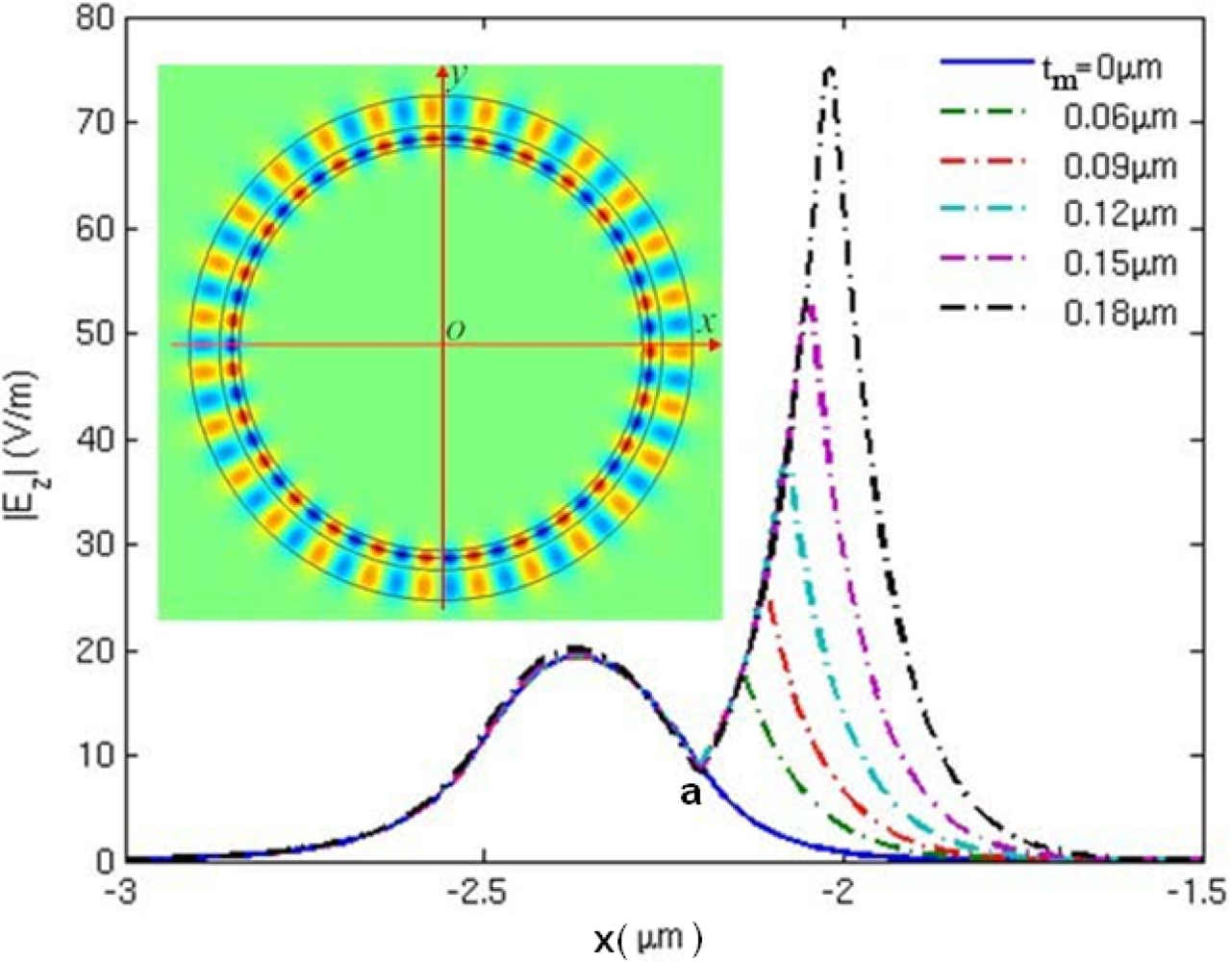

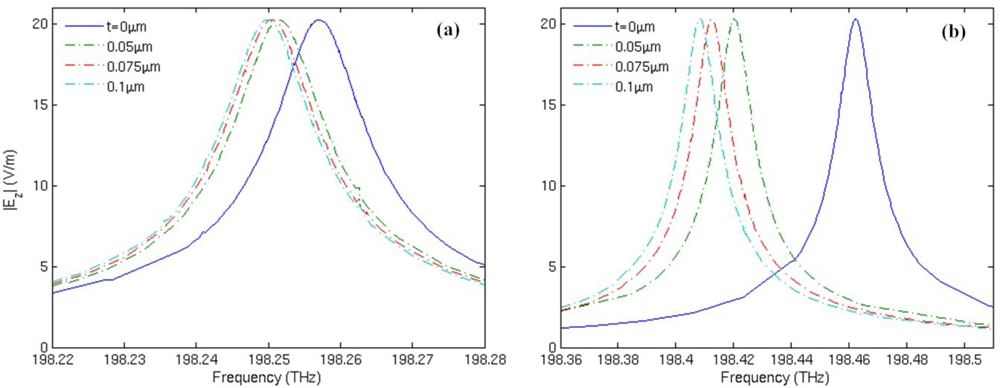

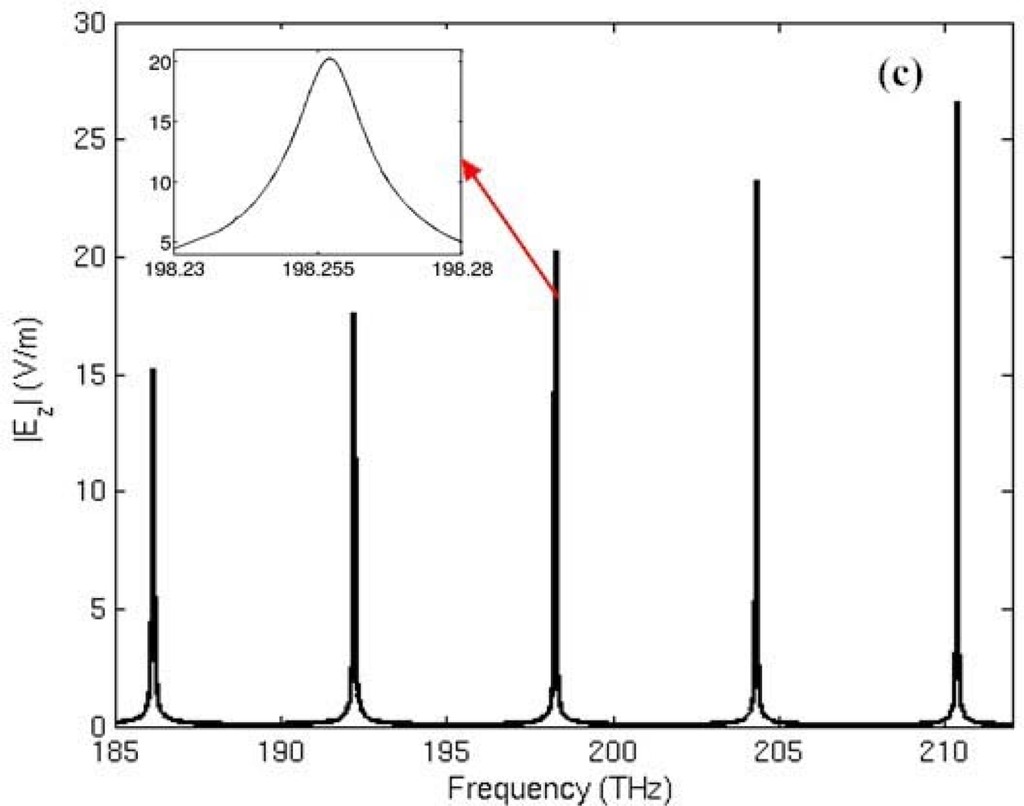

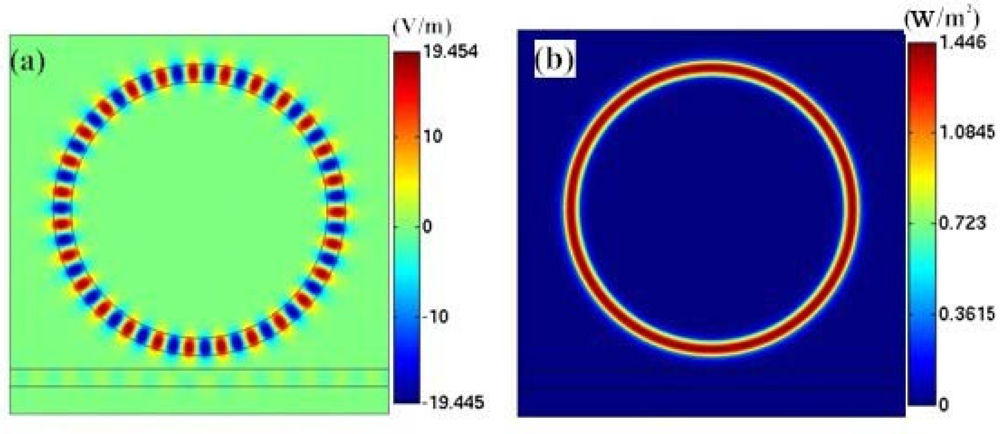

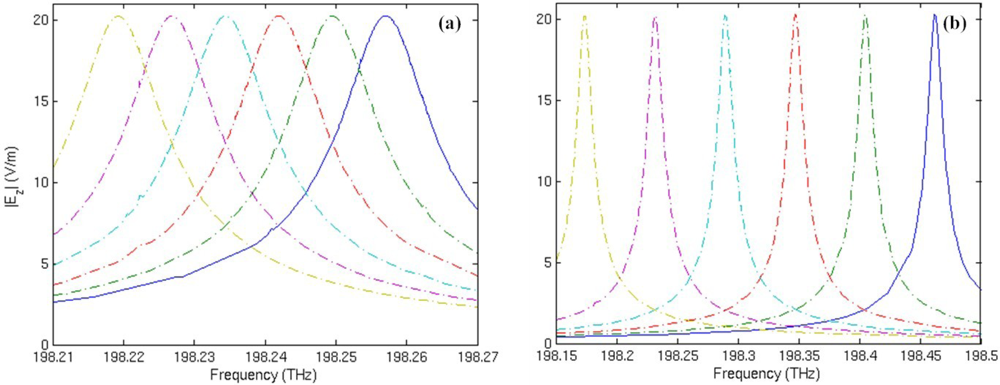

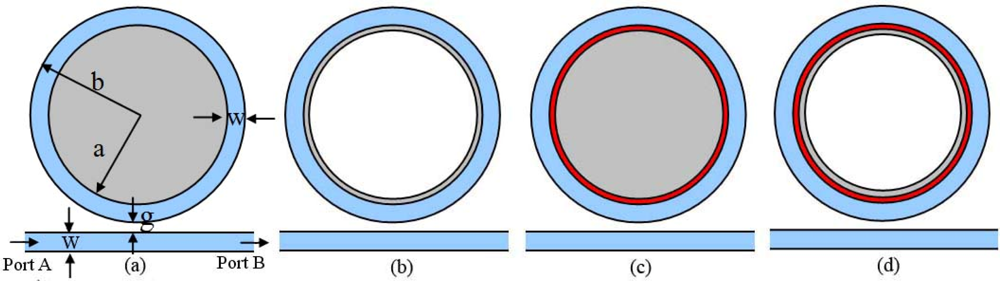

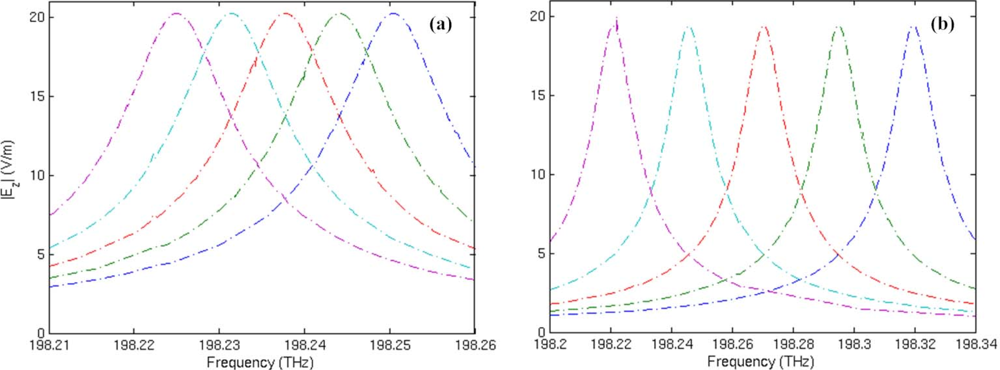

Abstract: Metamaterials are artificial media structured on a size scale smaller than the wavelength of external stimuli, that may provide novel tools to significantly enhance the sensitivity and resolution of the sensors. In this paper, we derive the dispersion relation of hollow cylindrical dielectric waveguide, and compute the resonant frequencies and Q factors of the corresponding Whispering-Gallery-Modes (WGM). A metamaterial sensor based on microring resonator operating in WGM is proposed, and the resonance intensity spectrum curves in the frequency range from 185 to 212 THz were studied under different sensing conditions. Full-wave simulations, considering the frequency shift sensitivity influenced by the change of core media permittivity, the thickness and permittivity of the adsorbed substance, prove that the sensitivity of the metamaterial sensor is more than 7 times that of the traditional microring resonator sensor, and the metamaterial layer loaded in the inner side of the microring doesn’t affect the high Q performance of the microring resonator.
Keywords: sensor; metamaterials; microring
