Non Invasive Sensors for Monitoring the Efficiency of AC Electrical Rotating Machines

Farid Zidat 1,2 email, Jean-Philippe Lecointe 1,2,* email, Fabrice Morganti 1,2 email, Jean-François Brudny 1,2 email, Thierry Jacq 3 email and Frédéric Streiff 4 email
1 Univ Lille Nord de France, F-59000 Lille, France 2 UArtois, LSEE, F-62400 Béthune, France 3 EDF-R&D-Département THEMIS Groupe R25, F-92141 Clamart Cedex, France 4 ADEME-SEET Department-20, Av. Du Grésillé BP 90406, F-49004 Angers Cedex 01, France
* Author to whom correspondence should be addressed.
Received: 6 July 2010; in revised form: 9 August 2010 / Accepted: 12 August 2010 / Published: 23 August 2010
(This article belongs to the Special Issue Selected Papers from the 14th International Symposium on Electromagnetic Fields-ISEF2009)
PDF Full-text Download PDF Full-Text [1457 KB, uploaded 24 August 2010 09:57 CEST]

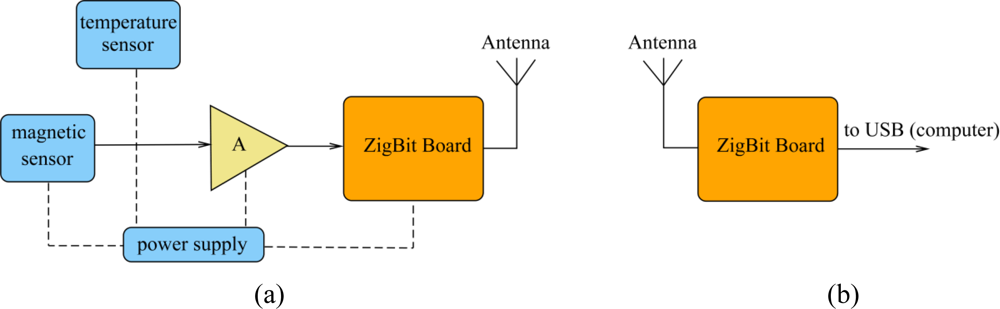

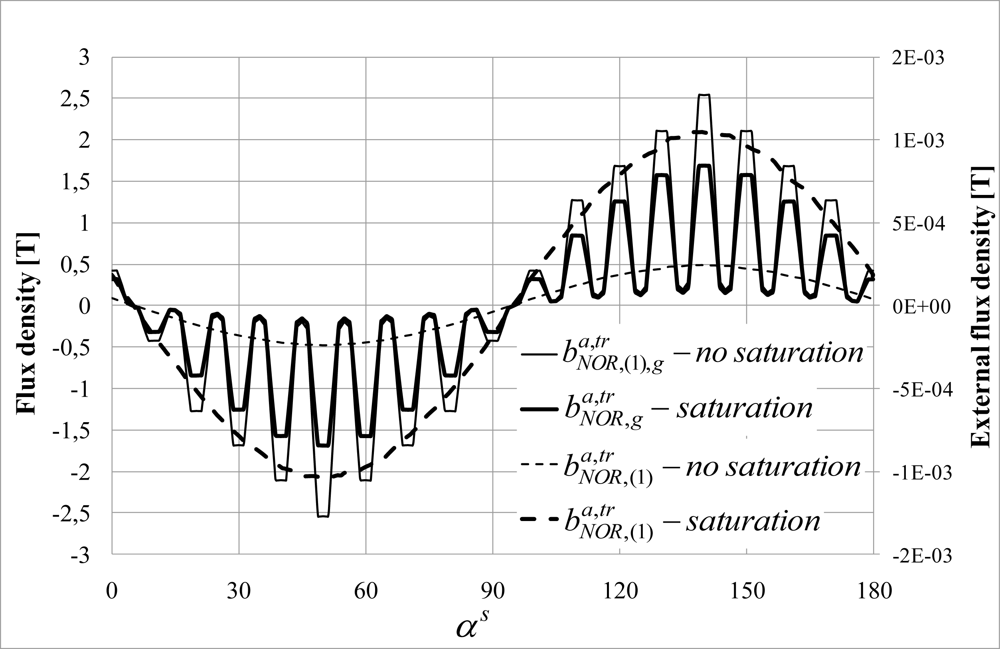

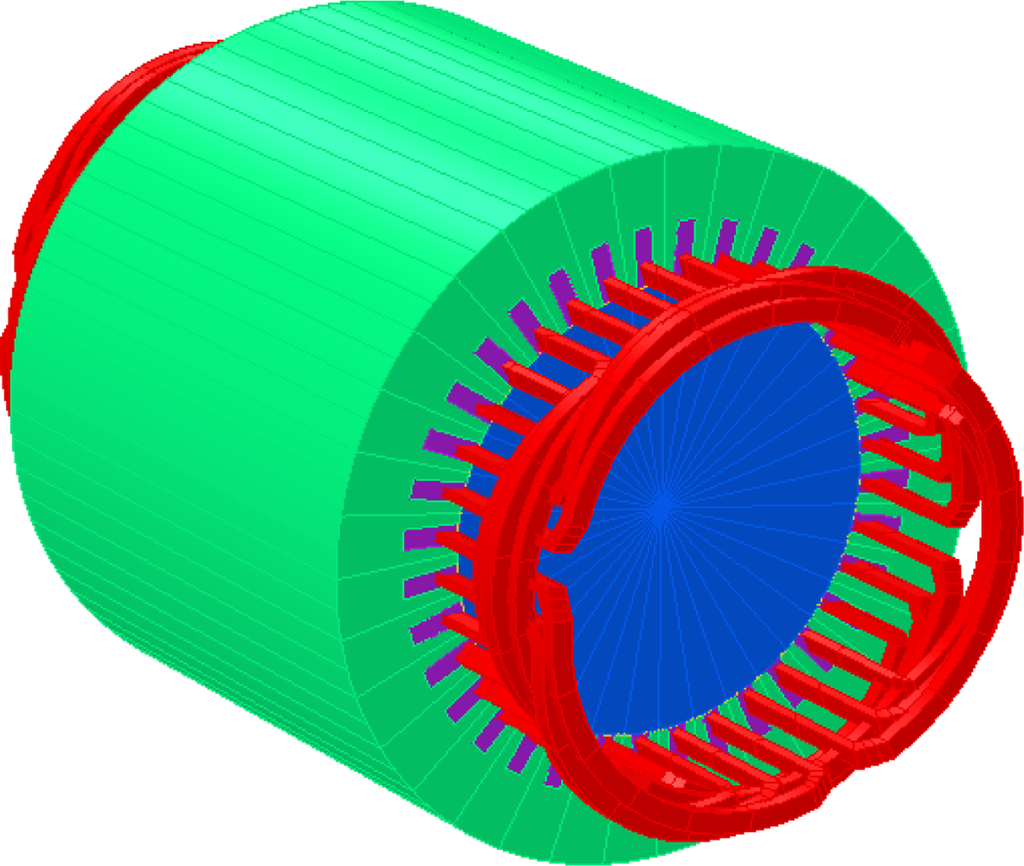

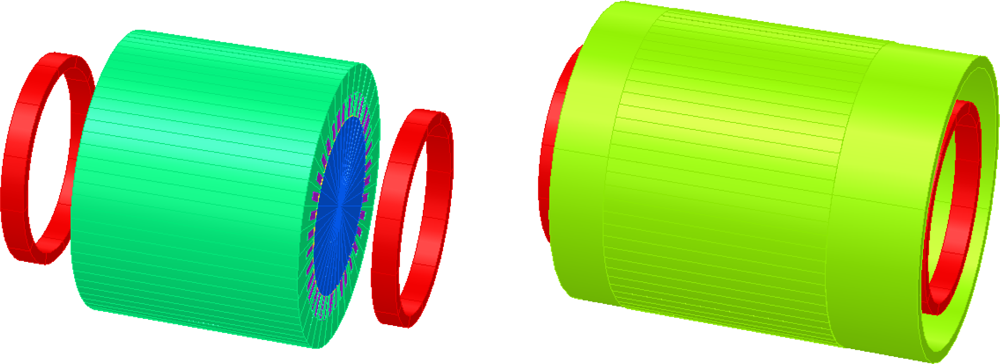

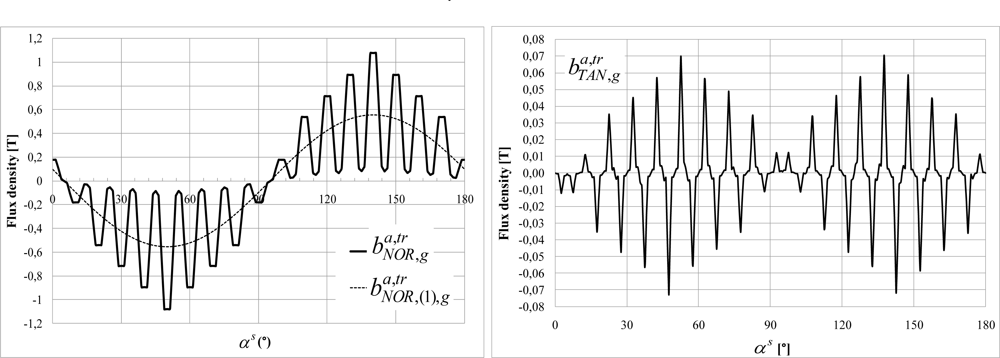

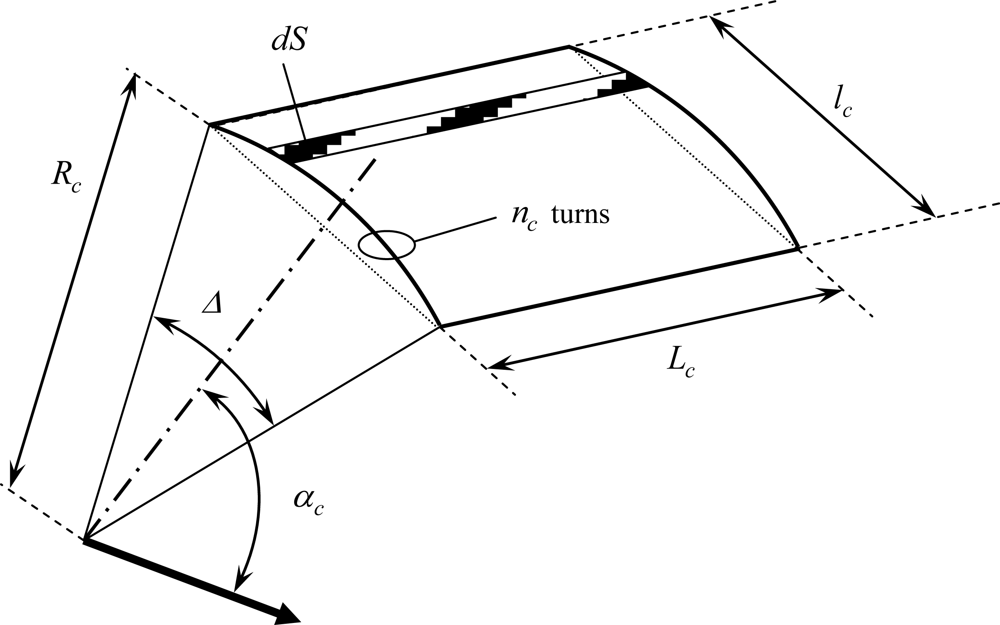

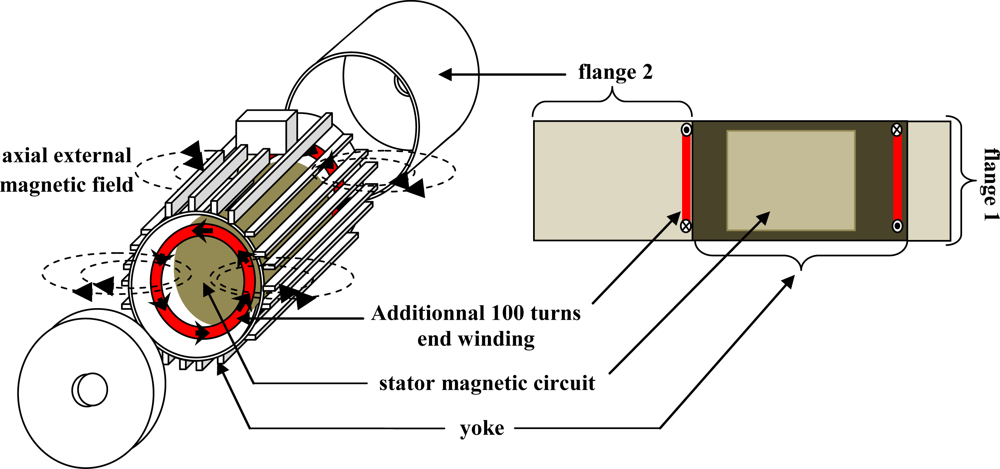

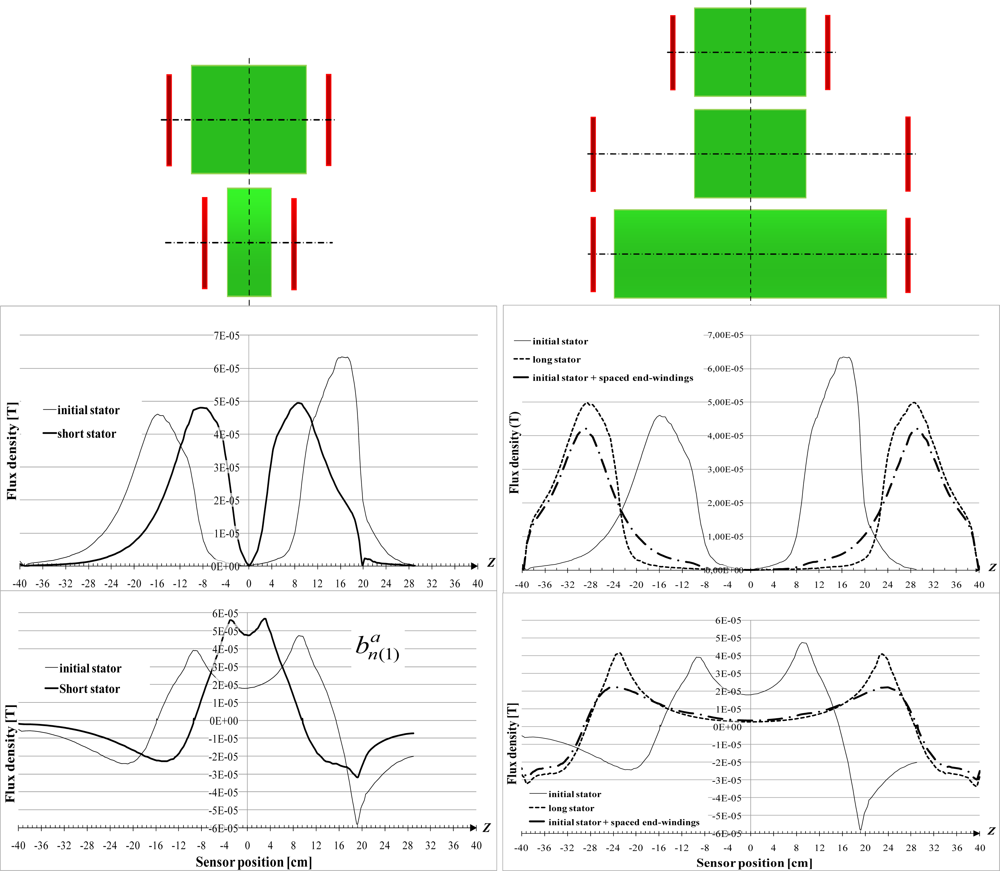

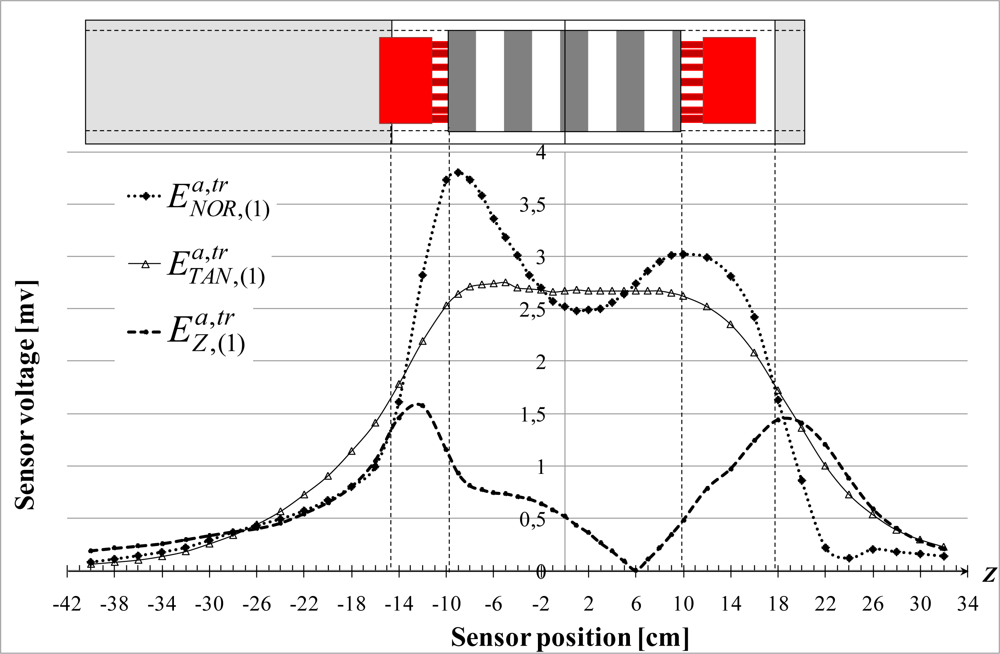

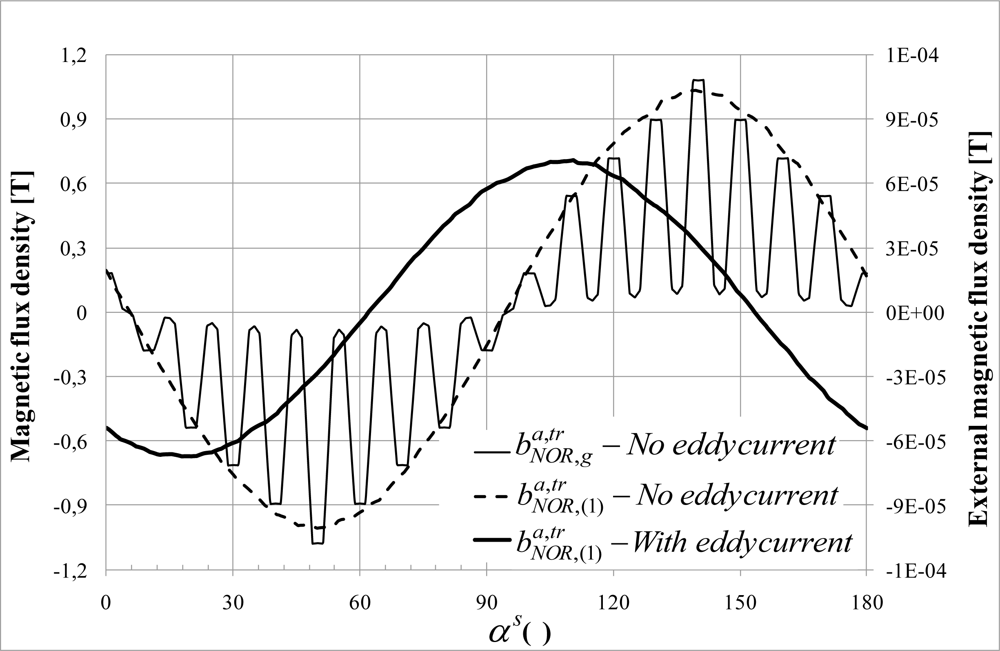

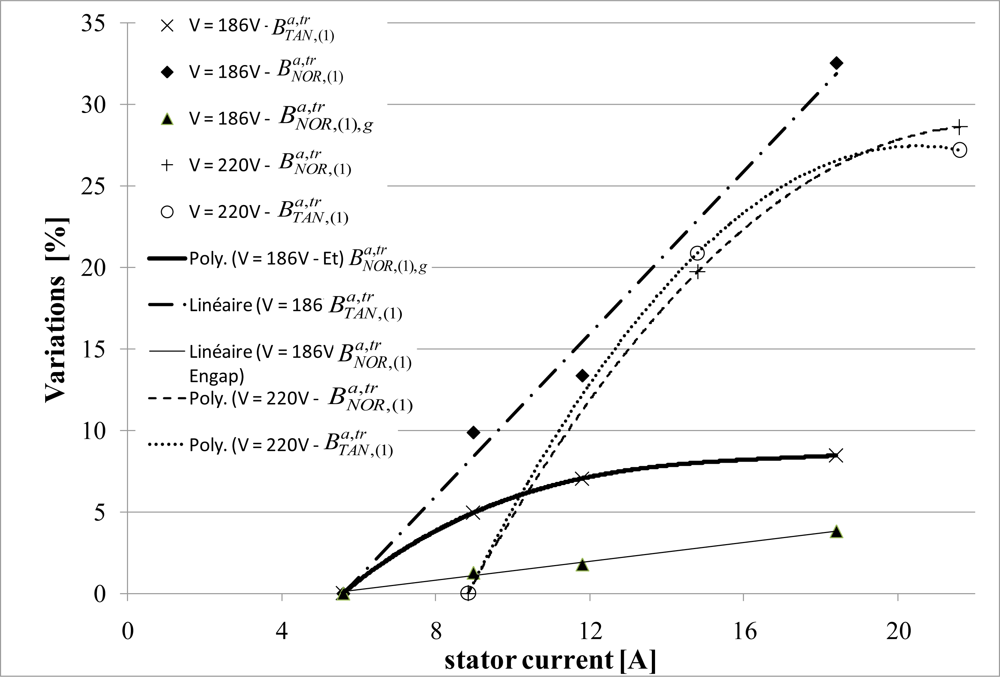

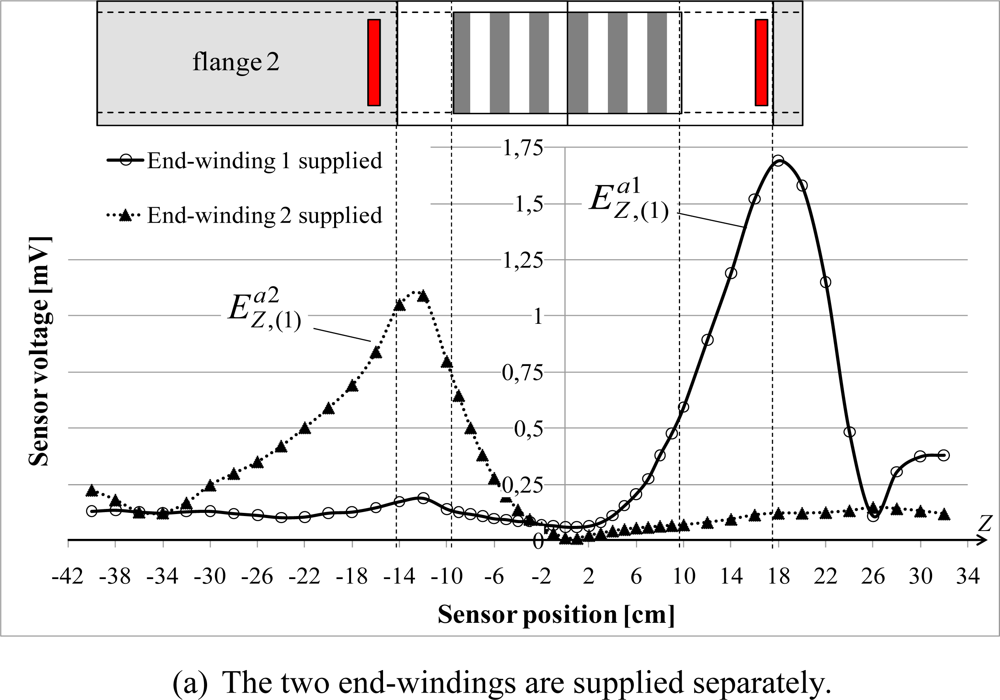

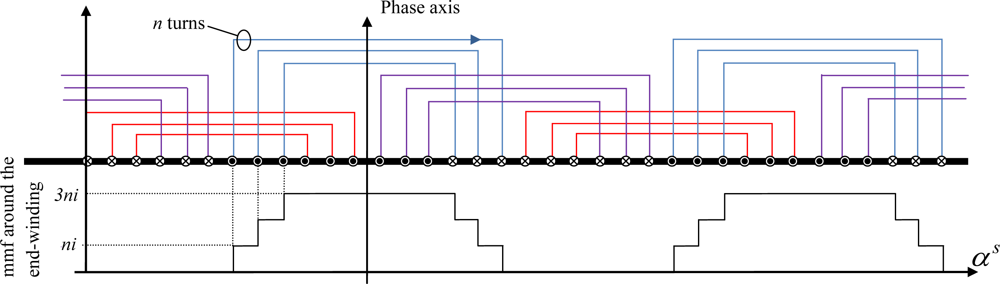

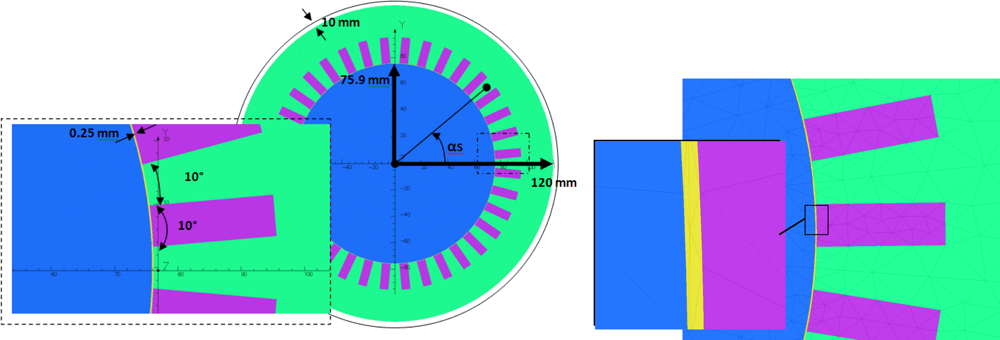

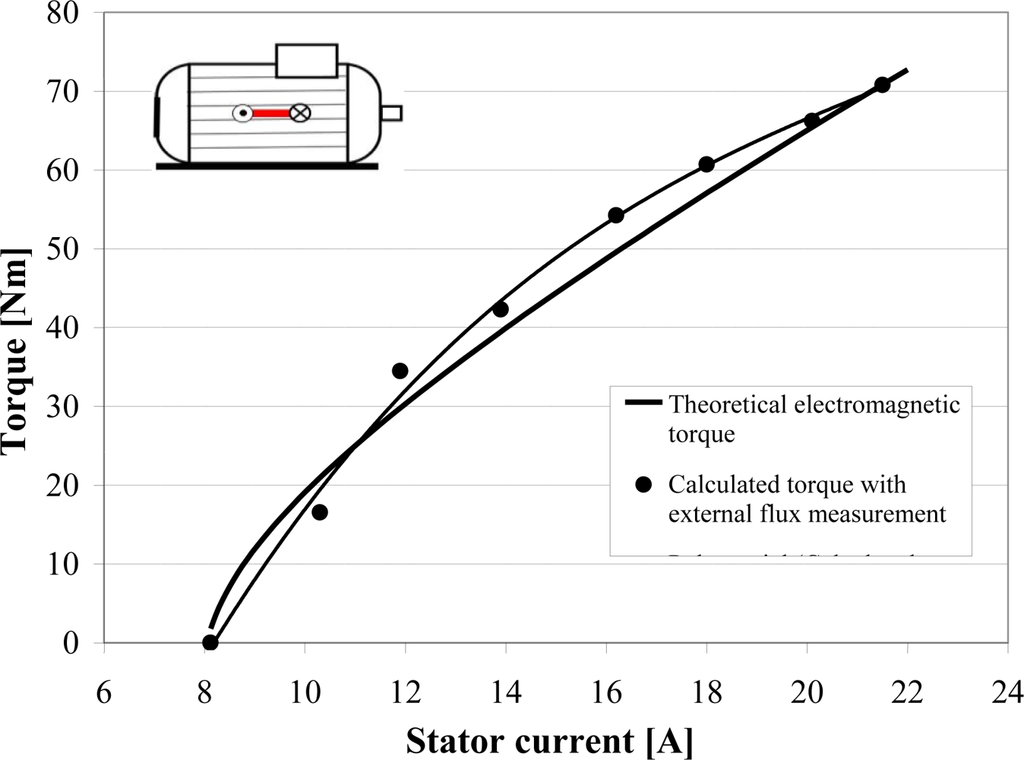

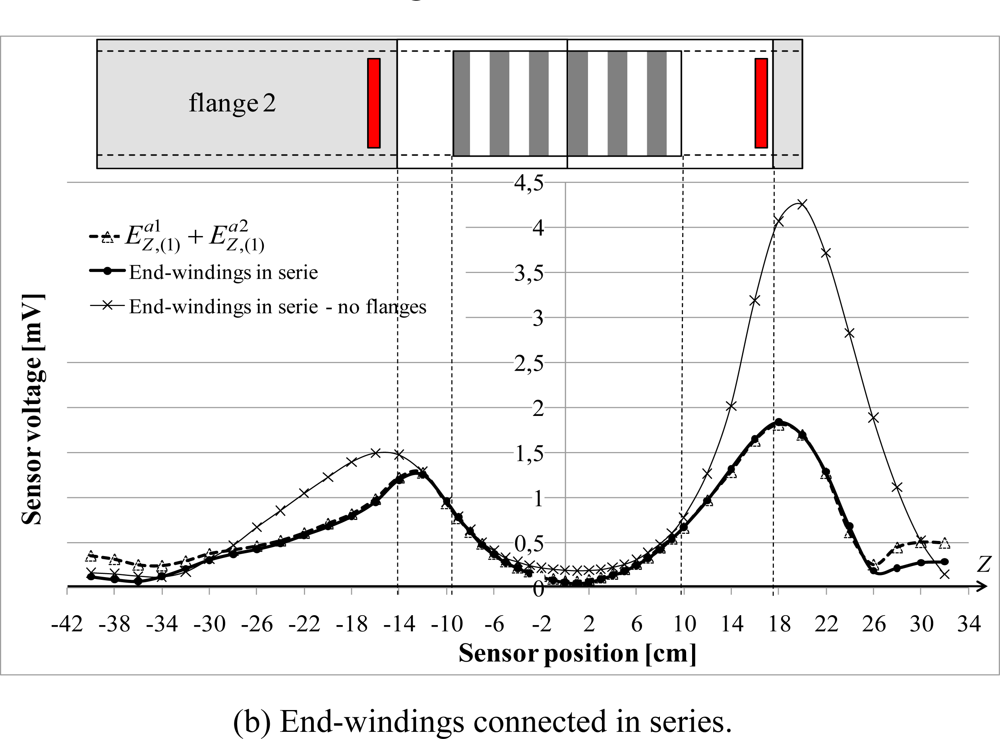

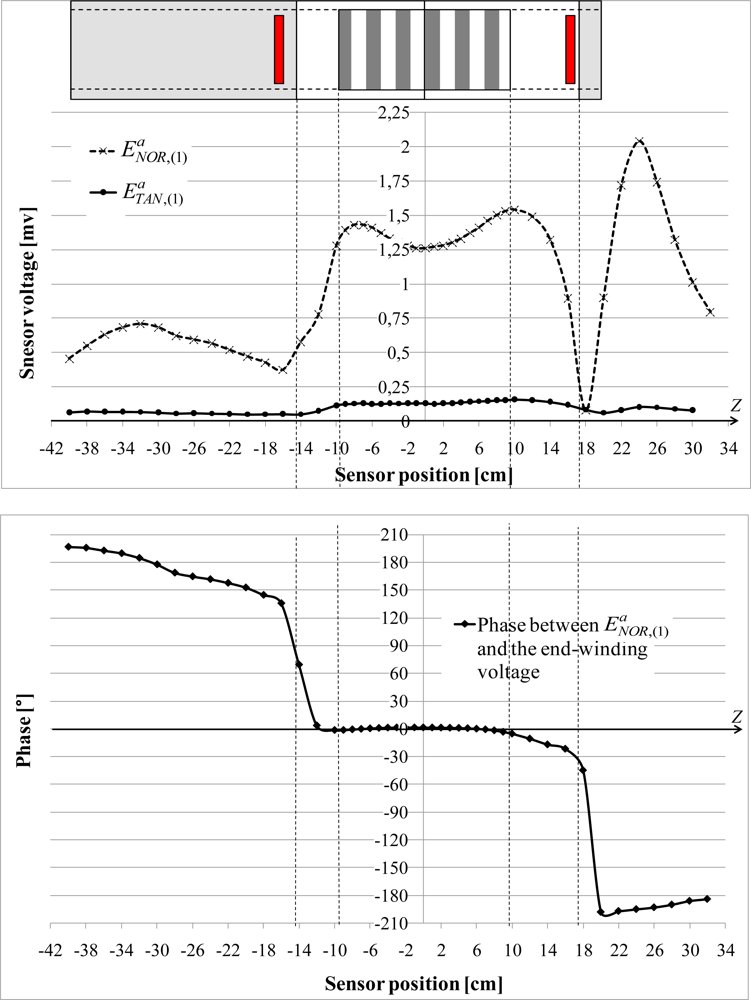

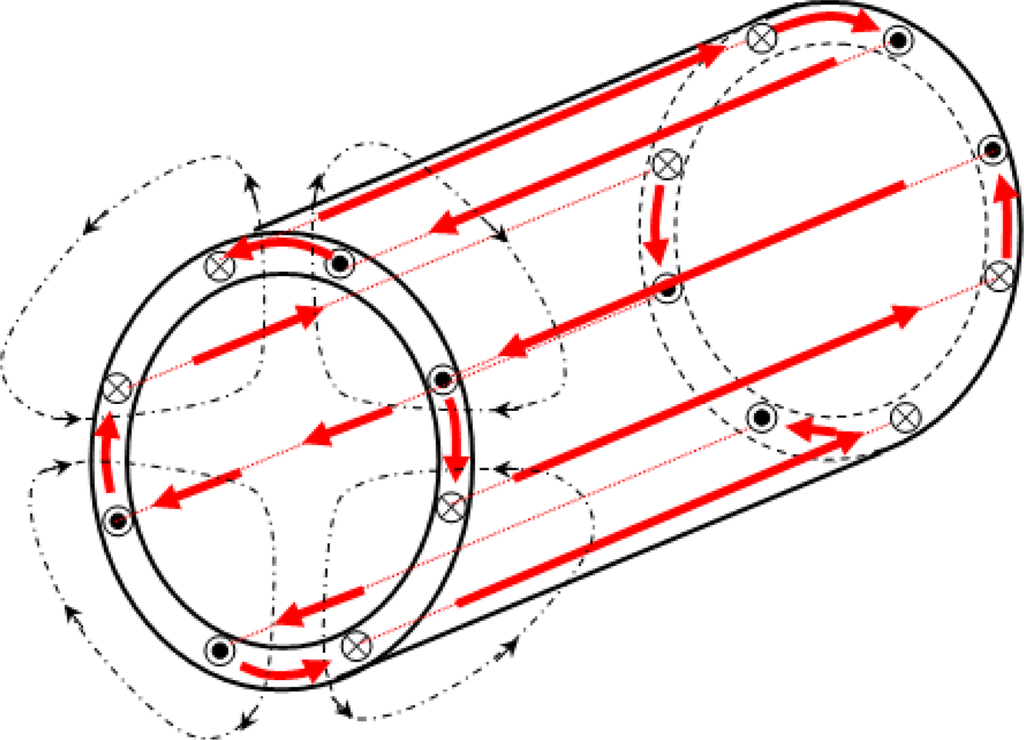

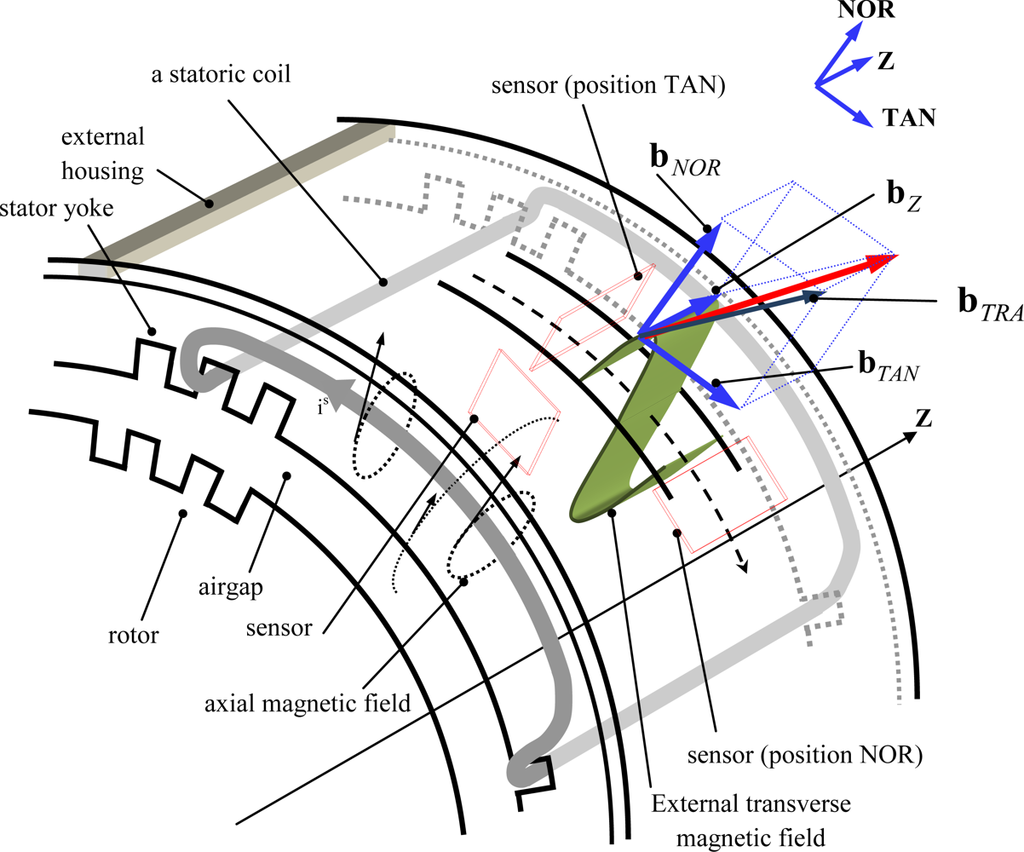

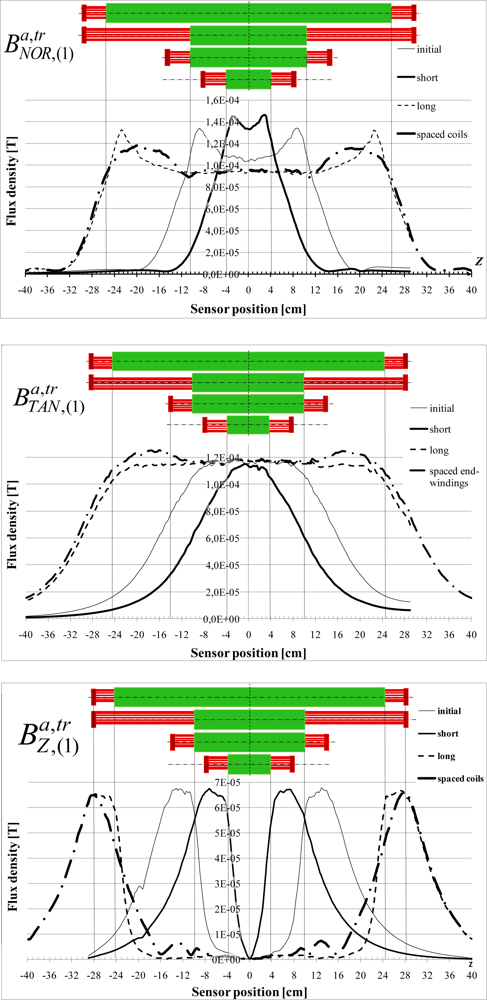

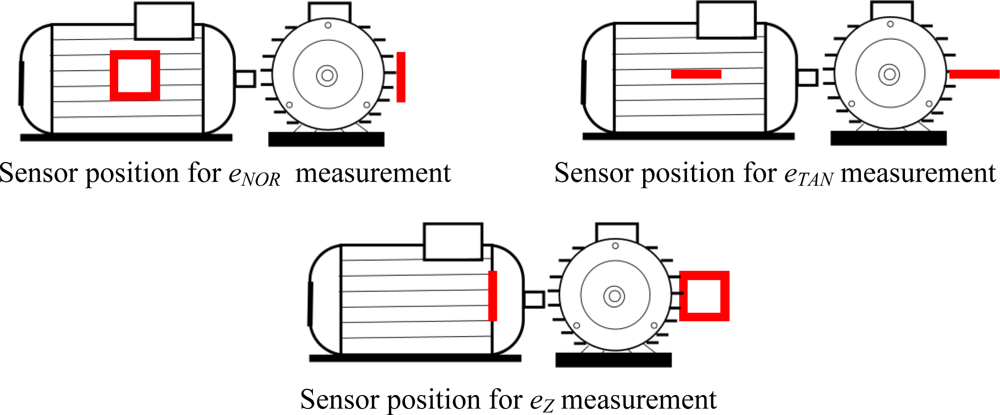

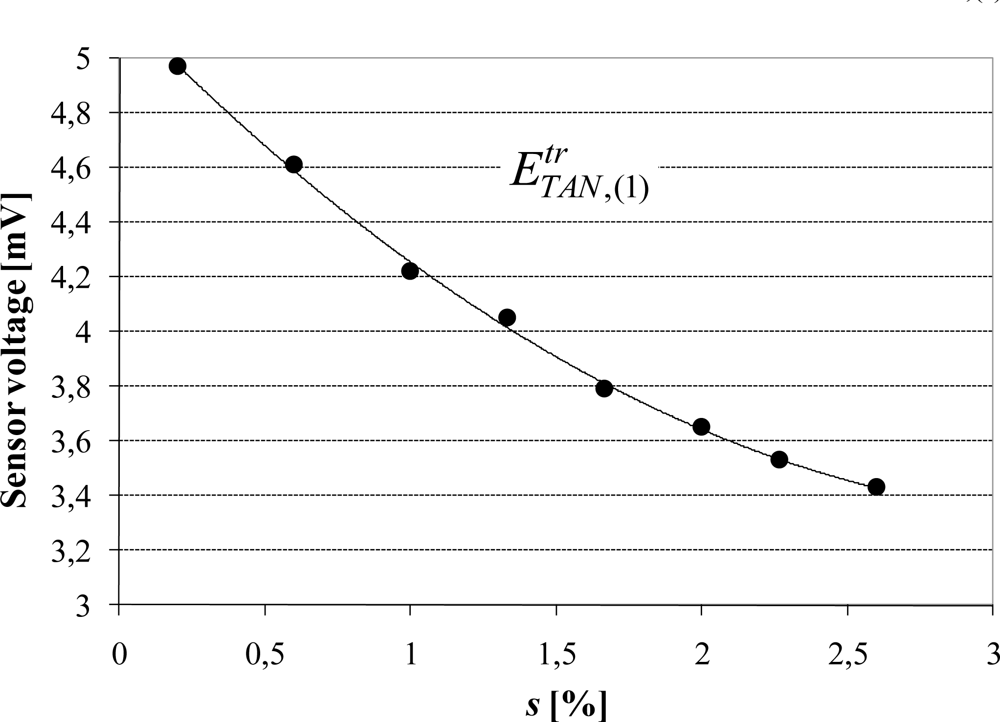

Abstract: This paper presents a non invasive method for estimating the energy efficiency of induction motors used in industrial applications. This method is innovative because it is only based on the measurement of the external field emitted by the motor. The paper describes the sensors used, how they should be placed around the machine in order to decouple the external field components generated by both the air gap flux and the winding end-windings. The study emphasizes the influence of the eddy currents flowing in the yoke frame on the sensor position. A method to estimate the torque from the external field use is proposed. The measurements are transmitted by a wireless module (Zig-Bee) and they are centralized and stored on a PC computer.
