Sensors 2010, 10(7), 7044-7056; doi:10.3390/s100707044

Investigation of the Frequency Shift of a SAD Circuit Loop and the Internal Micro-Cantilever in a Gas Sensor

Department of Precision Instruments and Mechanics, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Received: 15 June 2010 / Revised: 30 June 2010 / Accepted: 10 July 2010 / Published: 23 July 2010
(This article belongs to the Special Issue Intelligent Sensors - 2010)
View Full-Text   |   Download PDF [426 KB, uploaded 21 June 2014]   |

Abstract

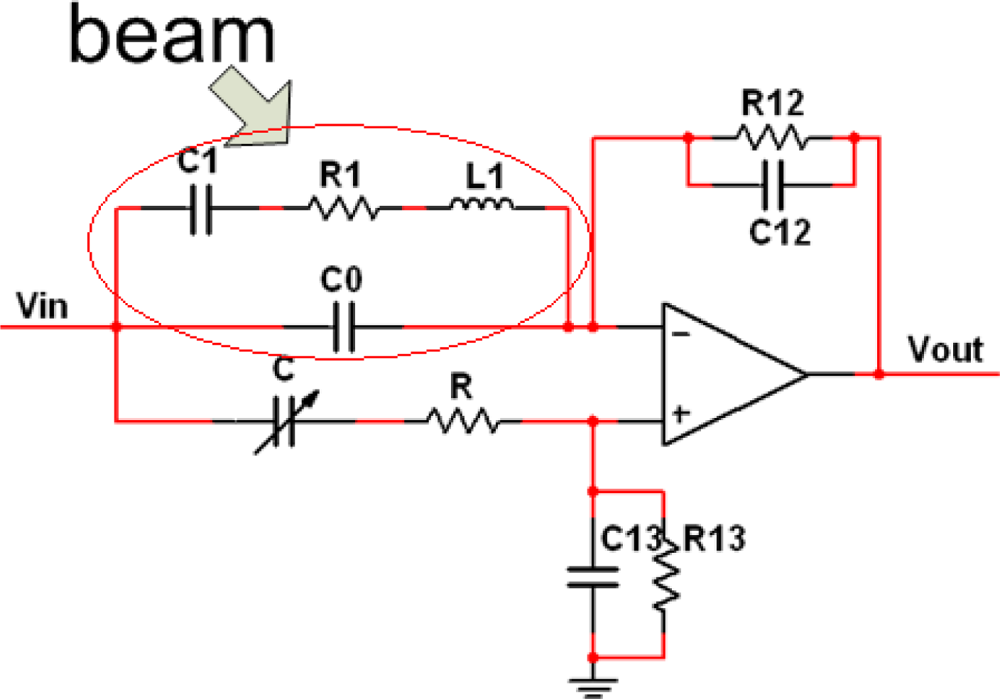

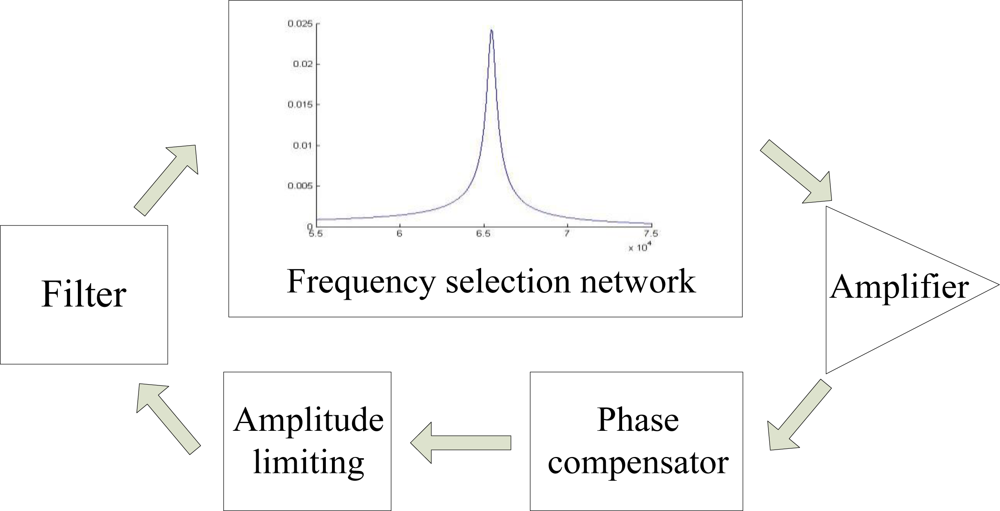

Micro-cantilever sensors for mass detection using resonance frequency have attracted considerable attention over the last decade in the field of gas sensing. For such a sensing system, an oscillator circuit loop is conventionally used to actuate the micro-cantilever, and trace the frequency shifts. In this paper, gas experiments are introduced to investigate the mechanical resonance frequency shifts of the micro-cantilever within the circuit loop(mechanical resonance frequency, MRF) and resonating frequency shifts of the electric signal in the oscillator circuit (system working frequency, SWF). A silicon beam with a piezoelectric zinc oxide layer is employed in the experiment, and a Self-Actuating-Detecting (SAD) circuit loop is built to drive the micro-cantilever and to follow the frequency shifts. The differences between the two resonating frequencies and their shifts are discussed and analyzed, and a coefficientrelated to the two frequency shifts is confirmed.Micro-cantilever sensors for mass detection using resonance frequency have attracted considerable attention over the last decade in the field of gas sensing. For such a sensing system, an oscillator circuit loop is conventionally used to actuate the micro-cantilever, and trace the frequency shifts. In this paper, gas experiments are introduced to investigate the mechanical resonance frequency shifts of the micro-cantilever within the circuit loop(mechanical resonance frequency, MRF) and resonating frequency shifts of the electric signal in the oscillator circuit (system working frequency, SWF). A silicon beam with a piezoelectric zinc oxide layer is employed in the experiment, and a Self-Actuating-Detecting (SAD) circuit loop is built to drive the micro-cantilever and to follow the frequency shifts. The differences between the two resonating frequencies and their shifts are discussed and analyzed, and a coefficientrelated to the two frequency shifts is confirmed. View Full-Text
Keywords: micro-cantilever; gas sensor; frequency shift; oscillator loop micro-cantilever; gas sensor; frequency shift; oscillator loop
