Exploiting the Autofluorescent Properties of Photosynthetic Pigments for Analysis of Pigmentation and Morphology in Live Fremyella diplosiphon Cells

1
Plant Research Laboratory, Department of Energy, Michigan State University, 106 Plant Biology Building, East Lansing, MI 48824-1312, USA
2
Cell and Molecular Biology Program, Michigan State University, 2240A Biomedical and Physical Science Building, East Lansing, MI 48824-4320, USA
3
Division of Biological Sciences, University of California-San Diego, La Jolla, CA 92093-0116, USA
4
Department of Biochemistry and Molecular Biology, Michigan State University, 210 Biochemistry, East Lansing, MI 48824-1319, USA
*
Author to whom correspondence should be addressed.
Sensors 2010, 10(7), 6969-6979; https://doi.org/10.3390/s100706969
Submission received: 7 June 2010 / Revised: 12 July 2010 / Accepted: 16 July 2010 / Published: 19 July 2010
(This article belongs to the Special Issue Photodetectors and Imaging Technologies)

Abstract

:
Fremyella diplosiphon is a freshwater, filamentous cyanobacterium that exhibits light-dependent regulation of photosynthetic pigment accumulation and cellular and filament morphologies in a well-known process known as complementary chromatic adaptation (CCA). One of the techniques used to investigate the molecular bases of distinct aspects of CCA is confocal laser scanning microscopy (CLSM). CLSM capitalizes on the autofluorescent properties of cyanobacterial phycobiliproteins and chlorophyll a. We employed CLSM to perform spectral scanning analyses of F. diplosiphon strains grown under distinct light conditions. We report optimized utilization of CLSM to elucidate the molecular basis of the photoregulation of pigment accumulation and morphological responses in F. diplosiphon.

1. Introduction

Photosynthetic organisms depend upon light for carbon fixation and production of reductant. Thus, the ability to adapt to changes in the photoenvironment is critical. These organisms have diverse mechanisms for light perception and exhibit a number of metabolic and developmental photoresponses. To understand the dynamic molecular processes used for adapting to changes in ambient light, we are investigating the functions of biliproteins, light-absorbing pigments centrally involved in both photosynthesis and the regulation of photomorphogenesis in cyanobacteria, algae, and plants. Photomorphogenesis is the control of growth and development by light intensity and color. The freshwater filamentous cyanobacterium Fremyella diplosiphon exhibits a well-known light-dependent acclimation process known as complementary chromatic adaptation (CCA). During CCA, F. diplosiphon exhibits light-dependent changes in the protein composition of the photosynthetic light-harvesting complexes, i.e., phycobilisomes (PBSs), and cell and filament morphologies [1]. These changes occur maximally in response to green and red light. Phytochrome-related biliprotein RcaE is responsible for regulating the observed light-dependent changes in PBS protein composition and morphology in F. diplosiphon [24].
The changes in the PBSs that occur during CCA consist of changes in the phycobiliprotein (PBP) content of the PBSs. F. diplosiphon PBSs consist of a core that contains allophycocyanin (AP; wavelength of absorbance maximum [λmax] ∼650 nm) and rods that consist of red-light (RL)-absorbing constitutive phycocyanin (PCc; λmax ∼620 nm) in the core-proximal portion of the rods and inducible PC (PCi) or green-light (GL)-absorbing phycoerythrin (PE; λmax ∼560 nm) in the outermost portion of the rods (reviewed by [5]). The PBSs contains PCi when grown in RL and PE under GL. The PBSs are attached to the thylakoid membrane and transfer energy to chlorophyll a (Chl a) in the reaction centers of photosynthetic photosystems (reviewed by [5]). By nature of their spectral properties, PBPs are also highly autofluorescent proteins. The three PBPs found in F. diplosiphon PBSs exhibit distinct wavelengths of fluorescence maximum (λem): AP, λem ∼660 nm; PC, λem ∼625–645 nm; and PE, λem ∼575 nm (reviewed by [6]). The Chl a pigment also is autofluorescent and has λem ∼630–720 nm, which overlaps with PC and AP (see [7] for representative scans).
Microscopy has served as a vital tool for providing insight into cellular structure and function. Many types of microscopy have been used with cyanobacterial systems to provide insight into cyanobacterial characterization and organismal and community structure [8]. General light microscopy has been used widely for gross analyses of cyanobacteria and species classification. Although scanning electron microscopy (SEM) has been used extensively for investigating surface structures of cyanobacteria, and transmission electron microscopy (TEM) has been utilized to explore internal cellular structures [8], confocal laser scanning microscopy (CLSM) has gained popularity for a number of its positive attributes. CLSM is particularly useful as it does not require the chemical fixation or cryofixation methods that are central to the use of SEM and TEM, and thus allows for non-destructive, or live, imaging of individual cells or populations of cells [8]. CLSM also allows imaging of fluorescent, or light-emitting, compounds. Fluorescent proteins have been used in many systems to study cellular development and differentiation, including eukaryotic systems from animals to plants (reviewed by [9]), as well as prokaryotic systems (reviewed by [10]). CLSM technology has proven particularly useful for imaging of cyanobacteria, as these organisms possess highly abundant autofluorescent PBPs and Chl a, which can be used as intrinsic fluorescent markers [2,7,8,1113]. However, heterologous fluorescent probes can also be used with these organisms, despite the presence of intrinsic autofluorescent proteins (for examples see [1417]). Furthermore, the PBPs have been widely used in heterologous systems as fluorescent protein tags (reviewed by [9]).
Notably, TEM and SEM have been used to study the structure of isolated PBSs from F. diplosiphon [18]. More recently, we have adapted the use of CLSM for studying morphology and PBP content of F. diplosiphon during CCA in vivo [2,11,19,20]. Here, we report on the optimization of the use of CLSM in F. diplosiphon for the analyses of pigmentation and cellular morphology using the intrinsic autofluorescent properties of PBPs. We investigated differential laser excitation and collection of emission data to optimize PBP detection and localization, as well as cellular and filament morphology analysis. These studies resulted in the identification of conditions that allow detailed investigations into the molecular bases of the regulation of distinct aspects of CCA through comparative CLSM analyses of wild-type and mutant strains of F. diplosiphon.

2. Experimental Section

2.1. Strains and culture growth conditions

The SF33 strain, a shortened filament strain of Fremyella diplosiphon [21], was used as wild-type (WT) pigmentation strain, and the ΔrcaE mutant, which is deficient in the photoreceptor that regulates CCA responses, was previously described [24]. Strains were grown at 28 °C in BG11 medium supplemented with 20 mM HEPES (BG11/HEPES) shaking at 175 rpm, as described previously [2]. Broad-band green light (GL) and red light (RL) sources were those previously described [2]. A Li-Cor light meter (model LI-250, Li-Cor, Lincoln, NE) connected to a Li-Cor quantum sensor (model LI-190SA) was used to measure light intensity.

2.2. Slide preparation

Slides of live, immobilized F. diplosiphon cells were prepared using an adapted procedure from Reize and Melkonian [22]. A stock solution of 2% (w/v) UltraPure™ Low Melting Point (LMP) agarose (Invitrogen) was prepared in BG11/HEPES culture medium. The mixture was dissolved fully by heating and mixing on a heated stir plate to homogeneity. LMP agarose cooled to 37 °C in a shaking incubator was added to cells at an optical density at 750 nm (OD750) of ∼0.2 to achieve a final OD750 of ∼0.1, which yields a final LMP agarose concentration of 1.0%. A 50-μL aliquot of the suspension was pipetted onto a 1.0-mm thick 3″× 1½″ Propper Bev-L-Edge® pre-cleaned twin-frost® slide into a vacuum lubricant-enclosed square (Propper, Long Island City, NY). A cover slip was placed over the suspension (Figure 1). Slides were fixed at 4 °C for 10 mins prior to imaging.

2.3. Confocal imaging parameters

Immobilized F. diplosiphon cells were imaged with an inverted Axiovert 200 Zeiss LSM 510 Meta confocal laser scanning microscope (CLSM; Carl Zeiss MicroImaging, Thornwood, NY) using Nomarski or differential interference contrast (DIC) optics with a 20× dry objective and fluorescence excitation/emission filters with a 40×/1.3NA oil immersion Plan-Neofluar objective lens or 63×/1.4NA oil immersion Plan-Apo objective lens, as indicated. DIC imaging was conducted with excitation by a 488-nm argon laser at 10% power, using an NT 80/20 filter as described [2]. Initial autofluorescence settings for chlorophyll detection were based on settings adapted from previously published methods [13]. To identify conditions designed to optimize detection of PBP autofluorescence under distinct light conditions, spectral scanning of WT RL- and GL-grown cells was initiated.
Optimization of PBP and Chl a autofluorescence detection for F. diplosiphon was conducted using 488-, 543-, and 633-nm lasers for excitation. For 488-nm excitation, the argon laser was set at 10% power and the images were collected with an NT 80/20 filter. Emission scans were collected in ∼10.7-nm bandwidth increments in the range from 500 nm to 750 nm. For 543-nm excitation, the helium-neon laser was set at 30% power and the images collected with an NT 80/20 filter. Emission scans were collected in ∼10.7-nm bandwidth increments in the range from 550 nm to 750 nm. For 633-nm excitation, the helium-neon laser was set at 10% power and the images collected with an NT 80/20 filter. Emission scans were collected in ∼10.7-nm bandwidth increments in the range from 640 nm to 750 nm. Acquired CLSM images were obtained with the LSM FCS Zeiss 510 Meta AIM imaging software.

3. Results and Discussion

3.1. Determining imaging parameters for F. diplosiphon PBP autofluorescence

CLSM is useful for detecting cellular and filament morphology in individual filaments as well as population scans (Figure 2) using DIC optics. To optimally capture PBP autofluorescence in F. diplosiphon, we performed spectral imaging using the Meta scan-head on the CLSM. We set image parameters using SF33 cells grown under either GL or RL conditions. A single filament was focused under a Plan-Apochromat 63× oil objective and utilized for image parameter determination. To detect PBP autofluorescence, the filament was excited with three individual laser wavelengths: 488 nm, 543 nm, or 633 nm. An emission spectrum was then gathered at 10.7-nm increments as a lambda Z-series.
Excitation at 488 nm and scanning from 500 to 750 nm resulted in wavelengths of maximum emission at ∼580 and 650 nm for SF33 cells grown under GL (Figure 3) and at ∼670 nm for cells under RL (Figure 4). Excitation at 543 nm was associated with maximal emission at ∼580 and 660 nm for SF33 cells grown under GL (Figure 5) and at ∼660 nm for cells under RL (Figure 6) when emission scans were obtained in the range of ∼550 to 750 nm. Finally, excitation with the 633-nm laser and the obtaining of emission scans in the ∼640 to 750 nm range resulted in maximal emission at ∼660–670 nm under both GL (Figure 7) and RL (Figure 8).
The collected spectra were analyzed for wavelengths where fluorescence reached maximum emission (λmax; Table 1), as well as maximum relative fluorescence intensity. The ranges of maximum PBP autofluorescence and fluorescence intensity were compared between the three different excitation wavelengths in order to determine the best filter settings to use for subsequent imaging. Notably, λmax for emission was identical under GL and RL for excitation at 633. However, the collection of scans for this excitation necessitate the lowest wavelength as ∼640, which is above the maximal detection for PE found in cells under GL growth. Thus, this condition was considered suboptimal for detection of autofluorescence for GL-grown cells, and additionally the intensity for RL-grown cells was less than that observed for excitation at 488 or 543 nm. Comparing excitation at 488 and 543 nm, overall fluorescence was higher with 543 nm excitation under both GL and RL (Figures 5 and 6) as compared to excitation at 488 (Figures 3 and 4).
Based on these observations, final autofluorescence was collected using a 543-nm laser for excitation with a primary dichroic mirror (HFT 488/543), a secondary dichroic mirror (NFT 490) and finally a long pass (LP) 560-nm emission filter independent of light growth conditions of F. diplosiphon cells. Emission was collected using a 560- to 615-nm band pass (BP) filter, selected to capture fluorescence correlating with the accumulation of GL-inducible PE, and a 640- to 753-nm Meta detector, selected to capture fluorescence correlating with the accumulation of PCc, AP, and Chl a for GL-grown cells. Emission for RL-grown cells was collected with a 615-nm LP filter selected to capture fluorescence correlating with the accumulation of RL-inducible PCi, as well as PCc, AP, and Chl a.

3.2. Imaging different F. diplosiphon strains with optimal settings for detecting PBP autofluorescence

These optimized CLSM settings were used to image SF33 and ΔrcaE strains grown under GL or RL to demonstrate the efficacy of detecting PBP autofluorescence and observing cellular and filament morphologies. In imaged samples, the fluorescence channels were falsely colored to reflect the PBS composition under each light condition; for RL-grown filaments, the autofluorescence observed using a 615-nm long pass filter is indicated by blue color, which correlates with the accumulation of PCi, as well as PCc, AP, and Chl a (Figure 9A and 9C). For GL-grown filaments, the autofluorescence observed using a band pass filter of 560–615 nm is indicated by pink, correlating with the accumulation of GL-inducible PE, as well as autofluorescence from PCc, AP, and Chl a using the meta scanning filter from 640–753 nm, indicated by blue color (Figure 9B and 9D). The distinctions in PBP composition are apparent in comparisons of SF33 cells grown in RL vs. GL (compare Figure 9A and 9B). The use of autofluorescence has also enhanced our ability to observe clear distinctions in cellular morphology between cells of SF33 and ΔrcaE strains (Figure 9; [2,19]).

4. Conclusions

The autofluorescent nature of proteins such as cyanobacterial PBPs and Chl a makes them useful as in vivo markers. These in vivo markers facilitate the use of non-invasive techniques including CLSM for studies with live cells. The distinct autofluorescent properties of PBPs makes them a good target for probing the regulation of their synthesis and accumulation [12], as well as effective markers for investigating the regulation of cellular shape and filament morphology in vivo in the organisms in which they are found [2,11,20], apart from their recognized utility as fluorescent tags in heterologous systems [9]. The CLSM technology has also been used for detecting PBP autofluorescence to associate distinct spectral characteristics with distinct developmental stages in cyanobacterial systems [7]. We have demonstrated that CLSM imaging can be optimized for detecting strain-specific proteins that accumulate differentially under distinct growth conditions to study the accumulation of the proteins or markers themselves, to illuminate cellular and/or organismal structures (e.g., cell shape or filament morphology), or to probe the role of particular genes and gene products in the regulation of defined cellular and/or organismal structures (e.g., the role of RcaE in the regulation of cell shape and filament morphology). Furthermore, the use of spectral scanning CLSM for mutants, in particular, may make possible the identification of mutants lacking particular autofluorescent proteins and allow for studies on the related genes and their roles in the regulation of pigmentation.

Acknowledgments

The authors gratefully acknowledge support from Michigan State University (Barnett Rosenberg Endowed Fellowship to J.R.B), a CAREER award from the National Science Foundation (grant no. MCB–0643516 to B.L.M.), and by the Chemical Sciences, Geosciences and Biosciences Division, Office of Basic Energy Sciences, Office of Sciences, U.S. Department of Energy (grant no. DE–FG02–91ER20021 to B.L.M.). We extend thanks to Bagmi Pattanaik for critically reading the manuscript, Melinda Frame of the MSU Center for Advanced Microscopy for assistance with confocal microscopy, Karen Bird for editorial assistance, and Marlene Cameron for assistance with figures.

References

  1. Bennett, A; Bogorad, L. Complementary chromatic adaptation in a filamentous blue-green alga. J. Cell Biol 1973, 58, 419–435. [Google Scholar]
  2. Bordowitz, JR; Montgomery, BL. Photoregulation of cellular morphology during complementary chromatic adaptation requires sensor-kinase-class protein RcaE in Fremyella diplosiphon. J. Bacteriol 2008, 190, 4069–4074. [Google Scholar]
  3. Kehoe, DM; Grossman, AR. Similarity of a chromatic adaptation sensor to phytochrome and ethylene receptors. Science 1996, 273, 1409–1412. [Google Scholar]
  4. Terauchi, K; Montgomery, BL; Grossman, AR; Lagarias, JC; Kehoe, DM. RcaE is a complementary chromatic adaptation photoreceptor required for green and red light responsiveness. Mol. Microbiol 2004, 51, 567–577. [Google Scholar]
  5. Grossman, AR. A molecular understanding of complementary chromatic adaptation. Photosynth. Res 2003, 76, 207–215. [Google Scholar]
  6. Tandeau de Marsac, N; Houmard, J. Adaptation of cyanobacteria to environmental stimuli: New steps towards molecular mechanisms. FEMS Microbiol. Lett 1993, 104, 119–189. [Google Scholar]
  7. Wolf, E; Schüßler, A. Phycobiliprotein fluorescence of Nostoc punctiforme changes during the life cycle and chromatic adaptation: Characterization by spectral confocal laser scanning microscopy and spectral unmixing. Plant Cell Environ 2005, 28, 480–491. [Google Scholar]
  8. Hernández Mariné, M; Clavero, E; Roldán, M. Microscopy methods applied to research on cyanobacteria. Limnetica 2004, 23, 179–186. [Google Scholar]
  9. Mavrakis, M; Pourquié, O; Lecuit, T. Lighting up developmental mechanisms: How fluorescence imaging heralded a new era. Development 2010, 137, 373–387. [Google Scholar]
  10. Lewis, PJ. Bacterial subcellular architecture: recent advances and future prospects. Mol. Microbiol 2004, 54, 1135–1150. [Google Scholar]
  11. Pattanaik, B; Montgomery, BL. FdTonB is involved in the photoregulation of cellular morphology during complementary chromatic adaptation in Fremyella diplosiphon. Microbiol 2010, 156, 731–741. [Google Scholar]
  12. Vermaas, WFJ; Timlin, JA; Jones, HDT; Sinclair, MB; Nieman, LT; Hamad, SW; Melgaard, DK; Haaland, DM. In vivo hyperspectral confocal fluorescence imaging to determine pigment localization and distribution in cyanobacterial cells. Proc. Natl. Acad. Sci. USA 2008, 105, 4050–4055. [Google Scholar]
  13. Sinha, RP; Richter, P; Faddoul, J; Braun, M; Häder, DP. Effects of UV and visible light on cyanobacteria at the cellular level. Photochem. Photobiol. Sci 2002, 1, 553–559. [Google Scholar]
  14. Orcutt, K; Ren, S; Gundersen, K. Detecting proteins in highly autofluorescent cells using quantum dot antibody conjugates. Sensors 2009, 9, 7540–7549. [Google Scholar]
  15. Neunuebel, MR; Golden, JW. The Anabaena sp. strain PCC 7120 gene all2874 encodes a diguanylate cyclase and is required for normal heterocyst development under high-light growth conditions. J. Bacteriol 2008, 190, 6829–6836. [Google Scholar]
  16. Zhang, W; Du, Y; Khudyakov, I; Fan, Q; Gao, H; Ning, D; Wolk, CP; Xu, X. A gene cluster that regulates both heterocyst differentiation and pattern formation in Anabaena sp. strain PCC 7120. Mol. Microbiol 2007, 66, 1429–1443. [Google Scholar]
  17. Merino-Puerto, V; Mariscal, V; Mullineaux, CW; Herrero, A; Flores, E. Fra proteins influencing filament integrity, diazotrophy and localization of septal protein SepJ in the heterocyst-forming cyanobacterium Anabaena sp. Mol. Microbiol 2010, 75, 1159–1170. [Google Scholar]
  18. Rosinski, J; Hainfeld, JF; Rigbi, M; Siegelman, HW. Phycobilisome ultrastructure and chromatic adaptation in Fremyella diplosiphon. Ann. Bot 1981, 47, 1–12. [Google Scholar]
  19. Bordowitz, JR; Whitaker, MJ; Montgomery, BL. Independence and interdependence of the photoregulation of pigmentation and development inFremyella diplosiphon. Commun Integr Biol 2010, 3. in press. [Google Scholar]
  20. Whitaker, MJ; Bordowitz, JR; Montgomery, BL. CpcF-dependent regulation of pigmentation and development in Fremyella diplosiphon. Biochem. Biophys. Res. Commun 2009, 389, 602–606. [Google Scholar]
  21. Cobley, JG; Zerweck, E; Reyes, R; Mody, A; Seludo-Unson, JR; Jaeger, H; Weerasuriya, S; Navankasattusas, S. Construction of shuttle plasmids which can be efficiently mobilized from Escherichia coli into the chromatically adapting cyanobacterium, Fremyella diplosiphon. Plasmid 1993, 30, 90–105. [Google Scholar]
  22. Reize, IB; Melkonian, M. A new way to investigate living flagellated/ciliated cells in the light microscope: Immobilization of cells in agarose. Bot. Acta 1989, 102, 145–151. [Google Scholar]
Figure 1. Slide preparation and imaging scheme. Population Z-series scans are obtained by scanning immobilized Fremyella diplosiphon cells in the x, y, and z axes for each sub-section of the cover-slip covered area (e.g., A, B, C, D, E, and F) on a slide.
Figure 1. Slide preparation and imaging scheme. Population Z-series scans are obtained by scanning immobilized Fremyella diplosiphon cells in the x, y, and z axes for each sub-section of the cover-slip covered area (e.g., A, B, C, D, E, and F) on a slide.
Sensors 10 06969f1

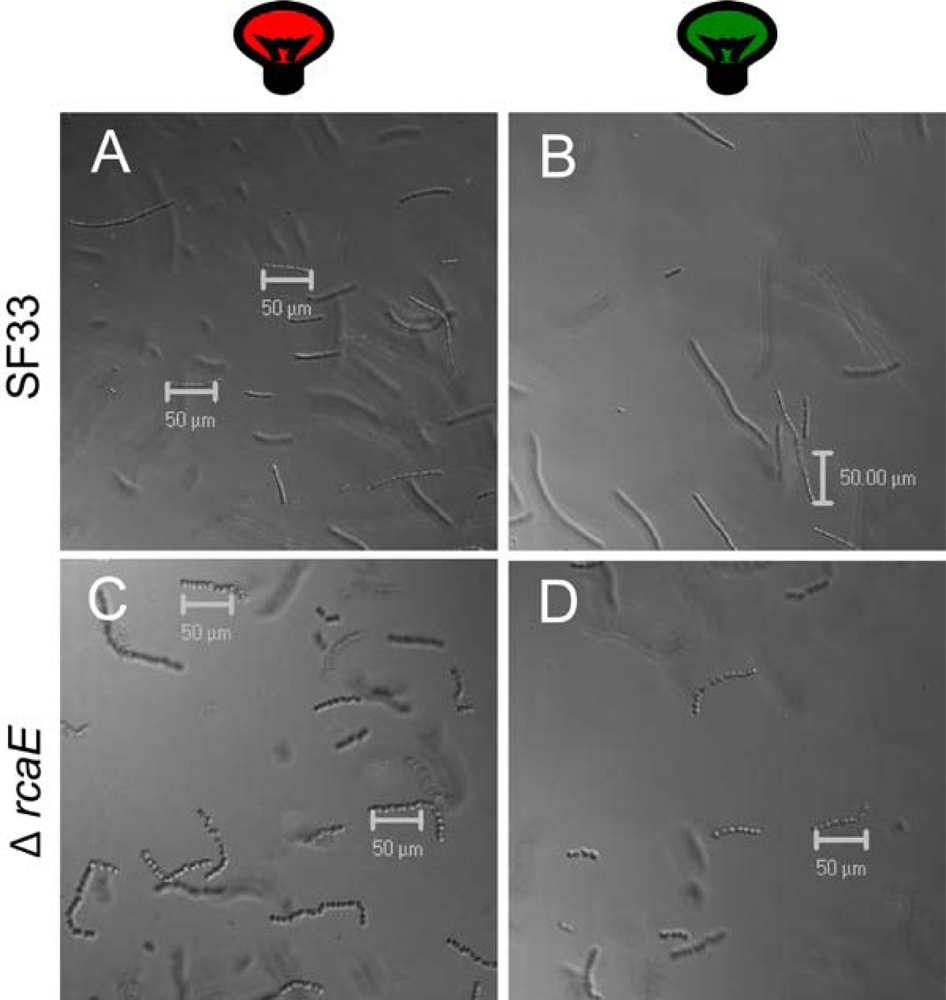

Figure 2. Differential Interference Contrast (DIC) images of filament populations of Fremyella diplosiphon strains grown in broad-band red and green light. Wild-type pigmentation SF33 (A, B) and ΔrcaE mutant (C, D) strains. Images at 20× dry objective. Bars, 50 μm.
Figure 2. Differential Interference Contrast (DIC) images of filament populations of Fremyella diplosiphon strains grown in broad-band red and green light. Wild-type pigmentation SF33 (A, B) and ΔrcaE mutant (C, D) strains. Images at 20× dry objective. Bars, 50 μm.
Sensors 10 06969f2
Figure 3. Spectral emission collection of SF33 GL-grown cells after excitation with 488-nm laser. An emission spectrum was gathered at 10.7-nm increments in the range from 500 nm to 750 nm. All images at 63× oil objective. Bars, 10 μm.
Figure 3. Spectral emission collection of SF33 GL-grown cells after excitation with 488-nm laser. An emission spectrum was gathered at 10.7-nm increments in the range from 500 nm to 750 nm. All images at 63× oil objective. Bars, 10 μm.
Sensors 10 06969f3

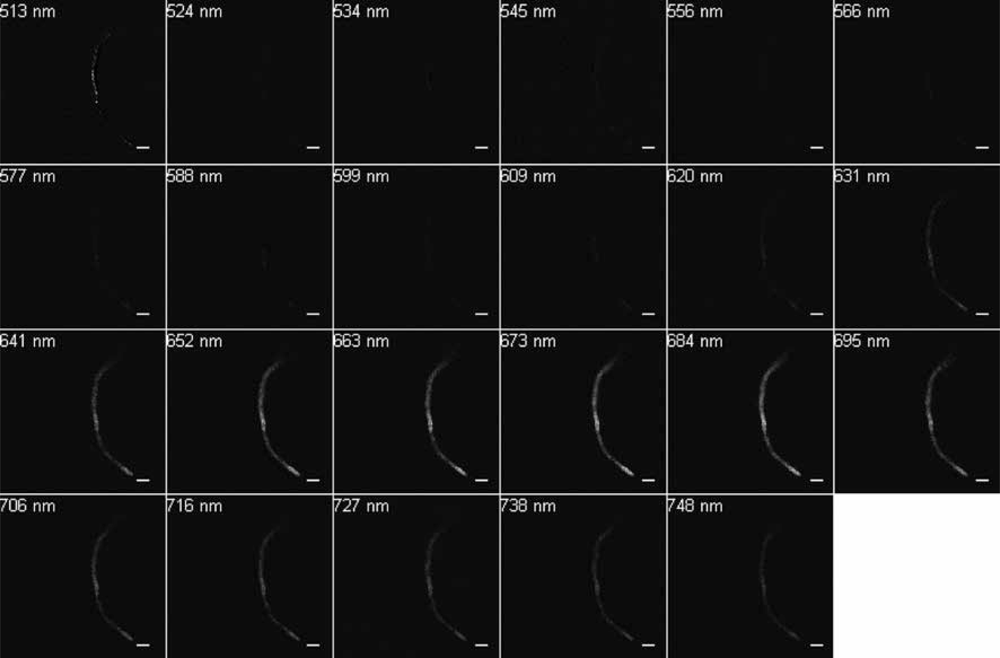

Figure 4. Spectral emission collection of SF33 RL-grown cells after excitation with 488-nm laser. An emission spectrum was gathered at 10.7-nm increments in the range from 500 nm to 750 nm. All images at 63× oil objective. Bars, 10 μm.
Figure 4. Spectral emission collection of SF33 RL-grown cells after excitation with 488-nm laser. An emission spectrum was gathered at 10.7-nm increments in the range from 500 nm to 750 nm. All images at 63× oil objective. Bars, 10 μm.
Sensors 10 06969f4
Figure 5. Spectral emission collection of SF33 GL-grown cells after excitation with 543-nm laser. An emission spectrum was gathered at 10.7-nm increments in the range from 550 nm to 750 nm. All images at 63× oil objective. Bars, 10 μm.
Figure 5. Spectral emission collection of SF33 GL-grown cells after excitation with 543-nm laser. An emission spectrum was gathered at 10.7-nm increments in the range from 550 nm to 750 nm. All images at 63× oil objective. Bars, 10 μm.
Sensors 10 06969f5
Figure 6. Spectral emission collection of SF33 RL-grown cells after excitation with 543-nm laser. An emission spectrum was gathered at 10.7-nm increments in the range from 550 nm to 750 nm. All images at 63× oil objective. Bars, 10 μm.
Figure 6. Spectral emission collection of SF33 RL-grown cells after excitation with 543-nm laser. An emission spectrum was gathered at 10.7-nm increments in the range from 550 nm to 750 nm. All images at 63× oil objective. Bars, 10 μm.
Sensors 10 06969f6
Figure 7. Spectral emission collection of SF33 GL-grown cells after excitation with 633-nm laser. An emission spectrum was gathered at 10.7-nm increments in the range from 640 nm to 750 nm all images at 63× oil objective. Bars, 10 μm.
Figure 7. Spectral emission collection of SF33 GL-grown cells after excitation with 633-nm laser. An emission spectrum was gathered at 10.7-nm increments in the range from 640 nm to 750 nm all images at 63× oil objective. Bars, 10 μm.
Sensors 10 06969f7

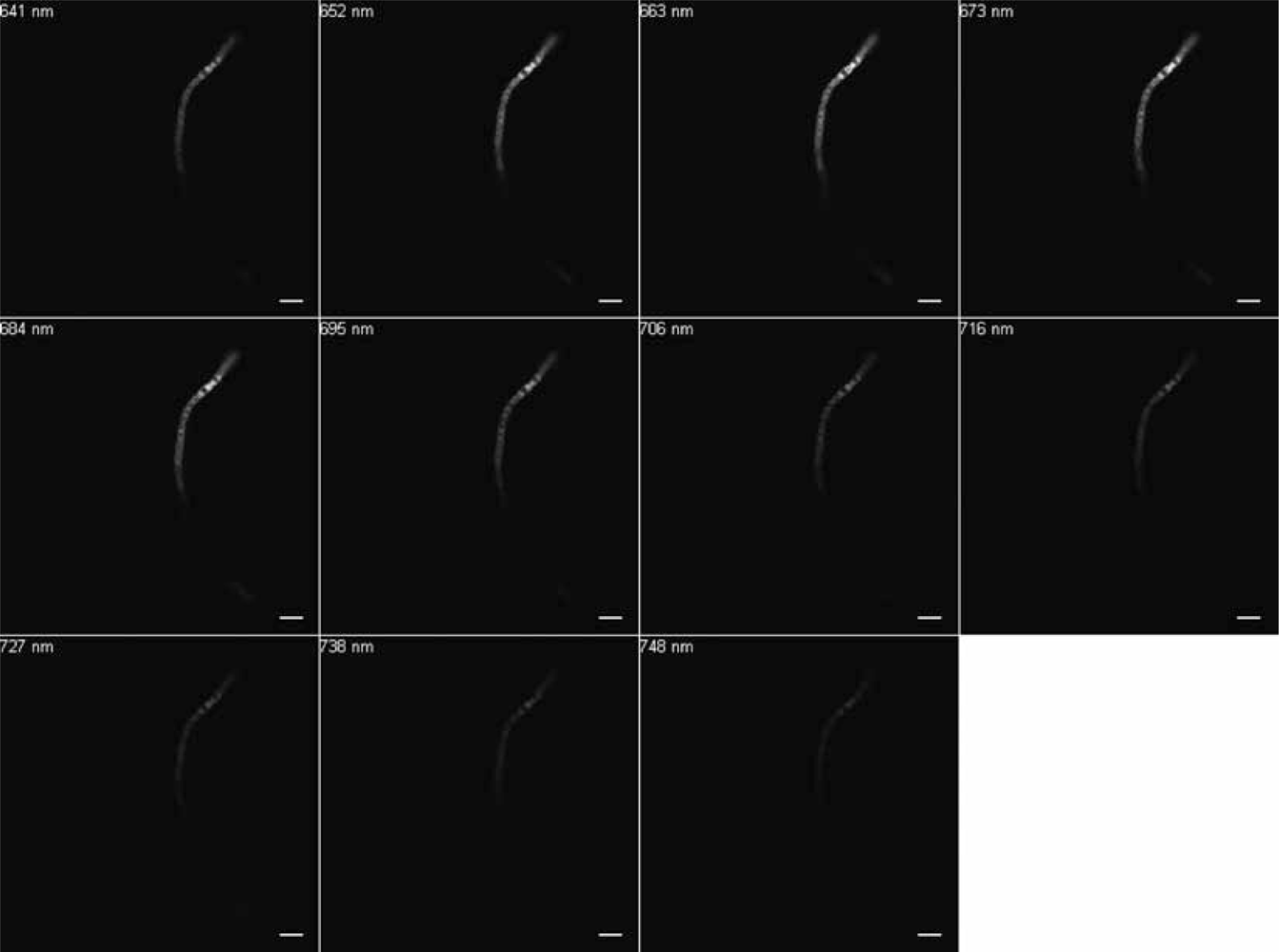

Figure 8. Spectral emission collection of SF33 RL-grown cells after excitation with 633-nm laser. An emission spectrum was gathered at 10.7-nm increments in the range from 640 nm to 750 nm. All images at 63× oil objective. Bars, 10 μm.
Figure 8. Spectral emission collection of SF33 RL-grown cells after excitation with 633-nm laser. An emission spectrum was gathered at 10.7-nm increments in the range from 640 nm to 750 nm. All images at 63× oil objective. Bars, 10 μm.
Sensors 10 06969f8
Figure 9. Phycobiliprotein autofluorescence of Fremyella diplosiphon strains grown in broad-band red and green light. Wild-type pigmentation SF33 (A, B) and ΔrcaE mutant (C, D) strains. Maximum-projection images from a Z-series of GL- and RL-adapted filaments were acquired at 63× oil objective with a 2× zoom setting. False colors are scaled equally among images. Bars, 5 μm.
Figure 9. Phycobiliprotein autofluorescence of Fremyella diplosiphon strains grown in broad-band red and green light. Wild-type pigmentation SF33 (A, B) and ΔrcaE mutant (C, D) strains. Maximum-projection images from a Z-series of GL- and RL-adapted filaments were acquired at 63× oil objective with a 2× zoom setting. False colors are scaled equally among images. Bars, 5 μm.
Sensors 10 06969f9
Table 1. Wavelength(s) of maximum absorption after excitation with 488, 543, and 633 nm laser lines. Maximum ranges of fluorescence emission collected at 10.7-nm increments after excitation of GL- and RL-grown filaments.
Table 1. Wavelength(s) of maximum absorption after excitation with 488, 543, and 633 nm laser lines. Maximum ranges of fluorescence emission collected at 10.7-nm increments after excitation of GL- and RL-grown filaments.
Excitation laser (nm)Scan range (nm)λmax RL (nm)λmax GL (nm)
488∼500–750∼670∼580 & 650
543∼550–750∼660∼580 & 660
633∼640–750∼660–670∼660–670
