Sensors 2010, 10(5), 4887-4897; doi:10.3390/s100504887
Article

Solvent Vapour Detection with Cholesteric Liquid Crystals—Optical and Mass-Sensitive Evaluation of the Sensor Mechanism

,
,
 and *
Received: 18 March 2010; in revised form: 4 May 2010 / Accepted: 6 May 2010 / Published: 12 May 2010
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [203 KB, uploaded 21 June 2014]   |   Browse Figures

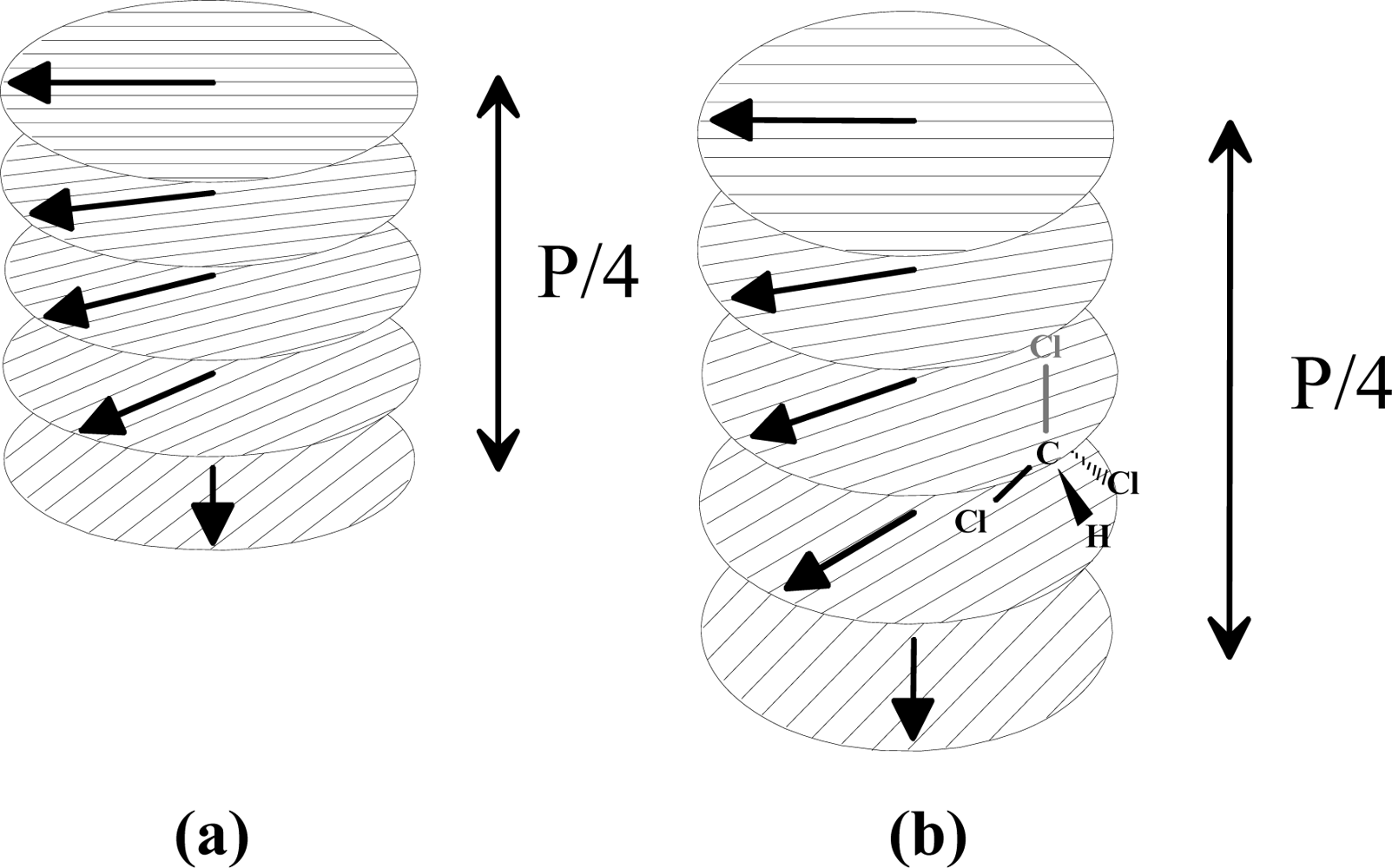

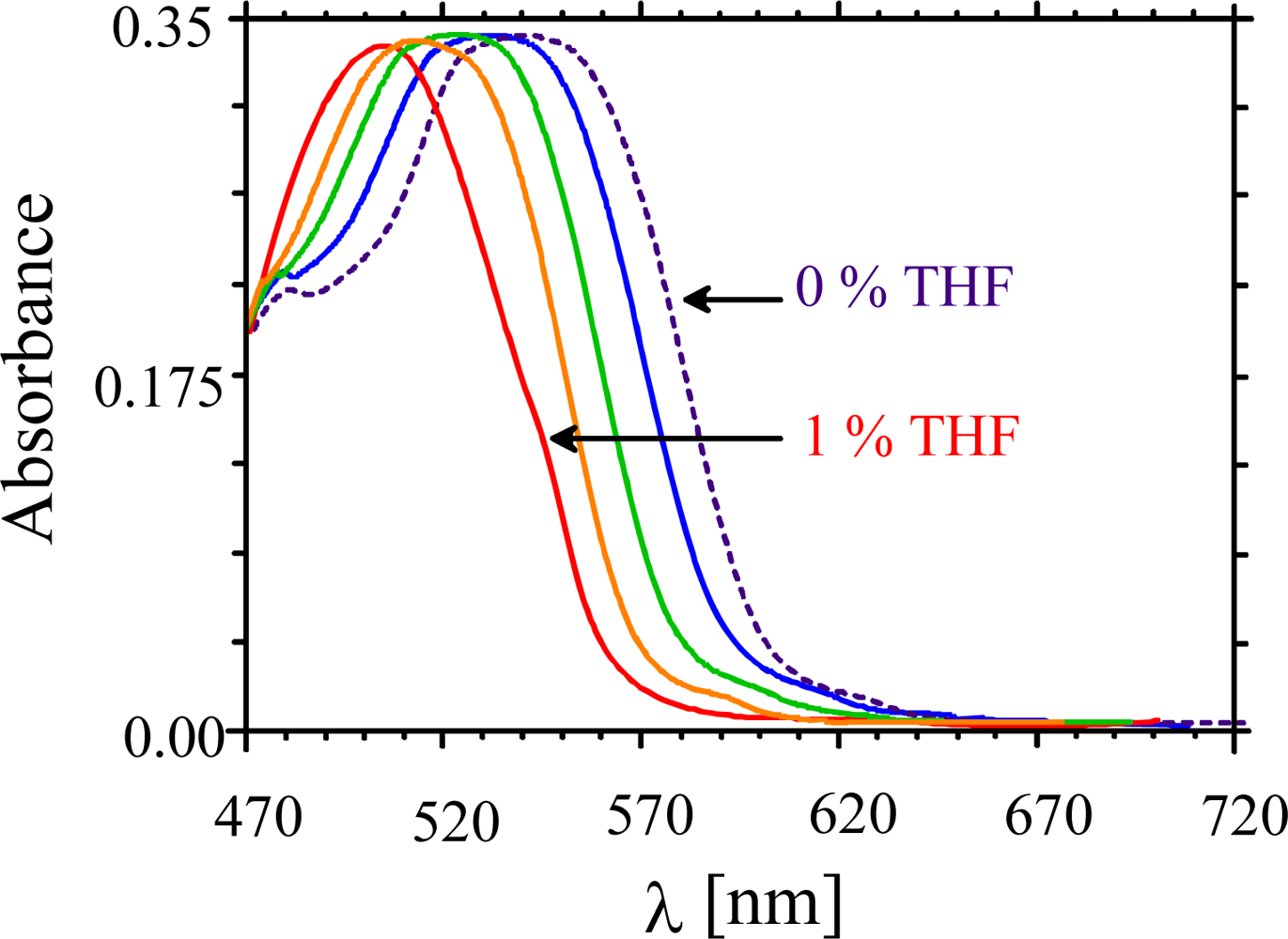

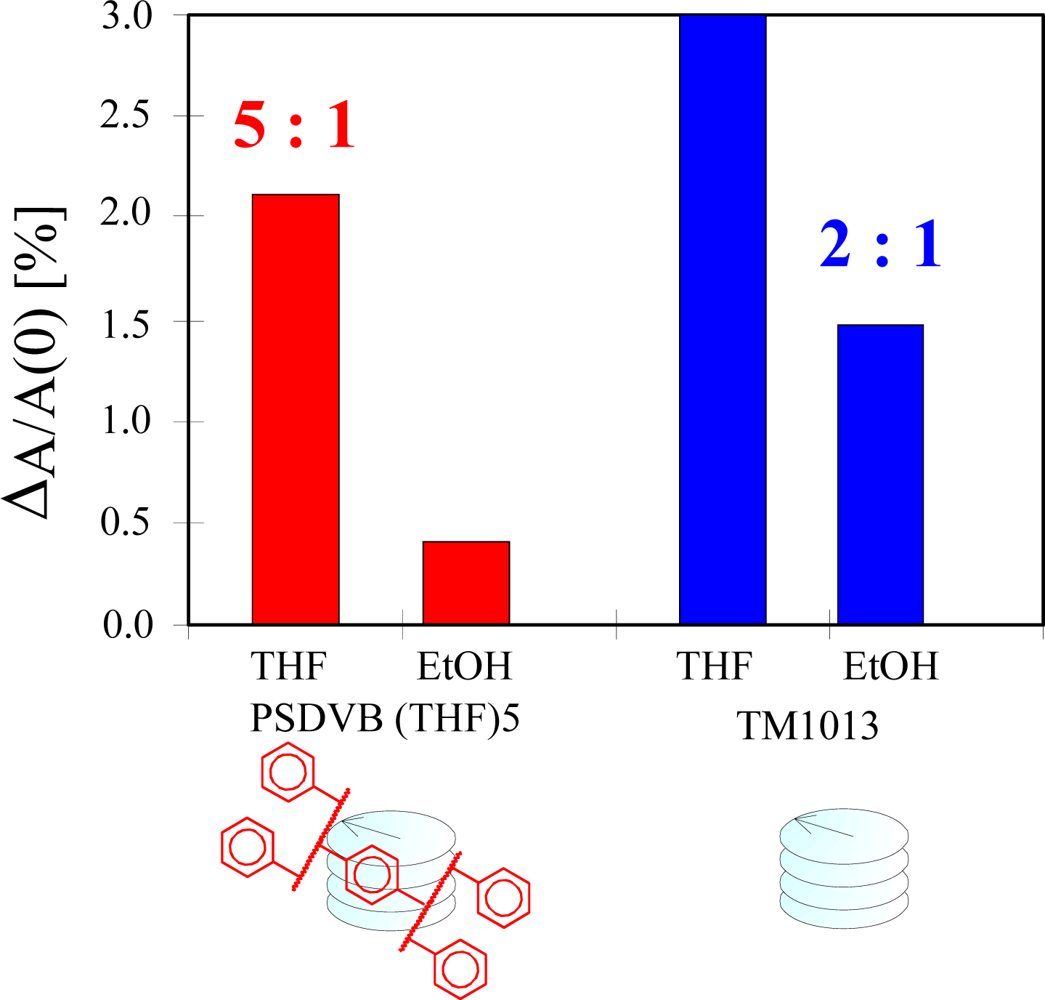

Abstract: Cholesteric liquid crystals (CLCs) are used as sensitive coatings for the detection of organic solvent vapours for both polar and non-polar substances. The incorporation of different analyte vapours in the CLC layers disturbs the pitch length which changes the optical properties, i.e., shifting the absorption band. The engulfing of CLCs around non-polar solvent vapours such as tetrahedrofuran (THF), chloroform and tetrachloroethylene is favoured in comparison to polar ones, i.e., methanol and ethanol. Increasing solvent vapour concentrations shift the absorbance maximumto smaller wavelengths, e.g., as observed for THF. Additionally, CLCs have been coated on acoustic devices such as the quartz crystal microbalance (QCM) to measure the frequency shift of analyte samples at similar concentration levels. The mass effect for tetrachloroethylene was about six times higher than chloroform. Thus, optical response can be correlated with intercalation in accordance to mass detection. The mechanical stability was gained by combining CLCs with imprinted polymers. Therefore, pre-concentration of solvent vapours was performed leading to an additional selectivity.
Keywords: cholesteric liquid crystals; organic solvent vapours; pitch; optical absorbance; QCM cholesteric liquid crystals; organic solvent vapours; pitch; optical absorbance; QCM
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Mujahid, A.; Stathopulos, H.; Lieberzeit, P.A.; Dickert, F.L. Solvent Vapour Detection with Cholesteric Liquid Crystals—Optical and Mass-Sensitive Evaluation of the Sensor Mechanism. Sensors 2010, 10, 4887-4897.

AMA Style

Mujahid A, Stathopulos H, Lieberzeit PA, Dickert FL. Solvent Vapour Detection with Cholesteric Liquid Crystals—Optical and Mass-Sensitive Evaluation of the Sensor Mechanism. Sensors. 2010; 10(5):4887-4897.

Chicago/Turabian Style

Mujahid, Adnan; Stathopulos, Helen; Lieberzeit, Peter A.; Dickert, Franz L. 2010. "Solvent Vapour Detection with Cholesteric Liquid Crystals—Optical and Mass-Sensitive Evaluation of the Sensor Mechanism." Sensors 10, no. 5: 4887-4897.
