Sensors 2010, 10(3), 2348-2358; doi:10.3390/s100302348
Article

Refractive Index Sensor Based on a 1D Photonic Crystal in a Microfluidic Channel

1 Department of Micro and Nanotechnology, Technical University of Denmark, DTU Nanotech, Building 345 East, DK-2800 Kongens Lyngby, Denmark 2 Department of Photonics Engineering, Technical University of Denmark, DTU Fotonik, Building 345 West, DK-2800 Kongens Lyngby, Denmark
* Author to whom correspondence should be addressed.
Received: 27 January 2010; in revised form: 10 February 2010 / Accepted: 5 March 2010 / Published: 22 March 2010
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Denmark)
PDF Full-text Download PDF Full-Text [1313 KB, uploaded 25 March 2010 14:15 CET]

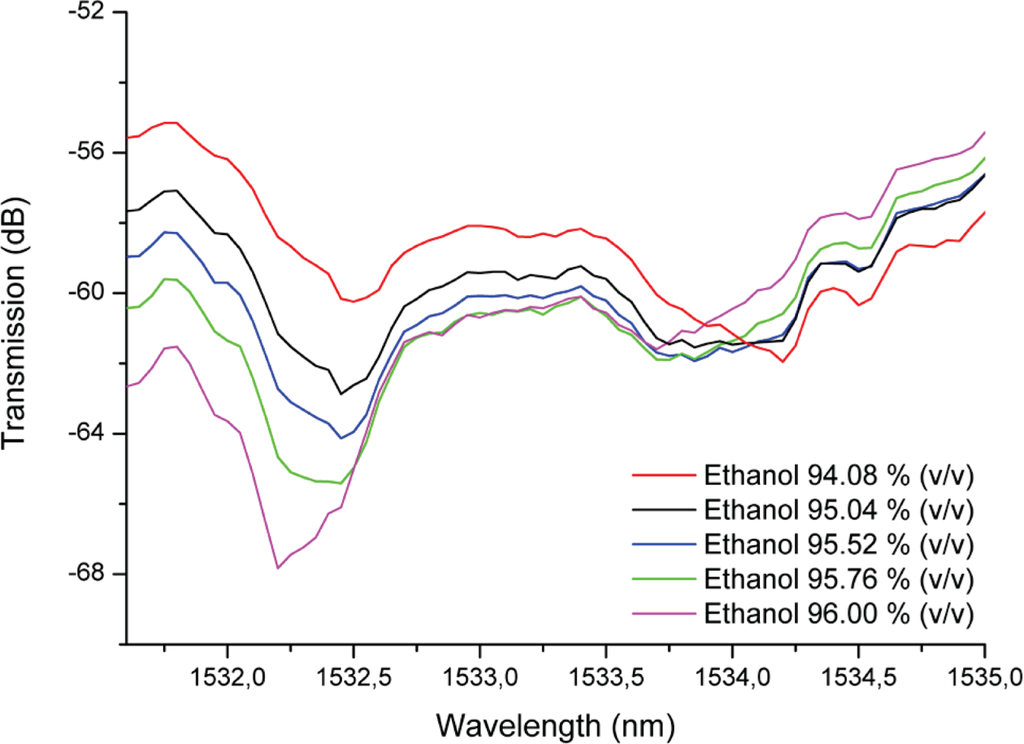

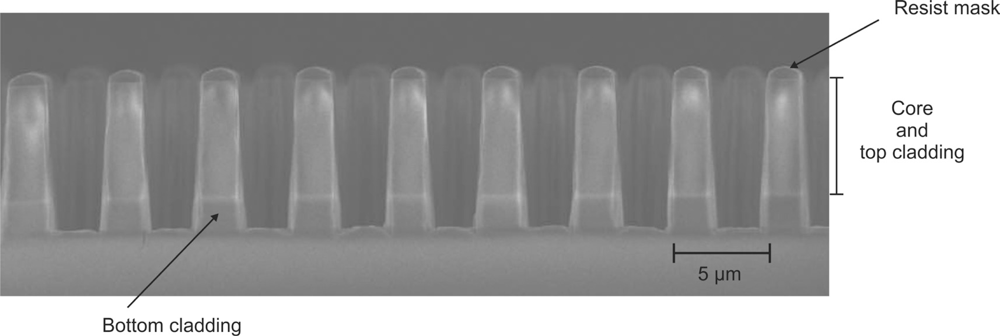

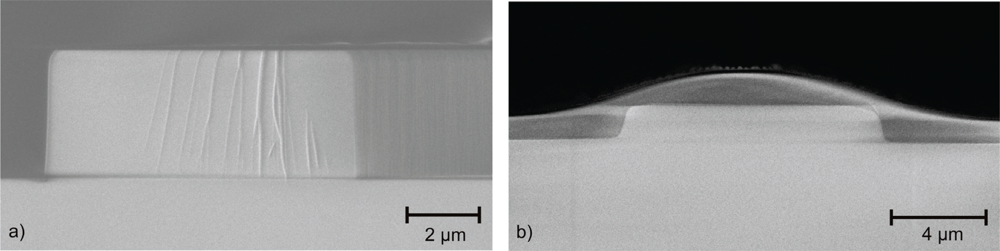

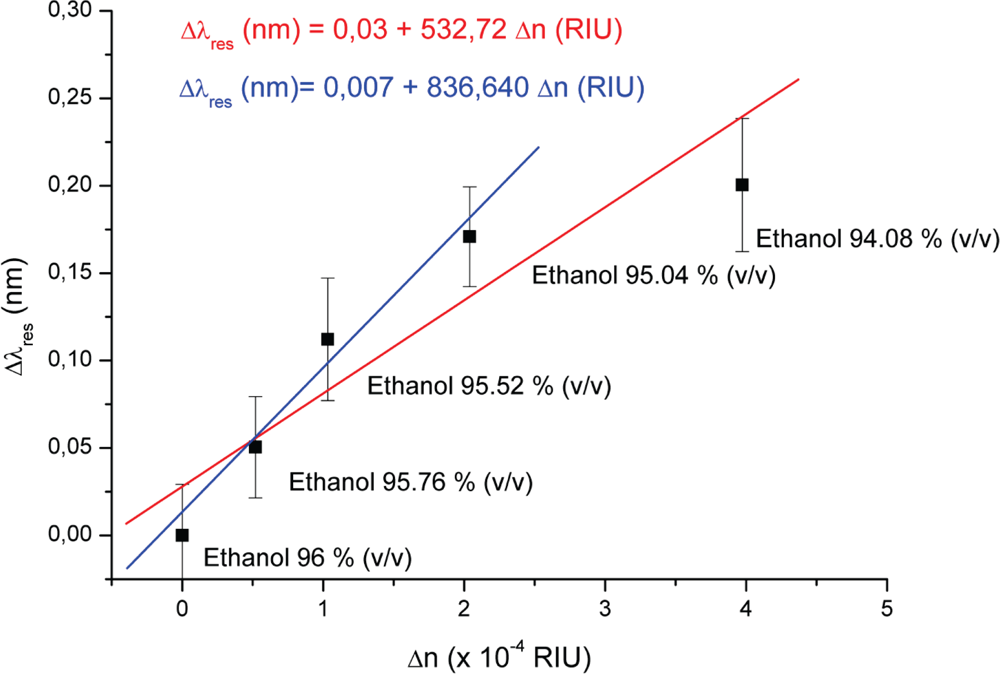

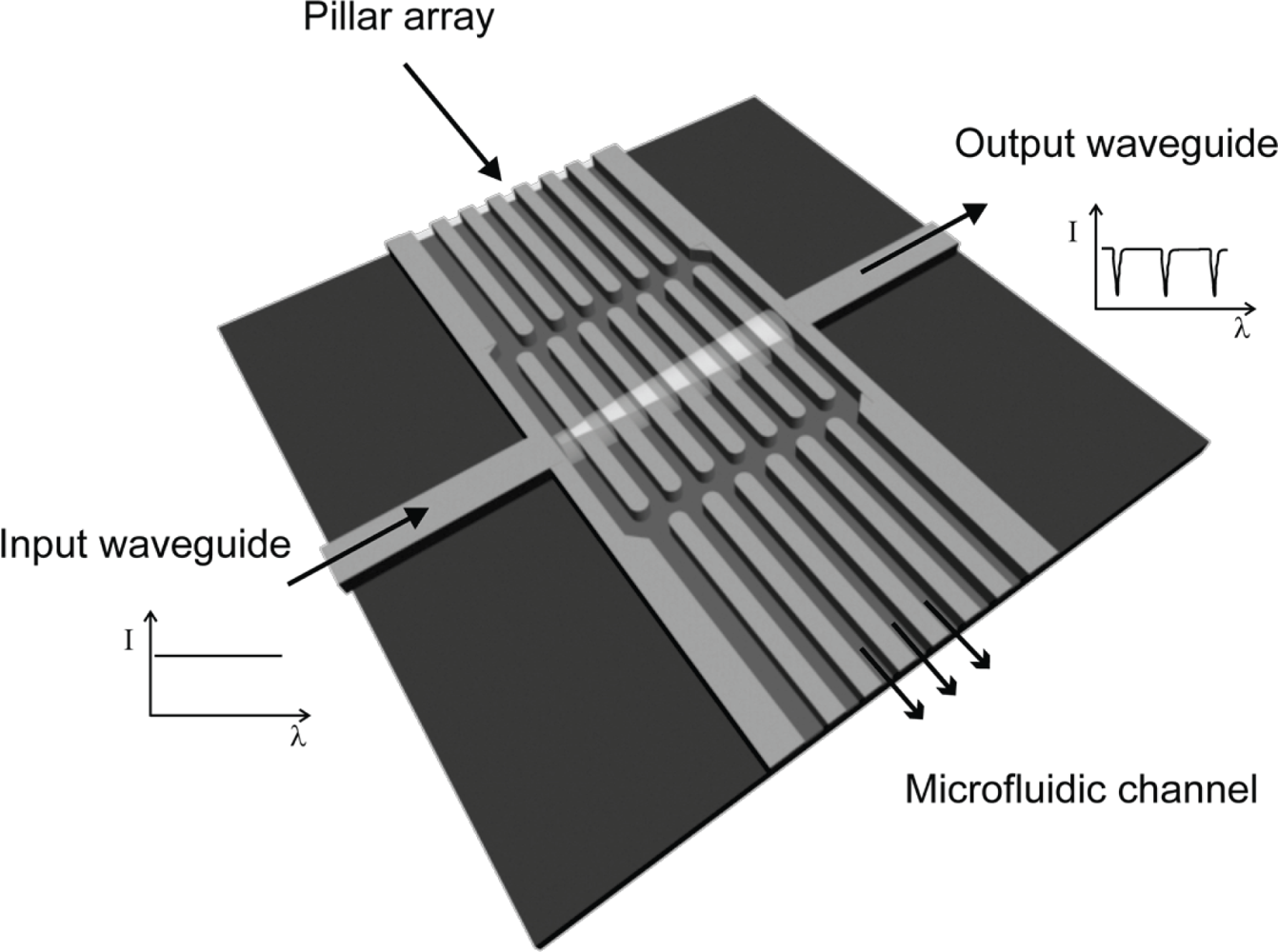

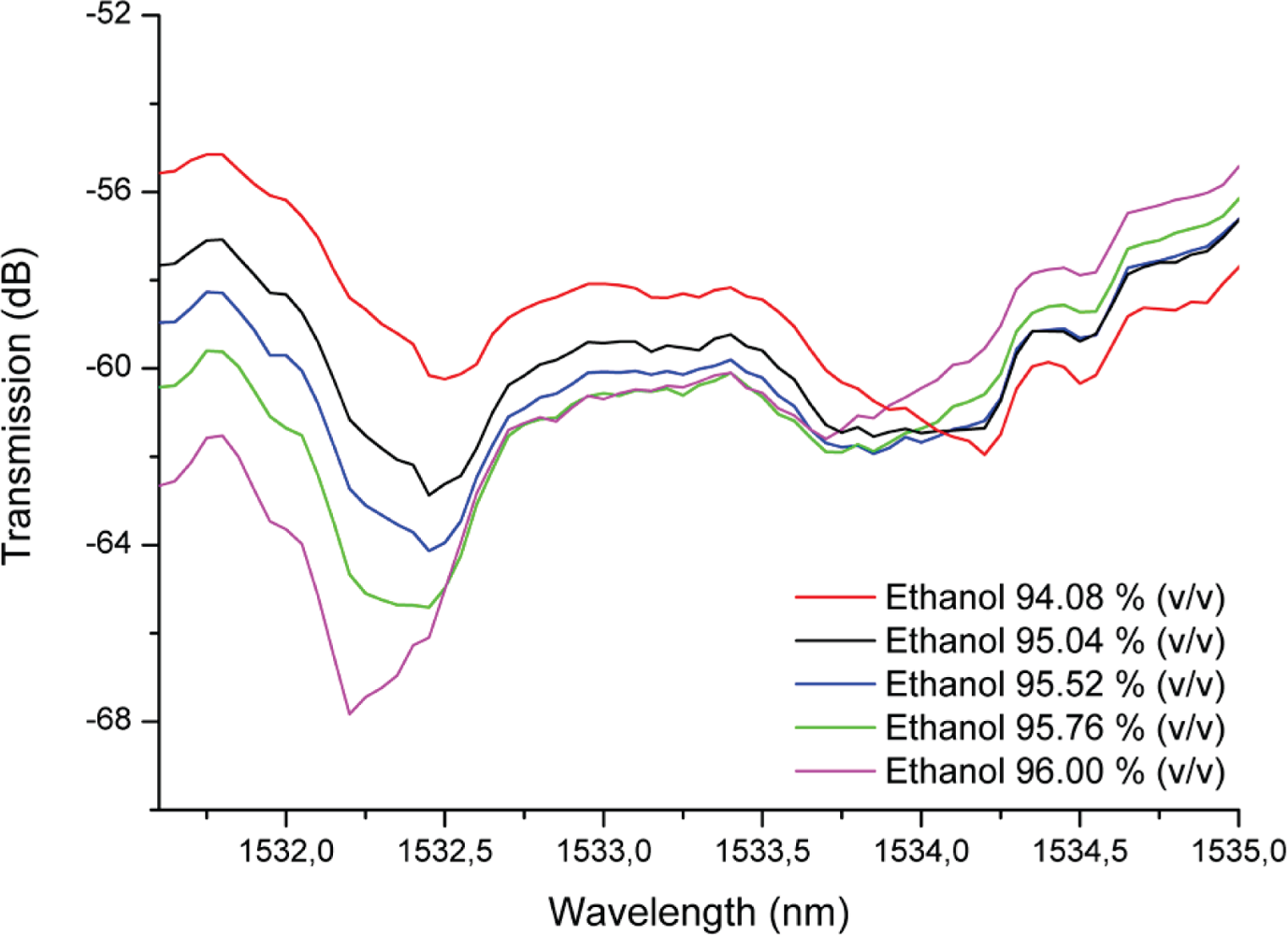

Abstract: A refractive index sensor has been fabricated in silicon oxynitride by standard UV lithography and dry etching processes. The refractive index sensor consists of a 1D photonic crystal (PhC) embedded in a microfluidic channel addressed by fiber-terminated planar waveguides. Experimental demonstrations performed with several ethanol solutions ranging from a purity of 96.00% (n = 1.36356) to 95.04% (n = 1.36377) yielded a sensitivity (Δλ/Δn) of 836 nm/RIU and a limit of detection (LOD) of 6 x 10-5 RIU, which is, however, still one order of magnitude higher than the theoretical lower limit of the limit of detection 1.3 x 10–6 RIU.
Keywords: 1D photonic crystal; refractive index sensor; integrated waveguides; electrochromatography
