Article

Interactions between Cytochrome c and DNA Strands Self-Assembled at Gold Electrode

1
Shanghai Institute of Applied Physics, Chinese Academy of Sciences, Shanghai 201800, China
2
Tianjin University of Science and Technology, Tianjin 300040, China
3
Bio-X Life Science Research Center, Shanghai Jiao Tong University, Shanghai 200030, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2007, 8(2), 136-144; https://doi.org/10.3390/i8020136
Submission received: 29 November 2006 / Accepted: 29 January 2007 / Published: 23 February 2007
(This article belongs to the Special Issue Interaction of Biological Molecules)

Abstract

:
In this work, we reported the investigation on the interaction between DNA strands self-assembled at gold electrodes and an electron transfer protein, cytochrome c. We observed that cytochrome c exhibited well-defined electrochemistry in both double-stranded and single-stranded DNA films. This suggested that the electron transfer reaction of cytochrome c arose possibly due to the electron hopping along DNA strands rather than wiring along the double helix. We also compared the heterogeneous electron transfer rate of cytochrome c with that of a ruthenium complex, which further confirmed this mechanism.

1. Introduction

Electron transfer (ET) of proteins plays a vital role in both photosynthesis that traps light energy and metabolism that oxidizes fuel. Virtually all living organisms can efficiently convert electrochemical energy to either a trans-membrane proton gradient or substrate consumption. This high efficiency of long-range ET has mostly been attributed to the well-controlled natural protein-protein interface. However, in contrast, ET of proteins at electrodes, i.e., artificial charged interfaces, is usually difficult.[14] Indeed, only in rare cases could one observe direct electron communication between proteins and bare electrodes. As a major step toward in-vitro protein ET, self-assembled monolayers (SAMs) that can functionalize solid surfaces in a highly controlled manner was introduced, which offered great opportunities to mimic natural protein-protein interfaces at electrode surfaces. Importantly, self-assembly of organosulfur compounds (alkanethiols) on gold electrode surfaces has led to successful electrochemical characterization of a variety of electron-transfer proteins in vitro.[57]
Despite this significant progress, there are still many fundamental issues that remain to be resolved. For example, electron coupling of protein-SAMs is still less efficient than that at the interface of natural protein partners. This arises possibly due to the existence of specific interactions between natural protein partners. For example, Millett and coworkers found that replacement of yeast cytochrome c (cyt c) with the protein of horse origin significantly attenuated ET between cyt c and yeast cytochrome c oxidase, which strongly implied the importance of naturally existing protein-protein interactions.[8] Since catalytic activities of many enzymes are directly coupled with their ET reactivity,[9] enhancement of interfacial ET can, in principle, be translated into significant improvement in the performance of protein-based biosensors, or the efficiency of bioelectronic devices (e.g. biofuel cells).
In order to achieve highly efficient interfacial ET of proteins, Xiao et al. recently reported that glucose oxidase (GOD) could be electrically wired to a gold electrode, which was bridged by a conductive gold nanoparticle.[10] In this nano-wired system, they observed an ET turnover rate of ~5000 s−1, which even exceeded the corresponding rate between GOD and its natural substrate, oxygen, by approximately an order of magnitude. In an alternative approach, Gray and coworkers employed a thiolated conjugated oligomer to wire the deeply buried, otherwise inaccessible, redox site of Arthrobacter globiformis amine oxidase (AGAO) to a gold electrode.[11] At this electrode surface self-assembled with 2.2 nm-long molecular wires, AGAO exhibited reversible electrochemistry with an extremely high ET rate (k0 > 4×104 s−1). Analogous to conjugated oligomers, base-stacked oligonucleotides are possibly another medium for long-range ET.[12] Thiolated oligonucleotides have proven to spontaneously form well aligned monolayers at gold surfaces.[13, 14] According to the reports by Barton and coworkers, intercalative redox probes that were localized at a distance from the electrode surface could efficiently transfer electrons to and from the underlying electrode via π-π interactions arising from base stacking within the double helix.[15] That’s to say, the stacked aromatic heterocycles of the DNA duplex may serve as an efficient medium for coupling electron donors and acceptors over very long distances. More recently, they demonstrated that the electrochemistry of several iron-sulfur proteins and a flavoenzyme could also be mediated by double stranded DNA (dsDNA).[16] However, the certainty of DNA duplex’s electron transfer ability is still in debate.
We are particularly interested in DNA-mediated protein ET, which should not only widen our view on interfacial protein ET but deepen our understanding of protein-DNA interactions. In this work, we report the electrochemical interrogation on the ET of cytochrome c (cyt. c), a well-studied model for protein electrochemistry, within self-assembled DNA films. Cyt. c plays an important role in the biological respiratory chain, whose function is to receive electrons from cytochrome c reductase and deliver them to cytochrome c oxidase. So the electrochemical study of cyt. c is very important. Whereas the voltammetric response of cyt. c is quite poor at bare metal electrodes, most likely due to protein denaturation at the metal electrode surface leading to extremely slow electron-transfer kinetics.[17, 18] While previous studies suggested that direct electrochemistry of cyt. c was feasible at dsDNA-modified gold electrodes,[19] the exact ET mechanism remains ambiguous. Here, we found that, in contrast to the iron-sulfur proteins and flavoenzyme studied by Barton and coworker, cyt. c binds to DNA mainly via electrostatic interactions (not intercalation)[20] and its electrochemistry is electron hopping-based (not “wiring”[21, 22]).

2. Results and discussion

2.1. Cyt c electrochemistry

Thiolated ssDNA spontaneously form self-assembled monolayers on gold electrodes.[13, 14] Previous studies have demonstrated that these surface-confined DNA strands are predominantly in a well-aligned conformation that is nearly vertical to the electrode surface.[13, 14] Since DNA strands are highly negatively charged, multivalent cations can be electrostatically trapped within the DNA film. As is well known, cyt c is a positively charged protein at neutral pH, arising due to several exposed protonable lysine at its surface. We thus incubated a DNA-modified electrode in a cyt c solution (30 μM) with low ionic strength. Of note, high salt concentrations may screen electrostatic attraction between cyt c and DNA and minimize their interactions. After incubation of 20 min under repetitive potential scan, we obtained an electrode stably decorated with cyt c/DNA hybrid film. Significantly, cyt c could facilely communicate electrons with the gold electrode in this state, as manifested by the appearance of a pair of well-defined peaks in the CV experiment (Figure 1A). Note that the cyt c-DNA interaction is very strong since cyt c remains trapped in the DNA film even in a protein-free buffer solution and after being potential scanned for hours. The voltammetric response in E-buffer showed the stable redox transformation of the immobilized protein and the peak separation at this scan rate was about 20 mV, suggesting a fairly fast electron transfer reaction. The adsorption and redox transformation of cyt c were mostly attributed to the modification of SH-DNA. The negatively charged DNA strands effectively attracted positively charged cyt c via electrostatic interactions. In contrast, the gold electrode with MCH only exhibited weak adsorption and poor electrochemical behavior of cyt c.

2.2. Cyt c keeps its native structure at DNA modified electrodes

It has been reported that proteins containing heme groups, such as HRP, hemoglobin and myoglobin, can catalyze the reduction of H2O2[23, 24] while cyt c cannot except when its native structure is either denatured or partial disturbed.[25, 26] As a result, it has been suggested that the catalytic ability for H2O2 can serve as a highly sensitive probe for the cyt c structure.[26, 27] In order to confirm that cyt c keeps its native structure at DNA modified electrode, we evaluated the catalytic effect on H2O2 by using cyt c absorbed at DNA modified electrodes. Interestingly, we observed the voltammograms of cyt c/DNA modified electrodes remained unchanged along with the elevation of H2O2 concentration, even at a high concentration of 100 μM (Figure 1B). This clearly suggested that cyt c kept its native structure within DNA films, and that this system was appropriate for investigation of the electron transfer of cyt c.

2.3. Dependence on DNA surface density

In order to unveil the role of self-assembly of DNA in adsorption process of cyt c, we turn to the relationship between the DNA surface density and the amount of electro-active cyt c absorbed on electrode. To obtain electrodes with different DNA surface density, a series of DNA I-buffers in which the concentrations of SH-DNA were 0.1 μM, 0.2 μM, 1 μM and 2 μM respectively, were prepared, while other conditions such as immobilization time, MCH treatment time and cyt c adsorption process remain unchanged. Note that higher concentration of SH-DNA in I-buffer resulted in increased number of thiolated oligonucleotides on electrodes. As shown in Figure 2, the denser SH-DNA was on surface, the larger the voltammetric response of cyt c. Both anodic and cathodic peak currents increased with the concentration of SH-DNA in I-buffer, demonstrating that the amount of electro-active protein was dependent on the surface density of SH-DNA.

2.4. Electron transfer of cyt c at electrodes

Figure 3 showed the CVs of cyt c/SH-DNA modified electrode at various scan rate of 0.05–10 V. The potentials and peak currents were dependent on the scan rate. The peak current linearly increased with the scan rate, suggesting that the reaction was a surface-controlled process. On the other hand, the peak-to-peak separation increased with the increase of scan rate. Marcus density-of-states (DOS) theory has been successfully applied to heterogeneous electron transfer reactions between metal electrodes and redox molecules attached on electrodes [28]. Based on this theory, heterogeneous electron transfer rate constants (ket) can be estimated from the plot of peak separation versus the logarithm of scan rate. We thus obtained a ket of approximately 50~90 s−1. It is important to note that the ket is almost independent of the density of SH-DNA on electrodes (within experimental error).
In order to evaluate the effect of DNA monolayer on the electrochemistry of cyt c, we further prepared a dsDNA surface by immobilizing hybridized dsDNA on gold electrodes. We observed similar electrochemical reactions of cyt c. As shown in Figure 4, the heterogeneous electron transfer rate of cyt c at dsDNA modified electrodes was at the same order as that at ssDNA modified electrodes. This situation is contrast to those observed by Barton and coworkers. They noticed that intercalative dyes (e.g. methylene blue) underwent facile electron transfer reactions when intercalated in double stranded DNA, however even a single mismatch in base pairing significantly attenuated the electron transfer.[15] The fact that we observed well-defined electrochemistry for cyt c even with ssDNA strongly suggested that double helix was not important for transferring electrons of cyt c.
As a step further, we also compared the electron transfer rate of cyt c with that of RuHex. Previous studies have demonstrated that RuHex-DNA binding was completely based on electrostatic interactions, because it lacks planar organic groups that can intercalatively insert into DNA base pairs. As a result, electron transfer reaction of RuHex bound to DNA monolayers is solely due to the hopping along DNA strands, instead of any wiring effect.[29] We observed that the rate of RuHex redox (ket =60 s−1) is similar to that of cyt c (Figure 4), which further confirm that electron transfer of cyt c at the DNA modified electrodes is mostly associated with the hopping rather than wiring along DNA strands. It is probably due to the binding mechanism between DNA and cyt. c, which is more likely to be electrostatic interactions rather than intercalation in experiments of Barton et al. Although they also demonstrate the dsDNA mediated electrochemistry of several iron-sulfur proteins[16], the salt concentration of the testing buffer they employ is much higher, to the extent that can prevent electrostatic interactions between proteins and DNA[30]. Therefore, there must be some other binding patterns between dsDNA and these proteins.

3. Experimental

3.1. Materials

DNA oligonucleotides were purchased from Sangon Inc. (Shanghai). The sequences are 5′-SH-CACGA CGTTG TAAAA CGACG GCCAG-3′ (thiolated probe at 5′ terminus with a C6 spacer, SH-ssDNA); and 5′-CTGGC CGTCG TTTTA CAACG TCGTG-3′ (complementary-DNA). Tris(hydroxymethyl)-aminomethane was purchased from Cxbio biotechnology Ltd. 6-Mercapro-1-hexanol (MCH), cytochrome c from horse heart, Hexaammineruthenium (III) chloride ([Ru(NH3)6]3+, RuHex) and tris(2-carboxy-ethyl) phosphine hydrochloride (TCEP) were from Sigma. All solutions were prepared with nanopure water (18MΩ·cm resistivity) from a Millipore MilliQ system.
The buffers involved in this work are as follows. DNA immobilization buffer (I-buffer): 10 mM TrisHCl, 1mM EDTA, 1.0 M NaCl and 1 mM TCEP (pH 8.0). Note that TCEP was employed to cleave disulfides. DNA hybridization buffer (H-buffer): 10 mM trisHCl, 1mM EDTA and 1.0 M NaCl (pH 8.0). Buffer for electrochemistry (E-buffer): 5mM Tris-HCl buffer, pH 7.0.

3.2. Pretreatment of electrodes and DNA immobilization

Gold electrodes (2 mm in diameter, CH Instruments Inc.) were first polished on microcloth (Buehler) with Gamma micropolish deagglomerated alumina suspension (0.05 μm) for 5 min. These electrodes were then sonicated in ethanol and Milli-Q water for 5 min, respectively. Finally, the electrodes were then electrochemically cleaned to remove any remaining impurities.[3133] After drying with nitrogen, electrodes were subjected to oligonucleotides of appropriate concentrations for 14–16 hours, followed by a 2-hour deposition in 1 mM MCH in water.[34] DNA duplex was prepared by hybridization of the two complementary sequences (0.5 μM each) in H-buffer for at least 1 hour, and then be ready for immobilization at surfaces.

3.3. Electrochemical measurements

Cyclic voltammetry (CV) and Alternating Current voltammetry (ACV) were performed on a CH Instruments model 430 eletrochemical analyzer. A three-electrode cell consisting of Ag/AgCl reference electrode and platinum counter electrode was used for all electrochemical measurements. For cyt. c adsorption a 10 mM Tris buffer pH7.0 was used. The protein concentration was 30 μM and the electrode was cycled for about 20min in the potential range from −250 mV to +250 mV (vs. Ag/AgCl). Then the electrode was transferred to the protein free E-buffer to take the measurement. The E-buffers were thoroughly purged with pure nitrogen before experiments.

4. Conclusion

In summary, we studied the electron transfer properties of cyt c within self-assembled DNA films. We found that the electron transfer of cyt c within ssDNA films was as efficient as that within dsDNA films. In addition, electron transfer of RuHex, a simple cation that cannot intercalate into dsDNA, also showed comparable electron transfer kinetics. We thus conclude that electron transfer of cyt c is electron hopping based, rather than a “wiring” process along DNA double helix.

Acknowledgments

We thank the financial support from National Natural Science Foundation (60537030, 20404016 and 30570401), Ministry of Science and Technology (2006CB933000), Shanghai Municipal Commission for Science and Technology (0652nm006, 0652nm016 and 06ZR14106), Shanghai Rising-Star Program and Chinese Academy of Sciences.

References

  1. Ryan, M. D.; Bowden, E. F.; Chambers, J. Q. Dynamic electrochemistry: methodology and application. Anal. Chem 1994, 66, 360R–427R. [Google Scholar]
  2. Hirst, J.; Armstrong, F. A. Fast-scan cyclic voltammetry of protein films on pyrolytic graphite edge electrodes: characteristics of electron exchange. Anal. Chem 1998, 7, 5062–5071. [Google Scholar]
  3. Stellwagen, E. Haem exposure as the determinate of oxidation-reduction potential of haem proteins. Nature 1978, 275, 73–74. [Google Scholar]
  4. Voet, D; Voet, J. G. Biochemistry, 2nd Edition ed; John Wiley & Sons, Inc: New York, 1993. [Google Scholar]
  5. Baymann, F.; Moss, D. A.; Mantele, W. An electrochemical assay for the characterization of redox proteins from biological electron transfer chains. Anal. Biochem 1991, 199, 269–274. [Google Scholar]
  6. Armstrong, F. A.; Camba, R.; Heering, H. A.; et al. Fast voltammetric studies of the kinetics and energetics of coupled electron-transfer reactions in proteins. Faraday Discuss 2000, 191–203, discussion 257–168. [Google Scholar]
  7. Elliott, S. J.; McElhaney, A. E.; Feng, C.; Enemark, J. H.; Armstrong, F. A. A voltammetric study of interdomain electron transfer within sulfite oxidase. J. Am. Chem. Soc 2002, 124, 11612–11613. [Google Scholar]
  8. Hahm, S.; Durham, B.; Millett, F. Photoinduced electron transfer between cytochrome c peroxidase and horse cytochrome c labeled at specific lysines with (dicarboxybipyridine)(bisbipyridine)ruthenium(II). Biochemistry 1992, 31, 3472–3477. [Google Scholar]
  9. Mure, M.; Mills, S. A.; Klinman, J. P. Biochemistry 2002, 41, 9269–9278.
  10. Huang, Y.; Zhang, W.; Xiao, H; Li, G. An electrochemical investigation of glucose oxidase at a CdS nanoparticles modified electrode. Biosens. Bioelectron 2005, 21, 817–821. [Google Scholar]
  11. Contakes, S. M.; Juda, G. A.; Langley, D. B.; et al. Reversible inhibition of copper amine oxidase activity by channel-blocking ruthenium(II) and rhenium(I) molecular wires. Proc. Natl. Acad. Sci. U. S. A 2005, 102, 13451–13456. [Google Scholar]
  12. Chen, X.; Ruan, C.; Kong, J.; Deng, J. Spectroelectrochemical investigation of direct electron transfer between resting horseradish peroxidase and its oxidation states promoted by DNA. Fresenius J. Anal. Chem 2000, 367, 172–177. [Google Scholar]
  13. Steel, A. B.; Herne, T. M.; Tarlov, M.J. Electrochemical quantitation of DNA immobilized on gold. Anal. Chem 1998, 70, 4670–4677. [Google Scholar]
  14. Thiel, A. J.; Frutos, A. G.; Jordan, C.E.; Corn, R.M.; Smith, L.M. In Situ Surface Plasmon Resonance Imaging Detection of DNA Hybridization to Oligonucleotide Arrays on Gold Surfaces. Anal. Chem 1997, 69, 4948–4956. [Google Scholar]
  15. Kelley, S. O.; Boon, E. M.; Barton, J. K.; Jackson, N. M.; Hill, M. G. Single-base mismatch detection based on charge transduction through DNA. Nucleic. Acids Res 1999, 27, 4830–4837. [Google Scholar]
  16. Boal, A. K.; Yavin, E.; Lukianova, O. A.; O’Shea, V. L.; David, S. S.; Barton, J. K. DNA-bound redox activity of DNA repair glycosylases containing [4Fe-4S] clusters. Biochemistry 2005, 44, 8397–8407. [Google Scholar]
  17. Reed, D. E.; Hawkridge, F. M. Direct electron transfer reactions of cytochrome c at silver electrodes. Anal. Chem 1987, 59, 2334–2339. [Google Scholar]
  18. Hawkridge, F. M.; Taniguchi, I. Comments Inorg. Chem 1990, 17, 163–187.
  19. Lisdat, F.B.; Ge, B.K.; Ehrlich, A.H.; Bienert, H.; Scheller, F.W. Nucleic Acid-Promoted Electron Transfer to Cytochrome c. Electroanalysis 2001, 13, 1225–1230. [Google Scholar]
  20. Uosaki, K.; Kondo, T.; Okamura, M; Song, W. Electron and ion transfer through multilayers of gold nanoclusters covered by self-assembled monolayers of alkylthiols with various functional groups. Faraday Discuss 2002, 373–389, discussion 441–362. [Google Scholar]
  21. Creager, S.; Yu, C. J.; Bamdad, C.; et al. Electron Transfer at Electrodes through Conjugated “Molecular Wire” Bridges. J. Am. Chem. Soc 1999, 121, 1059–1064. [Google Scholar]
  22. Samanta, M. P.; Tian, W.; Datta, S; Henderson, J. I.; Kubiak, C. P. Electronic conduction through organic molecules. Physical Review. B. Condensed Matter 1996, 53, R7626–R7629. [Google Scholar]
  23. D’Agnillo, F.; Wood, F.; Porras, C.; Macdonald, V. W.; Alayash, A. I. Effects of hypoxia and glutathione depletion on hemoglobin- and myoglobin-mediated oxidative stress toward endothelium. Biochim. Biophys. Acta 2000, 1495, 150–159. [Google Scholar]
  24. Huang, H.; Hu, N.; Zeng, Y.; Zhou, G. Electrochemistry and electrocatalysis with heme proteins in chitosan biopolymer films. Anal. Biochem 2002, 308, 141–151. [Google Scholar]
  25. Zhao, G. C.; Yin, Z. Z.; Wei, X. W. Direct electrochemistry of cytochrome c on a multi-walled carbon nanotubes modified electrode and its electrocatalytic activity for the reduction of H2O2. Electrochemistry Com 2005, 7, 256–260. [Google Scholar]
  26. Diederix, R. E. M.; Ubbink, M.; Canters, G. W. Peroxidase Activity as a Tool for Studying the Folding of c-Type Cytochromes. Biochemistry 2002, 41, 13067–13077. [Google Scholar]
  27. Diederix, R. E. M.; Ubbink, M.; Canters, G. W. Effect of the Protein Matrix of Cytochrome c in Suppressing the Inherent Peroxidase Activity of Its Heme Prosthetic Group. Chembiochem 2002, 1, 110–112. [Google Scholar]
  28. Finklea, H. O.; Yoon, K.; Chamberlain, E.; Allen, J.; Haddox, R. Effect of the Metal on Electron Transfer across Self-Assembled Monolayers. J. Phy. Chem. B 2001, 105, 3088–3092. [Google Scholar]
  29. Lao, R.; Song, S.; Wu, H.; et al. Electrochemical Interrogation of DNA Monolayers on Gold Surfaces. Anal. Chem 2005, 77, 6475. [Google Scholar]
  30. Hamilton, R. W.; Lloyd, R. S. Modulation of the DNA scanning activity of the Micrococcus luteus UV endonuclease. J. Bio. Chem 1989, 264, 17422–17427. [Google Scholar]
  31. Fan, C.; Zhong, J.; Guan, R.; Li, G. Direct electrochemical characterization of Vitreoscilla sp. Haemoglobin entrapped in organic films. Biochim. Biophys. Acta-Proteins Proteom 2003, 1649, 123–126. [Google Scholar]
  32. Hoogvliet, J. C.; Dijksma, M.; Kamp, B.; van Bennekom, W. P. Anal. Chem 2000, 72, 2016–2021.
  33. Janek, R. P.; Fawcett, W. R.; Ulman, A. J. Phys. Chem. B 1997, 101, 8550–8558.
  34. Fan, C.; Plaxco, K. W.; Heeger, A. J. Electrochemical interrogation of conformational changes as a reagentless method for the sequence-specific detection of picomolar DNA. Proc. Natl. Acad. Sci., U.S.A 2003, 100, 9134–9137. [Google Scholar]

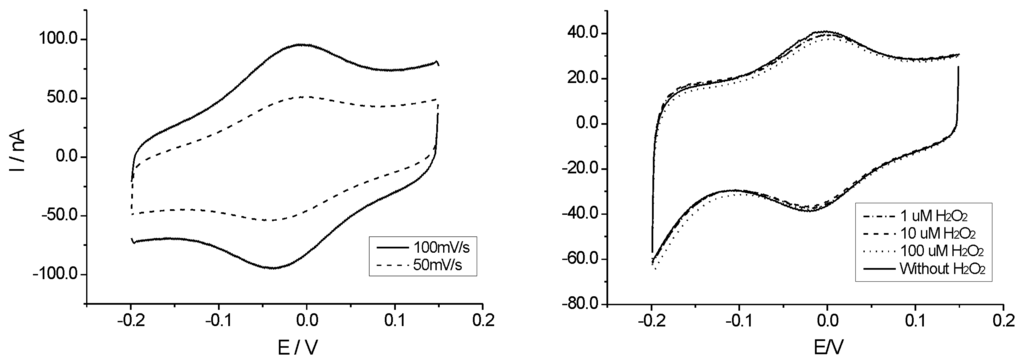

Figure 1. Cyclic voltammogram of cyt c adsorbed at DNA modified gold electrode (A; 5mM Tris buffer, pH7.0, scan rate: 50 mV/s and 100 mV/s) and cyt c/DNA modified electrodes (B; 5mM Tris- HCl, pH7.0 containing no H2O2, 1 μM H2O2, 10 μM H2O2 and100 μM H2O2. Scan rate: 50 mV/s)
Figure 1. Cyclic voltammogram of cyt c adsorbed at DNA modified gold electrode (A; 5mM Tris buffer, pH7.0, scan rate: 50 mV/s and 100 mV/s) and cyt c/DNA modified electrodes (B; 5mM Tris- HCl, pH7.0 containing no H2O2, 1 μM H2O2, 10 μM H2O2 and100 μM H2O2. Scan rate: 50 mV/s)
Ijms 08 00136f1

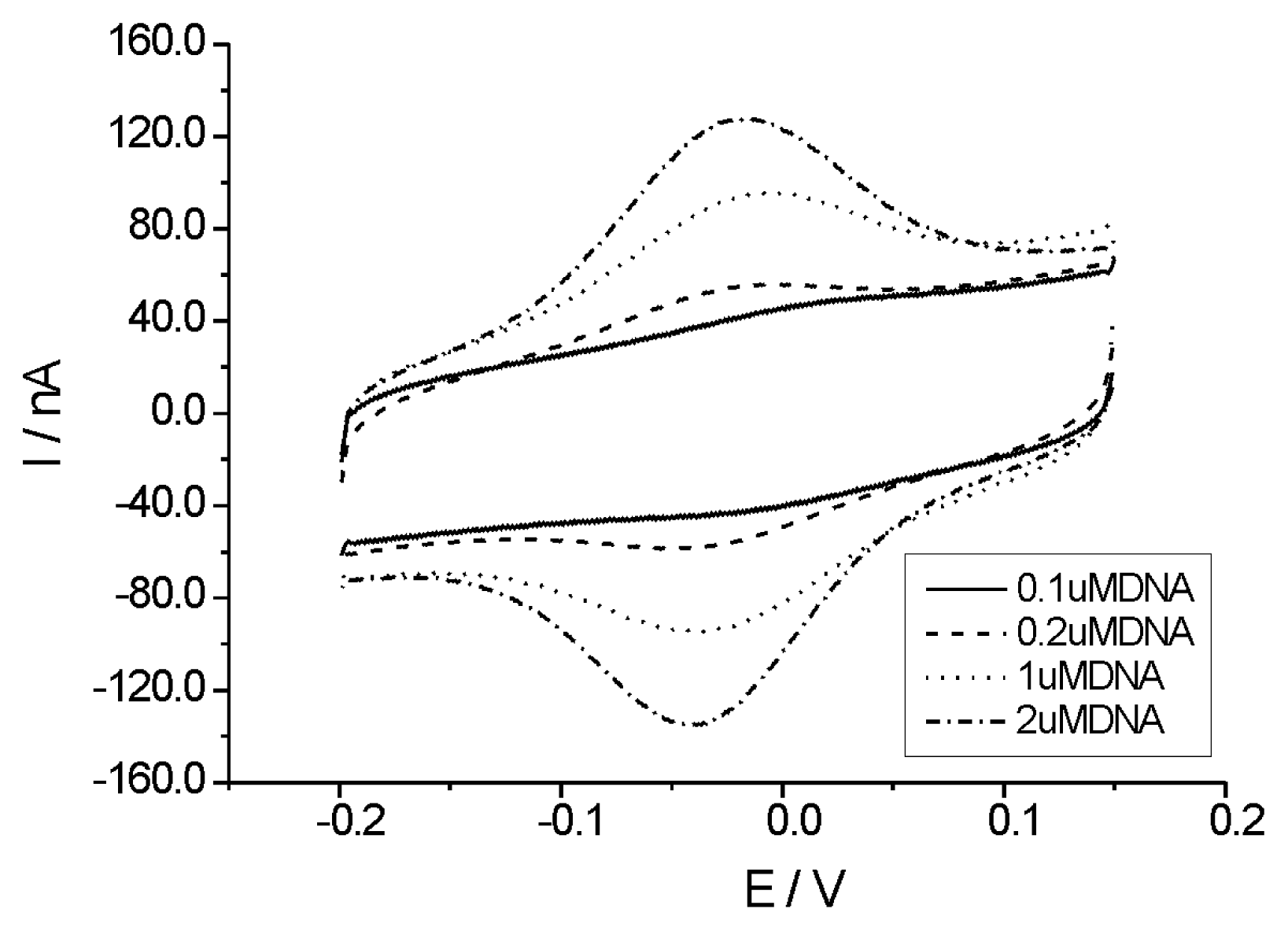

Figure 2. Cyclic votammograms of DNA modified electrode with different concentrations of DNA in immobilization buffers (0.1, 0.2, 1, 2 μM). 5mM Tris buffer, pH7.0, scan rate: 100 mV/s.
Figure 2. Cyclic votammograms of DNA modified electrode with different concentrations of DNA in immobilization buffers (0.1, 0.2, 1, 2 μM). 5mM Tris buffer, pH7.0, scan rate: 100 mV/s.
Ijms 08 00136f2

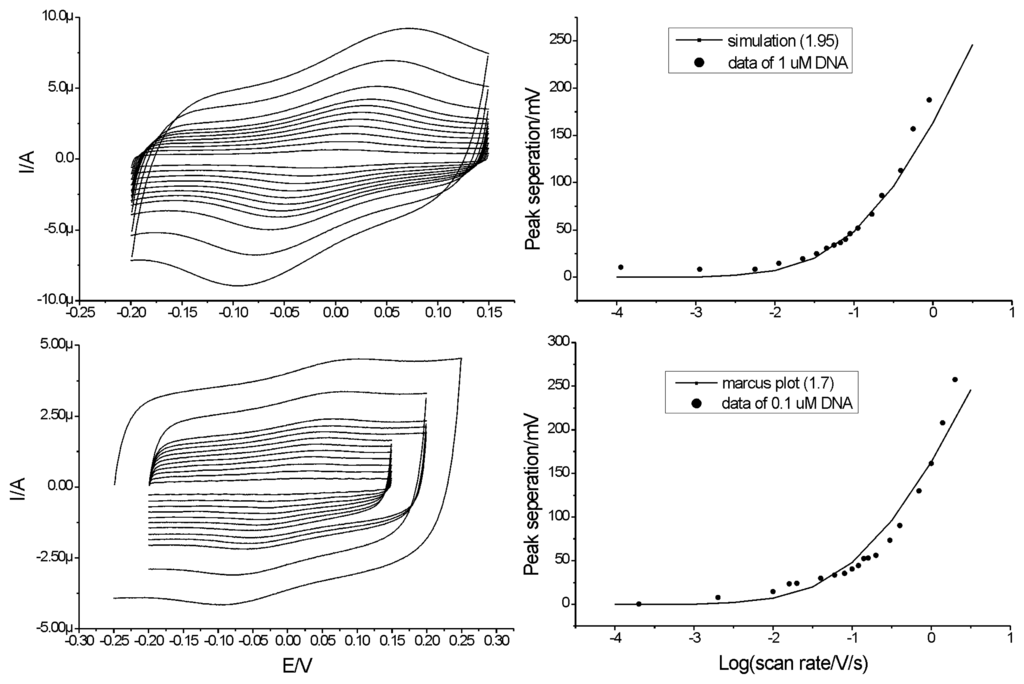

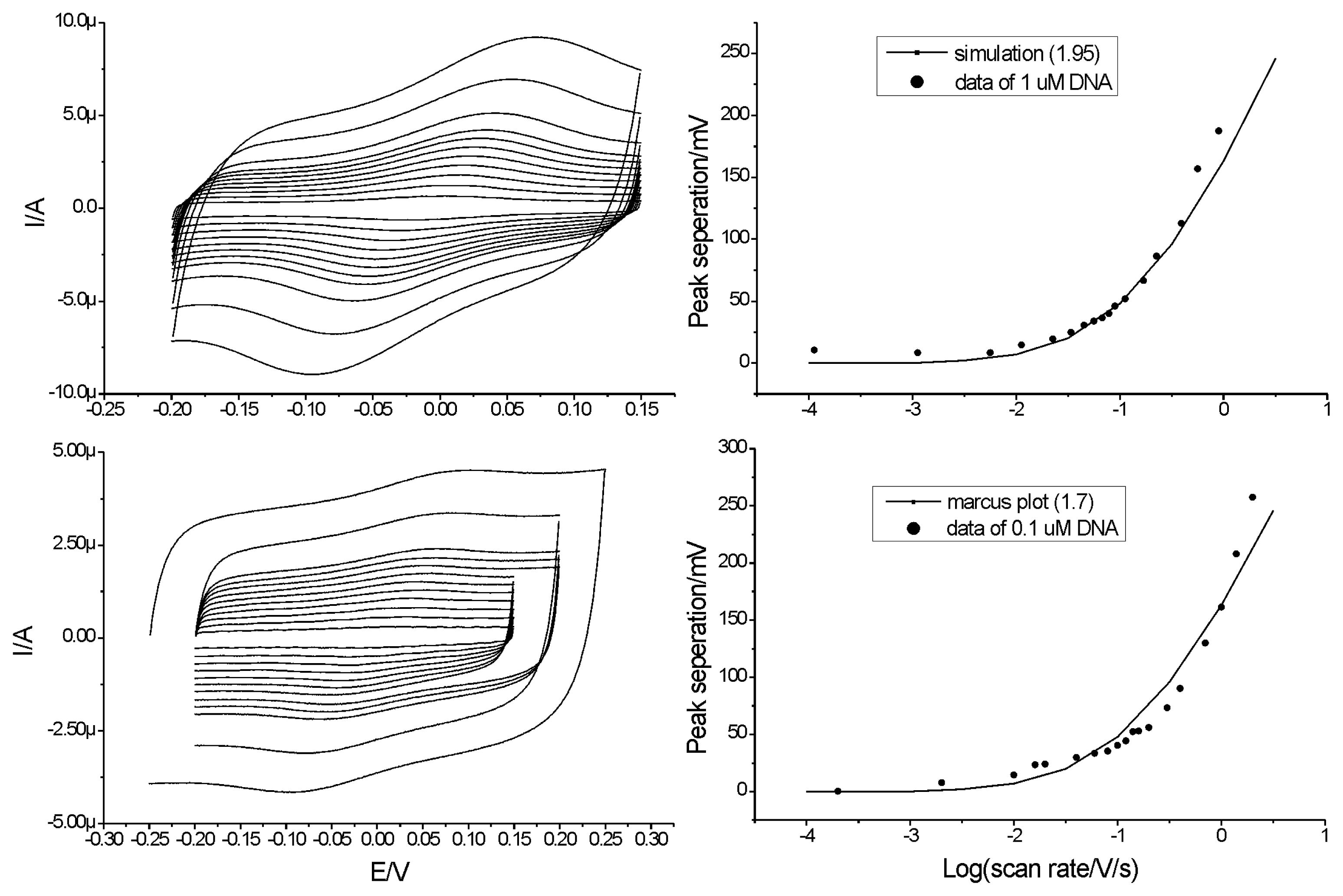

Figure 3. Cyclic voltammograms of cyt c at various scan rates ranging from 1–20 V/s (left) and simulation of Marcus plots (right). The upper and lower panels are for high (1 μM SH-DNA) and low density (0.1 μM SH-DNA) DNA monolayers, respectively.
