Review

Extracts of Magnolia Species-Induced Prevention of Diabetic Complications: A Brief Review

1
Departments of Cardiology at the First Hospital of Jilin University, Changchun 130021, China
2
Kosair Children Hospital Research Institute, Department of Pediatrics, University of Louisville, Louisville, KY 40202, USA
3
General Hospital of the PLA Rocket Force, Beijing 100088, China
4
National Center for Cardiovascular Diseases China, Fuwai Hospital, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing 100037, China
5
Key Laboratory of Radiological Protection and Nuclear Emergency, National Institute for Radiological Protection, China Centers for Disease Control, Beijing 100088, China
6
The Bioland Biotec Co., Ltd., Zhangjiang Modern Medical Device Park, Pudong, Shanghai 201203, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2016, 17(10), 1629; https://doi.org/10.3390/ijms17101629
Submission received: 20 August 2016 / Revised: 17 September 2016 / Accepted: 21 September 2016 / Published: 24 September 2016
(This article belongs to the Special Issue Diabetic Complications: Pathophysiology, Mechanisms, and Therapies)

Abstract

:
Diabetic complications are the major cause of mortality for the patients with diabetes. Oxidative stress and inflammation have been recognized as important contributors for the development of many diabetic complications, such as diabetic nephropathy, hepatopathy, cardiomyopathy, and other cardiovascular diseases. Several studies have established the anti-inflammatory and oxidative roles of bioactive constituents in Magnolia bark, which has been widely used in the traditional herbal medicines in Chinese society. These findings have attracted various scientists to investigate the effect of bioactive constituents in Magnolia bark on diabetic complications. The aim of this review is to present a systematic overview of bioactive constituents in Magnolia bark that induce the prevention of obesity, hyperglycemia, hyperlipidemia, and diabetic complications, including cardiovascular, liver, and kidney.

Graphical Abstract

1. Introduction

Diabetes mellitus (DM) is a chronic metabolic disease defined by elevated glycemic markers, and is associated with disrupted insulin secretion, insulin resistance, and lipid metabolic disorder. DM has become a major public health concern in the world today, creating a lot of therapeutic problems. Untreated diabetes leads to a wide array of complications, including heart failure, nonalcoholic fatty liver disease, renal failure, and macrovascular disturbances. New drugs are still being sought to treat diabetic patients. Many natural plants are known to have promising antidiabetic properties [1,2,3,4]. For example, bioactive constituents of Magnolia attenuated hyperglycemia [5], prevented cardiac pathogenesis [6] and live damage [7] and histologic renal damage [8] in diabetes and obesity.
Magnolia is a Chinese herbal medicine which has been used in traditional medicine for a long time in China. The flower and bark of Magnolia have been widely used as traditional herbal remedy for various disorders such as headache, fever, anxiety, diarrhea, stroke, and asthma. The genus Magnolia has been reported to exert various biological effects, including anticarcinogenicity [9], anti-inflammatory effects [10], antioxidative stress [11], and antianxiety [12]. In the cardiovascular system, it showed vascular relaxation, antiatherosclerosis, and antiplatelet effects. Honokiol, magnolol, 4-O-methylhonokiol (MH), and obovatol are considered major bioactive constituents of Magnolia stem bark (Figure 1) [13].
Previous phytochemical investigations have reported that this species contains several secondary metabolites such as lignans, neolignans, sesquiterpenes, and essential oils, which express various biological activities. Recent studies have suggested that the constituents of Magnolia ameliorated characters of obesity and diabetes, such as hyperglycemia, hyperlipidemia and complications of diabetes (Table 1). This review aims to provide mechanistic insights by highlighting the relationship between constituents of Magnolia genus and diabetes, and their contribution in the prevention of complications.

2. The Effect of Magnolia Genus on Blood Glucose

Glycemic control is considered to be the most effective approach for the prevention of diabetic complications. Several studies have reported that most of the major bioactive constituents of Magnolia bark contribute to glycemic control (Figure 2) [14,15]. An in vitro study showed that honokiol and magnolol could promote the glucose uptake of adipocytes derived from human or murine in a concentration-dependent manner through insulin signaling pathway [16]. These findings were in line with the results of Choi’s study [15] and Atanasov’s study [14], in which magnolol and honokiol were reported to enhance basal glucose uptake of mouse preadipocytes 3T3-L1 cells, respectively.
More importantly, in vivo studies using diabetic animal models have confirmed that bioactive constituents of Magnolia bark were promising hypoglycemic bioactivity. Using a type 2 diabetes (T2DM) mouse model established by high-fat diet (HFD) combining with streptozotocin (STZ) injection, Sun et al. [17] demonstrated that oral gavage of honokiol at dose of 200 mg/kg once per day for 8 weeks significantly decreased the blood glucose levels. Sun et al. [5] also investigated the effect of Magnolia officinalis extract on blood glucose level of db/db mice which have been recognized as a model of T2DM. The authors found that Magnolia extracts (ME) treatment once a day at dose of 0.5 g/kg for 4 weeks attenuates hyperglycemia in db/db mice. Another study reported that treatment with honokiol at a lower dose (100 mg/kg once per day for 5 weeks) could prevent hyperglycemia of KKAy mice [14]. Actually, a much lower dose of honokiol or magnolol (17 mg/kg once per day for 16 weeks) could effectively ameliorate the insulin resistance of HFD fed mice, although fasting blood glucose and plasma insulin levels were not improved [18]. These studies indicated that high dose (200 mg/kg) and low dose (100 mg/kg) honokiol could decrease the blood glucose levels in diabetic mice. However, much lower dose (17 mg/kg) honokiol for long time (16 weeks) did not improve hypoglycemia and insulin levels. The reason for the different doses of ME and constituents used in the different studies probably is that methods for purifying and isolating ME were different, which is due to different bioavailability of the bioactive compounds after absorption.
The glycemic control mechanism of bioactive constituents of Magnolia bark has been proven to be associated with the enhancement of insulin-signaling pathway. Sun et al. [5] demonstrated that in vitro treatment with Magnolia officinalis extracts enhanced the phosphorylation of insulin receptor β-subunit (IRβ) in response to insulin stimulation in 3T3-L1 adipocytes and C2C12 myotubes by suppressing the activity of protein tyrosine phosphatases 1B, which finally resulted in enhanced insulin-stimulated glucose transporter 4 (GLUT4) translocation and extracellular signal-regulated kinases phosphorylation. Furthermore, it has been reported that honokiol can act as an agonist of peroxisome proliferator-activated receptor gamma, which plays an important role in regulation of glucose homeostasis [14].

3. The Effect of Magnolia Genus on Hyperlipidemia and Obesity

Dysregulation of fatty acid metabolism, mainly caused by insulin resistance among multiple tissues, is a primarily pathological change in the patients with T2DM, and characterized by elevated levels of plasma free fatty acid (FFA), and increased triglyceride (TG) content in in various tissues, including skeletal muscle, cardiac muscle, and liver [19,20,21,22]. Dysregulation of fatty acid metabolism has been considered to play a key role in the development of diabetic complications [23,24,25]. Moreover, it has been reported that high circulating FFA levels in turn aggravated the development of diabetes by prompting beta-cell dysfunction and insulin resistance [26].
The major bioactive constituents of Magnolia bark can ameliorate dysregulation of fatty acid metabolism caused by diabetes (Figure 3). Honokiol attenuated intracellular fat over loading and TG accumulation in FFA-exposed HepG2 cells through activating liver kinase B1/AMP-activated protein kinase (AMPK) signaling pathway [27]. In mice, the increase in hepatic TG and fat accumulation caused by HFD was ameliorated by honokiol [27] or MH treatments [28]. Moreover, the treatment with MH also decreased HFD-increased plasma TG and cholesterol levels [28]. In addition, the weight of visceral white adipose tissue (WAT) in mice fed with HFD also decreased after long-term supplementation of honokiol or magnolol due to honokiol- or magnolol-induced upregulation of energy expenditure and adipose fatty acid oxidation, and downregulation of fatty acid synthase activity and expression of fatty acid synthesis-related gene [18]. The weight gain was also suppressed by honokiol treatment in a study using diabetic KKAy mice [14], which was in correlation with the findings in one of the studies we conducted, where MH, a bioactive constituent of Magnolia extract BL153, attenuated HFD-induced obesity [6].

4. The Effect of Magnolia Genus on Cardiovascular System of Diabetic Subjects

Diabetic heart disease is one of major complications of diabetes, and includes coronary heart disease (CHD), heart failure, and diabetic cardiomyopathy (DCM), among which DCM is one of major cardiac complications of diabetes. It is presented by coronary artery disease- and hypertension-independent structural and functional changes of heart, including cardiac hypertrophy and compromised systolic and diastolic function [29]. Although the underlying mechanisms for the pathogenesis of DCM are not fully elucidated, diabetes-caused oxidative stress, inflammation and lipid accumulation are recognized as crucial contributors for the development of DCM [30,31,32].
Drugs that treat heart failure are beneficial in DCM, however, the specifically preventive and therapeutic approach for DCM is still unavailable up to now [32]. In one of our recent studies, we have showed that Magnolia extract (BL153) treatment, at dose of 10 mg/kg body weight daily, slightly attenuated a mild cardiac hypertrophy and dysfunction of mice induced by HFD feeding [4]. Furthermore, we showed that BL153 treatment could attenuate cardiac lipid accumulation, oxidative damage, inflammation, and cell death in the heart of mice with HFD [4], highlighting the potential underlying mechanism for BL153 against DCM. These exciting findings encouraged the authors to further study the effect of BL153 bioactive constituent on HFD-induced cardiac pathogenesis. As expected, treatment with MH, a bioactive constituent of BL153, significantly decreased HFD-induced structural change of heart, which was concluding by the fact that HFD-induced increases in heart weight and ventricular wall thickness were significantly attenuated by MH treatment [6]. This study further confirmed that MH treatment resulted in the activation of Akt2 and nuclear factor erythroid-derived 2-like 2 (Nrf2) signaling which reduced HFD-induced impairment of cardiac insulin signaling and decreased oxidative stress and damage, respectively [6]. In addition, MH reduced HFD-induced cardiac lipid accumulation by suppressing cardiac fatty acid translocase/CD36 protein expression. CHD is the leading cause of mortality in diabetic patients and correlated with diabetes-accelerated formation and/or progression of atherosclerotic lesions [33,34]. Although there is no report from literature relevant to the direct therapeutic effect of Magnolia bark on CHD, a study using HFD feeding rabbit model showed that Magnolia officinalis treatment suppressed arterial atherosclerosis progression through suppression of oxidative stress and apoptosis-related gene expression, two major contributors for the progression of atherosclerosis, which indicated that Magnolia officinalis treatment might be beneficial for the prevention of CHD [35]. Therefore, the major bioactive constituents of Magnolia bark have contributed to prevent cardiovascular disease (Figure 4), although the mechanism is still not clear.

5. The Effect of Magnolia Genus on the Kidney of Diabetic Subjects

It has been recognized that diabetes mellitus is a major contributor for chronic kidney disease worldwide, and diabetic nephropathy (DN), characterized by the accumulation of extracellular matrix protein in the glomerular mesangium and tubulointerstitium, is one of the major causes of death in patients with diabetes [36]. The pathogenesis of DN is multifactorial, and many factors have been reported to be associated with DN, including the hyperglycemia-caused accumulation of advanced glycation end products (AGEs), oxidative stress, and inflammation [37,38]. Therefore, AGEs inhibitor and anti-inflammatory or antioxidant drugs have been proposed as promising agents for the treatment of DN [38,39].
The protective effect of bioactive constituents in Magnolia bark on DN has been investigated in many studies using diabetic or HFD feeding animal model (Figure 5). Using Zucker diabetic fatty rats, Kim et al. [8] firstly reported that administration of KIOM-79, extracted from Magnolia cortex, at dose of 50 mg/kg daily for 13 weeks could ameliorate albuminuria, histologic renal damage, glomerulosclerosis, tubular degeneration, collagen deposition, and podocyte apoptosis. Another study found that the in vitro AGE-protein cross-linking and in vivo accumulation of AGEs in renal cortex of diabetic rat was attenuated by KIOM-79 treatment, indicating that the protective effect of KIOM-79 on DN was involved in attenuation of AGEs deposition in the glomeruli [8].
The above-discussed renal protection by bioactive constituents in Magnolia bark from diabetes was also confirmed in other types of diabetes. Using diabetic rats induced by STZ injection, magnoline was also found to be renoprotective from diabetes-caused damage, shown by lower albuminuria and serum creatinine, when diabetic rats were given magnoline at dose of 0.5 mg/kg daily or 2 mg/kg daily [40]. Our group previously explored the protective effect of BL153 on kidney damage induced by HFD, and found that BL153 treatment significantly decreased HFD-induced renal dysfunction and structure changes [41]. More importantly, the elevated expressions of inflammation markers (tumor necrosis factor-α and plasminogen activator inhibitor-1) and oxidative stress markers (3-nitrotyrosine and 4-hydroxy-2-nonenal) in kidney of mice with HFD were attenuated by BL153 treatment, revealing that renoprotective effect of BL153 might be mediated by its anti-inflammation and anti-oxidative stress action [41].

6. The Effect of Magnolia Genus on the Liver of Diabetic Subjects

Besides heart and kidney damage, diabetes also increases the risk of chronic liver injury [42,43,44,45], whose pathological features include excessive glycogen deposits in hepatocytes, hepatic steatosis, inflammatory cells infiltration in the lobule and portal area, and interstitial fibrotic proliferation [46]. Inflammation and oxidative stress, which can be attenuated by bioactive constituents of Magnolia bark as described above, play major roles during the development of liver injury secondary to diabetes [47,48,49].
Using mice with HFD, our group firstly investigated the effect of Magnolia extract, BL153 on HFD-induced liver injury, and reported that BL153 treatment significantly suppressed HFD-induced hepatic fibrosis [50]. Further study showed that BL153 significantly inhibited HFD-induced hepatic lipid accumulation and oxidative stress and slightly prevented liver inflammation, which was the underlying mechanism for BL153 against HFD-induced hepatic fibrosis [50]. In a further study, Lee et al. [7] found that combination of honokiol and magnolol inhibited in vitro lipogenesis mediated by liver X receptor α, a nuclear receptor that regulates the metabolism of lipids, in hepatocytes through activation of AMPK, and ameliorated HFD-induced hepatic steatosis and liver dysfunction. The bioactive constituents of Magnolia bark therefore may be effective in treating diabetes-induced liver injury (Figure 6).

7. Conclusions

In the Chinese traditional herbal medicines, Magnolia bark has been used in the treatment of various diseases for many years, such as depression-related diseases and swallowing reflex in Parkinson's disease [51,52]. In vitro and in vivo studies disclosed that the therapeutic effect of Magnolia bark on several diseases partially depends on the anti-inflammatory and oxidative-stress role of bioactive constituents in Magnolia bark [10,11]. In recent years, there has been increasing attention to the effect of bioactive constituents in Magnolia bark on diabetic complications that have been considered due to the inflammation and oxidative stress induced by diabetic hyperglycemia and hyperlipidemia. Here we have presented an overview of these studies and found that in animal models of diabetes and HFD-induced obesity with and without diabetes, the bioactive constituents of Magnolia bark can improve hyperglycemia and ameliorate diabetic complications, including diabetes-caused dysregulation of fatty acid metabolism and damage to the heart, kidney, and liver (Table 1).
Magnolol, honokiol, and 4-O-methylhonokiol in the ME were used in most studies, however, other constituents maybe also have therapeutic effects. Mechanisms of antidiabetes are still unclear for Magnolia constituents. Therefore, ME are not used in antidiabetic clinical trial, though, clinical trials have demonstrated that ME may be important medicines for treating a variety of conditions such as menopause [53], anxiety [54], and gingivitis [55]. Now, it is necessary that we identify the bioactive constituents of ME, and delineate possible mechanisms. We hope that the brief review provides a foundation for further studies to assess mechanisms underlying the effects of ME, and clinical applications of these constituents.
Mechanistically these studies have linked the anti-inflammatory and antioxidative effect of Magnolia compounds to its efficiently preventive effects on the diabetic complications. These interesting studies strongly indicate that the bioactive constituents in Magnolia bark may be promising candidate agents for the treatment of diabetic complications in the future clinical research.

Acknowledgments

Cited studies from the authors’ laboratories were supported in part by the grants awarded by National Natural Science Foundation of China (No. 81570338, to Zhiguo Zhang; No. 31570854, to Fengsheng Li).

Author Contributions

Xuezhong Zhao, Zhiguo Zhang and Yang Zheng decided the topics, analyzed literature, designed and wrote the manuscript. Xuezhong Zhao, Fengsheng Li, Wanqing Sun, Ling Gao, Ki Soo Kim, Kyoung Tae Kim and Lu Cai wrote and revised the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

MH4-O-methylhonokiol
T2DMType 2 Diabetes
HFDHigh-fat diet
GLUT4Glucose transporter 4
FFAFree Fatty Acid
TGTriglyceride
AMPKAMP-activated protein kinase
WATWhite Adipose Tissue
CHDCoronary Heart Disease
DCMDiabetic Cardiomyopathy
Nrf2Nuclear factor erythroid-derived 2-like 2
DNDiabetic Nephropathy
AGEsAdvanced Glycation End products

References

  1. Qi, L.W.; Liu, E.H.; Chu, C.; Peng, Y.B.; Cai, H.X.; Li, P. Anti-diabetic agents from natural products—An update from 2004 to 2009. Curr. Top. Med. Chem. 2010, 10, 434–457. [Google Scholar] [CrossRef] [PubMed]
  2. Li, W.L.; Zheng, H.C.; Bukuru, J.; de Kimpe, N. Natural medicines used in the traditional Chinese medical system for therapy of diabetes mellitus. J. Ethnopharmacol. 2004, 92, 1–21. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, Z.; Wang, S.; Zhou, S.; Yan, X.; Wang, Y.; Chen, J.; Mellen, N.; Kong, M.; Gu, J.; Tan, Y.; et al. Sulforaphane prevents the development of cardiomyopathy in type 2 diabetic mice probably by reversing oxidative stress-induced inhibition of LKB1/AMPK pathway. J. Mol. Cell. Cardiol. 2014, 77, 42–52. [Google Scholar] [CrossRef] [PubMed]
  4. Sun, W.; Zhang, Z.; Chen, Q.; Yin, X.; Fu, Y.; Zheng, Y.; Cai, L.; Kim, K.S.; Kim, K.H.; Tan, Y.; et al. Magnolia extract (BL153) protection of heart from lipid accumulation caused cardiac oxidative damage, inflammation, and cell death in high-fat diet fed mice. Oxid. Med. Cell Longev. 2014. [Google Scholar] [CrossRef] [PubMed]
  5. Sun, J.; Wang, Y.; Fu, X.; Chen, Y.; Wang, D.; Li, W.; Xing, S.; Li, G. Magnolia officinalis extract contains potent inhibitors against PTP1B and attenuates hyperglycemia in db/db mice. BioMed Res. Int. 2015. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, Z.; Chen, J.; Zhou, S.; Wang, S.; Cai, X.; Conklin, D.J.; Kim, K.S.; Kim, K.H.; Tan, Y.; Zheng, Y.; et al. Magnolia bioactive constituent 4-O-methylhonokiol prevents the impairment of cardiac insulin signaling and the cardiac pathogenesis in high-fat diet-induced obese mice. Int. J. Biol. Sci. 2015, 11, 879–891. [Google Scholar] [CrossRef] [PubMed]
  7. Lee, J.H.; Jung, J.Y.; Jang, E.J.; Jegal, K.H.; Moon, S.Y.; Ku, S.K.; Kang, S.H.; Cho, I.J.; Park, S.J.; Lee, J.R.; et al. Combination of honokiol and magnolol inhibits hepatic steatosis through AMPK-SREBP-1 c pathway. Exp. Biol. Med. (Maywood) 2015, 240, 508–518. [Google Scholar] [CrossRef] [PubMed]
  8. Kim, Y.S.; Kim, J.; Kim, C.S.; Sohn, E.J.; Lee, Y.M.; Jeong, I.H.; Kim, H.; Jang, D.S.; Kim, J.S. KIOM-79, an inhibitor of AGEs-protein cross-linking, prevents progression of nephropathy in zucker diabetic fatty rats. Evid. Based Complement. Altern. Med. 2011. [Google Scholar] [CrossRef] [PubMed]
  9. Choi, J.H.; Ha, J.; Park, J.H.; Lee, J.Y.; Lee, Y.S.; Park, H.J.; Choi, J.W.; Masuda, Y.; Nakaya, K.; Lee, K.T. Costunolide triggers apoptosis in human leukemia U937 cells by depleting intracellular thiols. Jpn. J. Cancer Res. 2002, 93, 1327–1333. [Google Scholar] [CrossRef] [PubMed]
  10. Kang, J.S.; Lee, K.H.; Han, M.H.; Lee, H.; Ahn, J.M.; Han, S.B.; Han, G.; Lee, K.; Park, S.K.; Kim, H.M. Antiinflammatory activity of methanol extract isolated from stem bark of Magnolia kobus. Phytother. Res. 2008, 22, 883–888. [Google Scholar] [CrossRef] [PubMed]
  11. Kong, C.W.; Tsai, K.; Chin, J.H.; Chan, W.L.; Hong, C.Y. Magnolol attenuates peroxidative damage and improves survival of rats with sepsis. Shock 2000, 13, 24–28. [Google Scholar] [CrossRef] [PubMed]
  12. Weeks, B.S. Formulations of dietary supplements and herbal extracts for relaxation and anxiolytic action: Relarian. Med. Sci. Monit. 2009, 15, RA256–262. [Google Scholar] [PubMed]
  13. Lee, Y.J.; Lee, Y.M.; Lee, C.K.; Jung, J.K.; Han, S.B.; Hong, J.T. Therapeutic applications of compounds in the Magnolia family. Pharmacol. Ther. 2011, 130, 157–176. [Google Scholar] [CrossRef] [PubMed]
  14. Atanasov, A.G.; Wang, J.N.; Gu, S.P.; Bu, J.; Kramer, M.P.; Baumgartner, L.; Fakhrudin, N.; Ladurner, A.; Malainer, C.; Vuorinen, A.; et al. Honokiol: A non-adipogenic PPARγ agonist from nature. Biochem. Biophys. Acta 2013, 1830, 4813–4819. [Google Scholar] [CrossRef] [PubMed]
  15. Choi, S.S.; Cha, B.Y.; Lee, Y.S.; Yonezawa, T.; Teruya, T.; Nagai, K.; Woo, J.T. Magnolol enhances adipocyte differentiation and glucose uptake in 3T3-L1 cells. Life Sci. 2009, 84, 908–914. [Google Scholar] [CrossRef] [PubMed]
  16. Alonso-Castro, A.J.; Zapata-Bustos, R.; Dominguez, F.; Garcia-Carranca, A.; Salazar-Olivo, L.A. Magnolia dealbata Zucc and its active principles honokiol and magnolol stimulate glucose uptake in murine and human adipocytes using the insulin-signaling pathway. Phytomedicine 2011, 18, 926–933. [Google Scholar] [CrossRef] [PubMed]
  17. Sun, J.; Fu, X.; Liu, Y.; Wang, Y.; Huo, B.; Guo, Y.; Gao, X.; Li, W.; Hu, X. Hypoglycemic effect and mechanism of honokiol on type 2 diabetic mice. Drug Des. Dev. Ther. 2015, 9, 6327–6342. [Google Scholar]
  18. Kim, Y.J.; Choi, M.S.; Cha, B.Y.; Woo, J.T.; Park, Y.B.; Kim, S.R.; Jung, U.J. Long-term supplementation of honokiol and magnolol ameliorates body fat accumulation, insulin resistance, and adipose inflammation in high-fat fed mice. Mol. Nutr. Food Res. 2013, 57, 1988–1998. [Google Scholar] [CrossRef] [PubMed]
  19. Boden, G.; Shulman, G.I. Free fatty acids in obesity and type 2 diabetes: Defining their role in the development of insulin resistance and β-cell dysfunction. Eur. J. Clin. Investig. 2002, 32, 14–23. [Google Scholar] [CrossRef]
  20. Liu, L.; Zhang, Y.; Chen, N.; Shi, X.; Tsang, B.; Yu, Y.H. Upregulation of myocellular DGAT1 augments triglyceride synthesis in skeletal muscle and protects against fat-induced insulin resistance. J. Clin. Investig. 2007, 117, 1679–1689. [Google Scholar] [CrossRef] [PubMed]
  21. Bajaj, M.; Suraamornkul, S.; Pratipanawatr, T.; Hardies, L.J.; Pratipanawatr, W.; Glass, L.; Cersosimo, E.; Miyazaki, Y.; DeFronzo, R.A. Pioglitazone reduces hepatic fat content and augments splanchnic glucose uptake in patients with type 2 diabetes. Diabetes 2003, 52, 1364–1370. [Google Scholar] [CrossRef] [PubMed]
  22. Borradaile, N.M.; Schaffer, J.E. Lipotoxicity in the heart. Curr. Hypertens. Rep. 2005, 7, 412–417. [Google Scholar] [CrossRef] [PubMed]
  23. Verges, B. Pathophysiology of diabetic dyslipidaemia: Where are we? Diabetologia 2015, 58, 886–899. [Google Scholar] [CrossRef] [PubMed]
  24. Guebre-Egziabher, F.; Alix, P.M.; Koppe, L.; Pelletier, C.C.; Kalbacher, E.; Fouque, D.; Soulage, C.O. Ectopic lipid accumulation: A potential cause for metabolic disturbances and a contributor to the alteration of kidney function. Biochimie 2013, 95, 1971–1979. [Google Scholar] [CrossRef] [PubMed]
  25. Erion, D.M.; Park, H.J.; Lee, H.Y. The role of lipids in the pathogenesis and treatment of type 2 diabetes and associated co-morbidities. BMB Rep. 2016, 49, 139–148. [Google Scholar] [CrossRef] [PubMed]
  26. Bardini, G.; Rotella, C.M.; Giannini, S. Dyslipidemia and diabetes: reciprocal impact of impaired lipid metabolism and β-cell dysfunction on micro and macrovascular complications. Rev. Diabet. Study 2012, 9, 82–93. [Google Scholar] [CrossRef] [PubMed]
  27. Seo, M.S.; Kim, J.H.; Kim, H.J.; Chang, K.C.; Park, S.W. Honokiol activates the LKB1-AMPK signaling pathway and attenuates the lipid accumulation in hepatocytes. Toxicol. Appl. Pharmacol. 2015, 284, 113–124. [Google Scholar] [CrossRef] [PubMed]
  28. Zhang, Z.; Chen, J.; Jiang, X.; Wang, J.; Yan, X.; Zheng, Y.; Conklin, D.J.; Kim, K.S.; Kim, K.H.; Tan, Y.; et al. The Magnolia bioactive constituent 4-O-methylhonokiol protects against high-fat diet-induced obesity and systemic insulin resistance in mice. Oxid. Med. Cell. Longev. 2014. [Google Scholar] [CrossRef] [PubMed]
  29. Bugger, H.; Abel, E.D. Molecular mechanisms of diabetic cardiomyopathy. Diabetologia 2014, 57, 660–671. [Google Scholar] [CrossRef] [PubMed]
  30. Westermann, D.; Rutschow, S.; Jager, S.; Linderer, A.; Anker, S.; Riad, A.; Unger, T.; Schultheiss, H.P.; Pauschinger, M.; Tschope, C. Contributions of inflammation and cardiac matrix metalloproteinase activity to cardiac failure in diabetic cardiomyopathy: The role of angiotensin type 1 receptor antagonism. Diabetes 2007, 56, 641–646. [Google Scholar] [CrossRef] [PubMed]
  31. Shen, X.; Zheng, S.; Metreveli, N.S.; Epstein, P.N. Protection of cardiac mitochondria by overexpression of MnSOD reduces diabetic cardiomyopathy. Diabetes 2006, 55, 798–805. [Google Scholar] [CrossRef] [PubMed]
  32. Rijzewijk, L.J.; van der Meer, R.W.; Smit, J.W.; Diamant, M.; Bax, J.J.; Hammer, S.; Romijn, J.A.; de Roos, A.; Lamb, H.J. Myocardial steatosis is an independent predictor of diastolic dysfunction in type 2 diabetes mellitus. J. Am. Coll. Cardiol. 2008, 52, 1793–1799. [Google Scholar] [CrossRef] [PubMed]
  33. Muhlestein, J.B.; Lappe, D.L.; Lima, J.A.; Rosen, B.D.; May, H.T.; Knight, S.; Bluemke, D.A.; Towner, S.R.; Le, V.; Bair, T.L.; et al. Effect of screening for coronary artery disease using CT angiography on mortality and cardiac events in high-risk patients with diabetes: The FACTOR-64 randomized clinical trial. JAMA 2014, 312, 2234–2243. [Google Scholar] [CrossRef] [PubMed]
  34. Bornfeldt, K.E.; Tabas, I. Insulin resistance, hyperglycemia, and atherosclerosis. Cell Metab. 2011, 14, 575–585. [Google Scholar] [CrossRef] [PubMed]
  35. Chang, W.C.; Yu, Y.M.; Hsu, Y.M.; Wu, C.H.; Yin, P.L.; Chiang, S.Y.; Hung, J.S. Inhibitory effect of Magnolia officinalis and lovastatin on aortic oxidative stress and apoptosis in hyperlipidemic rabbits. J. Cardiovasc. Pharmacol. 2006, 47, 463–468. [Google Scholar] [PubMed]
  36. Stenvinkel, P. Chronic kidney disease: A public health priority and harbinger of premature cardiovascular disease. J. Intern. Med. 2010, 268, 456–467. [Google Scholar] [CrossRef] [PubMed]
  37. Tesch, G.H.; Lim, A.K. Recent insights into diabetic renal injury from the db/db mouse model of type 2 diabetic nephropathy. Am. J. Physiol. Ren. Physiol. 2011, 300, F301–F310. [Google Scholar] [CrossRef] [PubMed]
  38. Mima, A. Inflammation and oxidative stress in diabetic nephropathy: New insights on its inhibition as new therapeutic targets. J. Diabetes Res. 2013. [Google Scholar] [CrossRef] [PubMed]
  39. Yamamoto, Y.; Doi, T.; Kato, I.; Shinohara, H.; Sakurai, S.; Yonekura, H.; Watanabe, T.; Myint, K.M.; Harashima, A.; Takeuchi, M.; et al. Receptor for advanced glycation end products is a promising target of diabetic nephropathy. Ann. N. Y. Acad. Sci. 2005, 1043, 562–566. [Google Scholar] [CrossRef] [PubMed]
  40. Zhou, Y.; Wang, F.; Hao, L.; Wang, N. Effects of magnoline on P-selectin’s expression in diabetic rats and its reno-protection. Kidney Blood Press Res. 2013, 37, 211–220. [Google Scholar] [CrossRef] [PubMed]
  41. Cui, W.; Wang, Y.; Chen, Q.; Sun, W.; Cai, L.; Tan, Y.; Kim, K.S.; Kim, K.H.; Kim, Y.H. Magnolia extract (BL153) ameliorates kidney damage in a high-fat diet-induced obesity mouse model. Oxid. Med. Cell Longev. 2013. [Google Scholar] [CrossRef] [PubMed]
  42. Olsson, R.; Wesslau, C.; William-Olsson, T.; Zettergren, L. Elevated aminotransferases and alkaline phosphatases in unstable diabetes mellitus without ketoacidosis or hypoglycemia. J. Clin. Gastroenterol. 1989, 11, 541–545. [Google Scholar] [CrossRef] [PubMed]
  43. Torbenson, M.; Chen, Y.Y.; Brunt, E.; Cummings, O.W.; Gottfried, M.; Jakate, S.; Liu, Y.C.; Yeh, M.M.; Ferrell, L. Glycogenic hepatopathy: An underrecognized hepatic complication of diabetes mellitus. Am. J. Surg. Pathol. 2006, 30, 508–513. [Google Scholar] [CrossRef] [PubMed]
  44. El-Serag, H.B.; Tran, T.; Everhart, J.E. Diabetes increases the risk of chronic liver disease and hepatocellular carcinoma. Gastroenterology 2004, 126, 460–468. [Google Scholar] [CrossRef] [PubMed]
  45. Fracanzani, A.L.; Valenti, L.; Bugianesi, E.; Andreoletti, M.; Colli, A.; Vanni, E.; Bertelli, C.; Fatta, E.; Bignamini, D.; Marchesini, G.; et al. Risk of severe liver disease in nonalcoholic fatty liver disease with normal aminotransferase levels: A role for insulin resistance and diabetes. Hepatology 2008, 48, 792–798. [Google Scholar] [CrossRef] [PubMed]
  46. Wan, Y.; Garner, J.; Wu, N.; Phillip, L.; Han, Y.; McDaniel, K.; Annable, T.; Zhou, T.; Francis, H.; Glaser, S.; et al. Role of stem cells during diabetic liver injury. J. Cell. Mol. Med. 2016, 20, 195–203. [Google Scholar] [CrossRef] [PubMed]
  47. Grigorov, I.; Bogojevic, D.; Jovanovic, S.; Petrovic, A.; Ivanovic-Matic, S.; Zolotarevski, L.; Poznanovic, G.; Martinovic, V. Hepatoprotective effects of melatonin against pronecrotic cellular events in streptozotocin-induced diabetic rats. J. Physiol. Biochem. 2014, 70, 441–450. [Google Scholar] [CrossRef] [PubMed]
  48. Evelson, P.; Susemihl, C.; Villarreal, I.; Llesuy, S.; Rodriguez, R.; Peredo, H.; Lemberg, A.; Perazzo, J.; Filinger, E. Hepatic morphological changes and oxidative stress in chronic streptozotocin-diabetic rats. Ann. Hepatol. 2005, 4, 115–120. [Google Scholar] [PubMed]
  49. Mohamed, J.; Nazratun Nafizah, A.H.; Zariyantey, A.H.; Budin, S.B. Mechanisms of diabetes-induced liver damage: The role of oxidative stress and inflammation. Sultan Qaboos. Univ. Med. J. 2016, 16, e132–e141. [Google Scholar] [CrossRef] [PubMed]
  50. Wang, J.; Zhang, C.; Zhang, Z.; Chen, Q.; Lu, X.; Shao, M.; Chen, L.; Yang, H.; Zhang, F.; Cheng, P.; et al. BL153 partially prevents high-fat diet induced liver damage probably via inhibition of lipid accumulation, inflammation, and oxidative stress. Oxid. Med. Cell Longev. 2014. [Google Scholar] [CrossRef] [PubMed]
  51. Luo, L.; Nong Wang, J.; Kong, L.D.; Jiang, Q.G.; Tan, R.X. Antidepressant effects of Banxia Houpu decoction, a traditional Chinese medicinal empirical formula. J. Ethnopharmacol. 2000, 73, 277–281. [Google Scholar] [CrossRef]
  52. Iwasaki, K.; Wang, Q.; Seki, H.; Satoh, K.; Takeda, A.; Arai, H.; Sasaki, H. The effects of the traditional chinese medicine, “Banxia Houpo Tang (Hange-Koboku To)” on the swallowing reflex in Parkinson’s disease. Phytomedicine 2000, 7, 259–263. [Google Scholar] [CrossRef]
  53. Mucci, M.; Carraro, C.; Mancino, P.; Monti, M.; Papadia, L.S.; Volpini, G.; Benvenuti, C. Soy isoflavones, lactobacilli, Magnolia bark extract, vitamin D3 and calcium. Controlled clinical study in menopause. Minerva Ginecol. 2006, 58, 323–334. [Google Scholar] [PubMed]
  54. Kalman, D.S.; Feldman, S.; Feldman, R.; Schwartz, H.I.; Krieger, D.R.; Garrison, R. Effect of a proprietary Magnolia and Phellodendron extract on stress levels in healthy women: A pilot, double-blind, placebo-controlled clinical trial. Nutr. J. 2008, 7, 11. [Google Scholar] [CrossRef] [PubMed]
  55. Campus, G.; Cagetti, M.G.; Cocco, F.; Sale, S.; Sacco, G.; Strohmenger, L.; Lingstrom, P. Effect of a sugar-free chewing gum containing magnolia bark extract on different variables related to caries and gingivitis: A randomized controlled intervention trial. Caries Res. 2011, 45, 393–399. [Google Scholar] [CrossRef] [PubMed]

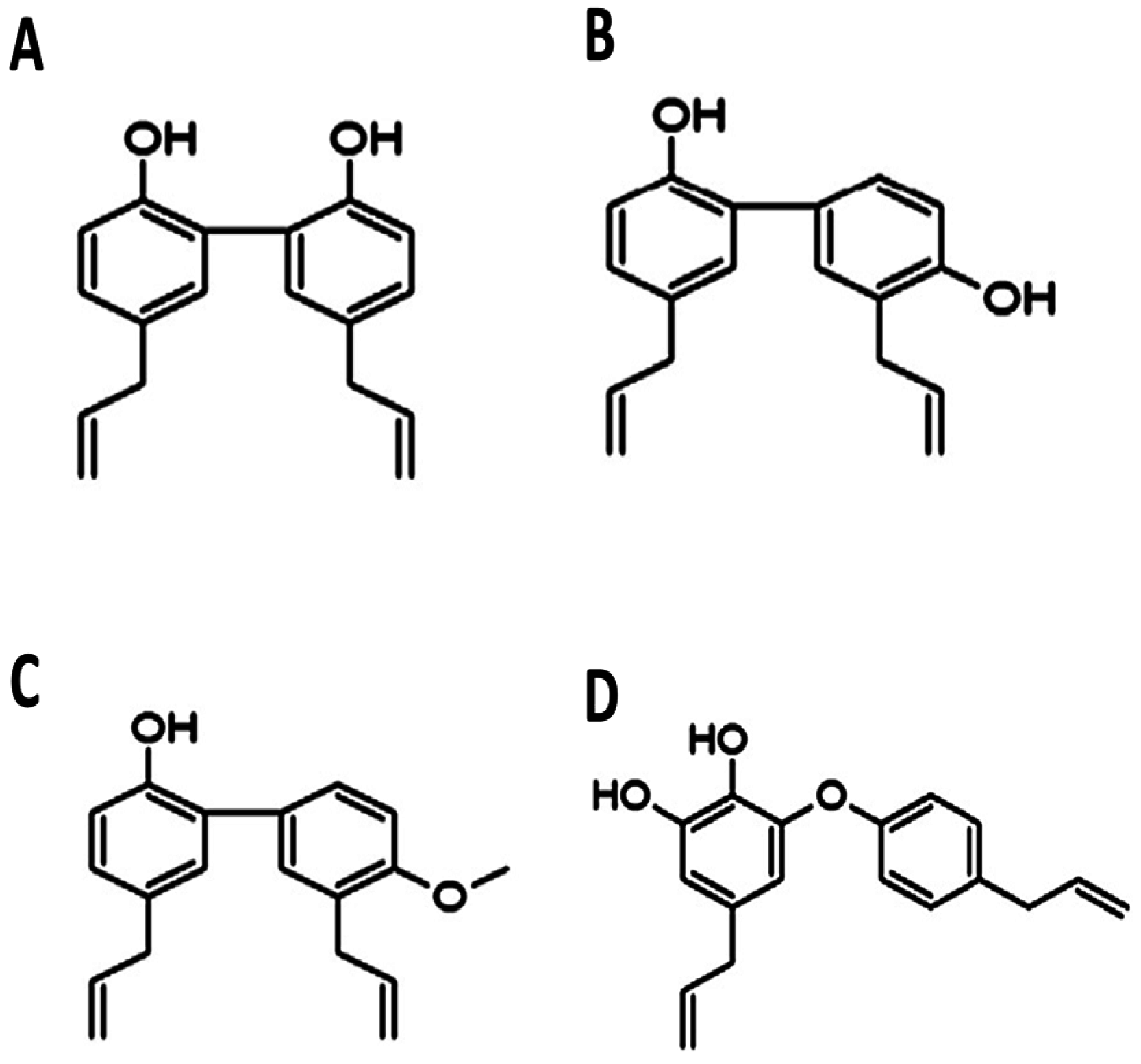

Figure 1. Chemical structures of (A) magnolol; (B) honokiol; (C) 4-O-methylhonokiol; and (D) obovatol.
Figure 1. Chemical structures of (A) magnolol; (B) honokiol; (C) 4-O-methylhonokiol; and (D) obovatol.
Ijms 17 01629 g001

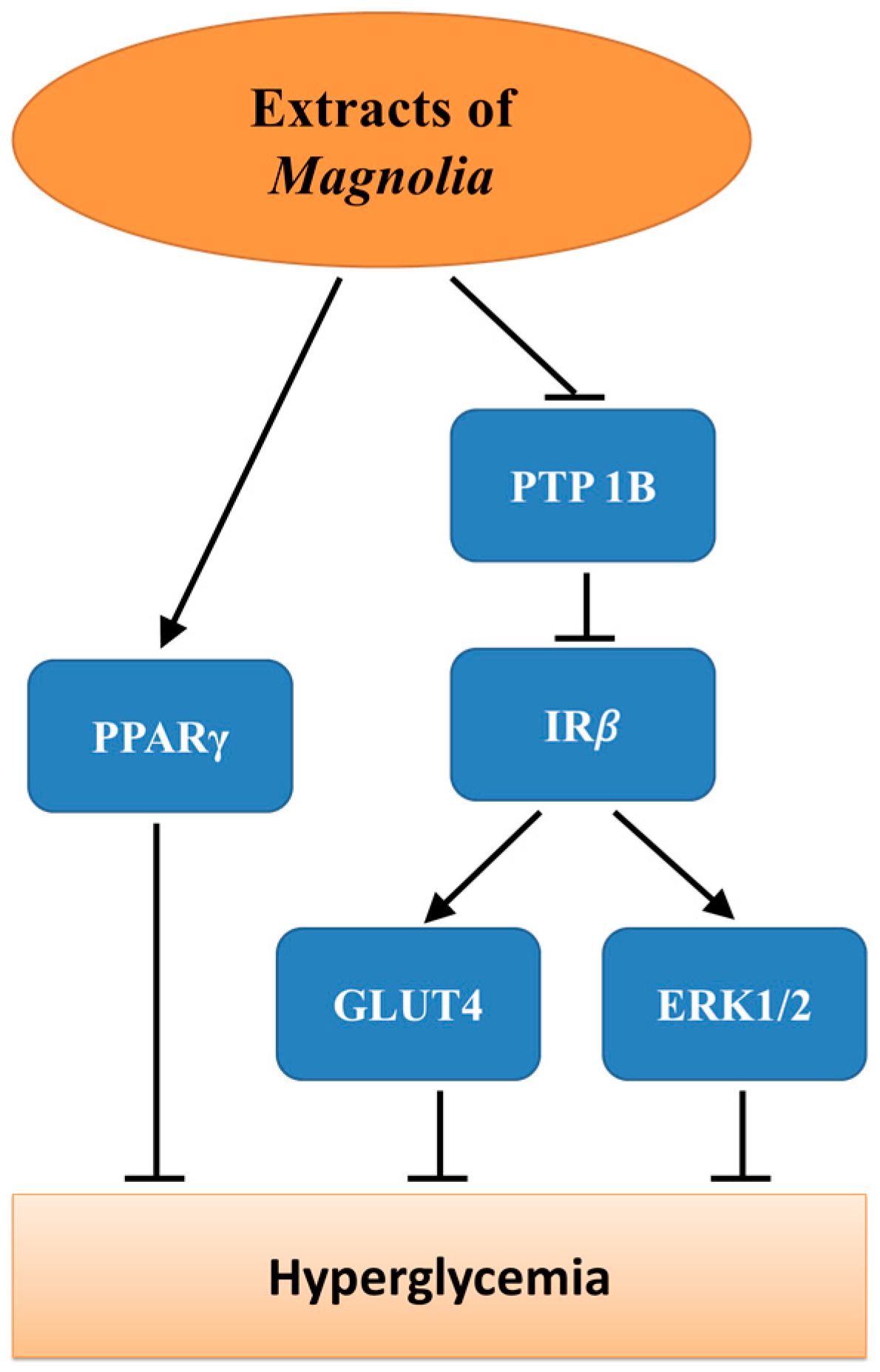

Figure 2. The underlying mechanism through which bioactive constituents of Magnolia bark prevent hyperglycemia of diabetes. PTP1B: protein tyrosine phosphatases (PTPs) 1B; IRβ: insulin receptor β-subunit; PPARγ: peroxisome proliferator-activated receptor gamma; GLUT4: glucose transporter 4; ERK1/2: extracellular signal-regulated kinases.
Figure 2. The underlying mechanism through which bioactive constituents of Magnolia bark prevent hyperglycemia of diabetes. PTP1B: protein tyrosine phosphatases (PTPs) 1B; IRβ: insulin receptor β-subunit; PPARγ: peroxisome proliferator-activated receptor gamma; GLUT4: glucose transporter 4; ERK1/2: extracellular signal-regulated kinases.
Ijms 17 01629 g002

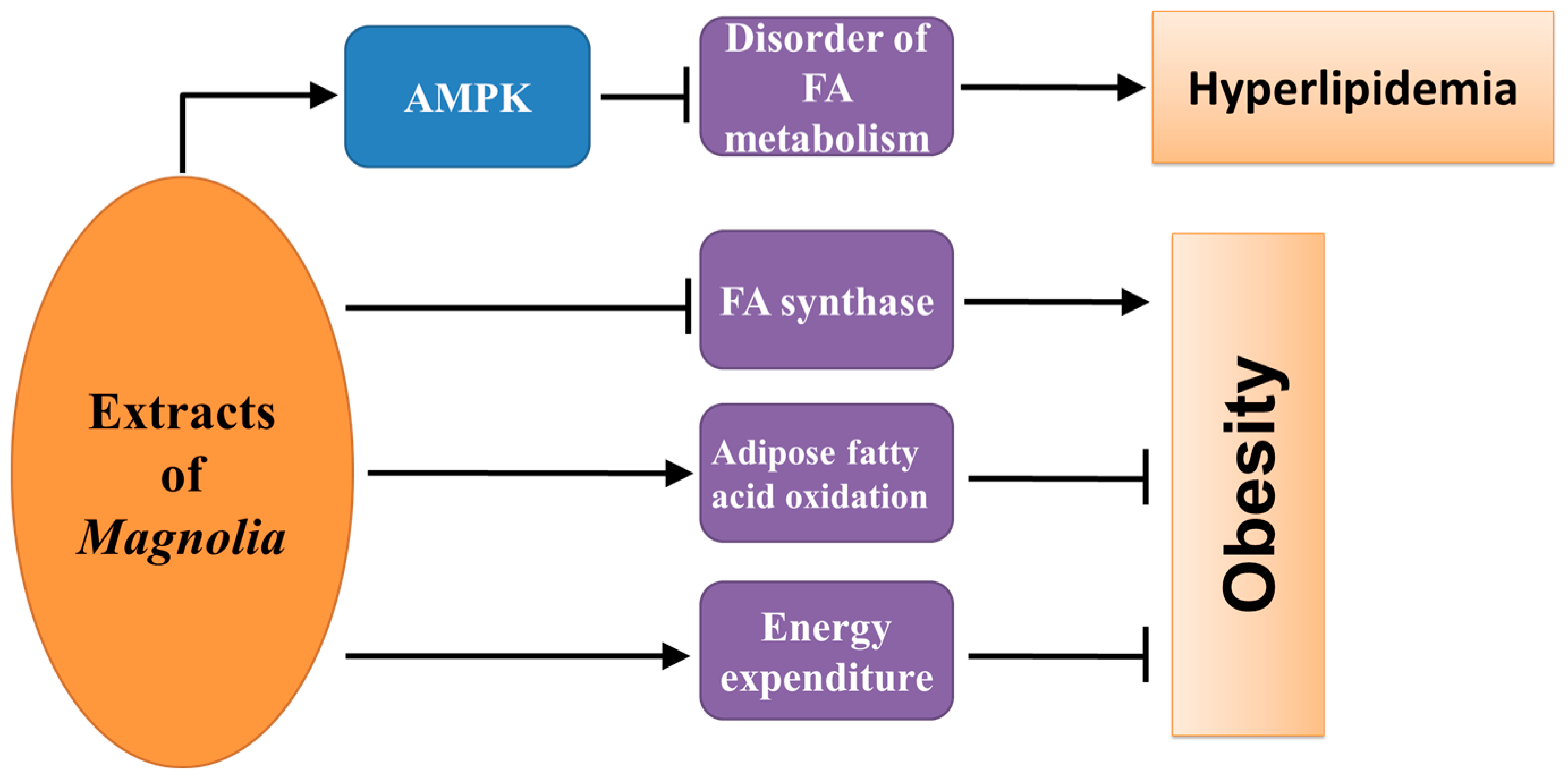

Figure 3. The underlying mechanism through which bioactive constituents of Magnolia bark prevent obesity and hyperlipidemia of diabetes. AMPK: AMP-activated protein kinase; FA: fatty acid.
Figure 3. The underlying mechanism through which bioactive constituents of Magnolia bark prevent obesity and hyperlipidemia of diabetes. AMPK: AMP-activated protein kinase; FA: fatty acid.
Ijms 17 01629 g003

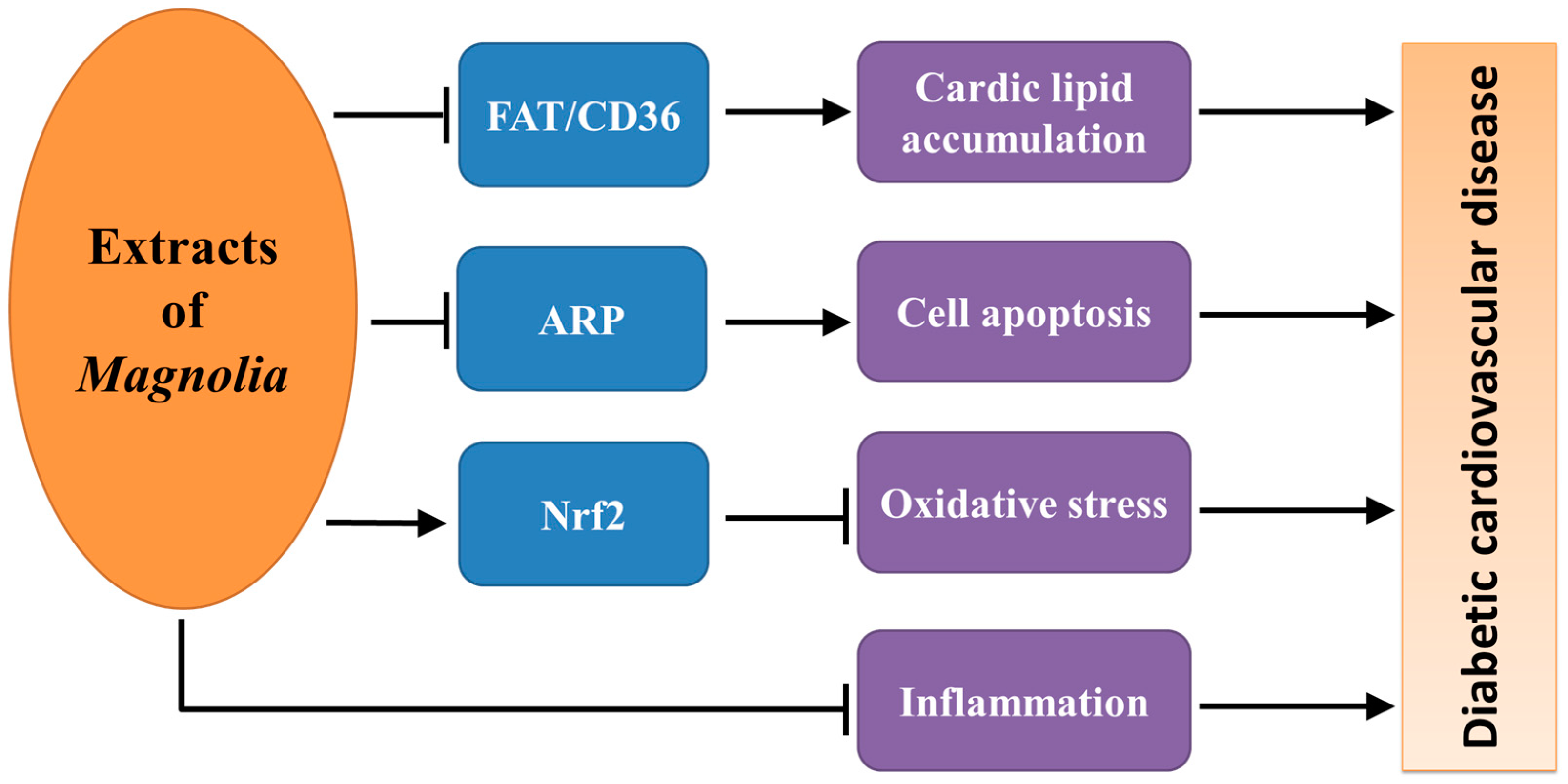

Figure 4. The underlying mechanism through which bioactive constituents of Magnolia bark prevent diabetic cardiovascular disease. FAT: fatty acid translocase; ARP, apoptosis related proteins, including Fas ligand, caspase 8, and caspase 9; Nrf2: nuclear factor erythroid-derived 2-like 2.
Figure 4. The underlying mechanism through which bioactive constituents of Magnolia bark prevent diabetic cardiovascular disease. FAT: fatty acid translocase; ARP, apoptosis related proteins, including Fas ligand, caspase 8, and caspase 9; Nrf2: nuclear factor erythroid-derived 2-like 2.
Ijms 17 01629 g004

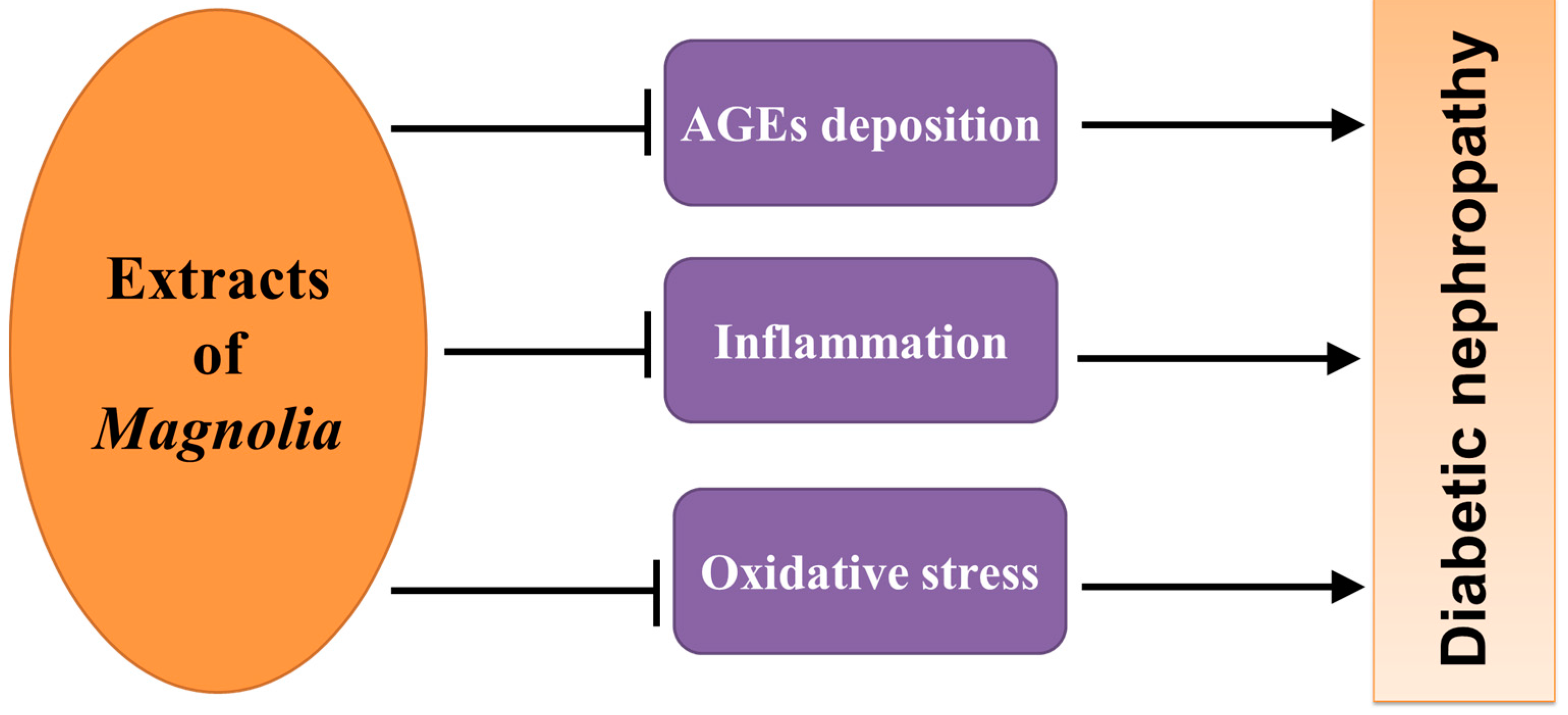

Figure 5. The underlying mechanism through which bioactive constituents of Magnolia bark prevent diabetic nephropathy.
Figure 5. The underlying mechanism through which bioactive constituents of Magnolia bark prevent diabetic nephropathy.
Ijms 17 01629 g005

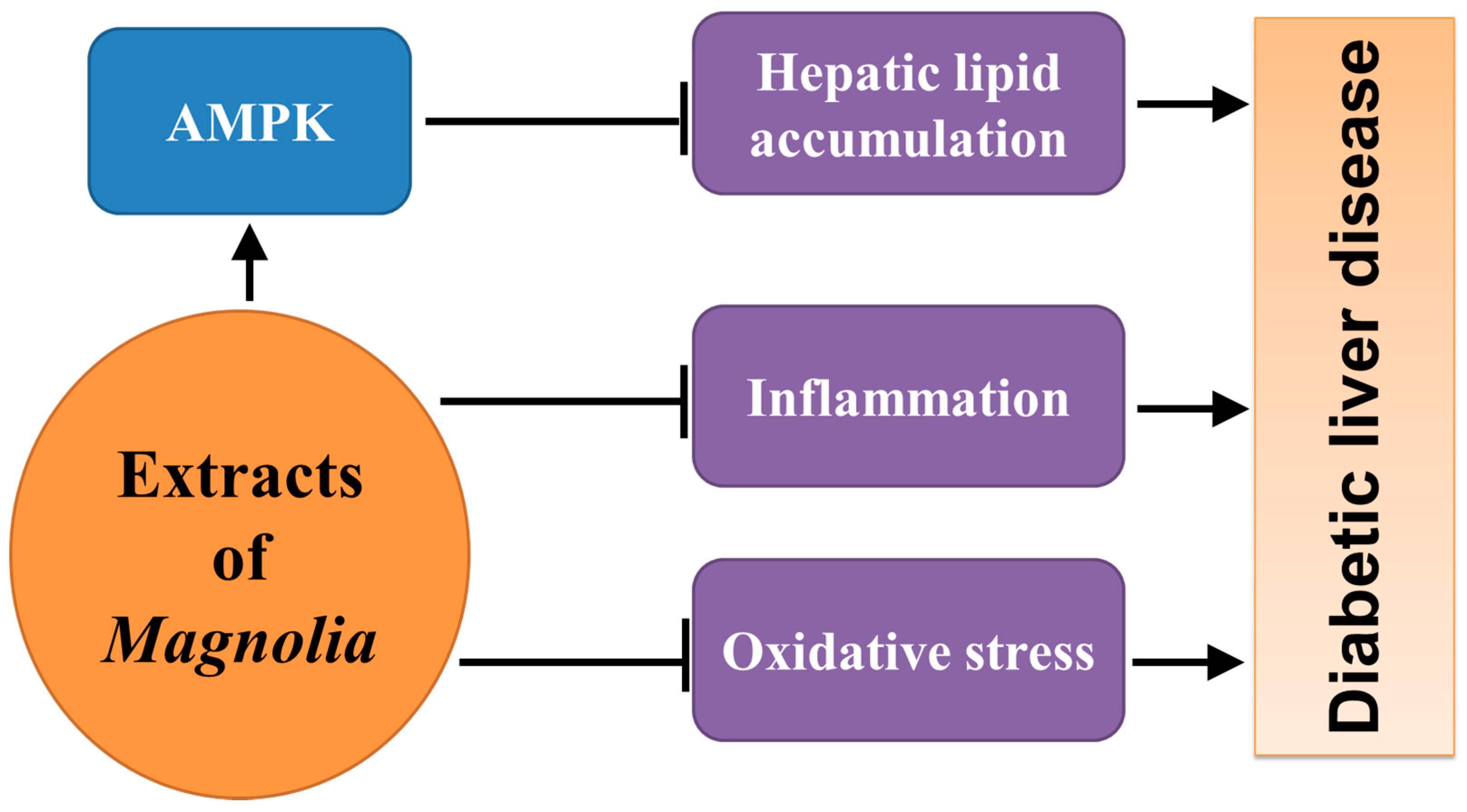

Figure 6. The underlying mechanism through which bioactive constituents of Magnolia bark prevent diabetic liver disease.
Figure 6. The underlying mechanism through which bioactive constituents of Magnolia bark prevent diabetic liver disease.
Ijms 17 01629 g006
Table 1. The effect of Magnolia components on obesity or diabetes complications.
Table 1. The effect of Magnolia components on obesity or diabetes complications.
DiseaseExtractsModelsEffectReference
HyperglycemiahonokiolMice received HFD combining with STZ injectionDecrease in the blood glucose levels[17]
Magnolia officinalis extractdb/db miceAttenuation of hyperglycemia[5]
honokiolKKAy micePrevention of hyperglycemia[18]
Hyperlipidemia and obesityhonokiolMice with HFDReduction of hepatic TG and fat accumulation[27]
4-O-methylhonokiolMice with HFDDecrease in hepatic TG and fat accumulation[28]
honokiol or magnololMice with HFDWeight reduction of WAT[18]
honokiolKKAy miceSuppression of weight gain[14]
4-O-methylhonokiolMice with HFDSuppression of weight gain[6]
Diabetic heart diseaseBL153Mice with HFDAttenuation of a mild cardiac hypertrophy and dysfunction[4]
4-O-methylhonokiolMice with HFDDecrease in heart weight and ventricular wall thickness[6]
Magnolia officinalisMice with HFDSuppression of arterial atherosclerosis progression[35]
Diabetic kidney diseaseKIOM-79Zucker diabetic fatty ratsAmelioration of albuminuria, histologic renal damage, glomerulosclerosis, tubular degeneration, collagen deposition and podocyte apoptosis[8]
magnolineDiabetic rats induced by STZ injectionDecreased albuminuria and serum creatinine[40]
BL153Mice with HFDInhibition of renal dysfunction and structure changes[41]
Diabetic liver diseaseBL153Mice with HFDSuppression of hepatic fibrosis and hepatic lipid accumulation[50]
combination of honokiol and magnololMice with HFDInhibition of hepatic steatosis and liver dysfunction[7]
