Int. J. Mol. Sci. 2014, 15(6), 10136-10149; doi:10.3390/ijms150610136

Article
Pregnane-Type Steroids from the Formosan Soft Coral Scleronephthya flexilis
Chao-Ying Kuo 1,2,, Yung-Shun Juan 3,4,5,, Mei-Chin Lu 1,2, Michael Yen-Nan Chiang 6, Chang-Feng Dai 7, Yang-Chang Wu 8,9,10,* and Ping-Jyun Sung 1,2,9,11,12,*
1
Graduate Institute of Marine Biotechnology, National Dong Hwa University, Pingtung 944,Taiwan; E-Mails: recall04729@hotmail.com (C.-Y.K.); jinx6609@nmmba.gov.tw (M.-C.L.)
2
National Museum of Marine Biology and Aquarium, Pingtung 944, Taiwan
3
Department of Urology, Kaohsiung Municipal Hsiao-Kang Hospital, Kaohsiung 812, Taiwan; E-Mail: juanuro@gmail.com
4
Department of Urology, College of Medicine, Kaohsiung Medical University, Kaohsiung 807, Taiwan
5
Department of Urology, Kaohsiung Medical University Hospital, Kaohsiung 807, Taiwan
6
Department of Chemistry, National Sun Yat-sen University, Kaohsiung 804, Taiwan; E-Mail: michael@mail.nsysu.edu.tw
7
Institute of Oceanography, National Taiwan University, Taipei 106, Taiwan; E-Mail: corallab@ntu.edu.tw
8
School of Pharmacy, College of Pharmacy, China Medical University, Taichung 404, Taiwan
9
Chinese Medicine Research and Development Center, China Medical University Hospital, Taichung 404, Taiwan
10
Center for Molecular Medicine, China Medical University Hospital, Taichung 404, Taiwan
11
Graduate Institute of Natural Products, Kaohsiung Medical University, Kaohsiung 807, Taiwan
12
Department of Marine Biotechnology and Resources and Asia-Pacific Ocean Research Center, National Sun Yat-sen University, Kaohsiung 804, Taiwan
These authors contributed equally to this work.
*
Authors to whom correspondence should be addressed; E-Mails: yachwu@mail.cmu.edu.tw (Y.-C.W.); pjsung@nmmba.gov.tw (P.-J.S.); Tel.: +886-4-220-57513 (Y.-C.W.); +886-8-882-5037 (P.-J.S.); Fax: +886-4-220-60248 (Y.-C.W.); +886-8-882-5087 (P.-J.S.).
Received: 12 April 2014; in revised form: 19 May 2014 / Accepted: 23 May 2014 /
Published: 6 June 2014

Abstract

: Three pregnane-type steroids, including a new metabolite, 3β-methoxy-5,20-pregnadiene (1) along with two known analogues, 3β-acetoxy-5,20-pregnadiene (2) and 5α-pregna-1,20-dien-3-one (3) were isolated from the soft coral Scleronephthya flexilis. Standard spectroscopic techniques were used to determine the structure of new steroid 1. The absolute stereochemistry of steroid 2 was confirmed by X-ray diffraction analysis. Steroid 3 exhibited potent activity against MOLT-4 tumor cells.
Keywords:
soft coral; pregnane; Scleronephthya flexilis; cytotoxicity; MOLT-4

1. Introduction

Octocorals belonging to the Scleronephthya genus have been well-recognized as marine organisms containing large quantities of steroids that exhibit varying degrees of bioactivities, such as cytotoxicity and anti-inflammatory activity [1,2,3,4,5,6,7]. In connection with our investigations of bioactive substances from marine organisms, a soft coral Scleronephthya flexilis (Thomson & Simpson, 1909, phylum Cnidaria, class Anthozoa, order Alcyonacea, family Nephtheidae) was selected for study (Scheme 1), as the ethyl acetate extract of this organism was found to exhibit cytotoxicity against the MOLT-4 human acute lymphoblastic leukemia (IC50 = 5.1 μg/mL). Our chemical investigation of this organism led to the isolation of a new metabolite, 3β-methoxy-5,20-pregnadiene (1), and two known analogues, 3β-acetoxy-5,20-pregnadiene (2) [2,6,8,9] and 5α-pregna-1,20-dien-3-one (3) [1,2,4,6,10,11,12,13,14,15,16,17] (Scheme 1). The structures of steroids 13 were elucidated on the basis of spectroscopic methods and by comparison of data with those of the related metabolites. The absolute configuration of steroid 2 was further confirmed by single-crystal X-ray diffraction analysis. The ability of steroid 3 to inhibit the growth of MOLT-4 cells was evaluated.

Ijms 15 10136 g005 200

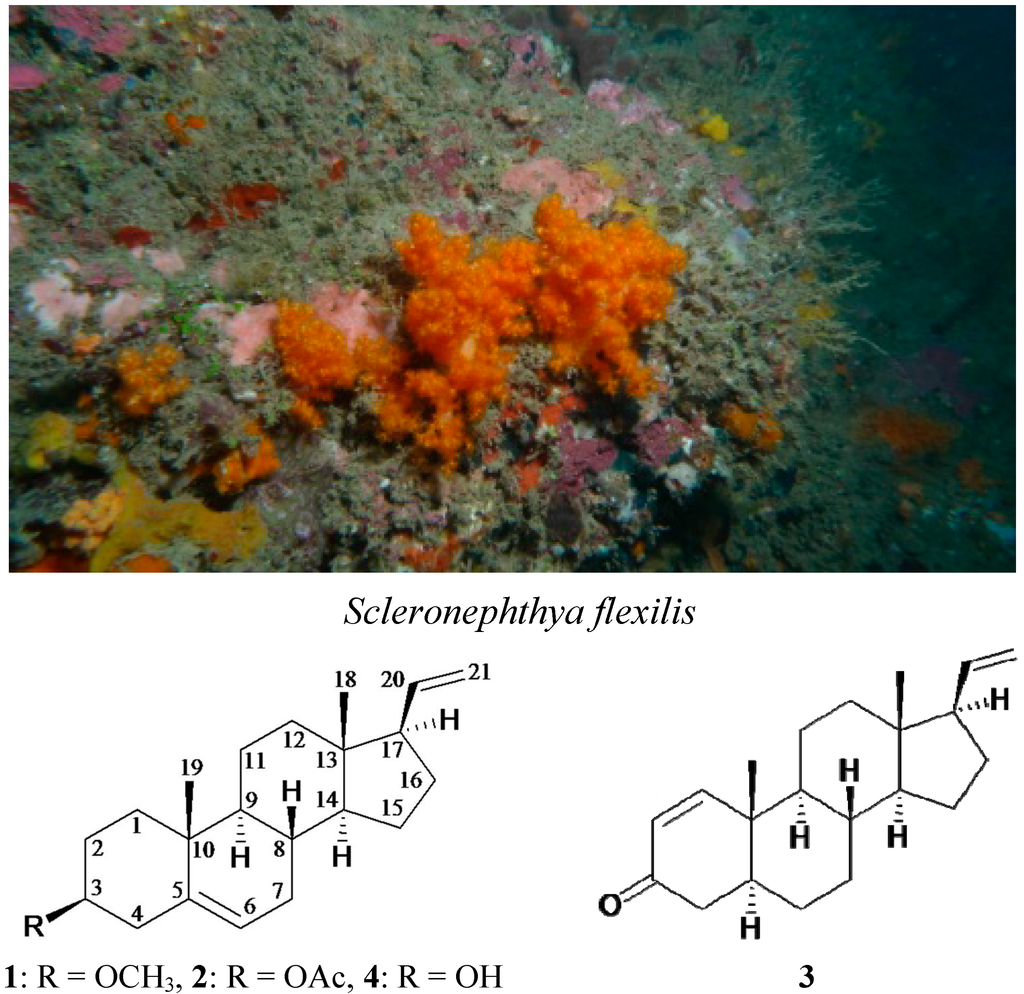

Scheme 1. The soft coral Scleronephthya flexilis and the structures of 3β-methoxy-5,20-pregnadiene (1), 3β-acetoxy-5,20-pregnadiene (2), 5α-pregna-1,20-dien-3-one (3) and 3β-hydroxy-5,20-pregnadiene (4).

Click here to enlarge figure

Scheme 1. The soft coral Scleronephthya flexilis and the structures of 3β-methoxy-5,20-pregnadiene (1), 3β-acetoxy-5,20-pregnadiene (2), 5α-pregna-1,20-dien-3-one (3) and 3β-hydroxy-5,20-pregnadiene (4).
Ijms 15 10136 g005 1024

2. Results and Discussion

3β-Methoxy-5,20-pregnadiene (1) was found to have the molecular formula C22H34O (6° of unsaturation) by the HRESIMS at m/z 337.25027 (calcd for C22H34ONa, 337.25019). The 13C and DEPT spectra of 1 showed 22 carbon signals, including three methyls, eight sp3 methylenes, an sp2 methylene, five sp3 methines (including an oxymethine), two sp2 methines, two sp3 quaternary carbons and an sp2 quaternary carbon (Table 1). The 1H NMR spectra showed the presence of two tertiary methyls (δH 0.61, 1.01, each 3H, s), a methoxy group (δH 3.36, 3H, s), an oxymethine (δH 3.06, 1H, m), a vinyl group (δH 5.77, 1H, ddd, J = 16.8, 10.5, 7.7 Hz; 4.98, 1H, dd, J = 16.8, 1.4 Hz; 4.97, 1H, dd, J = 10.5, 1.4 Hz) and a trisubstituted olefin group (δH 5.36, 1H, br s) (Table 1). These spectroscopic data showed that 1 might have a pregnane skeleton.

Table Table 1. 1H (700 MHz, CDCl3) and 13C (175 MHz, CDCl3) NMR data for steroid 1.

Click here to display table

Table 1. 1H (700 MHz, CDCl3) and 13C (175 MHz, CDCl3) NMR data for steroid 1.
PositionδH (J in Hz)δC, Multiple
11.88 ddd (12.6, 4.2, 3.5), 1.05 m37.3, CH2
21.92 ddd (12.6, 3.5, 2.8), 1.43 m28.0, CH2
33.06 m80.4, CH
42.39 (12.6, 4.2, 2.1), 2.16 m38.7, CH2
5 141.0, C
65.36 br s121.5, CH
72.01 m, 1.57 m32.0, CH2
81.51 m32.0, CH
90.96 m50.5, CH
10 37.0, C
111.57 m, 1.48 dd (10.5, 5.6)20.7, CH2
121.72 ddd (12.6, 4.2, 2.8), 1.05 m37.4, CH2
13 43.4, C
141.04 m56.0, CH
151.69 m, 1.21 dd (11.9, 5.6)24.9, CH2
161.79 m, 1.57 m27.2, CH2
171.96 m55.4, CH
180.61 s12.8, CH3
191.01 s19.4, CH3
205.77 ddd (16.8, 10.5, 7.7)139.8, CH
214.98 dd (16.8, 1.4), 4.97 dd (10.5, 1.4)114.5, CH2
3-OCH33.36 s55.6, CH3

The molecular skeleton of 1 was established by 1H−1H correlation spectroscopy (COSY) and heteronuclear multiple-bond coherence (HMBC) correlations as shown in Figure 1, in which C-3 (δC 80.4) was correlated with protons of a methoxy group (δH 3.36). Thus, similar to the structure of a known compound, 3β-hydroxy-5,20-pregnadiene (4) [8,9] (Scheme 1), 1 has a methoxy substituent at C-3. The relative stereochemistry of 1 was elucidated by correlations in a nuclear Overhauser effect spectroscopy (NOESY) experiment (Figure 1). The NOESY correlations between H3-18/H-20, H3-18/H-8, and H-8/H3-19 revealed the β-orientations of H-8, H3-18, H3-19, and the vinyl group at C-17, and α-orientations of H-9, H-14 and H-17. It was found that one of the methylene protons at C-4 (δH 2.39) exhibited a correlation with H3-19, and therefore it was assigned as H-4β, and the other C-4 proton (δH 2.16) as H-4α. There was a correlation between H-4α and H-3 (δH 3.06), indicating that the methoxy group at C-3 was β-oriented. Based on above spectral evidence, the structure of 1 was established as 3β-methoxy-5,20-pregnadiene.

Ijms 15 10136 g001 200
Figure 1. Selective key 1H–1H correlation spectroscopy (COSY), heteronuclear multiple-bond coherence (HMBC) and nuclear overhauser effect spectroscopy (NOESY) correlations for 1.

Click here to enlarge figure

Figure 1. Selective key 1H–1H correlation spectroscopy (COSY), heteronuclear multiple-bond coherence (HMBC) and nuclear overhauser effect spectroscopy (NOESY) correlations for 1.
Ijms 15 10136 g001 1024

Steroid 2 (3β-acetoxy-5,20-pregnadiene) was first obtained by chemical conversion from pregna-5,20-dien-3β-ol (4) in 1948 by Julian’s group [8] and the natural steroid 2 was isolated from the octocorals Scleronephthya sp. [2] and Scleronephthya gracillimum [6]. Its structure, including the absolute configuration, was determined by X-ray diffraction analysis for the first time in this study (Figure 2).

Ijms 15 10136 g002 200

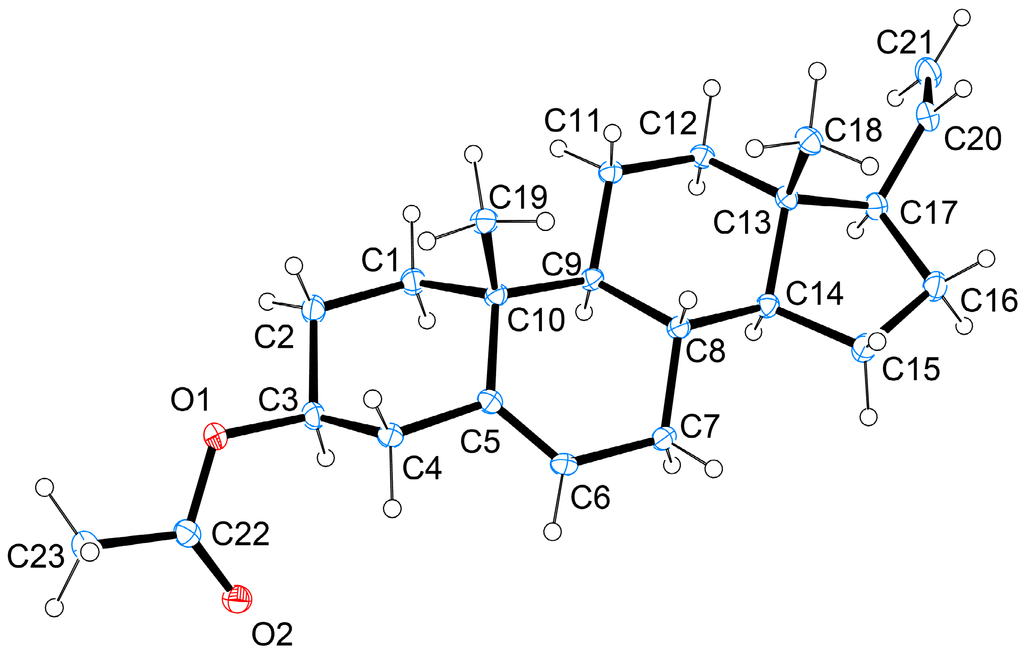

Figure 2. Molecular plot of 2 with confirmed absolute configuration.

Click here to enlarge figure

Figure 2. Molecular plot of 2 with confirmed absolute configuration.
Ijms 15 10136 g002 1024

A well-known marine origin steroid, 5α-pregna-1,20-dien-3-one (3), was obtained in this study. Steroid 3 was first isolated from an unidentified soft coral from Canton Island, Pacific Ocean [10], and this compound has been obtained from various octocorals such as Alcyonium gracillimum [11], Capnella erecta [12], Capnella thyrsoidea [13], Scleronephthya pallida [1], Scleronephthya gracillimum [4,6], Scleronephthya sp. [2], Sinularia papillosa [14], Sinularia sp. [15] and Spongodes sp. [16]. The 1H and 13C data of 3 were identical to those of known pregnanes described previously [2,10,11,12,13,14,17] confirming that 3 was 5α-pregna-1,20-dien-3-one.

The cytotoxicities of steroids 2 and 3 towards human leukemia cells, including MOLT-4 (acute lymphoblastic leukemia), HL-60 (acute promyelocytic leukemia) and K-562 (chronic myelogenous leukemia) cells, were studied, and the results are shown in Table 2. MOLT-4 was the cell line most sensitive to the cytotoxic effects of 5α-pregna-1,20-dien-3-one (3). This encouraged us to expand our cytotoxicity study with the aim of revealing the mechanism of action of 3 against leukemia cancer cell lines, which we pursued in the current study.

Table Table 2. Cytotoxic data of steroids 2 and 3.

Click here to display table

Table 2. Cytotoxic data of steroids 2 and 3.
CompoundsCell Lines IC50 (g/mL)
MOLT-4HL-60K-562
2NANANA
32.153.148.32
Doxorubicin a0.0040.0010.15

a Doxorubicin was used as a positive control and NA = not active at 20 μg/mL for 72 h.

We determined the effects of 3 treatment on the cell growth of different leukemia cell lines. Initially, we determined the IC50 values of 3 against MOLT-4, HL-60 and K-562 cells after 72 h and found that the cell growth of MOLT-4, HL-60 and K-562 cells were inhibited in dose-dependent manner with the IC50 values of 2.15, 3.14 and 8.32 μg/mL, respectively (Figure 3A and Table 2). HL-60 and K-562 cell lines are p53-negative cell lines [18]. MOLT-4 cells, originally derived from the same patient as MOLT-3 cells, are lymphoblastoid T cells and express normal p53 [19]. In addition, the cell growth of different leukemia cells was significantly suppressed by 3 treatment in a dose-dependent manner, regardless of p53 status (Figure 3A). We then evaluated whether the cytotoxicity of 3 is associated with apoptosis by examining the effect of 3 on cells stained with annexin V-FITC and propidium iodide (PI). As shown in Figure 3B, treatment with 3 at concentrations of 0, 1.25, 2.5 and 5 μg/mL for 24 h increased the percentages of annexin-positive cells from 4.1% to 23.3%, 61.1% and 98.2% as compared with the control group in MOLT-4 cells, respectively. To determine whether the cytotoxic effect of 3 is specific for cancer cells, we examined the effect of 3 on the viability of normal rat peripheral blood mononuclear cells (PBMC). At the highest dose (10 μg/mL), 3 treatment caused 71.6% suppression in the viability of PBMCs, nevertheless, doxorubicin treatment induced 99.9% suppression for 24 h (Figure 3C). Compared with PBMCs, 3 suppressed 99.9% of cell growth in MOLT-4 cells for 24 h. Thus, it is concluded that cytotoxic effect of 3 is more sensitive towards MOLT-4 cells compared to the normal rat PBMCs. In addition, our result suggested that growth inhibition of 3 is mediated with induction of apoptosis and operated independently in P53 pathway.

This encouraged us to expand our cytotoxicity study with the aim of revealing the mechanism of action of 3-induced leukemia MOLT-4 cells apoptosis. Mitochondria are organelles which play an important role in the life and death of the cells. Their importance is mainly attributed to energy production in the form of ATP. Additionally, mitochondrial dysfunction participates in the induction of apoptosis [20]. To examine whether the antiproliferative and apoptotic effects of 3 are involved mitochondrial dysfunction in MOLT-4 cells, flow cytometric assays with various fluorescent dyes were utilized. Different concentrations of 3 (0, 1.25, 2.5 and 5 μg/mL) were used for 24 h, and the change in the mitochondrial membrane potential (MMP) was analyzed. Treatment with 3 (1.25, 2.5 or 5 μg/mL) led to 23.8%, 49.2% and 93.8% disruption of the MMP, respectively, as detected using JC-1 cation dye in MOLT-4 cells (Figure 4). The recent result evidenced that one of 3 targets as an apoptosis inducer is to disrupt the bioenergetic steps of the mitochondria-medicated pathway.

Ijms 15 10136 g003 200
Figure 3. Cytotoxic and apoptotic effects of 5α-pregna-1,20-dien-3-one (3) on leukemia cells. (A) Leukemia cells were treated with varying concentrations of 3 for 72 h. Cell growth was assayed by MTT methods; (B) MOLT-4 cells were treated with varying concentrations of 3 for 24 h, then labeled with annexin V-FITC and PI (propidium iodide) and analyzed using flow cytometry; and (C) The viability of normal rat PBMCs were determined with different doses of 3 and doxorubicin. Results are presented as mean ± SD of three independent experiments.

Click here to enlarge figure

Figure 3. Cytotoxic and apoptotic effects of 5α-pregna-1,20-dien-3-one (3) on leukemia cells. (A) Leukemia cells were treated with varying concentrations of 3 for 72 h. Cell growth was assayed by MTT methods; (B) MOLT-4 cells were treated with varying concentrations of 3 for 24 h, then labeled with annexin V-FITC and PI (propidium iodide) and analyzed using flow cytometry; and (C) The viability of normal rat PBMCs were determined with different doses of 3 and doxorubicin. Results are presented as mean ± SD of three independent experiments.
Ijms 15 10136 g003 1024
Ijms 15 10136 g004 200

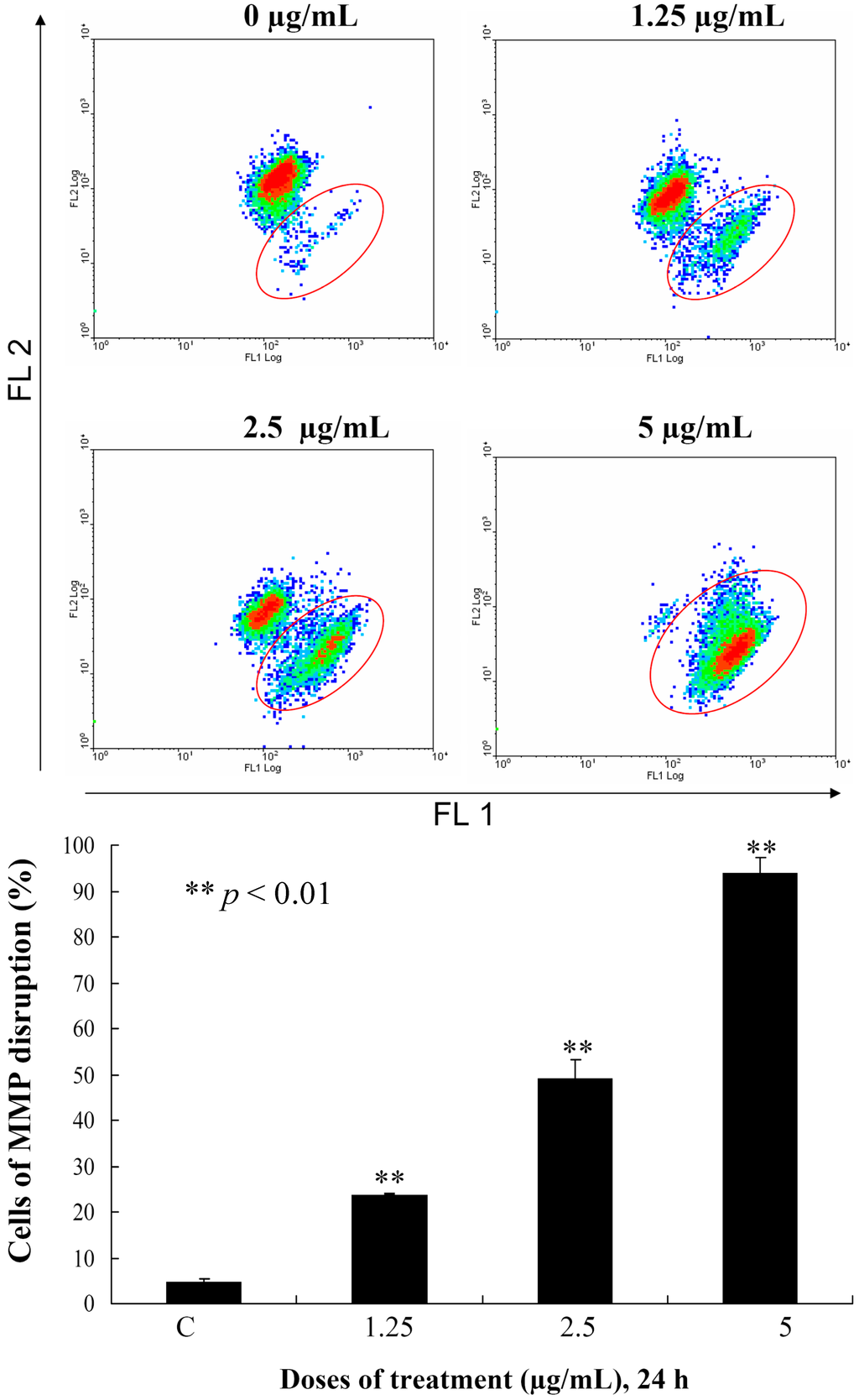

Figure 4. Flow cytometric results showing the effects of different concentrations of 3 (1.25, 2.5 and 5 μg/mL) on the disruption of the mitochondrial membrane potential (MMP).

Click here to enlarge figure

Figure 4. Flow cytometric results showing the effects of different concentrations of 3 (1.25, 2.5 and 5 μg/mL) on the disruption of the mitochondrial membrane potential (MMP).
Ijms 15 10136 g004 1024

3. Experimental Section

3.1. General Experimental Procedures

Optical rotations were measured using a Jasco P-1010 digital polarimeter (Japan Spectroscopic Corporation, Tokyo, Japan). Infrared spectra were recorded on a Varian Diglab FTS 1000 FT-IR spectrometer (Varian Inc., Palo Alto, CA, USA); peaks are reported in cm−1. NMR spectra were recorded on a Bruker AVIII HD 700X NMR spectrometer (Bruker, Bremen, Germany) or on a Varian Mercury Plus 400 NMR spectrometer (Varian Inc., Palo Alto, CA, USA) using the residual CHCl3 signal (δH 7.26 ppm) as the internal standard for 1H NMR and CDCl3C 77.1 ppm) for 13C NMR. Coupling constants (J) are given in Hz. ESIMS and HRESIMS were recorded using a Bruker 7 Tesla solariX FTMS system (Bruker, Bremen, Germany). Column chromatography was performed on silica gel (230–400 mesh, Merck, Darmstadt, Germany). TLC was carried out on precoated Kieselgel 60 F254 (0.25 mm, Merck, Darmstadt, Germany); spots were visualized by spraying with 10% H2SO4 solution followed by heating. Normal-phase HPLC (NP-HPLC) was performed using a system comprised of a Hitachi L-7110 pump (Hitachi Ltd., Tokyo, Japan) and a Rheodyne 7725 injection port (Rheodyne LLC, Rohnert Park, CA, USA). Two normal-phase columns (Supelco Ascentis® Si Cat #:581515-U, 250 mm × 21.2 mm, 5 µm; 581514-U, 250 mm × 10 mm, 5 µm, Sigma-Aldrich. Com., St. Louis, MO, USA) were used for NP-HPLC. Reverse-phase HPLC (RP-HPLC) was performed using a system comprised of a Hitachi L-7100 pump (Hitachi Ltd., Tokyo, Japan), a Hitachi L-2455 photodiode array detector (Hitachi Ltd., Tokyo, Japan), a Rheodyne 7725 injection port (Rheodyne LLC, Rohnert Park, CA, USA) and a reverse column (Varian Polaris C18-A, 250 mm × 10 mm, 5 µm; Varian Inc., Palo Alto, CA, USA).

3.2. Animal Material

Specimens of the octocoral Scleronephthya flexilis were collected by hand using scuba equipment off the coast of Southern Taiwan in September 2012, and stored in a freezer (−20 °C) until extraction. A voucher specimen (NMMBA-TWSC-12009) was deposited in the National Museum of Marine Biology and Aquarium, Pingtung, Taiwan.

3.3. Extraction and Isolation

Specimens of the soft coral Scleronephthya flexilis (wet weight 1.5 kg, dry weight 562 g) were minced and extracted with ethyl acetate (EtOAc). The EtOAc extract remaining after removal of the solvent (6.7 g) was separated by silica gel and eluted using n-hexane/EtOAc in a stepwise fashion from 100:1–pure EtOAc to yield 10 fractions A–J. Fraction C (514 mg) was chromatographed on silica gel using a mixture of n-hexane and EtOAc in a stepwise fashion from 45:1 to 10:1 to obtain 10 subfractions C1–C10. Fraction C3 (100 mg) was purified by NP-HPLC using a mixture of n-hexane and acetone (100:1) to obtain 8 subfractions C3A–C3H. Fraction C3F (3.1 mg) was repurified by NP-HPLC using a mixture of n-hexane and dichloromethane (5:2, flow rate: 1.0 mL/min) to yield 3β-methoxy-5,20-pregnadiene (1) (0.6 mg, tR = 45 min). Fraction C4 (48 mg) was purified by NP-HPLC using a mixture of n-hexane and EtOAc (18:1) to obtain 10 subfractions C4A–C4J. Fraction C4F (38 mg) was repurified by RP-HPLC using a mixture of methanol and H2O (98:2, flow rate: 2.0 mL/min) to yield 3β-acetoxy-5,20-pregnadiene (2) (17.1 mg, tR = 40 min). Fractions D and E were combined (2.76 g) and separated by Sephadex LH-20 using a mixture of dichloromethane and methanol (1:1) to obtain 13 subfractions D1–D13. Fractions D10 and D11 were combined and separated by NP-HPLC using a mixture of n-hexane and acetone (10:1) to obtain 8 subfractions D10A–D10H. Fraction D10B was further separated by NP-HPLC, using a mixture of n-hexane and dichloromethane (1:1, flow rate: 1.0 mL/min) to yield 5α-pregna-1,20-dien-3-one (3) (92.7 mg, tR = 26 min).

3β-Methoxy-5,20-pregnadiene (1): Ijms 15 10136 i001 −6 (c 0.2, CHCl3); IR (neat) νmax 1638 cm−1; 1H (700 MHz, CDCl3) and 13C (175 MHz, CDCl3) NMR data, see Table 1; ESIMS: m/z 337 [M + Na]+; HRESIMS: m/z 337.25027 (calcd for C22H34ONa, 337.25019).

3β-Acetoxy-5,20-pregnadiene (2): colorless prisms; mp 143−145 °C; Ijms 15 10136 i002 −60 (c 0.2, CHCl3); IR (neat) νmax 1727 cm−1; 1H NMR (400 MHz, CDCl3) δH 5.76 (1H, ddd, J = 16.4, 11.2, 7.6 Hz, H-20), 5.38 (1H, br d, J = 5.6 Hz, H-6), 4.98 (1H, dd, J = 11.2, 0.8 Hz, H-21), 4.97 (1H, dd, J = 16.4, 0.8 Hz, H-21'), 4.60 (1H, m, H-3), 2.32 (2H, m, H2-4), 2.03 (3H, s, acetate methyl), 2.01 (1H, m , H-7), 1.98 (1H, m, H-17), 1.88 (1H, m, H-1), 1.86 (1H, m, H-2), 1.79 (1H, m, H-16), 1.73 (1H, m, H-12), 1.70 (1H, m, H-15), 1.60 (1H, m, H-2'), 1.58 (1H, m, H-7'), 1.57 (1H, m, H-16'), 1.54 (1H, m, H-11), 1.46 (1H, m, H-8), 1.42 (1H, m, H-11'), 1.19 (1H, m, H-15'), 1.16 (1H, m, H-1), 1.09 (1H, dd, J = 13.2, 4.0 Hz, H-12'), 1.03 (3H, s, H3-19), 1.01 (1H, m, H-14), 0.98 (1H, m, H-9), 0.61 (3H, s, H3-18); 13C NMR (100 MHz, CDCl3) δC 170.5 (C, acetate carbonyl), 139.8 (CH-20), 139.7 (C-5), 122.5 (CH-6), 114.5 (CH2-21), 73.9 (CH-3), 55.8 (CH-14), 55.3 (CH-17), 50.3 (CH-9), 43.4 (C-13), 38.1 (CH2-4), 37.3 (CH2-12), 37.0 (CH2-1), 36.7 (C-10), 32.0 (CH-8), 32.0 (CH2-7), 27.8 (CH2-2), 27.2 (CH2-16), 24.9 (CH2-15), 21.4 (CH3, acetate methyl), 20.6 (CH2-11), 19.3 (CH3-19), 12.7 (CH3-18); ESIMS: m/z 365 [M + Na]+; HRESIMS: m/z 365.2452 (calcd for C23H34O2Na, 365.2451).

5α-Pregna-1,20-dien-3-one (3): white powder; mp 116−118 °C; Ijms 15 10136 i003 +45 (c 2.3, CHCl3); IR (neat) νmax 1682 cm−1; ESIMS: m/z 321 [M + Na]+. The 1H and 13C NMR data of 3 were in full agreement with those of reported previously [2,10,11,12,13,14,17].

3.4. X-ray Crystallographic Analysis of Compound 2

Suitable colorless prisms of 2 were obtained from a solution of acetone. Crystal data and experimental details: C23H34O2, Mr = 342.50, crystal size 0.21 mm × 0.18 mm × 0.17 mm, crystal system orthorhombic, space group P212121 (#19), with a = 7.3639(4) Å, b = 11.5782(6) Å, c = 22.7667(11) Å, V = 1941.10(17) Å3, Z = 4, Dcalcd = 1.172 g/cm3 and λ (Cu, kα) = 1.54178 Å. Intensity data were measured on a Bruker APEX-II CCD diffractometer equipped with a micro-focus Cu radiation source and Montel mirror up to θmax of 66.7° at 100 K. All 12,991 reflections were collected. The structure was resolved by direct methods and refined by a full-matrix least-squares procedure. The refined structure model converged to a final R1 = 0.0279, wR2 = 0.0717 for 3358 observed reflections (I > 2σ(I)) and 229 variable parameters. The absolute configuration was determined by Flack’s method, with Flack’s parameter determined to be 0.09(6) [21,22].

3.5. Bioassay Material

RPMI-1640 medium, fetal calf serum (FCS), tryptan blue, penicillin G and streptomycin were obtained from Gibco BRL (Gaithersburg, MD, USA). 3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT), dimethyl sulfoxide (DMSO) and all other chemicals were purchased from Sigma-Aldrich (St. Louis, MO, USA).

3.6. MTT Antiproliferative Assay

MOLT-4 (human acute lymphoblastic leukemia), HL-60 (human acute promyelocytic leukemia) and K-562 (human chronic myelogenous leukemia) cells were obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA). Rat PBMCs were generated as described previously [23]. Cells were maintained in RPMI-1640 medium supplemented with 10% FCS, 2 mM glutamine, and antibiotics (100 units/mL penicillin and 100 μg/mL streptomycin) at 37 °C in a humidified atmosphere of 5% CO2. Cells were seeded at 4 × 104 per well in 96-well culture plates before treatment with different concentrations of the tested compounds. The compounds were dissolved in DMSO (less than 0.02%) and made immediately to 1.25, 2.5, 5, 10 and 20 μg/μL prior to the experiments. After treatment for 72 h, the cytotoxicities of the tested compounds were determined using a MTT cell proliferation assay (thiazolyl blue tetrazolium bromide, Sigma-M2128). The MTT is reduced by the mitochondrial dehydrogenases of viable cells to a purple formazan product. The MTT-formazan product was dissolved in DMSO. Light absorbance values (OD = OD570 − OD620) were recorded at wavelengths of 570 and 620 nm using an ELISA reader (Anthos labtec Instrument, Salzburg, Austria) to calculate the concentration that caused 50% inhibition (IC50), i.e., the cell concentration at which the light absorbance value of the experimental group was half that of the control group. These results were expressed as a percentage of the control ± SD established from n = 4 wells per one experiment from three separate experiments.

3.7. Annexin V/PI Apoptosis Assay

The externalization of phosphatidylserine (PS) and the membrane integrity were quantified using an annexin V-FITC staining kit (Strong Biotech Corporation, Taipei, Taiwan). In brief, 106 cells were grown in 35-mm-diameter plates and were labeled with annexin V-FITC (10 μg/mL) and PI (20 μg/mL) prior to harvesting. After labeling, all plates were washed with a binding buffer and harvested. Cells were resuspended in the binding buffer at a concentration of 2 × 105 cells/mL before analysis by a flow cytometer FACS-Calibur (Becton-Dickinson, San Jose, CA, USA) and CellQuest software. Approximately 10,000 cells were counted for each determination.

3.8. Determination of Mitochondrial Membrane Potential Disruption

These assays were performed as described previously. MMP disruption was detected with JC-1 cationic dye (5 μg/mL) [24]. In brief, the treated cells were labeled with a specific fluorescent dye for 30 min. After labeling, cells were washed with PBS and resuspended in PBS at a concentration of 1 × 106 cells/mL before analysis by flow cytometry.

3.9. Statistics

The results were expressed as mean ± standard deviation (SD). Comparison in each experiment was performed using an unpaired Student’s t-test, and p values lower than 0.05 were considered to be statistically significant. (* p < 0.05; ** p < 0.01).

4. Conclusions

In the first study on the chemical constituents of soft coral Scleronephthya flexilis, three pregnane-type steroids, including a new metabolite, 3β-methoxy-5,20-pregnadiene (1), along with two known compounds, 3β-acetoxy-5,20-pregnadiene (2) and 5α-pregna-1,20-dien-3-one (3), were isolated. The structure of new steroid 1 was elucidated on the basis of spectroscopic methods. The absolute configuration of steroid 2 was further confirmed by X-ray diffraction analysis for the first time. Our results also suggest that the use of steroid 3 induced MMP disruption, as well as apoptosis in Molt-4 cells. The current work clearly supports the potential application of 3 for leukemia therapy. The soft coral Scleronephthya flexilis has been transplanted to culturing tanks located in the National Museum of Marine Biology and Aquarium, Taiwan, for extraction of additional natural products to establish a stable supply of bioactive material.

Supplementary Files

  • Supplementary File 1:

    Supplementary Information (PDF, 1706 KB)

  • Acknowledgments

    This research was supported by grants from the National Dong Hwa University; the National Museum of Marine Biology and Aquarium; the Asia-Pacific Ocean Research Center, National Sun Yat-sen University; the Ministry of Science and Technology (Grant No. NSC 102-2325-B-291-001 and 101-2320-B-291-001-MY3); and CMU under the Aim for Top University Plan of the Ministry of Education, Taiwan, awarded to Y.-C.W. and P.-J.S.

    Author Contributions

    Yang-Chang Wu and Ping-Jyun Sung designed the whole experiment and contributed to manuscript preparation; Chao-Ying Kuo and Yung-Shun Juan researched data and wrote the manuscript; Mei-Chin Lu, Michael Yen-Nan Chiang and Chang-Feng Dai analyzed the data and performed data acquisition.

    Conflicts of Interest

    The authors declare no conflict of interest.

    References and Notes

    1. Kittakoop, P.; Suttisri, R.; Chaichantipyuth, C.; Vethchagarun, S.; Suwanborirux, K. Norpregnane glycosides from a Thai soft coral, Scleronephthya pallida. J. Nat. Prod. 1999, 62, 318–320, doi:10.1021/np980273w.
    2. Yan, X.-H.; Guo, Y.-W.; Zhu, X.-Z.; Mollo, E.; Cimino, G. Studies on chemical constituents of the soft coral Scleronephthya sp. from the South China Sea. Chin. J. Org. Chem. 2004, 24, 1233–1238.
    3. Yan, X.-H.; Liu, H.-L.; Guo, Y.-W. Ximaosteroids A–D, new steroids from the Hainan soft coral Scleronephthya sp. Steroids 2009, 74, 1061–1065, doi:10.1016/j.steroids.2009.08.007.
    4. Han, L.; Wang, C.-Y.; Huang, H.; Shao, C.-L.; Liu, Q.-A.; Qi, J.; Sun, X.-P.; Zhai, P.; Gu, Y.-C. A new pregnane analogue from Hainan soft coral Scleronephthya gracillimum (Kükenthal). Biochem. Syst. Ecol. 2010, 38, 243–246, doi:10.1016/j.bse.2009.12.030.
    5. Sun, X.-P.; Shao, C.-L.; Wang, C.-Y.; Li, X.-B.; Xu, Y.; Qian, P.-Y.; Zhao, K.; Zheng, C.-J. Steroids of soft coral Scleronephthya sp. from the South China Sea. Chem. Nat. Comp. 2012, 48, 341–343, doi:10.1007/s10600-012-0245-x.
    6. Fang, H.-Y.; Liaw, C.-C.; Chao, C.-H.; Wen, Z.-H.; Wu, Y.-C.; Hsu, C.-H.; Dai, C.-F.; Sheu, J.-H. Bioactive pregnane-type steroids from the soft coral Scleronephthya gracillimum. Tetrahedron 2012, 68, 9694–9700, doi:10.1016/j.tet.2012.09.060.
    7. Fang, H.-Y.; Hsu, C.-H.; Chao, C.-H.; Wen, Z.-H.; Wu, Y.-C.; Dai, C.-F.; Sheu, J.-H. Cytotoxic and anti-inflammatory metabolites from the soft coral Scleronephthya gracillimum. Mar. Drugs 2013, 11, 1853–1865, doi:10.3390/md11061853.
    8. Julian, P.L.; Meyer, E.W.; Printy, H.C. Sterols. IV. Δ20-Pregnenes from bisnor-steroid acids. J. Am. Chem. Soc. 1948, 70, 887–892, doi:10.1021/ja01183a001.
    9. Kingston, J.F.; Gregory, B.; Fallis, A.G. Marine natural products. Novel C21 Δ20 pregnanes from the sea raspberry (Gersemia rubiformis). J. Chem. Soc. Perkin Trans. 1 1979, 1, 2064–2068, doi:10.1039/p19790002064.
    10. Higgs, M.D.; Faulkner, D.J. 5α-Pregna-1,20-dien-3-one and related compounds from a soft coral. Steroids 1977, 30, 379–388, doi:10.1016/0039-128X(77)90028-9.
    11. Seo, Y.; Jung, J.H.; Rho, J.-R.; Shin, J.; Song, J.-I. Isolation of novel bioactive steroids from the soft coral Alcyonium gracillimum. Tetrahedron 1995, 51, 2497–2506, doi:10.1016/0040-4020(95)00014-Y.
    12. Blackman, A.J.; Heaton, A.; Skelton, B.W.; White, A.H. Pregnane derivatives from two soft corals of the genus Capnella. Aust. J. Chem. 1985, 38, 565–573, doi:10.1071/CH9850565.
    13. Hooper, G.J.; Davies-Coleman, M.T. New metabolites from the South African soft coral Capnella thyrsoidea. Tetrahedron 1995, 51, 9973–9984, doi:10.1016/0040-4020(95)00570-X.
    14. Zhang, C.-X.; Lu, W.-G.; Yan, S.-J.; Su, J.-Y.; Zeng, L.-M. Studies on the secondary metabolites of the soft coral Sinularia papillosa. Tradit. Chin. Drug Res. Clin. Pharmacol. 2005, 44, 134–136.
    15. Chen, G.-Y.; Wei, M.-Y.; Tan, N.; Liu, Z.; Yang, R.-Y. 5α-Pregna-1,20-dien-3-one. Acta Cryst. 2010, E66, o351.
    16. Yan, X.-H.; Jia, R.; Shen, X.; Guo, Y.-W. A new dolabellane diterpenoid from the Hainan soft coral Spongodes sp. Nat. Prod. Res. 2007, 21, 897–902, doi:10.1080/14786410601130034.
    17. Schow, S.R.; McMorris, T.C. Synthesis of 5α-pregna-1,20-dien-3-one. Steroids 1977, 30, 389–392, doi:10.1016/0039-128X(77)90029-0.
    18. Samali, A.; Gilje, B.; Døskeland, S.O.; Cotter, T.G.; Houge, G. The ability to cleave 28S ribosomal RNA during apoptosis is a cell-type dependent trait unrelated to DNA fragmentation. Cell Death Differ. 1997, 4, 289–293, doi:10.1038/sj.cdd.4400246.
    19. Jiang, F.; Yang, B.; Fan, L.; He, Q.; Hu, Y. Synthesis and hypoxic–cytotoxic activity of some 3-amino-1,2,4-benzotriazine-1,4-dioxide derivatives. Bioorg. Med. Chem. Lett. 2006, 16, 4209–4213, doi:10.1016/j.bmcl.2006.05.095.
    20. Ly, J.D.; Grubb, D.R.; Lawen, A. The mitochondrial membrane potential (Δψm) in apoptosis: An update. 2003.
    21. Crystallographic data for the structure of 3β-acetoxy-5,20-pregnadiene (2) have been deposited with the Cambridge Crystallographic Data Center as supplementary publication number CCDC 991705. Copies of the data can be obtained, free of charge, on application to CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; E-Mail: deposit@ccdc.cam. ac.uk; Fax: +44-(0)-1223-336033.
    22. Flack, H.D. On enantiomorph-polarity estimation. Acta Crystallogr. 1983, A39, 876–881.
    23. Lu, M.-C.; Hwang, S.-L.; Chang, F.-R.; Chen, Y.-H.; Chang, T.-T.; Hung, C.-S.; Wang, C.-L.; Chu, Y.-H.; Pan, S.-H.; Wu, Y.-C. Immunostimulatory effect of Antrodia camphorata extract on functional maturation of dendritic cells. Food Chem. 2009, 113, 1049–1057, doi:10.1016/j.foodchem.2008.08.089.
    24. Su, J.-H.; Chen, Y.-C.; El-Shazly, M.; Du, Y.-C.; Su, C.-W.; Tsao, C.-W.; Liu, L.-L.; Chou, Y.; Chang, W.-B.; Su, Y.-D. Towards the small and the beautiful: A small dibromotyrosine derivative from Pseudoceratina sp. sponge exhibits potent apoptotic effect through targeting IKK/NF-κB signaling pathway. Mar. Drugs 2013, 11, 3168–3185, doi:10.3390/md11093168.
