Int. J. Mol. Sci. 2014, 15(5), 8443-8457; doi:10.3390/ijms15058443

Article
Inhibitory Effects of Palmultang on Inflammatory Mediator Production Related to Suppression of NF-κB and MAPK Pathways and Induction of HO-1 Expression in Macrophages
You-Chang Oh , Yun Hee Jeong , Won-Kyung Cho , Min-Jung Gu and Jin Yeul Ma *
Korean Medicine (KM)-Based Herbal Drug Development Group, Korea Institute of Oriental Medicine, 461-24, Jeonmin-dong, Yuseong, Daejeon 305-811, Korea; E-Mails: ulivuli@kiom.re.kr (Y.-C.O.); runxi0333@kiom.re.kr (Y.H.J.); wkcho@kiom.re.kr (W.-K.C.); guminjung@kiom.re.kr (M.-J.G.)
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed; E-Mail: jyma@kiom.re.kr; Tel.: +82-42-868-9466; Fax: +82-42-868-9573.
Received: 21 February 2014; in revised form: 11 April 2014 / Accepted: 17 April 2014 /
Published: 13 May 2014

Abstract

: Palmultang (PM) is an herbal decoction that has been used to treat anorexia, anemia, general prostration, and weakness due to chronic illness since medieval times in Korea, China, and Japan. The present study focused on the inhibitory effects of PM on the production of inflammatory factors and on the activation of mechanisms in murine macrophages. PM suppressed the expression of nitric oxide (NO), inflammatory cytokines and inflammatory proteins by inhibiting nuclear factor (NF)-κB and mitogen-activated protein kinase (MAPK) signaling pathways and by inducing heme oxygenase (HO)-1 expression. Collectively, our results explain the anti-inflammatory effect and inhibitory mechanism of PM in macrophages stimulated with lipopolysaccharide (LPS).
Keywords:
palmultang; inducible nitric oxide synthase; heme oxygenase-1; nuclear factor-kappaB; mitogen-activated protein kinase

1. Introduction

Palmultang (PM) is a traditional herbal medication that has been used since medieval times in East Asia. Currently, PM is usually prescribed as an herbal medicine for the treatment of various symptoms associated with body weakness. Previous studies demonstrated that PM was an effective treatment for endometriosis [1]. In addition, a recent study revealed that PM has a beneficial effect on reproductive function in female mice [2]. However, the effects of PM on inflammation and inflammatory mechanisms still remain unknown.

Macrophages play a key role in the regulation of inflammatory and immune responses [3,4]. Activation of macrophages is induced by LPS stimulation, and activated macrophages secrete inflammatory factors, such as NO, prostaglandin (PG)E2 and inflammatory cytokines [5,6]. NO and PGE2 are synthesized by inducible nitric oxide synthase (iNOS) and cyclooxygenase (COX)-2, respectively, and the expression of iNOS is closely related to the induction of HO-1. HO-1 is a stress-inducible protein that catalyzes the oxidative degradation of heme; two other heme oxygenase isoforms, HO-2 and HO-3, have also been identified [7]. Enhancing the production of HO-1 reduces the expression of iNOS and the level of free radicals [8].

NF-κB plays an important role in the expression of inflammatory genes. When unstimulated, NF-κB is present in the cytoplasm attached to IκBα; NF-κB is released through degradation of IκBα when induced by LPS [9]. Activated NF-κB can be transferred from the cytoplasm to the nucleus, where it binds to promoters and induces the expression of various inflammatory genes [10,11]. MAPK signaling pathways play an important role in transmitting inflammatory signals [12] and comprise extracellular signal-regulated kinase (ERK), p38, and c-Jun NH2-terminal kinase (JNK) pathways. MAPKs are activated by phosphorylation and induce activation of the NF-κB pathway and expression of the iNOS gene.

In the present study, we evaluated the suppressive effect of PM on inflammation induced by LPS in RAW 264.7 macrophages. Further, we researched whether the effects of PM on NF-κB and MAPK signaling pathways and on induction of HO-1 explain the anti-inflammatory mechanism of PM.

2. Results and Discussion

2.1. PM Did not Show Cytotoxicity and Had Inhibitory Activity against NO and Inflammatory Cytokine Production in Macrophages

In the present study, we demonstrated anti-inflammatory activity of PM in murine macrophages stimulated with LPS. First, we investigated the cytotoxicity of PM in RAW 264.7 macrophages at concentrations of 10–1000 μg/mL. As shown in Figure 1A, PM did not show cytotoxicity at concentrations up to 1000 μg/mL, indicating that it is not toxic to macrophages. Based on this result, we did experiments using up to 1000 μg/mL concentrations of PM.

The overproduction of NO is associated with various inflammatory diseases [13,14], so we preferentially investigated the inhibitory effect of PM on the production of NO induced by LPS stimulation. As shown in Figure 1B, the positive control, dexamethasone, which is known to be an anti-inflammatory drug, exerted a strong inhibitory effect on NO production. In addition, we discovered that PM dose-dependently repressed NO secretion to a statistically significant degree. Notably, PM inhibited NO production by more than 70% at a concentration of 500 μg/mL.

Further, we examined the inhibitory effect of PM on the production of the pro-inflammatory cytokines tumor necrosis factor (TNF), interleukin (IL)-6 and IL-1β. Cytokine expression was analyzed by ELISA and RT-PCR. PM did not inhibit TNF-α secretion (Figure 1C) and did not suppress the expression of TNF-α mRNA (Figure 1F). By contrast, PM effectively inhibited both IL-6 production and mRNA expression in a dose-dependent fashion (Figure 1D,F). Likewise, PM strongly suppressed IL-1β cytokine and mRNA production at high concentrations (Figure 1E,F).

2.2. PM Strongly Suppresses Expression of iNOS but not COX-2 in LPS-Stimulated Macrophages and Induces HO-1 Induction

Because COX-2 and iNOS are enzymes for PGE2 and NO synthesis, respectively, we further investigated the inhibitory effects of PM on COX-2 and iNOS expression using Western blots and RT-PCR. As shown in Figure 2A, PM did not affect expression of COX-2 at the protein or mRNA level. By contrast, PM showed a strong dose-dependent inhibitory effect on iNOS expression that was statistically significant (Figure 2B). The inhibitory effect of PM on iNOS production was believed to contribute to the suppression of NO secretion. These results indicate that PM has inhibitory activity against the production of pro-inflammatory mediators.

Increased HO-1 induction has a direct effect on iNOS expression [8]. Therefore, we investigated whether the inhibitory effect of PM on iNOS expression was associated with increased HO-1 production. We assessed HO-1 induction in PM-treated macrophages using Western blot and RT-PCR analyses. First, we measured the induction of HO-1 at 3–24 h after treatment with 1000 μg/mL PM. Protein and mRNA levels of HO-1 were highest at 6 and 3 h, respectively (Figure 2C). Based on the results in Figure 2C, we investigated HO-1 protein and mRNA expression at the indicated time points. PM induced HO-1 expression at the protein and mRNA levels at concentrations of 500 and 1000 μg/mL in a dose-dependent manner (Figure 2D). These results suggest that pretreatment with PM inhibits NO and iNOS production by increasing HO-1 induction.

2.3. PM Inhibited NF-κB Pathway Activation via Blockade of IκBα Degradation in Macrophages upon LPS Stimulation

We demonstrated a repressive effect of PM on secretion of the inflammatory cytokine IL-6. NF-κB is a key transcriptional factor associated with the cellular response to stimuli, such as LPS [1517] and with the production of NO, PGE2, inflammatory cytokines, and iNOS [1820]. To investigate whether the inhibitory effect of PM on the expression of inflammatory mediators is associated with activity of the NF-κB pathway, we measured the effect of PM on NF-κB activation by analyzing translocation of p65 to the nucleus and the phosphorylation of IκBα. Western blot analysis showed that PM significantly repressed translocation of p65 to the nucleus at a concentration of 100 μg/mL or greater (Figure 3A). In addition, the phosphorylation level of IκBα was depressed dose-dependently after PM treatment (Figure 3B). Thus, PM inhibited the nuclear transcription of p65 by dose-dependently inhibiting IκBα degradation induced by LPS stimulation. These findings are consistent with previous studies showing that an NF-κB response drives the expression of the iNOS and IL-6 genes [2123].

2.4. PM Suppressed LPS-Induced Phosphorylation of MAPKs in RAW 264.7 Cells

Because MAPKs activated by phosphorylation upon LPS stimulation are related to iNOS expression and NF-κB pathway activation in macrophages [24], we examined the inhibitory effect of PM on the phosphorylation of MAPKs. We assessed the phosphorylation levels of MAPKs, including ERK 1/2, p38 and JNK. When RAW 264.7 cells were stimulated with LPS after pretreatment with PM, the levels of phosphorylated ERK and JNK MAPK were significantly decreased with no change in non-phosphorylated MAPK levels (Figure 4A,C). By contrast, PM showed only a slight inhibitory effect on p38 phosphorylation (Figure 4B). These results indicate that the inhibitory effect of PM on the phosphorylation of MAPKs is directly related to inhibition of NF-κB activation and reduced production of inflammatory factors in RAW 264.7 cells.

2.5. HPLC Analysis and Previous Reports on the Main Constituents of PM

HPLC-diode array detector (DAD) analysis conditions were successfully established for the separation of peaks in PM extracts. The retention times of eight peaks were as follows: 5-hydroxymethylfurfural (5-HMF), 10.30 min; paeoniflorin, 27.22 min; albiflorin, 30.28 min; ferulic acid, 35.20 min; nodakenin, 36.76 min; decursinol, 43.86 min; glycyrrhizin, 48.69 min; and decursin, 60.93 min. Figure 5 shows chromatograms of the reference components and of a 60% methanol extract of PM, with detection of eluents at 205 nm (for decursinol), 250 nm (for 5-HMF, albiflorin, ferulic acid, nodakenin, glycyrrhizin, and decursin), 330 nm (for paeoniflorin), with ultraviolet rays (UV) wavelengths selected according to the results of Figure 6. These compounds were identified by comparing the retention time and DAD spectra with those of authentic standard compounds. Peak purity checking and identification were conducted using a 190–400 nm UV scan with a DAD.

Calibration curves were obtained using standard solutions containing 1.25–10,000 μg/mL for 5-HMF, ferulic acid, nodakenin, decursinol, glycyrrhizin, and decursin, 20–20,000 μg/mL for peaoniflorin and albiflorin as marker components. Calibration curve showed good linearity (r2 > 0.9990). The limits of detection (LOD) and limits of quantification (LOQ) were 0.16–0.50 μg/mL for 5-HMF, 0.22–0.68 μg/mL for ferulic acid, 0.13–0.40 μg/mL for nodakenin, 0.10–0.29 μg/mL for decursinol, 0.63–0.19 μg/mL for glycyrrhizin and 0.45–0.12 μg/mL for decursin, 48.17–16.05 μg/mL for peaoniflorin, 3.30–10.00 μg/mL for albiflorin (Table 1). The amounts of compounds 1–8 (5-HMF, peaoniflorin, albiflorin, ferulic acid, nodakenin, decursinol, glycyrrhizin, and decursin, respectively) were 11.09, 2.59, 2.30, 3.36, 8.23, 5.11, 0.36, and 1.17 mg/g, respectively. The analytical results for each component identified are summarized in Table 2.

A previous study reported that 5-HMF prevents TNF-α-induced monocytic cell adhesion to human umbilical vein endothelial cells (HUVECs) by suppression of vascular cell adhesion molecule-1 expression, reactive oxygen species generation and NF-κB activation [25]. Additionally, it was demonstrated that paeoniflorin suppresses TNF-α-induced chemokine production in human dermal microvascular endothelial cells by blocking NF-κB and ERK pathways [26]. Another recent study demonstrated that nodakenin exerts a suppressive effect on LPS-induced inflammatory responses in macrophages by inhibiting TNF receptor-associated factor 6 and NF-κB pathways, and it protects mice from lethal endotoxin shock [27]. A further recent study showed that glycyrrhizin inhibits NO and PGE2 production in a bimodal fashion [28]. Another study demonstrated that decursin inhibits induction of inflammatory mediators by blocking NF-κB activation in macrophages [29]. These facts suggest that the anti-inflammatory activity of PM might be related to active components of PM, including 5-HMF, paeoniflorin, nodakenin, glycyrrhizin, and decursin.

3. Experimental Section

3.1. Materials and Reagents

Products related to cell culture (RPMI 1640, fetal bovine serum (FBS) and antibiotics) were purchased from Lonza (Basel, Switzerland). LPS and bovine serum albumin (BSA) were obtained from Sigma (St. Louis, MO, USA). The Cell-Counting Kit (CCK) was obtained from Dojindo Molecular Technologies, Inc. (Kumamoto, Japan). Various primary and secondary antibodies for Western blot analysis were purchased from Cell Signaling Technology, Inc. (Boston, MA, USA). Enzyme-linked immunosorbent assay (ELISA) antibody sets for cytokine detection were obtained from eBioscience (San Diego, CA, USA). An RNA extraction kit was purchased from iNtRON (Sungnam, Korea). DNA synthesizing kits and oligonucleotide primers were obtained from Bioneer (Daejeon, Korea). 5-(Hydroxy-methyl)furfural (5-HMF) and ferulic acid were purchased from Sigma (St. Louis, MO, USA). Paeoniflorin and glycyrrhizin were purchased from Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan). Decursinol was purchased from Elcom Science (Seoul, Korea), nodakenin from Chem Faces (Wuhan, China), albiflorin from Wako (Osaka, Japan), and decursin from the Ministry of Food and Drug Safety (Osong, Korea). The purity of all representative standards was confirmed by high-performance liquid chromatography (HPLC) to be higher than 97%. HPLC grade solutions, acetonitrile and trifluoroacetic acid were purchased from J. T. Baker Inc. (Philipsburg, NJ, USA). Distilled water (DW) was filtered through a 0.45 μm membrane filter from ADVANTEC (Tokyo, Japan) before analysis.

3.2. Preparation of PM Extract

PM is composed of eight medicinal herbs listed in Table 3. All herbs were purchased from Yeongcheon Herbal Market (Yeongcheon, Korea). All voucher specimens were deposited in an herbal tank, placed in 19,200 mL of DW and then extracted by heating for 3 h at 115 °C and under high pressure (Gyeongseo Extractor Cosmos-600, Inchon, Korea). After extraction, the solution was filtered using standard testing sieves (150 μm) (Retsch, Haan, Germany), freeze-dried and kept in desiccators at 4 °C before use. The acquisition was 591 g and the yield was 30.8%. The freeze-dried extract powder was then dissolved in DW, centrifuged at 14,000 rpm for 10 min and supernatant was filtered (pore size, 0.2 μm) and kept at 4 °C prior to use.

3.3. Cell Culture and Drug Treatment

RAW 264.7 cells were obtained from the Korea Cell Line Bank (Seoul, Korea) and grown in complete RPMI 1640 medium. The cells were incubated in a humidified 5% CO2 atmosphere at 37 °C. To stimulate the cells, the medium was replaced with fresh RPMI 1640 medium, and LPS (200 ng/mL) was added in the presence or absence of various concentrations of PM (10, 100, 500, and 1000 μg/mL) for the indicated time periods.

3.4. Cell Viability Assay

PM was added to the cells, which were incubated for 24 h at 37 °C in 5% CO2. CCK solutions were added to each well, and the cells were incubated for an additional 1 h. The optical density was then read at 450 nm using an ELISA reader (Infinite M200, Tecan, Männedorf, Switzerland).

3.5. Determination of NO, TNF-α, IL-6 and IL-1β Cytokine Production

The cells were pretreated with PM and stimulated with LPS for 24 h. NO production was analyzed by measuring nitrite using Griess reagent (1% sulfanilamide, 0.1% naphthylethylenediamine dihydrochloride, 2.5% phosphoric acid) according to a previous study [30]. Secretion of the inflammatory cytokines TNF-α, IL-6 and IL-1β was analyzed using a mouse ELISA antibody set (eBioscience, San Diego, CA, USA). The inhibitory effects of PM were determined at 570 and 450 nm for NO and cytokines, respectively, using an ELISA reader.

3.6. Preparation of Whole-Cell, Cytosolic and Nuclear Fractions and Western Blot Analysis

The expression of various proteins was analyzed by Western blot analysis according to standard procedures. Cells were stimulated with LPS with or without PM for the indicated time periods at 37 °C. After incubation, the cells were harvested and resuspended in radio immunoprecipitation assay (RIPA) lysis buffer (Millipore, Bedford, MA, USA) containing protease and phosphatase inhibitor cocktail (Roche, Basel, Switzerland) to obtain whole-cell lysates. Cytosolic and nuclear fractions were isolated using NE-PER Nuclear and Cytoplasmic Extraction Reagents (Thermo Scientific, Rockford, IL, USA) according to the procedure described by the manufacturer. After cell debris was removed by centrifugation, the concentration of protein was determined by Bradford’s method, and equal amounts of protein were separated by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE). The proteins were transferred onto a nitrocellulose membrane (Millipore, Bedford, MA, USA) and blocked with 3% BSA in Tris-buffered saline containing 0.1% Tween 20 (TBS-T). The membrane was then incubated with each primary antibody at 4 °C overnight, followed by incubation with HRP-conjugated secondary antibodies. The specific proteins were detected using SuperSignal West Femto Chemiluminescent Substrate (Thermo Scientific, Rockford, IL, USA).

3.7. RNA Extraction and Reverse Transcription-Polymerase Chain Reaction (RT-PCR)

Total RNA was isolated using an easy-BLUE™ RNA extraction kit (iNtRON, Daejeon, Korea) according to the procedure described by the manufacturer. cDNA was synthesized using AccuPower® CycleScript RT PreMix (Bioneer, Daejeon, Korea). The sequences of specific primers used for amplification by polymerase chain reaction are shown in Table 4. The following PCR conditions were applied for TNF-α, IL-6, IL-1β, COX-2, iNOS, HO-1, and β-actin: 35 cycles of denaturation at 94 °C for 30 s, annealing at the temperature indicated in Table 4 for 30 s, and extension at 72 °C for 30 s [3034].

3.8. Preparation of Standard Solutions and Samples

An aqua 60% methanol standard stock solution containing compounds 5-HMF, ferulic acid, nodakenin, glycyrrhizin, decursinol, peaoniflorin, albiflorin, and decursin (each 1 mg/mL) were prepared and stored below −4 °C. Working standard solutions were prepared by serial dilution of stock solution with aqua 60% methanol. All calibration curves were obtains from assessement of peak areas of standards in the concentration ranges. A sample of 10 mg PM extract was prepared in 1 mL DW, extracted by ultra-sonication, and filtered through a 0.2 μm syringe membrane filter from Whatman Ltd. (Maidstone, UK) before injection into the HPLC system for analysis. Sample solutions were stored at −4 °C in a refrigerator before analysis.

3.9. General Experimental Procedures

Analytical HPLC data were obtained using an L-2130 pump, L-2200 auto-sampler, L-2300 column oven and L-2455 UV/VIS DAD. The output signal of the detector was recorded using EZChrom Elite software for the HPLC system (Hitachi, Tokyo, Japan). The OptimaPak C18 analytical HPLC column (4.6 × 250 mm, 5 μm; RS Tech Co., Daejeon, Korea) was used in this study.

3.10. Analytical Chromatographic Conditions

The mobile phase consisted of water containing (A) 0.1% trifluoroacetic acid and (B) acetonitrile with gradient elution at a flow rate of 1.0 mL/min. The sample injection volume was 20 μL, and the flow rate of the mobile phase was 1.0 mL/min (Table 5). The column temperature was maintained at 40 °C, and the wavelengths of the UV detector were set at 205, 250, and 330 nm.

3.11. Statistical Analysis

The results are expressed as mean ± SE values. Statistical significance for each treated group compared with the negative control was determined using the Student’s t test. Each experiment was repeated at least three times to yield comparable results. p values of <0.01 and <0.001 were considered significant.

4. Conclusions

In conclusion, PM shows significant inhibitory effects on the secretion of NO and expression of IL-6, IL-1β and iNOS in LPS-stimulated RAW 264.7 cells. These effects are due to inhibition of NF-κB activation through suppression of IκBα degradation and blockade of MAPK phosphorylation. Furthermore, the induction of HO-1 by PM inhibits inflammatory factor production. These results show that PM could be developed as a new anti-inflammatory agent derived from natural products.

Acknowledgments

This work was supported by the grant K14050 awarded to Korea Institute of Oriental Medicine (KIOM) from Ministry of Education, Science and Technology (MEST), Korea.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, M.J.; Lim, E.M.; Kwon, K.R. Effect of Paljin-tang on Surgically Induced Endometriosis in Rats. J. Orient. Obstet. Gynecol 2006, 19, 83–94. [Google Scholar]
  2. Joo, J.M.; Kim, D.C.; Back, S.H.; Kim, E.H. The Effect of Palmultang on the Ovarian Functions and Differential Gene Expression of Caspase-3, MAPK and MPG in Female Mice. J. Orient. Obstet. Gynecol 2007, 20, 91–110. [Google Scholar]
  3. Pierce, G.F. Macrophages: Important physiologic and pathologic sources of polypeptide growth factors. Am. J. Respir. Cell Mol. Biol 1990, 2, 233–234. [Google Scholar]
  4. Wadleigh, D.J.; Reddy, S.T.; Kopp, E.; Ghosh, S.; Herschman, H.R. Transcriptional activation of the cyclooxygenase-2 gene in endotoxin-treated RAW 264.7 macrophages. J. Biol. Chem 2000, 275, 6259–6266. [Google Scholar]
  5. Becker, S.; Mundandhara, S.; Devlin, R.B.; Madden, M. Regulation of cytokine production in human alveolar macrophages and airway epithelial cells in response to ambient air pollution particles: Further mechanistic studies. Toxicol. Appl. Pharmacol 2005, 207, 269–275. [Google Scholar]
  6. Kim, J.B.; Han, A.R.; Park, E.Y.; Kim, J.Y.; Cho, W.; Lee, J.; Seo, E.K.; Lee, K.T. Inhibition of LPS-induced iNOS, COX-2 and cytokines expression by poncirin through the NF-kappaB inactivation in RAW 264.7 macrophage cells. Biol. Pharm. Bull 2007, 30, 2345–2351. [Google Scholar]
  7. Pae, H.O.; Chung, H.T. Heme oxygenase-1: Its therapeutic roles in inflammatory diseases. Immune Netw 2009, 9, 12–19. [Google Scholar]
  8. Ashino, T.; Yamanaka, R.; Yamamoto, M.; Shimokawa, H.; Sekikawa, K.; Iwakura, Y.; Shioda, S.; Numazawa, S.; Yoshida, T. Negative feedback regulation of lipopolysaccharide-induced inducible nitric oxide synthase gene expression by heme oxygenase-1 induction in macrophages. Mol. Immunol 2008, 45, 2106–2115. [Google Scholar]
  9. De Martin, R.; Vanhove, B.; Cheng, Q.; Hofer, E.; Csizmadia, V.; Winkler, H.; Bach, F.H. Cytokine-inducible expression in endothelial cells of an I kappa B alpha-like gene is regulated by NF kappa B. EMBO J 1993, 12, 2773–2779. [Google Scholar]
  10. Pahl, H.L. Activators and target genes of Rel/NF-kappaB transcription factors. Oncogene 1999, 18, 6853–6866. [Google Scholar]
  11. Baeuerle, P.A.; Baltimore, D. NF-kappa B. Ten years after. Cell 1996, 87, 13–20. [Google Scholar]
  12. Robinson, M.J.; Cobb, M.H. Mitogen-activated protein kinase pathways. Curr. Opin. Cell Biol 1997, 9, 180–186. [Google Scholar]
  13. Guzik, T.J.; Korbut, R.; Adamek-Guzik, T. Nitric oxide and superoxide in inflammation and immune regulation. J. Physiol. Pharmacol 2003, 54, 469–487. [Google Scholar]
  14. Southan, G.J.; Szabo, C. Selective pharmacological inhibition of distinct nitric oxide synthase isoforms. Biochem. Pharmacol 1996, 51, 383–394. [Google Scholar]
  15. Brasier, A.R. The NF-kappaB regulatory network. Cardiovasc. Toxicol 2006, 6, 111–130. [Google Scholar]
  16. Gilmore, T.D. Introduction to NF-kappaB: Players, pathways, perspectives. Oncogene 2006, 25, 6680–6684. [Google Scholar]
  17. Tian, B.; Brasier, A.R. Identification of a nuclear factor kappa B-dependent gene network. Recent Prog. Horm. Res 2003, 58, 95–130. [Google Scholar]
  18. Chen, F.; Kuhn, D.C.; Sun, S.C.; Gaydos, L.J.; Demers, L.M. Dependence and reversal of nitric oxide production on NF-kappa B in silica and lipopolysaccharide-induced macrophages. Biochem. Biophys. Res. Commun 1995, 214, 839–846. [Google Scholar]
  19. Roshak, A.K.; Jackson, J.R.; McGough, K.; Chabot-Fletcher, M.; Mochan, E.; Marshall, L.A. Manipulation of distinct NFkappaB proteins alters interleukin-1beta-induced human rheumatoid synovial fibroblast prostaglandin E2 formation. J. Biol. Chem 1996, 271, 31496–31501. [Google Scholar]
  20. Xie, W.; Merrill, J.R.; Bradshaw, W.S.; Simmons, D.L. Structural determination and promoter analysis of the chicken mitogen-inducible prostaglandin G/H synthase gene and genetic mapping of the murine homolog. Arch. Biochem. Biophys 1993, 300, 247–252. [Google Scholar]
  21. Ahn, K.S.; Noh, E.J.; Zhao, H.L.; Jung, S.H.; Kang, S.S.; Kim, Y.S. Inhibition of inducible nitric oxide synthase and cyclooxygenase II by Platycodon grandiflorum saponins via suppression of nuclear factor-kappaB activation in RAW 264.7 cells. Life Sci 2005, 76, 2315–2328. [Google Scholar]
  22. Barnes, P.J.; Karin, M. Nuclear factor-kappaB. A pivotal transcription factor in chronic inflammatory diseases. N. Engl. J. Med 1997, 336, 1066–1071. [Google Scholar]
  23. Kim, Y.M.; Lee, B.S.; Yi, K.Y.; Paik, S.G. Upstream NF-kappaB site is required for the maximal expression of mouse inducible nitric oxide synthase gene in interferon-gamma plus lipopolysaccharide induced RAW 264.7 macrophages. Biochem. Pharmacol 1997, 236, 655–660. [Google Scholar]
  24. Caivano, M. Role of MAP kinase cascades in inducing arginine transporters and nitric oxide synthetase in RAW 264.7 macrophages. FEBS Lett 1999, 429, 249–253. [Google Scholar]
  25. Kim, H.K.; Choi, Y.W.; Lee, E.N.; Park, J.K.; Kim, S.G.; Park, D.J.; Kim, B.S.; Lim, Y.T.; Yoon, S. 5-Hydroxymethylfurfural from black garlic extract prevents TNFα-induced monocytic cell adhesion to HUVECs by suppression of vascular cell adhesion molecule-1 expression, reactive oxygen species generation and NF-κB activation. Phytother. Res 2011, 25, 965–974. [Google Scholar]
  26. Chen, T.; Guo, Z.P.; Jiao, X.Y.; Jia, R.Z.; Zhang, Y.H.; Li, J.Y.; Huang, X.L.; Liu, H.J. Peoniflorin suppresses tumor necrosis factor-α induced chemokine production in human dermal microvascular endothelial cells by blocking nuclear factor-κB and ERK pathway. Arch. Dermatol. Res 2011, 303, 351–360. [Google Scholar]
  27. Rim, H.K.; Cho, W.; Sung, S.H.; Lee, K.T. Nodakenin suppresses lipopolysaccharide-induced inflammatory responses in macrophage cells by inhibiting tumor necrosis factor receptor-associated factor 6 and nuclear factor-κB pathways and protects mice from lethal endotoxin shock. J. Pharmacol. Exp. Ther 2012, 342, 654–664. [Google Scholar]
  28. Kato, T.; Horie, N.; Hashimoto, K.; Satoh, K.; Shimoyama, T.; Kaneko, T.; Kusama, K.; Sakagami, H. Bimodal effect of glycyrrhizin on macrophage nitric oxide and prostaglandin E2 production. In Vivo 2008, 22, 583–586. [Google Scholar]
  29. Kim, J.H.; Jeong, J.H.; Jeon, S.T.; Kim, H.; Ock, J.; Suk, K.; Kim, S.I.; Song, K.S.; Lee, W.H. Decursin inhibits induction of inflammatory mediators by blocking nuclear factor-kappaB activation in macrophages. Mol. Pharmacol 2006, 69, 1783–1790. [Google Scholar]
  30. Choi, H.J.; Kang, O.H.; Park, P.S.; Chae, H.S.; Oh, Y.C.; Lee, Y.S.; Choi, J.G.; Lee, G.H.; Kweon, O.H.; Kwon, D.Y. Mume Fructus water extract inhibits pro-inflammatory mediators in lipopolysaccharide-stimulated macrophages. J. Med. Food 2007, 10, 460–466. [Google Scholar]
  31. Jo, H.Y.; Kim, Y.; Nam, S.Y.; Lee, B.J.; Kim, Y.B.; Yun, Y.W.; Ahn, B. The inhibitory effect of quercitrin gallate on iNOS expression induced by lipopolysaccharide in Balb/c mice. J. Vet. Sci 2008, 9, 267–272. [Google Scholar]
  32. Kim, H.Y.; Kim, J.K.; Choi, J.H.; Jung, J.Y.; Oh, W.Y.; Kim, D.C.; Lee, H.S.; Kim, Y.S.; Kang, S.S.; Lee, S.H.; et al. Hepatoprotective effect of pinoresinol on carbon tetrachloride-induced hepatic damage in mice. J. Pharmacol. Sci 2010, 112, 105–112. [Google Scholar]
  33. Srisook, K.; Palachot, M.; Mongkol, N.; Srisook, E.; Sarapusit, S. Anti-inflammatory effect of ethyl acetate extract from Cissus quadrangularis Linn may be involved with induction of heme oxygenase-1 and suppression of NF-κB activation. J. Ethnopharmacol 2011, 133, 1008–1014. [Google Scholar]
  34. Kwon, D.J.; Ju, S.M.; Youn, G.S.; Choi, S.Y.; Park, J. Suppression of iNOS and COX-2 expression by flavokawain A via blockade of NF-κB and AP-1 activation in RAW 264.7 macrophages. Food Chem. Toxicol 2013, 58, 479–486. [Google Scholar]
Ijms 15 08443f1 1024

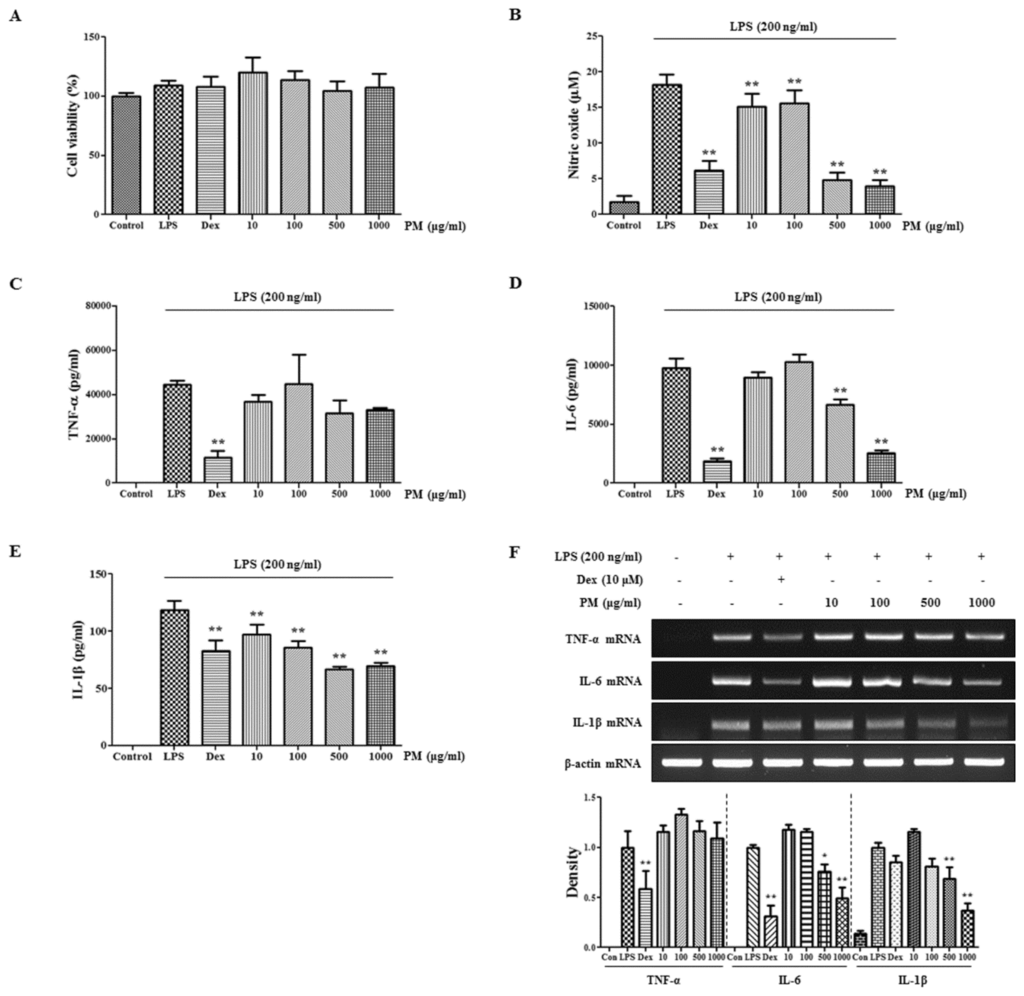

Figure 1. (A) The cytotoxicity of PM in RAW 264.7 cells. And the suppressive effect of PM on (B) NO production and (CF) TNF-α, IL-6 and IL-1β expression induced by LPS stimulation in macrophages. RAW 264.7 cells were pretreated with PM for 30 min before incubation with LPS for (AE) 24 h or (F) 6 h. (A) Cytotoxicity was determined using CCK; (B) The culture supernatant was analyzed for nitrite production; (CE) Production of cytokines was measured by ELISA and (F) mRNA levels were analyzed by RT-PCR. RNA values were quantitated using the i-MAX™ Gel Image Analysis System (Core Bio, Seoul, Korea). As a control, cells were incubated with vehicle alone. * p < 0.01 and ** p < 0.001 were calculated via comparisons with the LPS-stimulation value.

Click here to enlarge figure

Figure 1. (A) The cytotoxicity of PM in RAW 264.7 cells. And the suppressive effect of PM on (B) NO production and (CF) TNF-α, IL-6 and IL-1β expression induced by LPS stimulation in macrophages. RAW 264.7 cells were pretreated with PM for 30 min before incubation with LPS for (AE) 24 h or (F) 6 h. (A) Cytotoxicity was determined using CCK; (B) The culture supernatant was analyzed for nitrite production; (CE) Production of cytokines was measured by ELISA and (F) mRNA levels were analyzed by RT-PCR. RNA values were quantitated using the i-MAX™ Gel Image Analysis System (Core Bio, Seoul, Korea). As a control, cells were incubated with vehicle alone. * p < 0.01 and ** p < 0.001 were calculated via comparisons with the LPS-stimulation value.
Ijms 15 08443f1 1024
Ijms 15 08443f2 1024

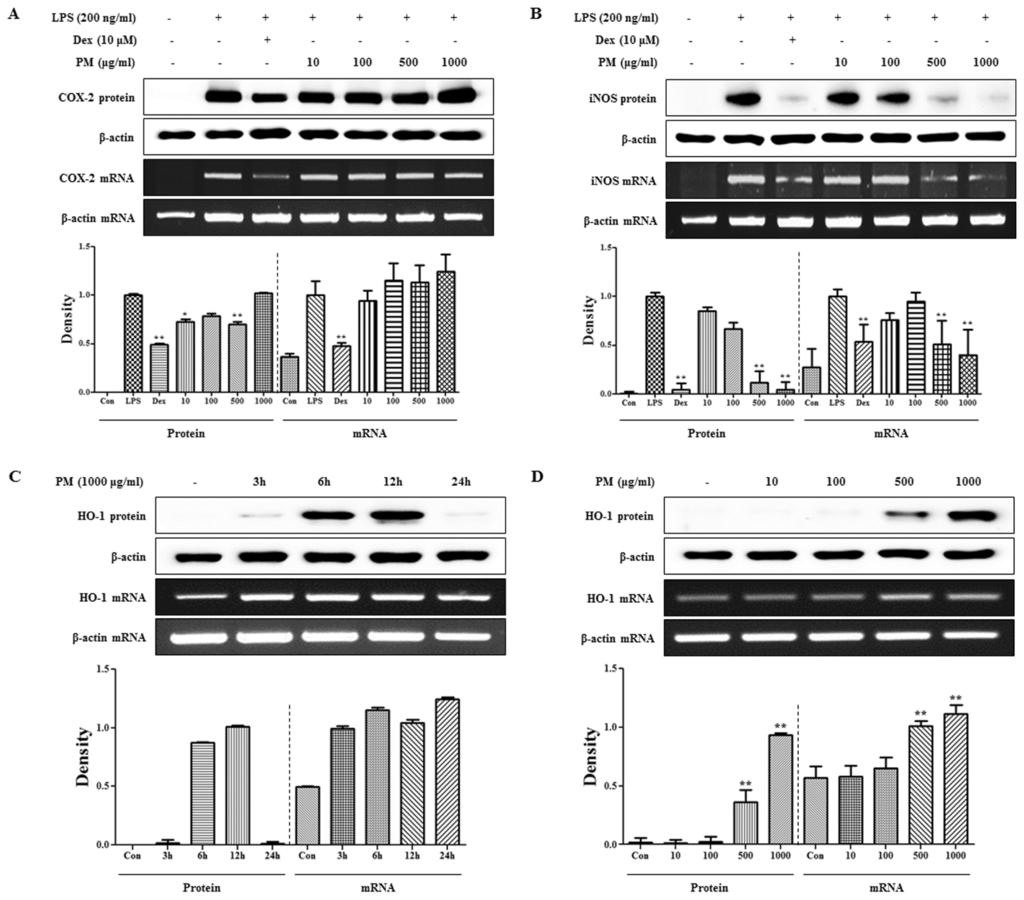

Figure 2. Inhibitory effect of PM on expression of (A) COX-2 and (B) iNOS. And the inductive effect of PM on (C,D) HO-1 in macrophages. Cells were treated with (A,B) LPS alone or LPS plus PM for 24 h and (C,D) with PM alone for the indicated time periods. Protein levels were determined by Western blot analysis, as described in the Materials and Methods, and quantitated using the Davinch-chemi™ CAS-400SM Chemiluminescence Imaging System (Core Bio, Seoul, Korea). Expression of mRNA was analyzed by RT-PCR. * p < 0.01 and ** p < 0.001 were calculated via comparisons with the (A,B) LPS-stimulation value or (D) vehicle alone.

Click here to enlarge figure

Figure 2. Inhibitory effect of PM on expression of (A) COX-2 and (B) iNOS. And the inductive effect of PM on (C,D) HO-1 in macrophages. Cells were treated with (A,B) LPS alone or LPS plus PM for 24 h and (C,D) with PM alone for the indicated time periods. Protein levels were determined by Western blot analysis, as described in the Materials and Methods, and quantitated using the Davinch-chemi™ CAS-400SM Chemiluminescence Imaging System (Core Bio, Seoul, Korea). Expression of mRNA was analyzed by RT-PCR. * p < 0.01 and ** p < 0.001 were calculated via comparisons with the (A,B) LPS-stimulation value or (D) vehicle alone.
Ijms 15 08443f2 1024
Ijms 15 08443f3 1024

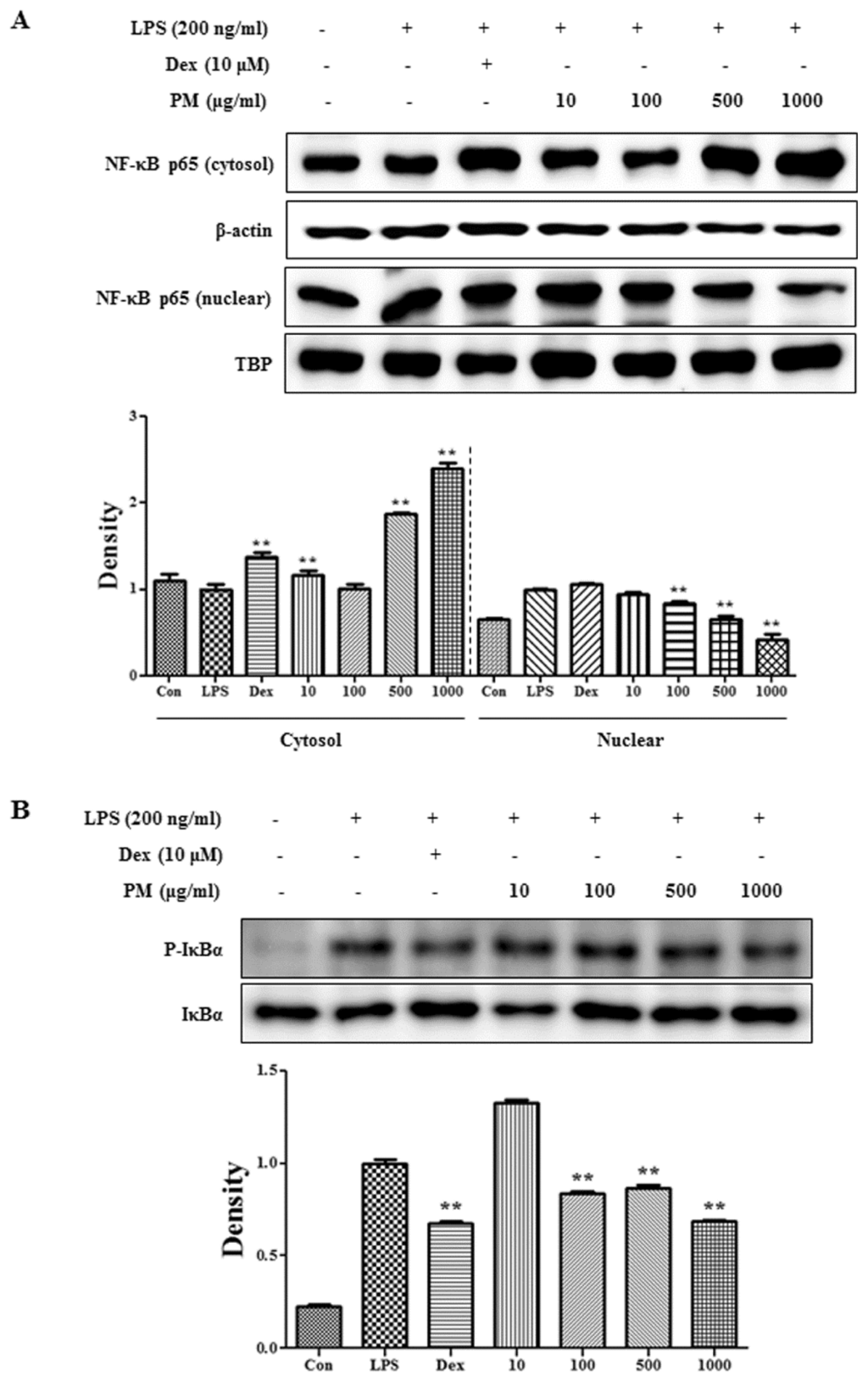

Figure 3. Inhibitory effects of PM on (A) translocation of NF-κB to the nucleus and (B) phosphorylation of IκBα. Cells were treated with LPS alone or with LPS and PM for 30 min (IκBα) or 1 h (NF-κB). Proteins in the cytosol or nucleus were analyzed by Western blotting. **p < 0.001 were calculated via comparisons with the LPS-stimulation value.

Click here to enlarge figure

Figure 3. Inhibitory effects of PM on (A) translocation of NF-κB to the nucleus and (B) phosphorylation of IκBα. Cells were treated with LPS alone or with LPS and PM for 30 min (IκBα) or 1 h (NF-κB). Proteins in the cytosol or nucleus were analyzed by Western blotting. **p < 0.001 were calculated via comparisons with the LPS-stimulation value.
Ijms 15 08443f3 1024
Ijms 15 08443f4 1024

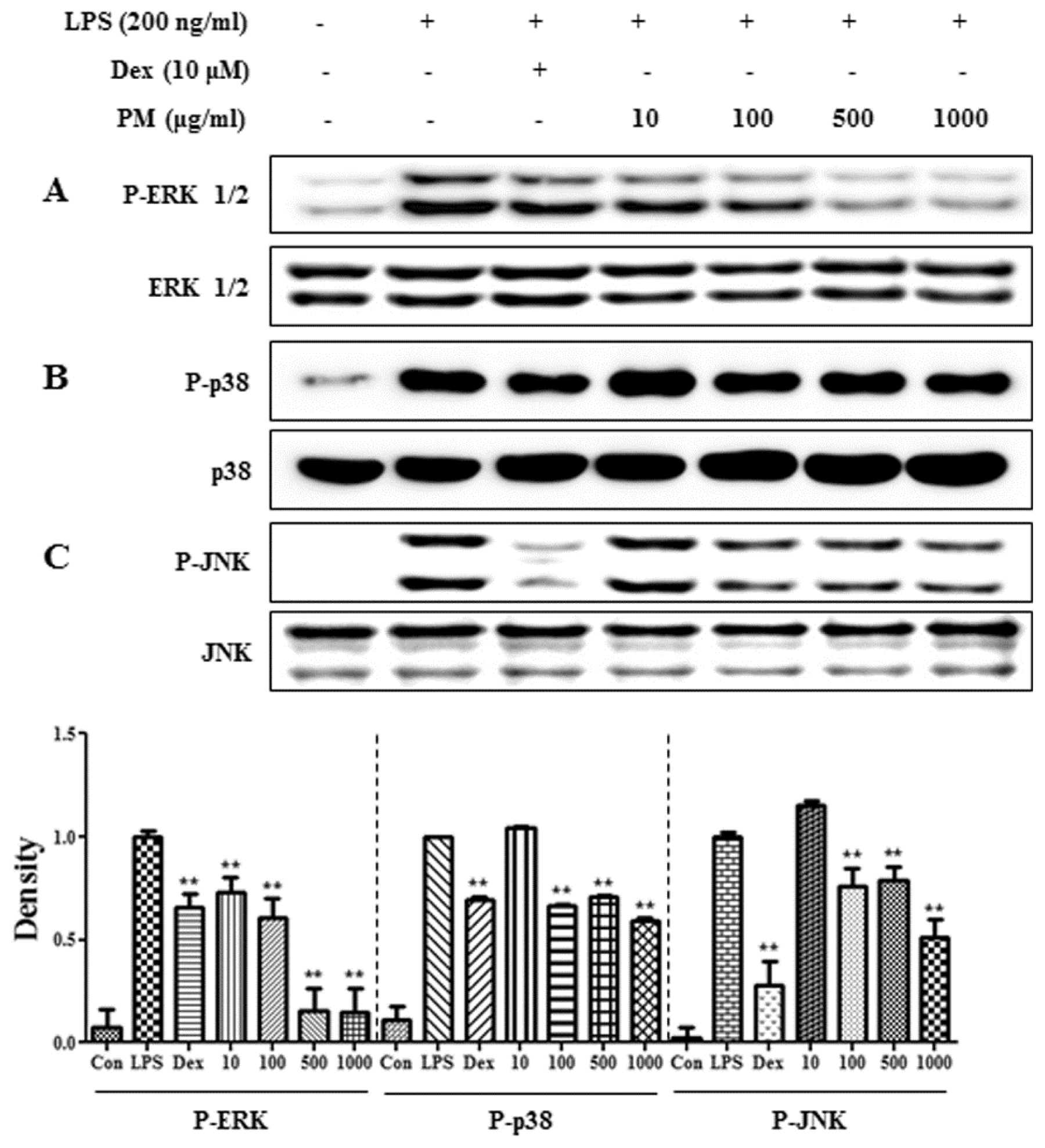

Figure 4. Inhibitory effect of PM on the phosphorylation of (A) ERK; (B) p38 and (C) JNK MAPK in macrophages. RAW 264.7 cells were treated with PM for 30 min and then incubated with LPS for 30 min. Cell lysates were analyzed by Western blotting using specific antibodies. ** p < 0.001 were calculated via comparisons with the LPS-stimulation value.

Click here to enlarge figure

Figure 4. Inhibitory effect of PM on the phosphorylation of (A) ERK; (B) p38 and (C) JNK MAPK in macrophages. RAW 264.7 cells were treated with PM for 30 min and then incubated with LPS for 30 min. Cell lysates were analyzed by Western blotting using specific antibodies. ** p < 0.001 were calculated via comparisons with the LPS-stimulation value.
Ijms 15 08443f4 1024
Ijms 15 08443f5 1024

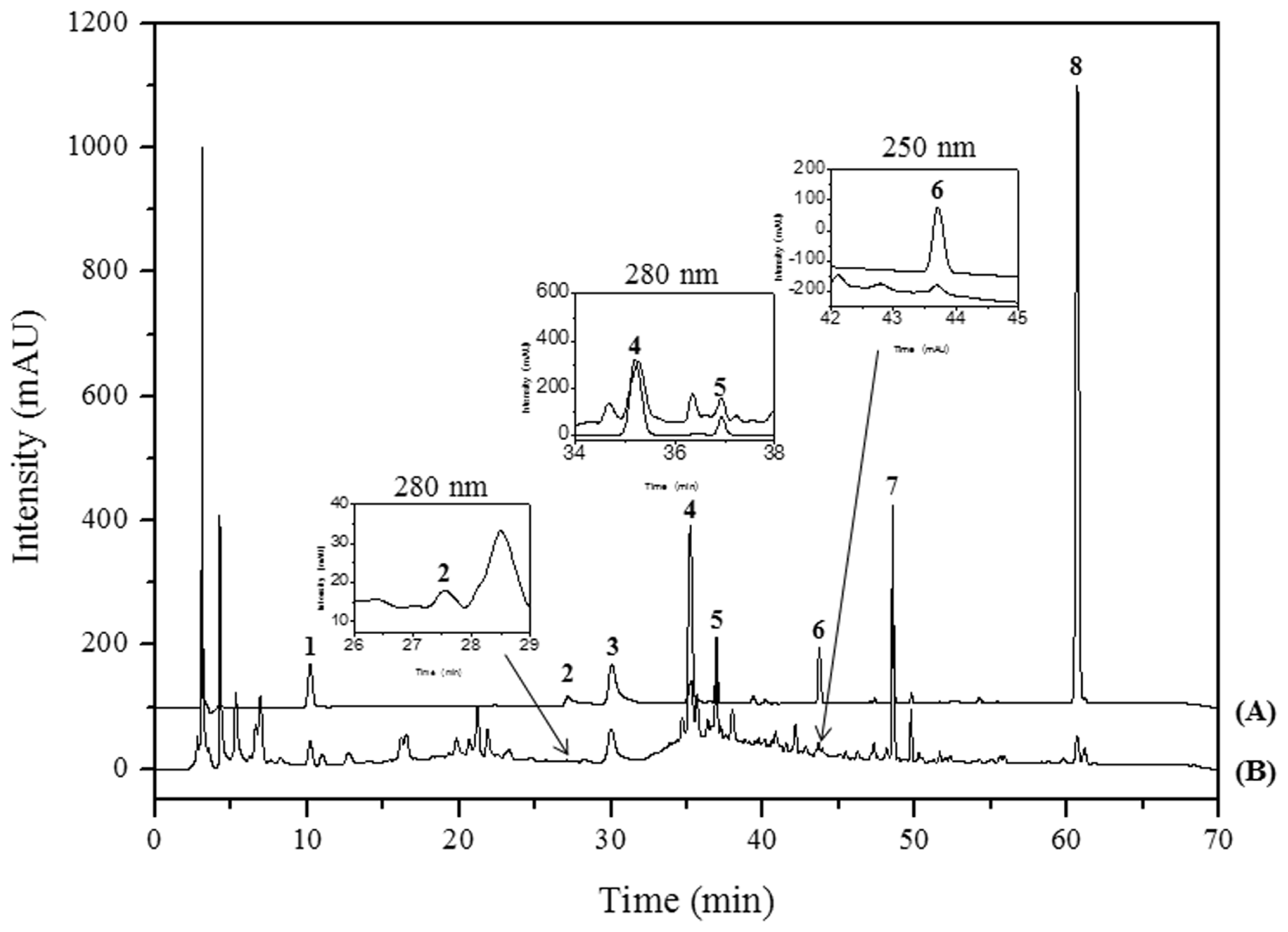

Figure 5. HPLC chromatograms of (A) a standard mixture and (B) PM at 250 nm. 1, 5-HMF, 10.30 min; 2, paeoniflorin, 27.22 min; 3, albiflorin, 30.28 min; 4, ferulic acid, 35.20 min; 5, nodakenin, 36.76 min; 6, decursinol, 43.86 min; 7, glycyrrhizin, 48.69 min; and 8, decursin, 60.93 min.

Click here to enlarge figure

Figure 5. HPLC chromatograms of (A) a standard mixture and (B) PM at 250 nm. 1, 5-HMF, 10.30 min; 2, paeoniflorin, 27.22 min; 3, albiflorin, 30.28 min; 4, ferulic acid, 35.20 min; 5, nodakenin, 36.76 min; 6, decursinol, 43.86 min; 7, glycyrrhizin, 48.69 min; and 8, decursin, 60.93 min.
Ijms 15 08443f5 1024
Ijms 15 08443f6 1024

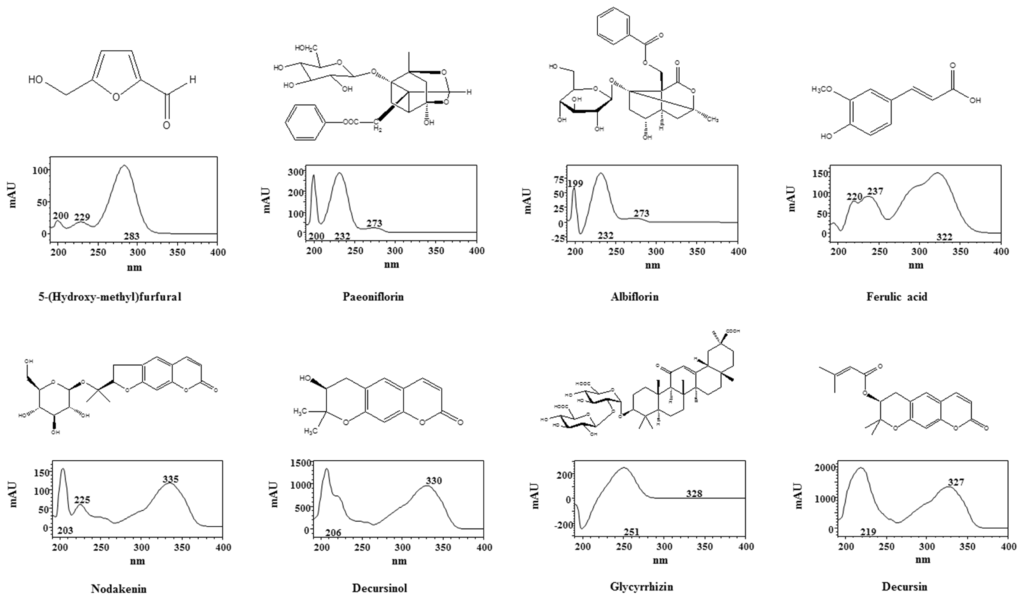

Figure 6. Chemical structures and HPLC DAD spectra of the main constituents of PM.

Click here to enlarge figure

Figure 6. Chemical structures and HPLC DAD spectra of the main constituents of PM.
Ijms 15 08443f6 1024
Table Table 1. Linearity, correlation coefficient, limits of detection (LOD), and limits of quantification (LOQ) of the marker compound (n = 3).

Click here to display table

Table 1. Linearity, correlation coefficient, limits of detection (LOD), and limits of quantification (LOQ) of the marker compound (n = 3).
CompoundLinear Range (μg/mL)Regression Equation aCorrelation Coefficient (r2)LOD b (μg/mL)LOQ c (μg/mL)
5-HMF1.25–10,000y = 403917x − 872120.99930.160.50
Ferulic acid1.25–10,000y = 273782x + 897910.99980.230.68
Nodakenin1.25–10,000y = 239585x − 259581.00000.130.40
Decursinol1.25–10,000y = 598246x + 2350410.99960.100.29
Glycyrrhizin1.25–10,000y = 43887x + 389940.99910.630.19
Decursin1.25–20,000y = 116410x + 11885291.00000.450.12
Peaoniflorin20–20,000y = 1871.8x + 167150.999016.0548.17
Albiflorin20–20,000y = 8026.8x + 6805.90.99933.3310.00

ay = peak area (mAU) of the components, x = concentration (μg·mL−1) of the components;bLOD = 3× signal-to-noise (S/S) ratio;cLOQ = 10× signal-to-noise (S/S) ratio.

Table Table 2. Content of the eight marker compounds of Palmultang (n = 3).

Click here to display table

Table 2. Content of the eight marker compounds of Palmultang (n = 3).
CompoundContent (mg/g)

MeanSDRSD (%)
5-HMF11.090.353.11
Ferulic acid2.590.000.15
Nodakenin2.300.000.02
Decursinol3.360.020.72
Glycyrrhizin8.230.010.13
Decursin5.110.000.01
Peaoniflorin0.360.000.34
Albiflorin1.170.032.41
Table Table 3. Herbal components and amount of Palmultang (PM) decoction.

Click here to display table

Table 3. Herbal components and amount of Palmultang (PM) decoction.
HerbsAmount of Herbs (g)
Ginseng Radix240
Atractylodes Rhizome White240
Poria240
Glycyrrhizae Radix et Rhizoma240
Angelica Gigas Root240
Prepared Rehmannia Root240
Peony Root240
Cinidium Rhizome240
Total weight1920
Table Table 4. Primer sequences and annealing temperatures used for RT-PCR analysis.

Click here to display table

Table 4. Primer sequences and annealing temperatures used for RT-PCR analysis.
Target GenePrimer SequenceAnnealing Temp
TNF-αF: 5′-AGCACAGAAAGCATGATCCG-3′
R: 5′-GTTTGCTACGACGTGGGCTA-3′
55 °C
IL-6F: 5′-CATGTTCTCTGGGAAATCGTGG-3′
R: 5′-AACGCACTAGGTTTGCCGAGTA-3′
58 °C
IL-1βF: 5′-TGCAGAGTTCCCCAACTGGTACATC-3′
R: 5′-GTGCTGCCTAATGTCCCCTTGAATC-3′
64 °C
COX-2F: 5′-CACTCAGTTTGTTGAGTCATTC-3′
R: 5′-GATTAGTACTGTAGGGTTAATG-3′
45 °C
iNOSF: 5′-AGCCCAACAATACAAATGACCCTA-3′
R: 5′-TTCCTGTTGTTTCTATTTCCTTTGT-3′
56 °C
HO-1F: 5′-TGAAGGAGGCCACCAAGGAGG-3′
R: 5′-AGAGGTCACCCAGGTAGCGGG-3′
62 °C
β-actinF: 5′-ATGAAGATCCTGACCGAGCGT-3′
R: 5′-AACGCAGCTCAGTAACAGTCCG-3′
58 °C

F, forward; R, reverse.

Table Table 5. HPLC conditions used for the analysis of PM.

Click here to display table

Table 5. HPLC conditions used for the analysis of PM.
ItemCondition
Mobile phaseTime (min)Water (Containing 0.1% TFA)Acetonitrile

0595
5595
151585
251585
506535
606535

Flow rate1.0 mL/min

Inject volume20 μL

ColumnOptimaPak C18 (4.6 × 250 mm, 5 μm, RS tech Co., Daejeon, Korea)

Column temperature40 °C

UV wavelength205, 250 and 330 nm
