Article

Ionic Liquid Electrolytes for Li–Air Batteries: Lithium Metal Cycling

1
Institute of Physical Chemistry and Münster Electrochemical Energy Technology (MEET) Battery Research Center, University of Muenster, Corrensstraße 28-30, Muenster 48149, Germany
2
Dipartimento di Chimica Giacomo Ciamician, Alma Mater Studiorum University of Bologna, via Selmi 2, Bologna 40126, Italy
3
Helmholtz Institute Ulm, Karlsruhe Institute of Technology, Albert-Einstein-Allee 11, Ulm 89081, Germany
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2014, 15(5), 8122-8137; https://doi.org/10.3390/ijms15058122
Submission received: 7 March 2014 / Revised: 16 April 2014 / Accepted: 17 April 2014 / Published: 8 May 2014
(This article belongs to the Special Issue Ionic Liquids 2014 & Selected Papers from ILMAT 2013)

Abstract

:
In this work, the electrochemical stability and lithium plating/stripping performance of N-butyl-N-methylpyrrolidinium bis(trifluoromethanesulfonyl)imide (Pyr14TFSI) are reported, by investigating the behavior of Li metal electrodes in symmetrical Li/electrolyte/Li cells. Electrochemical impedance spectroscopy measurements and galvanostatic cycling at different temperatures are performed to analyze the influence of temperature on the stabilization of the solid electrolyte interphase (SEI), showing that TFSI-based ionic liquids (ILs) rank among the best candidates for long-lasting Li–air cells.

1. Introduction

Electric and hybrid cars have successfully entered the market in the last few years, while renewable energy sources, like wind turbines and solar panels, are being deployed at a fast pace. However, the intermittency of these energy sources hinders the possibility to provide a stabilized current baseline for electric grid operation, and batteries with improved performances are actively investigated to meet this shortcoming, as well as for powering electric vehicles. The secondary Li–air battery, first proposed by Abraham et al. [1], is seen as a promising candidate for next generation energy storage systems [2,3], given its high theoretical specific capacity (1168 and 3861 mAh·g−1 in the discharged and charged state, respectively). Energy densities as high as 3154 Wh·kg−1 can be achieved assuming a practical discharge voltage of 2.7 V [47] and considering the bulk of the discharged product formed with the following electrochemical reaction:
2 Li + O 2 Li 2 O 2
For practical capacities of around 3 Ah per gram of carbon (a reasonable candidate as a cathode substrate/current collector) [4], this corresponds to a maximum practical specific energy of 2270 Wh·kg−1, a value that is above any other existing secondary battery technology. While problems, like O2 diffusion [8], pore clogging [9] and low faradaic efficiency, still need to be addressed on the cathode side, a far more important and intrinsic concern is related to the use of volatile solvents as electrolytes in a battery that needs to be open to the atmosphere to harvest and release O2. Since lithium metal is present in the system, cell drying poses a risk that should definitely be avoided. Moreover, most reported tests involve either alkyl carbonate- or ether-based electrolytes, which are not stable enough in oxidation [1013], or solvents, like acetonitrile [12,14] and dimethyl sulfoxide (DMSO) [6], whose stability towards the Li metal electrode is questionable. Ionic liquids (ILs) might bring a solution to this conundrum, thanks to their negligible vapor pressure, high thermal and electrochemical stability, as well as their non-flammability [15]. There is a nascent piece of literature on the subject, which began with a pioneering work on imidazolium-based ionic liquids by Kuboki et al. using 1-ethyl-3-methylimidazolium paired with bis(trifluoromethanesulfonyl)imide (TFSI) [16] that was later reprised [17,18], although this class of cations has been shown not to be stable vs. lithium metal. Among other ionic liquids, it is worth mentioning the use of diethylmethylmethoxyethylammoniumTFSI, N-methoxyethyl-N-methylpiperidiniumTFSI [19,20] and N-ethyl-N-methylpiperidiniumTFSI [1921]. N-butyl-N-methylpyrrolidinium (Pyr14+)-based ILs, such as Pyr14TFSI [22] and Pyr14FSI [2325], meet the aforementioned criteria and could be viable candidates for the replacement of conventional electrolytes. Pyr14FSI allows high voltage Li–ion cathode use [26], but is not stable vs. the very reactive superoxide anion, O2, as evidenced by the lack of an O2 oxidation peak (Figure 1b), thus ruling out its use in Li–air cells. Pyr14TFSI, on the other hand, is more thermally robust and, most importantly, more stable vs. O2) [27,28], as shown by Figure 1a, which allows Li–O2 cell operation [4,8].
In addition to their stability in the presence of O2, another issue to be addressed is the viability of Li metal as the negative electrode, its theoretical capacity being more than ten times that of graphite (3861 vs. 372 mAh·g−1), even though its lower Coulombic efficiency imposes the use of over-stoichiometric Li metal electrodes for secondary battery applications. So far, only polyethylene oxide (PEO)-based solid polymer electrolytes (SPEs) have allowed Li metal to be commercially used in secondary batteries and electric cars, but ionic liquids [25,29] and ionic liquid-containing SPEs [3032] have already proven successful in several laboratories. For liquid electrolytes, the best efficiencies and, in general, the best performance have been obtained at low to medium temperatures (20 and 40 °C) using a Pyr14FSI-based electrolyte [25,29]. In practice, however, this electrolyte poses serious thermal stability issues when the operating temperature is >80 °C [33]. Combinations of TFSI and some quaternary ammonium cations are also valid candidates for Li electrode operation given their high cathodic stability [28,34]. Howlett et al. [35] proposed the use of Pyr14TFSI-based electrolytes in combination with a Li metal electrode in 2004 and reported high efficiencies for the Li plating/stripping process. The average faradaic efficiency determination usually consists of plating a given amount of Li onto a substrate, such as Cu [35] or Ni [25], equal to a capacity, Qp, and then cycling a fraction of it (defined as Qc), until a certain voltage is reached after n cycles, which indicates full lithium consumption. Then, either Equation (2) [35] or Equation (3) [25] are used to calculate the average efficiency for one plating/stripping cycle:
E f f 1 = 1 - Q p n Q c + Q p
E f f 2 = 1 - Q p n Q c
While it is obvious that Equation (2) gives higher efficiency results (as Equation (3) considers the first plating to be 100% efficient), the two formulae become equivalent for high efficiencies. Equation (3) was used to report Li plating/stripping efficiencies in Pyr14TFSI-based electrolyte on both Pt and Cu [35], although only the use of platinum led to a good cyclability, and less than 50 cycles were reported using copper, a fact that was attributed to the poor initial plating. Most importantly, the fact that lithium alloys with platinum were overlooked makes the results difficult to compare. As a matter of fact, plating large capacities of Li leads to significant volume changes in the electrode and, thus, to the continuous cracking of the solid electrolyte interphase (SEI) [36]. If the consequent repair of the SEI is not effective, dendrite formation and, ultimately, internal short circuits will develop. Aside from the absolute values of Qp and Qc, the Qp/Qc ratio is also of paramount importance to correctly interpret the results obtained. For example, if a 330 μm-thick Li foil (corresponding to Qp ≈ 68 mAh·cm−2) is used to run plating/stripping tests in symmetrical Li/electrolyte/Li cells and only a small fraction of it (Qc = 0.025 mAh·cm−2) is actually cycled [37], the high Qp/Qc ratio of ≈2700 will yield a mere 45% efficiency, even after 5000 cycles (using Equation (2)), therefore making plating/stripping tests particularly lengthy. A 99% efficiency evaluation can be reached within 1000 cycles only if the Qp/Qc ratio is as low as ten [25,29]. In our case, a value of Qp/Qc = 100 was chosen.
In general, the low temperature performance of liquid electrolytes based on Pyr14TFSI is inferior to that of the Pyr14FSI analogues, due to its higher viscosity and lower conductivity. Nevertheless, interesting results can be obtained with Li metal electrodes at 20 and 40 °C when Pyr14TFSI is incorporated into SPEs [30,31]. Moreover, the higher thermal stability of Pyr14TFSI allows its usage at higher temperatures, which can be of interest in a system with rather slow kinetics and slow mass transport of the active species [4]. Keeping electric vehicles in mind, a higher operating temperature would also lower the energy consumption associated with the battery cooling, as heat transfer is more difficult when the difference in temperature with the exterior is small. Pyr14TFSI is thus, a priori, a good candidate for use in combination with Li metal electrodes, but tests performed in ionic liquid based-electrolytes have not provided enough evidence for fully assessing the efficiency of the Li plating/stripping process. So far, a mere 70% efficiency has been reported for a simple potentiodynamic plating/stripping on Ni electrodes [38]. Attempts to measure the efficiency with the abovementioned method with Pyr14TFSI-based electrolytes have failed in our laboratories [39], due to the difficulty of obtaining reproducible homogeneous Li deposits on Ni without the use of lower stability additives. Herein, we report Li metal cycling performance in a Pyr14TFSI-based electrolyte at different temperatures. Symmetrical Li/electrolyte/Li cells were assembled using a 50 μm-thick Li foil, which leads to quite large Li reservoirs (Qp ≈ 10 mAh·cm−2). As calculated above, this requires long-term cycling (if Qp/Qc = 100) for efficiency determination.
Another aspect considered is the solid electrolyte interphase (SEI) [36], the protective film that is always present on the lithium surface, which should prevent its extensive oxidation. Its composition varies and depends on the environment seen by the electrode. As lithium metal is highly reactive, a “native” SEI is created during lithium extrusion, i.e., as soon as the fresh surface gets in contact with the dry atmosphere in the production step. This interphase further evolves once it gets in contact with most electrolytes [4043]. As it is known that TFSI-based ILs participate in the SEI formation [35,4446], this evolution was investigated at different temperatures, together with its influence on the cycling performance, either by storing the cells under open circuit voltage (OCV) conditions for one week or by making use of separators with differing characteristics. The suitability of the method for efficiency determination using Equation (3), when large Li reservoirs are used, is also discussed.

2. Results and Discussion

2.1. Effect of Temperature on the Evolution of SEI on Lithium Metal in Contact with Pyr14TFSI-Based Electrolyte

A sample impedance spectrum for symmetrical Li/0.9 Pyr14TFSI-0.1 LiTFSI/Li cells is represented in Figure 2a, together with the associated equivalent circuit. Since it is very difficult to split the contribution of the charge transfer resistance from that of the SEI, the two Randles cells have been merged into one that accounts for the overall interfacial resistance (Rint).
A set of Li/electrolyte/Li cells were thermally stabilized for one week (168 h) under OCV conditions and their evolution of Rint compared (Figure 2b). A different trend can be seen for each temperature during the same timescale: at 20 °C, Rint increases constantly, indicating a moderate interfacial reactivity; at 40 °C, the lower initial resistance (as a consequence of a higher temperature) reaches a maximum after 3–4 days (probably due to faster kinetics) and then decreases; finally, at 60 °C, a steady drop is observed for the whole investigated timespan, indicating that the maximum resistance is reached even before the first measurement is performed (i.e., after 2 h). Under these conditions, a stable SEI forms within only three days. This behavior can be interpreted as the result of a progressive accumulation of decomposition products at the Li/electrolyte interface, which goes on until the entire lithium surface is completely covered with a mixed inorganic/organic SEI; our tests show that the higher the temperature, the faster this step will reach completion. The decrease, on the other hand, reflects either the dissolution of SEI components or the swelling of the organic external SEI layer, which leads to its gelation/plasticization [47]. This assumption is realistic for an SEI, where a pure Li+ ion conductive (thus, ceramic-like) layer is present close to the Li metal surface, while further away (where the reducing conditions are less stringent), a more organic/polymeric layer forms [44], as postulated by others for ethylene carbonate (EC):dimethyl carbonate (DMC)-based electrolytes [48]. Moreover, the presence of this additional film helps explain the diffusion phenomena occurring within the SEI, for which a pure Li+ conducting layer cannot be accounted.

2.2. Effect of the Temperature on the Voltage Profiles

The cells subjected to a one-week stabilization, as well as the freshly assembled ones, were galvanostatically cycled at a current density of 0.1 mA·cm−2, which was reversed every hour. The resulting voltage vs. time curve can be analyzed by splitting the component related to the ohmic drop (ΔV1) from the one linked to the establishment of a diffusion gradient (ΔV2), as indicated for a sample half-cycle in Figure 3a. The potential increases with the square root of time as expected at constant current according to the Sand equation [49]; this reflects the concentration polarization of the lithium salt arising from a lithium transport number lower than unity. A full depletion of the lithium salt was not observed in this case. From Figure 3b, one can see that the decrease in cell voltage with temperature is in good agreement with an increase of the Li+ diffusion coefficient and that no full Li depletion is reached at the plated electrode. To follow the evolution of the system during cycling, in addition to the equivalent series resistance (ESR = ΔV1/2i), it is possible to define a diffusion-related resistance, corresponding to the additional polarization at the end of each step (Rpol = ΔV2/2i), to account for the additional Li mass transport resistance after one hour. The same quantities can be obtained during the reverse plating.

2.3. Effect of Thermal Conditioning on the Cycling Performance

Figure 4a shows the evolution of the maximum cell voltage recorded during cycling of a set of “fresh” Li/0.9 Pyr14TFSI-0.1 LiTFSI/Li cells assembled using a Whatman GF-F separator at different temperatures. As can be seen in Table 1, there is a strong correlation between temperature and the number of cycles/efficiency, with 308 cycles (and 67.5% efficiency) reached before cut-off at 20 °C and 2503 cycles (and 96% efficiency) at 60 °C. According to the assumption behind Equations (2) and (3), one (or both) Li electrode is fully consumed at the end of the cycling test, due to parasitic reactions occurring at the interface with the electrolyte. If this were the case, one would expect an interfacial reactivity (and, thus, cycle inefficiency) scaling up with temperature. On the contrary, visual observation of the two electrodes at the end of cycling confirms that the Li foil is not fully consumed, and the backside of the electrode still has a shiny and metallic appearance. Therefore, the efficiency values calculated here represent an underestimation of the real capabilities of the system: the 0.5 V cut-off voltage is only reached because of the increasing cell resistance upon cycling rather than due to full Li depletion. The progressive increase of the end-of-cycle voltage, at 20 and 40 °C, is in good agreement with this explanation, while at 60 °C, the final increase occurs rather abruptly.
If we compare the previous results with those obtained with thermally conditioned cells, shown in Figure 4b, it is clear that the trend with temperature is the same and that the thermal conditioning has a positive effect in terms of profile regularity (i.e., less fluctuations of cell overvoltage over time) and cycling stability at any temperature. While this beneficial influence is more marked at 40 °C than 20 °C, thanks to the faster interface stabilization, the same cannot be said for cells running at 60 °C, where one week of stabilization only brings in 400 more cycles, corresponding only to a small increase in efficiency (+0.5%). The reason for this lies in the fact that “fresh” cells are also thermally equilibrated for 12 h prior to cycling. At 60 °C, this is long enough to create a stable SEI (as already shown in Figure 2a); thus, little improvement can be achieved with longer storage times, unlike at lower temperatures.

2.4. Analysis of the Cell Resistances

For a better analysis of the cell voltage, the evolution of ESR and Rpol with cycling for the fresh and conditioned cells has been plotted in Figure 5a,b, respectively. As mentioned earlier, the first term is related to the ohmic drop, while the second arises as a consequence of diffusion-related processes. One can notice that at 20 and 40 °C, the voltage variations, prior to the final increase, are mostly linked to the evolution of ESR, while Rpol stays rather constant. At 60 °C, after several hundreds of cycles, a peak in Rpol is observed, followed by a steady decrease and then a final increase, while at lower temperatures, the upward trend in Rpol is uninterrupted throughout cycling. In the case of the non-stabilized cell at 60 °C, a constant Rpol value around 500 Ω cm2 (Figure 5a) is maintained for ca. 250 cycles after 4000 h. In the hypothesis of an increase of mass transport resistance within the bulk electrolyte, we would not expect such a tendency, especially if we consider that, according to Figure 5a,b, ESR does not show a strong correlation with variations in Rpol. The observed trend is, on the other hand, coherent with a mass transport limitation determined by the growth of an outer polymeric SEI or, alternatively, by a mechanical rupture of the outer SEI and its subsequent self-healing. In the latter event, the exposure of a fresh Li/electrolyte interface would trigger the re-establishment of a uniform, equipotential surface [50]. During this time, the fractures would act as preferential channels for the transport of Li+ ions, thereby countering the polarization induced by the SEI. This is not observed at 20 and 40 °C, because the voltage cut-off is reached before any decrease in Rpol can be achieved. A careful analysis of the voltage profiles during the final cycles gives a more insightful picture (Figure 6).
During Li plating, the polarization appears like a single, diffusion-controlled electrochemical process, as shown in Figure 3, without Li depletion. However, as the voltage profile evolves into more complex shapes with time, the cell at 20 °C shows a further potential rise after an initial steady state (Figure 6). Finally, after several hundred cycles, the large potential deviations give rise to a Sand behavior, but not to a total salt depletion. At 40 and 60 °C, such a behavior is only seen several hundred cycles later, indicative of the increase in the salt diffusion coefficient with temperature. The two diffusion-controlled processes appear to be partially overlapped. According to our interpretation, once a concentration gradient is established in the electrochemical cell, the variation in Li+ concentration within the SEI remains negligible, as long as it is “thin” enough, i.e., it behaves in an ideal way. When the SEI thickness (and, therefore, its resistance) increases over a critical value, a concentration gradient can establish within this interphase and show up in the voltage vs. time chart (as reported in Figure 6). It should be pointed out that the shape of the voltage profile can also be linked to parasitic reactions, such as Pyr14TFSI decomposition at a low potential, but the pieces of evidence gathered so far, such as the decrease of Rint at 40 and 60 °C over storage time and the lowering of Rpol over cycling, clearly show that the electrolyte is stable enough vs. lithium and does not incur massive decomposition. In either case, once a given value of the cell voltage (different for each temperature) is breached, an increased clogging of the electrodes takes place, slowing down Li+ transport and leading to the end of cycling, as evidenced by the fast final increase of ESR and Rpol. It must be stressed once again that this does not correspond to full Li consumption, but is related to the reactivity of the electrolyte at the Li interface. As stated previously, the native SEI formed in contact with the atmosphere is mainly composed of inorganic compounds (Li2CO3, Li2O, Li3N) that form microcrystalline or microphase domains [51]. This surface heterogeneity induces an inhomogeneous current distribution, due to the different size of the domains, different conductivity and faster Li+ ion transport at grain boundaries. Electrolyte components can infiltrate along the grain boundaries and reach the close vicinity of the Li metal, especially through domains where the SEI is less resistive and less protected. With time, the accumulation of these products blocks all the diffusion channels and leads to the final increase in the plating overvoltage.

2.5. Effect of the Separator on the SEI Evolution

Damage to the lithium surface can also arise after contact with the fibers that make up the separator. These can break the SEI surface similarly to what is believed to occur for polymer electrolytes [51]. To confirm this, a glass fiber separator (Whatman GF-C, 260 μm thickness) with slightly different properties compared to the Whatman GF-F (420 μm thickness) was tested.
GF-C allows a faster Herzberg liquid flow, thanks to its larger pore size (1.2 vs. 0.7 μm for GF-F). In addition, its lower thickness leads to an overall lower resistance and improved Li+ mass transport. The structure of the two separators are similar, as both are non-woven mats (as seen in the SEM images in Figure 7), but the GF-C separator is expected to have a lower fiber surface in direct contact with the Li surface, in accordance with the larger pore size and the larger size of its constitutive fibers. The minor impact on the “native” SEI could therefore lead to limited reactivity [51]. The trend of the interfacial resistance change over time for cells using a GF-C separator was monitored for a week, as shown in Figure 8.
For the cell stored at 20 °C, the SEI resistance grows gradually like with GF-F separators, while a decrease and fast stabilization takes place at 60 °C and, unlike the previous tests, at 40 °C, as well. This observation goes hand in hand with the interpretation that a lower surface area of the separator in contact with the Li electrode causes less damage on the SEI and the deposition of a smaller number of degradation products onto the affected areas. More importantly, the restricted generation of partially reduced soluble products within the electrolyte also leads to the formation of an overall thinner SEI. In the GF-C cell stored at 40 °C, a local and fast SEI repair occurs, as the few cracked parts are very reactive. No difference in the use of a different separator is seen at 60 °C, since the reaction kinetics is fast enough to seal all cracks and limit the formation of soluble products. Finally, at 20 °C, the kinetics is still sluggish, even if a thinner, more porous separator is used, and the few cracks formed can still trigger the generation of lower solubility products and their accumulation.

2.6. Effect of the Separator on the Cycling Performance

In order to investigate if the faster stabilization of the SEI has any effect on the cycling performance, “fresh” Li/Li symmetrical cells were assembled at different temperatures and cycled, in the same condition as before, and the voltage profile curves are shown in Figure 9.
An improvement in terms of cycles is observed in all three tests, similarly to the case of the conditioned cells; Table 2 lists the number of cycles and efficiencies obtained by each cell, as well as the percentage increase with respect to the corresponding GF-F fresh cells. The improvement of performances, in terms of cell voltage, profile regularity and cycles reached, justify our assumptions on the overall higher electrolyte stability due to less SEI clogging, especially the marked enhancement recorded at 40 °C. This result has also been confirmed with separators having smoother surfaces, such as Celgard 2500, which lead to lower SEI resistance [52]. Finally, it must be noted that similarly to the case of GF-F, the electrode clogging, rather than full Li consumption, is responsible for the end of cycling, also with GF-C separators.

3. Experimental Section

3.1. Materials Used

Lithium metal foil (50 μm, 99.999%, Rockwood Lithium GmbH, Frankfurt am Main, Germany) was stored in a dry room (Relative Humidity <0.1% at 20 °C) together with all the other chemicals mentioned in this paper. N-butyl-N-methylpyrrolidinium bis(trifluoromethanesulfonyl)imide (Pyr14TFSI) was synthesized according to a well-established procedure [46] and dried at 90 °C for at least 24 h using a turbomolecular pump (vacuum <10−7 mbar). This procedure leads to ILs exhibiting water content below 2 ppm, measured via coulometric Karl Fischer titration (C30, Mettler Toledo, Schwerzenbach, Switzerland). Lithium bis(trifluoromethanesulfonyl)imide (LiTFSI) (99.9%, battery grade, 3M, St. Paul, MN, USA) was dried at 120 °C under vacuum for at least 24 h before use. Pyr14TFSI and LiTFSI were mixed in a 9:1 molar ratio and further dried under turbomolecular vacuum at 70 °C for 24 h. Glass fiber separators (Whatman GF-F and GF-C, GE Healthcare UK Ltd., Little Chalfont, UK) were dried at 120 °C for at least 24 h prior to usage.

3.2. Cyclic Voltamperometry

The oxygen redox reaction was investigated by cyclic voltammetry (CV) using a glassy carbon electrode (3 mm diameter, Tokai Carbon Co., Ltd., Tokyo, Japan), in a 5-mL cell, which was thermostated at 30 °C by a K40 thermocryostat (Haake Technik GmbH, Vreden, Germany). The reference electrode was a silver wire in 6 × 10−2 M AgTFSI (97%, Sigma-Aldrich, St. Louis, MO, USA) -PYR14TFSI. The reference electrode potential was checked vs. lithium, and the working potentials are reported vs. the Li+/Li couple. A Pt wire was used as a counter electrode. The voltammetric scans were corrected for the ohmic drop evaluated by impedance spectroscopy in the 10 kHz–1 Hz range. These tests were performed using a VSP multichannel potentiostat/galvanostat/electrochemical impedance analyser, (PerkinElmer, Waltham, MA, USA).

3.3. Cell Preparation

All cell assembly procedures were performed inside the dry room. Pouch bags were manufactured using two 100 μm “coffee-bag” sheets and Ni current collectors (thickness: 20 μm). Lithium foil strips were then folded around the current collectors to ensure electrical contact and separated by a glass fiber separator impregnated with the electrolyte. The cells thus fabricated had an active area of ca. 1 cm2.

3.4. SEI Resistance Evolution

Some of the pouch cells were subjected to a one-week thermal conditioning, by storing them in a MK53 climatic chamber ΔT = ±0.1 °C (Binder GmbH, Tuttlingen, Germany) at three different temperatures (20, 40 and 60 °C) and electrochemical impedance measurements were acquired daily to track the changes in interfacial resistance over time. For this purpose, the range spanning from 65 kHz to 10 MHz was investigated, using a Solartron 1287 potentiostat/galvanostat coupled to a Solartron 1260 frequency response analyzer (Solartron Analytical, Farnborough, UK).

3.5. Galvanostatic Cycling

All pouch cells were galvanostatically cycled using a battery cycler (S4000, Maccor Inc., Tulsa, OK, USA) by applying a 0.1 mA·cm−2 current density that was reversed every 60 min. Cut-off voltages of 0.5 and −0.5 V were used. Thermal equilibration was ensured by inserting a 12-h rest step before performing each test.

3.6. Scanning Electron Microscopy

The morphology of the glass fiber separators was analyzed via high-resolution scanning electron microscopy (SEM, AURIGA® microscope, Zeiss, Oberkochen, Germany). The sample surfaces were made conductive by using a turbo-pumped gold sputter/coater (Quorum Q150T, Quorum Technologies Ltd., Co., East Grinstead, UK). The current applied was 45 mA for 30 s.

4. Conclusions

In this work, we showed that it is possible to achieve cycling efficiencies as high as 96.5% through plating/stripping tests of lithium metal electrodes in a Pyr14TFSI-based electrolyte. Moreover, the calculated average Coulombic efficiency represents an underestimation of the real value, as the end of cycling is neither triggered by full lithium consumption nor by parasitic reactions, but rather by the clogging of all Li+ ion diffusion channels in the solid electrolyte interphase (SEI). This phenomenon is slowed down by the formation of an outer polymeric SEI that promotes the stabilization of the Li/electrolyte interface and leads to a delayed clogging of the electrode, as less degradation products are generated during cycling. The stabilization of SEI becomes more effective at higher temperatures, an effect that is enhanced by the faster Li+ ion transport within the electrolyte. The study of two different glass fiber separators with the same chemical composition also showed that the porosity and morphology of the separator can influence the “native” SEI’s open circuit evolution and the electrode clogging upon cycling. These features pave the way to the usage of ionic liquid electrolytes in next-generation electrochemical energy storage technologies, such as Lithium–air batteries. The long-term cyclability that IL-based electrolytes ensure, together with the peculiar physico-chemical properties, like negligible volatility and wide electrochemical stability, are key enabling factors to the deployment of such novel electrochemical power sources into the market.

Acknowledgments

This work was supported by the European Commission within the FP7 Project “Lithium-Air Battery with Split Oxygen Harvesting and Redox Processes” (LABOHR) (FP7-NMP-2010, grant agreement No. 265971) and Stable Interfaces for Rechargeable Batteries (SIRBATT) (FP7-ENERGY-2013-1, grant agreement No. 608502). The authors would like to thank Marina Mastragostino and Francesca Soavi from the University of Bologna for the fruitful discussions within the LABOHR framework.

Conflicts of interest

The authors declare no conflict of interest.
  • Author ContributionsLorenzo Grande performed the Li metal experiments with the help of Guk-Tae Kim and wrote the manuscript. Simone Monaco performed the cyclic voltamperometry. Elie Paillard and Stefano Passerini supervised the experiments and the writing of the manuscript.

References

  1. Abraham, K.M.; Jiang, Z. A polymer electrolyte based rechargeable lithium/oxygen battery. J. Electrochem. Soc 1996, 143, 1–5. [Google Scholar]
  2. Scrosati, B.; Garche, J. Lithium batteries: Status, prospects and future. J. Power Sources 2010, 195, 2419–2430. [Google Scholar]
  3. Armand, M.; Tarascon, J.M. Building better batteries. Nature 2008, 451, 652–657. [Google Scholar]
  4. Soavi, F.; Monaco, S.; Mastragostino, M. Catalyst-free porous carbon cathode and ionic liquid for high efficiency, rechargeable Li/O2 battery. J. Power Sources 2013, 224, 115–119. [Google Scholar]
  5. Ogasawara, T.; Débart, A.; Holzapfel, M.; Novák, P.; Bruce, P.G.; Debart, A. Rechargeable Li2O2 electrode for lithium batteries. J. Am. Chem. Soc 2006, 128, 1390–1393. [Google Scholar]
  6. Peng, Z.; Freunberger, S.A.; Chen, Y.; Bruce, P.G. A reversible and higher-rate Li–O2 battery. Science 2012, 11, 19–29. [Google Scholar]
  7. Jung, H.; Hassoun, J.; Park, J.; Sun, Y. An improved high-performance lithium–air battery. Nat. Chem 2012, 4, 1–7. [Google Scholar]
  8. Monaco, S.; Soavi, F.; Mastragostino, M. Role of oxygen mass transport in rechargeable Li/O2 batteries operating with ionic liquids. J. Phys. Chem. Lett 2013, 4, 1379–1382. [Google Scholar]
  9. Girishkumar, G.; McCloskey, B.D.; Luntz, A.C.; Swanson, S.; Wilcke, W. Lithium–air battery: Promise and challenges. J. Phys. Chem. Lett 2010, 1, 2193–2203. [Google Scholar]
  10. Freunberger, S.A.; Chen, Y.; Peng, Z.; Griffin, J.M.; Hardwick, L.J.; Bardé, F.; Novák, P.; Bruce, P.G. Reactions in the rechargeable lithium-O2 battery with alkyl carbonate electrolytes. J. Am. Chem. Soc 2011, 133, 8040–8047. [Google Scholar]
  11. McCloskey, B.D.; Bethune, D.S.; Shelby, R.M.; Girishkumar, G.; Luntz, A.C. Solvents’ critical role in nonaqueous lithium–oxygen battery electrochemistry. J. Phys. Chem. Lett 2011, 2, 1161–1166. [Google Scholar]
  12. Freunberger, S.A.; Chen, Y.; Drewett, N.E.; Hardwick, L.J.; Bardé, F.; Bruce, P.G. The lithium–oxygen battery with ether-based electrolytes. Angew. Chem 2011, 50, 8609–8613. [Google Scholar]
  13. Schwenke, K.; Meini, S.; Wu, X. Stability of superoxide radicals in glyme solvents for non-aqueous Li–O2 battery electrolytes. Phys. Chem. Chem. Phys 2013, 15, 11830–11839. [Google Scholar]
  14. Laoire, C.O.; Mukerjee, S.; Abraham, K.M.; Plichta, E.J.; Hendrickson, M.A. Influence of nonaqueous solvents on the electrochemistry of oxygen in the rechargeable lithium–air battery. J. Phys. Chem. C 2010, 114, 9178–9186. [Google Scholar]
  15. Armand, M.; Endres, F.; MacFarlane, D.R.; Ohno, H.; Scrosati, B. Ionic-liquid materials for the electrochemical challenges of the future. Nat. Mater 2009, 8, 621–629. [Google Scholar]
  16. Kuboki, T.; Okuyama, T.; Ohsaki, T.; Takami, N. Lithium-air batteries using hydrophobic room temperature ionic liquid electrolyte. J. Power Sources 2005, 146, 766–769. [Google Scholar]
  17. Zhang, T.; Zhou, H. From Li–O2 to Li–air batteries: Carbon nanotubes/ionic liquid gels with a tricontinuous passage of electrons, ions, and oxygen. Angew. Chem 2012, 51, 11062–11067. [Google Scholar]
  18. Cai, K.; Jiang, H.; Pu, W. Comparative investigation of organic solution and ionic liquid as electrolyte under lithium–air battery. Int. J. Electrochem. Sci 2014, 9, 390–397. [Google Scholar]
  19. Nakamoto, H.; Suzuki, Y.; Shiotsuki, T. Ether-functionalized ionic liquid electrolytes for lithium–air batteries. J. Power Sources 2013, 243, 19–23. [Google Scholar]
  20. Higashi, S.; Kato, Y.; Takechi, K. Evaluation and analysis of Li–air battery using ether-functionalized ionic liquid. J. Power Sources 2013, 240, 14–17. [Google Scholar]
  21. Guo, X.; Zhao, N. The role of charge reactions in cyclability of lithium–oxygen batteries. Adv. Energy Mater 2013, 3, 1413–1416. [Google Scholar]
  22. MacFarlane, D.R.; Meakin, P.; Sun, J.; Amini, N.; Forsyth, M. Pyrrolidinium imides: A new family of molten salts and conductive plastic crystal phases. J. Phys. Chem. B 1999, 103, 4164–4170. [Google Scholar]
  23. Ishikawa, M.; Sugimoto, T.; Kikuta, M.; Ishiko, E.; Kono, M. Pure ionic liquid electrolytes compatible with a graphitized carbon negative electrode in rechargeable lithium–ion batteries. J. Power Sources 2006, 162, 658–662. [Google Scholar]
  24. Zhou, Q.; Henderson, W.A.; Appetecchi, G.B.; Montanino, M.; Passerini, S. Physical and electrochemical properties of N-alkyl-N-methylpyrrolidinium bis(fluorosulfonyl)imide ionic liquids: PY13FSI and PY14FSI. J. Phys. Chem. B 2008, 112, 13577–13580. [Google Scholar]
  25. Paillard, E.; Zhou, Q.; Henderson, W.A.; Appetecchi, G.B.; Montanino, M.; Passerini, S. Electrochemical and physicochemical properties of PY14FSI-Based electrolytes with LiFSI. J. Electrochem. Soc 2009, 156, A891–A895. [Google Scholar]
  26. Li, J.; Jeong, S.; Kloepsch, R.; Winter, M.; Passerini, S. Improved electrochemical performance of LiMO2 (M = Mn, Ni, Co)–Li2MnO3 cathode materials in ionic liquid-based electrolyte. J. Power Sources 2013, 239, 490–495. [Google Scholar]
  27. Monaco, S.; Arangio, A.M.; Soavi, F.; Mastragostino, M.; Paillard, E.; Passerini, S. An electrochemical study of oxygen reduction in pyrrolidinium-based ionic liquids for lithium/oxygen batteries. Electrochim. Acta 2012, 83, 94–104. [Google Scholar]
  28. Randström, S.; Montanino, M.; Appetecchi, G.B.; Lagergren, C.; Moreno, A.; Passerini, S. Effect of water and oxygen traces on the cathodic stability of N-alkyl-N-methylpyrrolidinium bis(trifluoromethanesulfonyl)imide. Electrochim. Acta 2008, 53, 6397–6401. [Google Scholar]
  29. Kim, G.; Appetecchi, G.B.; Montanino, M. Long-term cyclability of lithium metal electrodes in ionic liquid-based electrolytes at room temperature. ECS Trans 2010, 25, 127–138. [Google Scholar]
  30. Kim, G.T.; Appetecchi, G.B.; Alessandrini, F.; Passerini, S. Solvent-free, PYR1ATFSI ionic liquid-based ternary polymer electrolyte systems. J. Power Sources 2007, 171, 861–869. [Google Scholar]
  31. Kim, G.; Appetecchi, G.B.; Carewska, M.; Joost, M.; Balducci, A.; Winter, M.; Passerini, S. UV cross-linked, lithium-conducting ternary polymer electrolytes containing ionic liquids. J. Power Sources 2010, 195, 6130–6137. [Google Scholar]
  32. Appetecchi, G.B.; Kim, G.T.; Montanino, M.; Alessandrini, F.; Passerini, S. Room temperature lithium polymer batteries based on ionic liquids. J. Power Sources 2011, 196, 6703–6709. [Google Scholar]
  33. Best, A.S.; Bhatt, A.I.; Hollenkamp, A.F. Ionic liquids with the bis(fluorosulfonyl)imide anion: Electrochemical properties and applications in battery technology. J. Electrochem. Soc 2010, 157, A903–A911. [Google Scholar]
  34. Sakaebe, H.; Matsumoto, H. N-Methyl-N-propylpiperidinium bis(trifluoromethanesulfonyl)imide (PP13TFSI)—Novel electrolyte base for Li battery. Electrochem. Commun 2003, 5, 594–598. [Google Scholar]
  35. Howlett, P.C.; Macfarlane, D.R.; Hollenkamp, A.F. High lithium metal cycling efficiency in a room-temperature ionic liquid. Electrochem. Solid State Lett 2004, 7, A97–A101. [Google Scholar]
  36. Peled, E. The electrochemical behavior of alkali and alkaline earth metals in nonaqueous battery systems—The solid electrolyte interphase model. J. Electrochem. Soc 1979, 126, 2047–2051. [Google Scholar]
  37. Basile, A.; Hollenkamp, A.F.; Bhatt, A.I.; O’Mullane, A.P. Extensive charge-discharge cycling of lithium metal electrodes achieved using ionic liquid electrolytes. Electrochem. Commun 2012, 27, 69–72. [Google Scholar]
  38. Wibowo, R. Ionic liquid N-Butyl-N-methylpyrrolidinium bis(trifluoromethylsulfonyl)imide in the temperature range 298–318K: A theoretical and experimental study using Pt. J. Phys. Chem. B 2009, 113, 12293–12298. [Google Scholar]
  39. Paillard, E.; Grande, L.; Koch, S.; von Zamory, J.; Ochel, A.; Passerini, S. Investigation of the lithium/ionic liquid-based electrolyte interface for Li metal batteries. Proceedings of 64th Annual Meeting of the ISE, Queretaro, Mexico, 8–13 September 2013.
  40. Kim, S.P.; van Duin, A.C.T.; Shenoy, V.B. Effect of electrolytes on the structure and evolution of the solid electrolyte interphase (SEI) in Li–ion batteries: A molecular dynamics study. J. Power Sources 2011, 196, 8590–8597. [Google Scholar]
  41. Appetecchi, G.B.; Kim, G.T.; Montanino, M.; Carewska, M.; Marcilla, R.; Mecerreyes, D.; de Meatza, I. Ternary polymer electrolytes containing pyrrolidinium-based polymeric ionic liquids for lithium batteries. J. Power Sources 2010, 195, 3668–3675. [Google Scholar]
  42. Zheng, J.; Gu, M.; Chen, H.; Meduri, P.; Engelhard, M.H.; Zhang, J.G.; Liu, J.; Xiao, J. Ionic liquid-enhanced solid state electrolyte interface (SEI) for lithium–sulfur batteries. J. Mater. Chem. A 2013, 1, 8464–8470. [Google Scholar]
  43. Paillard, E.; Iojoiu, C.; Alloin, F.; Guindet, J.; Sanchez, J. Poly(oxyethylene) electrolytes based on lithium pentafluorobenzene sulfonate. Electrochim. Acta 2007, 52, 3758–3765. [Google Scholar]
  44. Howlett, P.C.; Brack, N.; Hollenkamp, A.F.; Forsyth, M.; MacFarlane, D.R. Characterization of the lithium surface in N-Methyl-N-alkylpyrrolidinium bis(trifluoromethanesulfonyl)amide room-temperature ionic liquid electrolytes. J. Electrochem. Soc 2006, 153, A595–A606. [Google Scholar]
  45. Markevich, E.; Sharabi, R.; Borgel, V.; Gottlieb, H.; Salitra, G.; Aurbach, D.; Semrau, G.; Schmidt, M.A. In situ FTIR study of the decomposition of N-butyl-N-methylpyrrolidinium bis(trifluoromethanesulfonyl)amide ionic liquid during cathodic polarization of lithium and graphite electrodes. Electrochim. Acta 2010, 55, 2687–2696. [Google Scholar]
  46. Appetecchi, G.B.; Scaccia, S.; Tizzani, C.; Alessandrini, F.; Passerini, S. Synthesis of hydrophobic ionic liquids for electrochemical applications. J. Electrochem. Soc 2006, 153, A1685–A1691. [Google Scholar]
  47. Herstedt, M.; Abraham, D.; Kerr, J.; Edström, K. X-ray photoelectron spectroscopy of negative electrodes from high-power lithium–ion cells showing various levels of power fade. Electrochim. Acta 2004, 49, 5097–5110. [Google Scholar]
  48. Sloop, S.E.; Kerr, J.B.; Kinoshita, K. The role of Li–ion battery electrolyte reactivity in performance decline and self-discharge. J. Power Sources 2003, 119–121, 330–337. [Google Scholar]
  49. Bard, A.J.; Faulkner, L.R. Electrochemical Methods: Fundamentals and Applications, 2nd ed; Wiley: New York, NY, USA, 2002. [Google Scholar]
  50. Rosso, M.; Gobron, T.; Brissot, C.; Chazalviel, J.N.; Lascaud, S. Onset of dendritic growth in lithium/polymer cells. J. Power Sources 2001, 97–98, 804–806. [Google Scholar]
  51. Peled, E.; Golodnitsky, D.; Ardel, G.; Eshkenazy, V. The SEI model—Application to lithium–polymer electrolyte batteries. Electrochim. Acta 1995, 40, 2197–2204. [Google Scholar]
  52. Kirchhöfer, M.; von Zamory, J.; Paillard, E.; Passerini, S. Separators for Li–ion and Li–metal battery including ionic liquid based electrolytes based on the TFSI- and FSI- anions. Int. J. Mol. Sci 2014. in preparation. [Google Scholar]

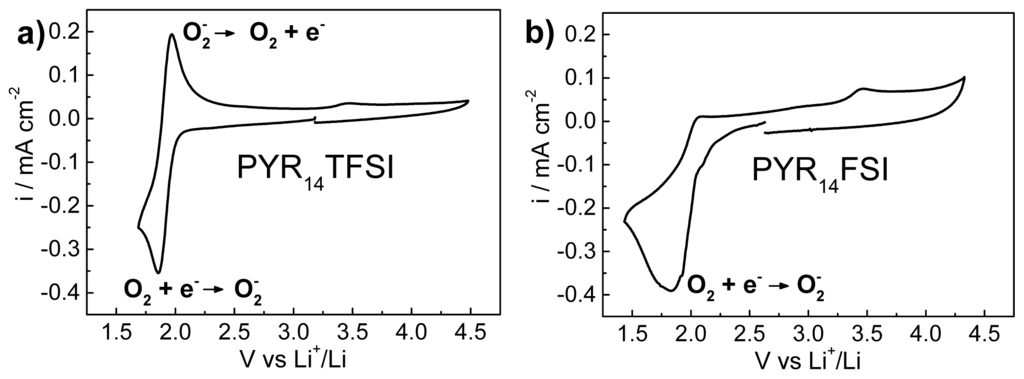

Figure 1. Voltamperogram at 20 mV s−1 of (a) N-butyl-N-methylpyrrolidinium bis(trifluoromethanesulfonyl)imide (Pyr14TFSI) and (b) Pyr14FSI; Working electrode: Glassy carbon; Counter electrode: Pt wire; Reference electrode: Ag+/Ag.
Figure 1. Voltamperogram at 20 mV s−1 of (a) N-butyl-N-methylpyrrolidinium bis(trifluoromethanesulfonyl)imide (Pyr14TFSI) and (b) Pyr14FSI; Working electrode: Glassy carbon; Counter electrode: Pt wire; Reference electrode: Ag+/Ag.
Ijms 15 08122f1

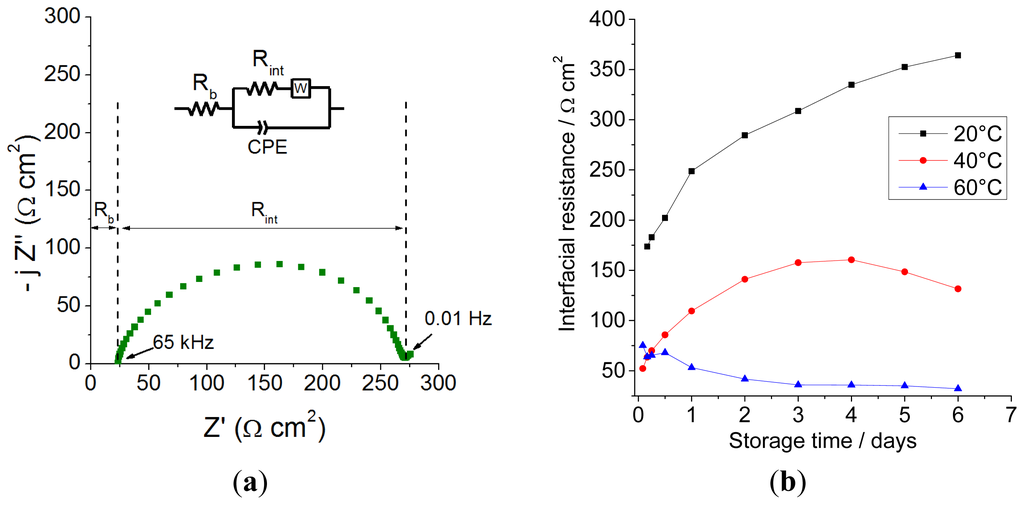

Figure 2. (a) Sample Nyquist plot of a Li/0.1 LiTFSI-0.9 Pyr14TFSI/Li cell at 20 °C; (b) evolution of the interfacial resistance of the cells at 20, 40 and 60 °C.
Figure 2. (a) Sample Nyquist plot of a Li/0.1 LiTFSI-0.9 Pyr14TFSI/Li cell at 20 °C; (b) evolution of the interfacial resistance of the cells at 20, 40 and 60 °C.
Ijms 15 08122f2

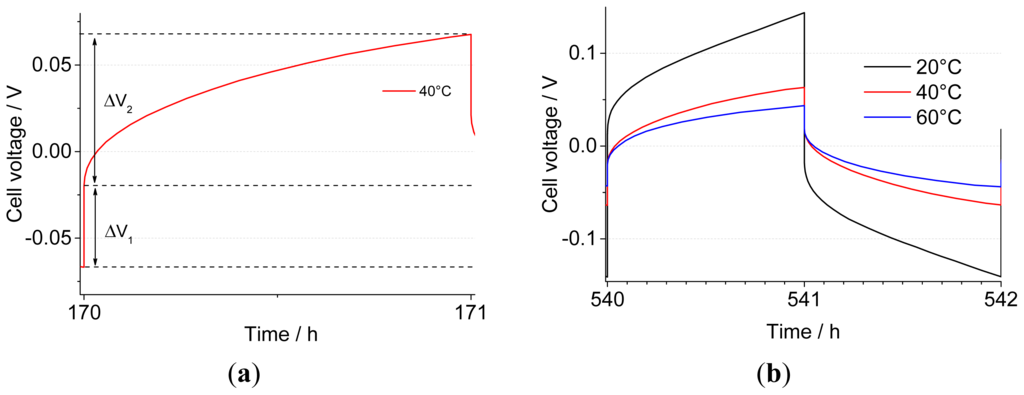

Figure 3. (a) Illustration of the quantities, ΔV1 and ΔV2, in a sample voltage profile; (b) comparison of the voltage profiles for cells thermally conditioned for 168 h (one week) at different temperatures, as indicated on the graph.
Figure 3. (a) Illustration of the quantities, ΔV1 and ΔV2, in a sample voltage profile; (b) comparison of the voltage profiles for cells thermally conditioned for 168 h (one week) at different temperatures, as indicated on the graph.
Ijms 15 08122f3

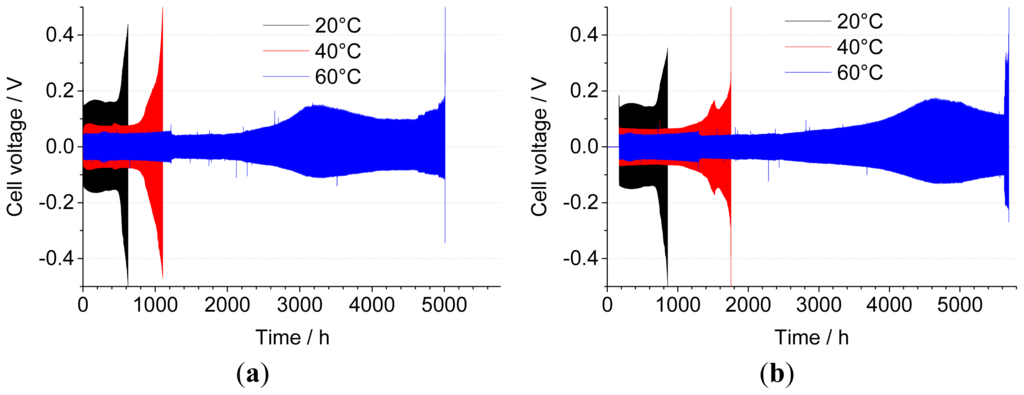

Figure 4. Galvanostatic cycling of Li/0.1 LiTFSI-0.9 Pyr14TFSI/Li cells at 0.1 mA·cm−2 at 20, 40 and 60 °C. (a) Without thermal conditioning; (b) including one week of thermal conditioning at open circuit voltage and cycling temperature. Separator: Whatman GF-F.
Figure 4. Galvanostatic cycling of Li/0.1 LiTFSI-0.9 Pyr14TFSI/Li cells at 0.1 mA·cm−2 at 20, 40 and 60 °C. (a) Without thermal conditioning; (b) including one week of thermal conditioning at open circuit voltage and cycling temperature. Separator: Whatman GF-F.
Ijms 15 08122f4

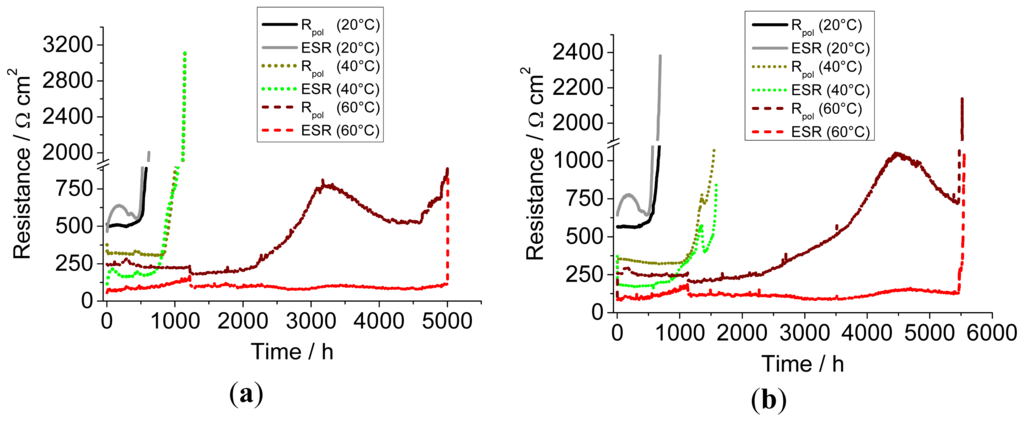

Figure 5. Evolution of Rpol and equivalent series resistance (ESR) with cycling time for the set of (a) fresh cells and (b) thermally conditioned cells.
Figure 5. Evolution of Rpol and equivalent series resistance (ESR) with cycling time for the set of (a) fresh cells and (b) thermally conditioned cells.
Ijms 15 08122f5

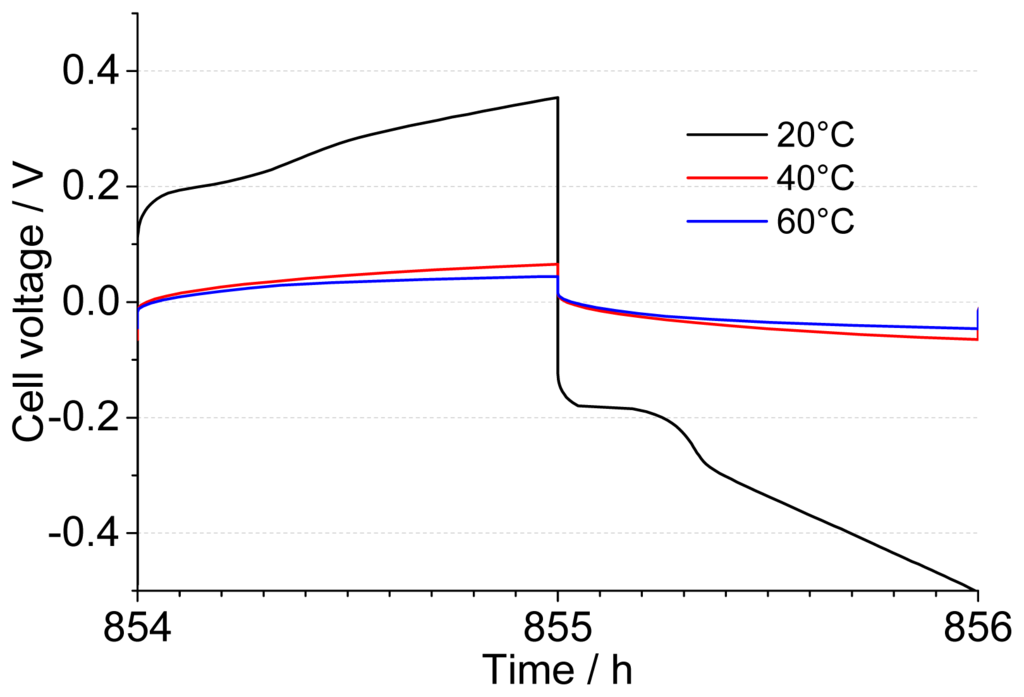

Figure 6. Voltage profile of Li/0.9 Pyr14TFSI-0.1 LiTFSI/Li fresh cells subjected to galvanostatic cycling at temperatures as indicated on the graph.
Figure 6. Voltage profile of Li/0.9 Pyr14TFSI-0.1 LiTFSI/Li fresh cells subjected to galvanostatic cycling at temperatures as indicated on the graph.
Ijms 15 08122f6

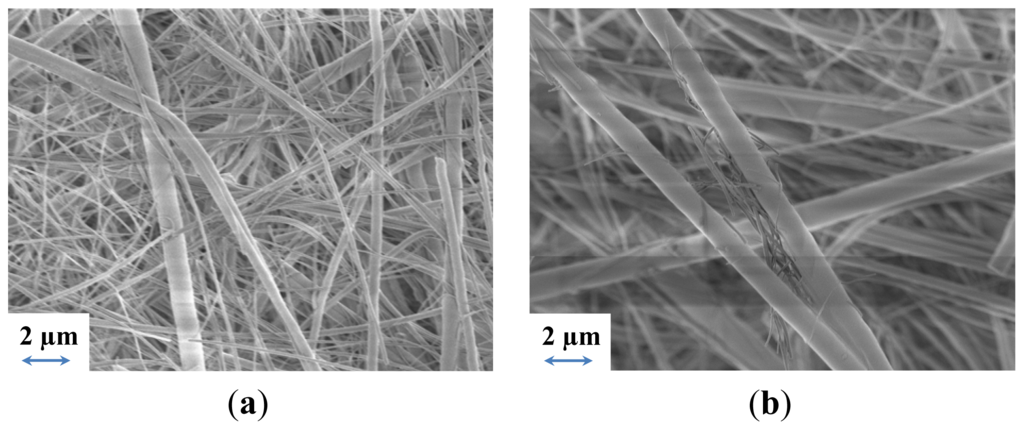

Figure 7. SEM micrographs of (a) Whatman GF-F and (b) GF-C separators.
Figure 7. SEM micrographs of (a) Whatman GF-F and (b) GF-C separators.
Ijms 15 08122f7

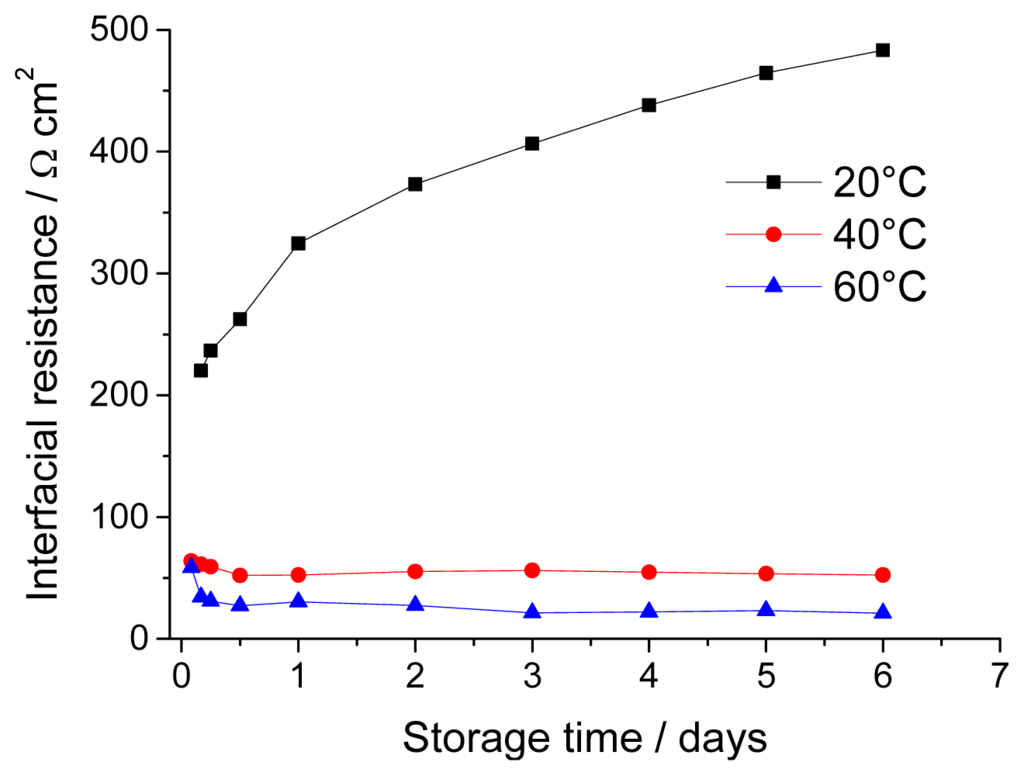

Figure 8. Evolution of the interfacial resistance of the cells at 20, 40 and 60 °C. Separator: Whatman GF-C.
Figure 8. Evolution of the interfacial resistance of the cells at 20, 40 and 60 °C. Separator: Whatman GF-C.
Ijms 15 08122f8

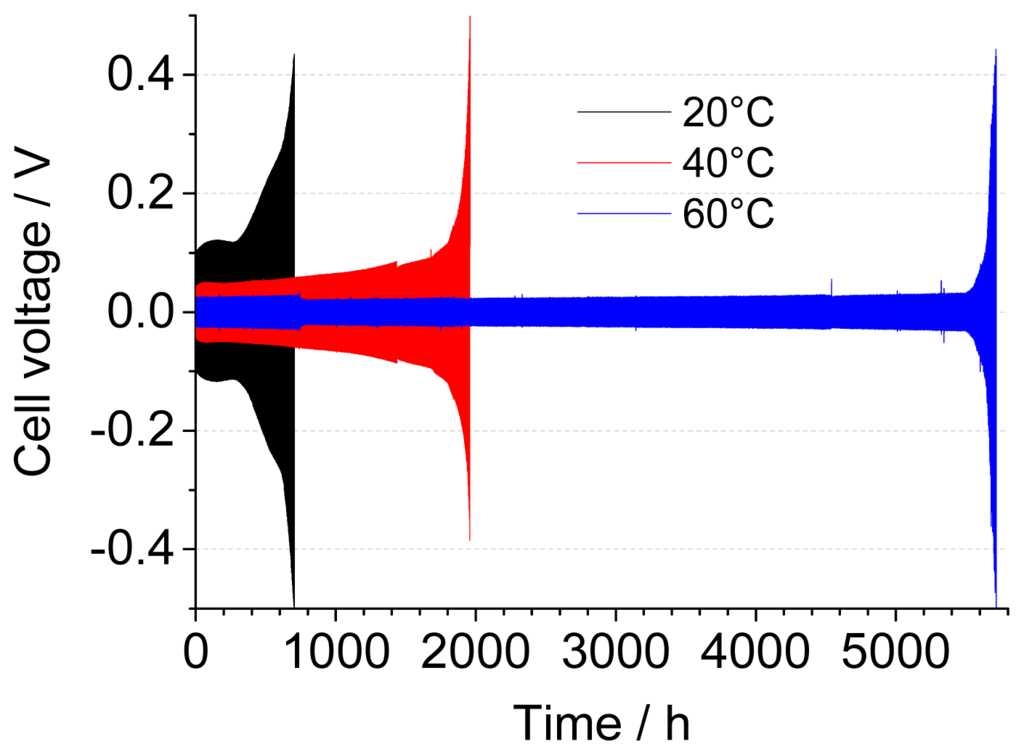

Figure 9. Galvanostatic cycling of “fresh” Li/0.1 LiTFSI-0.9-Pyr14TFSI/Li cells at 0.1 mA·cm−2 at 20, 40 and 60 °C. Separator: Whatman GF-C.
Figure 9. Galvanostatic cycling of “fresh” Li/0.1 LiTFSI-0.9-Pyr14TFSI/Li cells at 0.1 mA·cm−2 at 20, 40 and 60 °C. Separator: Whatman GF-C.
Ijms 15 08122f9
Table 1. Number of cycles before cut-off voltage is reached and corresponding efficiencies (Eff2), according to Equation (3) (Qp = 10 mAh cm−2, Qc = 0.1 mAh cm−2), for two sets of Li/0.9 Pyr14TFSI-0.1 LiTFSI/Li cells.
Table 1. Number of cycles before cut-off voltage is reached and corresponding efficiencies (Eff2), according to Equation (3) (Qp = 10 mAh cm−2, Qc = 0.1 mAh cm−2), for two sets of Li/0.9 Pyr14TFSI-0.1 LiTFSI/Li cells.
20 °C40 °C60 °C



CyclesEff2CyclesEff2CyclesEff2
GF-F Fresh (12 h)30867.5%54981.8%250396.0%
GF-F Conditioned (168 h)344 (+11.8%)70.9% (+3.4%)793 (+44%)87.4% (+5.6%)2897 (+15%)96.5% (+0.5%)
Table 2. Number of cycles before the cut-off voltage is reached and corresponding efficiencies, according to Equation (3) (Qp = 10 mAh·cm−2, Qc = 0.1 mAh·cm−2), for a set of Li/0.9 Pyr14TFSI-0.1 LiTFSI/Li cell including a GF-C separator.
Table 2. Number of cycles before the cut-off voltage is reached and corresponding efficiencies, according to Equation (3) (Qp = 10 mAh·cm−2, Qc = 0.1 mAh·cm−2), for a set of Li/0.9 Pyr14TFSI-0.1 LiTFSI/Li cell including a GF-C separator.
20 °C40 °C60 °C



CyclesEff2CyclesEff2CyclesEff2
GF-C Fresh (12 h)351 (+14%)71.5% (+4%)980 (+78%)89.8% (+8%)2858 (+14%)96.5% (+0.5%)
