Int. J. Mol. Sci. 2014, 15(5), 7579-7593; doi:10.3390/ijms15057579

Article
Synthesis and Thermotropic Studies of Two Novel Series of Kinked Liquid Crystals: 2-(4′-Alkoxybiphen-4-yl)-6-methylquinolines and 2-(6-Alkoxynaphthalen-2-yl)-6-methylquinolines
Win-Long Chia *, Ker-Non Kuo and Shao-Hsun Lin
Department of Chemistry, Fu Jen Catholic University, New Taipei City 24205, Taiwan; E-Mails: sltjc0@gmail.com (K.-N.K.); brian730407@hotmail.com (S.-H.L.)
*
Author to whom correspondence should be addressed; E-Mail: 027087@mail.fju.edu.tw; Tel.: +886-229-053-567; Fax: +886-229-023-209.
Received: 11 March 2014; in revised form: 15 April 2014 / Accepted: 22 April 2014 /
Published: 2 May 2014

Abstract

: Two novel homologous series of kinked (Z-shaped) liquid crystalline compounds were synthesized using a short two-step reaction. Yields of 30%–40% and 51%–57% were obtained for 2-(4′-alkoxybiphen-4-yl)-6-methylquinolines (nO-PPQMe, n = 3–8) and 2-(6-alkoxynaphthalen-2-yl)-6-methylquinolines (iO-NpQMe, i = 3–7), respectively. Spectral analyses agreed with the expected structures. The thermotropic behaviors of these compounds were investigated using polarized optical microscopy and differential scanning calorimetry. An enantiotropic nematic phase appeared to be the main mesophase in these two series of kinked liquid crystalline compounds, and an additional enantiotropic smectic C phase appeared when n = 8.
Keywords:
liquid crystals; kinked structure; methylquinoline terminus; mesomorphic behavior

1. Introduction

Although liquid crystal displays (LCDs) are ubiquitous in our daily life, the research of LCs is continuing to develop into many new scientific frontiers [13]. In the field of liquid crystals (LC), molecular structure is crucial for attaining the mesomorphic state. In the early twentieth century, Daniel Volander, a synthetic chemist, proposed that the crystalline-liquid (mesomorphic) state occurs when a molecular structure is as linear as possible [4]. Thus, liquid-crystal molecular structures are typically designed and constructed based on the principle that the shape anisotropy of a mesogen is rod-like. However, many aspects of the relationship between molecular structure and physical properties remain unknown, and the factors of a molecular structure favoring the formation of a nematic phase must be determined. Thus, the aim of this article is to illustrate one of the features in the molecular structure-property relationship of a nematic phase.

Because of the difficult synthesis of quinoline-containing liquid crystalline compounds, detailed comparisons of the trends in their homolog series have rarely been investigated. Quinoline-containing liquid crystalline compounds are typically synthesized using a cyclization reaction, such as the reaction of suitable substituted anilines and benzaldehydes with pyruvic acid, followed by decarboxylation of the corresponding carboxylic acids [5]. Other compounds are prepared by heating aniline with glycerin, 1,2-glycols, or unsaturated aldehydes, using the Skraup procedure or Doebner-Von Miller variation [611]. Another study reported the bisformylation of acetanilides, followed by cyclization with polyphosphoric acid, and subsequent conversion into chloroquinoline aldehydes, which are used as intermediates to further synthesize quinoline-containing liquid crystalline compounds [1214]. Although these methods are extremely valuable for constructing crucial quinoline systems, most have a limited scope, involve numerous synthesis steps, and produce low yields. However, several recent patents have generated optical-switching elements with a high-speed response using quinoline-containing liquid crystalline compounds [1517]. These reasons prompted us to seek a new method for synthesizing liquid crystalline compounds.

Previously, we reported a novel method for synthesizing quinoline-containing liquid crystalline compounds [1820]. This paper reports the syntheses and thermotropic behaviors of two homologous series of 2-(4′-alkoxybiphen-4-yl)-6-methylquinolines (nO-PPQMe), in which n varies from 3–8 (propyl to octyl), and 2-(6-alkoxynaphthalen-2-yl)-6-methylquinolines (iO-NpQMe), in which i varies from 3–7 (propyl to heptyl). The liquid crystalline molecules designed in this study contained a linear mesogenic core with either one kink consisting of a quinoline moiety (as in nO-PPQMe) or two kinks consisting of naphthalene and quinoline moieties (as in iO-NpQMe).

2. Results and Discussion

2.1. Synthesis

Two homologous series of quinoline-containing liquid crystalline compounds, 2-(4′-alkoxy biphen-4-yl)-6-methylquinolines (nO-PPQMe, n = 3–8) and 2-(6-alkoxynaphthalen-2-yl)-6- methylquinolines (iO-NpQMe, i = 3–7), were obtained first through the regioselective addition of Grignard reagents to activated 1-acylquinolinium salts to preferentially form 1,2-dihydroquinolines, which were then aromatized through a mild oxidation reaction (Scheme 1).

Grignard reagents of 1 were prepared by reacting magnesium with appropriate 4′-alkoxy-4- bromobiphenylenes, which were obtained by reacting 4′-hydroxy-4-bromobiphenyl with the appropriate bromoalkanes. The reaction between 6-methylquinoline and phenyl chloroformate produced 6-methylquinolinium chlorides 2. The reaction between Grignard 1 and 2 generated the expected 1,2-dihydroquinoline adduct 3. Adducts 3 were then oxidized through treatment with o-chloranil to produce the desired 2-(4′-alkoxybiphen-4-yl)-6-methylquinolines 4 (nO-PPQMe, n = 3–8).

The proposed synthetic methodology favored Grignard α-regioselectivity at the quinoline ring. Because of the high polarity difference between the major α and minor γ products, trace amounts of γ products were easily separated using liquid chromatography with a methylene chloride: hexane eluant system at a 3:1 ratio. The yields of this two-step reaction ranged from 30% to 40%.

A similar procedure to that used for synthesizing nO-PPPQMe (n = 3–8) was used to generate iO-NpQMe (i = 3–7), using appropriate starting materials. Satisfactory yields (51%–57%) of 2-(6-alkoxynaphthalen-2-yl)-6-methylquinolines (iO-NpQMe, i = 3–7) were obtained. Highly pure products of nO-PPPQMe (n = 3–8) and iO-NpQMe (i = 3–7) were collected by recrystallizing them several times from toluene and ethyl acetate, respectively (Table 1).

2.2. Thermotropic Studies

The phase transition temperatures and associated enthalpy changes of the nO-PPQMe and iO-NpQMe compounds were determined using differential scanning calorimetry (DSC). The heating and cooling rates were set to 5 °C·min−1. The corresponding mesophases of the nO-PPQMe and iO-NpQMe compounds were identified by observing their textures using polarized optical microscopy (POM) as shown in Table 2.

All nO-PPQMe (n = 3–8) compounds exhibited an enantiotropic nematic phase. The longest alkoxy homolog (8O-PPQMe) exhibited an additional enantiotropic smectic C phase. The enantiotropic nematic phase appeared at a high temperature range of 188.7–311 °C. Because of the symmetry and poly-aromatic nature of nO-PPQMe, low solubility of these compounds in chloroform prohibited us from obtaining their 13C-NMR spectra. The nematic phase ranges of the nO-PPQMe (n = 3–8) compounds were wide. The widest nematic range was 107.5 °C of 3O-PPQMe during cooling. The nematic-to-isotropic transition temperature (TNI) of 3O-PPQMe extended even above its decomposition temperature, indicating that the series of nO-PPQMe compounds had high thermal stability.

A representative DSC thermogram of 8O-PPQMe is displayed in Figure 1. During the first cooling process, three exothermic peaks were observed at 261.6, 188.7, and 176.2 °C, whereas two endothermic peaks were observed at 190.2 and 263.1 °C during the second heating process. This phase transition behavior was also observed during the second cooling and third heating processes. During heating of 8O-PPQMe, a smectic C phase was observed within a narrow temperature range (less than 1 °C), using POM. The smectic C-to-nematic phase transition temperature (190.9 °C) was determined through a linear interpolation of the data from DSC and POM. Figure 2a,b display the nematic Schlieren texture and the smectic C phase of 8O-PPQMe, respectively.

Figure 3 displays the plot of transition temperatures of the heating and cooling cycle versus the number of carbon atoms in the terminal alkoxy chain of the nO-PPQMe homologs. The nematic-to-isotropic transition temperature (TNI) declined monotonically from 311 °C (estimated from POM) to 263.1 °C as the chain lengthened. If a line connects those of TNI values, the line from those chains with an even number carbons were found only slightly higher than the line from odd number of carbons [21]. With increasing alkoxy chain length, a progressive decrease in the anisotropies of molecular polarizability was observed. The observed damping in the decrease of TNI can be accounted for by the statistical increase in the numbers of possible non-extended conformations.

The wide nematic phase ranges observed during heating (71.9–100.4 °C) and cooling (72.9–107.5 °C) were associated with the high aspect ratio of the mesogenic core in the series of nO-PPQMe compounds. In nO-PPQMe compounds with one kink (quinoline) in the mesogenic core, the nematic phase was mainly the mesophase. Polymesomorphism did not appear in the nO-PPQMe series, except for a smectic C phase appearing in 8O-PPQMe. The asymmetrical, kinked, linear core structure also affected the melting and freezing processes. Thus, the melting and freezing transition temperatures occurred in a narrow range of 190.2–210.6 and 176.2–191.5 °C, respectively, and decreased slightly (within these temperature ranges) as the chain lengthened. Apparently, the kinked 6-methylquinoline terminus in nO-PPQMe compounds not only maintained the appearance of a nematic phase, but also affected the melting and freezing processes [22].

Figure 4 displays the plot of transition temperatures of the heating and cooling cycle versus the number of carbon atoms in the terminal alkoxy chain of the iO-NpQMe (i = 3–7) homologs. With two kinks (naphthalene, quinoline) along the molecular long axis, all iO-NpQMe (i = 3–7) compounds exhibited an enantiotropic nematic phase, and the enantiotropic nematic phase appeared at the medium–high temperature range of 140.2–192.2 °C.

By contrast to those of nO-PPQMe (n = 3–8) compounds, the nematic phase ranges of the iO-NpQMe (i = 3–7) compounds were considerably narrow, being 13.7–24.1 °C during heating and 29.7–44.6 °C during cooling. Although the cores of the iO-NpQMe compounds were only slightly shorter than those of the nO-PPQMe compounds, the cores of the iO-NpQMe compounds were wider than those of the nO-PPQMe compounds. The two kinks in the iO-NpQMe compounds were assumed to align in a transconformation in the nematic phase. Both adverse factors contributed to the aspect ratio of the iO-NpQMe compounds, and resulted in rounded molecules. Thus, the nematic phase ranges of the iO-NpQMe compounds were much narrower than those of the nO-PPQMe compounds.

The odd-even effect of the TNI(TIN) values was observed at the beginning of the iO-NpQMe series, in which i = 3, 4, 5 exhibited TNI(TIN) values 192.1 (191.4), 195.6 (194.9), and 182.3 (181.5) °C, respectively. By contrast, the TNI(TIN) values decreased as the chain lengthened when i > 5, in which i = 6, 7 are 182.0 (181.1), 174.0 (173.2) °C, respectively (see Table 2). The two-kinked core structures of the iO-NpQMe compounds also affected their melting and freezing processes. Thus, the melting and freezing transition temperatures occurred in a narrow range of 157.6–178.4 and 140.2–161.7 °C, respectively, and decreased monotonically (within these temperature ranges) as the chain lengthened.

Figure 5 displays the plot of the transition temperatures of the heating and cooling cycle versus the number of carbon atoms in the terminal alkoxy chain of the mO-PQMe (m = 3–7) homologs [18]. With one kink (quinoline) present in the mO-PQMe mesogenic core, the nematic phase was still the sole mesophase. However, when the mO-PQMe compounds contained one phenyl group less than the nO-PPQMe and iO-NpQMe compounds did, the aspect ratios of their cores became too short to exhibit mesogenicity.

No mesophase was observed when m = 3, a monotropic nematic phase was observed when m = 4, 5, and an enantiotropic nematic phase was observed when m = 6, 7. Apparently, a stable nematic mesophase appeared gradually as the alkoxy chain lengthened. In other words, lengthening the alkoxy chain length of the mO-PQMe compounds not only enhanced their molecular aspect ratio, but also reduced their molecular melting point, thus revealing their mesogenic nature. Furthermore, the nematic phase of the series of mO-PQMe compounds appeared when the temperature dropped to the medium-low range of 80–110 °C. In addition, the nematic phase ranges of the mO-PQMe (m = 3–7) compounds were considerably narrow, and exhibited values of 3.3 and 2.0 °C, for m = 6, 7 during heating, and 12.4, 11.5, 19.1, and 19.3 °C, for m = 4, 5, 6, 7 during cooling, respectively.

The odd-even effect of the TNI(TIN) values can be clearly identified in the series of mO-PQMe compounds with a short mesogenic core (thus, low aspect ratio), in which the TNI(TIN) values for m = 4, 5, 6, 7 were – (113.7), – (102.5), 109.3 (108.7), and 104.9 (104.6) °C, respectively. The melting and freezing transition temperatures were observed occurring in a narrow range of 102.9–126.2 and 85.3–111.0 °C, respectively, and decreased (within this temperature range) as the chain lengthened.

3. Experimental Section

3.1. General

The chemical structures of the compounds were analyzed by 1H- and 13C-NMR spectra using a Bruker AC 300 spectrometer (Bruker Corporation, Billerica, MA, USA). Infrared (IR) spectra were carried out on a Perkin-Elmer 1600 Series spectrometer (Perkin-Elmer, Norwalk, CT, USA). The purity of the compounds was checked by thin-layer chromatography and further confirmed by elemental analysis.

Mesophases were chiefly identified by examination of the microscopic texture of samples sandwiched between two glass plates under a polarising optical microscope (POM; Olympus BH-2, Two Corporate Center Drive, Melville, NY, USA) equipped with a Mettler FP90/FP82HT hot stage (Mettler, Columbus, OH, USA). Phase transition temperatures and their corresponding transition enthalpies were determined by differential scanning calorimetry (DSC) using a Perkin-Elmer DSC 7 calorimeter at a scanning rate of 5 °C·min−1 (Perkin-Elmer, Norwalk, CT, USA). The program consists of first heating and followed by repeated cooling and heating cycles. Data from the repeated cycles were found to be identical to those of the first cooling and second heating. Therefore, only those data from the first cooling and second heating cycles are reported.

3.2. Synthesis

The starting material compounds, 6-methylquinoline, 6-bromo-2-naphthalenol and 4-bromo-4′-hydroxybiphenyl were purchased from Aldrich Chemical Co. (St. Louis, MO, USA) and used as-received. Phenyl chloroformate and n-bromoalkanes were distilled under an inert nitrogen atmosphere immediately before use. Anhydrous organic solvents, toluene and tetrahydrofuran (THF), were first heated at reflux over sodium and then distilled under nitrogen before use. Column chromatography was carried out with silica gel (MN Kieselgel 60, 70–230 mesh; Duren, Germany). The purity of the compounds was checked by thin-layer chromatography and further confirmed by elemental analysis.

3.2.1. Syntheses of 2-(4′-Alkoxybiphen-4-yl)-6-methylquinolines (nO-PPQMe, n = 3–8)

The synthesis of 2-(4′-alkoxybiphen-4-yl)-6-methylquinolines was carried out according to the synthetic methods outlined in Scheme 1. The entire synthetic procedures were completed in a short two-step process with overall yields in the range of 30%–40% (Table 1). For 3O-PPQMe in 3: To a (Grignard) solution of 4-bromo-4′-ethoxybiphenyl (10 mmol) in THF (20 mL) was added freshly dried magnesium granules (11 mmol) under an inert nitrogen atmosphere. The Grignard solution 1 was then slowly added by syringe into a preformed solution of 6-methylquinolinium chloride 2, which was prepared from phenyl chloroformate (10 mmol) and 3-methylquinoline (10 mmol) in dry THF (20 mL) under −20 °C for 30 min. The resulting solution was heated slowly to room temperature and stirred for another 8 h. After evaporating the THF, the residue was extracted with Et2O. The organic layer was further washed once with 20% NH4Cl solution and twice with distilled water and brine and dried with magnesium sulfate. For 3O-PPQMe in 4: To a solution of dry toluene (20 mL) and compound 3 (10 mmol) was added about 1.5 eq. o-chloranil. The reaction mixture was heated to reflux for about 3 h under inert nitrogen atmosphere and then quenched by adding 1 N NaOH (25 mL) and Et2O (25 mL) and filtered through Celite (Duren, Germany). Normal aqueous work-up and isolation with column chromatography (methylene chloride:hexane = 3:1) affords an overall two-step reaction yield of 2-(4-propoxybiphen-4-yl)-6-methylquinoline 4 (3O-PPQMe) (37%). The crude product of 3O-PPQMe was further purified by re-crystallization several times from a mixed solvent of methylene chloride and ethyl acetate. The other nO-PPQMe homologues were synthesized essentially by the same procedure as described above for the n = 3 homologue. All compounds gave satisfactory 1H-NMR, IR and elemental analysis as illustrated below. 13C-NMR of these linear poly-aromatic nO-PPQMe compounds was not obtained due to their low solubility in CDCl3.

3.2.1.1. 2-(4′-Propoxybiphen-4-yl)-6-methylquinoline (3O-PPQMe)

1H-NMR (CDCl3): δ 8.21 (d, 2H, J = 8.4 Hz, center-benzene), 8.14 (d, 1H, J = 8.7 Hz, quinoline), 8.08 (d, 1H, J = 8.4 Hz, quinoline), 7.88 (d, 1H, J = 8.7 Hz, quinoline), 7.72 (d, 2H, J = 8.4 Hz, center-benzene), 7.55–7.62 (m, 4H, 2 in outer-benzene, 2 in quinoline), 7.00 (d, 2H, J = 9.0 Hz, outer-benzene), 3.99 (t, 2H, J = 6.6 Hz, –OCH2), 2.56 (s, 3H, –CH3), 1.84 (ses, 2H, J = 7.2 Hz, –CH2), 1.07 (t, 3H, J = 7.5 Hz, –CH3). IR (ATR): cm−1 3039 (aromatic C–H stretch), 2964 (aliphatic C–H asymmetric stretch), 2876 (aliphatic C–H symmetric stretch), 1595 (ring stretch), 1491 (ring stretch), 1205 (asymmetric C–O–C stretch), 1069 (symmetric C–O–C stretch), 823 (out-of-plane C–H bend). HRFAB mass obsd m/z 353.1772; mass calcd for C25H23NO 353.4600. Anal. Calcd for C25H23NO: C, 84.95; H, 6.56; N, 3.96. Found: C, 84.52; H, 6.56; N, 3.96.

3.2.1.2. 2-(4′-Butoxybiphen-4-yl)-6-methylquinoline (4O-PPQMe)

1H-NMR (CDCl3): δ 8.21 (d, 2H, J = 8.4 Hz, center-benzene), 8.14 (d, 1H, J = 8.4 Hz, quinoline), 8.06 (d, 1H, J = 8.4 Hz, quinoline), 7.88 (d, 1H, J = 8.7 Hz, quinoline), 7.71 (d, 2H, J = 8.4 Hz, center-benzene), 7.55–7.62 (m, 4H, 2 in outer-benzene, 2 in quinoline), 7.00 (d, 2H, J = 8.7 Hz, outer-benzene), 4.03 (t, 2H, J = 6.6 Hz, –OCH2), 2.56 (s, 3H, –CH3), 1.82 (quin, 2H, J = 6.6 Hz, –CH2), 1.51 (ses, 2H, J = 7.2 Hz, –CH2), 1.00 (t, 3H, J = 7.5 Hz, –CH3). IR (ATR): cm−1 3042 (aromatic C–H stretch), 2957 (aliphatic C–H asymmetric stretch), 2872 (aliphatic C–H symmetric stretch), 1595 (ring stretch), 1492 (ring stretch), 1206 (asymmetric C–O–C stretch), 1040 (symmetric C–O–C stretch), 824 (out-of-plane C–H bend). HRFAB mass obsd m/z 367.1931; mass calcd for C26H25NO 367.4800. Anal. Calcd for C26H25NO: C, 84.98; H, 6.86; N, 3.81. Found: C, 84.82; H, 7.01; N, 3.80.

3.2.1.3. 2-(4′-Pentoxybiphen-4-yl)-6-methylquinoline (5O-PPQMe)

1H-NMR (CDCl3): δ 8.21 (d, 2H, J = 8.1 Hz, center-benzene), 8.14 (d, 1H, J = 8.4 Hz, quinoline), 8.07 (d, 1H, J = 8.4 Hz, quinoline), 7.88 (d, 1H, J = 8.7 Hz, quinoline), 7.72 (d, 2H, J = 8.1 Hz, center-benzene), 7.55–7.62 (m, 4H, 2 in outer-benzene, 2 in quinoline), 7.00 (d, 2H, J = 8.4 Hz, outer-benzene), 4.02 (t, 2H, J = 6.6 Hz, –OCH2), 2.56 (s, 3H, –CH3), 1.83 (quin, 2H, J = 6.9 Hz, –CH2), 1.35–1.53 (m, 4H, –CH2), 0.95 (t, 3H, J = 7.2 Hz, –CH3). IR (ATR): cm−1 3031 (aromatic C–H stretch), 2936 (aliphatic C–H asymmetric stretch), 2866 (aliphatic C–H symmetric stretch), 1596 (ring stretch), 1492 (ring stretch), 1207 (asymmetric C–O–C stretch), 1029 (symmetric C–O–C stretch), 824 (out-of-plane C–H bend). HRFAB mass obsd m/z 381.2088; mass calcd for C27H27NO 381.5100. Anal. Calcd for C27H27NO: C, 85.00; H, 7.13; N, 3.67. Found: C, 84.70; H, 7.21; N, 3.52.

3.2.1.4. 2-(4′-Hexoxybiphen-4-yl)-6-methylquinoline (6O-PPQMe)

1H-NMR (CDCl3): δ 8.25 (d, 2H, J = 8.4 Hz, center-benzene), 8.17 (d, 1H, J = 8.4 Hz, quinoline), 8.03 (d, 1H, J = 8.4 Hz, quinoline), 7.92 (d, 1H, J = 8.7 Hz, quinoline), 7.73 (dd, 2H, J = 8.4 Hz, center-benzene), 7.56–7.66 (m, 4H, 2 in outer-benzene, 2 in quinoline), 7.00 (d, 2H, J = 9.0 Hz, outer-benzene), 4.01 (t, 2H, J = 6.6 Hz, –OCH2), 2.55 (s, 3H, –CH3), 1.81 (quin, 2H, J = 6.9 Hz, –CH2), 1.30–1.56 (m, 6H, –CH2), 0.92 (t, 3H, J = 7.2 Hz, –CH3). IR (ATR): cm−1 3041 (aromatic C–H stretch), 2954 (aliphatic C–H asymmetric stretch), 2865 (aliphatic C–H symmetric stretch), 1595 (ring stretch), 1492 (ring stretch), 1206 (asymmetric C–O–C stretch), 1031 (symmetric C–O–C stretch), 824 (out-of-plane C–H bend). HRFAB mass obsd m/z 395.2252; mass calcd for C28H29NO 395.5400. Anal. Calcd for C28H29NO: C, 85.02; H, 7.39; N, 3.54. Found: C, 85.20; H, 7.57; N, 3.52.

3.2.1.5. 2-(4′-Heptoxybiphen-4-yl)-6-methylquinoline (7O-PPQMe)

1H-NMR (CDCl3): δ 8.21 (d, 2H, J = 8.4 Hz, center-benzene), 8.14 (d, 1H, J = 8.7 Hz, quinoline), 8.07 (d, 1H, J = 8.4 Hz, quinoline), 7.88 (d, 1H, J = 8.7 Hz, quinoline), 7.71 (d, 2H, J = 8.4 Hz, center-benzene), 7.55–7.62 (m, 4H, 2 in outer-benzene, 2 in quinoline), 7.00 (d, 2H, J = 8.7 Hz, outer-benzene), 4.01 (t, 2H, J = 6.6 Hz, –OCH2), 2.56 (s, 3H, –CH3), 1.82 (quin, 2H, J = 6.9 Hz, –CH2), 1.29–1.53 (m, 8H, –CH2), 0.90 (t, 3H, J = 6.9 Hz, –CH3). IR (ATR): cm−1 3041 (aromatic C–H stretch), 2953 (aliphatic C–H asymmetric stretch), 2860 (aliphatic C–H symmetric stretch), 1595 (ring stretch), 1492 (ring stretch), 1207 (asymmetric C–O–C stretch), 1026 (symmetric C–O–C stretch), 824 (out-of-plane C–H bend). HRFAB mass obsd m/z 409.2406; mass calcd for C29H31NO 409.5600. Anal. Calcd for C29H31NO: C, 84.82; H, 7.57; N, 3.41. Found: C, 85.04; H, 7.63; N, 3.42.

3.2.1.6. 2-(4′-Octoxybiphen-4-yl)-6-methylquinoline (8O-PPQMe)

1H-NMR (CDCl3): δ 8.21 (d, 2H, J = 7.8 Hz, center-benzene), 8.14 (d, 1H, J = 8.7 Hz, quinoline), 8.07 (d, 1H, J = 8.4 Hz, quinoline), 7.88 (d, 1H, J = 8.7 Hz, quinoline), 7.72 (d, 2H, J = 8.4 Hz, center-benzene), 7.55–7.62 (m, 4H, 2 in outer-benzene, 2 in quinoline), 7.00 (d, 2H, J = 8.1 Hz, outer-benzene), 4.01 (t, 2H, J = 6.6 Hz, –OCH2), 2.56 (s, 3H, –CH3), 1.82 (quin, 2H, J = 6.9 Hz, –CH2), 1.25–1.53 (m, 10H, –CH2), 0.89 (t, 3H, J = 6.6 Hz, –CH3). IR (ATR): cm−1 3042 (aromatic C–H stretch), 2956 (aliphatic C–H asymmetric stretch), 2854 (aliphatic C–H symmetric stretch), 1596 (ring stretch), 1492 (ring stretch), 1206 (asymmetric C–O–C stretch), 1030 (symmetric C–O–C stretch), 824 (out-of-plane C–H bend). HRFAB mass obsd m/z 423.2569; mass calcd for C30H33NO 423.5900. Anal. Calcd for C30H33NO: C, 85.06; H, 7.85; N, 3.31. Found: C, 84.60; H, 7.94; N, 3.25.

3.2.2. 2-(6-Alkoxynaphthalen-2-yl)-6-methylquinolines (iO-NpQMe, i = 3–7)

3.2.2.1. 2-(6-Propyloxynaphthalen-2-yl)-6-methylquinolines (3O-NpQMe)

1H-NMR (CDCl3): δ 8.53 (d, 1H, J = 1.5 Hz, naphthalene), 8.32 (dd, 1H, J1 = 8.7 Hz, J2 = 1.8 Hz, naphthalene), 8.09–8.14 (m, 2H, quinoline), 7.95 (d, 1H, J = 8.7 Hz, quinoline), 7.84–7.90 (m, 2H, naphthalene), 7.54–7.60 (m, 2H, quinoline), 7.16–7.23 (m, 2H, naphthalene), 4.07 (t, 2H, J = 6.6 Hz, –OCH2), 2.56 (s, 3H, –CH3), 1.89 (ses, 2H, J = 7.2 Hz, –CH2), 1.11 (t, 3H, J = 7.5 Hz, –CH3). 13C-NMR (CDCl3): ppm 157.9, 156.5, 147.0, 136.0, 136.0, 135.2, 134.9, 131.9, 130.3, 129.4, 129.0, 127.3, 127.2, 126.8, 126.4, 125.5, 119.5, 119.0, 106.5, 69.6, 22.6, 21.6, 10.6. IR (KBr): cm−1 3053 (aromatic C–H stretch), 2962 (aliphatic C–H asymmetric stretch), 2876 (aliphatic C–H symmetric stretch), 1593 (ring stretch), 1489 (ring stretch), 1173 (asymmetric C–O–C stretch), 1062 (symmetric C–O–C stretch), 822 (out-of-plane C–H bend). Anal. Calcd for C23H21NO: C, 84.37; H, 6.46; N, 4.28. Found: C, 84.01; H, 6.45; N, 4.16.

3.2.2.2. 2-(6-Butyloxynaphthalen-2-yl)-6-methylquinolines (4O-NpQMe)

1H-NMR (CDCl3): δ 8.53 (s, 1H, naphthalene), 8.31 (dd, 1H, J1 = 8.7 Hz, J2 = 1.8 Hz, naphthalene), 8.08–8.18 (m, 2H, quinoline), 7.97 (d, 1H, J = 8.7 Hz, quinoline), 7.83–7.90 (m, 2H, naphthalene) 7.55–7.62 (m, 2H, quinoline), 7.16–7.22 (m, 2H, naphthalene), 4.12 (t, 2H, J = 6.6 Hz, –OCH2), 2.56 (s, 3H, –CH3), 1.86 (quin, 2H, J = 6.9 Hz, –CH2), 1.56 (ses, 2H, J = 7.5 Hz, –CH2), 1.02 (t, 3H, J = 7.5 Hz, –CH3). 13C-NMR (CDCl3): ppm 158.1, 156.3, 146.3, 136.7, 136.3, 135.3, 134.1, 132.3, 130.4, 128.9, 128.9, 127.4, 127.2, 126.4, 126.4, 125.5, 119.6, 119.1, 106.4, 67.8, 31.3, 21.6, 19.4, 13.9. IR (KBr): cm−1 3008 (aromatic C–H stretch), 2922 (aliphatic C–H asymmetric stretch), 2856 (aliphatic C–H symmetric stretch), 1596 (ring stretch), 1464 (ring stretch), 1206 (asymmetric C–O–C stretch), 1014 (symmetric C–O–C stretch), 822 (out-of-plane C–H bend). Anal. Calcd for C24H23NO: C, 84.42; H, 6.79; N, 4.10. Found: C, 84.36; H, 6.80; N, 4.08.

3.2.2.3. 2-(6-Pentyloxynaphthalen-2-yl)-6-methylquinolines (5O-NpQMe)

1H-NMR (CDCl3): δ 8.53 (s, 1H, naphthalene), 8.31 (dd, 1H, J1 = 8.7 Hz, J2 = 1.8 Hz, naphthalene), 8.08–8.15 (m, 2H, quinoline), 7.95 (d, 1H, J = 8.7 Hz, quinoline), 7.83–7.90 (m, 2H, naphthalene), 7.55–7.60 (m, 2H, quinoline), 7.16–7.23 (m, 2H, naphthalene), 4.10 (t, 2H, J = 6.6 Hz, –OCH2), 2.56 (s, 3H, –CH3), 1.88 (quin, 2H, J = 7.5 Hz, –CH2), 1.38–1.58 (m, 4H, –CH2), 0.97 (t, 3H, J = 7.2 Hz, –CH3). 13C-NMR (CDCl3): ppm 157.9, 156.5, 147.0, 136.0, 136.0, 135.2, 134.9, 131.9, 130.3, 129.4, 129.0, 127.3, 127.2, 126.8, 126.4, 125.5, 119.5, 119.0, 106.5, 68.1, 29.0, 28.3, 22.5, 21.6, 14.1. IR (KBr): cm−1 3008 (aromatic C–H stretch), 2957 (aliphatic C–H asymmetric stretch), 2856 (aliphatic C–H symmetric stretch), 1596 (ring stretch), 1489 (ring stretch), 1203 (asymmetric C–O–C stretch), 1047 (symmetric C–O–C stretch), 822 (out-of-plane C–H bend). Anal. Calcd for C25H25NO: C, 84.47; H, 7.09; N, 3.94. Found: C, 84.26; H, 7.10; N, 3.92.

3.2.2.4. 2-(6-Hexyloxynaphthalen-2-yl)-6-methylquinolines (6O-NpQMe)

1H-NMR (CDCl3): δ 8.53 (s, 1H, naphthalene), 8.31 (dd, 1H, J1 = 8.7 Hz, J2 = 1.8 Hz, naphthalene), 8.07–8.18 (m, 2H, quinoline), 7.97 (d, 1H, J = 8.7 Hz, quinoline), 7.84–7.90 (m, 2H, naphthalene), 7.55–7.62 (m, 2H, quinoline), 7.16–7.22 (m, 2H, naphthalene), 4.11 (t, 2H, J = 6.6 Hz, –OCH2), 2.56 (s, 3H, –CH3), 1.87 (quin, 2H, J = 6.9 Hz, –CH2), 1.29–1.58 (m, 6H, –CH2), 0.93 (t, 3H, J = 6.9 Hz, –CH3). 13C-NMR (CDCl3): ppm 157.9, 156.5, 147.0, 136.0, 136.0, 135.2, 134.9, 131.9, 130.3, 129.4, 128.9, 127.3, 127.2, 126.7, 126.4, 125.5, 119.5, 118.9, 106.5, 68.1, 31.7, 29.3, 25.8, 22.7, 21.6, 14.1. IR (KBr): cm−1 3008 (aromatic C–H stretch), 2922 (aliphatic C–H asymmetric stretch), 2856 (aliphatic C–H symmetric stretch), 1596 (ring stretch), 1489 (ring stretch), 1203 (asymmetric C–O–C stretch), 1042 (symmetric C–O–C stretch), 822 (out-of-plane C–H bend). Anal. Calcd for C26H27NO: C, 84.51; H, 7.37; N, 3.79. Found: C, 84.30; H, 7.34; N, 3.72.

3.2.2.5. 2-(6-Heptyloxynaphthalen-2-yl)-6-methylquinolines (7O-NpQMe)

1H-NMR (CDCl3): δ 8.54 (s, 1H, naphthalene), 8.32 (dd, 1H, J1 = 8.7 Hz, J2 = 1.2 Hz, naphthalene), 8.08–8.16 (m, 2H, quinoline), 7.96 (dd, 1H, J1 = 8.7 Hz, J2 = 1.8 Hz, quinoline), 7.83–7.90 (m, 2H, naphthalene), 7.54–7.60 (m, 2H, quinoline), 7.16–7.22 (m, 2H, naphthalene), 4.10 (t, 2H, J = 6.6 Hz, –OCH2), 2.56 (s, 3H, –CH3), 1.88 (quin, 2H, J = 7.2 Hz, –CH2), 1.29–1.58 (m, 8H, –CH2), 0.93 (t, 3H, J = 6.9 Hz, –CH3). 13C-NMR (CDCl3): ppm 157.9, 156.5, 147.0, 136.0, 136.0, 135.2, 134.9, 131.9, 130.3, 129.4, 129.0, 127.3, 127.2, 126.8, 126.4, 125.5, 119.5, 119.0, 106.5, 68.1, 31.9, 29.3, 29.1, 26.1, 22.7, 21.6, 14.1. IR (KBr): cm−1 3008 (aromatic C–H stretch), 2922 (aliphatic C–H asymmetric stretch), 2856 (aliphatic C–H symmetric stretch), 1596 (ring stretch), 1464 (ring stretch), 1206 (asymmetric C–O–C stretch), 1014 (symmetric C–O–C stretch), 822 (out-of-plane C–H bend). Anal. Calcd for C27H29NO: C, 84.55; H, 7.62; N, 3.65. Found: C, 84.60; H, 7.54; N, 3.60.

4. Conclusions

In conclusion, two novel homologous series of kinked (Z-shaped) liquid crystalline compounds, nO-PPQMe (n = 3–8) and iO-NpQMe (i = 3–7), were synthesized, and their thermotropic behaviors were examined. With one kink (quinoline) and high aspect ratio of the mesogenic core in the series of nO-PPQMe compounds, high TNI values and wide nematic phase ranges were observed. With two kinks (naphthalene, quinoline) as in iO-NpQMe (i = 3–7) compounds, although enantiotropic nematic phases were maintained, considerably lower TNI(TIN) values and narrower nematic phase ranges resulted. With one kink (quinoline) but a short mesogenic core as in the series of mO-PQMe compounds, although the nematic phase was the sole mesophase, mesogenicity was barely observed. In all, a linear mesogen with one kinked structure and high aspect ratio favors the formation of nematic phase.

Acknowledgments

Financial support of our work by the office of research and development of Fu Jen Catholic University is gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

  • Author ContributionsW.-L.C. conceived the idea of synthesis, supervised students to carry out the experiments, drew and summarized the figures, and finalized the preparation of the manuscript. K.-N.K. and S.-H.L. synthesized the series of nO-PPQMe, n = 3–8 and iO-NpQMe, i = 3–7, respectively, and did measurements on their thermotropic properties.

References

  1. Li, Q. Liquid Crystals beyond Displays Chemistry, Physics, and Applications; John Wiley & Sons: Hoboken, NJ, USA, 2012.
  2. Donaldson, T.; Staesche, H.; Lu, Z.B.; Henderson, P.A.; Achard, M.F.; Imrie, C.T. Symmetric and non-symmetric chiral liquid crystal dimers. Liq. Cryst 2010, 37, 1097–1110, doi:10.1080/02678292.2010.494412.
  3. Paraskos, P.A.; Swager, T.M. Effects of desymmetrization on thiophene-based bent-rod mesogens. Chem. Mater 2002, 14, 4543–4549, doi:10.1021/cm0205985.
  4. Sluckin, T.J.; Dunmur, D.A.; Stegemeyer, H. Crystals that Flow: Classic Papers from the History of Liquid Crystals; Gray, G.W., Goodby, J.W., Fukuda, A., Eds.; Taylor & Francis: London, UK, 2004; pp. 3–21.
  5. Leardini, R.; Nanni, D.; Pedulli, G.F.; Tundo, A.; Zanardi, G. Liquid-crystalline quinoline derivatives. Liq. Cryst 1987, 2, 625–631, doi:10.1080/02678298708086321.
  6. Yokoyama, A.; Nishiyama, I.; Yoshizawa, A. 6-Alkyl-2-(4-alkyloxyphenyl)quinoline: A new smectic C base material. Ferroelectrics 1993, 148, 139–145, doi:10.1080/00150199308019939.
  7. Zuniga, C.; Bartulin, J.; Muller, H.J.; Schumacher, E.; Taylor, T.R. Synthesis and mesomorphic properties of 2-N-hexyl-6-(4-alkoxybenzoyloxy)quinoline. Mol. Cryst. Liq. Cryst 1991, 206, 131–137, doi:10.1080/00268949108037725.
  8. Zuniga, C.; Belmar, J.; Parra, M.; Ramirez, A.; Decap, J.; Ros, B.; Serrano, J.L. Synthesis and mesomorphic properties of 6-N-decyloxy-2-[4′-N-alkoxyphenylimino)methyl]quinolines (IV). Liq. Cryst 1996, 20, 253–260, doi:10.1080/02678299608031133.
  9. Belmar, J.; Parra, M.; Zuniga, C.; Fuentes, G.; Marcos, M.; Serrano, J.L. Synthesis and mesomorphic properties of 2,6-disubstituted derivatives of quinoline: Amides and esters. Liq. Cryst 1999, 26, 9–15, doi:10.1080/026782999205470.
  10. Eisch, J.J.; Dluzniewski, T. Mechanism of the Skraup and Doebner-von Miller quinoline synthesis: Cyclization of a,b-unsaturated N-aryliminium salts via 1,3-diazetidinium ion intermediates. J. Org. Chem 1989, 54, 1269–1274, doi:10.1021/jo00267a010.
  11. Gilchrist, T.L. Heterocyclic Chemistry; Longman Scientific & Technical: Harlow, UK, 1985; pp. 270–272.
  12. Lin, H.-C.; Lai, L.-L.; Hsieh, W.-P.; Huang, W.-Y. A novel class of heterocyclic liquid crystals with broad smectic C phase. Liq. Cryst 1997, 22, 661–667, doi:10.1080/026782997209081.
  13. Meth-Cohn, O.; Narine, B.; Tarnowski, B. A versatile new synthesis of quinolines and related fused pyridines, Part II. Tetrahedron Lett 1979, 33, 3111–3114.
  14. Lai, L.-L.; Wang, C.-H.; Hsieh, W.P.; Lin, H.-C. Synthesis and characterization of liquid crystalline molecules containing the quinoline unit. Mol. Cryst. Liq. Cryst 1996, 287, 177–181, doi:10.1080/10587259608038754.
  15. Sato, K.; Kitayama, H.; Shinjo, K.; Nakamura, S.; Nakamura, K. Liquid crystal composition, liquid crystal device using the composition, liquid crystal apparatus and display method. U.S. Patent 5,948,317, 7 September 1999.
  16. Kosaka, Y.; Takiguchi, T.; Iwaki, T.; Togano, T.; Nakamura, S. Mesomorphic compound, liquid crystal composition containing the compound, liquid crystal device using the composition, liquid crystal apparatus and display method. U.S. Patent 5,695,684, 9 December 1997.
  17. Yokoyama, A.; Yoshizawa, A.; Hirai, T. New phenylquinoline compound and liquid crystal composition containing the same. Jpn Kokai Tokkyo Koho JP 04316555, 6 November 1992.
  18. Chia, W.L.; Liao, K.H.; Ho, C.I. Synthesis and mesomorphic properties on the series of 2-(4-alkylphenyl)-6-methylquinolines and 2-(4-alkoxyphenyl)-6-methylquinolines. Liq. Cryst 2009, 36, 557–563, doi:10.1080/02678290903045668.
  19. Chia, W.-L.; Chang, C.H. Synthesis and mesomorphic studies of a series of liquid crystalline 2-(4-alkylphenyl)-6-methoxyquinolines. Mol. Cryst. Liq. Cryst 2009, 506, 47–55, doi:10.1080/15421400902841452.
  20. Chia, W.L.; Ye, F.J.; Chen, E.C. Synthesis and mesomorphic behaviour of the series of 2-(4-alkoxyphenyl)-6-methoxyquinolines and 2-(4-alkoxybiphenyl-4′-yl)-6-methoxyquinoline. Liq. Cryst 2013, 40, 989–997, doi:10.1080/02678292.2013.788738.
  21. Gray, G.W.; Mosley, A. Trends in the nematic-isotropic liquid transition temperatures for the homologous series of 4-N-alkoxy and 4-N-alkyl-4′ cyanobiphenyls. J. Chem. Soc. Perkin Trans. II 1976, 97–102.
  22. Chia, W.L.; Lin, C.W. Synthesis and thermotropic studies of a novel series of nematogenic liquid crystals 2-(6-alkoxynaphthalen-2-yl)-5-cyanopyridines. Liq. Cryst 2013, 40, 922–931, doi:10.1080/02678292.2013.786793.
Ijms 15 07579f1 200
Figure 1. Thermograms of 8O-PPQMe obtained using a second DSC scan under a heating (red) and first cooling (black) rate of 5 °C·min−1; Cr = crystal phases; SmC = smectic C phase; N = nematic phase; I = isotropic phase.

Click here to enlarge figure

Figure 1. Thermograms of 8O-PPQMe obtained using a second DSC scan under a heating (red) and first cooling (black) rate of 5 °C·min−1; Cr = crystal phases; SmC = smectic C phase; N = nematic phase; I = isotropic phase.
Ijms 15 07579f1 1024
Ijms 15 07579f2 200
Figure 2. Polarized optical micrographs of 8O-PPQMe arise from isotropic phase on (a) heating to 260 °C; nematic Schlieren texture, ×200; and (b) cooling to 186 °C, smectic C texture, ×200.

Click here to enlarge figure

Figure 2. Polarized optical micrographs of 8O-PPQMe arise from isotropic phase on (a) heating to 260 °C; nematic Schlieren texture, ×200; and (b) cooling to 186 °C, smectic C texture, ×200.
Ijms 15 07579f2 1024
Ijms 15 07579f3 200

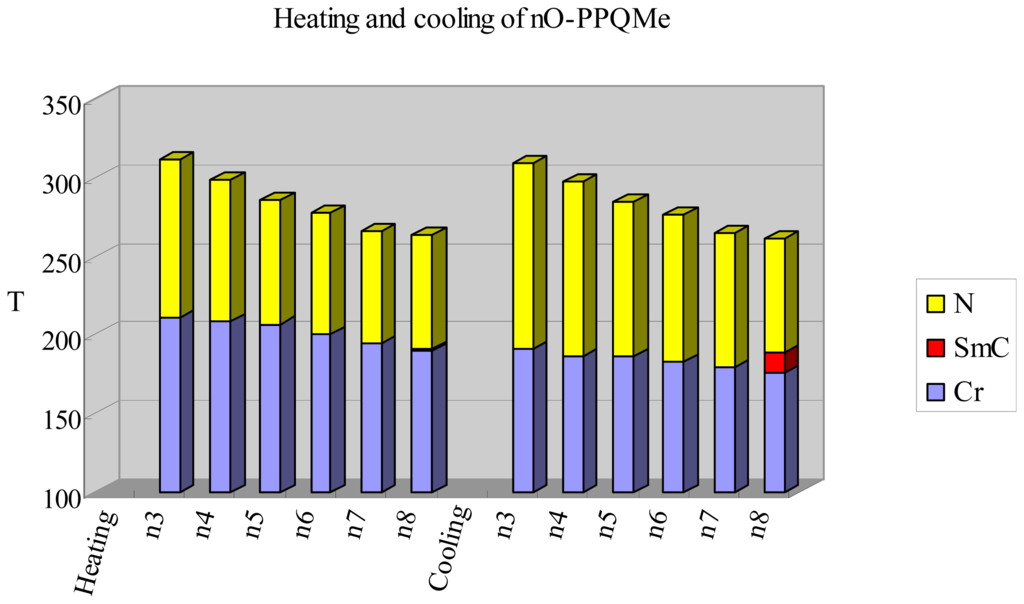

Figure 3. Plot of transition temperatures of heating and cooling cycle for compounds of 2-(4′-alkoxybiphen-4-yl)-6-methylquinoline (nO-PPQMe, n = 3–8).

Click here to enlarge figure

Figure 3. Plot of transition temperatures of heating and cooling cycle for compounds of 2-(4′-alkoxybiphen-4-yl)-6-methylquinoline (nO-PPQMe, n = 3–8).
Ijms 15 07579f3 1024
Ijms 15 07579f4 200

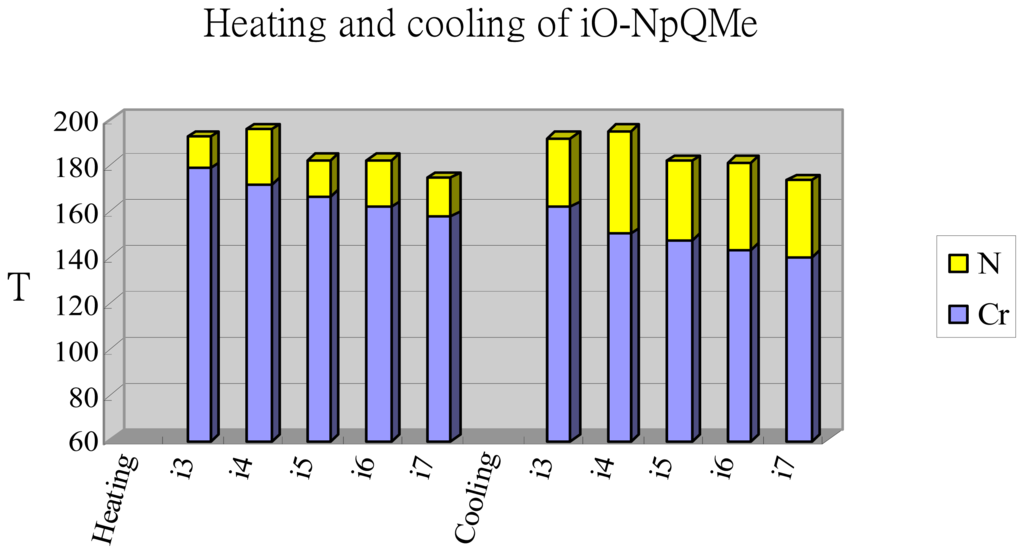

Figure 4. Plot of transition temperatures of heating and cooling cycle for compounds of 2-(6-alkoxynaphthalen-2-yl)-6-methylquinolines (iO-NpQMe, i = 3–7).

Click here to enlarge figure

Figure 4. Plot of transition temperatures of heating and cooling cycle for compounds of 2-(6-alkoxynaphthalen-2-yl)-6-methylquinolines (iO-NpQMe, i = 3–7).
Ijms 15 07579f4 1024
Ijms 15 07579f5 200

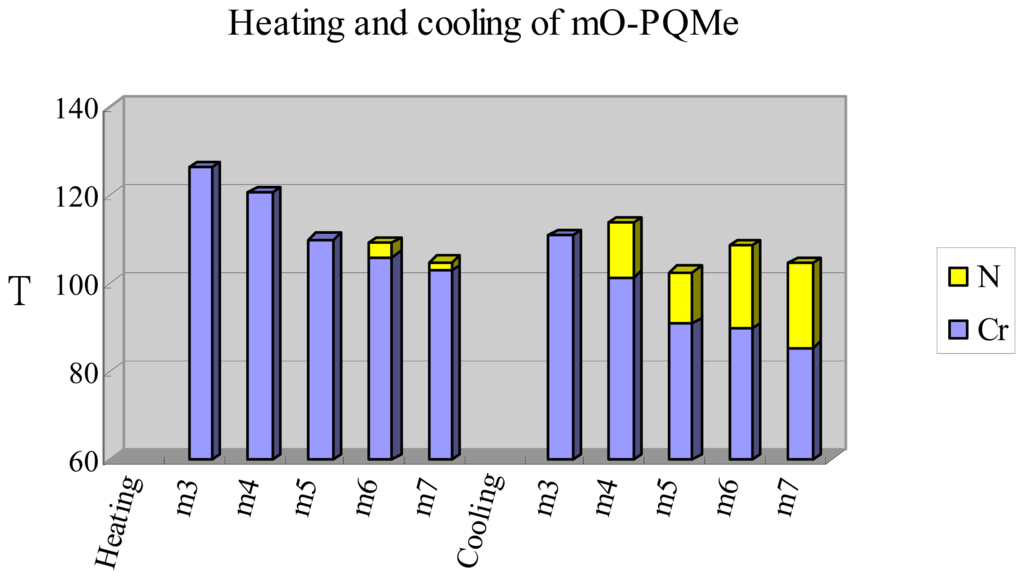

Figure 5. Plot of transition temperatures of heating and cooling cycle for compounds of 2-(4′-alkoxyphenyl)-6-methylquinoline (mO-PQMe, m = 3–7).

Click here to enlarge figure

Figure 5. Plot of transition temperatures of heating and cooling cycle for compounds of 2-(4′-alkoxyphenyl)-6-methylquinoline (mO-PQMe, m = 3–7).
Ijms 15 07579f5 1024
Ijms 15 07579f6 200
Scheme 1. Synthetic route for the synthesis of nO-PPQMe.

Click here to enlarge figure

Scheme 1. Synthetic route for the synthesis of nO-PPQMe.
Ijms 15 07579f6 1024
Table Table 1. Yields of 2-(4′-alkoxybiphen-4-yl)-6-methylquinolines (nO-PPQMe, n = 3–8) and 2-(6-alkoxynaphthalen-2-yl)-6-methylquinolines (iO-NpQMe, i = 3–7).

Click here to display table

Table 1. Yields of 2-(4′-alkoxybiphen-4-yl)-6-methylquinolines (nO-PPQMe, n = 3–8) and 2-(6-alkoxynaphthalen-2-yl)-6-methylquinolines (iO-NpQMe, i = 3–7).
Entry (n)Alkyl groupYield a (%)
n = 3Propyl37
n = 4Butyl35
n = 5Pentyl30
n = 6Hexyl39
n = 7Heptyl40
n = 8Octyl37
i = 3Propyl51
i = 4Butyl52
i = 5Pentyl52
i = 6Hexyl57
i = 7Heptyl55

aIsolated yields are quoted after recrystallization.

Table Table 2. Phase transition temperatures (°C) and corresponding transition enthalpies (kJ·mol−1), in parentheses, for homologous series of nO-PPPQMe, n = 3–8, and iO-NpQMe, i = 3–7.

Click here to display table

Table 2. Phase transition temperatures (°C) and corresponding transition enthalpies (kJ·mol−1), in parentheses, for homologous series of nO-PPPQMe, n = 3–8, and iO-NpQMe, i = 3–7.
Compound nO-PPQMe or iO-NpQMePhase transition temperatures (°C) and their corresponding transition enthalpies (kJ·mol−1)

Heating aCooling a

n = 3Cr 210.6(26.3) N 311 b II 309 b N 191.5(22.3) Cr
n = 4Cr 209.0(30.7) N 299.1(0.9) II 297.7(0.8) N 186.7(27.9) Cr
n = 5Cr 206.9(35.8) N 286.0(0.8) II 284.4(0.8) N 186.6(33.7) Cr
n = 6Cr 200.0(28.9) N 278.1(0.8) II 276.7(0.8) N 182.7(27.0) Cr
n = 7Cr 194.5(27.7) N 266.4(0.4) II 264.4(0.5) N 179.4(26.6) Cr
n = 8Cr 190.2(32.8) SmC 190.9 c N 263.1(0.8) II 261.6(1.0) N 188.7(0.9) SmC 176.2(30.4) Cr
i = 3Cr 178.5(36.6) N 192.1(0.4) II 191.5(0.4) N 161.7(32.5) Cr
i = 4Cr 171.5(32.5) N 195.6(0.4) II 194.9(0.5) N 150.3(31.2) Cr
i = 5Cr 166.3(32.9) N 182.3(0.5) II 181.6(0.4) N 147.2(28.2) Cr
i = 6Cr 161.7(31.9) N 182.0(0.5) II 181.2(0.5) N 143.1(29.8) Cr
i = 7Cr 157.6(32.2) N 174.1(0.5) II 173.2(0.4) N 140.2(31.3) Cr

aScan rate: 5 °C·min−1 for all samples; Cr = crystal phases; SmC = smectic C phase; N = nematic phase; I = isotropic phase;bThe temperatures were observed using POM because of the sample’s decomposition;cThe temperature was determined through linear interpolation of the data from DSC and POM; The peak of the SmC-to-N transition was buried in the peak of the Cr-to-SmC transition during heating, and they were separated during cooling.
