Int. J. Mol. Sci. 2014, 15(4), 6897-6909; doi:10.3390/ijms15046897

Article
An Environmentally Benign Protocol for Aqueous Synthesis of Tetrahydrobenzo[b]Pyrans Catalyzed by Cost-Effective Ionic Liquid
Huanan Hu 1,2, Fangli Qiu 1,2, Anguo Ying 1,2,*, Jianguo Yang 1,2,* and Haiping Meng 2
1
Institute of Applied Chemistry, Taizhou University, Taizhou 318000, China; E-Mails: hhn12192000@126.com (H.H.); lhqiu123@163.com (F.Q.)
2
School of Pharmaceutical and Chemical Engineering, Taizhou University, Taizhou 318000, China; E-Mail: mhp@tzc.edu.cn
*
Authors to whom correspondence should be addressed; E-Mails: agying@tzc.edu.cn (A.Y.); yjg@tzc.edu.cn (J.Y.); Tel.: +86-576-8866-0351 (A.Y. & J.Y.); Fax: +86-576-8866-0369 (A.Y. & J.Y.).
Received: 28 February 2014; in revised form: 30 March 2014 / Accepted: 8 April 2014 /
Published: 22 April 2014

Abstract

: A mild, efficient, and environmentally benign protocol for the synthesis of tetrahydrobenzo[b]pyran derivatives in the presence of readily accessible, biodegradable, and choline hydroxide based ionic liquid as catalyst has been established. The key features of the reported methodology include good to excellent yields of desired products, simple work-up procedure and good recyclability of catalysts, which may be a practical alternative to the existing conventional processes for the preparation of 4-H pyrans to cater to the requirements of academia as well as industry.
Keywords:
pyran; choline hydroxide; ionic liquid; cost-effectiveness; biodegradability; recyclability

1. Introduction

As an important class of oxygen-containing heterocycles, tetrahydrobenzo[b]pyrans are widely employed as potential biodegradable agrochemicals [1], photoactive materials [2], cosmetics and pigments [3]. Because of the inherent reactivity of the pyran ring, 4-H pyrans are versatile synthons, which can be easily converted into pyridine compounds as pharmacologically important calcium antagonists [4,5]. Tetrahedronhydro[b]pyran compounds themselves have a broad spectrum of biological properties [6,7], such as spasmolytic, anticancer, diuretic, anticoagulant, and antiancaphylactia activities [8,9]. They can also be used as cognitive enhancers not only for the treatment of neurodegenerative disease, for example, Parkinson’s disease, Huntington’s disease, Alzheimer’s disease, amyotrophic lateral sclerosis, AIDS associated dementia and Down syndrome but also for the treatment of schizophrenia and myoclonus [10]. Due to the versatile utilization of the pyran derivatives in the field of organic synthesis as well as in medicinal chemistry, many researchers have been encouraged to develop highly efficient procedures for the preparation of these kinds of compounds.

Multi-components reactions (MCRs), an important subclass of tandem reactions, are one-pot processes in which complicated molecules, especially various heterocycles with biological activities, can be produced in a very fast, efficient, and economic manner without the isolation of any intermediate [1113]. Hence, considering the fascinating advantages of MCRs, some methodologies for the synthesis of tetrahedrondydro[b]pyrans via three components one-pot reactions catalyzed by 1,4-diazabicyclo[2.2.2]octane [14], N-methylimidazole [15], tetra-methyl ammonium hydroxide [16], (NH4)2HPO4 [17] K3PO4 [18], ZnO-beta zeolite [19], nanosized Ce1MgXZr1−xO2 [20], Ru(II) complex [21], Na2SeO4 [22], S-proline [23], l-proline [24], 1,8-diazabicyclo[5.4.0]undec-7-ene [25], sulfonic acid functionalized silica [26], phenylboronic acid [27], caro’s acid-silica gel [28], and cerium(III) chloride [29] have been reported. In addition, procedures of catalyst-free and 2,2,2-trifluoroethanol as reaction medium [30], microwave and ultrasonic irradiation [9,31,32] could also give satisfactory yields of pyrans. Each of the above methods has its own merits, while some are plagued by one or more limitations of tedious work-up, poor product yields, long reaction times, effluent pollution, unavailability of the catalyst and vast employment of organic solvents, which is significantly harmful to environment. Consequently, gaps remain in terms of the search for alternative methods for synthesis of 4-H pyrans which are both high efficiency and environmentally friendly.

Ionic quids (ILs) with the unique properties of low volatility, good and tunable solubility, non-flammability, and excellent recyclability are receiving considerable global attention and used extensively in organic synthesis as green reaction media or designable catalysts [3340]. Thus, some task-specific ionic liquids were successfully introduced as catalysts for the preparation of the desired tetrahydrobenzo[b]pyran derivates [4144]. However, disadvantages associated with high price, a little toxicity and difficulty of biodegradability, to some extent, limit these methodologies at the industrial scale. Choline chloride (ChCl), a member of the vitamin B family, is a very cheap, commercially available, biodegradable and non-toxic quarternary ammonium salt, which can be simply produced by gas phase reaction or directly extracted from biomass [45,46]. Compared to the intensive studies of ChCl-derived deep eutectic solvents as catalysts for organic transformations [45,46] the research with regard to the application of ChCl-based ionic liquids to organic synthesis is very rare [47]. As part of our ongoing pursuit for the establishment of “green organic synthesis” [4856], we herein prepared a type of non-toxic, cheap and biodegradable ChCl-derived ionic liquids and present their usage as catalysts for the synthesis of 4H-benzo[b]pyrans via MCRs of aldehydes, methylene active compounds and 5,5-dimethyl-1,3-cyclohexanedione in aqueous medium. These type of ionic liquids can be readily prepared through anion exchange reactions (Scheme 1) and they are all liquids at room temperature (25 °C).

2. Results and Discussion

Initially, the reaction of p-anisaldehyde, malononitrile and dimedone was selected as model for the optimization of reaction conditions. As shown in Table 1, [bmim]BF4 and [bmim]PF6, two traditional ionic liquids frequently used as reaction media for organic transformations, gave significantly lower yields of products (Table 1, entries 1–2). Moreover, new DBU derived ILs were found to be less suitable as catalysts for the preparation of the pyran product while they exhibited excellent catalytic activities for aza-Michael addition [4850] and Knoevenagel condensation [4856] (Table 1, entries 3 and 4). We then turn our attention to the cost-effective and biodegradable ILs, [Ch][X]. Among the ILs [Ch][X] examined as catalysts for the model reaction, [Ch][OH] could efficiently catalyze to form tetrahydro[b]pyrans with excellent yield in short time, and the remained ILs, including [Ch][Ac], [Ch][Lac], [Ch][Pr], and [Ch][OTf] exhibited relatively lower catalytic activities (Table 1, entries 5–11). For comparison, [bmim]OH, a basic ionic liquid widely used in organic catalysis, gave slightly lower yield (86%). Combination of ILs’s accessibility, availability and their catalytic efficiency, [Ch][OH] was selected as the best catalyst for the preparation of the functionalized pyrans. Upon investigating the influence of the amount of catalyst on the reaction, it was found that 10 mol % of [Ch][OH] was sufficient to promote the one-pot reaction (Table 1, entries 12–15). Moreover, a brief screening of solvents showed that the much better results in terms of both reaction rate and yield were observed with water as reaction medium than those performed in organic solvents (Table 1, entries 13 and 16–19).

To extend the scope and demonstrate the generality of the present method, we explored the reaction of various aromatic aldehydes with malononitrile and dimedone under the optimized reaction conditions to furnish respective substituted pyrans and the results are demonstrated at Table 2. To our pleasure, the reactions proceeded smoothly and good to excellent yields of desired products were obtained within several hours. The electronic nature of substituents on the aromatic ring has some effects on the transformation. The aromatic aldehydes bearing electron-donating groups such as MeO, OH, 3,4-2(Me) reacted much slower with malononitrile and dimedone than other aromatic aldehydes substituted with NO2, CN, F, Cl, Br (Table 2, entries 1–10). The heterocyclic aldehydes such as 2-thienyl and furyl aldedydes were also demonstrated to be efficient reagents for this reaction (Table 2, entries 12 and 14). However, when pyridine and 2-naphthyl aldehydes were subjected to the procedures, only intermediates-Knoevenagel condensation products were detected (Table 2, entries 11 and 13). In addition, the reaction of trans-cinnamaldehyde with malononitrile and dimedone was performed under the same conditions and some lower yield (69%) was observed (Table 2, entry 14). It is noteworthy to mention that aliphatic aldehydes were suitable for the condensation achieving good product yields (Table 2, entries 16 and 17).

Encouraged by the exciting results from the reactions of malononitrile, we decided to further extend the substrate scope and two CN substituted active methylene compounds, cyanoacetate and 2-(benzo[d]thiazol-2-yl)acetonitrile were tested (Scheme 2). As outlined in Scheme 2, the novel ionic liquid [Ch][OH] as catalyst is suitable for cyanoacetate as well as 2-(benzo[d]thiazol-2-yl)acetonitrile and can afford the corresponding heterocyclic compounds in good yields (Scheme 2, 4ai).

In order to demonstrate the industrial applicability of this methodology, the aqueous one-pot synthesis of 4H-benzo[b]pyrans via the reaction of p-anisaldehyde, malononitrile, dimedone catalyzed by [Ch]][OH] was carried out on a larger scale (100 mmol). The reaction was completed in 2 h. The excellent yield of 98% for the conjugate product was obtained. On the same scale, the recyclability of the catalytic system was investigated using the same reaction as model reaction. Upon the completion of the reaction, the product was isolated by filtration while the filtrate was dried to remove water at 80 °C under vacuum. The recovered ionic liquid was reused in subsequent reactions. As shown in Figure 1, the ionic liquid [Ch][OH] can be recycled 5 times without considerable decrease of activity and the used ionic liquid remained intact (1H NMR).

A plausible mechanism for the reactions is illustrated in Scheme 3. Due to the strong basicity of hydroxyl anion of the IL (see Table S1) and hydrogen bond formed between hydroxyl group of side chain of Ch and carboxyl moiety of aldehydes, the dual activation of methylene ingredients and aldehydes facilitate the formation of a Knoevenagel condensation product 5. Dimedone can be easily converted to its enolic form in the presence of [Ch][OH] that could readily react with acrylonitrile 5, affording the Michael addition product 6, followed by tautomerism, intramolecular O-cyclization and proton transfer reactions under dual activities of the IL to give the desired product 4. 13C NMR data of benzaldehyde and the mixture of IL [Ch][OH] and benzaldehyde also provided the catalytic role of the hydrogen bond (see Figures S1 and S2).

3. Experimental Section

3.1. Materials and General Methods

NMR spectra were recorded Bruker Advance DPX 400 MHz spectrometer (Bruker BioSpin Corporation, Fällanden, Switzerland) with chemical shift values (δ) in parts per million, relative to the internal standard of tetramethylsilane (TMS). Melting points were determined using YRT-3 apparatus (Reliant Instument, Tianjin, China) and were not corrected. All chemical were purchased from Aladdin, Aldrich or Fluka (Buches SG, Switzerland). All reactions were monitored by thin layer chromatography (TLC).

3.2. General Procedure for the Synthesis of the ChCl-Based Ionic Liquids

A mixture of ChCl (20 mmol), MX (20 mmol) and methanol (25 mL) was stirred at reflux for 12 h. Then methanol was evaporated at 60 °C in high vacuum until the weight of the residue remained constant. The resulting liquids were the [Ch]X. The ionic liquids were characterized by 1H NMR, 13C NMR (Bruker BioSpin Corporation, Fällanden, Switzerland).

[Ch][OH] 1H NMR (400 M, D2O): δ4.05 (m, 2H), 3.49 (t, 2H, J = 5.2 Hz), 3.20 (s, 9H); 13C NMR (100 M, D2O): δ 67.86, 55.73, 53.91, 53.84, 48.92.

[Ch][Ac] 1H NMR (400 M, D2O): δ3.98 (m, 2H), 3.44 (t, 2H, J = 4.8 Hz), 3.13 (s, 9H), 1.83 (s, 3H); 13C NMR (100 M, D2O): δ 180.90, 67.42, 55.57, 53.84, 23.46.

[Ch][Pr] 1H NMR (400 M, D2O): δ4.03 (m, 2H), 3.48 (t, 2H, J = 5.2 Hz), 3.16 (s, 9H), 2.12 (t, 2H, J = 7.2 Hz), 0.86 (t, 3 H, J = 7.2 Hz); 13C NMR (100 M, D2O): δ 183.73, 67.49, 55.68, 54.02, 53.97, 53.94, 39.73, 13.46.

[Ch][Bu] 1H NMR (400 M, D2O): δ 3.98 (m, 2H), 3.44 (t, 2H, J = 4.8 Hz), 3.13 (s, 9H), 2.08 (t, 2H, J = 7.2 Hz), 1.48 (m, 2H), 0.82 (t, 3H, J = 7.2 Hz); 13C NMR (100 M, D2O): δ 183.78, 67.21, 55.58, 53.90, 53.97, .53.86, 39.67, 19.44, 13.43.

[Ch][Lac] 1H NMR (400 M, D2O): δ3.82 (m, 3H), 3.26 (t, 2H, J = 4.8 Hz), 2.98 (s, 9H), 1.07 (d, 3H, J = 6.8 Hz), 0.86 (t, 3H, J = 7.2 Hz); 13C NMR (100 M, D2O): δ 182.40, 68.53, 67.47, 55.67, 53.96, 53.93, 53.89, 20.22.

[Ch][OTf] 1H NMR (400 M, D2O): δ 4.02 (m, 2H), 3.48 (t, 2H, J = 4.8 Hz), 3.16 (s, 9H); 13C NMR (100 M, D2O): δ 70.42, 58.61, 56.83.

3.3. Typical Procedure for One-Pot Synthesis of Tetrahydrobenzo[b]Pyrans

To a mixture of aromatic aldehyde (5 mmol), methyl active compound (5 mmol), and dimedone (5 mmol) in water (10 mL), [Ch][OH] was added. Upon addition, the reaction was stirred at reflux until the disappearance of starting material by TLC. After the completion of the reaction, the reaction mixture was filtrated to obtain a solid, which was recrystallized in 95% ethanol to give pure product. The ionic liquid was recovered from the remaining filtrate, subsequently remove water in vacuum at 80 °C and reused several times without further purification. The product was characterized by melting point measurement and NMR.

3.4. Spectroscopic Data of Typical Products

2-Amino-3-cyano-4-phenyl-7,7-dimethyl-5-oxo-4H-5,6,7,8-tetrahydrobenzo[b]pyran (2a): mp 233–235 °C. IR (KBr): 3310, 2966, 2188, 1658, 1372 cm−1; 1H NMR (200 MHz, CDCl3) (ppm): 1.04 (s, 3H, CH3), 1.11 (s, 3H, CH3), 2.23 (s, 2H, CH2), 2.46 (s, 2H, CH2), 4.40 (s, 1H, CH), 4.58 (s, 2H, NH2), 7.21–7.30 (m, 5H, Ar-H); ESI-MS: m/z 294 [M]+.

2-Amino-3-cyano-4-(4-hydroxyphenyl)-7,7-dimethyl-5-oxo-4H-5,6,7,8-tetrahydrobenzo[b]pyran (2h): mp 205–206 °C. IR (KBr): 3353, 2958, 2170, 1660, 1395, 1218 cm−1; 1H NMR (200 MHz, CDCl3) (ppm): 1.04 (s, 3H, CH3), 1.25 (s, 3H, CH3), 2.23 (s, 2H, CH2), 2.44 (s, 2H, CH2), 4.35 (s, 1H, CH), 4.49 (s, 2H, NH2), 6.71–7.27 (m, 4H, Ar-H); ESI-MS: m/z 333 [M + Na]+.

2-Amino-3-cyano-4-(4-methoxyphenyl)-7,7-dimethyl-5-oxo-4H-5,6,7,8-tetrahydrobenzo[b]pyran (2i): mp 198–201 °C. IR (KBr): 3356, 2970, 2158, 1656, 1385, 1219 cm−1; 1H NMR (200 MHz, CDCl3) (ppm): 1.04 (s, 3H, CH3), 1.22 (s, 3H, CH3), 2.34–2.39 (t, J = 10 Hz, 2H, CH2), 3.77 (s, 1H, CH), 6.78–7.26 (m, 4H, Ar-H); ESI-MS: m/z 324 [M + Na]+.

2-Amino-3-(benzo[d]thiazol-2-yl)-4-(4-fluorophenyl)-7,7-dimethyl-5-carbonyl-5,6,7,8-4H-benzo[b] pyran (4f): mp 190–192 °C. IR (KBr): 3325, 1665, 1617, 1482, 1450 cm−1; 1H NMR (200 MHz, DMSO-d6) (ppm): 1.01 (s, 3H, CH3), 1.12 (s, 3H, CH3), 2.23 (d, 1H, J = 6.8 Hz), 2.28 (d, 1H, J = 6.6 Hz), 2.45 (d, 1H, J = 7.2 Hz), 2.42 (d, 1H, J = 7.2 Hz), 4.85 (s, 1H), 6.89–7.68 (m, 8H, Ar-H), 8.49 (s, 2H, NH2); ESI-MS: m/z 421 [M + H]+.

2-Amino-3-(benzo[d]thiazol-2-yl)-4-(4-methyoxyphenyl)-7,7-dimethyl-5-carbonyl-5,6,7,8-4H-benzo[ b]pyran (4i): mp 176–178 °C. IR (KBr): 3398, 1668, 1654, 1623, 1474, 756, 664 cm−1; 1H NMR (200 MHz, DMSO-d6) (ppm): 0.89 (s, 3H, CH3), 1.05 (s, 3H, CH3), 2.12 (d, 1H, J = 6.8 Hz), 2.25 (d, 1H, J = 6.8 Hz), 2.46 (d, 1H, J = 7.2 Hz), 2.58 (d, 1H, J = 7.2 Hz), 3.69 (s, 3H, OCH3), 4.55 (s, 1H), 6.76–7.93 (m, 8H, Ar-H), 8.38 (s, 2H, NH2); ESI-MS: m/z 433 [M + H]+.

4. Conclusions

In summary, a simple, efficient and environmentally benign protocol for preparation of tetrahydrobenzo[b]pyrans was developed using novel basic, biodegradable, and cost-effective ionic liquid [Ch][OH] as catalyst in aqueous solution. Compared with the traditional imidazole derived ionic liquids, [Ch][OH] not only produced comparative or better results in terms of reaction rate and product yield but also is biodegradable, cheap and can be reused six times without significant loss of its catalytic efficiency. The applications of the novel ChCl-derived ionic liquids for other organic transformations are currently being investigated in our lab.

Supplementary Information

Acknowledgments

We are grateful for the financial support for this research by the National Natural Science Foundation of China (Grant No. 21106090 and 21272169), the Zhejiang Provincial Natural Science Foundation of China (No. LY12B02004), and the Foundation of Low Carbon Fatty Amine Engineering Research Center of Zhejiang Province (2012E10033).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hafez, E.A.A.; Elnagdi, M.H.; Elagemey, A.G.A.; EI-Taweel, F.M.A.A. Nitriles in heterocyclic synthesis-novel synthesis of benzo[c]coumarin and of benzo[c]pyrano[3,2-c]quinoline derivatives. Heterocycles 1987, 26, 903–907, doi:10.3987/R-1987-04-0903.
  2. Armesto, D.; Horspool, W.M.; Martin, N.; Ramos, A.; Seaone, C. Synthesis of cyclobutenes by the novel photochemical ring contraction 4-sbustituted 2-amino-3,5-dicyano-6-phenyl-4H-pyrans. J. Org. Chem 1989, 54, 3069–3072, doi:10.1021/jo00274a021.
  3. Ellis, G.P. The Chemistry of Heterocyclic Compounds Chromenes, Chromanes and Chromones; Weissberger, A., Taylor, E.C., Eds.; John Wiley: New York, NY, USA, 1977; pp. 11–139.
  4. Martin, N.; Martin, G.; Seoane, C.; Maco, J.L.; Albert, A.; Cano, F.H. Michael addition of malononitrile to α-acetylcinnamamides. Ann. Chem 1993, 7, 801.
  5. Marco, J.L.; Martin, N.; Grau, A.M.; Seoane, C.; Albert, A.; Cano, F.H. Development of methods for the synthesis of chiral, highly functionalized 2-aminno-4-aryl-4H-pyrans. Tetrahedron 1994, 50, 3509, doi:10.1016/S0040-4020(01)87029-0.
  6. Green, G.R.; Evans, J.M.; Vong, A.K. Comprehensive Heterocyclic Chemistry II; Ktritsky, A.R., Rees, C.W., Scriven, E.F.V., Eds.; Permagon Press: Oxford UK, 1995; Volume 5, p. 469.
  7. Jin, T.S.; Wang, A.Q.; Wang, X.; Zhang, J.S.; Li, T.S. A clean one-pot synthesis of tetrahydrobenzo[b]pyran derivatives catalyzed by hexadecyltrimethyl ammonium bromide in aqueous media. Synlett 2004, 5, 871–873.
  8. Bonsignore, L.; Loy, G.; Secci, D.; Calignano, A. Synthesis and pharmacological activity of 2-oxo-(2H) 1-benzopyran-3-carboxamide derivatives. Eur. J. Med. Chem 1993, 28, 517–520, doi:10.1016/0223-5234(93)90020-F.
  9. Devi, I.; Bhuyan, P.J. Sodium bromide catalysed one-pot synthesis of tetrahydrobenzo[b]pyrans via a three-component cyclocondensation under microwave irradiation and solvent free conditions. Tetrahedron Lett 2004, 45, 8625–8627, doi:10.1016/j.tetlet.2004.09.158.
  10. Konkoy, C.S.; Fick, D.B.; Cai, S.X.; Lan, N.C.; Keana, J.F.W. Substituted 5-oxo-5,6,7,8-tetrahydro-4h-1-benzopyrans and benzothiopyrans and the use thereof as potentiators of ampa. PCT Int. Appl WO0075123, 2000.Chem. Abstr 2001, 134, 29313a.
  11. Dömling, A. Recent developments in isocyanide based multicomponent reactions in applied chemistry. Chem. Rev 2006, 106, 17–89, doi:10.1021/cr0505728.
  12. Ganem, B. Strategies for innovation in multicomponent reaction design. Acc. Chem. Res 2009, 42, 463–472, doi:10.1021/ar800214s.
  13. Toure, B.B.; Hall, D.G. Natural product synthesis using multicomponent reaction strategies. Chem. Rev 2009, 109, 4439–4486, doi:10.1021/cr800296p.
  14. Tahmassebi, D.; Bryson, J.A.; Binz, S.I. 1,4-Diazabicyclo[2.2.2]octane as an efficient catalyst for a clean, one-pot synthesis of tetrahydrobenzo[b]pyran derivatives via multicomponent reaction in aqueous media. Synth. Commun 2011, 41, 2701–2711, doi:10.1080/00397911.2010.515345.
  15. Lian, X.Z.; Huang, Y.; Li, Y.Q.; Zheng, W.J. A green synthesis of tetrahydrobenzo[b]pyran derivatives through three-component condensation using N-methylimidazole as organocatalyst. Monatsh. Chem 2008, 139, 129–131, doi:10.1007/s00706-007-0706-2.
  16. Balalaie, S.; Sheikh-Ahmadi, M.; Bararjanian, M. Tetra-methyl ammonium hydroxide: An efficient and versatile catalyst for the one-pot synthesis of tetrahydrobenzo[b]pyran derivatives in aqueous media. Catal. Commun 2007, 8, 1724–1728, doi:10.1016/j.catcom.2007.01.034.
  17. Balalaie, S.; Bararjanian, M.; Sheikh-Ahmadi, M. Diammonium hydrogen phosphate: An efficient and versatile catalyst for the one-pot synthesis of tetrahydrobenzo[b]pyran derivatives in aqueous media. Synth. Commun 2007, 37, 1097–1108, doi:10.1080/00397910701196579.
  18. Pore, D.M.; Undale, K.A.; Dongare, B.B.; Desai, U.V. Potassium phosphate catalyzed a rapid three-component synthesis of tetrahydrobenzo[b]pyran at ambient temperature. Catal. Lett 2009, 132, 104–108, doi:10.1007/s10562-009-0074-0.
  19. Katkar, S.S.; Lande, M.K.; Arbad, B.R.; Gaikwad, S.T. A recyclable and highly effective ZnO-beta zeolite as a catalyst for one-pot three-component synthesis of tetrahydrobenzo[b]pyrans. Chin. J. Chem 2011, 29, 199–202, doi:10.1002/cjoc.201190052.
  20. Rathod, S.; Arbad, B.; Land, M. Preparation, characterization, and catalytic application of a nanosized Ce1Mgx Zr1−x O2 solid heterogeneous catalyst for the synthesis of Tetrahydrobenzo[b]pyran derivatives. Chin. J. Catal 2010, 31, 631–636, doi:10.1016/S1872-2067(09)60078-4.
  21. Tabatabaeian, K.; Heidari, H.; Mamaghani, M.; Mahmoodi, N.O. Ru(II) complexes bearing tertiary phosphine ligands: A novel and efficient homogeneous catalyst for one-pot synthesis of dihydropyrano[3,2-c]chromene and tetrahydrobenzo[b]pyran derivatives. Appl. Organometal. Chem 2012, 26, 56–61, doi:10.1002/aoc.1866.
  22. Hekmatshoar, R.; Majedi, S.; Bakhtiari, K. Sodium selenate catalyzed simple and efficient synthesis of tetrahydro benzo[b]pyran derivatives. Catal. Commun 2008, 9, 307–310, doi:10.1016/j.catcom.2007.06.016.
  23. Balalaie, S.; Bararjanian, M.; Amani, A.M.; Movassagh, B. (S)-Proline as a neutral and efficient catalyst for the one-pot synthesis of tetrahydrobenzo[b]pyran derivatives in aqueous media. Synlett 2006, 263–266.
  24. Li, Y.; Chen, H.; Shi, C.; Ji, S. Efficient one-pot synthesis of spirooxindole derivatives catalyzed by l-proline in aqueous medium. J. Comb. Chem 2010, 12, 231–237, doi:10.1021/cc9001185.
  25. Khurana, J.M.; Nand, B.; Saluja, P. DBU: A highly efficient catalyst for one-pot synthesis of substituted 3,4-dihydropyrano[3,2-c]chromenes, dihydropyrano[4,3-b]pyranes, 2-amino-4H-benzo[h]chromenes and 2-amino-4H benzo[g]chromenes in aqueous medium. Tetrahedron 2010, 66, 5637–5641, doi:10.1016/j.tet.2010.05.082.
  26. Ziarani, G.M.; Abbasi, A.; Badiei, A.; Aslani, Z. An efficient synthesis of tetrahydrobenzo[b]pyran derivatives using sulfonic acid functionalized silica as an efficient catalyst. E-J. Chem 2011, 8, 293–295, doi:10.1155/2011/367613.
  27. Nemouchi, S.; Boulcina, R.; Carboni, B.; Debache, A. Phenylboronic acid as an efficient and convenient catalyst for a three-component synthesis of tetrahydrobenzo[b]pyrans. C. R. Chim 2012, 15, 394–397, doi:10.1016/j.crci.2012.01.003.
  28. Oskooie, H.A.; Heravi, M.M.; Karimi, N.; Zadeh, M.E. Versatile catalyst for the one-pot synthesis of tetrahydrobenzo[b]pyran derivatives. Synth. Commun 2011, 41, 436–440, doi:10.1080/00397911003587499.
  29. Sabitha, G.; Arundhathi, K.; Sudhakar, K.; Sastry, B.S.; Yadav, J.S. Cerium(III) chloride-catalyzed one-pot synthesis of tetrahydrobenzo[b]pyrans. Synth. Commun 2009, 39, 433–442, doi:10.1080/00397910802378399.
  30. Khaksar, S.; Rouhollahpour, A.; Talesh, S.M. A facile and efficient synthesis of 2-amino-3-cyano-4H-chromenes and tetrahydrobenzo[b]pyrans using 2,2,2-trifluoroethanol as a metal-free and reusable medium. J. Fluor. Chem 2012, 141, 11–15, doi:10.1016/j.jfluchem.2012.05.014.
  31. Feng, C.; Wang, Q.; Lu, C.; Yang, G.; Chen, Z. Green Synthesis of Tetrahydrobenzo[b]Pyrans by Microwave Assisted Multi-Component One-Pot Reactions in PEG-400. Comb. Chem. High Throughput Screen 2012, 15, 100–103, doi:10.2174/138620712798280790.
  32. Li, J.T.; Xu, W.Z.; Yang, L.C.; Li, T.S. One-pot synthesis of 2-amino-4-aryl-3- carbalkoxy-7,7-dimethyl-5,6,7,8-tetrahydrobenzo[b]pyran derivatives catalyzed by KF/basic Al2O3 under ultrasound irradiation. Synth. Commun 2004, 34, 4565–4571, doi:10.1081/SCC-200043233.
  33. Zhang, Q.; Zhang, S.; Deng, Y. Recent advances in ionic liquid catalysis. Green Chem 2011, 13, 2619–2637, doi:10.1039/c1gc15334j.
  34. Niedermeyer, H.; Hallett, J.P.; Villar-Garcia, I.J.; Hunt, P.A.; Welton, T. Mixtures of ionic liquids. Chem. Soc. Rev 2012, 41, 7780–7802, doi:10.1039/c2cs35177c.
  35. Pereira, M.M.A. Immobilized Ionic Liquids in Organic Chemistry. Curr. Org. Chem 2012, 16, 1680–1710, doi:10.2174/138527212800840919.
  36. Tang, S.; Baker, G.A.; Zhao, H. Ether- and alcohol-functionalized task-specific ionic liquids: Attractive properties and applications. Chem. Soc. Rev 2012, 41, 4030–4066, doi:10.1039/c2cs15362a.
  37. Payagala, T.; Armstrong, D.W. Chiral ionic liquids: A compendium of syntheses and applications 2005–2012. Chirality 2012, 24, 17–53, doi:10.1002/chir.21975.
  38. Isambert, N.; Duque, M.M.S.; Plaquevent, J.-C.; Génisson, Y.; Rodriguez, J.; Constantieux, T. Multicomponent reactions and ionic liquids: A perfect synergy for eco-compatible heterocyclic synthesis. Chem. Soc. Rev 2011, 40, 1347–1357, doi:10.1039/c0cs00013b.
  39. Ying, A.-G.; Ye, W.-D.; Liu, L.; Wu, G.-F.; Chen, X.-Z.; Qian, S.; Zhang, Q.-P. Progress in the application of ionic liquids to organic synthesis. Chin. J. Org. Chem 2008, 28, 2081–2094.
  40. Ying, A.-G.; Chen, X.-Z.; Ye, W.-D.; Zhang, D.-F.; Liu, L.; Chen, J.-H. Application of ionic liquids in organic synthesis promoted by microwave irradiation. Prog. Chem 2008, 20, 1642–1650.
  41. Salvi, P.P.; Mandhare, A.M.; Sartape, A.S.; Pawar, D.K.; Han, H.S.; Kolekar, S.S. An efficient protocol for synthesis of tetrahydrobenzo[b]pyrans using amino functionalized ionic liquid. C. R. Chim 2011, 14, 878–882, doi:10.1016/j.crci.2011.02.007.
  42. Wen, L.-R.; Xie, H.-Y.; Li, M. A basic ionic liquid catalyzed reaction of benzothiazole, aldehydes, and 5,5-dimethyl-1,3-cyclohexanedione: Efficient synthesis of tetrahydrobenzo[b]pyrans. J. Heterocycl. Chem 2009, 46, 954–959, doi:10.1002/jhet.183.
  43. Zheng, J.; Li, Y. Basic ionic liquid-catalyzed multicomponent synthesis of tetrahydrobenzo[b]pyrans and pyrano[c]chromenes. Mendeleev Commun 2011, 21, 280–281, doi:10.1016/j.mencom.2011.09.017.
  44. Shaterian, H.R.; Arman, M.; Rigi, F. Domino Knoevenagel condensation, Michael addition, and cyclization using ionic liquid, 2-hydroxyethylammonium formate, as a recoverable catalyst. J. Mol. Liq 2011, 158, 145–150, doi:10.1016/j.molliq.2010.11.010.
  45. Ruβ, C.; König, B. Low melting mixtures in organic synthesis—An alternative to ionic liquids? Green Chem 2012, 14, 2969–2982, doi:10.1039/c2gc36005e.
  46. Zhang, Q.; Vigier, K.D.O.; Royer, S.; Jérôme, F. Deep eutectic solvents: Syntheses, properties and applications. Chem. Soc. Rev 2012, 41, 7108–7146, doi:10.1039/c2cs35178a.
  47. Abelló, S.; Medina, F.; Rodríguez, X.; Cesteros, Y.; Salagre, P.; Sueiras, J.E.S.; Tichit, D.; Coq, B. Supported choline hydroxide (ionic liquid) as heterogeneous catalyst for aldol condensation reactions. Chem. Commun 2004, 1096–1097.
  48. Ying, A.-G.; Liu, L.; Wu, G.-F.; Chen, G.; Chen, X.-Z.; Ye, W.-D. Aza-Michael addition of aliphatic or aromatic amines to alpha,beta-unsaturated compounds catalyzed by a DBU-derived ionic liquid under solvent-free conditions. Tetrahedron Lett 2009, 50, 1653–1657, doi:10.1016/j.tetlet.2009.01.123.
  49. Ying, A.-G.; Wang, L.-M.; Deng, H.-X.; Chen, J.-H.; Chen, X.-Z.; Ye, W.-D. Green and efficient aza-Michael additions of aromatic amines to alpha,beta-unsaturated ketones catalyzed by DBU based task-specific ionic liquids without solvent. Arkivoc 2009, 288–298.
  50. Ying, A.-G.; Liu, L.; Wu, G.-F.; Chen, X.-Z.; Ye, W.-D.; Chen, J.-H.; Zhang, K.-Y. Knoevenagel condensation catalyzed by DBU brønsted ionic liquid without solvent. Chem. Res. Chin. Univ 2009, 25, 876–881.
  51. Ying, A.-G.; Wang, L.-M.; Wang, L.-L.; Chen, X.-Z.; Ye, W.-D. Green and efficient Knoevenagel condensation catalysed by a DBU based ionic liquid in water. J. Chem. Res 2010, 30–33.
  52. Ying, A.-G.; Chen, X.-Z.; Wu, C.-L.; Zheng, R.-H.; Liang, H.-D.; Ge, C.-H. Novel task-specific ionic liquids as solvent for Michael addition of methylene active compounds to chalcones without any catalyst. Synth. Commun 2012, 42, 3455–3462, doi:10.1080/00397911.2011.584260.
  53. Ying, A.-G.; Zhang, Q.-H.; Li, H.-M.; Shen, G.-F.; Gong, W.-Z.; He, M.-J. An environmentally benign protocol: Catalyst-free Michael addition of aromatic amines to alpha,beta-unsaturated ketones in glycerol. Res. Chem. Intermed 2013, 39, 517–525, doi:10.1007/s11164-012-0575-0.
  54. Ying, A.; Xu, S.; Liu, S.; Ni, Y.; Yang, J.; Wu, C. Novel multiple-acidic ionic liquids: Catalysts for environmentally friendly benign synthesis of trans-beta-nitrostyrenes under solvent-free conditions. Ind. Eng. Chem. Res 2014, 53, 547–552, doi:10.1021/ie403372n.
  55. Ying, A.; Ni, Y.; Xu, S.; Liu, S.; Yang, J.; Li, R. Novel DABCO based ionic liquids: Green and efficient catalysts with dual catalytic roles for aqueous Knoevenagel condensation. Ind. Eng. Chem. Res 2014, 53, 5678–5682, doi:10.1021/ie500440w.
  56. Ying, A.; Liu, S.; Ni, Y.; Qiu, F.; Xu, S.; Tang, W. Ionic tagged DABCO grafted on magnetic nanoparticles: A water-compatible catalyst for aqueous aza-Michael addition of amines to α,β-unsatuated amides. Catal. Sci. Technol 2014, doi:10.1039/C4CY00232F.
  57. Gao, S.; Tsai, C.H.; Tseng, C.; Yao, C.F. Fluoride ion catalyzed multicomponent reactions for efficient synthesis of 4H-chromene and N-arylquinoline derivatives in aqueous media. Tetrahedron 2008, 64, 9143–9149, doi:10.1016/j.tet.2008.06.061.
  58. Banerjee, S.; Horn, A.; Khatri, H.; Sereda, G. A green one-pot multicomponent synthesis of 4H-pyrans and polysubstituted aniline derivatives of biological, pharmacological, and optical applications using silica nanoparticles as reusable catalyst. Tetrahedron Lett 2011, 52, 1878–1881, doi:10.1016/j.tetlet.2011.02.031.
Ijms 15 06897f1 200

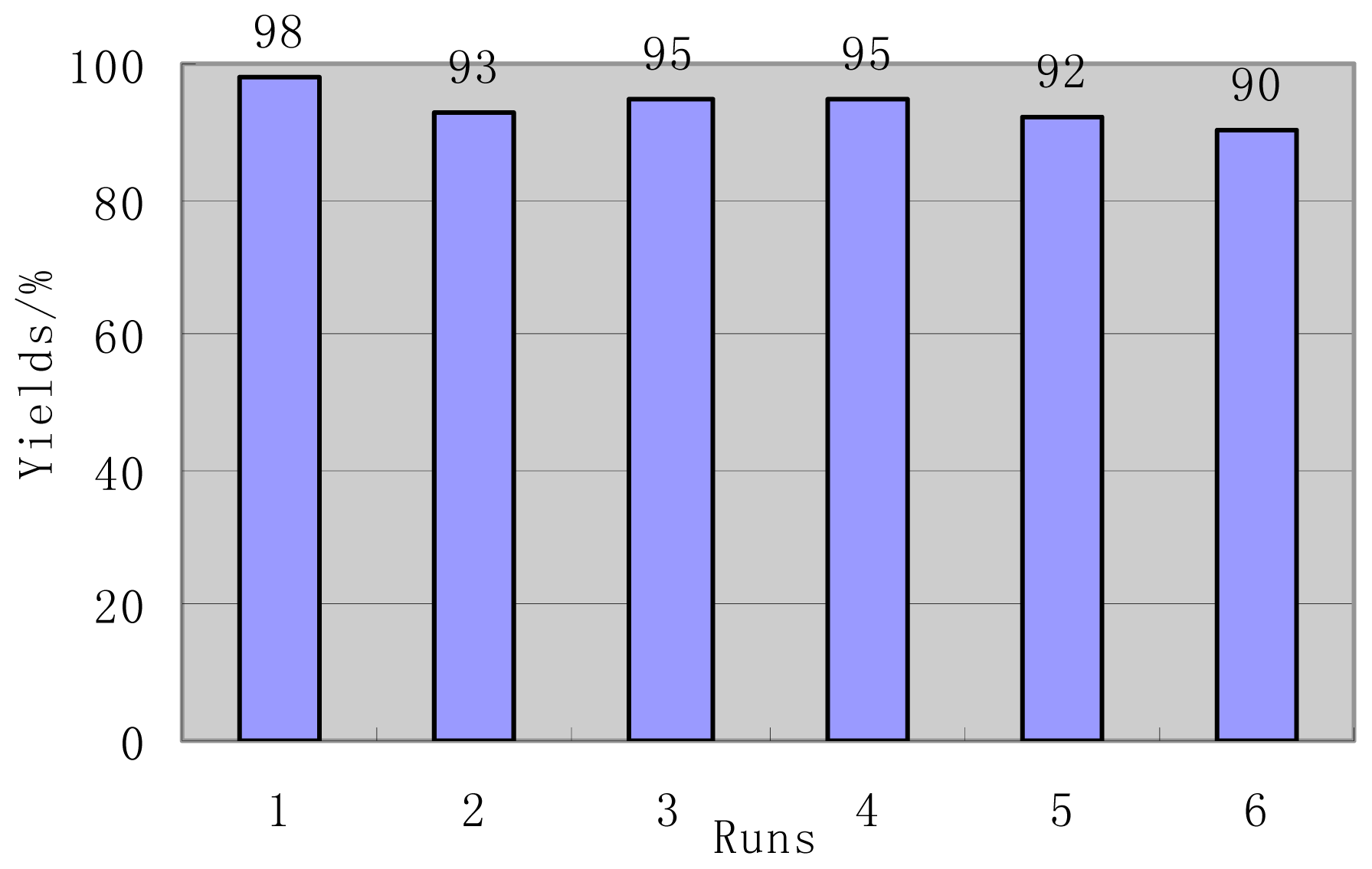

Figure 1. Reuse of ionic liquid for three components condensation of p-anisaldehyde (100 mmol), malononitrile and dimedone in the presence of ionic liquid [Ch]][OH] in aqueous solution.

Click here to enlarge figure

Figure 1. Reuse of ionic liquid for three components condensation of p-anisaldehyde (100 mmol), malononitrile and dimedone in the presence of ionic liquid [Ch]][OH] in aqueous solution.
Ijms 15 06897f1 1024
Ijms 15 06897f2 200

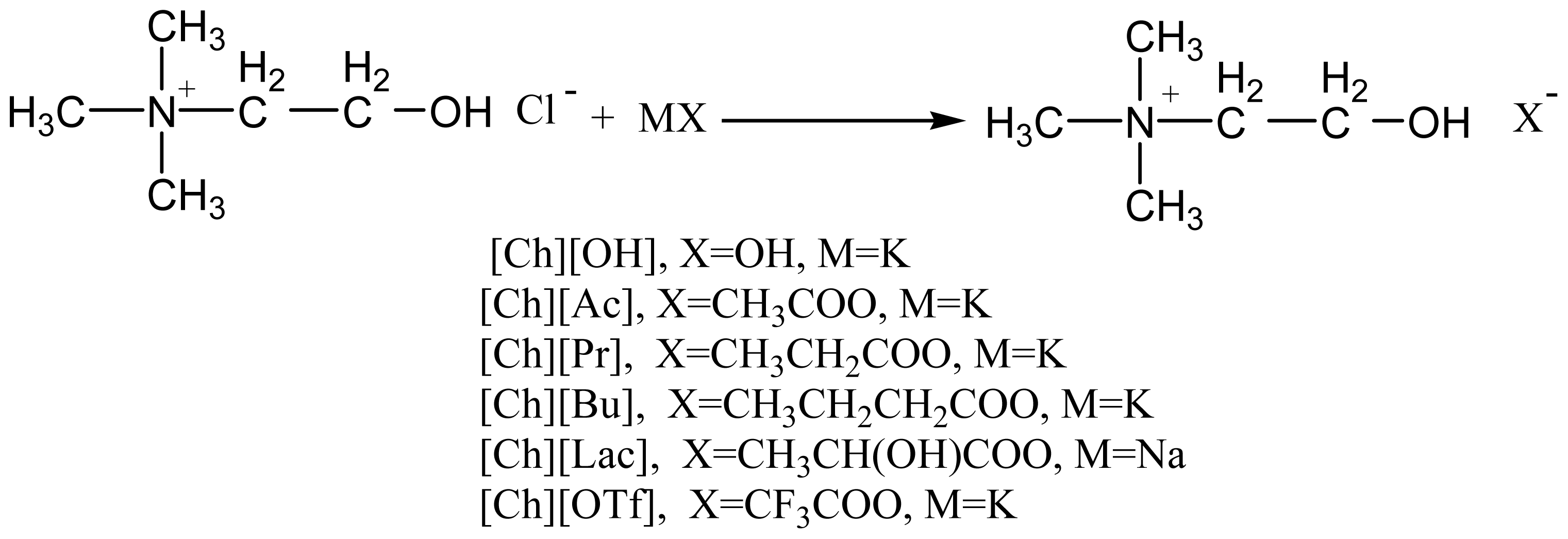

Scheme 1. Preparation of choline hydroxide based ionic liquids.

Click here to enlarge figure

Scheme 1. Preparation of choline hydroxide based ionic liquids.
Ijms 15 06897f2 1024
Ijms 15 06897f3 200

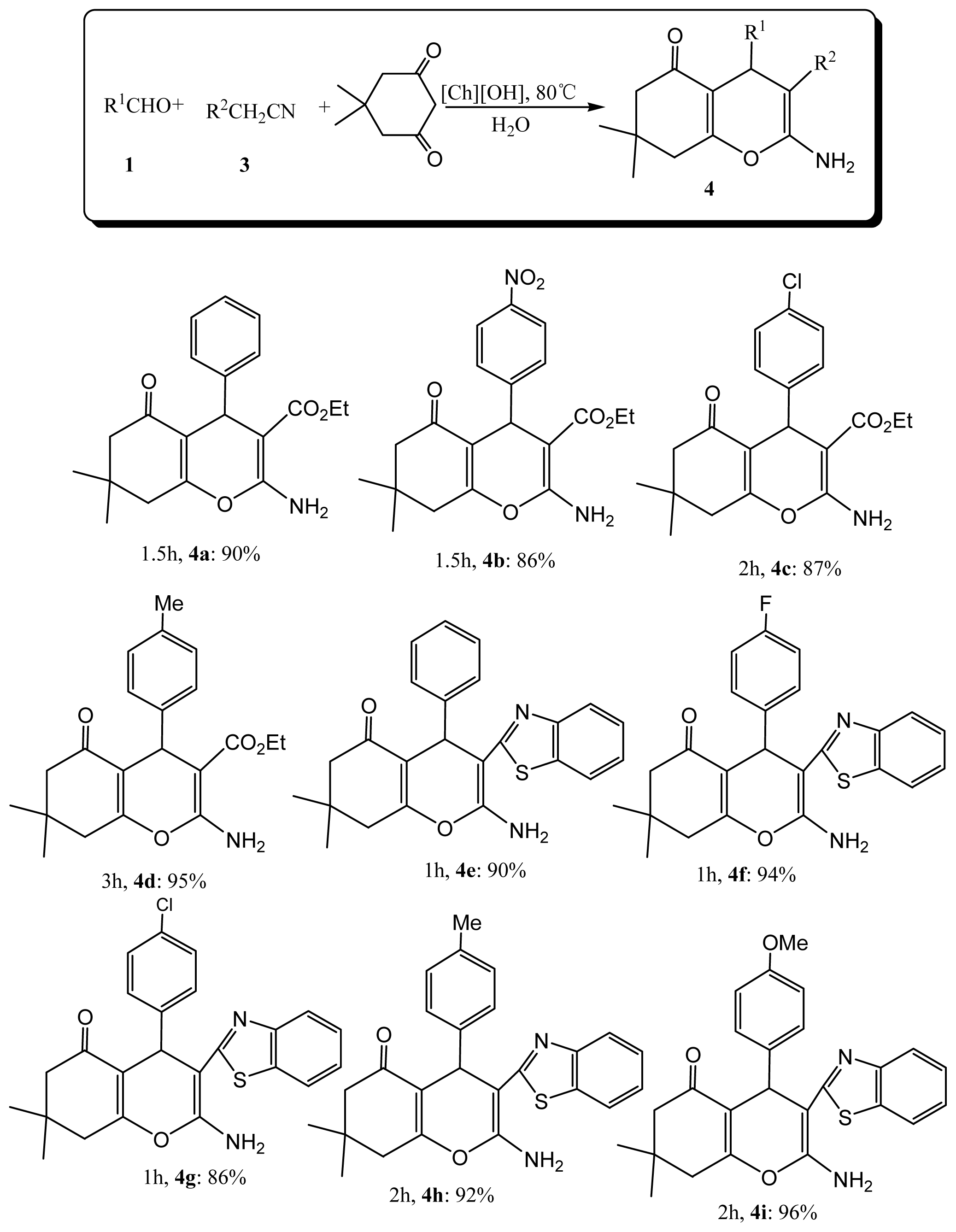

Scheme 2. [Ch][OH] promoted one-pot synthesis of 4H-benzo[b]pyrans via the reaction of aromatic aldehydes, cyanoacetate or 2-(benzo[d]thiazol-2-yl)acetonitrile, and dimedone.

Click here to enlarge figure

Scheme 2. [Ch][OH] promoted one-pot synthesis of 4H-benzo[b]pyrans via the reaction of aromatic aldehydes, cyanoacetate or 2-(benzo[d]thiazol-2-yl)acetonitrile, and dimedone.
Ijms 15 06897f3 1024
Ijms 15 06897f4 200

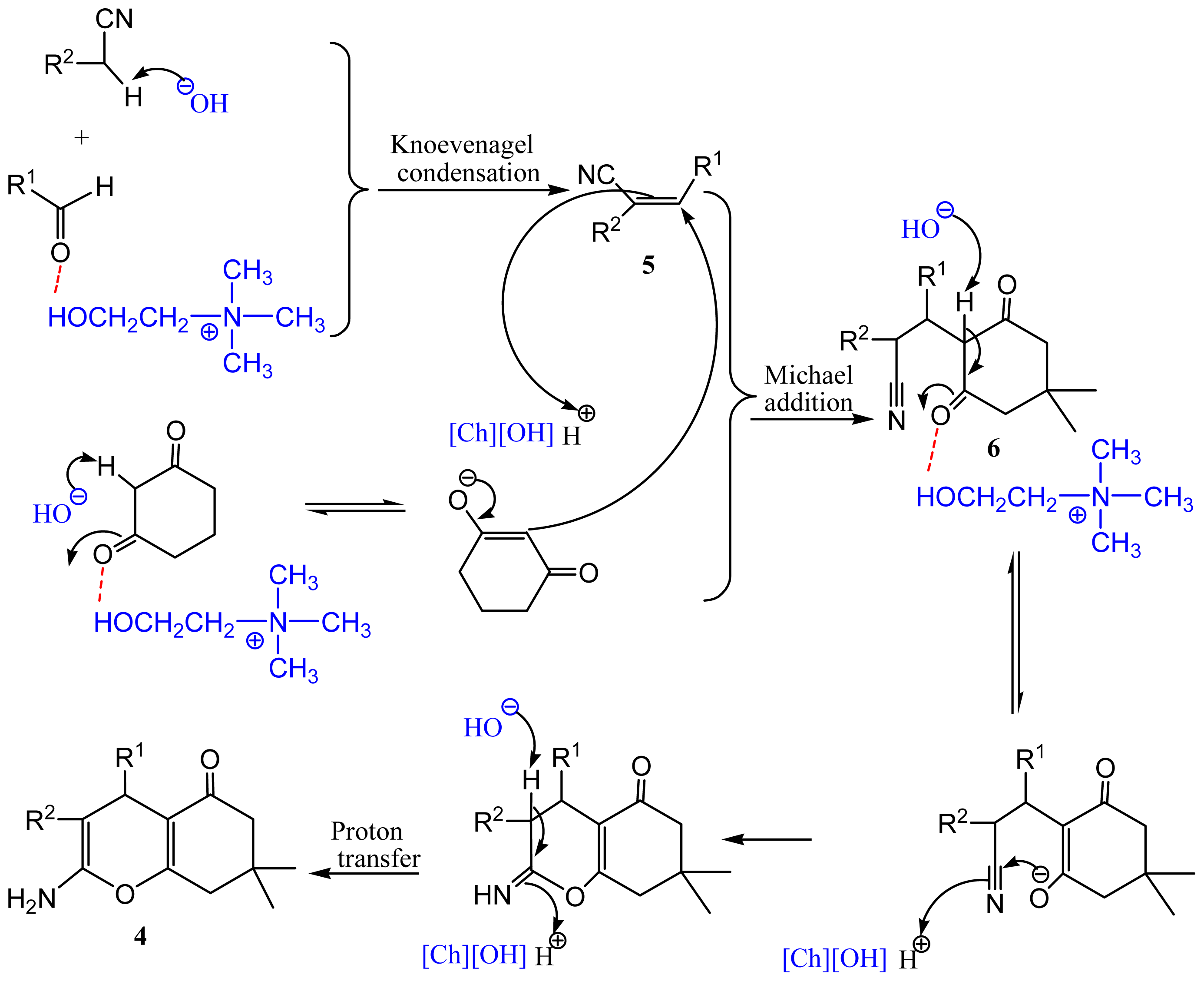

Scheme 3. The proposed mechanism for [Ch][OH] promoted synthesis of tetrahydrobenzo[b]pyrans.

Click here to enlarge figure

Scheme 3. The proposed mechanism for [Ch][OH] promoted synthesis of tetrahydrobenzo[b]pyrans.
Ijms 15 06897f4 1024
Table Table 1. Optimization of reaction conditions for the synthesis of tetrahydrobenzo[b]pyran a.

Click here to display table

Table 1. Optimization of reaction conditions for the synthesis of tetrahydrobenzo[b]pyran a.
Ijms 15 06897f5

EntryIonic LiquidsMol %Solvents (10 mL)Time (h)Yield (%) b
1[bmim]BF420Water517
2[bmim]PF620Water58
3[DBU][Ac]20Water231
4[DBU][Lac]20Water228
5[Ch][Ac]20Water352
6[Ch][Pr]20Water347
7[Ch][Bu]20Water355
8[Ch][Lac]20Water355
9[Ch][OTf]20Water338
10[Ch][OH]20Water295
11[bmim]OH20Water386
12[Ch][OH]10Water296
13[Ch][OH]5Water583
14[Ch][OH]30Water295
15[Ch][OH]50Water296
16 c[Ch][OH]10CH2Cl25Trace
17 c[Ch][OH]10THF3Trace
18 c[Ch][OH]10Ethanol282
19 c[Ch][OH]10Methanol268

aAll reactions were carried out as follows: the mole ratio of p-anisaldehyde: malononitrile: dimedone was 1:1:1 and the reaction temperature was 80 °C;bIsolated yields;cThe reactions were conducted in the presence of reflux conditions.

Table Table 2. Synthesis of pyran derivatives via condensation of aromatic aldehydes, malononitrile and dimedone using [Ch][OH] as catalyst in water.

Click here to display table

Table 2. Synthesis of pyran derivatives via condensation of aromatic aldehydes, malononitrile and dimedone using [Ch][OH] as catalyst in water.
Ijms 15 06897f6

EntryR1Time (h)ProductsYields (%) aMp (°C) MeasuredMp (°C) References
1C6H512a92232–234234–235 [57]
4-NO2-C6H430 min2b88176–177177–178 [27]
23-NO2-C6H420 min2c95213–214213–215 [27]
34-Cl-C6H412d86212–214209–210 [19]
44-F-C6H410 min2e90198–200200 [28]
54-Br-C6H412f91165–168169–170[30]
64-CN-C6H430 min2g90227–229224–226 [18]
74-OH-C6H422h86206–298207–209 [28]
84-MeO-C6H432i95198–200199–200 [28]
94-N(Me)2-C6H452j98216–218217–218 [57]
103,4-2(MeO)-C6H332k92184–185182–184 [14]
11 c3-Pyridine102l0--
122-Furyl32m82223–226222–224 [57]
13 c2-Naphthyl102n0--
142-Thienyl12o85210–212210–212 [18]
15 bC6H5-CH=CH-52p68205–207208–210 [27]
16 bCH3CH232q85190–192190–194 [22]
17 bCH3CH2CH232r79192–194192–193 [58]

aIsolated yields;b20 Mol % amount of [Ch][OH] and reaction temperature of 100 °C were required;cOnly Knoevenagel condensation products were detected.

Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
