Int. J. Mol. Sci. 2014, 15(4), 6657-6673; doi:10.3390/ijms15046657

Article
The Role of Survivin in Podocyte Injury Induced by Puromycin Aminonucleoside
Xuejuan Li , Xiaoyan Zhang , Xiaoyan Li , Fangrui Ding and Jie Ding *
Department of Pediatrics, Peking University First Hospital, No.1 Xi An Men Da Jie, Beijing 100034, China; E-Mails: clairesnow@126.com (X.L.); wserien@163.com (X.Z.); xiaoyanli_520@163.com (X.L.); youngbear@126.com (F.D.)
*
Author to whom correspondence should be addressed; E-Mail: djnc_5855@126.com; Tel.: +86-10-8357-3238; Fax: +86-10-6653-0532.
Received: 24 January 2014; in revised form: 4 April 2014 / Accepted: 8 April 2014 /
Published: 17 April 2014

Abstract

:

Objective

Survivin is a member of the inhibitor of apoptosis protein family, which uniquely promotes mitosis and regulates apoptosis in cancer cells. Recent studies have demonstrated that survivin also expresses in several normal adult cells. In the present study, we aimed to investigate the function of survivin in the terminally differentiated epithelial cells, podocytes.

Methods

Survivin expression and location were detected by Quantitative Real-Time PCR, western blot and fluorescence confocal microscopy methods in normal and injured mouse podocytes. Cyto-protection function of survivin was also studied in cultured podocyte injured by puromycin aminonucleoside (PAN), transfected with survivin siRNA to down-regulate survivin expression, or with survivin plasmid to transiently over-express survivin.

Results

In podocytes, PAN stimulated expressions of survivin and the apoptosis related molecule caspase 3. Knockdown of survivin expression by siRNA increased the activation of caspase 3, induced podocyte apoptosis and remarkable rearrangement of actin cytoskeleton. Moreover, over-expression of survivin inhibited PAN-induced podocyte apoptosis and cytoskeleton rearrangement.

Conclusion

Our data provides the evidence that survivin plays an important role in protecting podocytes from apoptosis induced by PAN. The mechanism of survivin related anti-apoptosis may, at least partially, be through the activation of caspase 3.

Keywords:
survivin; podocyte apoptosis; nephropathy; cyto-protection

1. Introduction

Survivin (gene name Birc5), is a member of inhibitor of apoptosis family, and is the strongest inhibitor of apoptosis factor identified so far [1,2]. The expression of survivin is low or absent in the terminally differentiated normal tissues/cells [3]. Various studies have demonstrated that survivin is over-expressed in cancer tissues/cells [49], and the higher expression of survivin plays a significant role in the inhibition of apoptosis [1013]. The mechanism of apoptosis inhibition by survivin is mainly through directly or indirectly interfering caspase activities in response to apoptosis stimuli [1014]. The discrepancy of survivin expression in cancers versus normal tissues makes survivin as a useful tool for cancer diagnosis and a promising molecular therapeutic target [15,16]. Moreover, several studies report that survivin expresses during embryonic and fetal development and deletion of survivin gene is fatal for embryos [17], suggesting that survivin also has an important function in cell cycle [18,19].

Interestingly, recent studies have demonstrated that survivin expresses in some normal adult cells, including T lymphocytes [20,21], gastric mucosal epithelial cells [22], kidney epithelial cells [23,24] and cardiomyocytes [25,26]. Survivin expression displays a cell specific up-regulation after experimental traumatic brain injury in rats [27]. Survivin over-expression inhibited ethanol-induced gastric epithelial cells apoptosis [28]. In 2013, Terasaki et al. also reported that survivin inhibited apoptosis of human lung epithelial cells in acute lung injury, partly by interfering with effector caspases [29]. Disturbing the expression of survivin by anti-sense techniques or generating specific survivin-deficient mice leads to more apoptosis and faster disease progression [30,31].

However, the significance of survivin expression in glomerular podocytes is yet unknown. Podocytes are the highly terminally differentiated epithelial cells critically required for maintenance of glomerular filtration barrier [32]. Several experimental and clinical reports demonstrate that podocyte apoptosis is a key step in the progression of glomerular injury and progression to sclerosis [3335]. In our previous studies [36], survivin was found to be significantly up-regulated in podocytes of rats with experimental puromycin aminonucleoside (PAN) nephropathy. PAN, a podocyte toxin, is widely used to induce experimental nephrotic syndrome in rats [3739], and causes foot process effacement and apoptosis in cultured podocytes [4042]. We hypothesize that survivin has an important role in protecting podocytes from apoptosis induced by PAN. In this study, we investigated the role of survivin in the podocytes injured by PAN.

2. Results

2.1. Survivin Expression Was Increased in Podocytes after PAN Treatment

We investigated survivin expression in cultured podocytes treated with puromycin aminonucleoside (PAN). Survivin expression was up-regulated in a dose dependent manner. Survivin mRNA level was increased after normalization by GAPDH (Figure 1A), and survivin protein level reached 1.4, 1.9 and 2.2 folds of the control level in a PAN dose dependent manner (Figure 1B,C). At the same time, in the normal podocytes, survivin fluorescence was weak and evenly distributed in the cytoplasm and nucleus, whereas their fluorescence intensity in PAN treated podocytes increased remarkably in PAN-treated podocytes, further confirming the fact that survivin was up-regulated in the injured podocytes.

2.2. PAN Induced Podocyte Apoptosis with Significant Rearrangement of F-Actin

Caspases are a family of cysteine proteases involving in the crucial processes of apoptosis. We observed the changes of activated caspase 3 in podocytes treated with 25, 50, and 100 μg/mL PAN for 24 h. Activated caspase 3 increased in a PAN dose dependent manner (Figure 2A,B). In addition, we used Hoechst stain analysis to detect nuclear changes in apoptotic cells, which were significantly increased in podocytes after treatment with PAN 50 μg/mL for 24 h (Figure 2C,D). The distribution of F-actin had an obvious rearrangement in those cells by fluorescence confocal microscopy (Figure 2E). We then used 50 μg/mL PAN as the following experiments.

2.3. Knockdown of Survivin Expression Exacerbated PAN-Induced Injury of Podocytes

To explore the role of survivin in PAN induced podocyte injury, we down-regulated survivin expression in podocytes by using siRNA and then analyzed caspase 3 expression in these cells by western blot. The down-regulation of survivin mRNA by siRNA was examined by Quantitative Real-Time PCR and western blot. Survivin siRNA #1, #2, and #3 down-regulated survivin mRNA by 55%, 28% and 75%, respectively (Figure 3A), and decreased survivin protein by 75%, 61% and 85%, respectively (Figure 3B,C). Therefore, survivin siRNA 3# was used for the following experiments. Up-regulation and activation of caspase 3 were found in podocytes treated with survivin siRNA, and were significantly enhanced in podocytes treated with PAN + survivin siRNA (Figure 4A,C). Consistent with the increase of activated caspase 3 after down-regulation of survivin, Hoechst staining of cell nuclei (Figure 4D,E) and TUNEL assay (Figure 4F,G) also demonstrated a significant increase of apoptotic cells number. To further observe the cell viability in down-regulation of survivin, we detected the rate of podocyte viability by MTS and the viability was significantly decreased (Figure 4H). In addition, the integrity of the cytoskeleton is important to maintain the function and morphology of podocytes. Rearrangement of F-actin was found in those cells by fluorescence confocal microscopy. In podocytes transfected with negative control siRNA, the F-actin was distributed as stress fiber-like bundles along the axis of podocytes (Figure 4I1). Survivin knockdown podocyte showed rearrangement of F-actin (Figure 4I9), which was more severe in podocytes treated with PAN + survivin siRNA (Figure 4I13).

2.4. Over-Expression of Survivin Expression Ameliorated PAN-Induced Injury of Podocyte

To further explore the protective effect of survivin in PAN-induced injury of podocytes, podocytes were transfected with pCMV6-Kan/Neo-survivin plasmids (survivin plasmid) to over-express survivin. The over-expression efficiency was analyzed by western blot (Figure 5A,B). Survivin over-expression by transfection of survivin plasmid induced the decrease of activated caspase 3 in podocytes and also in podocyte treated with PAN (Figure 5A,C). Consistent with the decrease of activated of caspase 3 after survivin over-expression, Hoechst stain assay (Figure 5D,E) and TUNEL assay (Figure 5F,G) also demonstrated a significantly lower number of apoptotic cells compared with PAN + empty vector group. To further confirm the reduced apoptosis in survivin over-expression group, we detected the rate of podocytes viability by MTS assay, and the viability was significantly increased in the podocyte over-expression group comparison with the Empty vector group injured by PAN (Figure 5H). In addition, the F-actin had an obvious recovered arrangement by fluorescence confocal microscopy. In the empty vector group, F-actin was characterized by the presence of highly ordered parallel, contractile actin filament bundles (Figure 5I1). F-Actin was present as disordered manner, showing reorganized, short, branched actin filaments filled in cytoplasm in podocytes treated with PAN (Figure 5I5), while PAN + survivin plasmid group partly recovered the normal arrangement F-actin (Figure 5I13).

3. Discussion

In this study, survivin expression was up-regulated both in mRNA and protein levels in a dose dependent manner induced by PAN. The increase of survivin was also reported in our previous study. In our previous study, survivin expression was significantly increased, both in rat PAN nephropathy and in patients with proteinuric renal diseases including minimal change nephrotic syndrome (MCNS), focal segmental glomerulosclerosis (FSGS) and membranous nephropathy (MN) [36]. All of these results indicated that survivin was involved in the processes of podocyte injury. Podocyte are the key target cells of injury in a variety of renal diseases, especially proteinuric renal diseases, such as MCNS, FSGS and MN, etc. Podocyte apoptosis is one of the major and important phenomena of podocyte injury. The expression of survivin in podocyte was also observed in a previous study [24], in which survivin expression was detected in normal kidney tissues of adult rats. Cells expressing survivin co-localized with synaptopodin in consecutive sections, which implies that survivin expresses in podocytes. However, the significance of increased expression of survivin in injured podocyte and the role of survivin in podocyte apoptosis were unknown.

Survivin is a member of the inhibitor of apoptosis protein (IAP) family. A series of studies have identified that survivin is the strongest inhibitor of apoptosis [1,2]. In the present study, we detected that survivin expression was increased in injured podocytes. In addition, Hoechst stain demonstrated the increase of apoptosis in PAN treated podocyte (Figure 2C,D). Podocyte apoptosis was also detected and reported by several other studies [4347]. In present study, significant apoptosis was found in podocytes treated with PAN and survivin siRNA (Figure 4C,E,G). However, several studies demonstrated that higher level of apoptosis was detected in cancer cells after drug treatment [48]. The possible reason is that podocytes are relatively not sensitive to drug treatment compared to cancer cells. We performed knockdown and over-expression of survivin in normal and PAN injured podocytes to disclose the role of survivin in the processes of podocyte apoptosis. Knockdown survivin rendered podocytes susceptible to PAN induced injury, increased the number of apoptotic cells (Figure 4D–G), decreased the viability of podocytes (Figure 4H), and induced obvious rearrangement of F-actin. Over-expression of survivin by transfection survivin plasmid ameliorated PAN induced podocytes injury, showing lower numbers of apoptotic cells (figure 5D–G), better viability of podocytes (Figure 5H), and nearly normal arrangement of F-actin. These results indicate that knockdown the expression of survivin in podocytes leads to greater susceptible to injury factors. Several other studies also found the similar results in other cell types. For example, knockdown survivin with small interfering RNA rendered human lung epithelial cells susceptible to bleomycin-induced cell damage [29], and led to a significant decrease in the number of viable ectopic ESCs following staurosporine treatment in human endometriotic stromal cells [49]. Specific deletion of survivin markedly delayed recovery of the kidney ischemia-reperfusion (I/R) injury in mouse renal proximal tubule cells [50]. On the other hand, the over-expression survivin in podocytes increased the resistance to PAN induced injury. In 2008, over-expression of survivin in cardiomyocytes by adenovirus mediated method inhibited doxorubicin-induced apoptosis [31]. And in 2013, Terasaki et al. demonstrated that over-expression of survivin decreased bleomycin-induced damage in human lung epithelial cells [29]. Our results suggested that survivin could protect podocytes from apoptosis induced by PAN, and survivin in podocytes may play an anti-apoptosis role.

The anti-apoptosis mechanism of survivin has not been completely understood [51]. Our results showed that down-regulation of survivin resulted in the increase of activated of caspase 3, and over-expression of survivin had an anti-apoptotic role by inhibiting the activation of caspases 3 (Figures 4A,C and 5A,C). Thus, caspases may be involved in the mechanism of survivin related anti-apoptosis. Several studies by other groups suggested that survivin inhibited cell apoptosis mainly through interfering with caspase dependent manner [1012]. Survivin may specifically bind to the terminal effector cell death proteases, caspase 3 and 7 and inhibited caspase activity in cancer cells [10]. In recent years, studies demonstrated that survivin may also play a role in inhibiting the caspase-independent apoptosis in cancer cells [52,53], and that down-regulated survivin induced the translocation of apoptosis inducing factor (AIF) from the cytoplasm to the nucleus in cancer cells, while caspase 3 activity showed no change.

In the present study we have detected the increase survivin expression in podocytes after PAN treatment but the role of survivin in podocytes is not completely understood. However, our study indeed demonstrates for the first time that down-regulation of survivin expression exacerbated podocyte apoptosis and the over-expression of survivin ameliorated the PAN induced apoptosis.

4. Experimental Section

4.1. Podocyte Culture

Immortalized mouse podocytes (MPC5, gift from Peter Mundel, Boston, MA, USA) were cultured under growth-permissive conditions on rat tail collagen type I-coated plastic dishes (BD Bioscience, Franklin Lakes, NJ, USA), at 33 °C in RPMI 1640 medium (Invitrogen, Carlsbad, CA, USA) supplemented with 10% fetal bovine serum (Gibco BRL, Gaithersburg, MD, USA), 10 U/mL mouse recombinant γ-interferon (Sigma, St. Louis, MO, USA), and 100 U/mL penicillin plus 0.1 mg/mL streptomycin (Gibco BRL, Gaithersburg, MD, USA). To induce differentiation, podocytes were maintained in non-permissive conditions at 37 °C without γ-interferon for 14 days, and used for the experiments. PAN is widely used to study renal diseases by inducing nephrotic syndrome in vivo and podocyte injury in vitro [54,55]. Therefore, different concentrations of PAN (25, 50, 100 μg/mL, Sigma) were used to cause podocyte injury. Both mRNA and protein were collected after 24 h stimulation. All experiments were performed in triplicates.

4.2. Quantitative Real-Time PCR

Total RNA was isolated from cultured podocytes by using the Trizol reagent (Invitrogen). Two micrograms of RNA were reversely transcribed using the high capacity cDNA Reverse Transriptase kit (Invitrogen) following the manufacture’s protocol. Primers used in Quantitative Real-Time PCR included: 5′-CGGAGTCAACGGATTTGGTCGTAT-3′ (sense) and 5′-AGCCTTCTCCATGGTGGT GAAGAC-3′ (antisense) for GAPDH cDNA, and 5′-ATCGCCACCTTCAAGAACTG-3′ (sense) and 5′-CAGGGGAGTGCTTTCTATGC-3′ (antisense) for survivin cDNA. Real-time PCR amplification was performed using the SYBR Green PCR Master Mix Kit (Invitrogen, Carlsbad, CA, USA). Cycling conditions included denature at 95 °C for 10 min followed by annealing at 40 repeats of 95 °C for 15 s and extension at 58 °C for 1 min. Relative quantity of mRNA were normalized by GAPDH and calculated using the delta-delta method from threshold cycle numbers. On the basis of exponential amplification of target gene as well as calibrator, the amount of amplified molecules at the threshold cycle is given by 2−ΔΔCt.

4.3. Western Blot

Podocytes were lysed with a RIPA buffer containing protein inhibitors (1 mM phenylmethylsulfonyl fluoride, 1 μg/mL leupeptin and pepstatin). Thirty micrograms of the total protein were subjected to 8%–15% SDS-PAGE and transferred to nitrocellulose membranes (Amersham biosciences, Piscataway, NJ, USA). After blocking with PBS containing 5% nonfat dry milk for 1 h at room temperature, then incubated overnight at 4 °C with the following primary antibodies, rabbit anti-survivin (1:2000, Abcam, Cambridge, MA, USA), rabbit Anti-cleaved caspase 3 (1:750, Cell Signaling Technology, Beverly, MA, USA) and mouse Anti-GAPDH (1:5000, Chemicon, Temecula, CA, USA) antibody at 4 °C over night (14–16 h). Subsequently, the membranes were rinsed three times, each time for 10 min in PBS buffer with 0.05% Tween-20 and incubated with horseradish peroxidase-conjugated anti-rabbit or mouse IgG (Santa Cruz Biotechnology, Santa Cruz, CA, USA). After a final washing, the membranes were developed using an enhanced chemiluminescence reagent (Millipore, Bedford, MA, USA), and the specific protein bands were scanned and quantitated in relation to GAPDH. The densitometric analysis of images was performed using Image J software (National Institute of Mental Health, Bethesda, MD, USA).

4.4. Small Interfering RNA (siRNA) Experiment

Synthetic siRNA targeting mouse survivin and non-targeting control siRNA were obtained from RiboBio. The target sequences of double-stranded nucleotides used for siRNA knockdown are 5′-CGATAGAGGAGCATAGAAA-3′ for survivin (#1), 5′-CCGAGAACGAGCCTGATTT-3′ for survivin (2#), 5′-CCGTCAGTGAATTCTTGAA-3′ for survivin (#3) (RIBOBIO, Guanzhou, China). Transfection was performed with Lipofectamine RNAi MAX reagent (Invitrogen), according to the manufacturer’s protocol. Forty-eight hours after transfection, cells were treated with PAN for 24 h. The total protein extracts from the cells were used for western blot analysis.

4.5. Survivin Over-Expression Experiment

The plasmid-encoding mouse survivin pCMV6-Kan/Neo-survivin and the empty vector pCMV6-Kan/Neo were purchase from Origene (Origene, Rockville, MD, USA). Podocytes were transiently transfected with a survivin expression plasmid pCMV6-Kan/Neo-survivin and the empty vector pCMV6-Kan/Neo using lipofectamine 2000 Transfection Reagent (Invitrogen) according to the manufacturer’s instructions. Meanwhile, 48 h after transfection, cells were exposed to PAN for 24 h. Transfection efficiency was controlled by western blot.

4.6. Cell Viability Assay

The cell viability was measured by MTS reduction activity. Briefly, cells transfected with siRNA and the negative control siRNA or survivin plasmid and empty vector were seeded in a 96-well plate, incubated with 50 μg/mL PAN for 24 h, and then with 38 μg/mL MTS (Promega, Madison, WI, USA) for 3 h at 37 °C. The absorbance at 490 nm was read using a microplate reader (BioTek, Winooski, VT, USA).

4.7. Hoechst 33258 Staining

After treatment, cells were washed three times with phosphate buffered saline (PBS) and stained with a DNA specific dye, Hoechst 33258 (Sigma). The cells were viewed under a fluorescence microscope (Olympus, Tokyo, Japan). Characteristic apoptotic morphology such as, chromatin condensation and DNA fragmentation was observed after Hoechst staining, while nuclei of non-apoptotic cells stained homogenous blue color due to the evenly spread and mono-granulated chromatin.

4.8. Terminal Deoxynucleotidyl Transferase dUTP Nick-End Labeling (TUNEL)

The TUNEL assay was performed using a commercial fluorometric TUNEL system kit (Promega) according to the manufacturer’s instructions. Podocytes were plated at a density of 1.5 × 104 cells per dish with coverslips bottoms. Cells were transfected with siRNA and negative control siRNA or survivin plasmid and empty vector, and then treated with 50 μg/mL PAN for 24 h. Nuclear with Hoechst staining (Sigma) and TUNEL staining was examined under fluorescence microscope (Olympus). For each group in a given experiment, at least 300 randomly chosen cells were analyzed.

4.9. Fluorescence Confocal Microscopy

On the coverslip’s podocytes were fixed with 4% paraformaldehyde, followed by permeabilization and blocking with 0.3% Triton X-100 and 10% goat serum. Rabbit anti-survivin (1:200, Abcam) was used as the primary antibody. For F-actin staining, fixed and permeabilized cells were incubated with Alexa-phalloidin (1:200, Invitrogen). After three washes with PBS, the slides were incubated with Alexa Fluor® 488 Goat Anti-Rabbit IgG (1:200, Invitrogen). Hoechst nuclear dye was applied. The slides were mounted with 15% Mowiol (Sigma). Stained images for each antibody at the same light exposure were obtained by confocal laser-scanning microscopy (Zeiss Lsm510 Meta, Jena, Germany). Photographs of podocytes stained with each antibody were selected randomly and analyzed by a person who was blinded to the study groups.

4.10. Statistical Analysis

The statistically significant difference among means of four groups was determined by one-way analysis of variance. An unpaired, two-tailed Student’s t-test was used to determine significant differences between the two groups, p < 0.05.

5. Conclusions

Our data provides evidence that survivin plays an important role in protecting podocytes from apoptosis in PAN-induced injury. The potential anti-apoptosis mechanism of survivin may relate to caspase 3. Survivin may be an essential mediator of cyto-protection in podocytes injury. Furthermore, whether survivin could be a potentially molecular target for treating proteinuric diseases still needs investigation.

Acknowledgments

We are grateful to Peter Mundel (USA) for the podocyte clones. This study was supported by the National Basic Research Program of China (973 Program, NO. 2012CB517700), the National Nature Science Foundation of China (NO. 30830105, 81170657) and Nature Science Foundation of Beijing (NO. 7072080).

Conflicts of Interest

The authors declare no conflict of interest.

  • Author ContributionsXuejuan Li performed the whole experiments related to this study, drafted the manuscript and did the whole revision process. Xiaoyan Zhang did the partial study design and the manuscript revision. Xiaoyan Li and Fangrui Ding participated in partial experiments. Jie Ding acted as corresponding author and did the whole study design and the manuscript revision.

References

  1. Li, F. Survivin study: What is the next wave? J. Cell Physiol 2003, 197, 8–29.
  2. Li, F.; Ling, X. Survivin study: An update of “What is the next wave?”. J. Cell Physiol 2006, 208, 476–486.
  3. Ambrosini, G.; Adida, C.; Altieri, D.C. A noble anti-apoptotic gene, survivin, is expressed in cancer and lymphoma. Nat. Med 1997, 3, 917–921.
  4. Shariat, S.F.; Lotan, Y.; Saboorian, H.; Khoddami, S.M.; Roehrborn, C.G.; Slawin, K.M.; Ashfaq, R. Survivin expression is associated with features of biologically aggressive prostate carcinoma. Cancer 2004, 100, 751–757.
  5. Sohn, D.M.; Kim, S.Y.; Baek, M.J.; Lim, C.W.; Lee, M.H.; Cho, M.S.; Kim, T.Y. Expression of survivin and clinical correlation in patients with breast cancer. Biomed. Pharmacother 2006, 60, 289–292.
  6. Sarela, A.I.; Verveke, C.S.; Ramsdale, J.; Davis, C.I.; Markham, A.F.; Guillou, P.J. Expression of survivin, a novel inhibitor of apoptosis and cell cycle regulatory protein, in pancreatic adenocarcinoma. Br. J. Cancer 2002, 86, 886–892.
  7. Lu, C.D.; Altieri, D.C.; Tanigawa, N. Expression of novel antiapoptotic gene, survivin, correlated with tumor cell apoptosis and p53 accumulation in gastric carcinomas. Cancer Res 1998, 58, 1808–1812.
  8. Okada, E.; Murai, Y.; Matsui, K.; Isizawa, S.; Cheng, C.; Masuda, M.; Takano, Y. Survivin expression in tumor cell nuclei is predictive of favorable prognosis in gastric cancer patients. Cancer Lett 2001, 163, 109–116.
  9. Li, F.; Ling, X.; Huang, H.; Brattain, L.; Apontes, P.; Wu, J.; Binderup, L.; Brattain, M.G. Differential expression of survivin and apoptosis by vitamin D3 in two isogenic MCF-7 breast cancer cell sublines. Oncogene 2005, 24, 1385–1395.
  10. Tamm, I.; Wang, Y.; Sausville, E.; Scudiero, D.A.; Vigna, N.; Oltersdorf, T.; Reed, J.C. IAP-family protein surviving inhibitoes caspase activity and apoptosis induced by Fas (CD95), Bax, caspase, and anticancer drugs. Cancer Res 1998, 58, 5315–5320.
  11. Shin, S.; Sung, B.J.; Cho, Y.S.; Kim, H.J.; Ha, N.C.; Hwang, J.I.; Chung, C.W.; Jung, Y.K.; Oh, B.H. An antiapoptotic protein human surviving is a direct inhibitor of caspase 3 and 7. Biochemistry 2001, 40, 1117–1123.
  12. Dohi, T.; Beltrami, E.; Wall, N.R.; Plescia, J.; Altieri, D.C. Mitochondrial surviving inhibors apoptosis and promotes tumorigenesis. J. Clin. Investig 2004, 114, 1117–1127.
  13. Altieri, D.C. Survivin and IAP proteins in cell-death mechanisms. Biochem. J 2010, 430, 199–205.
  14. Altieri, D.C. Survivin in apoptosis control and cell cycleregulation in cancer. Prog. Cell Cycle Res 2003, 3, 447–452.
  15. Waligórska-Stachura, J.; Jankowska, A.; Waśko, R.; Liebert, W.; Biczysko, M.; Czarnywojtek, A.; Baszko-Błaszyk, D.; Shimek, V.; Ruchała, M. Survivin—Prognostic tumor biomarker in human neoplasms—Review. Ginekol. Pol 2012, 83, 537–540.
  16. Rödel, F.; Sprenger, T.; Kaina, B.; Liersch, T.; Rödel, C.; Fulda, S.; Hehlgans, S. Survivin as a prognostic/predictive marker and molecular target in cancer therapy. Curr. Med. Chem 2012, 19, 3679–3688.
  17. Uren, A.G.; Wong, L.; Pakusch, M.; Fowler, K.J.; Burrows, F.J.; Vaux, D.L.; Choo, K.H. Survivin and the inner centromere protein INCENP show similar cell-cycle localization and gene knockout phenotype. Curr. Biol 2000, 10, 1319–1328.
  18. Li, F.; Ambrosini, G.; Chu, E.Y.; Plescia, J.; Tognin, S.; Marchisio, P.C.; Altieri, D.C. Control of apoptosis and mitotic spindle checkpoint by survivin. Nature 1998, 396, 580–584.
  19. Dallaglio, K.; Marconi, A.; Pincelli, C. Survivin: A dual player in healthy and diseased skin. J. Investig. Dermatol 2012, 132, 18–27.
  20. Xing, Z.; Conway, E.M.; Kang, C.; Winoto, A. Essential role of survivin, an inhibitor of apoptosis protein, in T cell development, maturation, and homeostasis. J. Exp. Med 2004, 199, 69–80.
  21. Okada, H.; Bakal, C.; Shahinian, A.; Elia, A.; Wakeham, A.; Suh, W.K.; Duncan, G.S.; Ciofani, M.; Rottapel, R.; Zuniga-Pflucker, J.C.; et al. Survivin loss in thymocytes triggers p53-mediated growth arrest and p53-independent cell death. J. Exp. Med 2004, 199, 399–410.
  22. Chiou, S.K.; Moon, W.S.; Jones, M.K.; Tarnawski, A.S. Survivin expression in the stomach: Implications for mucosal integrity and protection. Biochem. Biophys. Res. Commun 2003, 305, 374–379.
  23. Kindt, N.; Menzebach, A.; van de Wouwer, M.; Betz, I.; de Vriese, A.; Conway, E.M. Protective role of the inhibitor of apoptosis protein, survivin, in toxin-induced acute renal failure. FASEB. J 2008, 22, 510–521.
  24. Lechler, P.; Wu, X.; Bernhardt, W.; Campean, V.; Gastiger, S.; Hackenbeck, T.; Klanke, B.; Weidemann, A.; Warnecke, C.; Amann, K.; et al. The tumor gene survivin is highly expressed in adult renal tubular cells: Implications for a pathophysiological role in the kidney. Am. J. Pathol 2007, 171, 1483–1498.
  25. Santini, D.; Abbate, A.; Scarpa, S.; Vasaturo, F.; Biondi-Zoccai, G.G.; Bussani, R.; de Giorgio, F.; Bassan, F.; Camilot, D.; di Marino, M.P.; et al. Surviving acute myocardial infarction: Survivin expression in viable cardiomyocytes after infarction. J. Clin. Pathol 2004, 57, 1321–1324.
  26. Abbate, A.; Scarpa, S.; Santini, D.; Palleiro, J.; Vasaturo, F.; Miller, J.; Morales, C.; Vetrovec, G.W.; Baldi, A. Myocardial expression of survivin, an apoptosis inhibitor, in aging and heart failure: An experimental study in the spontaneously hypertensive rat. Int. J. Cardiol 2006, 113, 371–376.
  27. Conway, E.M.; Zwerts, F.; van Eygen, V.; DeVriese, A.; Nagai, N.; Luo, W.; Collen, D. Survivin-dependent angiogenesis in ischemic brain: Molecular mechanisms of hypoxia-induced up-regulation. Am. J. Pathol 2003, 163, 935–946.
  28. Jones, M.K.; Padilla, O.R.; Webb, N.A.; Norng, M. The anti-apoptosis protein, survivin, mediates gastric epithelial cell cytoprotection against ethanol-induced injury via activation of the p34 (CDC2) cyclin dependent kinase. J. Cell. Physiol 2008, 215, 750–764.
  29. Terasaki, Y.; Terasaki, M.; Urushiyama, H.; Nagasaka, S.; Takahashi, M.; Kunugi, S.; Ishikawa, A.; Wakamatsu, K.; Kuwahara, N.; Miyake, K.; et al. Role of survivin in acute lung injury: Epithelial cells of mice and humans. Lab. Investig 2013, 93, 1147–1163.
  30. Chen, J.; Wu, W.; Tahir, S.K.; Kroeger, P.E.; Rosenberg, S.H.; Cowsert, L.M.; Bennett, F.; Krajewski, S.; Krajewska, M.; Welsh, K.; et al. Down-regulation of survivin by antisense oligonucleotides increases apoptosis, inhibits cytokinesis and anchorage-independent growth. Neoplasia 2000, 2, 235–241.
  31. Levkau, B.; Schäfers, M.; Wohlschlaeger, J.; von Wnuck Lipinski, K.; Keul, P.; Hermann, S.; Kawaguchi, N.; Kirchhof, P.; Fabritz, L.; Stypmann, J.; et al. Survivin determines cardiac function by controlling total cardiomyocyte number. Circulation 2008, 117, 1583–1593.
  32. Pavenstadt, H.; Kriz, W.; Kretzler, M. Cell biology of the glomerular podocyte. Physiol. Rev 2003, 83, 253–307.
  33. Kriz, W. Podocyte is the major culprit accounting for the progression of chronic renal disease. Microsc. Res. Tech 2002, 57, 189–195.
  34. D’Agati, V.D. The spectrum of focal segmental glomerulosclerosis: New insights. Curr. Opin. Nephrol. Hypertens 2008, 17, 271–281.
  35. Pollak, M.R. Focal segmental glomerulosclerosis: Recent advances. Curr. Opin. Nephrol. Hypertens 2008, 17, 138–142.
  36. Miao, J.; Fan, Q.; Cui, Q.; Zhang, H.; Chen, L.; Wang, S.; Guan, N.; Guan, Y.; Ding, J. Newly identified cytoskeletal components are associated with dynamic changes of podocyte foot processes. Nephrol. Dial. Transplant 2009, 24, 3297–3305.
  37. Shiiki, H.; Sasaki, Y.; Nishino, T.; Kimura, T.; Kurioka, H.; Fujimoto, S.; Dohi, K. Cell proliferation and apoptosis of the glomerular epithelial cells in rats with puromycin aminonucleoside nephrosis. Pathobiology 1998, 66, 221–229.
  38. Kim, Y.H.; Goyal, M.; Kurnit, D.; Wharram, B.; Wiggins, J.; Holzman, L.; Kershaw, D.; Wiggins, R. Podocyte depletion and glomerulosclerosis have a direct relationship in the PAN-treated rat. Kidney Int 2002, 60, 957–968.
  39. Zheng, C.X.; Chen, Z.H.; Zeng, C.H.; Qin, W.S.; Li, L.S.; Liu, Z.H. Triptolide protects podocytes from puromycin aminonucleoside induced injury in vivo and in vitro. Kidney Int. 2008, 74, 596–612.
  40. Wada, T.; Pippin, J.W.; Marshall, C.B.; Griffin, S.V.; Shankland, S.J. Dexamethasone prevents podocyte apoptosis induced by puromycin aminonucleoside: Role of p53 and Bcl-2-related family proteins. J. Am. Soc. Nephrol 2005, 16, 2615–2625.
  41. Liu, S.F.; Ding, J.; Fan, Q.F.; Zhang, H. Establishment of a podocyte cell injury model induced by puromycin aminonucleoside. Beijing Da Xue Xue Bao 2008, 40, 586–589. (In Chinese).
  42. Suzuki, T.; Takemura, H.; Noiri, E.; Nosaka, K.; Toda, A.; Taniguchi, S.; Uchida, K.; Fujita, T.; Kimura, S.; Nakao, A. Puromycin aminonucleoside induces apoptosis and increases HNE in cultured glomerular epithelial cells(1). Free Radic. Biol. Med 2001, 31, 615–623.
  43. Koshikawa, M.; Mukoyama, M.; Mori, K.; Suganami, T.; Sawai, K.; Yoshioka, T.; Nagae, T.; Yokoi, H.; Kawachi, H.; Shimizu, F.; et al. Role of p38 mitogen-activated protein kinase activation in podocyte injury and proteinuria in experimental nephrotic syndrome. J. Am. Soc. Nephrol 2005, 16, 2690–2701.
  44. Liu, S.; Shi, W.; Xiao, H.; Liang, X.; Deng, C.; Ye, Z.; Mei, P.; Wang, S.; Liu, X.; Shan, Z.; et al. Receptor activator of NF-kappaB and podocytes: Towards a function of a novel receptor-ligand pair in the survival response of podocyte injury. PLoS One 2012, 7, e41331.
  45. Ma, J.; Matsusaka, T.; Yang, H.C.; Zhong, J.; Takagi, N.; Fogo, A.B.; Kon, V.; Ichikawa, I. Induction of podocyte-derived VEGF ameliorates podocyte injury and subsequent abnormal glomerular development caused by puromycin aminonucleoside. Pediatr. Res 2011, 70, 83–89.
  46. Yu, S.Y.; Qi, R. Role of bad in podocyte apoptosis induced by puromycin aminonucleoside. Transplant. Proc 2013, 45, 569–573.
  47. Rincon, J.; Romero, M.; Viera, N.; Pedreañez, A.; Mosquera, J. Increased oxidative stress and apoptosis in acute puromycin aminonucleoside nephrosis. Int. J. Exp. Path 2004, 85, 25–33.
  48. George, J.; Banik, N.L.; Ray, S.K. Survivin knockdown and concurrent 4-HPR treatment controlled human glioblastoma in vitro and in vivo. Neuro Oncol 2010, 12, 1088–1101.
  49. Watanabe, A.; Taniguchi, F.; Izawa, M.; Suou, K.; Uegaki, T.; Takai, E.; Terakawa, N. The role of survivin in the resistance of endometriotic stromal cells to drug-induced apoptosis. Hum. Reprod 2009, 24, 3172–3179.
  50. Chen, J.; Chen, J.K.; Conway, E.M.; Harris, R.C. Survivin mediates renal proximal tubule recovery from AKI. J. Am. Soc. Nephrol 2013, 24, 2023–2033.
  51. Altieri, D.C. Targeting survivin in cancer. Cancer Lett 2013, 332, 225–228.
  52. Croci, D.O.; Cogno, I.S.; Vittar, N.B.; Salvatierra, E.; Trajtenberg, F.; Podhajcer, O.; Osinaga, E.; Rabinovich, G.A.; Rivarola, V.A. Silencing survivin gene expression promotes apoptosis of human breast cancer cells through a caspase independent pathway. J. Cell. Biochem 2008, 105, 381–390.
  53. Cheung, C.H.; Chen, H.H.; Kuo, C.C.; Chang, C.Y.; Coumar, M.S.; Hsieh, H.P.; Chang, J.Y. Survivin counteracts the therapeutic effect of microtubule de-stabilizers by stabilizing tubulin polymers. Mol. Cancer 2009, 8, 1–15.
  54. Shimo, T.; Adachi, Y.; Yamanouchi, S.; Tsuji, S.; Kimata, T.; Umezawa, K.; Okigaki, M.; Takaya, J.; Ikehara, S.; Kaneko, K. A novel nuclear factor κB inhibitor, dehydroxymethylepoxyquinomicin, ameliorates puromycin aminonucleoside-induced nephrosis in mice. Am. J. Nephrol 2013, 37, 302–309.
  55. Eto, N.; Wada, T.; Inagi, R.; Takano, H.; Shimizu, A.; Kato, H.; Kurihara, H.; Kawachi, H.; Shankland, S.J.; Fujita, T.; et al. Podocyte protection by darbepoetin: Preservation of the cytoskeleton and nephrin expression. Kidney Int 2007, 72, 455–463.
Ijms 15 06657f1 200

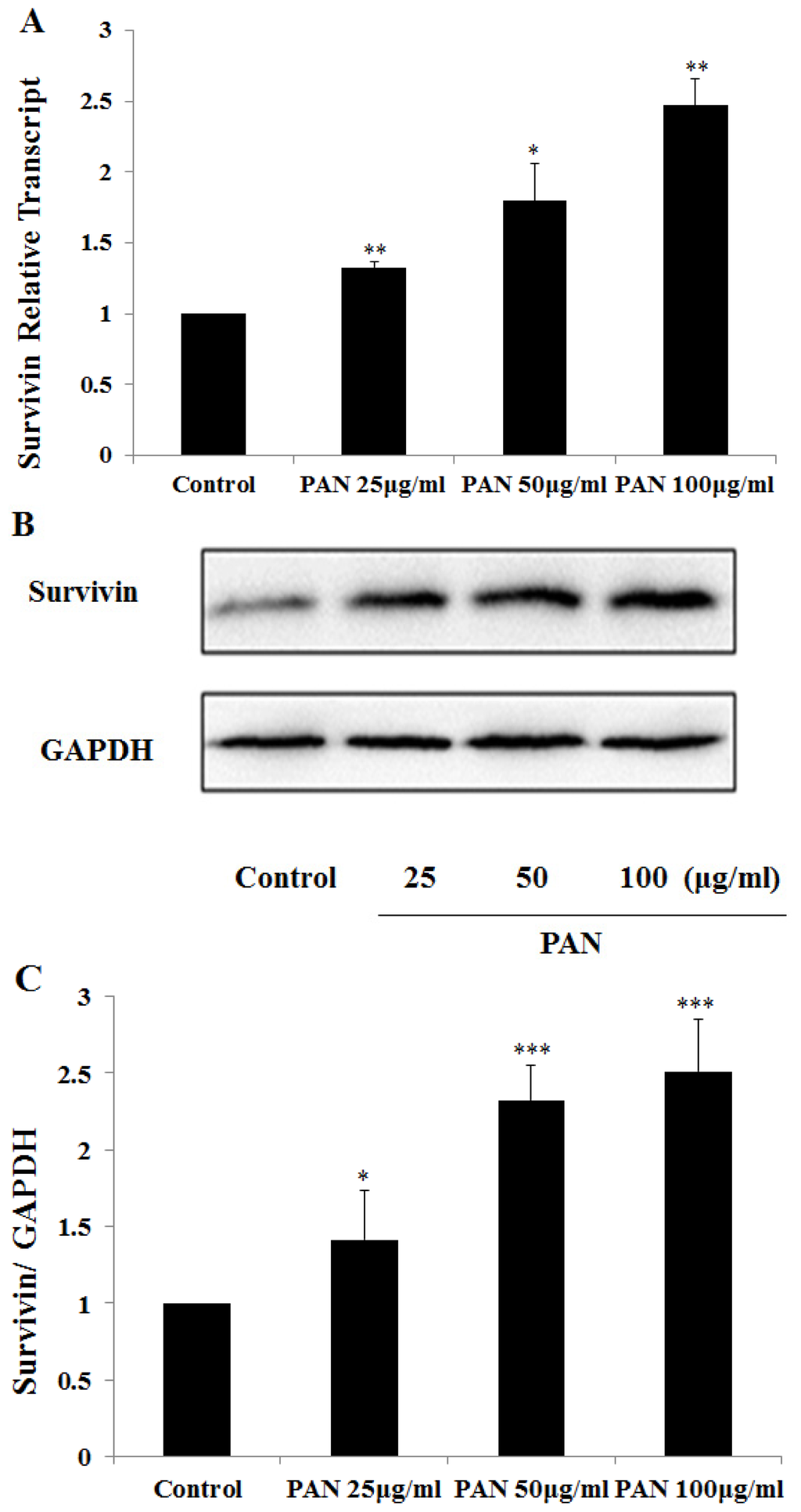

Figure 1. Survivin expression increased in podocytes after puromycin aminonucleoside (PAN) treatment for 24 h. (A) The RNA level of survivin was evaluated by the Quantitative Real-Time PCR; (B) The protein level of survivin was performed by western blot; (C) The amounts of protein were quantified and calibrated with the expression of GAPDH. Data are presented as mean ± SD. n = 3. * p < 0.05, ** p < 0.01, *** p < 0.001.

Click here to enlarge figure

Figure 1. Survivin expression increased in podocytes after puromycin aminonucleoside (PAN) treatment for 24 h. (A) The RNA level of survivin was evaluated by the Quantitative Real-Time PCR; (B) The protein level of survivin was performed by western blot; (C) The amounts of protein were quantified and calibrated with the expression of GAPDH. Data are presented as mean ± SD. n = 3. * p < 0.05, ** p < 0.01, *** p < 0.001.
Ijms 15 06657f1 1024
Ijms 15 06657f2 200

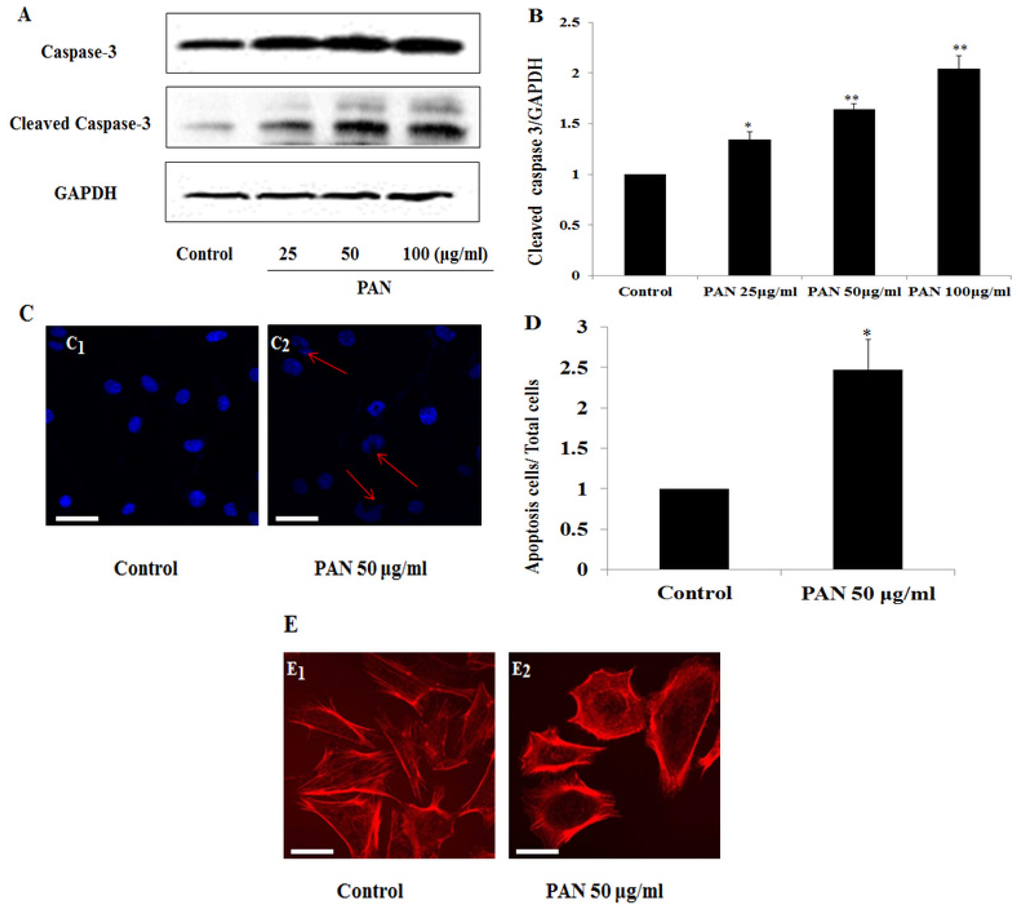

Figure 2. Injury of podocyte after PAN treatment 24 h. (A) Cell lysates were analyzed via western blot with antibodies against caspase 3, cleaved caspase 3 and GAPDH, respectively; (B) The amounts of protein were quantified and calibrated with the expression of GAPDH; (C) Images of podocytes stained with Hoechst (400×, original magnification). Hoechst staining demonstrates nuclei of apoptosis cells and living cells. Red arrows represent apoptotic cells. Bar = 40 μm; (D) Quantitative analysis of apoptosis cells presents as apoptosis cells/total cells; (E) F-actin staining with the fluorescence study (red color). Bar = 40 μm. Data are presented as mean ± SD. n = 3. * p < 0.05, ** p < 0.01.

Click here to enlarge figure

Figure 2. Injury of podocyte after PAN treatment 24 h. (A) Cell lysates were analyzed via western blot with antibodies against caspase 3, cleaved caspase 3 and GAPDH, respectively; (B) The amounts of protein were quantified and calibrated with the expression of GAPDH; (C) Images of podocytes stained with Hoechst (400×, original magnification). Hoechst staining demonstrates nuclei of apoptosis cells and living cells. Red arrows represent apoptotic cells. Bar = 40 μm; (D) Quantitative analysis of apoptosis cells presents as apoptosis cells/total cells; (E) F-actin staining with the fluorescence study (red color). Bar = 40 μm. Data are presented as mean ± SD. n = 3. * p < 0.05, ** p < 0.01.
Ijms 15 06657f2 1024
Ijms 15 06657f3 200

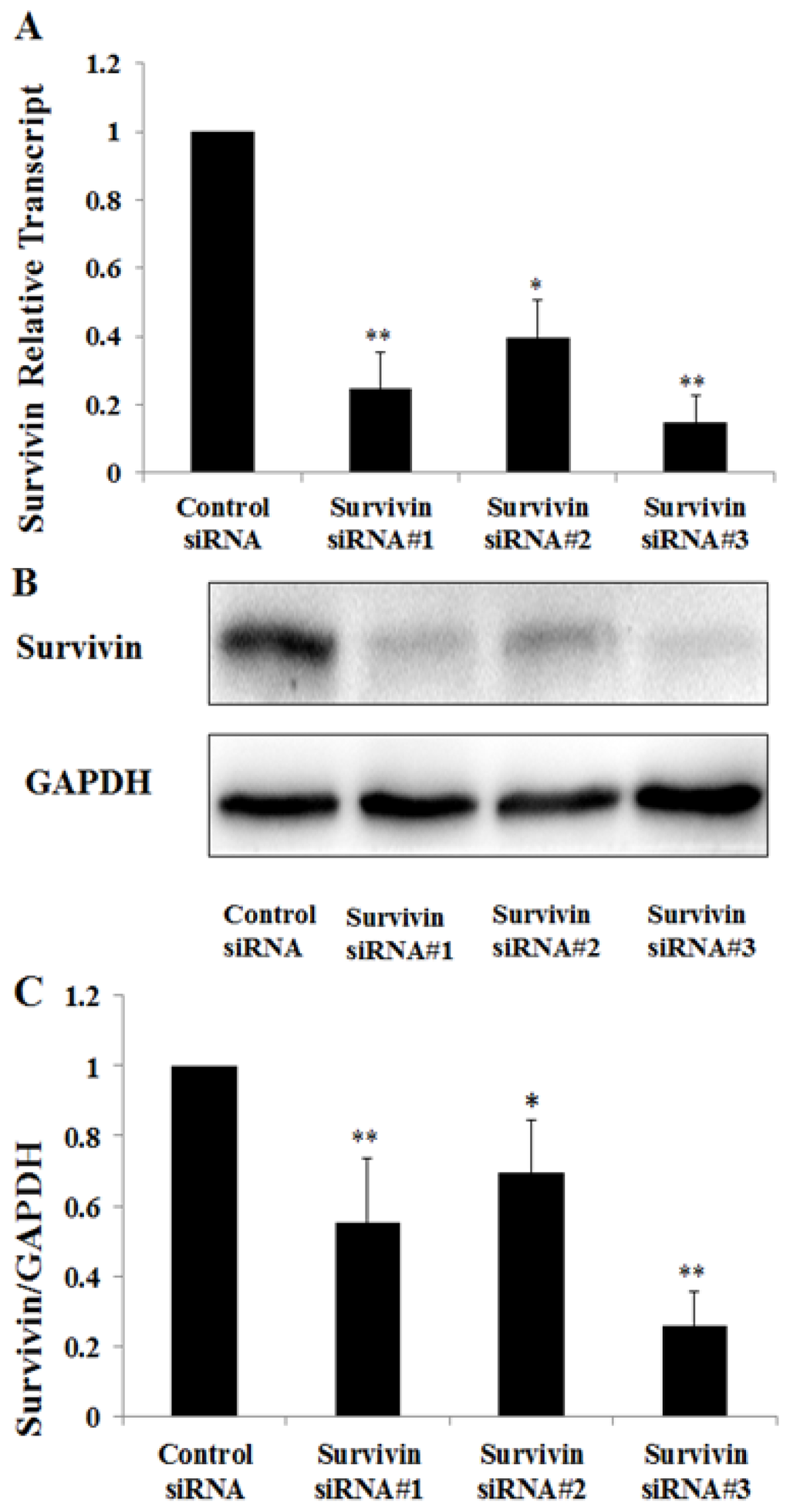

Figure 3. Screening of high effective survivin siRNA. The total RNA (A) and protein (B,C) expression of survivin decreased significantly after transfection with survivin siRNA 100 pmols compared to negative control siRNA, especially survivin siRNA#3 group. Data are presented as mean ± SD. n = 3. * p < 0.05, ** p < 0.01.

Click here to enlarge figure

Figure 3. Screening of high effective survivin siRNA. The total RNA (A) and protein (B,C) expression of survivin decreased significantly after transfection with survivin siRNA 100 pmols compared to negative control siRNA, especially survivin siRNA#3 group. Data are presented as mean ± SD. n = 3. * p < 0.05, ** p < 0.01.
Ijms 15 06657f3 1024
Ijms 15 06657f4a 200Ijms 15 06657f4b 200

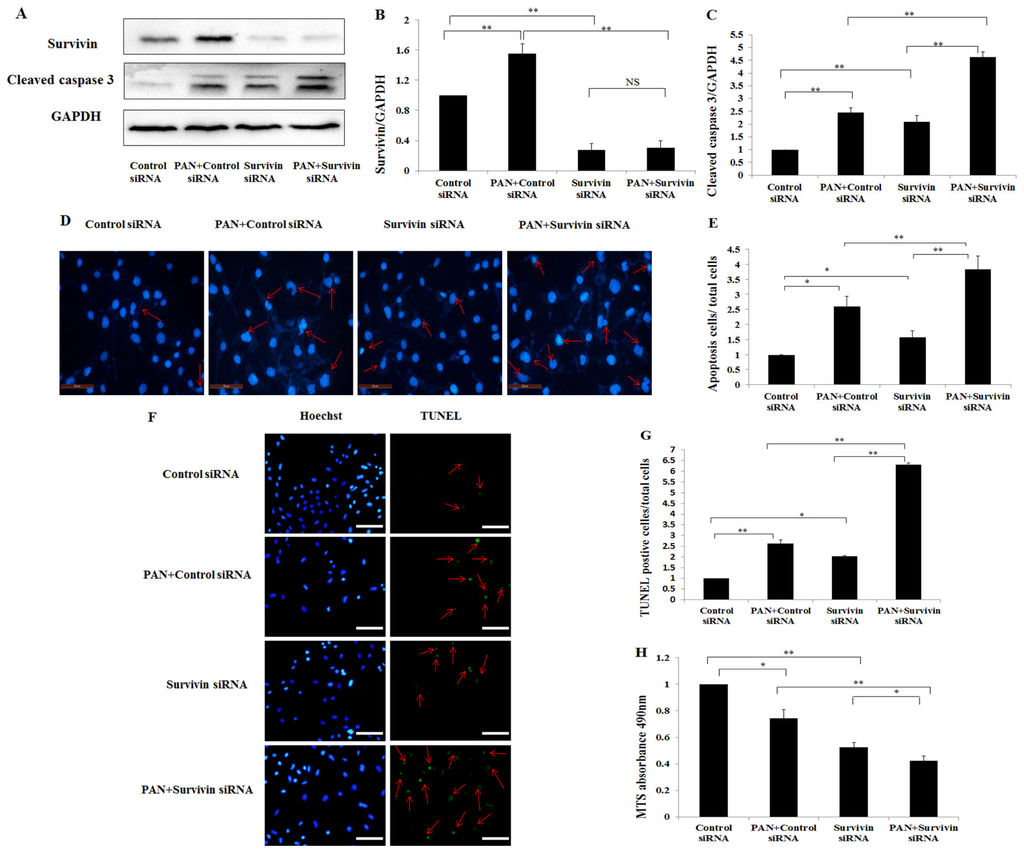

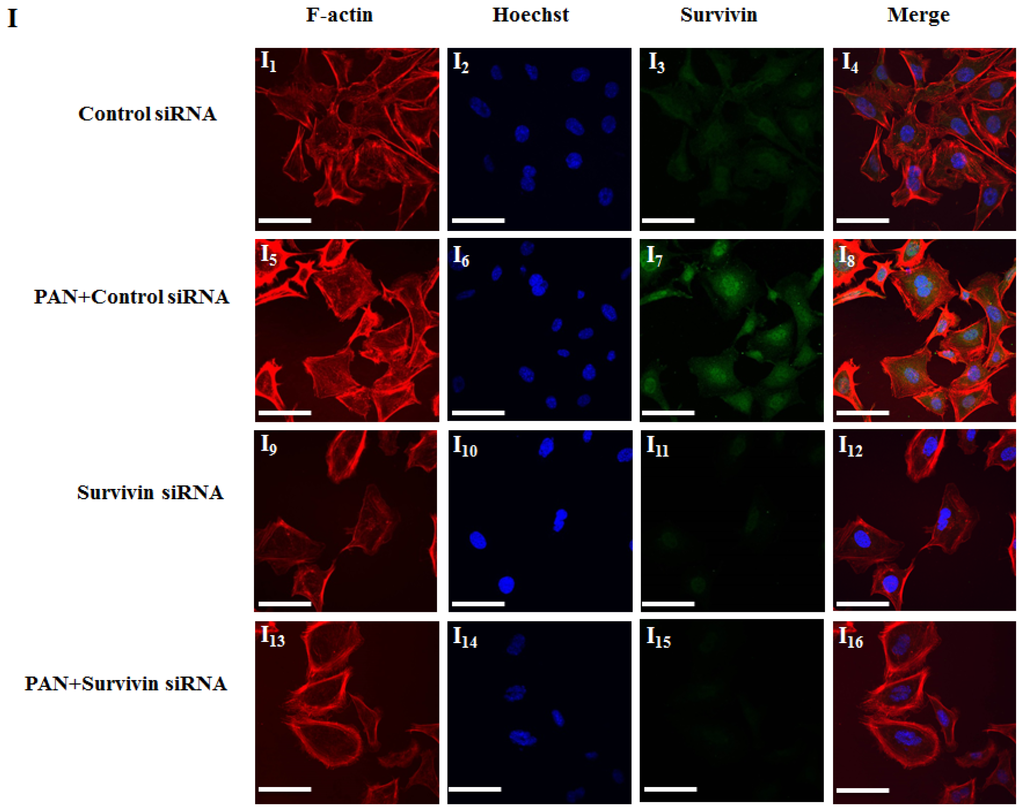

Figure 4. The effect of knocked down survivin on PAN-induced injury of poodcytes. (A) Total cell lysates were prepared and analyzed via western blot with antibodies against survivin, cleaved caspase 3 and GAPDH respectively; (B,C) The amounts of each protein were quantified and calibrated with the expression of GAPDH; (D) Images of podocytes stained with Hoechst (200×, original magnification). Hoechst staining shows nuclei of apoptosis and living cells, Bar = 50 μm. Red arrows indicate apoptotic cells; (E) Quantitative analysis of apoptosis cells presents as apoptosis cells/total cells; (F) Images of podocytes stained with TUNEL. Bar = 100 μm. The green color is indicative of TUNEL-positive cells (indicated with red arrows), and the blue color marks the presence of all cells; (G) The percentage of apoptotic cells is reported. For each group in a given experiment, at least 300 randomly chosen cells were analyzed; (H) MTS analysis of the rate of podocytes viability; (I) F-actin and survivin staining with the fluorescence study demonstrates in red and green, respectively. The double-labelled assays showed that survivin co-localized with F-actin. Bar = 40 μm. Data are presented as mean ± SD. n = 3. * p < 0.05, ** p < 0.01, NS means no significance.

Click here to enlarge figure

Figure 4. The effect of knocked down survivin on PAN-induced injury of poodcytes. (A) Total cell lysates were prepared and analyzed via western blot with antibodies against survivin, cleaved caspase 3 and GAPDH respectively; (B,C) The amounts of each protein were quantified and calibrated with the expression of GAPDH; (D) Images of podocytes stained with Hoechst (200×, original magnification). Hoechst staining shows nuclei of apoptosis and living cells, Bar = 50 μm. Red arrows indicate apoptotic cells; (E) Quantitative analysis of apoptosis cells presents as apoptosis cells/total cells; (F) Images of podocytes stained with TUNEL. Bar = 100 μm. The green color is indicative of TUNEL-positive cells (indicated with red arrows), and the blue color marks the presence of all cells; (G) The percentage of apoptotic cells is reported. For each group in a given experiment, at least 300 randomly chosen cells were analyzed; (H) MTS analysis of the rate of podocytes viability; (I) F-actin and survivin staining with the fluorescence study demonstrates in red and green, respectively. The double-labelled assays showed that survivin co-localized with F-actin. Bar = 40 μm. Data are presented as mean ± SD. n = 3. * p < 0.05, ** p < 0.01, NS means no significance.
Ijms 15 06657f4a 1024Ijms 15 06657f4b 1024
Ijms 15 06657f5a 200Ijms 15 06657f5b 200

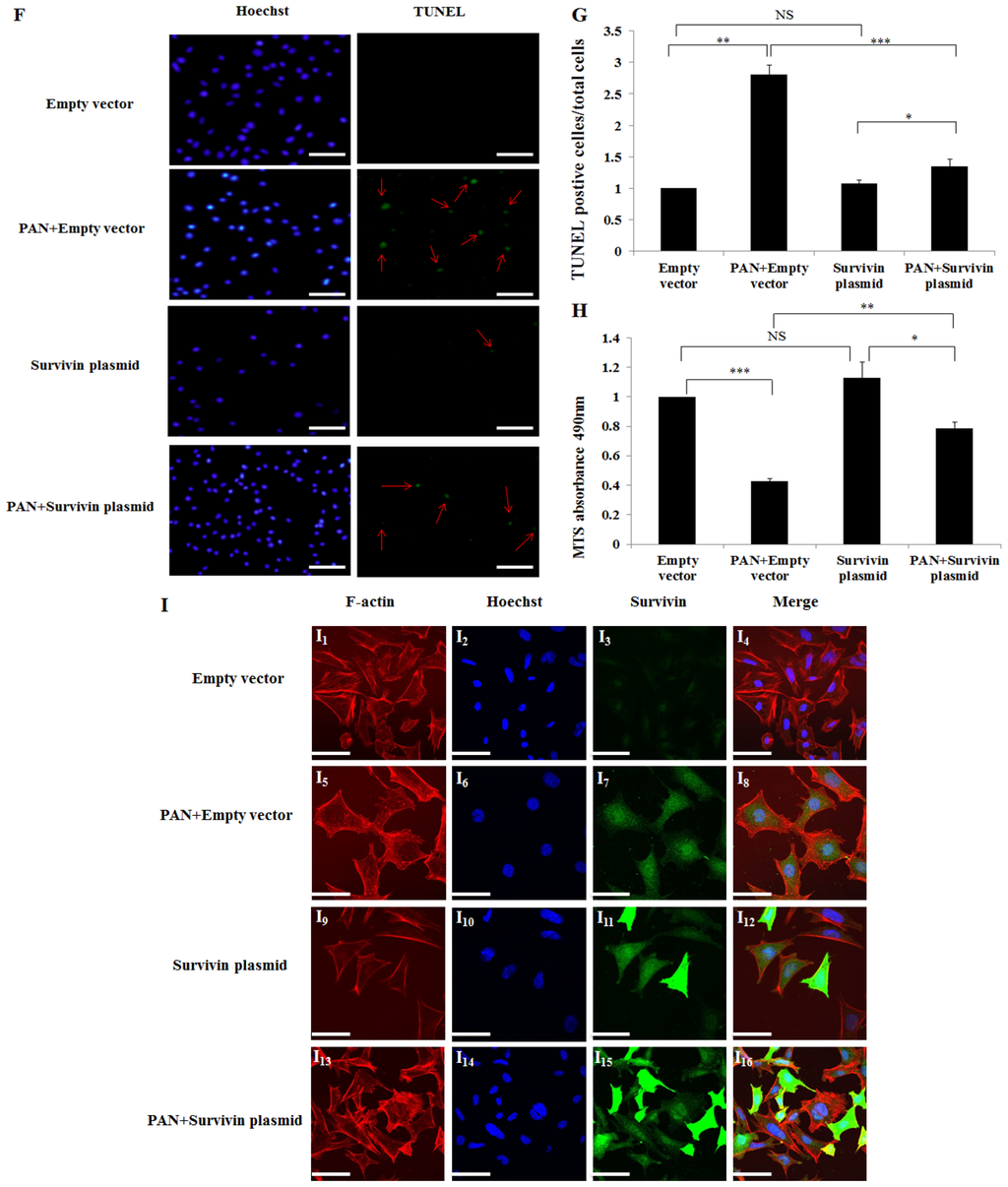

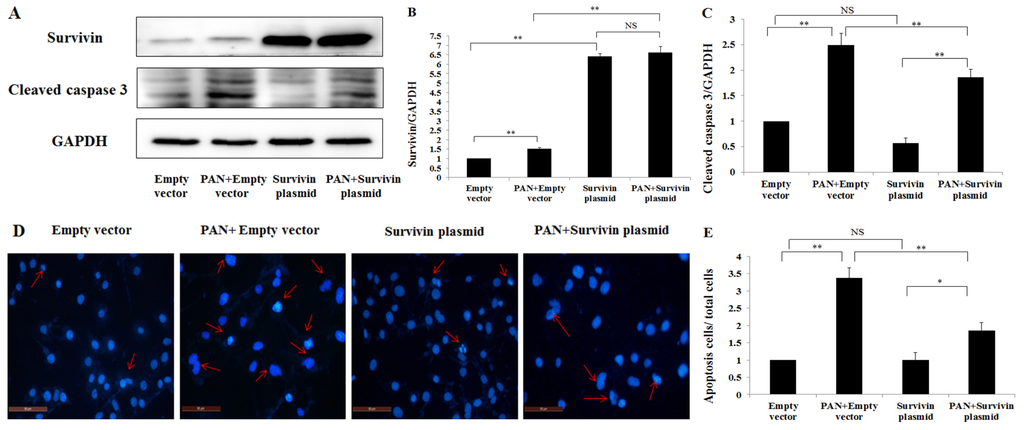

Figure 5. The effect of over-expressed survivin on PAN-induced injury of poodcytes. (A) Total cell lysates were analyzed via western blot with antibodies against survivin, cleaved caspase 3 and GAPDH; (B,C) The amounts of each protein were quantified and calibrated with the expression of GAPDH; (D) Images of podocytes stained with Hoechst (200×, original magnification), Bar = 50 μm. Hoechst staining shows nuclei of apoptosis and living cells. Red arrows indicate apoptotic cells; (E) Quantitative analysis of apoptosis cells was shown as apoptosis cells/total cells; (F) Images of podocytes stained by TUNEL. Bar = 100 μm. The green color is indicative of TUNEL-positive cells (indicated with red arrows), and the blue color marks the presence of all cells; (G) The percentage of apoptotic cells is reported. For each group in a given experiment, at least 300 randomly chosen cells were analyzed; (H) MTS analysis of the rate of podocytes viability; (I) F-actin and survivin staining with the fluorescence study demonstrates in red and green, respectively. The double-labelled assays showed that survivin co-localized with F-actin. Bar = 40 μm. Data are presented as mean ± SD. n = 3. * p < 0.05, ** p < 0.01, *** p < 0.001, NS means no significance.

Click here to enlarge figure

Figure 5. The effect of over-expressed survivin on PAN-induced injury of poodcytes. (A) Total cell lysates were analyzed via western blot with antibodies against survivin, cleaved caspase 3 and GAPDH; (B,C) The amounts of each protein were quantified and calibrated with the expression of GAPDH; (D) Images of podocytes stained with Hoechst (200×, original magnification), Bar = 50 μm. Hoechst staining shows nuclei of apoptosis and living cells. Red arrows indicate apoptotic cells; (E) Quantitative analysis of apoptosis cells was shown as apoptosis cells/total cells; (F) Images of podocytes stained by TUNEL. Bar = 100 μm. The green color is indicative of TUNEL-positive cells (indicated with red arrows), and the blue color marks the presence of all cells; (G) The percentage of apoptotic cells is reported. For each group in a given experiment, at least 300 randomly chosen cells were analyzed; (H) MTS analysis of the rate of podocytes viability; (I) F-actin and survivin staining with the fluorescence study demonstrates in red and green, respectively. The double-labelled assays showed that survivin co-localized with F-actin. Bar = 40 μm. Data are presented as mean ± SD. n = 3. * p < 0.05, ** p < 0.01, *** p < 0.001, NS means no significance.
Ijms 15 06657f5a 1024Ijms 15 06657f5b 1024
