Int. J. Mol. Sci. 2014, 15(3), 3711-3728; doi:10.3390/ijms15033711

Article
Exposure to Diflubenzuron Results in an Up-Regulation of a Chitin Synthase 1 Gene in Citrus Red Mite, Panonychus citri (Acari: Tetranychidae)
Wen-Kai Xia , Tian-Bo Ding , Jin-Zhi Niu , Chong-Yu Liao , Rui Zhong , Wen-Jia Yang , Bin Liu , Wei Dou and Jin-Jun Wang *
Key Laboratory of Entomology and Pest Control Engineering, College of Plant Protection, Southwest University, Chongqing 400716, China; E-Mails: xiawenkai0409@126.com (W.-K.X.); dingdingsky315@126.com (T.-B.D.); jinzhiniu@yahoo.com (J.-Z.N.); leochongyu@163.com (C.-Y.L.); zhongrui19890326@gmail.com (R.Z.); yangwenjia10@126.com (W.-J.Y.); lexylexylexy@163.com (B.L.); anwdou@gmail.com (W.D.)
*
Author to whom correspondence should be addressed; E-Mail: wangjinjun@swu.edu.cn; Tel.: +86-23-6825-0255; Fax: +86-23-6825-1269.
Received: 27 December 2013; in revised form: 27 January 2014 / Accepted: 20 February 2014 /
Published: 28 February 2014

Abstract

: Chitin synthase synthesizes chitin, which is critical for the arthropod exoskeleton. In this study, we cloned the cDNA sequences of a chitin synthase 1 gene, PcCHS1, in the citrus red mite, Panonychus citri (McGregor), which is one of the most economically important pests of citrus worldwide. The full-length cDNA of PcCHS1 contains an open reading frame of 4605 bp of nucleotides, which encodes a protein of 1535 amino acid residues with a predicted molecular mass of 175.0 kDa. A phylogenetic analysis showed that PcCHS1 was most closely related to CHS1 from Tetranychus urticae. During P. citri development, PcCHS1 was constantly expressed in all stages but highly expressed in the egg stage (114.8-fold higher than in the adult). When larvae were exposed to diflubenzuron (DFB) for 6 h, the mite had a significantly high mortality rate, and the mRNA expression levels of PcCHS1 were significantly enhanced. These results indicate a promising use of DFB to control P. citri, by possibly acting as an inhibitor in chitin synthesis as indicated by the up-regulation of PcCHS1 after exposure to DFB.
Keywords:
Panonychus citri; chitin synthase 1; diflubenzuron; insect growth regulators; pest control

1. Introduction

Chitin, a homopolymer of β-1,4-linked N-acetylglucosamines, is the second most abundant natural polymers after cellulose. It is widely distributed in arthropods, nematodes, and fungi [1,2]. In arthropods, it is the principal component of the cuticle and the peritrophic membrane (PM) which lines the midgut epithelium [3]. During growth and development, part of the old cuticle is digested, while new chitin is deposited and synthesized. The crucial step of the chitin biosynthetic pathway in arthropods is associated with chitin synthase (CHS). CHSs are large transmembrane proteins with slightly acidic isoelectric points and theoretical molecular masses ranging from 160 to 180 kDa, which belong to two families of glycosyltransferases that catalyze transfers of sugar moieties from activated sugar donors to specific acceptors in a glycosidic bond [4,5].

The first cDNA sequence encoding an insect or mite chitin synthase gene was obtained from Lucilia cuprina [6]. Since then, several sequences of insect or mite chitin synthases have been isolated and sequenced in many species, including Aedes aegypti [7], Anopheles gambiae [8], Anopheles quadrimaculatus [9], Bactrocera dorsalis [10], Choristoneura fumiferana [11], Drosophila melanogaster [12], Ectropis oblique [13], Locusta migratoria manilensis [14], Manduca sexta [15], Ostrina furnacalis [16], Plutella xylostella [17], Spodoptera exigua [18], S. frugiperda [19], Tribolium castaneum [2], and Tetranychus urticae [20]. Generally, most insects or mites possess two types of chitin synthase genes, namely CHS1 and CHS2 (also referred to as CHS-A and CHS-B) [19,21]. During growth and development, CHS1 is mainly responsible for forming the chitin used in cuticles and the cuticular linings of the foregut, hindgut and trachea. CHS2, however, is specifically produced by midgut epithelial cells and is associated with the PM [1,22]. Presently, in hemipteran insects, such as Nilaparvata lugens and Aphis glycines, only CHS1 has been identified. During the course of evolution, hemipteran insects seem to have lost the PM but evolved an extracellular lipoprotein membrane, the perimicrovillar membrane, surrounding the midgut microvilli cells [2325]. Since they lack the PM, these insects may have also lost the CHS2 gene during evolution [23,24].

The citrus red mite, Panonychus citri (McGregor), has a worldwide distribution and is an economically important citrus pest that rapidly adapts to hosts and has evolved resistance to acaricides [2629]. Although biological control has been successful in mite management, chemical control is still the main strategy against this pest in the field. According to the Arthropod Pesticide Resistance Database [30], P. citri has developed 51 cases of resistance involving 27 acaricides, including amitraz, azocyclotin, abamectin, dicofol, dimethoate, hexythiazox, pyridaben, parathion, spirotetramat, and tetradifon. Therefore, it is urgent to find new pesticides or new targets with serious resistance to replace the acaricides or to develop new acaricides. Due to the fact that the chitin synthesis pathway is absent in vertebrates and plants, chitin synthesis inhibitors are safe for humans and are also promising for controlling mites [5]. Diflubenzuron (DFB), the main representative of benzoylphenylureas which were discovered in the 1970s, is an insect growth regulator in chitin synthesis [31,32]. DFB treatments of A. quadrimaculatus [9], A. glycines [8], and T. urticae [20] increased CHS1 mRNA levels in these species, but no effects were reported in T. castaneum [33] and Pieris brassicae [34]. However, the precise mode of action of DFB remains elusive. In T. castaneum, genomic tiling array of 11,000 genes found only about 6% of genes showed differential expression in response to DFB treatment. At the same time, genes involved in chitin metabolism were unaffected by treatment by DFB [33]. Nevertheless, in T. urticae, a target-site resistance mutation raised the possibility that a chitin biosynthesis inhibitor, such as DFB, may act to inhibit chitin synthases [20]. However, the CHS profile in P. citri and its interaction with DFB remains unclear. In this study, we report (1) a full-length cDNA encoding chitin synthase 1 (PcCHS1) from P. citri; (2) the expression profiles of PcCHS1 at various developmental stages; and (3) the effects of DFB on the expression of PcCHS1 during the larval stage of P. citri.

2. Results

2.1. Analyses of the cDNA and Protein Sequence of PcCHS1

The complete cDNA sequence of PcCHS1 (KF241748) contains an open reading frame (ORF) of 4605 bp encoding 1535 amino acid residues with a predicted molecular mass of 175.0 kDa and an isoelectric point of 6.41 (Figure 1). PcCHS1 was predicted to have 18 transmembrane helices and three domains including: domain A (N-terminal domain) with 11 transmembrane helices; domain B (a high conserved catalytic domain) with two signature motifs, EDR (816–818) and QRRRW (853–857); and domain C (C-terminal domain) with seven transmembrane helices and a signature motif TWGTR (1035–1039), which was assumed to play a crucial role in chitin translocation. In addition, six potential N-glycosylation sites at positions 69, 94, 1150, 1284, 1475, and 1529 were predicted by employing NetNGLyc 1.0 software (Technical University of Denmark, Copenhagen, Denmark).

Multiple protein alignments of the catalytic domains of chitin synthases from Arachnida and insects showed highly conserved identity levels of 96.1% in T. urticae (tetur03g08510) and 90.4% in M. occidentalis (XP003741992), as well as 82.0%, 81.6%, 81.1%, and 79.4% similarity in T. castaneum (AY291476), A. gambiae (XP_321336.4), L. migratoria manilensis (GU067731), and L. striatella (JQ040011), respectively (Figure 2).

2.2. Phylogenetic Analysis of PcCHS1

As P. citri and T. urticae are from the same family, Tetranychidae, the alignment of amino acid sequences was constructed among CHSs genes in this family and other insect species using MEGA5.04. A phylogenetic analysis showed that CHS1 and CHS2 were located in different phylogenetic groups. Additionally, the CHS1 gene from T. urticae and P. citri clustered into the CHS1 family and seemed to share a single clade. A high bootstrap value of 1000 confirmed the phylogenic tree (Figure 3). This result indicated that similar physiological functions and evolutionary relatedness may exist between the CHS1 in T. urticae and P. citri.

2.3. Development-Specific Expression Patterns of PcCHS1

To understand the function of PcCHS1, expression levels of PcCHS1 in different developmental stages of P. citri development, including egg, larva, nymph and adult were evaluated by qPCR (Figure 4). The results showed that PcCHS1 mRNA was expressed in all stages, suggesting that PcCHS1 has roles in biological processes throughout all developmental and growth stages. More specifically, PcCHS1 was highly expressed at the eggs stage, whereas it was the lowest in the adult stage. The relative expression levels of PcCHS1 in eggs, larvae, and nymphs were 114.8-, 9.6-, and 7.3-fold significantly higher than the level in adults (p < 0.05).

2.4. Effects of DFB Treatment on the Expression of PcCHS1

Exposure of P. citri larvae to DFB caused the obvious phenomena of abortive molting and high mortality. However, the larvae in the control group molted normally and developed into nymphs after 1 d. After treatment with DFB at low-lethal concentration (LC10), sub-lethal concentration (LC30) and median lethal concentration (LC50), the relative expression level of PcCHS1 was 1.1-, 5.0- and 6.2-fold higher than in the control. A statistical analysis suggested that PcCHS1 was up-regulated significantly with the LC30 and LC50 doses of DFB after 6 h but had no significant difference after the LC10 dose of DFB when compared with the control. There was no significant difference in the expression patterns between the LC30 and LC50 DFB doses (Figure 5).

3. Discussion

Chitin synthases play key roles in chitin biosynthesis during growth and development, and have been studied in fungal, nematode and in various insect species. Until now, at least 15 species of insect chitin synthases have been cloned and characterized [23], while studies on mite chitin synthases are still relatively scan except T. urticae [20]. Insect chitin synthases have been classified into two different groups, CHS1 and CHS2 [35]. CHS1 is primarily expressed in cuticle and tracheal cells whereas CHS2 is exclusively expressed in the midgut epithelial cells [21,36]. To better understand the biological functions of CHSs, analyses of these genes in different species have received much attention. In this study, we first cloned and characterized a full-length cDNA encoding chitin synthase 1, PcCHS1, from P. citri. The PcCHS1 cDNA contains three domains with all the signature motifs, including EDR and QRRRW in the highly conserved catalytic domain, which faces the cytoplasmic side, and TWGTR, which faces the extracellular side (Figure 1).These motifs are considered as chitin synthase expression sequence tags. The alignment and phylogenic analyses showed that the CHS from P. citri belonged to the CHS1 group.

Alternative splicing expands the diversity of mRNA transcripts and augments modulating gene functions [37]. Research on insect CHS genes revealed that only the CHS1 genes have two alternative exons that produce two splicing variants, CHS1a and CHS1b, having a short 177 bp region of difference encoding 59 amino acids in the second to the last predicted transmembrane helix [14,21,38,39]. These two alternative exons located in the middle ORF region have been reported in T. castaneum [2], P. xylostella [17], M. sexta [15], S. exigua [18], O. furnacalis [16] and L. migratoria manilensis [14]. Additionally, a novel alternative site was found in O. furnacalis (OfCHSA-2a and OfCHSA-2b) and B. mori using gDNA sequence alignments [40]. To investigate the splice variants of P. citri CHS1, a pair of special primers [10,14,17,23] designed based on T. castaneum splice variants region were synthesized to amplify cDNA using templates from different developmental stages. However, our efforts to discriminate P. citri CHS1 splice variants in any developmental stage failed. Genome fragments amplification of chitin synthase in the P. citri genome also revealed no splice variants exist. It seems that P. citri have no alternate exon-a, only exon-b, which is similar to the results from aphids [24]. It is interesting that this occurs only in these two species. Whether the function of exon-a has been successfully replaced or exon-a is unnecessary in chitin biosynthesis is unknown and needs to be explored in depth. Moreover, the relationship between alternative splicing and evolution still requires further investigation.

The expression of PcCHS1 was detected in all four tested developmental stages of P. citri. The expression levels in the eggs were significantly higher than in the adults, which is similar to the levels in A. glycines. In A. glycines, AyCHS has an exceedingly high transcription level in aphid embryos. This high level of AyCHS might reflect its unique role during embryonic development. Embryonic molting can form a large amount of chitin, which leads to the higher expression of CHS1 [24]. However, in L. migratoria manilensis, expression of LmCHS1 reached its lowest level in eggs and highest in adults [14]. While in B. dorsalis, CHS1 was mainly expressed during larva-pupal and pupal-adult transitions, and the highest level was in day-1 adults [10]. In O. furnacalis, OfCHS-2a expression was mainly present in newly laid eggs and larval-larval molting, as well as larval-pupal transformation, whereas OfCHS-2b was mainly expressed during larval-pupal molting [16]. Our results of high expression levels in P. citri eggs might reflect the special expression during egg molting and embryo development in this mite.

DFB is an insect growth regulator that has been successfully established as a potent insecticide for pests control in forestry and agriculture. It can selectively inhibit chitin biosynthesis in insects but not in fungi [41]. When exposed to this chitin synthesis inhibitor, insects may develop disturbed cuticle formations, abnormal depositions of procuticles and abortive molting [9,42]. Early studies using radiolabeled precursors suggested that DFB inhibited chitin synthesis because the growth of the chitin polymer was impaired [43,44]. When treated with DFB, the cuticles of larvae might fail to withstand the increased turgor and be unable to provide sufficient support to fight against harsh environments. Larvae may be unable to digest old cuticles or they may synthesize delicate and malformed cuticles resulting in mass mortality [9]. Since the chitin biosynthetic pathway is absent in humans and vertebrates, DFB have the potential to be used in IPM strategies for pest control and P. citri in citrus fields. In this study, the significant up-regulation of PcCHS1 in P. citri was detected at 6 h in larvae after treatment with DFB. We have shown that under laboratory conditions, sub-lethal concentrations and median lethal concentrations of DFB as treatments significantly increased the expression of PcCHS1 in P. citri larvae (Figure 5). Similarly, about 2-fold up-regulation of CHS1 in A. quadrimaculatus [9] and A. glycines [24] exposed to DFB has been reported. Because CHS1 is only expressed in the epidermis, it may be primarily responsible for the synthesis of chitin. The above-mentioned results indicate that exposure to DFB can reduced the chitin content due to the inhibition of chitin synthase activity or, increased CHS1 expression may indicate the existence of a feedback regulatory mechanism that compensates for the enzymes content [9]. However, previous studies revealed that DFB had no effect on CHS1 expression in T. castaneum [21] and D. melanogaster [45], suggesting that DFB may promote the separation and digestion of the cuticle during molting. Since chitin biosynthesis is a very intricate process, the influence of DFB on the insect chitin synthesis mechanism remains to be explored in depth. Future work should pay attention to the biological significance of PcCHS1 expression and the relevant molecular mechanism of DFB action in P. citri.

P. citri is a globally polyphagous pest that devastates both green fruit trees and deciduous trees, such as citrus, peach and pear [46]. In recent years, P. citri outbreaks have frequently occurred in southern China. Many types of insecticides have been heavily applied to control the pest, inevitably leading to serious resistance [30]. Recently, chitin synthase has been used very successfully as a target gene for RNA interference for T. castaneum, B. dorsalis, O. furnacalis and T. urticae control [10,16,21,4749]. In addition, the silencing of insect chitin synthesis by disrupting its function may be an effective method for future control strategies by targeting PcCHS1 in P. citri. Further, this approach could offer a novel P. citri management policy in the field.

4. Experimental Section

4.1. P. Citri, Leaf-dip Bioassay

The P. citri used in this study were obtained from a local citrus orchard at the Citrus Research Institute, Chinese Academy of Agricultural Sciences, Chongqing (29°45′N 106°22′E), China, in 2013. The mites were reared on fresh citrus seedlings without exposure to pesticides in an insect-rearing room at 25 ± 1 °C, 75%–80% relative humidity, with a 14:10 h light:dark photoperiod. To obtain enough individuals of different developmental stages for the experiments, more than 500 leaf discs were prepared. Flash leaves were gathered randomly from Camellia reticulate Blanco trees from the orchards. The fresh leaves, without prior pesticide exposure, were washed thoroughly. Leaf discs of 3-cm diameter were placed on a 4-mm layer of water-saturated sponge in Petri dishes (9 cm diameter) [50]. Approximate 30 adult females were transferred to each leaf disc and allowed to lay eggs for 12 h before being removed. After the uniform eggs hatched, the offspring were kept until the progeny had developed into 3- to 5-d old females [51].

For the leaf-dip bioassay, DFB (LKT Laboratories Inc., Saint Paul, MN, USA) was used to treat the larval mites, and 0.1% Triton-100 (Beijing Dingguo Changsheng Biotech. Co. Ltd., Beijing, China) was used as the nonionic surfactant [51]. The LC10, LC30 and LC50 of DFB were defined as the treatment concentrations. First, 150 mg of DFB was dissolved in 30 mL of acetone, producing a 5000 mg/L stock solution. Then pipette 3.5, 26.2, and 106.3 μL stock solution to 100 mL distilled water diluted to 0.17, 1.31 and 5.32 mg/L corresponding to LC10, LC30 and LC50 working solutions, respectively. Each detached citrus leave retaining 30 larval mites were dipped for 5 s in the test solution containing 0.1% Triton-100. Leaves treated with distilled water containing only 0.1% Triton-100 were used as a control. When the leaves had dried, they were returned to the conditions as above. After 24 h, the surviving mites were counted and stored at −80 °C for RNA extraction.

4.2. RNA Isolation and Reverse Transcription

Total RNA used for cloning cDNA and analyzing PcCHS1 profiles was isolated using the RNeasy® Plus Micro Kit (Qiagen, Hilden, Germany), and a gDNA elimination column was applied to remove genomic DNA according to the manufacturer’s instructions. The cDNA was synthesized using the total RNA and rapid amplification of cDNA ends (RACE). Total RNA was dissolved in 20 μL H2O treated with DEPC and stored at −80 °C for future use. For the total RNAs, quantities were assessed at 260 nm and the purities evaluated at an absorbance ratio of OD260/280 using a Nanovue UV-Vis spectrophotometer (GE Healthcare, Fairfield, CT, USA). RNA integrity was affirmed by 1% agarose gel electrophoresis. The first-strand cDNA was prepared with 500 ng of RNA in a 10 μL reaction mixture using PrimeScript® 1st strand cDNA synthesis Kit (TaKaRa, Dalian, China) and oligo (dT)18 primers and stored at −20 °C.

4.3. Cloning and Sequencing of PcCHS1

Four CHS1 fragments were obtained based on the results of P. citri high-throughput transcriptome sequencing as per our previous work [52]. The specific primers and cloning strategy were designed to obtain the full-length CHS1 (Table 2 and Figure 6). Specific PCR and nested PCR reaction were performed in a C1000™ Thermal Cycler (BIO-RAD, Hercules, CA, USA). The 5′- and 3′-RACE ends were amplified using SMARTer™ RACE cDNA amplification according to the instructions (Clontech, Palo Alto, CA, USA). The total volume of PCR was 25 μL with 2.5 μL 10× PCR buffer (Mg2+ free), 2.0 μL dNTPs (2.5 mM), 2.0 μL Mg2+ (2.5 mM), 1 μL cDNA templates, 1 μL each primer (10 mM), 0.25 μL rTaq™ polymerase (TaKaRa) and 15.5 μL ddH2O. The PCR program was performed by an initial denaturation for 3 min at 94 °C, followed by 34 cycles of 94 °C for 30 s, 55 to 60 °C (based on the primer annealing temperatures) for 30 s, 72 °C extension for 1 to 2 min and final extension for 10 min at 72 °C. The amplified PCR fragments were gel-purified with the Gel Extraction Mini Kit (Watson Biotechnologies, Shanghai, China) and then ligated into pGEM®-Teasy vector (Promega, Fitchburg, MA, USA). Recombinant plasmids were sequenced using an ABI Model 3100 automated sequencer (Invitrogen Life Technologies, Shanghai, China).

4.4. Sequence Retrieval and Phylogenetic Analysis

The sequence analysis for conserved domains was performed using the NCBI BLAST website ( http://www.ncbi.nlm.nih.gov/Blast.cgi). The ClustalW program was used to align the deduced amino acid sequence of CHS1 [53,54]. The molecular weight and isoelectric points of the deduced protein sequences were calculated by the ExPASy Proteomics Server ( http://cn.expasy.org/tools/pi_tool.html) [55]. The signal peptide was predicted using Signa1P 3.0 ( http://www.cbs.dtu.dk/service/SignalP/) [56], and the transmembrane helices were analyzed using TMHMM v.2.0 ( http://www.cbs.dtu.dk/services/TMHMM-2.0/) [57]. The N-glycosylation sites were predicted by the NetNGlyc 1.0 Server ( http://www.cbs.dtu.dk/services/NetNGlyc/) [58]. DNAMAN 6.0 (DNAMAN 6.0, Lynnon BioSoft, Quebec, Canada) was used to edit the nucleotide sequences of PcCHS1 and the phylogenetic analysis was conducted with MEGA5.04 [59] using the neighbor-joining method to infer the evolutionary history. Bootstrap values were calculated based on 1000 replications.

4.5. Expression Patterns of PcCHS1 in Various P. citri Developmental Stages

To investigate the development-specific expression patterns of PcCHS1, cDNAs were prepared from four developmental stages (2000 eggs, 1500 larvae, 1000 nymphs, and 800 adults) of the mite. PcCHS1 specific primers used for qPCR analysis were designed by primer 3.0 ( http://frodo.wi.mit.edu/) [60] (Table 2). GAPDH (HM582445) was used as a stable reference gene across the different developmental stages [61]. The qPCR was Performed on a Mx3000P thermal cycler (Agilent Technologies, Inc., Wilmington, NC, USA) with 20 μL reaction mixtures containing 1 μL cDNA, 10 μL iQ™ SYBR® Green Supermix (BIO-RAD, Hercules, CA, USA), 1 μL of each gene-specific primer (0.2 mM) and 7 μL ddH2O. The optimized qPCR protocol used for amplification was: 95 °C for 2 min, then 40 cycles of denaturation at 95 °C for 15 s, 60 °C for 30 s and elongation at 72 °C for 30 s. Finally, melt curve analyses (from 60 to 95 °C) were included at the end to ensure the consistency of the amplified products. A total of three biological and two technical replicates were performed for each experiment. The quantification of expression level was analyzed using the 2−ΔΔCt method [62].

4.6. Expression of PcCHS1 after DFB Exposure

To examine the effect of DFB exposure on P. citri CHS1 expression, DFB was used to treat larval mites while using 0.1% Triton-100 as the surfactant. The LC10, LC30 and LC50 of DFB corresponded to 0.17, 1.31 and 5.32 mg/L, respectively, as in the leaf bioassay. After a 6 h interval, only surviving larvae from treated and control groups were collected and frozen at −80°C for RNA extractions (at least 800 larvae). Total RNA was isolated to analyze CHS1 expression levels at different P. citri developmental stages.

5. Conclusions

In conclusion, a full-length cDNA encoding the chitin synthase 1 gene PcCHS1 was cloned from P. citri. The expression profiles of this gene during the P. citri developmental stages and under DFB exposure were documented. PcCHS1 was expressed in all stages, but highly expressed in the egg stage, followed by the larval, nymph, and adult stages. The high expression levels of egg molting might reflect the unique embryo developmental pattern in Tetranychus. PcCHS1 was up-regulated when the mite was exposed to DFB at LC30 and LC50. These results indicate that the use of DFB, which may act as an inhibitor of chitin synthesis by up-regulating PcCHS1, has promise in P. citri control.

Acknowledgments

This research was supported in part by the Special Fund for Agro-Scientific Research in the Public Interest (201203038), the Program for Innovative Research Team in Universities (IRT0976), the National Nature Science Foundation (31171851), and the earmarked fund for the Modern Agro-industry (Citrus) Technology Research System of China to Jin-Jun Wang. We also thank Kun Zhang for his technical assistance in this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lehane, M. Peritrophic matrix structure and function. Annu. Rev. Entomol. 1997, 42, 525–550. [Google Scholar]
  2. Arakane, Y.; Hogenkamp, D.G.; Zhu, Y.C.; Kramer, K.J.; Specht, C.A.; Beeman, R.W.; Kanost, M.R.; Muthukrishnan, S. Characterization of two chitin synthase genes of the red flour beetle Tribolium castaneum and alternate exon usage in one of the genes during development. Insect Biochem. Mol. Biol. 2004, 34, 291–304. [Google Scholar]
  3. Kramer, K.; Muthukrishnan, S. Chitin metabolism in insects. In Comprehensive Molecular Insect Science; Gilbert, L.I., Iatrou, K., Gill, S., Eds.; Elsevier Press: Oxford, UK, 2005; Volume 4, pp. 111–144. [Google Scholar]
  4. Nagahashi, S.; Sudoh, M.; Ono, N.; Sawada, R.; Yamaguchi, E.; Uchida, Y.; Mio, T.; Takagi, M.; Arisawa, M.; Yamada-Okabe, H. Characterization of chitin synthase 2 of Saccharomyces cerevisiae Implication of two highly conserved domains as possible catalytic sites. J. Biol. Chem. 1995, 270, 13961–13967. [Google Scholar]
  5. Merzendorfer, H. Insect chitin synthases: A review. J. Comp. Physiol. B 2006, 176, 1–15. [Google Scholar]
  6. Tellam, R.L.; Vuocolo, T.; Johnson, S.E.; Jarmey, J.; Pearson, R.D. Insect chitin synthase—cDNA sequence gene organization and expression. Eur. J. Biochem 2000, 267, 6025–6042. [Google Scholar]
  7. Ibrahim, G.H.; Smartt, C.T.; Kiley, L.M.; Christensen, B.M. Cloning and characterization of a chitin synthase cDNA from the mosquito Aedes aegypti. Insect Biochem. Mol. Biol 2000, 30, 1213–1222. [Google Scholar]
  8. Zhang, X.; Zhang, J.Z.; Park, Y.; Zhu, K.Y. Identification and characterization of two chitin synthase genes in African malaria mosquito Anopheles gambiae. Insect Biochem. Mol. Biol. 2012, 42, 674–682. [Google Scholar]
  9. Zhang, J.Z.; Zhu, K.Y. Characterization of a chitin synthase cDNA and its increased mRNA level associated with decreased chitin synthesis in Anopheles quadrimaculatus exposed to diflubenzuron. Insect Biochem. Mol. Biol. 2006, 36, 712–725. [Google Scholar]
  10. Yang, W.J.; Xu, K.K.; Cong, L.; Wang, J.J. Identification mRNA expression and functional analysis of chitin synthase 1 gene and its two alternative splicing variants in oriental fruit fly Bactrocera dorsalis. Int. J. Biol. Sci. 2013, 9, 331. [Google Scholar]
  11. Ampasala, D.R.; Zheng, S.; Zhang, D.; Ladd, T.; Doucet, D.; Krell, P.J.; Retnakaran, A.; Feng, Q. An epidermis-specific chitin synthase CDNA in Choristoneura fumiferana: cloning characterization developmental and hormonal-regulated expression. Arch. Insect Biochem. Physiol. 2011, 76, 83–96. [Google Scholar]
  12. Gagou, M.E.; Kapsetaki, M.; Turberg, A.; Kafetzopoulos, D. Stage-specific expression of the chitin synthase DmeChSA and DmeChSB genes during the onset of Drosophila metamorphosis. Insect Biochem. Mol. Biol. 2002, 32, 141–146. [Google Scholar]
  13. Liang, Y.R.; Lin, C.; Wang, R.R.; Ye, J.H.; Lu, J.-L. Cloning and expression pattern of chitin synthase (CHS) gene in epidermis of Ectropis obliqua. Prout African J. Biotech. 2010, 9, 5297–5308. [Google Scholar]
  14. Zhang, J.Z.; Liu, X.J.; Zhang, J.P.; Li, D.Q.; Sun, Y.; Guo, Y.P.; Ma, E.; Zhu, K.Y. Silencing of two alternative splicing-derived mRNA variants of chitin synthase 1 gene by RNAi is lethal to the oriental migratory locust Locusta migratoria manilensis (Meyen). Insect Biochem. Mol. Biol. 2010, 40, 824–833. [Google Scholar]
  15. Hogenkamp, D.G.; Arakane, Y.; Zimoch, L.; Merzendorfer, H.; Kramer, K.J.; Beeman, R.W.; Kanost, M.R.; Specht, C.A.; Muthukrishnan, S. Chitin synthase genes in Manduca sexta: Characterization of a gut-specific transcript and differential tissue expression of alternately spliced mRNAs during development. Insect Biochem. Mol. Biol. 2005, 35, 529–540. [Google Scholar]
  16. Qu, M.B.; Yang, Q. A novel alternative splicing site of class A chitin synthase from the insect Ostrinia furnacalis—Gene organization expression pattern and physiological significance. Insect Biochem. Mol. Biol. 2011, 41, 923–931. [Google Scholar]
  17. Ashfaq, M.; Sonoda, S.; Tsumuki, H. Developmental and tissue-specific expression of CHS1 from Plutella xylostella and its response to chlorfluazuron. Pestic. Biochem. Physiol. 2007, 89, 20–30. [Google Scholar]
  18. Chen, X.; Yang, X.; Senthil Kumar, N.; Tang, B.; Sun, X.; Qiu, X.; Hu, J.; Zhang, W. The class A chitin synthase gene of Spodoptera exigua: Molecular cloning and expression patterns. Insect Biochem. Mol. Biol. 2007, 37, 409–417. [Google Scholar]
  19. Bolognesi, R.; Arakane, Y.; Muthukrishnan, S.; Kramer, K.J.; Terra, W.R.; Ferreira, C. Sequences of cDNAs and expression of genes encoding chitin synthase and chitinase in the midgut of Spodoptera frugiperda. Insect Biochem. Mol. Biol. 2005, 35, 1249–1259. [Google Scholar]
  20. Van Leeuwen, T.; Demaeght, P.; Osborne, E.J.; Dermauw, W.; Gohlke, S.; Nauen, R.; Grbic, M.; Tirry, L.; Merzendorfer, H.; Clark, R.M. Population bulk segregant mapping uncovers resistance mutations and the mode of action of a chitin synthesis inhibitor in arthropods. Proc. Natl. Acad. Sci. USA 2012, 109, 4407–4412. [Google Scholar]
  21. Arakane, Y.; Muthukrishnan, S.; Kramer, K.J.; Specht, C.A.; Tomoyasu, Y.; Lorenzen, M.D.; Kanost, M.; Beeman, R.W. The Tribolium chitin synthase genes TcCHS1 and TcCHS2 are specialized for synthesis of epidermal cuticle and midgut peritrophic matrix. Insect Biochem. Mol. Biol. 2005, 14, 453–463. [Google Scholar]
  22. Zimoch, L.; Merzendorfer, H. Immunolocalization of chitin synthase in the tobacco hornworm. Cell Tissue Res. 2002, 308, 287–297. [Google Scholar]
  23. Wang, Y.; Fan, H.W.; Huang, H.J.; Xue, J.; Wu, W.J.; Bao, Y.Y.; Xu, H.J.; Zhu, Z.R.; Cheng, J.A.; Zhang, C.X. Chitin synthase 1 gene and its two alternative splicing variants from two sap-sucking insects Nilaparvata lugens and Laodelphax striatellus (Hemiptera: Delphacidae). Insect Biochem. Mol. Biol. 2012, 42, 637–646. [Google Scholar]
  24. Bansal, R.; Mian, M.R.; Mittapalli, O.; Michel, A.P. Characterization of a chitin synthase encoding gene and effect of diflubenzuron in soybean aphid Aphis glycines. Int. J. Biol. Sci. 2012, 8, 1323. [Google Scholar]
  25. Silva, C.P.; Silva, J.R.; Vasconcelos, F.F.; Petretski, M.l.D.; DaMatta, R.A.; Ribeiro, A.F.; Terra, W.R. Occurrence of midgut perimicrovillar membranes in paraneopteran insect orders with comments on their function and evolutionary significance. Arthropod Struct. Dev. 2004, 33, 139–148. [Google Scholar]
  26. Gotoh, T.; Ishikawa, Y.; Kitashima, Y. Life-history traits of the six Panonychus species from Japan (Acari: Tetranychidae). Exp. Appl. Acarol 2003, 29, 241–252. [Google Scholar]
  27. Vassiliou, V.A.; Papadoulis, G. First record of the citrus red mite Panonychus citri in Cyprus. Phytoparasitica 2009, 37, 99–100. [Google Scholar]
  28. Ding, T.B.; Niu, J.Z.; Yang, L.H.; Zhang, K.; Dou, W.; Wang, J.J. Transcription profiling of two cytochrome P450 genes potentially involved in acaricide metabolism in citrus red mite Panonychus citri. Pestic. Biochem. Physiol. 2013, 106, 28–37. [Google Scholar]
  29. Zhang, K.; Niu, J.Z.; Ding, T.B.; Dou, W.; Wang, J.J. Molecular characterization of two Carboxylesterase genes of the citrus red mite Panonychus citri (Acari: Tetranychidae). Arch. Insect Biochem. Physiol. 2013, 82, 213–226. [Google Scholar]
  30. Whalon, M.; Mota-Sanchez, D.; Hollingworth, R.; Duynslager, L. Arthropod Pesticide Resistance Database(APRD), Available online: http://www.pesticideresistance.org (accessed on 1 August 2013).
  31. Meola, S.M.; Mayer, R.T. Inhibition of cellular proliferation of imaginal epidermal cells by diflubenzuron in pupae of the Stable fly. Science 1980, 207, 985–987. [Google Scholar]
  32. Mayer, R.; Chen, A.; DeLoach, J. Chitin synthesis inhibiting insect growth regulators do not inhibit chitin synthase. Experientia 1981, 37, 337–338. [Google Scholar]
  33. Merzendorfer, H.; Kim, H.S.; Chaudhari, S.S.; Kumari, M.; Specht, C.A.; Butcher, S.; Brown, S.J.; Robert Manak, J.; Beeman, R.W.; Kramer, K.J. Genomic and proteomic studies on the effects of the insect growth regulator diflubenzuron in the model beetle species Tribolium castaneum. Insect Biochem. Mol. Biol. 2012, 42, 264–276. [Google Scholar]
  34. Deul, D.; de Jong, B.; Kortenbach, J. Inhibition of chitin synthesis by two 1-(26-disubstituted benzoyl)-3-phenylurea insecticides II. Pestic. Biochem. Physiol. 1978, 8, 98–105. [Google Scholar]
  35. Merzendorfer, H.; Zimoch, L. Chitin metabolism in insects: Structure function and regulation of chitin synthases and chitinases. J. Exp. Biol. 2003, 206, 4393–4412. [Google Scholar]
  36. Zimoch, L.; Hogenkamp, D.; Kramer, K.; Muthukrishnan, S.; Merzendorfer, H. Regulation of chitin synthesis in the larval midgut of Manduca sexta. Insect Biochem. Mol. Biol. 2005, 35, 515–527. [Google Scholar]
  37. Black, D.L. Mechanisms of alternative pre-messenger RNA splicing. Annu. Rev. Biochem. 2003, 72, 291–336. [Google Scholar]
  38. Rezende, G.L.; Martins, A.J.; Gentile, C.; Farnesi, L.C.; Pelajo-Machado, M.; Peixoto, A.A.; Valle, D. Embryonic desiccation resistance in Aedes aegypti: presumptive role of the chitinized serosal cuticle. BMC Dev. Biol. 2008, 8, 82. [Google Scholar]
  39. Zhang, X.; Zhang, J.; Zhu, K. Chitosan/double—Stranded RNA nanoparticle mediated RNA interference to silence chitin synthase genes through larval feeding in the African malaria mosquito (Anopheles gambiae). Insect Mol. Biol. 2010, 19, 683–693. [Google Scholar]
  40. Qu, M.B.; Yang, Q. Physiological significance of alternatively spliced exon combinations of the single-copy gene class A chitin synthase in the insect Ostrinia furnacalis (Lepidoptera). Insect Mol. Biol. 2012, 21, 395–404. [Google Scholar]
  41. Grbić, M.; van Leeuwen, T.; Clark, R.M.; Rombauts, S.; Rouzé, P.; Grbić, V.; Osborne, E.J.; Dermauw, W.; Ngoc, P.C.T.; Ortego, F. The genome of Tetranychus urticae reveals herbivorous pest adaptations. Nature 2011, 479, 487–492. [Google Scholar]
  42. Mulder, R.; Gijswijt, M.J. The laboratory evaluation of two promising new insecticides which interfere with cuticle deposition. Pest Manag. Sci. 1973, 4, 737–745. [Google Scholar]
  43. Clarke, B.S.; Jewess, P.J. The inhibition of chitin synthesis in Spodoptera littoralis larvae by flufenoxuron teflubenzuron and diflubenzuron. Pest Manag. Sci. 1990, 28, 377–388. [Google Scholar]
  44. Hajjar, N.P.; Casida, J.E. Insecticidal benzoylphenyl ureas: Structure-activity relationships as chitin synthesis inhibitors. Science 1978, 200, 1499–1500. [Google Scholar]
  45. Gangishetti, U.; Breitenbach, S.; Zander, M.; Saheb, S.K.; Müller, U.; Schwarz, H.; Moussian, B. Effects of benzoylphenylurea on chitin synthesis and orientation in the cuticle of the Drosophila larva. Eur. J. Cell. Biol 2009, 88, 167–180. [Google Scholar]
  46. Takafuji, Y.; Fujimoto, H. Winter survival of the non-diapausing population of the citrus red mite Panonychus citri (MaGregor) (Acarian: Tetranychidae) on pear and citrus. Appl. Entomol. Zool. 1986, 21, 467–473. [Google Scholar]
  47. Arakane, Y.; Specht, C.A.; Kramer, K.J.; Muthukrishnan, S.; Beeman, R.W. Chitin synthases are required for survival fecundity and egg hatch in the red flour beetle Tribolium castaneum. Insect Biochem. Mol. Biol. 2008, 38, 959–962. [Google Scholar]
  48. Khila, A.; Grbić, M. Gene silencing in the spider mite Tetranychus urticae: dsRNA and siRNA parental silencing of the Distal-less gene. Dev. Genes. Evol. 2007, 217, 241–251. [Google Scholar]
  49. Kwon, D.H.; Park, J.H.; Lee, S.H. Screening of lethal genes for feeding RNAi by leaf disc-mediated systematic delivery of dsRNA in Tetranychus urticae. Pestic. Biochem. Physiol. 2012, 105, 69–75. [Google Scholar]
  50. Hu, J.; Wang, C.; Wang, J.; You, Y.; Chen, F. Monitoring of resistance to spirodiclofen and five other acaricides in Panonychus citri collected from Chinese citrus orchards. Pest Manag. Sci. 2010, 66, 1025–1030. [Google Scholar]
  51. Michel, A.P.; Mian, M.R.; Davila-Olivas, N.H.; Cañas, L.A. Detached leaf and whole plant assays for soybean aphid resistance: differential responses among resistance sources and biotypes. J. Econ. Entomol. 2010, 103, 949–957. [Google Scholar]
  52. Niu, J.Z.; Dou, W.; Ding, T.B.; Shen, G.M.; Zhang, K.; Smagghe, G.; Wang, J.J. Transcriptome analysis of the citrus red mite Panonychus citri and its gene expression by exposure to insecticide/acaricide. Insect Mol. Biol. 2012, 21, 422–436. [Google Scholar]
  53. Hill, C.B.; Hartman, G.L. Resistance to the soybean aphid in soybean germplasm. Crop Sci 2004, 44, 98–106. [Google Scholar]
  54. Bansal, R.; Hulbert, S.; Schemerhorn, B.; Reese, J.C.; Whitworth, R.J.; Stuart, J.J.; Chen, M.S. Hessian fly-associated bacteria: transmission essentiality and composition. PLoS One 2011, 6, e23170. [Google Scholar]
  55. Bairoch, A. The PROSITE dictionary of sites and patterns in proteins its current status. Nucleic Acids. Res 1993, 21, 3097–3103. [Google Scholar]
  56. Bendtsen, J.D.; Nielsen, H.; von Heijing, G.; Brunak, S. Improved prediction os signal preptides: SignalIP 30. J. Mol. Biol 2004, 340, 783–795. [Google Scholar]
  57. Krogh, A.; Larsson, B.; von Heijine, G.; Sonnhammer, E.L.L. Predicting transmembrane protein topology with a hidden markov model: Application to complete genomes. J. Mol. Biol 2001, 305, 567–580. [Google Scholar]
  58. Hansen, J.E.; Lund, O.; Rapachi, K.; Brunak, S. O-GLYCBASE versin 20: A revised database of O-glycosylated proteins. Nucleic. Acids. Res 1997, 25, 278–282. [Google Scholar]
  59. Tamura, K.; Peyerson, D.; Peterson, N.; Stecher, G.; Nei Kumar, S. MAGA5: Molecular evolutionary genetics analysis using maximum likelihood evolutionary distance and maximum parsimony methods. Mol. Biol. Evol 2011, 28, 2731–2739. [Google Scholar]
  60. Rozen, S.; Skaletsky, H. Primer 3 on the WWW for General user and for biologist programmers. Bioinforma. Methods Protoc. 1999, 132, 365–386. [Google Scholar]
  61. Niu, J.Z.; Dou, W.; Ding, T.B.; Yang, L.H.; Shen, G.M.; Wang, J.J. Evaluation of suitable reference genes for quantitative RT-PCR during development and abiotic stress in Panonychus citri (McGregor) (Acari: Tetranychidae). Mol. Biol. Rep. 2012, 39, 5841–5849. [Google Scholar]
  62. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCt method. Methods 2001, 25, 402–408. [Google Scholar]
Ijms 15 03711f1a 1024

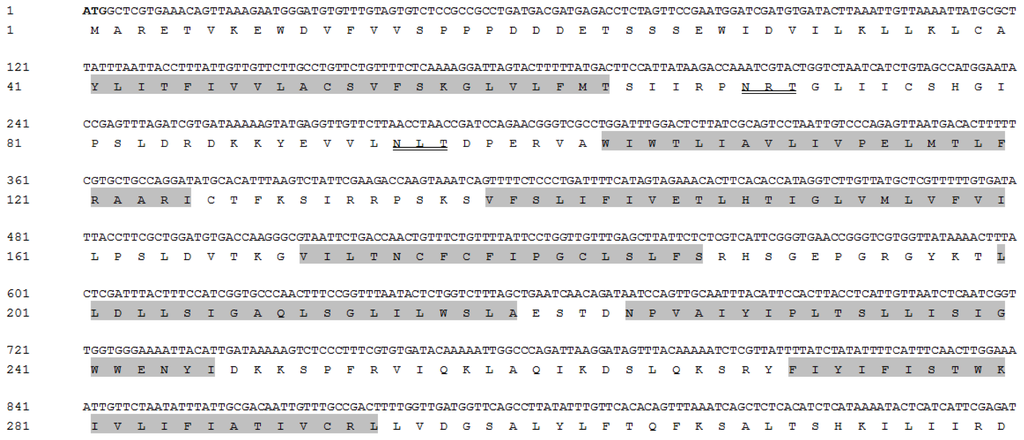

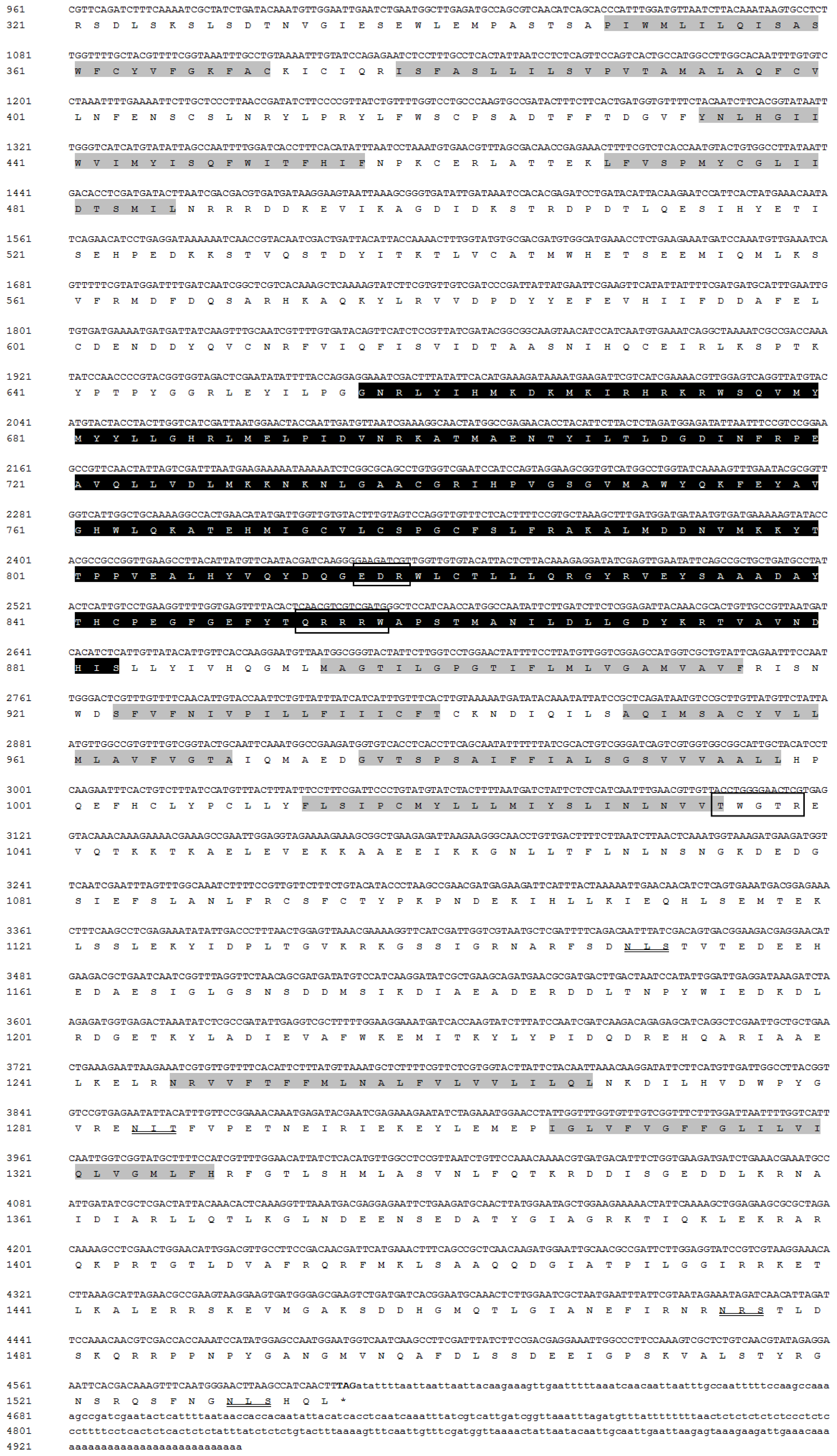

Figure 1. Nucleotide and deduced amino acid sequences of the chitin synthase 1 gene, PcCHS1, from the citrus red mite, Panonychus citri (Acari: Tetranychidae), cDNA (KF241748). The start codon (ATG) is indicated in black and the stop codon (TGA) in black with an asterisk. The chitin synthase signature motifs (EDR and QRRRW) are boxed with a black background, while TWGTR is boxed. Eighteen putative transmembrane regions are shaded. The six N-glycosylation sites are indicated with double lines. The putative catalytic domain is in white with a black background.

Click here to enlarge figure

Figure 1. Nucleotide and deduced amino acid sequences of the chitin synthase 1 gene, PcCHS1, from the citrus red mite, Panonychus citri (Acari: Tetranychidae), cDNA (KF241748). The start codon (ATG) is indicated in black and the stop codon (TGA) in black with an asterisk. The chitin synthase signature motifs (EDR and QRRRW) are boxed with a black background, while TWGTR is boxed. Eighteen putative transmembrane regions are shaded. The six N-glycosylation sites are indicated with double lines. The putative catalytic domain is in white with a black background.
Ijms 15 03711f1a 1024Ijms 15 03711f1b 1024
Ijms 15 03711f2 1024

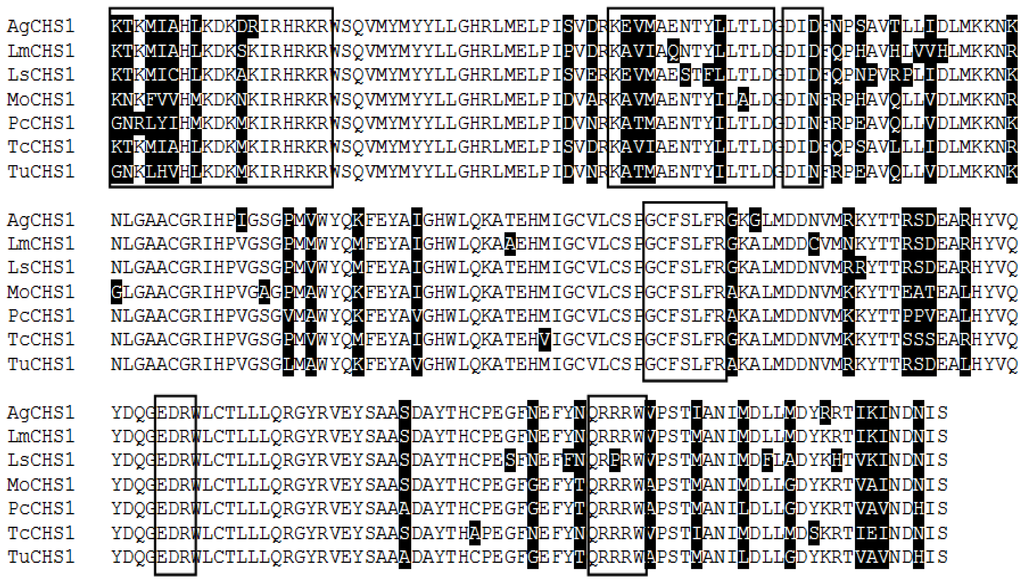

Figure 2. ClustalW alignment of putative conserved catalytic domains of chitin synthases genes from three mites and four insect species. Conserved domains with identical amino acid residues are shown with white backgrounds. Six black boxes of amino acid residues refer to the highly conserved regions in glycosyltransferases enzymes [19]. The chitin synthase sequences used in the alignment are: AgCHS1: Anopheles gambiae, LmCHS1: Locusta migratoria manilensis; LsCHS1: Laodelphax striatella; MoCHS1: Metaseiulus occidentalis; PcCHS1: Panonychus citri; TcCHS1: Tribolium castaneum; TuCHS1: Tetranychus urticae.

Click here to enlarge figure

Figure 2. ClustalW alignment of putative conserved catalytic domains of chitin synthases genes from three mites and four insect species. Conserved domains with identical amino acid residues are shown with white backgrounds. Six black boxes of amino acid residues refer to the highly conserved regions in glycosyltransferases enzymes [19]. The chitin synthase sequences used in the alignment are: AgCHS1: Anopheles gambiae, LmCHS1: Locusta migratoria manilensis; LsCHS1: Laodelphax striatella; MoCHS1: Metaseiulus occidentalis; PcCHS1: Panonychus citri; TcCHS1: Tribolium castaneum; TuCHS1: Tetranychus urticae.
Ijms 15 03711f2 1024
Ijms 15 03711f3 1024

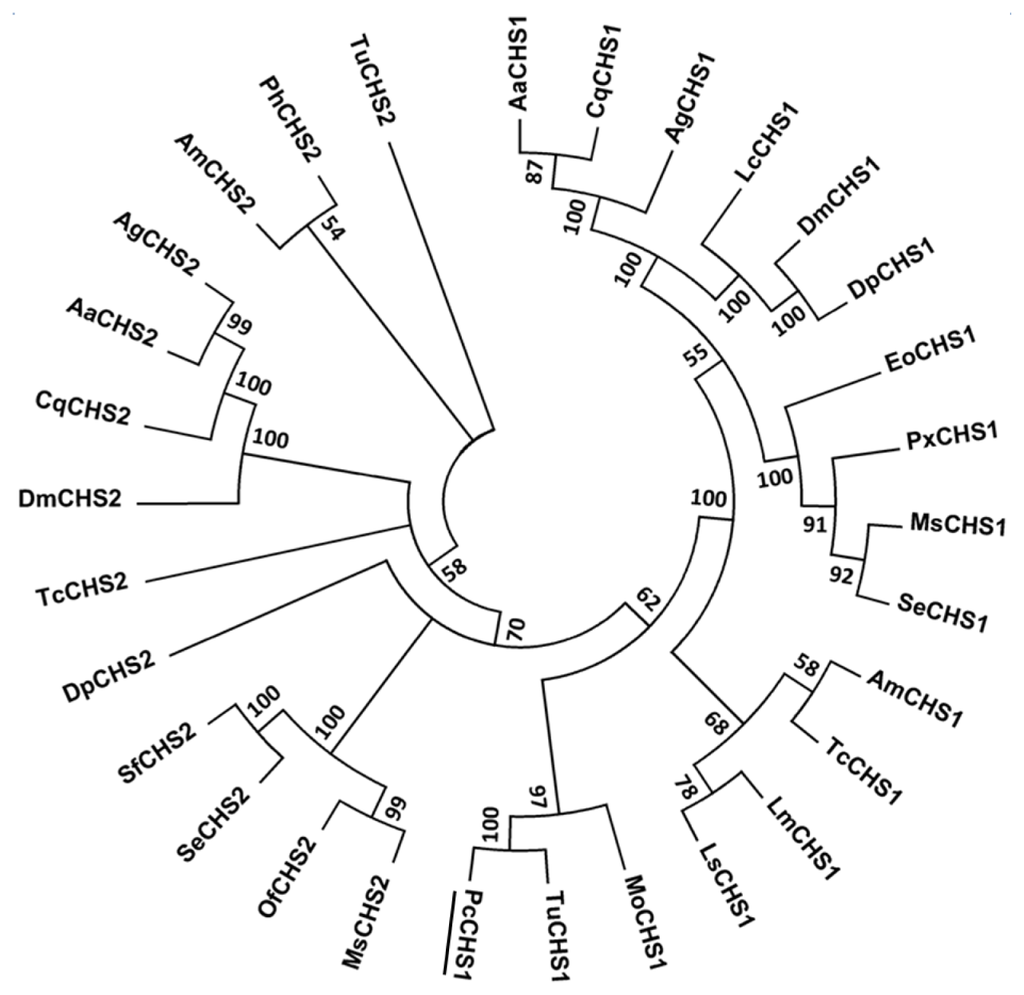

Figure 3. Phylogenetic analysis between the chitin synthase 1 gene, PcCHS1, from the citrus red mite, Panonychus citri (Acari: Tetranychidae), and the known acari and insect chitin synthase genes. The phylogenetic tree was constructed by MEGA 5.04 based on the neighbor-joining method according to amino acid sequences. Bootstrap support values with 1000 are shown on the branches. The chitin synthase sequences used to generate the tree are listed in Table 1.

Click here to enlarge figure

Figure 3. Phylogenetic analysis between the chitin synthase 1 gene, PcCHS1, from the citrus red mite, Panonychus citri (Acari: Tetranychidae), and the known acari and insect chitin synthase genes. The phylogenetic tree was constructed by MEGA 5.04 based on the neighbor-joining method according to amino acid sequences. Bootstrap support values with 1000 are shown on the branches. The chitin synthase sequences used to generate the tree are listed in Table 1.
Ijms 15 03711f3 1024
Ijms 15 03711f4 1024

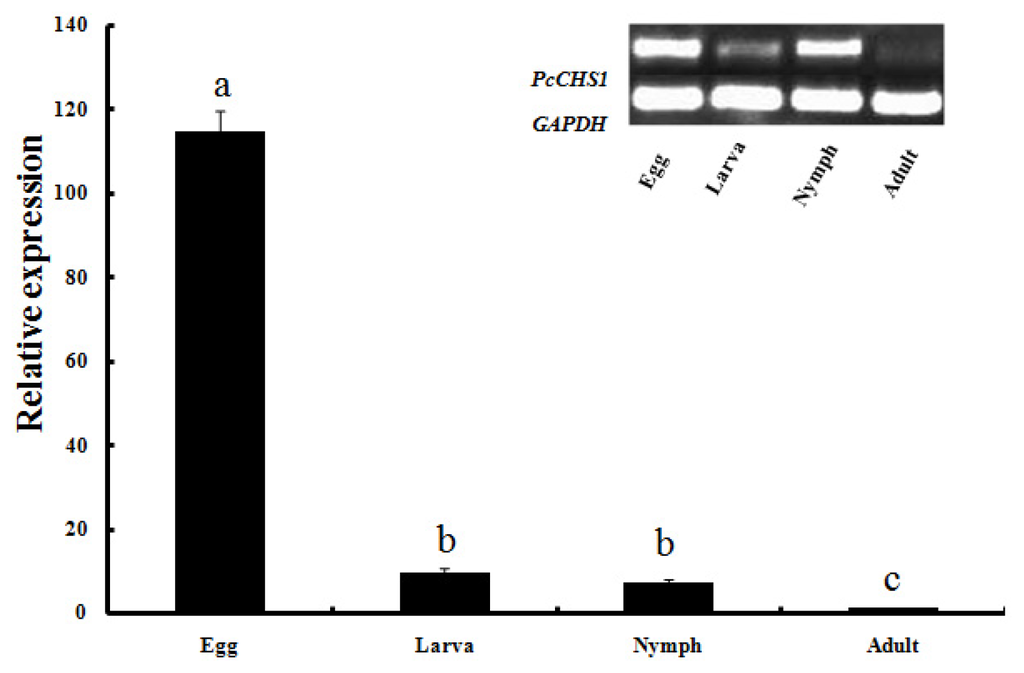

Figure 4. Expression levels of the chitin synthase 1 gene, PcCHS1, across different developmental stages of citrus red mite, Panonychus citri (Acari: Tetranychidae). Relative transcript levels of PcCHS1 in egg, larva, nymph, and adult stages were examined using qPCR. The relative expression was calculated based on the value of the lowest expression level, which was assigned the arbitrary value of 1. Data are means (±SE) of three biological replications per developmental stage. Different letters on the error bars show significant differences by an ANOVA test (p < 0.05). GAPDH was used as the reference gene.

Click here to enlarge figure

Figure 4. Expression levels of the chitin synthase 1 gene, PcCHS1, across different developmental stages of citrus red mite, Panonychus citri (Acari: Tetranychidae). Relative transcript levels of PcCHS1 in egg, larva, nymph, and adult stages were examined using qPCR. The relative expression was calculated based on the value of the lowest expression level, which was assigned the arbitrary value of 1. Data are means (±SE) of three biological replications per developmental stage. Different letters on the error bars show significant differences by an ANOVA test (p < 0.05). GAPDH was used as the reference gene.
Ijms 15 03711f4 1024
Ijms 15 03711f5 1024

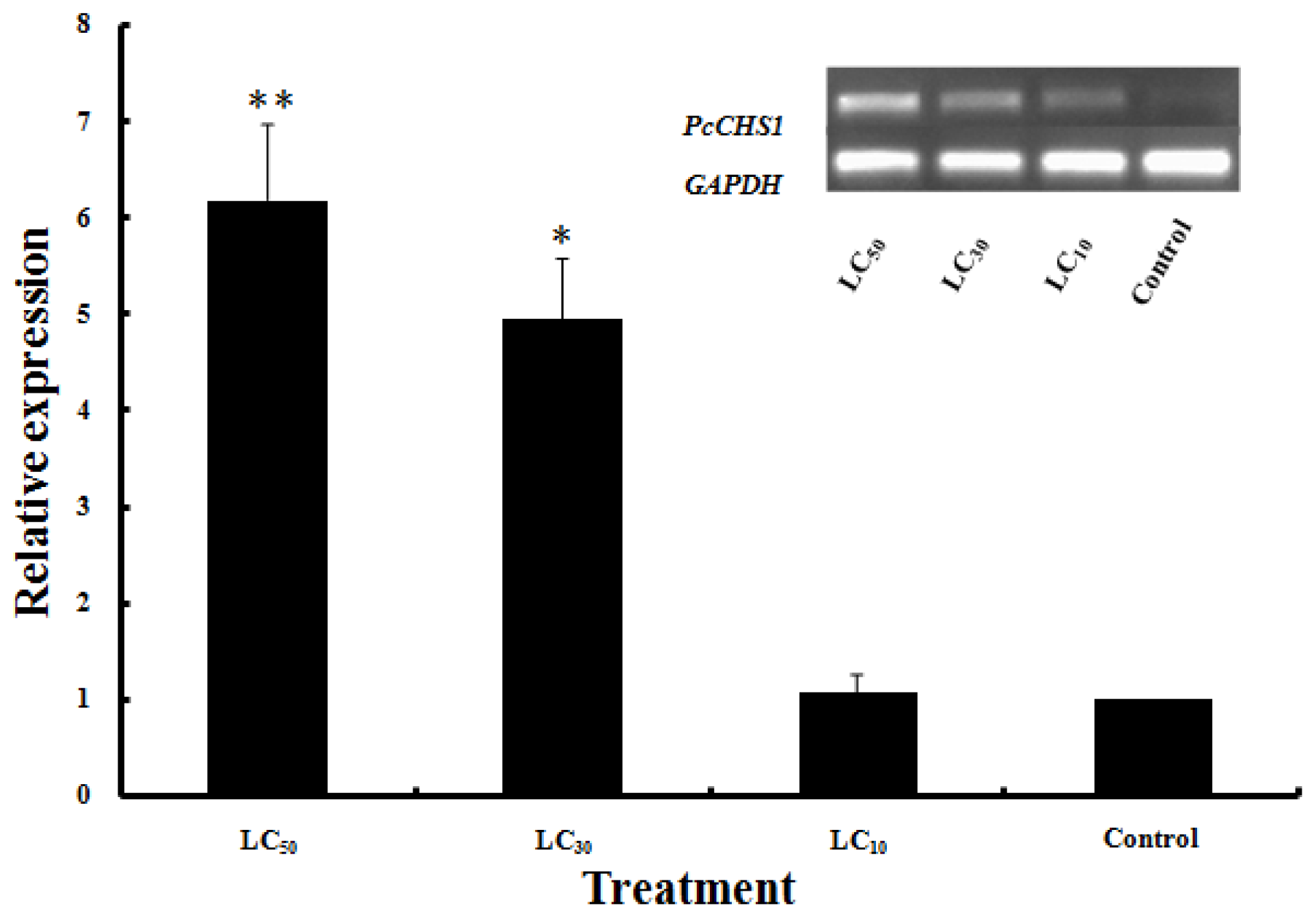

Figure 5. Effects of diflubenzuron (DFB) treatment on the expression pattern of the chitin synthase 1 gene, PcCHS1 from the citrus red mite, Panonychus citri (Acari: Tetranychidae). Relative expression of the PcCHS1 of P. citri exposed to 0.17, 1.31 and 5.32 mg/L DFB (LC10, LC30 and LC50) in 0.1% Triton-100 at the larval stage for 6 h using a leaf-dip bioassay were analyzed using qPCR (n = 3). Water, containing 0.1% Triton-100, treated P. citri were used as the controls. The error bars were generated after examining the relative level of PcCHS1 in P. citri. An asterisk (*) on the error bar indicates a significant difference between DFB treatment and control; * (p < 0.05) or ** (p < 0.01, t-test). GAPDH was used as a reference gene.

Click here to enlarge figure

Figure 5. Effects of diflubenzuron (DFB) treatment on the expression pattern of the chitin synthase 1 gene, PcCHS1 from the citrus red mite, Panonychus citri (Acari: Tetranychidae). Relative expression of the PcCHS1 of P. citri exposed to 0.17, 1.31 and 5.32 mg/L DFB (LC10, LC30 and LC50) in 0.1% Triton-100 at the larval stage for 6 h using a leaf-dip bioassay were analyzed using qPCR (n = 3). Water, containing 0.1% Triton-100, treated P. citri were used as the controls. The error bars were generated after examining the relative level of PcCHS1 in P. citri. An asterisk (*) on the error bar indicates a significant difference between DFB treatment and control; * (p < 0.05) or ** (p < 0.01, t-test). GAPDH was used as a reference gene.
Ijms 15 03711f5 1024
Ijms 15 03711f6 1024

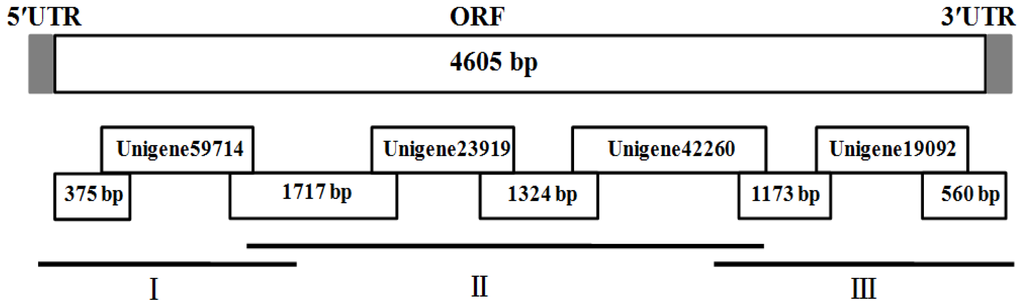

Figure 6. Schematic diagram of the strategy to amplify cDNA of the chitin synthase 1 gene, PcCHS1, from the citrus red mite, Panonychus citri (Acari: Tetranychidae).The upper bar represents of the cDNA sequence in P. citri. Four PCR fragments were obtained from the P. citri’s transcriptome data. Fragment II was amplified using specific primers. Fragments I and III were obtained by 5′- and 3′-RACE, respectively.

Click here to enlarge figure

Figure 6. Schematic diagram of the strategy to amplify cDNA of the chitin synthase 1 gene, PcCHS1, from the citrus red mite, Panonychus citri (Acari: Tetranychidae).The upper bar represents of the cDNA sequence in P. citri. Four PCR fragments were obtained from the P. citri’s transcriptome data. Fragment II was amplified using specific primers. Fragments I and III were obtained by 5′- and 3′-RACE, respectively.
Ijms 15 03711f6 1024
Table Table 1. Sequences and relevant information used for phylogenetic analysis of the chitin synthase 1 gene, CHS1.

Click here to display table

Table 1. Sequences and relevant information used for phylogenetic analysis of the chitin synthase 1 gene, CHS1.
GenesGenBank No. or Gene ID.Species
CHS1XP001662200Aedes aegypti
CHS1XP_321336Anopheles gambiae
CHS1XP_395677Apis mellifera
CHS1XP_001866798Culex quinquefasciatus
CHS1NM_079509Drosophila melanogaster
CHS1XP_001359390Daphnia pulex
CHS1ACD10533Ectropis oblique Prout
CHS1AF221067Lucilia cuprina
CHS1GU067731Locusta migratoria manilensis
CHS1JQ040011Laodelphax striatella
CHS1AY062175Manduca sexta
CHS1BAF47974Plutella xylostella
CHS1DQ062153Spodoptera exigua
CHS1AY291476Tribolium castaneum
CHS1tetur03g08510Tetranychus urticae
CHS1KF241748Panonychus citri
CHS1XP003741992Metaseiulus occidentalis
CHS2XP_001651163Aedes aegypti
CHS2XP_321951Anopheles gambiae
CHS2XP_001121152Apis mellifera
CHS2XP_001864594Culex quinquefasciatus
CHS2NM_079485Drosophila melanogaster
CHS2EFX80669Daphnia pulex
CHS2AAX20091Manduca sexta
CHS2ABB97082Ostrinia furnacalis
CHS2XP_002423604Pediculus humanus corporis
CHS2EU622827Spodoptera exigua
CHS2AY525599Spodoptera frugiperda
CHS2AY291477Tribolium castaneum
CHS2tetur08g00170Tetranychus urticae
Table Table 2. Primer sequences used for cloning and quantitative real-time PCR.

Click here to display table

Table 2. Primer sequences used for cloning and quantitative real-time PCR.
ExperimentsPrimer names and sequences (5′ to 3′)Product length (bp)
PcCHS1-1-S: GATGTGACCAAGGGCGTAA1717
PcCHS1-1-A: CGCCGAGATTTTTATTTTTC

Specific PCRPcCHS1-2-S: CGGAAGCCGTTCAACTATTA1324
PcCHS1-2-A: TGTTCCTCGTCTTCCGTCAC

PcCHS1-3-S: GTTACCTGGGGAACTCGTGA1173
PcCHS1-3-A: TTGTTGAGCGGCTGAAAGTT

PcCHS1b-S: TATCTCGCCGATATTGAGGTC367
PcCHS1b-A: GATGGAAAAGCATACCGACCA

3′ RACEPcCHS1-S1: ATGCTCTTTTCGTTCTCGTG722

PcCHS1-S2: TTGTCGGTTTCTTTGGATTA560

5′ RACEPcCHS1-A1: TTGGTCACATCCAGCGAAG503

PcCHS1-A2: TATCCTGGCAGCACGAA375

Full-length confirmationPcCHS1-1: TAACATCCAAATGGGTGCTGA1000
PcCHS1-2: GAACCATCAACCAAAAGTCGG
PcCHS1-3: CGCTGAATCAATCGGTTTAGGT1100
PcCHS1-4: TATCGCTGAAGCAGATGAACGC
PcCHS1-5: ATTTACTTTCCATCGGTGCCCA3131
PcCHS1-6: CCACGAGAACGAAAAGAGCATT

PcCHS1PcCHS1-Q-F: AAGTTTGAATACGCGGTTGG191
PcCHS1-Q-R: CGATCTTCCCCTTGATCGTA

GAPDHGAPDH-F: CTTTGGCCAAGGTCATCAAT159
GAPDH-R: CGGTAGCGGCAGGTATAATG
