Int. J. Mol. Sci. 2014, 15(3), 3389-3402; doi:10.3390/ijms15033389

Article
Improved Establishment of Embryonic Stem (ES) Cell Lines from the Chinese Kunming Mice by Hybridization with 129 Mice
Shumin Yu 1, Xingrong Yan 2, Huanhuan Liu 1, Xin Cai 3, Suizhong Cao 1, Liuhong Shen 1, Zhicai Zuo 1,*, Junliang Deng 1, Xiaoping Ma 1, Ya Wang 1 and Zhihua Ren 1
1
College of Veterinary Medicine, Sichuan Agricultural University, Xinkang Road 46#, Yucheng District, Ya’an 625014, Sichuan, China; E-Mails: yayushumin@163.com (S.Y.); liuhuanhd@163.com (H.L.); suizhongcao@126.com (S.C.); shenlh@sicau.edu.cn (L.S.); dengjl213@126.com (J.D.); mxp886@sina.com (X.M.); wangyayang@126.com (Y.W.); zhihua_ren@126.com (Z.R.)
2
Life Science College, North-West University, Xi’an 710069, Shaanxi, China; E-Mail: xingrongyan2007@126.com
3
School of Life Science and Engineering, Southwest University of Science and Technology, Mianyang 621010, Sichuan, China; E-Mail: caixin2323@126.com
*
Author to whom correspondence should be addressed; E-Mail: zzcjl@126.com; Tel./Fax: +86-835-2885-302.
Received: 23 October 2013; in revised form: 10 February 2014 / Accepted: 14 February 2014 /
Published: 25 February 2014

Abstract

: Chinese Kunming mice (Mus musculus Km), widely used as laboratory animals throughout China, remain very refractory for embryonic stem (ES) cell isolation. The present study was aimed to evaluate the effects of hybridization with 129/Sv mice, and culture media containing fetal bovine serum (FBS) or Knockout serum replacement (KSR) on ES cell isolation from Kunming mice. The results demonstrated that ES cells had been effectively isolated from the hybrid embryos of Kunming and 129/Sv mice using all three media containing 15% FBS, 15% KSR and their mixture of 14% KSR and 1% FBS, individually. These isolated ES cells had maintained in vitro undifferentiated for a long time, exhibiting all features specific for mouse ES cells. In addition, the rates of ES cell isolation in the medium containing 14% KSR and 1% FBS, was 46.67% and significantly higher than those in another two media containing only FBS or KSR (p < 0.05). Contrarily, no ES cell line had been established from Kunming mouse inbred embryos using the same protocols. These results suggested that ES cells with long-term self-renewal ability could be efficiently generated from hybrid embryos of Kunming and 129/Sv mice, and a small volume of FBS was necessary to isolate ES cells in the KSR medium when embryos and early ES cells cultured.
Keywords:
Chinese Kunming mouse (Mus musculus Km); 129/Sv mouse; hybrid embryos; embryonic stem (ES) cells

1. Introduction

Mouse Embryonic stem (mES) cells, which are pluripotential cells from early pre-implantation embryos and have the ability to generate all somatic cells and functional gametes [1,2], are used to explore expression and function of genes in vivo by genetic modification [3]. Since Evans et al. (1981) first established mES cell lines derived from 129/SvE mice [1], mES cells had been generated from other mouse strains but not the 129 mouse strain, by various combination of feeder cells, fetal bovine serum (FBS)/serum replacement (SR) [410], high concentration of leukemia inhibitory factor (LIF) [4,7,9,11], and especially some small-molecular compound including adrenocorticotropic hormone (ACTH) [12,13], pluripotin [14], BMP4 [15] and three inhibitors against signaling pathways of FGFR, MEK and GSK3 [7,16,17].

The Chinese Kunming mouse strain (Mus musculus Km, KM), a outbreed mouse strain originating from the Swiss albino mouse, are widely used in pharmacology and genetically related studies throughout China. It exhibits many advantages such as high disease resistance, large and frequent litters and rapid growth rates. Although Peng et al. (2013) recently established the germline-competent ES cell lines with long-term self-renewal ability from KM inbred mice in the N2B27 medium supple-mented with PD0325901 and CHIR99021 [18], it remains very refractory to isolate ES cells from this mouse strain under the condition of feeder cells, LIF, FBS or SR. Previous researchers demonstrated that ES cells could be easily isolated from hybrid embryos of 129 mice and the recalcitrant mice DDK and NOD [19,20], and the 129 mice are acknowledged to be the most conducive for ES cell isolation among all mouse strains [2123]. Moreover, we had established the parthenogenetical ES cell lines from the hybrid offspring oocytes of Kunming and 129/Sv mice using feeder cells, LIF, SR and FBS [24]. Therefore, we investigated effects of hybridization with 129/Sv male mice on ES cell isolation from KM mice using in vivo fertilized embryos, in order to explore the genetic/epigenetic mechanism of KM mice which hamper ES cell isolation, and apply the mouse strain for targeted genetic manipulation.

2. Results

2.1. Effect of FBS and KSR on Derivation of ES Cell from Hybrid Blastocysts

Hybrid embryos for ES cell isolation, which were produced from the pregnant Kunming females mated with 129/Sv males, were cultured on the inactivated MEF feeder layers in the ES media supplemented with 15% Knockout Serum Repacement (KSR), 1% FBS + 14% KSR and 15% FBS, individually. As shown in Table 1, it took significantly longer to achieve embryo attachment in the 15% KSR medium, in which the number of attached embryos was significantly lower than that in another two media. All primary ES cells produced from the picked ICM outgrowths, persisted the undifferentiated state and generated the ES cell lines in the two media containing 15% KSR and the mixture of 1% FBS + 14% KSR. By contrast, only a small amount of ICM outgrowths and primary ES cells further formed ES cell clones due to death or differentiation in the medium containing 15% FBS, although embryos attached to the feeder layers as efficiently as that in the medium containing 14% KSR + 1% FBS (Table 2). Finally, ES cell lines had been established in the medium containing 14% KSR and 1% FBS with the higher efficiency of 46.67%, compared with those in another two media (Table 2).

In addition, when individually plated in the 96-well plates, 14.2% of single ES cells formed cell clones in the 15% KSR medium, which was significantly lower than those in another two media (Table 3). However, ES cell clones in the two media containing KSR (Figure 1A,B), maintained morphologically undifferentiated for a longer time, and ES cell clones in the 15% FBS medium (Figure 1C) exhibited morphologically the aging signs with many dark granules. These results suggested that KSR was preferable to FBS for culturing ES cells, and recombined supplement with KSR and a small amount of FBS contributed to improvement of ES cell isolation when embryos and primary ES cells were cultured.

2.2. Effect of Genetic Background on ES Cell Derivation

We had efficiently established several ES cell lines from hybrid embryos of Kunming and 129/Sv mice as shown in Table 2. These ES cells derived from hybrid embryos, usually formed a great number of ES cell clones in the plates with 3.5 cm diameter after the second trypsinization, with the long-term self-renewal. We attempted to isolate ES cells from inbred blastocysts of Kunming mice, but the results demonstrated that under the same condition, the vast majority of picked ICM outgrowths and primary ES cells could not further form ES cell clone after dissociation even though embryos could normally attach and form ICM outgrowths as the hybrid blastocysts. Furthermore, we had increased LIF concentration to 100 ng/mL in the media, which had not significantly promoted in vitro propagation of ES cells. As the best results, ES cells derived from only two inbred blastocysts had been maintained in the four-well plates until the seventh passage when ES cell clone disappeared, and ES cell clones gradually decreased due to death or differentiation after being trypsinized. Consequently, no ES cell line had been established from 391 Kunming mouse inbred blastocysts (Table 4).

2.3. Characterization of mES Cells

Microsatellite marker-primed PCR results summarized in Table 5, demonstrated that at all examined microsatellite loci except D14Mit113, the tested mES cells exhibited the identical PCR products to the F1 hybrid embryos from the Kunming females and 129/Sv males. Moreover, the mES cells and the F1 embryos contained the identical PCR products to the Kunming females at the microsatellite loci D1Mit15, D2Mit30, D11Mit4, D11Mit167, D12Mit56 and D14Mit129, and to the 129/Sv males at the microsatellite loci D2Mit30, D11Mit4, D11Mit167, D14Mit129, and D17Mit36, respectively. The results could verify that the tested mES cells contain genetic background of the Kunming strain and 129/Sv strain.

During the extended culture, the novel ES cells produced from hybrid embryos, always formed morphologically compacted cell clones (Figure 2A) in the presence of MEF feeder layer and LIF, and most of the checked cells (89.5% at the 22th passage vs. 75.0% at the 33th passage) maintained diploid karyotypes with 19 pairs of autosomes and XY chromosomes (Figure 2I). These cells were positively stained for AKP (Figure 2B), and by immunohistochemical staining for telomerase (Figure 2C), Oct4 (Figure 2D), Nanog (Figure 2E) and SSEA-1 (Figure 2F), but negatively by immunohistochemical staining for SSEA-3 (Figure 2G) and SSEA-4 (Figure 2H). In addition, RT-PCR analysis showed that the tested ES cells positively expressed Oct4, Nanog and Gdf-3 (Figure 3A), while Gdf-3 expression level was relatively lower compared with those of Oct4 and Nanog (Figure 3A).

After removing feeder layer and LIF, ES cell clumps in suspension formed embryoid bodies (EBs) (Figure 4A) in the 15% FBS medium, which differentiated morphologically into various types of cells. These EB-derived cells immunohistochemically presented the specific antigen phenotypes of differentiated cells derived from mesoderm (Figure 4B,C), endoderm (Figure 4D) and neuroectoderm (Figure 4E–G), while EBs expressed the specific marker genes Fgf-5 and Nf-68 for ectoderm, BraT for mesoderm and Afp for endoderm (Figure 3B). In addition, the ES cell suspension was subcutaneously injected into nude mice and formed teratomas, the sections of which demonstrated such resembling tissue structure as lymphatic tissues (Figure 5A,C), blood tube (Figure 5A), epithelium (Figure 5B), fat tissue (Figure 5B), gland tissue (Figure 5B), muscle (Figure 5B,C) and connective tissue (Figure 5D).

Together, these results suggested that the isolated ES cells could permanently retain undifferentiated and differentiate into various types of cells from three germ layers in vitro or in vivo.

3. Discussion

Here, we have efficiently isolated ES cells from hybrid embryos of Kunming and 129/Sv mice. The established ES cell lines contained the genetic background of Kunming and 129/Sv mice by microsatellite marker-primed PCR analysis, and shared all features of mES cells including normal karyotypes, high activity of AKP and telomerase, SSEAs antigen profile, differentiated potential into various types of cells from three germ layers in vitro or in vivo, and expression of two key transcription factors of pluripotency, namely Oct4 and Nanog [25,26]. Moreover, RT-PCR results demonstrated in the isolated ES cells that the gene Gdf-3 had been transcribed in a relatively lower level compared with mRNA levels of the genes Oct4 and Nanog, which accorded with the finding that low expression of the BMP4 inhibitor GDF3 facilitated BMP4 to maintain pluripotency of mES cells [27]. This suggested that the isolated ES cells could maintain the long-term self-renewal ability in vitro.

As the vital component of ES cell medium, FBS is not an optimal supplement to maintain pluripotency of ES cells since it harbors some undefined factors which induce differentiation or apoptosis [5,79,12]. KSR, an artificial substitute for serum, had been proven preferable to FBS in maintaining pluripotency of mES cells in these mouse strains C57BL/6, BALB/cAJ, CBA/Ca and NOD [59,12]. However, some reports pointed out that partial replacement of KSR with FBS contributed better to increasing the efficiencies of ES cell isolation than complete replacement, when culturing embryos and initial ES cells [8,10,12]. Similarly, the results from our work indicated that in comparison with the sole use of FBS or KSR, recombined use of KSR and a small volume of FBS significantly contributed to increasing the efficiencies of ES cell isolation from hybrid embryos, and to formation of ES cell clones when being plated by the single ES cells. Also, we recommended that KSR and FBS would be supplemented together in the medium to efficiently establish ES cells when embryos and initial ES cells were cultured.

It has been proved that, in the presence of FBS or KSR, mES cells could be successfully isolated from the recalcitrant strains such as BALB/c, BALB/k, CBA/Ca and NOD by increasing LIF concentration [4,7,9,11,17]. The results from Peng et al.’s work on Kunming inbred mice [18] indicated that ES cells maintained undifferentiated in vitro in the feeder cell- and LIF-free condition by supplement with KSR, PD0325901 and CHIR99021, and contrarily lost the self-renewal capacity in the medium consisting of LIF and serum. Likewise, our present results indicated that ES cells from Kunming inbred mice could not propagate extendedly in the culture system composed of feeder cells, FBS, KSR and high concentration of LIF (100 ng/mL) since the vast majority of ICM outgrowths and subsequent ES cells quickly disappeared when being plated after the second digestion. This is in contrast with the fact that ES cells from hybrid embryos of Kunming and 129/Sv mice exhibited the powerful self-renewal capacity. Therefore, we presumed that establishment of ES cell lines from hybrid embryo of Kunming and 129/Sv mice, should be attributed to heterosis or 129/Sv genetic background, as the previous reports suggested [19,20], and LIF was insufficient to maintain the self-renewal ability of ES cells from Kunming inbred mice in the presence of serum or KSR, and feeder cells. Thus, it remains necessary to explore the genetic/epigenetic mechanism of hampering pluripotency of Kunming mouse-derive ES cells.

4. Experimental Section

4.1. Animals

Kunming mice (Mus musculus Km) and 129/Sv mice (purchased from the Laboratory Animal Centre in West-China Center of Medical Sciences, Sichuan University (Chengdu, China)) used in this study with ethical approval from the Animal Research Ethical Committee, were kept in temperature- and light-controlled rooms. Adult Kunming females injected by equine chorionic gonadotrophin (eCG) and human chorionic gonadotrophin (hCG) (purchased from Ningbo Second Harmone Factory, Ningbo, China), were mated with 129/Sv males or Kunming males overnight.

4.2. ES Cell Media

Three complete media for derivation and culture of ES cells, which were composed of high glucose DMEM (Invitrogen, Carlsbad, CA, USA), 20 ng/mL leukemia inhibitory factor (LIF) (Chemicon, Billerica, MA, USA), 1 mM nonessential amino acids (NEAA) (Invitrogen, Carlsbad, CA, USA), 0.1 mM β-mercaptoethanol (Sigma, Kanagawa, Japan), were supplemented with 15% Knockout serum replacement (KSR) (Invitrogen, Carlsbad, CA, USA) (v/v), 14% KSR plus 1% Fetal bovine serum (FBS) (Hyclone, Logan, UT, USA) (v/v), and 15% FBS (v/v), individually. In addition, LIF concentrations were increased to 100 ng/mL in the above media, then used to culture a part of Kunming mouse inbred embryos.

4.3. Isolation and Culture of ES Cells

Blastocysts for ES cell isolation, were flushed from uteri of the pregnant Kunming females, and cultured on the inactivated mouse embryonic fibroblasts (MEF) with 5 μg/mL mitomycin C (Sigma, Kanagawa, Japan). After embryos attached and formed ICM outgrowths with prominent nucleoli and dense morphology, ICM outgrowths were mechanically dissected into small cell clumps after treatment with trypsin (Invitrogen, Carlsbad, CA, USA) (0.5 mg/mL)/EDTA (Sigma, Kanagawa, Japan) (0.2 mg/mL), and individually plated on MEF feeder layers. The initial ES cells were subcultured by trypsinization in combination with mechanical dissection. When a large number of ES cell colonies appeared in the plates with 3.5 cm diameter, ES cell lines were ascertained.

4.4. Karyotype Analysis of ES Cells

Karyotype analysis of ES cells was performed as described previously [28]. Briefly, after cultured in feeder-free conditions for 24–36 h, ES cells were exposed to 10 μg/mL colchicine (Sigma, Kanagawa, Japan) for 1–2 h, and trypsinized into a single-cell suspension followed by suspension for 15 min in 0.075 mM KCl solution. Cells were repeatedly fixed in methanol/acetic acid mixture, then spread over slides and stained with Giemsa (Sigma, Kanagawa, Japan) solution. Karyotypes were observed and imaged under a Digital Microscopic Imaging System (Leica, DMIRB, Wetzlar, Gemany).

4.5. Genotype Analysis of mES Cells

To determine genetic source of the established mES cells, the microsatellite markers listed in Table 6, were examined by PCR for these samples including mES cells, tail tissues from Kunming female and 129/Sv male, and the F1 hybrid (KM × 129/Sv) embryos as controls. The microsatellite markers and their corresponding primer sequences were selected and obtained from Mouse Genome Database ( http://www.informatics.jax.org) and the documents [29]. Genomic DNA of all samples were prepared according to instructions of the QIAamp DNA Mini Kit (Qiagen Co. Ltd., Shanghai, China). PCR reaction were carried out as follows: initial denaturation at 94 °C for 2 min, followed by 35 cycles of 15 s at 94 °C, 25 s at 60 °C, 35 s at 72 °C, and finally 10 min extension at 72 °C. PCR products were separated by electrophoresis on 4% agarose gel and imaged under the Gel Image System (Syngene Co. Ltd., Karnataka, UK). The genotypes of the tested samples were scored according to the traveling distance of PCR products of every microsatellite loci primers on the 4% agarose gel, with the shortest being given the genotype “a”, followed by “b”, “c”, and so on.

4.6. Analysis of Enzymes and Marker Molecules Specific for mES Cells

After being cultured for 48 h, ES cells were fixed with 4% formaldehyde and stained by alkaline phosphatase (AKP) or immunohistochemical methods. AKP staining was carried out as described previously [28], and the AKP-positive cells were stained as red or brown-red. Immunohistochemical staining was performed according to instructions of the SP-9000 General Immunohistochemical kit (Zhong-Shan Jinqiao Co. Ltd., Beijing, China). Briefly, cells were blocked with 10% goat serum plus 0.2% Triton X-100, then incubated at 4 °C overnight with primary antibody against Oct4 (1:100), SSEA-1 (1:100), SSEA-3 (1:100), SSEA-4 (1:100), Nanog (1:100) and telomerase (1:100) (all purchased from Chemicon Co. Ltd., Billerica, MA, USA), respectively. Subsequently, cells were exposed to TRITC-conjugated secondary antibodies (goat anti-mouse IgG), and would be dyed as red-brown or yellow-brown if positive.

RT-PCR was performed to examine expression of the genes Oct4, Nanog, Gdf-3 (a direct BMP4 inhibitor) and GAPDH as the inner control in ES cells. Total RNA was extracted according to instructions of the RNeasy Mini kit (Qiagen Co. Ltd., Shanghai, China) and reversely transcribed into cDNA using RevertAidTM First Strand Kits (Fermentas Co. Ltd., Waltham, MA, USA). PCR reaction were carried out as follows: 2 min denaturation at 94 °C, followed by 35 cycles of 30 s at 94 °C, 30 s at 55 °C, 60 s at 72 °C, and finally 10 min extension at 72 °C. PCR products were separated by electrophoresis and imaged under the Gel Image System (Syngene Co. Ltd., Shanghai, China). PCR primers for amplifying the genes Oct4, Nanog, Gdf-3 and GAPDH (as the inner control) listed in Table 7, were designed according to the corresponding gene sequences published in GenBank.

4.7. Pluripotency of mES Cells

Embryoid bodies (EBs) were prepared as described previously [27]. Briefly, ES cells were cultured in ES cell medium without the feeder layers for 24–28 h, then the cell clumps were mechanically separated and cultured in suspension in LIF-free medium containing 15% FBS until EBs formed. Subsequently, EBs were cultured in a gelatin-coated plate with LIF-free medium until various types of differentiated cells appeared. These cells were immunohistochemically stained with primary antibodies against the marker antigens specific for different germ layers, namely, α-fetoprotein (AFP) (1:50) for endoderm cells, α-Actin (1:100) for mesoderm cells, Nestin (1:100), β-Tubulin III (1:50) and GFAP (1:100) for ectoderm cells (all purchased from Chemicon Co. Ltd., Billerica, MA, USA), and would be dyed as red-brown or yellow-brown if positive. Meanwhile, osteoblasts from the mesoderm layer were stained as yellow-brown by Alizarin Red.

Moreover, EBs were harvested to examine expression of Fgf-5 and Nf-68 specific for ectoderm, BraT specific for mesoderm, Afp specific for endoderm, and GAPDH as the inner control by RT-PCR. PCR primers for amplifying the genes Fgf-5, Nf-68, BraT and Afp and GAPDH listed in Table 5, were designed according to the corresponding gene sequences published in GenBank.

ES cells (about 5 × 106 cells/mouse) were subcutaneously injected into nude mice. After 4–6 weeks, the harvested teratomas were fixed in 4% formaldehyde to prepare paraffin sections. Sections were stained by hematoxylin/eosin (HE) and observed under a Digital Microscopic Imaging System (Olympus Co. Ltd., Tokyo, Japan).

4.8. Statistical Analysis

Statistical analyses were performed using SPSS11.5.0 Version (SPSS Inc., Chicago, IL, USA). An independent simple t-test was employed to analyze differences of attached rate (No. of attached blastocysts/No. of blastocysts cultured), ICM outgrowth rate (No. of ICM outgrowth/No. of blastocysts cultured) and establishing rate (No. of the established ES cell lines/No. of blastocysts cultured) between different groups. Statistical significance was taken as p < 0.05.

5. Conclusions

In summary, ES cell lines had been efficiently established from Kunming female mice by hybridization with 129/Sv male mice. Meanwhile KSR in conjunction with a small amount of FBS (1%) facilitated mES cell isolation, when blastocysts and primary ES cells were cultured. The results provided a new approach to ES cell isolation from Kunming mice and facilitated the exploration of the genetic/epigenetic mechanism related to Kunming mouse development.

Acknowledgments

This research was supported by grants from the Natural Science Foundation of China (No. 31172379) and the Fostering Fund for the Academic-Technology Leaders of Sichuan Province, China.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Evans, M.J.; Kaufman, M.H. Establishment in culture of pluripotential cells from mouse embryos. Nature 1981, 292, 154–156. [Google Scholar]
  2. Bradley, A.; Evans, M.; Kaufman, M.H.; Robertson, E. Formation of germ-line chimaeras from embryo-derived teratocarcinoma cell lines. Nature 1984, 309, 255–256. [Google Scholar]
  3. Wobus, A.M.; Boheler, K.R. Embryonic stem cells: Prospects for developmental biology and cell therapy. Physiol. Rev. 2005, 85, 635–678. [Google Scholar]
  4. Baharvand, H.; Matthaei, K.I. Culture condition difference for establishment of new embryonic stem cell lines from the C57BL/6 and BALB/c mouse strains. In Vitro Cell Dev. Biol. Anim. 2004, 40, 76–81. [Google Scholar]
  5. Cheng, J.; Dutra, A.; Takesono, A.; Garrett-Beal, L.; Schwartzberg, P.L. Improved generation of C57BL/6J mouse embryonic stem cells in a defined serum-free media. Genesis 2004, 39, 100–104. [Google Scholar]
  6. Shimizukawa, R.; Sakata, A.; Hirose, M.; Takahashi, A.; Iseki, H.; Liu, Y.; Kunita, S.; Sugiyama, F.; Yagami, K. Establishment of a new embryonic stem cell line derived from C57BL/6 mouse expressing EGFP ubiquitously. Genesis 2005, 42, 47–52. [Google Scholar]
  7. Iijima, S.; Tanimoto, Y.; Mizuno, S.; Daitoku, Y.; Kunita, S.; Sugiyama, F.; Yagami, K. Effect of different culture conditions on establishment of embryonic stem cells from BALB/cAJ and NZB/BINJ mice. Cell. Reprogram. 2010, 12, 679–688. [Google Scholar]
  8. Araki, K.; Takeda, N.; Yoshiki, A.; Obata, Y.; Nakagata, N.; Shiroishi, T.; Moriwaki, K.; Yamamura, K. Establishment of germline-competent embryonic stem cell lines from the MSM/Ms strain. Mamm. Genome 2009, 20, 14–20. [Google Scholar]
  9. Davies, T.J.; Fairchild, P.J. Optimization of protocols for derivation of mouse embryonic stem cell lines from refractory strains including the nonobese diabetic mouse. Stem Cells Dev. 2012, 21, 1688–1700. [Google Scholar]
  10. Lee, S.T.; Oh, S.W.; Kim, D.Y.; Han, J.Y.; Moon, S.Y.; Lim, J.M. Serum replacement with a growth factor-free synthetic substance in culture medium contributes to effective establishment of mouse embryonic stem cells of various origins. Fertil. Steril. 2006, 86, 1137–1145. [Google Scholar]
  11. Nagafuchi, S.; Katsuta, H.; Kogawa, K.; Akashi, T.; Kondo, S.; Sakai, Y.; Tsukiyama, T.; Kitamura, D.; Niho, Y.; Watanabe, T. Establishment of an embryonic stem (ES) cell line derived from a non-obese diabetic (NOD) mouse: In vivo differentiation into lymphocytes and potential for germ line transmission. FEBS Lett. 1999, 455, 101–104. [Google Scholar]
  12. Ogawa, K.; Matsui, H.; Ohtsuka, S.; Niwa, H. A novel mechanism for regulating clonal propagation of mouse ES cells. Genes Cells 2004, 9, 471–477. [Google Scholar]
  13. Wakayama, S.; Hikichi, T.; Suetsugu, R.; Sakaide, Y.; Bui, H.T.; Mizutani, E.; Wakayama, T. Efficient establishment of mouse embryonic stem cell lines from single blastomeres and polar bodies. Stem Cells 2007, 25, 986–993. [Google Scholar]
  14. Yang, W.; Wei, W.; Shi, C.; Zhu, J.; Ying, W.; Shen, Y.; Ye, X.; Fang, L.; Duo, S.; Che, J.; et al. Pluripotin combined with leukemia inhibitory factor greatly promotes the derivation of embryonic stem cell lines from refractory strains. Stem Cells 2009, 27, 383–389. [Google Scholar]
  15. Qi, X.; Li, T.G.; Hao, J.; Hu, J.; Wang, J.; Simmons, H.; Miura, S.; Mishina, Y.; Zhao, G.Q. BMP4 supports self-renewal of embryonic stem cells by inhibiting mitogen-activated protein kinase pathways. Proc. Natl. Acad. Sci. USA 2004, 101, 6027–6032. [Google Scholar]
  16. Kiyonari, H.; Kaneko, M.; Abe, S.; Aizawa, S. Three inhibitors of FGF receptor ERK and GSK3 establishes germline-competent embryonic stem cells of C57BL/6N mouse strain with high efficiency and stability. Genesis 2010, 48, 317–327. [Google Scholar]
  17. Ohta, H.; Ohinata, Y.; Ikawa, M.; Morioka, Y.; Sakaide, Y.; Saitou, M.; Kanagawa, O.; Wakayama, T. Male germline and embryonic stem cell lines from NOD mice: Efficient derivation of GS cells from a nonpermissive strain for ES cell derivation. Biol. Reprod. 2009, 81, 1147–1153. [Google Scholar]
  18. Peng, X.; Liu, T.; Shi, C.; Sun, Y.; Jiang, L.; Jin, H.; Li, L.; Zhu, H.; Wu, M.; Qian, Q. Germ-line-competent embryonic stem cells of the Chinese Kunming mouse strain with long-term self-renewal ability. Cell. Reprogram. 2013, 15, 179–184. [Google Scholar]
  19. Kress, C.; Vandormael-Pournin, S.; Baldacci, P.; Cohen-Tannoudji, M.; Babinet, C. Nonpermissiveness for mouse embryonic stem (ES) cell derivation circumvented by a single backcross to 129/Sv strain: Establishment of ES cell lines bearing the Omd conditional lethal mutation. Mamm. Genome 1998, 9, 998–1001. [Google Scholar]
  20. Brook, F.A.; Evans, E.P.; Lord, C.J.; Lyons, P.A.; Rainbow, D.B.; Howlett, S.K.; Wicker, L.S.; Todd, J.A.; Gardner, R.L. The derivation of highly germline-competent embryonic stem cells containing NOD-derived genome. Diabetes 2003, 52, 205–208. [Google Scholar]
  21. Gardner, R.L.; Brook, F.A. The origin and efficient derivation of embryonic stem cells in the mouse. Proc. Natl. Acad. Sci. USA 1997, 94, 5709–5712. [Google Scholar]
  22. Gardner, R.L.; Brook, F.A. Reflections on the biology of embryonic stem (ES) cells. Int. J. Dev. Biol. 1997, 41, 235–243. [Google Scholar]
  23. Batlle-Morera, L.; Smith, A.; Nichols, J. Parameters influencing derivation of embryonic stem cells from murine embryos. Genesis 2008, 46, 758–767. [Google Scholar]
  24. Yu, S.M.; Yan, X.R.; Chen, D.M.; Cheng, X.; Dou, Z.Y. Isolation and characterization of parthenogenetic embryonic stem (ES) cells containing genetic background of the Kunming mouse strain. Asian-Aust. J. Anim. Sci. 2011, 24, 37–44. [Google Scholar]
  25. Nichols, J.; Zevnik, B.; Anastassiadis, K.; Niwa, H.; Klewe-Nebenius, D.; Chambers, I.; Schöler, H.; Smith, A. Formation of pluripotent stem cells in the mammalian embryo depends on the POU transcription factor Oct4. Cell 1998, 95, 379–391. [Google Scholar]
  26. Silva, J.; Nichols, J.; Theunissen, T.W.; Guo, G.; van Oosten, A.L.; Barrandon, O.; Wray, J.; Yamanaka, S.; Chambers, I.; Smith, A. Nanog is the gateway to the pluripotent ground state. Cell 2009, 138, 722–737. [Google Scholar]
  27. Levine, A.J.; Brivanlou, A.H. GDF3 a BMP inhibitor regulates cell fate in stem cells and early embryos. Development 2006, 133, 209–216. [Google Scholar]
  28. Nagy, A.; Gertsensten, M.; Vintersten, K.; Behringer, R. Manipulating the Mouse Embryo: A Laboratory Manual, 3rd ed.; Cold Spring Harbor Laboratory Press: New York, NY, USA, 2003. [Google Scholar]
  29. Zhang, X.; Zhu, Z.; Huang, Z.; Tan, P.; Ma, R.Z. Microsatellite genetyping for four expected inbred mouse strains from KM mice. J. Genet. Genomics 2007, 34, 214–222. [Google Scholar]
Ijms 15 03389f1 1024
Figure 1. ES cell clone shapes cultured for 7 days in the media containing 15% KSR (A); 14% KSR + 1% FBS (B); 15% FBS (C) when single ES cells were plated. Scale bar = 150 μm.

Click here to enlarge figure

Figure 1. ES cell clone shapes cultured for 7 days in the media containing 15% KSR (A); 14% KSR + 1% FBS (B); 15% FBS (C) when single ES cells were plated. Scale bar = 150 μm.
Ijms 15 03389f1 1024
Ijms 15 03389f2 1024
Figure 2. Karyotypes and immunohistochemical characterization of the isolated ES cells. (A) the ES cell clones; The ES cells were positive for AKP staining (B); telomerase (C); Oct4 (D); Nanog (E) and SSEA-1 (F); but negative for SSEA-3 (G) and SSEA-4 (H) while the ES cells had 20 pairs of chromosomes with XY sex chromosome (I, 400×). Scale bar = 100 μm.

Click here to enlarge figure

Figure 2. Karyotypes and immunohistochemical characterization of the isolated ES cells. (A) the ES cell clones; The ES cells were positive for AKP staining (B); telomerase (C); Oct4 (D); Nanog (E) and SSEA-1 (F); but negative for SSEA-3 (G) and SSEA-4 (H) while the ES cells had 20 pairs of chromosomes with XY sex chromosome (I, 400×). Scale bar = 100 μm.
Ijms 15 03389f2 1024
Ijms 15 03389f3 1024

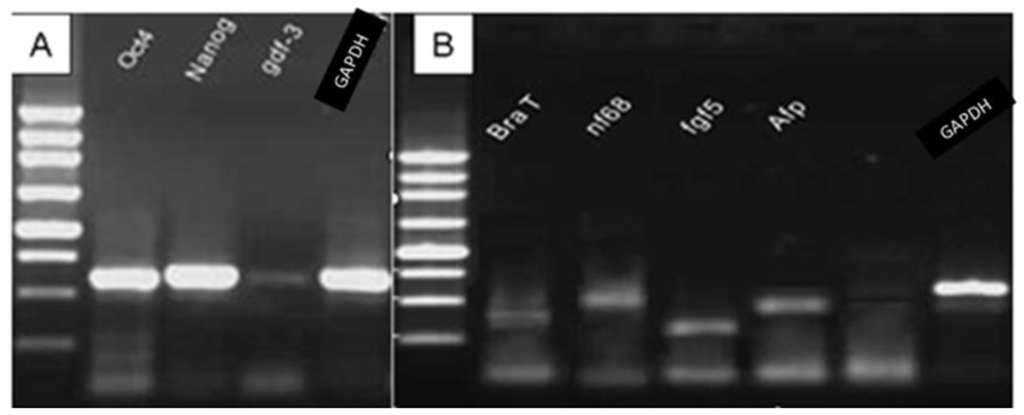

Figure 3. RT-PCR analysis of the expressed marker molecules in the ES cells and the specific genes for three germ layers in the ES cell-derived embryoid bodies. (A) dictated the ES cells expressed Oct4, Nanog and Gdf-3; and (B) dictated the embryoid bodies (EBs) expressed these specific genes: BraT for mesoderm, Nf-68 and Fgf-5 for ectoderm, Afp for endoderm, and GAPDH as the positive control.

Click here to enlarge figure

Figure 3. RT-PCR analysis of the expressed marker molecules in the ES cells and the specific genes for three germ layers in the ES cell-derived embryoid bodies. (A) dictated the ES cells expressed Oct4, Nanog and Gdf-3; and (B) dictated the embryoid bodies (EBs) expressed these specific genes: BraT for mesoderm, Nf-68 and Fgf-5 for ectoderm, Afp for endoderm, and GAPDH as the positive control.
Ijms 15 03389f3 1024
Ijms 15 03389f4 1024
Figure 4. Immunohistochemical analysis of the differentiated cell produced from the ES cell-derived embryoid bodies. The ES cell clumps formed the EBs (A) in the leukemia inhibitory factor (LIF)- and feeder- free condition by suspension; and differentiated into cardiomyocytes positive for α-Actin (B) and osteoblasts (C) positive for Alizarin Red staining from the mesoderm, hepatic cells (D) positive for AFP from the endoderm, and neurocytes positive for Nestin (E); GFAP (F) and β-tubulin III (G) from the ectoderm; (H) was stained only by the secondary antibody as negative control. Scale bar = 50 μm. In (BG), what the arrows indicated were the positive cells stained for the primary antibodies or the dye Alizarin Red, respectively. The arrows in Figure BG, indicated the differentiated cells mentioned above.

Click here to enlarge figure

Figure 4. Immunohistochemical analysis of the differentiated cell produced from the ES cell-derived embryoid bodies. The ES cell clumps formed the EBs (A) in the leukemia inhibitory factor (LIF)- and feeder- free condition by suspension; and differentiated into cardiomyocytes positive for α-Actin (B) and osteoblasts (C) positive for Alizarin Red staining from the mesoderm, hepatic cells (D) positive for AFP from the endoderm, and neurocytes positive for Nestin (E); GFAP (F) and β-tubulin III (G) from the ectoderm; (H) was stained only by the secondary antibody as negative control. Scale bar = 50 μm. In (BG), what the arrows indicated were the positive cells stained for the primary antibodies or the dye Alizarin Red, respectively. The arrows in Figure BG, indicated the differentiated cells mentioned above.
Ijms 15 03389f4 1024
Ijms 15 03389f5 1024
Figure 5. Histological Section of teratomas derived from the ES cells (H/E). Teratoma sections showed various types of tissue structures resembling lymphatic tissues (A,C); blood tube (A); epithelium (B); fat tissue (B); gland tissue (B); muscle (B,C); connective tissue (D). Scale bar = 100 μm.

Click here to enlarge figure

Figure 5. Histological Section of teratomas derived from the ES cells (H/E). Teratoma sections showed various types of tissue structures resembling lymphatic tissues (A,C); blood tube (A); epithelium (B); fat tissue (B); gland tissue (B); muscle (B,C); connective tissue (D). Scale bar = 100 μm.
Ijms 15 03389f5 1024
Table Table 1. The required time for embryo attachment in the different medium.

Click here to display table

Table 1. The required time for embryo attachment in the different medium.
No. of attached embryosTime distribution for embryo attaching to the dishes (d)

234567
FBS709212113403.74 ± 1.10 a
KSR47061613624.58 ± 1.05 b

Note: In one vertical column, the data existed significantly different (p < 0.05) marked by the different letters, or no significantly different (p > 0.05) marked by the same letters. In the horizontal row of Tables 24, what the labels indicated were the same as here.

Table Table 2. Effects of fetal bovine serum (FBS) and knockout serum replacement (KSR) on establishment of embryonic stem (ES) cell lines.

Click here to display table

Table 2. Effects of fetal bovine serum (FBS) and knockout serum replacement (KSR) on establishment of embryonic stem (ES) cell lines.
15% FBS1% FBS + 14% KSR15% KSR
No. of blastocysts plated323036
No. of attached embryos22 (68.75%) a20 (66.67%) a15 (41.67%) b
No. of ICM outgrowths10 (31.25%) a18 (60.00%) b12 (33.33%) a
No. of primary ES cell clones4 (12.50%) a14 (46.67%) b5 (13.89%) a
No. of the established ES cell lines1 (3.13%) a14 (46.67%) b5 (13.89%) a
Table Table 3. Effects of KSR and FBS on clone-forming efficiencies (%) of ES cells when single-cells were plated.

Click here to display table

Table 3. Effects of KSR and FBS on clone-forming efficiencies (%) of ES cells when single-cells were plated.
15% KSR14% KSR + 1% FBS15% FBS
14.2 (15/106) a35.7 (40/112) b41.3 (43/104) b
Table Table 4. Comparison of ES cell establishment from hybrid embryos of Kunming and 129 mice and Kunming mouse inbred embryos.

Click here to display table

Table 4. Comparison of ES cell establishment from hybrid embryos of Kunming and 129 mice and Kunming mouse inbred embryos.
129 × KMKM × KM
No. of blastocysts plated98391
No. of primary ES cell clones23 (23.47%) a38 (9.72%) b
No. of the established ES cell lines20 (20.41%) a0 b
Table Table 5. Genotype analysis of the established mES cells by microsatellite marker-based PCR.

Click here to display table

Table 5. Genotype analysis of the established mES cells by microsatellite marker-based PCR.
Microsate-llite markersKM females129/Sv malesF1 embryos (KM × 129)The tested mES cells
D1Mit15c-cc
D2Mit30aca/ca/c
D4Mit54-a--
D11Mit4bcb/cb/c
D11Mit167bbbb
D12Mit56c-cc
D14Mit129aba/ba/b
D14Mit113c-c-
D17Mit36-ccc

Note: “a”, “b” and “c” refered to the bands of PCR products, and “-”represented no PCR products on the agarose gel.

Table Table 6. The primer sequences of microsatellite markers used in the present experiment.

Click here to display table

Table 6. The primer sequences of microsatellite markers used in the present experiment.
Microsatellite markersForward primerReverse primer
D1Mit155′-TCCACAGAACTGTCCCTCAA-3′5′-ATACACTCACACCACCCCGT-3′
D2Mit305′-TGCTGACCTGCTCAGCTG-3′5′-AAATAACGTTTTCAATGAGATGG-3′
D4Mit545′-CTGCCATCCTGTAGTTTCACTG-3′5′-ACCCCCACATATGTCTCCCT-3′
D11Mit45′-CAGTGGGTCATCAGTACAGCA-3′5′-AAGCCAGCCCAGTCTTCATA-3′
D11Mit1675′-TCGGATGCTAAGGAAATTGC-3′5′-GACACTCAGTGTTGACCTCTGG-3′
D12Mit565′-GCTGTTTCACAGTCATTCATAACA-3′5′-AACCTGCACAGGGTTTCCTT-3′
D14Mit1295′-GGAGATGGTGGTAGAGGGGT-3′5′-AGTTTGTGTGGTATGTGTAGGTGG-3′
D14Mit1135′-TGCACAGGTTTTCCAATTTG-3′5′-TGCTGTCTCTCCCCAAGC-3′
D17Mit365′-ATCTCACCAGTCCTTGTTTTCTG-3′5′-CCCCAGAATTTATGTGGTGG-3′
Table Table 7. The primers and size of the amplified products.

Click here to display table

Table 7. The primers and size of the amplified products.
GenesForward primerReverse primerProduct Size (bp)
Oct45′-TTCAGACTTCGCCTCCTCACCC-3′5′-TTGTCGGCTTCCTCCACCCACTT-3′600
Nanog5′-TGGTGTCTTGCTCTTTCTGTGGG-3′5′-GCACTTCATCCTTTGGTTTTG-3′625
Gdf-35′-CCTTATCAACGGCTTCTGGCGC-3′5′-CTCTAAGTGTAAGTCCAAGT-3′606
Fgf-55′-CCTTGCTCTTCCTCATCTTCTGC-3′5′-GAGCCATTGACTTTGCCATCCG-3′319
BraT5′-AAGGTGGCTGTTGGGTAGGGAGT-3′5′-ATTGGGCGAGTCTGGGTGGATGT-3′451
Afp5′-ATCCTCCTGCTACATTTCGCTGC-3′5′-TGAGCAGCCAAGGACAGAATG-3′512
TTR5′-ACTCTTCCTCCTTTGCCTCGCTG-3′5′-GCAGGGGAGAAAAATGAGGAAAT-3′592
Nf-685′-TTCTCCCCCGTTCTTCTCTCTAG-3′5′-CTTCTCGTTAGTGGCGTCTTCC-3′540
GAPDH5′-CGGTGCTGAGTATGTCGTG-3′5′-AGGTGGAAGAGTGGGAGTT-3′616

Note: bp = base pairs.
