Article

Identification and Characterization of Buffalo 7SK and U6 pol III Promoters and Application for Expression of Short Hairpin RNAs

1
State Key Laboratory for Conservation and Utilization of Subtropical Agro-Bioresources, Guangxi University, 75 Xiuling Road, Nanning 530005, China
2
Faculty of Basic Medicine, Guilin Medical University, Huan Cheng North 2nd Road 109, Guilin 541004, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2014, 15(2), 2596-2607; https://doi.org/10.3390/ijms15022596
Submission received: 17 January 2014 / Revised: 28 January 2014 / Accepted: 11 February 2014 / Published: 14 February 2014
(This article belongs to the Section Biochemistry)

Abstract

:
RNA polymerase III (pol III) type 3 promoters, such as 7SK and U6, are routinely used to induce short hairpin RNAs (shRNAs) to knockdown gene expression by RNA interference (RNAi). To extend the application of RNAi to studies of buffalo, an shRNAs expressing system using the buffalo pol III promoters was developed. Buffalo 7SK promoter (bu7SK) and U6 promoter (buU6) sequences upstream of the full-length 7SK and U6 small nuclear RNA sequence in the buffalo genome were identified and characterized, respectively. To determine the functionality of these promoters in constructs driving shRNA expression, anti-EGFP shRNAs (shEGFP) cassettes under the direction of bu7SK and buU6 were constructed. We further compared the EGFP knockdown efficiency of constructs using bu7SK and buU6 with that of promoters of human and bovine origins in BFF cells and mouse PT67 cells by flow cytometry and quantitative real-time PCR assays. We found that the bu7SK and buU6 promoters induced the greatest level of suppression in homologous and heterologous cells relative to promoters derived from other species. Taken together, functional bu7SK and buU6 promoters were identified and characterized, thus laying the groundwork for future development of RNAi therapeutics and gene modification in buffalo species.

1. Introduction

RNA interference (RNAi), a natural and conserved sequence-specific gene-silencing mechanism [1], has been used to analyze gene function in plants, invertebrates, and more recently mammalian cells, with the use of 19–29 nt duplexes known as small-interfering RNAs (siRNAs) [2]. Recently, the development of DNA-based vectors for expression of short hairpin RNAs (shRNAs), which are processed within the cell to produce active siRNA molecules, has progressed rapidly [3,4]. The shRNAs are transcribed from these vectors as 19–29 nt inverted repeat sequences separated by a 4–10 nt loop sequence that fold spontaneously to form hairpin structures, which are subsequently cleaved by Dicer into siRNAs [3,5]. RNA polymerase III (pol III) type 3 promoters are most commonly chosen for expressing the shRNAs [5], as these promoters naturally direct the synthesis of small, highly abundant non-coding RNA transcripts such as 7SK and U6 [6,7]. Unlike type 1 and 2 promoters, pol III type 3 promoters are located entirely upstream of transcription start sites (+1), with a TATA box beginning at around −30 bp (relative to +1), a proximal sequence element (PSE) centered around −60 bp and a distal sequence element (DSE) beginning around −240 bp [6]. In the human U6 (hU6) and 7SK (h7SK) promoters, the DSE is comprised of at least one Octamer (OCT) motif [8,9] and an SphI Post-octamer Homology (SPH) domain [1012]. The DSE of the human 7SK (h7SK) also contains an additional CACCC box enhancer located between the OCT and SPH elements [13]. The human U6 has characteristic promoter elements (for example, OCT-1, SPH, PSE and TATA box, etc.) known as enhancer and core regions [1416], and is frequently used in shRNA expression vectors [17].
Water buffalo (Bubalus bubalis) are important domestic animals distributed in the tropical and subtropical regions. They provide more than 5% of the world’s milk supply and 20% to 30% of the farm power in Southeast Asia [18,19]. Recently, the majority of buffalo labor has been replaced by machines in Southeast Asia, and the governments have mated swamp buffalo with river buffalo, developed a buffalo clone [20] and employed genetic modification techniques to change the properties of buffalo to yield more milk and meat. In the current study, the buffalo 7SK and U6 promoters (bu7SK and buU6) were identified and characterized. Further, they were shown to be suitable for driving shRNAs in homologous and heterologous cells lines, laying the groundwork for future development of RNAi technology and gene modification in buffalo species.

2. Results

2.1. Identification and Isolation of Buffalo 7SK and U6 Promoters

To locate the 7SK promoter (bu7SK) in the buffalo genome, we employed a bioinformatics approach, scanning the bovine genome with the 331 nt human 7SK snRNA sequence (GenBank accession number NR001445) as a query. A bovine sequence (the region from 10950489 to 10950820 in NW_003104551.1) showing similarity (99%) to human 7SK snRNA was selected. Using the predicted bovine sequence as reference, the bu7SK included fragment was amplified from the buffalo genome. Sequenced and analyzed the amplified fragment, a 432 bp at 5′ flanking regions of bu7SK snRNA sequence was identified as novel bu7SK promoter (GenBank accession number JN417658) by the presence of pol III promoter elements, including a TATA box at bp −32 to −25, a PSE at bp −67 to −47, a SPH domain at bp −266 to −248 and an OCT motif at bp −244 to −227. The same method was used to clone and identify the 400 bp buffalo U6 promoter (buU6) (GenBank accession number JN417659), which contains the typical elements, including a TATA box at bp −31 to −24, a PSE at bp −66 to −46, a SPH at bp −222 to −204 and an OCT motif at bp −203 to −196. The TATA box, PSE, OCT and SPH elements displayed considerable homology to published consensus sequences through alignment of the bu7SK and buU6 sequences with the respective promoters of other species (Figure 1).

2.2. Construction and Validation of shRNA Expression Vectors

In order to validate their function, the putative bu7SK and buU6 promoter sequences were used to construct shRNA expression vectors, termed pbu7SK-shEGFP and pbuU6-shEGFP, which were designed to drive the expression of shRNAs targeting EGFP (shEGFP) (Figure 2A). Another vector, pbu7SK-sh1864, was constructed to drive the expression of a control scrambled shRNA. In addition, EGFP-targeting shRNA expression vectors ph7SK-shEGFP, phU6-shEGFP, pbo7SK-shEGFP and pboU6-shEGFP were constructed with the cloned 7SK and U6 promoters of human (h), and bovine (bo), respectively (Figure 2A).

2.3. The bu7SK and buU6 Promoters Direct shRNA-Mediated Knockdown

To determine RNAi-mediated knockdown efficiency of the above constructs, we transfected pbu7SK-shEGFP, pbuU6-shEGFP, ph7SK-shEGFP, phU6-shEGFP, pbo7SK-shEGFP and pboU6-shEGFP into Buffalo fetal fibroblasts (BFF) cells along with an EGFP expression vector (pEGFP-N1). According to Figure 2B, EGFP silencing was clearly observed by fluorescence microscopy in cells transfected with shEGFP expression vectors, with the exception of the negative control group. The EGFP knockdowns induced by the bu7SK-shEGFP and buU6-shEGFP constructs were comparable to those of other constructs, which indicates shRNA expressing function of cloned buffalo promoters (Figure 2B).
To further compare the EGFP silencing efficiency among the shEGFP expression constructs, flow cytometry was performed and the mean fluorescence intensity (MFI) from triplicate co-transfections for each condition was recorded (Figure 3). The MFI observed with co-transfection of the reporter pEGFP-N1 and the negative control pbu7SK-sh1864 construct was considered to be 100% [23], and we considered any reduction in EGFP fluorescence intensity to reflect RNAi-mediated EGFP knockdown due to the activity of the shRNA expression constructs. The EGFP MFI of the pbu7SK-shEGFP and pbuU6-shEGFP co-transfection groups were reduced about 87.45% (±0.16%) and 93.82% (±0.52%), respectively, compared with the pEGFP-N1 + pbu7SK-sh1864 co-transfection group. This reduction was significantly greater than that induced by ph7SK-shEGFP (82.55% ± 0.46%), phU6-shEGFP (67.34% ± 1.48%) and pboU6-shEGFP (78.14% ± 0.90%, p < 0.05) (Figure 3). These results indicate that the shEGFP molecules expressed by the bu7SK and buU6 promoters could direct efficient knockdown (>85%) of EGFP in BFF cells to an extent even greater than that of the commonly used h7SK and hU6 promoters.

2.4. Comparison of Knockdown Efficiency by qRT-PCR

The silencing efficiency of EGFP expression in different groups was also assayed by quantitative real-time PCR (qRT-PCR). The expression of EGFP was normalized to the relative expression level of the pbu7SK-sh1864-tranfected negative control cells (considered to be 100%). The plotting of relative EGFP expression levels and statistical analyses (Figure 4) indicate that the EGFP knockdown induced by pbu7SK-shEGFP construct (93.29% ± 1.30%) was comparable to that induced by pbuU6-shEGFP (93.45% ± 1.25%), but significantly greater than that conferred by ph7SK-shEGFP (77.66% ± 0.20%) and phU6-shEGFP (54.28% ± 2.73%) (p < 0.001). These results indicated that both of the buffalo promoter-shEGFP constructs induced more efficient RNAi-mediated knockdown of EGFP than other existing shEGFP expression constructs in BFF cells. In PT67 cells, pbu7SK-shEGFP co-transfected cells showed the greatest reduction in EGFP expression (91.29% ± 1.03%), which was significantly higher than that of phU6-shEGFP (73.00% ± 3.63%, p < 0.05), and not significantly different than that of the ph7SK-shEGFP (86.84% ± 3.10%), pbo7SK-shEGFP (88.38% ± 1.59%), pboU6-shEGFP (89.50% ± 0.81%) and pbuU6-shEGFP (87.73% ± 2.03%) co-transfected cells (p > 0.05, Figure 4).

3. Discussion

Although several recently characterized chicken, bovine and porcine 7SK and U6 promoters have been used to develop effective shRNA expression systems, whether shRNA promoters in buffalo could be employed for similar use was a lingering question. Buffalo are an integral component of traditional Asian agriculture through their contributions to milk, meat and draft power [24], and thus play a pivotal role in agriculture in several Asian countries [25], especially in South China. To date, buffalo and bovine-related RNAi research has focused on silencing viruses, such as foot-and-mouth disease virus (FMDV) and rinderpest virus (RPV), and the knockdown of genes that influence reproductive performance such as inhibin-A [2629]. To the best of our knowledge, we are the first to identify and characterize the buffalo RNA polymerase III promoters and demonstrate their functionality for shRNA expression.
In the human, bovine, chicken and mouse genomes, functional 7SK promoters have been identified upstream of 7SK snRNA coding sequences [3034]. It was likely that a functional promoter could be located upstream of the buffalo 7SK snRNA sequences. Following systematic analysis of the bovine 7SK genomic sequence, a 432 bp bu7SK promoter fragment was cloned from buffalo genomic DNA. The multiple alignment results showed that bu7SK had typical pol III promoter motifs, including TATA, PSE, OCT-1 and SPH elements, which show positional and sequence similarities to those of the h7SK, b7SK and p7SK promoters [8,31,35]. Using a similar strategy, a 400 bp buU6 promoter was identified in the buffalo genome, and is believed to be the buffalo orthologous of the bovine U6 snRNA promoter. We found that the TATA and OCT-1 motifs were highly conserved in human, bovine, buffalo and porcine 7SK and U6 promoters, while there were extensive variations in the PSE and SPH motifs within different species, which is consistent with a report by Cummins et al. [35].
To determine the activity of buffalo pol III promoters bu7SK and buU6, shRNA expression vectors targeting EGFP were constructed (pbu7SK-shEGFP, pbuU6-shEGFP). To compare the silencing efficiency and specificity of these vectors, the 7SK and U6 promoters of human and bovine were also cloned to construct corresponding shRNA expression vectors (ph7SK-shEGFP, phU6-shEGFP, pbo7SK-shEGFP and pboU6-shEGFP). These constructs were co-transfected with pEGFP-N1 (an EGFP expression vector) into homologous (BFF) and heterologous (PT67) cell lines, and the gene silencing efficiency of the different promoter constructs was compared. The expression of EGFP was clearly reduced in the groups of cells co-transfected with the reporter plasmid and the buffalo promoter constructs, which indicate that bu7SK and buU6 are functional promoters in this RNAi system. We are excited to report that buffalo pol III promoters demonstrate significant shRNA expression abilities in both BFF cells and PT67 cells. This difference in efficiency is similar to a study by Lambeth et al., which demonstrated that the bovine 7SK promoter was far more effective than a mouse U6 promoter-based shRNA expression vector in bovine cells [31]. Previous studies [31,32,34,35] have explored the issue of whether promoters perform more efficiently in cell lines that are of the same species as the origin of the promoter. In this study, greater expression was achieved when utilizing buffalo promoters in buffalo cells than in mouse cells, indicating pol III promoters drives efficient shRNA transcription with species specificity. Interestingly, the buffalo promoters showed greater silencing efficiency than human promoters in mouse cells, suggesting that the bu7SK and buU6 promoters can also be used in investigations of other species employing shRNA-mediated knockdown.
These observations correspond with related studies finding that optimal efficiency is not dependent on the presence of an SPH region [36], but rather can be related to the relative location of the OCT-1 and SPH elements [12,16], as well as the downstream spacing and sequence of OCT-1 motif [35]. The features distinguishing the bu7SK from the bo7SK PSE are the presence of a G > C substitution at bp −57, an A > T substitution at bp −54 and a C > A substitution at bp −47 of the bu7SK PSE motif. For the U6 promoter, the sequence of elements OCT-1, SPH, PSE and TATA of buffalo and bovine U6 promoter are exactly the same; however, relative to the buffalo U6 promoter, bovine elements are located an additional 6 bp upstream of the start site. The OCT-1 and SPH element of buffalo, bovine and porcine U6 promoters are of a similar distance from the start site, but the human OCT-1 element was found to be 13~17 bp farther from +1 site than the other three U6 promoters. This may be one of the reasons that human U6-mediated expression was not as strong as the other promoters.

4. Experimental Section

4.1. Isolation of the bu7SK and buU6 Promoter from Buffalo Genomic DNA

The bu7SK and buU6 promoter sequences were amplified from buffalo genomic DNA extracted from the blood of Chinese swamp buffalo, using the bu7SK-F/R (5′-GAG ACA GAC CTG GCT CCA C-3′ and 5′-CAC ATC CGA GAC ACT CTG C-3′) and buU6-F/R (5′-GAG CAT TCA GTC CGG CAG-3′ and 5′-GCA CGG TAA ACA TGG CTT C-3′) primer pairs. Gradient PCR was conducted using 9.5 ng of genomic DNA, 100 ng of each primer (forward and reverse), 2 mM MgCl2 (Sigma-Aldrich, Milwaukee, WI, USA), 250 μM dNTPs (Takara, Dalian, China), 1× PCR buffer (Takara, Dalian, China) and 1 unit of Taq polymerase (Takara, Dalian, China). Thermocycling was performed in a Master cycler EP Gradient S thermocycler (Eppendorf AG, Hamburg, Germany) under the following conditions: 94 °C for 3 min; 30 cycles of 94 °C for 30 s, 58 °C for 30 s and 72 °C for 30 s; and a final extension at 72 °C for 2 min.
The promoters of bu7SK (432 bp) and buU6 (400 bp) were amplified by PCR, purified using the QIAquick Gel Extraction kit (QIAGEN, New York, NY, USA) and cloned into the pMD18-T vector (Takara, Dalian, China). Ligations were transformed into E. coli DH-5α cells (Takara, Dalian, China) and plasmid DNA isolated from these bacterial clones was sequenced. The confirmed constructs were named p18T-bu7SK and p18T-buU6.
The sequences were compared using the Basic Local Alignment Search Tool (BLAST; http://blast.ncbi.nlm.nih.gov/). The putative bu7SK and buU6 promoters were submitted to GenBank under the accession numbers JN417658 and JN417659.

4.2. Construction of 7SK and U6 shRNA Expression Vectors

To test the expression competence of the cloned bu7SK and buU6 promoters, the pMCS-shEGFP and pMCS-sh1864 base vectors were constructed from pMD18T by ligating a 65 bp synthetic copy of an EGFP-specific shRNA or a control scrambled shRNA (Addgene plasmid #1864; Raleigh, NC, USA) sequence produced by chemical synthesis (GenScript, Nanjing, China) between the BamHI and HindIII sites (Takara, Dalian, China), respectively. Then anti-EGFP shRNA expression cassettes bu7SK-shEGFP and buU6-shEGFP were constructed by ligating bu7SK and buU6 into pMCS-shEGFP, respectively. The negative control expression vector, bu7SK-sh1864, was also generated by the same method. To compare the level of expression from pol III promoters of different origin, primers were designed using the reference sequences of h7SK (AY578685), hU6 (AY623053), bo7SK (CR810253) and boU6 (DQ150531). Then, each promoter was amplified, sequenced and ligated into pMCS-shEGFP using XbaI/SacI or ClaI/XhoI sites introduced in the primers (Table 1). A total of 7 cassettes were constructed: bu7SK-shEGFP, buU6-shEGFP, h7SK-shEGFP, hU6-shEGFP, bo7SK-shEGFP, boU6-shEGFP and bu7SK-sh1864.

4.3. Cell Culture and Transfection

Buffalo fetal fibroblasts (BFF) cells and the mouse PT67 cell line were maintained in Dulbecco Minimal Essential Media (DMEM, GIBCO, New York, NY, USA) with 1% (w/v) sodium pyruvate and 10% (v/v) Fetal Calf Serum (FCS, GIBCO, New York, NY, USA). All cells were cultured in a humidified 37 °C atmosphere containing 5% CO2. BFF cells and PT67 cells were grown to approximately 80% confluence before transfection. Co-transfection of BFF with 250 ng anti-EGFP shRNA expression plasmid and/or 250 ng pEGFP-N1 in 24-well plates was carried out using Lipofectamine 2000 (Invitrogen, New York, NY, USA) according to the manufacturer’s instructions for fluorescence microscopy observation and flow cytometry analysis. Co-transfection of BFF or PT67 cells with 1.25 μg anti-EGFP shRNA expression plasmid and/or 1.25 μg pEGFP-N1 in 6-well plates was followed by isolation of total RNA for quantification of the expression level of shRNA and EGFP.
The expression of EGFP was observed at 60 h post-transfection. Fluorescence microscopy was performed on duplicate co-transfections using a Nikon Fluorescence Microscope (Nikon, Tokyo, Japan). Images were captured at 40× magnification using a Nikon color digital camera (Nikon, Tokyo, Japan) with the exposure time of 800 msec and compiled with Photoshop CS3 imaging software (Adobe, New York, NY, USA).

4.4. Flow Cytometry Assay

To determine the efficiency of EGFP silencing after transfection of the shEGFP constructs, the transfected BFF cells were assayed by flow cytometry. Buffalo fetal fibroblasts (BFF) cells were harvested 72 h post-transfection using 0.25% (w/v) trypsin-EDTA, pelleted at 1200 rpm for 5 min, washed in phosphate buffered saline (PBS) and resuspended in FACS-solution (1% fetal calf serum (v/v) in PBS). Analysis was performed using a FACSCalibur (Becton Dickinson, New York, NY, USA) fluorescence-activated cell sorter and CELL Quest software (Becton Dickinson, New York, NY, USA). After flow cytometry, the EGFP Mean Fluorescence Intensity (MFI) of each sample was recorded and compared. The reduction in EGFP MFI for each co-transfection was calculated by normalizing the average MFI (derived from triplicate samples) as a percentage of the MFI of the negative control pbu7SK-sh1864/pEGFP-N1 co-transfected cells (100% ± 0.14% (SEM)).

4.5. Real-Time PCR Assay

After total RNA was extracted, 2 μg of total RNA was reverse-transcribed to cDNA using AMV reverse transcriptase (Takara, Dalian, China) and Oligo primers (Takara, Dalian, China). Buffalo beta-actin and mouse beta-actin were used as endogenous controls for EGFP expression analysis, while buffalo U6 was used as the endogenous control for shEGFP expression analysis. Primer pairs were designed to probe shEGFP (5′-ACA CTC CAG CTG GGC TGA CCC TGA AGT TC-3′ and 5′-CTC AAC TGG TGT GTC GTG GAG TC-3′) and EGFP (5′-ACG GCA TCA AGG TGA ACT-3′ and 5′-GTG TTC TGC TGG TAG TGG TC-3′) were employed in this assay. Quantitative real-time PCR (qRT-PCR) was performed using SYBR Green Master (Rox; Roche, Basel, Switzerland) and the Applied Biosystems 7500 Sequence Detection System (Applied Biosystems, New York, NY, USA). Amplification curves were generated with an initial denaturing step at 95 °C for 5 min, followed by 45 cycles of 95 °C for 5 s, 60 °C for 5 s, and 72 °C for 8 s. Melting curves were generated using the following program: PCR products were denatured at 95 °C and cooled to 65 °C at a rate of 20 °C per second. The fluorescence at 530 nm was then recorded continuously from 65 to 95 °C as the temperature was increased at a rate of 0.2 °C per second. All reactions, including the no-template controls, were run in triplicate. After the reactions, the CT values were determined using fixed-threshold settings.

5. Conclusions

In summary, we identified and characterized the functional bu7SK and buU6 promoters suitable for driving the expression of shRNAs in buffalo species. Compared with human, porcine and bovine pol III promoters, the buffalo promoters, directing the expression of EGFP-specific shRNA, showed substantial activity in homologous and heterologous cells. The use of the two promoter sequences and the shRNA vector cloning strategy described here will be advantageous in RNAi functional genomic studies of buffalo cells. Furthermore, the identification and characterization of these promoters is an important step in the development of novel buffalo-specific RNAi-based therapeutics and methods of transgenic delivery of shRNA molecules for future improvements in buffalo properties.

Acknowledgments

This work was funded by the China Transgenic Project (2011ZX08007-003) and the National Natural Science Fund (NSFC 31260552). We are grateful for technical assistance provided by Lang Lin, Jie Su, Yanping Ren, Peng Zhu, Qin Xie, Shibei Chen and Jiao Lan.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fire, A.; Xu, S.; Montgomery, M.K.; Kostas, S.A.; Driver, S.E.; Mello, C.C. Potent and specific genetic interference by double-stranded RNA in caenorhabditis elegans. Nature 1998, 391, 806–811. [Google Scholar]
  2. Elbashir, S.M.; Harborth, J.; Lendeckel, W.; Yalcin, A.; Weber, K.; Tuschl, T. Duplexes of 21-nucleotide RNAs mediate RNA interference in cultured mammalian cells. Nature 2001, 411, 494–498. [Google Scholar]
  3. Brummelkamp, T.R.; Bernards, R.; Agami, R. A system for stable expression of short interfering RNAs in mammalian cells. Science 2002, 296, 550–553. [Google Scholar]
  4. Paul, C.P.; Good, P.D.; Winer, I.; Engelke, D.R. Effective expression of small interfering RNA in human cells. Nat. Biotechnol 2002, 20, 505–508. [Google Scholar]
  5. Amarzguioui, M.; Rossi, J.J.; Kim, D. Approaches for chemically synthesized siRNA and vector-mediated RNAi. FEBS Lett 2005, 579, 5974–5981. [Google Scholar]
  6. Schramm, L.; Hernandez, N. Recruitment of RNA polymerase III to its target promoters. Genes Dev 2002, 16, 2593–2620. [Google Scholar]
  7. Geiduschek, E.P.; Kassavetis, G.A. The RNA polymerase III transcription apparatus. J. Mol. Biol 2001, 310, 1–26. [Google Scholar]
  8. Murphy, S.; Pierani, A.; Scheidereit, C.; Melli, M.; Roeder, R.G. Purified octamer binding transcription factors stimulate RNA polymerase III-mediated transcription of the 7SK RNA gene. Cell 1989, 59, 1071–1080. [Google Scholar]
  9. Danzeiser, D.A.; Urso, O.; Kunkel, G.R. Functional characterization of elements in a human U6 small nuclear RNA gene distal control region. Mol. Cell Biol 1993, 13, 4670–4678. [Google Scholar]
  10. Schaub, M.; Myslinski, E.; Schuster, C.; Krol, A.; Carbon, P. Staf, a promiscuous activator for enhanced transcription by RNA polymerases II and III. EMBO J 1997, 16, 173–181. [Google Scholar]
  11. Kunkel, G.R.; Cheung, T.C.; Miyake, J.H.; Urso, O.; McNamara-Schroeder, K.J.; Stumph, W.E. Identification of a SPH element in the distal region of a human U6 small nuclear RNA gene promoter and characterization of the sph binding factor in Hela cell extracts. Gene Expr 1996, 6, 59–72. [Google Scholar]
  12. Rincon, J.C.; Engler, S.K.; Hargrove, B.W.; Kunkel, G.R. Molecular cloning of a cdna encoding human SPH-binding factor, a conserved protein that binds to the enhancer-like region of the U6 small nuclear RNA gene promoter. Nucleic Acids Res 1998, 26, 4846–4852. [Google Scholar]
  13. Kleinert, H.; Bredow, S.; Benecke, B.J. Expression of a human 7SK RNA gene in vivo requires a novel pol III upstream element. EMBO J 1990, 9, 711–718. [Google Scholar]
  14. Ma, B.; Hernandez, N. Redundant cooperative interactions for assembly of a human U6 transcription initiation complex. Mol. Cell Biol 2002, 22, 8067–8078. [Google Scholar]
  15. Kunkel, G.R.; Pederson, T. Upstream elements required for efficient transcription of a human U6 RNA gene resemble those of U1 and U2 genes even though a different polymerase is used. Genes Dev 1988, 2, 196–204. [Google Scholar]
  16. James Faresse, N.; Canella, D.; Praz, V.; Michaud, J.; Romascano, D.; Hernandez, N. Genomic study of RNA polymerase II and III snapc-bound promoters reveals a gene transcribed by both enzymes and a broad use of common activators. PLoS Genet 2012, 8, e1003028. [Google Scholar]
  17. Domitrovich, A.M.; Kunkel, G.R. Multiple, dispersed human U6 small nuclear RNA genes with varied transcriptional efficiencies. Nucleic Acids Res 2003, 31, 2344–2352. [Google Scholar]
  18. Heden, C.G. On the estimation of fifty percent end-points in serological titrimetry. J. Pathol. Bacteriol 1946, 58, 477–481. [Google Scholar]
  19. Huang, B.; Li, T.; Wang, X.L.; Xie, T.S.; Lu, Y.Q.; da Silva, F.M.; Shi, D.S. Generation and characterization of embryonic stem-like cell lines derived from in vitro fertilization buffalo (Bubalus bubalis) embryos. Reprod. Domest. Anim 2010, 45, 122–128. [Google Scholar]
  20. Shi, D.; Lu, F.; Wei, Y.; Cui, K.; Yang, S.; Wei, J.; Liu, Q. Buffalos (Bubalus bubalis) cloned by nuclear transfer of somatic cells. Biol. Reprod 2007, 77, 285–291. [Google Scholar]
  21. Sturm, R.A.; Das, G.; Herr, W. The ubiquitous octamer-binding protein OCT-1 contains a pou domain with a homeo box subdomain. Genes Dev 1988, 2, 1582–1599. [Google Scholar]
  22. Dahlberg, J.E.; Lund, E. The Genes and Transcription of the Major Small Nuclear RNAs. In Structure and Function of Major and Minor Small Nuclear Ribonucleoprotein Particles; Birnstiel, M.L., Ed.; Springer-Verlag: Berlin, Germany, 1988; Volume 88, pp. 38–70. [Google Scholar]
  23. Cullen, B.R. Induction of stable RNA interference in mammalian cells. Gene Ther 2006, 13, 503–508. [Google Scholar]
  24. Cockrill, W.R. The draught buffalo (Bubalus bubalis). Veterinarian 1968, 5, 265–272. [Google Scholar]
  25. Cockrill, W.R. The water buffalo: A review. Br. Vet. J 1981, 137, 8–16. [Google Scholar]
  26. Servan de Almeida, R.; Keita, D.; Libeau, G.; Albina, E. Control of ruminant morbillivirus replication by small interfering RNA. J. Gen. Virol 2007, 88, 2307–2311. [Google Scholar]
  27. Liu, M.; Chen, W.; Ni, Z.; Yan, W.; Fei, L.; Jiao, Y.; Zhang, J.; Du, Q.; Wei, X.; Chen, J.; et al. Cross-inhibition to heterologous foot-and-mouth disease virus infection induced by RNA interference targeting the conserved regions of viral genome. Virology 2005, 336, 51–59. [Google Scholar]
  28. Kahana, R.; Kuznetzova, L.; Rogel, A.; Shemesh, M.; Hai, D.; Yadin, H.; Stram, Y. Inhibition of foot-and-mouth disease virus replication by small interfering RNA. J. Gen. Virol 2004, 85, 3213–3217. [Google Scholar]
  29. Xie, Q.; Jiang, J.; Wang, D.; Shi, D.; Xie, T.; Chen, S.; Liu, Q. Construction and analysis of buffalo inhibin α-subunit gene RNAi vectors. Chin. J. Vet. Sci 2011, 31, 1070–1075. [Google Scholar]
  30. Murphy, S.; di Liegro, C.; Melli, M. The in vitro transcription of the 7SK RNA gene by RNA polymerase III is dependent only on the presence of an upstream promoter. Cell 1987, 51, 81–87. [Google Scholar]
  31. Lambeth, L.S.; Wise, T.G.; Moore, R.J.; Muralitharan, M.S.; Doran, T.J. Comparison of bovine RNA polymerase III promoters for short hairpin RNA expression. Anim. Genet 2006, 37, 369–372. [Google Scholar]
  32. Bannister, S.C.; Wise, T.G.; Cahill, D.M.; Doran, T.J. Comparison of chicken 7SK and U6 RNA polymerase III promoters for short hairpin RNA expression. BMC Biotechnol 2007, 7, 79. [Google Scholar]
  33. Moon, I.S.; Krause, M.O. Common RNA polymerase I, II, and III upstream elements in mouse 7SK gene locus revealed by the inverse polymerase chain reaction. DNA Cell Biol 1991, 10, 23–32. [Google Scholar]
  34. Chen, X.; Liu, X.; Wang, W.; Wang, J.; Meng, Q.; Zhang, D. Chicken 7SK promoter drives efficient shRNA transcription with species specificity. Res. Vet. Sci 2013, 95, 1006–1011. [Google Scholar]
  35. Cummins, D.; Doran, T.J.; Tyack, S.; Purcell, D.; Hammond, J. Identification and characterisation of the porcine 7SK RNA polymerase III promoter for short hairpin RNA expression. J. RNAi Gene Silenc 2008, 4, 289–294. [Google Scholar]
  36. Boyd, D.C.; Greger, I.H.; Murphy, S. In vivo footprinting studies suggest a role for chromatin in transcription of the human 7SK gene. Gene 2000, 247, 33–44. [Google Scholar]

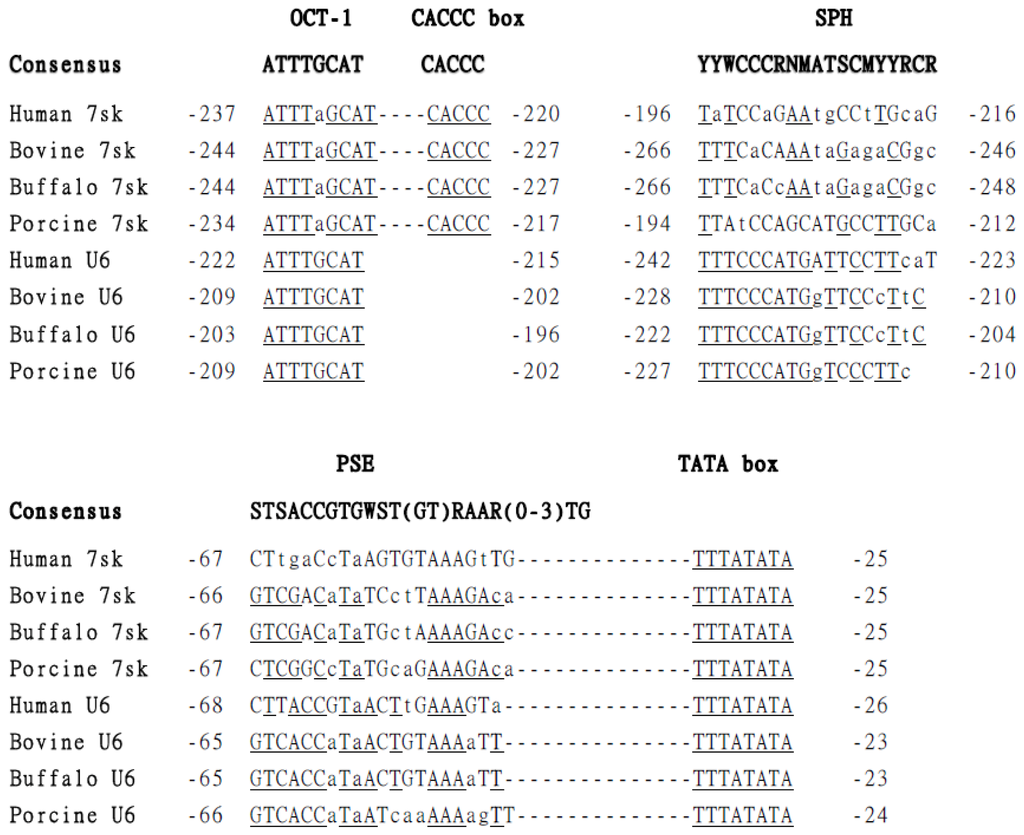

Figure 1. Sequence alignment of promoter elements in the buffalo, bovine, human and porcine 7SK and U6 promoters. The distal promoter regions containing the SphI Post-octamer Homology (SPH), Octamer (OCT)-1 and CACCC box sequences and proximal promoter regions containing the proximal sequence element (PSE) and TATA sequence elements are shown for each promoter. Matches to the consensus sequence, delineated at the top of the SPH [12,13], OCT-1 [21] and PSE [22] sequences, are shown in upper case. Nucleotide positions indicate the location (5′→3′) of each element in the promoter relative to the transcription start site (+1). Each dash mark between the OCT-1 and CACCC box, PSE and TATA box represents one nucleotide. Nucleotide abbreviations in consensus sequences are according to the International Union of Biochemistry convention for GenBank ( http://www.ncbi.nlm.nih.gov/).
Figure 1. Sequence alignment of promoter elements in the buffalo, bovine, human and porcine 7SK and U6 promoters. The distal promoter regions containing the SphI Post-octamer Homology (SPH), Octamer (OCT)-1 and CACCC box sequences and proximal promoter regions containing the proximal sequence element (PSE) and TATA sequence elements are shown for each promoter. Matches to the consensus sequence, delineated at the top of the SPH [12,13], OCT-1 [21] and PSE [22] sequences, are shown in upper case. Nucleotide positions indicate the location (5′→3′) of each element in the promoter relative to the transcription start site (+1). Each dash mark between the OCT-1 and CACCC box, PSE and TATA box represents one nucleotide. Nucleotide abbreviations in consensus sequences are according to the International Union of Biochemistry convention for GenBank ( http://www.ncbi.nlm.nih.gov/).
Ijms 15 02596f1

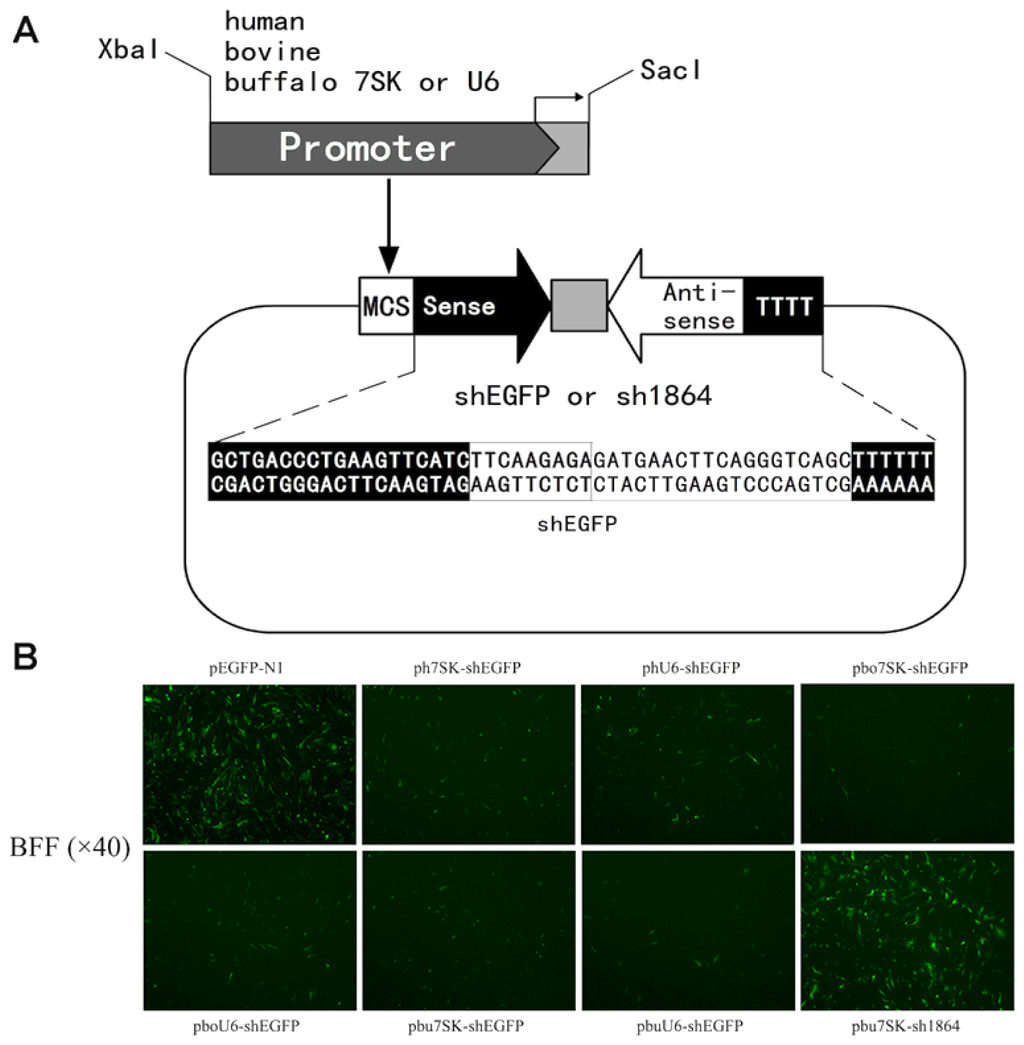

Figure 2. Construction and transfection of dual EGFP/shRNA expression vectors. (A) Buffalo, bovine and human 7SK/U6 promoter fragments were amplified with restriction enzymes sites XbaI/SacI introduced by the primers, and ligated into the 5′ MCS (multi-cloning site) of the pMCS-shEGFP and pMCS-sh1864 vectors. The core fragments in the vectors, featuring the MCS and sense, loop, antisense and pol III terminator (TTTTTT), were chemically synthesized and ligated with framework plasmid pMD18-T; (B) Fluorescence microscopy images of buffalo fetal fibroblasts (BFF) cells transfected with the reporter vector (pEGFP-N1) only, or co-transfected with the reporter and various shEGFP expression plasmids as indicated in each image.
Figure 2. Construction and transfection of dual EGFP/shRNA expression vectors. (A) Buffalo, bovine and human 7SK/U6 promoter fragments were amplified with restriction enzymes sites XbaI/SacI introduced by the primers, and ligated into the 5′ MCS (multi-cloning site) of the pMCS-shEGFP and pMCS-sh1864 vectors. The core fragments in the vectors, featuring the MCS and sense, loop, antisense and pol III terminator (TTTTTT), were chemically synthesized and ligated with framework plasmid pMD18-T; (B) Fluorescence microscopy images of buffalo fetal fibroblasts (BFF) cells transfected with the reporter vector (pEGFP-N1) only, or co-transfected with the reporter and various shEGFP expression plasmids as indicated in each image.
Ijms 15 02596f2

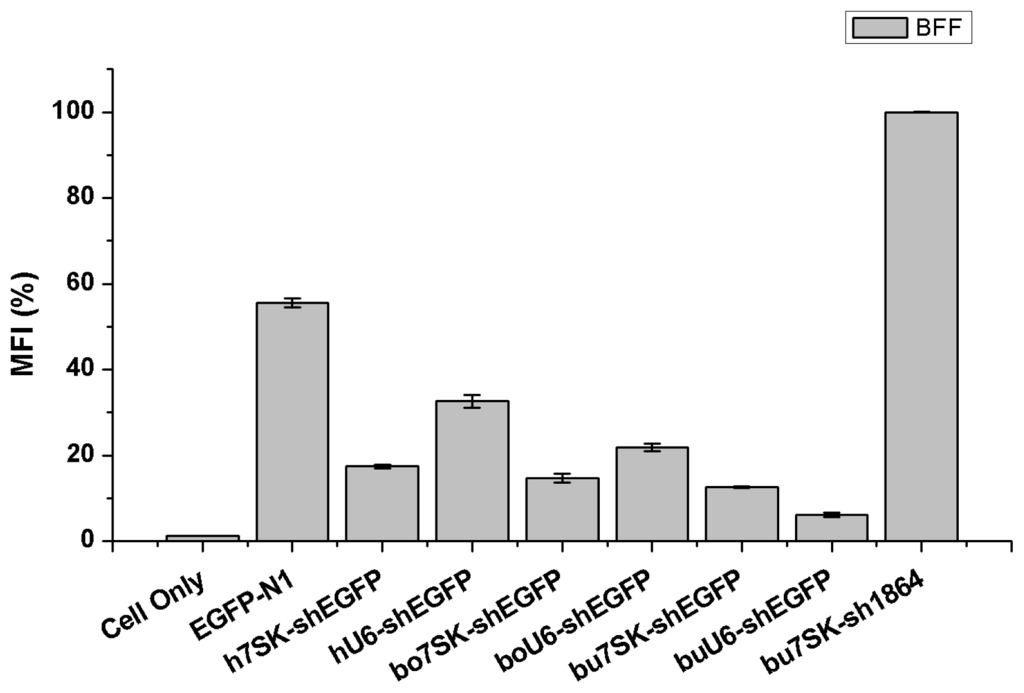

Figure 3. Flow cytometry analysis of EGFP knockdown in BFF cells. The mean fluorescence intensity (MFI) of BFF cells 72 h post-transfection was determined by flow cytometry. EGFP knockdown is presented as percent MFI, normalized to the average MFI of the negative control cell group with pEGFP-N1 co-transfected with pbu7SK-sh1864 (100%). Error bars represent the standard error of the mean (SEM) calculated from three independent experiments.
Figure 3. Flow cytometry analysis of EGFP knockdown in BFF cells. The mean fluorescence intensity (MFI) of BFF cells 72 h post-transfection was determined by flow cytometry. EGFP knockdown is presented as percent MFI, normalized to the average MFI of the negative control cell group with pEGFP-N1 co-transfected with pbu7SK-sh1864 (100%). Error bars represent the standard error of the mean (SEM) calculated from three independent experiments.
Ijms 15 02596f3
Figure 4. Detection of EGFP knockdown efficiency by qRT-PCR. The expression of EGFP in BFF cells is labeled as grey and in PT67 cells as white. EGFP knockdown efficiency in different transfection groups is presented as a percent relative expression detected by qRT-PCR, normalized to the average relative expression of the negative control pbu7SK-sh1864 (100%). Error bars represent the standard error of the mean (SEM) calculated from four independent experiments.
Figure 4. Detection of EGFP knockdown efficiency by qRT-PCR. The expression of EGFP in BFF cells is labeled as grey and in PT67 cells as white. EGFP knockdown efficiency in different transfection groups is presented as a percent relative expression detected by qRT-PCR, normalized to the average relative expression of the negative control pbu7SK-sh1864 (100%). Error bars represent the standard error of the mean (SEM) calculated from four independent experiments.
Ijms 15 02596f4
Table 1. Primers for cloning of promoters.
Table 1. Primers for cloning of promoters.
Primer nameSequence
bu7SK-F5′-TCTAGAGAGACAGACCTGGCTCCAC-3′ a
bu7SK-R5′-GAGCTCCACATCCGAGACACTCTGC-3′ b
buU6-F5′-ATCGATGAGCATTCAGTCCGGCAG-3′ c
buU6-R5′-CTCGAGGCACGGTAAACATGGCTTC-3′ d
h7SK-F5′-TCTAGACTGCAGTATTTAGCATGCCCC-3′ a
h7SK-R5′-GAGCTCGAGGTACCCAGGCGGC-3′ b
hU6-F5′-ATCGATCCCCCGAGTCCAACAC-3′ c
hU6-R5′-CTCGAGGTGTTTCGTTCTTTCCACAAG-3′ d
bo7SK-F5′-TCTAGAGAGCGTGAGAGACTCGGAGC-3′ a
bo7SK-R5′-GAGCTCCACCATGGTAGTTCGCGCAG-3′ b
boU6-F5′-ATCGATAAGAGGCTCCTGAGCAACG-3′ c
boU6-R5′-CTCGAGCATTTACCCCCCACAGAATATATAAG-3′ d
aThe underlined sequence indicates XbaI restriction endonuclease site;
bThe underlined sequence indicates SacI restriction endonuclease site;
cThe underlined sequence indicates ClaI restriction endonuclease site;
dThe underlined sequence indicates XhoI restriction endonuclease site.
