Int. J. Mol. Sci. 2014, 15(1), 1-14; doi:10.3390/ijms15010001

Article
Effect and Mechanism of Mitomycin C Combined with Recombinant Adeno-Associated Virus Type II against Glioma
Hong Ma ,*, Yunjia Zhang , Hailong Wang , Chuanhui Han , Runhong Lei , Lei Zhang , Zuye Yang , Ling Rao , Hong Qing , Jim Xiang and Yulin Deng *
School of Life Science, Beijing Institute of Technology, Haidian District, Beijing 100081, China; E-Mails: 1122334@bit.edu.cn (Y.Z.); whailong1983@126.com (H.W.); mah_cindy@sina.com (C.H.); leirh0581@gmail.com (R.L.); zhaon19900709@163.com (L.Z.); leirh0581@mails.jlu.edu.cn (Z.Y.); raolingok@126.com (L.R.); hqing@bit.edu.cn (H.Q.); jim.xiang@saskcancer.ca (J.X.)
These authors contributed equally to this work.
*
Authors to whom correspondence should be addressed; E-Mails: 04656@bit.edu.cn (H.M.); deng@bit.edu.cn (Y.D.); Tel.: +86-10-6891-4607 (H.M.); +86-10-6891-5996 (Y.D.); Fax: +86-10-6891-4907 (H.M. & Y.D.).
Received: 29 July 2013; in revised form: 9 December 2013 / Accepted: 9 December 2013 /
Published: 19 December 2013

Abstract

: The effect of chemotherapy drug Mitomycin C (MMC) in combination with recombinant adeno-associated virus II (rAAV2) in cancer therapy was investigated, and the mechanism of MMC affecting rAAV2’s bioactivity was also studied. The combination effect was evaluated by the level of GFP and TNF expression in a human glioma cell line, and the mechanism of MMC effects on rAAV mediated gene expression was investigated by AAV transduction related signal molecules. C57 and BALB/c nude mice were injected with rAAV-EGFP or rAAV-TNF alone, or mixed with MMC, to evaluate the effect of MMC on AAV-mediated gene expression and tumor suppression. MMC was shown to improve the infection activity of rAAV2 both in vitro and in vivo. Enhancement was found to be independent of initial rAAV2 receptor binding stage or subsequent second-strand synthesis of target DNA, but was related to cell cycle retardation followed by blocked genome degradation. In vivo injection of MMC combined with rAAV2 into the tumors of the animals resulted in significant suppression of tumor growth. It was thus demonstrated for the first time that MMC could enhance the expression level of the target gene mediated by rAAV2. The combination of rAAV2 and MMC may be a promising strategy in cancer therapy.
Keywords:
recombinant adeno-associated virus II; mitomycin C; glioma

1. Introduction

Adeno-associated virus (AAV) is a small non-enveloped virus and 11 AAV serotypes have been reported. AAV2 has become a widely used serotype [1,2]. AAV can infect both dividing and non-diving cells, persist in human bodies and show minimal immunogenic effect and no pathogenicity at all in preclinical data from murine models. These attractive characteristics make AAV a very competitive candidate for creating viral vectors for gene therapy [3]. Recombinant adeno-associated virus type II (rAAV2) consists of promoter elements and genes which are flanked by the inverted terminal repeats (ITRs). rAAV2 could prolong transgene expression and is used for clinical trials and others, such as treatment of Canavan disease, muscular dystrophy and tumors [3].

RAAV infects cells through several stages, from binding to its primary receptor [4] on the cell surface followed by endocytosis through co-receptors [57] to migration to the nucleus through several steps, including vesicular trafficking, endosomal escape and nuclear transportion and the final post-nuclear stages including viral uncoating, second-strand synthesis and circularization [8]. Due to the complexity of rAAV’s infection pathway, some stages can be biologic barriers to affect gene delivery and expression, like receptor binding stage [9,10] and genome conversion from single strand to double strand [11,12]. Consequently, combining rAAV mediated gene therapy with other therapies has been considered as a preferred method. Both gamma ray and UV light can enhance transgene expression and transduction efficiency [11,12]. Moreover, tritiated thymidine [13], some antitumor drugs [1417] as well as some DNA-damaging agents have also been considered to increase the efficiency of rAAV transduction in various cells [18,19]. Mitomycin C (MMC) is a potent DNA crosslinker that alkylates double strand DNA [20] and has been widely used as a chemotherapeutic agent [21]. To date, the role of MMC in the enhancement of AAV-mediated gene expression has not been fully studied.

In this study, we focus on the effect and mechanism of MMC on the efficiency of gene delivery mediated by rAAV2. It is demonstrated that administration of MMC can enhance rAAV-mediated transgene expression, but facilitation of transduction efficiency was not observed. Moreover, MMC cannot modify receptor expression during the course of rAAV infection, but can affect cell genome stability. Cell cycle arrest in S phase may contribute to genome DNA delaying, thereafter causing higher level of gene expression. The same enhancing effect has also been observed in an experimental animal model. These findings make the strategy of combining MMC with AAV2-mediated gene therapy against human glioma promising.

2. Results and Discussion

2.1. The Sensitivity of U251 Cell Line to MMC and rAAV-TNF in Vitro

The sensitivity of the U251 cell line to MMC was first examined. As shown in Figure 1A, only 50% of U251 cells survived for the continued treatment at the dose of 2000 ng/mL MMC, while about 80% survived at 1000 ng/mL for either non-continued or continued treatment. Therefore the resistant dosage of MMC can be confirmed as 1000 ng/mL. An effective dosage for rAAV-TNF effect on U251 cells was chosen according to an introduction with doses of (2 × 103)−(5 × 105) Gps/cell. The results of MTT assay showed the cell toxicity can be induced in high dosages to the rAAV-TNF treatment group (5 × 105 Gps/cell), but not the rAAV-EGFP transduced cells (Figure 1B). There are not difference between non-continued or continued infection groups at the doses of 5 × 105 Gps/cell, thus the non-continued infection of rAAV-TNF (2 × 105 Gps/cell, group1) was used for the subsequent combination treatment as a resistant dose. As shown in Figure 1C, the effect of MMC on rAAV-mediated TNF expression which led to cell death was depicted in different continued incubation time groups of MMC. Compared to similar treatment of rAAV-TNF (control), the killing effect was shown to be remarkably incubation time-dependent, and it was also found that 72 h post-incubation of MMC was critical. Moreover, the activation of caspase-3 indicated that the change of cell viability may be due to apoptosis induced when both MMC (1000 ng/mL) and rAAV-TNF (2 × 105 Gps) were combined (Figure 1D). It was also shown here that treatment with MMC during and after AAV infection (continued treatment) is more effective than treating with MMC only during AAV infection (non-continued treatment) (Figure 1C, p < 0.05).

2.2. MMC Enhances rAAV-Mediated Transgene Expression but Does not Augment Transduction Efficiency

To evaluate the effect of MMC on rAAV-mediated gene expression, U251 cells infected with rAAV-TNF or rAAV-EGFP were treated with MMC at various concentrations. Both rAAV-TNF and rAAV-EGFP were used to exclude if MMC had a gene-specific effect. As indicated in Figure 2A–D, both GFP and TNF expression were dramatically increased. Furthermore, it was exhibited that enhancement effect on gene expression was dose-dependent. The mean fluorescence intensity of GFP was also found to be increased by 4 to 8 times in cells treated with MMC (200 to 1000 ng/mL) and rAAV-EGFP (2 × 105 Gps/cell) compared with those treated with rAAV-EGFP (Figure 2B, right panel). In both cases, the transduction efficiency remained at the same level (about 80%, Figure 2B, left panel). GFP mRNA expression was also determined by RT-PCR, and the result was found to be consistent with that in protein level (Figure 2C).

The cell-entry step was further been investigated by the examination of the expression of rAAV receptor (SDC2) and co-receptors (FGFR1 and α5-integrin) in rAAV-permissive cell lines. Reverse transcription-PCR was used to analyze receptor expression after longtime treatment with MMC (1000 ng/mL) after rAAV-TNF transfection. No difference was demonstrated between MMC treated cells and control cells on mRNA level expression of receptors (Figure 2E).

2.3. The Effect of MMC on the Genome of Targeted Cells Infected by rAAV

To examine if second-strand synthesis occurred earlier in the early stage of rAAV infection and if the retention time of rAAV genome in MMC-treated cells was in the same time period as that in control cells, cell genome DNA was isolated from 4 to 72 h post-incubation after combined treatment with MMC and rAAV-EGFP, and was fractionated by electrophoresis on alkaline agarose gels. Southern hybridization was used to detect double-strand genome DNA in all samples. As shown in Figure 3A, genome DNA from rAAV-EGFP transduced cells was the same as those in MMC and rAAV-EGFP-treated cells in the first 16 h post-incubation, indicating that MMC and rAAV-EGFP co-treatment could not pace the speed of second-strand synthesis. However, DNA quantity was dramatically increased in cells after 24 h continued incubation of MMC and rAAV-EGFP, which meant the retention time of the rAAV genome may be extended by MMC. Interestingly, cells started to retard at S-phase during the first 16 h (57.48% ± 16.32%) after treatment with MMC and rAAV-EGFP (Figure 3B), and a similar effect was observed only in the MMC treated group (Figure 3C), which could also suggest that MMC played a very important role in the enhanced biological activity of rAAV during cell cycle arrest. It has also been reported that the host cell DNA repair pathway contributes to rAAV genome processing and ataxia-telangiectasia mutated (ATM) facilitates genome DNA circularization both in vitro and in vivo [22]. Thus, we detected the expression level of ATM at different time points after MMC treatment. It was shown that the transcriptional level of ATM could be increased obviously from 10 h (Figure 3D).

2.4. Improvement of rAAV-Mediated Gene Expression by MMC in Vivo

Further investigation on the effect of MMC on rAAV-EGFP in skeletal muscle of mice administered by local intramuscular injection was also carried out. GFP expression was examined by optical imaging and western blot. As shown in Figure 4A,B, higher GFP in C57 mice was manifested in the MMC and AAV co-treated leg (whether left or right side injection), and lower GFP in the other of only AAV-treated leg. In order to test whether MMC has a long-term effect on rAAV expression, C57 mice (those who exhibited increased GFP by optical imaging at 1 month post-infection) were killed at 3 months and western blot was performed. As shown in Figure 4C, enhanced GFP expression still can be seen in MMC treated legs. However, GFP in BALB/c nude mice was not observed by optical imaging because their auto-fluorescence outweighed the GFP signal (data not shown). All of the results suggested MMC not only can improve rAAV gene expression, but also maintains this effect for a relatively long period.

2.5. Killing Effect of AAV-TNF with MMC after Intratumoral Injections

It is difficult for MMC to pass through the blood brain barrier after systemic administration, therefore local injection might be preferable for potential clinical application in glioma therapy. Thus, our main focus was on the killing effect of AAV-TNF with MMC after intratumoral administration. During the first 28 days of AAV-TNF treatment, tumor volume in all groups increased at almost the same rate. However, in the AAV-TNF treated group with or without MMC, tumor growth was inhibited after 35 and 42 days compared with the control groups (Figure 5A). The suppression rate of xenograft tumor growth reached up to 65% or 52% by the end of the 42nd day when the mice were killed, in AAV-TNF treatment groups with or without MMC, respectively, showing a strong combination inhibitory effect on tumor growth in vivo.

Moreover, to analyze the inhibitory effects increased by MMC treatment, the exogenous expression of TNF in implanted tumors was evaluated at the levels of transcription and translation. As shown in Figure 5B,C, significant expression of the target gene was found only in all AAV-TNF treatment groups, not vehicle control group, and AAV-TNF combined with MMC induced significant tissue or cell distribution of TNF expression. Similar results were observed from the activation of caspase-8, which can be mediated by TNF expression, in AAV-TNF with or without MMC treatment groups (Figure 5C). These data suggested that MMC can increase AAV-mediated TNF expression in implanted human glioma cells, which induced the obvious tumor cell killing effects.

3. Experimental Section

3.1. Cell Culture and Reagents

Human glioma cell lines (U251) was purchased from the Cell Culture Centre of Institute of Basic Medical Sciences, Chinese Academy of Medical Sciences (Beijing, China). The cells were cultured in a Modified Eagle’s medium (HyClone, #SH30024.01B; Logan, UT, USA) with 0.1 mM non-essential amino-acids (MEM-NEAA) (Gibco, #11140050; Grand Island, NY, USA). All mediums were supplemented with 10% fetal bovine serum (FBS) (HyClone, #SV30087.02; Logan, UT, USA) and penicillin-streptomycin. The cells were cultured at 37 °C in a 5% CO2 humidified incubator. RAAV2-EGFP and rAAV2-TNF were packaged by Benyuanzhengyang Gene Company (Beijing, China). For the construction of recombinant vectors, TNF-α cDNA was amplified by PCR and then inserted into the pSNAV2.0 expression vector (VGTC, #A20010; Beijing, China) under control of the CMV (cytomegalovirus) promoter. Recombinant AAV vector (VGTC; Beijing, China) encoding enhanced green fluorescent protein (rAAV2-EGFP) was constructed as control. The primary antibodies were anti-cleaved caspase-8 (Abcam, Cambridge, MA, USA), anti-TNF (Santa Cruz Biotechnology, Santa Cruz, CA, USA), and anti-β-actin (Sigma, St. Louis, MO, USA).

3.2. Cell Infection with rAAV and Treatment with MMC

The effects of different doses of MMC and rAAV-TNF for different infection time on cell viability were each closely monitored by MTT assay [15]. Different infection time was compared in all the experiments described below. Firstly, rAAV2-TNF was used to infect cells only for the first 4 h, and then the medium containing rAAV was replaced with fresh complete medium with or without rAAV, described by continued treatment group or non-continued treatment group respectively. Secondly, cells were exposed to MMC for 4 h, and the medium was replaced with the complete medium either with or without MMC, marked as continued treatment group or non-continued treatment group respectively. Finally, cells were exposed to MMC at 1000 ng/mL combined with rAAV-TNF of 2 × 105 Gps for 4 h, and the infection medium was replaced with the complete medium either with or without MMC, marked as continued treatment group or non-continued treatment group respectively. Quantity of cell was determined by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay at 72 h after replacing the infection media. The caspase-3/7 activation was detected at different post-infection time using Apo-One homogenous caspase-3/7 assay (Promega, Madison, WI, USA) according to the manufacturer’s instructions.

3.3. FACS Assay

U251 cells were removed from culture dishes and grown in 12-well plates at a density of 5 × 104 cells/well. After culturing for 24 h, the medium was replaced with the FBS-free medium containing rAAV-EGFP at 2 × 105 Gps per cell with MMC at different concentrations. After 4 h, the medium was replaced with complete medium only containing MMC. After 72 h post incubation, the expression of GFP was examined using fluorescence cell microscopy (Nikon, Kawasaki, Japan). The number of positive cells per 300 cells in three fields (100 cells/field; magnification, ×400) for each well was counted. The transduction efficiency was evaluated as percentage of positive cell numbers in total 300 transduced cells. Cells were then trypsinized, washed twice with cold PBS, and resuspended in 500 μL 1× PBS buffer for FACS analysis (Flow cytometry analysis) within 1 h with BD LSRFortessa (BD Biosciences, Franklin Lakes, NJ, USA). Ten thousand cells were counted in each analysis in this experiment. The cells only treated by different doses of MMC were used as control. At last, the mean of fluorescence intensity was assayed by BD FACSDiva Software (BD Biosciences, Franklin Lakes, NJ, USA).

The changes of U251 cell cycle mediated by MMC and AAV-EGFP co-treatment were analyzed by FACS assay. Firstly, U251 cells were grown in 6-well plates at a density of 2 × 105 cells/well. After culturing for overnight, the medium was replaced with the FBS-free medium containing rAAV-EGFP at 2 × 105 Gps per cell with MMC (1000 ng/mL), with only rAAV-EGFP treatment at the same concentration as control. After 4 h, the medium was replaced with complete medium only containing MMC. U251 cell were harvested at different times and washed with cold PBS. 70% ethanol was used to fix cells at 4 °C for overnight. The cells were re-suspended with 5 mL cold PBS and stained by PI staining buffer. After two times wash, about 1 × 105 cells were used for flow cytometry (BECKMAN Cytomics FC 500, Beckman-Coulter, Fullerton, CA, USA), and PI red fluorescence channel was detected and analyzed.

3.4. Western Blot Assay

Cells treated in the same way were lysed at 72 h post incubation, and total proteins were collected and separated in SDS-PAGE (sodium dodecyl sulfate polyacrylamide gel electrophoresis) for further immunological assay. The primary rabbit anti-TNF antibody, mouse anti-actin antibody and IgG secondary antibodies labeled with horseradish peroxidase (HRP) were used to detect positive signals. ECL reagent (Millipore, #WBKLS0100, Bedford, MA, USA) was followed by X-ray film developing.

3.5. RT-PCR Assay

The target gene expression in mRNA level was measured by reverse-transcription PCR. Total RNA was extracted using TRIzol® Reagent (Invitrogen, #15596; Carlsbad, CA, USA). Specific primers were derived from the coding region of the genes: GFP-F: 5′-CAGAAGAACGGCATCAAG-3′, GFP-R: 5′-GGGGTGT TCTGCTGGTAG-3′; TNF-F: 5′-GAAAGCATGATCCGGGACGTGGA-3′, TNF-R: 5′-GTTGG ATGTTCGTCCTCCTCACA-3′; ATM-F: 5′-GCTCTTCA GGTCTAAATCA-3′, ATM-R: 5′-TCTCCTAATTCACACACTC-3′; SDC2-F: 5′-CTGATGAGGATGTAGAGAGT-3′, SDC2-R: 5′-TTGTCTGAGCAGGTATCT TG-3′; FGFR1-F: 5′-TGGAGTTCATGTGTAAGG-3′, FGFR1-R: 5′-TCAAGA TCTGGACATAAGG-3′; α5-Integrin-F: 5′-AGACATTGGCACCTAATC-3′, α5-Integrin-R: 5′-ATTCCTGGCTTCTCCTAA-3′; GAPDH was used as control: GAPDH-F: 5′-CCTGCT TCACCACCTTCTTG-3′; GAPDH-R: 5′-CCATCACCATCTTCCA GGAG-3″. Synthesis of the first strand cDNA was performed at 42 °C in a period of 1 h. PCR were performed with 30 cycles and the products were fractionated on a 2% agarose gel. All primers were synthesized by Sangon Biotech Co. Ltd. (Shanghai, China).

3.6. Southern Blot Assay

Southern blot was used to investigate the second-strand synthesis of rAAV-EGFP in the nucleus at different post infection time either in the presence or absence of MMC. Cells were collected and lysed at a post-infection time interval of 4, 10, 16, 24, 48, 72 h, respectively. Genomic DNA was isolated and digested overnight with Xho I (NEB, #R0146V; Beverly, MA, USA), and loaded onto a 1.5% agarose gel. After denaturation and neutralization, the DNA was transferred onto a nylon filter membrane for pre-hybridization and hybridization. Biotin DecaLabel™ DNA Labeling Kit (Fermentas, #K0651; Hanover, MD, USA) was used to generate and label DNA probes of EGFP gene according to manufacturer’s instructions. The blots were washed and detected as described in the instructions of Biotin Chromogenic Detection Kit (Fermentas, #K0661; Burlington, ON, Canada).

3.7. Experimental Animal Model and Tumorigenic Assay

C57 mice (n = 6) of 6 to 8 weeks of age (about 20 g) were used in this study. Each of C57 mouse was injected with rAAV-EGFP (2 × 1010 Gps) mixed with physiological saline (PBS) into one leg as control, while rAAV-EGFP with MMC (1 μg/kg) into the other leg. In vivo optical imaging was used to detect the GFP expression at 1, 3, 7, 14 and 30 d, respectively, after injection. Skeletal muscles were sampled at post-infection period of 1 and 3 months and proteins were extracted followed by western blot as mentioned before. All experiments were repeated three times.

To establish human glioma xenografts animal model, 5 × 106 U251 cells were subcutaneously inoculated into dorsal flanks of 4–6 weeks old male Balb/c nude mice (n = 6). Intratumor injection of the recombinant virus (2 × 1010 Gps) with or without MMC (1 μg/kg) was performed when the tumors reached 200 mm3, and MMC (1 μg/kg) or vehicle (1× PBS) at same volume was used as control. Tumor size was measured at least once a week with a caliper for two-dimensional longest axis (a) and shortest axis (b). The tumor volume was calculated using the following formula: V(mm3) = (ab2)/2. The animals were sacrificed 6 weeks after administration of the recombinant virus and the removed tumors were weighted and used for Western blot assay or tissue sections. All experiments were repeated three times.

3.8. Statistical Analysis

Results of the data are reported as the mean ± standard error (SD) for three independent experiments. Data evaluating different conditions were compared using the T-test for paired samples or ANOVA (analysis of variance), and the significant level was defined as p < 0.05.

4. Conclusions

RAAV with its superior ability of biological infection, low immunogenicity and non-pathogenicity have rapidly gained in popularity for gene therapy in the past decades. A number of first-phase clinical trials using rAAV gene delivery systems have been completed. However, low transgene expression leading to high dosage and safety problems in clinical trials has been problematic in AAV application. On the other hand, increasing rAAV biological activity by DNA damaging agents such as antitumor drugs and radiation has been reported. Therefore, the combination of AAV gene therapy with chemotherapy or radiotherapy is being considered as a promising method in cancer treatment.

MMC is widely used as an antitumor drug due to its activity of crosslinking DNA. In this study, it is demonstrated that MMC can enhance rAAV-mediated transgene expression in AAV-permissive cell lines without increasing the transduction efficiency, because there is no difference in percentage of positive cell numbers in a total of 300 transduced cells with or without MMC treatment (Figure 2B). Moreover, the related receptors’ expression of rAAV transduction has no difference between MMC treated cells and normal cells. These findings suggested that improvement of rAAV biological activity by MMC is independent of AAV receptor and co-receptors’ mediated endocytosis step, when rAAV was taken up by the target cells, but may be related to the downstream transduction pathways.

Second strand synthesis is a rate determining step in AAV transduction. Several studies have reported that AAV-mediated transgene expression by facilitating AAV genome conversion can be enhanced by DNA damage agents or radiation [12,13,19,23]. In this study, double-strand genome DNA over time has been monitored, but no increased conversion efficiency was observed before 24 h post-incubation. Instead, AAV genome stability was increased due to MMC after 24 h and longer retention time was exhibited. Sanlioglu et al. reported that the enhancement of rAAV transduction by UV was due to the increased abundance of circular rAAV genome [24]. Previous studies also confirmed that ATM/ATR activated by double strand breaks (DSBs) could activate downstream kinases leading to intra-S checkpoint followed by DNA replication inhibition [2527] reported that MMC treatment which led to formation of DSBs in chromosomal DNA activated S-phase checkpoint pathway. Walsh et al. [28] also indicated that MMC co-treatment can show DNA correction in the hemotopoietic cells after AAV transduction. Interestingly, in our study, retardation was observed during the cell cycle at S-phase in MMC treated cells after 10 h (Figure 3B), meanwhile, the mRNA expression of ATM could be increased from 10 h (Figure 3C). Therefore, MMC may induce cell cycle retardation and affect ATM, which might lead to increased rAAV genome circularization followed by genome stability. Thus, this relationship of ATM and improvement of rAAV by MMC should be given further study.

We observed enhanced gene expression induced by MMC at 42 days in xenografts of human glioma tumor implants and at one month and three months in intramuscular model in vivo, that suggested that the rAAV genome remained stable in the long term. The metabolization of MMC is rapid in vivo and it will not last for three months. Thus, it suspected that facilitated rAAV genome circularization in the first few days was caused by the longer retention time induced by S-phase retardation and consequently contributed to the higher expression over several months. However, further investigation is needed to understand how the rAAV genome is affected by MMC and the fate of the rAAV genome.

Finally, in the animal experiments, only 2 × 1010 Gps recombinant virus followed with 1 μg/kg MMC per mouse were injected, levels lower than the normal therapeutic dose, but the effect on improving target gene expression and tumor cell killing was still demonstrated. Our findings thus conclude that rAAV-mediated cancer gene therapy might be used as the predominant therapy in the future, with chemotherapy applied in conjunction.

Acknowledgments

The authors thank the support from the Education Science Foundation of Beijing School of Technology (No.3160012231102, No.3160012211108); and partial support by the Foundation of the State Key Laboratory of Space Medicine Fundamentals and Application, Chinese Astronaut Research and Training Center (No.SMFA10K05).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bartlett, J.S.; Samulski, R.J.; McCown, T.J. Selective and rapid uptake of adeno-associated virus type 2 in brain. Hum. Gene Ther 1998, 9, 1181–1186.
  2. Manno, C.S.; Chew, A.J.; Hutchison, S.; Larson, P.J.; Herzog, R.W.; Arruda, V.R.; Tai, S.J.; Ragni, M.V.; Thompson, A.; Ozelo, M.; et al. AAV-mediated factor IX gene transfer to skeletal muscle in patients with severe hemophilia B. Blood 2003, 101, 2963–2972.
  3. Grieger, J.C.; Samulski, R.J. Adeno-associated virus as a gene therapy vector: Vector development, production and clinical applications. Adv. Biochem. Eng. Biotechnol 2005, 99, 119–145.
  4. Summerford, C.; Samulski, R.J. Membrane-associated heparan sulfate proteoglycan is a receptor for adeno-associated virus type 2 virions. J. Virol 1998, 72, 1438–1445.
  5. Qing, K.; Mah, C.; Hansen, J.; Zhou, S.; Dwarki, V.; Srivastava, A. Human fibroblast growth factor receptor 1 is a co-receptor for infection by adeno-associated virus 2. Nat. Med 1999, 5, 71–77.
  6. Summerford, C.; Bartlett, J.S.; Samulski, R.J. αVβ5 integrin: A co-receptor for adeno-associated virus type 2 infection. Nat. Med 1999, 5, 78–82.
  7. Ding, W.; Zhang, L.; Yan, Z.; Engelhardt, J. Intracellular trafficking of adeno-associated viral vectors. Gene Ther 2005, 12, 873–880.
  8. Wang, J.; Faust, S.M.; Rabinowitz, J.E. The next step in gene delivery: Molecular engineering of adeno-associated virus serotypes. J. Mol. Cell Cardiol 2011, 50, 793–802.
  9. Wu, Z.; Asokan, A.; Samulski, R.J. Adeno-associated virus serotypes: Vector toolkit for human gene therapy. Mol. Ther 2006, 14, 316–327.
  10. Ferrari, F.K.; Samulski, T.; Shenk, T.; Samulski, R.J. Second-strand synthesis is a rate-limiting step for efficient transduction by recombinant adeno-associated virus vectors. J. Virol 1996, 70, 3227–3234.
  11. Fisher, K.J.; Gao, G.P.; Weitzman, M.D.; DeMatteo, R.; Burda, J.F.; Wilson, J.M. Transduction with recombinant adeno-associated virus for gene therapy is limited by leading-strand synthesis. J. Virol 1996, 70, 520–532.
  12. Kume, A.; Nishino, H.; Monahan, J.; Kitamura, K.; Ichimura, K. Gamma-Rays enhance rAAV-mediated transgene expression and cytocidal effect of AAV-HSVtk/ganciclovir on cancer cells. Cancer Gene Ther 2001, 8, 99–106.
  13. Alexander, I.E.; Russell, D.W.; Miller, A. DNA-damaging agents greatly increase the transduction of nondividing cells by adeno-associated virus vectors. J. Virol 1994, 68, 8282–8287.
  14. Chen, C.; Lo, C.; Lin, B.; Sibley, E.; Tang, S. Application of doxorubicin-induced rAAV2-p53 gene delivery in combined chemotherapy and gene therapy for hepatocellular carcinoma. Cancer Biol. Ther 2008, 7, 303–309.
  15. Jiang, M.H.; Liu, Z.; Xiang, Y.; Ma, H.; Liu, S.; Liu, Y.; Zheng, D. Synergistic antitumor effect of AAV-mediated TRAIL expression combined with cisplatin on head and neck squamous cell carcinoma. BMC Cancer 2011, 11, 54–64.
  16. Wang, Y.; Huang, F.; Cai, H.; Wu, Y.; He, G.; Tan, W.S. The efficacy of combination therapy using adeno-associated virus-TRAIL targeting to telomerase activity and cisplatin in a mice model of hepatocellular carcinoma. J. Cancer Res. Clin 2010, 136, 1827–1837.
  17. Zhang, T.; Hu, J.; Ding, W.; Wang, X. Doxorubicin augments rAAV-2 transduction in rat neuronal cells. Neurochem. Int 2009, 55, 521–528.
  18. Yan, Z.; Zak, R.; Zhang, Y.; Ding, W.; Godwin, S.; Munson, K.; Peluso, R.; Engelhardt, J.F. Distinct classes of proteasome-modulating agents cooperatively augment recombinant adeno-associated virus type 2 and type 5-mediated transduction from the apical surfaces of human airway epithelia. J. Virol 2004, 78, 2863–2874.
  19. Kanazawa, T.; Mizukami, H.; Okada, T.; Hanazono, Y.; Kume, A.; Nishino, H.; Takeuchi, K.; Kitamura, K.; Ichimura, K.; Ozawa, K. Suicide gene therapy using AAV-HSVtk/ganciclovir in combination with irradiation results in regression of human head and neck cancer xenografts in nude mice. Gene Ther 2003, 10, 51–58.
  20. Iyer, V.N.; Szybalski, W. A molecular mechanism of mitomycin action: Linking of complementary DNA strands. Proc. Natl. Acad. Sci. USA 1963, 50, 355–362.
  21. Mitomycin, C. Health-Based Calculated Occupational Cancer Risk Values; Health Council of the Netherlands: The Hague, The Netherlands, 2004. Publication 2004/05OSH.
  22. Choi, V.W.; McCarty, D.M.; Samulski, R.J. Host cell DNA repair pathways in adeno-associated viral genome processing. J. Virol 2006, 80, 10346–10356.
  23. Peng, D.; Qian, C.; Sun, Y.; Barajas, M.A.; Prieto, J. Transduction of hepatocellular carcinoma (HCC) using recombinant adeno-associated virus (rAAV): In vitro and in vivo effects of genotoxic agents. J. Hepatol 2000, 32, 975–985.
  24. Sanlioglu, S.; Duan, D.; Engelhardt, J.F. Two independent molecular pathways for recombinant adeno-associated virus genome conversion occur after UV-C and E4orf6 augmentation of transduction. Hum. Gene Ther 1999, 10, 591–602.
  25. Lee, A.Y.; Chiba, T.; Truong, L.N.; Cheng, A.N.; Do, J.; Cho, M.J.; Chen, L.; Wu, X. Dbf4 is a direct downstream target of ATM and ATR to regulate the intra S-phase checkpoint. J. Biol. Chem 2012, 287, 2531–2543.
  26. Zhang, L.; Kleckner, N.E.; Storlazzi, A.; Kim, K.P. Meiotic double-strand breaks occur once per pair of (sister) chromatids and, via Mec1/ATR and Tel1/ATM, once per quartet of chromatids. Proc. Natl. Acad. Sci. USA 2011, 108, 20036–20041.
  27. Mladenov, E.; Tsaneva, I.; Anachkova, B. Activation of the S phase DNA damage checkpoint by mitomycin C. J. Cell Physiol 2007, 211, 468–476.
  28. Walsh, C.E.; Nienhuis, A.W.; Samulski, R.J.; Brown, M.G.; Miller, J.L.; Young, N.S.; Liu, J.M. Phenotypic correction of Fanconi Anemia in human hemotopoietic cells with a recombinant adeno-associated virus vector. J. Clin. Invest 1994, 94, 1440–1448.
Ijms 15 00001f1 200
Figure 1. Characteristics of human glioma cell line U251 for MMC and rAAV treatment. (A) the cell viability at 72 h after non-continued (pretreatment for 4 h) or continued (pretreatment for 4 h and post-treatment for 72 h) treatment with different dosages of MMC, and cell treated with vehicle solution as control; (B) the cell viability at 72 h after non-continued (pretreatment for 4 h) or continued (pretreatment for 4 h and post-treatment for 72 h) infection with different dosages AAV-TNF, and cell infected with AAV-EGFP as control; (C) the cell viability after AAV-TNF infection with MMC (1000 ng/mL) non-continued (pretreatment for 4 h) or continued (pretreatment for 4 h and post-treatment for different time) co-treatment, and cell only infected with AAV-TNF as control; and (D) the assay of enzymatic activity of caspase-3 after AAV-TNF infection with MMC (1000 ng/mL) non-continued (pretreatment for 4 h) or continued (pretreatment for 4 h and post-treatment for different time) co-treatment, and cell only infected with AAV-TNF as control (* p < 0.05, ** p < 0.01).

Click here to enlarge figure

Figure 1. Characteristics of human glioma cell line U251 for MMC and rAAV treatment. (A) the cell viability at 72 h after non-continued (pretreatment for 4 h) or continued (pretreatment for 4 h and post-treatment for 72 h) treatment with different dosages of MMC, and cell treated with vehicle solution as control; (B) the cell viability at 72 h after non-continued (pretreatment for 4 h) or continued (pretreatment for 4 h and post-treatment for 72 h) infection with different dosages AAV-TNF, and cell infected with AAV-EGFP as control; (C) the cell viability after AAV-TNF infection with MMC (1000 ng/mL) non-continued (pretreatment for 4 h) or continued (pretreatment for 4 h and post-treatment for different time) co-treatment, and cell only infected with AAV-TNF as control; and (D) the assay of enzymatic activity of caspase-3 after AAV-TNF infection with MMC (1000 ng/mL) non-continued (pretreatment for 4 h) or continued (pretreatment for 4 h and post-treatment for different time) co-treatment, and cell only infected with AAV-TNF as control (* p < 0.05, ** p < 0.01).
Ijms 15 00001f1 1024
Ijms 15 00001f2 200

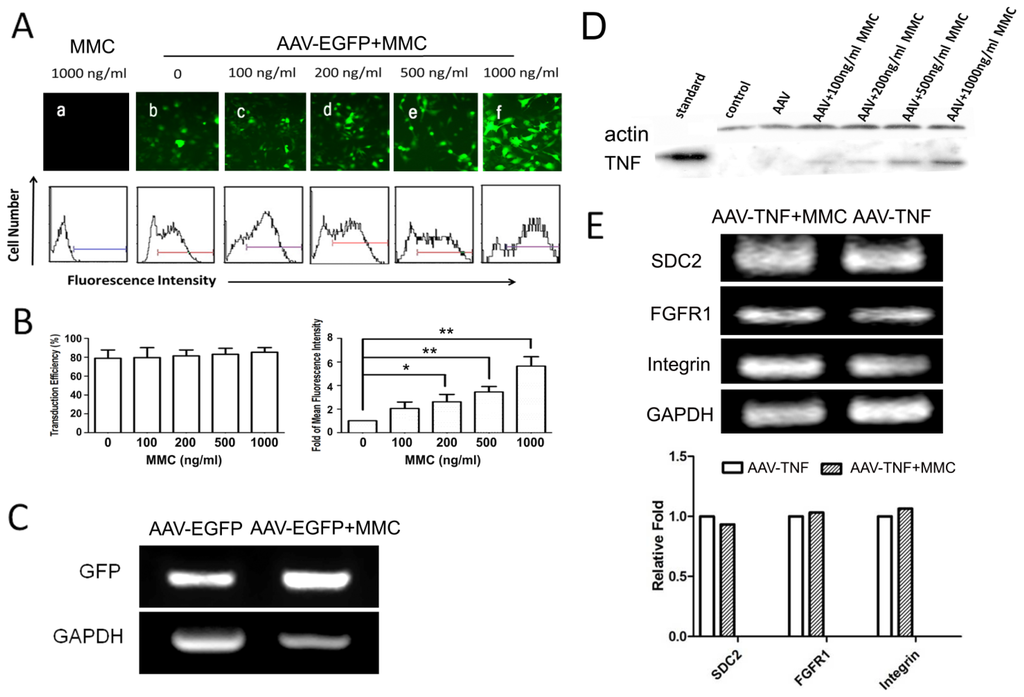

Figure 2. MMC enhances rAAV-mediated gene expression in vitro. (A) Fluorescence microscopy and FACS assay of U251 cells treated with MMC and AAV-EGFP at 72 h post-infection; (B) Statistical analysis for infection efficiency of combined treatment. (Left panel) transduction efficiency of AAV-EGFP into U251cell line at various concentration of MMC is shown. The X axis shows concentration of MMC, and the Y axis shows the percentage of positively transduced cells. The data shown are representative of three independent experiments. Values are the means ± SD (bars) of duplicate determinations; (Right panel) FACS assay for mean fluorescence intensity. The mean fluorescence intensity (MFI) of U251cells transduced by AAV-EGFP was measured with or without MMC treatment. Total fold change = MFI of cells treated with MMC + AAV-EGFP/MFI of control cells (only with AAV-EGFP). The data shown are representative of three independent experiments (* p < 0.05, ** p < 0.01); (C) RT-PCR analysis GFP mRNA expression mediated by AAV-EGFP or AAV-EGFP + MMC in U251 cells; (D) Western blot analysis for the effect of MMC on TNF expression mediated by rAAV-TNF; and (E) RT-PCR analysis (upper panel) and gray scale analysis (lower panel) for AAV-binding receptor mRNA expression mediated by AAV-TNF or AAV-TNF + MMC in U251 cells.

Click here to enlarge figure

Figure 2. MMC enhances rAAV-mediated gene expression in vitro. (A) Fluorescence microscopy and FACS assay of U251 cells treated with MMC and AAV-EGFP at 72 h post-infection; (B) Statistical analysis for infection efficiency of combined treatment. (Left panel) transduction efficiency of AAV-EGFP into U251cell line at various concentration of MMC is shown. The X axis shows concentration of MMC, and the Y axis shows the percentage of positively transduced cells. The data shown are representative of three independent experiments. Values are the means ± SD (bars) of duplicate determinations; (Right panel) FACS assay for mean fluorescence intensity. The mean fluorescence intensity (MFI) of U251cells transduced by AAV-EGFP was measured with or without MMC treatment. Total fold change = MFI of cells treated with MMC + AAV-EGFP/MFI of control cells (only with AAV-EGFP). The data shown are representative of three independent experiments (* p < 0.05, ** p < 0.01); (C) RT-PCR analysis GFP mRNA expression mediated by AAV-EGFP or AAV-EGFP + MMC in U251 cells; (D) Western blot analysis for the effect of MMC on TNF expression mediated by rAAV-TNF; and (E) RT-PCR analysis (upper panel) and gray scale analysis (lower panel) for AAV-binding receptor mRNA expression mediated by AAV-TNF or AAV-TNF + MMC in U251 cells.
Ijms 15 00001f2 1024
Ijms 15 00001f3 200
Figure 3. The mechanism of MMC enhancing rAAV-mediated gene expression. (A) the effect of MMC on rAAV’s genome by southern blot analysis; (B) FACS assay for the S phase arresting after MMC (1000 ng/mL) and AAV-EGFP (2 × 105 Gps/cell) co-treatment of U251 cell, only AAV-EGFP treated group as control, and M1–4 represent for sub G1, G1, S and G2 phase respectively; (C) Statistical analysis for the effect of MMC (1000 ng/mL) and AAV-EGFP (2 × 105 Gps/cell) co-treatment on inducing cell cycle arrested, and cell only treated with same dose of AAV-EGFP or MMC at 24 h as control. (* p < 0.05, ** p < 0.01); and (D) RT-PCR analysis for ATM mRNA expression mediated by MMC and AAV-EGFP (2 × 105 Gps/cell) co-treatment in U251 cells.

Click here to enlarge figure

Figure 3. The mechanism of MMC enhancing rAAV-mediated gene expression. (A) the effect of MMC on rAAV’s genome by southern blot analysis; (B) FACS assay for the S phase arresting after MMC (1000 ng/mL) and AAV-EGFP (2 × 105 Gps/cell) co-treatment of U251 cell, only AAV-EGFP treated group as control, and M1–4 represent for sub G1, G1, S and G2 phase respectively; (C) Statistical analysis for the effect of MMC (1000 ng/mL) and AAV-EGFP (2 × 105 Gps/cell) co-treatment on inducing cell cycle arrested, and cell only treated with same dose of AAV-EGFP or MMC at 24 h as control. (* p < 0.05, ** p < 0.01); and (D) RT-PCR analysis for ATM mRNA expression mediated by MMC and AAV-EGFP (2 × 105 Gps/cell) co-treatment in U251 cells.
Ijms 15 00001f3 1024
Ijms 15 00001f4 200

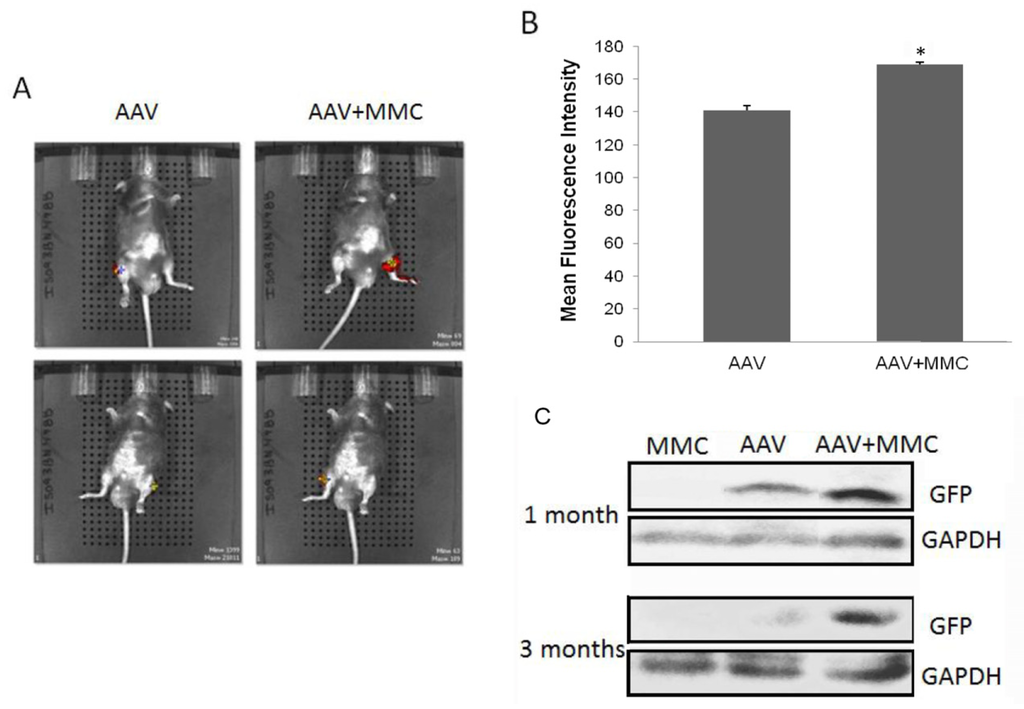

Figure 4. MMC improves rAAV-mediated gene expression in mice. (A) In vivo optical imaging at 1 month post-infection. (Upper panel) Right leg infected with rAAV (2 × 1010 Gps), left leg infected with rAAV (2 × 1010 Gps) mixed with MMC (1 μg/kg); (Lower panel) Left leg infected with rAAV (2 × 1010 Gps), right leg infected with rAAV (2 × 1010 Gps) mixed with MMC (1 μg/kg); (B) Assay of mean fluorescence intensity for in vivo optical imaging (* p < 0.05); and (C) Western blot analysis for the GFP expression mediated by rAAV with or without MMC in muscle injection model. The levels of GAPDH expression served as internal control.

Click here to enlarge figure

Figure 4. MMC improves rAAV-mediated gene expression in mice. (A) In vivo optical imaging at 1 month post-infection. (Upper panel) Right leg infected with rAAV (2 × 1010 Gps), left leg infected with rAAV (2 × 1010 Gps) mixed with MMC (1 μg/kg); (Lower panel) Left leg infected with rAAV (2 × 1010 Gps), right leg infected with rAAV (2 × 1010 Gps) mixed with MMC (1 μg/kg); (B) Assay of mean fluorescence intensity for in vivo optical imaging (* p < 0.05); and (C) Western blot analysis for the GFP expression mediated by rAAV with or without MMC in muscle injection model. The levels of GAPDH expression served as internal control.
Ijms 15 00001f4 1024
Ijms 15 00001f5 200

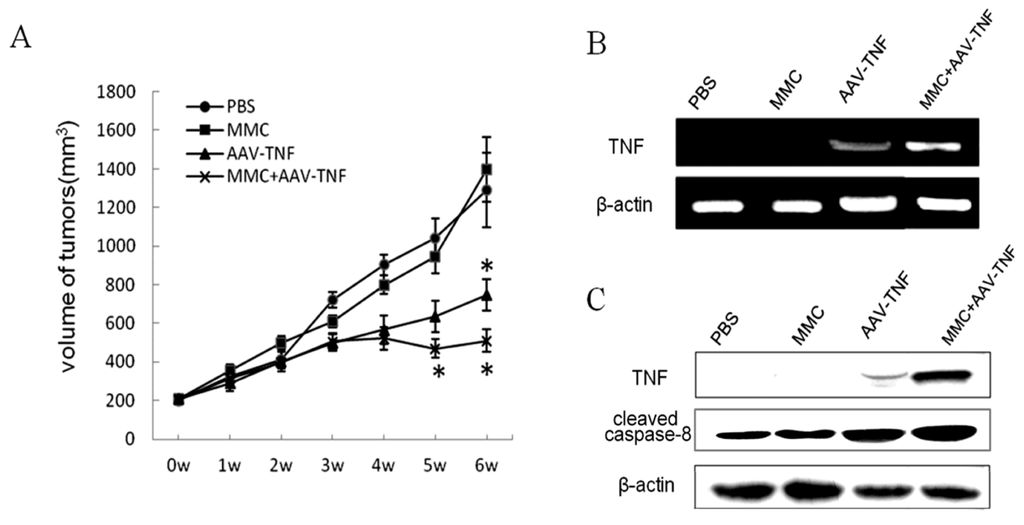

Figure 5. The suppression of tumor growth mediated by AAV-TNF combined with MMC after tumor injection. (A) Dynamic suppression of the tumor growth mediated by AAV-TNF and MMC. The mice with subcutaneous glioma xenograft were injected with AAV-TNF at dose of 2 × 1010 Gps with or without MMC (1 μg/kg), respectively. The volume of tumor was measured once a week up to 6 weeks after administration; (B) RNA expression of target gene in tumor tissues mediated by recombinant AAV-TNF combined with MMC. Reverse transcriptional PCR was performed to quantify TNF expression in tumor tissues at 6 weeks after administration of rAAV particles with MMC. The levels of β-actin RNA expression were served as internal control; and (C) Western blot assay for TNF protein expression and apoptosis activity induced by recombinant AAV-TNF combined with MMC in tumor tissues. The levels of β-actin expression served as internal control (* p < 0.05).

Click here to enlarge figure

Figure 5. The suppression of tumor growth mediated by AAV-TNF combined with MMC after tumor injection. (A) Dynamic suppression of the tumor growth mediated by AAV-TNF and MMC. The mice with subcutaneous glioma xenograft were injected with AAV-TNF at dose of 2 × 1010 Gps with or without MMC (1 μg/kg), respectively. The volume of tumor was measured once a week up to 6 weeks after administration; (B) RNA expression of target gene in tumor tissues mediated by recombinant AAV-TNF combined with MMC. Reverse transcriptional PCR was performed to quantify TNF expression in tumor tissues at 6 weeks after administration of rAAV particles with MMC. The levels of β-actin RNA expression were served as internal control; and (C) Western blot assay for TNF protein expression and apoptosis activity induced by recombinant AAV-TNF combined with MMC in tumor tissues. The levels of β-actin expression served as internal control (* p < 0.05).
Ijms 15 00001f5 1024
