Int. J. Mol. Sci. 2013, 14(9), 19067-19085; doi:10.3390/ijms140919067
Published: 16 September 2013
Abstract: Human eosinophil derived neurotoxin (EDN), a granule protein secreted by activated eosinophils, is a biomarker for asthma in children. EDN belongs to the human RNase A superfamily possessing both ribonucleolytic and antiviral activities. EDN interacts with heparin oligosaccharides and heparin sulfate proteoglycans on bronchial epithelial Beas-2B cells. In this study, we demonstrate that the binding of EDN to cells requires cell surface glycosaminoglycans (GAGs), and the binding strength between EDN and GAGs depends on the sulfation levels of GAGs. Furthermore, in silico computer modeling and in vitro binding assays suggest critical roles for the following basic amino acids located within heparin binding regions (HBRs) of EDN 34QRRCKN39 (HBR1), 65NKTRKN70 (HBR2), and 113NRDQRRD119 (HBR3) and in particular Arg35, Arg36, and Arg38 within HBR1, and Arg114 and Arg117 within HBR3. Our data suggest that sulfated GAGs play a major role in EDN binding, which in turn may be related to the cellular effects of EDN.
Human eosinophil derived neurotoxin (EDN) is a basic protein (pI 8.9) normally stored in cytoplasmic granules and secreted by activated eosinophilic leukocytes . It is also found in basophils, neutrophils, mononuclear cells and organs associated with these types of white blood cells [2–4]. EDN was initially discovered as a neurotoxin with selective killing effects on cerebellar Purkinje cells  and later on classified as a member of the RNase A superfamily . It induces Gordon phenomenon which shows muscle stiffness, ataxia, incoordination, and spasmodic paralysis in animal models [1,7]. EDN shows in vitro antiviral activity against RNA viruses, including human respiratory syncytial virus (hRSV), para-influenza virus , and human immunodeficiency virus (HIV)-1 [9,10]. Furthermore, recent studies have reported that EDN can be used as a biomarker of eosinophilic esophagitis  and amyotrophic lateral sclerosis .
EDN and its mouse counterpart, mouse eosinophil-associated RNase 2 (mEAR2), have been reported to act as a selective chemoattractant for dendritic cells (DCs) . They promote activation and maturation of DCs  and augment Type 2 helper T cell (Th2)-biased immune responses in a toll-like receptor 2 (TLR2)-dependent manner . TLR2 is expressed on the surface of a wide variety of cells including lung bronchial epithelial cells  as well as microglial cells  and immune cells, such as DCs and macrophages . Our previous study  showed that maltose-binding protein fused EDN (MBP-EDN) could interact with Beas-2B cells, a human bronchial epithelial cell line with limited expression of transcripts of TLR2 gene . It suggested that MBP-EDN might interact with other components (other than TLR2) on cell surface of Beas-2B cells.
EDN shows affinity for heparin, as indicated by its purification in 1986 using heparin-Sepharose column chromatography . We have recently found that heparin oligosaccharides added exogenously inhibit the interaction between EDN and Beas-2B cells . Our data suggested that EDN bound not only heparin used in in vitro experiments, but also heparan sulfate (HS) expressed on the surface of Beas-2B cells. Heparin and HS are linear polysaccharides consisting of repeating disaccharide units of α-1,4-linked hexuronic acid and hexosamine . The hexuronic residues typically consist of 90% IdoA and 10% GlcA . Most common disaccharide units of heparin contain 2-O-sulfated IdoA and 6-O- and N-sulfated GlcN . In addition to HS, other GAGs such as chondroitin sulfate (CS), dermatan sulfate (DS), and hyaluronic acid (HA) are also present on the cell surface as well as in extracellular matrix . These GAGs have been shown to interact with numerous proteins including cytokines, growth factors, and proteases to modulate functions of proteins, and are implicated in many biological processes including cell growth, development, immunology, and disease processes [24,25].
It is empirically known that heparin binding proteins have domains characterized by the presence of clusters of positively charged residues, such as Arg and Lys, which are likely to promote heparin binding by electrostatic interactions . Two conventional heparin binding sequences, XBBXBX or XBBBXXBX (X is a hydrophobic or uncharged amino acid, and B is a basic amino acid) were classified by sequence comparison of various heparin binding proteins . The amino acid sequence of EDN contains 12 basic amino acids (8 Arg and 4 Lys residues), and nine of them are concentrated within three regions including 34QRRCKN39 in loop 3, 65NKTRKN70 in loop 4, and 113NRDQRRD119 in loop 7 . All of these regions have three basic amino acids in contiguous five residues. Among which the sequence pattern 34QRRCKN39 matches exactly to the XBBXBX motif , and indeed a 10-amino acid peptide, 32NYQRRCKNQN41, has been demonstrated to be capable of binding heparin . Regarding the other two regions, 65NKTRKN70 also possesses the XBBXBX pattern in a reverse order, but 113NRDQRRD119 does not have any known heparin binding sequence. To date, the second and the third regions serving as binding sites for heparin in EDN have not been described.
In this study, the sequences 34QRRCKN39, 65NKTRKN70 and 113NRDQRRD119 were identified as heparin binding regions (HBRs)—i.e., HBR1, HBR2 and HBR3, respectively—and their functional roles in heparin binding were characterized using in silico computer modeling and in vitro binding assays. Furthermore, the importance of sulfo groups of GAGs in interaction with EDN was characterized.
2. Results and Discussion
2.1. Binding of MBP-EDN to Heparin and Beas-2B Cells
Neuton D. L. et al.  have expressed EDN without any tag, and recovered recombinant EDN from inclusion bodies through denaturation, renaturation, dialysis, and repeating purification steps by heparin-Sepharose column and a Sephadex G100 column chromatography. Although untagged, recombinant EDN can be produced by established procedures above; refolding under an artificial condition with low yield makes it time consuming for intensive assay. Producing a protein soluble in host bacteria is a general strategy recombinant protein technology. Thus, to increase protein solubility and recovery yield of recombinant EDN, here we fused MBP tag at N-terminus. Nevertheless, potential influence of bulky MBP tag in EDN function by blocking GAG binding sites would be further evaluated.
Binding of recombinant MBP-EDN to heparin and Beas-2B cells was characterized by FACE and cELISA . In the former case, purified MBP-EDN was incubated with 2-aminoacridone-labeled low molecular weight heparin (AMAC-LMWH) at different molar ratios, and the samples were subjected to gel electrophoresis on a 1% agarose gel plate to separate MBP-EDN bound AMAC-LMWH and free polysaccharide. Figure 1A showed that AMAC-LMWH signal shifted upon addition of increasing molar ratio of MBP-EDN over AMAC-LMWH, and 90% signal shifted at a MBP-EDN: AMAC-LMWH ratio of 2.5. In a control experiment, at the same ratio of protein vs. AMAC-LMWH, only 10% MBP appeared as a complex with AMAC-LMWH. Concentration-dependent binding of MBP-EDN to Beas-2B cells was also observed by cELISA. MBP showed only a background level of signals (11%), compared to that of MBP-EDN (100%) at 0.8 μM (Figure 1B). These data clearly indicate that binding of MBP-EDN to both LMWH and Beas-2B cells is mediated by the EDN moiety, but not the MBP moiety, of the fusion protein used in this study.
To further differentiate differences in GAG binding affinity between MBP-EDN and refolded recombinant EDN (EDN-6His), heparin binding activity of both was measure as shown in Figure S1. Approximately an 83% shift at 1 molar ratio of protein to glycan suggested that our MBP-EDN (Figure 1A) possessed comparable heparin binding activity to refolded EDN-6His (88% shift) (Figure S1), strongly indicating that MBP tag may not influence ligand binding property of EDN. Our observation was consistent with other studies demonstrating that the MBP tagged proteins such as MBP-tagged eosinophil cationic protein (MBP-ECP)  and dengue virus envelope protein  still remained GAG binding affinities.

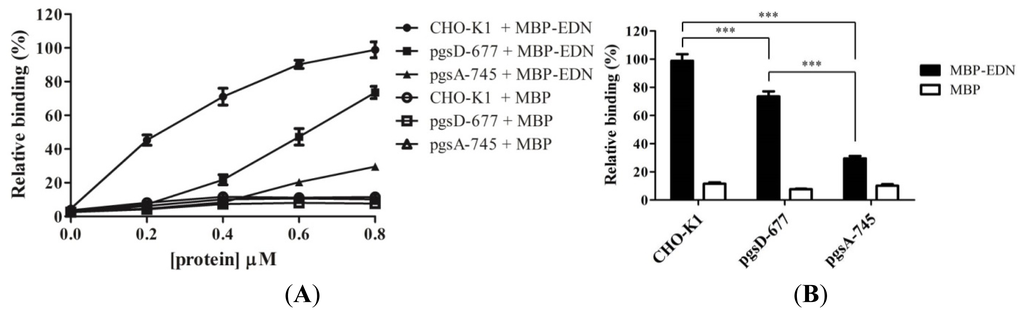

2.2. Involvement of Cell Surface GAGs in Binding to MBP-EDN
Interaction of MBP-EDN with cell surface GAGs was further investigated using wild type Chinese hamster ovary (CHO) cell line (CHO-K1) , and two mutant cell lines with specific defects in proteoglycan biosynthesis. Both CHO-K1 cells and the two mutant CHO cells showed a dose-dependent binding between 0 and 0.8 μM of MBP-EDN (Figure 2A). Under similar conditions, MBP itself showed negligible levels (less than 10% activity of MBP-EDN) of binding in all three cell lines (Figure 2A).
In the mutant CHO cell line pgsD-677, synthesis of HS is specifically impaired due to lack of HS polymerase that polymerizes disaccharide units of outer HS chains. However, pgsD-677 cells have approximately three times more CS as compared to CHO-K1 cells . The amount of MBP-EDN bound to pgsD-677 cells is reduced by 26% (at 0.8 μM) as compared to that of CHO-K1 cells (Figure 2B), indicating that cell surface HS is at least partially responsible for binding of EDN. The pgsA-745 cell line expresses less than 5% of the GAGs expressed by CHO-K1 cells due to the lack of a xylosyltransferase which catalyzes the first step in biosynthesis of GAG . As shown in Figure 2B, the amounts of MBP-EDN bound to pgsA-745 cells significantly reduced by 71% as compared to CHO-K1 cells. The level of bound MBP-EDN to pgsD-677 cells was significantly reduced than that of pgsA-745 cells, suggesting that cell surface GAGs other than HS may be also involved in the interaction between MBP-EDN and CHO-K1 cells.
To further investigate specificity of MBP-EDN binding, we measured the inhibitory activity of different types of GAGs including high molecular weight heparin (HMWH) which is highly sulfated, chondroitin sulfate C (CSC) and dermatan sulfate (DS) which are moderately sulfated compared to HMWH, and hyaluronic acid (HA). Among these four GAGs, HMWH showed a high level of inhibition (87%) compared with the binding of LMWH to MBP-EDN, and DS reduced LMWH binding by 50% at a GAG: LMWH ratio of 5. However, the same amount of CSC and HA had no effect (Figure 3A). Similar results were obtained by cELISA competition assays (Figure 3B). HMWH and DS significantly reduced MBP-EDN binding to Beas-2B cells in a dose-dependent manner. At a concentration of 10 μg/mL, HMWH and DS reduced MBP-EDN binding to the cells by 79% and 54%, respectively. However, CSC and HA had no effect. At 50 μg/mL, both HMWH and DS showed over 80% of inhibitory effects, whereas CSC manifested only 20% inhibition, and HA did not affect MBP-EDN binding. These data suggest that EDN has a higher affinity to heparin/HS and DS than to other types of GAGs.
HMWH, the most sulfated GAG containing on average 2.7 sulfo groups per disaccharide unit, possessed higher inhibitory activity than DS and CSC that have one sulfo group per disaccharide unit as expected (Figure 3). However, DS and CSC sharing similar sulfation levels showed distinctly different results, indicating that the sugar moieties and other factors were also involved in EDN-GAG interaction. DS has been named as chondroitin sulfate B (CSB) since it has an N-acetylgalactosamine (GalNAc), and is distinguishable from chondroitin sulfate A (CSA) (4-O-sulfated) and CSC (6-O-sulfated) mainly in the presence of IdoA moiety which also appears in heparin/HS . Since there are many functional similarities between DS and HS, and some GAG binding proteins bind both DS and HS , IdoA moiety seems to play an important role in binding specificity for GAG binding protein. The importance of IdoA in hepatocyte growth factor/scatter factor GAG interaction has been shown before . Cell surface GAGs containing IdoA are also required for efficient hRSV infection . These reports support the involvement of the IdoA moiety in EDN-heparin interactions. On the other hand, disaccharide units of both heparin/HS and HA contain GlcN in common, in contrast to GalN in DS and CSC. However, the inhibitory activity of HA was very low. These data discount the possibility of the GlcN moiety being involved in EDN-GAG interactions.
Many biological activities attributable to EDN and ECP have been characterized and found to be significantly different; nevertheless, EDN and ECP still present similar properties such as ribonucleolytic , antiviral , and heparin/HS binding activities . Cell surface GAG binding selectivity of ECP has been demonstrated with similar protocol . In addition, binding affinities of ECP to various GAG disaccharides were also predicted by docking simulation , showing that ECP had a higher affinity to interact with heparin rather than HA or CSC. Interestingly, HA had a higher inhibitory effect and binding affinity than CSC in these studies, implying that electrostatic interactions were not the only factor involved in EDN/ECP-GAG interactions and the difference in GAG recognition mode between EDN and ECP might arise from diverse biological functions of these two eosinophil RNases.

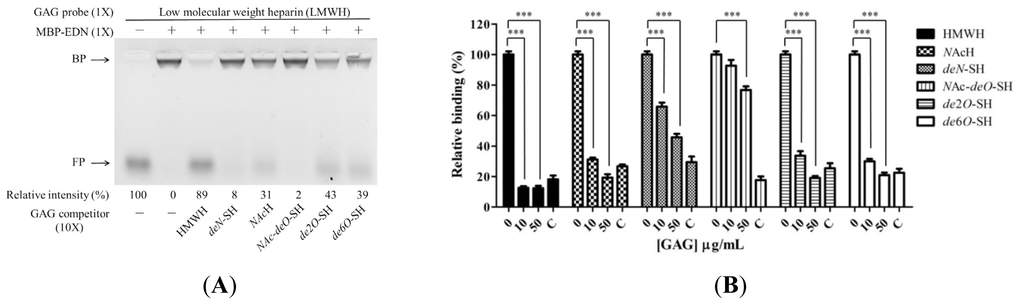

2.3. Requirement of Sulfo Groups on Heparin for Binding to EDN
The sulfo groups of heparin/HS are important for biological functions including fibroblast growth factor (FGF) signaling  and virus infection [44,45]. We tested the effects of sulfo groups of heparin on EDN binding, using intact, untreated HMWH and heparin derivatives: N-acetyl heparin (NAcH), de-N-sulfated heparin (deN-SH), N-acetyl-de-O-sulfated heparin (NAc-deO-SH), de-2-O-sulfated heparin (de2O-SH), and de-6-O-sulfated heparin (de6O-SH). Figure 4A shows that among these compounds HMWH inhibited binding of LMWH to MBP-EDN most effectively (89% inhibition). In contrast, NAc-deO-SH (completely devoid of O-sulfo group and with a markedly diminished N-sulfation) showed the weakest inhibition (2%) of MBP-EDN binding to AMAC-LMWH, indicating that the sulfo groups provided almost all necessary negative charges for binding to EDN. Four other derivatives with selectively modified sulfo groups including NAcH, deN-SH, de2O-SH, and de6O-SH showed 31%, 8%, 43%, and 39% inhibition activities, respectively. Similarly, results of cELISA competition assay revealed that HMWH inhibited 87% of cellular binding of MBP-EDN while NAc-deO-SH showed only 7% inhibitory effect at a concentration of 10 μg/mL. Regarding other derivatives, deN-SH, NAcH, de2O-SH, and de6O-SH showed 34%, 69%, 66% and 70% inhibition activities at the same concentration, respectively, compared with the control without competitor. At 50 μg/mL, all heparin derivatives showed more than 50% inhibition whereas NAc-deO-SH inhibited only 24% (Figure 4B).
Although heparin lacking of 2-O- or 6-O-sulfo groups showed a decreased MBP-EDN binding activity, it could not completely abolish the interaction between MBP-EDN and Beas-2B cells. This suggests that EDN might not interact with heparin through only one specific position of sulfo group, unlike FGF-1 or FGF-2, which require 6-O sulfated  and 2-O sulfated heparin  for interaction. In addition, the 3-O-sulfo group which rarely appears in heparin/HS and has been proposed to be important for interaction with FGF-7  and infection of herpes simplex virus type 1  might also be required for interaction with EDN. With respect to N-sulfo groups, although both NAcH and de-N-SH were able to significantly reduce MBP-EDN binding to Beas-2B cells, the inhibitory effect of NAcH (69%) was higher than that of de-N-SH (34%). Besides, out of these two derivatives, only NAcH was observed to compete with the interaction between LMWH and MBP-EDN by FACE analysis, suggesting that the N-acetyl group of heparin, which appears in most HS sequences, may be responsible for weaker binding to MBP-EDN.
2.4. Identification of Critical Basic Residues on EDN for Interaction with Heparin and Other Cell Surface GAG
Minimal length of heparin molecule required for inhibition of MBP-EDN/ECP cellular binding activity has been demonstrated [19,28]. With increasing oligosaccharide length, the degree of MBP-EDN/ECP cellular binding decreased and pentasaccharide served as the minimal length to inhibit cellular binding activities of these proteins. Since 90% of cellular binding activity of EDN was inhibited by 10 μg/mL heptasaccharide , we proposed that heptasaccharide was required for efficient interaction with MBP-EDN. It should be noted that heptasaccharide contained a matrix sugar at the reducing end in the study, suggesting that heparin hexasaccharide might be a suitable length for exerting molecular interaction between EDN and heparin molecule. Thus, heparin hexasaccharide was used to perform computer modeling for EDN-heparin hexasaccharide complex structure and identification of potential binding poses and residues on EDN involved in heparin binding. The molecular surface of EDN shows a V-shaped cleft. This cleft contains positively charged residues (Figure 5A). HBR1 is one of the surface regions that constitute the cleft, and a part of HBR2 is located on the edge of the cleft. HBR3 is not a part of the cleft but it was located on the same side of the molecular surface as HBR1 and HBR2. Our model suggests that the bound heparin hexasaccharide was stabilized by ionic interactions with Arg36 and Lys38 in HBR1, and Lys1 and Arg132 which did not belong to HBRs, whereas Arg97 and basic residues in HBR2 and HBR3 were not located within van der Waals force/hydrogen bond distances to interact with the heparin hexasaccharide (Figure 5B). Other than electrostatic interactions, heparin hexasaccharide also showed potential interactions with EDN by mainly van der Waals (vDW) force and six hydrogen bonds between sugar backbone and Lys1, Trp10, His15, Arg36, Gln40 and Leu130 as shown in Figure 5B and Table S1.

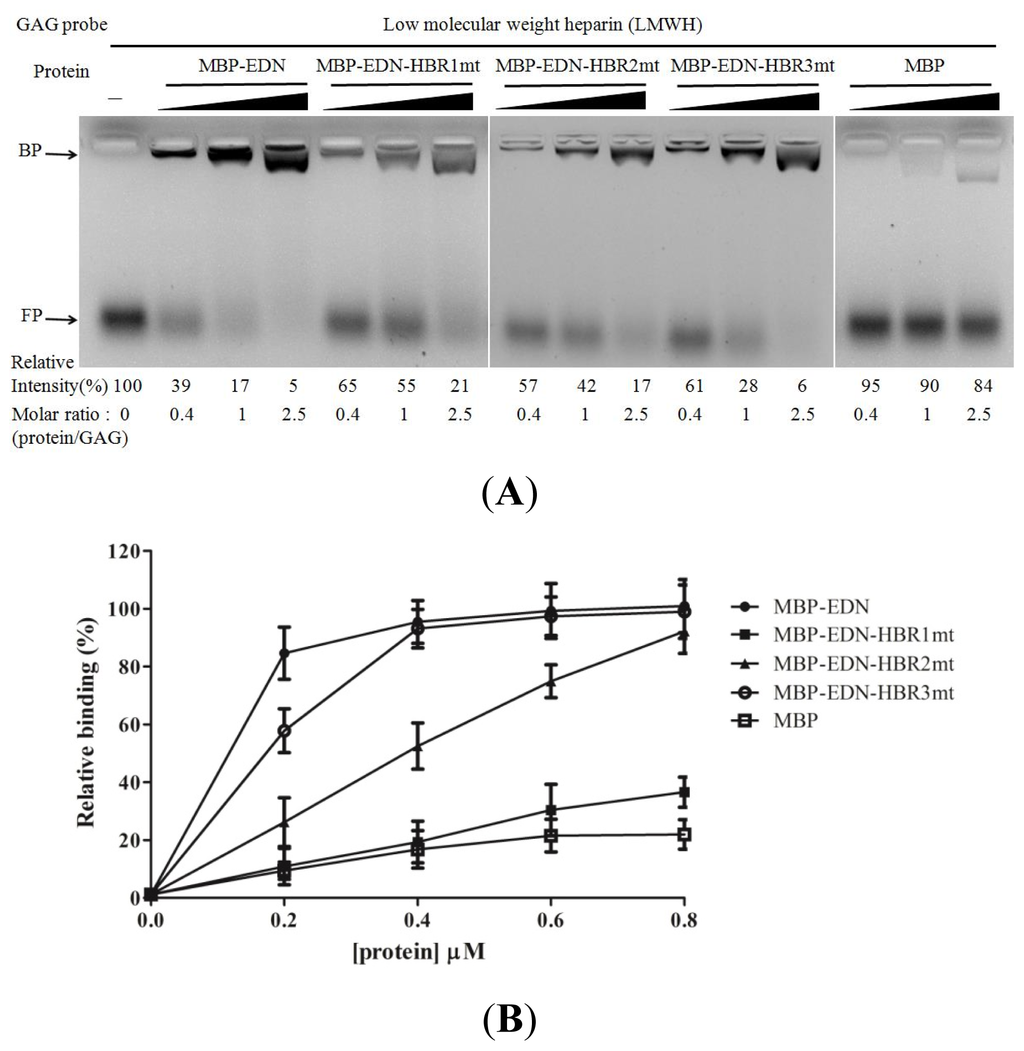

MBP-EDN-HBR mutants, in which the basic residues in HBRs were replaced with Ala, were generated to investigate the functional roles of HBRs in EDN. All mutants showed a weaker interaction with AMAC-LMWH at different molar ratios of protein/GAG (Figure 6A). The intensity of bound AMAC-LMWH in MBP-EDN, MBP-EDN-HBR1mt (R35A/R36A/K38A), MBP-EDN-HBR2mt (K66A/R68A/K69A), MBP-EDN-HBR3mt (R114A/R117A/R118A), and MBP at equimolar ratios with respect to LMWH were 83%, 45%, 58%, 72%, and 10%, respectively. MBP-EDN-HBR1mt at a concentration of 0.2 μM also showed only 11% cellular binding activity, indicating that HBR1, 34QRRCKN39, was a key heparin binding motif in EDN. Regarding MBP-EDN-HBR2mt and MBP-EDN-HBR3mt, although their cellular binding activity was reduced to respectively 26% and 58% at 0.2 μM with increasing protein concentration, the cellular binding activity was comparable to that of MBP-EDN (Figure 6B). This suggests that 65NKTRKN70 (HBR2) and 113NRDQRRD119 (HBR3) play auxiliary roles in the interaction between MBP-EDN and GAGs. Natural heparin is a heterogeneous mixture with molecular weights ranging from 5000 Da to over 40,000 Da (HMWH). LMWHs, in contrast, consist of only short chains of heparin of average molecular weight of less than 8000 Da (approximately 10 disaccharide units). The basic residues of HBR2 and HBR3 which are too far to interact with the heparin hexasaccharide in the computer model might act as a secondary heparin binding sites on EDN and bind with much lower affinity to long chain heparin molecules. Recently, the loop L7 of EDN containing HBR3 has been shown to play an important role in anti-hRSV activity of EDN . Since hRSV infection and hRSV vaccines elicit neutralizing and non-neutralizing antibodies reactive with envelope glycoproteins , EDN might recognize specific glycan structures on the virus envelope. Each HBR might be involved in different EDN functions through target selectivity.
Putative HBRs on ECP including 34RWRCK38, 73RSRFR77, and 101RPGRR105 have been aligned with the corresponding segments of the other 12 RNases employing Clustal W2 . Among these three HBRs, only HBR1 on ECP (34RWRCK38) is found in a position comparable with HBR1 on EDN (34QRRCK38) within a primary sequence that is 60% homologous. However, all the HBRs on EDN and ECP were located at a similar position and surrounded by an electropositive cavity in their tertiary structures. Peptide containing HBR1 in ECP (NYRWRCKNQNK) had similar LMWH binding activity to the corresponding region of EDN (NYQRRCKNQNK) in FACE analysis . However, mutant MBP-ECPmt1 (R34A/W35A/R36A/K38A) showed only 50% cellular binding activity as compared to wild type protein at 20 μg/mL (0.4 μM) . Here, mutant MBP-EDN-HBR1mt (R35A/R36A/K38A) showed only 20% at the same concentration. These results indicated that the main cellular binding activity of EDN lies in the primary sequence#HBR1, whereas ECP may interact with cell surface GAGs through not only HBR1 but also other basic residues (Arg1, Arg7 and His64) and polar residues (Gln14, Asn39 and Gln40) surrounded in a basic cavity as prediction model illustrated in a previous study .

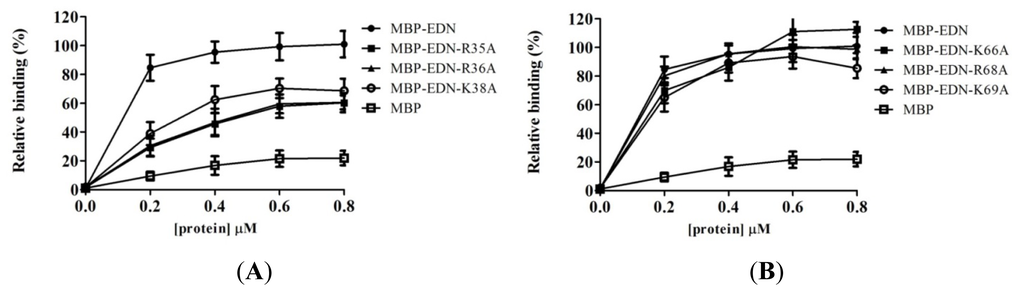

To identify the key residues of the three HBRs of EDN essential for binding to Beas-2B cells, we generated MBP-EDN single point mutants, in which each basic residue within the HBRs was individually changed into Ala. Among all the single mutants, the cellular binding activities of those with R35A, R36A, K38A, K69A, R114A, R117A, and R118A replacements were significantly reduced to 29%, 31%, 39%, 65%, 41%, 39%, and 55%, respectively, as compared to the control at protein concentration of 0.2 μM. Instead, mutations of Lys66 and Arg68 resulted in little or insignificant effects (Figure 7 and Table 1). In contrast, K1A, R97A and R132A mutants had no effect (data not shown). These results suggested that the basic residues within HBRs play more important roles in GAG binding and Arg35, Arg36, and Arg38 in HBR1 and Arg114 and Arg117 in HBR3 are particularly important for the interaction.

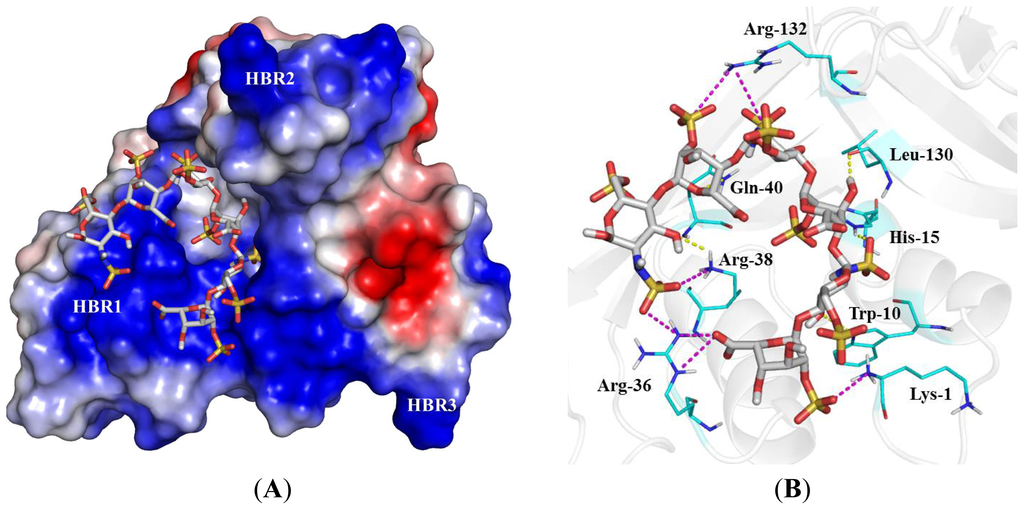

ECP structure in complex with heparin disaccharide  and trisaccharide heparin mimetic  have been previously resolved by NMR. The results indicate the crucial role of basic cavity on ECP surface in heparin binding and point out the contribution of residues surrounding the cavity. Other than basic residues, aromatic residue, Trp35, and several polar residues including Gln14, Asn39, and Gln40 are also involved in these complexes. As for EDN, although MBP-EDN-HBR1mt (R35A/R36A/K38A) showed major contribution in cellular binding, it still possessed 45% binding activity to LMWH in FACE analysis. In addition, there are six hydrogen bonds in our EDN-heparin hexasaccharide prediction model, revealing that contribution of other aromatic and polar residues such as His, Trp, Asn and Gln should be taken into consideration.
3. Experimental Section
3.1. Antibodies and Reagents
Monoclonal mouse anti-MBP was purchased from Santa Cruz (Dallas, TX, USA) and goat anti-mouse horseradish peroxidase (HRP) was purchased from Jackson ImmunoResearch (West Grove, PA, USA). Low molecular weight heparin (LMWH), high molecular weight heparin (HMWH; heparin sodium salt), dermatan sulfate (DS), chondroitin sulfate C (CSC), hyaluronic acid (HA), N-acetyl heparin (NAcH), de-N-sulfated heparin (deN-SH), and N-acetyl-de-O-sulfated heparin (NAc-deO-SH) were purchased from Sigma-Aldrich (St. Louis, MO, USA). De-2-O-sulfated heparin (de2O-SH), and de-6-O-sulfated heparin (de6O-SH) were purchased from Neoparin (Alameda, CA, USA). Chemicals were purchased from Sigma-Aldrich (St. Louis, MO, USA) unless otherwise specified.
3.2. Cells and Cell Culture
Beas-2B (ATCC number: CRL-9609), a human bronchial epithelial cell line, wild type Chinese hamster ovary (CHO)-K1 (ATCC number: CRL-9618), mutant CHO cell lines pgsD-677 (ATCC number: CRL-2244) and pgsA-745 (ATCC number: CRL-2242) were purchased from American Type Culture Collection (Manassas, VA, USA). Beas-2B cells (ATCC number: CRL-9609) were cultured in RPMI 1640 medium (Sigma-Aldrich, St. Louis, MO, USA) supplemented with heat-inactivated 10% (v/v) fetal bovine serum (FBS) (Gibco/Invitrogen, Grand Island, NY, USA) and 1% (v/v) Penicillin, Streptomycin, and Amphotericin (Biosera, Kansas City, MO, USA). CHO cells were cultured in Vitacel Ham’s F12K medium (Sigma-Aldrich, St. Louis, MO, USA) supplemented with 10% (v/v) FBS.
3.3. Construction, Expression and Purification of MBP-EDN Mutants
The DNA encoding EDN without the signal sequence was amplified using PCR primers 5′-GAATTCAAACCTCCACAGTTTACC-3′ and 5′-TCTAGATTAGATGATTCTATCCAG-3′ and cloned into the pMAL-c2G plasmid (New England Biolabs, Hitchin, UK) between the EcoRI and XbaI sites to generate pMAL-c2G-edn. The plasmid was used as a template to generate basic amino acid single mutant including R35A, R36A, K38A, K66A, R68A, K69A, R114A, R117A and R118A using QuikChange site-directed mutagenesis (Stratagene, Santa Clara, CA, USA). In addition, these residues were simultaneously substituted to Ala to generate the following three mutants: MBP-EDN-HBRmt1 (R35A/R36A/K38A), MBP-EDN-HBRmt2 (K66A/R68A/K69A), and MBP-EDN-HBRmt3 (R114A/R117A/R118A) using the same protocol. To express a wild type MBP-EDN and its mutants, the plasmid was used to transform Escherichia coli (E. coli) BL21 (DE3) Gold cells (Stratagene, Santa Clara, CA, USA). Two milliliters of the overnight culture was inoculated in 100 mL LB broth containing 100 μg/mL carbencillin, and incubated at 37 °C until OD600 reached 0.4–0.6. IPTG (Ameresco, Solon, OH, USA) was added to a final concentration of 0.5 mM, and incubated at 30 °C for 4 h. After protein induction, the bacteria were harvested by centrifugation for 10 min at 2900× g, and the pellet was homogenized by EmulsiFlex-C3 (AVESTIN, Ottawa, ON, Canada). Wild type MBP-EDN and all mutant proteins in the soluble portion of bacterial cell lysates were purified by amylose affinity chromatography (New England Biolab, Hitchin, UK).
3.4. Construction, Expression and Purification of Recombinant EDN Containing a C-Terminal 6His-Tag (EDN-6His)
The edn gene was cloned into the pET23a plasmid (New England Biolabs, Hitchin, UK) between XbaI and BamHI to generate pET23a-edn. The expression procedures were same as MBP-EDN but misfolded EDN-6His was accumulated in inclusion bodies. Recombinant EDN-6His was purified by Ni2+ Sepharose™ (GE Healthcare, Uppsala, Sweden) and refolded and dialyzed as previously described .
3.5. Cell-Based Enzyme-Link Immunosorbent Assay (cELISA)
Confluent monolayers of Beas-2B or CHO cells in 96-well plate were incubated with different concentrations of MBP-EDN at 4 °C for 60 min. The cells were washed with 200 μL of ice-cold PBS, and fixed with 2% paraformaldehyde (PFA)/PBS at 25 °C for 15 min. Then, 200 μL of ice-cold PBS was added to wash the cells prior to blocking with 2% BSA/PBS at 25 °C for 90 min. The level of bound MBP-EDN was quantified by ELISA analysis using a mouse monoclonal anti-MBP IgG and a HRP-conjugated goat anti-mouse IgG as the primary and secondary antibody, respectively. After the cells were washed by ice-cold PBS, 50 μL of Super Signal® West Pico Chemiluminescent Substrate (Thermo, Waltham, MA, USA) was added and the chemiluminescent intensity was measured by Wallace Vector II (LS55, PerkinElmer, Santa Clara, CA, USA). The amount of MBP-EDN bound to cells without heparin derivatives or GAGs treatment was set to 100%.
3.6. Fluorescence-Assisted Carbohydrate Electrophoresis (FACE)
GAGs were labeled with 2-aminoacridone (AMAC) according to the reported procedures . Briefly, 50 μg of each GAG was incubated with 40 μL of a solution containing 1.25 M AMAC, 85% DMSO, and 15% acetic acid at 25 °C for 15 min. To this, 40 μL of 1.25 M sodium cyanoborohydride (NaBH3CN) was added, and the mixture was incubated at 37 °C for 16 h. At the end of the reaction, 720 μL of 95% ice-cold ethanol was added and rested for 15 min at −20 °C. The sample was centrifuged at 4 °C for 5 min at 14,000× g. The supernatant was carefully discarded, and the pellet was freeze-dried by ScanVac CoolSafe (LaboGene™, Lynge, Denmark). The dried pellet was dissolved in sterile deionized water at an appropriate concentration for a measurement. The AMAC-labeled probes thus prepared were stored at −80 °C until use.
AMAC-labeled probes and proteins were mixed and incubated at 25 °C for 15 min. The mixture was loaded onto a 1% agarose gel plate, and electrophoresed for 20 min in a buffer containing 40 mM Tris-acetic acid, 1 mM EDTA, pH 8.0. The AMAC labeled probe was detected under UV light and the gel was scanned by QUANTUM-ST4 (Vilber Lourmat, Eberhardzell, Germany).
3.7. Binding Competition Assay
For competition assay, monolayers of Beas-2B cells in 96-well plates were pre-incubated with serially diluted heparin derivatives or GAGs in serum-free RPMI 1640 medium at 4 °C for 30 min. To the samples, MBP-EDN was added, and incubated at 4 °C for 60 min. Bound MBP-EDN was measured as described above.
3.8. Computer Modeling of EDN-Heparin Oligosaccharide Complex
The structure of EDN was taken from PDB database (PDB entry 1HI2) , and energy minimized with the GROMOS 96 force field. In silico docking experiments were performed using AutoDock Vina software (AutoDock, La Jolla, CA, USA) . Preliminary docking runs were performed with comprising three of 1C4-IdoA(2S)–GlcNS(6S). In order to find preferred side chain conformations, all basic residues in three HBRs of EDN were set to be flexible in computation. Global search was performed in the grid box with a dimension of 60 × 60 × 60 angstroms that covered the entire protein. For computer simulation, we chose heparin hexasaccharide with chair forms of IdoAs as a ligand and used predetermined coordinates for the side chains of basic residues within HBRs.
3.9. Statistical Analysis
Statistical analysis was performed using GraphPad Prism 5 (GraphPad Software, La Jolla, CA, USA). All data are shown in mean ± standard deviation (SD). Statistical significance between a set of data was determined by unpaired two-tailed Student’s t-test.
In conclusion, membrane GAGs, especially HS and DS, were essential for EDN interaction with Beas-2B cells. The Sulfo group of heparin, predominantly 2-O- or 6-O-sulfo group, is an obligatory factor for EDN interaction to heparin and Beas-2B cells. A combination of in silico bioinformatics analyses and in vitro functional assays has successfully identified that basic residues Arg35, Arg36, and Arg38 in HBR1, and Arg114 and Arg117 in HBR3 of EDN play a critical role in GAG binding. These results provide an insight into the molecular interaction of EDN with soluble heparin and bronchial epithelial cells which may have biomedical implications for the physiological functions of eosinophil RNases.
This work was funded by National Science Council, R.O.C. grants (grant numbers NSC102-2325-B-007-002- and NSC102-2622-B-007-001-CC1) and National Tsing Hua University (NTHU100N7051E1 and NTHU101N2051E1). Ta-Jen Hung was supported by Initiative Research Cooperation among Top Universities between UK and Taiwan (grant number NSC99-2911-I-007-035) and Graduate Students Study Abroad Program of National Science Council of Taiwan (grant number NSC100-2917-I-007-008). Chien-Jung Chen and Ping-Hsueh Kuo were awarded a scholarship sponsored by Shen’s Culture and Education Foundation. The authors are grateful to Wen-Chi Cheng (Institute of Molecular and Cellular Biology, National Tsing Hua University, Hsinchu, Taiwan) and Chao-sheng Cheng (Institute of Bioinformatics and Structural Biology, National Tsing Hua University, Hsinchu, Taiwan) for proofreading this manuscript and offering critical comments.
Conflicts of Interest
The authors declare no conflict of interest
|CHO||Chinese hamster ovary|
|CSA||chondroitin sulfate A|
|CSB||chondroitin sulfate B|
|CSC||chondroitin sulfate C|
|ECP||eosinophil cationic protein|
|EDN||eosinophil derived neurotoxin|
|FACE||fluorescence-assisted carbohydrate electrophoresis|
|FGF||fibroblast growth factor|
|HBR||heparin binding region|
|HMWH||high molecular weight heparin|
|HIV||human immunodeficiency virus|
|hRSV||human respiratory syncytial virus|
|LMWH||low molecular weight heparin|
|TLR2||toll-like receptor 2|
|mEAR||mouse eosinophil-associated RNase|
|Th2||Type 2 helper T cell|
- Gleich, G.J.; Adolphson, C.R. The eosinophilic leukocyte: Structure and function. Adv. Immunol 1986, 39, 177–253. [Google Scholar]
- Rosenberg, H.F.; Tenen, D.G.; Ackerman, S.J. Molecular cloning of the human eosinophil-derived neurotoxin: A member of the ribonuclease gene family. Proc. Natl. Acad. Sci. USA 1989, 86, 4460–4464. [Google Scholar]
- Gleich, G.J. Eosinophils, basophils, and mast cells. J. Allergy Clin. Immunol 1989, 84, 1024–1027. [Google Scholar]
- Futami, J.; Tsushima, Y.; Murato, Y.; Tada, H.; Sasaki, J.; Seno, M.; Yamada, H. Tissue-specific expression of pancreatic-type rnases and rnase inhibitor in humans. DNA Cell Biol 1997, 16, 413–419. [Google Scholar]
- Durack, D.T.; Sumi, S.M.; Klebanoff, S.J. Neurotoxicity of human eosinophils. Proc. Natl. Acad. Sci. USA 1979, 76, 1443–1447. [Google Scholar]
- Durack, D.T.; Ackerman, S.J.; Loegering, D.A.; Gleich, G.J. Purification of human eosinophil-derived neurotoxin. Proc. Natl. Acad. Sci. USA 1981, 78, 5165–5169. [Google Scholar]
- Fredens, K.; Dahl, R.; Venge, P. The gordon phenomenon induced by the eosinophil cationic protein and eosinophil protein x. J. Allergy Clin. Immunol 1982, 70, 361–366. [Google Scholar]
- Domachowske, J.B.; Dyer, K.D.; Bonville, C.A.; Rosenberg, H.F. Recombinant human eosinophil-derived neurotoxin/rnase 2 functions as an effective antiviral agent against respiratory syncytial virus. J. Infect. Dis 1998, 177, 1458–1464. [Google Scholar]
- Lee-Huang, S.; Huang, P.L.; Sun, Y.; Kung, H.F.; Blithe, D.L.; Chen, H.C. Lysozyme and rnases as anti-hiv components in beta-core preparations of human chorionic gonadotropin. Proc. Natl. Acad. Sci. USA 1999, 96, 2678–2681. [Google Scholar]
- Rugeles, M.T.; Trubey, C.M.; Bedoya, V.I.; Pinto, L.A.; Oppenheim, J.J.; Rybak, S.M.; Shearer, G.M. Ribonuclease is partly responsible for the hiv-1 inhibitory effect activated by hla alloantigen recognition. AIDS 2003, 17, 481–486. [Google Scholar]
- Kephart, G.M.; Alexander, J.A.; Arora, A.S.; Romero, Y.; Smyrk, T.C.; Talley, N.J.; Kita, H. Marked deposition of eosinophil-derived neurotoxin in adult patients with eosinophilic esophagitis. Am. J. Gastroenterol 2010, 105, 298–307. [Google Scholar]
- Liu, G.T.; Hwang, C.S.; Hsieh, C.H.; Lu, C.H.; Chang, S.L.; Lee, J.C.; Huang, C.F.; Chang, H.T. Eosinophil-derived neurotoxin is elevated in patients with amyotrophic lateral sclerosis. Mediators Inflamm 2013, 2013, 421389. [Google Scholar]
- Yang, D.; Rosenberg, H.F.; Chen, Q.; Dyer, K.D.; Kurosaka, K.; Oppenheim, J.J. Eosinophil-derived neurotoxin (edn), an antimicrobial protein with chemotactic activities for dendritic cells. Blood 2003, 102, 3396–3403. [Google Scholar]
- Yang, D.; Chen, Q.; Rosenberg, H.F.; Rybak, S.M.; Newton, D.L.; Wang, Z.Y.; Fu, Q.; Tchernev, V.T.; Wang, M.; Schweitzer, B.; et al. Human ribonuclease a superfamily members, eosinophil-derived neurotoxin and pancreatic ribonuclease, induce dendritic cell maturation and activation. J. Immunol 2004, 173, 6134–6142. [Google Scholar]
- Yang, D.; Chen, Q.; Su, S.B.; Zhang, P.; Kurosaka, K.; Caspi, R.R.; Michalek, S.M.; Rosenberg, H.F.; Zhang, N.; Oppenheim, J.J. Eosinophil-derived neurotoxin acts as an alarmin to activate the tlr2-myd88 signal pathway in dendritic cells and enhances th2 immune responses. J. Exp. Med 2008, 205, 79–90. [Google Scholar]
- Mayer, A.K.; Muehmer, M.; Mages, J.; Gueinzius, K.; Hess, C.; Heeg, K.; Bals, R.; Lang, R.; Dalpke, A.H. Differential recognition of tlr-dependent microbial ligands in human bronchial epithelial cells. J. Immunol 2007, 178, 3134–3142. [Google Scholar]
- Jack, C.S.; Arbour, N.; Manusow, J.; Montgrain, V.; Blain, M.; McCrea, E.; Shapiro, A.; Antel, J.P. Tlr signaling tailors innate immune responses in human microglia and astrocytes. J. Immunol 2005, 175, 4320–4330. [Google Scholar]
- Zarember, K.A.; Godowski, P.J. Tissue expression of human toll-like receptors and differential regulation of toll-like receptor mrnas in leukocytes in response to microbes, their products, and cytokines. J. Immunol 2002, 168, 554–561. [Google Scholar]
- Hung, S.C.; Lu, X.A.; Lee, J.C.; Chang, M.D.; Fang, S.L.; Fan, T.C.; Zulueta, M.M.; Zhong, Y.Q. Synthesis of heparin oligosaccharides and their interaction with eosinophil-derived neurotoxin. Org. Biomol. Chem 2012, 10, 760–772. [Google Scholar]
- Gleich, G.J.; Loegering, D.A.; Bell, M.P.; Checkel, J.L.; Ackerman, S.J.; McKean, D.J. Biochemical and functional similarities between human eosinophil-derived neurotoxin and eosinophil cationic protein: Homology with ribonuclease. Proc. Natl. Acad. Sci. USA 1986, 83, 3146–3150. [Google Scholar]
- Prydz, K.; Dalen, K.T. Synthesis and sorting of proteoglycans. J. Cell Sci 2000, 113, 193–205. [Google Scholar]
- Capila, I.; Linhardt, R.J. Heparin-protein interactions. Angew Chem. Int. Ed. Engl 2002, 41, 391–412. [Google Scholar]
- Linhardt, R.J.; Ampofo, S.A.; Fareed, J.; Hoppensteadt, D.; Mulliken, J.B.; Folkman, J. Isolation and characterization of human heparin. Biochemistry 1992, 31, 12441–12445. [Google Scholar]
- Sasisekharan, R.; Raman, R.; Prabhakar, V. Glycomics approach to structure-function relationships of glycosaminoglycans. Annu. Rev. Biomed. Eng 2006, 8, 181–231. [Google Scholar]
- Mulloy, B.; Rider, C.C. Cytokines and proteoglycans: An introductory overview. Biochem. Soc. Trans 2006, 34, 409–413. [Google Scholar]
- Munoz, E.M.; Linhardt, R.J. Heparin-binding domains in vascular biology. Arterioscler. Thromb. Vasc. Biol 2004, 24, 1549–1557. [Google Scholar]
- Cardin, A.D.; Weintraub, H.J. Molecular modeling of protein-glycosaminoglycan interactions. Arteriosclerosis 1989, 9, 21–32. [Google Scholar]
- Fan, T.C.; Fang, S.L.; Hwang, C.S.; Hsu, C.Y.; Lu, X.A.; Hung, S.C.; Lin, S.C.; Chang, M.D. Characterization of molecular interactions between eosinophil cationic protein and heparin. J. Biol. Chem 2008, 283, 25468–25474. [Google Scholar]
- Fang, S.L.; Fan, T.C.; Fu, H.W.; Chen, C.J.; Hwang, C.S.; Hung, T.J.; Lin, L.Y.; Chang, M.D. A novel cell-penetrating peptide derived from human eosinophil cationic protein. PLoS One 2013, 8, e57318. [Google Scholar]
- Newton, D.L.; Nicholls, P.J.; Rybak, S.M.; Youle, R.J. Expression and characterization of recombinant human eosinophil-derived neurotoxin and eosinophil-derived neurotoxin-anti-transferrin receptor sfv. J. Biol. Chem 1994, 269, 26739–26745. [Google Scholar]
- Fan, T.C.; Chang, H.T.; Chen, I.W.; Wang, H.Y.; Chang, M.D. A heparan sulfate-facilitated and raft-dependent macropinocytosis of eosinophil cationic protein. Traffic 2007, 8, 1778–1795. [Google Scholar]
- Watterson, D.; Kobe, B.; Young, P.R. Residues in domain iii of the dengue virus envelope glycoprotein involved in cell-surface glycosaminoglycan binding. J. Gen. Virol 2012, 93, 72–82. [Google Scholar]
- Puck, T.T.; Kao, F.T. Genetics of somatic mammalian cells, vi, use of an antimetabolite in analysis of gene multiplicity. Proc. Natl. Acad. Sci. USA 1968, 60, 561–568. [Google Scholar]
- Lidholt, K.; Weinke, J.L.; Kiser, C.S.; Lugemwa, F.N.; Bame, K.J.; Cheifetz, S.; Massague, J.; Lindahl, U.; Esko, J.D. A single mutation affects both N-acetylglucosaminyltransferase and glucuronosyltransferase activities in a chinese hamster ovary cell mutant defective in heparan sulfate biosynthesis. Proc. Natl. Acad. Sci. USA 1992, 89, 2267–2271. [Google Scholar]
- Esko, J.D. Animal cell mutants defective in heparan sulfate polymerization. Adv. Exp. Med. Biol 1992, 313, 97–106. [Google Scholar]
- Trowbridge, J.M.; Gallo, R.L. Dermatan sulfate: New functions from an old glycosaminoglycan. Glycobiology 2002, 12, 117R–125R. [Google Scholar]
- Hamazaki, H. Ca2+-mediated association of human serum amyloid p component with heparan sulfate and dermatan sulfate. J. Biol. Chem 1987, 262, 1456–1460. [Google Scholar]
- Catlow, K.R.; Deakin, J.A.; Wei, Z.; Delehedde, M.; Fernig, D.G.; Gherardi, E.; Gallagher, J.T.; Pavao, M.S.; Lyon, M. Interactions of hepatocyte growth factor/scatter factor with various glycosaminoglycans reveal an important interplay between the presence of iduronate and sulfate density. J. Biol. Chem 2008, 283, 5235–5248. [Google Scholar]
- Hallak, L.K.; Collins, P.L.; Knudson, W.; Peeples, M.E. Iduronic acid-containing glycosaminoglycans on target cells are required for efficient respiratory syncytial virus infection. Virology 2000, 271, 264–275. [Google Scholar]
- Irie, M. structures and functions of ribonucleases. Yakugaku Zasshi 1997, 117, 561–582. [Google Scholar]
- Rosenberg, H.F. Rnase a ribonucleases and host defense: An evolving story. J. Leukoc. Biol 2008, 83, 1079–1087. [Google Scholar]
- Torrent, M.; Nogues, M.V.; Boix, E. Eosinophil cationic protein (ecp) can bind heparin and other glycosaminoglycans through its rnase active site. J. Mol. Recognit 2011, 24, 90–100. [Google Scholar]
- Ye, S.; Luo, Y.; Lu, W.; Jones, R.B.; Linhardt, R.J.; Capila, I.; Toida, T.; Kan, M.; Pelletier, H.; McKeehan, W.L. Structural basis for interaction of fgf-1, fgf-2, and fgf-7 with different heparan sulfate motifs. Biochemistry 2001, 40, 14429–14439. [Google Scholar]
- Copeland, R.; Balasubramaniam, A.; Tiwari, V.; Zhang, F.; Bridges, A.; Linhardt, R.J.; Shukla, D.; Liu, J. Using a 3-O-sulfated heparin octasaccharide to inhibit the entry of herpes simplex virus type 1. Biochemistry 2008, 47, 5774–5783. [Google Scholar]
- Seki, Y.; Mizukura, M.; Ichimiya, T.; Suda, Y.; Nishihara, S.; Masuda, M.; Takase-Yoden, S. O-sulfate groups of heparin are critical for inhibition of ecotropic murine leukemia virus infection by heparin. Virology 2012, 424, 56–66. [Google Scholar]
- Guimond, S.; Maccarana, M.; Olwin, B.B.; Lindahl, U.; Rapraeger, A.C. Activating and inhibitory heparin sequences for fgf-2 (basic fgf). Distinct requirements for fgf-1, fgf-2, and fgf-4. J. Biol. Chem 1993, 268, 23906–23914. [Google Scholar]
- Ishihara, M.; Kariya, Y.; Kikuchi, H.; Minamisawa, T.; Yoshida, K. Importance of 2-O-sulfate groups of uronate residues in heparin for activation of fgf-1 and fgf-2. J. Biochem 1997, 121, 345–349. [Google Scholar]
- Sikriwal, D.; Seth, D.; Parveen, S.; Malik, A.; Broor, S.; Batra, J.K. An insertion in loop l7 of human eosinophil derived neurotoxin is crucial for its antiviral activity. J. cell. Biochem 2012, 113, 3104–3112. [Google Scholar]
- Sakurai, H.; Williamson, R.A.; Crowe, J.E.; Beeler, J.A.; Poignard, P.; Bastidas, R.B.; Chanock, R.M.; Burton, D.R. Human antibody responses to mature and immature forms of viral envelope in respiratory syncytial virus infection: Significance for subunit vaccines. J. Virol 1999, 73, 2956–2962. [Google Scholar]
- Lien, P.C.; Kuo, P.H.; Chen, C.J.; Chang, H.H.; Fang, S.L.; Wu, W.S.; Lai, Y.K.; Pai, T.W.; Chang, M.D. In silico prediction and in vitro characterization of multifunctional human rnase3. BioMed. Res. Int 2013, 2013, 170398. [Google Scholar]
- Garcia-Mayoral, M.F.; Moussaoui, M.; de la Torre, B.G.; Andreu, D.; Boix, E.; Nogues, M.V.; Rico, M.; Laurents, D.V.; Bruix, M. Nmr structural determinants of eosinophil cationic protein binding to membrane and heparin mimetics. Biophys. J 2010, 98, 2702–2711. [Google Scholar]
- Garcia-Mayoral, M.F.; Canales, A.; Diaz, D.; Lopez-Prados, J.; Moussaoui, M.; de Paz, J.L.; Angulo, J.; Nieto, P.M.; Jimenez-Barbero, J.; Boix, E.; et al. Insights into the glycosaminoglycan-mediated cytotoxic mechanism of eosinophil cationic protein revealed by nmr. ACS Chem. Biol 2013, 8, 144–151. [Google Scholar]
- Boix, E.; Nikolovski, Z.; Moiseyev, G.P.; Rosenberg, H.F.; Cuchillo, C.M.; Nogues, M.V. Kinetic and product distribution analysis of human eosinophil cationic protein indicates a subsite arrangement that favors exonuclease-type activity. J. Biol. Chem 1999, 274, 15605–15614. [Google Scholar]
- Calabro, A.; Benavides, M.; Tammi, M.; Hascall, V.C.; Midura, R.J. Microanalysis of enzyme digests of hyaluronan and chondroitin/dermatan sulfate by fluorophore-assisted carbohydrate electrophoresis (face). Glycobiology 2000, 10, 273–281. [Google Scholar]
- Leonidas, D.D.; Boix, E.; Prill, R.; Suzuki, M.; Turton, R.; Minson, K.; Swaminathan, G.J.; Youle, R.J.; Acharya, K.R. Mapping the ribonucleolytic active site of eosinophil-derived neurotoxin (edn). High resolution crystal structures of edn complexes with adenylic nucleotide inhibitors. J. Biol. Chem 2001, 276, 15009–15017. [Google Scholar]
- Trott, O.; Olson, A.J. Autodock vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem 2010, 31, 455–461. [Google Scholar]
|Table 1. Beas-2B cell binding activity of MBP-EDN wild type and mutants.|
|Protein (0.2 μM)||Mean ± SD (%)|
|MBP-EDN||84.6 ± 9.0|
|R35A||28.5 ± 5.8 ***|
|R36A||31.0 ± 7.0 ***|
|K38A||38.9 ± 8.0 ***|
|K66A||69.9 ± 8.8 *|
|R68A||80.1 ± 6.5|
|K69A||65.1 ± 9.8 ***|
|R114A||40.8 ± 8.5 ***|
|R117A||39.0 ± 5.1 ***|
|R118A||55.1 ± 9.0 ***|
|MBP-EDN-HBR1mt||10.9 ± 6.3 ***|
|MBP-EDN-HBR2mt||26.2 ± 8.4 ***|
|MBP-EDN-HBR3mt||57.8 ± 7.6 ***|
|MBP||9.4 ± 3.0|
The average amount of 0.8 μM MBP-EDN bound to Beas-2B cells was set as 100% binding.*p < 0.05;***p < 0.001.
