Int. J. Mol. Sci. 2013, 14(9), 18269-18283; doi:10.3390/ijms140918269

Magnetic Nanosystem for Cancer Therapy Using Oncocalyxone A, an Antitomour Secondary Metabolite Isolated from a Brazilian Plant
Antônio C. H. Barreto 1,2, Vivian R. Santiago 1,2, Rafael M. Freire 1, Selma E. Mazzetto 2, Juliano C. Denardin 3, Giuseppe Mele 4, Igor M. Cavalcante 5, Maria E. N. P. Ribeiro 5, Nágila M. P. S. Ricardo 5, Tamara Gonçalves 6, Luigi Carbone 7, Telma L. G. Lemos 5, Otília D. L. Pessoa 5 and Pierre B. A. Fechine 1,*
Advanced Materials Chemistry Group (GQMAT), Analytical and Physical-Chemistry Department, Federal University of Ceará (UFC), Campus do Pici 12100, CEP 60451-970 Fortaleza-CE, Brazil; E-Mails: (A.C.H.B.); (V.R.S.); (R.M.F.)
Products Laboratory and Process Technology (LPT), Department of Organic and Inorganic Chemistry, Federal University of Ceará, Fortaleza-CE 12100, Brazil; E-Mail:
Physical Department, Santiago University of Chile (USACH), Av. Ecuador 3493, Santiago 9160000, Chile; E-Mail:
Department of Engineering for Innovation, University of Salento, Via Arnesano, Lecce 73100, Italy; E-Mail:
Laboratory of Polymers and Materials Innovation (LPIM), Department of Organic and Inorganic Chemistry, Federal University of Ceará, Ceará 12100, Brazil; E-Mails: (I.M.C.); (M.E.N.P.R.); (N.M.P.S.R.); (T.L.G.L.); (O.D.L.P)
Department of Pharmacy, Federal University of Ceará (UFC), Fortaleza-Ceará 12100, Brazil; E-Mail:
National Nanotechnology Laboratory, Nanoscience Institute-CNR Via Arnesano, Lecce 73100, Italy; E-Mail:
Author to whom correspondence should be addressed; E-Mail:; Tel.: +55-85-3366-9980; Fax: +55-85-3366-9981.
Received: 13 April 2013; in revised form: 23 June 2013 / Accepted: 13 July 2013 /
Published: 5 September 2013


: This paper describes the investigation and development of a novel magnetic drug delivery nanosystem (labeled as MO-20) for cancer therapy. The drug employed was oncocalyxone A (onco A), which was isolated from Auxemma oncocalyx, an endemic Brazilian plant. It has a series of pharmacological properties: antioxidant, cytotoxic, analgesic, anti-inflammatory, antitumor and antiplatelet. Onco A was associated with magnetite nanoparticles in order to obtain magnetic properties. The components of MO-20 were characterized by XRD, FTIR, TGA, TEM and Magnetization curves. The MO-20 presented a size of about 30 nm and globular morphology. In addition, drug releasing experiments were performed, where it was observed the presence of the anomalous transport. The results found in this work showed the potential of onco A for future applications of the MO-20 as a new magnetic drug release nanosystem for cancer treatment.
drug delivery; cancer therapy; magnetic nanoparticles; oncocalyxone A

1. Introduction

Auxemma oncocalyx Taub belongs to the Boraginaceae family and is an endemic plant of the northeastern Brazilian area, particularly of “caatinga”, a biome exclusive of this region. A. oncocalyx is a medicinal plant known as “pau branco” [13]. Its stem bark possesses astringent properties used to treat wounds. Previous phytochemical investigation of heartwood extracts of A. oncocalyx has resulted in the isolation and characterization of several uncommon meroterpenoid quinones and hydroquinones with a C16 backbone [1,35]. The major compound isolated from A. oncocalyx was oncocalyxone A (onco A), a meroterpenoid quinone, which was obtained in significant amounts.

Onco A (Figure 1), rel-8α-Hydroxy-5-hydroxymethyl-2-methoxy-8aβ-methyl-7,8,8a,9-tetrahydro-1,4-anthracenedione, a deep red powder, was the first compound isolated from the heartwood extract of A. oncocalyx. This secondary metabolite is responsible for the dark color of the heartwood of this plant. Onco A exhibited a series of pharmacological properties, such as cytotoxic, analgesic, anti-inflammatory, antioxidant and causative of inhibition of platelet activation. It also showed differential antitumor activity against the murine tumors Ehrlich carcinoma, sarcoma 180 and L1210 leukemia [2,6]. In general, the active compounds are isolated in small quantities, however, onco A is the major compound produced by A. oncocalyx (0.13% from the crude extract). This, when combined with its active properties makes onco A, a suitable compound for drug development.

In cancer therapy, a major difficulty is to destroy tumor cells without harming the normal tissue [7]. A drug that targets tumors, as in other pathological conditions, is desirable since anticancer agents demonstrate nonspecific toxicities that significantly limit their therapeutic potentials [8]. Magnetically-guided particles are regarded to have excellent potential as drug targeting carriers due to their non-invasive character and high targeting efficiency [9]. Through application of an external magnetic field, magnetic drug carriers could be retained to achieve very high concentrations of the chemotherapeutic agent near the target site for a given period of time without any toxic effects to normal surrounding tissue or to the whole body [10]. The factors influencing the release of drugs from magnetic nanoparticles include viscosity of the polymer, the polymer to drug molar ratios, particle size, solubility of the drug, the presence of the magnetic field or additives as well as the incorporation mode of these substances.

Recently, nanoparticles showing a magnetic character, particularly Fe3O4, have generated a lot of interest in biomedical applications for magnetic resonance imaging, magnetic separation, targeted drug delivery, tissue engineering, cell tracking, bioseparation and magnetic hyperthermia [11,12]. For these applications, the particles must have high magnetic saturation, biocompatibility and interactive surface functionalities [13]. Studies in vivo have shown that Fe3O4 nanoparticles are relatively safe, as they do not accumulate in the vital organs and are rapidly eliminated from the body [14,15]. The presence of a polymeric coating, such as polyethylene glycol (PEG), can furthermore relieve Fe3O4 citotoxicity, as demonstrated for human fibroblasts [16,17]. In this regard, several experimental approaches have been developed in order to coat iron oxide nanoparticles either during the synthesis procedure (in situ) or through post-synthetic treatments. The most common examples of nanoparticle molecular coatings reported in literature are PEG, polyvinyl alcohol (PVA), dextran, alginate and chitosan [18].

In this work, we have reported a new approach to onco A storage and release using Fe3O4 magnetite nanoparticles. This system was solubilized in the cores of micelles of diblock copolymer, E114CL20, where E denotes a chain unit derived from ethylene oxide CH2CH2O, CL a carbonyloxypentamethylene group COO(CH2)5 derived from ɛ-caprolactone, and the subscripts denote average chain lengths. This copolymer is a biocompatible surfactant, the micelles of which have stealth properties derived from the hydrophilic E114 blocks of the corona and good solubilizing capability for hydrophobic agents due the high hydrophobicity of the poly-ɛ-caprolactone blocks of the micellar core.

This copolymer also shows a low critical micellar concentration (see Table 1) with a great potential to be used in aqueous formulations for intravenous administration of hydrophobic drugs [19].

In addition, we also focused on the release study of a promising drug onco A, isolated from a widespread Brazilian native plant, which demonstrated significant effects in cancer therapy [2022].

2. Results and Discussion

The Fe3O4 nanoparticle crystalline structure and size were initially investigated by XRD analysis (Figure 2). The grey lines represent the relative difference between experimental (YExp) and calculated (YCalc) intensities obtained by the Rietveld refinement. The diffraction patterns showed that the main reflection peaks at {111}, {220}, {311}, {400}, {422}, {511}, {440}, {533} and {553} can be well indexed with the reference pattern of the Fe3O4 inverse cubic spinel structure (JCPDS card # 08-4611) with spatial group Fd3M. The crystal size calculated by using the Scherrer’s equation [23] showed a magnetite nanoparticle average size of about 11 nm.

FTIR analysis is one of the most important techniques for a quick and efficient identification of encapsulated chemical molecules [13,24]. In Figure 3a, it was observed characteristic bands of Fe-O around 560–580 cm−1 for Fe3O4 as the main phase of spinel ferrites and corresponds to stretching vibration in tetrahedral site [25,26]. Fe3O4 has the general molecular formula (Fe2+)[Fe3+]2O42−, where the divalent and trivalent cations occupying tetrahedral (Fe2+) and octahedral [Fe3+] interstitial positions of the fcc lattice are formed by O2− ions [27]. The presence of hydroxyl groups that reside at the Fe3O4 nanoparticles surface was observed in the broad absorption of O–H stretching at 3411 cm−1 for Fe3O4 and the band at 1637 cm−1 is due to angular vibration of O–H. Due to spinel ferrites’ synthesis procedure performed in aqueous environment, the surface materials were covered by hydroxyl groups from water, so that the IR spectrum showed these bands [13]. Figure 3b reports FTIR spectrum for copolymer E114Cl20 showing characteristic bands respectively at 1114 cm−1 associated to aliphatic ether chemical bond (C–O–C), 1730 cm−1 due to C=O vibrations present in the ɛ-caprolactone unit and 2881 cm−1 associated to aliphatic chains. Figure 3c shows respectively bands of O–H stretching at 3430 cm−1, of C–H stretching at 2930 cm−1, of C=O stretching at 1660 cm−1 and of aliphatic ether C–O–C as principal band present in Onco A (see Figure 1). In Figure 3d, bands associated with the copolymer (1114 cm−1, 1730 and 2881 cm−1) and the drug (3430 cm−1, 2930 cm−1 and 1660 cm−1) were observed. However, it was also observed a band around 560–580 cm−1 characteristic of Fe-O vibration mode. These results suggested the encapsulation of the magnetite in the nanoparticles of the polymer-drug to obtain the nanosystem (MO-20).

VSM was performed to investigate the magnetic properties of Fe3O4 and MO-20 at room temperature. In Figure 4a, the hysteresis loops that are characteristic of superparamagnetic behavior can be observed for Fe3O4 nanoparticles. There is no hysteresis in the magnetization curve with both remanence and coercivity being zero, indicating that these magnetic nanoparticles are superparamagnetic. This feature is an important property needed for magnetic targeting carriers, because capillary blockage by aggregations formed by residue magnetism after removal of the applied field will be avoided [10]. The saturation magnetization of MO-20 (Figure 4b) is found to be 3.65 emu/g. This value is significatively lower than for magnetite nanoparticles (55 emu/g) reasonably due to the three coating layers of oleic acid, onco A and copolymer. Hu et al. [10] observed an 86% decrease in saturation magnetization with the addition of organic compounds on the surface of magnetite. Barreto et al. [13] observed a 94% decrease in saturation magnetization after encapsulation with quercetin and triblock copolymer. This feature renders the nanoparticles promising candidates for highly efficient magnetic manipulation when used as drug delivery carriers [28].

The room temperature hysteresis curves (Figure 4a,b) M(H) of these samples can be well described by a Langevin function, M/M0= coth (μH/kB) − kBTH with μ the magnetic moment, H the external magnetic field, T the temperature, and kB the Boltzmann constant. The particle size can be inferred from the Langevin function adjusting the parameter a = μ/kB, which is related to the particle diameter d as a = 4π(d/2)3M0/3kB. Thus, by using this fitting with parameters a of 1 and 1.4 gives us average diameters respectively of 11.5 nm for Fe3O4 and 29.8 nm for MO-20. These results agree with the magnetite size determined by XRD and TEM (see Figure 5), respectively. Similar outcomes were demonstrated by Barreto et al. [13] upon studying the hysteresis loop of quercetin and the triblock copolymer E137S18E137-coated magnetite nanoparticles.

The Fe3O4 nanoparticles and MO-20 nanosystem morphology were furthermore investigated by TEM analysis, as shown in Figure 5. Size polydisperse Fe3O4 nanoparticles maintain a round-shaped profile with an average crystallite size of 13 nm typically agglomerated according to flower-like nano-architectures due to interparticle magneto-dipole interactions. In the case of MO-20 nanosystem, the particles showed less tendency to aggregation, rationally due to organic coating-promoted reduction of Fe3O4 surface energy and dipolar attraction, with a substantial increase of the overall particle size up to 30 ± 2 nm. These results accord with sizes determined by XRD and VSM analyses (Figures 2 and 4, respectively). It was also observed the decrease of the agglomeration by TEM after modifications in the surface of magnetic nanoparticles [29,30].

To investigate thermal behavior and determine the amount of magnetic nanoparticles present in MO-20, TGA were performed and illustrated in Figure 6. The magnetite amounts from samples can be estimated from the residual mass percentages. Magnetic nanoparticles powder showed practically no weight loss in the temperature range 25 to 800 °C due to their high thermal stability (Figure 6a). On the other hand TGA data for MO-20 nanosystem demonstrated that the first weight loss occurs at about 200 °C (Figure 6b), which is 100 °C lower than for the pure copolymer (Figure 6c). This shift in the temperature might be ascribed to the presence of oleic acid and onco A multilayers in MO-20. In both cases a second degradation starts around 325 °C indicative of a mass loss of 25 and 32 wt% for MO-20 and the copolymer, respectively. As illustrated in Figure 6b the remaining metal nanoparticle (magnetite) content is almost 10 wt% in MO-20, whereas copolymer thermograms showed a complete weight loss over the temperature range 25 to 800 °C. Ilgin et al. [31] studying magnetic composites based on hyaluronic acid hydrogel observed 20% nanoparticle weight content by TGA analysis.

The release study was carried out in triplicate and the solid line is for eye guidance (Figure 7). In the first 10 h, there was initial rapid burst release. This fact is normally attributed to the fraction of onco A adsorbed on the surface of the diblock copolymer [13,24]. The cumulative release of onco A as a diffusion controlled process under a physiological condition (pH = 7.4 and incubated at 37 °C) shows a gradual increase and achieved its maximum value at about 60% after 72 h.

In order to figure out the mechanism of drug releasing from the matrix system, the experimental data were fitted utilizing Higuchi [32] as well as Korsmeyer-Peppas [33,34] models, both based on an exponential relationship of drug release as a function of time. The kinetics parameters and correlation coefficient (r2) obtained from the analysis are shown in Table 2. Both models were well fitted, with r2 values varying in the range 0.9709–0.9831. Upon correlating the Higuchi [32] and Korsmeyer-Peppas [33] models, it was observed that the latter presents higher values of r2, this may indicate the existence of another releasing contribution in addition to a Fickian diffusion. Whether the Higuchi [32] model assumes that uniquely a Fickian diffusion governs the release process [32,35].

The Korsmeyer-Peppas model [33] uses the parameter n to characterize the mechanism of drug release. Depending on the n values, different types of drug delivery regimes can be identified [36]. Specifically, if n is in the range 0.4–0.5, the release merely follows a Fickian diffusion, whereas if n = 1, a case-II transport occurs leading to a zero-order release. Finally, for values in the range 0.5–1.0 a so-called anomalous transport takes place, whereby Fickian diffusion and case-II transport simultaneously dominate. The analysis of the release curve (Figure 7) gives n = 0.57 ± 0.02, indicating the presence of an anomalous transport. However, n value is very close to 0.5, thus indicating that the predominant drug release mechanism is due to Fickian diffusion.

3. Material and Methods

3.1. Materials

The chemical reagents for this work are FeCl3·6H2O (pure granulated 99%), FeSO4·7H2O (pure granulated 99%) and 30% ammonia solution. Copolymer E114Cl20 was prepared by sequential oxyanionic polymerization using a vacuum line ampoule technique based on experimental procedures described elsewhere [37,38]. Values of the molecular characteristics are listed in Table 1. Chloroform, ethyl acetate and oleic acid were used without further purification.

The extraction and isolation of onco A, from the heartwood of A. oncocalyx, was carried out as described earlier [1,4] and its structural identity was confirmed by thin layer chromatography (comparison with authentic sample) and 1H- and 13C-NMR spectral analysis (Table 3).

3.2. Oleic Acid-Coated Fe3O4 (OA-Fe3O4)

The synthesis of magnetite particles has been already described in previous studies [13,39]. Briefly in a co-precipitation processing route, two aqueous solutions of metallic salts containing Fe2+/Fe3+ were mixed in Milli-Q water in the molar ratio of 1:2 to form a Fe3O4 spinel phase. The aqueous mixture was heated at 80 °C and then, under vigorous stirring, a 30% wt NH4OH solution added up to pH 10 with the formation of a black precipitate. The precipitate was washed several times with Milli-Q water until the residual solution became neutral. The chemical reaction of Fe3O4 formation may be written as follows

Fe 2 + + 2 Fe 3 + + 8 OH - Fe 3 O 4 + 4 H 2 O

Subsequently, oleic acid was added in a significant excess amount to the system right after the co-precipitation had started, which resulted in the chemisorption of the acid on the magnetite surface, as confirmed by the OA-Fe3O4 solubility in organic solvents. This was followed by a washing process using ethanol with magnetic decantation to remove the no-dispersed particles.

3.3. Synthesis of OA-Fe3O4 Coated with Onco A-E114Cl20 (MO-20)

The magnetic drug delivery nanosystem was prepared by the emulsion-coacervation method [10,13] followed by a polymer coating procedure. In details, a sample of OA-Fe3O4 (30 mg) was initially dispersed in 100 mL of chloroform, onco A (30 mg) dissolved in ethyl acetate and 150 mg of the diblock copolymer in chloroform. Upon using a mechanical stirrer (1000 rpm) OA-Fe3O4 and drug solutions were mixed and then the copolymer solution added to the mixture. Stirring was continued at room temperature for 1 h. Afterwards, the solvent was extracted and the as-obtained solid characterized and labeled as MO-20. Schematic illustration of each single experimental step is shown in Figure 8.

3.4. Oncocalyxone Releasing from Copolymer E114Cl20

MO-20 samples were diluted in phosphate-buffered saline solution (PBS, pH = 7.4) and then transferred into dialysis membrane. The membrane was placed into the same buffered solution (25 mL). The release study was performed at 37 ± 0.5 °C. At pre-determined time intervals, 3 mL of the aqueous solution were withdrawn and filtered through Millipore Millex filters (0.45 μm) and replenished with 3 mL of fresh buffer solution. The amount of released drug was measured through absorbance using UV spectrophotometer at 375 nm for onco A. The initial drug concentration in the dialysis membrane was 40 μg/mL. In the assessment of drug release behavior, the cumulative amount of released drug was calculated and the percentages of onco A released from the copolymer were plotted against time. A U-2000 Spectrophotometer by Hitachi was used in the analysis. All release experiments were performed in triplicate and the mean values employed to build release profiles. The obtained drug release data were analyzed according to the Higuchi [32] and Korsmeyer-Peppas [33] equations.

3.5. Characterization

1H (500 MHz) and 13C (125 MHz) and 2D NMR experiments were performed on a Bruker Avance DRX-500 spectrometer equipped with a 5 mm inverse detection z-gradient probe. 1H and 13C NMR spectra were measured at 27 °C using dimethylsulphoxide as solvent. Column chromatography was run using silica gel 60 (70–230 mesh, Vetec and 230–400 mesh, Merck, Darmstadt-Germany), and TLC performed on precoated silica gel polyester sheets (Kieselgel 60 F254, 0.20 mm, Merck, Darmstadt-Germany) by detection with a spraying reagent of vanillin/perchloric acid/ethanol solution followed by heating at 100 °C.

The X-ray diffraction (XRD) analysis was performed in a X-ray powder diffractometer Xpert Pro MPD (Panalytical) using Bragg-Brentano geometry in the range of 20°–120° with a rate of 1°min−1. Co Kα radiation (λ = 1.7889 Å) was used and the tube operated at 40 kV and 30 mA. The phase identification analysis was made by comparing obtained powder diffractograms with standard patterns from International Centre for Diffraction Data (ICDD). For the magnetic nanoparticles, the experimental patterns were numerically fitted with the Rietveld algorithm in a procedure to better identify and quantify crystallographic phases.

Fourier transform infrared spectroscopy (FTIR) measurements were performed using a Perkin Elmer 2000 spectrophotometer in the 400 to 4000 cm−1 range. The samples were previously dried and grounded to powder and pressed (10 μg of sample to 100 mg of KBr) in disk format for measurements.

The magnetization measurements were performed at room temperature with a home-made vibrating sample magnetometer (VSM). The VSM has previously been calibrated using a pure Ni wire, and after measuring the mass of each sample the magnetization was given in emu/g.

The thermal stability of the materials was done by Mettler Toledo thermogravimetric analysis/simultaneous differential thermal analysis (TGA/SDTA) 851e machine. The analyses were performed under constant flow nitrogen atmospheres (50 cm3/min), with heating rate of 10 °C/min, sample mass of 10 mg and temperature programs in the range 25–800 °C.

Low-magnification Transmission Electron Microscopy (TEM) analysis was performed on a Jeol JEM-1011 electron microscope operating at 100 kV, equipped with a CCD camera ORIUS 831 from Gatan. TEM samples were prepared by drop-casting dilute nanocrystal solutions onto carbon coated copper grids. Afterwards, the deposited samples were allowed to complete dry at 60 °C for one night before examination.

4. Conclusions

The results demonstrated that the magnetic drug delivery nanosystem (MO-20) was obtained with association of an inorganic component (magnetite nanoparticles), a monounsaturated fatty acid found naturally in many plants and animals (oleic acid), a synthetic diblock copolymer (E) and a drug isolated from a Brazilian native plant (Onco A). This natural drug was used because it exhibited a series of pharmacological properties as antitumor activity, while Fe3O4 was used to obtain a system with magnetic properties. The nanosystem size was confirmed by TEM, XRD and hysteresis curve (Langevin function). For MO-20 nanosystem, it was found a size of approximately 30 nm due to the copolymer coverage. Mathematical models were furthermore employed to distinguish the mechanism of drug releasing, whereby the best correspondence with the Korsmeyer-Peppas [33] model, suggests the presence of an anomalous transport (Fickian diffusion and case-II transport), however with a predominant contribution of Fickian diffusion. Changes in the system composition could adequate an ideal release time or change the release mechanism. These results indicate the great potential for future applications of the MO-20 as a new magnetic drug release nanosystem for cancer therapy.


This work was supported by CAPES, Funcap and CNPq (INCT-Nano(Bio)Simes, Project no. 573925/2008-9) (Brazilian agencies), Fondecyt 1110252; Millennium Science Nucleus, Basic and Applied Magnetism Grant N°P10-061-F, and CONICYT BASAL CEDENNA FB0807 (Chilean agencies).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Pessoa, O.D.L.; de Lemos, T.L.G.; Silveira, E.R.; Braz-Filho, R. Novel cordiachromes isolated from Auxemma oncocalyx. Nat. Prod. Lett 1993, 2, 145–150. [Google Scholar]
  2. Ferreira, M.A.D.; Nunes, O.D.R.H.; Fentenele, J.B.; Pessoa, O.D.L.; de Lemos, T.L.G.; Viana, G.S.B. Analgesic and anti-inflammatory activities of a fraction rich in oncocalyxone A isolated from Auxemma oncocalyx. Phytomedicine 2004, 11, 315–322. [Google Scholar]
  3. Ferreira, M.A.D.; Nascimento, N.R.F.; Sousa, C.M.; Pessoa, O.D.L.; de Lemos, T.L.G.; Ventura, J.S.; Schattner, M.; Chudzinski-Travassi, A.M. Oncocalyxone A inhibits human platelet aggregation by increasing cGMP and by binding to GP Ibα glycoprotein. Br. J. Pharmacol 2008, 154, 1216–1224. [Google Scholar]
  4. Pessoa, O.D.L.; de Lemos, T.L.G.; de Carvalho, M.G.; Braz-Filho, R. Cordiachoromes from Auxemma oncocalyx. Phytochemistry 1995, 40, 1777–1786. [Google Scholar]
  5. Marques, W.B.; dos Santos, H.S.; Pessoa, O.D.L.; Braz-Filho, R.; de Lemos, T.L.G. Anthracene derivatives from Auxemma oncocalyx. Phytochemistry 2000, 55, 793–797. [Google Scholar]
  6. Costa, C.O.C.; Souza, A.A.; Luz, R.C.S.; de Lemos, T.L.G.; Pessoa, O.D.L.; Kubota, L.T.; Goulart, M.O.F. Eletrochemical determination of Oncocalyxone A using an iron-phthalocyanine/iron-porphirin modified glassy carbon electrode. J. Braz. Chem. Soc 2008, 19, 697–703. [Google Scholar]
  7. Alexiou, C.; Schmid, R.J.; Jurgons, R.; Kremer, M.; Wanner, G.; Bergemann, C.; Huengens, E.; Nawroth, T.; Arnold, W.; Parak, F.G. Targeting cancer cells: Magnetic nanoparticles as drug carriers. Eur. Biophys. J 2006, 35, 446–450. [Google Scholar]
  8. Jain, T.P.; Morales, M.A.; Sahoo, S.K.; Pelecki, D.L.L.; Labhasetwar, V. Iron oxide nanoparticles for sustained delivery of anticancer agents. Mol. Pharmaceut 2005, 2, 194–205. [Google Scholar]
  9. Voltairas, P.A.; Fotiadis, D.I.; Michalis, L.K. Hydrodynamics of magnetic drug targeting. J. Biomech 2002, 35, 813–821. [Google Scholar]
  10. Hu, F.X.; Neoh, K.G.; Kang, E.T. Synthesis and in vitro anti-cancer evaluation of tamoxifen-loaded magnetite/PLLA composite nanoparticles. Biomaterials 2006, 27, 5725–5733. [Google Scholar]
  11. Giri, J.; Pradhan, P.; Somani, V.; Chelawat, H.; Chhatre, S.; Banerjee, R.; Bahadur, D. Synthesis and characterizations of water-based ferrofluids of substituted ferrites [Fe1−xBxFe2O4, B = Mn, Co (x = 0–1)] for biomedical applications. J. Mag. Mag. Mater 2008, 320, 724–730. [Google Scholar]
  12. Shubayev, V.I.; Pisanic, T.R., II; Jin, S. Magnetic nanoparticles for theragnostics. Adv. Drug Deliver. Ver. 2009, 61, 467–477. [Google Scholar]
  13. Barreto, A.C.H.; Santiago, V.R.; Mazzetto, S.E.; Denardin, J.C.; Lavín, R.; Mele, G.; Ribeiro, M.E.N.P.; Vieira, I.G.P.; Gonçalves, T.; Ricardo, N.M.P.S.; et al. Magnetic nanoparticles for a new drug delivery system to control quercetin for cancer chemotherapy. J. Nanopart. Res 2011, 13, 6545–6553. [Google Scholar]
  14. Boyer, C.; Whittaker, M.R.; Bulmus, V.; Liu, J.; Davis, T.P. The design and utility of polymer-stabilized iron-oxide nanoparticles for nanomedicine applications. NPG Asia Mater 2010, 2, 23–30. [Google Scholar]
  15. Doraiswamy, P.M.; Finefrock, A.E. Metals in our minds: Therapeutic implications for neurodegenerative disorders. Lanc. Neur 2004, 3, 431–434. [Google Scholar]
  16. Gupta, A.K.; Curtis, A.S.G. Surface modified superparamagnetic nanoparticles for drug delivery: Interaction studies with human fibroblasts in culture. J. Mater. Sci. Mater. Med 2004, 15, 493–496. [Google Scholar]
  17. Wang, Y.; Ng, W.Y.; Chen, Y.; Shuter, B.; Yi, J.; Ding, J.; Wang, S.C.; Feng, S.S. Formulation of superparamagnetic iron oxides by nanoparticles of biodegradable polymers for magnetic resonance imaging. Adv. Funct. Mater 2008, 18, 308–318. [Google Scholar]
  18. Laurent, S.; Forge, D.; Port, M.; Roch, A.; Robic, C.; Vander Elst, L.; Muller, R.N. Magnetic iron oxide nanoparticles: Synthesis, stabilization, vectorization, physicochemical characterizations, and biological applications. Chem. Ver 2008, 108, 2064–2110. [Google Scholar]
  19. Cavalcante, I.M. Micelas de Copolímeros em Bloco para Administração de Fármacos Hidrofóbicos: Caraterização, Solubilização e Liberação. Ph.D. Thesis, Federal University of Ceará, Fortaleza, Brazil, 2009. [Google Scholar]
  20. Pessoa, C.; Silveira, E.R.; de Lemos, T.L.G.; Wetmore, L.A.; Moraes, M.O.; Leyva, A. Antiproliferative effects of compounds derived from plants of Northeast Brazil. Phytother. Res 2000, 14, 187–191. [Google Scholar]
  21. Leyva, A.; Pessoa, C.; Boogaerdt, F.; Sokaroski, R.; de Lemos, T.L.G.; Wetmore, L.A.; Huruta, R.R.; Moraes, M.O. Oncocalyxones A and C, 1,4-anthracenediones from Auxemma oncocalyx: Comparison with anticancer 1,9-anthracenediones. Anticancer Res 2000, 20, 1029–1031. [Google Scholar]
  22. Costa-Lotufo, L.V.; Ferreira, M.A.D.; de Lemos, T.L.G.; Pessoa, O.D.L.; Viana, G.S.B.; Cunha, G.M.A. Toxicity to sea urchin egg development of the quinone fraction obtained from Auxemma oncoalyx. Braz. J. Med. Biol. Res 2002, 35, 927–930. [Google Scholar]
  23. Braga, T.P.; Vasconcelos, I.F.; Sasaki, J.M.; Fabris, J.D.; Oliveira, D.Q.L.; Valentini, A. Magnetic composites base on hybrid spheres of aluminum oxide and superparamagnetic nanoparticles of iron oxides. J. Mag. Mag. Mater 2010, 322, 633–637. [Google Scholar]
  24. Kumari, A.; Yadav, S.K.; Pakade, Y.B.; Singh, B.; Yadav, S.C. Development of biodegradable nanoparticles for delivery of quercetin. Colloids Surf. B 2010, 80, 184–192. [Google Scholar]
  25. Hrdina, A.; Lai, E.; Li, C.; Sadi, B.; Kramer, G. A comparative study of magnetic transferability of superparamagnetic nanoparticles. J. Mag. Mag. Mater 2010, 322, 2622–2627. [Google Scholar]
  26. Slavov, L.; Abrashev, M.V.; Merodiiska, T.; Gelev, Ch.; Vandenberghe, R.E.; Markova-Deneva, I.; Nedkov, I. Raman spectroscopy investigation of magnetite nanoparticles in ferrofluids. J. Mag. Mag. Mater. 2010, 322, 1904–1911. [Google Scholar]
  27. Chinnasamy, C.N.; Narayanasamy, A.; Ponpandian, N. Mixed spinel structure in nanocrystalline NiFe2O4. Phys. Rev. B 2001, 63, 184108. [Google Scholar]
  28. Cao, H.; He, J.; Deng, L.; Gao, X. Fabrication of cyclodextrin-functionalized superparamagnetic Fe3O4/amino-silane core-shell nanoparticles via layer-by-layer method. Appl. Surf. Sci 2009, 255, 7974–7980. [Google Scholar]
  29. Ying, X.Y.; Du, Y.Z.; Hong, L.H.; Yuan, H.; Hu, F.Q. Magnetic lipid nanoparticles loading doxorubicin for intracellular delivery: Preparation and characteristics. J. Mag. Mag. Mater 2011, 323, 1088–1093. [Google Scholar]
  30. Wei, Y.; Han, B.; Hu, X.; Lin, Y.; Wang, X.; Deng, X. Synthesis of Fe3O4 nanoparticles and their magnetic properties. Procedia Eng 2012, 27, 632–637. [Google Scholar]
  31. Ilgin, P.; Avci, G.; Silan, C.; Ekici, S.; Aktas, N.; Ayyala, R.S.; John, V.T.; Sahiner, N. Colloidal drug carries from (sub)micron hyaluronic acid hydrogel particles with tunable properties for biomedical applications. Carbohydr. Polym 2010, 82, 997–1003. [Google Scholar]
  32. Higuchi, T. Rate of release of medicaments from ointment bases containing drugs in suspension. J. Pharm. Sci 1961, 50, 874–875. [Google Scholar]
  33. Korsmeyer, R.W.; Gurny, R.; Doelker, E.; Buri, P.; Peppas, N.A. Mechanisms of solute release from porous hydrophilic polymers. Int. J. Pharm 1983, 15, 25–35. [Google Scholar]
  34. Manadas, R.; Pina, M.E.; Veiga, F. A dissolução in vitro na previsão da absorção oral de fármacos em formas farmacêuticas de liberação modificada. Braz. J. Pharm. Sci 2002, 38, 375–399. [Google Scholar]
  35. Lopes, C.M.; Lobo, J.M.S.; Costa, P. Formas farmacêuticas de liberação modificada: Polímeros hidrifílicos. Braz. J. Pharm. Sci 2005, 41, 143–154. [Google Scholar]
  36. Nappini, S.; Bombelli, F.B.; Bonini, M.; Nordèn, B.; Baglioni, P. Magnetoliposomes for controlled drug release in the presence of low frequency magnetic field. Soft. Matter 2010, 6, 154–162. [Google Scholar]
  37. Bedells, A.D.; Arafeh, R.M.; Yang, Z.; Attwood, D.; Heatley, F.; Padget, J.C.; Price, C.; Booth, C. Micellisation of diblock copoly(oxyethylene/oxybutylene) in aqueous solution. J. Chem. Soc. Faraday Trans 1993, 89, 1235–1242. [Google Scholar]
  38. Heatley, F.; Yu, G.E.; Sun, W.B.; Pywell, E.J.; Mobbs, R.H.; Booth, C. Triad sequence assignment of the 13C-NMR spectra of copolymers of ethylene oxide and 1,2-butylene oxide. Eur. Polym. J 1990, 26, 583–592. [Google Scholar]
  39. Barreto, A.C.H.; Maia, F.J.N.; Santiago, V.R.; Ribeiro, V.G.P.; Denardin, J.C.; Mele, G.; Carbone, L.; Lomonaco, D.; Mazzetto, S.E.; Fechine, P.B.A. Novel ferrofluids coated a renewable material obtained from cashew nut shell liquid. Microfluid Nanofluid 2012, 12, 677–686. [Google Scholar]
Ijms 14 18269f1 1024
Figure 1. (a) An exemplar; (b) Flowers; and (c) fruit of Auxemma oncocalyx in your natural habitat; (d) Chemical structure of oncocalyxone A (onco A).

Click here to enlarge figure

Figure 1. (a) An exemplar; (b) Flowers; and (c) fruit of Auxemma oncocalyx in your natural habitat; (d) Chemical structure of oncocalyxone A (onco A).
Ijms 14 18269f1 1024
Ijms 14 18269f2 1024
Figure 2. X ray powder diffraction pattern of Fe3O4.

Click here to enlarge figure

Figure 2. X ray powder diffraction pattern of Fe3O4.
Ijms 14 18269f2 1024
Ijms 14 18269f3 1024

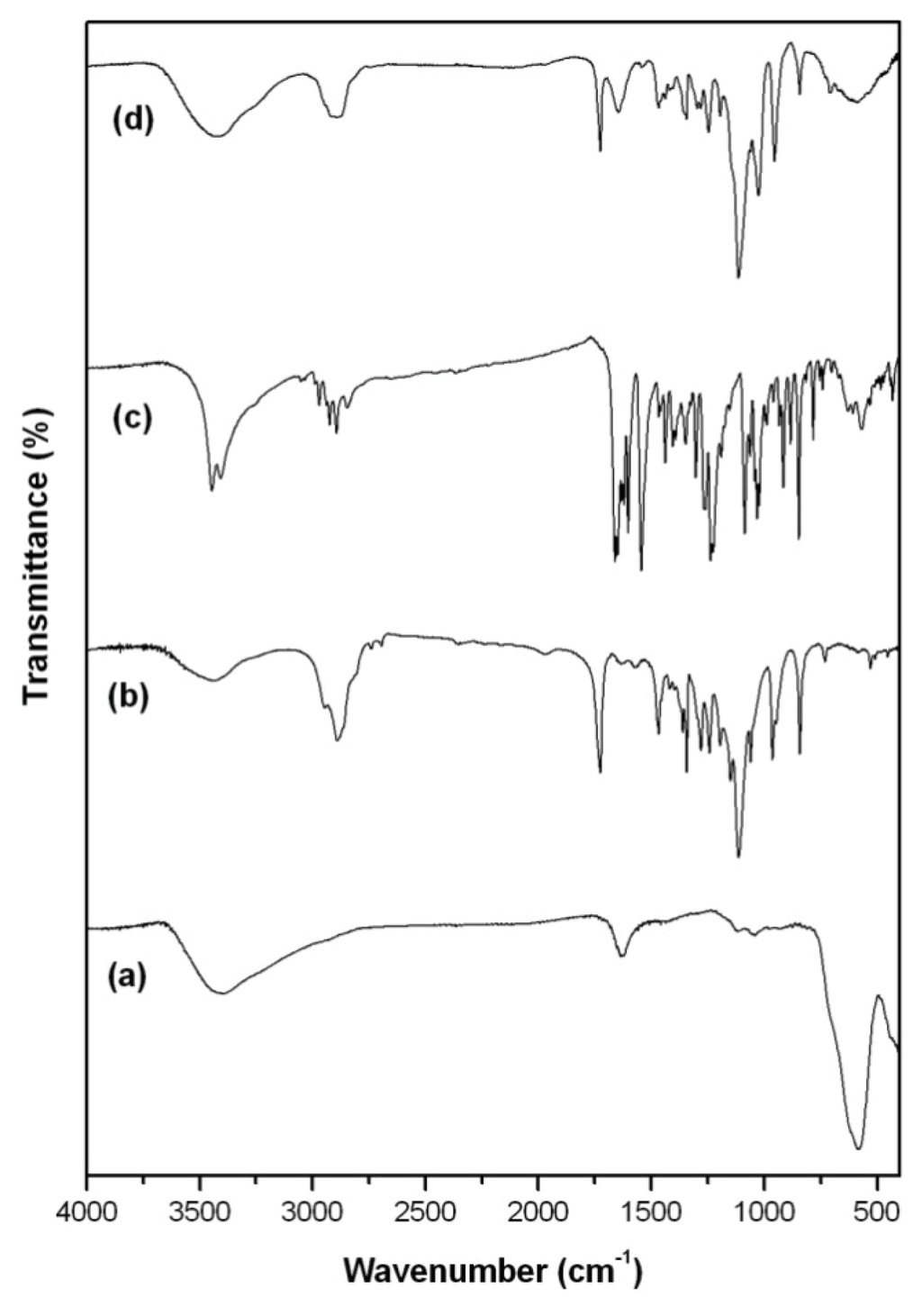

Figure 3. FTIR spectra: (a) Fe3O4; (b) Diblock copolymer E114Cl20; (c) Oncocalyxone-A and (d) MO-20.

Click here to enlarge figure

Figure 3. FTIR spectra: (a) Fe3O4; (b) Diblock copolymer E114Cl20; (c) Oncocalyxone-A and (d) MO-20.
Ijms 14 18269f3 1024
Ijms 14 18269f4 1024
Figure 4. Magnetization curves of (a) Fe3O4 and (b) MO-20. The solid lines correspond to the fitting with the Langevin equation (see text).

Click here to enlarge figure

Figure 4. Magnetization curves of (a) Fe3O4 and (b) MO-20. The solid lines correspond to the fitting with the Langevin equation (see text).
Ijms 14 18269f4 1024
Ijms 14 18269f5 1024

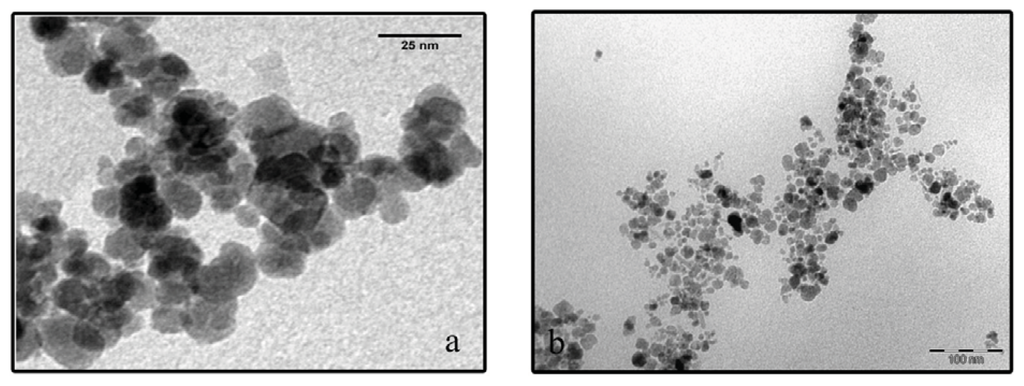

Figure 5. TEM images of (a) Fe3O4 and (b) MO-20.

Click here to enlarge figure

Figure 5. TEM images of (a) Fe3O4 and (b) MO-20.
Ijms 14 18269f5 1024
Ijms 14 18269f6 1024
Figure 6. Weight loss by thermogravimetric analysis (a) Fe3O4; (b) MO-20 and (c) copolymer.

Click here to enlarge figure

Figure 6. Weight loss by thermogravimetric analysis (a) Fe3O4; (b) MO-20 and (c) copolymer.
Ijms 14 18269f6 1024
Ijms 14 18269f7 1024

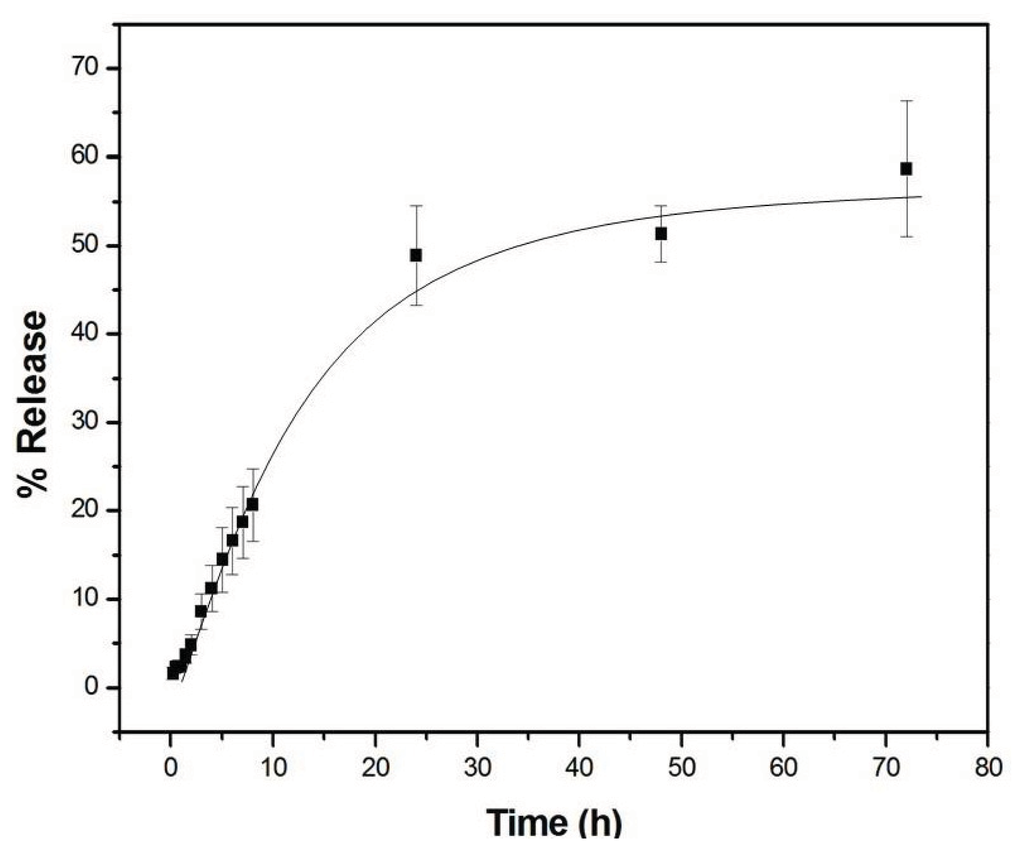

Figure 7. Release profile of onco A from MO-20 by UV-Vis method.

Click here to enlarge figure

Figure 7. Release profile of onco A from MO-20 by UV-Vis method.
Ijms 14 18269f7 1024
Ijms 14 18269f8 1024
Figure 8. Schematic illustration of the reaction to obtain MO-20 nanosystem.

Click here to enlarge figure

Figure 8. Schematic illustration of the reaction to obtain MO-20 nanosystem.
Ijms 14 18269f8 1024
Table Table 1. Molecular characteristics of E114CL20 copolymer.

Click here to display table

Table 1. Molecular characteristics of E114CL20 copolymer.
CopolymerMn (g·mol−1)wEwhMw/Mncmc (g·dm−3)

wh = weight fraction of the hydrophobic (CL20) block of the copolymer; wE = weight fraction of the hydrophilic (E114) block of the copolymer; cmc = critical micelle concentration in aqueous solution, temperature 37 °C.

Table Table 2. Mathematical models and parameters used to describe drug release curve from MO-20 nanosystem.

Click here to display table

Table 2. Mathematical models and parameters used to describe drug release curve from MO-20 nanosystem.
Higuchi M t M = K H tKH0.9709
6.8541 ± 0.24
Korsmeyer-Peppas M t M = K t nKn0.9831
5.3243 ± 0.540.5717 ± 0.02

M, absolute amount of drug at time t; M, total amount of drug released at infinite time; KH, higuchi release constant; K, kinetics constant; n, diffusional exponent.

Table Table 3. 1H and 13C NMR spectral data for Onco A.

Click here to display table

Table 3. 1H and 13C NMR spectral data for Onco A.
Ijms 14 18269f9

PositionδC (ppm)δH (ppm)
3105.96.00 (s)
6127.96.03 (br s)
731.42.60 (d, J = 18.6 Hz)
869.62.37 (dd, J = 18.6 Hz)
8a38.83.56 (br s)
928.72.93 (d, J = 18.2 Hz)/2.34 (d, J = 18.2 Hz)
10111.36.49 (s)
1161.14.17 (br s)
1220.80.74 (s)
CH3O56.23.78 (s)
HO-8-4.93 (d, J = 3.7 Hz)
HO-11-4.87 (br s)
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
