Int. J. Mol. Sci. 2013, 14(5), 9722-9736; doi:10.3390/ijms14059722

Article
Molecular Interaction of a New Antibacterial Polymer with a Supported Lipid Bilayer Measured by an in situ Label-Free Optical Technique
Robert Horvath 1, Balázs Kobzi 2, Helmut Keul 3,*, Martin Moeller 3 and Éva Kiss 2
1
MTA TTK MFA Institute for Technical Physics and Materials Science, Research Centre for Natural Sciences, Budapest, Konkoly Thege u. 29-33 H-1121, Hungary; E-Mail: horvathr@mfa.kfki.hu
2
Laboratory of Interfaces and Nanostructures, Institute of Chemistry, Eötvös Loránd University, P.O. Box 32, Budapest 112 H-1518, Hungary; E-Mails: kobzibalazs@gmail.com (B.K.); kisseva@chem.elte.hu (É.K.)
3
DWI an der RWTH Aachen e.V. and Institute of Technical and Macromolecular Chemistry, RWTH Aachen, Forckenbeckstr. 50, Aachen D-52056, Germany; E-Mail: moeller@dwi.rwth-aachen.de
*
Author to whom correspondence should be addressed; E-Mail: keul@dwi.rwth-aachen.de; Tel.: +49-241-8026-438; Fax: +49-241-8023-301.
Received: 19 March 2013; in revised form: 21 April 2013 / Accepted: 2 May 2013 /
Published: 6 May 2013

Abstract

: The interaction of the antibacterial polymer–branched poly(ethylene imine) substituted with quaternary ammonium groups, PEO and alkyl chains, PEI25QI5J5A815–with a solid supported lipid bilayer was investigated using surface sensitive optical waveguide spectroscopy. The analysis of the optogeometrical parameters was extended developing a new composite layer model in which the structural and optical anisotropy of the molecular layers was taken into consideration. Following in situ the change of optical birefringence we were able to determine the composition of the lipid/polymer surface layer as well as the displacement of lipid bilayer by the antibacterial polymer without using additional labeling. Comparative assessment of the data of layer thickness and optical anisotropy helps to reveal the molecular mechanism of antibacterial effect of the polymer investigated.
Keywords:
antibacterial polymer; supported lipid bilayer; optical waveguide spectroscopy; optical anisotropy; label-free measurement

1. Introduction

Cell walls or membranes control the chemical communication between otherwise isolated compartments in the living organisms. In spite of their complex structure, their permeability is highly governed by the lipid bilayer membrane. The most characteristic feature of the lipid bilayer is the organization of lipid molecules into two leaflets positioned face-to-face with ordered alignment of the alkyl chains. That special architecture of the closely packed assembly is responsible for the barrier function. The antibacterial agents act by destroying this barrier function of the bacterial cell wall leading to disintegration of bacterial cell membrane [16].

Phospholipid assemblies as liposomes or planar lipid bilayers formed on a solid support (supported lipid bilayer, SLB) are convenient model systems to examine the influence of bioactive components or nanoparticles [712] on the structural order of lipid bilayers resulting in its permeabilization or destabilization. One of the well described mechanisms is the barrel-stave model, while the other is the carpet (detergent-like) mode of action [1316]. Both mechanisms mainly refer to natural and synthetic antibacterial peptides. The mechanism by which an antimicrobial polymer penetrates and disrupts the phospholipid bilayer is not completely understood. The investigation of polymeric type antibacterial agents and their interaction with planar lipid bilayers is sporadic [5]. Characterizing such interactions however, is of primary importance since recent studies demonstrated the high efficiency and exceptional advantages of such materials [1721]. Providing non-elutable coverage on various surfaces such as of medical devices or food packaging materials these antibacterial polymers are ideal substances for bactericid, fungicide or virucid surface treatment [22,23]. Most water soluble antimicrobial polymers are linear [2426]. Newly designed and synthesized cationic amphipathic polyelectrolytes based on branched poly(ethylene imine) (PEI), provide a means to control the molecular shape and surface interaction. The polymers were prepared reacting the primary amino groups of PEI with ethylene carbonate functional couplers bearing cationic groups, poly(ethylene oxide), and alkyl chains of different lengths. The functionalized PEIs present considerable surface activity and antibacterial properties [27,28]. Detailed knowledge of their action will contribute to the rational design and functional improvement.

Different aspects of interaction of bioactive material with supported lipid bilayer were studied by various techniques such as sum frequency generation spectroscopy [14,29], atomic force microscopy [30,31], cyclic voltammetry [32], nuclear magnetic resonance [33,34], quarz crystal microbalance [35,36], surface plasmon resonance [37], fluorescence spectroscopy [38] or Fourier-transformed infrared spectroscopy [39] as well as optical waveguide methods. The waveguide spectroscopy techniques as dual polarization interferometry (DPI) [40,41], coupled plasmon waveguide resonance (CPWR) [42,43], and optical waveguide lightmode spectroscopy (OWLS) [4451] are especially valuable among those because of the possibility to deduce the presence and integrity of the bilayer, which is a crucial functional property [10]. Further advantages of these techniques are the real time and label-free measurement of the optical properties of nanometer scale films in aqueous solutions [5257].

In the present work branched PEI functionalized with cationic groups, as well as hydrophilic and alkyl chains, PEI25QI5J5A815 [20], was used to determine its interaction and exchange with solid supported lipid, POPC, bilayers applying the OWLS technique. During the measurements the lipid bilayer was formed on the surface of the optical waveguide chip in situ in the OWLS instrument by lipid vesicle rupture [44,58,59]. After obtaining a compact bilayer, the antibacterial polymer was introduced continuously. The fluid flow provides a constant concentration profile during the measurement thereby the condition resembles to the bacterial contact with a permanent antibacterial coating.

2. Results and Discussion

Effect of antibacterial polymer on the supported lipid bilayer was studied by the OWLS technique. During the measurement the formation of lipid bilayer as well as its interaction with the injected antibacterial polymer was followed by recording the change in the effective refractive indices of the modes of the waveguide [6062].

These data were used to calculate the optical thickness of the adlayer, Q = (ñAnC )A, where ñA and nC are the refractive indices of the surface layer (adlayer) and the solution (cover medium), respectively while A is the thickness of the surface layer obtained using the homogeneous and isotropic layer model [63]. Note, Q is an optogeometrical parameter directly proportional to the deposited surface mass density [49,63,64].

After recording a stable baseline (no adlayer on the surface, Q = 0 ) the lipid vesicle suspension was injected onto the surface in order to create a supported lipid bilayer by vesicle rupture and spreading (see Figure 1). This leads to a rapid increase in the optical thickness reaching a saturation value after about 12 min. Then pure buffer was flowed into the cuvette (washing). During the buffer flow the supported lipid bilayer was stable, showing no significant change in the optical thickness. Injecting the solution of antibacterial polymer into the cuvette a fast increase of the layer thickness was observed. After reaching a maximum value (at about 70 min) the optical thickness, interestingly, started to decrease while still injecting the polymer solution into the cuvette. A Q value close to the optical thickness of the pure lipid bilayer was reached at about 150 min. The continuously decreasing tendency of the optical thickness has stopped when pure buffer was flowed into the cuvette and Q seemed to be well stabilized (see Figure 1).

The change in optical thickness represents an overall signal characterizing the surface layer during bilayer formation and lipid-polymer interaction, but does not reveal the fine details of the surface processes. Several interesting questions arise especially looking at part of the curve in Figure 1 following the injection of the antibacterial polymer, where both the lipid and polymer are present at the surface. For instance, it would be important to know how the exact composition of the surface layer changes. A further question might be whether the lipid bilayer is displaced by the antibacterial polymer or remains intact after desorption of the firstly adsorbed polymer. These questions, which cannot be answered by investigating the variation in optical thickness only, are in the focus of the present study.

2.1. Isotropic Adlayer Model

In order to obtain a deeper insight into the structure of the dynamically changing surface film the thickness (A) and refractive index (ñA) obtained from the homogeneous and isotropic optical adlayer [61,63] were calculated. These data are plotted in Figure 2. It seems that incorrect values were obtained for both layer thickness and refractive index in several intervals of the process. First, the layer thickness of the pure bilayer is strongly overestimated, having values around 50–60 nm in contrast to the real thickness of about 5 nm determined by neutron scattering [10,40]. Moreover, the refractive index close to 1.6, obtained for the film following polymer injection, seems also to be too high [10]. From that we can conclude that the homogeneous and isotropic adlayer model failed to characterize the film.

It should be emphasized that the unrealistic values obtained are in close connection with the anisotropic nature of the film [10,46,63]. Films with structural ordering are usually optically anisotropic [65]. Theoretical calculations showed that the optical birefringence in a layer results in unrealistic thickness and refractive index values when the film is modeled as isotropic [63]. Overestimated quasi-isotropic thickness linked to underestimated quasi-isotropic refractive index (at 4–56 min in Figure 2) originates from positive birefringence (ne > no), when refractive index perpendicular to the substratum (ne) is larger than the index parallel to the substratum (no). This result on the positive birefringence of the lipid bilayer is in fine agreement with earlier studies of lipid membranes performed with DPI, CPWR techniques [10,43,49]. On the other hand, the overestimated refractive index value is a clear sign of negative birefringence (ne < no) in the surface layer. The above findings already suggest that, remarkably, the optical anisotropy of the surface layer changes its sign as a result of the interaction of the lipid bilayer with the antibacterial polymer (see Figure 2). It should be noted that the above errors in quasi-isotropic thickness and refractive index compensate each other and hence the determined optical thickness value [Q = (ñAnC)A] is quite accurate [63].

2.2. Anisotropic Adlayer Model

To understand deeper the interaction of the antibacterial polymer with the lipid bilayer the optical data determined in the course of lipid/polymer deposition experiment were analyzed by adapting an anisotropic optical layer model [46,63,66]. The anisotropy of the surface deposited layer is defined as the refractive index value perpendicular to the surface (extraordinary, ne) minus the refractive index experienced parallel to the surface (ordinary, no), i.e., neno. The deposited film was therefore characterized by two refractive index values, and by its thickness, dA in this approach. During the anisotropic calculations, the averaged refractive index of the layer ( 2 n o 2 + n e 2 ) / 3 was constrained to 1.47 [10,66]. The optogeometrical parameters of the lipid bilayer obtained using the anisotropic layer model are displayed in Figure 3a. Positive birefringence was found for the lipid bilayer in accordance with the prediction of the above quasi-isotropic analysis. Its value is 0.026 being in reasonable agreement with DPI measurements of Masaghi et al. [10]. The calculated thickness of the compact bilayer is 5.4 nm, similar to value reported previously [10,40].

The anisotropic optogeometrical parameters of the adsorbing antibacterial polymer film were also determined. The results are shown in Figure 3b. Negative birefringence was deduced (−0.06 at saturation) for antibacterial polymer film adsorbed on the bare waveguide surface, with a saturation layer thickness of 7.0 nm. The opposite value of the birefringence (compared to the lipid bilayer) is most probably due to difference in the preferred orientation of the highly polarizable C–C bonds in the layer. In contrast to the lipid chains being perpendicular to the solid surface, the polymer chains possibly are mostly parallel with the surface when they are taking up a flattened, extended surface conformation. A similar behavior was observed for surface adsorbed glycoproteins [66] and for denaturated bovine serum albumin spread on a ZrO2 surface [52].

The calculation based on the anisotropic model was conducted for the experiment when following the formation of lipid bilayer the solution of antibacterial polymer was injected into the OWLS cuvette. The resulted birefringence and layer thickness values are plotted in Figure 4. The layer thickness exhibits similar trend as the optical thickness does (Figure 1), dA first increased from 5.2 nm to about 8 nm, and turned to decrease back to a value of 5.8 nm due to the interaction with the antibacterial polymer (see Figure 4). The change of birefringence, however, provides new information on the property and composition of the surface layer. The appearance of antibacterial polymer decreased significantly the anisotropy of the layer, and this effect was continuous during the flow of polymer. At the end of flow of antibacterial polymer (t = 152 min) a negative value of the birefringence characterized the surface layer. This clearly shows that the ordered structure of lipid bilayer (with positive birefringence of 0.026) does not hold any more, the conformational structure of the molecules in the surface layer is getting closer to what was obtained for the adsorbed antibacterial polymer (negative birefringence of −0.06).

Considering the layer birefringence (which changed its sign) and thickness data it is suggested that the antibacterial polymer was first adsorbed on top of the compact bilayer (reaching a maximum value after 10 min) later, some parts of the lipid layer were slowly exchanged with the polymer.

2.3. Composite Model

We can get a deeper insight into the lipid bilayer-antibacterial polymer molecular interaction if we further analyze the optical data by introducing a composite/exchange model. This allows a mathematical treatment of the composite surface layer composed from purely lipid and purely polymer covered areas. The optogeometrical parameters were deduced from the parameters of the individual components building up the whole layer. During the calculations, we assume that the OWLS method averages the effective refractive index shifts caused by the pure lipid and pure polymer coatings on the surface. This type of averaging of the measuring method was first revealed by Cottier and Horvath using numerical simulations based on the Local Interference Method (LIME) [67]. The straightforward calculations result in the following simple equation for the TE polarization:

( n o 2 - n C 2 ) d A = Θ ( + ) ( n o , ( + ) 2 - n C 2 ) d ( + ) + Θ ( - ) ( n o , ( - ) 2 - n C 2 ) d ( - )

where Θ(+)and Θ(−) are the surface coverages of the positively birefringent and negatively birefringent films, respectively. (By definition, the coverage is the area covered by the given component divided by the total sensor area.) no,(+) and d(+) are the ordinary refractive index and thickness of the positively birefringent component, while no,(−) and d(−) are the ordinary refractive index and thickness of the negatively birefringent film component. For simplicity, the following approximation was used to calculate the extraordinary refractive index of the composite film ne from the extraordinary refractive indices of the positively and negatively anisotropic film components; ne,(+) and ne,(−), respectively:

( n e 2 - n C 2 ) d A = Θ ( + ) ( n e , ( + ) 2 - n C 2 ) d ( + ) + Θ ( - ) ( n e , ( - ) 2 - n C 2 ) d ( - )

Therefore, by taking the refractive index and thickness values of the pure lipid and polymer films (from Figure 3a,b) and using Equations (1) and (2) the surface coverages of the lipid and polymer covered areas can be calculated. The analysis is therefore based on the different birefringent properties of the two film forming components, Θ(+) relates to the relative area of the sensor surface which is covered by lipid-like material, showing positive birefringence, while Θ(−) represents the area covered by polymer-like molecules showing negative birefringence. It is important to note that Θ(+) + Θ(−) is not necessarily equal to one. If the (fraction of the) chip surface is covered by lipid bilayer and by adsorbed polymer on top as a second layer, the sum of the two coverages must be above one. (For example, Θ (+) = 2 with Θ(− ) = 0 would mean a second lipid bilayer on top of the first one.)

The calculated coverages for the lipid bilayer-polymer deposition process are shown in Figure 5. Looking at the lipid deposition period (until 56 min) the introduced composite model predicts what is expected, Θ(−) = 0 during the whole liposome rupture process, while Θ(+) gradually increases and saturates at 1, indicating the formation of a compact bilayer.

It is seen that injecting the antibacterial polymer at 56 min the coverage by polymer-like molecules Θ(−) starts to increase, while at 64 min saturates and then increases again. The lipid-like coverage, Θ (+), surprisingly, shows a significant increase in the first period of injection of polymer. Afterwards a strong gradual decrease was detected.

It is interesting to note that the saturation of Θ(−) finishes as Θ(+) starts to decrease (at around 64 min). The above data suggest that the polymer adsorbs on top of the lipid bilayer at the beginning of the interaction process and this adsorption presents a significant contribution not only to the appearance of polymer-like, negatively birefringent component Θ(−), but also to the component with positive birefringent property. That means that the polymer deposited on the top of lipid bilayer must adopt a different conformation than the conformation measured on polymer adsorbed on the bare surface (see conformation scheme in Figure 3b). The perpendicular orientation of alkyl chains to the surface while penetrating into the lipid bilayer is in agreement with this finding (see Figure 6.)

The change in coverages with opposite sign, which is valid in the main part of interaction between 70 and 150 min, corresponds to the partial exchange of the lipid bilayer with the antibacterial polymer. Only after penetrating into the lipid bilayer and forcing the lipid to leave the surface, there is enough space to contact with the bare surface for the polymer and to take up its negatively birefringent extended conformation.

At the end of the interaction and exchange, the coverage of the lipid-like, positively birefringent component is around 40% while the area for the negatively birefringent, polymer like component is 80%. The total coverage is above 100% (see Figure 5). This is clearly suggesting the existence of a multilayered surface area, existing together with the purely lipid covered and purely polymer covered areas. Either some polymers are still covering some parts of the lipids in a conformation with a positive birefringence, or some polymer did not have enough space to take up its fully extended conformation on the bare surface (see Figure 6). Both scenarios would increase the calculated values of the positively anisotropic areas. Therefore, one can conclude that the purely lipid bilayer covered areas are less than 40% at the end of the measurement.

3. Experimental Section

3.1. Materials

The antibacterial polymer was prepared by functionalization of branched poly(ethylene imine), PEI. The primary amino groups of branched PEI (BASF, Mw: 25,000) were substituted by a quaternary ammonium iodide salt (QI), a poly(ethylene oxide) (PEO, Mw: 1000) derivative (J), and octyl chains (A8) in a well-defined ratio obtaining a polymer with composition of PEI25QI5J5A815. Details of the synthesis and physico-chemical characterization of the polymer were given previously [20].

1-Palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine (POPC) was used to prepare unilamellar lipid vesicles (smaller than 100 nm in diameter), which adsorb and spread on the waveguide’s surface to form the solid supported bilayer [58,59].

3.2. OWLS Measurement

Formation of supported lipid bilayer and the study of the effect of antibacterial polymer in contact with that were performed in the flow cell of the OWLS instrument. At first, a grating coupler waveguide sensor chip (OW2400, MicroVacuum, Ltd., Budapest, Hungary) was inserted into the OWLS instrument (BIOS MicroVacuum, Ltd., Budapest, Hungary) capable to record the effective refractive indices of the modes of the waveguide [6062] with a precision of 10−6. The effective refractive indices of the zeroth order transverse electric (TE) and transverse magnetic (TM) polarized modes were saved at every 11.3 s for subsequent data analysis.

To be able to apply the various solutions a PEEK flow-through cuvette with a Kalrez O-ring was placed on top of the waveguide. Pure buffer (saline solution with ionic strength: 0.30, pH = 7.4, NaCl concentration of 0.15 M and with 2 mM CaCl2) without lipid vesicles was injected into the cuvette with a flow rate of 2 μL/s using a peristaltic pump (Ismatec, Wertheim, Germany). After getting a stable baseline lipid vesicle suspension was introduced. Following the formation of lipid bilayer buffer flow was applied again to obtain stable condition. Then the solution of the antibacterial polymer was introduced and its flow was maintained for app. 90 min when a buffer was flowed for about 20 min.

4. Conclusions

Summing up, the interaction of the antibacterial PEI25QI5J5A815 polymer with solid supported lipid (POPC) bilayers was investigated using OWLS. As an extension of the analysis of the parameters determined by OWLS technique the optical birefringence of the ordered molecular layer is deduced. That allows for following of the perturbation of the membrane architecture in situ by recording the change in optical anisotropy of the surface layer, associated with structural ordering in the film. It was found that the compact lipid bilayer has positive birefringence. The optical birefringence of the antibacterial polyelectrolyte layer adsorbed on the bare surface was also investigated and proved to be negative, opposite to that of the lipid bilayer. Based on this experimental finding a composite optical model was set up in order to deduce the birefringence of the surface layer during the interaction and exchange of the lipid bilayer with the polyelectrolyte. Using the developed model the composition of the lipid-polyelectrolyte surface layer as well as the displacement of lipid bilayer by the antibacterial polyelectrolyte can be estimated without using any additional labeling. This type of information can contribute to the understanding the mechanism of antibacterial effects leading to the disintegration of cell membranes in a more detailed way. Furthermore, the composite model provides an efficient tool in general to analyze molecular interactions of components with different optical anisotropy.

Acknowledgments

RH acknowledges the financial support from the Hungarian Scientific Research Fund and from the Marie Curie Actions of the European Commission (OTKA PD73084 and OPTICELL). This work was also supported by a Lendület grant of the Hungarian Academy of Sciences. Support from National Science Foundation OTKA 104928 is acknowledged. This work is part of the NMP Project NanoBond which is funded by the European Commission (Grant agreement No. CP-TP 228490-2; 7th Framework Programme) ( www.nanobond.org). The financial support by the European Commission is gratefully acknowledged.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Ambroggio, E.E.; Bagatolli, L.A.; Goormaghtigh, E.; Fominaya, J.; Gasset, M. Piercing Lipid Bilayers with Peptides. In Advances in Planar Lipid Bilayers and Liposomes; Leitmannova Liu, A., Ed.; Elsevier: Amsterdam, The Netherlands, 2007; Volume 5, pp. 1–23. [Google Scholar]
  2. Munoz-Bonilla, A.; Fernandez-Garcia, M. Polymeric materials with antimicrobial activity. Progr. Polym. Sci 2012, 37, 281–339. [Google Scholar]
  3. Papareddy, P.; Mörgelin, M.; Walse, B.; Schmidtchen, A.; Malmsten, M.J. Antimicrobial activity of peptides derived from human β-amyloid precursor protein. Pept. Sci 2012, 18, 183–191. [Google Scholar]
  4. Pelegrini, P.B.; Perseghini del Sarto, R.; Silva, O.N.; Franco, O.L. Grossi-de-Sa1, M.F. Antibacterial peptides from plants: What they are and how they probably work. Biochem. Res 2011. [Google Scholar] [CrossRef]
  5. Rossetti, F.F.; Reviakine, I.; Csucs, G.; Assi, F.; Voros, J.; Textor, M. Interaction of poly(l-lysine)-g-poly(ethylene glycol) with supported phospholipid bilayers. Biophys. J 2004, 87, 1711–1721. [Google Scholar]
  6. Zdyrko, B.; Klep, V.; Li, X.; Kang, Q.; Minko, S.; Wen, X.; Luzinov, I. Polymer brushes as active nanolayers for tunable bacteria adhesion. Mat. Sci. Eng. C Mater. Biol. Appl 2009, 29, 680–684. [Google Scholar]
  7. Ang, P.K.; Loh, K.P.; Wohland, T.; Nesladek, M.; Van Hove, E. Supported lipid bilayer on nanocrystalline diamond: Dual optical and field-effect sensor for membrane disruption. Adv. Funct. Mater 2009, 19, 109–116. [Google Scholar]
  8. Kuhn, P.; Eyer, K.; Allner, S.; Lombardi, D.; Dittrich, P.S. A microfluidic vesicle screening platform: Monitoring the lipid membrane permeability of tetracyclines. Anal. Chem 2011, 83, 8877–8885. [Google Scholar]
  9. Leung, S.J.; Kachur, X.M.; Bobnick, M.C.; Romanowski, M. Wavelength-selective light-induced release from plasmon resonant liposomes. Adv. Funct. Mater 2011, 21, 1113–1121. [Google Scholar]
  10. Mashaghi, A.; Swann, M.; Popplewell, J.; Textor, M.; Reimhult, E. Optical anisotropy of supported lipid structures probed by waveguide spectroscopy and its application to study of supported lipid bilayer formation kinetics. Anal. Chem 2008, 80, 3666–3676. [Google Scholar]
  11. Roiter, Y.; Ornatska, M.; Rammohan, A.R.; Balakrishnan, J.; Heine, D.R.; Minko, S. Interaction of nanoparticles with lipid membrane. Nano Lett 2008, 8, 941–944. [Google Scholar]
  12. Rossetti, F.F.; Textor, M.; Reviakine, I. Asymmetric distribution of phosphatidyl serine in supported phospholipid bilayers on titanium dioxide. Langmuir 2006, 22, 3467–3473. [Google Scholar]
  13. Brogden, K. Antimicrobial peptides: Pore formers of metabolic inhibitors in bacteria? Nat. Rev. Microbiol 2005, 3, 238–250. [Google Scholar]
  14. Chen, X.; Chen, Z. SFG Studies on Interactions between antimicrobial peptides and supported lipid bilayers. Biochim. Biophys. Acta 2006, 1758, 1257–1273. [Google Scholar]
  15. Helander, I.M.; Alakomi, H.; Latva-Kala, K.; Koski, P. Polyethyleneimine is an effective permeabilizer of gram-negative bacteria. Microbiology 1997, 143, 3193–3199. [Google Scholar]
  16. Shai, Y. Mechanism of the binding, insertion and destabilization of phospholipid bilayer membranes by alpha-helical antimicrobial and cell non-selective membrane-lytic peptides. Biochim. Biophys. Acta 1999, 1462, 55–70. [Google Scholar]
  17. Kenawy, E-R.; Worley, S.D.; Broughton, R. The Chemistry and applications of antimicrobial polymers: A state-of-the-art review. Biomacromolecules 2007, 8, 1359–1384. [Google Scholar]
  18. Lin, J.; Shuyi, Q.; Lewis, K.; Klibanov, A.M. Bactericidal properties of flat surfaces and nanoparticles derivatized with alkylated polyethylenimines. Biotechnol. Progr 2002, 18, 1082–1086. [Google Scholar]
  19. Lin, J.; Shuyi, Q.; Lewis, K.; Klibanov, A.M. On the mechanism of bactericidal and fungicidal activities of textiles covalently modified with alkylated polyethylenimine. Biotechnol. Bioeng 2003, 83, 168–172. [Google Scholar]
  20. Pasquier, N.; Keul, H.; Heine, E.; Moeller, M. From multifunctionalized poly(ethylene imine)s toward antimicrobial coatings. Biomacromolecules 2007, 8, 2874–2882. [Google Scholar]
  21. Werner, C. Polymers to permeate lipid bilayer membranes. Express Polym. Lett 2011, 5, 753. [Google Scholar]
  22. Fan, L.; Cao, M.; Gao, S.; Wang, W.; Peng, K.; Tan, C.; Wen, F.; Tao, S.; Xie, W. Preparation and characterization of a quaternary ammonium derivative of pectin. Carbohydr. Polym 2012, 88, 707–712. [Google Scholar]
  23. Wang, J.; Hu, W.; Liu, Q.; Zhang, S. Dual-functional composite with anticoagulant and antibacterial properties based on heparinized silk fibroin and chitosan. Colloids Surf. B 2011, 85, 241–247. [Google Scholar]
  24. Adelmann, R.; Mennicken, M.; Popescu, D.; Heine, E.; Keul, H.; Moeller, M. Functional polymethacrylates as bacteriostatic polymers. Eur. Polym. J 2009, 45, 3093–3107. [Google Scholar]
  25. Kenawy, E.-R.; Mahmoud, Y.A.-G. Biologically active polymers 6. Macromol. Biosci 2003, 3, 107–116. [Google Scholar]
  26. Waschinski, C.J.; Herdes, V.; Schueler, F.; Tiller, J.C. Influence of satellite groups on telechelic antimicrobial functions of polyoxazolines. Macromol. Biosci 2005, 5, 149–156. [Google Scholar]
  27. Kiss, É.; Heine, E.T.; Hill, K.; He, Y.-C.; Keusgen, N.; Pénzes, C.B.; Schnöller, D.; Gyulai, G.; Mendrek, A.; Keul, H.; et al. Membrane affinity and antibacterial properties of cationic polyelectrolytes with different hydrophobicity. Macromol. Biosci 2012, 12, 1181–1189. [Google Scholar]
  28. Pasquier, N.; Keul, H.; Heine, E.; Moeller, M.; Angelov, B.; Linser, S.; Willumeit, R. Amphiphilic branched polymers as antimicrobial agents. Macromol. Biosci 2008, 10, 903–915. [Google Scholar]
  29. Chen, X.; Tang, H.; Even, M.A.; Wang, J.; Tew, G.N.; Chen, Z.J. Observing a molecular knife at work. Am. Chem. Soc 2006, 128, 2711–2714. [Google Scholar]
  30. El Kirat, K.; Morandat, S.; Dufrêne, Y.F. Nanoscale analysis of supported lipid bilayers using atomic force microscopy. Biochim. Biophys. Acta 2010, 1798, 750–765. [Google Scholar]
  31. Shaw, J.E.; Alattia, J.-R.; Verity, J.E.; Privé, G.G.; Yip, C.M.J. Nanoscale analysis of supported lipid bilayers using atomic force microscopy. Struct. Biol 2006, 154, 42–58. [Google Scholar]
  32. Huang, W.; Zhang, Z.; Han, X.; Wang, J.; Tang, J.; Dong, S.; Wang, E. Concentration-dependent behavior of nisin interaction with supported bilayer lipid membrane. Biophys. Chem 2002, 99, 271–279. [Google Scholar]
  33. Chekmenev, E.Y.; Jones, S.M.; Nikolayeva, Y.N.; Vollmar, B.S.; Wagner, T.J.; Gorkov, P.L.; Brey, W.W.; Manion, M.N.; Daugherty, K.C.; Cotten, M.J. High-field NMR studies of molecular recognition and structure—Function relationships in antimicrobial piscidins at the water—Lipid bilayer interface. Am. Chem. Soc 2006, 128, 5308–5309. [Google Scholar]
  34. Rozek, A.; Friedrich, C.L. Structure of the bovine antimicrobial peptide indolicidin bound to dodecylphosphocholine and sodium dodecyl sulfate micelles. Biochemica 2000, 39, 15765–15774. [Google Scholar]
  35. Ha, T.H.; Kim, C.H. Interaction of indolicidin with model lipid bilayer: Quartz crystal microbalance and atomic force microscopy study. Langmuir 2000, 16, 871–875. [Google Scholar]
  36. Morandi, S.; Puggelli, M.; Caminati, G. Antibiotic association with phospholipid nano-assemblies: A comparison between Langmuir–Blodgett films and supported lipid bilayers. Colloids Surf A 2008, 321, 125–130. [Google Scholar]
  37. Mozsolits, H.; Wirth, H.-J.; Werkmeister, J.; Aguilar, M.I. Surface plasmon resonance spectroscopy: An emerging tool for the study of peptide–membrane interactions. Biochim. Biophys. Acta 2001, 1512, 64–76. [Google Scholar]
  38. Zhao, H.; Mattila, J.P. Comparison of the membrane association of two antimicrobial peptides, magainin 2 and indolicidin. Biophys. J 2001, 81, 2979–2991. [Google Scholar]
  39. Bahng, M.K.; Cho, N.J. Interaction of indolicidin with model lipid bilayers: FTIR-ATR spectroscopic study. Langmuir 1998, 14, 463–70. [Google Scholar]
  40. Hirst, D.J.; Lee, T-H.; Swann, M.J.; Unabia, S.; Park, Y.; Hahm, K.S.; Aguilar, M.I. Effect of acyl chain structure and bilayer phase state on binding and penetration of a supported lipid bilayer by HPA3. Eur. Biophys. J 2011, 40, 503–514. [Google Scholar]
  41. Lee, T.-H.; Heng, C.; Swann, M.J.; Gehman, J.D.; Separovic, F.; Aguilar, M.I. Real-time quantitative analysis of lipid disordering by aurein 1.2 during membrane adsorption, destabilisation and lysis. Biochim. Biophys. Acta 2010, 1798, 1977–1986. [Google Scholar]
  42. Alves, I.D.; Salgado, G.F.J.; Salamon, Z.; Brown, M.F.; Tollin, G.; Hruby, V.J. Phosphatidylethanolamine enhances rhodopsin photoactivation and transducin binding in a solid supported lipid bilayer as determined using plasmon-waveguide resonance spectroscopy. Biophys. J 2005, 88, 198–210. [Google Scholar]
  43. Salamon, Z.; Tollin, G. Optical anisotropy in lipid bilayer membranes: Coupled plasmon-waveguide resonance measurements of molecular orientation, polarizability, and shape. Biophys. J 2001, 80, 1557–1567. [Google Scholar]
  44. Csúcs, G.; Ramsden, J.J. Interaction of phospholipid vesicles with smooth metal-oxide surfaces. Biochim. Biophys. Acta Biomembr 1998, 1369, 61–70. [Google Scholar]
  45. Csúcs, G.; Ramsden, J.J. Solubilization of planar bilayers with detergent. Biochim. Biophys. Acta Biomembr 1998, 1369, 304–308. [Google Scholar]
  46. Horvath, R.; Fricsovszky, G.; Papp, E. Application of the optical waveguide lightmode spectroscopy to monitor lipid bilayer phase transition. Biosensors Bioelectron 2003, 18, 415–428. [Google Scholar]
  47. Michielin, O.; Ramsden, J.J.; Vergeres, G. Unmyristoylated MARCKS-related protein(MRP) binds to supported planar phosphatidylcholine membranes. Biochim. Biophys. Acta 1998, 1375, 110–116. [Google Scholar]
  48. Ramsden, J.J. Partial molar volume of solutes in bilayer lipid membranes. Phys. Chem 1993, 97, 4479–4483. [Google Scholar]
  49. Ramsden, J.J. Molecular orientation in lipid bilayers. Phil. Mag. B 1999, 79, 381–386. [Google Scholar]
  50. Sugihara, K.; Delai, M.; Szendrő, I.; Guillaume-Genti, O.; Vörös, J.; Zambelli, T. Simultaneous OWLS and EIS monitoring of supported lipid bilayers with the pore forming peptide melittin. Sensors Actuator B 2012, 161, 600–606. [Google Scholar]
  51. Vörös, J.; Ramsden, J.J.; Csúcs, G.; Szendrő, I.; de Paul, S.M.; Textor, M.; Spencer, N.D. Optical grating coupler biosensors. Biomaterials 2002, 23, 3699–3710. [Google Scholar]
  52. Aggarwal, N.; Lawson, K.; Kershaw, M.; Horvath, R.; Ramsden, J.J. Protein adsorption on heterogeneous surfaces. Appl. Phys. Lett 2009, 94, 083110. [Google Scholar]
  53. Du, Y.Z.; Saavedra, S.S. Molecular orientation distributions in protein films. v. Cytochrome cadsorbed to a sulfonate-terminated, self-assembled monolayer. Langmuir 2003, 19, 6443–6448. [Google Scholar]
  54. Fang, Y. Label-free cell-based assays with optical biosensors in drug discovery. Assay Drug Dev. Tech 2006, 4, 583–595. [Google Scholar]
  55. Kozma, P.; Hamori, A.; Kurunczi, S.; Cottier, K.; Horvath, R. Grating coupled optical waveguide interferometer for label-free biosensing. Sensors Actuator B 2011, 155, 446–450. [Google Scholar]
  56. Runge, A.F.; Mendes, S.B.; Saavedra, S.S.J. Order parameters and orientation distributions of solution adsorbed and microcontact printed cytochrome c protein films on glass and ITO. Phys. Chem. B 2006, 110, 6732–6739. [Google Scholar]
  57. Runge, A.F.; Rasmussen, N.C.; Saavedra, S.S. Determination of anisotropic optical constants and surface coverage of molecular films using polarized visible ATR spectroscopy. Application to adsorbed cytochrome c films. J. Phys. Chem. B 2005, 109, 424–431. [Google Scholar]
  58. Merz, Ch.; Knoll, W.; Textor, M.; Reimhult, E. Formation of supported bacterial lipid membrane mimics. Biointerphases 2008, 3, FA41–FA50. [Google Scholar]
  59. Seantier, B.; Kasemo, B. Influence of mono-and divalent ions on the formation of supported phospholipid bilayers via vesicle adsorption. Langmuir 2009, 25, 5767–5772. [Google Scholar]
  60. Ramsden, J.J. Review of new experimental techniques for investigating random sequential adsorption. Statist. Phys 1993, 73, 853–877. [Google Scholar]
  61. Tiefenthaler, K.; Lukosz, W.J. Sensitivity of grating couplers as integrated-optical chemical sensors. Opt. Soc. Am. B 1989, 6, 209–220. [Google Scholar]
  62. Ramsden, J.J. Proteins at Solid-Liquid Interfaces. In Principles and Practice; Déjardin, P., Ed.; Springer-Verlag: Heidelberg, Germany, 2006; pp. 23–49. [Google Scholar]
  63. Horvath, R.; Ramsden, J.J. Quasi-isotropic analysis of anisotropic thin films on optical waveguides. Langmuir 2007, 23, 9330–9334. [Google Scholar]
  64. De Feijter, J.A.; Benjamins, J.; Veer, F.A. Ellipsometry as a tool to study the adsorption behavior of synthetic and biopolymers at the air–water interface. Biopolymers 1978, 17, 1759–1772. [Google Scholar]
  65. Born, M.; Wolf, E. Principles of Optics, 7th ed; Cambridge University Press: Cambridge, UK, 1999. [Google Scholar]
  66. Horvath, R.; McColl, J.; Yakubov, G.E.; Ramsden, J.J. Structural hysteresis and hierarchy in adsorbed glycoproteins. Chem. Phys 2008, 129, 071102. [Google Scholar]
  67. Cottier, K.; Horvath, R. Imageless microscopy of surface patterns using optical waveguides. Appl. Phys. B 2008, 91, 319–327. [Google Scholar]
Ijms 14 09722f1 1024

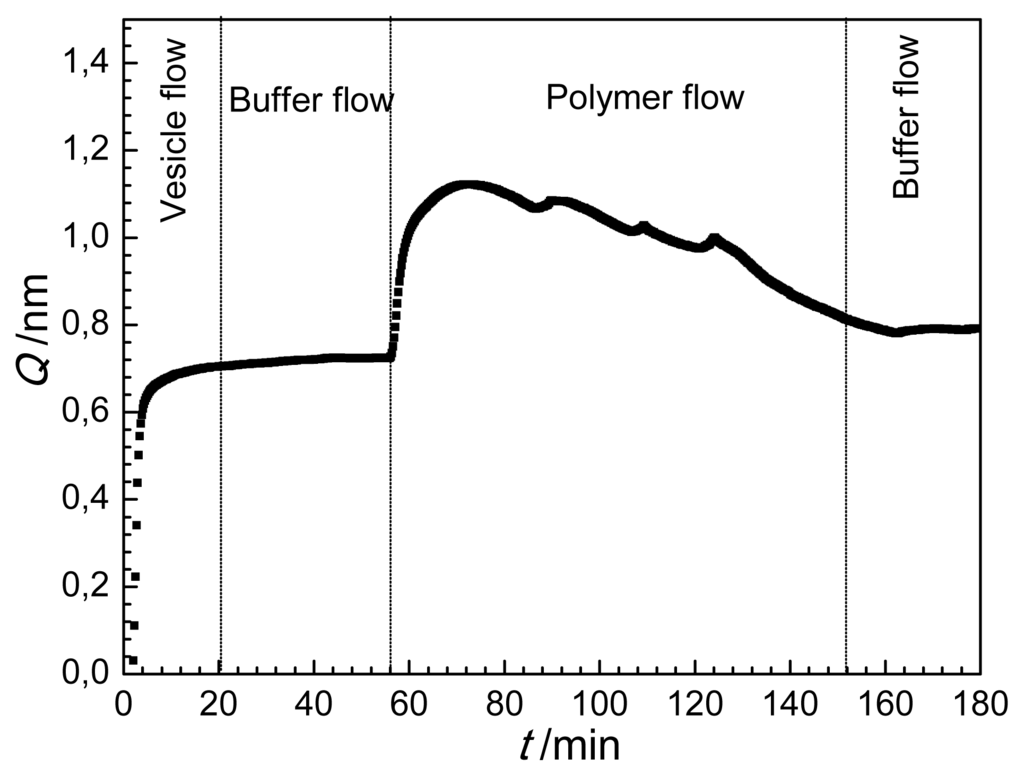

Figure 1. Optical thickness (Q) as a function of time (t) on the waveguide surface in the course of lipid vesicle/antimicrobial polymer deposition.

Click here to enlarge figure

Figure 1. Optical thickness (Q) as a function of time (t) on the waveguide surface in the course of lipid vesicle/antimicrobial polymer deposition.
Ijms 14 09722f1 1024
Ijms 14 09722f2 1024

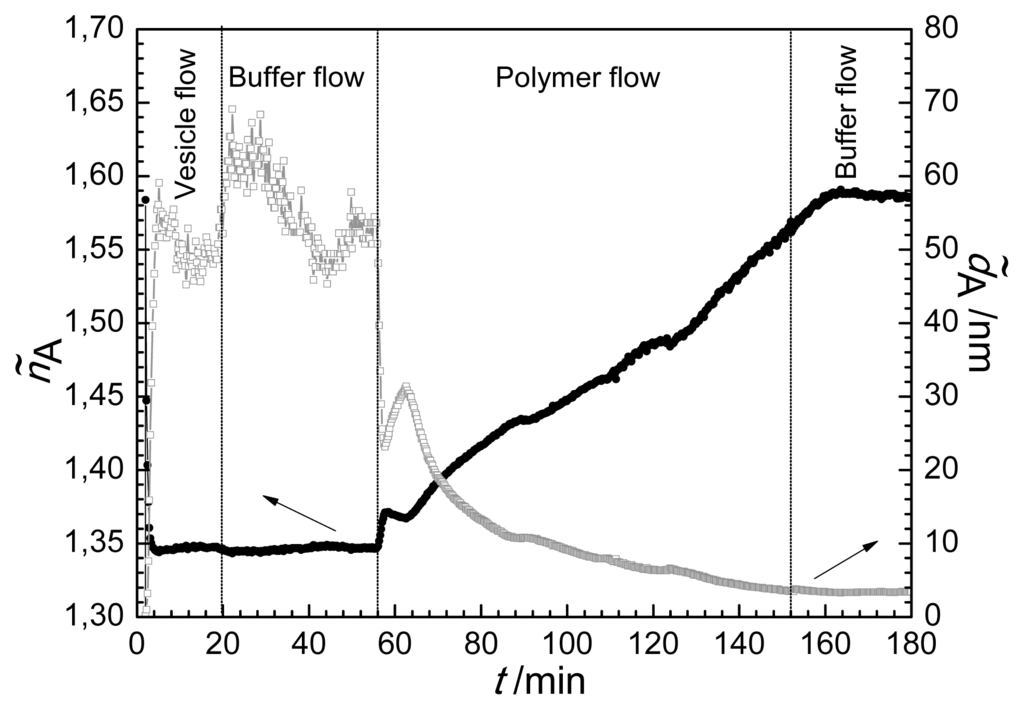

Figure 2. Refractive index (ñA) and layer thickness (A) during lipid vesicle/antimicrobial polymer insertion as a function of time (t) using the homogeneous and isotropic layer model (arrows indicate the axis of plotted data).

Click here to enlarge figure

Figure 2. Refractive index (ñA) and layer thickness (A) during lipid vesicle/antimicrobial polymer insertion as a function of time (t) using the homogeneous and isotropic layer model (arrows indicate the axis of plotted data).
Ijms 14 09722f2 1024
Ijms 14 09722f3a 1024

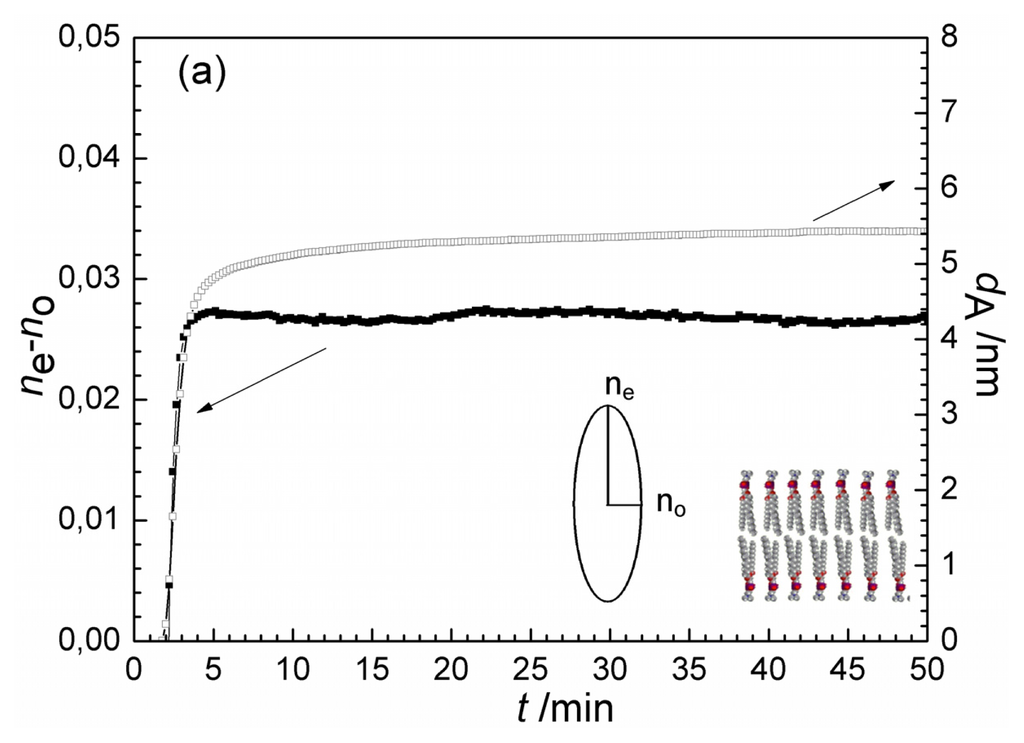

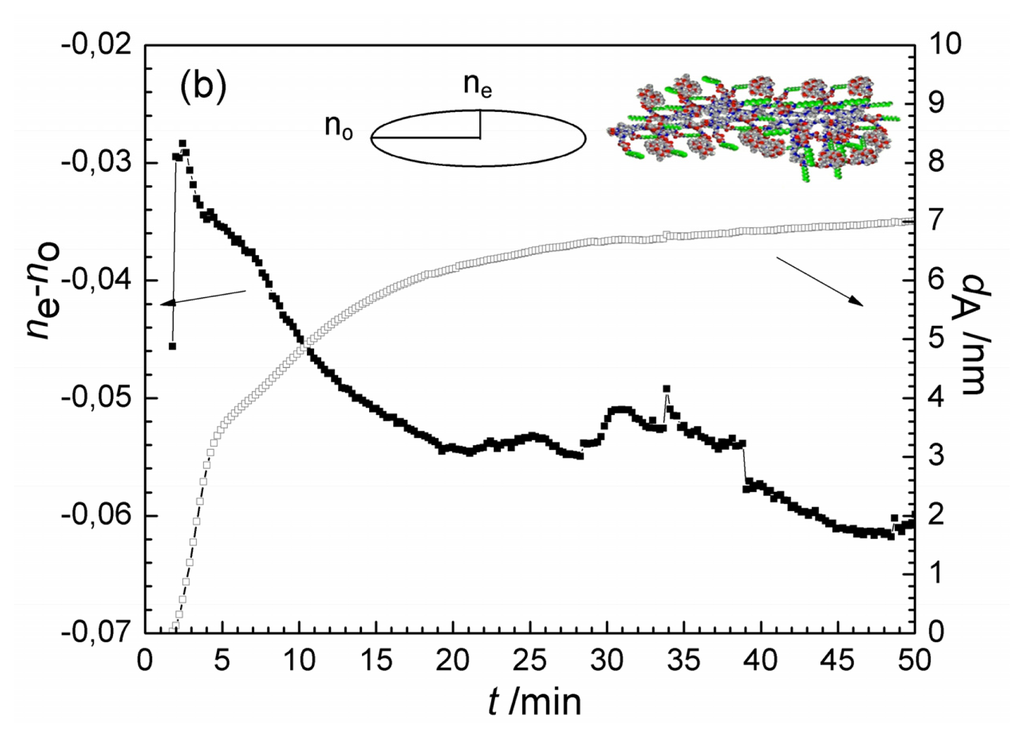

Figure 3. Birefringence (neno) and layer thickness, dA obtained during lipid bilayer formation (a) and adsorption of the antibacterial polymer; (b) using the anisotropic optical adlayer model (arrows indicate the axis of plotted data). The refractive index ellipsoids and the structure of the films are also shown.

Click here to enlarge figure

Figure 3. Birefringence (neno) and layer thickness, dA obtained during lipid bilayer formation (a) and adsorption of the antibacterial polymer; (b) using the anisotropic optical adlayer model (arrows indicate the axis of plotted data). The refractive index ellipsoids and the structure of the films are also shown.
Ijms 14 09722f3a 1024Ijms 14 09722f3b 1024
Ijms 14 09722f4 1024

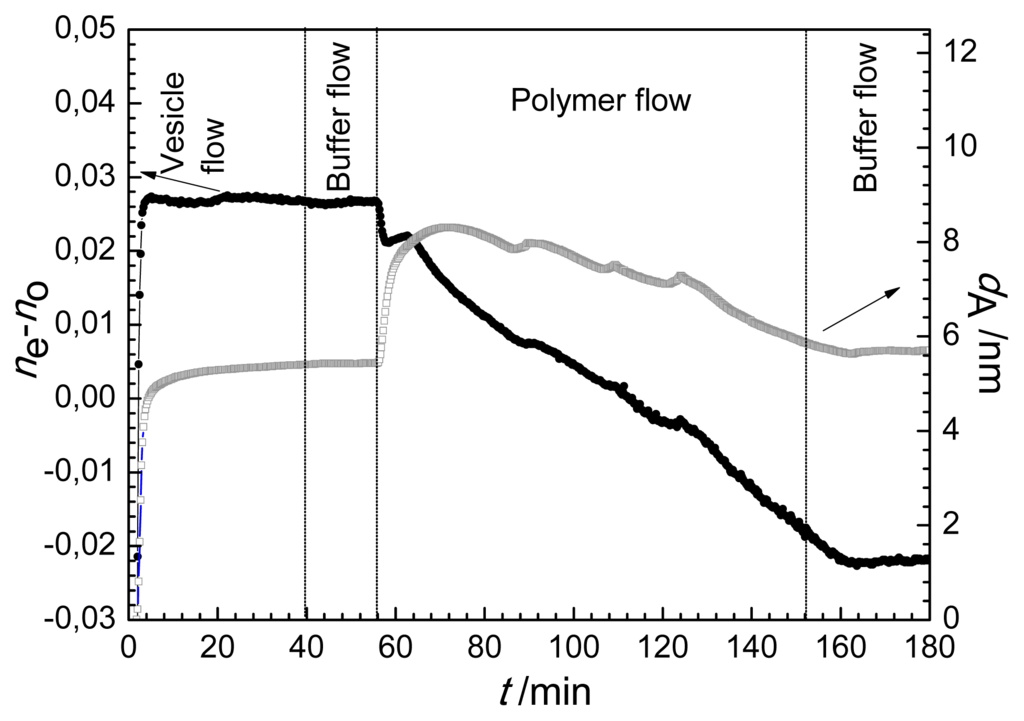

Figure 4. Birefringence (neno) and layer thickness, dA during lipid vesicle/antibacterial polymer insertion as a function of time (t) using the anisotropic optical layer model (arrows indicate the axis of plotted data).

Click here to enlarge figure

Figure 4. Birefringence (neno) and layer thickness, dA during lipid vesicle/antibacterial polymer insertion as a function of time (t) using the anisotropic optical layer model (arrows indicate the axis of plotted data).
Ijms 14 09722f4 1024
Ijms 14 09722f5 1024

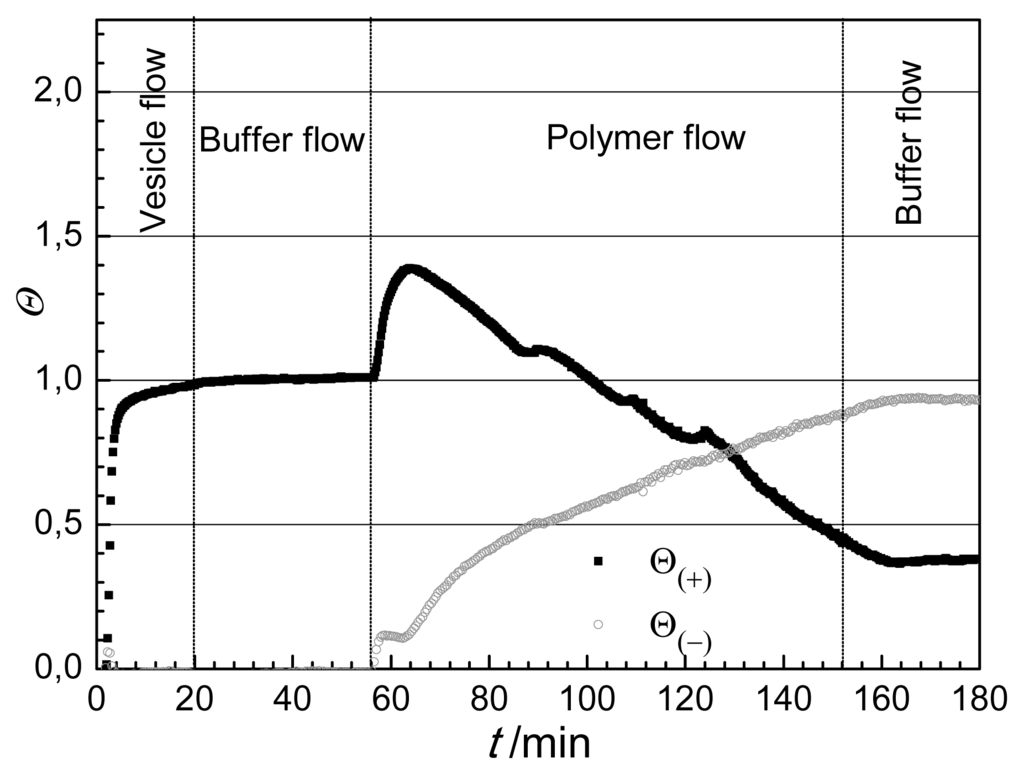

Figure 5. Surface coverages of lipid and polymer on the waveguide calculated from the composite model.
