Int. J. Mol. Sci. 2013, 14(5), 9459-9474; doi:10.3390/ijms14059459

Article
Improved Nutritive Quality and Salt Resistance in Transgenic Maize by Simultaneously Overexpression of a Natural Lysine-Rich Protein Gene, SBgLR, and an ERF Transcription Factor Gene, TSRF1
Meizhen Wang 1,2,, Chen Liu 1,, Shixue Li 1, Dengyun Zhu 1, Qian Zhao 1 and Jingjuan Yu 1,*
1
State Key Laboratory of Agrobiotechnology, College of Biological Sciences, China Agricultural University, No. 2 Yuanmingyuan West Road, Haidian District, Beijing 100193, China; E-Mails: mzwang1981@yahoo.com.cn (M.W.); liuchensh@yahoo.com.cn (C.L.); lishixue19890105@126.com (S.L.); zhudy@cau.edu.cn (D.Z.); zhaoqian@cau.edu.cn (Q.Z.)
2
Institute of Medicinal Plant Development, Chinese Academy of Medical Sciences & Peking Union Medical College, No. 151, Malianwa North Road, Haidian District, Beijing 100193, China
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed; E-Mail: yujj@cau.edu.cn; Tel./Fax: +86-10-6273-3462.
Received: 31 December 2012; in revised form: 16 April 2013 / Accepted: 16 April 2013 /
Published: 29 April 2013

Abstract

: Maize (Zea mays L.), as one of the most important crops in the world, is deficient in lysine and tryptophan. Environmental conditions greatly impact plant growth, development and productivity. In this study, we used particle bombardment mediated co-transformation to obtain marker-free transgenic maize inbred X178 lines harboring a lysine-rich protein gene SBgLR from potato and an ethylene responsive factor (ERF) transcription factor gene, TSRF1, from tomato. Both of the target genes were successfully expressed and showed various expression levels in different transgenic lines. Analysis showed that the protein and lysine content in T1 transgenic maize seeds increased significantly. Compared to non-transformed maize, the protein and lysine content increased by 7.7% to 24.38% and 8.70% to 30.43%, respectively. Moreover, transgenic maize exhibited more tolerance to salt stress. When treated with 200 mM NaCl for 48 h, both non-transformed and transgenic plant leaves displayed wilting and losing green symptoms and dramatic increase of the free proline contents. However, the degree of control seedlings was much more serious than that of transgenic lines and much more increases of the free proline contents in the transgenic lines than that in the control seedlings were observed. Meanwhile, lower extent decreases of the chlorophyll contents were detected in the transgenic seedlings. Quantitative RT-PCR was performed to analyze the expression of ten stress-related genes, including stress responsive transcription factor genes, ZmMYB59 and ZmMYC1, proline synthesis related genes, ZmP5CS1 and ZmP5CS2, photosynthesis-related genes, ZmELIP, ZmPSI-N, ZmOEE, Zmrbcs and ZmPLAS, and one ABA biosynthesis related gene, ZmSDR. The results showed that with the exception of ZmP5CS1 and ZmP5CS2 in line 9–10 and 19–11, ZmMYC1 in line 19–11 and ZmSDR in line 19–11, the expression of other stress-related genes were inhibited in transgenic lines under normal conditions. After salt treatment, the expressions of the ten stress-related genes were significantly induced in both wild-type (WT) and transgenic lines. However, compared to WT, the increases of ZmP5CS1 in all these three transgenic lines and ZmP5CS2 in line 9–10 were less than WT plants. This study provides an effective approach of maize genetic engineering for improved nutritive quality and salt tolerance.
Keywords:
Zea may L.; high lysine; high protein; salt tolerance; marker-free

1. Introduction

Maize (Zea mays L.), also known as corn, is one of the most widely cultivated crops in the world. It is mainly used as human food, livestock feed and industrial raw material. However, malnutrition is common in the countries, where corn is the sole or primary food source, due to the deficiency of essential amino acids, like lysine and tryptophan [1]. Actually, major efforts have been made to identify high-lysine corn varieties by genetic approaches since the mid-twentieth century. Opaque 2 (o2) is a natural high-lysine mutant, which has twice of the lysine content than in the normal maize [2]. However, several drawbacks were observed in this mutant, such as soft chalky endosperm [2]. Even though quality protein maize (QPM) has been produced by backcrossing of o2 modifier genes into o2 mutant [3], it is a lengthy progress (~30 years) that limits the spread of QPM. Genetic engineering technologies are also utilized aiming to increase lysine content by zein reduction [46]. Unfortunately, all these transgenic plants exhibit opaque kernel phenotypes, which were very similar to that of o2 mutant [46]. Moreover, increase of lysine content in corn grain has been achieved by manipulation of both lysine biosynthesis and metabolic pathways [7,8], including the commercialized high-lysine maize variety LY038 [9]. However, only free lysine content is significantly increased in these transgenic plants [8].

Recently, seed-specific expression of natural proteins with high-lysine concentration has been proved to be an effective approach to increase the lysine content of corn grain. Among them, milk proteins are attractive choice due to their balanced amino acid composition and good digestibility. As reported, lysine content is enhanced obviously in maize endosperm when expressing the milk protein, α-lactalbumin [10,11], whereas total protein content is not significantly different from negative kernels [11]. Liu et al. (1997) cloned a pollen-specific cDNA encoding a lysine-rich protein SB401 from potato [12]. In our previous studies, seed-specific expression of SB401 increases lysine content from 16.1% to 54.8%, and meanwhile, the total protein content is increased from 11.6% to 39.0% in T1 transgenic maize seeds, compared with the non-transgenic lines [13]. Thereafter, the natural lysine-rich protein gene SBgLR, homologous to SB401, was isolated from potato and transformed into maize, resulting in greater lysine and protein contents increase in transgenic maize [14]. It provides an effective way for maize quality improvement.

Environmental conditions, such as drought, salinity, extreme temperatures and pathogen attack, greatly affect plant growth, development and productivity. To survive under these conditions, plants have developed a series of defense responsive pathways [15]. In this signaling network, transcription factors play important roles through regulating expression of stress-related genes [16,17]. Ethylene responsive factor (ERF) proteins are a class of plant specific transcription factors, which have been reported to modulate plant development and multiple stress responses [1822]. It was found that ERF proteins could function not only in plant pathogen resistance by interacting with GCC-box (AGCCGCC) [2325], but also in abiotic resistance through interacting with the DRE element (CCGAC) [18,21,2628]. TSRF1, an ERF protein from tomato, can activate the expression of PR genes by binding to the GCC-box and positively regulates pathogen resistance in transgenic tomato and tobacco [29,30]. ABA enhances the binding of TSRF1 to GCC-box and modifies the pathogen resistance of transgenic tobacco [31]. In addition, TSRF1 negatively regulates the osmotic response in transgenic tobacco [30], but improves the osmotic and drought tolerance in transgenic rice, indicating different mechanisms of TSRF1 in dicots and monocots [32]. All these results suggest that genetic engineering of ERF transcription factor genes is an effective way to improve plant stress tolerance [33].

Genetically modified (GM) crops are the fast-adopted technology in agriculture [34]. It has increased to 29 countries growing GM crops in recent years [35]. However, intense debates have been addressed regarding the safety of GM crops to the environment and customers. Selectable marker genes, like herbicide or antibiotic resistance genes, are supposed to be dangerous, although there is no strong scientific evidence [36]. By far, various strategies to eliminate the selectable marker genes have been developed and successfully used, such as co-transformation, site-specific recombination, multi-autotransformation vector, transposition system and homologous recombination (see more in review [35]). For Agrobacterium-mediated co-transformation, there are three methods: (i) two different vectors carried by different Agrobacterium strains [37]; (ii) two different vectors in the same Agrobacterium strain [38] and (iii) one binary vector with twin T-DNAs [39]. For biolistic bombardment mediated co-transformation, two different plasmids were introduced into the same tissue [40,41]. Among them, co-transformation is widely used due to its simplicity. It can be carried out either by Agrobacterium-mediated transformation or by biolistic bombardment. Selectable marker genes and target genes are usually integrated into the separate loci and segregate independently in the subsequent generations [4244].

In this study, two plasmids containing the target genes, a lysine-rich protein gene, SBgLR, and an ERF transcription factor gene, TSRF1, and the selectable marker gene, Hpt, respectively, were introduced into maize elite inbred X178 embryogenic calli by particle bombardment. Marker-free transgenic maize lines were obtained. Further analysis revealed that both of the target genes were successfully expressed. Further, the lysine and protein content of transgenic maize seeds were detected and the stress tolerance was analyzed by measuring the free proline and chlorophyll contents. The results showed that transgenic lines had not only increased lysine and protein content, but also more tolerance to salt stress. Moreover, ten stress-related gene expression changes were analyzed using quantitative RT-PCR. Marker-free transgenic maize lines with high quality and stress resistance obtained in this research will be good materials for corn breeding.

2. Results and Discussion

2.1. TSRF1, but Not SBgLR Protein Has Homologs in Maize

To obtain marker-free transgenic maize inbred lines, immature embryogenic calli were transformed by particle bombardment-mediated co-transformation. In this system, two constructs pTSSB and pHpt were used. As is shown in Figure S1, pTSSB contains a potato lysine-rich protein gene, SBgLR, under the control of seed-specific promoter, 19Z, and a tomato ERF transcription factor gene, TSRF1, under the control of 35S constitutive promoter. The vector pHpt contains a selectable marker gene, Hpt, for hygromycin selection. By searching SBgLR protein sequence against the maize reference genome using the tBLASTn program [45,46], no homologs of SBgLR gene were identified (data not shown). However, two homologs for TSRF1 gene were found by similar method (Figure 1). The TSRF1 contains four motifs: an AP2/ERF domain, a CMIX-1 motif, a CMIX-3 motif and a CMIX-4 motif [32]. No ERF proteins containing all the four motifs of TSRF1 have been identified in the japonica rice genome by bioinformatic analysis [47]. To compare the structure of TSRF1 with its homologs in maize, we performed a multiple alignment using Clustal W ( http://www.ebi.ac.uk/Tools/clustalw2/index.html) [48]. In contrast to rice, the homologs of maize contain all the four conserved motifs (Figure 1). Therefore, we designed the specific primer pairs in the non-conserved region of TSRF1 for subsequent PCR and RT-PCR detection of transgenic lines (Table S1).

2.2. Generation of Transgenic Maize Inbred Lines

For co-transformation, two constructs pTSSB and pHpt mixture at a mole ratio of 1.5:1 were co-bombarded into maize embryogenic calli. Different stages of transformation were shown in Figure S2A–F. A total of 114 fertile plants were obtained and self-pollinated for seeds set. In order to confirm the integration of transgenes, we conducted PCR analysis for SBgLR, TSRF1 and Hpt genes. Partial results were shown in Figure S2G,H. Twenty-six transgenic lines positive for all three genes were identified. Transformation efficiency of 1.08% in this study was obtained (Table 1). Both target genes tend to insert into the same loci of one transgenic line. A similar result was reported in maize that an entire 10-member kafirin gene cluster was transformed into maize genome by particle bombardment method without gene silencing [49].

2.3. Overexpression of SBgLR and TSRF1 in Transgenic Maize

To test whether SBgLR and TSRF1 expressed in transgenic maize, we conducted semi-quantitative RT-PCR using cDNAs from T1 transgenic maize immature seeds at 22 days after pollination (DAP) and leaves as templates, respectively (Figure 2A,B). The results revealed that both SBgLR and TSRF1 were expressed in the progeny from 16 transgenic lines, and they showed various expression levels among different transgenic lines.

Water-soluble proteins were extracted from the immature seeds (20 DAP) of T1 generation of SBgLR and TSRF1 RT-PCR positive lines. Western blot was further carried out to confirm SBgLR protein accumulation in transgenic maize seeds (Figure 2C). Specific rabbit polyclonal antiserum against SBgLR at 1:400 was used. The predicted molecular mass of the SBgLR was 23 kD, whereas it was much larger (about 50 kD) after SDS/PAGE separation. This discrepancy was also observed in previous Western blot analysis of SBgLR and SB401 in transgenic maize [13,14]. Studies have shown that SB401 is a microtubule-associated protein and has a reduced mobility on SDS/PAGE [13,50], which is a common feature of microtubule-associated proteins [51,52]. In addition, it should be noted that two specific bands were observed in Western blot analysis of SBgLR (Figure 2C). The glycosylation site existed in the N-terminal of SBgLR may result in the reduction of mobility. However, further confirmation is needed. The transgenic lines with relative high SBgLR and TSRF1 expression levels were selected for subsequent nutritive quality and stress tolerance analysis.

2.4. Marker-Free Transgenic Lines Obtained by Segregation in T2 Generation

In the particle bombardment-mediated co-transformation system, marker gene elimination is dependent on the segregation of the target gene and selectable marker gene in the progeny. To examine whether the selectable marker gene Hpt was removed successfully, we performed genomic DNA dot blot to analyze T2 transgenic lines (Figure 3). Purified PCR fragments of SBgLR and Hpt were used as probes, respectively. The results indicated that segregation of target genes and Hpt occurred in T2 generation. Two transgenic lines 17 and 15 in R0 generation contained both target genes and selectable marker gene, but their corresponding T2 generation transgenic lines 17-8-3 and 15-9-1 harbored only target genes as highlighted by arrows. These results indicated that it is a feasible approach to obtain marker-free transgenic lines via particle bombardment mediated co-transformation.

2.5. SBgLR Enhanced Crude Protein and Lysine Contents in Transgenic Maize

Twenty kernels from each of the self-pollinated transgenic and non-transformed T1 plants were randomly selected and the lysine and protein contents were analyzed. The results showed that the lysine and protein contents in the seeds were increased at various levels in different transgenic maize lines. Compared to non-transformed maize, the increases of protein and lysine content ranged from 7.7% to 24.38% (Figure 4A) and from 8.70% to 30.43% (Figure 4B), respectively. Line 19–11 showed high SBgLR accumulation level (Figure 2C) and total protein content, but its lysine content was not analyzed, due to limited amount of seeds. Subsequently, we detected the lysine content of T2 transgenic seeds (Table S2). The result showed that the lysine contents in all these transgenic lines were increased. In addition, it should be noted that the lysine contents in T2 transgenic lines were increased to a much greater extent than in T1 generation, indicating much more protein and lysine accumulation, because the SBgLR gene became homozygous. However, more evidence is needed. These transgenics will be good materials in quality maize breeding programs.

2.6. TSRF1 Increased Salt Tolerance in Transgenic Maize

The overexpression of TSRF1 increases pathogen tolerance in tobacco and tomato [29] and drought resistance in rice [32]. To investigate whether TSRF1 have salt tolerance in transgenic maize, four-leaf stage seedlings of three transgenic lines were used for salt treatment. The result was shown in Figure 5A. Before treatment, these transgenic lines displayed similar growth situation as non-transformed control, suggesting that the expression and insertion of TSRF1 into maize genome did not influence the growth of transgenic lines. After treated in Hoagland solution containing 200 mM NaCl for 48 h, both non-transformed and transgenic plant leaves displayed wilting and losing green symptoms. However, the degree of control seedlings was much more serious than that of transgenic lines. All the leaves of control seedlings were wilting and rolling. However, the first and second new leaves were still flat and green in transgenic seedlings.

Proline was considered to be an osmoprotectant to protect plants against the damage resulting from abiotic stress [53]. Plants accumulate high level of proline under stress conditions to prevent the detrimental change. In addition, there is strong evidence that salt stress affects photosynthetic enzymes, chlorophyll and carotenoids in plants [54]. Therefore, we measured the free proline and chlorophyll content change in control and transgenic lines after salt treatment. As it is shown in Figure 5B, the free proline contents in control and transgenic seedlings were at similar level before treatment and increased dramatically after salt treatment. However, the proline content in the three transgenic lines increased at a much larger extent. Similarly, the chlorophyll content in transgenic seedlings decreased at a lower extent after salt treatment, indicating the more tolerance of TSRF1 overexpressing transgenic maize.

It was previously shown that the constitutive expression of TSRF1 enhanced rice salt and drought resistance by activating the expression of MYB, MYC, proline synthesis and photosynthesis-related genes [32]. Therefore, we further investigated whether TSRF1 affects the expression of these genes in maize. Ten genes were selected to be analyzed, and the results were shown in Figure 5C,D. The expressions of these genes were found to be different between transgenic lines. This might be due to the different transgenic lines with different target gene insertion sites and the expression levels of TSRF1. Under normal conditions, the expression level of ZmMYC1 in line 19–11, ZmP5CS11-pyrroline-5-carboxylate synthetase 1) and ZmP5CS21-pyrroline-5-carboxylate synthetase 2) in line 9–10 and 19–11 and ZmSDR (short-chain dehydrogenase/reductase) in line 19–11 were increased, while the expression of these four genes in other lines were inhibited. The other six genes, including stress responsive transcription factor genes—ZmMYB59—photosynthesis-related genes—ZmELIP (low molecular mass early light-inducible protein HV90), ZmPSI-N (photosystem I reaction center subunit N), ZmOEE (photosystem II oxygen-evolving complex protein), Zmrbcs (encoding ribulose 1, 5-bisphosphate carboxylase small subunit) and ZmPLAS (encoding plastocyanin)—were inhibited in all these three transgenic lines, which was different from that in rice [32]. This indicated that TSRF1 was probably involved in different regulatory pathways in maize from that in rice. Furthermore, we detected the expression changes of these genes in wild-type and transgenic lines after salt stress. As is shown in Figure 5C, the expression of all these ten genes were increased by 2–16-fold in wild-type after salt treatment, indicating the endogenous regulation of salt responsive genes. Intriguingly, much more fold accumulations of these genes were induced after salt stress in TSRF1 overexpressing lines. For example, the expression of Zmrbcs had increased as high as 171-, 111- and 110-fold in transgenic lines 9–10, 17–8 and 19–11, respectively, compared with wild-type. The sharp induction of photosynthesis-related genes (ZmELIP, Zmrbcs and ZmPSI-N) was consistent with the result of chlorophyll content change in Figure 5B. TSRF1 increases ABA sensitivity in tobacco [31,55] and rice [32]. SDR, an ABA biosynthesis related gene, was increased in TSRF1 overexpressing rice [32]. On the contrary, it was slightly suppressed in line 9–10 and 17–8 under normal condition. After salt treatment, surprisingly, TSRF1 triggered significant ZmSDR induction. All these results suggested the complicated interaction of TSRF1 and ABA in plants. The accumulation of transcription factor gene ZmMYB59 increased much more than ZmMYC1 in all the transgenic lines, demonstrating the different roles of stress responsive transcription factors in salt stress. They may induce different other downstream salt related genes. These results indicated the complexity mechanism of TSRF1 that involved in maize salt stress regulatory network.

Moreover, we noted that the expression levels of ZmP5CS1 and ZmP5CS2 were not or slightly increased in transgenic lines under salt condition, compared to wild-type, even though high level of proline accumulation was observed (Figure 5B,C). It is reported that the activity of P5CS, a key enzyme representing a rate-limiting step in proline biosynthesis, is regulated through feedback inhibition by proline [5659]. It is possible that a large amount of proline is synthesized at the early stage of salt stress and maintained this high level throughout the salty condition. Therefore, high activity of P5CS or high level of P5CS transcript might be not necessary for high proline content maintaining under salt condition.

3. Experimental Section

3.1. Plasmid Construction

Diagrams of two plasmids used in this study were shown in Figure S1. The plasmid pTSRF1 containing the TSRF1 expression cassette was kindly provided by Prof. Rongfeng Huang, Biotechnology Research Institute, China Academy of Agricultural Sciences (CAAS). The TSRF1 expression cassette was obtained by digesting pTSRF1 with BamHI and HindIII, blunt-ended with Klenow enzyme (Promega, Madison, WI, USA) and then inserted into the blunt-ended HindIII site of p19SB, harboring the SBgLR expression cassette. The plasmid pHpt was constructed by Wang et al. 2006 [44].

3.2. Plant Transformation and Detection

Maize inbred line X178, the male parent of the leading commercial cultivar Nongda108 in China, was grown in the test field and was self-pollinated. Embryogenic calli were induced from immature embryos at 10–12 DAP and transformed by particle bombardment, as described by Yu et al. 2004 [13].

For transgene detection, genomic DNA was extracted from leaf of transformed plants using SDS method [60], and PCR amplification was performed as follows: 95 °C for 10 min, 30 cycles of 95 °C for 30 s, 54 °C for 30 s and 72 °C for 30 s.

The expression of SBgLR and TSRF1 in transgenic plants was further determined by RT-PCR. Total RNA was extracted from immature seeds (22 DAP) and young leaves, respectively, using TRIzol reagent (Invitrogen, Carlsbad, CA, USA). The first strand of cDNA was synthesized according to the manufacturer’s protocol of Reverse Transcription System (Promega, Madison, WI, USA). Tubulin was used as the endogenous reference. PCR reactions were carried out for 5 min at 95 °C, followed by 25 cycles of 40 s at 94 °C, 40 s at 54 °C (SBgLR and TSRF1) or 52 °C (Tubulin), 40 s at 72 °C and a final extension of 10 min at 72 °C.

Genomic DNA dot blot analysis was used to detect marker-free progeny of T2 plants. Total genomic DNA was isolated from fresh leaves using the cetyl trimethyl ammonium bromide (CTAB) procedure [61]. A 10 μg aliquot of DNA was spotted onto nylon membrane (Amersham Pharmacia, Arlington Heights, IL, USA). Filters were hybridized using specific purified PCR fragments of SBgLR and Hpt, respectively, as described for Southern blot by Yu et al. 2004 [13]. The primer pair for Hpt gene was the same as reported [14]. The primer pairs for SBgLR, TSRF1 and Tubulin were listed in Table S1.

The lysine-rich protein SBgLR accumulation in transgenic plant seeds was examined by Western blot, as described by Lang et al. 2004 [14]. Specific rabbit polyclonal SBgLR antiserum was prepared by the Institute of Genetics and Development Biology, Chinese Academy of Sciences (CAS).

3.3. Salt Stress Treatment

We determined the salt tolerance assay of transgenic maize at T3 generation. Seeds were sowed in nurse soil and grown to four-leaf stage at the condition of 28 °C and 16 h light/8 h dark. Before salt treatment, leaves of one half wide type and transgenic lines were collected and immediately stored in liquid nitrogen, respectively. The other half was used for subsequent free proline and chlorophyll content analysis. For salt tolerance assay, after washing the soil off the roots, the seedlings of wild-type and transgenic lines were treated in Hoagland solution with 200 mM NaCl for 48 h, respectively. As described above, leaves of one-half salt treated wild-type and transgenic seedlings were collected and immediately stored in liquid nitrogen, respectively. The other half was used for subsequent free proline and chlorophyll content analysis.

3.4. Detection of Free Proline and Chlorophyll Content

Free proline was extracted from 0.5 g maize leaves (dry weight) using 3% salicylsulfonic acid and then reacted with ninhydrin, followed by determination based on colorimetric method [62].

For chlorophyll a and b content detection, total chlorophyll was extracted from 0.5 g leaves (dry weight), grinded into homogenate in 95% ethanol, and then absorbance at the wavelength 649 and 665 nm was measured under a spectrophotometer (UV2300, Shanghai, China), respectively. The chlorophyll content of each sample was calculated using the equation as follows: Ca = 13.7A665 − 5.76A649; Cb = 25.8A649 − 7.6A665; Ca+b = Ca + Cb.

3.5. Gene Expression Analysis by Quantitative Real-Time PCR

Total RNA of maize seedling leaves were extracted using TRIzol reagent (Invitrogen, Carlsbad, CA, USA). After digested with DNase I, 5 μg total RNA was used for cDNA first strand synthesis according to the manufacturer’s protocol of Reverse Transcription System (Promega A3500, Madison, WI, USA). For quantitative real-time PCR amplification, 100 ng cDNA was used as template in a 20 μL reaction system, containing 10 μL 2× SYBR Premix Ex Taq II (TaKaRa, Shiga, Japan), 0.5 μM each specific forward and reverse primer. Amplification was carried out on a Bio-Rad Real-Time System CFX96 C1000 Thermal Cycler (Bio-Rad, Hercules, CA, USA) using the following conditions: 95 °C for 30 s, 35 cycles of 95 °C for 10 s, 60 °C for 10 sec and 72 °C for 10 s. Four reference genes, including Tubulin, EF1-α, GAPDH and Ubiquitin, were chosen. Expression levels of these four genes were determined as the Ct values [63]. The Ct values were then converted into relative quantities and imported into the geNorm v3,5 software [64] for stability analysis. The result was shown in Figure S3. According to the result, Tubulin was selected to be used as the endogenous reference. All primer pairs used for qRT-PCR were listed in Table S1.

3.6. Crude Protein and Lysine Content Analysis

Samples were ground meal of 20 mature kernels from individual self-fertilized ears. Due to limited seeds, only 8 T1 mature kernels for line 19–11 were used. For crude protein content, total nitrogen was first measured based on the principle of Kjeldahl determination under national standard GB2905-82, Beijing Academy of Agriculture and Forestry Science. Then, the nitrogen content was converted to protein content by multiplying a conversion factor of 6.25.

Lysine content was analyzed based on the principle of ninhydrin reaction. Briefly, about 10 mg of defatted powder, 1 mL double distilled water and 2 mL ninhydrin reaction reagent were added into a 30 mL tube, and then the mixture was thoroughly vortexed (approximately 5 s). Subsequently, the tube was incubated in boiling water for 20 min, and thereafter, 3 mL 50% ethanol was added to cooled sample, followed by a centrifugation at 13,400× g for 10 min. The supernatant was collected, and the absorbance at 570 nm was recorded using a spectrophotometer (Techcomp UV2300, Shanghai, China). The standard curve was conducted by using 50 μg/mL leucine solutions in parallel. Lysine content of each sample was calculated using the equation as follows: Lys content (g/100 g dry seed weight) = (measured lysine content × hydrolysis volume)/sample weight.

4. Conclusions

In summary, we obtained marker-free transgenic maize inbred X178 lines harboring a potato lysine-rich protein gene, SBgLR, and a tomato ERF transcription factor gene, TSRF1, via particle bombardment mediated co-transformation. Molecular analysis revealed that both of these two target genes were successfully expressed and showed various expression levels in different transgenic lines. Quantification of protein and lysine content in T1 maize seeds showed that transgenic lines had both increased protein and lysine content. The protein and lysine content increased by 7.7% to 24.38% and 8.70% to 30.43%, compared to non-transformed maize, respectively. Moreover, transgenic maize exhibited more tolerance to salt stress. This study provides an effective way of corn molecular breeding and materials for improved nutritive quality and salt tolerance.

Supplemental Information

ijms-14-09459-s001.pdf

Acknowledgments

We are grateful to Xiaojuan Wang and Hanwen Liang for assistance with the embryogenic calli preparation. This work was sponsored by the National Transgenic Major Program of China (Grant No. 2011ZX003-002) and the National Basic Research Program of China (2012CB215301).

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Osborne, T.B.; Mendel, L.B. Nutritional properties of proteins of the maize kernel. J. Biol. Chem 1914, 18, 1–16. [Google Scholar]
  2. Mertz, E.T.; Bates, L.S.; Nelson, O.E. A mutant gene that changes the protein composition and increases the lysine content of maize endosperm. Science 1964, 145, 279–280. [Google Scholar]
  3. Vasal, S.K.; Villegas, E.; Bjarnason, M.; Gelaw, B.; Goertz, P. Genetic Modifiers and Breeding Strategies in Developing Hard Endosperm opaque-2 Materials. In Improvement of Quality Traits of Maize for Grain and Silage Use, 2nd ed; Pollmer, W.G., Phipps, R.H., Eds.; Martinus Nijhoff: London, UK, 1980; pp. 37–73. [Google Scholar]
  4. Segal, G.; Song, R.; Messing, J. A new opaque variant of maize by a single dominant RNA interference-inducing transgene. Genetics 2003, 165, 387–397. [Google Scholar]
  5. Huang, S.; Adams, W.R.; Zhou, Q.; Malloy, K.P.; Voyles, D.A.; Anthony, J.; Kriz, A.L.; Luethy, M.H. Improving nutritional quality of maize proteins by expressing sense and antisense zein genes. J. Agric. Food Chem 2004, 52, 1958–1964. [Google Scholar]
  6. Huang, S.; Frizzi, A.; Florida, C.A.; Kruger, D.E.; Luethy, M.H. High lysine and high tryptophan transgenic maize resulting from the reduction of both 19- and 22-kD-zeins. Plant Mol. Biol 2006, 61, 525–535. [Google Scholar]
  7. Huang, S.; Kruger, D.E.; Frizzi, A.; D’Ordine, R.L.; Florida, C.A.; Adams, W.R.; Brown, W.E.; Luethy, M.H. High-lysine corn produced by the combination of enhanced lysine biosynthesis and reduced zein accumulation. Plant Biotechnol. J 2005, 3, 555–569. [Google Scholar]
  8. Houmard, N.M.; Mainville, J.L.; Bonin, C.P.; Huang, S.; Luethy, M.H.; Malvar, T.M. High lysine corn generated by endosperm specific suppression of lysine catabolism using RNAi. Plant Biotechnol. J 2007, 5, 605–614. [Google Scholar]
  9. Lucas, D.M.; Glenn, K.C.; Bu, J.Y. Petition for determination of nonregulated status for lysine maize LY038, Available online: http://www.aphis.usda.gov/brs/aphisdocs/0422901p.pdf (accessed on 13 August 2004).
  10. Yang, S.H.; Moran, D.L.; Jia, H.W.; Bicar, E.H.; Lee, M.; Scott, M.P. Expression of a synthetic porcine-lactalbumin gene in the kernels of transgenic maize. Transgenic Res 2002, 11, 11–20. [Google Scholar]
  11. Bicar, E.H.; Woodman-Clikeman, W.; Sangtong, V.; Peterson, J.M.; Yang, S.S.; Lee, M.; Scott, M.P. Transgenic maize endosperm containing a milk protein has improved amino acid balance. Transgenic Res 2008, 17, 59–71. [Google Scholar]
  12. Liu, J.Q.; Seul, U.; Thompson, R. Cloning and characterization of pollen-specific cDNA encoding a glutamic acid-rich protein (GARP) from potato Solanum berthautii. Plant Mol. Biol 1997, 33, 291–300. [Google Scholar]
  13. Yu, J.; Peng, P.; Zhang, X.; Zhao, Q.; Zhu, D.; Sun, X.; Liu, J.; Ao, G. Seed-specific expression of a lysine rich protein sb401 gene significantly increases both lysine and total protein content in maize seeds. Mol. Breed 2004, 14, 1–7. [Google Scholar]
  14. Lang, Z.; Zhao, Q.; Yu, J.; Zhu, D.; Ao, G. Cloning of potato SBgLR gene and its intron splicing in transgenic maize. Plant Sci 2004, 166, 1227–1233. [Google Scholar]
  15. Xiong, L.; Schumaker, K.S.; Zhu, J. Cell signaling during cold, drought and salt stress. Plant Cell 2002, 14, S165–S183. [Google Scholar]
  16. Xiong, L.; Zhu, J.K. Regulation of abscisic acid biosynthesis. Plant Physiol 2003, 133, 29–36. [Google Scholar]
  17. Guo, H.; Ecker, J.R. The ethylene signaling pathway: New insights. Curr. Opin. Plant Biol 2004, 7, 40–49. [Google Scholar]
  18. Stockinger, E.J.; Gilmour, A.J.; Thomashow, M.F. Arabidopsis thaliana CBF1 encodes an AP2 domain-containing transcriptional activator that binds to the C-repeat/DRE, a cis-acting DNA regulatory element that stimulates transcription in response to low temperature and water deficit. Proc. Natl. Acad. Sci. USA 1997, 94, 1035–1040. [Google Scholar]
  19. Chakravarthy, S.; Tuori, R.P.; D’Ascenzo, M.D.; Fobert, P.R.; Despres, C.; Martin, G.B. The tomato transcription factor Pti4 regulates defense-related gene expression via GCC box and non-GCC box cis elements. Plant Cell 2003, 15, 3033–3050. [Google Scholar]
  20. Guo, Z.J.; Chen, X.J.; Wu, X.L.; Ling, J.Q.; Xu, P. Overexpression of the AP2/EREBP transcription factor OPBP1 enhances disease resistance and salt tolerance in tobacco. Plant Mol. Biol 2004, 55, 607–618. [Google Scholar]
  21. Yamaguchi-Shinozaki, K.; Shinozaki, K. Transcriptional regulatory networks in cellular responses and tolerance to dehydration and cold stresses. Annu. Rev. Plant Biol 2006, 57, 781–803. [Google Scholar]
  22. Mantiri, F.R.; Kurdyukov, S.; Lohar, D.P.; Sharopova, N.; Saeed, N.A.; Wang, X.D.; Vandenbosch, K.A.; Rose, R.J. The transcription factor MtSERF1 of the ERF subfamily identiWed by transcriptional prowling is required for somatic embryogenesis induced by auxin plus cytokinin in Medicago truncatula. Plant Physiol 2008, 146, 1622–1636. [Google Scholar]
  23. Ohme-Takagi, M.; Shinshi, H. Ethylene-inducible DNA binding proteins that interact with an ethylene-responsive element. Plant Cell 1995, 7, 173–182. [Google Scholar]
  24. Fujimoto, S.Y.; Ohta, M.; Usui, A.; Shinshi, H.; Ohme-Takagi, M. Arabidopsis ethylene-responsive element binding factors act as transcriptional activators or repressors of GCC box-mediated gene expression. Plant Cell 2000, 12, 393–404. [Google Scholar]
  25. Gu, Y.Q.; Wildermuth, M.C.; Chakravarthy, S.; Loh, Y.T.; Yang, C.; He, X.; Han, Y.; Martin, G.B. Tomato transcription factors pti4, pti5, and pti6 activate defense responses when expressed in Arabidopsis. Plant Cell 2002, 14, 817–831. [Google Scholar]
  26. Liu, Q.; Kasuga, M.; Sakuma, Y.; Abe, H.; Miura, S.; Yamaguchi-Shinozaki, K.; Shinozaki, K. Two transcription factors, DREB1 and DREB2, with an EREBP/AP2 DNA binding domain separate two cellular signal transduction pathways in drought- and low-temperature-responsive gene expression, respectively, in Arabidopsis. Plant Cell 1998, 10, 1391–1406. [Google Scholar]
  27. Hong, J.P.; Kim, W.T. Isolation and functional characterization of the Ca-DREBLP1 gene encoding a dehydration-responsive element binding-factor-like protein 1 in hot pepper (Capsicum annuum L. cv. Pukang). Planta 2005, 220, 875–888. [Google Scholar]
  28. Liu, N.; Zhong, N.Q.; Wang, G.L.; Li, L.J.; Liu, X.L.; He, Y.K.; Xia, G.X. Cloning and functional characterization of PpDBF1 gene encoding a DRE-binding transcription factor from Physcomitrella patens. Planta 2007, 226, 827–838. [Google Scholar]
  29. Zhang, H.; Zhang, D.; Chen, J.; Yang, Y.; Huang, Z.; Huang, D.; Wang, X.; Huang, R. Tomato stress-responsive factor TSRF1 interacts with ethylene responsive element GCC box and regulates pathogen resistance to Ralstonia solanacearum. Plant Mol. Biol 2004, 55, 825–834. [Google Scholar]
  30. Zhang, H.; Li, W.; Chen, J.; Yang, Y.; Zhang, Z.; Wang, X.C.; Huang, R. Transcriptional activator TSRF1 reversely regulates pathogen resistance and osmotic stress tolerance in tobacco. Plant Mol. Biol 2007, 63, 63–71. [Google Scholar]
  31. Zhou, J.; Zhang, H.; Yang, Y.; Zhang, Z.; Zhang, H.; Hu, X.; Chen, J.; Wang, X.C.; Huang, R. Abscisic acid regulates TSRF1-mediated resistance to Ralstonia solanacearum by modifying the expression of GCC box-containing genes in tobacco. J. Exp. Bot 2008, 59, 645–652. [Google Scholar]
  32. Quan, R.; Hu, S.; Zhang, Z.; Zhang, H.; Zhang, Z.; Huang, R. Overexpression of an ERF transcription factor TSRF1 improves rice drought tolerance. Plant Biotech. J 2010, 8, 476–488. [Google Scholar]
  33. Bhatnagar-Mathur, P.; Vadez, V.; Sharma, K. Transgenic approaches for abiotic stress tolerance in plants: Retrospect and prospects. Plant Cell Rep 2008, 27, 411–424. [Google Scholar]
  34. James, C. Global Status of Commercialized Biotech/GM Crops: 2010. ISAAA Brief No. 42; ISAAA: Ithaca, NY, USA, 2010. [Google Scholar]
  35. Tuteja, N.; Verma, S.; Sahoo, R.K.; Raveendar, S.; Reddy, B.L. Recent advances in development of marker-free transgenic plants: Regulation and biosafety concern. J. Biosci 2012, 37, 167–197. [Google Scholar]
  36. Holger, P. Removing selectable marker genes: Taking shortcut. Trends Plant Sci 2000, 7, 273–274. [Google Scholar]
  37. De Neve, M.; de Buck, S.; Jacobs, A.; van Montagu, M.; Depicker, A. T-DNA integration patterns in co-transformed plant cells suggest that T-DNA repeats originate from co-integration of separate T-DNAs. Plant J 1997, 11, 15–29. [Google Scholar]
  38. Sripriya, R.; Raghupathy, V.; Veluthambi, K. Generation of selectable marker-free sheath blight resistant transgenic rice plants by efficient co-transformation of a cointegrate vector T-DNA and a binary vector T-DNA in one Agrobacterium tumefaciens strain. Plant Cell Rep 2008, 27, 1635–1644. [Google Scholar]
  39. Miller, M.; Tagliani, L.; Wang, N.; Berka, B.; Bidney, D. High efficiency transgene segregation in co-transformed maize plants using an Agrobacterium tumefaciens 2 T-DNA binary system. Transgenic Res 2002, 11, 381–396. [Google Scholar]
  40. Shiva, P.N.; Bhojaraja, R.; Shivbachan, S.K.; Hari, P.G.G.; Nagraj, T.K.; Prasad, V.; Srikanth, B.V.; Jayaprakash, T.L.; Dasgupta, S.; Spencer, T.M.; et al. Marker-free transgenic corn plant production through co-bombardment. Plant Cell Rep 2009, 28, 1655–1668. [Google Scholar]
  41. Kumar, S.; Arul, L.; Talwar, D. Generation of marker-free Bt transgenic indica rice and evaluation of its yellow stem borer resistance. J. Appl. Genet 2010, 51, 243–257. [Google Scholar]
  42. Qi, Y.; Ye, S.; Lu, Y.; Jin, Q.; Zhang, X. Development of marker-free transgenic Cry1Ab rice with Lepidopteran pest resistance by Agrobacterium mixture-mediated co-transformation. Rice Sci 2009, 16, 181–186. [Google Scholar]
  43. Ramana, R.M.V.; Parameswari, C.; Sripriya, R.; Veluthambi, K. Transgene stacking and marker elimination in transgenic rice by sequential Agrobacterium-mediated co-transformation with the same selectable marker gene. Plant Cell Rep 2011, 30, 1241–1252. [Google Scholar]
  44. Wang, D.; Zhao, Q.; Zhu, D.; Ao, G.; Yu, J. Particle-bombardment-mediated co-transformation of maize with a lysine rich protein gene (sb401) from potato. Euphytica 2006, 150, 75–85. [Google Scholar]
  45. Schnable, P.S.; Ware, D.; Fulton, R.S.; Stein, J.C.; Wei, F.; Pasternak, S.; Liang, C.; Zhang, J.; Fulton, L.; Graves, T.A.; et al. The B73 maize genome: Complexity, diversity, and dynamics. Science 2009, 20, 1112–1115. [Google Scholar]
  46. Altschul, S.F.; Madden, T.L.; Schaffer, A.A.; Zhang, J.; Zhang, Z.; Miller, W.; Lipman, D.J. Gapped BLAST and PSI-BLAST: A new generation of protein database search programs. Nucleic Acids Res 1997, 25, 3389–3402. [Google Scholar]
  47. Nakano, T.; Suzuki, K.; Fujimura, T.; Shinshi, H. Genome-wide analysis of the ERF gene family in Arabidopsis and rice. Plant Physiol 2006, 140, 411–432. [Google Scholar]
  48. Clustal, W. Available online: http://www.ebi.ac.uk/Tools/clustalw2/index.html (accessed on 10 September 2007).
  49. Song, R.; Segal, G.; Messing, J. Expression of the sorghum 10-member kafirin gene cluster in maize endosperm. Nucleic Acids Res 2004, 32, e189. [Google Scholar]
  50. Huang, S.; Jin, L.; Du, J.; Li, H.; Zhao, Q.; Ou, G.; Ao, G.; Yuan, M. SB401, a pollen-specific protein from Solanum berthaultii, binds to and bundles microtubules and F-actin. Plant J 2007, 51, 406–418. [Google Scholar]
  51. Noble, M.; Lewis, S.; Cowan, N.J. The microtubule binding domain of microtubule-associated protein MAP1B contains a repeated sequence motif unrelated to that of MAP2 and Tau. J. Cell Biol 1989, 109, 3367–3376. [Google Scholar]
  52. Wiche, G.; Oberkanins, C.; Himmler, A. Molecular structure and function of microtubule-associated proteins. Int. Rev. Cytol 1991, 124, 217–273. [Google Scholar]
  53. Kishor, P.B.K.; Sangam, S.; Amrutha, R.N.; Laxmi, P.S.; Naidu, K.R.; Rao, K.R.S.S.; Rao, S.; Reddy, K.J.; Theriappan, P. Regulation of proline biosynthesis, degradation, uptake and transport in higher plants: Its implications in plant growth and abiotic stress tolerance. Curr. Sci 2005, 88, 424–438. [Google Scholar]
  54. Stepien, P.; Klobus, G. Water relations and photosynthesi in Cucumis sativus L. leaves under salt stress. Biologia Plantarum 2006, 50, 610–616. [Google Scholar]
  55. Zhang, H.; Yang, Y.; Zhang, Z.; Chen, J.; Wang, X.C.; Huang, R. Expression of the ethylene response factor gene TSRF1 enhances abscisic acid responses during seedling development in tobacco. Planta 2008, 228, 777–787. [Google Scholar]
  56. Savoure, A.; Jaoua, S.; Hua, X.J.; Ardiles, W.; van Montagu, M.; Verbruggen, N. Isolation, characterization, and chromosomal location of a gene encoding the DELTA-1-pyrroline-5- carboxylate synthetase in Arabidopsis thaliana. FEBS Lett 1995, 372, 13–19. [Google Scholar]
  57. Yoshiba, Y.; Kiyosue, T.; Katagiri, T.; Ueda, H.; Mizoguchi, T.; Yamaguchi-Shinozaki, K.; Wada, K.; Harada, Y.; Shinozaki, K. Correlation between the induction of a gene for delta 1-pyrroline-5-carboxylate synthase and the accumulation of proline in Arabidopsis thaliana under osmotic stress. Plant J 1995, 7, 751–760. [Google Scholar]
  58. Zhang, C.S.; Lu, Q.; Verma, D.P.S. Removal of feedback inhibition of delta 1-pyrroline-5- carboxylate synthase, a bifunctional enzyme catalyzing the first two steps of proline biosynthesis in plants. J. Biol. Chem 1995, 270, 20491–20496. [Google Scholar]
  59. Strizhov, N.; Abraham, E.; Okresz, L.; Blickling, S.; Zilberstein, A.; Schell, J.; Koncz, C.; Szabados, L. Differential expression of two P5CS genes controlling proline accumulation during salt-stress requires ABA and is regulated by ABA1, ABI1 and AXR2 in Arabidopsis. Plant J 1997, 12, 557–569. [Google Scholar]
  60. Sambrook, J.; Fritsch, E.F.; Maniatis, T. Molecular Cloning: A Laboratory Manual, 2nd ed; Cold Spring Harbor Press: New York, NY, USA, 1989. [Google Scholar]
  61. Saghai-Maroof, M.A.; Soliman, K.M.; Jorgensen, R.A.; Allard, R.W. Ribosomal DNA spacer-length polymorphisms in barley: Mendelian inheritance, chromosomal location, and population dynamics. Proc. Natl. Acad. Sci. USA 1984, 81, 8014–8018. [Google Scholar]
  62. Bates, L.S.; Waldren, R.P.; Teare, I.D. Rapid determination of free proline for water-stress studies. Plant Soil 1973, 39, 205–207. [Google Scholar]
  63. Walker, N.J. A technique whose time has come. Science 2002, 296, 557. [Google Scholar]
  64. geNorm v3.5 software, Available online: http://medgen.ugent.be/~jvdesomp/genorm/ (accessed on 7 May 2002).
Ijms 14 09459f1 1024

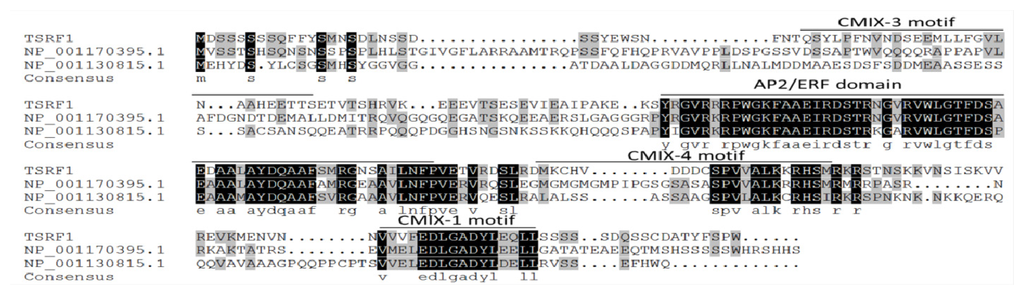

Figure 1. Comparison of the putative motifs of TSRF1 and its homologs in maize. Motifs of TSRF1 were marked by black lines on the top of the sequences.

Click here to enlarge figure

Figure 1. Comparison of the putative motifs of TSRF1 and its homologs in maize. Motifs of TSRF1 were marked by black lines on the top of the sequences.
Ijms 14 09459f1 1024
Ijms 14 09459f2 1024

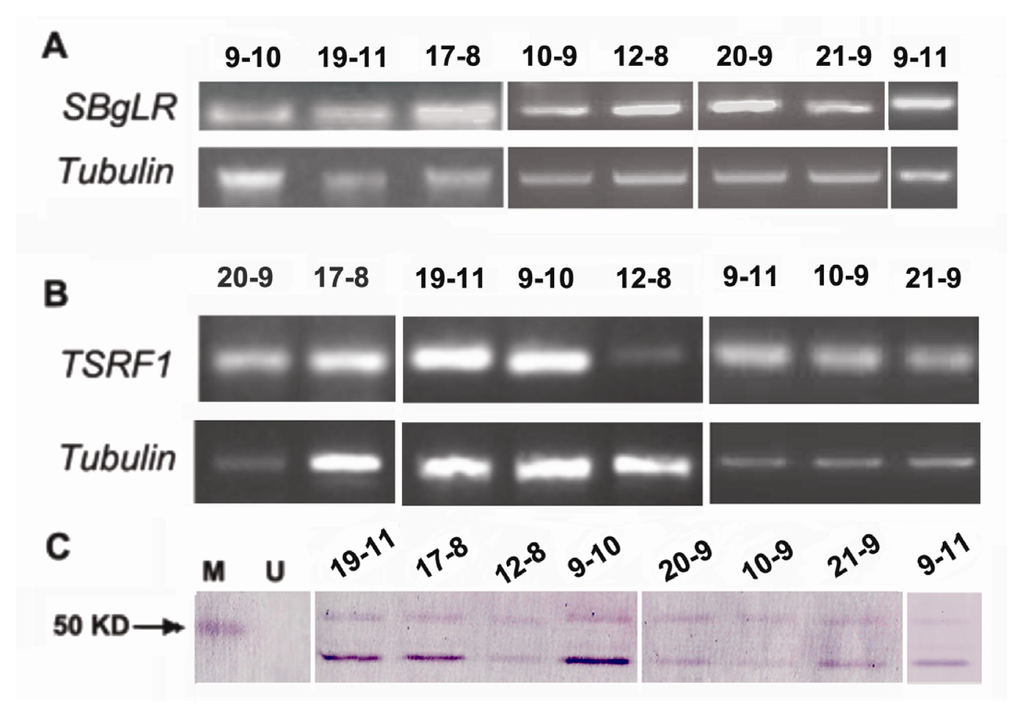

Figure 2. Expression of transgenes in T1 maize (partial results are shown). (A) Semi-quantification RT-PCR analysis of SBgLR in transgenic maize immature seeds (22 DAP); (B) semi-quantification RT-PCR analysis of TSRF1 in transgenic maize leaves; (C) Western blot analysis of SBgLR in transgenic maize immature seeds (20 DAP). M, protein marker; U, non-transformed maize plants. Numbers on the top of each figure represent the transgenic line number.

Click here to enlarge figure

Figure 2. Expression of transgenes in T1 maize (partial results are shown). (A) Semi-quantification RT-PCR analysis of SBgLR in transgenic maize immature seeds (22 DAP); (B) semi-quantification RT-PCR analysis of TSRF1 in transgenic maize leaves; (C) Western blot analysis of SBgLR in transgenic maize immature seeds (20 DAP). M, protein marker; U, non-transformed maize plants. Numbers on the top of each figure represent the transgenic line number.
Ijms 14 09459f2 1024
Ijms 14 09459f3 1024

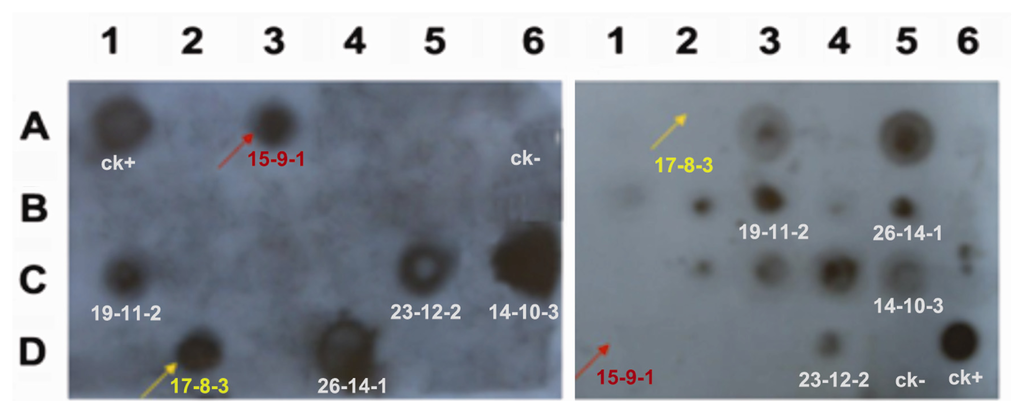

Figure 3. Segregation of target genes and selectable marker gene in T2 transgenic plants by DNA dot blot analysis. Two segregated transgenic lines are highlighted in red for 15-9-1 and yellow for 17-8-3, respectively. Transgenic lines that have only Hpt are not indicated. For SBgLR (left), A1 represents positive control and A6 represents negative control. For Hpt (right), D6 represents positive control and D5 represents negative control.

Click here to enlarge figure

Figure 3. Segregation of target genes and selectable marker gene in T2 transgenic plants by DNA dot blot analysis. Two segregated transgenic lines are highlighted in red for 15-9-1 and yellow for 17-8-3, respectively. Transgenic lines that have only Hpt are not indicated. For SBgLR (left), A1 represents positive control and A6 represents negative control. For Hpt (right), D6 represents positive control and D5 represents negative control.
Ijms 14 09459f3 1024
Ijms 14 09459f4 1024
Figure 4. Protein and lysine levels were simultaneously increased in T1 transgenic seeds. (A) Protein content; (B) lysine content. The crude protein and lysine contents are expressed as g/100 g dry seed. Data are averages of triplicates ± standard deviations. Asterisks, **, denote transgenic lines statistically different from Control by Student t-test at p < 0.01. The lysine content of line 19–11 was not measured due to limited amount of seeds.

Click here to enlarge figure

Figure 4. Protein and lysine levels were simultaneously increased in T1 transgenic seeds. (A) Protein content; (B) lysine content. The crude protein and lysine contents are expressed as g/100 g dry seed. Data are averages of triplicates ± standard deviations. Asterisks, **, denote transgenic lines statistically different from Control by Student t-test at p < 0.01. The lysine content of line 19–11 was not measured due to limited amount of seeds.
Ijms 14 09459f4 1024
Ijms 14 09459f5 1024

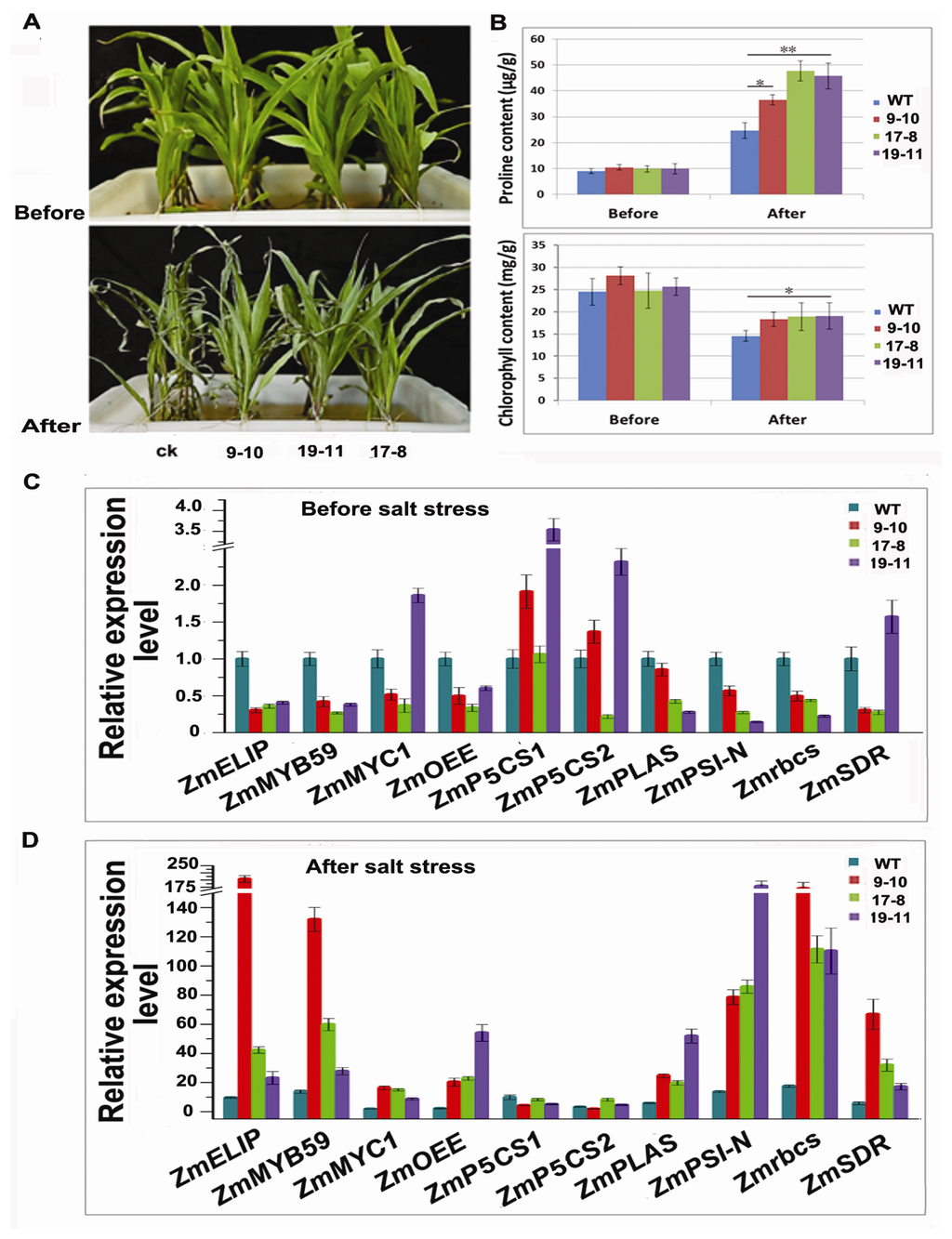

Figure 5. TSRF1 improved salt tolerance in maize. (A) Salt tolerance of TSRF1 transgenic maize. Before, control experiment without drought treatment; after, maize seedlings at four-leaf stage were subjected to 200 mM NaCl stress for 48 h; (B) proline and chlorophyll content in the control and transgenic maize. Data are averages of triplicate ± standard deviations. Asterisks, * and **, denote statistically different from wild-type by Student t-test at p < 0.05 and p < 0.01, respectively; (C) relative expression of stress-related genes in wild-type and TSRF1 transgenic maize seedlings before salt treatment; (D) relative expression of stress-related genes in wild-type and TSRF1 transgenic maize seedlings after salt treatment. Total RNA extracted from leaves of maize seedlings before and after 200 mM NaCl treatment for 48 h was used, respectively. Tubulin was used as a reference gene. Data are averages of triplicate ± standard deviations.

Click here to enlarge figure

Figure 5. TSRF1 improved salt tolerance in maize. (A) Salt tolerance of TSRF1 transgenic maize. Before, control experiment without drought treatment; after, maize seedlings at four-leaf stage were subjected to 200 mM NaCl stress for 48 h; (B) proline and chlorophyll content in the control and transgenic maize. Data are averages of triplicate ± standard deviations. Asterisks, * and **, denote statistically different from wild-type by Student t-test at p < 0.05 and p < 0.01, respectively; (C) relative expression of stress-related genes in wild-type and TSRF1 transgenic maize seedlings before salt treatment; (D) relative expression of stress-related genes in wild-type and TSRF1 transgenic maize seedlings after salt treatment. Total RNA extracted from leaves of maize seedlings before and after 200 mM NaCl treatment for 48 h was used, respectively. Tubulin was used as a reference gene. Data are averages of triplicate ± standard deviations.
Ijms 14 09459f5 1024
Table Table 1. Efficiency of particle bombardment-mediated maize co-transformation.

Click here to display table

Table 1. Efficiency of particle bombardment-mediated maize co-transformation.
Ratio of pTSSB/pHptNo. of transformed calliNo. of hygromycinresistant events recoveredNo. of regenerated plantsPCR analysisCo-transformation efficiency (%)

SBgLR (+)
TSRF1 (+)
Hpt (+)
1.5:12411224114261.08 a

aCo-transformation efficiency = (No. of all three genes PCR positive plants/No. of calli transformed) × 100%.
