Int. J. Mol. Sci. 2013, 14(5), 9305-9318; doi:10.3390/ijms14059305

Article
Off-Target Effect of Endogenous siRNA Derived from RMRP in Human Cells
Yoshiko Maida 1,2,*, Satoru Kyo 2, Timo Lassmann 3, Yoshihide Hayashizaki 3 and Kenkichi Masutomi 1,*
1
Division of Cancer Stem Cell, National Cancer Center Research Institute, 5-1-1 Tsukiji, Chuo-ku, Tokyo 104-0045, Japan
2
Department of Obstetrics and Gynecology, Kanazawa University School of Medicine, 13-1 Takaramachi, Kanazawa, Ishikawa 920-8641, Japan; E-Mail: satoruky@med.kanazawa-u.ac.jp
3
RIKEN Omics Science Center, RIKEN Yokohama Institute, 1-7-22 Suehiro-cho, Tsurumi-ku, Yokohama 230-0045, Japan; E-Mails: lassmann@gsc.riken.jp (T.L.); yosihide@gsc.riken.jp (Y.H.)
*
Authors to whom correspondence should be addressed; E-Mails: ymaida@ncc.go.jp (Y.M.); kmasutom@ncc.go.jp (K.M.); Tel.: +81-3-3547-5173; Fax: +81-3-3547-5123.
Received: 28 February 2013; in revised form: 16 April 2013 / Accepted: 17 April 2013 /
Published: 29 April 2013

Abstract

: Endogenous siRNAs (endo-siRNAs) are key regulators of RNA silencing in plants and worms; however, the biogenesis and function of endogenous siRNAs in mammals remain largely unknown. We previously demonstrated that human telomerase reverse transcriptase produces a self-targeting endogenous siRNA from non-coding RMRP RNA via RNA-dependent RNA polymerase (RdRP) activity. Here, we investigated whether the endo-siRNA derived from RMRP targets other genes in addition to RMRP. Four algorithms for microRNA target prediction were used to identify possible targets of the endo-siRNA, and the phytanoyl-CoA hydroxylase-interacting protein-like gene (PHYHIPL) was identified as the most promising candidate. The 3′ UTR of PHYHIPL was found to contain three possible target sites with perfect seed pairing; deletion of each of these sites resulted in recovery of upstream luciferase expression. In addition, sequence-specific inhibition of the RMRP-derived endo-siRNA increased expression of PHYHIPL mRNA. The results described here suggest that the endo-siRNA uses silencing mechanisms that are similar to those used by microRNAs for gene silencing. To our knowledge, this study is the first confirmation of the off-target effect of human endogenous siRNA produced by RdRP activity.
Keywords:
endogenous siRNA; hTERT; off-targeting; RNA-dependent RNA polymerase

1. Introduction

RNA silencing is a sequence-based gene regulatory system that occurs almost ubiquitously across multiple organisms. Small interfering RNAs (siRNAs) and microRNAs (miRNAs) are double-stranded small RNA species of ~22 nucleotides in length that play central roles in RNA silencing. The guide strand of siRNAs and miRNAs binds to complementary sequences on target RNAs and mediates their degradation and/or translational inhibition. Although siRNAs and miRNAs share many common structural and functional features, the biosynthetic pathways of these small RNA species are quite different [1]. miRNAs are endogenously transcribed from genomic DNA as characteristic stem-loop base pairings in single-stranded precursor RNAs. The stem-loop structures are successively processed by Drosha and Dicer to generate mature miRNA duplexes. Conversely, template sequences for double-stranded siRNA precursors are not present in genomic DNA. Double-stranded siRNAs are endogenously synthesized by RNA-dependent RNA polymerase (RdRP), which creates RNA strands that are complementary to single-stranded template RNAs [2]. The double-stranded RdRP products are then processed into functional siRNAs in either a Dicer-dependent or a Dicer-independent manner. RdRP is therefore thought to be indispensable for RNA silencing by endogenous siRNA (endo-siRNA). Plants and nematodes utilize multiple RdRPs for different modes of endo-siRNA generation [3]. In these organisms, RdRPs amplify RNA silencing signals by copying target sequences to generate endogenous secondary siRNAs. However, molecules that display RdRP-like activities had not yet been identified in mammals. Consequently, investigation of the endogenous “copy and cut” mechanism performed by RdRPs and endo-siRNAs had been neglected.

We recently reported that human telomerase reverse transcriptase (hTERT) works as an RdRP in human cells [4]. hTERT interacts with the RNA component of mitochondrial RNA processing endoribonuclease (RMRP), a noncoding RNA of 267 nucleotides in length, and exhibits RdRP activity in vitro and in vivo[4]. RMRP is processed into a double-stranded RNA with a hairpin structure by the RdRP activity of hTERT and then diced into endo-siRNA. The endo-siRNA derived from RMRP is 22 nucleotides in length, and both the sense and antisense strands of the RMRP-derived endo-siRNA can be detected by Northern blotting using probes covering nucleotides 21–40 of RMRP[4]. The sense strand of the endo-siRNA, which is thought to be the guide strand, is selectively loaded onto protein argonaute-2 (AGO2). The endo-siRNA derived from RMRP targets and regulates RMRP itself [4].

Synthetic siRNAs have been widely adopted as a technology for sequence-based gene silencing. In contrast to miRNAs, which only require target pairing at the seed region (nucleotides 2–7) [5], it was initially thought that siRNAs are only capable of suppressing target RNAs containing perfectly complementary sequences; thus, gene silencing by siRNA is highly specific. However, recent studies have revealed that siRNA-mediated silencing is less specific than was originally believed. Synthetic exogenous siRNAs can regulate multiple unintended (off-target) genes, as well as their intended (on-target) genes [6,7]. Off-target effect of exogenous siRNA suggested a hypothesis that endogenous siRNA may also regulate unintended genes. Here, we report that the endo-siRNA derived from RMRP guides off-target effect via a mechanism similar to that of miRNAs.

2. Results and Discussion

2.1. The Endo-siRNA Sequence Originates from Nucleotides 22–43 of RMRP

To explore novel target gene(s) of the endo-siRNA derived from RMRP, we determined the precise sequence of the endo-siRNA. Based on our previous study [4], the guide strand of the endo-siRNA was predicted to be 22 nucleotides in length and to overlap with nucleotides 21–40 of RMRP. Small RNAs that satisfied these criteria were searched from deep sequencing analysis of the THP-1 cell-line, and six candidate sequences were selected (Table 1). RNAs corresponding to nucleotides 22–43 (or 42) of RMRP were speculated to be the most likely candidates for two reasons. First, the calculated melting temperatures of the remaining sequences were too low to be detected by the Northern blotting method previously used to detect the endo-siRNA derived from RMRP, in which hybridization was performed at 37 °C with a DNA probe complementary to nucleotides 21–40 of RMRP[4]. Second, the endo-siRNA was detected with a probe complementary to nucleotides 22–33 of RMRP, but not detected with a probe complementary to nucleotides 44–55 (data not shown). To confirm the deep sequencing results, quantitative RT-PCR (qRT-PCR) analyses of the most likely candidate were performed using primers and probes specifically designed to detect nucleotides 22–43 of RRMP. Specific products were amplified from three different cell-lines (HeLa, 293T and MCF7), all of which have previously been shown to express the endo-siRNA derived from RMRP (Figure 1A). The expression levels were highest in the HeLa cell-line, which agrees with our previous Northern blotting data [4].

To investigate a physical interaction between the candidate RNA and Argonaute protein, AGO2 was immunoprecipitated from HeLa cells, and total RNA was then extracted from the precipitate and amplified by qRT-PCR using primers and probes specific to nucleotides 22–43 of RMRP. The candidate RNA was enriched in the RNAs immunoprecipitated with AGO2 (Figure 1B). Taken together, these data indicate that the endo-siRNA derived from RMRP originates from nucleotides 22–43 of RMRP.

2.2. The Endo-siRNA Derived from RMRP Mediates Gene Silencing

To determine whether the endo-siRNA derived from nucleotides 22–43 of RMRP is functional, sequences identical to (RMRP 22–43) or complementary to (RMRP-AS 43–22) the endo-siRNA were inserted into the 3′ UTR of the Renilla luciferase gene in the psiCHECK-2 vector. The vectors with or without (control) inserted sequences were transfected into HeLa, 293T and MCF7 cells and luciferase activity was measured (Figure 2A). Insertion of RMRP-AS 43–22 specifically and significantly decreased expression of Renilla luciferase in all three cell types. This suppression of the luciferase gene was attenuated when a sequence-specific inhibitor of the RMRP-derived endo-siRNA was simultaneously transfected into cells (Figure 2B). These data indicate that the endo-siRNA derived from nucleotides 22–43 of RMRP mediates sequence-specific gene silencing.

2.3. Overall Sequence Analogy Does Not Accurately Predict Unintended Targets of the Endo-siRNA Derived from RMRP

On-target gene regulation by siRNAs typically involves recognition of perfectly complementary sequences. Therefore, to identify candidate targets of the endo-siRNA derived from RMRP, BLAST searches were performed using the sequence complementary to the endo-siRNA. Although RMRP was the only gene that contained a perfectly matched sequence, a number of other genes included partially complementary sequences (Figure 3A). Notably, complementarity of each of the candidate sequences was higher at the 5′ end than at the 3′ end. A previous study suggested that exogenous siRNAs may not target intronic sequences [8]; therefore, we focused on the three candidate sequences (NICN1, MYO5B and RPL28) that were located within an ORF or UTR. To evaluate regulation of these genes by the endo-siRNA derived from RMRP, a sequence-specific inhibitor of the endo-siRNA was transfected into HeLa, 293T and MCF7 cells and the expression levels of NICN1, MYO5B and RPL28 were analyzed by RT-PCR or qRT-PCR. Whereas RMRP expression was suppressed by the endo-siRNA inhibitor as expected, expression levels of NICN1, MYO5B and RPL28 were not affected (Figure 3B), suggesting that expression of these candidate off-target genes is not regulated by the endo-siRNA derived from RMRP.

A previous study that analyzed the pattern of sequence alignment between six siRNAs and their off-target transcripts found that the regions of complementarity between the guide strand of the siRNA and the target transcript differs between mRNA regions [9]. The authors of this study reported that the longest contiguous region within each sequence alignment had an average length of eight nucleotides in both UTRs and coding sequences. Sequence matches in the 5′ UTR and coding sequence of off-target transcripts were biased towards the central region of the siRNA, whereas 3′ UTR matches showed bias towards the 5′ end of the siRNA guide strand [9]. A previous study that compared experimentally validated off-target transcripts with in silico predicted off-target transcripts, the latter of which were identified as gene sequences displaying ≥79% identity to either the sense or antisense strands of the specific siRNAs, reported unacceptably high false positive and false negative rates of the predicted off-target sequences [10]. The authors of this study concluded that overall sequence identity is a poor predictor of off-target genes [10]. Here, candidate targets of the endo-siRNA derived from RMRP were selected based on overall sequence analogy identified by a BLAST search; however, off-targeting of these candidates by the endo-siRNA was not verified experimentally. The endo-siRNA target sequence identified in NICN1 was positioned within the ORF of the gene. The target sequence contained 14 contiguous nucleotides that were complementary to the central region of the RMRP-derived endo-siRNA; however, 73% (16/22) of sequence complementarity would explain the false positive prediction of this candidate. In contrast, the target sequences in RPL28 and MYO5B were located within the 3′ UTRs of the genes, and the lower degree of complementarity to the 5′ end of the endo-siRNA would prevent off-targeting of these genes.

2.4. The Endo-siRNA Derived from RMRP Mediates Off-Targeting by a Mechanism Similar to That of miRNAs

Off-target effects of exogenous siRNAs fall into three major categories [6]: siRNA-induced sequence-dependent regulation of unintended genes through partial complementarity to 3′ UTRs (miRNA-like off-target effects), an inflammatory response triggered by siRNAs and/or their delivery vehicles, and widespread effects on miRNA processing and functions via saturation of the endogenous RNA interference machinery. We hypothesized that the miRNA-like mechanism is most likely to be applicable to off-targeting by endo-siRNAs, because these species are generated intracellularly and stably co-exist with miRNAs. Emerging evidence about this type of off-targeting has led to the consensus opinion that a sequence match at the seed region of a siRNA is indispensable for target recognition [6,913]. In addition, some reports have suggested that 3′ pairing at nucleotides 12–17 is also an important determinant of target recognition [10,12].

A luciferase assay was performed to examine whether sequence matches at the seed region and nucleotides 12–15 are important for gene suppression by the endo-siRNA derived from RMRP. Wild-type (RMRP-AS 43-22) or mutated (seed, seed/12–15) sequences complementary to the endo-siRNA were inserted into the 3′ UTR of the luciferase gene in the psiCHECK-2 vector. Compared with control cells, and consistent with the data shown in Figure 2A, luciferase activity was significantly lower in HeLa, 293T and MCF7 cells transfected with the vector containing wild-type RMRP-AS 43-22 (Figure 4A). The statistically significant suppression of the luciferase gene by RMRP-AS 43-22 was reproducible in these cells. Mutation of the seed region significantly attenuated the gene silencing effect of RMRP-AS 43-22 in HeLa and MCF7 cells, and double mutation of both the seed region and nucleotides 12–15 attenuated the silencing effect further in all three cell types (Figure 4A). The seed sequences of three human miRNAs (hsa-miR-645, hsa-miR-603 and hsa-miR-1224-5p) were identified within the endo-siRNA derived from RMRP (Supplementary Figure S1A). To investigate the possibility that the observed suppression of the luciferase gene by RMRP-AS 43-22 was caused by the seed-overlapping miRNAs rather than the RMRP-derived endo-siRNA, expression levels of these miRNAs in HeLa, 293T and MCF7 cells were analyzed by qRT-PCR (Supplementary Figure S1B). Although hsa-miR-1224-5p was detected in all cell types, hsa-miR-645 and hsa-miR-603 were not. The seed sequence of hsa-miR-1224-5p is located at the 3′ end of the endo-siRNA derived from RMRP. Although expression of this miRNA was detected, this region is not required for gene suppression by the endo-siRNA, because mutation of both the seed region and nucleotides 12–15 completely abolished the gene silencing effect of RMRP-AS 43-22 (Figure 4A). These results indicate that both the seed region and the 3′ pairing region are important for target recognition at 3′ UTRs by the endo-siRNA derived from RMRP.

Based on the results described above, potential novel targets of the RMRP-derived endo-siRNA were identified by focusing on 3′ UTR sequences complementary to both the seed region and the 3′ pairing region of the endo-siRNA. No genes containing both regions in the expected positions were identified. Since genes that contained regions complementary to the 3′ pairing region, such as RPL28 and MYO5B, were shown to be unaffected by the RMRP-derived endo-siRNA (Figure 3B), we searched for candidates based on complementarity of the seed region only. Four open access algorithms, namely TargetScan, microRNA.org, DIANA and TargetRank [14], were used to predict target genes. The most promising candidate target of the endo-siRNA was the gene encoding phytanoyl-CoA 2-hydroxylase interacting protein-like (PHYHIPL); this gene was ranked as the highest (DIANA [15] and TargetRank [16]), second highest (TargetScan [17]) or seventh highest (microRNA.org [18]) predicted target score (Supplementary Tables S1–S4). The 3′ UTR of PHYHIPL is 2182 nucleotides in length and contains three possible endo-siRNA target sites (Figure 4B). All three sites are 7-mers, which are reported to be more effective than 6-mers [12,13]. In addition, two of the sites are evolutionally conserved.

To investigate whether PHYHIPL is a real target of the endo-siRNA derived from RMRP, HeLa and 293T cells were transfected with sequence-specific inhibitors of the endo-siRNA, and expression levels of PHYHIPL mRNA were analyzed by RT-PCR. Sequence-specific inhibition of the RMRP-derived endo-siRNA increased the endogenous expression levels of PHYHIPL mRNA in both cell types (Figure 4C). HeLa and MCF7 cells were then transfected with luciferase reporter plasmids containing the wild-type or various deletion mutants of the PHYHIPL 3′ UTR. Compared with control cells, luciferase activity was significantly decreased in cells expressing the wild-type PHYHIPL 3′ UTR; however, this suppressive effect was attenuated by deletion of each or all of the three endo-siRNA target sequences (Figure 4D). Taken together, these data indicate that the endo-siRNA derived from RMRP negatively regulates PHYHIPL, and this regulation involves sequences complementary to the seed region.

3. Experimental Section

3.1. Cell Culture

HeLa, 293T and MCF7 cells were cultured in DMEM containing 10% heat-inactivated FBS at 37 °C in a humidified CO2 incubator.

3.2. Plasmids

Luciferase reporter vectors (Figure 2) were constructed by cloning a binding site complementary (RMRP-AS 43-22) or identical (RMRP 22-43) to the endo-siRNA sequence into the XhoI and NotI sites of the psiCHECK-2 vector (Promega, Maddison, WI, USA). The sequences of the binding sites were 5′-AGTCCTCAGTGTGTAGCCTAGG-3′ (sense) and 5′-CCTAGGCTACACACTGAGGACT-3′ (antisense) for RMRP-AS 43-22 and 5′-CCTAGGCTACACACTGAGGACT-3′ (sense) and 5′-AGTCCTCAGTGTGTAGCCTAGG-3′ (antisense) for RMRP 22-43. The vectors containing mutations in the sequence complementary to the endo-siRNA (Figure 4A) were constructed by cloning the following sequences into the XhoI and NotI sites of psiCHECK-2 Vector: 5′-AGTCCTCAGTGTGTCTAAGCTG-3′ (sense) and 5′-CAGCTTAGACACACTGAGGACT-3′ (antisense) for the seed mutation and 5′-AGTCCTCCTGCTGTCTAAGCTG-3′ (sense) and 5′-CAGCTTAGACAGCAGGAGGACT-3′ (antisense) for the seed/12–15 mutation.

The 3′ UTR of PHYHIPL was PCR amplified from HeLa genomic DNA using KOD Plus DNA polymerase (TOYOBO, Osaka, Japan) and then cloned into the XhoI and NotI sites of psiCHECK-2 Vector. The seed-pairing sequences in the 3′ UTR of PHYHIPL, positioned at nucleotides 244–249, 441–447 and 1459–1501, were deleted from the vector using QuikChange XL Site-Directed Mutagenesis Kit (Stratagene, La Jolla, CA, USA). All of the plasmids were verified by DNA sequencing.

3.3. Immunoprecipitation of Human AGO2 Complexes

HeLa cells were lysed in lysis buffer A (20 mM Tris-HCl, pH 7.4, 150 mM NaCl, 0.5% NP-40, 0.1 mM dithiothreitol) and immunoprecipitation was performed using Protein G Agarose (Roche Applied Science, Mannheim, Germany) with mouse normal IgG (SC-2025, Santa Cruz Biotechnology, Santa Cruz, CA, USA) or Anti Human Ago2, Monoclonal Antibody (015-22031, Wako Pure Chemical Industries, Osaka, Japan). RNA was isolated from the protein G beads using a miRNeasy Mini Kit (QIAGEN, Hilden, Germany). A portion of the Protein G beads was boiled with 2X loading buffer (0.1 M Tris-HCl, pH 6.8, 4% SDS, 20% Glycerol, 2% β-mercaptoethanol). The supernatants were separated on a SDS-polyacrylamide gel and transferred to a PVDF membrane. The membrane was blocked, incubated with the anti-human AGO2 antibody followed by a horseradish peroxidase-linked secondary antibody (NA931V, GE Healthcare, Buckinghamshire, UK) and then subjected to enhanced chemiluminescence.

3.4. Sequence-Specific Inhibition of the RMRP-Derived Endo-siRNA

miScript Inhibitor Negative Control was purchased from QIAGEN. miScript miRNA Inhibitor specific for the RMRP-derived endo-siRNA was designed and manufactured by QIAGEN. For RT-PCR (Figures 3B and 4C), cells were cultured in 6-well dishes and transfected with 250 pmol of the miScript Inhibitors using Lipofectamine 2000 Reagent (Invitrogen, Carlsbad, CA, USA), according to the manufacturer’s protocol. Cells were harvested 48 h post-transfection using TRIzol reagent (Invitrogen, Carlsbad, CA, USA). For measurements of luciferase activity (Figure 2B), cells were co-transfected with the psiCHECK-2 vectors and 50 pmol of the miScript Inhibitors.

3.5. RT-PCR and qRT–PCR

Total RNAs were extracted using RNeasy Mini Kit (QIAGEN, Hilden, Germany). The following primers were used: RMRP (5′-TGCTGAAGGCCTGTATCCT-3′ and 5′-TGAGAATGAGCCCCGTGT-3′), NICN1 (5′-CATCACCACTGTGGCTGTC-3′ and 5′-CTCTGTCAGTGCCCACATC-3′), MYO5B (5′-TACAGCCAGTGCACAAGGGTCTGG-3′ and 5′-AAGAAGGGCAGCTGGTTGCGT-3′), PHYHIPL (5′-CGCGCCTGGATCATGCCCTC-3′ and 5′-TGCGTCCTGCAATCACTTCAGCC-3′) and GAPDH (5′-CTCAGACACCATGGGGAAGGTGA-3′ and 5′-ATGATCTTGAGGCTGTTGTCATA-3′). Reverse transcription was performed for 60 min at 42 °C and then PCR was immediately performed. The PCR conditions included 20–35 cycles of 95 °C for 30 s, 60 °C for 30 s and 72 °C for 30 s (20 cycles for RMRP, 28 cycles for GAPDH, 30 cycles for MYO5B and PHYHIPL and 35 cycles for NICN1). Signal intensity of PCR products was measured using ImageJ software (version 1.40g; NIH: Bethesda, MD, USA).

Quantification of mRNA, the RMRP-derived endo-siRNA, hsa-miR-603 and hsa-miR-645 was performed by TaqMan real-time PCR (Applied Biosystems, Foster City, CA, USA), according to the manufacturer’s protocol. The following TaqMan Gene Expression Assays and TaqMan miRNA Assays (Applied Biosystems, Foster City, CA, USA) were used: RPL28 (Hs00357189_g1), GAPDH (Hs99999905_m1), hsa-miR-603 (001566), hsa-miR-645 (001597) and RNU6B (001093). RNU6B and GAPDH were used as references. A custom TaqMan Small RNA Assay targeting nucleotides 22–43 of RMRP was designed and manufactured by Applied Biosystems. For qRT-PCR of hsa-miR-1224-5p, Hs_miR-1224-5p_1 miScript Primer Assay (QIAGEN, Hilden, Germany) was used. Real-time PCR was performed in triplicate for all samples using ABI PRISM 7000 Sequence Detection System (Applied Biosystems, Foster City, CA, USA).

3.6. Luciferase Assay

Cells were cultured in 24-well dishes and transfected with 50 ng of luciferase reporter plasmids using FuGENE HD Transfection Reagent (Promega, Maddison, WI, USA), according to the manufacturer’s protocol. In experiments using miScript Inhibitors, the plasmids were transfected with Lipofectamine 2000 Reagent (Invitrogen, Carlsbad, CA, USA), according to the manufacturer’s protocol. Luciferase activity was measured 48 h after transfection using Dual-Luciferase Reporter Assay System (Promega, Maddison, WI, USA).

3.7. Statistics

Statistical analyses were performed with Statcel3 software (OMS, Saitama, Japan) using unpaired Student’s t-tests. p < 0.05 was considered significant.

4. Conclusions

The gene silencing technique mediated by siRNA is widely accepted in laboratories, and many researchers are now engaged in the development of therapeutic applications of this method. Previous reports described specific silencing of intended genes by siRNAs; however, emerging evidence has revealed that exogenous siRNAs also affect expression of unintended genes via an off-target effect. Although the off-target effect complicates the therapeutic potential of specific gene targeting by exogenous siRNAs, it also suggests possible expansion of known gene regulation by endogenous siRNAs. Here, we demonstrated that the PHYHIPL gene is regulated by an endo-siRNA derived from RMRP. To our knowledge, this is the first report of off-target effect of human endogenous siRNAs that is generated through RdRP activity. We elucidated that the endo-siRNA regulates off-target transcripts with seed-matched sequences at their 3′ UTR; however, it should be noted that exogenous introduction of synthetic “RMRP-derived endo-siRNA” will demonstrate a different off-target profile through inflammatory response and/or saturation of endogenous RNA interfering machinery [6], as reported for synthetic miRNA [19,20].

A previous report described miRNA-like functions of small nucleolar RNA-derived small RNAs in human cells [21]. These small RNAs are not miRNAs or endo-siRNAs, but they are processed by Dicer cleavage, are associated with AGOs and repress the expression of seed-matched targets. We speculate that the RNA interference machinery in human cells may not strictly discriminate between small RNA species with different biogenetic pathways. As demonstrated here and previously [2123], human endo-siRNAs and similar small RNAs associate with AGO proteins and regulate expression of multiple genes in the same manner as miRNAs.

Supplementary Information

Acknowledgments

This work was supported by MEXT KAKENHI grant to Y.M. (No. 21791579), a grant from the Yasuda Medical Foundation to Y.M. and a Grant for Young Researchers (Hokuriku Bank) to Y.M.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Carthew, R.W.; Sontheimer, E.J. Origins and mechanisms of miRNAs and siRNAs. Cell 2009, 136, 642–655.
  2. Ghildiyal, M.; Zamore, P.D. Small silencing RNAs: An expanding universe. Nat. Rev. Genet 2009, 10, 94–108.
  3. Siomi, H.; Siomi, M.C. On the road to reading the RNA-interference code. Nature 2009, 457, 396–404.
  4. Maida, Y.; Yasukawa, M.; Furuuchi, M.; Lassmann, T.; Possemato, R.; Okamoto, N.; Kasim, V.; Hayashizaki, Y.; Hahn, W.C.; Masutomi, K. An RNA-dependent RNA polymerase formed by TERT and the RMRP RNA. Nature 2009, 461, 230–235.
  5. Filipowicz, W.; Bhattacharyya, S.N.; Sonenberg, N. Mechanisms of post-transcriptional regulation by microRNAs: Are the answers in sight? Nat. Rev. Genet 2008, 9, 102–114.
  6. Jackson, A.L.; Linsley, P.S. Recognizing and avoiding siRNA off-target effects for target identification and therapeutic application. Nat. Rev. Drug Discov 2010, 9, 57–67.
  7. Jackson, A.L.; Bartz, S.R.; Schelter, J.; Kobayashi, S.V.; Burchard, J.; Mao, M.; Li, B.; Cavet, G.; Linsley, P.S. Expression profiling reveals off-target gene regulation by RNAi. Nat. Biotechnol 2003, 21, 635–637.
  8. Birmingham, A.; Anderson, E.; Sullivan, K.; Reynolds, A.; Boese, Q.; Leake, D.; Karpilow, J.; Khvorova, A. A protocol for designing siRNAs with high functionality and specificity. Nat. Protoc 2007, 2, 2068–2078.
  9. Jackson, A.L.; Burchard, J.; Schelter, J.; Chau, B.N.; Cleary, M.; Lim, L.; Linsley, P.S. Widespread siRNA “Off-target” transcript silencing mediated by seed region sequence complementarity. RNA 2006, 12, 1179–1187.
  10. Birmingham, A.; Anderson, E.M.; Reynolds, A.; Ilsley-Tyree, D.; Leake, D.; Fedorov, Y.; Baskerville, S.; Maksimova, E.; Robinson, K.; Karpilow, J.; et al. 3′ UTR seed matches, but not overall identity, are associated with RNAi off-targets. Nat. Methods 2006, 3, 199–204.
  11. Doench, J.G.; Petersen, C.P.; Sharp, P.A. siRNAs can function as miRNAs. Genes Dev 2003, 17, 438–442.
  12. Grimson, A.; Farh, K.K.; Johnston, W.K.; Garrett-Engele, P.; Lim, L.P.; Bartel, D.P. MicroRNA targeting specificity in mammals: Determinants beyond seed pairing. Mol. Cell 2007, 27, 91–105.
  13. Nielsen, C.B.; Shomron, N.; Sandberg, R.; Hornstein, E.; Kitzman, J.; Burge, C.B. Determinants of targeting by endogenous and exogenous microRNAs and siRNAs. RNA 2007, 13, 1894–1910.
  14. Tan Gana, N.H.; Victoriano, A.F.; Okamoto, T. Evaluation of online miRNA resources for biomedical applications. Genes Cells 2012, 17, 11–27.
  15. DIANA-microT-CDS v.4, Available online: http://www.microrna.gr/microT-CDS/ (accessed on 30 September 2011).
  16. TargetRank, Available online: http://genes.mit.edu/targetrank/ (accessed on 25 November 2011).
  17. TargetScanHuman, Release 5.2, Available online: http://www.targetscan.org/ (accessed on 30 September 2011).
  18. microRNA.org-Targets and Expression, Available online: http://www.microrna.org/ (accessed on 30 September 2011).
  19. Karlsen, T.A.; Brinchmann, J.E. Liposome delivery of microRNA-145 to mesenchymal stem cells leads to immunological off-target effects mediated by RIG-I. Mol. Ther. 2013, doi:10.1038/mt.2013.55.
  20. Olejniczak, M.; Galka, P.; Krzyzosiak, W.J. Sequence-non-specific effects of RNA interference triggers and microRNA regulators. Nucleic Acids Res 2010, 38, 1–16.
  21. Ender, C.; Krek, A.; Friedlander, M.R.; Beitzinger, M.; Weinmann, L.; Chen, W.; Pfeffer, S.; Rajewsky, N.; Meister, G. A human snoRNA with microRNA-like functions. Mol. Cell 2008, 32, 519–528.
  22. Rother, S.; Meister, G. Small RNAs derived from longer non-coding RNAs. Biochimie 2011, 93, 1905–1915.
  23. Brameier, M.; Herwig, A.; Reinhardt, R.; Walter, L.; Gruber, J. Human box C/D snoRNAs with miRNA like functions: Expanding the range of regulatory RNAs. Nucleic Acids Res 2011, 39, 675–686.
Ijms 14 09305f1 200

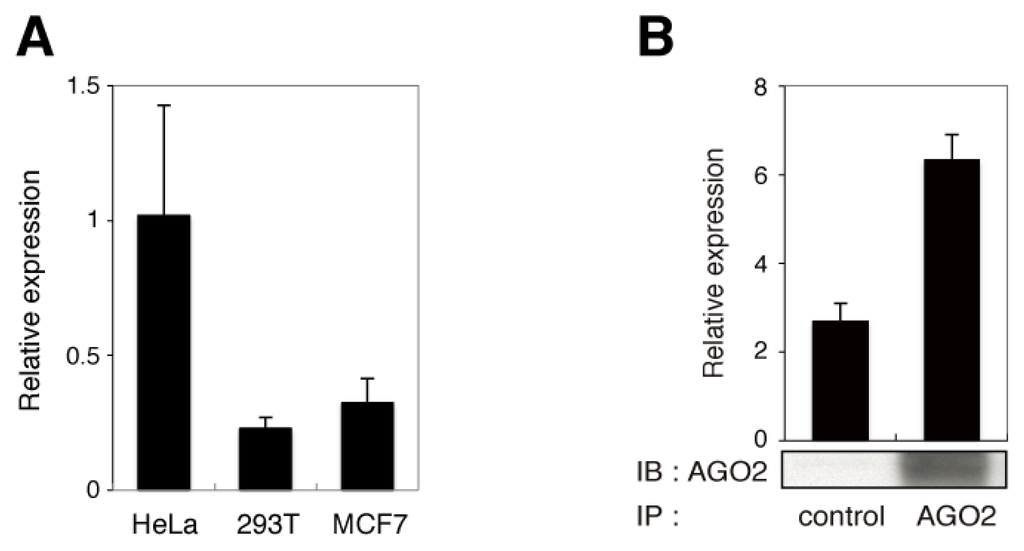

Figure 1. The endo-siRNA derived from RMRP originates from nucleotides 22–43 of RMRP. (A) Expression levels of the region of RMRP spanning nucleotides 22–43 in HeLa, 293T and MCF7 cells were analyzed by qRT-PCR. Data are represented as the mean ± SD for n = 3 independent experiments and are normalized to expression of the RNU6B gene. (B) Expression levels of the region of RMRP spanning nucleotides 22–43 in RNAs immunoprecipitated (IP) with an anti-AGO2 antibody from HeLa cells. Data are represented as the mean ± SD for n = 3 independent experiments. The results of immunoblotting (IB) with the anti-AGO2 antibody are also shown.

Click here to enlarge figure

Figure 1. The endo-siRNA derived from RMRP originates from nucleotides 22–43 of RMRP. (A) Expression levels of the region of RMRP spanning nucleotides 22–43 in HeLa, 293T and MCF7 cells were analyzed by qRT-PCR. Data are represented as the mean ± SD for n = 3 independent experiments and are normalized to expression of the RNU6B gene. (B) Expression levels of the region of RMRP spanning nucleotides 22–43 in RNAs immunoprecipitated (IP) with an anti-AGO2 antibody from HeLa cells. Data are represented as the mean ± SD for n = 3 independent experiments. The results of immunoblotting (IB) with the anti-AGO2 antibody are also shown.
Ijms 14 09305f1 1024
Ijms 14 09305f2 200
Figure 2. The endo-siRNA derived from RMRP exhibits gene silencing activity. (A) Cells were transfected with psiCHECK-2 vectors in which sequences identical (RMRP 22-43) or complementary (RMRP-AS 43-22) to the RMRP-derived endo-siRNA sequence were inserted into the 3′ UTR of the Renilla luciferase gene. Control cells were transfected with the native psiCHECK-2 vector. Luciferase activity was measured 48 h post-transfection. Data are represented as the mean ± SD of n = 3 independent experiments and are normalized to luciferase activity of the firefly luciferase gene in the psiCHECK-2 vector. (B) Luciferase activity in 293T cells transiently co-transfected with the indicated psiCHECK-2 vectors and a sequence-specific inhibitor of the RMRP-derived endo-siRNA (RMRP) or miScript Inhibitor Negative Control (control). Luciferase activity was measured 48 h post-transfection. Data are represented as the mean ± SD of n = 3 independent experiments and are normalized to luciferase activity of the firefly luciferase gene in the psiCHECK-2 vector. *p < 0.05; **p < 0.01; ***p < 0.001; NS, not significant; by two-tailed Student’s t-test.

Click here to enlarge figure

Figure 2. The endo-siRNA derived from RMRP exhibits gene silencing activity. (A) Cells were transfected with psiCHECK-2 vectors in which sequences identical (RMRP 22-43) or complementary (RMRP-AS 43-22) to the RMRP-derived endo-siRNA sequence were inserted into the 3′ UTR of the Renilla luciferase gene. Control cells were transfected with the native psiCHECK-2 vector. Luciferase activity was measured 48 h post-transfection. Data are represented as the mean ± SD of n = 3 independent experiments and are normalized to luciferase activity of the firefly luciferase gene in the psiCHECK-2 vector. (B) Luciferase activity in 293T cells transiently co-transfected with the indicated psiCHECK-2 vectors and a sequence-specific inhibitor of the RMRP-derived endo-siRNA (RMRP) or miScript Inhibitor Negative Control (control). Luciferase activity was measured 48 h post-transfection. Data are represented as the mean ± SD of n = 3 independent experiments and are normalized to luciferase activity of the firefly luciferase gene in the psiCHECK-2 vector. *p < 0.05; **p < 0.01; ***p < 0.001; NS, not significant; by two-tailed Student’s t-test.
Ijms 14 09305f2 1024
Ijms 14 09305f3 200

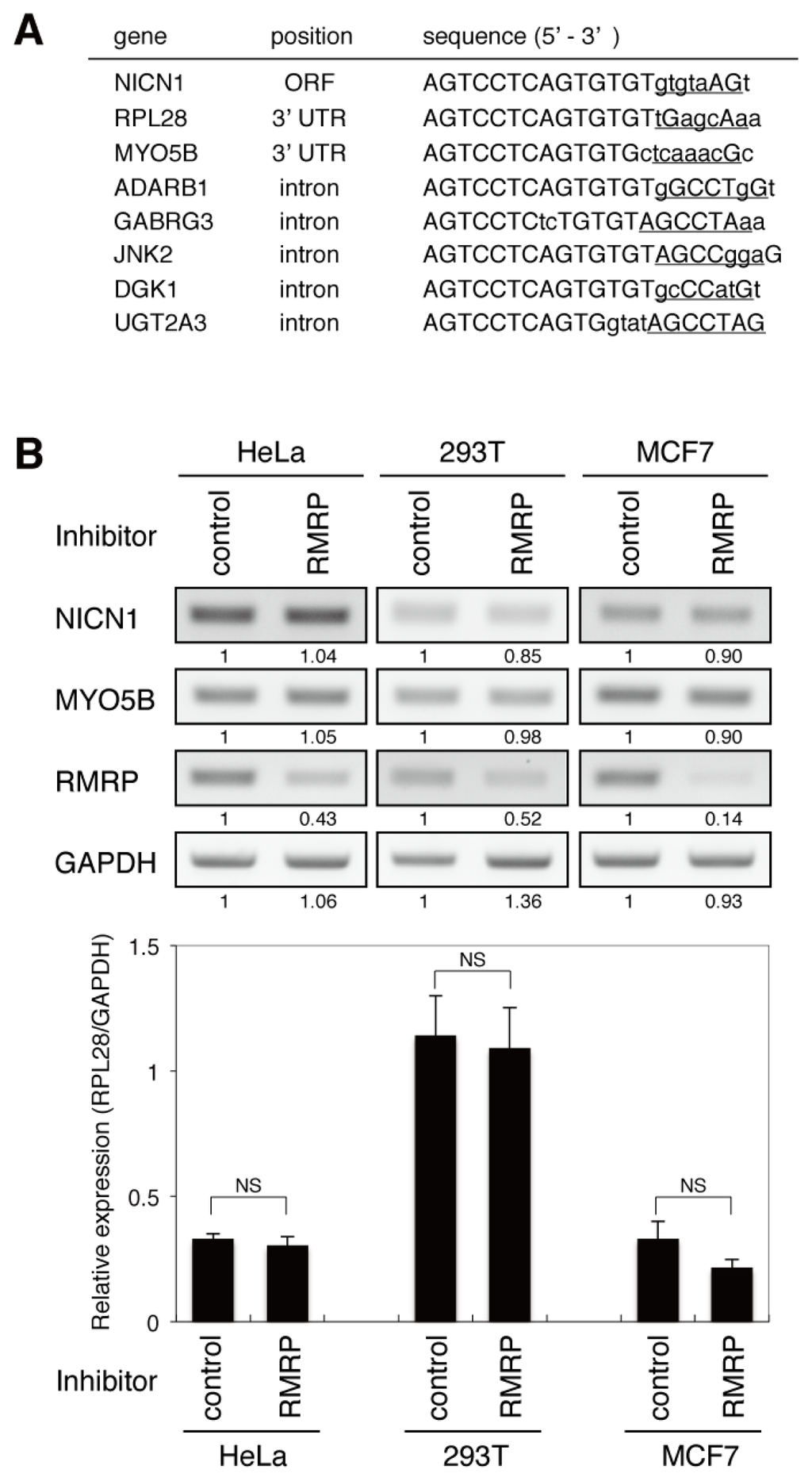

Figure 3. Sequence analogy is not predictive of RMRP-derived endo-siRNA target genes. (A) List of candidate targets of the endo-siRNA derived from RMRP. The candidates were selected based on their analogy to the sequence complementary to that of the endo-siRNA. Upper-case and lower-case letters indicate matched and mismatched pairing to the endo-siRNA sequence, respectively. Sequences corresponding to the seed region of the endo-siRNA are underlined. (B) RT-PCR (upper panels) and qRT-PCR (lower panel) analyses of the three candidate genes containing matched sequences located within an ORF or UTR. Total RNA was prepared from cells transfected with a sequence-specific inhibitor of the RMRP-derived endo-siRNA (RMRP) or miScript Inhibitor Negative Control (control). In the upper panels, numbers indicated under each panel represent relative signal intensity measured by densitometry. In the lower panel, data are represented as the mean ± SD of n = 3 independent experiments and are normalized to expression of the GAPDH gene. NS, not significant; by two-tailed Student’s t-test.

Click here to enlarge figure

Figure 3. Sequence analogy is not predictive of RMRP-derived endo-siRNA target genes. (A) List of candidate targets of the endo-siRNA derived from RMRP. The candidates were selected based on their analogy to the sequence complementary to that of the endo-siRNA. Upper-case and lower-case letters indicate matched and mismatched pairing to the endo-siRNA sequence, respectively. Sequences corresponding to the seed region of the endo-siRNA are underlined. (B) RT-PCR (upper panels) and qRT-PCR (lower panel) analyses of the three candidate genes containing matched sequences located within an ORF or UTR. Total RNA was prepared from cells transfected with a sequence-specific inhibitor of the RMRP-derived endo-siRNA (RMRP) or miScript Inhibitor Negative Control (control). In the upper panels, numbers indicated under each panel represent relative signal intensity measured by densitometry. In the lower panel, data are represented as the mean ± SD of n = 3 independent experiments and are normalized to expression of the GAPDH gene. NS, not significant; by two-tailed Student’s t-test.
Ijms 14 09305f3 1024
Ijms 14 09305f4a 200Ijms 14 09305f4b 200

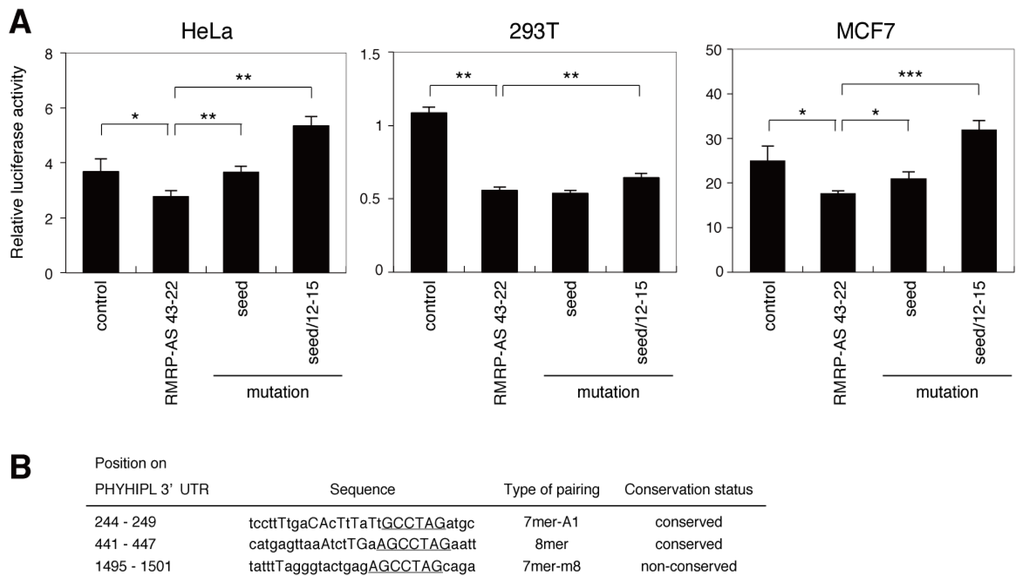

Figure 4. miRNA-like off-target effect of the endo-siRNA derived from RMRP. (A) Sequences complementary to the RMRP-derived endo-siRNA, with or without mutations in the seed region alone (seed) or the seed region and nucleotides 12–15 (seed/12–15), were inserted into the psiCHECK-2 vector. HeLa, 293T and MCF7 cells were transfected with the vectors and luciferase activity was measured 48 h post-transfection. Data are represented as the mean ± SD for n = 3 independent experiments and are normalized to luciferase activity of the firefly luciferase gene in the psiCHECK-2 vector. (B) Characteristics of the seed-matched sequences located within the 3′ UTR of PHYHIPL. Upper-case and lower-case letters indicate matched and mismatched pairing to the endo-siRNA derived from RMRP, respectively. Sequences corresponding to the seed region of the endo-siRNA are underlined. (C) RT-PCR analyses of PHYHIPL and RMRP mRNAs. Total RNAs were prepared from HeLa and 293T cells transfected with a sequence-specific inhibitor of the RMRP-derived endo-siRNA (RMRP) or miScript Inhibitor Negative Control (control). Numbers indicated under each panel represent relative signal intensity measured by densitometry. (D) HeLa and MCF7 cells were transfected with psiCHECK-2 vectors containing the wild-type (WT) or various deletion mutants of the PHYHIPL 3′ UTR. The numbers indicate the regions deleted; “all” indicates that all three regions were deleted. Luciferase activity was measured 48 h post-transfection. Data are represented as the mean ± SD of n = 3 independent experiments and are normalized to luciferase activity of the firefly luciferase gene in the psiCHECK-2 vector. *p < 0.05; **p < 0.01; ***p < 0.001; NS, not significant; by two-tailed Student’s t-test.

Click here to enlarge figure

Figure 4. miRNA-like off-target effect of the endo-siRNA derived from RMRP. (A) Sequences complementary to the RMRP-derived endo-siRNA, with or without mutations in the seed region alone (seed) or the seed region and nucleotides 12–15 (seed/12–15), were inserted into the psiCHECK-2 vector. HeLa, 293T and MCF7 cells were transfected with the vectors and luciferase activity was measured 48 h post-transfection. Data are represented as the mean ± SD for n = 3 independent experiments and are normalized to luciferase activity of the firefly luciferase gene in the psiCHECK-2 vector. (B) Characteristics of the seed-matched sequences located within the 3′ UTR of PHYHIPL. Upper-case and lower-case letters indicate matched and mismatched pairing to the endo-siRNA derived from RMRP, respectively. Sequences corresponding to the seed region of the endo-siRNA are underlined. (C) RT-PCR analyses of PHYHIPL and RMRP mRNAs. Total RNAs were prepared from HeLa and 293T cells transfected with a sequence-specific inhibitor of the RMRP-derived endo-siRNA (RMRP) or miScript Inhibitor Negative Control (control). Numbers indicated under each panel represent relative signal intensity measured by densitometry. (D) HeLa and MCF7 cells were transfected with psiCHECK-2 vectors containing the wild-type (WT) or various deletion mutants of the PHYHIPL 3′ UTR. The numbers indicate the regions deleted; “all” indicates that all three regions were deleted. Luciferase activity was measured 48 h post-transfection. Data are represented as the mean ± SD of n = 3 independent experiments and are normalized to luciferase activity of the firefly luciferase gene in the psiCHECK-2 vector. *p < 0.05; **p < 0.01; ***p < 0.001; NS, not significant; by two-tailed Student’s t-test.
Ijms 14 09305f4a 1024Ijms 14 09305f4b 1024
Table 1. Candidate sequences of the endo-siRNA derived from RMRP.

Click here to display table

Table 1. Candidate sequences of the endo-siRNA derived from RMRP.
Observed sequenceNucleotide position of RMRPNumber of reads

5′ end3′ end
CTGAAGGCCTGTATCCTAGGCT8291
CCTAGGCTACACACTGAGGACT22431
CCTAGGCTACACACTGAGGAC22421
ACTGAGGACTCTGTTCCTCCCC34551
ACTGAGGACTCTGTTCCTCCC34541
TGAGGACTCTGTTCCTCCCCTT36571
