Int. J. Mol. Sci. 2013, 14(4), 8093-8121; doi:10.3390/ijms14048093

Review
Homology Models of Melatonin Receptors: Challenges and Recent Advances
Daniele Pala 1, Alessio Lodola 1, Annalida Bedini 2, Gilberto Spadoni 2 and Silvia Rivara 1,*
1
Dipartimento di Farmacia, Università degli Studi di Parma, Parco Area delle Scienze 27/A, 43124 Parma, Italy; E-Mails: daniele.pala@nemo.unipr.it (D.P.); alessio.lodola@unipr.it (A.L.)
2
Dipartimento di Scienze Biomolecolari, Università degli Studi di Urbino “Carlo Bo”, Piazza Rinascimento 6, I-61029 Urbino, Italy; E-Mails: annalida.bedini@uniurb.it (A.B.); gilberto.spadoni@uniurb.it (G.S.)
*
Author to whom correspondence should be addressed; E-Mail: silvia.rivara@unipr.it; Tel.: +39-0521-905-061; Fax: +39-0521-905-006.
Received: 7 March 2013; in revised form: 28 March 2013 / Accepted: 28 March 2013 /
Published: 12 April 2013

Abstract

: Melatonin exerts many of its actions through the activation of two G protein-coupled receptors (GPCRs), named MT1 and MT2. So far, a number of different MT1 and MT2 receptor homology models, built either from the prototypic structure of rhodopsin or from recently solved X-ray structures of druggable GPCRs, have been proposed. These receptor models differ in the binding modes hypothesized for melatonin and melatonergic ligands, with distinct patterns of ligand-receptor interactions and putative bioactive conformations of ligands. The receptor models will be described, and they will be discussed in light of the available information from mutagenesis experiments and ligand-based pharmacophore models. The ability of these ligand-receptor complexes to rationalize structure-activity relationships of known series of melatonergic compounds will be commented upon.
Keywords:
melatonin receptors; MT1; MT2; homology modeling; structure-activity relationships; docking; molecular dynamics simulations

1. Introduction

Melatonin (N-acetyl-5-methoxytryptamine, Figure 1) is a tryptophan-derived neurohormone secreted by the pineal gland following a circadian rhythm and with peak concentrations at night. After its isolation and chemical characterization in 1959 [1], several studies were reported that aimed at clarifying the physiological and behavioral responses exerted by this endogenous substance. Nowadays, after more than 50 years of research, a growing body of evidence supports the key role of melatonin in the transduction of photoperiodic information, such as the entrainment and the regulation of circadian rhythms [2,3]. However, besides its well-known chronobiological and sleep-promoting effects, melatonin was found to be involved in a variety of other pathophysiological processes, including the modulation of immune and cardiovascular responses, bone formation, tumor suppression and type 2 diabetes. Furthermore, a number of experimental evidences highlighted the role of melatonin in antioxidant and neuroprotective processes [46]. Due to its pleiotropic activity, administration of melatonin has been proposed as a therapeutic strategy for the treatment of a variety of pathological conditions, including sleep disturbances, depression, cancer, stroke and epilepsy [7]. However, its poor pharmacokinetic profile, e.g., low solubility and short half-life, prompted the design of synthetic ligands endowed with improved pharmacokinetic and pharmacodynamic properties. Ramelteon and agomelatine have been recently approved for the treatment of insomnia and of major depression, respectively and tasimelteon and PD-6735 are currently being evaluated for the treatment of circadian rhythm sleep disorders (Figure 1) [8].

In mammals, melatonin exerts many of its actions through the activation of two G protein-coupled receptors (GPCRs), named MT1 and MT2[9]. Melatonin also binds with lower affinity to the so-called MT3 binding site, which has been characterized as an enzyme belonging to the quinone reductase family [10]. In humans, MT1 and MT2 receptors are expressed in several areas of the central nervous system, such as the suprachiasmatic nucleus, substantia nigra and nucleus accumbens, as well as in different peripheral tissues, including immune cells, retina and coronary arteries [4]. Since the cloning of MT1 and MT2 subtypes in the 1990s [11,12], a number of studies were reported aimed at characterizing their different behavioral responses. Thus far, experimental evidence indicates that activation of MT1 receptors reduces neuronal firing within the suprachiasmatic nucleus, induces vasoconstriction and inhibits hormone secretion, whereas activation of the MT2 subtype produces a phase shift in circadian rhythms, promotes non-rapid eye movement (NREM) sleep, induces splenocyte proliferation and vasodilation and regulates oxytocin receptor gene expression [9,13]. However, despite these efforts, the pathophysiological role of both receptors has yet to be fully elucidated. To this end and to develop novel therapeutic agents, research activity has been focused on the discovery of new compounds able to interact with these receptors. Nowadays, a number of melatonergic ligands are available, characterized by high binding affinity, with different selectivity for the two receptor subtypes and intrinsic activity [14,15]. The design of melatonergic ligands was mainly driven by ligand-based techniques, such as pharmacophore models and quantitative structure-activity relationship (QSAR) studies. Conversely, application of structure-based design was hampered by the lack of experimentally determined structures of MT1 and MT2 receptors. In this scenario, homology modeling was widely applied to investigate the key determinants for ligand binding at a molecular level.

Prediction of the three-dimensional (3D) structure of melatonin receptors represents a complex issue due to different elements, including (i) the lack of a suitable template structure, (ii) the lack of a validated pattern of ligand-receptor interactions and (iii) the nature of the endogenous ligand and the amino acid composition of the putative binding site. The first issue is related to the disparity between the number of identified GPCR sequences and the number of experimentally determined structures available to date. In fact, the GPCR X-ray structures currently deposited in the Protein Data Bank cover only ~2% of nearly 800 GPCR sequences thus far identified in the human genome. As a consequence, closely related templates are available only for a restricted subset of receptors, while the majority of GPCRs still has to be modeled using “structurally remote” templates. Recent studies on GPCR homology models clearly highlighted that the reliability of a receptor model strongly depends on its degree of sequence identity with the template receptor. Accordingly, while the availability of an experimentally determined GPCR structure having a sequence identity >30%–35% to the target usually provides reliable models, “remote-template” homology modeling procedures (i.e., when the identity is below 30%) often fail to produce accurate receptor models [1619]. MT1 and MT2 receptors share a sequence identity lower than 30% with crystallized GPCRs. In particular, sequence identity percentages calculated within transmembrane (TM) domains range from 19% to 29%, which decrease to 8%–28% in the binding site region. Another issue making melatonin receptor modeling even more challenging is the lack of well-characterized ligand–receptor interactions. Indeed, although site-directed mutagenesis studies were conducted on a number of different residues, spanning all TM domains of MT1 and MT2 receptors, an unambiguous binding mode for melatonin has not been identified. The difficulties in MT1 and MT2 receptor modeling could be also related to the physicochemical properties of the endogenous ligand, as well as to the amino acid composition of the putative binding pocket. Both melatonin receptors lack the pattern of polar and charged binding site residues that anchor polar neurotransmitters [20]. Due to the presence of such a hydrophobic environment and to the remarkable lipophilic character of melatonin, it is unlikely that melatonergic compounds can form strong polar contacts within the binding region.

Although the modeling of melatonin receptors cannot rely on close structural templates and on a validated pattern of ligand-receptor interactions, a number of MT1 and MT2 3D models have been reported and the binding mode of different ligands has been proposed. Most of these receptor models were built before 2007, when the first X-ray structure of a druggable GPCR, the β2 adrenergic receptor, was released. Consequently, the majority of these models were built starting from the structure of bovine rhodopsin, which was the only structural template available. Only recently, homology models were built based on the newly released X-ray structures of aminergic receptors or of GPCR structures crystallized in their fully-activated state. Melatonin receptor models were usually applied to propose a binding scheme for melatonin and to rationalize structure-activity relationships (SARs) or mutagenesis data. The recent advances of computational techniques, as well as the increase of available ligand-based information also allowed the building of SAR- and mutagenesis-consistent receptor models, which were applied either to describe agonist binding at a molecular level or to assess the molecular basis of ligand selectivity or intrinsic activity.

This review provides an overview on published MT1 and MT2 receptor homology models. The description of the 3D models and of their ligand binding scheme is preceded by two paragraphs summarizing the main structural elements of the MT1 and MT2 receptors and the available mutagenesis data.

2. MT1 and MT2 Melatonin Receptors

2.1. Structure

Within the GPCR superfamily, melatonin receptors are members of the so-called “class A” family, which was initially defined by Kolakowski [21] and subsequently revised by the NC-IUPHAR [22]. The class A of GPCRs was also re-named as the “rhodopsin family” according the GRAFS classification scheme [23]. MT1 and MT2 receptors are characterized by the peculiar sequence motif characteristic of the rhodopsin family, constituted by seven TM-spanning helices connected by three intracellular (ICL1, ICL2, ICL3) and three extracellular (ECL1, ECL2, ECL3) loop segments. Both receptor subtypes show a pattern of highly conserved residues and motifs shared by all GPCRs belonging to this class, which can be found in TM sequences and in loop regions. These conserved sequence “fingerprints” of rhodopsin-like receptors have been extensively exploited during homology modeling studies to guide the alignment between template and melatonin receptor sequences.

MT1 and MT2 receptors show a pattern of highly conserved positions within TM domains, i.e., Asn45/581.50, Asp73/862.50, Arg125/1383.50, Trp152/1654.50, Pro199/2125.50, Pro253/2666.50 and Ala292/3057.50 (residue numbers of MT1 and MT2 receptors are separated by a slash and superscripts refer to Ballesteros-Weinstein numbering [24]) (Figure 2). Besides the X.50 positions, other highly conserved residues have been identified among class A GPCRs, which could be exploited in modeling studies of melatonin receptors to assist the template-receptor alignment [25]. For example, the TM1 domain of both melatonin receptors shows the presence of a glycine (Gly44/571.49) and a leucine (Leu47/601.52), which have also been found in 67% and 61% of rhodopsin-like GPCRs, respectively [26] (Figure 3). Furthermore, a conserved hydrophobic LAXADL motif located within TM2 of class A GPCRs could be also recognized within TM2 of MT1 and MT2 subtypes, spanning from Leu69/822.46 to Leu74/872.51. A cysteine residue could be identified at the N-terminus of TM3 in both melatonin receptors (Cys100/1133.25), which is conserved in more than 85% of rhodopsin-like GPCRs. Interestingly, crystallographic structures of GPCRs show that Cys3.25 is involved in a disulfide bond with another conserved cysteine located in ECL2, providing an overall stabilization of the receptor extracellular region. The C-terminus of TM3 of class A GPCRs is characterized by the conserved D(E)RY motif. The arginine at position 3.50 is involved in the formation of the so-called “ionic-lock”, i.e., a salt bridge interaction between the positively charged Arg3.50 and a negatively charged amino acid located at position 6.30 of TM6, which contributes to the stabilization of the inactive form of the receptor. In MT1 and MT2 receptors, the conserved acidic residue located at position 3.49 is replaced by an asparagine (Asn124/1373.49), leading to a NRY sequence. In TM4, the proline residue located at the C-terminus (Pro161/1744.59) is shared by more than 60% of rhodopsin-like receptors. The TM5 segment of class A GPCR is characterized by two conserved aromatic amino acids, namely Phe5.47 and Tyr5.58, which can be found in 61% and 75% of class A GPCRs, including MT1 and MT2 subtypes (Phe196/2095.47 and Tyr207/2205.58). Together with TM3, TM6 and TM7 domains of class A GPCRs are also known to regulate the receptor functional state. Site-directed mutagenesis studies, as well as the newly released structures of GPCRs crystallized in their fully activated conformation, clearly highlight the importance of the CWXP stretch on TM6 and of the NPXXY sequence on TM7 in triggering the specific conformational changes associated with receptor activation. Interestingly, while the former motif is strictly maintained in melatonin receptors, which show a CWAP sequence spanning from Cys250/2636.47 to Pro253/2666.50, the highly conserved proline residue of the latter NPXXY pattern is replaced by an alanine in both subtypes (Ala292/3057.50), leading to a NAXXY motif.

Besides TM domains, conserved residues and motifs can be identified also within the extracellular and intracellular regions of rhodopsin-like GPCRs. For example, a WXFG domain has been found in the ECL1 segment of 80% of class A GPCRs [27], which is probably involved in the transmission of the ligand binding signal to the TM portions. In available crystallographic structures, the tryptophan residue forms hydrophobic interactions with the cysteine residues of the disulfide bridge connecting the tip of TM3 to the ECL2 segment. MT1 and MT2 receptors show a WXLG motif within the ECL1 region (Trp93/106-Gly96/109), which retains the tryptophan and the glycine residues identified in the highly conserved WXFG sequence. Another conserved amino acid outside the TM domains is a leucine residue located in the ICL1 segment [28,29]. In a number of different crystal structures, this leucine forms a network of interactions with neighboring residues located at the intracellular ends of TM1 and TM2, as well with a set of amino acids belonging to the last α-helix segment that runs parallel to the membrane plane (the so-called “helix 8”). This leucine is also conserved in MT1 and MT2 subtypes (Leu58/71), where it probably favors the helix packing in the same manner as observed for other rhodopsin-like receptor structures.

2.2. Mutagenesis Data

While sequence-based information provided by rhodopsin-like GPCRs can be exploited to guide the modeling of melatonin receptor 3D structures, the identification of the melatonin binding site is still an open issue. Indeed, although a number of mutagenesis studies have been carried out for both MT1 and MT2 subtypes, information provided by these investigations does not allow the identification of a definite subset of residues involved in specific ligand-receptor interactions. Thus far, site-directed mutagenesis studies on MT1 and MT2 subtypes were performed on a number of residues located on TM3, TM4, TM5, TM6 and TM7. The putative binding cavity outlined by these studies can be roughly superposed to the prototypic binding site observed in a variety of GPCR crystal structures, which spans from TM3 to TM7 and lays in the extracellular portion of the helical bundle. His195/2085.46 was initially evaluated as an anchor point for melatonin. Interestingly, all the members of the melatonin receptor subfamily (i.e., melatonin type 1 and melatonin-like (GPR50) receptors from different species) exhibit a histidine residue at position 5.46, and a number of experimental studies reported a key role for this amino acid [3032]. Indeed, substitution of His5.46 led to a decrease of binding affinity for melatonin and other ligands at both receptor subtypes. In GPCR X-ray structures, residue 5.46 is located one turn above the superconserved Pro5.50 and often points towards the stretches of TM3 and TM4 facing the binding site (e.g., His2115.46 of rhodopsin and Asn1985.46 of the H1 histamine receptor). Site-directed mutagenesis studies performed on a number of GPCRs further confirmed a crucial role of position 5.46 in ligand stabilization, as well as in receptor activation [3335]. Mutagenesis studies also highlighted that four other residues are fundamental for melatonin binding to the MT1 subtype, namely Ser1103.35, Ser1143.39, Val1925.43 and Gly2586.55. The two serines located on TM3 are fully conserved within the melatonin receptor subfamily and their mutation to alanines brought from a four- to a nine-fold decrease in melatonin binding affinity [36]. Serine 3.39 is located in the middle of TM3 in many GPCR structures, close to the Asp2.50 side chain, and it is conserved in more than 70% of rhodopsin-like receptors. A recent crystallographic study revealed that Ser3.39 in the A2A adenosine receptor (Ser913.39) is responsible for the stabilization of the sodium ion [37], which acts as an allosteric modulator for this receptor subtype [38]. On the other hand, Ser3.35 can be detected in only 21% of class A GPCRs, and it is located one turn above position 3.39, at the same level of the tryptophan residue (Trp6.48) belonging to the CWXP domain. Intriguingly, residue 3.35 was found to play a crucial role in a number of different GPCRs, since mutation of this amino acid in the β2 adrenergic receptor (Cys1163.35) and in the nociceptin receptor (Asn1333.35) brought to constitutively active proteins [39,40]. Similarly to His5.46, Ser3.35 and Ser3.39, also Val5.43 (Val1925.43 in the MT1 receptor) is fully conserved among the melatonin receptor subfamily. Mutagenesis studies performed on the ovine MT1 receptor clearly showed that substitution of Val2085.43 to either alanine or leucine led to a decrease in the binding affinity of melatonin and of other melatonergic ligands [30]. X-ray structures of class A GPCRs show that this residue is involved in the definition of the binding cavity and forms an extensive network of interactions with surrounding residues (e.g., Ser2125.43 of the β1 adrenergic receptor and Phe1825.43 of the A2A adenosine receptor). The importance of residue 5.43 for ligand binding and receptor stabilization is also sustained by site-directed mutagenesis experiments performed on a number of rhodopsin-like receptors [41,42]. Mutation of Gly2586.55 to threonine brought to a severe loss of 2-iodomelatonin binding affinity and to a remarkable impairment of signal transduction [43,44]. In most GPCR structures, residue 6.55 is located at the C-terminus of TM6, near the extracellular edge of the helical bundle. Visual inspection of available X-ray structures revealed that residues located at position 6.55 form an extensive network of interactions with co-crystallized ligands, as well as with neighboring residues (e.g., Asn2536.55 in the A2A adenosine receptor, Asn2936.55 in the β2 adrenergic receptor and Ile2946.55 in the κ-opioid receptor). In addition, mutagenesis experiments performed on different rhodopsin-like GPCRs confirmed a crucial role of position 6.55 in ligand binding and in receptor activation [4547].

Compared to the MT1 receptor, mutagenesis experiments on the MT2 subtype were conducted on a wider array of residues, providing an in-depth analysis of the TM domains thought to define the putative binding site region. Indeed, a two- and three-fold decrease in melatonin binding affinity was observed due to the mutation of Met1203.32 and Gly1213.33 to alanine, respectively [48]. Substitution of the asparagine residue at position 4.60 (Asn1754.60), which is highly conserved within the melatonin receptor subfamily, with alanine led to a four-fold decrease in melatonin binding affinity [32]. More interestingly, mutation of serine residues located at positions 3.35 (Ser1233.35) and 3.39 (Ser1273.39) did not produce the remarkable loss of binding affinity seen in the MT1 receptor [32]. Although only sparse indications were given for residues laying on TM3 and TM4, mutagenesis experiments allowed the identification of a wide subset of important residues mainly located on TM5, TM6 and TM7, including Val2045.42, Asn2686.52, Leu2726.56, Ala2756.59, Val2917.36, Leu2957.40 and Tyr2987.43. Position 5.42 is located four residues (i.e., one α-helix turn) before the conserved His5.46, and in GPCR X-ray structures, it often participates in direct ligand-receptor interactions within the binding site region (e.g., Ser2035.42 and Ser2115.42 of the β2 and β1 adrenergic receptors, respectively). Interestingly, position 5.42 is occupied by hydrophobic residues, valine or isoleucine, in all receptors belonging to the melatonin receptor subfamily, probably due to the lipophilic character of the natural ligand. Mutation of Val2045.42 to alanine brought to a complete loss of 2-iodomelatonin specific binding [49]. Asn2686.52 is fully conserved among all the members of the melatonin receptor subfamily, and it was found to play a crucial role in ligand binding. Indeed, only the conservative mutation from asparagine to glutamine maintained 2-iodomelatonin binding [48]. Conversely, mutation of Asn2686.52 to the non-polar alanine and leucine or to the negatively charged aspartic acid completely abolished agonist binding to the MT2 subtype [48]. Position 6.52 is occupied by either a phenylalanine or a histidine in more than 45% of class A GPCRs, whereas only 14% of them carry an asparagine. While an aromatic residue at position 6.52 often stabilizes the co-crystallized ligand through either edge-to-face interactions (e.g., Phe2906.52 of the β2 adrenergic receptor and Phe3076.52 of the β1 adrenergic receptor) or hydrophobic contacts (e.g., His2506.52 of the A2A adenosine receptor), an asparagine residue can form extensive hydrogen bond contacts with the ligand and with surrounding residues (e.g., Asn4046.52 and Asn5076.52 of the M2 and M3 muscarinic receptor, respectively). Mutations of either Leu2726.56 to alanine or of Ala2756.59 to isoleucine were shown to be detrimental for binding affinity, leading to a complete loss of 2-iodomelatonin specific binding [48,49]. Conversely, the mutation of Ala2756.59 to valine did not influence 2-iodomelatonin binding [48]. In crystallographic GPCR structures, positions 6.56 and 6.59 are located at the C-terminus of TM6, near the extracellular region of the TM bundle. In particular, position 6.56 is occupied by hydrophobic residues, such as leucine, isoleucine, phenylalanine or valine in more than 70% of class A GPCRs and in all the receptors of the melatonin subfamily. Compared to position 6.56, residues at position 6.59 are more solvent-exposed, and they often form extensive hydrophobic interactions with amino acids laying at the N-terminus of TM5 (e.g., Val2976.59 of the β2 adrenergic receptor and Phe2576.59 of the A2A adenosine receptor) and with residues located at the C-terminal stretch of ECL2 (e.g., Phe2766.59 of rhodopsin). Site-directed mutagenesis studies highlighted a key role of this residue in either ligand stabilization or G protein coupling in a number of different rhodopsin-like receptors, including the neuropeptide Y, the A2A adenosine and the M1 muscarinic receptors [5052]. Three different amino acids were identified in the extracellular half of TM7, which were shown to influence ligand binding to the MT2 subtype. Mutation of Val2917.36, Leu2957.40 or Tyr2987.43 to alanine disrupted agonist binding to the MT2 receptor [48,49]. A visual inspection of GPCR X-ray structures shows that residues 7.36, 7.40 and 7.43 are located in different regions of the TM7 domain, separated by approximately one helix turn. Residues 7.36 lay at the N-terminus of TM7 within the binding crevice, where they often form extensive interactions with the co-crystallized ligand (e.g., Tyr2717.36 of the A2A adenosine receptor). In all the members of the melatonin receptor subfamily, this position is occupied by hydrophobic residues, including valine and leucine. Amino acids located at position 7.40 do not point towards the binding cavity, but they often occupy a narrow interface between TM1, TM2 and TM7, where they can form contacts with neighboring side chains (e.g., Trp3137.40 of the β2 adrenergic receptor, Phe2937.40 of rhodopsin and Trp4557.40 of the H1 histamine receptor). Amino acids at position 7.43 are often enclosed in the helical bundle, pointing towards the binding site crevice. Due to the peculiar orientation of residues 7.43, they can participate in ligand-receptor interactions (e.g., His2787.43 of the A2A adenosine receptor and Lys2967.43 of rhodopsin) or in inter-helical contacts with surrounding amino acids (e.g., Tyr3167.43 of the β2 adrenergic receptor and Tyr4307.43 of the M2 muscarinic receptor). A tyrosine residue is present at position 7.43 in all the receptors belonging to the melatonin subfamily. Interestingly, a number of site-directed mutagenesis studies performed on different rhodopsin-like GPCRs highlighted a key role of positions 7.36, 7.40 and 7.43 in either ligand stabilization or receptor activation [47,5357]. Besides the TM domains, a key residue involved in ligand stabilization has been found at the N-terminus stretch of the ECL2 segment, before the conserved cysteine residue of class A GPCRs. Substitution of Tyr188 with either alanine or phenylalanine completely abolished 2-iodomelatonin specific binding [48].

As previously outlined, although mutagenesis studies were conducted on a wide set of amino acids of MT1 and MT2 receptors, an unambiguous binding mode for melatonin is still missing. Indeed, it is not possible to distinguish between amino acids directly interacting with the ligands and those whose mutation leads to a modification of the receptor state, like, for example, a structural rearrangement only indirectly affecting ligand binding affinity. Moreover, only agonist compounds are currently available as radiolabelled ligands (i.e., 2-[125I]-iodomelatonin and [3H]-melatonin). As the high-affinity binding of agonists depends on both ligand recognition and receptor activation, it is difficult to know which process is actually affected by a mutation. Experimental affinity of a labelled antagonist would, in this sense, provide more direct information on ligand recognition at its binding site. The putative binding cavity of MT1 and MT2 receptors is characterized by a number of hydrophobic residues. This makes the outcome of mutagenesis experiments even more complicated for interpretation, since the disruption of a weak hydrophobic interaction usually brings a limited loss in binding affinity. As a consequence of the number and the diverse location of residues important for binding affinity, melatonin interacts only with a small subset of these amino acids in the proposed binding modes.

3. MT1 and MT2 Melatonin Receptor Models

During the last two decades, a number of MT1 and MT2 homology models have been reported, which were built starting from different GPCR X-ray crystal structures. In this section, we review these receptor models along with a brief description of the overall homology modeling workflow and of the computational techniques applied to refine the model structure. The binding modes proposed for melatonin and/or for other melatonergic ligands are discussed in light of available information, such as pharmacophore models, mutagenesis data and consistency with SAR studies.

3.1. MT1 Receptor Models

The first MT1 receptor model based on the X-ray crystal structure of a GPCR was described by Uchikawa et al. in 2002 [58]. They used the first available crystal structure of rhodopsin (PDB ID: 1F88 [59]) to build the TM domains and the ECL2 portion of the MT1 receptor. Since the initial geometry of ECL2 was directly derived from the corresponding segment of the rhodopsin structure, this loop protruded into the helical bundle and sealed the putative binding cavity of the MT1 structure, hampering the accommodation of melatonergic ligands. Thus, a simulated annealing procedure was applied to induce a structural rearrangement of the ECL2 portion, favoring the accommodation of melatonergic derivatives. Ramelteon (Figure 1, pKi (MT1) = 10.9) was docked into the refined model to identify the structural features able to confer binding affinity. In its best docking pose, it formed a network of hydrogen bonds and hydrophobic interactions with residues located on TM5, TM6 and ECL2 (Figure 4A). In particular, the oxygen atom of the dihydrofuran ring was hydrogen bonded to His1955.46 on TM5, whereas the adjacent carbon atom interacted with the side chain of Val1925.43. These two residues had been previously indicated as important for melatonin stabilization at the MT1 subtype [30,31]. The indane core laid at the bottom of the binding cavity and was surrounded by a number of hydrophobic residues. On the basis of this docking result, the authors hypothesized that substitution of the NH group of the indole ring of melatonin with the more lipophilic methylene unit of the indane one could explain the six-fold increase in binding affinity compared to melatonin. The amide chain was stabilized by several contacts with residues located on TM6 and ECL2. Indeed, Val2616.58 and Pro2656.62 formed hydrophobic interactions with the alkyl portion of the propionamide group and the amide oxygen and hydrogen atoms interacted with Tyr175 and Ser182, respectively, located on ECL2. Although no mutagenesis data are available for positions 6.58 and 6.62, the importance of the ECL2 portion in ligand binding to the MT1 receptor has been assessed in studying chimeric melatonin receptors [44]. Ramelteon did not interact with the two serine residues located on TM3, Ser1103.35 and Ser1143.39, which were shown to be fundamental for ligand stabilization.

The first complete model of the MT1 receptor was reported a few years later by Ivanov et al.[60]. In this study, the rhodopsin X-ray structure solved at 2.6 Å (PDB ID: 1L9H [61]) was initially used to build the TM portions and the first two extracellular loops of the MT1 receptor, together with the conserved disulfide bridge between Cys1003.25 and Cys177. The other loop segments were subsequently modeled on the energy-minimized receptor conformation. To investigate the molecular basis of ligand recognition, five agonists were manually docked into the putative binding cavity. Information from mutagenesis experiments was used as guidance for the initial ligand placement. Docking results obtained for melatonin, 2-iodomelatonin and the naphthalene derivative depicted in Figure 4B outlined a common binding mode, in which the methoxy group was hydrogen bonded to His1955.46 and the amide oxygen and hydrogen atoms interacted with Ser1103.35 and Ser1143.39, respectively. The methyl group of the methoxy substituent was stabilized by a number of hydrophobic interactions with neighboring residues, including Ile1153.40, Phe1965.47 and Pro1995.50. While the role of His1955.46, Ser1103.35 and Ser1143.39 in ligand stabilization had been assessed, no mutagenesis data are available for positions 3.40, 5.47 and 5.50. Docking results also showed that the 2-iodine atom of 2-iodomelatonin occupied a cleft surrounded by Trp2516.48 and Leu2546.51, located on TM6. Although no mutagenesis experiments were conducted on Trp2516.48 of the conserved CWXP motif, the corresponding tryptophan residue of the MT2 receptor subtype (Trp2646.48) was shown to be important for ligand stabilization [32]. Interestingly, docking studies highlighted the presence of another pocket, delimited by Leu692.46, Ala722.49 and Asp732.50 of the conserved LAXADL domain of TM2, which accommodated the amide alkyl chain of the naphthalene derivative. According to this binding mode, the NH group of the indole ring of melatonin did not form any interaction with neighboring residues. The authors have taken this result as a possible explanation for the similar binding affinities seen for 2-iodomelatonin (pKi = 10.49) and for the naphthalene derivative (pKi = 10.53). The lower binding affinity observed for two conformationally-constrained derivatives was related to their inability to form the same pattern of polar interactions seen for melatonin.

The first attempt to model the active state of the MT1 receptor was made by Chugunov et al. in 2006 [62]. Since bovine rhodopsin was the sole crystallized GPCR, it was taken as the template for the construction of the MT1 receptor (PDB ID: 1L9H [61]). Boundaries of the TM regions of the MT1 receptor were initially predicted with different algorithms and subsequently used as guidance during the alignment of template and MT1 sequences. Interestingly, in the final sequence alignment, a gap in the template and one in the MT1 receptor could be identified in TM4 and TM6 domains, respectively. Five MT1 models were initially built, and one was selected based on the analysis of spatial violations. After energy minimization, loop sequences were removed, and the TM segments were used for further studies. A visual inspection of the MT1 3D structure revealed that Ser1103.35 and Ser1143.39 were oriented outside the putative binding cavity. For this reason, the authors rotated the TM3 helix in a clockwise direction (viewed from the extracellular side) to favor the exposure of the two serines. The helix was rotated from 0° (the starting conformation) to 60° with steps of 5°, yielding twelve different model structures. Melatonin was manually docked into these twelve receptors in its putative bioactive conformation, in which the amide side chain was perpendicular to the indole ring. The accommodation of melatonin into the MT1 binding cavity was accomplished by trying to minimize the distances between His1955.46 and the 5-methoxy group, as well as between the two serines on TM3 (Ser1103.35 and Ser1143.39) and the amide group. The twelve resulting complexes were then submitted to an energy minimization procedure aimed at relaxing the receptor structure around the pre-positioned melatonin molecule, and they were subsequently analyzed using different metrics. In particular, the hydrogen bond distances and the hydrogen bond angles were monitored for the three main hydrogen bond interactions, and they were compared to the ideal values of a prototypic hydrogen bond interaction. Additional quality criteria were (i) the docking score assigned to melatonin during re-docking calculations and (ii) the helix packing quality. In the best MT1 model, the receptor binding cavity was located in the extracellular portion of the helical bundle, lined by TM3, TM5, TM6 and TM7. A closer inspection of ligand-receptor contacts revealed that the 5-methoxy group of melatonin formed a hydrogen bond interaction with His1955.46, whereas the amide group was bound to the two serines located on TM3 (Figure 5A). Based on the molecular hydrophobicity potential (MHP) approach, the authors also provided a structural explanation for the MT1 or MT2 selectivity displayed by some ligands. The MHP method allows the calculation of the hydrophobic surfaces of a ligand and of its receptor through the combination of atomic hydrophobicity constants. The common hydrophobic or hydrophilic points shared by the ligand and by the surrounding receptor residues can be considered a measure of the ligand-receptor complementarity. In this case, MHP calculations performed for an MT1-selective benzoxazole derivative clearly showed that the hydrophobic complementarity with the MT1 binding site was higher than that attained with the MT2 subtype (the authors also built an MT2 receptor model, see next paragraph). The authors therefore hypothesized that the different hydrophobic complementarity observed for a ligand within the MT1 and MT2 receptor binding cavities may explain its propensity to preferentially bind to one receptor subtype.

A further attempt to model the activated state of the MT1 receptor was made by Farce et al. in 2008 [63] based on the high resolution crystal structure of rhodopsin (PDB ID: 1L9H [61]). Interestingly, two gaps could be identified in the proposed alignment between rhodopsin and the MT1 receptor sequences, located in TM6 and TM7. The structural quality of the minimized MT1 receptor was assessed through the evaluation of the hydrophobic moments of TM domains. The hydrophobic moments of the model structure closely resembled those calculated for rhodopsin, thus confirming the reliability of the orientation of the TM domains in the MT1 receptor. However, the residues thought to be important for ligand binding, Ser1103.35, Ser1143.39 and His1955.46, did not assume a favorable orientation within the putative binding site. Thus, TM3 and TM5 were rotated clockwise of 50° and 20°, respectively, to bring His1955.46 in the proximity of Ser1103.35 and Ser1143.39 and, consequently, to favor the formation of the predicted network of hydrogen bond interactions with the endogenous agonist. The authors hypothesized that the reorganized helical bundle could represent the activated form of the MT1 receptor. Melatonin was then manually docked within the MT1 receptor in the extracellular portion of the TM domains, in a cavity lined by TM2, TM3, TM5, TM6 and TM7. The methoxy oxygen was hydrogen bonded to His1955.46, and the methyl group of the 5-methoxy substituent formed hydrophobic interactions with the side chain of Phe1965.47 (Figure 5B). The indole ring was stabilized by a number of interactions with residues located on TM3 and TM6, including Met1073.32, Val1113.36, Leu2546.51 and Asn2556.52. While mutation of Met1073.32 to threonine did not alter agonist binding [31,36,64], no data are available for Val1113.36, Leu2546.51 and Asn2556.52. However, the corresponding amino acids in the MT2 receptor subtype, Val1243.36 and Asn2686.52, were found to be involved in ligand stabilization [48]. The N-acetyl group occupied a cavity between TM2, TM3 and TM6, where it formed an extensive network of interactions. The amide hydrogen was bound to Ser1143.39 and the amide oxygen to Trp2516.48 and Ser1103.35. Moreover, the methyl group of the N-acetyl substituent protruded into a pocket formed by Leu692.46, Phe2476.44 and Asn2917.49. Gly2586.55 did not directly interact with the ligand, but was located at the entrance of the binding cavity, where it could influence the access of melatonergic ligands. Indeed, site-directed mutagenesis experiments showed that the substitution of Gly2586.55 with the bulkier threonine brought to a remarkable decrease in ligand binding [43,44]. To evaluate the ability of the MT1 model to discriminate between agonists and antagonists, different melatonergic ligands were docked within the putative binding region. Interestingly, while agonist molecules, including 2-iodomelatonin and agomelatine, could be easily accommodated within the binding cavity, no docking solutions were identified for the prototypic antagonist luzindole. The authors thus suggested that the failure in the docking of luzindole could be considered a positive result, which may confirm the achievement of an activated form of the MT1 receptor.

After the publication of the MT1 receptor model by Farce et al., a growing number of X-ray structures of druggable GPCRs were reported in their active and/or inactive forms. The first attempt to model the MT1 receptor using the X-ray structure of a non-rhodopsin template was made in 2012 by our group [65]. In this study, the fully activated state of the β2 adrenergic receptor (PDB ID: 3P0G [66]) was used as the template structure. To adapt the binding site around a potent and bulky agonist, 2-phenylmelatonin was rigidly docked in its putative bioactive conformation, as inferred from a pharmacophore model previously developed for nonselective melatonergic agonists [67]. To favor the mutual ligand-receptor adaptation, an induced-fit docking procedure was applied, which accounted for protein flexibility during docking calculations. The resulting complexes were then evaluated on the basis of their docking score, as well as of their consistency with mutagenesis data. In particular, since a number of mutagenesis studies had shown that His5.46 is likely to be involved in the stabilization of the 5-methoxy group [30,31,64], the best ranked complex having the methoxy group of 2-phenylmelatonin close to His1955.46 was selected. The complex was then embedded in a solvated lipid bilayer to relax and to evaluate its stability during molecular dynamics (MD) simulations. 2-Phenylmelatonin was accommodated in a binding cleft located in the extracellular portion of the helical bundle, spanning from TM3 to TM7. Two main hydrogen bond interactions were identified between the methoxy oxygen and Tyr1875.38 and between the ligand amide oxygen and Tyr2857.43 (Figure 6A). Although no mutagenesis studies were performed on these two tyrosines, residue 7.43 of the MT2 receptor (Tyr2987.43) was fundamental for ligand stabilization, since its mutation to alanine brought to a complete loss of agonist binding [49]. Moreover, several mutagenesis studies performed on different class A GPCRs highlighted a key role of position 5.38 in ligand binding [6870]. The indole ring of 2-phenylmelatonin formed extensive hydrophobic interactions with neighboring residues located on TM3 and TM5, including Gly1083.33 and His1955.46. The 2-phenyl substituent was accommodated in a hydrophobic cavity delimited by Trp2516.48, Leu2546.51, Asn2556.52, Tyr2817.39 and Ala2847.42, where it formed two edge-to-face interactions with Trp2516.48 and Tyr2817.39 side chains. The N-acetyl group pointed towards a cleft formed by the extracellular tips of TM2, TM3 and TM7, and it interacted with the side chain of Met1073.32. The MT1 receptor model was then applied to investigate the issue of ligand selectivity. The MT1-selective phenylbutyloxy derivative depicted in Figure 6B (pKi (MT1) = 8.93; pKi (MT2) = 7.04) was docked within the binding site, and the resulting complex was stabilized through MD simulations. The lipophilic phenylbutyloxy substituent undertook a number of hydrophobic interactions with residues located at the tips of TM3 and TM4 and with ECL2, including Gln1013.26, Gly1043.29, Phe1053.30, Val1594.57, Leu1634.61, Leu168, Gln169 and Tyr175. Interestingly, the comparison between the amino acid sequences of the extracellular ends of TM3 and TM4 in MT1 and MT2 receptors showed that the MT1 receptor is characterized by the presence of some smaller amino acids. Indeed, Gly1043.29, Val1594.57 and Leu1634.61 in the MT1 receptor are replaced by Ala1173.29, Leu1724.57 and Phe1764.61 in the MT2 subtype. Therefore, the presence of smaller amino acids in the MT1 receptor could favor the accommodation of the phenylbutyloxy substituent and, in general, of the lipophilic substituent carried by MT1-selective ligands.

3.2. MT2 Receptor Models

The first model of the MT2 receptor was reported in 2004 by Mazna et al.[49]. The rhodopsin X-ray crystal structure was used as the template (PDB ID: 1L9H [61]), and three prototypic melatonergic ligands, 2-iodomelatonin, luzindole and 4-phenyl-2-propionamidotetralin (4P-PDOT), were manually docked within the MT2 binding region. 2-Iodomelatonin was initially placed within the MT2 receptor according to the binding scheme previously proposed by Grol and Jansen for melatonin [71], which was based on the formation of a hydrogen bond between the methoxy group and His5.46 and of two hydrogen bonds between the amide group and Ser3.35 and Ser3.39. In the final optimized pose of 2-iodomelatonin, the 5-methoxy group was close to His2085.46, forming an extensive network of interactions with surrounding residues (Figure 7A). Indeed, the 5-methoxy oxygen laid within a hydrogen bond distance from the hydroxyl group of Tyr2987.43, which, in turn, could accept a hydrogen bond from the amide side chain of Asn2686.52. Interestingly, mutation of His2085.46 to alanine brought to a four-fold decrease in melatonin binding [32], and the substitution of Asn2686.52 and of Tyr2987.43 with alanine produced a complete loss of agonist specific binding [48,49]. The indole ring of 2-iodomelatonin formed several hydrophobic contacts with surrounding residues, such as Leu2726.56 and Val2045.42, which were shown to be important for agonist binding [49]. No hydrogen bond interactions or hydrophobic contacts were described for the N-acetyl group. Docking of luzindole and 4P-PDOT resulted in the absence of any polar ligand-receptor interaction within the binding cavity. Therefore, the authors hypothesized that the stabilization of these two melatonergic ligands within the MT2 binding cavity could be achieved through unspecific hydrophobic interactions. In the MT2 receptor-luzindole complex, the antagonist molecule assumed an orientation similar to that of 2-iodomelatonin, in which the indole core interacted with Leu2726.56 and Ala2756.59 side chains, and the benzyl group formed hydrophobic contacts with Leu181.

The first MT2 receptor model applied to address the issue of ligand selectivity was developed in 2005 by Rivara et al.[72]. The 3D coordinates of TM regions, ICL1 and ECL1 were modeled based on those of rhodopsin (PDB ID: 1U19 [73]), while the other loop regions were built applying a “knowledge-based” algorithm, which searches for amino acid fragments of the proper length among a Protein Data Bank-derived database. In the rhodopsin structure, a complex pattern of polar interactions between Glu1223.37, Trp1263.41 and His2115.46 causes a distortion of the TM5 geometry [74]. Indeed, X-ray structures of GPCRs having hydrophobic residues at position 3.37 (e.g., the κ-, μ- and δ-opioid receptors) show that TM5 is more shifted towards the helical bundle and is slightly rotated clockwise (seen from the extracellular side) compared to rhodopsin, causing a major exposure of residue 5.46 within the binding cavity. The MT2 receptor has a hydrophobic Ile1253.37 residue, and therefore, it is unlikely that the local unwinding of TM5 seen in rhodopsin could be also present in the MT2 receptor. For this reason, the TM5 domain of the MT2 model was built with an α-helix geometry and submitted to a MD simulation to relax the secondary structure, which assumed the peculiar kink associated with the presence of the highly conserved Pro2125.50. The MT2 receptor model with the “de novo”-built TM5 was subjected to a MD simulation to relax the whole receptor structure. To adapt the binding pocket around a potent MT2-selective antagonist, the indole derivative UCM454 (pKi (MT2) = 8.06, Figure 7B) was docked within the MT2 receptor applying a set of constraints derived from mutagenesis studies and SARs, including the interaction with the conserved His5.46 and the arrangement of the aromatic substituent in an “out-of-plane” conformation. In the final complex, the benzene portion of the indole core interacted with the imidazole ring of His2085.46 through a T-shaped interaction, and the p-chlorobenzyl substituent was accommodated into a hydrophobic cavity located near Trp2646.48. To assess the reliability of this binding mode, six structurally different melatonergic antagonists were accommodated in the MT2 binding site in their putative bioactive conformation. The complexes were subjected to simulated annealing to favor the mutual adaptation of the ligand and the receptor binding site and then to MD simulations to check the stability of the resulting complexes. A common solution was found for all the ligand-receptor complexes, in which the ligand amide oxygen was hydrogen bonded to the hydroxyl group of Tyr183, belonging to the ECL2 segment, and the indole ring interacted with His2085.46. The “out-of-plane” substituent occupied a hydrophobic cleft located close to Trp2646.48 and lined by Val1243.36, Ile1253.37, Val1283.40, Phe2095.47, Pro2125.50, Ile2135.51, Phe2606.44 and Trp2646.48. Interestingly, the amide hydrogen did not bind any surrounding residue, supporting the hypothesis of its minor role in MT2 binding, as different series of potent MT2 ligands lacking the amide hydrogen were reported [75,76]. To investigate the receptor structural elements responsible for the MT2 selectivity observed for different antagonists, a comparison was made between the complexes formed by the MT2 and the MT1 receptors. A difference was seen in the amino acid composition of the hydrophobic pocket accommodating the “out-of-plane” group. In fact, the MT2 residues, Val1283.40 and Ile2135.51, are replaced by the bulkier Ile1153.40 and Met2005.51 in the MT1 receptor, leading to a smaller pocket and to disruption of polar and hydrophobic interactions with the ligands. The more favorable accommodation of the “out-of-plane” substituent typical of MT2-selective compounds in the hydrophobic pocket close to Trp2646.48 of the CWXP motif could represent, therefore, an explanation for the selectivity and for the antagonist behavior seen for these compounds.

One year after the publication of an MT1 receptor model by the same research group, Voronkov et al. reported an MT2 receptor model based on the same rhodopsin template [77]. Interestingly, a comparison of the two sequence alignments showed a major difference concerning ECL2. Indeed, while in the case of the MT1 receptor, the conserved cysteine forming the disulfide bridge was correctly aligned with that of rhodopsin, in the MT2 receptor, the corresponding cysteine was aligned to a cysteine in the rhodopsin sequence, which is not involved in the disulfide bond. Several agonists were selected for docking simulations, and their accommodation within the binding site was inferred from site-directed mutagenesis experiments. In the final complex, the methoxy oxygen of melatonin interacted with His2085.46 and the amide oxygen and hydrogen atoms formed two hydrogen bonds with Ser1233.35 and Ser1273.39, respectively (Figure 8A). The methyl group of the methoxy substituent was accommodated in a hydrophobic cavity lined by Ile1253.37, Val2045.42 and Val2055.43 and a π–π interaction could be seen between the indole ring and the Phe2095.47 side chain. The methyl group of the N-acetyl fragment occupied a cleft lined by Leu822.46 and Ala852.49, located towards the intracellular end of TM2. Docking of melatonin derivatives carrying a bulky substituent at position 2, such as an iodine atom or a phenyl ring, showed that these groups could be stabilized by interactions with Trp2516.48 and neighboring residues, including Asp862.50, Ala2977.42, Asn3007.45, Ser3017.46 and Asn3047.49. The effect of the elongation of the amide side chain in melatonin-like derivatives was also investigated. Indeed, lengthening of the acetyl group to a propionyl or to a butyryl one did not influence MT2 binding affinity, whereas longer acylating agents brought to a remarkable decrease in binding affinity [78]. Docking studies performed with the n-butyryl derivative of melatonin showed the presence of a pocket lined by Leu822.46, Ala852.49 and Thr1684.53 that could accommodate the terminal alkyl chain of the amide fragment. On the basis of these docking results, the authors proposed a structural explanation for MT2 selectivity. Indeed, inspection of the binding site revealed that residue 3.40 (Ile1153.40 in MT1 receptor and Val1283.40 in MT2 receptor) laid near positions 1 and 2 of the indole ring of melatonin. Thus, the smaller side chain of amino acid 3.40 in the MT2 receptor subtype could favor the accommodation of MT2-selective ligands, which often carry bulky lipophilic substituents bound to positions 1 or 2 of the indole ring. The authors also tried to explain the 60-fold decrease in binding affinity observed with the introduction of a p-methoxyphenyl substituent at position 1 of melatonin [79]. Docking results for this N-substituted derivative showed that the accommodation of the p-methoxyphenyl group was sterically impeded by Trp2646.48, Ala2656.49 and Leu2676.51 side chains. The MT2 receptor model was also applied to rationalize the SARs available for a series of 3-methoxyphenylalkylamides [80], in which the length of the alkyl linker varied from one to three methylene groups. Compounds with three methylenes bound melatonin receptors in the nanomolar range, while shortening of the alkyl linker to two methylene groups brought to a ten-fold decrease in binding affinity, and a further deletion of a methylene group led to micromolar affinities. Based on docking results, the authors proposed that the reduction in binding affinity observed for compounds carrying a shorter alkyl linker could be ascribed to their inability to form specific hydrogen bond interactions with key binding site residues. In fact, one and two methylene derivatives could not simultaneously bind to Ser3.35 and Ser3.39.

As previously cited, in 2006 Chugunov et al. explored the molecular basis of agonist recognition at both melatonin receptors [62]. The workflow applied for the building of the MT2 model was the same applied for the MT1 model, which involved an initial clockwise rotation of TM3 to favor the exposure of Ser1233.35, Val1243.36 and Ser1273.39 towards the putative binding cavity. It should be noted that while mutation of Val1243.36 altered 6-chloromelatonin binding to the MT2 receptor [48], mutation of Ser1233.35 and Ser1273.39 did not affect agonist binding to this receptor subtype [32]. Melatonin was manually docked into a set of MT2 receptor conformations characterized by different degrees of rotation of the TM3 domain, trying to minimize the distances between the 5-methoxy substituent and His2085.46 and between the amide group and Ser1233.35 and Ser1273.39. The MT2 receptor-melatonin complex, which showed (i) the lowest deviation of ligand-receptor hydrogen bond geometries, (ii) the highest score for melatonin re-docking and (iii) the best agreement between the packing of amino acids in the MT2 structure and that observed in a database of high-resolution X-ray structures was selected. In this complex, the methoxy oxygen was hydrogen bonded to His2085.46 and the methyl group interacted with Val2045.42, which is fundamental for ligand binding to the MT2 receptor [49] (Figure 8B). The indole ring of melatonin formed hydrophobic interactions with the Val1243.36 and Trp2646.48 side chains, and the amide group was stabilized by extensive hydrogen bond interactions with Tyr2987.43 and one of the serines, 3.35 and 3.39. In this receptor model, some residues known to be important for ligand binding laid outside the binding cavity and were not able to interact with melatonin. For example, Asn2686.52 and Leu2726.56, which were found to be crucial for agonist binding [48,49], are rotated towards the TM5-TM6 interface. Similarly to what reported for the MT1 receptor, the authors exploited the complementarity between the ligand and the receptor hydrophobic features to explain the MT2 selectivity exhibited by some melatonergic compounds. Indeed, application of the molecular hydrophobicity potential (MHP) approach on the MT2-selective ligand 2-benzylmelatonin highlighted that its hydrophobic complementarity was much higher with the MT2 receptor binding site than with the MT1 subtype.

Farce et al. investigated the activation mechanism of MT1 and MT2 receptor subtypes [63]. As previously described for their MT1 model, the authors inserted gaps in the alignment of rhodopsin and melatonin receptor TM sequences to improve the alignment quality. The hydrophobic moments calculated for the TM portions of the MT2 receptor model were in good agreement with those of rhodopsin, confirming the reliability of the relative orientation of TM helices. Information from mutagenesis experiments was used to guide the docking of melatonin, and Asn1754.60 and His2085.46 were chosen as the main hydrogen bonding partners. TM5 helix of the MT2 receptor model was rotated clockwise to favor the exposure of His2085.46 towards the binding region and, consequently, towards two residues important for ligand binding, Val2586.42 and Ala2756.59. Moreover, it was found that a counterclockwise rotation of TM4 of 26° favored the accommodation of melatonin within the binding cavity without severe steric clashes with surrounding amino acids. The authors thus proposed that the final model conformation achieved by the rotation of TM domains could correspond to the putative activated form of the receptor. In the final MT2 receptor-melatonin complex, the methoxy oxygen of melatonin was hydrogen bonded to the imidazole ring of His2085.46, and the methyl group formed hydrophobic interactions with Leu1724.57 and Asn1754.60 (Figure 9A). Tyr2005.38 laid close to the 5-methoxy group of melatonin, with its hydroxyl group placed within a hydrogen bond distance from the methoxy oxygen of melatonin. The amide group was located towards the extracellular side of the receptor. The amide oxygen and hydrogen atoms interacted with Asn1754.60 side chain and with the backbone carbonyl group of Thr191 (ECL2), respectively, whereas the terminal methyl group was in contact with the side chain of Leu181 (not shown in Figure 9A). The indole ring of melatonin was accommodated in a pocket lined by TM3, TM4, TM5 and TM6, and it was stabilized by hydrophobic contacts with neighboring residues, such as Gly1213.33, Val1243.36 and Ile1253.37. Different residues important for melatonin binding defined the binding pocket, but they did not directly interact with the agonist molecule, including Asn2686.52 and Tyr2987.43. Docking studies were performed to evaluate the ability of the model to discriminate between agonist and antagonist molecules. The antagonist luzindole could not be accommodated within the MT2 binding site, and as in the case of the MT1 model, the authors suggested that the inability of the MT2 structure to accommodate an antagonist molecule could be an indication of its active state. Conversely, the agonists, 2-iodomelatonin and agomelatine, could be easily docked within the MT2 binding site, where they formed the same network of hydrogen bond interactions seen for the endogenous agonist. However, MT2 agonists characterized by different chemical scaffolds had completely different orientations within the binding site and, consequently, a diverse pattern of interactions with binding site residues. As an example, the methoxy and the amide oxygens of the anilide derivative depicted in Figure 9B were hydrogen bonded to Asn1754.60 and Gly2716.55, respectively, which did not interact with melatonin. Since all the docked MT2 agonists share the pharmacophoric features of melatonergic ligands, they are probably characterized by the same binding mode. The authors proposed that the remarkable differences observed between the binding modes of chemically different MT2 receptor agonists may be due to the rigid receptor model used for docking studies. Indeed, the accommodation of different chemical scaffolds may require slight structural rearrangements of the binding site cavity, which could not be achieved with a “frozen” receptor model.

The importance of conserved proline residues for the functional state of the MT2 receptor was investigated by Mazna et al.[81]. In this study, site-directed mutagenesis was applied to several proline residues located within the TM domains, which were replaced by either alanine, glycine or valine. The NAXXY motif, which is fully conserved among the melatonin receptor subfamily, was replaced by the NPXXY sequence found in the majority of class A GPCRs. The 3D structure of the wild-type MT2 receptor was built starting from the X-ray structure of bovine rhodopsin (PDB ID: 1U19 [73]). The effects of proline substitution were investigated by means of MD simulations of the wild-type receptor and of the MT2 mutants embedded in a solvated lipid bilayer. Pro1744.59 is fully conserved within the melatonin receptor subfamily, and its mutation to alanine brought to a complete loss of 2-iodomelatonin binding. This residue was located at the extracellular tip of TM4, where it delimited the upper region of the binding cavity. Although no remarkable structural changes could be identified during MD simulation of the Ala1744.59 mutant compared to the wild-type receptor, the authors proposed that the substitution of this residue may influence the network of interactions at the upper portion of the binding crevice, leading to the loss of agonist binding. In contrast with what observed for Pro1744.59, replacement of Pro2125.50 with alanine remarkably reduced receptor signaling, but did not alter 2-iodomelatonin binding affinity. MD simulation of the Ala2125.50 mutant showed a distorted geometry of the TM5 domain one turn after position 5.50, which was not observed in the simulation of the wild-type receptor. Consequently, the authors hypothesized that the bulge observed in the TM5 domain of the Ala2125.50 mutant may influence the conformation of binding site residues involved in the signal transduction mechanism, including His2085.46 and Trp2646.48. Pro2666.50 is another proline highly conserved within the melatonin receptor subfamily, as well as among class A GPCRs, and substitution with the smaller alanine brought to a complete loss of 2-iodomelatonin binding. Inspection of MD trajectories obtained for the Ala2666.50 mutant highlighted a disruption of the helix geometry of the extracellular portion of TM6. Since this stretch delimited the binding cavity and was tightly packed with neighboring helices, the authors suggested that the effect on agonist binding seen for the Ala2666.50 mutant may be due to an unfavorable packing of binding site residues. 2-Iodomelatonin was not able to bind to the Pro3057.50 mutant in the conserved NAXXY motif, although the receptor was found to be correctly expressed in the cell membrane. MD simulation of the Pro3057.50 mutant showed a disruption of the helical structure of the TM7 domain, which alters the pattern of interactions occurring between TM1, TM2, TM6 and TM7. Thus, the receptor structure bearing the mutation Pro3057.50 was characterized by a remarkable rearrangement of the binding site region compared to the wild-type, which may explain the loss of agonist binding observed for this specific mutant. When docked in the wild-type receptor, melatonin was surrounded by Val2045.42, His2085.46, Asn2686.52 and Trp2646.48, but no description of the interactions with the binding site residues is reported in the article.

Zefirova et al. first exploited the fully activated form of rhodopsin (PDB ID: 3DQB [82]) to build the agonist-bound form of the MT2 receptor [83]. Only the TM portions were included in the final MT2 receptor structure, as loop regions were excluded from the homology modeling procedure. When docked within the binding site cavity, melatonin interacted with His2085.46 and Asn1754.60 through its 5-methoxy and amide oxygens, respectively (Figure 10). The indole ring formed hydrophobic interactions with surrounding residues, including Val1243.36, Trp2646.48 and Leu2676.51, and the amide hydrogen was bound to the backbone carbonyl group of Ala1173.29. The authors tried to exploit the putative activated form of the MT2 receptor to rationalize the different binding affinities seen for three conformationally constrained derivatives. Docking studies showed that the least potent compound had unfavorable steric clashes with Tyr2947.39. The authors, therefore, hypothesized that this close contact might bring unfavorable structural changes of the binding crevice and, consequently, a decrease in binding affinity.

4. Conclusions and Perspectives

Since the publication of the first GPCR X-ray structure in 2000, a number of MT1 and MT2 receptor models have been proposed, mostly trying to hypothesize the interactions of melatonin with amino acid residues of the putative binding site. A comparison between MT1 and MT2 3D structures shows that the proposed accommodation for melatonin seems more conserved among MT1 models. This is probably related to the information for each receptor subtype coming from mutagenesis studies. Indeed, while only three residues, Ser1103.35, Ser1143.39 and His1955.46, have been shown to be important for ligand binding at the MT1 receptor, mutagenesis experiments at the MT2 receptor identified a substantial number of important residues located in almost all TM domains and in loop regions. Consequently, while melatonin was often bound to the three aforementioned residues in MT1 receptor models, alternative orientations of the endogenous ligand led to different interaction patterns at the MT2 receptor, providing a wide array of putative binding modes. Although information provided by mutagenesis studies do not allow the identification of the amino acid counterparts for melatonin, the definition of an unambiguous pattern of ligand-receptor interactions at both MT1 and MT2 subtypes is also hampered by other elements. Indeed, the reliability of melatonin receptor models is limited by the low degree of sequence identity shared with available GPCR template structures. The significant differences in the amino acid sequence between melatonin receptors and template structures probably reflect notable dissimilarities in secondary and tertiary structures, including shifts and bulges of the TM domains, as well as in the architecture and organization of loop portions. For example, in a number of MT1 and MT2 receptor models built starting from the X-ray structure of bovine rhodopsin, the ECL2 portion sterically hampered the accommodation of ligands within the binding site. This is due to the peculiar geometry of the ECL2 of rhodopsin, which seals the retinal binding site and prevents the penetration of solvent molecules within the lipophilic binding pocket. As a consequence, in many melatonin receptor models, ECL2 was either deleted or rearranged without a template structure to guide the structural modification [58,62,83]. Probably due to the aforementioned difficulties, structure-based drug design has never been a viable option, as this approach strongly depends on the availability of a reliable receptor structure and of a well-characterized pattern of ligand-receptor interactions. Thus, melatonin receptors have been mainly applied in retrospective analyses to rationalize mutagenesis data and to reproduce SARs.

Despite a decade of progress in the field of GPCR structural biology, the modeling of melatonin receptors can still be considered a challenging task. This is, in general, true for “remote-template” GPCRs (i.e., those receptors sharing a low sequence identity with available template structures), whose 3D structures have been hardly predicted by homology modeling procedures [1618]. However, although the modeling of these receptors has to face the uncertainties related to available structural templates, the growing body of experimental and ligand-based information could be used to compensate the phylogenetic distance between the template and the receptor model and, consequently, may improve the receptor model quality. Accordingly, several modeling studies of rhodopsin-like GPCRs have highlighted the importance of incorporating a knowledge-guided refinement of the receptor structure to obtain reliable receptor-ligand complexes [8486]. This approach was also applied to melatonin receptors. Indeed, incorporation of information obtained from pharmacophore models and SARs led to MT1 and MT2 receptor models, which could provide a structural explanation for ligand selectivity and intrinsic activity [65,72]. Modeling of “remote-template” receptors should also benefit from the application of advanced computational techniques. Nowadays, long-timescale MD simulations have become viable for receptor-membrane systems, allowing for an extensive structural refinement of the receptor model and providing the possibility to describe the conformational changes occurring upon ligand binding [87]. Recently, remarkable advances have also been reported in the field of GPCR loop prediction. Loop regions usually show a low degree of sequence conservation between different GPCR families, making loop modeling a complicated task. Modeling of such sequences is even more difficult, due to the extensive pattern of interactions that they can form with the ligand and with the neighboring loop segments. For these reasons, a lot of efforts have been made to improve the quality of loop predictions, leading to novel algorithms and approaches able to correctly reproduce the architecture of GPCR loop portions [88,89].

In conclusion, modeling of “remote-template” receptors could take advantage of different resources, such as mutagenesis data, ligand-based information, computational techniques and of the exponential growth in the number of available GPCR X-ray crystal structures. The boost in the comprehension of the GPCR “machinery” at a molecular level and the exploitation of available information could lead to a new generation of reliable GPCR homology models, which, hopefully, could be actively used in structure-based drug design campaigns.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Lerner, A.B.; Case, J.D.; Heinzelman, R.V. Structure of melatonin. J. Am. Chem. Soc 1959, 81, 6084–6085. [Google Scholar]
  2. Arendt, J. Melatonin: Characteristics, concerns, and prospects. J. Biol. Rhythms 2005, 20, 291–303. [Google Scholar]
  3. Pévet, P.; Bothorel, B.; Slotten, H.; Saboureau, M. The chronobiotic properties of melatonin. Cell Tissue Res 2002, 309, 183–191. [Google Scholar]
  4. Pandi-Perumal, S.R.; Trakht, I.; Srinivasan, V.; Spence, D.W.; Maestroni, G.J.M.; Zisapel, N.; Cardinali, D.P. Physiological effects of melatonin: Role of melatonin receptors and signal transduction pathways. Prog. Neurobiol 2008, 85, 335–353. [Google Scholar]
  5. Pandi-Perumal, S.R.; Srinivasan, V.; Maestroni, G.J.M.; Cardinali, D.P.; Poeggeler, B.; Hardeland, R. Melatonin: Nature’s most versatile biological signal? FEBS J 2006, 273, 2813–2838. [Google Scholar]
  6. Lyssenko, V.; Nagorny, C.L.F.; Erdos, M.R.; Wierup, N.; Jonsson, A.; Spégel, P.; Bugliani, M.; Saxena, R.; Fex, M.; Pulizzi, N.; et al. Common variant in MTNR1B associated with increased risk of type 2 diabetes and impaired early insulin secretion. Nat. Genet 2009, 41, 82–88. [Google Scholar]
  7. Sánchez-Barceló, E.J.; Mediavilla, M.D.; Tan, D.X.; Reiter, R.J. Clinical uses of melatonin: Evaluation of human trials. Curr. Med. Chem 2010, 17, 2070–2095. [Google Scholar]
  8. Spadoni, G.; Bedini, A.; Rivara, S.; Mor, M. Melatonin receptor agonists: New options for insomnia and depression treatment. CNS Neurosci. Ther. 2011, 17, 733–741. [Google Scholar]
  9. Dubocovich, M.L.; Delagrange, P.; Krause, D.N.; Sugden, D.; Cardinali, D.P.; Olcese, J. International Union of Basic and Clinical Pharmacology. LXXV. Nomenclature, classification, and pharmacology of G protein-coupled melatonin receptors. Pharmacol. Rev 2010, 62, 343–380. [Google Scholar]
  10. Nosjean, O.; Ferro, M.; Coge, F.; Beauverger, P.; Henlin, J.M.; Lefoulon, F.; Fauchere, J.L.; Delagrange, P.; Canet, E.; Boutin, J.A. Identification of the melatonin-binding site MT3 as the quinone reductase 2. J. Biol. Chem 2000, 275, 31311–31317. [Google Scholar]
  11. Reppert, S.M.; Weaver, D.R.; Ebisawa, T. Cloning and characterization of a mammalian melatonin receptor that mediates reproductive and circadian responses. Neuron 1994, 13, 1177–1185. [Google Scholar]
  12. Reppert, S.M.; Godson, C.; Mahle, C.D.; Weaver, D.R.; Slaugenhaupt, S.A.; Gusella, J.F. Molecular characterization of a second melatonin receptor expressed in human retina and brain: The Mel1b melatonin receptor. Proc. Natl. Acad. Sci. USA 1995, 92, 8734–8738. [Google Scholar]
  13. Ochoa-Sanchez, R.; Comai, S.; Lacoste, B.; Rodriguez Bambico, F.; Dominguez-Lopez, S.; Spadoni, G.; Rivara, S.; Bedini, A.; Angeloni, D.; Fraschini, F.; et al. Promotion of non-rapid eye movement sleep and activation of reticular thalamic neurons by a novel MT2 melatonin receptor ligand. J. Neurosci 2011, 31, 18439–18452. [Google Scholar]
  14. Rivara, S.; Mor, M.; Bedini, A.; Spadoni, G.; Tarzia, G. Melatonin receptor agonists: SAR and applications to the treatment of sleep-wake disorders. Curr. Top. Med. Chem 2008, 8, 954–968. [Google Scholar]
  15. Zlotos, D.P. Recent progress in the development of agonists and antagonists for melatonin receptors. Curr. Med. Chem 2012, 19, 3532–3549. [Google Scholar]
  16. Michino, M.; Abola, E.; Brooks, C.L., III; Dixon, J.S.; Moult, J.; Stevens, R.C. Community-wide assessment of GPCR structure modelling and ligand docking: GPCR Dock 2008. Nat. Rev. Drug Discov. 2009, 8, 455–463. [Google Scholar]
  17. Kufareva, I.; Rueda, M.; Katritch, V.; Stevens, R.C.; Abagyan, R. Status of GPCR modeling and docking as reflected by community-wide GPCR Dock 2010 assessment. Structure 2011, 19, 1108–1126. [Google Scholar]
  18. Beuming, T.; Sherman, W. Current assessment of docking into GPCR crystal structures and homology models: Successes, challenges, and guidelines. J. Chem. Inf. Model 2012, 52, 3263–3277. [Google Scholar]
  19. Forrest, L.R.; Tang, C.L.; Honig, B. On the accuracy of homology modeling and sequence alignment methods applied to membrane proteins. Biophys. J 2006, 91, 508–517. [Google Scholar]
  20. Vassilatis, D.K.; Hohmann, J.G.; Zeng, H.; Li, F.; Ranchalis, J.E.; Mortrud, M.T.; Brown, A.; Rodriguez, S.S.; Weller, J.R.; Wright, A.C.; et al. The G protein-coupled receptor repertoires of human and mouse. Proc. Natl. Acad. Sci. USA 2003, 100, 4903–4908. [Google Scholar]
  21. Kolakowski, L.F., Jr. GCRDb: A G-protein-coupled receptor database. Recept. Channels 1994, 2, 1–7. [Google Scholar]
  22. Foord, S.M.; Bonner, T.I.; Neubig, R.R.; Rosser, E.M.; Pin, J.-P.; Davenport, A.P.; Spedding, M.; Harmar, A.J. International Union of Pharmacology. XLVI. G protein-coupled receptor list. Pharmacol. Rev 2005, 57, 279–288. [Google Scholar]
  23. Fredriksson, R.; Lagerström, M.C.; Lundin, L.-G.; Schiöth, H.B. The G-protein-coupled receptors in the human genome form five main families. Phylogenetic analysis, paralogon groups, and fingerprints. Mol. Pharmacol 2003, 63, 1256–1272. [Google Scholar]
  24. Ballesteros, J.A.; Weinstein, H. Integrated Methods for the Construction of Three-dimensional Models and Computational Probing of Structure-function Relations in G Protein-coupled Receptors. In Methods in Neurosciences; Sealfon, S.C., Conn, P.M., Eds.; Academic Press: San Diego, CA USA, 1995; Volume 25, pp. 366–428. [Google Scholar]
  25. Mirzadegan, T.; Benkö, G.; Filipek, S.; Palczewski, K. Sequence analyses of G-protein-coupled receptors: Similarities to rhodopsin. Biochemistry 2003, 42, 2759–2767. [Google Scholar]
  26. GMOS Web Interface, Available online: http://lmc.uab.cat/gmos/ (accessed on 4 February 2013).
  27. Klco, J.M.; Nikiforovich, G.V.; Baranski, T.J. Genetic analysis of the first and third extracellular loops of the C5a receptor reveals an essential WXFG motif in the first loop. J. Biol. Chem 2006, 281, 12010–12019. [Google Scholar]
  28. Katritch, V.; Cherezov, V.; Stevens, R.C. Diversity and modularity of G protein-coupled receptor structures. Trends Pharmacol. Sci 2012, 33, 17–27. [Google Scholar]
  29. Duvernay, M.T.; Dong, C.; Zhang, X.; Robitaille, M.; Hébert, T.E.; Wu, G. A single conserved leucine residue on the first intracellular loop regulates ER export of G protein-coupled receptors. Traffic 2009, 10, 552–566. [Google Scholar]
  30. Conway, S.; Canning, S.J.; Barrett, P.; Guardiola-Lemaitre, B.; Delagrange, P.; Morgan, P.J. The roles of valine 208 and histidine 211 in ligand binding and receptor function of the ovine Mel1aβ melatonin receptor. Biochem. Biophys. Res. Commun 1997, 239, 418–423. [Google Scholar]
  31. Kokkola, T.; Foord, S.M.; Watson, M.-A.; Vakkuri, O.; Laitinen, J.T. Important amino acids for the function of the human MT1 melatonin receptor. Biochem. Pharmacol 2003, 65, 1463–1471. [Google Scholar]
  32. Gerdin, M.J.; Mseeh, F.; Dubocovich, M.L. Mutagenesis studies of the human MT2 melatonin receptor. Biochem. Pharmacol 2003, 66, 315–320. [Google Scholar]
  33. Almaula, N.; Ebersole, B.J.; Ballesteros, J.A.; Weinstein, H.; Sealfon, S.C. Contribution of a helix 5 locus to selectivity of hallucinogenic and nonhallucinogenic ligands for the human 5-hydroxytryptamine2A and 5-hydroxytryptamine2C receptors: Direct and indirect effects on ligand affinity mediated by the same locus. Mol. Pharmacol 1996, 50, 34–42. [Google Scholar]
  34. Wetzel, J.M.; Salon, J.A.; Tamm, J.A.; Forray, C.; Craig, D.; Nakanishi, H.; Cui, W.; Vaysse, P.J.; Chiu, G.; Weinshank, R.L.; et al. Modeling and mutagenesis of the human alpha 1a-adrenoceptor: Orientation and function of transmembrane helix V sidechains. Recept. Channels 1996, 4, 165–177. [Google Scholar]
  35. Song, Z.H.; Slowey, C.A.; Hurst, D.P.; Reggio, P.H. The difference between the CB1 and CB2 cannabinoid receptors at position 5.46 is crucial for the selectivity of WIN55212-2 for CB2. Mol. Pharmacol 1999, 56, 834–840. [Google Scholar]
  36. Conway, S.; Mowat, E.S.; Drew, J.E.; Barrett, P.; Delagrange, P.; Morgan, P.J. Serine residues 110 and 114 are required for agonist binding but not antagonist binding to the melatonin MT1 receptor. Biochem. Biophys. Res. Commun 2001, 282, 1229–1236. [Google Scholar]
  37. Liu, W.; Chun, E.; Thompson, A.A.; Chubukov, P.; Xu, F.; Katritch, V.; Han, G.W.; Roth, C.B.; Heitman, L.H.; Ijzerman, A.P.; et al. Structural basis for allosteric regulation of GPCRs by sodium ions. Science 2012, 337, 232–236. [Google Scholar]
  38. Gao, Z.G.; Ijzerman, A.P. Allosteric modulation of A2A adenosine receptors by amiloride analogues and sodium ions. Biochem. Pharmacol 2000, 60, 669–676. [Google Scholar]
  39. Zuscik, M.J.; Porter, J.E.; Gaivin, R.; Perez, D.M. Identification of a conserved switch residue responsible for selective constitutive activation of the β2-adrenergic receptor. J. Biol. Chem 1998, 273, 3401–3407. [Google Scholar]
  40. Kam, K.W.L.; New, D.C.; Wong, Y.H. Constitutive activation of the opioid receptor-like (ORL1) receptor by mutation of Asn133 to tryptophan in the third transmembrane region. J. Neurochem 2002, 83, 1461–1470. [Google Scholar]
  41. Braden, M.R.; Nichols, D.E. Assessment of the roles of serines 5.43(239) and 5.46(242) for binding and potency of agonist ligands at the human serotonin 5-HT2A receptor. Mol. Pharmacol 2007, 72, 1200–1209. [Google Scholar]
  42. Pollock, N.J.; Manelli, A.M.; Hutchins, C.W.; Steffey, M.E.; MacKenzie, R.G.; Frail, D.E. Serine mutations in transmembrane V of the dopamine D1 receptor affect ligand interactions and receptor activation. J. Biol. Chem 1992, 267, 17780–17786. [Google Scholar]
  43. Gubitz, A.K.; Reppert, S.M. Chimeric and point-mutated receptors reveal that a single glycine residue in transmembrane domain 6 is critical for high affinity melatonin binding. Endocrinology 2000, 141, 1236–1244. [Google Scholar]
  44. Conway, S.; Drew, J.E.; Mowat, E.S.; Barrett, P.; Delagrange, P.; Morgan, P.J. Chimeric melatonin mt1 and melatonin-related receptors. J. Biol. Chem 2000, 275, 20602–20609. [Google Scholar]
  45. Shim, J.-Y.; Bertalovitz, A.C.; Kendall, D.A. Identification of essential cannabinoid-binding domains: Structural insights into early dynamic events in receptor activation. J. Biol. Chem 2011, 286, 33422–33435. [Google Scholar]
  46. Manivet, P.; Schneider, B.; Smith, J.C.; Choi, D.-S.; Maroteaux, L.; Kellermann, O.; Launay, J.-M. The serotonin binding site of human and murine 5-HT2B receptors: Molecular modeling and site-directed mutagenesis. J. Biol. Chem 2002, 277, 17170–17178. [Google Scholar]
  47. Mialet, J.; Dahmoune, Y.; Lezoualc’h, F.; Berque-Bestel, I.; Eftekhari, P.; Hoebeke, J.; Sicsic, S.; Langlois, M.; Fischmeister, R. Exploration of the ligand binding site of the human 5-HT4 receptor by site-directed mutagenesis and molecular modeling. Br. J. Pharmacol 2000, 130, 527–538. [Google Scholar]
  48. Mazna, P.; Berka, K.; Jelinkova, I.; Balik, A.; Svoboda, P.; Obsilova, V.; Obsil, T.; Teisinger, J. Ligand binding to the human MT2 melatonin receptor: The role of residues in transmembrane domains 3, 6, and 7. Biochem. Biophys. Res. Commun 2005, 332, 726–734. [Google Scholar]
  49. Mazna, P.; Obsilova, V.; Jelinkova, I.; Balik, A.; Berka, K.; Sovova, Z.; Ettrich, R.; Svoboda, P.; Obsil, T.; Teisinger, J. Molecular modeling of human MT2 melatonin receptor: The role of Val204, Leu272 and Tyr298 in ligand binding. J. Neurochem 2004, 91, 836–842. [Google Scholar]
  50. Kim, J.; Wess, J.; van Rhee, A.M.; Schöneberg, T.; Jacobson, K.A. Site-directed mutagenesis identifies residues involved in ligand recognition in the human A2a adenosine receptor. J. Biol. Chem 1995, 270, 13987–13997. [Google Scholar]
  51. Huang, X.P.; Williams, F.E.; Peseckis, S.M.; Messer, W.S., Jr. Differential modulation of agonist potency and receptor coupling by mutations of Ser388Tyr and Thr389Pro at the junction of transmembrane domain VI and the third extracellular loop of human M1 muscarinic acetylcholine receptors. Mol. Pharmacol 1999, 56, 775–783. [Google Scholar]
  52. Sautel, M.; Rudolf, K.; Wittneben, H.; Herzog, H.; Martinez, R.; Munoz, M.; Eberlein, W.; Engel, W.; Walker, P.; Beck-Sickinger, A.G. Neuropeptide Y and the nonpeptide antagonist BIBP 3226 share an overlapping binding site at the human Y1 receptor. Mol. Pharmacol 1996, 50, 285–292. [Google Scholar]
  53. Grånäs, C.; Larhammar, D. Identification of an amino acid residue important for binding of methiothepin and sumatriptan to the human 5-HT1B receptor. Eur. J. Pharmacol 1999, 380, 171–181. [Google Scholar]
  54. Yan, F.; Mosier, P.D.; Westkaemper, R.B.; Stewart, J.; Zjawiony, J.K.; Vortherms, T.A.; Sheffler, D.J.; Roth, B.L. Identification of the molecular mechanisms by which the diterpenoid salvinorin A binds to κ-opioid receptors. Biochemistry 2005, 44, 8643–8651. [Google Scholar]
  55. Roth, B.L.; Shoham, M.; Choudhary, M.S.; Khan, N. Identification of conserved aromatic residues essential for agonist binding and second messenger production at 5-hydroxytryptamine2A receptors. Mol. Pharmacol 1997, 52, 259–266. [Google Scholar]
  56. Mansour, A.; Taylor, L.P.; Fine, J.L.; Thompson, R.C.; Hoversten, M.T.; Mosberg, H.I.; Watson, S.J.; Akil, H. Key residues defining the μ-opioid receptor binding pocket: A site-directed mutagenesis study. J. Neurochem 1997, 68, 344–353. [Google Scholar]
  57. Befort, K.; Tabbara, L.; Kling, D.; Maigret, B.; Kieffer, B.L. Role of aromatic transmembrane residues of the δ-opioid receptor in ligand recognition. J. Biol. Chem 1996, 271, 10161–10168. [Google Scholar]
  58. Uchikawa, O.; Fukatsu, K.; Tokunoh, R.; Kawada, M.; Matsumoto, K.; Imai, Y.; Hinuma, S.; Kato, K.; Nishikawa, H.; Hirai, K.; et al. Synthesis of a novel series of tricyclic indan derivatives as melatonin receptor agonists. J. Med. Chem 2002, 45, 4222–4239. [Google Scholar]
  59. Palczewski, K.; Kumasaka, T.; Hori, T.; Behnke, C.A.; Motoshima, H.; Fox, B.A.; Le Trong, I.; Teller, D.C.; Okada, T.; Stenkamp, R.E.; et al. Crystal structure of rhodopsin: A G protein-coupled receptor. Science 2000, 289, 739–745. [Google Scholar]
  60. Ivanov, A.A.; Voronkov, A.E.; Baskin, I.I.; Palyulin, V.A.; Zefirov, N.S. The study of the mechanism of binding of human ML1A melatonin receptor ligands using molecular modeling. Dokl. Biochem. Biophys 2004, 394, 49–52. [Google Scholar]
  61. Okada, T.; Fujiyoshi, Y.; Silow, M.; Navarro, J.; Landau, E.M.; Shichida, Y. Functional role of internal water molecules in rhodopsin revealed by X-ray crystallography. Proc. Natl. Acad. Sci. USA 2002, 99, 5982–5987. [Google Scholar]
  62. Chugunov, A.O.; Farce, A.; Chavatte, P.; Efremov, R.G. Differences in binding sites of two melatonin receptors help to explain their selectivity to some melatonin analogs: A molecular modeling study. J. Biomol. Struct. Dyn 2006, 24, 91–107. [Google Scholar]
  63. Farce, A.; Chugunov, A.O.; Logé, C.; Sabaouni, A.; Yous, S.; Dilly, S.; Renault, N.; Vergoten, G.; Efremov, R.G.; Lesieur, D.; et al. Homology modeling of MT1 and MT2 receptors. Eur. J. Med. Chem 2008, 43, 1926–1944. [Google Scholar]
  64. Kokkola, T.; Watson, M.A.; White, J.; Dowell, S.; Foord, S.M.; Laitinen, J.T. Mutagenesis of human Mel1a melatonin receptor expressed in yeast reveals domains important for receptor function. Biochem. Biophys. Res. Commun 1998, 249, 531–536. [Google Scholar]
  65. Rivara, S.; Pala, D.; Lodola, A.; Mor, M.; Lucini, V.; Dugnani, S.; Scaglione, F.; Bedini, A.; Lucarini, S.; Tarzia, G.; et al. MT1-selective melatonin receptor ligands: Synthesis, pharmacological evaluation, and molecular dynamics investigation of N-{[(3-O-substituted)anilino]alkyl}amides. ChemMedChem 2012, 7, 1954–1964. [Google Scholar]
  66. Rasmussen, S.G.F.; Choi, H.-J.; Fung, J.J.; Pardon, E.; Casarosa, P.; Chae, P.S.; DeVree, B.T.; Rosenbaum, D.M.; Thian, F.S.; Kobilka, T.S.; et al. Structure of a nanobody-stabilized active state of the β2 adrenoceptor. Nature 2011, 469, 175–180. [Google Scholar]
  67. Rivara, S.; Diamantini, G.; di Giacomo, B.; Lamba, D.; Gatti, G.; Lucini, V.; Pannacci, M.; Mor, M.; Spadoni, G.; Tarzia, G. Reassessing the melatonin pharmacophore—Enantiomeric resolution, pharmacological activity, structure analysis, and molecular modeling of a constrained chiral melatonin analogue. Bioorg. Med. Chem 2006, 14, 3383–3391. [Google Scholar]
  68. Jaakola, V.-P.; Lane, J.R.; Lin, J.Y.; Katritch, V.; Ijzerman, A.P.; Stevens, R.C. Ligand binding and subtype selectivity of the human A2A adenosine receptor. J. Biol. Chem 2010, 285, 13032–13044. [Google Scholar]
  69. Conner, M.; Hawtin, S.R.; Simms, J.; Wootten, D.; Lawson, Z.; Conner, A.C.; Parslow, R.A.; Wheatley, M. Systematic analysis of the entire second extracellular loop of the V1a vasopressin receptor. J. Biol. Chem 2007, 282, 17405–17412. [Google Scholar]
  70. Cavalli, A.; Fanelli, F.; Taddei, C.; de Benedetti, P.G.; Cotecchia, S. Amino acids of the α1B-adrenergic receptor involved in agonist binding: Differences in docking catecholamines to receptor subtypes. FEBS Lett 1996, 399, 9–13. [Google Scholar]
  71. Grol, C.J.; Jansen, J.M. The high affinity melatonin binding site probed with conformationally restricted ligands II. Homology modeling of the receptor. Bioorg. Med. Chem 1996, 4, 1333–1339. [Google Scholar]
  72. Rivara, S.; Lorenzi, S.; Mor, M.; Plazzi, P.V.; Spadoni, G.; Bedini, A.; Tarzia, G. Analysis of structure-activity relationships for MT2 selective antagonists by melatonin MT1 and MT2 receptor models. J. Med. Chem 2005, 48, 4049–4060. [Google Scholar]
  73. Okada, T.; Sugihara, M.; Bondar, A.-N.; Elstner, M.; Entel, P.; Buss, V. The retinal conformation and its environment in rhodopsin in light of a new 2.2 Å crystal structure. J. Mol. Biol 2004, 342, 571–583. [Google Scholar]
  74. Ballesteros, J.A.; Shi, L.; Javitch, J.A. Structural mimicry in G protein-coupled receptors: Implications of the high-resolution structure of rhodopsin for structure-function analysis of rhodopsin-like receptors. Mol. Pharmacol 2001, 60, 1–19. [Google Scholar]
  75. Durieux, S.; Chanu, A.; Bochu, C.; Audinot, V.; Coumailleau, S.; Boutin, J.A.; Delagrange, P.; Caignard, D.H.; Bennejean, C.; Renard, P.; et al. Design and synthesis of 3-phenyltetrahydronaphthalenic derivatives as new selective MT2 melatoninergic ligands. Part II. Bioorg. Med. Chem 2009, 17, 2963–2974. [Google Scholar]
  76. Karageorge, G.N.; Bertenshaw, S.; Iben, L.; Xu, C.; Sarbin, N.; Gentile, A.; Dubowchik, G.M. Tetrahydroisoquinoline derivatives as melatonin MT2 receptor antagonists. Bioorg. Med. Chem. Lett 2004, 14, 5881–5884. [Google Scholar]
  77. Voronkov, A.E.; Ivanov, A.A.; Baskin, I.I.; Palyulin, V.A.; Zefirov, N.S. Molecular modeling study of the mechanism of ligand binding to human melatonin receptors. Dokl. Biochem. Biophys 2005, 403, 284–288. [Google Scholar]
  78. Teh, M.T.; Sugden, D. Comparison of the structure-activity relationships of melatonin receptor agonists and antagonists: Lengthening the N-acyl side-chain has differing effects on potency on Xenopus melanophores. Naunyn Schmiedebergs Arch. Pharmacol 1998, 358, 522–528. [Google Scholar]
  79. Lira-Rocha, A.; Espejo-González, O.; Naranjo-Rodríguez, E.B. Receptor-binding studies of 1-N-substituted melatonin analogues. Eur. J. Med. Chem 2002, 37, 945–951. [Google Scholar]
  80. Garratt, P.J.; Travard, S.; Vonhoff, S.; Tsotinis, A.; Sugden, D. Mapping the melatonin receptor. 4. Comparison of the binding affinities of a series of substituted phenylalkyl amides. J. Med. Chem 1996, 39, 1797–1805. [Google Scholar]
  81. Mazna, P.; Grycova, L.; Balik, A.; Zemkova, H.; Friedlova, E.; Obsilova, V.; Obsil, T.; Teisinger, J. The role of proline residues in the structure and function of human MT2 melatonin receptor. J. Pineal Res 2008, 45, 361–372. [Google Scholar]
  82. Scheerer, P.; Park, J.H.; Hildebrand, P.W.; Kim, Y.J.; Krauss, N.; Choe, H.-W.; Hofmann, K.P.; Ernst, O.P. Crystal structure of opsin in its G-protein-interacting conformation. Nature 2008, 455, 497–502. [Google Scholar]
  83. Zefirova, O.N.; Baranova, T.Y.; Ivanova, A.A.; Ivanov, A.A.; Zefirov, N.S. Application of the bridgehead fragments for the design of conformationally restricted melatonin analogues. Bioorg. Chem 2011, 39, 67–72. [Google Scholar]
  84. Ivanov, A.A.; Barak, D.; Jacobson, K.A. Evaluation of homology modeling of G-protein-coupled receptors in light of the A2A adenosine receptor crystallographic structure. J. Med. Chem 2009, 52, 3284–3292. [Google Scholar]
  85. Kneissl, B.; Leonhardt, B.; Hildebrandt, A.; Tautermann, C.S. Revisiting automated G-protein coupled receptor modeling: The benefit of additional template structures for a neurokinin-1 receptor model. J. Med. Chem 2009, 52, 3166–3173. [Google Scholar]
  86. Evers, A.; Klebe, G. Successful virtual screening for a submicromolar antagonist of the neurokinin-1 receptor based on a ligand-supported homology model. J. Med. Chem 2004, 47, 5381–5392. [Google Scholar]
  87. Johnston, J.M.; Filizola, M. Showcasing modern molecular dynamics simulations of membrane proteins through G protein-coupled receptors. Curr. Opin. Struct. Biol 2011, 21, 552–558. [Google Scholar]
  88. Goldfeld, D.A.; Zhu, K.; Beuming, T.; Friesner, R.A. Successful prediction of the intra- and extracellular loops of four G-protein-coupled receptors. Proc. Natl. Acad. Sci. USA 2011, 108, 8275–8280. [Google Scholar]
  89. Goldfeld, D.A.; Zhu, K.; Beuming, T.; Friesner, R.A. Loop prediction for a GPCR homology model: Algorithms and results. Proteins 2013, 81, 214–228. [Google Scholar]
Ijms 14 08093f1 1024

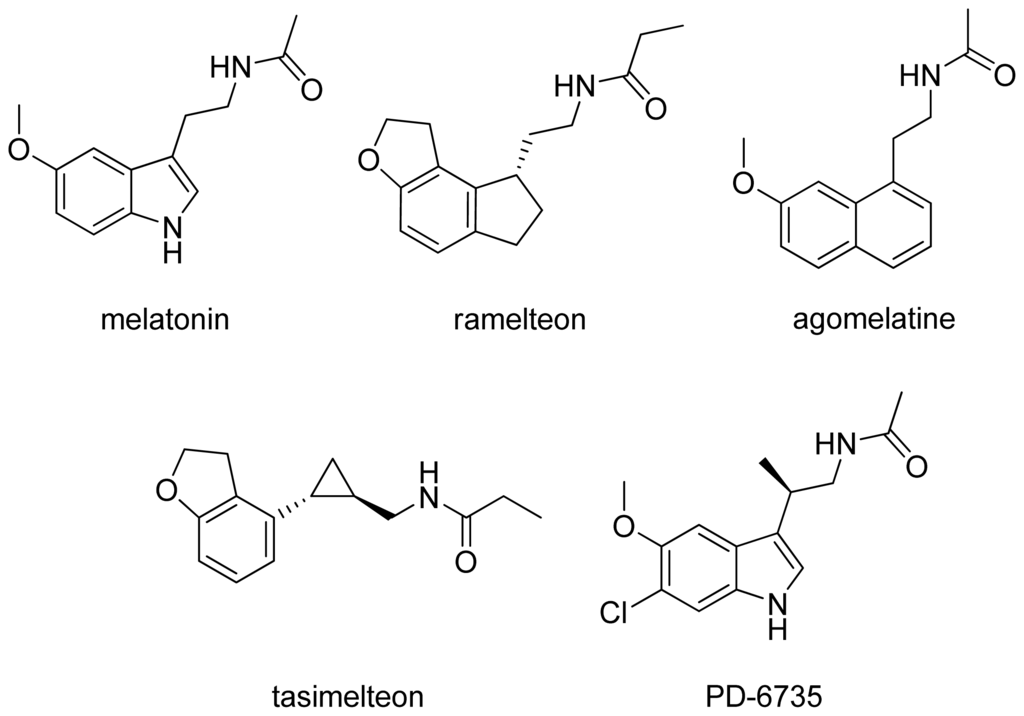

Figure 1. Melatonin and melatonergic agonists approved or currently tested in clinical trials.

Click here to enlarge figure

Figure 1. Melatonin and melatonergic agonists approved or currently tested in clinical trials.
Ijms 14 08093f1 1024
Ijms 14 08093f2a 1024
Figure 2. Amino acid sequences of human MT1 and MT2 receptors. Amino acids at positions X.50 of each transmembrane helix are indicated in bold.

Click here to enlarge figure

Figure 2. Amino acid sequences of human MT1 and MT2 receptors. Amino acids at positions X.50 of each transmembrane helix are indicated in bold.
Ijms 14 08093f2a 1024Ijms 14 08093f2b 1024
Ijms 14 08093f3 1024

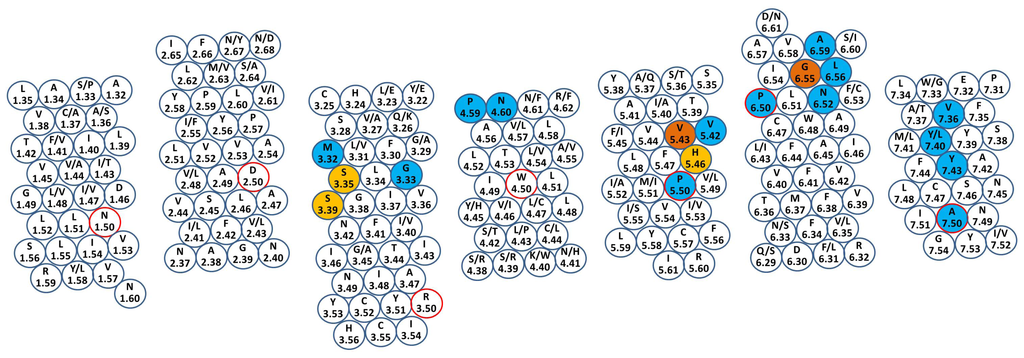

Figure 3. Snake plot of the putative transmembrane helices of human MT1 and MT2 receptors. For each amino acid, one letter code (if two codes are present, the first refers to MT1, the second to MT2) and Ballesteros-Weinstein numbering are reported. Amino acids X.50 are circled in red. Filled circles refer to amino acids for which mutagenesis data are discussed in the text; orange: MT1 mutant; blue: MT2 mutant; yellow: MT1 and MT2 mutants. The picture is a modification of a snake plot made with Snake-Plot-Designer ( www.ssfa-7tmr.de/ssfe).

Click here to enlarge figure

Figure 3. Snake plot of the putative transmembrane helices of human MT1 and MT2 receptors. For each amino acid, one letter code (if two codes are present, the first refers to MT1, the second to MT2) and Ballesteros-Weinstein numbering are reported. Amino acids X.50 are circled in red. Filled circles refer to amino acids for which mutagenesis data are discussed in the text; orange: MT1 mutant; blue: MT2 mutant; yellow: MT1 and MT2 mutants. The picture is a modification of a snake plot made with Snake-Plot-Designer ( www.ssfa-7tmr.de/ssfe).
Ijms 14 08093f3 1024
Ijms 14 08093f4 1024
Figure 4. Representation of the binding scheme proposed by Uchikawa et al. for ramelteon (A) and by Ivanov et al. for a naphthalene agonist (B) within the MT1 binding site. Hydrogen bond interactions are depicted with orange lines.

Click here to enlarge figure

Figure 4. Representation of the binding scheme proposed by Uchikawa et al. for ramelteon (A) and by Ivanov et al. for a naphthalene agonist (B) within the MT1 binding site. Hydrogen bond interactions are depicted with orange lines.
Ijms 14 08093f4 1024
Ijms 14 08093f5 1024

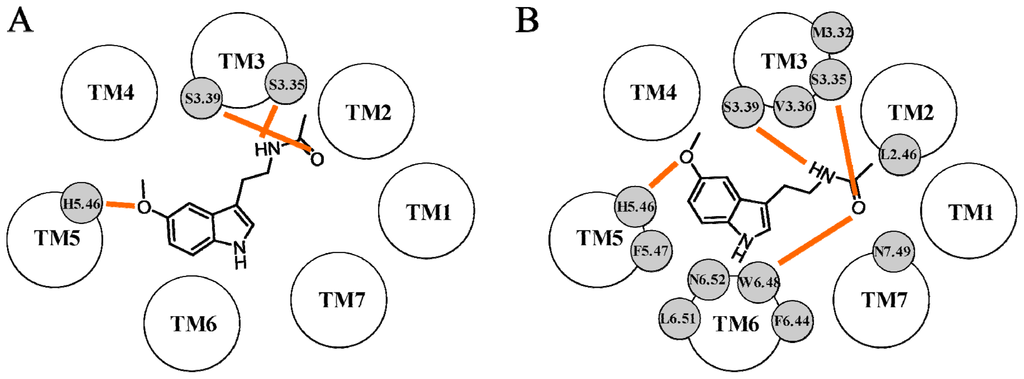

Figure 5. Representation of the melatonin binding scheme proposed by Chugunov et al. (A) and by Farce et al. (B) within the MT1 binding site. Hydrogen bond interactions are depicted with orange lines.

Click here to enlarge figure

Figure 5. Representation of the melatonin binding scheme proposed by Chugunov et al. (A) and by Farce et al. (B) within the MT1 binding site. Hydrogen bond interactions are depicted with orange lines.
Ijms 14 08093f5 1024
Ijms 14 08093f6 1024

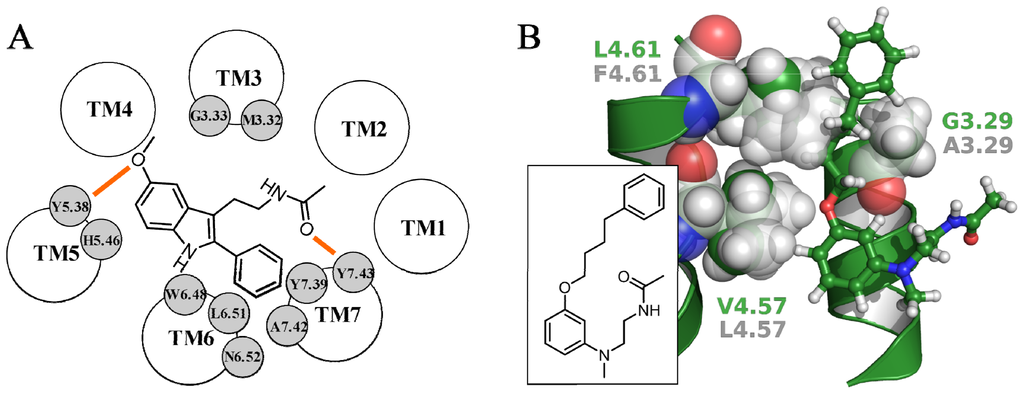

Figure 6. (A) Representation of the binding scheme of 2-phenylmelatonin within the MT1 binding site proposed by Rivara et al. Hydrogen bond interactions are depicted with orange lines; (B) The MT1-selective phenylbutyloxy derivative (ball-and-sticks representation, with green carbons) docked within the MT1 receptor model. Residues 3.29, 4.57 and 4.61 are represented as green (MT1) and transparent light gray (MT2) spheres. The structure of the phenylbutyloxy derivative is reported in the inset.

Click here to enlarge figure

Figure 6. (A) Representation of the binding scheme of 2-phenylmelatonin within the MT1 binding site proposed by Rivara et al. Hydrogen bond interactions are depicted with orange lines; (B) The MT1-selective phenylbutyloxy derivative (ball-and-sticks representation, with green carbons) docked within the MT1 receptor model. Residues 3.29, 4.57 and 4.61 are represented as green (MT1) and transparent light gray (MT2) spheres. The structure of the phenylbutyloxy derivative is reported in the inset.
Ijms 14 08093f6 1024
Ijms 14 08093f7 1024

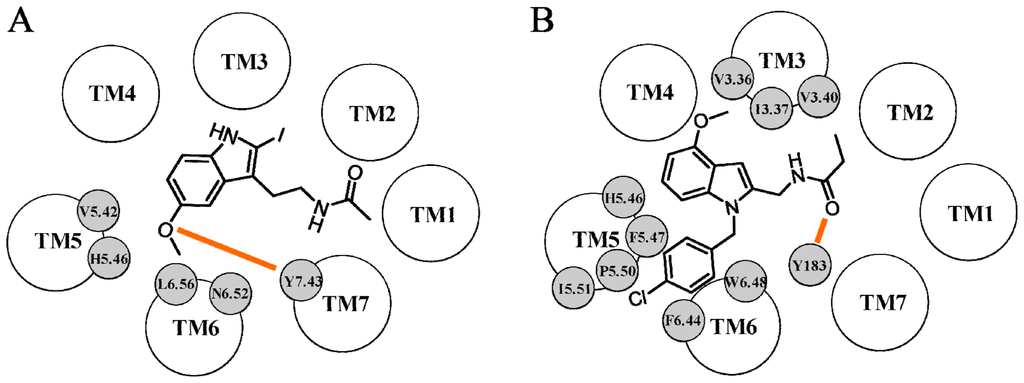

Figure 7. Representation of the binding scheme of 2-iodomelatonin proposed by Mazna et al. (A) and of UCM454 proposed by Rivara et al. (B) within the MT2 binding site. Hydrogen bond interactions are depicted with orange lines.

Click here to enlarge figure

Figure 7. Representation of the binding scheme of 2-iodomelatonin proposed by Mazna et al. (A) and of UCM454 proposed by Rivara et al. (B) within the MT2 binding site. Hydrogen bond interactions are depicted with orange lines.
Ijms 14 08093f7 1024
Ijms 14 08093f8 1024

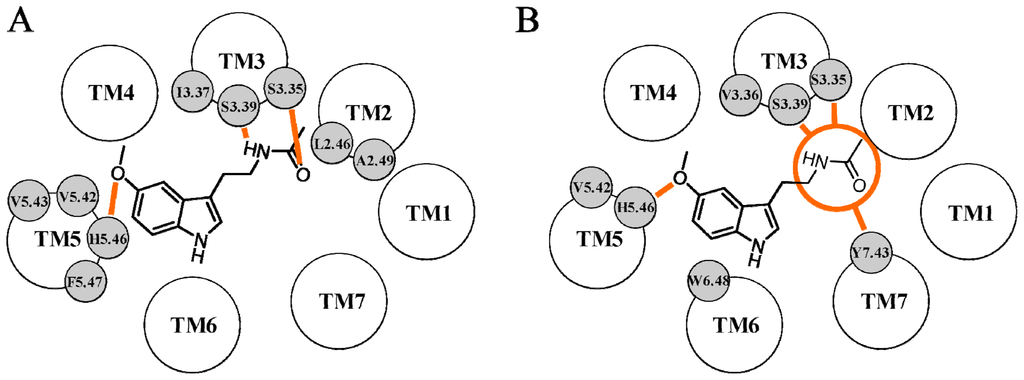

Figure 8. Representation of the binding scheme of melatonin proposed by Voronkov et al. (A) and Chugunov et al. (B) within the MT2 binding site. Hydrogen bond interactions are depicted with orange lines. The orange circle represents potential hydrogen bond interactions between the amide group of melatonin and residues 3.35, 3.39 and 7.43.

Click here to enlarge figure

Figure 8. Representation of the binding scheme of melatonin proposed by Voronkov et al. (A) and Chugunov et al. (B) within the MT2 binding site. Hydrogen bond interactions are depicted with orange lines. The orange circle represents potential hydrogen bond interactions between the amide group of melatonin and residues 3.35, 3.39 and 7.43.
Ijms 14 08093f8 1024
Ijms 14 08093f9 1024
Figure 9. Schematic representation of the binding modes of melatonin (A) and of an anilide derivative (B) proposed by Farce et al. within the MT2 binding site. Hydrogen bond interactions are depicted with orange lines.

Click here to enlarge figure

Figure 9. Schematic representation of the binding modes of melatonin (A) and of an anilide derivative (B) proposed by Farce et al. within the MT2 binding site. Hydrogen bond interactions are depicted with orange lines.
Ijms 14 08093f9 1024
Ijms 14 08093f10 1024

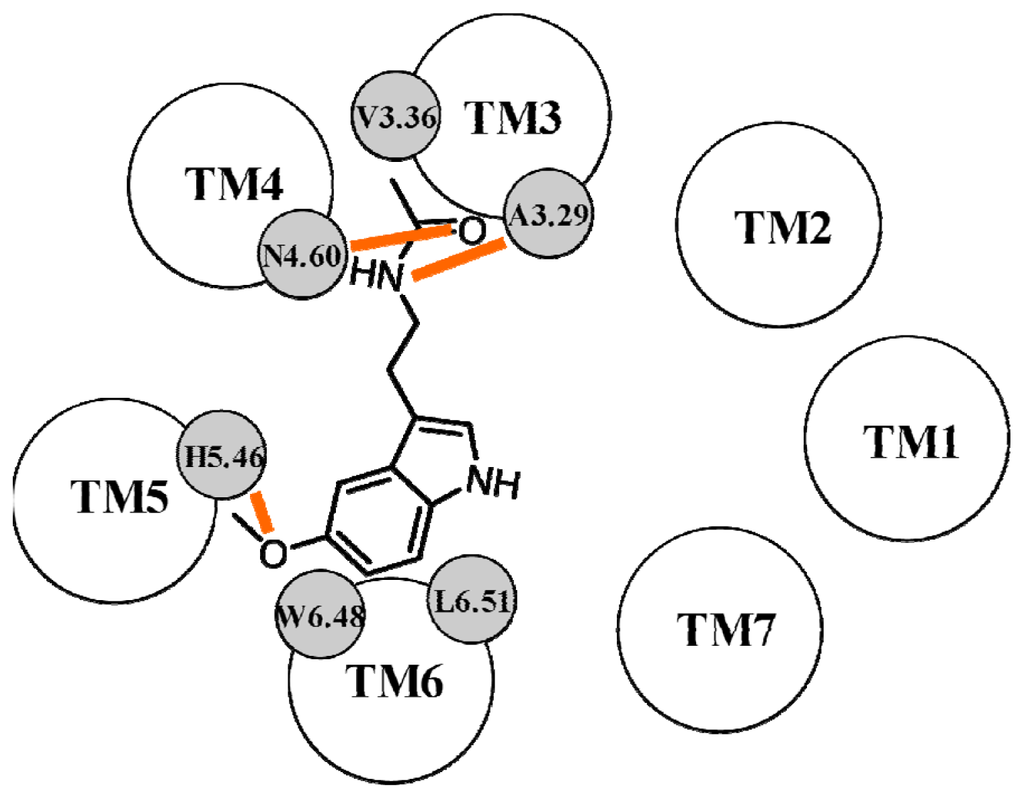

Figure 10. Representation of the binding scheme of melatonin proposed by Zefirova et al. within the MT2 binding site. Hydrogen bond interactions are depicted with orange lines.

Click here to enlarge figure

Figure 10. Representation of the binding scheme of melatonin proposed by Zefirova et al. within the MT2 binding site. Hydrogen bond interactions are depicted with orange lines.
Ijms 14 08093f10 1024
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
