Int. J. Mol. Sci. 2013, 14(4), 8000-8024; doi:10.3390/ijms14048000

Article
Proteins Involved in Distinct Phases of Cold Hardening Process in Frost Resistant Winter Barley (Hordeum vulgare L.) cv Luxor
Iva Hlaváčková 1,2,*, Pavel Vítámvás 2, Jiří Šantrůček 1, Klára Kosová 2, Sylva Zelenková 3, Ilja Tom Prášil 2, Jaroslava Ovesná 2, Radovan Hynek 1 and Milan Kodíček 1
1
Department of Biochemistry and Microbiology, Institute of Chemical Technology Prague, Technická 5, 166 28 Prague 6, Czech Republic; E-Mails: santrucj@vscht.cz (J.Š.); hynekr@vscht.cz (R.H.); kodicekm@vscht.cz (M.K.)
2
Department of Genetics and Plant Breeding, Crop Research Institute, Drnovská 507/73, 161 06 Prague 6, Czech Republic; E-Mails: vitamvas@vurv.cz (P.V.); kosova@vurv.cz (K.K.); prasil@vurv.cz (I.T.P.); ovesna@vurv.cz (J.O.)
3
Department of Plant Experimental Biology, Charles University in Prague, Albertov 6, 128 43 Prague 2, Czech Republic; E-Mail: zelen@natur.cuni.cz
*
Author to whom correspondence should be addressed; E-Mail: hlavacki@vscht.cz; Tel.: +420-220-444-384; Fax: +420-220-445-167.
Received: 21 January 2013; in revised form: 28 March 2013 / Accepted: 29 March 2013 /
Published: 12 April 2013

Abstract

: Winter barley is an economically important cereal crop grown in higher latitudes and altitudes where low temperatures represent an important environmental constraint limiting crop productivity. In this study changes in proteome of leaves and crowns in a frost tolerant winter barley cv. Luxor in relation to short and long term periods of cold followed by a brief frost treatment were studied in order to disclose proteins responsible for the cold hardening process in distinct plant tissues. The mentioned changes have been monitored using two dimensional difference gel electrophoresis (2D-DIGE) with subsequent peptide-mapping protein identification. Regarding approximately 600–700 distinct protein spots detected on 2D gels, there has been found at least a two-fold change after exposure to low temperatures in about 10% of proteins in leaves and 13% of proteins in crowns. Protein and nitrogen metabolic processes have been influenced by low temperature to a similar extent in both tissues while catabolism, carbohydrate metabolism and proteins involved in stress response have been more affected in crowns than in leaves. The range of changes in protein abundance was generally higher in leaves and chloroplast proteins were frequently affected which suggests a priority to protect photosynthetic apparatus. Overall, our data proved existence of slightly different response strategies to low temperature stress in crowns and leaves, i.e., tissues with different biological role. Moreover, there have been found several proteins with large increase in accumulation, e.g., 33 kDa oxygen evolving protein of photosystem II in leaves and “enhanced disease susceptibility 1” in crowns; these proteins might have potential to indicate an enhanced level of frost tolerance in barley.
Keywords:
cold shock; cold and frost acclimation; winter hardiness; hardening; chloroplasts; 2D-DIGE; peptide-mapping

1. Introduction

Barley can be cultivated under harsher conditions than many other crops, mainly due to its high tolerance to drought and low temperatures [1]. Comprehension of mechanisms by which barley copes with cold and frost is essential for breeding new tolerant cultivars and thus for increasing yields in areas of low production.

Like other plants from the tribe Triticeae, barley exists in spring and winter varieties. For winter cultivars, grown in areas where the temperatures during winter drop below zero, the high frost tolerance is crucial. Moreover, these cultivars require external signal for transition from vegetative phase into reproductive phase; this signal can be vernalization or length of photoperiod [2]. The maximum frost tolerance is reached during the vegetative phase of growth by the cold hardening process (cold acclimation), which takes place predominantly in autumn [3]. The first stage of cold hardening begins at low temperatures above 0 °C, while the second stage requires considerably lower but still non-lethal temperatures [4]. Cold hardening leads to alterations in plasma membrane composition, changes in carbohydrate metabolism and secondary metabolism, photosynthesis, enhanced detoxification and oxido-reduction processes, increased production of osmolytes and synthesis of stress-related proteins [5]. Among the latter, heat shock proteins (HSP) and late embryogenesis abundant (LEA) proteins represent a major class of protective molecules [6]. Proteomic studies concerning abiotic stresses in plants were recently summarized [7]; at low temperatures, an increase in accumulation of glycolytic enzymes, components of photosynthetic electron transport chain, cp29 RNA-binding protein, reactive oxygen species scavenging enzymes, LEA proteins, chaperones and 70 kDa heat shock protein (HSP70) has been observed repeatedly while accumulation of enzymes involved in saccharide anabolism was decreased. Only few proteomic studies dealt with low temperatures effect on plants belonging to tribe Triticeae; in all of them, wheat was used as a model [811].

Our knowledge of cold hardening processes in barley is to date based mainly on transcriptomic studies and studies using one dimensional polyacrylamide gel electrophoresis. Among the best characterized cold induced genes, there belong Wcs120[12] and DHN5[7,13]; proteins encoded by these genes might serve as frost tolerance markers [14,15]. It was shown that majority of cold regulated genes in barley reacted as early as short period of cold (1 day) occurred and only a limited number of barley genes displayed lasting response to prolonged cold treatment [16]. About 67% of genes responsive to cold were found to be chloroplast-dependent cold-regulated genes in leaf tissues. Thus the chloroplasts were suggested to play a major role in the control of barley molecular adaptation to cold [17] and they were proposed as a target for crop improvement [18]. The link between chloroplast activity and the susceptibility of the plant to stress together with retrograde plastid-to-nucleus signaling was demonstrated in Arabidopsis thaliana[19].

In winter cereals, it has been shown that survival of a plant depends on the survival of its crown tissues [2022]. This part of a plant connects roots and stem and contains meristematic tissue which is responsible for growth restoration in the spring. Recently, different transcription patterns of genes involved in pathways responsible for osmolyte production (sucrose, raffinose, γ-aminobutyric acid), sugar signaling (trehalose metabolism) and secondary metabolism (lignin synthesis) were observed in barley leaves and crowns at low temperatures [23].

In our study, response of barley leaves and crowns to low temperatures (1 day cold shock, 21 days cold acclimation, 1 day frost shock) has been studied by 2D-DIGE coupled with peptide fingerprinting protein identification method using MALDI-TOF mass spectrometry. The aim of this study was to characterize processes leading to enhanced winter hardiness in distinct tissues at proteome level.

2. Results and Discussion

2.1. Proteomic Analysis

Seedlings of winter barley were exposed to “cold shock” (1 day of 3 °C), “cold acclimation” (21 days of 3 °C) and “frost shock” (1 day of −3 °C after, cold acclimation) and the proteins extracted from leaves and crowns were separated using 2D-DIGE (Figure S1 in Supplemental data). On each gel, approximately 1200 protein spots were distinguished (Figure 1) and with regard to gel to gel variance, it was possible to quantify approximately 700 proteins in crowns and 600 proteins in leaves. The lower number of proteins quantified in leaves could be explained by the presence of highly abundant chloroplast proteins (such as Rubisco large and small chains, see Figure 1b—approximately 60 kDa and 20 kDa) in leaves which decreases the possibility to detect low abundant proteins. This difficulty can be solved by Rubisco depletion; however, each manipulation with samples brings also artificial changes in proteins abundance levels. Therefore, the use of non-photosyntetic tissues, such as crowns in cereals, for gel based proteomic approaches can provide a better view on behavior of low abundant proteins that are not detectable in leaf samples.

In total, 90 proteins in crowns and 63 proteins in leaves changed their abundance at least twice in consequence of cold and frost treatment according to Student’s t-test (p = 0.05, three biological replicates). By employing the peptide fingerprinting method, 48 proteins in crowns and 39 proteins in leaves were identified (Tables 1 and 2, Table S1 in Supplementary data); among them several proteins with documented relation to cold or freezing stress were found, e.g., (HSP70) and chaperonins [24,25]. In order to facilitate comparison with transcriptome studies, corresponding probe set identifiers on Barley 1 Affymetrix chip [16,17,23] have been found for 8 identified proteins (Tables 1 and 2, Table S1 in Supplementary data). Several proteins (e.g., fructokinase in spot n. 1304, 1311) were identified more than once in the same tissue; these repeatedly observed proteins differed in molecular mass and/or pI observed on gel which is likely due to different isoforms of the same protein, protein modifications or intracellular proteolysis. Some of the differently accumulated proteins were not identified as their abundances on gel were not high enough for subsequent peptide mapping (the peptide mass spectra of appropriate quality were not obtained or the peptide mass spectra did not match to any protein in the database).

Only one protein was identified in samples from both tissues—glutamine synthetase (gi|755762) with almost similar decrease of abundance after cold in both tissues (spot n. 6806 in crowns and 2510 in leaves); moreover, the glutamine synthetase GSr1 (gi|40317416) isoform in crowns also decreased its abundance.

In total, five members of different protein families have been identified in both tissues; AAA ATPase (gi|255070529 in leaves and gi|194707130 in crowns), ribosomal proteins (60S in leaves—gi|225465175; 40S in crowns—gi|357113738), elongation factor Tu (gi|226508704 in leaves, gi|326514754 and gi|357149925 in crowns), vacuolar proton ATPase (gi|145351306 in leaves, gi|11527563 in crowns) and chaperonin 60 kDa (gi|255560267 in leaves, gi|326533328 in crowns). The noticeable difference between leaf and crown tissue was observed in protein spot 4106 identified as AAA ATPase on leaf gels. Spot 4106 increased its abundance after cold shock and decreased its abundance after cold acclimation in leaves whereas in crowns the abundance of AAA ATPase was constantly decreasing in course of low temperature exposure. The difference was also found in chaperonin 60 kDa; there was an increase in its abundance after cold acclimation in leaves (gi|255560267) whereas in crowns, its abundance was decreased (gi|326533328) at the same time. Different changes in protein abundance of AAA ATPase and chaperonin 60 kDa could be explained by identification of different isoforms with probably slightly different activity under cold stress. However, most of the proteins identified in both tissues showed similar changes in abundance under the cold treatment and this result thus may indicate to some extent analogous regulation of common cold-responsive pathway in cold stressed plant tissues (such as increased dehydrin levels in cold-treated leaves and crowns; [26]).

2.2. Biological Processes Influenced by Low Temperatures in Leaves and Crowns

Biological functions of differently accumulated proteins were determined by their GO annotation in domain of biological processes according to UniProtKB (Tables 1 and 2, Table S1 in Supplementary data). In total, 19 proteins (22% of identified proteins) were assigned to category “Unknown” as their functions have not been determined yet. However, this result indicates that these yet “unknown” proteins are cold-regulated (14 proteins revealed a decreased accumulation and 5 proteins revealed an increased accumulation during cold treatment). The global overview of biological processes affected by low temperatures was obtained using WEGO application; the functional classification using WEGO reflects the fact that a single protein can be involved in various processes and therefore classified in more than one functional category. After setting of GO annotation level to five, 16 functional categories were chosen to cover our data and to pointed out existing differences between leaves and crowns in response to low temperatures (Figure 2, Tables S1 and S2 in Supplementary data).

The “protein metabolic processes” represents the largest functional category being formed by approximately 15% of identified proteins both in leaves and crowns. Regulation of protein metabolism; represented by proteases, elongation factors and ribosomal proteins, appears to be of the same significance in leaves and crowns in the response to low temperatures. Number of proteins in this category suggests importance of unfunctional proteins removal and necessity of proteosynthesis regulation. The second largest category “catabolic processes” (6% of identified differently accumulated proteins in leaves and 14% in crowns) confirmed previous finding that the cold hardening is an active and energy demanding process [27]. The next large category, “nitrogen compound metabolism”, was influenced to similar extent in both tissues (11% of identified proteins in leaves and 8% in crowns, e.g., glutamine synthetase) thus implying universal importance of these proteins in stress response to cold. Changes in nitrogen metabolism related proteins accumulation have been so far observed mainly as a consequence of drought and salinity stress [7]. Other noteworthy functional categories contained proteins involved in “carbohydrate metabolism” (6% of identified proteins in leaves and 11% in crowns, e.g., pyruvate kinase) and “response to stress” (6% of identified proteins in leaves and 11% in crowns, e.g., peroxygenase). Interestingly, protein grouped into category “lipid metabolic process” (i.e., lipase “enhanced disease susceptibility 1”—EDS1; gi|149939605, Table S1) was found only in crowns. In this case, it is more probable that accumulation of this protein has also been changed in leaves but these changes were undetectable due to presence of highly abundant photosynthetic proteins in leaves (see subchapter 2.1.). It is not surprising that proteins (33 kDa oxygen evolving protein of photosystem II (PsbO), gi|115436780; chlorophyll a-b binding proteins, gi|115778 and gi|115793; Table S1) grouped into “photosynthesis, light reaction” functional category have been found only in leaves and not in crowns which are non-photosynthetic tissue.

On account of the differences found in numbers and quality of proteins responsible for separate biological processes influenced by low temperatures in distinct tissues, it is reasonable to believe in existence of slightly different response strategies to low temperature stress in crowns (plant survival and growth renewal) and leaves (energy metabolism), i.e., tissues with different biological role [20].

2.3. Proteins with Large Changes in Abundance

Exploratory data analysis revealed outlying proteins in our data sets, the proteins which changed their abundance excessively compared to the rest of differently accumulated proteins. On the basis of the large changes in accumulation of these proteins, we can conclude that they may play substantial roles in frost tolerant winter barley response to low temperature. Since the data sets observed in leaves and crowns differed in their characteristics, the extent of changes in proteins abundances in leaves were greater compared to crowns (Figure S2 and Table S3 in Supplementary data), the limit for outliers (the proteins which displayed excessive changes in abundance) has been set as different values for leaves and crowns, respectively. The boxplot method (2.698 σ) suggested 8 outliers in leaves which changed their abundance at least 8 times and 7 outliers in crowns which changed abundance at least 6 times (Tables 1 and 2, in more detail Tables S1 and S3 in Supplementary data).

In leaves, the outliers were found in all clusters (see subchapter 2.4., Figure 3, Table 2) except Cluster 1 (increase of abundance) and only 5 of the 8 identified proteins have known function (Table 2, Table S1 in Supplementary data). Among them, there was AAA ATPase (gi|255070529) which was found in two spots; in spot 4106, its abundance was 10 times increased after frost shock/cold acclimation while in spot 3329, the abundance was 9 times decreased (Table S1 in Supplementary data). According to position on gel, these two spots differed slightly in molecular weight and pI (spot 4106: 117 kDa, pI 5.37 and spot 3329: 112 kDa, pI 5.6), these differences might be caused by protein modifications in reaction to frost stress. Proteins of AAA family are essential for many cellular functions including degradation of misfolded proteins; previously they have been observed as up-accumulated during cold acclimation [28]. Another highly accumulated protein in leaves was protein PsbO (gi|115436780, 19 times increase after frost shock/cold shock), a part of the oxygen-evolving complex which stabilises manganese. Together with the gene for chloroplast protein PsbO several other genes are co-expressed, including ATPases [29], which is in accordance with our finding. The enzyme UDP-glucose 6-dehydrogenase (gi|226505792), which is involved in diverting UDP-Glc to cell wall biosynthesis among other processes, increased abundance twice after cold shock and then excessively decreased abundance (10 times decreased after frost shock/cold shock). Low temperature stress leads to cell dehydration and causes changes in cell volume and cell compartment organization; therefore, the adjustment of cell wall is a necessity for holding cell integrity; several enzymes participating in UDP-Glc formation and thus cell wall biogenesis have been already observed as up-accumulated after short cold treatments, e.g., UDP-glucose pyrophosphorylase or sucrose synthase 1 [30]. In leaves, the hypothetical protein VITISV_033291” (gi|147785747) was 11 times decreased after cold shock and then 3 times increased both after cold acclimation and frost shock. This protein belongs to protein phosphatase family C (PP2C), one of the largest families in the plant kingdom, and proteins from this family have been found as regulators of signal transduction pathways and also involved in development [31]. It has been shown by antisense approaches that down-regulation of PP2C accelerated plant development and increased freezing tolerance [32]; we observed a similar trend at protein level in our experiment.

Crown outliers were found in all clusters but most of them belonged to Cluster 2; 5 out of 7 outliers were identified. Amongst the identified proteins with known function, there has been found chloroplast HSP70 (gi|326492960, 7 times increased after frost shock) which is a molecular chaperone involved in protein aggregation prevention and refolding under normal and stress conditions. It also takes part in protein import, translocation and degradation [33]. Another protein with outlying changes in abundance in crowns was EDS1 (gi|149939605, 7 times increased after frost shock compared to cold shock) which controls, among other processes, cell death propagation in response to chloroplast-derived reactive oxygen species [34]. The next two outliers identified in crowns (hypothetical protein OsI_16233 and hypothetical protein SORBIDRAFT_06g029250) are according to GO annotation involved in defense response; the last identified protein (predicted protein gi|326505132) has not been assigned to any function yet.

Interestingly, the extent of changes in protein abundance and the occurrence of outliers were generally higher in leaves, implying a need of an increased level of proteosynthesis and protein degradation during cold acclimation. The fact that the numbers of all differently accumulated proteins were higher in crowns (Table 1) corresponded to the importance of crowns for plant survival [20]. Moreover, outliers found in leaves showed large increase (e.g., 33 kDa oxygen evolving protein of photosystem II) or decrease (e.g., UDP-glucose 6-dehydrogenase) in abundance mainly after cold acclimation and frost shock and they belonged mostly to Cluster 2 and 3 whereas in crowns most of outliers mounted their abundance after frost shock (e.g., EDS1) and they were sorted to Cluster 3. This implies that proteins with large changes in abundance were highly accumulated under cold treatment in crowns (e.g., HSP70, EDS1) contrary to high decrease of some proteins accumulation in leaves (e.g., PsbO, UDP-glucose 6-dehydrogenase, AAA ATPase) in at least one sampling time during cold treatment. From our previous studies on dehydrins, e.g., [7], it is known that crop winter cultivars accumulate some protective compounds such as dehydrins also under optimal temperature of 20 °C and these proteins are accumulated in higher levels in crowns than in leaves [26]. On the other hand, leaves as photosynthetic organs play an important role in an energy-demanding process of cold-acclimation which is needed for plant survival at low temperatures. Therefore, our results indicated that after sensing cold the leaf cells reorganized some of their anabolic and catabolic processes to a higher extent when compared to crown cells; these large changes might be in order to protect photosynthetic apparatus.

The large changes in protein abundance after cold treatment observed at outliers could also indicate a potential of these proteins to evaluate cereal cold tolerance (such as dehydrins, e.g., [35]). However, these cold-regulated proteins should be first tested in a large set of differently cold-tolerant barley genotypes to verify them as possible protein markers.

2.4. Protein Accumulation Modes Induced by Low Temperature

Hierarchical cluster analysis sorted differently accumulated proteins to three clusters in crowns and five clusters in leaves (Tables 1 and 2, Figures 3 and 4, Table S1 in Supplementary data). Proteins of which abundances were predominantly increasing in course of low temperature exposure were found in Cluster 1 in leaves (27 proteins/15 identified) and Cluster 2 in crowns (29 proteins/12 identified), the continuously mounting abundance suggests their importance in all phases of cold hardening process. Among these proteins, there are, e.g., HSP70 in crowns and ATP-dependent zinc metalloprotease FTSH 2 in leaves with documented relation to cold stress [6,28].

In Cluster 4 in leaves (21 proteins/13 identified) and in Cluster 1 in crowns (56 proteins/34 identified), there are proteins of which abundances decreased gradually after low temperature exposure, e.g., 23 kDa jasmonate-induced protein (JIP-23) in crowns (gi|400094, Contig1675_s_at); JIP-23 might regulate cell wall polysaccharide synthesis [36]. In barley leaves, JIP-23 genes were expressed upon various stresses such as drought, sorbitol treatment and cold [16,37]. However, transcript (Contig1675_s_at) of the gene belonging to this protein displayed downregulation after prolonged cold treatment (4 °C, 49 day) in barley [16]. Proteins of which abundances have decreased upon cold both in leaves and in crowns include elongation factor Tu and glutamine synthetase (GS1 and GS2). Elongation factor Tu plays a key role in the elongation phase of protein synthesis in plant organelles including mitochondria and plastids and has an important role in stress responses; it has been reported in a transcriptomic study [38] as up-accumulated after cold stress 6/2 °C and at proteomic level as up-accumulated after cold stress 15 °C, but no up-accumulation was observed after cold stress of 5 °C [30], which is in agreement with our results. Glutamine synthetase is involved in primary nitrogen assimilation and glutamine generation (isoenzyme form GS1), as well as in NH4+ reassimilation released via photorespiration (isoenzyme form GS2) [39]. Glutamine synthetase has been observed to be up-accumulated during salt stress [40,41]; nevertheless, from overexpression experiment [42] it can be concluded that lower abundance of GS1 might have a positive influence on frost resistance. Furthermore, it can be seen that in crowns the key proteins of nitrogen metabolism (glutamine synthetases GS1 and GS2) and almost all proteins related to carbohydrate metabolism (glycolysis and pentose-phosphate shunt) are placed in the Cluster 1, thus they are gradually downregulated in a similar manner. The exception is spot 7012—enolase, which mounted its abundance after cold treatment, but according to its molecular weight observed on gel (Table S1 in Supplementary data), it is most probably only a fragment after degradation. Interestingly, C2 domain-containing protein (Cluster 1; gi|61889374, gradually decreased after cold) has been observed on transcriptomic level (Contig112_at) as upregulated after cold shock in barley seedlings (4 °C, 1 day; [16]). This discrepancy is an illustration of the problematic comparison of transcriptomic results and proteomic results. Generally, the changes in abundance of stress-regulated transcripts between control and stress-treated samples are higher than similar changes observed at protein level (e.g., JIP-23 in [16]). The accumulation of transcript in tissue does not necessarily indicate real abundance of the corresponding protein since there are several levels of translational regulation, the translated proteins can be maintained for a long time (such as dehydrins under cold, e.g., [13,26] or degraded in a short time. Therefore, the changes in gene expression at transcript level do not often correspond with the changes at protein level [7].

Cluster 5 in leaves (2 proteins/2 identified) contains proteins of which abundances were strongly decreased after cold shock and then slightly increased again after cold acclimation; one of the identified proteins was “hypothetical protein VITISV_033291” (gi|147785747) which showed large decrease in its abundance.

Conspicuous changes in abundance induced by either cold shock or frost shock were exhibited mainly by proteins in Cluster 2 in leaves (6 proteins/5 identified), these proteins therefore seem to be of importance during sudden short low temperature stress, e.g., AAA ATPase and chlorophyll a-b binding protein 1 observed previously in [28,43].

Proteins of which abundances increased exclusively after cold acclimation were found in Cluster 3 in leaves (7 proteins/4 identified), e.g., chaperonin 60 kDa, peroxygenase 1. Peroxygenases are enzymes involved in the biosynthesis of phytooxylipins, which play important roles in plant defense responses [44]. Similarly, Cluster 3 in crowns (5 proteins/2 identified) consists of proteins which did not change their abundance after cold shock noticeably but their abundance increased significantly after cold acclimation or frost shock, thus they are likely of considerable role in later phases of cold hardening process. Two identified proteins were “predicted protein” gi|326494312 which is a chaperon responsible for protein folding and “predicted protein” gi|326505132 from protein family von Willebrand factor, type A with RNA-binding activity. Recently, protein LGD1 which possesses von Willebrand factor type A (vWA) domain has been studied in rice. Isoforms of this protein were detected mainly in nucleus and partly in cytoplasm and it was demonstrated that LGD1 regulates rice vegetative growth and development [45].

2.5. Importance of Chloroplasts in the Cold Hardening Process

Cellular localization of identified differently accumulated proteins was determined by Gene Ontology annotation and by TargetP 1.1 server; 6 proteins from crowns and 11 proteins from leaves were localized to chloroplasts (Tables 1 and 2, Tables S1 and S4 in Supplementary data). In leaves, the frequent occurrence of differently accumulated chloroplast proteins was anticipated as they constitute the majority of the total proteins in leaves. To sustain photosynthetic reaction seems to be an important prerequisite for energy dependent cold acclimation process [7]. Both chlorophyll a-b binding proteins (gi|115793 and gi|115778; part of light-harvesting complex) decreased abundance under cold treatment. Under changing conditions, the reversible phosphorylation of chlorophyll a-b binding proteins (LHCII) represents a system for balancing the excitation energy between the photosystems I and II [46]. Therefore, the decrease of spots identified as chlorophyll a-b binding proteins seems to be a result of the reversible phosphorylation following lower level of photosynthesis in cold-treated plants. However, crowns are not photosynthetically active and they are formed by meristematic tissue where only proplastids are present; therefore, a relatively high number of proteins localised to chloroplasts in crown tissue is remarkable. Most probably, these proteins originate from proplastids. A noteworthy fact is that PsbO found in leaves and HSP70 found in crowns, both of chloroplast localisation, have revealed an excessive change in abundance which confirms an important role of chloroplast protein accumulation in the winter barley cold hardening process [17,18].

3. Experimental Section

3.1. Plant Samples

Winter barley (Hordeum vulgare L., cultivar Luxor) plants were cultivated as described in Jánská et al.[23]. In short, seedlings were grown in soil under a 12 h photoperiod and an irradiation intensity ~200 μmol m−2s−1 at a day/night temperature of 18/13 °C in a growth cabinet. In the second leaf stage, the plants were exposed for up to 3 weeks to a day/night temperature +3/2 °C and irradiation intensity was decreased to ~120 μmol m−2s−1. Following the 21 day acclimation period, a set of seedlings was also exposed to frost shock of −3 °C for 1 day. For 2D-DIGE analysis, roughly ten plants for each of all three biological replicates were used to make one sample of crown or a middle part of the second leaf tissue. Thus for each three biological replicates, at least two technical replicates (20 plant) were taken at each sampling time point (0 day—”control” samples, 1 day—”cold shock” samples, 21 day—”cold acclimation” samples and 21 day with 1 day of freezing—”frost shock” samples) from different pots in each growth cabinet.

3.2. Protein Extraction

Total soluble proteins were extracted as described in [47] with some modifications. Approximately 200 mg of plant material were grinded to fine powder in liquid nitrogen and then 1.5 mL of 10% TCA in acetone was added. After one hour at −20 °C, sample was centrifuged 10 min at 12,000× g. Resulting pellet was washed three times with cold 0.07% DTT in acetone and air-dried. Dry pellet was re-suspended in 0.5 mL of SDS buffer (30% sucrose, 2% SDS, 5% 2-mercaptoethanol, 0.1 M Tris-HCl, pH 8.0) and 0.5 mL of phenol (0.5 M Tris-HCl saturated, pH 8.0). Proteins were extracted one hour at room temperature and then centrifuged 10 min at 12,000× g. Upper phenol phase was placed into new microtube and proteins were precipitated with 5 volumes of cold 0.1 M ammonium acetate in methanol overnight at −20 °C. The sample was then centrifuged for 10 min at 12,000× g and washed three times with cold acetone, resulting pellet was air-dried. Proteins were dissolved in lysis buffer (7 M urea, 2 M thiourea, 4% w/v CHAPS, 30 mM Tris, pH 8.0) and the pH of the lysate was adjusted to 8.5 by adding 50 mM sodium hydroxide. Protein concentration was determined using 2D Quant Kit (GE Healthcare Bio-Sciences, Piscataway, NJ, USA).

3.3. 2D-DIGE and Image Analysis

Protein samples were labeled with Amersham CyeDye™ DIGE Fluors (GE Healthcare, Buckinghamshire, UK) according to manufacturer instructions. Covalent binding of dyes to proteins allows separation and subsequent quantitation of up to three samples in one gel. In our experiments, two samples and an internal standard (30 μg of proteins per each sample) were labeled, then mixed together and applied on a strip with an immobilized pH gradient (IPG strip, ReadyStrip™ IPG Strips, 24 cm, pH 4–7, Bio-Rad, Hercules, CA, USA) according to manufacturer instruction. Then isoelectric focusing was carried out on Protean IEF Cell (Bio-Rad, Hercules, CA, USA) with maximal voltage 10,000 V until 75,000 V-hours was reached. After isoelectric focusing, proteins in IPG strips were reduced for 12 min by 1% DTT and alkylated for 12 min by 2.5% IAA dissolved in equilibration buffer (6 M urea, 2% SDS, 20% glycerol, 0.375 M Tris-HCl, pH 8.8). Then, IPG strips were placed on the top of 12.5% polyacrylamide gels (1 mm thick) and sealed with 0.5% low melting agarose. Polyacrylamide gel electrophoresis was performed using Ettan Daltsix Electrophoresis System (GE Healthcare) for approximately 6 hours. Gels with separated proteins labeled with CyeDyes were scanned on Pharos FX Plus (Bio-Rad) at a resolution of 100 μm.

Differently accumulated proteins, i.e., those that changed their abundance at least twice according to Student’s t-test (p = 0.05, three repetitions), were found using PDQuest 8.0.1 (Bio-Rad) program. The change in protein abundance in a single tissue (in leaves or in crowns) was computed as a ratio of average protein abundance at two distinct sampling dates (e.g., average abundance in leaf sample “cold shock” to average abundance in leaf “control” sample). Only the protein spots that could be detected on three gel replicates were considered for subsequent analysis.

3.4. Protein Identification

Spots containing differently accumulated proteins were cut out from a preparative 2D gel containing 1 mg of protein mixture and stained with Coomassie Brilliant Blue (Bio-Rad). Pieces of gel were de-stained using 100 mM NH4HCO3/ACN 1:1 (v/v) and proteins in the gel were digested for 3 h at 37 °C in 50 mM NH4HCO3 with trypsin (concentration 12.5 μg/mL, sequencing grade, Promega, Madison, WI, USA). The resulting peptides were extracted with 0.1% TFA and then desalted and concentrated using ZipTip C-18 (Millipore, Billerica, MA, USA). Peptide samples as well as external calibration standard (Bruker peptide calibration standard I, Bruker, Bremen, Germany) were mixed 1:1 with 2,5-dihydroxybenzoic acid (20 mg/mL in 33% ACN and 0.1% TFA; Sigma-Aldrich, Schnelldorf, Germany) and applied on a MALDI target plate. All mass spectrometric analysis used Biflex IV MALDI-ToF mass spectrometer (Bruker, Bremen, Germany) in reflective positive ion mode in the range of 800–4000 Da (300 laser shots for each spectrum). Spectra were analyzed in mMass 3.10.0 program (Praha, Czech Republic) [48]; signal to noise threshold was set to 3. For protein identification, the extracted peaklists were searched using Mascot server against NCBInr database (version 20120623; 18713758 sequences; 6412106995 residues) with the following settings: organism Viridiplantae—green plants; enzyme trypsin (1 misscleavage allowed), cysteine carbamidomethylation was set as a fixed modification and methionine oxidation as a variable modification; peptide tolerance was set to 0.2 Da. This settings cut off score was 72. Since the barley genome is not fully sequenced, a portion of proteins were identified on the basis of homology with proteins from different plant species. Corresponding gene identifiers on the “GeneChip Barley Genome Array” Affymetrix chip were found in the file “Barley1.na32.annot.csv” at Affymetrix’s websites [49].

3.5. Biological Functions of Identified Proteins

Biological functions of proteins and their cell localisation were searched in UniProtKB database [50] according to their Gene Ontology annotation (GO) [51]. To confirm cellular localisation of identified proteins with GO annotation and to determine localisation of those without GO annotation, TargetP 1.1 server [52] was used; specificity was set to >0.95.

In order to get a global overview of biological processes influenced by low temperatures, proteins were classified to categories using Web Gene Ontology Annotation Plot (WEGO) [53,54].

3.6. Statistical Analysis of Differently Accumulated Proteins

The differently accumulated proteins were analyzed in a R 2.15.0 environment for statistical computing [55]. In order to summarize main characteristics of data, exploratory data analysis was done using Histogram, Q-Q plot and box plot (2.698 σ). Attention was aimed at outlying observations (outlying proteins) suggested by boxplot which are those that appear to deviate markedly from other members of the data set in which they occur [56]. All differently accumulated proteins including outliers were then sorted into clusters according to their mode of accumulation using hierarchical clustering (package “stats”, function “hclust”, Ward’s method). Dendrograms were cut at height of h = 10 so that clusters with distinctly different modes of accumulation were created. Furthermore, the changes in protein abundance were displayed using Heat map (packages “gplots” and “RColorBrewer”, function “heatmap.2”). Since the proteins differed greatly in their abundances, all data were normalized (row centered and scaled).

4. Conclusions

In this study, processes of winter barley cold hardening have been glimpsed at proteome level by monitoring and comparing the response of leaves and crowns to various periods of cold and frost. It has been observed that protein and nitrogen metabolic processes were influenced by low temperatures to a similar extent in both tissues while catabolism, carbohydrate metabolism and stress response were more affected in crowns. We believe that these differences may reflect the fact that crowns are crucial for whole plant survival. Amongst the proteins which showed large changes in abundance, and therefore might play substantial roles in frost tolerant winter barley response to low temperature, AAA ATPase in leaves or HSP70 in crowns have been found. Chloroplast proteins were frequently observed as differently accumulated. Therefore, our results denote the importance of chloroplasts in low temperature response of barley. All proteins which significantly (at least twice) changed their accumulation in course of cold or frost periods were assorted to clusters according to their accumulation profile; there have been found five protein clusters in leaves and three clusters in crowns. We concluded that these clusters are likely to have a decisive influence in distinct phases of barley cold hardening as the proteins in different clusters mounted their abundance in diverse time points of low temperature exposure.

The molecular basis of winter cereals cold hardening process has been so far studied predominantly by transcriptomic methods. Generally, our proteomic study showed an accordance with previous transcriptomic studies; nevertheless, there may exist substantial differences between mRNA expression and actual protein levels due to different mechanisms of gene expression regulation. Therefore, further proteomic studies are needed in order to understand cold response regulation in cereals more profoundly.

The presented results can be considered as a starting point in selection process of frost resistance marker proteins suitable for effortless and fast crop improvement. In this perspective, it will be necessary to carry out follow-up studies to compare more barley genotypes differing in their frost resistance; from this point of view, our experiment can be regarded as a pilot study.

Acknowledgments

This research was funded by the Ministry of Agriculture of the Czech Republic, projects QH 81287, QJ1310055 and MZE0002700604. We are obliged to Anna Janská for providing plant samples and unknown reviewers of their helpful remarks on our manuscript.

Abbreviations

2D-DIGEtwo dimensional difference gel electrophoresis
ACNacetonitrile
CHAPS3-[(3-cholamidopropyl)dimethylammonio]-1-propanesulfonate
DHNdehydrin
DTTdithiothreitol
EDS1enhanced disease susceptibility 1
GOGene Ontology
HSP7070 kDa heat shock protein
IAAiodoacetamide
IPGimmobilised pH gradient
JIP-2323 kDa jasmonate-induced protein
LEAlate embryogenesis abundant
MALDI-ToFMatrix-Assisted Laser Desorption/Ionization-Time of Flight
PsbO33 kDa oxygen evolving protein of photosystem II
SDSsodium dodecyl sulfate
TCAtrichloroacetic acid
TFATrifluoroacetic acid
WCSwheat cold-specific
WEGOWeb Gene Ontology Annotation Plotting

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Newton, A.C.; Flavell, A.J.; George, T.S.; Leat, P.; Mullholland, B.; Ramsay, L.; Revoredo-Giha, C.; Russell, J.; Steffenson, B.J.; Swanston, J.S.; et al. Crops that feed the world 4. Barley: A resilient crop? Strengths and weaknesses in the context of food security. Food Sec 2011, 3, 141–178.
  2. Limin, A.E.; Fowler, D.B. Developmental traits affecting low-temperature tolerance response in near-isogenic lines for the vernalization locus Vrn-A1 in wheat (Triticum. aestivum L. em Thell). Ann. Bot 2002, 89, 579–585.
  3. Hommo, L. Hardening of some winter wheat (Triticum. aestivum L.), rye (Secale. cereale L.), triticale (× Triticosecale Wittmack) and winter barley (Hordeum. vulgare L.) cultivars during autumn and the final winter survival in Finland. Plant Breed 1994, 112, 285–293.
  4. Kacperska, A. Plant Response to Low Temperature: Signaling Pathways Involved in Plant Acclimation. In Cold-Adapted Organisms—Ecology, Physiology, Enzymology and Molecular Biology; Margesin, R., Schinner, F., Eds.; Springer: Berlin, Germany, 1999; pp. 79–103.
  5. Thomashow, M.F. Plant cold acclimation: Freezing tolerance genes and regulatory mechanisms. Annu. Rev. Plant Physiol. Plant Mol. Biol 1999, 50, 571–599.
  6. Timperio, A.M.; Egidi, M.G.; Zolla, L. Proteomics applied on plant abiotic stresses: Role of heat shock proteins (HSP). J. Proteomics 2008, 71, 391–411.
  7. Kosová, K.; Vítámvás, P.; Prášil, I.T. Expression of dehydrins in wheat and barley under different temperatures. Plant Sci 2011, 180, 46–52.
  8. Kamal, A.H.M.; Kim, K.H.; Shin, K.H.; Choi, J.S.; Baik, B.K.; Tsujimoto, H.; Heo, H.Y.; Park, C.S.; Woo, S.H. Abiotic stress responsive proteins of wheat grain determined using proteomics technique. Aust. J. Crop. Sci 2010, 4, 196–208.
  9. Sarhadi, E.; Mahfoozi, S.; Hosseini, S.A.; Salekdeh, G.H. Cold acclimation proteome analysis reveals close link between the up-regulation of low-temperature associated proteins and vernalization fulfillment. J. Proteome Res 2010, 9, 5658–5667.
  10. Rinalducci, S.; Egidi, M.G.; Karimzadeh, G.; Jazii, F.R.; Zolla, L. Proteomic analysis of a spring wheat cultivar in response to prolonged cold stress. Electrophoresis 2011, 32, 1807–1818.
  11. Vítámvás, P.; Prášil, I.T.; Kosová, K.; Planchon, S.; Renaut, J. Analysis of proteome and frost tolerance in chromosome 5A and 5B reciprocal substitution lines between two winter wheats during long-term cold acclimation. Proteomics 2012, 12, 68–85.
  12. Fowler, D.B.; Breton, G.; Limin, A.E.; Mahfoozi, S.; Sarhan, F. Photoperiod and temperature interactions regulate low-temperature-induced gene expression in Barley. Plant Physiol 2001, 127, 1676–1681.
  13. Kosová, K.; Holková, L.; Prášil, I.T.; Prášilová, P.; Bradáčová, M.; Vítámvás, P.; Čapková, V. Expression of dehydrin 5 during the development of frost tolerance in barley (Hordeum. vulgare L.). J. Plant Physiol 2008, 165, 1142–1151.
  14. Vítámvás, P.; Saalbach, G.; Prášil, I.T.; Čapková, V.; Opatrná, J.; Ahmed, J. WCS120 protein family and proteins soluble upon boiling in cold-acclimated winter wheat. J. Plant Physiol 2007, 9, 1197–1207.
  15. Vítámvás, P.; Prášil, I.T. WCS120 protein family and frost tolerance during cold acclimation, deacclimation and reacclimation of winter wheat. Plant Physiol. Biochem 2008, 46, 970–976.
  16. Greenup, A.G.; Sasani, S.; Oliver, S.N.; Walford, S.A.; Millar, A.A.; Trevaskis, B. Transcriptome analysis of the vernalization response in barley (Hordeum. vulgare L.) seedlings. PLoS One 2011, 6, e17900.
  17. Svensson, J.T.; Crosatti, C.; Campoli, C.; Bassi, R.; Stanca, A.M.; Close, T.J.; Cattivelli, L. Transcriptome analysis of cold acclimation in barley Albina and Xantha Mutants. Plant Physiol 2006, 141, 257–270.
  18. Armbruster, U.; Pesaresi, P.; Pribil, M.; Hertle, A.; Leister, D. Update on chloroplast research: New tools, new topics and new trends. Mol. Plant 2001, 4, 1–16.
  19. Šimková, K.; Kim, C.; Gacek, K.; Baruah, A.; Laloi, C.; Apel, K. The chloroplast division mutant caa33 of Arabidopsis thaliana reveals the crucial impact of chloroplast homeostasis on stress acclimation and retrograde plastid-to-nucleus signaling. Plant J 2012, 69, 701–712.
  20. Tanino, K.K.; McKersie, B.D. Injury within the crown of winter wheat seedlings after freezing and icing stress. Can. J. Bot 1985, 63, 432–436.
  21. Livingston, D.P.; Premakumar, R.; Tallury, S.P. Carbohydrate partitioning between upper and lower regions of the crown in oat and rye during cold acclimation and freezing. Cryobiology 2006, 52, 200–208.
  22. Winfield, M.O.; Lu, C.; Wilson, I.D.; Coghill, J.A.; Edwards, K.J. Plant responses to cold: Transcriptome analysis of wheat. Plant Biotechnol. J 2010, 8, 749–771.
  23. Janská, A.; Aprile, A.; Zámečník, J.; Cattivelli, L.; Ovesná, J. Transcriptional responses of winter barley to cold indicate nucleosome remodelling as a specific feature of crown tissues. Funct. Integr. Genomics 2011, 11, 307–325.
  24. Renaut, J.; Lutts, S.; Hoffmann, L.; Hausman, J.F. Responses of poplar to chilling temperatures: Proteomic and physiological aspects. Plant Biol 2004, 6, 81–90.
  25. Hashimoto, M.; Komatsu, S. Proteomic analysis of rice seedlings during cold stress. Proteomics 2007, 7, 1293–302.
  26. Ganeshan, S.; Vítámvás, P.; Fowler, D.B.; Chibbar, R.N. Quantitative expression analysis of selected COR genes reveals their differential expression in leaf and crown tissues of wheat (Triticum aestivum L.) during an extended low temperature acclimation regimen. J. Exp. Bot 2008, 59, 2393–2402.
  27. Limin, A.E.; Corey, A.; Hayes, P.; Fowler, D.B. Low-Temperature acclimation of barley cultivars used as parents in mapping populations: Response to photoperiod, vernalization and phenological development. Planta 2007, 226, 139–146.
  28. Kjellsen, T.D.; Shiryaeva, L.; Schröder, W.P.; Strimbeck, G.R. Proteomics of extreme freezing tolerance in Siberian spruce (Picea. obovata). J. Proteomics 2010, 73, 965–975.
  29. Ifuku, K.; Ishihara, S.; Sato, F. Molecular functions of oxygen-evolving complex family proteins in photosynthetic electron flow. J. Integr. Plant Biol 2010, 52, 723–734.
  30. Cui, S.; Huang, F.; Wang, J.; Ma, X.; Cheng, Y.; Liu, J. A proteomic analysis of cold stress responses in rice seedlings. Proteomics 2005, 5, 3162–3172.
  31. Schweighofer, A.; Hirt, H.; Meskiene, I. Plant PP2C phosphatases: Emerging functions in stress signaling. Trends Plant Sci 2004, 9, 236–243.
  32. Tahtiharju, S.; Palva, T. Antisense inhibition of protein phosphatase 2C accelerates cold acclimation in Arabidopsis thaliana. Plant J 2001, 26, 461–470.
  33. Frydman, J. Folding of newly translated proteins in vivo: The role of molecular chaperones. Annu. Rev. Biochem 2001, 70, 603–647.
  34. Straus, M.R.; Rietz, S.; ver Loren van Themaat, E.; Bartsch, M.; Parker, J.E. Salicylic acid antagonism of EDS1-driven cell death is important for immune and oxidative stress responses in Arabidopsis. Plant J 2010, 62, 628–640.
  35. Vítámvás, P.; Kosová, K.; Prášilová, P.; Prášil, I.T. Accumulation of WCS120 protein in wheat cultivars grown at 9 C or 17 C in relation to their winter survival. Plant Breed 2010, 129, 611–616.
  36. Oikawa, A.; Nagai, K.; Kato, K.; Kidou, S. Gene silencing of barley P23k involved in secondary wall formation causes abnormal tiller formation and intercalary elongation. Breed. Sci 2009, 59, 664–670.
  37. Lehmann, J.; Atzorn, R.; Bruckner, C.; Reinbothe, S.; Leopold, J.; Wasternack, C.; Parthier, B. Accumulation of jasmonate, abscisic-acid, specific transcripts and proteins in osmotically stressed barley leaf segmants. Planta 1995, 197, 156–162.
  38. Dunn, M.A.; Morris, A.; Jack, P.L.; Hughes, M.A. A low-temperature-responsive translation elongation factor lα from barley (Hordeum. vulgare L.). Plant Mol. Biol 1993, 23, 221–225.
  39. Wallsgrove, R.M.; Turner, J.C.; Hall, N.P.; Kendall, A.C.; Bright, S.W. Barley mutants lacking chloroplast glutamine synthetase-biochemical and genetic analysis. Plant Physiol 1987, 83, 155–158.
  40. Pang, Q.Y.; Chen, S.X.; Dai, S.J.; Chen, Y.Z.; Wang, Y.; Yan, X.F. Comparative proteomics of salt tolerance in Arabidopsis thaliana and Thellungiella. halophila. J. Proteome Res 2010, 9, 2584–2599.
  41. Yan, S.P.; Tang, Z.C.; Su, W.; Sun, W.N. Proteomic analysis of salt stress-responsive proteins in rice root. Proteomics 2005, 5, 235–244.
  42. Cai, H.; Zhou, Y.; Xiao, J.; Li, X.; Zhang, Q.; Lian, X. Overexpressed glutamine synthetase gene modifies nitrogen metabolism and abiotic stress responses in rice. Plant Cell Rep 2009, 28, 527–537.
  43. Skinner, D.Z. Post-Acclimation transcriptome adjustment is a major factor in freezing tolerance of winter wheat. Funct. Integr. Genomics 2009, 9, 513–523.
  44. Hanano, A.; Burcklen, M.; Flenet, M.; Ivancich, A.; Louwagie, M.; Garin, J.; Blee, E. Plant seed peroxygenase is an original heme-oxygenase with an EF-hand calcium binding motif. J. Biol. Chem 2006, 281, 33140–33151.
  45. Thangasamy, S.; Chen, P.W.; Lai, M.H.; Chen, J.; Jauh, G.Y. Rice LGD1 containing RNA binding activity affects growth and development through alternative promoters. Plant J 2012, 71, 288–302.
  46. Liu, X.D.; Shen, Y.G. NaCl-Induced phosphorylation of light harvesting chlorophyll a/b proteins in thylakoid membranes from the halotolerant green alga, Dunaliella. salina. FEBS Lett 2004, 569, 337–340.
  47. Wang, W.; Tai, F.J.; Chen, S.N. Optimizing protein extraction from plant tissues for enhanced proteomics analysis. J. Sep. Sci 2008, 31, 2032–2039.
  48. Strohalm, M.; Kavan, D.; Novak, P.; Volny, M.; Havlicek, V. mMass 3: A Cross–Platform software environment for precise analysis of mass spectrometric data. Anal. Chem 2010, 11, 4648–4651.
  49. Barley1.na32.annot.csv. Available online: http://www.affymetrix.com/estore/ , accessed on 3 February 2013.
  50. UniProtKB. Available online: http://www.uniprot.org/ , accessed on 3 February 2013.
  51. The Gene Ontology Consortium. Gene ontology: Tool for the unification of biology. Nat. Genet 2000, 1, 25–29.
  52. Emanuelsson, O.; Nielsen, H.; Brunak, S.; von Heijne, G. Predicting subcellular localization of proteins based on their N-terminal amino acid sequence. J. Mol. Biol 2000, 300, 1005–1016.
  53. Ye, J.; Fang, L.; Zheng, H.K.; Zhang, Y.; Chen, J.; Zhang, Z.J.; Wang, J.; Li, S.T.; Li, R.Q.; Bolund, L.; et al. WEGO: A web tool for plotting GO annotations. Nucleic Acids Res 2006, 34, W293–W297.
  54. WEGO. Available online: http://wego.genomics.org.cn/cgi-bin/wego/index.pl , accessed on 1 February 2013.
  55. R 2.15.0. Available online: http://www.r-project.org/ , accessed on 1 October 2012.
  56. Grubbs, F.E. Procedures for detecting outlying observations in samples. Technometrics 1969, 11, 1–21.
Ijms 14 08000f1 200
Figure 1. Representative proteome maps of 50 μg total proteins from (a) crowns and (b) leaves of barley (Hordeum vulgare L.) separated by two dimensional difference gel electrophoresis (2D-DIGE) (24 cm immobilised pH gradient (IPG) strip, pI 4–7, 1 mm thick gel). At least two times up- or down-accumulated proteins (p = 0.05, t-test, n = 3) are marked with the corresponding spot numbers.

Click here to enlarge figure

Figure 1. Representative proteome maps of 50 μg total proteins from (a) crowns and (b) leaves of barley (Hordeum vulgare L.) separated by two dimensional difference gel electrophoresis (2D-DIGE) (24 cm immobilised pH gradient (IPG) strip, pI 4–7, 1 mm thick gel). At least two times up- or down-accumulated proteins (p = 0.05, t-test, n = 3) are marked with the corresponding spot numbers.
Ijms 14 08000f1 1024
Ijms 14 08000f2 200

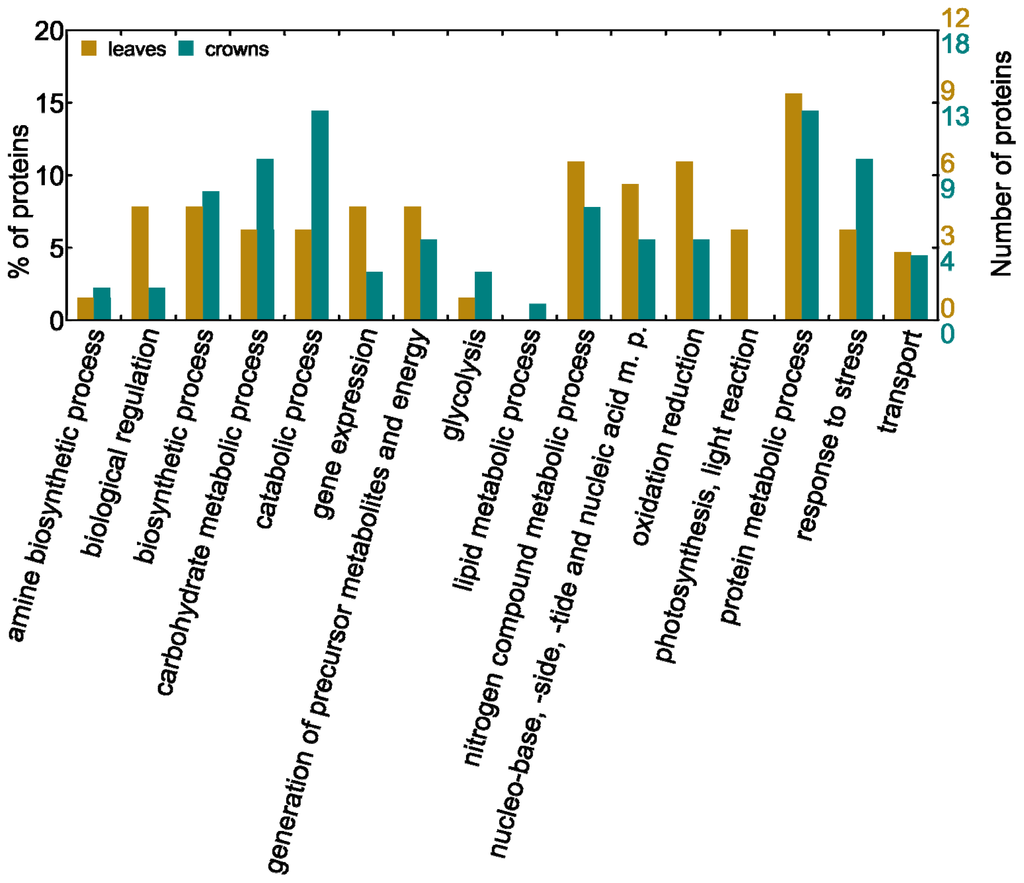

Figure 2. Functional classification of differently accumulated proteins showing a comparison between crowns and leaves of winter barley exposed to cold and frost. In total, 48 proteins in crowns and 39 proteins in leaves were assigned to one or more of 16 categories selected for classification using Web Gene Ontology Annotation Plotting (WEGO) application. On the y axis the percentage of differently accumulated proteins possesing similar biological function in distinct tissues can be seen, on the x axis respective biological processes are listed. WEGO classification reflects the fact that single protein can be involved in several processes, thus sum of % in all categories is higher than 100.

Click here to enlarge figure

Figure 2. Functional classification of differently accumulated proteins showing a comparison between crowns and leaves of winter barley exposed to cold and frost. In total, 48 proteins in crowns and 39 proteins in leaves were assigned to one or more of 16 categories selected for classification using Web Gene Ontology Annotation Plotting (WEGO) application. On the y axis the percentage of differently accumulated proteins possesing similar biological function in distinct tissues can be seen, on the x axis respective biological processes are listed. WEGO classification reflects the fact that single protein can be involved in several processes, thus sum of % in all categories is higher than 100.
Ijms 14 08000f2 1024
Ijms 14 08000f3a 200Ijms 14 08000f3b 200

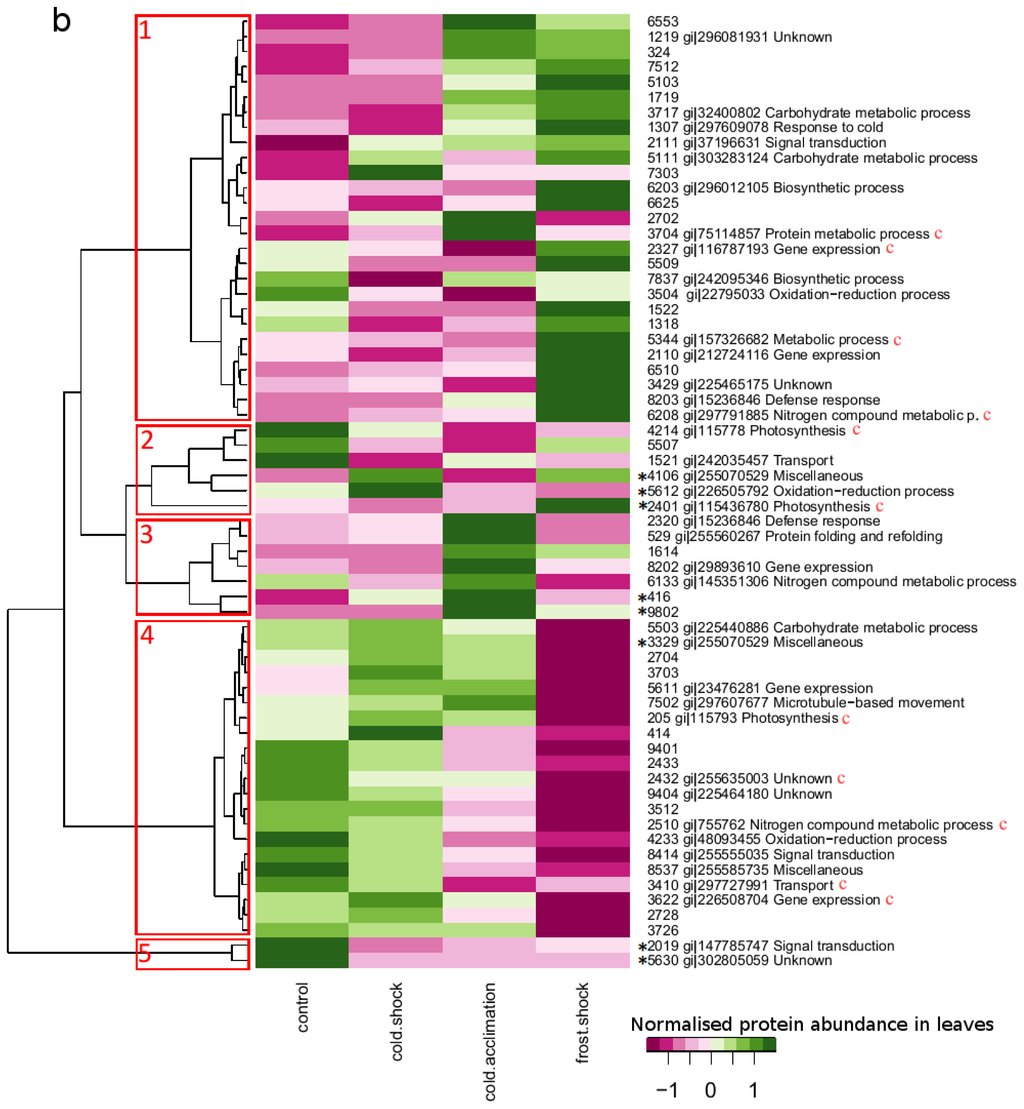

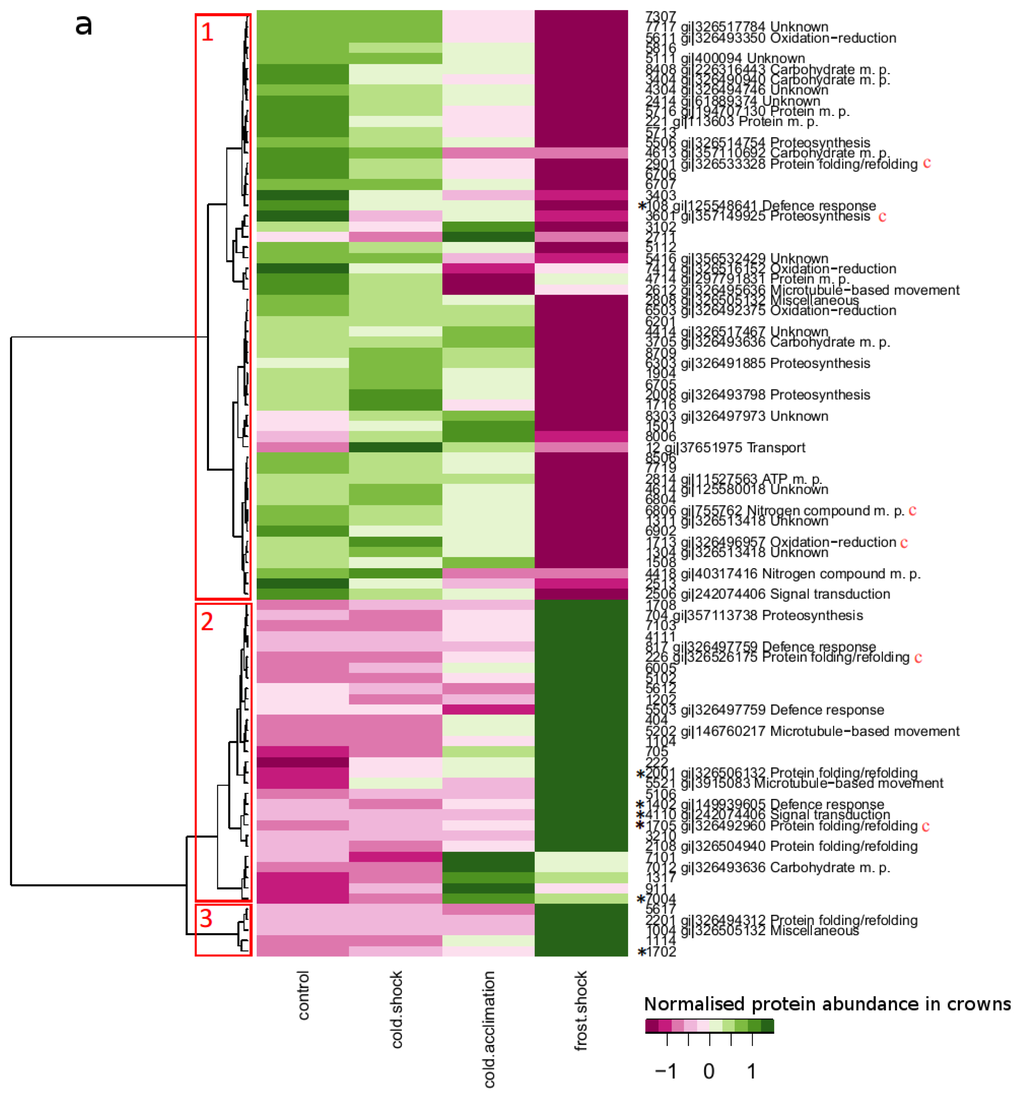

Figure 3. Hierarchical cluster analysis of proteins differently accumulated in (a) crowns and (b) in leaves in course of low temperature exposure. Red boxes mark clusters of proteins which have similar mode of accumulation; dendrogram was constructed using Ward’s method and cut off at height h = 10. The sign * marks proteins which changed their abundance at least 8 times in leaves and 6 times in crowns, letter “c” marks proteins from chloroplasts.

Click here to enlarge figure

Figure 3. Hierarchical cluster analysis of proteins differently accumulated in (a) crowns and (b) in leaves in course of low temperature exposure. Red boxes mark clusters of proteins which have similar mode of accumulation; dendrogram was constructed using Ward’s method and cut off at height h = 10. The sign * marks proteins which changed their abundance at least 8 times in leaves and 6 times in crowns, letter “c” marks proteins from chloroplasts.
Ijms 14 08000f3a 1024Ijms 14 08000f3b 1024
Ijms 14 08000f4 200

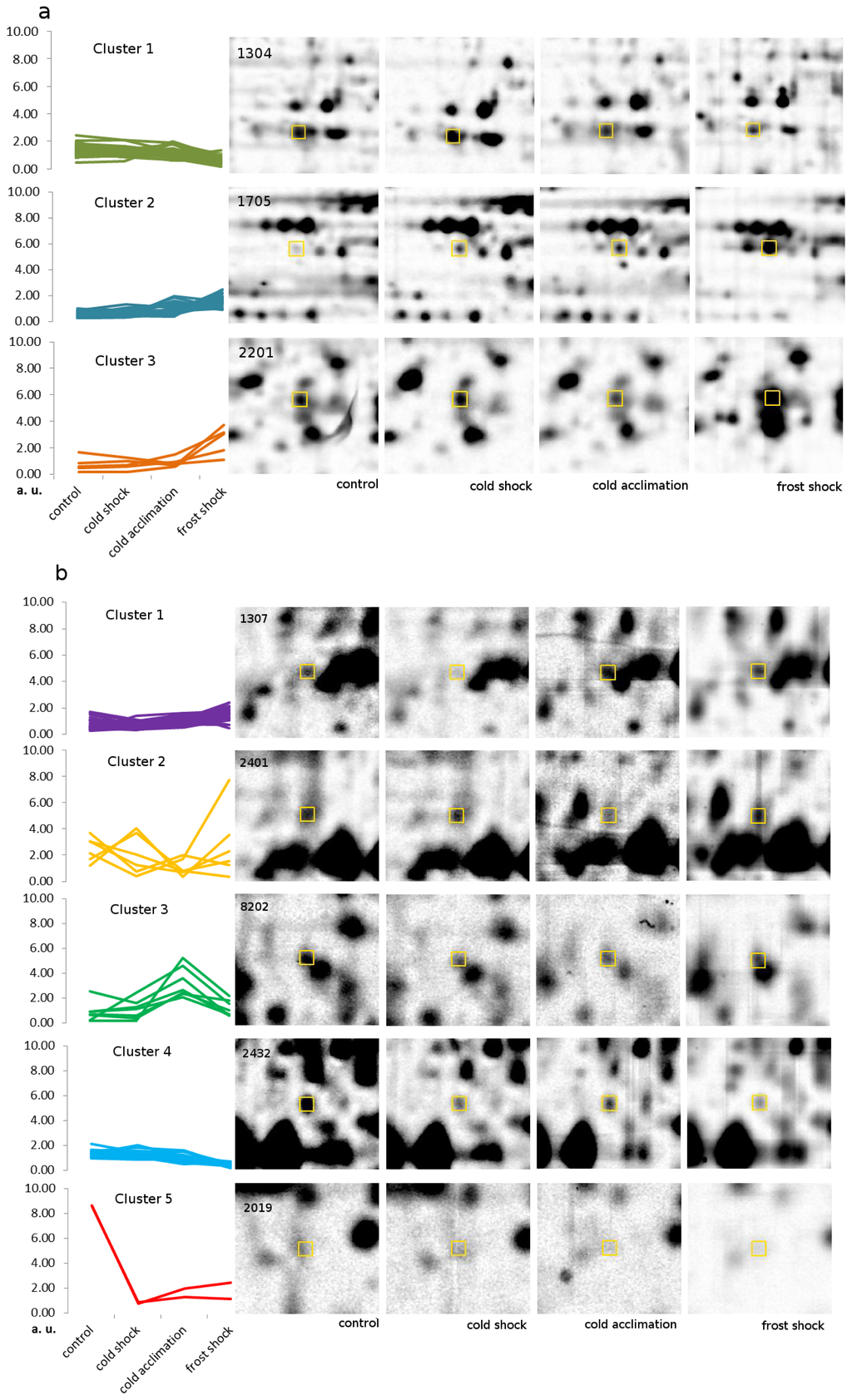

Figure 4. Modes of protein accumulation in (a) crowns and (b) leaves after low temperature exposure. Vertical axis represents protein abundance and horizontal axis represents different treatments, all proteins in the same cluster are drawn in the same colour. Representative protein spots pictures on 2D-gels for different treatments are given for each cluster; spot number is in left upper corner of the image and corresponding proteins are listed in Tables 1 and 2.

Click here to enlarge figure

Figure 4. Modes of protein accumulation in (a) crowns and (b) leaves after low temperature exposure. Vertical axis represents protein abundance and horizontal axis represents different treatments, all proteins in the same cluster are drawn in the same colour. Representative protein spots pictures on 2D-gels for different treatments are given for each cluster; spot number is in left upper corner of the image and corresponding proteins are listed in Tables 1 and 2.
Ijms 14 08000f4 1024
Table 1. List of proteins up- or down- accumulated after low temperature exposure in crowns of winter barley seedlings. Plants were exposed to cold shock, cold acclimation and frost shock; differently accumulated proteins were those which changed abundance at least two times (Student’s t-test, p = 0.05, n = 3) in course of low temperature treatment.

Click here to display table

Table 1. List of proteins up- or down- accumulated after low temperature exposure in crowns of winter barley seedlings. Plants were exposed to cold shock, cold acclimation and frost shock; differently accumulated proteins were those which changed abundance at least two times (Student’s t-test, p = 0.05, n = 3) in course of low temperature treatment.
Spot No 1NCBI identifier (Probe Set ID) 2Protein name (organism)Score 3MWo/pIo (MWt/pIt) 4SC (%)/MP 5Biological function 6Cluster 7CL, O 8
Crowns
2814gi|11527563 (Contig2786_at)vacuolar proton-ATPase (Hordeum vulgare)187136/5.4 (69/5.2)37/20ATP m. p.1
8408gi|226316443fructose-bisphosphate aldolase (Hordeum vulgare)12070/6.7 (39/6.1)36/11Carbohydrate m. p.1
3404gi|326490940malate dehydrogenase (Hordeum vulgare)8369/5.5 (36/5.6)25/10Carbohydrate m. p.1
1304gi|326513418fructokinase-2 (Hordeum vulgare)13962/5.2 (36/6.1)39/17Carbohydrate m. p.1
1311gi|326513418fructokinase-2 (Hordeum vulgare)17962/5.1 (36/6.1)39/17Carbohydrate m. p.1
4613gi|3571106926-phosphogluconate dehydrogenase, decarboxylating-like 1 (Brachypodium distachyon)8094/5.9 (53/5.6)22/12Carbohydrate m. p.1
3705gi|326493636enolase (Hordeum vulgare)188107/5.6 (48/5.4)32/11Carbohydrate m. p.1
2612gi|326495636actin (Hordeum vulgare)22589/5.4 (42/5.3)47/21Cytoskeleton organization1
108gi|125548641h. p. OsI_16233 (Oryza sativa)8522/4.6 (17/4.8)47/9Defence response1*
2506gi|242074406h. p. SORBIDRAFT_06g029250 (Sorghum bicolor)8479/5.3 (183/6.0)11/15Defence response1
12gi|37651975chopper chaperone (Hordeum vulgare)7520/4.6 (11/4.7)41/6Metal ion transport1
4418gi|40317416glutamine synthetase GSr1 (Triticum aestivum)11469/5.8 (39/5.4)34/11Nitrogen compound m. p.1
6806gi|755762 (HVSMEa0004F18f2_s_at)glutamine synthetase GS2 (Hordeum vulgare)150137/6.2 (47/5.8)19/12Nitrogen compound m. p.1c
1713gi|326496957thioredoxin peroxidase (Hordeum vulgare)118113/5.1 (28/6.3)42/8Oxidation-reduction p.1c
6503gi|326492375predicted protein (Hordeum vulgare)7785/6.2 (41/5.9)17/7Oxidation-reduction p.1
5611gi|326493350isocitrate dehydrogenase (Hordeum vulgare)8789/6.7 (46/6.0)20/8Oxidation-reduction p.1
7414gi|326516152predicted protein (Hordeum vulgare)12271/6.6 (39/6.4)32/14Oxidation-reduction p.1
5716gi|194707130unknown (Zea mays)95104/6.1 (40/8.5)26/10Protein catabolic process1
2901gi|32653332860 kDa chaperonin (Hordeum vulgare)98141/5.3 (62/5.4)16/10Protein folding/refolding1c
221gi|113603 (Contig86_at)thiol protease aleurain (Hordeum vulgare)7645/4.8 (40/6.4)20/7Protein m. p.1
4714gi|297791831zinc carboxypeptidase family protein (Arabidopsis lyrata)79100/5.8 (53/6.9)22/12Protein m. p.1
2008gi|326493798glycine rich protein, RNA binding protein (Hordeum vulgare)13918/5.4 (17/5.4)50/10Response to cold1
4304gi|326494746predicted protein (Hordeum vulgare)14863/5.7 (38/5.7)37/12Seed storage protein1
3601gi|357149925elongation factor Tu (Brachypodium distachyon)14893/5.5 (51/5.9)40/23Translational elongation1c
5506gi|326514754elongation factor Tu (Hordeum vulgare)12480/6.0 (48/6.0)48/18Translational elongation1
4614gi|125580018h. p. OsJ_36811 (Oryza sativa)7495/5.9 (32/6.8)42/10Unknown1
6303gi|326491885predicted protein (Hordeum vulgare)15861/6.2 (37/6.0)39/14Unknown1
8303gi|326497973predicted protein (Hordeum vulgare)15361/6.6 (39/6.3)55/15Unknown1
2808gi|326505132predicted protein (Hordeum vulgare)105123/5.3 (56/4.7)18/12Unknown1
4414gi|326517467predicted protein (Hordeum vulgare)14265/5.9 (36/5.7)51/16Unknown1
7717gi|326517784predicted protein (Hordeum vulgare)105104/6.6 (47/6.1)32/14Unknown1
5416gi|356532429LOC100792980 (Glycine max)8674/6.1 (75/7.2)18/11Unknown1
5111gi|400094 (Contig1675_s_at)JIP-23 (Hordeum vulgare)8432/6.5 (23/5.9)38/8Unknown1
2414gi|61889374 (Contig112_at)C2 domain-containing protein (Hordeum vulgare)8666/5.4 (33/5.6)21/7Unknown1
7012gi|326493636enolase (Hordeum vulgare)7915/6.6 (48/5.4)32/11Carbohydrate m. p.2
1402gi|149939605enhanced disease susceptibility 1 (Arabidopsis lyrata)7573/5.0 (70/6.1)15/11Defence response2*
4110gi|242074406h. p. SORBIDRAFT_06g029250 (Sorghum bicolor)8836/5.9 (183/6.0)9/12Defence response2*
5202gi|146760217 (Contig1508_s_at)beta tubulin 6 (Hordeum vulgare)13241/5.9 (51/4.8)26/16Microtubule-based mov.2
5521gi|3915083beta tubulin (Cicer arietinum)7478/6.1 (51/4.8)26/12Microtubule-based mov.2
704gi|35711373840S ribosomal protein SA-like (Brachypodium distachyon)185108/4.9 (33/4.9)44/16Proteosynthesis2
226gi|326526175predicted protein (Hordeum vulgare)8237/4.9 (26/6.2)33/7Response to cold2c
2001gi|32650613270 kDa heat shock protein (Hordeum vulgare)25715/5.2 (74/5.0)12/8Response to cold2
1705gi|32649296070 kDa heat shock protein (Hordeum vulgare)82102/5.1 (74/5.0)12/8Response to cold2c,*
2108gi|326504940predicted protein (Hordeum vulgare)8435/5.3 (26/6.2)33/7Response to cold2
817gi|326497759predicted protein (Hordeum vulgare)86120/4.9 (42/6.0)28/11Unknown2
5503gi|326497759predicted protein (Hordeum vulgare)8777/5.9 (42/6.0)20/9Unknown2
2201gi|326494312predicted protein (Hordeum vulgare)16039/5.3 (26/6.2)33/7Protein folding3
1004gi|326505132predicted protein (Hordeum vulgare)17515/5.4 (39/6.4)32/14Unknown3*

1—spot number on 2D gel;2—Probe Set ID on Barley 1 Affymetrix chip;3—Mascot score for protein identification (cut off 72);4—molecular weight and pI: o—observed on 2D gel and t—theoretical;5—Sequence Coverage (%)/Matched Peptides;6—biological function according to Gene Ontology annotation;7—membership to cluster according to Hierarchical cluster analysis,8—Celullar Localisation in chloroplasts—”c” and proteins with excessive change in abundance (outliers, at least 6 fold change)—”*”.

Table 2. List of proteins up- or down- accumulated after low temperature exposure in leaves of winter barley seedlings. Plants were exposed to cold shock, cold acclimation and frost shock; differently accumulated proteins were those which changed abundance at least two times (Student’s t-test, p = 0.05, n = 3) in course of low temperature treatment.

Click here to display table

Table 2. List of proteins up- or down- accumulated after low temperature exposure in leaves of winter barley seedlings. Plants were exposed to cold shock, cold acclimation and frost shock; differently accumulated proteins were those which changed abundance at least two times (Student’s t-test, p = 0.05, n = 3) in course of low temperature treatment.
Spot No 1NCBI identifier (Probe Set ID) 2Protein name (organism)Score 3MWo/pIo (MWt/pIt) 4SC (%)/MP 5Biological function 6Cluster 7CL, O 8
Leaves
6203gi|296012105granule-bound starch synthase I (Solanum caripense)7390/5.8 (37/6.7)33/9Biosynthetic process1
3717gi|32400802phosphoglycerate mutase (Triticum aestivum)78114/5.3 (30/5.4)28/6Carbohydrate m. p.1
5111gi|303283124pyruvate kinase (Micromonas pusilla CCMP1545)7648/5.5 (58/6.0)21/11Carbohydrate m. p.1
7837gi|242095346h. p. SORBIDRAFT_10g009020 (Sorghum bicolor)73101/6.0 (68/8.8)14/9Cell wall biogenesis1
5344gi|1573266821(10),5-germacradien-4-ol synthase (Pinus sylvestris)7634/5.7 (73/5.7)17/11Metabolic process1c
6208gi|297791885adenylate kinase (Arabidopsis lyrata)7390/5.8 (33/9.1)22/6Nucleobase-containing compound m. p.1c
3504gi|22795033putative cytochrome P450 (Populus tremula)9670/5.3 (24/7.1)31/7Oxidation-reduction p.1
2327gi|116787193unknown (Picea sitchensis)7743/5.2 (33/9.3)27/9Protein m. p.1c
3704gi|75114857ATP-dependent zinc metalloprotease FTSH 2 (Oryza sativa Japonica)7389/5.4 (73/5.5)15/8Protein m. p.1c
3429gi|22546517560S ribosomal protein L3-like (Vitis vinifera)8259/5.4 (25/10.0)45/9Proteosynthesis1
1307gi|297609078Os09g0133600 (Oryza sativa Japonica Group)7852/5.0 (27/5.1)28/6Response to cold1
8203gi|15236846peroxygenase 1 (Arabidopsis thaliana)8249/6.3 (28/5.8)34/12Response to freezing1
2110gi|212724116uncharacterised protein (Zea mays)74116/5.2 (42/9.1)18/8tRNA processing1
2111gi|37196631resistance protein candidate (Helianthus annuus)7519/5.1 (18/5.1)31/7Unknown1
1219gi|296081931unnamed protein product (Vitis vinifera)7425/4.9 (242/6.5)5/11Unknown1
4106gi|255070529AAA ATPase (Micromonas sp. RCC299)90117/5.4 (84/8.0)21/14Diverse cellular processes2*
5612gi|226505792UDP-glucose 6-dehydrogenase (Zea mays)7385/5.7 (53/6.1)23/10Oxidation-reduction p.2*
4214gi|115778chlorophyll a-b binding protein 1 (Sinapis alba)73128/5.5 (24/5.2)27/7Photosynthesis2c
2401gi|11543678033kDa oxygen evolving protein of photosystem II (Oryza sativa Japonica Group)7953/5.2 (35/6.1)23/5Photosynthesis2c,*
1521gi|242035457Sb01g032420 (Sorghum bicolor)7459/5.2 (80/5.6)12/10Transport2
6133gi|145351306F-ATPase (Ostreococcus lucimarinus)7576/5.8 (68/5.0)17/9ATP m. p.3
8202gi|29893610SR-rich pre-mRNA splicing activator (Oryza sativa)75143/6.0 (23/5.9)36/7mRNA processing3
529gi|255560267chaperonin 60 kDa (Ricinus communis)9691/4.7 (61/6.2)25/14Protein folding/refolding3
2320gi|15236846peroxygenase 1 (Arabidopsis thaliana)8339/5.2 (28/5.8)30/8Response to freezing3
3329gi|255070529AAA ATPase (Micromonas sp. RCC299)74112/5.6 (84/8.0)12/8Diverse cellular processes4*
8414gi|255555035ATP binding protein (Ricinus communis)7481/6.2 (75/5.8)21/10MAPK cascade4
7502gi|297607677kinesin (Oryza sativa)7576/6.0 (41/5.4)33/14Microtubule-based mov.4
2510gi|755762 (HVSMEa0004F18f2_s_at)glutamine synthetase GS2 (Hordeum vulgare)10166/5.2 (47/5.8)46/10Nitrogen compound m. p.4c
4233gi|48093455ADH-like UDP-glucose dehydrogenase (Nicotiana tabacum)7536/5.5 (42/6.2)24/10Oxidation-reduction p.4
205gi|115793 (Contig636_at)chlorophyll a-b binding protein of LHCII type III (Hordeum vulgare)7343/4.8 (29/5.0)26/6Photosynthesis4c
3410gi|297727991Os11g0153600 (Oryza sativa)73113/5.2 (27/10.8)41/7GTP catabolic process4c
3622gi|226508704elongation factor Tu (Zea mays)10175/5.3 (51/6.1)33/15Translational elongation4c
5611gi|23476281myb-like transcription factor 1 (Gossypium raimondii)7559/5.7 (31/7.1)19/6Transription4
2432gi|255635003unknown (Glycine max)7360/5.1 (34/6.4)21/6Unknown4c
5503gi|225440886h. p. (Vitis vinifera)7442/5.8 (18/6.0)49/8Unknown4
8537gi|255585735calmodulin binding protein (Ricinus communis)7578/6.2 (54/8.9)26/13Unknown4
9404gi|225464180h. p. (Vitis vinifera)7446/6.5 (37/6.1)25/7Unknown4
2019gi|147785747h. p. VITISV_033291 (Vitis vinifera)81112/4.9 (25/5.3)38/8Protein dephosphorylation5*
5630gi|302805059h. p. SELMODRAFT_423400 (Selaginella moellendorffii)7383/5.7 (48/8.7)29/12Unknown5*

1—spot number on 2D gel;2—Probe Set ID on Barley 1 Affymetrix chip;3—Mascot score for protein identification (cut off 72);4—molecular weight and pI: o—observed on 2D gel and t—theoretical;5—Sequence Coverage (%)/Matched Peptides;6—biological function according to Gene Ontology annotation;7—membership to cluster according to Hierarchical cluster analysis,8—Celullar Localisation in chloroplasts—”c” and proteins with excessive change in abundance (outliers, at least 8 fold change)—”*”.

Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
