Int. J. Mol. Sci. 2013, 14(4), 7757-7770; doi:10.3390/ijms14047757

Article
Plasma miRNAs as Biomarkers to Identify Patients with Castration-Resistant Metastatic Prostate Cancer
Akira Watahiki 1,2, Robyn J. Macfarlane 3, Martin E. Gleave 1,4, Francesco Crea 2, Yuzhuo Wang 1,2,4,*, Cheryl D. Helgason 2,*,5, and Kim N. Chi 1,2,5,
1
The Vancouver Prostate Centre, Vancouver General Hospital, Vancouver, BC V6H 3Z6, Canada; E-Mails: awatahiki@bccrc.ca (A.W.); m.gleave@ubc.ca (M.E.G.); kchi@bccancer.bc.ca (K.N.C.)
2
Departments of Experimental Therapeutics, Vancouver, BC V5Z 1L3, Canada; E-Mail: fcrea@bccrc.ca
3
Departments of Medical Oncology, BC Cancer Agency, Vancouver, BC V5Z 4E6, Canada; E-Mail: robyn.macfarlane@cdha.nshealth.ca
4
Departments of Urologic Sciences, Faculty of Medicine, University of British Columbia, Vancouver, BC V6T 1Z3, Canada
5
Department of Surgery, Faculty of Medicine, University of British Columbia, Vancouver, BC V5Z 4E3, Canada
These authors contributed equally to this work.
*
Authors to whom correspondence should be addressed; E-Mails: ywang@bccrc.ca (Y.W.); chelgaso@bccrc.ca (C.D.H.); Tel.: +1-604-675-8013 (Y.W.); +1-604-675-8011 (C.D.H.); Fax: +1-604-675-8019 (Y.W. & C.D.H.).
Received: 16 February 2013; in revised form: 20 March 2013 / Accepted: 22 March 2013 /
Published: 10 April 2013

Abstract

: MicroRNAs (miRNAs) have emerged as key regulators of numerous biological processes, and increasing evidence suggests that circulating miRNAs may be useful biomarkers of clinical disease. In this study, we sought to identify plasma miRNAs that differentiate patients with metastatic castration resistant prostate cancer (mCRPC) from those with localized prostate cancer (PCa). Pooled plasma samples from patients with localized PCa or mCRPC (25 per group) were assayed using the Exiqon miRNA qPCR panel, and the differential expression of selected candidates was validated using qRT-PCR. We identified 63 miRNAs upregulated in mCRPC versus localized PCa, while only four were downregulated. Pearson’s correlation analysis revealed two highly correlated groups: one consisting of miR-141, miR375 and miR-200c and the other including miR151-3p, miR423-3p, miR-126, miR152 and miR-21. A third group, containing miR-16 and miR-205, showed less correlation. One miRNA from each group (miR-141, miR151-3p and miR-16) was used for logistic regression analysis and proved to increase the sensitivity of the prostate-specific antigen (PSA) test alone. While no miRNA alone differentiated localized PCa and mCRPC, combinations had greater sensitivity and specificity. The expression of these 10 candidates was assayed for association with clinical parameters of disease progression through the cBio portal. Our results demonstrate that plasma levels of selected miRNAs are potential biomarkers to differentiate localized PCa and mCRPC.
Keywords:
microRNA; prostate cancer; metastasis; PSA; castration resistant

1. Introduction

Prostate cancer (PCa) is the most frequent malignancy amongst males in the Western world3, and it is the second leading cause of cancer-related deaths [1]. Prostate-specific antigen (PSA) testing has increased the proportion of patients diagnosed with localized disease [2]. Treatment options for localized PCa include surgery, radiation and hormonal therapy. For those men who undergo a definitive treatment for localized PCa, a proportion of them will develop recurrent disease, which, after an initial period of hormone responsiveness, will inevitably progress to a castration-resistant state. Metastatic castration-resistant PCa (mCRPC) is still an incurable disease. Given the significant heterogeneity in the behavior of PCa in both the localized and mCRPC states, there is an urgent need to identify biomarkers that will be useful in predicting the progression and outcome of individual tumors.

MicroRNAs (miRNAs) are small RNA molecules consisting of 19–23 nucleotides that play important roles in regulating numerous biological processes [3,4]. It is estimated that miRNAs regulate the expression of at least 60% of all human genes [5], thus accounting for the large number of known human miRNAs [6]. Alterations in miRNA levels can influence cellular processes, such as proliferation, apoptosis and cell cycle regulation, thus providing a link between miRNA dysregulation and cancer [7].

The inherent regulatory role of miRNAs, coupled with the high degree of tissue-specificity of their expression, suggests that they might be informative of disease stage [8,9], making miRNAs attractive candidates as biomarkers. miRNAs are very stable, and they can be readily detected using highly specific and sensitive detection methods (i.e., quantitative RT-PCR) [9,10] in a variety of different sample types. In PCa, miRNAs have been shown to discriminate between healthy individuals and those with cancer [1014]. In addition, some miRNAs correlate with the risk of disease progression [15] and other predictors of disease outcome, such as the Gleason score and lymph node involvement [12]. Both miRNA-141 and miRNA-375 have been shown to be upregulated in the blood of PCa patients in numerous studies [10,12,14]. Despite the efforts in this field, the degree of overlap amongst the candidate miRNAs identified in these studies is not extensive, perhaps due to the inherent heterogeneity of PCas. As such, there is a need for further investigation to establish a consensus core of blood biomarkers to reliably determine the stage and likelihood of progression of PCa. We thus sought to elucidate the expression levels of miRNAs in the plasma of patients with localized PCa and those with mCRPC as a first step toward identifying novel biomarkers of disease progression.

2. Results and Discussion

2.1. Detection of Differentially Expressed miRNAs in PCa Patients’ Plasma Samples

The primary goal of this study was to determine if differences in plasma miRNA levels might be useful to differentiate between patients with localized PCa and mCRPC. Of the 742 miRNAs represented on the Exiqon miRNA qPCR panel, 246 had quantification cycle (Cq) values <35 in at least one of the two pooled samples and, thus, were used for further analysis (Supplementary Table S1). Comparisons of mCRPC versus localized PCa were carried out to identify miRNAs showing ≥2 Cq differences in expression (Supplementary Table S1). Using this threshold, there were 63 miRNAs upregulated in mCRPC versus localized PCa. Surprisingly, considerably fewer miRNAs—only four—were downregulated in mCRPC versus localized PCa.

2.2. Deregulated Expression of Plasma miRNAs in Prostate Tumor Tissue

The miRNAs detected in plasma may arise from a number of different sources, such as circulating blood cells, circulating tumor cells or exosomes released from the tumor. We thus determined if the differentially expressed plasma miRNAs showed similarly deregulated expression in a previously analyzed paired xenograft model of human non-metastatic and metastatic PCa [16]. For this comparison, we used a threshold of ≥1 Cq increased expression, which expanded the list of differentially expressed plasma miRNAs to include 123 candidates (Supplementary Table S1). Comparison of these two groups revealed 15 commonly increased miRNAs in metastatic PCa (Table 1). We next carried out a similar comparison using miRNAs that were decreased ≥1 Cq in mCRPC versus localized PCa (Supplementary Table S1). Of these, four were downregulated in both the mCRPC plasma samples analyzed in this study and the metastatic tumor tissue xenografts (Table 1).

2.3. Expression Analysis of Selected miRNAs in Individual Plasma Samples

As the primary goal of this study was to identify miRNAs differentiating localized PCa from mCRPC, we selected a number of candidates for validation of expression differences in the 50 individual plasma samples based on the analyses described above and our pooled plasma miRNA expression profiles. Included in this list were miRNAs-141, -152 [17] and -375, which have previously been shown to be potential biomarkers [12,14], as well as miR-16, -21, -126, -151-3p, -200c, -205 and -423-3p (selected from Supplementary Table S1). A dilution series of the reference RNA was used to ensure that the amplification efficiency of the qPCR primer set for each miRNA had Cq ≤35 in more than 80% of the samples.

Figure 1 shows the normalized miRNA levels for the selected up- and down-regulated candidates in the individual plasma samples isolated from patients with localized PCa or mCRPC. In confirmation of the data from the panel assay, the expression level of each selected miRNA in the mCRPC group was significantly different in the localized PCa patients. Among the samples, miR-141, -375 and -200c showed similar patterns of expression, and analyses of the Pearson’s correlation amongst pairs of these three candidates were the highest (Figure 2). A second group showing high correlation included miR-126, -21, -151-3p, -152 and -423-3p (Figure 2). The two downregulated miRNAs included in this analysis, miR-16 and miR-205, showed no correlation (Figure 2). Principle Component Analysis (PCA; Figure 3) depicts the three groups of miRNAs and demonstrates that two components are able to distinguish localized PCa from mCRPC, with each miRNA contributing in the manner predicted by the correlations. Importantly, combining one miRNA from each group was comparable to all ten in differentiating between localized PCa and mCRPC.

Based on these results, we determined the minimal number and combination of miRNAs required to differentiate localized PCa from mCRPC with high specificity and sensitivity. To do this, we selected one miRNA from each of the three groups shown in Figure 3A and used logistic regression to calculate the probability that one miRNA or a combination of three miRNAs could distinguish mCRPC from localized PCa. The error values were determined using leave-one-out cross-validation (LOOCV); Akaike’s Information Criterion (AIC) values were calculated and probabilities were plotted to generate receiver operating characteristic (ROC) curves for each miRNA alone, as well as the combination (Figure 4). The area under the curve (AUC) was calculated for each (Table 2). Due to the high correlation of expression, the combination of miRNAs in a group (e.g., miR-141 + miR-375) was less useful for differentiating mCRPC from localized PCa than a single miRNA (data not shown). We assessed different combinations of three miRNAs, each from one group. Surprisingly, the combination of the best single discriminators from each group did not yield the highest AUC value (data not shown). To the contrary, miR-141, miR-151-3p and miR-16 in combination yielded an AUC of 0.944, slightly below that for PSA (0.964). Interestingly, combining the PSA test and mir-141-1513p-16 test increased PSA sensitivity by 8%.

2.4. Clinical Significance of Differentially Expressed miRNAs

Finally, we determined if any of the ten validated differentially expressed plasma miRNAs correlated with clinicopathological parameters of PCa in a recently analyzed large cohort of PCa patients (Table 3) [18]. Our results indicate that and miR-205 (downregulated in mCRPC) is associated with a lower Gleason Score and a lower probability of both biochemical recurrence and clinically evident metastatic events after prostatectomy. To the contrary, miR-141, 151-3p, 152 and 423-3p are associated with a poorer outcome and/or a higher Gleason Score. MiR-141 and mir-152 seemed to discriminate a rare, but highly significant sub-group of PCa patients, i.e., individuals with a higher than 90% probability of recurrence after prostatectomy. MiR-423-3p and miR-205 emerged as novel and particularly meaningful prognostic factors, since they are correlated with several clinical parameters.

2.5. Discussion

We previously demonstrated, using human metastatic versus non-metastatic PCa xenograft tumor tissue lines, a significant number of differentially expressed miRNAs associated with PCa metastasis [16]. MiRNAs originating from tumor tissue can enter the circulation and function as reliable biomarkers in human cancers [10]. Compared with proteins or mRNAs, it has been shown that miRNAs can stably exist in plasma samples even after 24 h of incubation at room temperature [10]. We therefore initiated this study to compare levels of circulating miRNAs in patients with treatment-naive localized PCa or mCRPC.

The vast majority of differentially expressed miRNAs were found at higher levels, rather than lower levels, in mCRPC versus localized PCa. The reason for this is not immediately clear. One possibility is that many of these might be tumor-derived and, thus, reflect the increased tumor burden and potentially a larger number of circulating cancer cells. Among the upregulated miRNAs selected for more in-depth analysis, miR-141 and miR-375 were the first ones reported as a circulating miRNAs in PCa [10,19]. Upregulation of miR-141 and miR-375 has been reported in PCa versus benign tissues [19]. In this study, we also observed increased expression of miR-141 and miR-375 in plasma from patients with mCRPC compared to those with localized PCa.

Expression of miR-126, -151-3p, -152, -423-3p and -21 was also upregulated in mCRPC versus localized PCa, but the pattern of upregulation was different from that of miR-141/375, as shown by the lower Pearson’s correlation (Figure 2). miR-21 is an androgen receptor (AR)-regulated miRNA that promotes PCa growth [20]. In addition, miR-21 levels are increased in the serum of docetaxel-resistant patients [13]. Integrating PSA levels with miRNA-21 and miR-141 profiles significantly increases the positive predictive value for PCa compared to that of PSA alone [21]. We observed that both miR-126 and miR-152, upregulated in this study, were also upregulated in metastatic versus non-metastatic PCa tumor tissue xenografts [16]. Interestingly, in conflict with our previous and current findings, miR-126 has been reported to be a tumor suppressor [22], and miR-152 was shown to be decreased in PCa [23]. Given the heterogeneous nature of PCas, the observation that levels of tumor suppressive miRNAs are elevated in the plasma raises the interesting possibility that cells expressing elevated levels of these miRNAs are actively shed from the tumor. In contrast to the upregulated plasma miRNAs in the mCRPC group, the downregulated miRNAs comprised a much smaller group. In addition, the majority of the downregulated plasma miRNAs are downregulated in PCa tissues [16].

Amongst the validated miRNAs upregulated in mCRPC, we observed variations in the expression patterns suggesting that those with highly correlated expression may be under similar transcriptional control or be secreted into the circulation by the same mechanisms. These variations in expression patterns divide mCRPC into subgroups such that expression of certain miRNAs may be linked to metastasis, some to the status of AR signaling (i.e., miR-141 and miR-375) and some to both. ROC curve analysis of miRNA expression and regression analysis of the AUC indicated that no single over-expressed plasma miRNA was useful for differentiating between localized PCa and mCRPC. In contrast, certain combinations of differentially expressed miRNAs (i.e., miR-141 + miR151-3p + miR-16) were almost as good as PSA levels in discriminating between mCRPC and localized PCa, and combining the miRNA test to the classical PSA dosage might result in a relevant sensitivity gain. Those results may pave the way to larger clinical studies, assessing the feasibility of coupling miRNA dosage with the PSA test in the clinical setting.

Finally, we sought to determine if the changes in plasma miRNA levels associated with disease progression had any relation to clinical parameters in a large patient cohort [18]. Our findings revealed that altered levels of three miRNAs not previously identified as blood biomarkers (miR-151-3p, miR-423-3p and miR-205) correlated with several clinical parameters.

3. Experimental Section

3.1. Human Plasma Samples

After obtaining institutional REB approval and informed consent from all study participants, blood samples were drawn at the British Columbia Cancer Agency (BCCA) in Vancouver in accordance with the National Institute of Cancer standard operating procedures for serum and plasma processing [24]. Two cohorts were evaluated: 25 PCa patients with treatment-naive localized disease (localized PCa) and 25 patients with metastatic castration resistant PCa and a rising PSA (mCRPC patients). The demographics of the mCRPC group have been published previously [14], but the characteristics of patients in both the localized cancer and mCRPC groups are provided in Table 4. All blood samples were collected in ethylenediaminetetraacetic acid (EDTA)-containing tubes and refrigerated. Samples were processed within 4 h of collection, and the resultant plasma samples were stored in a −80 °C freezer until RNA extraction.

3.2. RNA Extraction, cDNA Preparation, qRT-PCR

RNA was extracted from 200 μL of plasma using the miRNeasy mini kit (Qiagen, Toronto, Canada), following the manufacturer’s instructions with the following modifications: Trizol LS (600 μL) (Invitrogen, Burlington, Canada) was used for RNA extraction instead of Qiazol, glycogen was added as an RNA carrier, an extra chloroform extraction step was added following the phenol/chloroform extraction and an additional wash step with RPE buffer was added. The RNA was eluted in 50 μL of nuclease-free water, and 5 μL of each sample was pooled to yield two groups of samples (localized PCa and mCRPC) for assay using the human microRNA qPCR panel (Exiqon, Woburn, MA, USA).

Eight microliters of each pooled RNA sample was reverse transcribed using the Universal cDNA Synthesis Kit (Exiqon, Woburn, MA, USA), according to the manufacturer’s instructions. The resultant cDNA was diluted and mixed with the microRNA LNA PCR primers and SYBR Green master mix (Exiqon, Woburn, MA, USA). Quantitative PCR (qPCR) was done on the ABIPrism 7900HT (Applied Biosystems, Streetsville, Canada), following the manufacturer’s instructions.

RNA isolated from the prostate cell lines, BPH1 and 22Rv1, was used as a reference RNA sample to generate a standard curve for expression of each miRNA, as well as to calculate their relative expression. The quantity of each miRNA was calculated, and logarithmic values were plotted. For normalization of the miRNA qPCR data, we screened the expression of all miRNAs represented in the panel and selected the miRNA with the minimal variation between the 2 groups (mir-30e). Mir-30e stability was confirmed by qPCR and compared to the levels of mir-16, which is frequently used as a reference miRNA. Based on this analysis, we selected mir-30e as an internal control, since mir-30e expression was very stable with no significant differences between the groups in a Student’s t-test (Figure S1).

3.3. Analysis of Differentially Expressed miRNAs in Human Tumor Tissues

We determined whether the miRNAs differentially expressed in plasma also had altered expression levels in PCa tissues analyzed in a previously published dataset [18]. The raw data was obtained from GEO (accession number GSE21036) and converted to a Z-score. A Z-score ratio of greater than 1.96 between primary and metastatic PCa groups was considered significantly different. We also compared the differentially expressed miRNAs identified with those differentially expressed in a metastatic PCa xenograft [16].

3.4. Statistical Analysis

The correlation between pairs of miRNA expression levels was evaluated using Pearson’s correlation [26]. Logistic regression analysis was done using the glm package of R [27] and calculated leave-one-out cross-validation (LOOCV) using cv.glm for selecting the best combination. Principle component analysis (PCA) was also carried out using R. All other statistical analyses (Mann-Whitney U test, student’s t-test, ROC curve and AUC) were carried out using GraphPad Prism.

4. Conclusions

In this study, we compared plasma levels of miRNAs in localized PCa versus mCRPC and identified selected combinations of miRNAs that appear to be suitable for differentiating localized PCa and mCRPC. Larger patient cohorts are required to confirm their potential utility as biomarkers in PCa detection and stratification. Monitoring expression levels of plasma miRNAs may also be useful as predictive and prognostic biomarkers, particularly those associated with AR signalling, like miR-21, given the recent availability of treatments for mCRPC, like abiraterone acetate [28] and enzalutamide (MDV3100) [29], which target persistent AR signalling more effectively.

Supplementary Information

Acknowledgments

We would like to thank the British Columbia Cancer Agency blood test lab and Rebecca Wu for their assistance in sample collection and preparation. This study was supported by a grant from the Canadian Institutes of Health Research to YZW.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Jemal, A.; Siegel, R.; Ward, E.; Hao, Y.; Xu, J.; Murray, T.; Thun, M.J. Cancer statistics, 2008. CA Cancer J. Clin 2008, 58, 71–96.
  2. Kohli, M.; Tindall, D.J. New developments in the medical management of prostate cancer. Mayo Clin. Proc 2010, 85, 77–86.
  3. Bartel, D.P. MicroRNAs: Genomics, biogenesis, mechanism, and function. Cell 2004, 116, 281–297.
  4. Bushati, N.; Cohen, S.M. microRNA functions. Annu. Rev. Cell Dev. Biol 2007, 23, 175–205.
  5. Friedman, R.C.; Farh, K.K.; Burge, C.B.; Bartel, D.P. Most mammalian mRNAs are conserved targets of microRNAs. Genome Res 2009, 19, 92–105.
  6. Kozomara, A.; Griffiths-Jones, S. miRBase: Integrating microRNA annotation and deep-sequencing data. Nucleic Acids Res 2011, 39, D152–D157.
  7. Miska, E.A. How microRNAs control cell division, differentiation and death. Curr. Opin. Genet. Dev 2005, 15, 563–568.
  8. Lu, J.; Getz, G.; Miska, E.A.; Alvarez-Saavedra, E.; Lamb, J.; Peck, D.; Sweet-Cordero, A.; Ebert, B.L.; Mak, R.H.; Ferrando, A.A.; et al. MicroRNA expression profiles classify human cancers. Nature 2005, 435, 834–838.
  9. Tam, W. The emergent role of microRNAs in molecular diagnostics of cancer. J. Mol. Diagn 2008, 10, 411–414.
  10. Mitchell, P.S.; Parkin, R.K.; Kroh, E.M.; Fritz, B.R.; Wyman, S.K.; Pogosova-Agadjanyan, E.L.; Peterson, A.; Noteboom, J.; O’Briant, K.C.; Allen, A.; et al. Circulating microRNAs as stable blood-based markers for cancer detection. Proc. Natl. Acad. Sci. USA 2008, 105, 10513–10518.
  11. Lodes, M.J.; Caraballo, M.; Suciu, D.; Munro, S.; Kumar, A.; Anderson, B. Detection of cancer with serum miRNAs on an oligonucleotide microarray. PLoS One 2009, 4, e6229.
  12. Brase, J.C.; Johannes, M.; Schlomm, T.; Falth, M.; Haese, A.; Steuber, T.; Beissbarth, T.; Kuner, R.; Sultmann, H. Circulating miRNAs are correlated with tumor progression in prostate cancer. Int. J. Cancer 2011, 128, 608–616.
  13. Zhang, H.L.; Yang, L.F.; Zhu, Y.; Yao, X.D.; Zhang, S.L.; Dai, B.; Zhu, Y.P.; Shen, Y.J.; Shi, G.H.; Ye, D.W. Serum miRNA-21: Elevated levels in patients with metastatic hormone-refractory prostate cancer and potential predictive factor for the efficacy of docetaxel-based chemotherapy. Prostate 2011, 71, 326–331.
  14. Selth, L.A.; Townley, S.; Gillis, J.L.; Ochnik, A.M.; Murti, K.; Macfarlane, R.J.; Chi, K.N.; Marshall, V.R.; Tilley, W.D.; Butler, L.M. Discovery of circulating microRNAs associated with human prostate cancer using a mouse model of disease. Int. J. Cancer 2012, 131, 652–661.
  15. Moltzahn, F.; Olshen, A.B.; Baehner, L.; Peek, A.; Fong, L.; Stoppler, H.; Simko, J.; Hilton, J.F.; Carroll, P.; Blelloch, R. Microfluidic-based multiplex qRT-PCR identifies diagnostic and prognostic microRNA signatures in the sera of prostate cancer patients. Cancer Res 2011, 71, 550–560.
  16. Watahiki, A.; Wang, Y.; Morris, J.; Dennis, K.; O’Dwyer, H.M.; Gleave, M.; Gout, P.W. MicroRNAs associated with metastatic prostate cancer. PLoS One 2011, 6, e24950.
  17. Zhu, C.; Li, J.; Ding, Q.; Cheng, G.; Zhou, H.; Tao, L.; Cai, H.; Li, P.; Cao, Q.; Ju, X.; et al. miR-152 controls migration and invasive potential by targeting TGFalpha in prostate cancer cell lines. Prostate 2013, doi:10.1002/pros.22656.
  18. Taylor, B.S.; Schultz, N.; Hieronymus, H.; Gopalan, A.; Xiao, Y.; Carver, B.S.; Arora, V.K.; Kaushik, P.; Cerami, E.; Reva, B.; et al. Integrative genomic profiling of human prostate cancer. Cancer Cell 2010, 18, 11–22.
  19. Brase, J.C.; Wuttig, D.; Kuner, R.; Sultmann, H. Serum microRNAs as non-invasive biomarkers for cancer. Mol. Cancer 2010, 9, 306.
  20. Ribas, J.; Ni, X.; Haffner, M.; Wentzel, E.A.; Salmasi, A.H.; Chowdhury, W.H.; Kudrolli, T.A.; Yegnasubramanian, S.; Luo, J.; Rodriguez, R.; et al. miR-21: An androgen receptor-regulated microRNA that promotes hormone-dependent and hormone-independent prostate cancer growth. Cancer Res 2009, 69, 7165–7169.
  21. Hao, Y.; Zhao, Y.; Zhao, X.; He, C.; Pang, X.; Wu, T.C.; Califano, J.A.; Gu, X. Improvement of prostate cancer detection by integrating the PSA test with miRNA expression profiling. Cancer Invest 2011, 29, 318–324.
  22. Saito, Y.; Friedman, J.M.; Chihara, Y.; Egger, G.; Chuang, J.C.; Liang, G. Epigenetic therapy upregulates the tumor suppressor microRNA-126 and its host gene EGFL7 in human cancer cells. Biochem. Biophys. Res. Commun 2009, 379, 726–731.
  23. Szczyrba, J.; Loprich, E.; Wach, S.; Jung, V.; Unteregger, G.; Barth, S.; Grobholz, R.; Wieland, W.; Stohr, R.; Hartmann, A.; et al. The microRNA profile of prostate carcinoma obtained by deep sequencing. Mol. Cancer Res 2010, 8, 529–538.
  24. U. S. National Institutes of Health. Available online: http://edrn.nci.nih.gov/resources/standardoperating-procedures/biological-specimens , accessed on 2 January 2013.
  25. D’Amico, A.V.; Whittington, R.; Malkowicz, S.B.; Schultz, D.; Blank, K.; Broderick, G.A.; Tomaszewski, J.E.; Renshaw, A.A.; Kaplan, I.; Beard, C.J.; et al. Biochemical outcome after radical prostatectomy, external beam radiation therapy, or interstitial radiation therapy for clinically localized prostate cancer. JAMA 1998, 280, 969–974.
  26. Graph Pad Prism Software, 6 ed.; GraphPad Software Inc: La Jolla, CA, USA, 2012.
  27. Institute for Statistics and Mathematics of WU. The R Project for Statistical Computing, Available online: http://www.r-project.org , accessed on 2 January 2013.
  28. De Bono, J.S.; Logothetis, C.J.; Molina, A.; Fizazi, K.; North, S.; Chu, L.; Chi, K.N.; Jones, R.J.; Goodman, O.B., Jr; Saad, F.; et al. Abiraterone and increased survival in metastatic prostate cancer. N. Engl. J. Med 2011, 364, 1995–2005.
  29. De Bono, J.S.; Fizazi, K.; Saad, F.; Taplin, M.-E.; Sternberg, C.N.; Miller, K.; Mulders, P.; Chi, K.N.; Armstrong, A.J.; Hirmand, M.; et al. Primary, secondary, and quality-of-life endpoint results from the phase III AFFIRM study of MDV3100, an androgen receptor signaling inhibitor. J. Clin. Oncol. 2012, 30. Abstract 4519.
Ijms 14 07757f1 200

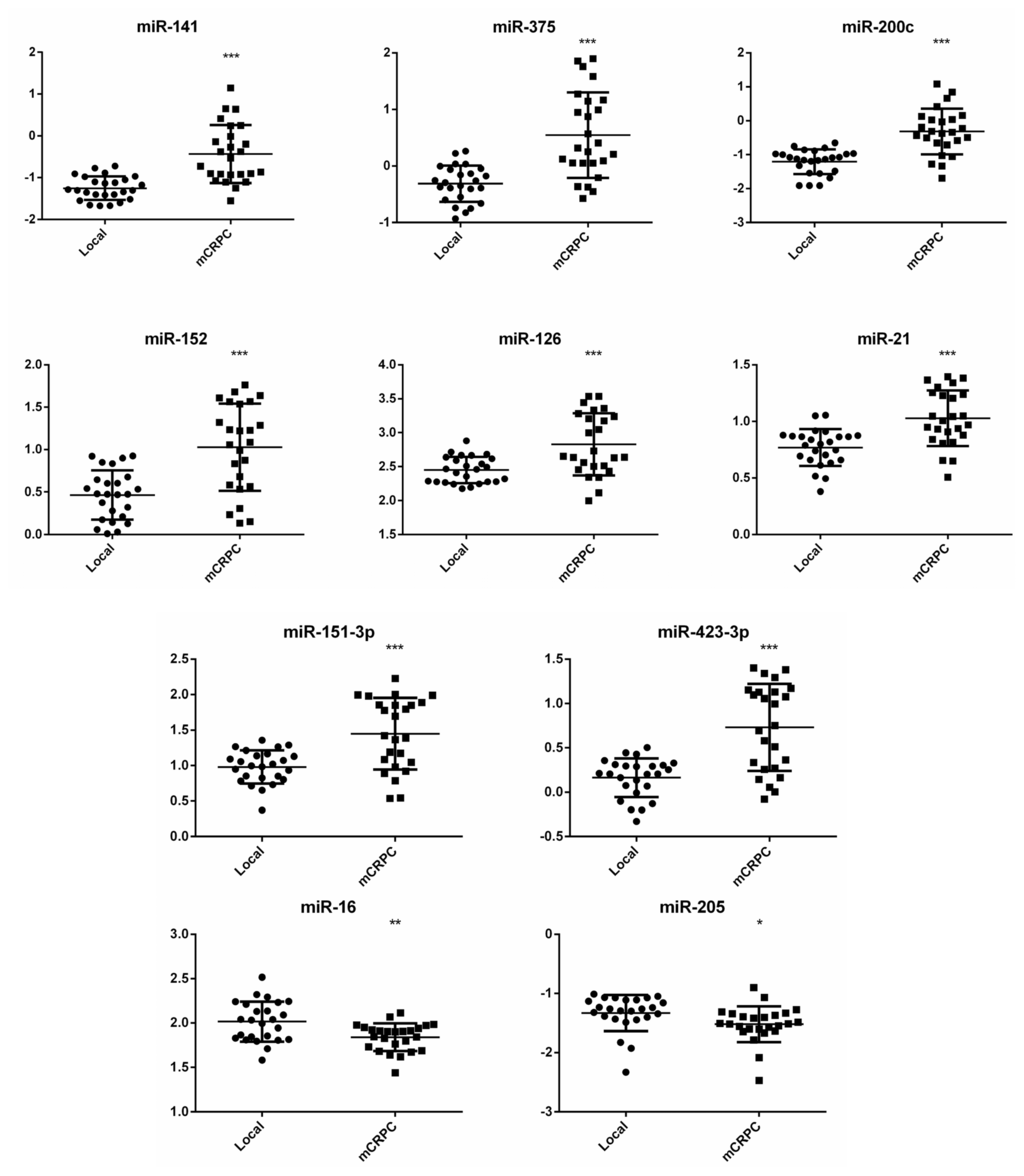

Figure 1. Quantitative RT-PCR analysis of upregulated and downregulated miRNAs in individual plasma samples from patients with localized (local) prostate cancer (PCa) or metastatic castration-resistant PCa (mCRPC). Quantification cycle (Cq) values were converted to log base amounts based on the cell line reference expression as outlined in the Materials section. Statistical analysis was carried out using the Student’s t-test. * indicates p < 0.05, ** indicates p < 0.01 and *** indicates p < 0.001.

Click here to enlarge figure

Figure 1. Quantitative RT-PCR analysis of upregulated and downregulated miRNAs in individual plasma samples from patients with localized (local) prostate cancer (PCa) or metastatic castration-resistant PCa (mCRPC). Quantification cycle (Cq) values were converted to log base amounts based on the cell line reference expression as outlined in the Materials section. Statistical analysis was carried out using the Student’s t-test. * indicates p < 0.05, ** indicates p < 0.01 and *** indicates p < 0.001.
Ijms 14 07757f1 1024
Ijms 14 07757f2 200

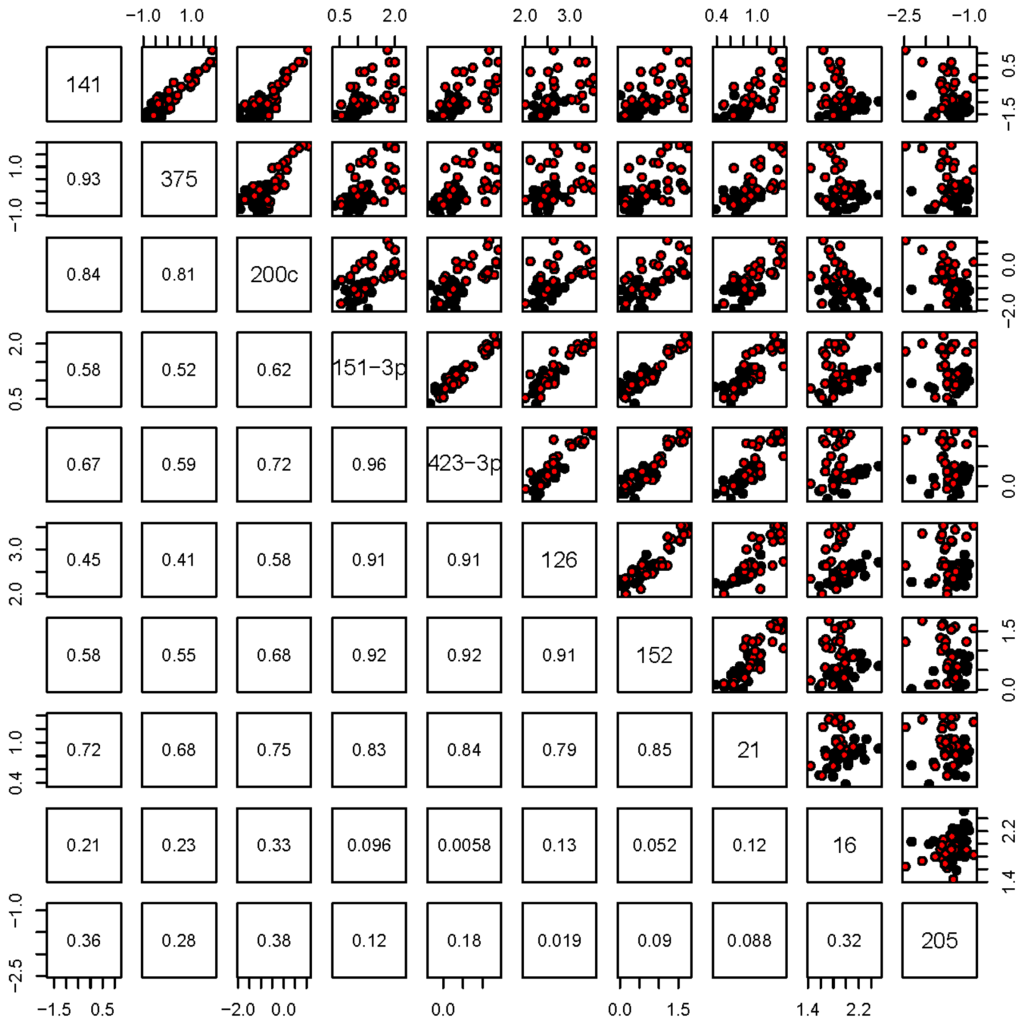

Figure 2. Pearson’s correlation amongst the validated differentially expressed miRNAs. Black dots represent localized PCa, and red dots represent mCRPC.

Click here to enlarge figure

Figure 2. Pearson’s correlation amongst the validated differentially expressed miRNAs. Black dots represent localized PCa, and red dots represent mCRPC.
Ijms 14 07757f2 1024
Ijms 14 07757f3 200
Figure 3. Principle Component Analysis (PCA) on the ten validated differentially expressed miRNAs. (A) Visual representation of the highly correlated pattern observed in the Pearson’s correlation; (B) PCA using all 10 miRNAs is able to distinguish localized PCa from mCRPC; although (C) PCA using a combination of only miR-141 + miR-151-3p + miR-16 shows a similar ability to separate the two conditions.

Click here to enlarge figure

Figure 3. Principle Component Analysis (PCA) on the ten validated differentially expressed miRNAs. (A) Visual representation of the highly correlated pattern observed in the Pearson’s correlation; (B) PCA using all 10 miRNAs is able to distinguish localized PCa from mCRPC; although (C) PCA using a combination of only miR-141 + miR-151-3p + miR-16 shows a similar ability to separate the two conditions.
Ijms 14 07757f3 1024
Ijms 14 07757f4 200

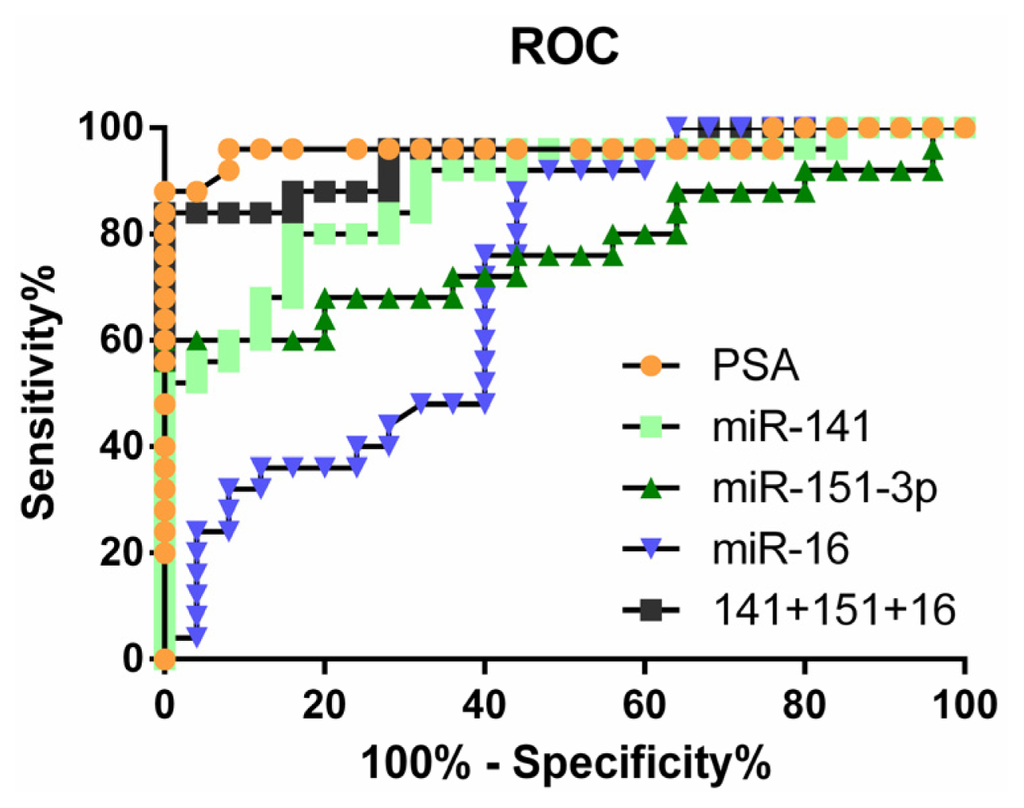

Figure 4. Receiver operating characteristic (ROC) curves to assess the utility of selected individual miRNAs compared with the combination or with PSA to differentiate localized PCa from mCRPC. ROC curves for miR-141 (light squares), miR-151-3p (triangle), miR-16 (upside-down triangle), the combination of all three miRs (dark square) and PSA (circle).

Click here to enlarge figure

Figure 4. Receiver operating characteristic (ROC) curves to assess the utility of selected individual miRNAs compared with the combination or with PSA to differentiate localized PCa from mCRPC. ROC curves for miR-141 (light squares), miR-151-3p (triangle), miR-16 (upside-down triangle), the combination of all three miRs (dark square) and PSA (circle).
Ijms 14 07757f4 1024
Table 1. Cq values for miRNAs that show similar trends in expression differences in plasma from patients with localized PCa versus mCRPC and in non-metastatic versus metastatic tumor tissue.

Click here to display table

Table 1. Cq values for miRNAs that show similar trends in expression differences in plasma from patients with localized PCa versus mCRPC and in non-metastatic versus metastatic tumor tissue.
Increased miRNALocalizedmCRPCNotes 1
miRNA-125b-2 *ND33.88>2
miRNA-13634.5831.35>2
miRNA-151-3p31.6129.26>2
miRNA-200a34.2731.52>2
miRNA-744a *38.0934.51>2
miRNA-939.0934.79>2
miRNA-9 *ND34.12>2
miRNA-99a34.2832.02>2
Let-7d33.2131.37>1
miRNA-12626.4924.93>1
miRNA-142-5p30.3529.16>1
miRNA-18b30.1428.98>1
miRNA-27a29.0727.31>1
miRNA-27b29.1527.25>1
miRNA-30a *35.4834.33>1
Decreased miRNALocalmCRPCNotes
miRNA-20532.4334.90>2
miRNA-106b30.3831.50>1
miRNA-1622.6423.97>1
miRNA-36329.9331.08>1

1>2 or >1 refer to Cq differences in expression in the mCRPC versus localized PCa group (Supplemental Table S1). miRNAs showed increased or decreased expression in a metastatic prostate tumor xenograft model, as described previously [16].

Table 2. ROC analysis to assess the specificity and sensitivity of individual or pairs of miRNAs to differentiate between localized PCa and mCRPC. Sensitivity and specificity refer to the threshold value with the highest likelihood ratio.

Click here to display table

Table 2. ROC analysis to assess the specificity and sensitivity of individual or pairs of miRNAs to differentiate between localized PCa and mCRPC. Sensitivity and specificity refer to the threshold value with the highest likelihood ratio.
AUC95% Confidence intervalSensitivitySpecificity
miR-1410.87840.7832 to 0.973656%96%
miR-3750.85760.7499 to 0.965356%96%
miR-151-3p0.76960.6310 to 0.908260%96%
miR-1260.74880.6100 to 0.887648%96%
miR-160.71600.5708 to 0.861224%96%
miR-2050.75360.6094 to 0.897860%88%
miR141 + 151-3p + 160.94400.8795 to 1.00884%96%
PSA0.96400.9040 to 1.02488%96%
PSA + miR141 + 151-3p + 160.96800.9087 to 1.02796%96%
Table 3. Association of miRNAs with clinical parameters of PCa progression. We analyzed the correlation between clinical parameters and expression levels of 11 miRNAs (3 downregulated and 8 upregulated in mCRCPC versus localized PCa plasma samples). Selected miRNAs were the ones not previously correlated with PCa progression. p values are considered significant when p < 0.05/11 (Bonferroni correction for multiple comparisons). For each parameter, we show the p value (NS, non-significant) and the absolute value of gene expression in the 2 sub-categories (e.g., low versus high Gleason score). For each sub-category, the number of patients analyzed is shown in brackets. Significant results are presented in bold font. Biochemical recurrence is defined as PSA ≥ 0.2 ng/mL on two occasions after prostatectomy.

Click here to display table

Table 3. Association of miRNAs with clinical parameters of PCa progression. We analyzed the correlation between clinical parameters and expression levels of 11 miRNAs (3 downregulated and 8 upregulated in mCRCPC versus localized PCa plasma samples). Selected miRNAs were the ones not previously correlated with PCa progression. p values are considered significant when p < 0.05/11 (Bonferroni correction for multiple comparisons). For each parameter, we show the p value (NS, non-significant) and the absolute value of gene expression in the 2 sub-categories (e.g., low versus high Gleason score). For each sub-category, the number of patients analyzed is shown in brackets. Significant results are presented in bold font. Biochemical recurrence is defined as PSA ≥ 0.2 ng/mL on two occasions after prostatectomy.
Upregulated in CRPCDownregulated in CRPC


miR-141miR-151-3pmiR-152miR-423-3pmiR-205
Pathological Gleason scorep-valueNSNSNS0.0020.004
7 or less (87)13.1867.7347.1653.70910.68
8 or more (19)13.3898.1526.9194.267.093

Lymph node involvementp-valueNSNSNS0.003NS
Abnormal N1 (13)13.6928.1936.7074.4235.744
Normal N0 (79)13.1397.7627.1643.75710.339

Time to tumor recurrencep-value0.003NS0.01NSNS
<1 year (19)13.6418.1016.7364.1927.218
>1 year (81)13.1447.7547.1813.72710.568

PSA at diagnosisp-valueNSNSNS0.0030.005
<20 (100)13.1987.7877.1253.7910.17
>20 (11)13.6038.1516.5684.3375.748

Probability of freedom of biochemical recurrence (5 years)p-value<0.001NS0.002NSNS
<90% (21)13.7158.1186.6474.1336.77
>90% (74)13.1557.7137.2033.67810.74

Metastatic eventsp-valueNSNSNS<0.001<0.001
Clinical (19)13.1498.1456.4664.5295.045
none (94)13.2317.7647.1693.72310.657

Biochemical recurrence eventp-valueNS<0.001NS<0.0010.006
yes (27)13.368.1256.9234.1778.03
no (80)13.1897.7117.1623.68510.629
Table 4. Baseline and clinical demographics of the patients with localized PCa and mCRPC from whom plasma samples were obtained.

Click here to display table

Table 4. Baseline and clinical demographics of the patients with localized PCa and mCRPC from whom plasma samples were obtained.
Clinically Localized Prostate Cancer Patients (N= 25)
Median Age = 67 years; Range = 51–82 years

Patient CharacteristicsNumber of Patients
T Stage
T1C11
T2a7
T2b6
T31

PSA at Diagnosis
≤1015
>10 to ≤209
>201

Gleason Score
≤67
715
≥83

Risk Group [25]
Low4
Intermediate17
High4

mCRPC Patients (N= 25)
Median Age = 73 years; Range = 45–86 years

Patient CharacteristicsNumber of Patients
PSA
<506
>50 to ≤30014
≥3005

Metastatic Site
Bone17
Lymph Node ± Other5
Other3

Therapy at Time of Sampling
Observation *15 (1 was not on LHRH-A)
Complete Androgen Blockade4
Prednisone ± LHRH-A4
Abiraterone2

*For patients on observation, the assumption is that they were either on LHRH-A or had had previous orchiectomy.
