Int. J. Mol. Sci. 2013, 14(3), 5198-5213; doi:10.3390/ijms14035198

Article
Comparative Analysis of the Symbiotic Efficiency of Medicago truncatula and Medicago sativa under Phosphorus Deficiency
Saad Sulieman 1,2, Joachim Schulze 3 and Lam-Son Phan Tran 1,*
1
Signaling Pathway Research Unit, Plant Science Center, RIKEN Yokohama Institute, 1-7-22, Suehiro-cho, Tsurumi, Yokohama 230-0045, Japan; E-Mail: s.sulieman@psc.riken.jp
2
Department of Agronomy, Faculty of Agriculture, University of Khartoum, Shambat, Khartoum North 13314, Sudan
3
Department of Crop Sciences, Section of Plant Nutrition, Georg-August-University of Göttingen, Carl-Sprengel-Weg 1, Göttingen 37075, Germany; E-Mail: jschulz2@gwdg.de
*
Author to whom correspondence should be addressed; E-Mail: tran@psc.riken.jp; Tel.: +81-45-503-9593; Fax: +81-45-503-9591.
Received: 28 January 2013; in revised form: 14 February 2013 / Accepted: 26 February 2013 /
Published: 4 March 2013

Abstract

: Phosphorus (P)-deficiency is a major abiotic stress that limits legume growth in many types of soils. The relationship between Medicago and Sinorhizobium, is known to be affected by different environmental conditions. Recent reports have shown that, in combination with S. meliloti 2011, Medicago truncatula had a lower symbiotic efficiency than Medicago sativa. However, little is known about how MedicagoSinorhizobium is affected by P-deficiency at the whole-plant level. The objective of the present study was to compare and characterize the symbiotic efficiency of N2 fixation of M. truncatula and M. sativa grown in sand under P-limitation. Under this condition, M. truncatula exhibited a significantly higher rate of N2 fixation. The specific activity of the nodules was much higher in M. truncatula in comparison to M. sativa, partially as a result of an increase in electron allocation to N2versus H+. Although the main organic acid, succinate, exhibited a strong tendency to decrease under P-deficiency, the more efficient symbiotic ability observed in M. truncatula coincided with an apparent increase in the content of malate in its nodules. Our results indicate that the higher efficiency of the M. truncatula symbiotic system is related to the ability to increase malate content under limited P-conditions.
Keywords:
Medicago sativa; Medicago truncatula; nitrogen fixation; nodule; symbiosis; phosphorus

1. Introduction

Barrel medic (Medicago truncatula Gaertn.) has emerged as a model plant for studying the general biology of legumes and for exploring the genetic and molecular aspects of N2-fixing symbiosis in leguminous plants [14]. This is due to its relatively small diploid (2n = 16) genome (approximately 500 mbp), tractable genetic properties, high level of synteny with several other legumes of interest, and the availability of its genomic sequence [5,6]. Currently, many tools and resources have been developed for this model plant, including ecotype collections (http://www.ars.usda.gov/Main/docs.htm?docid=15140), retrotransposon and fast neutron mutant populations [7], Expressed Sequence Tag (EST) and genespace sequencing information [8,9], transcription factor repertoire-based databases [10,11], and a Gene Expression Atlas [12,13]. Moreover, M. truncatula is closely related to the most agricultural important forage legume in the world, M. sativa L. (alfalfa, lucerne). M. sativa is a perennial crop which is widely cultivated throughout the world and has been a focal point of N2 fixation research for many decades [14]. Both M. truncatula and M. sativa are readily nodulated by the soil bacterium Sinorhizobium meliloti (formerly Rhizobium meliloti). Today, the Sm2011 strain, or its closely related and completely sequenced S. meliloti strain 1021, is the most frequently used in studies relating to the biology and genomics of N2 fixation [15]. By using the M. truncatula-Sm2011 symbiosis as a model system, significant advances have been achieved in understanding the nature of the symbiotic relationship [16,17].

The majority of scientific studies have been directed at dissecting the genetic and molecular bases of the nodulation process in legumes using M. truncatula and Lotus japonicus as model plants [3,4]. As for M. truncatula, there are few published reports focusing on the symbiotic efficiency of Jemalong A17 vs. S. meliloti when they are grown under different growth and environmental conditions. We previously documented that the symbiotic association between M. truncatula and Sm2011 is not as optimum for N2 fixation as it is in M. sativa[16]. This finding was supported by Terpolilli and co-workers [17], who evaluated the same host plant with the Sm1021 of S. meliloti. However, the factors responsible for suboptimal N2 fixation have not been extensively analyzed. The effectiveness of N2 fixation in M. truncatula-Sm2011, as well as M. sativa-Sm2011, under phosphorus (P) deficiency has not been examined, despite the fact that P-deficiency is one of the major abiotic stress factors that adversely affects both nodule function and the growth of leguminous plants [18]. Thus, a concerted effort is needed to better understand N2 fixation efficiency on a whole-plant basis in Medicago plants grown under various environmental conditions, particularly in association with the model organism S. meliloti.

Therefore, the main objective of the present study was to extend our previous findings by comparing the effectiveness of N2 fixation in M. truncatula-Sm2011 and M. sativa-Sm2011 when plants are grown under P-deprivation. The comparative approach was based on the determination of optimal P-levels for each species separately and then using a P-deficiency calculated as 5% of the optimal P-concentration.

2. Results

2.1. Effect of P-Deficiency on Plant Biomass Production

For comparing the symbiotic efficiency between M. truncatula and M. sativa, both tested plant species were grown in sand cultures and provided with either 5% (deficient-P) or 100% (control) of their optimum P-requirements. In our calculation, the deficient and optimum P-levels were adjusted according to the daily P-requirement for each species, an important prerequisite that enables the full growth for each species without a possible underestimation for their potential growth. Regardless of P-concentration, shoot and root dry matter (DM) biomasses were significantly higher in M. sativa than M. truncatula, confirming the relatively low N2 fixation efficiency of Sm2011 in combination with M. truncatula line A17 cv. Jemalong (Table 1) [16]. Decreasing the P-supply from the optimal level resulted in a significant reduction in DM accumulation in the shoot and the total growth for both plant species (Table 1). The higher growth potential of M. sativa plants was more sensitive to P-supply and exhibited a stronger decrease in shoot and total DM biomass when P-supply was reduced to 5% of the optimal supply level. Under the sub-optimal P-level used in this study, shoot DM in both species was more affected than root DM. This was particularly evident in M. sativa. Consequently, the shoot/root ratio (g g−1) was proportionally reduced by decreasing the P-supply (Table 1). Overall, M. truncatula reached about a third and a half of the total DM formation compared to M. sativa under sufficient and deficient P-supplies, respectively (Table 1).

2.2. Effect of P-Deficiency on Nodulation

Nodules first appeared 10 d after inoculation and were clearly visible on plant roots at the time of transplanting to the PVC tubes. Irrespective of the P-supply level, M. sativa displayed a greater number of nodules per plant and a higher nodule DM (Table 1). The level of P-deficiency used in this study resulted in a significant reduction in all nodulation parameters, except for the nodule number per plant. Individual nodule DM, as well as total nodule DM, markedly decreased in response to the reduction in P-supply. Overall, both Medicago species were similarly affected by the sub-optimal level of P used in this study (Table 1).

2.3. Nitrogen Fixation

Table 2 shows the nitrogenase activity in nodules of both species. In general, N2 fixation was significantly lower in M. truncatula compared to M. sativa grown under optimal P-conditions. This is evidenced by the lower apparent nitrogenase activity (ANA) and total nitrogenase activity (TNA) values, irrespective of P-supply. Nodules on both plants appeared healthy and had a reddish color, indicating N2 fixation activity. Under P-deficiency, significant reductions were observed in apparent and total values with relatively more decrease in ANA and TNA for M. truncatla and M. sativa, respectively. A greater reduction in the daily fixed-N was observed in M. sativa than in M. truncatula in response to sub-optimal P when per plant H2 evolution was translated into N2 fixation activity (Table 2). These data indicate that the relative higher efficiency of M. truncatula nodules under low P-supply was, in part, the result of higher specific activity of electron allocation, i.e., a higher electron allocation coefficient (EAC).

2.4. Effect of P-Deficiency on P- and N-Contents

The effect of P-supply on the P-content in different plant organs of both species, relative to DM (mg g−1), is illustrated in Figure 1. P-content was higher in nodules than in roots or shoots of both plant species regardless of P-level, indicating that P was preferentially transported into nodules. As expected, a decrease in P-supply resulted in a significant reduction in P-contents in different plant organs, regardless of the tested species. Although P-contents of root and nodule fractions did not differ significantly between M. sativa and M. truncatula when plants were grown under optimal or sub-optimal P-levels (Figure 1B,C), a striking difference in shoot P-content between the two tested species was observed (Figure 1A).

The N-content values for shoots, roots and nodules are shown in Figure 2. Under optimal P-supply, N-content was much lower in shoots and nodules of M. truncatula than in M. sativa. Under conditions of deficient P, a significant reduction in N-content was observed in M. sativa, whereas, M. truncatula had a tendency to increase the N-content (Figure 2A,C). This effect was most evident in the shoot and nodule fractions (Figure 2A,C). The shoot and nodule fractions were more negatively affected by P-deficiency in both species compared to the root component.

2.5. Major Nodule C- and N-Metabolites

Different patterns in the level of the major C- (sucrose, malate and succinate) and N- metabolites (ASN) were observed in M. truncatula and M. sativa nodules when plants were grown under P-deficiency compared to when plants were provided with an optimal level of P (Figure 3). Sucrose is known to be the primary source of energy, preferentially imported via the phloem, and is used to sustain nodule function in different legume species (Figure 4) [18]. Nodules of M. truncatula had a higher sucrose content compared to those of M. sativa (Figure 3A). In response to P-deficiency, sucrose levels in M. truncatula nodules decreased slightly compared to M. sativa where they were relatively unaffected. In contrast to content of free sucrose in nodules of both species regardless of P-level, the levels of the major organic acids (OAs) and the response to P-level was quite different. Malate, the OA of pivotal importance to legume nodule function was 350% higher in nodules of M. sativa than in M. truncatula when plants were grown under an optimal P-level (Figure 3B). Under P-deficiency, malate content significantly decreased in nodules of M. sativa while the content significantly increased in M. truncatula. While malate represents the major OA form in nodules of M. sativa, succinate represents the dominant OA in nodules of M. truncatula[16]. Succinate content in nodules of M. truncatula was significantly reduced when plants were grown under P-deficiency (Figure 3C). In M. sativa nodules, no marked difference in succinate content was detected when plants were grown under low P-supply, although overall levels of succinate were much lower than in M. truncatula (Figure 3C). The higher per plant and specific (per mg DM nodule) N2-fixation activities in M. sativa compared to M. truncatula was reflected in a higher ASN content in nodules grown under optimal-P (Figure 3D). ASN has been reported to be the predominant amino acid (AA) in nodules of both species [16,19,20]. Under P-deficiency, a significant reduction in the nodule content of ASN in M. sativa nodules was observed, while the level of ASN significantly increased in nodules of M. truncatula (Figure 3D).

3. Discussion

P-deficiency is a major abiotic stress that adversely affects nodulation, N2 fixation, and plant productivity throughout the world [18,21,22]. As a macronutrient, P represents a vital component of the symbiotic process due to its role in the generation of the energy that is required for symbiosis to function at a high level [23]. Identification of species or genotypes, or the construction of transgenic plants that possesses higher symbiotic efficiency in low-P soils, is a strategy to overcome this soil constraint.

In the present study, we extended our previous findings by comparing the symbiotic efficiency of M. truncatula with M sativa under sub-optimal P-conditions using a sand-growing medium. Our results indicated that in combination with Sm2011, M. truncatula had lower symbiotic efficiency than M. sativa when plants were grown in sand culture under optimal P-supply. This finding is reflected in the significantly lower DM accumulation of M. truncatula compared to M. sativa (Table 1). Quantification of nitrogenase activity and daily fixed-N were consistent with the growth observed in both species (Tables 1 and 2). In agreement with our finding, a study using a hydroponic growth system also reported lower symbiosis efficiency in M. truncatula compared to M. sativa in plants grown under optimal P-supply [16]. The lower symbiotic efficiency of M. truncatula was found to be partly associated with, the limited ability of nodules to export N to the host plant [16]. In the present study, the significantly lower shoot N-content of M. truncatula plants, compared to M. sativa, in the plants grown in sand under optimal-P strongly supports this interpretation (Figure 2A, control samples). M. truncatula is less effective for N2 fixation, a situation that might question the popular use of this model plant for genetic and genomic studies relating to N2 fixation. However, being a model system, the M. truncatula-Sm2011 is still the most popular system for conducting research on nodulation and N2 fixation [17,24].

Under conditions of P-deficiency, M. truncatula displayed a higher symbiotic efficiency than M. sativa. This finding was reflected in the lower reduction in DM accumulation and the lower sensitivity of nitrogenase in M. truncatula than in M. sativa when plants were grown under conditions of P-deficiency (Tables 1 and 2). For M. sativa, the negative effect of P-deficiency was more pronounced in TNA, as well as the daily fixed-N amount (Table 2), while the degree of reduction in nodule number and weight were relatively similar to M. truncatula (Table 1). Additional analyses indicated that the higher symbiotic efficiency observed in M. truncatula under P-deficiency is probably related to nitrogenase activity. When the reasons behind the higher level of symbiotic efficiency of M. truncatula compared to M. sativa in plants grown under P-deficiency are examined, it is evident that the enhanced symbiosis is mainly due to the increased specific activity of nodules (Nfixed per unit nodule biomass), partially as a result of a higher relative efficiency in electron allocation to N2versus H+ (Figure 5). While a significant increase in EAC was detected in M. truncatula, a significant reduction was observed in M. sativa (Table 2) (Figure 5). The shifts in nodule-specific activities for both species were most likely related to nodule C-metabolism, i.e. capacity to produce OA. Malate played a pivotal role in determining the symbiotic efficiency and the level of nitrogenase activity in both of the examined species (Figure 5). Under P-deficiency, the content of this OA was significantly reduced in M. sativa nodules; a condition that would result in a sharp decrease in energy available for nitrogenase activity (Figure 5). Malate is the principle source for providing energy and reductants for nitrogenase activity and C-skeletons for fixed-N assimilation, nodule growth and maintenance (Figures 4 and 5) [25,26]. Although a significant decrease in succinate was observed in M. truncatula, a concomitant increase in malate content was detected in the nodules of plants grown under P-stress (Figures 3 and 5). Succinate represents a major portion of the total OAs detected in nodules of M. truncatula under conditions of optimal-P [16]. Accordingly, the higher efficiency in M. truncatula nodules under P-stress is one of the reasons that nodule C-metabolism is shunted towards OAs, namely malate formation (Figure 5).

Indeed, exposure of both species to P-deficiency had a dramatic effect on C- and N-metabolism, and, as a result, symbiotic efficiency (Figure 5). While the content of ASN significantly decreased in nodules of P-deficient M. sativa plants, a significant accumulation of this amide was detected in nodules of M. truncatula (Figure 3D). ASN has been identified as the primary assimilation product from N2 fixation in temperate legumes and the predominant N-transported substance in several plants that have nodules with indeterminate growth, including Medicago (Figure 4) [18,26]. Thus, the significant reduction in ASN in nodules of M. sativa under P-deficiency was mirrored in the reduced amount of the daily fixed-N (Table 2; Figure 5). The close association between ASN content in nodules and the fixed N amount in M. sativa was previously reported [20,27]. The lower ASN content in nodule tissues of M. sativa was brought about by the insufficient amount of C available for amide formation, as a direct result of low malate (Figure 5). In contrast, the significantly higher content of ASN in M. truncatula nodules of plant grown under P-deficiency was observed in our study and other reports to be of a shoot origin (Figure 5) [18,26]. This amide consistently accumulates in different legume organs in response to various stresses, such as drought [28], salt stress [29], P-deficiency [30], defoliation [31] and nitrate application [18]. It is widely accepted that nitrogenase activity is regulated by an N-feedback mechanism, i.e. N-demand [28,32,33]. In this type of systemic control, specific potential phloem-translocated signals are required to be sent back to the nodule to modulate their activity [34,35]. ASN has been identified to be among the prime candidate signals suspected to downregulate the nodule nitrogenase activity (Figure 5) [26,30]. This premise was supported by our previous study in which intact M. truncatula plants were fed with a high concentration of this amide [18]. The study indicated that exogenous feeding of phloem with 3.0 mM ASN resulted in a greater increase in content of ASN in nodules while concomitantly reducing nitrogenase activity. The shoot and nodule N-contents apparently support this interpretation for both species (Figure 2A,C). No indications of N-feedback were observed in our measurements of M. sativa in the present study that could explain the observed significant reductions in N2 fixation observed in plants grown under P-deficiency. Alternatively, several reports have indicated higher O2 permeability and conductance in the nodules of M. sativa under P-deficiency which might have regulatory implications [23,36].

4. Experimental Section

4.1. Plant Materials and Growth Conditions

M. truncatula (Gaertn.) cv. “Jemalong A17” (barrel medic) and M. sativa (L.) cv. “Saranac” (alfalfa) were used throughout the study in combination with Sm2011. Seeds of M. truncatula were soaked in concentrated H2SO4 for five minutes with intermittent gentle shaking. The acid was decanted and the seeds were rinsed thoroughly five times with sterile water. Subsequently, seeds were placed in 5% sodium hypochlorite for three minutes, followed by rinsing eight times with sterile water immediately after decanting the bleach. Following scarification and surface sterilization, seeds were placed in sterile water at 4 °C for 48 h. Subsequently, seeds were sown on sterilized fine quartz sand (Ø = 0.1–0.5 mm, Quarzsandwerke Weferlingen, Germany). M. sativa seeds were surface-sterilized with 70% ethanol for 10 min, washed in sterile water and germinated on sterilized fine quartz sand supplied with tap water to 70% of the maximum water-holding capacity. M. truncatula and M. sativa plants were maintained in a controlled growth chamber with a 16/8 h day/night cycle, approximately 25/18 °C day/night temperature, 70% relative humidity and 360 μmol m−2 s−1 photosynthetic active radiation. For inoculation, Sm2011 was grown in yeast extract mannitol (YEM) broth (mannitol 10 g L−1; yeast extract 0.5 g L−1; K2HPO4 0.5 g L−1; MgSO4.7H2O 0.2 g L−1; NaCl 0.1 g L−1; pH 6.8, for 72 h at 28 °C), to an approximate cell density of 10−7. Fifty mL of bacterial suspension which was diluted with water to a final concentration of optical density at 600 = 0.1 was added after the seeds were sown in the sand. The first nodules became visible about 10 d after inoculation.

M. truncatula and M. sativa plantlets inoculated with Sm2011 were transferred to sterilized medium coarse quartz sand in PVC tubes (one plant per tube). Two hundred mL of a nutrient solution was supplied daily to the sand cultures. The nutrient solution had the following composition: 700 μM K2SO4; 500 μM MgSO4; 800 μM CaCl2; 4.0 μM H3BO3; 0.1 μM Na2MoO4; 1.0 μM ZnSO4; 2.0 μM MnCl2; 0.2 μM CoCl2; 1.0 μM CuCl2 and 10.0 μM FeNaEDTA (ferric monosodium salt of ethylenediamine tetraacetic acid). The pH was buffered with 2 mM MES [2-(N-morpholino) ethane-sulfonic acid] and adjusted to 6.5 with KOH. Urea was added to the nutrient solution at a final concentration of 0.2 mM for the first 10 DAT. Thereafter, plants did not receive an external source of N. P-levels (deficient vs. optimum) were designed according to the calculated requirements for each species independently. The optimal concentration of P (designed as 100%) was first determined, and used as the basis to calculate a deficient P-level (5% of the optimum level). In the calculation of the optimal (100%) P-requirement for each species, seed P-content, plant growth rate, and plant age were considered. Based on preliminary experiments, the plants’ growth for both species was in an exponential manner and the P-requirement follows the same pattern with time. In our calculations, the assumption was made that plants of M. sativa and M. truncatula supplied with a sufficient level of P have 3.8 and 2.5 mg P per g shoot DM, respectively [18,23]. Accordingly, the 5% deficient levels were estimated to be around 0.19 and 0.13 mg P per day for M. sativa and M. truncatula, respectively. KH2PO4 was the source of P in the experiment. Plants were harvested at 54 DAT, and nodule number and shoot, root and nodule dry matter were determined.

4.2. Measurements of Nitrogenase Activity

The measurement of H2 evolution is an indirect parameter for the determination of N2-fixation activity of legume nodules. The Sm2011 (hup) that was used in the study does not have an uptake hydrogenase [16]. For H2 evolution measurements, the sealed root/nodule compartment was connected to an open-flow gas exchange measurement system that allowed for the application of a mixture of N2/O2 (80/20, v/v) to the root/nodule compartment. For the measurements, the level of the nutrient solution was reduced to the lower parts of the PVC tubes. A gas flow of 200 mL min−1 (about 1.2 vols min−1) was applied to the root compartment. A subsample (100 mL min−1) of the outflowing gas was taken, dried (ice trap and MgClO4) and passed through an H2 analyzer (S121 Hydrogen analyzer, Qubit Systems, Canada). When a stable H2 outflow from the root/nodule compartment was reached, this value was taken as ANA. To obtain the information on the relative efficiency (electron allocation between N2 and H+), the inflow air composition was subsequently switched to Ar/O2 (80/20, v/v). Argon is inert to nitrogenase and thus the whole electron flow is diverted to H+. Consequently, H2 evolution under argon represents the total enzyme activity (TNA). The peak value, taken approximately 5 min after switching to Ar/O2, was recorded as the TNA value. EAC of nitrogenase activity was calculated as 1–(ANA/TNA) [25,37,38]. In preliminary experiments, the validity of the H2 evolution measurements was tested by parallel 15N2-application [16]. The amount of fixed nitrogen per unit time and per plant or nodule was calculated on the basis of the ANA and TNA measurements [37]. ANA, TNA, and the EAC were measured at the end of the experimental period.

4.3. HPLC Analyses

For the detection of ASN, sucrose and OAs (malate and succinate), nodules were picked from intact plant roots, immediately frozen in liquid N2 and stored at −20 °C until analyzed. Frozen nodule samples were ground to a fine powder in liquid N2 using a mortar and pestle. Approximately 0.5 mg of each sample was extracted with 3 mL of 50% ethanol (v/v) for 20 min at 50 °C in a water bath. The solution from each sample was subsequently centrifuged at 4 °C for 20 min at 8000 rpm (6810 g). The supernatant was immediately used for HPLC analyses after filtration (0.45 mm). ASN content was detected with a fluorescence detector (Waters, Milford, MA, USA) after precolumn derivatization by o-phthaldialdehyde [39]. The detection of sucrose was done with a refractometer (Knauer, Berlin, Germany), while the determination of malate and succinate was carried out using a photodiode array detector 996 (Waters, Milford, MA, USA).

4.4. Determination of P- and N-Contents

Dry matters from various plant organs (shoot, root and nodules) were ground to a fine powder in a pebble mill and used for determination of P- and N-contents. The plant samples were weighed, ground, and the sub-samples (0.3 g) digested with a mixture of HNO3 and H2O2 (30%) in a volumetric ratio (4:2) in a microwave oven. Phosphate in the extract was measured calorimetrically, as previously described [40]. Nitrogen was determined using a C/N analyzer (NA 2500, CE-Instruments, Milano, Italy) and a mass spectrometer (Finnigan MAT, model 252, Bremen, Germany).

4.5. Statistical Analysis

Data were subjected to an analysis of variance using two-way ANOVA procedure of the Sigmastat analytical software (version 3.5, Systat software, Inc.: San Jose, CA, USA). In the case of homogeneous sample variances, mean separation procedures were carried out using the Tukey’s test.

5. Conclusions

The present study has provided a foundation for in-depth molecular studies of the relationship between P-deficiency and symbiotic efficiency in M. truncatula, with the ultimate aim of developing efficient N2-fixing leguminous cultivars. Our data indicate that nodules formed in the M. truncatula-Sm2011 symbiotic relationship have the ability to produce OAs, particularly malate, when plants are grown under conditions of P-deficiency resulting in an increase in the specific activity of nodules. Based on this premise, an improvement in malate formation in M. sativa may represent a promising strategy for improving N2-fixation efficiency in alfalfa and other leguminous plants.

Acknowledgments

Saad Sulieman is indebted to the German Academic Exchange Service (DAAD) for the award of a PhD scholarship and Japan Society for the Promotion of Science (JSPS) for a postdoctoral fellowship that allowed him to complete the present study.

Abbreviations

AAamino acid
ANAapparent nitrogenase activity
ASNasparagine
DATday after transplanting
DMdry matter
EACelectron allocation coefficient
FWfresh weight
Hupuptake hydrogenase
Lbleghemoglobin
N2asenitrogenase
OAorganic acid
PBMperibacteroid membrane
PHphloem
RCrespiratory chain
SmSinorhizobium meliloti
TNAtotal nitrogenase activity
XYxylem
YEMyeast extract mannitol
  • Conflict of InterestThe authors declare no conflict of interest.

References

  1. Ané, J.M.; Zhu, H.; Frugoli, J. Recent advances in Medicago truncatula genomics. Int. J. Plant Genomics 2008, 2008, 256597.
  2. Branca, A.; Paape, T.D.; Zhou, P.; Briskine, R.; Farmer, A.D.; Mudge, J.; Bharti, A.K.; Woodward, J.E.; May, G.D.; Gentzbittel, L.; et al. Whole-Genome nucleotide diversity, recombination, and linkage disequilibrium in the model legume Medicago truncatula. Proc. Natl. Acad. Sci. USA 2011, 108, E864–E870.
  3. Barker, D.G.; Bianchi, S.; Blondon, F.; Dattée, Y.; Duc, G.; Essad, S.; Flament, P.; Gallusci, P.; Génier, G.; Guy, P.; et al. Medicago truncatula, a model plant for studying the molecular genetics of the rhizobium-legume symbiosis. Plant Mol. Biol. Rep 1990, 8, 40–49.
  4. Cook, D.R. Medicago truncatula—A model in the making! Curr. Opin. Plant Biol 1999, 2, 301–304.
  5. Panara, F.; Calderini, O.; Porceddu, A. Medicago truncatula Functional Genomics—An Invaluable Resource for Studies on Agriculture Sustainability. In Functional Genomics; Meroni, G., Petrera, F., Eds.; InTech: Rijeka, Croatia, 2012; pp. 131–154.
  6. Young, N.D.; Debellé, F.; Oldroyd, G.E.D.; Geurts, R.; Cannon, S.B.; Udvardi, M.K.; Benedito, V.A.; Mayer, K.F.X.; Gouzy, J.; Schoof, H.; et al. The Medicago genome provides insight into the evolution of rhizobial symbioses. Nature 2011, 480, 520–524.
  7. Pislariu, C.I.; Murray, J.D.; Wen, J.; Cosson, V.; Muni, R.R.D.; Wang, M.; Benedito, V.A.; Andriankaja, A.; Cheng, X.; Jerez, I.T.; et al. A Medicago truncatula tobacco retrotransposon insertion mutant collection with defects in nodule development and symbiotic nitrogen fixation. Plant Physiol 2012, 159, 1686–1699.
  8. Young, N.D.; Cannon, S.B.; Sato, S.; Kim, D.; Cook, D.R.; Town, C.D.; Roe, B.A.; Tabata, S. Sequencing the genespaces of Medicago truncatula and Lotus japonicus. Plant Physiol 2005, 137, 1174–1181.
  9. Young, N.D.; Udvardi, M. Translating Medicago truncatula genomics to crop legumes. Curr. Opin. Plant Biol 2009, 12, 193–201.
  10. Mochida, K.; Yoshida, T.; Sakurai, T.; Yamaguchi-Shinozaki, K.; Shinozaki, K.; Tran, L.S. LegumeTFDB: An integrative database of Glycine max, Lotus japonicus and Medicago truncatula transcription factors. Bioinformatics 2010, 26, 290–291.
  11. Zhang, H.; Jin, J.; Tang, L.; Zhao, Y.; Gu, X.; Gao, G.; Luo, J. PlantTFDB 2.0: Update and improvement of the comprehensive plant transcription factor database. Nucleic Acids Res 2011, 39, D1114–D1117.
  12. Benedito, V.A.; Torres-Jerez, I.; Murray, J.D.; Andriankaja, A.; Allen, S.; Kakar, K.; Wandrey, M.; Verdier, J.; Zuber, H.; Ott, T.; et al. A gene expression atlas of the model legume Medicago truncatula. Plant J 2008, 55, 504–513.
  13. He, J.; Benedito, V.A.; Wang, M.; Murray, J.D.; Zhao, P.X.; Tang, Y.; Udvardi, M.K. The Medicago truncatula gene expression atlas web server. BMC Bioinforma 2009, 10, 441.
  14. Li, X.; Brummer, C. Applied genetics and genomics in alfalfa breeding. Agronomy 2012, 2, 40–61.
  15. Queiroux, C.; Washburn, B.K.; Davis, O.M.; Stewart, J.; Brewer, T.E.; Lyons, M.R.; Jones, K.M. A comparative genomics screen identifies a Sinorhizobium meliloti 1021 sodM-like gene strongly expressed within host plant nodules. BMC Microbiol 2012, 12, 74.
  16. Sulieman, S.; Schulze, J. The efficiency of nitrogen fixation of the model legume Medicago truncatula (Jemalong A17) is low compared to Medicago sativa. J. Plant Physiol 2010, 167, 683–692.
  17. Terpolilli, J.J.; O’Hara, G.W.; Tiwari, R.P.; Dilworth, M.J.; Howieson, J.G. The model legume Medicago truncatula A17 is poorly matched for N2 fixation with the sequenced microsymbiont Sinorhizobium meliloti 1021. New Phytol 2008, 179, 62–66.
  18. Sulieman, S.; Fischinger, S.A.; Gresshoff, P.M.; Schulze, J. Asparagine as a major factor in the N-feedback regulation of N2 fixation in Medicago truncatula. Physiol. Plant 2010, 140, 21–31.
  19. Parsons, R.; Baker, A. Cycling of amino compounds in symbiotic lupin. J. Exp. Bot 1996, 47, 421–429.
  20. Shi, L.; Twary, S.N.; Yoshioka, H.; Gregerson, R.G.; Miller, S.S.; Samac, D.A.; Gantt, J.S.; Unkefer, P.J.; Vance, C.P. Nitrogen assimilation in alfalfa: Isolation and characterization of an asparagine synthetase gene showing enhanced expression in root nodules and dark-adapted leaves. Plant Cell 1997, 9, 1339–1356.
  21. O’Rourke, J.A.; Yang, S.S.; Miller, S.S.; Bucciarelli, B.; Liu, J.; Rydeen, A.; Bozsoki, Z.; Uhde-Stone, C.; Tu, Z.J.; Allan, D.; et al. An RNA-seq transcriptome analysis of orthophosphate-deficient white lupin reveals novel insights into phosphorus acclimation in plants. Plant Physiol 2013, 161, 705–724.
  22. Ha, S.; Tran, L.S. Understanding plant responses to phosphorus starvation for improvement of plant tolerance to phosphorus deficiency by biotechnological approaches. Crit. Rev. Biotechnol. 2013. in press.
  23. Schulze, J.; Drevon, J.J. P-deficiency increases the O2 uptake per N2 reduced in alfalfa. J. Exp. Bot 2005, 56, 1779–1784.
  24. Moreau, D.; Voisin, A.S.; Salon, C.; Munier-Jolain, N. The model symbiotic association between Medicago truncatula cv. Jemalong and Rhizobium meliloti strain 2011 leads to N-stressed plants when symbiotic N2 fixation is the main N source for plant growth. J. Exp. Bot 2008, 59, 3509–3522.
  25. Fischinger, S.A.; Schulze, J. The importance of nodule CO2 fixation for the efficiency of symbiotic nitrogen fixation in pea at vegetative growth and during pod formation. J. Exp. Bot 2010, 61, 2281–2291.
  26. Sulieman, S.; Tran, L.S. Asparagine: An amide of particular distinction in the regulation of symbiotic nitrogen fixation of legumes. Crit. Rev. Biotechnol. 2012, doi:10.3109/7388551.2012.695770.
  27. Fischinger, S.A.; Hristozkova, M.; Mainassara, Z.A.; Schulze, J. Elevated CO2 concentration around alfalfa nodules increases N2 fixation. J. Exp. Bot 2010, 61, 121–130.
  28. Larrainzar, E.; Wienkoop, S.; Scherling, C.; Kempa, S.; Ladrera, R.; Arrese-Igor, C.; Weckwerth, W.; González, E.M. Carbon metabolism and bacteroid functioning are involved in the regulation of nitrogen fixation in Medicago truncatula under drought and recovery. Mol. Plant Microbe Interact 2009, 22, 1565–1576.
  29. Fougère, F.; Le Rudulier, D.; Streeter, J.G. Effects of salt stress on amino acid, organic acid, and carbohydrate composition of roots, bacteroids, and cytosol of alfalfa (Medicago sativa L.). Plant Physiol 1991, 96, 1228–1236.
  30. Almeida, J.P.; Hartwig, U.A.; Frehner, M.; Nösberger, J.; Lüscher, A. Evidence that P deficiency induces N feedback regulation of symbiotic N2 fixation in white clover (Trifolium repens L.). J. Exp. Bot 2000, 51, 1289–1297.
  31. Hartwig, U.A.; Trommler, J. Increase in the concentrations of amino acids in the vascular tissue of white clover and white lupin after defoliation: An indication of a N feedback regulation of symbiotic N2 fixation. Agronomie 2001, 21, 615–620.
  32. Fischinger, S.A.; Drevon, J.J.; Claassen, N.; Schulze, J. Nitrogen from senescing lower leaves of common bean is re-translocated to nodules and might be involved in a N-feedback regulation of nitrogen fixation. J. Plant Physiol 2006, 163, 987–995.
  33. González, E.M.; Gálvez, L.; Royuela, M.; Aparicio-Tejo, P.M.; Arrese-Igor, C. Insights into the regulation of nitrogen fixation in pea nodules: Lessons from drought, abscisic acid and increased photoassimilate availability. Agronomie 2001, 21, 607–613.
  34. Jeudy, C.; Ruffel, S.; Freixes, S.; Tillard, P.; Santoni, A.L.; Morel, S.; Journet, E.P.; Duc, G.; Gojon, A.; Lepetit, M.; et al. Adaptation of Medicago truncatula to nitrogen limitation is modulated via local and systemic nodule developmental responses. New Phytol 2010, 185, 817–828.
  35. Sulieman, S. Does GABA increase the efficiency of symbiotic N2 fixation in legumes? Plant Signal. Behav 2011, 6, 32–36.
  36. Drevon, J.-J.; Hartwig, U.A. Phosphorus deficiency increases the argon-induced decline of nodule nitrogenase activity in soybean and alfalfa. Planta 1997, 201, 463–469.
  37. Sulieman, S.; Schulze, J. Phloem-derived γ-aminobutyric acid (GABA) is involved in upregulating nodule N2 fixation efficiency in the model legume Medicago truncatula. Plant Cell Environ 2010, 33, 2162–2172.
  38. Blumenthal, J.M.; Russelle, M.P.; Vance, C.P. Nitrogenase activity is affected by reduced partial pressures of N2 and NO3. Plant Physiol 1997, 114, 1405–1412.
  39. Chen, R.F.; Scott, C.; Trepman, E. Fluorescence properties of o-phthaldialdehyde derivatives of amino acids. Biochim. Biophys. Acta 1979, 576, 440–455.
  40. Scheffer, F.; Pajenkamp, H. Phosphatbestimmung in Pflanzenaschen nach der Molybdän-Vanadin-Methode. Z. Pflanzenernähr. Düngung Bodenk 1952, 56, 2–8.
Ijms 14 05198f1 200

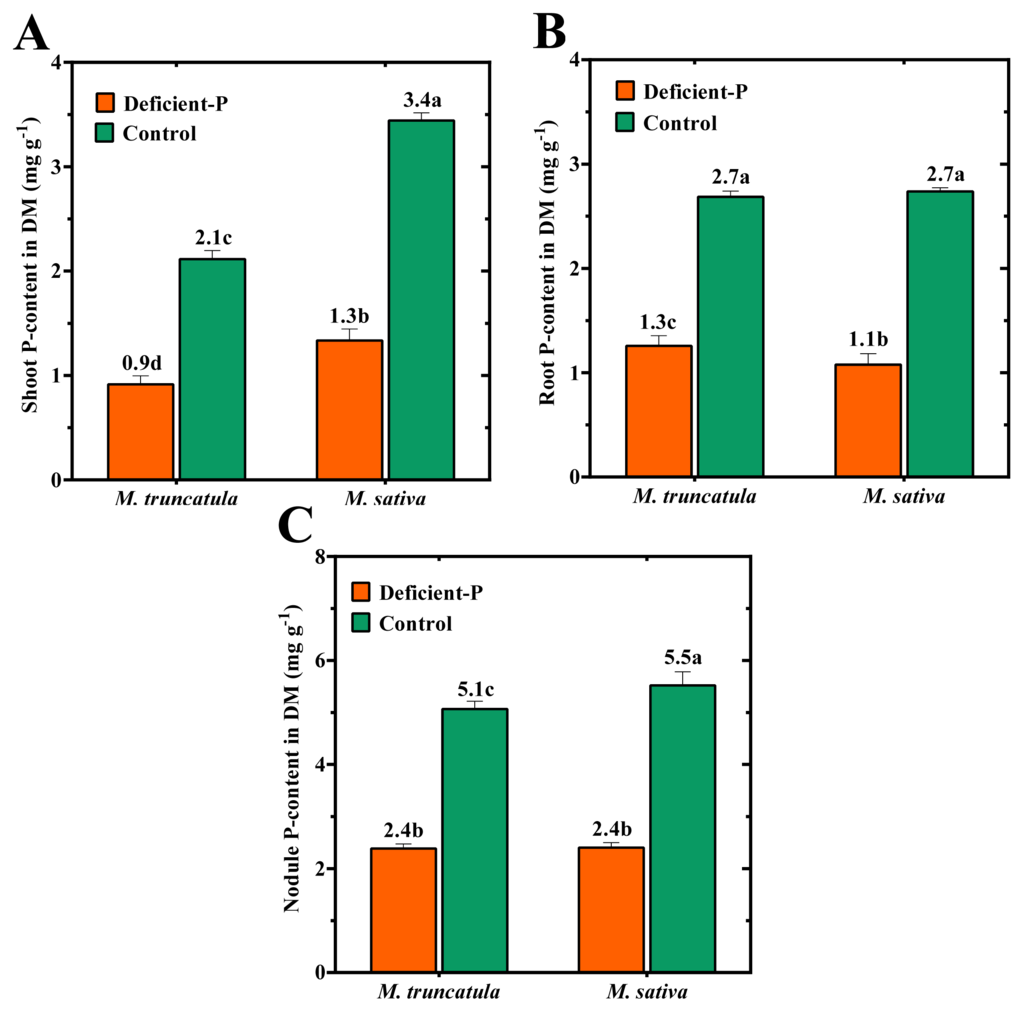

Figure 1. P-content in (A) shoots, (B) roots and (C) nodules of M. truncatula and M. sativa inoculated with Sm2011 and grown over a period of 54 DAT in medium coarse sand supplemented with 100% (Control) or 5% (Deficient-P) of optimal P-level. Data are means of four replicates. Error bars represent standard errors. Data with different letters are significantly different as measured by Tukey’s test (p ≤ 0.05). DM, dry matter.

Click here to enlarge figure

Figure 1. P-content in (A) shoots, (B) roots and (C) nodules of M. truncatula and M. sativa inoculated with Sm2011 and grown over a period of 54 DAT in medium coarse sand supplemented with 100% (Control) or 5% (Deficient-P) of optimal P-level. Data are means of four replicates. Error bars represent standard errors. Data with different letters are significantly different as measured by Tukey’s test (p ≤ 0.05). DM, dry matter.
Ijms 14 05198f1 1024
Ijms 14 05198f2 200

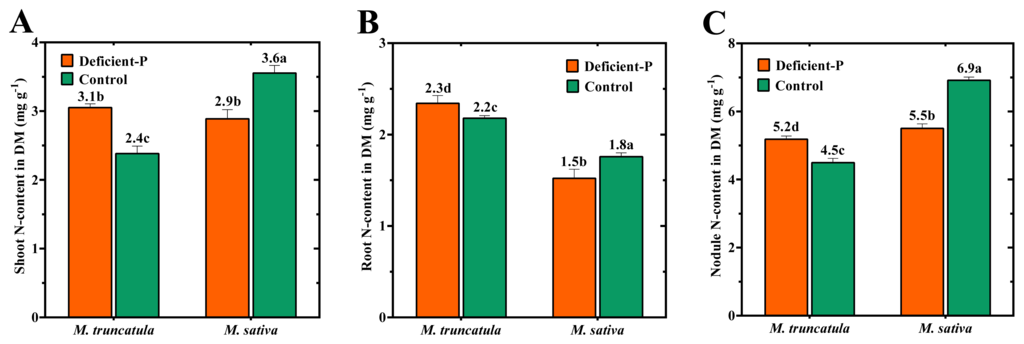

Figure 2. N-content of (A) shoots, (B) roots and (C) nodules of M. truncatula and M. sativa inoculated with Sm2011 and grown over a period of 54 DAT in medium coarse sand supplemented with 100% (Control) or 5% (Deficient-P) of optimal P-level. Data are means of four replicates. Error bars represent standard errors. Data with different letters are significantly different as measured by Tukey’s test (p ≤ 0.05). DM, dry matter.

Click here to enlarge figure

Figure 2. N-content of (A) shoots, (B) roots and (C) nodules of M. truncatula and M. sativa inoculated with Sm2011 and grown over a period of 54 DAT in medium coarse sand supplemented with 100% (Control) or 5% (Deficient-P) of optimal P-level. Data are means of four replicates. Error bars represent standard errors. Data with different letters are significantly different as measured by Tukey’s test (p ≤ 0.05). DM, dry matter.
Ijms 14 05198f2 1024
Ijms 14 05198f3 200

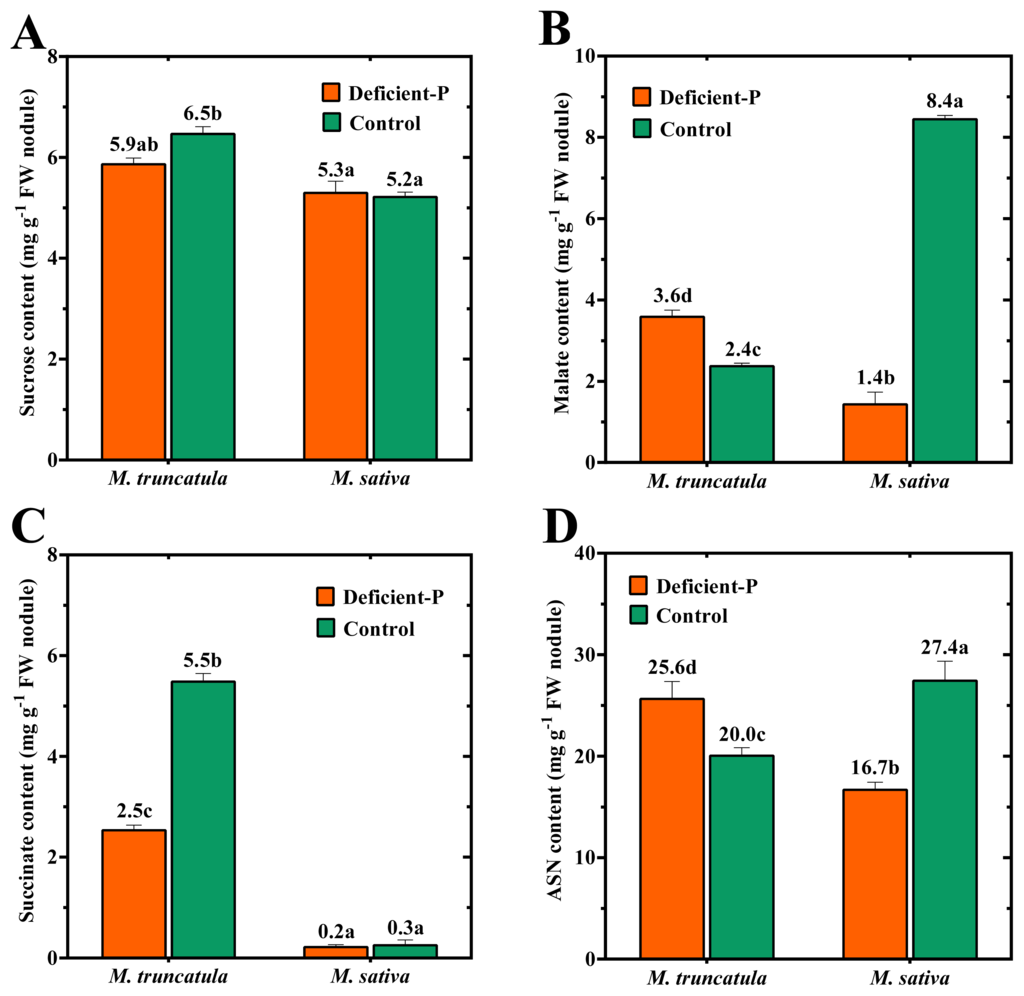

Figure 3. Contents of (A) sucrose, (B) malate, (C) succinate and (D) asparagine (ASN) in nodules of M. truncatula and M. sativa inoculated with Sm2011 and grown over a period of 54 DAT in medium coarse sand supplemented with 100% (Control) or 5% (Deficient-P) of optimal P-level. Data are means of four replicates. Error bars represent standard errors. Data with different letters are significantly different as measured by Tukey’s test (p ≤ 0.05). FW, fresh weight.

Click here to enlarge figure

Figure 3. Contents of (A) sucrose, (B) malate, (C) succinate and (D) asparagine (ASN) in nodules of M. truncatula and M. sativa inoculated with Sm2011 and grown over a period of 54 DAT in medium coarse sand supplemented with 100% (Control) or 5% (Deficient-P) of optimal P-level. Data are means of four replicates. Error bars represent standard errors. Data with different letters are significantly different as measured by Tukey’s test (p ≤ 0.05). FW, fresh weight.
Ijms 14 05198f3 1024
Ijms 14 05198f4 200

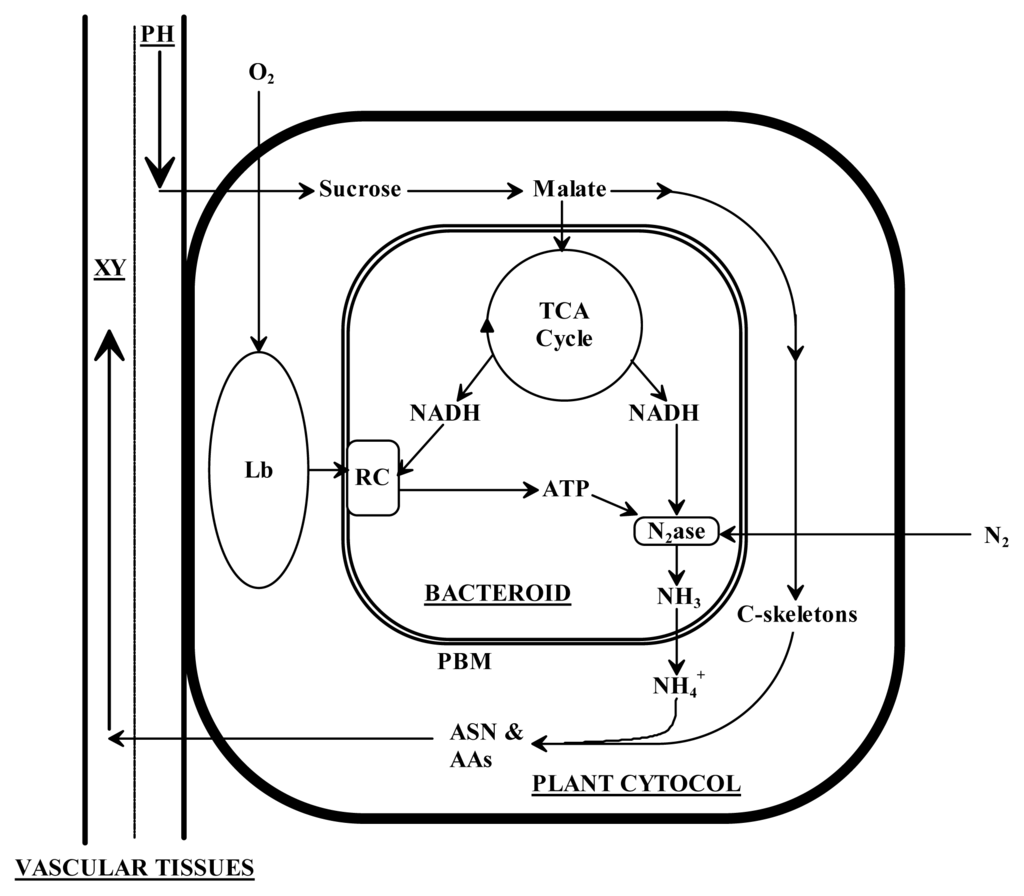

Figure 4. Exchange of metabolites between the host plant and Sm2011 during N2 fixation in M. truncatula and M. sativa. Sucrose is delivered to the nodules via the phloem where it is cleaved to malate which is ultimately provided to the bacteroid through the peribacteroid membrane. Within the bacteroid, malate is oxidized by TCA cycle to provide reductants for nitrogenase and for the respiratory chain that fuels nitrogenase with ATP. The presence of leghemoglobin in the host cell controls the concentration of O2 available to the respiratory chain in peribacteroid membrane. The bacteroid returns NH4+ to the host plant which is assimilated into asparagine and other amino acids that are exported from the nodule via the xylem. AAs, amino acids; ASN, asparagine; Lb, leghemoglobin; N2ase, nitrogenase; PBM, peribacteroid membrane; PH, phloem; RC, respiratory chain; XY, xylem.

Click here to enlarge figure

Figure 4. Exchange of metabolites between the host plant and Sm2011 during N2 fixation in M. truncatula and M. sativa. Sucrose is delivered to the nodules via the phloem where it is cleaved to malate which is ultimately provided to the bacteroid through the peribacteroid membrane. Within the bacteroid, malate is oxidized by TCA cycle to provide reductants for nitrogenase and for the respiratory chain that fuels nitrogenase with ATP. The presence of leghemoglobin in the host cell controls the concentration of O2 available to the respiratory chain in peribacteroid membrane. The bacteroid returns NH4+ to the host plant which is assimilated into asparagine and other amino acids that are exported from the nodule via the xylem. AAs, amino acids; ASN, asparagine; Lb, leghemoglobin; N2ase, nitrogenase; PBM, peribacteroid membrane; PH, phloem; RC, respiratory chain; XY, xylem.
Ijms 14 05198f4 1024
Ijms 14 05198f5 200

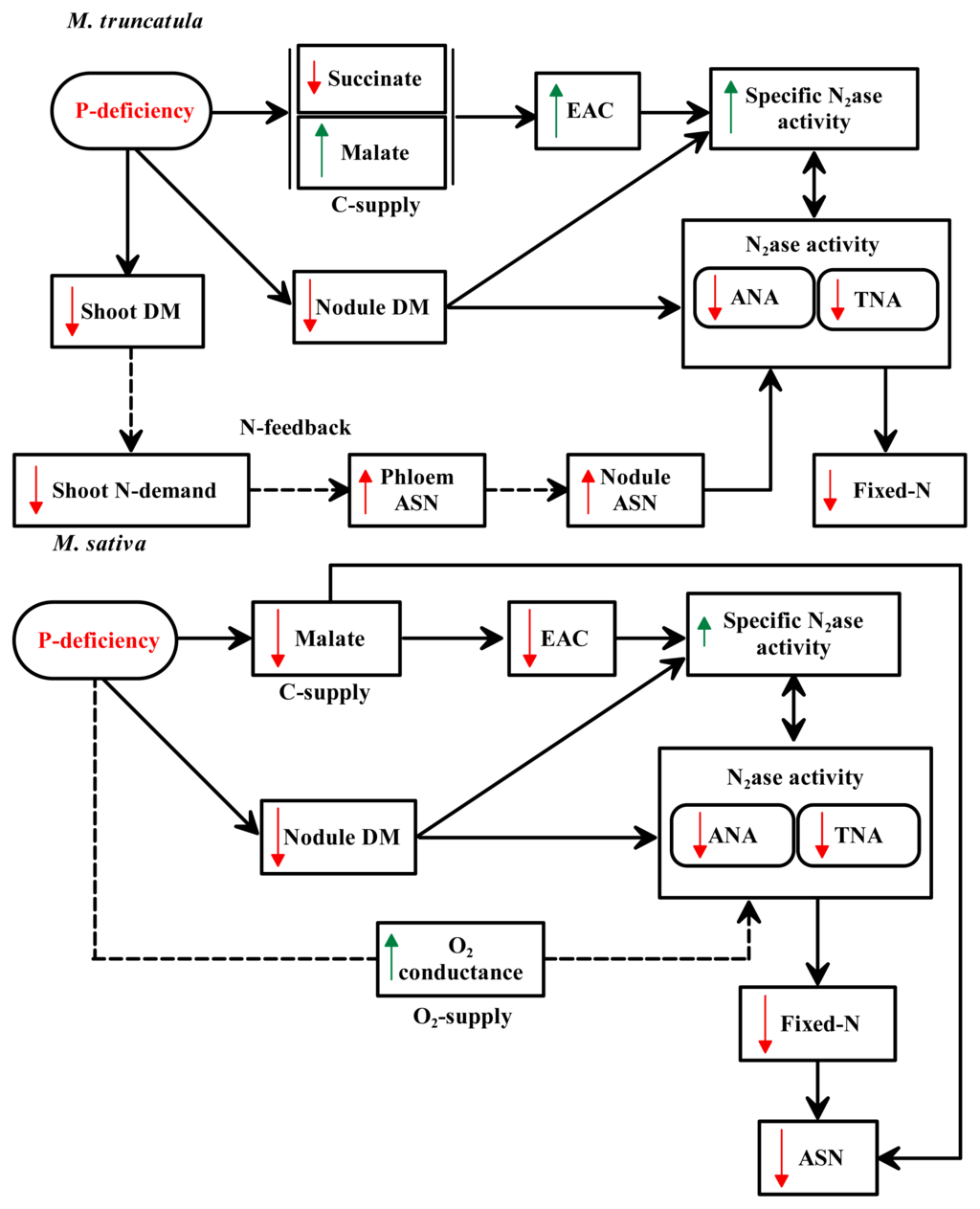

Figure 5. Schematic diagram representing the possible sequence of events leading to decreased N2 fixation in nodules of M. truncatula and M. sativa plants subjected to P-deficiency. The model indicates the effect of C-supply, N-feedback, and O2-supply on nitrogenase activity. P-deficiency is expected to affect nodule C-metabolism by shifting the content of OAs in both plant species, i.e., malate and succinate. As a result, the activity and per unit fixed-N would increase and decrease in nodule of M. truncatula and M. sativa, respectively. Under such conditions, the reduced-N demand in M. truncatula may result in a feedback mechanism with ASN suggested to be the shoot-N signal. In M. sativa, a higher O2 uptake would expect to have a regulatory implication. ANA, apparent nitrogenase activity; ASN, asparagine; EAC, electron allocation coefficient; N2ase, nitrogenase; TNA, total nitrogenase activity. Red and green arrows indicate inhibition and stimulation, respectively. See text for more details.

Click here to enlarge figure

Figure 5. Schematic diagram representing the possible sequence of events leading to decreased N2 fixation in nodules of M. truncatula and M. sativa plants subjected to P-deficiency. The model indicates the effect of C-supply, N-feedback, and O2-supply on nitrogenase activity. P-deficiency is expected to affect nodule C-metabolism by shifting the content of OAs in both plant species, i.e., malate and succinate. As a result, the activity and per unit fixed-N would increase and decrease in nodule of M. truncatula and M. sativa, respectively. Under such conditions, the reduced-N demand in M. truncatula may result in a feedback mechanism with ASN suggested to be the shoot-N signal. In M. sativa, a higher O2 uptake would expect to have a regulatory implication. ANA, apparent nitrogenase activity; ASN, asparagine; EAC, electron allocation coefficient; N2ase, nitrogenase; TNA, total nitrogenase activity. Red and green arrows indicate inhibition and stimulation, respectively. See text for more details.
Ijms 14 05198f5 1024
Table 1. Dry matter production and nodulation levels in Medicago truncatula and Medicago sativa inoculated with Sm2011 and grown over a period of 54 DAT (day after transplanting) in medium coarse sand supplemented with 100% (Control) or 5% (Deficient-P) of optimal P-level. Data presented are the means ± SE of four replicates.

Click here to display table

Table 1. Dry matter production and nodulation levels in Medicago truncatula and Medicago sativa inoculated with Sm2011 and grown over a period of 54 DAT (day after transplanting) in medium coarse sand supplemented with 100% (Control) or 5% (Deficient-P) of optimal P-level. Data presented are the means ± SE of four replicates.
M. truncatulaM. sativa


Deficient-PControlDeficient-PControl
DM (g plant−1)
Shoot0.17 ± 0.01 b0.71 ± 0.11 c0.40 ± 0.06 b2.67 ± 0.23 a
Root0.20 ± 0.01 b0.48 ± 0.01 b0.43 ± 0.07 b1.62 ± 0.18 a
Total0.39 ± 0.02 b1.22 ± 0.10 c0.85 ± 0.13 b4.33 ± 0.39 a
Shoot/Root (g g−1)0.84 ± 0.02 b1.50 ± 0.27 a0.93 ± 0.02 b1.67 ± 0.11 a
Nodule number plant−113.0 ± 1.6 a,b17.0 ± 1.3 b21.0 ± 3.2 a27.0 ± 3.7 a
Nodule DM (mg plant−1)11.8 ± 1.6 b29.4 ± 2.9 c16.1 ± 1.8 b41.8 ± 1.8 a
Individual nodule DM (mg)0.9 ± 0.1 b1.7 ± 0.1 a0.9 ± 0.2 b1.6 ± 0.2 a

Data with different letters are significantly different as measured by Tukey’s test (p ≤ 0.05). DM, dry matter.

Table 2. Nitrogenase activity, electron allocation, and N2 fixation in M. truncatula and M. sativa inoculated with Sm2011 and grown over a period of 54 DAT in medium coarse sand supplemented with 100% (Control) or 5% (Deficient-P) of optimal P-level. Data presented are the means ± SE of four replicates.

Click here to display table

Table 2. Nitrogenase activity, electron allocation, and N2 fixation in M. truncatula and M. sativa inoculated with Sm2011 and grown over a period of 54 DAT in medium coarse sand supplemented with 100% (Control) or 5% (Deficient-P) of optimal P-level. Data presented are the means ± SE of four replicates.
M. truncatulaM. sativa


Deficient-PControlDeficient-PControl
Nitrogenase activity:
ANA (μmol H2 plant−1 h−1)0.36 ± 0.04 d0.78 ± 0.03 c1.85 ± 0.08 b2.99 ± 0.24 a
TNA (μmol H2 plant−1 h−1]0.99 ± 0.08 c1.66 ± 0.08 c3.53 ± 0.30 b7.40 ± 0.49 a
EAC0.63 ± 0.02 d0.52 ± 0.01 a,c0.47 ± 0.03 b0.60 ± 0.02 a
Fixed-N per plant (mg N 24 h−1)0.14 ± 0.01 c0.20 ± 0.01 c0.38 ± 0.05 b0.99 ± 0.08 a
Specific fixed-N (μg N mg nodule−1 h−1)12.96 ± 2.71 c6.94 ± 1.01 b25.62 ± 7.08 a23.63 ± 1.66 a

Data with different letters are significantly different as measured by Tukey’s test (p ≤ 0.05). ANA, apparent nitrogenase activity; EAC, electron allocation coefficient; Fixed N per plant, total fixed-N per plant per day; Specific fixed N, Nfixed per unit nodule biomass; TNA, total nitrogenase activity.
