Int. J. Mol. Sci. 2013, 14(2), 2846-2861; doi:10.3390/ijms14022846

Article
Monovalent Ions and Water Dipoles in Contact with Dipolar Zwitterionic Lipid Headgroups-Theory and MD Simulations
Aljaž Velikonja 1,2, Šarka Perutkova 3, Ekaterina Gongadze 3,4, Peter Kramar 1, Andraž Polak 1, Alenka Maček-Lebar 1 and Aleš Iglič 3,4,*
1
Laboratory of Biocybernetics, Faculty of Electrical Engineering, University of Ljubljana, Tržaška 25, SI-1000 Ljubljana, Slovenia; E-Mails: aljaz.velikonja@avelik.homeip.net (A.V.); peter.kramar@fe.uni-lj.si (P.K.); andraz.polak@fe.uni-lj.si (A.P.); alenka.macek-lebar@fe.uni-lj.si (A.M.-L.)
2
SMARTEH Research and Development of Electronic Controlling and Regulating Systems, Trg tigrovcev 1, SI-5220 Tolmin, Slovenia
3
Laboratory of Biophysics, Faculty of Electrical Engineering, Tržaška 25, University of Ljubljana, SI-1000 Ljubljana, Slovenia; E-Mails: sarka.perutkova@fe.uni-lj.si (S.P.); ekaterina.gongadze@fe.uni-lj.si (E.G.)
4
Laboratory of Clinical Biophysics, Orthopaedic Clinics and Faculty of Medicine, University of Ljubljana, Vrazov trg 2, SI-1000 Ljubljana, Slovenia
*
Author to whom correspondence should be addressed; E-Mail: ales.iglic@fe.uni-lj.si; Tel.: +386-1-4768-825; Fax: +386-1-4768-850.
Received: 22 December 2012; in revised form: 20 January 2013 / Accepted: 21 January 2013 /
Published: 29 January 2013

Abstract

: The lipid bilayer is a basic building block of biological membranes and can be pictured as a barrier separating two compartments filled with electrolyte solution. Artificial planar lipid bilayers are therefore commonly used as model systems to study the physical and electrical properties of the cell membranes in contact with electrolyte solution. Among them the glycerol-based polar phospholipids which have dipolar, but electrically neutral head groups, are most frequently used in formation of artificial lipid bilayers. In this work the electrical properties of the lipid layer composed of zwitterionic lipids with non-zero dipole moments are studied theoretically. In the model, the zwitterionic lipid bilayer is assumed to be in contact with aqueous solution of monovalent salt ions. The orientational ordering of water, resulting in spatial variation of permittivity, is explicitly taken into account. It is shown that due to saturation effect in orientational ordering of water dipoles the relative permittivity in the zwitterionic headgroup region is decreased, while the corresponding electric potential becomes strongly negative. Some of the predictions of the presented mean-field theoretical consideration are critically evaluated using the results of molecular dynamics (MD) simulation.
Keywords:
lipids; dipolar zwitterionic headgroups; relative permittivity; orientational ordering; water molecules; planar lipid bilayers

1. Introduction

The lipid bilayer is a basic building block of cell membranes. Although the cell membrane is a highly heterogeneous structure, composed of lipids, proteins, carbohydrates and other components [13], a large number of physical properties of biological (cell) membrane which are important in physiological processes [4,5] can be studied also in pure planar lipid bilayer systems [6,7]. Due to its double-sided accessability in experiments the planar lipid bilayer is suitable for experimental manipulation [8,9] even if some other pure lipids systems, like lipid vesicles, may mimic also three-dimensional geometry of the cell membrane.

Among others a planar lipid bilayer can be constructed on a small hole positioned on a barrier separating two compartments filled with electrolyte solution. Experimental setup usually consists of two teflon pieces with separate compartments and 100 μm–1mm diameter hole in between. The diameter of the hole mostly depends on the procedure used in planar lipid bilayer formation [10]. In experiments, the electrodes are dipped into electrolyte solution approximately 1 cm away form the barrier. Electrolyte solution is basically an aqueous solution of salt composed of water molecules (Figure 1) and monovalent positively and negatively charged ions. Such experimental setup is ordinarily used to determine various mechanical and electrical properties of planar lipid bilayers [9,11,12].

Most frequently used lipid molecules in the procedures of forming the planar lipid bilayers are glycerol-based phospholipids [6,7,14], which are major compound of cell membranes [1518]: 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine (POPC), 1-palmitoyl-2-oleoyl-sn-glycero-3-phospho-L-serine (POPS), 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC), L-α-phosphatidylcholine (PC), 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoethanolamine (POPE), 1,2-dipalmitoyl-sn-glycero-3-phosphoethanolamine (DPPE), and 1,2-dimyristo-yl(d54)-sn-glycero-3-phosphocholine (DMPC). The majority of these lipids can be made artificially, i.e., without need to isolate them from natural cell membranes. Artificially made lipids are more than 99 percent pure, and easy to handle. They are available in powder state form or dissolved in chloroform [9].

In general, some of the lipid molecules bear net negative charge, while other lipids like glycerophospholipids are electrically neutral [14]. Glycerophospholipids (see Figure 2) are composed of dipolar (zwitterionic) headgroup and two nonpolar tails [1,2,6,7,14]. The tails are hydrophobic fatty acids. Due to its hydrophilic nature [14] the headgroups of lipids are in contact with aqueous solution. The negative charges of the dipolar lipid headgroup (Figure 2) are in contact with nonpolar tails on the one side (left side in Figure 2) and with electrolyte solution on the other (right side in Figure 2), thus its charge distribution is described in the model as negatively charged surface at x = 0 (Figure 2). The positive charges of the headgroups in planar bilayer of dipolar lipids protrude further in the electrolyte solution as depicted in Figure 2. In the headgroup region of planar dipolar lipid layer the cations are attracted towards the negatively charged surface at x = 0, while anions are depleted from this region. Using the MD simulations, the accumulation of sodium cations near the phosphate groups and accumulation of anions near the choline groups in the DOPC bilayer were predicted by [19]. These theoretical predictions were supported also by the results of fluorescence spectroscopy experiments on zwitterionic phospholipid bilayers which show that the addition of salt into the solution being in contact with the lipid bilayer restricts the mobility of the hydrated lipid headgroups and their lateral diffusion when compared to pure water solution [19]. In the high electric field of dipolar lipid headgroups (see [20] and the references therein) the water dipoles are expected to be oriented towards the charged plane at x = 0 (see for example [13,21]). Due to accumulation of cations and saturation effect in polarization the electric potential decreases towards the x = 0 plane [22].

Most of the electrostatic models of electrolyte solution in contact with lipid surfaces [20,2326] assume that the dielectric permittivity in the electrolyte solution is constant. In the absence of an explicit consideration of orientational ordering of water molecules the assumption of constant permittivity is the consequence of the assumption of the constant number density of water molecules in the system [13]. But actually, close to the membrane surface the orientation and depletion of water molecules may result in strong spatial variation of permittivity [13,2731].

In this paper the effect of the nonhomogeneous volume charge distribution in the headgroup region of the planar dipolar lipid layer on the space dependent electric potential and permittivity is presented. An analytical mean-field model, based on the previously developed Langevin-Poisson-Boltzman (LPB) model [21], is introduced. The relative (dielectric) permittivity, related to the electric field strength was analysed in the headgroup region and its close vicinity. To test the predictions of the model, the realistic values of the input model parameters, previously determined in measurements or simulations for DPPC lipid molecules, were used. The results of an analytical model are compared with the results of molecular dynamic simulation (MD) of DPPC planar lipid bilayer.

2. Model

2.1. Modified Langevin-Poisson-Boltzmann (MLPB) Model

The Langevin-Poisson-Boltzmann (LPB) model [21] is generalized to take into account the cavity field [13] in the saturation regime. In addition, the electronic polarization of the water is taken into account by assuming that the point-like rigid (permanent) dipole embedded in the center of the sphere with a volume equal to the average volume of a water molecule in the electrolyte solution (Figure 1) [13,32]. The permittivity of the sphere is taken to be n2, where n = 1.33 is the optical refractive index of water. The relative (effective) permittivity of the electrolyte solution ɛr can be then expressed as [13,32] :

ɛ r ( x ) = n 2 + P ( x ) ɛ 0 E ( x )

where P = |P| is the magnitude of the polarization vector due to a net orientation of permanent point-like water dipoles having dipole moment p, ɛ0 is the permittivity of the free space, while E = |E| is the magnitude of the electric field strength. The absolute value of polarization P(x) is given by [13] :

P ( x ) = n w ( x )     ( 2 + n 2 3 )     p 0 L ( γ p 0 E β )

where nw(x) is the space dependency of the number density of water molecules, p0 is the magnitude of the external dipole moment pe = (3/(2 + n2)) p (see also Figure 1) [13,32], (u) = (coth(u)−1/u) is the Langevin function, β = 1/kT, kT is thermal energy, while γ is [13] :

γ = 3 2 ( 2 + n 2 3 )

In the following, for the sake of simplicity the finite volume of ions and water molecules is not taken into account as in [13] and consequently the number density of water molecules is considered to be constant all over the solution and equal to its bulk value nw0, i.e., nw(x) = n0w from where it follows :

P ( x ) = n 0 w     ( 2 + n 2 3 )     p 0 L ( γ p 0 E β )

Combining Equations 1 and 4 yields space dependency of permittivity within modified Langevin-Poisson-Boltzmann model (MLPB model) in the form:

ɛ r ( x ) = n 2 + n 0 w p 0 ɛ 0 ( 2 + n 2 3 ) L ( γ p 0 E ( x ) β ) E ( x )

or

ɛ r ( x ) = n 2 + 3 2 ( 2 + n 2 3 ) 2 n 0 w p 0 2 β ɛ 0 L ( γ p 0 E ( x ) β ) γ p 0 E ( x ) β

In the limit of vanishing electric field strength (E(x) → 0 everywhere in the solution) the above equation for relative permittivity ɛr(x) gives the classical Onsager expression:

ɛ x n 2 + ( 2 + n 2 3 ) 2 n 0 w p 0 2 β 2 ɛ 0

At room temperature (298K) the above Equation 7 gives ɛr = 78.5 for bulk solution. The parameters p0 and n0w/NA are 3.1 Debye and 55 mol/l, respectively.

2.2. Poisson Equation

In the model the dipolar lipid headgroup is described by two charges at fixed distance D, i.e., it is assumed that the headgroup has non-zero dipole moment. The negative charges of the phosphate groups of dipolar (zwitterionic) lipids are described by negative surface charge density σ = −e0/a0 at x = 0 (see Figure 2), where a0 is the area per lipid. The orientational ordering of water is taken into account assuming the spatial dependence of permittivity ɛr(x) as described by Equation 6.

The corresponding Poisson equation in planar geometry can thus be written in the form (see e.g., [22]) :

d d x [ ɛ 0 ɛ r ( x ) d φ d x ] = - ρ i o n s ( x ) - ρ Z w ( x )

where φ(x) is the electric potential, ρZw(x) is the macroscopic (net) volume charge density of positive charges of dipolar (zwitterionic) headgroups, ρions(x) is the macroscopic (net) volume charge density of co-ions (n) and counter-ions (n+) of the electrolyte solution (see Figure 3). Since we neglect the finite volumes of the salt ions and water molecules [21,22] the co-ions and counter-ions are assumed to be distributed according to Boltzmann distribution functions [20,2226]) :

n + ( x ) = n 0 exp ( - e 0 φ ( x ) β )
n - ( x ) = n 0 exp ( e 0 φ ( x ) β )

therefore

ρ i o n s ( x ) = e 0 n + ( x ) - e 0 n - ( x ) = - 2 e 0 n 0 sinh  e 0 φ β

where e0 is the unit charge and n0 bulk number density of salt co-ions and counter-ions. The lipid headgroups can be oriented at various angles ω relative to the normal vector to the planar lipid layer (Figure 2), hence the volume charge density due to the positive charges of the lipid dipolar headgroups can be written in the form:

ρ Z w ( 0 < x D ) = e 0 P ( x ) D a 0             and            ρ Z w ( x > D ) = 0

where a0 is the area per lipid, while (x) is the probability density function indicating the probability that the positive charge of the dipolar lipid headgroup is located at the distance x from the negatively charged surface at x = 0 :

P ( x ) = Λ exp ( - e 0 φ ( x ) β )

where xD. Equation 13 neglects the finite volume of lipid headgroups. The normalization condition

1 D 0 D P ( x ) d x = 1

yields :

Λ = D 0 D exp ( - e 0 φ ( x ) β ) d x

Using Equations 1113 and 15 it follows from Equation 8 :

d d x [ ɛ 0 ɛ r ( x ) d φ d x ] = 2 e 0 n 0 sinh  e 0 φ β - e 0 exp ( - e 0 φ ( x ) β ) a 0 0 D exp ( - e 0 φ ( x ) β ) d x

The boundary conditions are (see for example [22]) :

d φ d x ( x = 0 ) = - σ ɛ 0 ɛ r ( x = 0 )
d φ d x ( x ) = 0
φ ( x = D - ) = φ ( x = D + )
d φ d x ( x = D - ) = d φ d x ( x = D + )

where in Equation 17 the surface charge density σ = −e0/a0. Note that the area per lipid a0 is different in gel and liquid phase. E = |.

In numerical calculations the distance from the negatively charged surface x was limited to 12nm, where the boundary condition stated in Equation 18 was applied. The modified LPB equation (Equation 16) was solved numerically as described in the Appendix A. All the results were obtained using a0 = 0.48nm2 and a0 = 0.60nm2 corresponding to DPPC lipid in gel-crystalline (below 314K) and liquid-crystalline phase (above 314K), respectively [33]. Other values of model parameters were: the dipole moment of water p0 = 3.1 Debye, bulk concentration of salt n0/NA = 0.1 mol/l and concentration of water n0w/NA = 55 mol/l. NA is Avogadro number.

2.3. Molecular Dynamics Simulations (MD)

The molecular dynamics (MD) model of DPPC planar lipid bilayer was constructed in NAMD program using all molecule performance CHARMM 36 force field. The model consists of 256 lipid units and 20174 water molecules. The solvent was 450mMKCl modeled by 153K+ and 153 Cl ions [34,35]. Chemical bonds between hydrogen and heavy atoms were constrained to their equilibrium value. Long-range electrostatic forces were taken into account using a fast implementation of the particle mesh Ewald (PME) method [36,37]. The model was examined at constant pressure (1.013 × 105 Pa) and constant temperature (232K) employing Langevin dynamics and the Langevin piston method. The equations of motion were integrated using the multiple time-step algorithm. A time step of 2.0 fs was employed. Short- and long-range forces were calculated every one and two time steps, respectively.

The model was equilibrated and followed 30 ns. The last 15 ns of the simulation were used for extraction of dipole orientation angle. From the P and N atoms positions the dipole was determined for all 256 lipids in each of 1500 simulation frames and exported to Matlab2012b. The distribution of vector amplitude corresponding to distance D between charges was extracted as well as distribution of the angle ω between the dipole and normal vector to the planar lipid bilayer plane (Figure 2). To obtain the probability density (x), projection of each headgroup dipole on the normal vector to the planar lipid bilayer plane was calculated. The average distance between P and N atoms (0.42nm) was used as a parameter D in MLPB model (Equation 16).

3. Results

Electric potential φ and relative permittivity ɛr as a function of the distance from the charged planar surface (x = 0) is presented in Figure 4. The results are presented for two values of the temperature: T = 310K (a0 = 0.48nm2) and T = 323K (a0 = 0.60nm2). It can be seen in Figure 4 that the relative permittivity ɛr(x) is considerably decreased in the vicinity of charged planar surface. At the charged planar surface (x = 0) the value of ɛr(x) drops to 44 at T = 310K and to 55 at T = 323K. The effect of the charged planar surface at x = 0 is very weak already at the distance x = D. Far away from the surface (x = 0) the values of ɛr(x) is 75.5 at temperature T = 310K and 72.6 for temperature T = 323K. The electric potential in the vicinity of the charged planar surface is considerably negative. It is −60mV for temperature T = 310K and −54mV for temperature T = 323K.

Charge density profile of co-ions (n) and counter-ions (n+) of the electrolyte solution for two temperatures 310K and 323K can be seen in Figure 3. Near the negatively charged planar surface at x = 0 one can observe strong accumulation of positively charged counter-ions and depletion of the negatively charged co-ions. With increasing distance from the headgroup region (0 < xD), i.e., for x larger than D, the number density of co-ions (n) decreases and the number density of counter-ions (n+) increases. Far away from the charged planar surface, the concentration of counter-ions (n+) equals the concentration of co-ions (n) corresponding to electroneutrality condition in bulk solution. At higher temperature (323K) the DPPC has increased area per lipid a0 = 0.60nm2 resulting in lower area density of the lipid molecules and hence less negative surface charge density at x = 0 plane as in the case of lower temperature (310K). Consequently, also the calculated ion number density profiles are lower for x > D (Figure 3).

The average headgroup orientation angle < ω > as a function of the temperature T can be seen on Figure 5. At DPPC phase transition temperature (314K) the value of < ω > can not be calculated as phase transition effect is not included in MLPB model. The average dipole orientation angle < ω >, calculated from (x) as described in Appendix B, is not temperature dependent. At DPPC liquid-crystalline phase average headgroup orientation angle < ω >= 69.36 degrees, which agrees with median angle < ω > between N and P dipole and normal vector obtained in MD simulation (< ω >= 68 degrees). The difference of < ω > between liquid-crystalline and gel-crystalline phase is a consequence of a different values of area per lipid a0 in gel-crystalline phase and liquid-crystalline phase.

4. Discussion and Conclusions

The comparison between the probability density (x) calculated within MLPB model (Equation 13) and (x) obtained in MD simulations, can be seen on Figure 6. In MLPB model the function (x) is steeply increasing in the vicinity of x = 0 plane (Figure 6, plot A) which is a consequence of the exponential Boltzmann factor in the function (x) (Equation 13). This result is clearly not in accordance with MD simulation (Figure 6, plot B), where the function (x) is saturated. The discrepancy between the predictions of MLPB model and MD simulations arises due to the fact that the finite volumes of lipid headgroups and finite volumes of ions and water molecules are not considered in MLPB model. Taking into account the finite volume of lipid headgroups within the lattice statistics approach (see also [13,24]) yields for probability density that the positive charge of the dipolar lipid headgroup is located at certain distance x from the x = 0 surface in the form :

P ( x ) = Λ α exp ( - e 0 φ ( x ) β ) α exp ( - e 0 φ ( x ) β ) + 1

where Λ is determined from normalization Equation 14. The parameter α is equal to the ratio between the average volume of the positively charged parts of dipolar (zwitterionic) headgroups and the average volume of the salt solution in the headgroup region. Equation 21 predicts the saturation of the probability density function (x), corresponding to the close packing of the lipid headgroups in accordance with the results of MD simulations. Figure 6 thus shows the dependence of (x) calculated by using Equation 21 for the values of the parameter α. It can be seen that taking into account the finite volume of lipid headgroups leads to better agreement between the predicted (x) dependencies within MLPB model and MD simulations. In the limit of α → ∞ (when all lattice sites are occupied by the headgroups) the probability density function (x) becomes constant as expected. On the other hand, in the limit of small values of α (i.e., negligible volume of the headgroups) the probability density (x), calculated by using Equation 21, approaches to the probability denisty (x) determined by Equation 13 (curve A in Figure 6).

Although the relative permittivity ɛr is usually considered as a constant, it is shown in present paper that ɛr can considerably change within the dipolar (zwitterionic) lipid headgroup region. Consequently, the electric potential in this region is substantially decreased.

To conclude, our model shows that the effect of decreasing potential and permittivity has an impact only in the headgroup region of dipolar zwitterionic lipids and its close vicinity. The average orientation angle of the zwitterionic lipid headgroup dipole (< ω >) predicted within the presented MLPB model is comparable with the results obtained in MD simulation.

Acknowledgements

This work was in part supported by the Slovenian Research Agency. The research was conducted in the scope of the EBAM European Associated Laboratory (LEA). Molecular Dynamics Simulations were performed using HPC resources from Arctur Slovenia. First author was mainly supported by European social fund and SMARTEH.

References

  1. Sackmann, E. Molecular and global structure and dynamics of membranes and lipid bilayers. Can. J. Phys 1990, 68, 999–1012.
  2. Sackmann, E. Biological Membranes Architecture and Function. In Structure and Dynamics of Membranes; Lipowsky, R., Sackmann, E., Eds.; Elsevier: Amsterdam, The Netherlands, 1995; pp. 1–63.
  3. Šuštar, V.; Zelko, J.; Lopalco, P.; Lobasso, S.; Ota, A.; Ulrih, N.P.; Corcelli, A.; Kralj-Iglič, V. Morphology, biophysical properties and protein-mediated fusion of archaeosomes. PLoS One 2012, 7, e39401.
  4. Kralj-Iglič, V. Stability of membranous nanostructures: A possible key mechanism in cancer progression. Int. J. Nanomed 2012, 7, 3579–3596.
  5. Šuštar, V.; Bedina Zavec, A.; Štukelj, R.; Frank, M.; Bobojevič, G.; Janša, R.; Ogorevc, E.; Kruljc, P.; Mam, K.; Šimunič, B.; et al. Nanoparticles isolated from blood: A reflection of vesiculability of blood cells during the isolation process. Int. J. Nanomed 2011, 6, 2737–2748.
  6. Rappolt, M.; Pabst, G. Flexibility and Struture of Fluid Bilyer Interfaces. In Structure and Dynamics of Membranous Interfaces; Nag, K., Ed.; John Wiley and Sons, Inc: Hoboken, NJ, USA, 2008; pp. 45–81.
  7. Yaghmur, A.; Rappolt, M. Structural characterization of lipidic systems under nonequilibrium conditions. Eur. Biophys. J 2012, 41, 831–840.
  8. Tien, H.T.; Ottova-Leitmannova, A. The Lipid Bilayer Concept: Experimental Realization and Current Application. In Planar Lipid Bilayers (BLMs) And Their Application; Tien, H.T., Ottova-Leitmannova, A., Eds.; Elsevier: Amsterdam, The Netherlands, 2003; pp. 1–73.
  9. Luckey, M. Membrane Structural Biology, 1st ed. ed.; Cambridge University Press: New York, NY, USA, 2008; pp. 1–67.
  10. Kramar, P.; Miklavčič, D.; Kotulska, M.; Maček Lebar, A. Voltage- and Current-clamp Methods for Determination of Planar Lipid Bilayer Properties. In Advances in Planar Lipid Bilayers and Liposomes, Volume 11; Iglič, A., Ed.; Elsevier: Amsterdam, The Netherlands, 2010; pp. 29–69.
  11. Polak, A.; Mulej, B.; Kramar, P. System for measuring planar lipid bilayer properties. J. Membrane Biol 2012, 24, 625–632.
  12. Kramar, P.; Miklavčič, D.; Maček Lebar, A. A system for the determination of planar lipid bilayer breakdown voltage and its applications. IEEE Trans. Nanobiosci 2009, 8, 132–138.
  13. Gongadze, E.; Iglič, A. Decrease of permittivity of an electrolyte solution near a charged surface due to saturation and excluded volume effects. Bioelectrochemistry 2012, 87, 199–203.
  14. Cevc, G. Phospholipid Handbook, 1st ed ed.; Marcel Dekker: New York, NY, USA, 1993.
  15. Rappolt, M.; Laggner, P.; Pabst, G. Structure and Elasticity of Phospholipid Bilayers in the LαPhase: A Comparison of Phosphatidylcholine and Phosphatidylethanolamine Membranes. In Recent Research Development in Biophysics; Pandalai, S.G., Ed.; Trivandrum-Transworld Research Network: Kerala, India, 2004; Volume 3, pp. 363–392.
  16. Kramar, P.; Miklavčič, D.; Maček Lebar, A. Determination of the lipid bilayer breakdown voltage by means of a linear rising signal. Bioelectrochemistry 2007, 70, 23–27.
  17. Kramar, P.; Delemotte, L.; Maček Lebar, A.; Kotulska, M.; Tarek, M.; Miklavčič, D. Molecular-level characterization of lipid membrane electroporation using linearly rising current. J. Membrane Biol 2012, 245, 651–659.
  18. Sabotin, I.; Maček Lebar, A.; Miklavčič, D.; Kramar, P. Measurement protocol for planar lipid bilayer viscoelastic properties. IEEE Trans. Diel. El. Insul 2009, 15, 1236–1242.
  19. Vácha, R.; Siu, S.W.I.; Petrov, M.; Böckmann, R.A.; Barucha-Kraszewska, J.; Jurkiewicz, P.; Hof, M.; Berkowitz, M.L.; Jungwirth, P. Effects of alkali cations and halide anions on the DOPC lipid membrane. J. Chem. Phys. A 2009, 113, 7235–7243.
  20. McLaughlin, S. The electrostatic properties of membranes. Ann. Rev. Biophys. Chem 1989, 18, 113–136.
  21. Gongadze, E.; van Rienen, U.; Kralj-Iglič, V.; Iglič, A. Langevin Poisson-Boltzmann equation: Point-like ions and water dipoles near a charged surface. Gen. Physiol. Biophys 2011, 30, 130–137.
  22. Gongadze, E.; van Rienen, U.; Kralj-Iglič, V.; Iglič, A. Spatial variation of permittivity of an electrolyte solution in contact with a charged metal surface: A mini review. Comput. Meth. Biomech. Biomed. Eng, 2012, pp. 1–18. Available online: http://dx.org/10.1080/10255842.2011.624769 , accessed on 18 September 2012.
  23. Cevc, G. Memrane electrostatics. Biochim. Biophys. Acta 1990, 1031, 311–382.
  24. Kralj-Iglič, V.; Iglič, A. A simple statistical mechanical approach to the free energy of the electric double layer including the excluded volume effect. J. Phys. II France 1996, 6, 477–491.
  25. Lamperski, S.; Outhwaite, C.W. Exclusion volume term in the inhomogeneous poisson-boltzmann theory for high surface charge. Langmuir 2002, 18, 3423.
  26. Bazant, M.Z.; Kilic, M.S.; Storey, B.; Ajdari, A. Advances in colloid and interface science. Adv. Colloid Interface Sci 2009, 152, 48.
  27. Butt, H.J.; Graf, K.; Kappl, M. Physics and Chemistry of Interfaces, 2nd ed ed.; Wiley-VCH Verlag: Weinheim, Germany, 2003.
  28. Outhwaite, C.W. A treatment of solvent effects in the potential theory of electrolyte solutions. Mol. Phys 1976, 31, 1345–1357.
  29. Outhwaite, C.W. Towards a mean electrostatic potential treatment of an ion-dipole mixture or a dipolar system next to a plane wall. Mol. Phys 1983, 48, 599–614.
  30. Iglič, A.; Gongadze, E.; Bohinc, K. Excluded volume effect and orientational ordering near charged surface in solution of ions and Langevin dipoles. Bioelectrochemistry 2010, 79, 223.
  31. Das, S; Chakraborty, S.; Mitra, S.K. Redefining electrical double layer thickness in narrow confinements: Effect of solvent polarization. Phys. Rev. E 2012, 85, 051508.
  32. Fröhlich, H. Theory of Dielectrics, 1st ed ed.; Clarendon Press: Oxford, UK, 1964.
  33. Marsh, D. An incteracting spin label study of lateral expansion in dipalmitoyllecithin-cholesterol bilayers. Biochim. Biophys. Acta 1974, 363, 373–386.
  34. Kale, L.; Skeel, R.; Bhandarkar, M.; Brunner, R.; Gursoy, A.; Krawetz, N.; Phillips, J.; Shinozaki, A.; Varadarajan, K.; Schulten, K. NAMD2: Greater scalability for parallel molecular dynamics. J. Comp. Phys 1999, 151, 283–312.
  35. Phillips, J.C.; Braun, R.; Wang, W.; Gumbart, J.; Tajkhorshid, E.; Villa, E.; Chipot, C.; Skeel, R.D.; Kale, L.; Schulten, K. Scalable molecular dynamics with NAMD. J. Comp. Chem 2005, 26, 1781–1802.
  36. Dardenn, T.; York, D.; Pedersen, L. Particle mesh Ewald: An N·log(N) method for Ewald sums in large systems. J. Chem. Phys 1993, 98, 10089.
  37. Essmann, U.; Perera, L.; Berkowitz, M.L. The origin of the hydration interaction of lipid bilayers from MD simulation of dipalmitoylphosphatidylcholine membranes in gel and liquid crystalline phases. Langmuir 1995, 11, 4519–4531.

A. Derivation of Equations for Matlab

A.1. Variant A

Equation 16 can be rewritten as :

d 2 ψ ( x ) d x 2 = κ 2 ( x ) sinh ( ψ ( x ) ) - κ 2 ( x ) exp ( - ψ ( x ) ) 2 n 0 a 0 0 D exp ( - ψ ( x ) ) d x - 1 ɛ r ( x ) d ɛ r ( x ) d x d ψ ( x ) d x

where ψ(x) is reduced electric potential :

ψ ( x ) = e 0 β φ ( x )

and

κ 2 ( x ) = 2 e 0 2 n 0 β ɛ 0 ɛ r ( x )

The boundary conditions (Equations 1720) can be rewritten as :

d ψ ( x ) d x ( x = 0 ) = - e 0 β σ ɛ 0 ɛ r ( x = 0 )
d ψ d x ( x ) = 0
ψ ( x = D - ) = ψ ( x = D + )
d ψ d x ( x = D - ) = d ψ d x ( x = D + )

Equation 22 was solved in Matlab using the standard function for the boundary value problems (bvp4c). The second part of the right hand side of Equation 22 is defined only within headgroup region, therefore it is equal to zero for x > D. The value of ɛr(x) (Equation 6) and the integral ∫ exp(−ψ(x))dx and dɛr(x)/dx in Equation 22 were calculated outside of bvp4c function. The dɛr(x)/dx was derived from Equation 6, where the Langevin function (x) was expanded for small values of electric field into Taylor series up to the cubic term (x) ≈ x/3 − x3/45. Considering E ˜ ( x ) = | d ψ ( x ) d x |, can be written :

ɛ r ( x ) = K 1 + K 2 45 ( 15 - ( K 3 E ˜ ( x ) ) 2 )
d ɛ r ( x ) d x = - 2 K 2 K 3 2 45 d ψ ( x ) d x d 2 ψ ( x ) d x 2

where the constants are :

K 1 = n 2
K 2 = 3 2 ( 2 + n 2 3 ) 2 n 0 w p 0 2 β ɛ 0
K 3 = γ p 0 e 0

For high values of electric field the ɛr(x) and the dɛr(x)/dx are derived from Equation 6 with non-expanded Langevin function :

ɛ r ( x ) = K 1 + K 2 ( ( K 3 E ˜ ( x ) ) coth ( K 3 E ˜ ( x ) ) - 1 ( K 3 E ˜ ( x ) ) 2 )
d ɛ r ( x ) d x = K 2 d ψ ( x ) d x ( - 1 sinh 2 ( K 3 E ˜ ( x ) ) - ( K 3 E ˜ ( x ) ) coth ( K 3 E ˜ ( x ) ) - 2 ( K 3 E ˜ ( x ) ) 2 )     ( d 2 ψ ( x ) d x 2 )

where constants are the same as above (Equations 3133).

A.2. Variant B

By inserting the Equation 6 and its derivative into Equation 8, the Equation 8 can be rewritten as :

d 2 ψ ( x ) d x 2 = 2 e 0 2 n 0 ɛ 0 β sinh ( ψ ( x ) ) - e 0 2 exp ( - ψ ( x ) ) a 0 ɛ 0 β 0 D exp ( - ψ ( x ) ) d x [ K 2 ( 1 ( K 3 E ˜ ( x ) ) 2 - 1 sinh 2 ( K 3 E ˜ ( x ) ) ) + K 1 ]

where the constants K1, K2, K3 are defined as above (Equations 3133). Equation 36 was solved in Matlab using standard function for boundary value problem (bvp4c) with multipoint boundary values (Equations 2528). The value of the integral ∫ exp(−ψ(x))dx in Equation 36 was calculated in iteration process outside of bvp4c function.

B. Average Orientation of Lipid Head-Groups

From Equations (13 and 15) it follows:

P ( x ) = D exp ( - ψ ( x ) ) 0 D exp ( - ψ ( x ) ) d x

Average orientation angle of the headgroup dipole (< ω >) can be then written as normalized distribution function:

< ω > 0 D ω P ( x ) d x 0 D P ( x ) d x

where the dipole orientation angle is (see also Figure 2) :

ω = arccos ( x D )
Ijms 14 02846f1 200

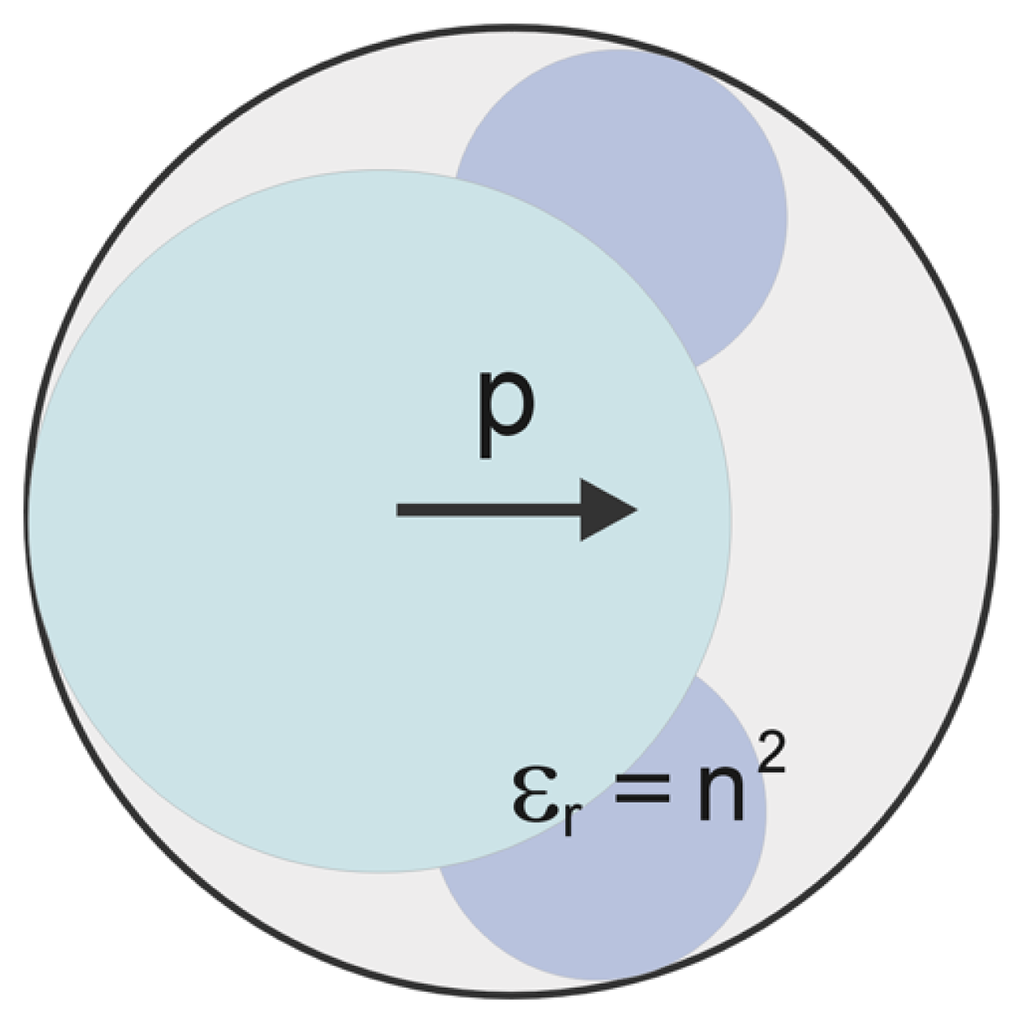

Figure 1. A single water molecule is considered as a sphere with permittivity n2 and point-like rigid (permanent) dipole with dipole moment p at the center of the sphere [13], where n is the optical refractive index of water.

Click here to enlarge figure

Figure 1. A single water molecule is considered as a sphere with permittivity n2 and point-like rigid (permanent) dipole with dipole moment p at the center of the sphere [13], where n is the optical refractive index of water.
Ijms 14 02846f1 1024
Ijms 14 02846f2 200

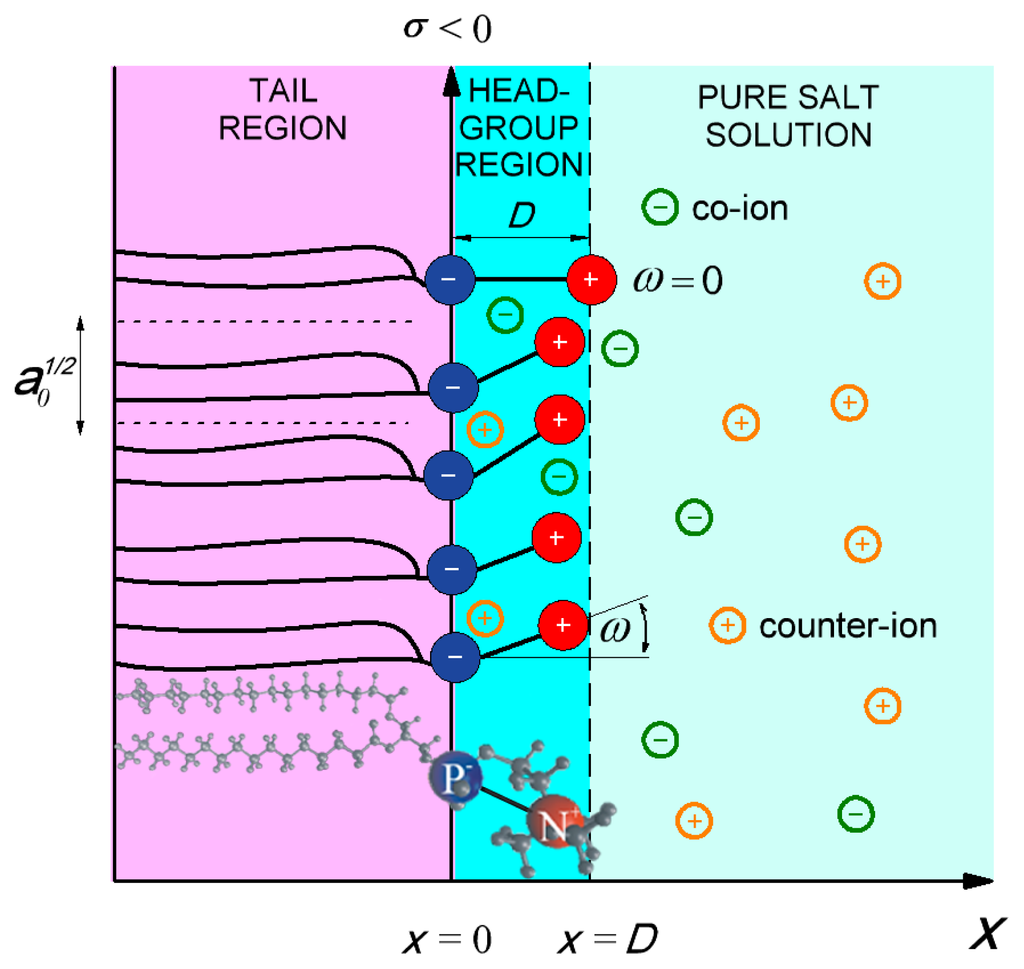

Figure 2. Negative charges of dipolar (zwitterionic) lipid headgroups are described by negative surface charge density σ = −e0/a0 at x = 0, where a0 is the area per lipid. D is the distance between charges within the single dipolar lipid headgroup, while ω describes orientation angle of the dipole within the single headgroup. MD model of DPPC lipid molecule is presented at the bottom.

Click here to enlarge figure

Figure 2. Negative charges of dipolar (zwitterionic) lipid headgroups are described by negative surface charge density σ = −e0/a0 at x = 0, where a0 is the area per lipid. D is the distance between charges within the single dipolar lipid headgroup, while ω describes orientation angle of the dipole within the single headgroup. MD model of DPPC lipid molecule is presented at the bottom.
Ijms 14 02846f2 1024
Ijms 14 02846f3 200

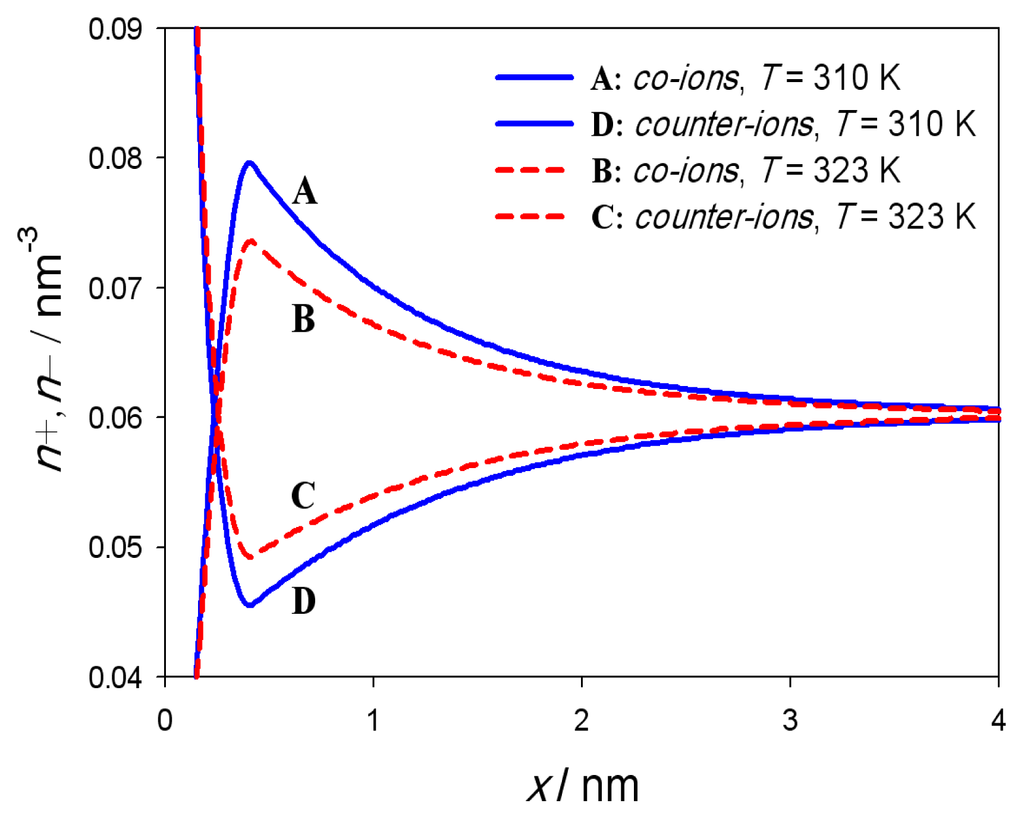

Figure 3. The calculated charge density profile of co-ions (n) (A,B) and counter-ions (n+) (C,D) of the electrolyte solution for two temperatures 310K (full blue line) and 323K (dashed red line) and corresponding DPPC values of the area per lipid (a0 = 0.48nm2 below 314K and a0 = 0.60nm2 above 314K). The dipole moment of water was p0 = 3.1 Debye, D = 0.42nm, bulk concentration of salt n0/NA = 0.1 mol/l and concentration of water n0w/NA = 55 mol/l, where NA is Avogadro number.

Click here to enlarge figure

Figure 3. The calculated charge density profile of co-ions (n) (A,B) and counter-ions (n+) (C,D) of the electrolyte solution for two temperatures 310K (full blue line) and 323K (dashed red line) and corresponding DPPC values of the area per lipid (a0 = 0.48nm2 below 314K and a0 = 0.60nm2 above 314K). The dipole moment of water was p0 = 3.1 Debye, D = 0.42nm, bulk concentration of salt n0/NA = 0.1 mol/l and concentration of water n0w/NA = 55 mol/l, where NA is Avogadro number.
Ijms 14 02846f3 1024
Ijms 14 02846f4 200

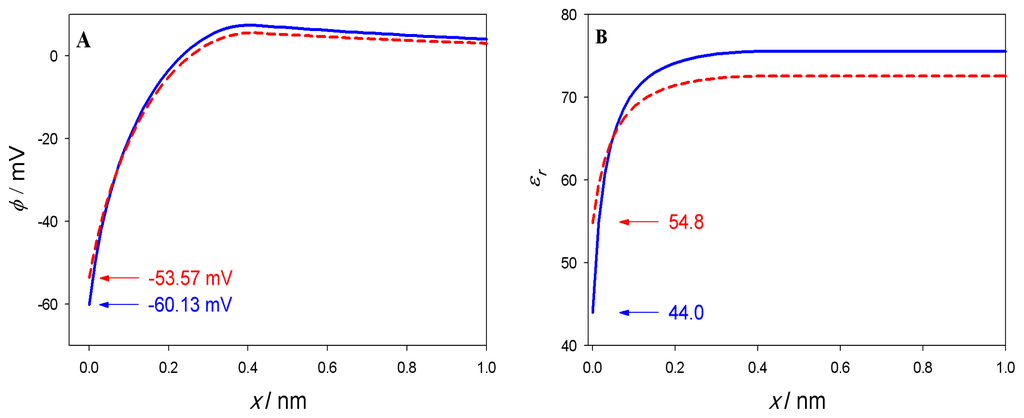

Figure 4. Electric potential φ and relative permittivity ɛr as a function of the distance from the charged planar surface at x = 0 calculated for two temperatures and corresponding values of a0: T = 310K, a0 = 0.48nm2 (full blue lines) and T = 323K, a0 = 0.60nm2 (dashed red lines). These values of a0 correspond to DPPC in two different phases. Relative permittivity ɛr as the function of the distance from the charged planar surface x (panel B) was calculated from Equation 6. The MLPB equation was solved numerically as described in the Appendix A. The dipole moment of water p0 = 3.1 Debye, D = 0.42nm bulk concentration of salt n0/NA = 0.1 mol/l, concentration of water n0w/NA = 55 mol/l, where NA is Avogadro number. For simplicity the second boundary condition was applied at a distance of 12nm.

Click here to enlarge figure

Figure 4. Electric potential φ and relative permittivity ɛr as a function of the distance from the charged planar surface at x = 0 calculated for two temperatures and corresponding values of a0: T = 310K, a0 = 0.48nm2 (full blue lines) and T = 323K, a0 = 0.60nm2 (dashed red lines). These values of a0 correspond to DPPC in two different phases. Relative permittivity ɛr as the function of the distance from the charged planar surface x (panel B) was calculated from Equation 6. The MLPB equation was solved numerically as described in the Appendix A. The dipole moment of water p0 = 3.1 Debye, D = 0.42nm bulk concentration of salt n0/NA = 0.1 mol/l, concentration of water n0w/NA = 55 mol/l, where NA is Avogadro number. For simplicity the second boundary condition was applied at a distance of 12nm.
Ijms 14 02846f4 1024
Ijms 14 02846f5 200

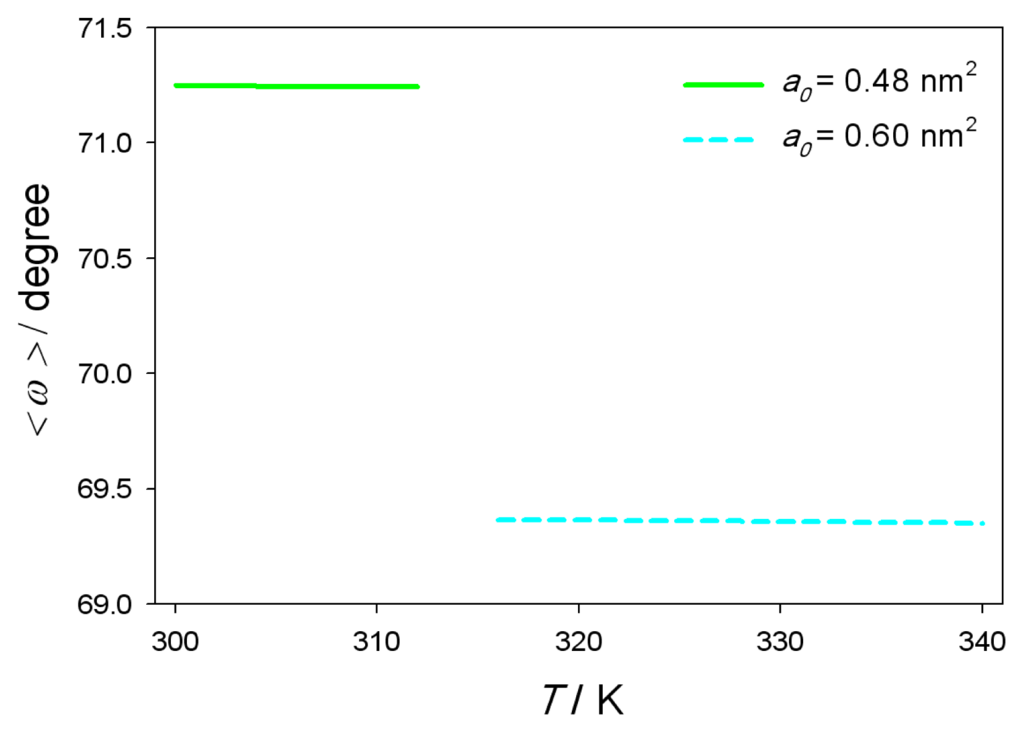

Figure 5. Average headgroup dipole orientation angle < ω > (see also Figure 2) as a function of the temperature T. Area per lipid a0 = 0.48nm2 below 314K, corresponding to DPPC lipid gel-crystalline phase (full line) and a0 = 0.60nm2 above 314K, corresponding to DPPC lipid liquid-crystalline phase (dashed line). A gap near the phase transition temperature (314K) is present, because phase transition effect is not included in MLPB model. Average dipole orientation angle < ω > was calculated from (x) as described in Appendix B. The values of other model parameters are the same as in Figure 4.

Click here to enlarge figure

Figure 5. Average headgroup dipole orientation angle < ω > (see also Figure 2) as a function of the temperature T. Area per lipid a0 = 0.48nm2 below 314K, corresponding to DPPC lipid gel-crystalline phase (full line) and a0 = 0.60nm2 above 314K, corresponding to DPPC lipid liquid-crystalline phase (dashed line). A gap near the phase transition temperature (314K) is present, because phase transition effect is not included in MLPB model. Average dipole orientation angle < ω > was calculated from (x) as described in Appendix B. The values of other model parameters are the same as in Figure 4.
Ijms 14 02846f5 1024
Ijms 14 02846f6 200

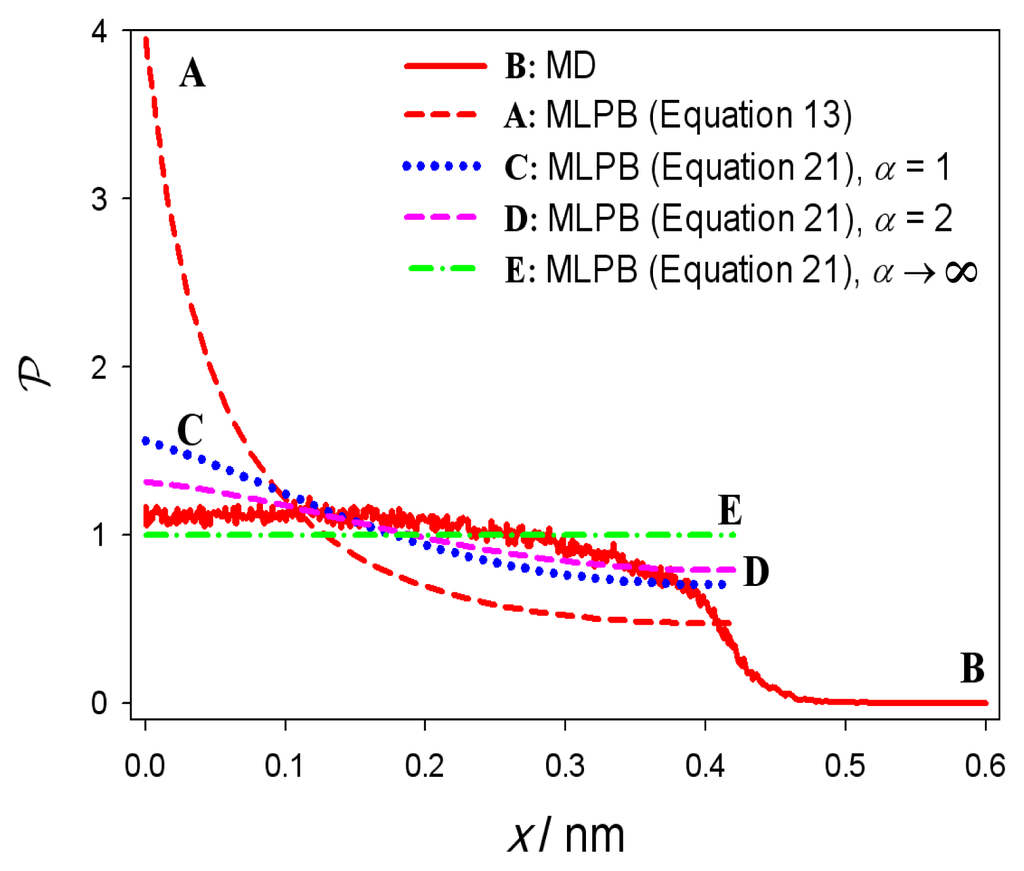

Figure 6. Probability density (x) that the positive charge of the lipid dipolar headgroup (see also Figure 2) is located at the distance x from the negatively charged surface calculated from MLPB model (A,C,D,E) and obtained from MD simulations (B). The values of MLPB model parameters are the same as in Figure 4.

Click here to enlarge figure

Figure 6. Probability density (x) that the positive charge of the lipid dipolar headgroup (see also Figure 2) is located at the distance x from the negatively charged surface calculated from MLPB model (A,C,D,E) and obtained from MD simulations (B). The values of MLPB model parameters are the same as in Figure 4.
Ijms 14 02846f6 1024
