Int. J. Mol. Sci. 2013, 14(12), 24355-24365; doi:10.3390/ijms141224355

Article
Effect of Exogenous Factors on Bacteriocin Production from Lactobacillus paracasei J23 by Using a Resting Cell System
Huaxi Yi 1,2,, Xue Han 1,, Yanyan Yang 1, Wenli Liu 1, Hui Liu 1, Yingchun Zhang 1, Kai Sun 1, Lanwei Zhang 1,* and Fang Ma 2
1
School of Food Science and Engineering, Harbin Institute of Technology, Harbin 150090, China; E-Mails: yihuaxi@hit.edu.cn (H.Y.); xhan@hit.edu.cn (X.H.); yyyanghit@yeah.net (Y.Y.); liuwenlihit@yeah.net (W.L.); liuhuihit@yeah.net (H.L.); zhangyingchun@hit.edu.cn (Y.Z.); wangzhuan@hit.edu.cn (K.S.)
2
School of Municipal and Environmental Engineering, Harbin Institute of Technology, Harbin 150090, China; E-Mail: mafang@hit.edu.cn
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed; E-Mail: zhanglanwei@yeah.net; Tel.: +86-451-8628-2908; Fax: +86-451-8628-2906.
Received: 17 October 2013; in revised form: 16 November 2013 / Accepted: 4 December 2013 /
Published: 13 December 2013

Abstract

: A resting cell system was developed for bacteriocin Lac-B23 production from Lactobacillus paracasei J23. The resting cell medium contained (g/L): Glucose 20, Sodium acetate 5.0, MnSO4 0.25 MgSO4 0.5, Ammoniumhydrogencitrate 1.0, KH2PO4 1.0. The resting cell incubation time and temperature were 20 h and 37 °C and the effects of exogenous factors, including amino acids, glycerol, pyruvic acid, and α-ketoglutaric acid were investigated. Cys and Gly could stimulate the production of bacteriocin, while no stimulus effect was observed for Glu, Tyr and Ala. Glycerol and pyruvic acid increased bacteriocin production and the optimum concentrations were 1% and 30 g/L, respectively. Bacteriocin could act as an inducer of its own biosynthesis. These findings are of importance for the further study of bacteriocin biosynthesis regulation and for the improvement of bacteriocin production yields.
Keywords:
lactic acid bacteria; bacteriocin; Lactobacillus paracasei; resting cell; system; exogenous factors

1. Introduction

Bacteriocins are ribosomally synthesized antibacterial proteins produced by different bacterial species [13]. Bacteriocins produced by lactic acid bacteria (LAB) are attractive to the food industry because of their potential as natural food preservatives, and are generally recognized as safe (GRAS) [4,5]. In the last decades, a variety of LAB bacteriocins have been identified and characterized [6,7]. New bacteriocins are still being discovered and developed. However, only Nisin has achieved a commercial scale successfully and it is used as a food preservative worldwide [8]. A potential bottleneck in LAB bacteriocin commercialization could be low production yields. Therefore, it is very important to enhance bacteriocin production. It has been observed that the production of bacteriocin is influenced by the bacterial growth phase [9,10], medium composition [1114], and culture conditions [1518]. In addition, bacteriocin production can be induced by exogenous factors or exhibit auto-induction [1921]. It is reasonable to speculate that LAB bacteriocin production could also be induced by bacteriocin precursors or intermediate metabolites of the bacteriocin synthesis pathways. Presently, little information is available about the effect of such exogenous factors on the bacteriocin production, such as amino acids, glycerol, pyruvic acid, α-ketoglutaric acid, and others.

LAB growth and bacteriocin production are strongly influenced by carbon sources, nitrogen sources, growth factors, and other exogenous factors. The traditional technique to optimize the above multivariable system is “one-factor at a time” with growing cultures. It may result in incorrect conclusions since effects on cell growth are not readily differentiated from effects on bacteriocin production. The resting cell technique can eliminate many of the problems associated with studies made on growing cultures. Resting cells are non-proliferating and regarded as a source of enzymes for studies on bacterial metabolism. A resting cell system provides a useful tool for studying the regulation of metabolite synthesis, particularly for the influence of factors on bacterial metabolism. Resting cell technology has been successfully applied in many areas of biotechnology such as optimization of antibiotic production [22], amino acid metabolism [23], nisin biosynthesis [24], and exotoxin production [25], but it has not yet been reported as a means to study and optimize conditions of a growth medium and to screen for the effects of exogenous factors on bacteriocin production.

In the previous study, Lactobacillus paracasei J23 isolated from Chinese traditional fermented vegetable juice could produce bacteriocin Lac-B23 with a broad inhibitory spectrum [26]. In this paper, to facilitate the bacteriocin biosynthesis of Lactobacillus paracasei J23, a resting cell system was developed and used to select the exogenous factors affecting production of the LAB bacteriocin. The objectives of this work were to evaluate the effects of the exogenous factors on bacteriocin production, and to identify exogenous inducers able to improve bacteriocin yield.

2. Results and Discussion

2.1. Establishment of the Resting Cell System

The component of candidate culture medium for the resting cell system is based on the common MRS medium composition. In previous preliminary studies, the composition of MRS has been optimized in preparation for a resting cell system [27]. Based on those studies, the resting cell system was developed as shown in Table 1.

It was observed that the antimicrobial activity was 160U while the nucleic acid content changed little in #5 culture medium. The results showed that the cells of Lactobacillus paracasei J23 maintained the resting state and did not proliferate in #5 medium. It is also found though Lactobacillus paracasei J23 grew better in #2 medium than in #5 medium, but the antimicrobial activity is the same with that of the #5 medium, which suggested that higher biomass concentration could not necessarily result in higher bacteriocin production.

To validate the #5 culture medium as a resting cell system, 0.75% NaCl solution was used as control to reduce the bacteriocin Lac-B23 from the inoculation. The results in Table 2 showed that Lactobacillus paracasei J23 could produce bacteriocin under resting cell state in #5 culture medium. It was indicated that the #5 culture medium met the criteria of a resting cell system based on the high antimicrobial activity and little ΔNucleic acid, and was confirmed as a resting cell system. The optimum culture time and temperature were 20 h and 37 °C (Figure 1). Therefore, the #5 culture medium was appropriate as a resting cell system and used to screen potential exogenous inducers for bacteriocin Lac-B23 production.

At present, the response surface methodology (RSM) has been used to optimize medium components [28]. RSM was used to optimize the resting cell medium in a previous study [29], but it was found that the results of RSM in the laboratory were not useful in a pilot scale test. It was also found that though the conventional “one-at-a-time-approach” is cumbersome and time consuming, it does lead to a substantial increase in Lac-B23 production: The results of the resting cell medium optimization by using “one-at-a-time-approach” are also reproducible in the pilot scale test and therefore, was selected to optimize the resting cell system in this study.

2.2. Effects of Amino Acid

According to previous study about the composition of amino acids in the bacteriocin Lac-B23 [30], the effects of Glu, Gly, Cys, Tyr and Ala with various concentration on bacteriocin Lac-B23 production were investigated in the established resting cell system (Figure 2).

The results in Figure 2 show that the bacteriocin Lac-B23 production was stimulated by Gly and Cys, and that the antimicrobial activity was increased from 160 U to 400 U (Gly) and 520 U (Cys) when the added concentration was above 1.5%. Though Glu, Tyr and Ala were not found to increase bacteriocin Lac-B23 production, it was observed they could stimulate the growth of Lactobacillus paracasei J23. It was speculated that the positive effects of Glu, Tyr and Ala on cell growth could be due to their roles as nitrogen sources or growth factors. In addition, Gly and Cys could promote the bacteriocin Lac-B23 biosynthesis as precursor. The effects of amino acids on nisin and pediocin productions by two lactic acid bacteria have been reported [31], and the similar phenomenon was observed. Detailed knowledge about the fundamental mechanisms of the above two amino acid underlying the regulation of bacteriocin production is not yet known.

2.3. Effects of Glycerol

Glycerol is an important intermediate in the metabolic pathways, which can regulate the organism metabolism. The effects of glycerol on bacteriocin Lac-B23 production were investigated in the established resting cell system (Figure 3).

It showed that glycerol could promote bacteriocin Lac-B23 production. When the added glycerol concentration is above 1%, the bacteriocin Lac-B23 reached a stationary state. Though glycerol was involved in Embden-Meyerhof-Parnas pathway (EMP) and could be used as energy for cell growth theoretically, the Lactobacillus paracasei J23 kept the resting cell state in the whole process. Therefore, it was reasonable that the improvement of bacteriocin Lac-B23 production was not attributed to the cell growth, and glycerol could be added as positive inducer in bacteriocin Lac-B23 production.

2.4. Effects of Pyruvic Acid

Pyruvic acid is regarded as one of the key intermediates in Embden–Meyerhof–Parnas (EMP) pathways and the tricarboxylic acid (TCA) cycle, and play significant roles in protein, peptide and amino acid biosynthesis. The effects of various concentration of pyruvic acid on bacteriocin production were studied in the established resting cell system (Figure 4).

The results show that pyruvic acid exhibits similar effects as glycerol on bacteriocin Lac-B23 production. The optimum concentration was 30g/L, and the Lactobacillus paracasei J23 cells remained in the resting cell state during the fermentation. It was interesting that the pH was observed to decrease from 6.5 to 5.5 quickly. It was assumed that pyruvic acid was used as the precursor to promote the biosynthesis of lactic acid, thus leading to the pH decreased. In our previous study, pH had a significant effect on the bacteriocin production, which was enhanced by the relatively low pH. The optimum pH for bacteriocin Lac-B23 production was 5.5. Therefore, it was thought that the effect of glycerol on bacteriocin Lac-B23 production was indirect. It was indicated that addition of pyruvic acid might initiate the bacteriocin Lac-B23 biosynthesis earlier or extend the effective biosynthesis stage.

2.5. Effects of Bacteriocin as Self-Inducer

It has been reported that bacteriocin biosynthesis can be dependent on the presence of an extracellular peptide of the bacteriocin itself produced by the strain, and that bacteriocin may act as an extracellular regulators of its own biosynthesis [19,20]. The effects of the added dose and time of Lac-B23 as inducer on its own production were investigated (Figures 5 and 6).

The results suggested that bacteriocin is able to induce ist own production in a dose- and time-dependent manner. the threshold of induction occurred at 20 U/mL, and temporal effectiveness assessments revealed that Lac-B23 must be added before stationary phase (before 6 h) when it was used as inducer. It is indicated that adding extracellular inducer peptide is necessary to achieve a high level of bacteriocin production. This is in agreement with the report of Kleerebezem [32]. Time-dependent control strategies for enhancing synthesis of bacteriocin have been studied by using artificial neural networks and genetic algorithms [33]. The optimization of dose-dependent and time-dependent of bacteriocin Lac-B23 is currently in progress. The fundamental regulation mechanisms have been identified through a quorum–sensing based pathway, composed of an induction peptide, a histidine protein kinase and a response regulator [34]. Further studies of the regulation of bacteriocin biosynthesis on the transcription level are required.

3. Experimental Section

3.1. Microorganisms

Lactobacillus paracasei J23, which is the bacteriocin Lac-B23 producer obtained from previous screening efforts, was used in this work. L. monocytogenes was used as the indicator organism in the bacteriocin activity assay.

3.2. Antimicrobial Activity Assay

The antagonistic activity was measured by the well-diffusion method. Bacteriocin sample were serially diluted two-fold, and the reciprocal of the highest inhibitory dilution was used to express the arbitrary activity units (AU) per milliliter. In order to eliminate the inhibition of lactic acid on the test organisms, the tested supernatants were adjusted to pH 6.0 with 1 M NaOH and treated with catalase (1 mg/mL) to exclude the inhibition due to hydrogen peroxide production.

3.3. Resting Cell System

Five different culture media (as shown in Table 1) were formulated based on MRS medium and our previous preliminary study. Fifty milliliters of different culture medium was inoculated with 1% of 24 h old Lactobacillus paracasei J23 culture and incubated at 37 °C for 24 h. The antagonistic activity, nucleic acid content (NAC) and dried cell weight (DCW) of Lactobacillus paracasei J23 were examined. The culture medium was confirmed as the resting cell system based on the strong antimicrobial activity, and little change in nucleic acid content. The effect of time and temperature on Lac-B23 production in the resting cell system was investigated at 25, 30, 37 °C for 24 h, respectively. The cell concentration was assayed with a spectrophotometer (Shanghai Spectrum Co. Ltd, Shangshai, China) at 600 nm.

3.4. Nucleic Acid Content

The Lactobacillus paracasei J23 cell suspension was centrifuged at 8000× g for 15 min, and the cell pellets were washed three times with trichloroacetic acid and ethanol, then centrifuged at 8000× g for 15 min and extraction with 5% trichloroacetic acid at 80 °C for 30 min. The supernatant was diluted and the optical density (OD 260 nm) was assayed with spectrophotometer. ΔNucleic acid (g/L) was measured as the difference of nucleic acid content between before and after resting cultures.

3.5. Exogenous Inducers Selection

The effects of amino acids (Glu, Gly, Cys, Tyr, Ala), glycerol, and pyruvic acid on bacteriocin production were investigated by using the established resting cell system. The above five amino acids (0.5%, 1.5%, 2.5%), glycerol (v/v, 0.5%, 1.0%, 1.5%, 2.0%), pyruvic acid (10 g/L, 20 g/L, 30 g/L, 40 g/L) were added to the resting cell system for the examination of the effects on the bacteriocin production, respectively. Values are expressed as mean value and standard deviation of triplicate determinations.

3.6. Self-Induction of Bacteriocin

The added dose (5 U/mL to 40 U/mL) and added time (0–12 h) of bacteriocin Lac-B23 as self-inducer were investigated in the established resting cell system.

3.7. Statistical Analysis

One-way ANOVA was applied to the result of technological properties. All experiments were performed 3 times, and the values are expressed as mean value and standard deviation of triplicate determinations. The SPSS software package (version 16.0, SPSS Inc., Chicago, IL, USA) was used for this purpose.

4. Conclusions

A resting cell system was developed and proved to be a useful tool in screening the exogenous factors on bacteriocin Lac-B23 production. It is possible to enhance yield of bacteriocin Lac-B23 by adding Cys, Gly, Glycerol, pyruvic acid and Lac-B23 itself. These findings are of importance for the further study of bacteriocin biosynthesis regulation and the improvement of bacteriocin yields. In addition, this report could advocate an interest again for the use of resting cell techniques in the areas of regulation and optimization of bacteriocin production.

Acknowledgments

This work was financially supported by National Natural Science Foundation (30900996) of China, and the Research Fund for the Doctoral Program of Higher Education (20112302110051) and Fundamental Research Funds for the Central Universities (HIT.NSRIF.201185) and the special Financial Grant from China Postdoctoral Science Foundation (2012T50346).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Heunis, T.; Bshena, O.; Klumperman, B. Release of bacteriocins from nanofibers prepared with combinations of poly(d,l-lactide) (PDLLA) and poly(ethylene oxide) (PEO). Int. J. Mol. Sci 2011, 12, 2158–2173.
  2. Zoumpopoulou, G.; Pepelassi, E.; William, P.; Georgalaki, M.; Maragkoudakis, P.A.; Tarantilis, P.A.; Polissiou, M.; Tsakalidou, E.; Papadimitriou, K. Incidence of bacteriocins produced by food-related lactic acid bacteria active towards oral pathogens. Int. J. Mol. Sci 2013, 14, 4640–4654.
  3. Papagianni, M. Ribosomally synthesized peptides with antimicrobial properties: Biosynthesis, structure, function, and applications. Biotechnol. Adv 2003, 21, 465–499.
  4. Deegan, L.H.; Cotter, P.D.; Hill, C.; Ross, P. Bacteriocins: Biological tools for bio-preservation and shelf-life extension. Int. Dairy J 2006, 16, 1058–1071.
  5. Sullivan, L.O.; Ross, R.P.; Hill, C. Potential of bacteriocin-producing lactic acid bacteria for improvements in food safety and quality. Biochimie 2002, 84, 593–604.
  6. Macwana, S.J.; Muriana, P.M. A ‘bacteriocin PCR array’ for identification of bacteriocin-related structural genes in lactic acid bacteria. J. Microbiol. Methods 2012, 88, 197–204.
  7. Papagiannia, M.; Papamichael, E.M. Purification, amino acid sequence and characterization of the class IIa bacteriocin weissellin A, produced by Weissella paramesenteroides DX. Bioresour. Technol 2011, 102, 6730–6734.
  8. Vazquez, J.A.; Gonzalez, M.P.; Murado, M.A. Preliminary tests on nisin and pediocin production using waste protein sources: Factorial and kinetic studies. Bioresour. Technol 2006, 97, 605–613.
  9. Leroy, F.; Vuyst, L.D. Bacteriocin production by Enterococcus faecium RZS C5 is cell density limited and occurs in the very early growth phase. Int. J. Food Microbiol 2002, 72, 155–164.
  10. Avonts, L.; Uytven, E.V.; Vuyst, L.D. Cell growth and bacteriocin production of probiotic Lactobacillus strains in different media. Int. Dairy J 2004, 14, 947–955.
  11. Li, C.; Bai, J.; Cai, Z.; Ouyang, F. Optimization of a cultural medium for bacteriocin production by Lactococcus lactis using response surface methodology. J. Biotechnol 2002, 93, 27–34.
  12. Halami, P.M.; Chandrashekar, A. Enhanced production of pediocin C20 by a native strain of Pediococcus acidilactici C20 in an optimized food-grade medium. Process Biochem 2005, 40, 1835–1840.
  13. Todorov, S.D.; Dicks, L.M.T. Effect of modified MRS medium on production and purification of antimicrobial peptide ST4SA produced by Enterococcus mundtii. Anaerobe 2009, 15, 65–73.
  14. Rajesh, T.; Kayalvizhi, N.; Gunasekaran, P. Influence of medium components and fermentation conditions on the production of bacteriocin(s) by Bacillus licheniformis AnBa9. Bioresour. Technol 2009, 100, 872–877.
  15. Mataragas, M.; Metaxopoulos, J.; Galiotou, M.; Drosinos, E.H. Influence of pH and temperature on growth and bacteriocin production by Leuconostoc mesenteroides L124 and Lactobacillus curvatus L442. Meat Sci 2003, 64, 265–271.
  16. Guerra, N.P.; Pastrana, L. Modelling the influence of pH on the kinetics of both nisin and pediocin production and characterization of their functional properties. Process Biochem 2002, 37, 1005–1015.
  17. Kim, M.H.; Kong, Y.J.; Baek, H.; Hyun, H.H. Optimizationof culture conditions and medium composition for theproduction of Micrococcin GO5 by Micrococcus sp. GO5. J. Biotechnol 2006, 121, 54–61.
  18. Todorov, S.; Dicks, L.M.T. Influence of growth conditions on the production of a bacteriocin by Lactococcus lactis subsp. lactis ST34BR, a strain isolated from barley beer. J. Basic Microbiol 2004, 4, 305–316.
  19. Pattnaik, P.; Grover, S.; Batish, V. Effect of environmental factors on production of lichenin, a chromosomally encoded bacteriocin like compound produced by Bacillus licheniformis 26L-10/3RA. Microbiol. Res 2005, 160, 213–218.
  20. Blomqvist, T.; Steinmoen, H.; Havarstein, L.S. Pheromone-induced expression of recombinant proteins in Streptococcus thermophilus. Arch. Microbiol 2006, 186, 465–473.
  21. Hakim, G.; Noreddine, B.; Dalié, D.D.; Frank, D.; Philippe, T. Comparison of the performances of different fermentation strategies on cell growth and bacteriocin production by Lactobacillus curvatus CWBI-B28. J. Sci. Food Agric 2007, 87, 541–549.
  22. Tobajas, M.; Mohedano, A.F.; Casas, J.A. A kinetic study of reuterin production by Lactobacillus reuteri PRO 137 in resting cells. Biochem. Eng. J 2007, 35, 218–225.
  23. Kieronczyk, A.; Skeie, S.; Olsen, K.; Langsrud, T. Metabolism of amino acids by resting cells of non-starter lactobacilli in relation to flavour development in cheese. Int. Dairy J 2001, 11, 217–224.
  24. Meghrous, J.; Huot, E.; Quittelier, M.; Petitdemange, H. Regulation of nisin biosynthesis by continuous cultures and by resting cells of Lactococcus lactis subsp. lactis. Res. Microbiol 1992, 143, 879–890.
  25. Wang, Z.; Chen, S.; Ruan, L.; Sun, M.; Yu, Z. A fundamental regulatory role of formate on thuringiensin production by resting cell of Bacillus thuringiensis YBT-032. Bioprocess Biosyst. Eng 2007, 30, 225–229.
  26. Yi, H.; Zhang, L.; Han, X.; Du, M.; Zhang, Y.; Li, J.; Hou, Y. Isolation and applied potential of lactic acid bacteria from Chinese traditional fermented food in specific ecological localities. Food Sci. Biotechnol 2011, 6, 1685–1690.
  27. Yi, H.; Han, X.; Du, M.; Zhang, L. Effect of MRS medium components on bacteriocin Bac-J23 production from Lactobacillus J23. China Brew 2012, 5, 56–58. (in Chinese).
  28. Cladera-Olivera, F.; Caron, G.R.; Brandelli, A. Bacteriocin production by Bacillus licheniformis strain P40 in cheese whey using response surface methodology. Biochem. Eng. J 2004, 21, 53–58.
  29. Yi, H.; Zhang, L.; Han, X.; Du, M. Optimum condition of Bac-J23 production from Lactobacillus J23. Food Sci. Technol 2012, 3, 35–39. (in Chinese).
  30. Yi, H.; Zhang, L.; Han, X.; Yang, Y. Purification and partial charaters of Bacteriocin Lac-B23 from lactic acid bacteria. Food Sci. Technol 2013. Submitted for publication, in Chinese.
  31. Vázquez, J.A.; Cabo, M.L.; González, M.P.; Murado, M.A. The role of amino acids in nisin and pediocin production by two lactic acid bacteria: A factorial study. Enzyme Microbial. Technol 2004, 34, 319–325.
  32. Kleerebezem, M. Quorum sensing control of lantibiotic production; nisin and subtilin autoregulate their own biosynthesis. Peptides 2004, 25, 1405–1414.
  33. Peng, J.S.; Meng, F.M.; Ai, Y.C. Time-dependent fermentation control strategies for enhancing synthesis of marine bacteriocin 1701 using artificial neural network and genetic algorithm. Bioresour. Technol 2013, 138, 345–352.
  34. Straume, D.; Kjos, M.; Nes, I.F.; Diep, D.B. Quorum-sensing based bacteriocin production is down-regulated by N-terminally truncated species of gene activators. Mol. Genet. Genomics 2007, 278, 283–293.
Ijms 14 24355f1 200

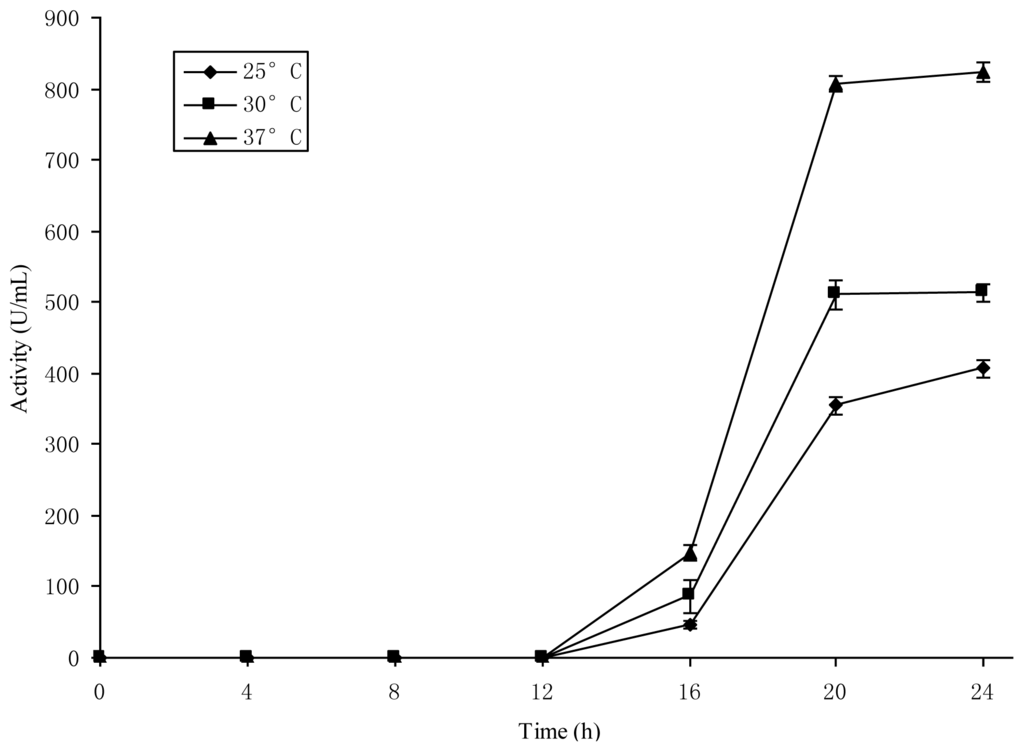

Figure 1. Effect of time and temperature on Lac-B23 production from Lactobacillus paracasei J23 in resting cell medium at 25 °C, 30 °C, 37 °C for 24 h, respectively. The composition of the resting cell medium is shown in Table 1. Values are expressed as mean value and standard deviation of triplicate determinations. Mean values (n = 3) for each experiment are presented.

Click here to enlarge figure

Figure 1. Effect of time and temperature on Lac-B23 production from Lactobacillus paracasei J23 in resting cell medium at 25 °C, 30 °C, 37 °C for 24 h, respectively. The composition of the resting cell medium is shown in Table 1. Values are expressed as mean value and standard deviation of triplicate determinations. Mean values (n = 3) for each experiment are presented.
Ijms 14 24355f1 1024
Ijms 14 24355f2 200

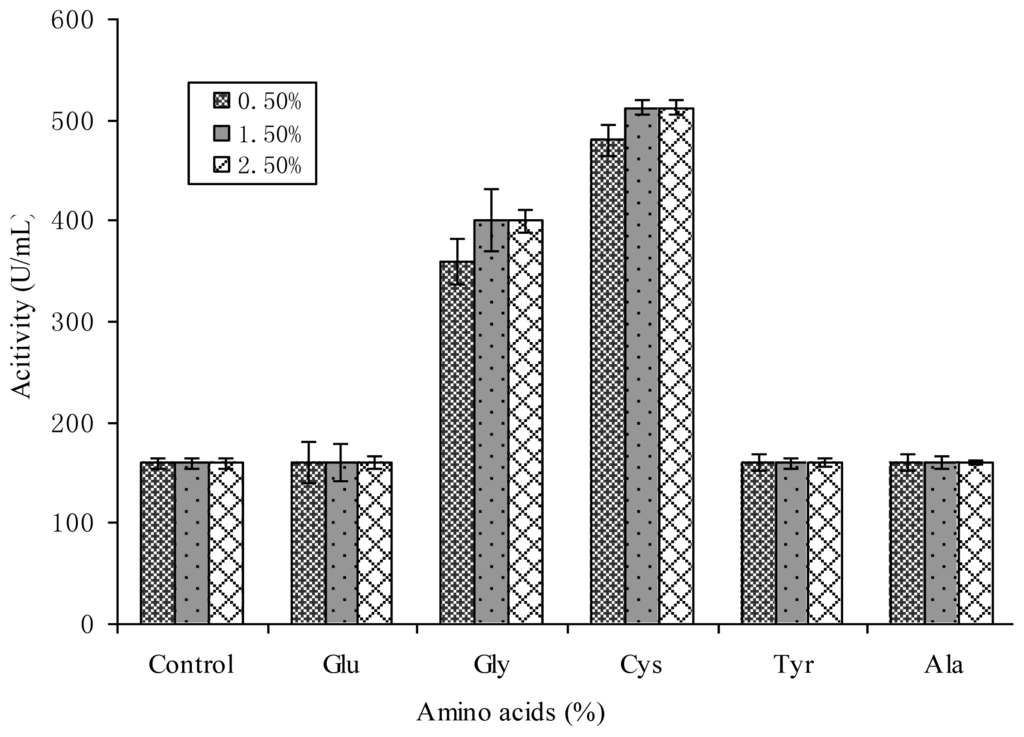

Figure 2. Effects of 5 amino acids addition on Lac-B23 production from Lactobacillus paracasei J23 in the resting cell medium at 37 °C for 20 h. The Lac-B23 production in the #5 medium was used as control. Values are expressed as mean value and standard deviation of triplicate determinations. Mean values (n = 3) for each experiment are presented.

Click here to enlarge figure

Figure 2. Effects of 5 amino acids addition on Lac-B23 production from Lactobacillus paracasei J23 in the resting cell medium at 37 °C for 20 h. The Lac-B23 production in the #5 medium was used as control. Values are expressed as mean value and standard deviation of triplicate determinations. Mean values (n = 3) for each experiment are presented.
Ijms 14 24355f2 1024
Ijms 14 24355f3 200

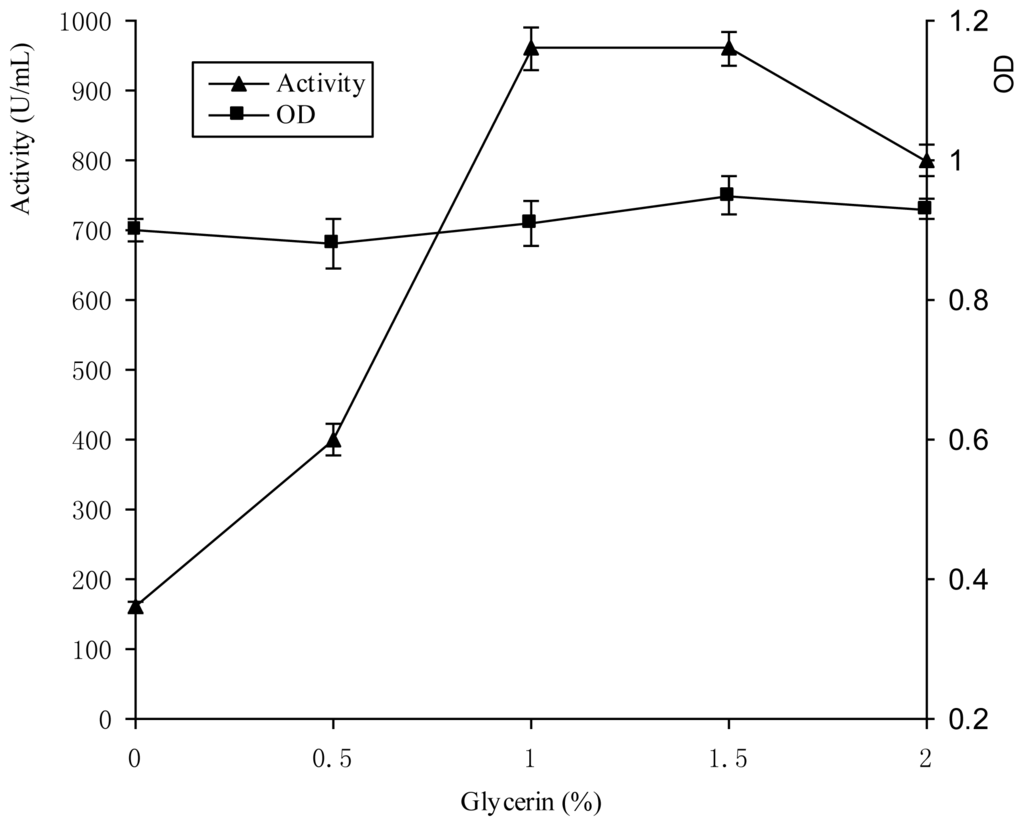

Figure 3. Effect of different addition of Glycerin on Lac-B23 production and Lactobacillus paracasei J23 growth in resting cell medium. Values are expressed as mean value and standard deviation of triplicate determinations. Mean values (n = 3) for each experiment are presented.

Click here to enlarge figure

Figure 3. Effect of different addition of Glycerin on Lac-B23 production and Lactobacillus paracasei J23 growth in resting cell medium. Values are expressed as mean value and standard deviation of triplicate determinations. Mean values (n = 3) for each experiment are presented.
Ijms 14 24355f3 1024
Ijms 14 24355f4 200

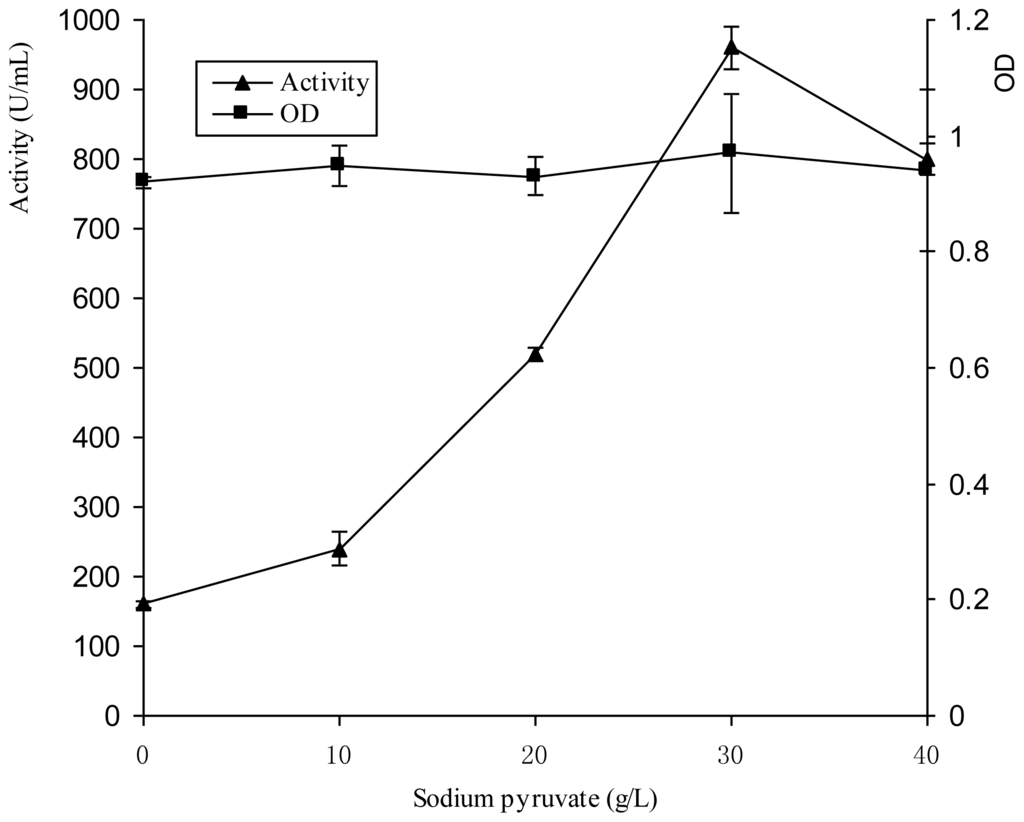

Figure 4. Effect of Sodium pyruvate on Lac-B23 production and Lactobacillus paracasei J23 growth in the resting cell medium. Values are expressed as mean value and standard deviation of triplicate determinations. Mean values (n = 3) for each experiment are presented.

Click here to enlarge figure

Figure 4. Effect of Sodium pyruvate on Lac-B23 production and Lactobacillus paracasei J23 growth in the resting cell medium. Values are expressed as mean value and standard deviation of triplicate determinations. Mean values (n = 3) for each experiment are presented.
Ijms 14 24355f4 1024
Ijms 14 24355f5 200

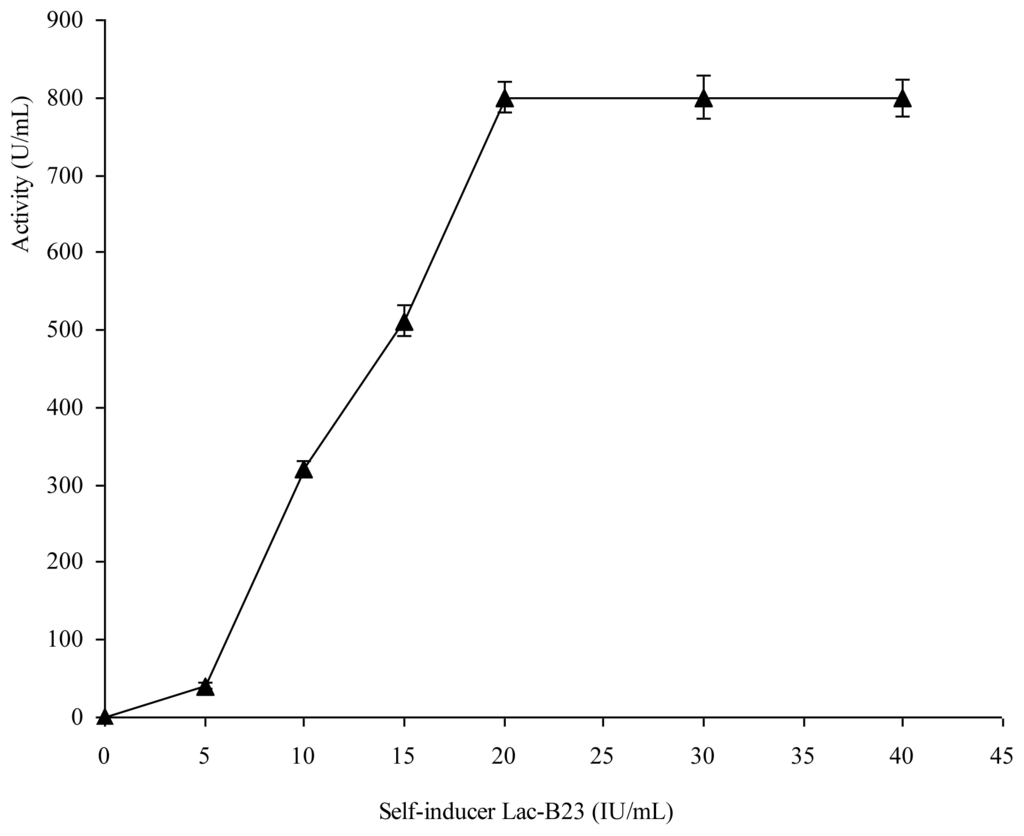

Figure 5. Dose-dependent of Lac-B23 production induced by itself from Lactobacillus paracasei J23. Values are expressed as mean value and standard deviation of triplicate determinations. Mean values (n = 3) for each experiment are presented.

Click here to enlarge figure

Figure 5. Dose-dependent of Lac-B23 production induced by itself from Lactobacillus paracasei J23. Values are expressed as mean value and standard deviation of triplicate determinations. Mean values (n = 3) for each experiment are presented.
Ijms 14 24355f5 1024
Ijms 14 24355f6 200

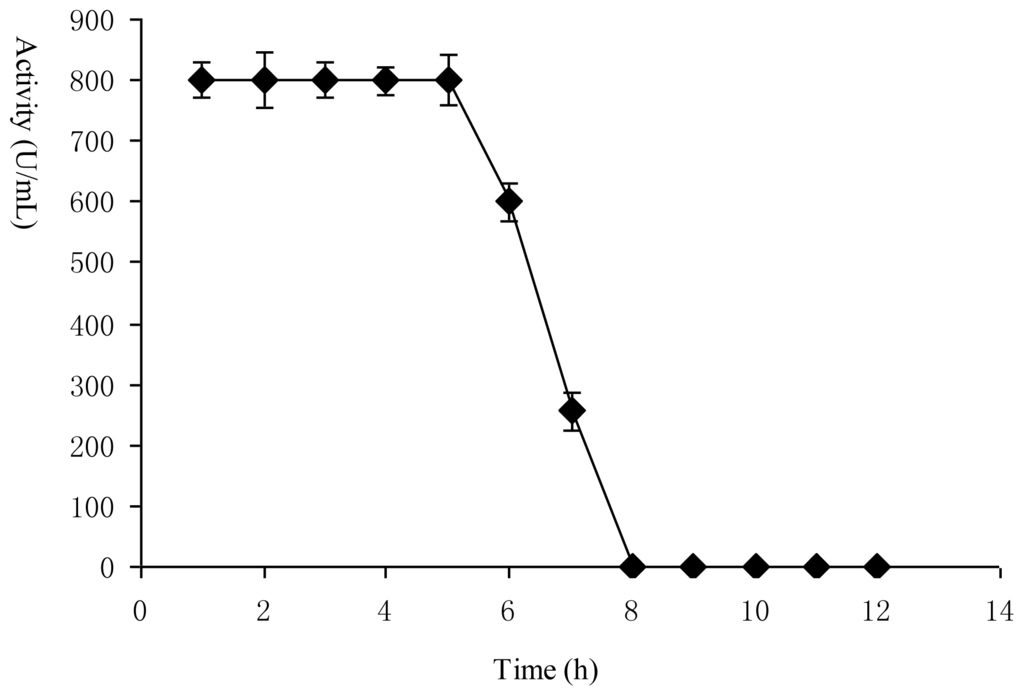

Figure 6. Time-dependent of Lac-B23 production induced by itself from Lactobacillus paracasei J23. Values are expressed as mean value and standard deviation of triplicate determinations. Mean values (n = 3) for each experiment are presented.

Click here to enlarge figure

Figure 6. Time-dependent of Lac-B23 production induced by itself from Lactobacillus paracasei J23. Values are expressed as mean value and standard deviation of triplicate determinations. Mean values (n = 3) for each experiment are presented.
Ijms 14 24355f6 1024
Table 1. Resting cell medium selection of Lactobacillus paracasei J23.

Click here to display table

Table 1. Resting cell medium selection of Lactobacillus paracasei J23.
Ingredient (g/L)Candidate culture medium for resting cell system

#1#2#3#4#5
Peptone10----
Beef extract10----
Yeast extract55---
Glucose2020202020
NaAC55555
Ammonium citrate dibasic22--1
MnSO40.250.250.25-0.25
MgSO40.580.580.5-0.5
KH2PO422--1
Activity (U)960160800160
ΔNucleic acid (g/L)2.141.89−0.11−0.200.05
Table 2. Validation test of resting cell system.

Click here to display table

Table 2. Validation test of resting cell system.
MediumBefore resting cultureAfter resting culture

DCW (g/L)NAC (g/L)Antimicrobial activity (U)DCW (g/L)NAC (g/L)Antimicrobial activity (U)
#52.820.8502.860.87160
Control2.790.7602.710.690
