Int. J. Mol. Sci. 2013, 14(12), 23762-23773; doi:10.3390/ijms141223762

Article
Tandem Aldol-Michael Reactions in Aqueous Diethylamine Medium: A Greener and Efficient Approach to Bis-Pyrimidine Derivatives
Abdullah M. Al-Majid 1, Assem Barakat 1,2,*, Hany J. AL-Najjar 1, Yahia N. Mabkhot 1, Hazem A. Ghabbour 3 and Hoong-Kun Fun 3
1
Department of Chemistry, Faculty of Science, King Saud University, P.O. Box 2455, Riyadh 11451, Saudi Arabia; E-Mails: amajid@ksu.edu.sa (A.M.A.-M.); hany_33@hotmail.com (H.J.A.-N.); yahia@ksu.edu.sa (Y.N.M.)
2
Department of Chemistry, Faculty of Science, Alexandria University, P.O. Box 426-Ibrahimia, Alexandria 21321, Egypt
3
Department of Pharmaceutical Chemistry, Faculty of Pharmacy, King Saud University, P.O. Box 2457, Riyadh 11451, Saudi Arabia; E-Mails: ghabbourh@yahoo.com (H.A.G.); hfun.c@ksu.edu.sa (H.-K.F.)
*
Author to whom correspondence should be addressed; E-Mail: ambarakat@ksu.edu.sa; Tel.: +966-1467-5884; Fax: +966-1467-5992.
Received: 24 October 2013; in revised form: 12 November 2013 / Accepted: 18 November 2013 /
Published: 5 December 2013

Abstract

: A simple protocol, involving the green synthesis for the construction of novel bis-pyrimidine derivatives, 3ai and 4ae are accomplished by the aqueous diethylamine media promoted tandem Aldol-Michael reaction between two molecules of barbituric acid derivatives 1a,b with various aldehydes. This efficient synthetic protocol using an economic and environmentally friendly reaction media with versatility and shorter reaction time provides bis-pyrimidine derivatives with high yields (88%–99%).
Keywords:
tandem Aldol-Michael reactions; MCRs; barbituric acid; aqueous media; green chemistry

1. Introduction

Derivatives of the 1,3-dimethylbarbituric acid (1) framework represent an important structural motif that is embodied in a number of bioactive natural products [15]. In particular, 5-Alkylated barbituric acids are one class of such compounds that possess diverse biological activity, with anticancer, HIV-1 and HIV-2 protease inhibitors [6], sedative-hypnotic [7,8], and anticonvulsant [9] properties. Many of their representatives have clinical use as antiinflammatory and hypnotic drugs, such as bucolome (Figure 1), veronal, phenobarbital, seconal, and sodium pentothal [1013]. A number of compounds having these systems are synthesized with diverse pharmacological activity [14,15]. New routes for the synthesis of these molecules have therefore attracted considerable attention in the search for a rapid entry to these heterocycles with diverse biological properties. In accordance with the principles of green chemistry, the design of easily separable, non-toxic and low cost synthesis obviating the isolation and purification of intermediates and thus leading to a reduction in pollution has become an important area of research in chemistry [16]. A potential approach toward this goal is to combine two or more distinct reactions into a single transformation, thereby affecting tandem reactions [1727]. Tandem reactions are therefore of increasing importance in modern organic chemistry. One-pot tandem reactions by virtue of their convergence, elegance, and super-economy are particularly appealing in the context of rapid target-oriented synthesis [2830].

We have investigated a new, simple and efficient synthesis of novel bis-pyrimidines derivatives based on tandem Aldol-Michael reactions using aqueous diethylamine medium.

2. Results and Discussion

Upon treatment of 2 molecules from 1,3-dimethylbarbituric acid 1a, with benzaldehyde 2a, water (1.5 mL) and in presence of one equivalent diethylamine, a one-pot three-component reaction proceeded spontaneously at room temperature. “Trimolecular adduct salts” 3a was obtained in 99% yield by simple filtration. The structure of the compound 3a was elucidated using spectroscopic data and elemental analyses. The NMR spectra confirmed the absence of the methylene proton of the 1,3-dimethylbarbituric acid moiety and the presence of a proton at δ 5.86 detected ppm revealing it to be the benzylic proton. The 3D structure was confirmed by single crystal structure determination (Figure 2a).

Encouraged by this result, we proceeded to study the effect of different amines and reaction conditions on the tandem Aldol-Michael reactions for the synthesis of bis-pyrimidine derivatives.

Due to the fact that the aqueous diethylamine medium gave the desired product 3a with quantitative yield, several secondary amines were therefore tested. Compared to aqueous diethylamine, aqueous diisopropylamine, aqueous dicyclohexylamine, and aqueous morpholine, which contain a bulkier amine, also gave the product but with less yield and lower reaction rates (Table 1, entries 2–4 respectively). Furthermore, NaOH was also examined and was found to be less efficient in the reaction. Only moderate yield was obtained (Table 1, entry 5). We also found that in the absence of water (entry 6) or with only water as a reactant (entry 7), the reaction either could not be processed or preceded very slowly.

The X-ray structure of diethylaminium salt 3b (Figure 2b) was obtained from a single crystal grown from DCM/Et2O as a solvent, and the structure shows interesting characteristics. We were unable to determine the location of the C4 and C8 hydrogens by 1H-NMR analysis. The hydrogen from C4, rather than from C8 of the barbituric acid moiety, is removed by the basicity of diethylamine. We determined that this was due to the fact that one hydrogen is on the diethylamine and the other is involved in hydrogen bonding interactions between both barbituric acid rings. It is noteworthy to mention that 1H-NMR also have shown a singlet signal at δ 17.64 pmm, which was revealed to belong to the OH group that is making a hydrogen bond. This hypothesis was further unambiguously confirmed by the elucidation the 3D chemical structure of product 3c by single crystal X-ray crystallography (Figure 2c).

A possible mechanism for the tandem Aldol-Michael reaction is shown in Figure 3. First, the hydrogen bonding activation of the C=O group by water eases the deprotonation of 1a by diethylamine. The aldehyde is then attacked by the enolate to form the Aldol condensation product after dehydration of the intermediate. The second Michael addition under these conditions produces the final product 3 (Figure 3) [3137].

With the optimal reaction conditions established, the generality of the Aldol-Michael reactions was next investigated by using a series of aldehydes (Table 2). Various aldehydes derivatives with either electron-withdrawing or electron-donating groups at the para-, meta-, or even sterically hindered ortho-position on the aromatic ring were tolerated and gave the corresponding bis-pyrimidine derivatives 3ai in excellent chemical yield up to 99% (Table 2). In addition, reactions with substrates 2, which contain sterically hindered 1-naphthyl proceeded smoothly to give products with very good results (Table 2, entry 9).

Finally, to confirm the general applicability of this novel reaction method in the preparation of a wide variety of bis-pyrimidines derivatives, we used barbituric acid itself. In every case, the corresponding bis-pyrimidines derivatives 4ae were isolated in excellent quantitative yields (Table 3).

3. Experimental Section

General: Chemicals were purchased from Sigma-Aldrich, Fluka (Seelze, Germany), and were used without further purification, unless otherwise stated. Melting points were measured on a Gallenkamp melting point apparatus (Weiss Gallenkamp Ltd., Leicestershire, UK) in open glass capillaries and are uncorrected. IR Spectra were measured as KBr pellets on a Nicolet 6700 FT-IR spectrophotometer (Madison, WI, USA). The NMR spectra were recorded on a Varian Mercury Jeol-400 NMR spectrometer (Tokyo, Japan).1H-NMR (400 MHz), and 13C-NMR (100 MHz) were run in either deuterated dimethylsulphoxide (DMSO-d6) or deuterated chloroform (CDCl3). Chemical shifts (δ) are referred in terms of ppm and J-coupling constants are given in Hz. Mass spectra were recorded on a Jeol of JMS-600 H (Tokyo, Japan). Elemental analysis was carried out on an Elmer 2400 elemental analyzer, CHN mode (Vernon Hills, IL, USA).

3.1. General Procedure for Aldol Condensation Michael Addition for the Synthesis of 3ai and 4ae (GP1)

A mixture of aldehyde 2 (1.5mmol), barbituric acid derivatives 1a,b (3 mmol) and Et2NH (1.5 mmol, 155 μL) in 3 mL of degassed H2O (bubbling nitrogen through the water) was stirred at room temperature for 1–5 h until TLC showed complete disappearance of the reactants. The precipitate was removed by filtration and washed with ether (3 × 20 mL). The solid was dried to afford pure product 3ai and 4ae.

3.1.1. 5,5′-(Phenylmethylene)bis(1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione) Diethylaminium Salt 3a

3a was prepared from 1,3-dimethylbarbituric acid 1a, and benzaldehyde 2a according to the general procedure (GP1) yielding colorless crystalline materials (1.4 g, 2.97 mmol, 99%). m.p.: 192 °C; IR (KBr, cm−1): 3450, 3222, 3019, 2814, 1707, 1655, 1524, 1442, 1345, 1274; 1H-NMR (400 MHz, DMSO-d6): δ 17.64 (s, 1H, OH), 7.58 (d, 2H, J = 7.3 Hz, NH2), 7.19 (m, 5H, Ph), 5.86 (s, 1H, benzyl-H), 3.05 (s, 12H, 4CH3), 2.93 (q, 4H, J = 7.3 Hz, CH2CH3), 1.16 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, DMSO-d6): δ = 161.6, 153.2, 145.5, 141.6, 129.1, 128.2, 127.8, 125.8, 88.5, 49.1, 41.9, 27.5, 11.5; LC/MS (ESI): 473 [M]+; Anal. for C23H31N5O6; Calcd: C, 58.34; H, 6.60; N, 14.79; Found: C, 58.35; H, 6.62; N, 14.80.

The structure of 3a was confirmed by X-ray crystal structure analysis (Bruker AXS GmbH, Karlsruhe, Germany). CCDC-933457 contains the supplementary crystallographic data for this compound. These data can be obtained free of charge from the Cambridge Crystallographic Data Centre via http://www.ccdc.cam.ac.uk/data_request/cif. A colorless crystal suitable for X-ray analysis was obtained from recrystallization of the compound from DCM/Et2O at room temperature after 5 days.

3.1.2. 5,5′-(p-Tolylmethylene)bis(1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione) Diethylaminium Salt 3b

3b was prepared from 1,3-dimethylbarbituric acid 1a, and p-tolualdehyde 2b according to the general procedure (GP1) yielding colorless needle materials (1.41 g, 2.91 mmol, 97%). m.p.: 152 °C; IR (KBr, cm−1): 3455, 3210, 2984, 2820, 1560, 1449, 1359; 1H-NMR (400 MHz, CDCl3): δ 17.64 (s, 1H, OH), 6.99–6.96 (m, 4H, Ph), 5.80 (s, 1H, benzyl-H), 3.32 (s, 12H, 4CH3), 3.03 (q, 4H, J = 7.3 Hz, CH2CH3), 2.25 (s, 3H, CH3), 1.28 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, CDCl3): δ = 165.3, 164.3, 151.8, 138.6, 134.8, 128.9, 126.3, 92.1, 42.0, 34.2, 28.9, 28.6, 21.0, 11.4; LC/MS (ESI): 487[M]+; Anal. for C24H35N5O6; Calcd: C, 59.12; H, 6.82; N, 14.36; Found: C, 59.13; H, 6.81; N, 14.35.

The structure of 3b was confirmed by X-ray crystal structure analysis (Bruker AXS GmbH). CCDC-957025 contains the supplementary crystallographic data for this compound. These data can be obtained free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif. A colorless crystal suitable for X-ray analysis was obtained from recrystallization the compound from DCM/Et2O at room temperature after 2 days.

3.1.3. 5,5′-((4-Chlorophenyl)methylene)bis(1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione) Diethylaminium Salt 3c

3c was prepared from 1,3-dimethylbarbituric acid 1a, and p-chlorobenzaldehyde 2c according to the general procedure (GP1) yielding colorless crystals (1.44 g, 2.85 mmol, 95%). m.p.: 103 °C; IR (KBr, cm−1): 3450, 3198, 2988, 1698, 1603, 1479, 1385; 1H-NMR (400 MHz, CDCl3): δ 17.66 (s, 1H, OH), 7.18 (d, 2H, J = 8.8 Hz, Ph), 7.05 (d, 2H, J = 8.8 Hz, Ph), 5.80 (s, 1H, benzyl-H), 3.34 (s, 12H, 4CH3), 3.06 (q, 4H, J = 7.3 Hz, CH2CH3), 1.30 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, CDCl3): δ = 165.3, 164.3, 151.7, 138.6, 134.8, 128.2, 126.3, 91.7, 42.1, 34.2, 28.9, 28.7, 11.5; LC/MS (ESI): 507[M]+; Anal. for C23H30ClN5O6; Calcd: C, 54.38; H, 5.95; Cl, 6.98; N, 13.79; Found: C, 54.38; H, 5.94; Cl, 7.01; N, 13.81.

The structure of 3c was confirmed by X-ray crystal structure analysis (Bruker AXS GmbH). CCDC-957026 contains the supplementary crystallographic data for this compound. These data can be obtained free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif. A colorless crystal suitable for X-ray analysis was obtained from recrystallization the compound from DCM/Et2O at room temperature after 2 days.

3.1.4. 5,5′-((4-Bromophenyl)methylene)bis(1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione) Diethylaminium Salt 3d

3d was prepared from 1,3-dimethylbarbituric acid 1a, and p-bromobenzaldehyde 2d according to the general procedure (GP1) yielding beige powder (1.5 g, 2.76 mmol, 92%). m.p.: 125 °C; IR (KBr, cm−1): 3454, 3200, 3019, 2814, 1707, 1650, 1518, 1442, 1377, 1274; 1H-NMR (400 MHz, CDCl3): δ 17.62 (s, 1H, OH), 7.31 (d, 2H, J = 8.8 Hz, Ph), 6.99 (d, 2H, J = 8.8 Hz, Ph), 5.79 (s, 1H, benzyl-H), 3.33 (s, 12H, 4CH3), 3.03 (q, 4H, J = 7.3 Hz, CH2CH3), 1.27 (t, 6H, J = 7.3 Hz, CH2CH3) ; 13C-NMR (100 MHz, CDCl3): δ = 165.3, 164.3, 151.7, 141.1, 131.1, 128.4, 119.3, 91.7, 42.1, 34.2, 28.9, 28.7, 11.4; LC/MS (ESI): 552[M]+; Anal. for C23H30BrN5O6; Calcd: C, 50.01; H, 5.47; Br, 14.46; N, 12.68; Found: C, 50.00; H, 5.47; Br, 14.49; N, 12.70.

3.1.5. 5,5′-((3-Bromophenyl)methylene)bis(1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione) Diethylaminium Salt 3e

3e was prepared from 1,3-dimethylbarbutric acid 1a, and m-bromobenzaldehyde 2e according to the general procedure (GP1) yielding colorless crystalline materials (1.5g, 2.76 mmol, 92%). m.p.: 169 °C; IR (KBr, cm−1): 3450, 3120, 2982, 1694, 1667, 1615, 1577, 1445, 1250; 1H-NMR (400 MHz, CDCl3): δ 17.63 (s, 1H, OH), 7.22 (d, 1H, J = 7.3 Hz, Ph), 7.19 (s, 1H, Ph), 7.07 (d, 1H, J = 7.3 Hz, Ph), 7.05 (d, 1H, J = 7.3 Hz, Ph), 5.84 (s, 1H, benzyl-H), 3.34 (s, 6H, 2CH3), 3.32 (s, 6H, 2CH3), 3.02 (q, 4H, J = 7.3 Hz, CH2CH3), 1.27 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, CDCl3): δ = 165.2, 164.4, 151.7, 144.7, 129.7,129.6, 128.7, 125.3, 91.5, 42.1, 34.4, 28.9, 28.7, 11.5; LC/MS (ESI): 552[M]+; Anal. for C23H30BrN5O6; Calcd: C, 50.01; H, 5.47; Br, 14.46; N, 12.68; Found: C, 50.03; H, 5.48; Br, 14.47; N, 12.71.

3.1.6. 5,5′-((4-Methoxyphenyl)methylene)bis(1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione) Diethylaminium Salt 3f

3f was prepared from 1,3-dimethylbarbutric acid 1a, and p-methoxybenzaldehyde 2f according to the general procedure (GP1) yielding rose-colored crystalline materials (1.35 g, 2.7 mmol, 90%). m.p.: 160 °C; IR (KBr, cm−1): 3445, 3195, 2977, 2836, 1689, 1664, 1613, 1504, 1447, 1378, 1242; 1H-NMR (400 MHz, CDCl3): δ 17.67 (s, 1H, OH), 7.01 (d, 2H, J = 8.8 Hz, Ph), 6.75 (d, 2H, J = 8.8 Hz, Ph), 5.79 (s, 1H, benzyl-H), 3.33 (s, 12H, 4CH3), 2.99 (q, 4H, J = 7.3 Hz, CH2CH3), 1.26 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, CDCl3): δ = 165.3, 164.3, 157.4, 151.7, 133.6, 132.0, 127.4, 114.3, 92.1, 55.6, 42.1, 33.8, 28.9, 11.5; LC/MS (ESI): 503[M]+; Anal. for C24H33N5O7; Calcd: C, 57.25; H, 6.61; N, 13.91; Found: C, 57.26; H, 6.61; N, 13.90.

3.1.7. 5,5′-((4-Nitrophenyl)methylene)bis(1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione) Diethylaminium Salt 3g

3g was prepared from 1,3-dimethylbarbutric acid 1a, and p-nitrobenzaldehyde 2g according to the general procedure (GP1) yielding a yellow powder (1.35 g, 2.61 mmol, 87%); m.p.: 195 °C; IR (KBr, cm−1): 3453, 3205, 2987, 2904, 1675, 1608, 1576, 1511, 1438, 1343, 1254; 1H-NMR (400 MHz, CDCl3): δ 17.58 (s, 1H, OH), 8.08 (d, 2H, J = 8.8 Hz, Ph), 7.29 (d, 2H, J = 8.8 Hz, Ph), 5.95 (s, 1H, benzyl-H), 3.34 (s, 12H, 4CH3), 3.07 (q, 4H, J = 7.3 Hz, CH2CH3), 1.29 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, CDCl3): δ = 165.2, 164.4, 151.6, 150.8, 146.1, 127.5, 123.5, 91.4, 42.2, 34.9, 28.9, 28.7, 11.5; LC/MS (ESI): 518[M]+; Anal. for C23H30N6O8; Calcd: C, 53.28; H, 5.83; N, 16.21; Found: C, 53.29; H, 5.85; N, 16.23.

3.1.8. 5,5′-(3-Tolylmethylene)bis(1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione) Diethylaminium Salt 3h

3h was prepared from 1,3-dimethylbarbituric acid 1a, and m-tolualdehyde 2h according to the general procedure (GP1) yielding rose-colored crystalline materials. (1.41 g, 2.91 mmol, 97%). m.p.: 135 °C; IR (KBr, cm−1): 3455, 3201, 2988, 1693, 1667, 1611, 1573, 1443; 1H-NMR (400 MHz, CDCl3): δ 17.62 (s, 1H, OH), 7.10 (t, 1H, J = 7.3 Hz, Ph), 6.92 (d, 1H, J = 7.3 Hz, Ph), 6.88 (d, 1H, J = 7.3 Hz, Ph), 5.82 (s, 1H, benzyl-H), 3.32 (s, 12H, 4CH3), 3.01 (q, 4H, J = 7.3 Hz, CH2CH3), 2.25 (s, 3H, CH3), 1.26 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, CDCl3): δ = 165.3, 164.4, 151.8, 141.7, 137.4, 127.9, 127.1, 126.4, 123.6, 92.1, 42.0, 34.4, 28.9, 28.6, 21.8, 11.4; LC/MS (ESI): 487[M]+; Anal. for C24H35N5O6; Calcd: C, 59.12; H, 6.82; N, 14.36; Found: C, 59.13; H, 6.81; N, 14.35.

3.1.9. 5,5′-(Naphthalen-2-ylmethylene)bis(1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione) Diethylaminium Salt 3i

3i was prepared from 1,3-dimethylbarbutric acid 1a, and 2-naphthaldehyde 2i according to the general procedure (GP1) yielding beige powder (1.47 g, 2.82 mmol, 94%). m.p.: 146 °C; IR (KBr, cm−1): 3454, 3200, 2967, 1668, 1585, 1438, 1250; 1H-NMR (400 MHz, CDCl3): δ 17.33 (s, 1H, OH), 8.10 (d, 2H, J = 8.8 Hz, naphthyl-H), 7.99 (d, 2H, J = 8.8 Hz, naphthyl-H), 7.92 (d, 2H, J = 8.8 Hz, naphthyl-H), 7.90 (d, 2H, J = 8.8 Hz, naphthyl-H), 7.84 (d, 2H, J = 8.8 Hz, naphthyl-H), 7.68–7.38 (m, 3H, naphthyl-H), 6.37 (s, 1H, benzyl-H), 3.39 (s, 12H, 4CH3), 3.01 (q, 4H, J = 7.3 Hz, CH2CH3), 1.30 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, CDCl3): δ = 164.9, 151.7, 136.8, 135.3, 134.3, 131.5, 129.1, 128.5, 127.0, 125.2 124.9, 123.8, 93.2, 41.8, 33.2, 28.8, 11.4; LC/MS (ESI): 523 [M]+; Anal. for C27H33N5O6; Calcd: C, 61.94; H, 6.35; N, 13.38; Found: C, 61.95; H, 6.34; N, 13.40.

3.1.10. 5,5′-(Phenylmethylene)bis(6-hydroxypyrimidine-2,4(1H,3H)-dione) Diethylaminium Salt 4a

4a was prepared from barbituric acid 1b, and benzaldehyde 2a according to the general procedure (GP1) yielding an oil product (1.22g, 2.94mmol, 98%); IR (KBr, cm−1): 3450, 3200, 2976, 2839, 1668, 1615, 1505, 1383, 1247; 1H-NMR (400 MHz, DMSO-d6): δ 17.22 (s, 1H, OH), 10.10 (bs, 4H, NH), 7.14 (t, 3H, J = 7.3 Hz, Ph), (d, 2H, J = 7.3 Hz, Ph), 7.29 (d, 2H, J = 8.8 Hz, Ph), 5.95 (s, 1H, benzyl-H), 2.93 (q, 4H, J = 7.3 Hz, CH2CH3), 1.15 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, DMSO-d6): δ = 165.3, 164.4, 151.7, 142.1.3, 134.3, 129.9, 127.3, 91.6, 42.6, 30.1, 11.6; LC/MS (ESI): 417[M]+; Anal. for C19H23N5O6; Calcd: C, 54.67; H, 5.55; N, 16.78; Found: C, 54.68; H, 5.54; N, 16.79.

3.1.11. 5,5′-(p-Tolylmethylene)bis(6-hydroxypyrimidine-2,4(1H,3H)-dione) Diethylaminium Salt 4b

4b was prepared from barbituric acid 1b, and p-tolualdehyde 2b according to the general procedure (GP1) yielding white powder (1.22 g, 2.85 mmol, 95%); m.p.: 205 C; IR (KBr, cm−1): 3459, 3120, 2978, 2811, 1689, 1612, 1325, 1252; 1H-NMR (400 MHz, DMSO-d6): δ 17.18 (s, 1H, OH), 10.09 (bs, 4H, NH), 6.93 (m, 4H, Ph), 5.90 (s, 1H, benzyl-H), 2.79 (q, 4H, J = 7.3 Hz, CH2CH3), 2.20 (s, 3H, CH3), 1.07 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, DMSO-d6): δ = 164.8, 164.1, 151.3, 142.1, 133.5, 128.5, 127.1, 91.6, 42.6, 30.6, 21.1, 13.0; LC/MS (ESI): 431[M]+; Anal. for C20H25N5O6; Calcd: C, 55.68; H, 5.84; N, 16.23; Found: C, 55.67; H, 5.83; N, 16.22.

3.1.12. 5,5′-((4-Chlorophenyl)methylene)bis(6-hydroxypyrimidine-2,4(1H,3H)-dione) Diethylaminium Salt 4c

4c was prepared from barbituric acid 1b, and p-chlorobenzaldehyde 2c according to the general procedure (GP1) yielding a white powder (1.28 g, 2.85 mmol, 95%); m.p.: 221 °C; IR (KBr, cm−1): 3435, 3185, 2978, 2830, 1677, 1548, 1448, 1345, 1250; 1H-NMR (400 MHz, DMSO-d6): δ 17.17 (s, 1H, OH), 10.00 (bs, 4H, NH), 7.18 (m, 4H, Ph), 5.93 (s, 1H, benzyl-H), 2.88 (q, 4H, J = 7.3 Hz, CH2CH3), 1.12 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, DMSO-d6): δ = 164.7, 164.0, 151.2, 144.6, 133.5, 129.9, 129.1, 127.8, 91.3, 42.1, 30.7, 11.8; LC/MS (ESI): 451[M]+; Anal. for C19H22ClN5O6; Calcd C, 50.50; H, 4.91; Cl, 7.85; N, 15.50; Found: C, 50.51; H, 4.90; Cl, 7.83; N, 15.51.

3.1.13. 5,5′-((4-Methoxyphenyl)methylene)bis(6-hydroxypyrimidine-2,4(1H,3H)-dione) Diethylaminium Salt 4d

4d was prepared from barbituric acid 1b, and p-methoxybenzaldehyde 2f according to the general procedure (GP1) yielding a beige powder (1.22 g, 2.73 mmol, 91%); m.p.: 195 °C; IR (KBr, cm−1): 3449, 3190, 2991, 2835, 1688, 1592, 1505, 1383, 1247; 1H-NMR (400 MHz, DMSO-d6): δ 17.26 (s, 1H, OH), 9.99 (bs, 4H, NH), 6.92 (d, 2H, J = 8.0 Hz, Ph), 6.72 (d, 2H, J = 8.0 Hz, Ph), 5.88 (s, 1H, benzyl-H), 2.90 (q, 4H, J = 7.3 Hz, CH2CH3), 1.14 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, DMSO-d6): δ = 164.6, 164.0, 157.0, 151.2, 137.2, 132.4, 115.1, 91.7, 55.4, 42.1, 30.7, 11.6; LC/MS (ESI): 447[M]+; Anal. for C20H25N5O7; Calcd C, 53.69; H, 5.63; N, 15.65; Found: C, 53.69; H, 5.63; N, 15.66.

3.1.14. 5,5′-(Naphthalen-2-ylmethylene)bis(6-hydroxypyrimidine-2,4(1H,3H)-dione) Diethylaminium Salt 4e

4e was prepared from barbituric acid 1b, and 2-naphthaldehyde 2i according to the general procedure (GP1) yielding a beige powder (1.3 g, 2.79 mmol, 93%); m.p.: 192 °C; IR (KBr, cm−1): 3459, 3208, 2994, 1677, 1579, 1448, 1386, 1354; 1H-NMR (400 MHz, DMSO-d6): δ 16.92 (s, 1H, OH), 10.41 (bs, 4H, NH), 8.13 (d, 1H, J = 8.8 Hz, naphthyl), 7.81(d, 1H, J = 8.8Hz, naphthyl), 7.63 (d, 1H, J = 8.8 Hz, naphthyl), 7.38–7.32 (m, 4H, naphthyl), 6.46 (s, 1H, benzyl-H), 2.79 (q, 4H, J = 7.3 Hz, CH2CH3), 1.08 (t, 6H, J = 7.3 Hz, CH2CH3); 13C-NMR (100 MHz, DMSO-d6): δ = 164.9, 151.1,141.5, 135.8, 134.0,132.4, 129.3, 128.7, 126.0,125.8, 125.5, 125.2, 124.9, 123.8, 92.3, 42.5, 29.7, 12.7; LC/MS (ESI): 467[M]+; Anal. for C23H25N5O6; Calcd C, 59.09; H, 5.39; N, 14.98; Found: C, 59.12; H, 5.40; N, 15.01.

4. Conclusions

In summary, we have shown that the multicomponent tandem Aldol condensation/Michael addition reaction of aromatic aldehydes with barbituric acid 1a,b by aqueous diethylamine medium is a powerful and efficient method for the synthesis of novel bis-pyrimidine derivatives 3ai and 4ae, which are of biological significance. In addition to its efficiency, simplicity and milder reaction conditions, this method provides excellent yields of the products with selectivity. Further studies on expanding the application of this method and the biological evaluation of these pyrimidine derivatives are in progress.

Acknowledgments

The authors extend their appreciation to the Deanship of Scientific Research at King Saud University for funding the work through the research group project Number RGP-VPP-257.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bojarski, J.T.; Mokrocz, J.L.; Barton, H.J.; Paluchowska, M.H. Recent progress in barbituric acid chemistry. In Adv. Heterocycl. Chem; 1985; Volume 38, pp. 229–297. [Google Scholar]
  2. Undheim, K.; Bennecke, T.; Katritzky, A.R.; Rees, C.W.; Scriven, E.F.V.; Boulton, A.J. (Hrsg.). Comprehensive Heterocyclic Chemistry; Elsevier Pergamon: Oxford, UK, 1996; Volume 6 Suppl 93. [Google Scholar]
  3. Von Angerer, S. Product class 12: Pyrimidines. Sci. Synth 2004, 16, 379–572. [Google Scholar]
  4. Sans, S.R.G.; Chosaz, M.G. Historical aspects and applications of barbituric acid derivatives. Pharmazie 1988, 43, 827–829. [Google Scholar]
  5. Taylor, J.B. Modern Medical Chemistry; Prentice Hall: New York, NY, USA, 1994. [Google Scholar]
  6. Guerin, D.J.; Mazeas, D.; Musale, M.S.; Naguib, F.N.M.; Safarjalani, O.N.A.; Kouni, M.H.; Panzica, R.P. Uridine phosphorylase inhibitors: Chemical modification of benzyloxybenzyl barbituric acid and its effects on UrdPase inhibition. Bioorg. Med. Chem. Lett 1999, 9, 1477–1480. [Google Scholar]
  7. Andrews, G. Medical Pharmacology; The CV Mosby Co: St. Louis, MO, USA, 1976; pp. 243–250. [Google Scholar]
  8. Foye, W.O. Principles of Medicinal Chemistry; Lea & Febiger: Pennsylvania, PA, USA, 1989; pp. 143–237. [Google Scholar]
  9. Goodman, L.S.; Gilman, A. The Pharmacological Basis of Therapeutics; Mc Graw-Hill: New Delhi, India, 1991; pp. 358–360. [Google Scholar]
  10. Fisher, E.; von Mering, J. Ueber eine neue Klasse von Schlafmitteln. Ther. Ggw 1903, 44, 97–105. [Google Scholar]
  11. Doran, W.J. Barbituric acid hypnotics. Med. Chem 1959, 4, 164–167. [Google Scholar]
  12. Bobranski, B. Progress in chemistry of barbituric acid. In Wiad. Chem; 1977; Volume 31, pp. 231–278. [Google Scholar]
  13. Senda, S.; Izumi, H.; Fujimura, H. Uracil derivatives and related compounds. VI. Derivatives of 5-alkyl-2,4,6-trioxoperhydropyrimidine as anti-inflammatory agents. Arzneim. Forsch 1967, 17, 1519–1523. [Google Scholar]
  14. Anderson, G.L.; Shim, J.L.; Brown, A.D. Pyrido[2,3-d]pyrimidines. IV. Synthetic studies leading to various oxopyrido[2,3-d]pyrimidines. J. Org. Chem 1976, 41, 1095–1099. [Google Scholar]
  15. Grivaky, E.M.; Lee, S.; Siyal, C.W.; Duch, D.S.; Nichol, C.A. Synthesis and antitumor activity of 2,4-diamino-6-(2,5-dimethoxybenzyl)-5-methylpyrido[2,3-d]pyrimidine. J. Med. Chem 1980, 23, 327–329. [Google Scholar]
  16. Gawande, M.B.; Bonifacio, V.D.B.; Luque, R.; Branco, P.S.; Varma, R.S. Benign by design: Catalyst-free in-water, on-water green chemical methodologies in organic synthesis. Chem. Soc. Rev 2013, 42, 5522–5551. [Google Scholar]
  17. Ho, T.L. Tandem Organic Reactions; Wiley: New York, NY, USA, 1992. [Google Scholar]
  18. Nicolaou, K.C.; Yue, E.W.; Oshima, T. New Roads to Molecular Complexity. In The New Chemistry; Hall, N., Ed.; Cambridge University Press: Cambridge, UK, 2001; pp. 168–198. [Google Scholar]
  19. Tietze, L.F.; Hautner, F. Domino Reaction in Organic Synthesis. An Approach to Efficiency, Elegance, Ecological Benefit, Economic Advantage, and Preservation of Our Resources in Chemical Transformation. In Stimulating Concepts in Chemistry; Vögtle, F., Stoddart, J., Shibasaki, F.M., Eds.; Wiley-VCH: Weinheim, Germany, 2000; pp. 38–64. [Google Scholar]
  20. Tietze, L.F.; Beifuss, U. Sequential transformations in organic chemistry: A synthetic strategy with a future. Angew. Chem. Int. Ed. Engl 1993, 32, 131–163. [Google Scholar]
  21. Tietze, L.F. Domino reactions in organic synthesis. Chem. Rev 1996, 96, 115–136. [Google Scholar]
  22. Thompson, L.A. Recent applications of polymer-supported reagents and scavengers in combinatorial, parallel, or multistep synthesis. Curr. Opin. Chem. Biol 2000, 4, 324–337. [Google Scholar]
  23. Nefzi, A.; Ostresh, J.M.; Houghten, R.A. The current status of heterocyclic combinatorial libraries. Chem. Rev 1997, 97, 449–472. [Google Scholar]
  24. Yanovskaya, L.A.; Dombrovsky, V.A.; Khusid, A. Cyclopropanes with Functional Groups. Synthesis and Application; Nauka: Moscow, Russia, 1980. [Google Scholar]
  25. Tsuji, T.; Nishida, S. The Chemistry of the Cyclopropyl Group; Wiley and Sons: New York, NY, USA, 1987. [Google Scholar]
  26. Boche, G.; Walbirsky, H.M. Cyclopropane Derived Intermediates; John Wiley and Sons: New York, NY, USA, 1990. [Google Scholar]
  27. Rappoport, Z. The Chemistry of the Cyclopropyl Group; Wiley and Sons: New York, NY, USA, 1996. [Google Scholar]
  28. Posner, G.H. Multicomponent one-pot annulations forming 3 to 6 bonds. Chem. Rev 1986, 86, 831–834. [Google Scholar]
  29. Bunce, R.A. Recent advances in the use of tandem reactions for organic synthesis. Tetrahedron 1995, 48, 13103–13159. [Google Scholar]
  30. Anastas, P.T.; Warner, J.C. Green Chemistry: Theory and Practice; Oxford University Press: New York, NY, USA, 2000. [Google Scholar]
  31. Gruttadauria, M.; Giacalone, F.; Marculesco, A.M.; Meo, P.L.; Riela, S.; Noto, R. Hydrophobically directed Aldol reactions: Polystyrene-supported l-proline asa recyclable catalyst for direct asymmetric Aldol reactions in the presence of water. Eur. J. Org. Chem 2007, 4688–4698. [Google Scholar]
  32. Breslow, R. Determining the geometries of transition states by use of antihydrophobic additives in water. Acc. Chem. Res 2004, 37, 471–478. [Google Scholar]
  33. Blackmond, D.G.; Armstrong, A.; Coombe, V.; Wells, A. Water in organocatalytic processes: Debunking the myths. Angew. Chem. Int. Ed. Engl 2007, 46, 3798–3800. [Google Scholar]
  34. Abaee, M.S.; Cheraghi, S.; Navidipoor, S.; Mojtahedi, M.M.; Forghani, S. An efficient tandem aldol condensation-thia-Michael addition process. Tetrahedron Lett 2012, 53, 4405–4408. [Google Scholar]
  35. Barakat, A.; Al-Majid, A.A.; Shahidul Islam, M.; Al-Othman, Z.A. Highly enantioselective Friedel–Crafts alkylations of indoles with α,β-unsaturated ketones under Cu(II)-simple oxazoline-imidazoline catalysts. Tetrahedron 2013, 69, 5185–5192. [Google Scholar]
  36. Jursic, B.S. Preparation of unsubstituted dipyridine-dibarbituric acid ylide through dimerization of pyridin-2-ylmethylenepyrimidinetrione as a reactive intermediate. J. Heterocyclic Chem 2003, 40, 167–170. [Google Scholar]
  37. Jursic, B.S.; Neumann, D.M. Preparation of 5,5′-pyrilidene and 5,5′-quinolidene bis-barbituric acid derivatives. J. Heterocycl. Chem 2003, 40, 465–474. [Google Scholar]
Ijms 14 23762f1 1024

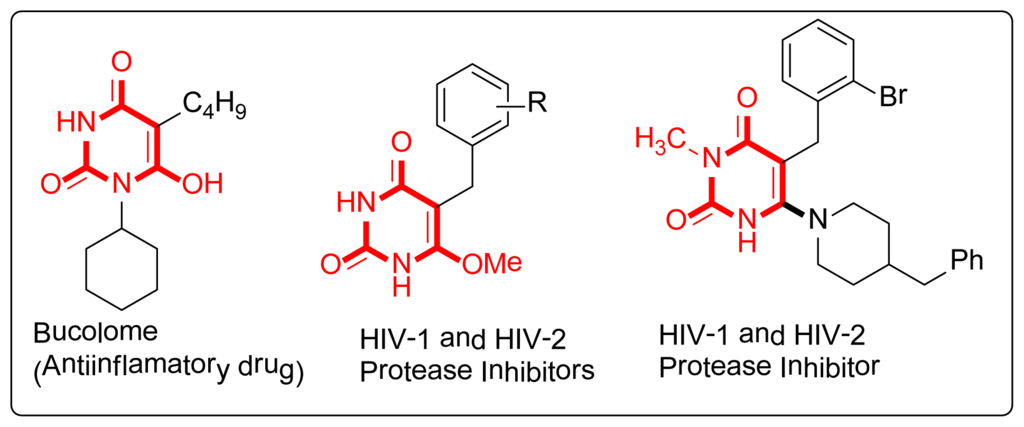

Figure 1. Bioactive compounds containing the barbituric acid framework.

Click here to enlarge figure

Figure 1. Bioactive compounds containing the barbituric acid framework.
Ijms 14 23762f1 1024
Ijms 14 23762f2 1024

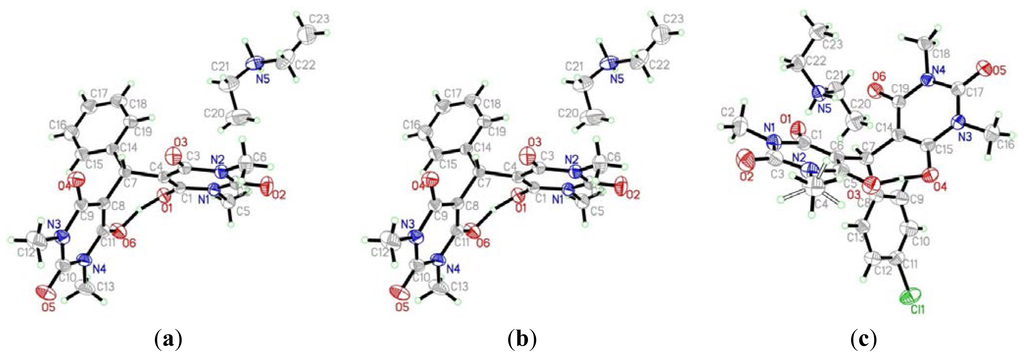

Figure 2. ORTEP representation of the structure of 3ac.

Click here to enlarge figure

Figure 2. ORTEP representation of the structure of 3ac.
Ijms 14 23762f2 1024
Ijms 14 23762f3 1024

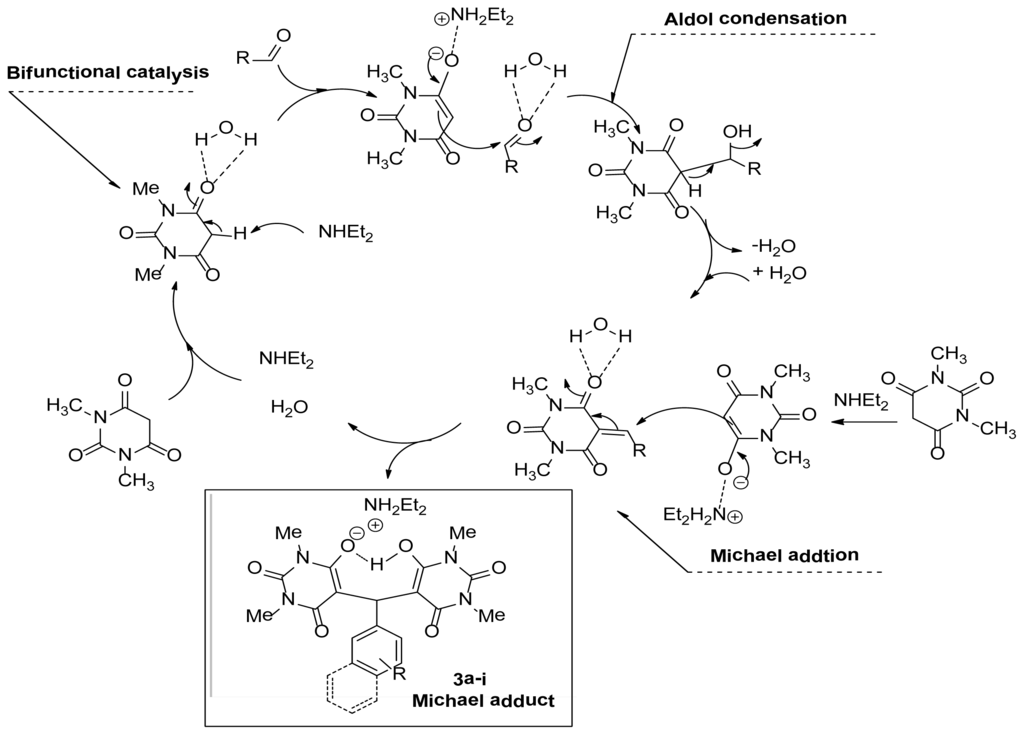

Figure 3. A possible mechanistic pathway.

Click here to enlarge figure

Figure 3. A possible mechanistic pathway.
Ijms 14 23762f3 1024
Table Table 1. Screening of conditions for the Aldol-Michael addition reaction of model substrate a.

Click here to display table

Table 1. Screening of conditions for the Aldol-Michael addition reaction of model substrate a.
Ijms 14 23762f4

EntryConditionTime (h)Yield (%) b
1Et2NH/H2O199
2iPr2NH/H2O585
3(Cyclohexyl)2NH/H2O482
4Morpholine/H2O378
5NaOH/H2O865
6Et2NH1210
7H2O120

aAll reactions were carried out with 1,3-dimethylbarbituric acid 1a (3 mmol), benzaldehyde 2a (1.5 mmol) and amine (1.5 mmol) in water (1.5 mL) for the specified time;bYield of isolated product.

Table Table 2. Tandem Aldol-Michael reactions of 1,3-dimethylbarbituric acid 1a with aldehydes in aqueous diethylamine medium a.

Click here to display table

Table 2. Tandem Aldol-Michael reactions of 1,3-dimethylbarbituric acid 1a with aldehydes in aqueous diethylamine medium a.
Ijms 14 23762f5

Entry3RYield (%) b
13aPh99
23bp-CH3Ph97
33cp-ClPh95
43dp-BrPh92
53em-BrPh92
63fp-CH3OPh90
73gp-NO2Ph88
83hm-CH3Ph92
93i2-Naphthaldehyde94

aAll reactions were carried out with 1,3-dimethyl barbituric acid 1a (3 mmol), aldehydes 2a–i (1.5 mmol) and amine (1.5 mmol) in water (1.5 mL) for the specified time;bYield of isolated product.

Table Table 3. Tandem Aldol-Michael reactions of barbituric acid 1b with aldehydes in aqueous diethylamine medium a.

Click here to display table

Table 3. Tandem Aldol-Michael reactions of barbituric acid 1b with aldehydes in aqueous diethylamine medium a.
Ijms 14 23762f6

Entry4RYield (%) b
14aPh98
24bp-CH3Ph95
34cp-ClPh95
44dp-CH3OPh91
54e2-Naphthaldehyde93

aAll reactions were carried out with barbituric acid 1b (3 mmol), aldehydes 2 (1.5mmol) and amine (1.5mmol) in water (1.5 mL) for the specified time;bYield of isolated product.
