Int. J. Mol. Sci. 2013, 14(11), 21887-21898; doi:10.3390/ijms141121887

The Anti-Fasciolasis Properties of Silver Nanoparticles Produced by Trichoderma harzianum and Their Improvement of the Anti-Fasciolasis Drug Triclabendazole
Youssuf A. Gherbawy 1,2,*, Ismail M. Shalaby 1, Mahmoud Syed Abd El-sadek 3, Hesham M. Elhariry 1,4 and AbdelElah A. Banaja 1
Department of Biological Sciences, Faculty of Science, Taif University, P.O. Box 888, Taif 21974, Saudi Arabia; E-Mails: (I.M.S.); (H.M.E.); (B.A.A.)
Botany Department, Faculty of Science, South Valley University, Qena 83523, Egypt
Nanomaterial Lab., Physics Department, Faculty of Science, South Valley University, Qena 83523, Egypt; E-Mail:
Department of Food Science, Faculty of Agriculture, Ain Shams University, POB 68- Hadayek Shoubra, Cairo 11241, Egypt
Author to whom correspondence should be addressed; E-Mail:; Tel.: +966-55-3993-906.
Received: 22 September 2013; in revised form: 21 October 2013 / Accepted: 28 October 2013 /
Published: 5 November 2013


: Recently, new strains of Fasciola demonstrated drug resistance, which increased the need for new drugs or improvement of the present drugs. Nanotechnology is expected to open some new opportunities to fight and prevent diseases using an atomic scale tailoring of materials. The ability to uncover the structure and function of biosystems at the nanoscale, stimulates research leading to improvement in biology, biotechnology, medicine and healthcare. The size of nanomaterials is similar to that of most biological molecules and structures; therefore, nanomaterials can be useful for both in vivo and in vitro biomedical research and applications. Therefore, this work aimed to isolate fungal strains from Taif soil samples, which have the ability to synthesize silver nanoparticles. The fungus Trichoderma harzianum, when challenged with silver nitrate solution, accumulated silver nanoparticles (AgNBs) on the surface of its cell wall in 72 h. These nanoparticles, dislodged by ultrasonication, showed an absorption peak at 420 nm in a UV-visible spectrum, corresponding to the plasmon resonance of silver nanoparticles. The transmission electron micrographs of dislodged nanoparticles in aqueous solution showed the production of reasonably monodisperse silver nanoparticles (average particle size: 4.66 nm) by the fungus. The percentage of non hatching eggs treated with the Triclabendazole drug was 69.67%, while this percentage increased to 89.67% in combination with drug and AgNPs.
egg hatching; Fasciola; silver nanoparticle; Triclabendazole; Trichoderma

1. Introduction

Fasciola spesies is an important parasite of sheep and camel, so it has been the subject of many scientific investigations. This is not only because of its high prevalence rates but also due to its enormous production losses in these animals reported from various parts of the world. In addition, fasciolosis is now recognized as an emerging human disease by the World Health Organization. Fascioliasis, a serious infectious parasitic disease infecting domestic ruminants and humans, tops all the zoonotic helminthes worldwide [1]. It is caused by a liver fluke belonging to genus Fasciola. A large variety of animals, such as sheep, goats, cattle, buffalo, horses, donkeys, camels and rabbits, show infection rates that may reach 90% in some areas [2]. The infection with Fasciola spp. represents a major human health problem in diverse parts of Africa such as Egypt, Zambia, Kenya, Algeria, Zimbabwe, Tanzania and Nigeria [310], and recently, human infection cases with F. hepatica have been documented from southwest Tunisia, with prevalence infection of 6.6% [11]. In Saudi Arabia, Fasciola gigantic counted as one of the most common gastrointestinal helminthes in camels in Saudi Arabia [12]. Fasciola sp. were with 14.5% prevalence from leafy vegetables in Riyadh region [13]. Fascioliasis among local and imported sheep in Saudi Arabia was studied [14]. This study showed that, the detection of eggs revealed 13.5% infection rate compared with 21.9% by detection of worms (p < 0.001). In addition, the infection rate was significantly higher (p < 0.001) among the imported sheep (15.1%) than among the local ones (4.96%). A report on stool analysis of male immigrant manual workers in Saudi Arabia, suggested that nine out of ten patients suffered from human fascioliasis [3,14,15]. Abou-Zinadah and Fouad [16] examined 20 imported sheep for fascioliasis natural infection by kato thick smear and by Fasciola-indirect haemagglutination test (IHAT). They reported that stool examination revealed infection in 13/20 (65%), but IHAT identified 11/20 (55%). Therefore, the sensitivity was 84.5%.

At present, there is no vaccine available for the prevention of fascioliasis [17], and hence chemotherapy is the current mainstay of control. Triclabendazole is the drug of choice as it is safe and efficacious against both juvenile and adult flukes [18]. There is considerable concern of drug resistance development in humans, as drug resistance has already been reported from sheep and cattle from different parts of the world as e.g., Australia, Ireland, The Netherlands, Spain and the UK [19,20]. Currently, the interest in nanotechnological approaches in microbiology is growing rapidly, as in all fields of the science [21,22]. The main motive is the expectation that nanoparticles will be able to be used in the treatment of various diseases in the future [2325]. In recent studies, it was determined that through their unique properties and large surface areas, metal oxide nanoparticles possess effective antimicrobial activities [25]. Particularly, owing to their great chemical reactivity, nanoparticles are capable of producing reactive oxygen species (ROS), which have the ability to kill infectious agents. The antibacterial and antiviral behaviors of silver, silver ions, and silver-containing compounds have long been investigated [26,27]. Ag-NPs demonstrated significant antileishmanial effects by inhibiting the proliferation and metabolic activity of promastigotes by 1.5- to threefold, respectively, in the dark, and 2- to 6.5-fold, respectively, under UV light [28]. The preparation of uniform nanosized silver particles with specific requirements in terms of size, shape, and physical and chemical properties is of great interest in the formulation of new pharmaceutical products [29,30]. Currently, there is a growing need to using environmentally friendly nanoparticles that do not produce toxic wastes in their process synthesis protocol. To achieve this, we are inclined to shift to benign synthesis processes, which happen to be mostly of biological nature [31].

In the present investigation, we explore the potential of Trichoderma harzianum to synthesize AgNPs and test the drug efficacy of Triclabendazole alone and with AgNPs on egg hatching of Fasciola eggs.

2. Results and Discussion

HRTEM was employed to obtain direct information about the size of the produced Ag nanoparticles. Figure 1 shows the HRTEM image and the distribution size diagram of the Ag nanoparticles. The particles were separately dispersed on a on a carbon coated copper TEM grid and transmission electron microscopy (TEM) investigations were analyzed. TEM image of Ag nanoparticles revealed crystalline, free-standing, and approximately spherical particles as well as a number of aggregates. Average particle size calculated by log-normal fitting to the size distribution histogram, was obtained as 4.66 nm. The silver nanoparticles are crystalline, as can be seen from the selected area diffraction pattern recorded from one of the nanoparticles in the aggregates (Figure 1 Inside). The separation between the silver nanoparticles seen in the TEM image could be due to capping by proteins and would explain the UV-Vis spectroscopy measurements, which is characteristic of well-dispersed silver nanoparticles. These monodispersed silver nanoparticles (biosynthesized by Trichoderma viride) showed emission in the range of 320–520 nm wavelength [32]. Considering the UV-vis intensity, wavelength, TEM and particle size distribution the most promising results obtained indicate that, the optimum conditions for preparation of silver nanoparticles colloids with excellent size and size distribution ranged from 3 to 8 nm could be produced using 10 g biomass of fungus F. solani; 0.085 g AgNO3; pH 12; temperature, ~25 °C and duration, 48 h [33]. The morphology of the nanoparticles synthesized by Trichoderma reesei was highly variable and these assemblies were found to be aggregates of silver nanoparticles in the size range 5–50 nm [34]. In addition, the nanoparticles were not in direct contact even within the aggregates, indicating stabilization of the nanoparticles by a capping agent [34]. AgNPs synthesized by different species of Trichoderma were found single or aggregated with round and uniform in shape and 6–80 nm in size [35]. Efficacy of AgNPs biosynthesis was reported due to reductase action or by electron shuttle quinones or both [36]. In fact, it is shown that the presence of hydrogenase and nitrate reductase are essential elements for metal reduction [36,37].

UV-visible absorption spectra for Ag NPs prepared from Trichoderma harzianum using silver nitrate are shown in Figure 2. The spectra recorded from the Ag NPs solution, it is seen that a blue shift in the onset of absorption is observed in this sample and showed an absorbance peak at 420 nm, which was specific for the silver nanoparticles [38].

This phenomenon of blue shift of absorption edge has been ascribed to a decrease in particle size. This results in a shift in the absorption edge to a lower wavelength region. Furthermore, nanoparticles are highly sensitive and functionally efficient because of smaller grain size and high surface to volume ratio as compared to the conventional materials in micrometer range where in case of nano-scale materials most atoms, ions and defects would be on the surface.

It is observed, from the spectra of Trichoderma viride synthesized silver nano solution, that the silver surface plasmon band occurs at 405 nm in addition to prominent band at around 260 nm [32]. Aspergillus flavus when challenged with silver nitrate solution a characteristic surface Plasmon absorption band at 420 nm was observed at 24 h that attained the maximum intensity after 72 h. After 72 h of incubation, no change in intensity at 420 nm was observed indicating complete reduction of silver ions [39]. The ultraviolet-visible spectra of Aspergillus terreus cell filtrate with AgNO3 showed a strong broad peak at 440 nm (SPR band), which indicated the presence of AgNPs [40]. Devi et al. [35] screened 75 isolates belonged to 5 Trichoderma species for Ag NBs. Their results indicated that the high Plasmon band was observed at 420 nm at every 24 h.

Previously studies reported that the antimicrobial activities of AgNPs are size-dependent, the smallest sized showed the strongest effect [41]. Therefore, we already tested the smallest size of AgNPs (4.66 mm). Table 1 shows the results of Fasiola egg hatching experiment. The table shows that eggs were hatched at a percentage of 100% in non-treated control eggs. As for the in vitro treated eggs with the drug alone the ratio was 29.4% hatched and 70.6% non-hatched. As for that treated with the drug together with the silver nano particles (biologically synthesized from Trichoderma harzianum) the ratio was 9.4% hatched and 90.6% non-hatched. Applying ANOVA test on the hatched and non-hatched data with both treatments showed that p < 0.001 (highly significant), with F value 96.257.

Egg of Fasciola is oval measuring 120 micron long and 40 micron wide. It has an operculum on its top. The egg is immature when first laid by the worm. Under electron microscope, the egg surface texture is smooth with no ornamentations (Figure 3). Electron micrographs of eggs representing the three patches are showed in Figures 35. Figure 3 shows non-treated control egg, notice the smooth texture of the egg shell and the non-distorted eggs. Figure 4 shows the egg treated with the drug alone, notice the partly distorted surface and rough texture of the egg surface. Figure 5 shows the egg treated with the drug with the silver nano particles, notice the more distorted surface and the perforations that are obviously shown on the egg surface.

The results in Table 1 indicated that 30.33% of Fasciola eggs hatched in the presence of Triclabendazole sulfoxide (TCBZ). The results of Moll et al. [42] showed a significant reduction of 99.7%, 98.1% and 99.2%, respectively, in fluke egg output at 21 days in all non-TCBZ treated animals. In addition, they reported that, TCBZ treatment produced percentage decreases of 15.3%, 4.3% and 36.6%, respectively. These results are highly indicative of the presence of TCBZ-resistant Fasciola hepatica in sheep and cattle on this farm. The efficacy of the drug has been reported to be minimized due to drug resistance in animals [43,44]. The results of the present work showed that the drug efficacy on the hatchability of Fasciola eggs is increases drastically using silver nano particles combined with the drug of choice (10.33% and 30.33% respectively). Triclabendazole (TCBZ) is inhibiting of microtubule-dependent processes as a result of binding to the β-tubulin molecule [4547]. However, if TCBZ action is associated with microtubule depolymerisation, some egg damage would be expected considering that the drug may accumulate within the egg in therapeutic concentrations [48]. Figure 5 showed the penetration sites of AgNPs to egg shill. This AgNPs may be cause membrane damage. The NPs that anchor onto Escherichia coli cell surface and penetrating the cells may cause membrane damage, which could result in cell lysis [49]. Ciprofloxacin-loaded nanoparticles were more active in human macrophages infected with Mycobacterium avium complex than free drug [50]. The efficacy of ampicillin was found to be increased by 120-fold in murine salmonellosis by loading the drug into the nanoparticles [51]. The azithromycin nanoparticle preparations showed appropriate physicochemical and improved antimicrobial properties, which can be useful for oral administration [52]. Efficacy and broadening of antibacterial action of drugs enhanced via the use of capped Mesoporous nanoparticles [53]. In addition, surface plasmon enhanced drug efficacy using core-shell Au@SiO2 nanoparticle carrier as reported recently [54].

3. Materials and Methods

3.1. Source of Microorganisms

The fungus culture, Trichoderma harzianum (TUT89) was isolated from soil sample In Taif region and maintained in potato dextrose agar (HiMedia, Mumbai, India) slant at 27 °C. Internal transcribed spacer region (ITS) sequence for this strain was deposited in GenBank and its accession number is HE649481.

3.2. Production of Biomass

To prepare the biomass for biosynthesis studies the fungus was grown aerobically in liquid broth containing (g/L) KH2PO4, 7; K2HPO4, 2; MgSO4·7H2O, 0.1; (NH2)SO4, 1; yeast extract, 0.6; glucose, 10. The culture flasks were incubated on an orbital shaker at 27 °C and agitated at 150 rpm. The biomass was harvested after 72 h of growth by sieving through a plastic sieve followed by extensive washing with sterile double-distilled water to remove any medium components from the biomass [32].

3.3. Synthesis of AgNPs

Typically 20 g of biomass (wet weight) were brought into contact with 100 mL sterile double-distilled water for 48 h at 27 °C in an Erlenmeyer flask and agitated as described above. After incubation, the cell filtrate was filtered by Whatman filter paper No.1 (Oakland, CA, USA). After filtration, the observed pH of cell filtrate was 7.2. Into these 100 mL of cell filtrate, a carefully weighed quantity of silver nitrate was added to the Erlenmeyer flask to yield overall Ag+ ions concentration of 10–3 M, and the reaction was carried out under dark conditions [32].

3.4. Characterization of AgNPs

3.4.1. UV-Visible Spectral Analysis

Change in color observed in the silver nitrate solution incubated with the tested strains. The UV-visible spectra of this solution recorded in spectrophotometer, from 200 to 800 nm, at an interval of 24 h. The silver nanoparticles dispersed in water by ultrasonication will be kept at room temperature (37 °C) for 3 months and the absorption peak at 420 nm will be measured continuously, to determine their stability.

3.4.2. SEM, TEM and Electron Diffraction Analysis

The freeze-dried mycelial mats (positive control and silver nitrate treated sample) mounted on specimen stubs with double-sided adhesive tape and coated with gold/palladium in a sputter coater and examined under SEM at 12–15 kV with a tilt angle of 45°. For TEM, a drop of aqueous solution containing the silver nanomaterials placed on the carbon coated copper grids and dried under Infrared lamp.

3.4.3. Effect of Triclabendazole and Ag NPs in F. hepatica

Six-well multidishes were used for the experiments. One hundred eggs of F. hepatica isolate were placed into each well, as much water as possible drawn off, then 3 mL of a Triclabendazole sulfoxide (TCBZ.SO) solution (a drug of choice for Fascioliasis), specific concentration of AgNPs (50 μg/mL) and combination of Ag-NPs with TCBZ was added at a specific concentration (0.1 μg/mL); this was also true of the dimethyl sulfoxide (DMSO) solution in the control well. One replicate of each was set up in the same multidish, together with a separate control well containing DMSO at a concentration of 0.5% (v/v) in tap water. Previous experiments had shown that, at this concentration, the solvent did not affect egg development and hatching [55]. Separate multidishes were set up in the same way, to give a minimum of 3 replicates in total. The multidishes were placed into a dark incubator at 25° and monitored every other day over a period of 14 days. At the end of the 14-day time period, the drug solution in each well was carefully removed and replaced with 3 mL of tap water. The plates were placed on a light box for 1–2 h to stimulate hatching, then each well was examined under a dissecting microscope and the number of eggs at each stage of development recorded using a tally chart [55].

3.4.4. Data Processing and Statistics

All experiments were repeated at least three times in triplicate wells. The results were expressed as the mean plus or minus the standard deviation. Data were analyzed using SPSS software (version 16.0 for Windows; SPSS Inc, Chicago, IL, USA) and p < 0.05 values were considered statistically significant.

4. Conclusions

The present study indicates Ag-NPs has considerable antifasciolasis activity comparison with Triclabendazole drug, so deserving further investigation for clinical applications.

Ijms 14 21887f1 200

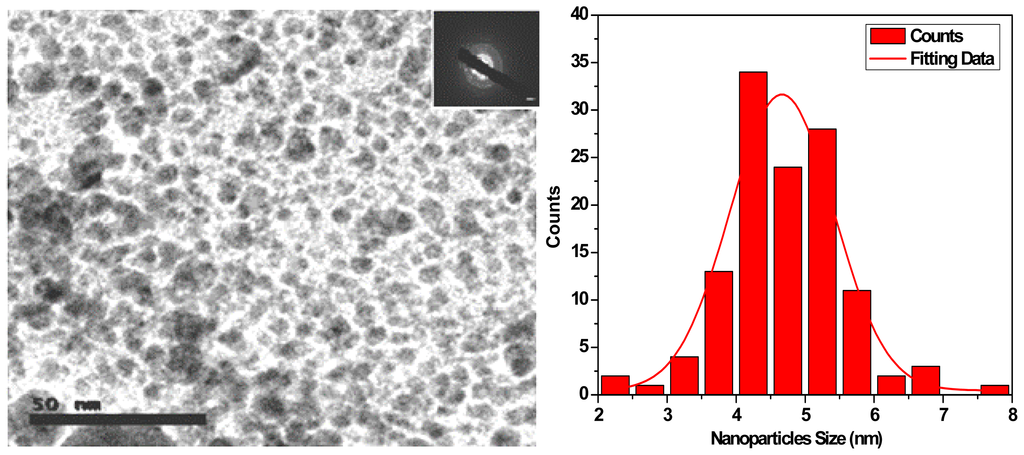

Figure 1. HRTEM image and size dispersion histogram of Ag nanoparticles.

Click here to enlarge figure

Figure 1. HRTEM image and size dispersion histogram of Ag nanoparticles.
Ijms 14 21887f1 1024
Ijms 14 21887f2 200

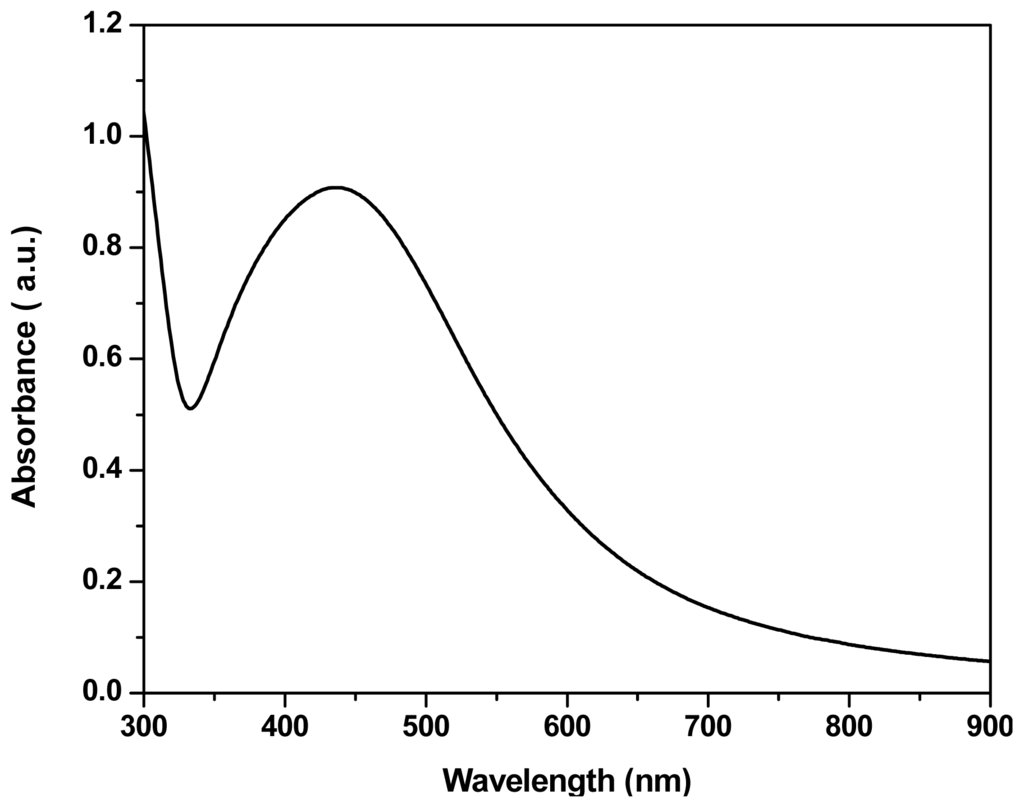

Figure 2. UV-visible spectra of fungal filtrate containing Ag nanoparticles.

Click here to enlarge figure

Figure 2. UV-visible spectra of fungal filtrate containing Ag nanoparticles.
Ijms 14 21887f2 1024
Ijms 14 21887f3 200

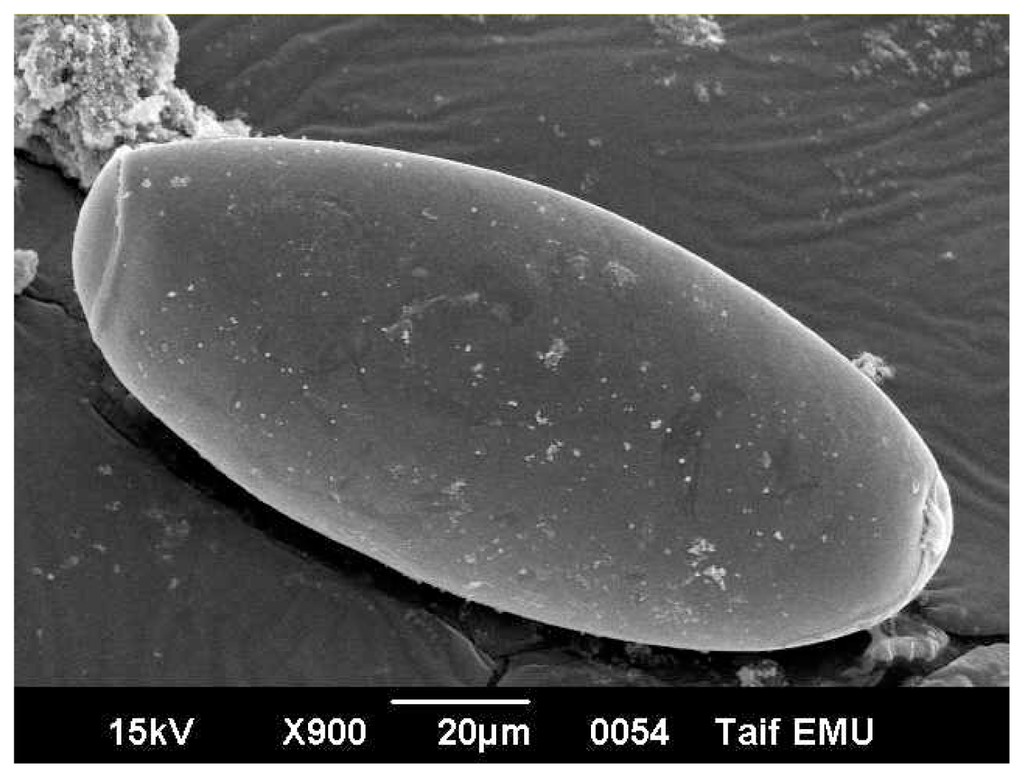

Figure 3. Fasciola egg (control, non treated) Notice the smooth texture of the egg surface.

Click here to enlarge figure

Figure 3. Fasciola egg (control, non treated) Notice the smooth texture of the egg surface.
Ijms 14 21887f3 1024
Ijms 14 21887f4 200
Figure 4. Fasciola egg treated in vitro with the drug only. Notice the alterations on the egg surface due to drug administration.

Click here to enlarge figure

Figure 4. Fasciola egg treated in vitro with the drug only. Notice the alterations on the egg surface due to drug administration.
Ijms 14 21887f4 1024
Ijms 14 21887f5 200
Figure 5. Fasciola egg treated in vitro with the drug with nano silver particles. Notice the perforations on the egg surface due to the effect of drug carried on nano silver particles.

Click here to enlarge figure

Figure 5. Fasciola egg treated in vitro with the drug with nano silver particles. Notice the perforations on the egg surface due to the effect of drug carried on nano silver particles.
Ijms 14 21887f5 1024
Table 1. A comparison between hatched and non-hatched Fasciola eggs in both treatments (Drug alone) and (drug with AgNPs). As between both treatments the data is almost the same (p value is <0.001).

Click here to display table

Table 1. A comparison between hatched and non-hatched Fasciola eggs in both treatments (Drug alone) and (drug with AgNPs). As between both treatments the data is almost the same (p value is <0.001).
Number of eggsNon-treated eggsEggs in-vitro treated with the drug aloneEggs in-vitro treated with the drug combined with nano particles

F values0096.2696.26


This work was supported by a grant (Contract No. 2116-433-1) sponsored by Taif University, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Haridy, F.M.; Morsy, T.A.; Gawish, N.I.; Antonios, T.N.; Abdel Gawad, A.G. The potential reservoir role of donkeys and horses in zoonotic fascioliasis in Gharbia Governorate. Egypt. J. Egypt. Soc. Parasitol 2002, 32, 561–570.
  2. Farag, H.F. Human fascioliasis in some countries of the Eastern Mediterranean Region. East. Mediterr. Health J 1998, 4, 156–160.
  3. Haseeb, A.N.; El-Shazly, A.M.; Arafa, M.A.; Morsy, A.T. A review on fascioliasis in Egypt. J. Egypt. Soc. Parasitol 2002, 32, 317–354.
  4. Lotfy, W.M.; El-Morshedy, H.N.; Abou El-Hoda, M.; El-Tawila, M.M.; Omarb, E.A.; Farag, H.F. Identification of the Egyptian species of Fasciola. Vet. Parasitol 2002, 103, 323–332.
  5. Mekroud, A.; Benakhla, A.; Vignoles, P.; Rondelaud, D.; Dreyfuss, G. Preliminary studies on the prevalences of natural fasciolosis in cattle, sheep, and the host snail (Galba truncatula) in north-eastern Algeria. Parasitol. Res 2004, 92, 502–505.
  6. Keyyu, J.D.; Kassuku, A.A.; Msalilwa, L.P.; Monrad, J.; Kyvsgaard, N.C. Cross-sectional prevalence of helminth infections in cattle on traditional, small-scale and large-scale dairy farms in Iringa district, Tanzania. Vet. Res. Commun 2006, 30, 45–55.
  7. Mungube, E.O.; Bauni, S.M.; Tenhagen, B.A.; Wamae, L.W.; Nginyi, J.M.; Mugambi, J.M. The prevalence and economic significance of Fasciola gigantica and Stilesia hepatica in slaughtered animals in the semi-arid coastal Kenya. Trop. Anim. Health Prod 2006, 38, 475–483.
  8. Pfukenyi, D.M.; Mukaratirwa, S.; Willingham, A.L.; Monrad, J. Epidemiological studies of Fasciola gigantica infections in cattle in the highveld and lowveld communal grazing areas of Zimbabwe Onderstepoort. J. Vet. Res 2006, 73, 37–51.
  9. Phiri, A.M.; Phiri, I.K.; Chota, A.; Monrad, J. Trematode infections in freshwater snails and cattle from the Kafue wetlands of Zambia during a period of highest cattle–water contact. J. Helminthol 2007, 81, 85–92.
  10. Ali, H.; Ai, L.; Song, H.Q.; Ali, S.; Lin, R.Q.; Seyni, B.; Issa, G.; Zhu, X.Q. Genetic characterisation of Fasciola samples from different host species and geographical localities revealed the existence of F. hepatica and F. gigantica in Niger. Parasitol. Res 2008, 102, 1021–1024.
  11. Hammami, H.; Hamed, N.; Ayadi, A. Epidemiological studies on Fasciola hepatica in Gafsa Oases (south west of Tunisia). Parasite 2007, 14, 261–264.
  12. Banaja, A.A.; Ghandour, A.M. A review of parasites of camels in Saudi Arabia. J. KSU Sci 1994, 6, 75–86.
  13. Al-Megrin, W. Prevalence of intestinal parasites in leafy vegetables in Riyadh, Saudi Arabia. Int. J. Zool. Res 2010, 6, 190–195.
  14. Sanad, M.M.; Al-Megrin, W.A. Fascioliasis among local and imported sheep in Saudi Arabia: Parasitological and serological diagnosis. J. Egypt. Soc. Parasitol 2005, 35, 1121–1134.
  15. Eligail, A.M.; Masawi, A.M.; Al-Jaser, N.M.; Abdelrahman, K.A.; Shah, A.H. Audit of stool analysis results to ensure the prevalence of common types of intestinal parasites in Riyadh region, Saudi Arabia. Saudi J. Biol. Sci 2010, 17, 1–4.
  16. Abou-Zinadah, N.Y.; Fouad, M.A. Anti-Fasciola antibodies among rodents and sheep in Jeddah, Saudi Arabia. J. Egypt. Soc. Parasitol 2005, 35, 711–716.
  17. McManus, D.P.; Dalton, J.P. Vaccines against the zoonotic trematodes Schistosoma japonicum, Fasciola hepatica and Fasciola gigantica. Parasitology 2006, 133, S43–S61.
  18. Keiser, J.; Morson, G. Fasciola hepatica: Tegumental alterations in adult flukes following in vitro and in vivo administration of artesunate and artemether. Exp. Parasitol 2008, 118, 228–237.
  19. Alvarez-Sanchez, M.A.; Mainar-Jaime, R.C.; Perez-Garcia, J.; RojoVazquez, F.A. Resistance of Fasciola hepatica to triclabendazole and albendazole in sheep in Spain. Vet. Rec 2006, 159, 424–425.
  20. Keiser, J.; Engels, D.; Büscher, G.; Utzinger, J. Triclabendazole for the treatment of fascioliasis and paragonimiasis. Expert Opin. Investig. Drugs 2005, 14, 1513–1526.
  21. Curtis, A.; Wilkinson, C. Nantotechniques and approaches in biotechnology. Trends Biotechnol 2001, 19, 97–101.
  22. Oka, H.; Tomioka, T.; Tomita, K.; Nishino, A.; Ueda, S. Inactivation of enveloped viruses by a silver-thiosulfate complex. Met. Based Drugs 1994, 1, doi:10.1155/MBD.1994.511.
  23. Angeli, E.; Buzio, R.; Firpo, G. Nanotechnology applications in medicine. Tumori 2008, 94, 206–215.
  24. Debbage, P. Targeted drugs and nanomedicine: Present and future. Curr. Pharm. Des 2009, 15, 153–172.
  25. Elechiguerra, J.L.; Burt, J.L.; Morones, J.R.; Camacho-Bragado, A.; Gao, X.; Lara, H.H.; Yacaman, M.J. Interaction of silver nanoparticles with HIV-1. J. Nanobiotechnol 2005, 3, doi:10.1186/1477-3155-3-6.
  26. Tokumaru, T.; Shimizu, Y.; Fox, C.L. Antiviral activities of silver sulfadiazine and ocular infection. Res. Commun. Chem. Pathol. Pharmacol 1974, 8, 151–158.
  27. Oloffs, A.; Grosse-Siestrup, C.; Bisson, S.; Rinck, M.; Rudolph, R.; Gross, U. Biocompatibility of silver-coated polyurethane catheters and silver-coated Dacron material. Biomaterials 1994, 15, 753–758.
  28. Allahverdiyev, A.M.; Abamor, E.S.; Bagirova, M.; Ustundag, C.B.; Kaya, C.; Kaya, F.; Rafailovich, M. Antileishmanial effect of silver nanoparticles and their enhanced antiparasitic activity under ultraviolet light. Int. J. Nanomed 2011, 6, 2705–2714.
  29. Brigger, I.; Dubernet, C.; Couvreur, P. Nanoparticles in cancer therapy and diagnosis. Adv. Drug Deliv. Rev 2002, 54, 631–651.
  30. Merisko-Liversidge, E.; Liversidge, G.G.; Cooper, E.R. Nanosizing: A formulation approach for poorly-watersoluble compounds. Eur. J. Pharm. Sci 2003, 18, 113–120.
  31. Mansoori, G.A. Principles of Nanotechnology—Molecular-Based Study of Condensed Matter in Small Systems; World Scientific Pub. Co: Hackensack, NJ, USA, 2005.
  32. Fayaza, M.; Tiwaryb, C.S.; Kalaichelvana, P.T.; Venkatesanc, R. Blue orange light emission from biogenic synthesized silver nanoparticles using Trichoderma viride. Colloids Surf. B 2010, 75, 175–178.
  33. El-Rafie, M.H.; Mohamed, A.A.; Shaheen, T.A.; Hebeish, A. Antimicrobial effect of silver nanoparticles produced by fungal process on cotton fabrics. Carbohydr. Polym 2010, 80, 779–782.
  34. Vahabi, K.; Mansoori, G.A.; Karimi, S. Biosynthesis of silver nanoparticles by fungus Trichoderma reesei (A route for large-scale production of AgNPs). Insci. J 2011, 1, 65–79.
  35. Devi, T.P.; Kulanthaivel, S.; Kamil, D.; Borah, J.L.; Prabhakaran, N.; Srinivasa, N. Biosynthesis of silver nanoparticles from Trichoderma species. Indian J. Exp. Biol 2013, 51, 543–547.
  36. Duran, N.; Marcato, P.; Alves, O.; de Souza, G.; Esposito, E. Mechanistic aspects of biosynthesis of silver nanoparticles by several Fusarium oxysporum strains. J. Nanobiotechnol 2005, 3, 1–7.
  37. Ottow, J.C.G.; von Klopotek, A. Enzymatic reduction of iron oxide by fungi. Appl. Microbiol 1969, 18, 41–43.
  38. Mulvaney, P. Surface plasmon spectroscopy of nanosized metal particles. Langmuir 1996, 12, 788–800.
  39. Vigneshwaran, N.; Kathe, A.A.; Varadarajan, P.V.; Nachane, R.P.; Balasubramanya, R.H. Silver-protein (core-shell) nanoparticle production using spent mushroom substrate. Langmuir 2007, 23, 7113–7117.
  40. Li, G.; He, D.; Qian, Y.; Guan, B.; Gao, S.; Cui, Y.; Yokoyama, K.; Wang, L. Fungus-mediated green synthesis of silver nanoparticles using Aspergillus terreus. Int. J. Mol. Sci 2012, 13, 466–476.
  41. Lu, Z.; Rong, K.; Li, J.; Yang, H.; Chen, R. Size-dependent antibacterial activities of silver nanoparticles against oral anaerobic pathogenic bacteria. J. Mater. Sci. Mater. Med 2013, 24, 1465–1471.
  42. Moll, L.; Gaasenbeek, C.P.; Vellema, P.; Borgsteede, F.H. Resistance of Fasciola hepatica against triclabendazole in cattle and sheep in The Netherlands. Vet. Parasitol 2000, 91, 153–158.
  43. Raadsma, H.W.; Kingsford, N.M.; Suharyanta, T.W.; Spithill, D.P. Host responses during experimental infection with Fasciola gigantic and Fasciola hepatica in Merino sheep I. Comparative immunological and plasma biochemical changes during early infection. Vet. Parasitol 2007, 143, 275–286.
  44. Ramírez, N.; Mayet, L.; del Rivero, L.; Ibarra-Velarde, F.; Castillo, R.; Hernández-Campos, A.; Jung-Cook, H. Pharmacokinetic behaviour in sheep and cattle of 5-Chloro-2-(methylthio)-6-(1-naphthyloxy)-1H-benzimidazole, a new fasciolicide agent. J. Vet. Pharmacol. Ther 2009, 32, 154–159.
  45. Lacey, E. Mode of action of benzimidazoles. Parasitol. Today 1990, 6, 112–115.
  46. Fairweather, I. Triclabendazole: New skills to unravel an old(ish) enigma. J. Helminthol. 2005, 79, 227–234.
  47. Fairweather, I. Triclabendazole progress report 2005–2009: An advancement of learning? J. Helminthol 2009, 83, 139–150.
  48. Alvarez, L.; Moreno, G.; Moreno, L.; Ceballos, L.; Shaw, L.; Fairweather, I.; Lanusse, C. Comparative assessment of albendazole and triclabendazole ovicidal activity on Fasciola hepatica eggs. Vet. Parasitol 2009, 164, 211–216.
  49. Ansari, M.A.; Khan, H.M.; Khan, A.A.; Ahmad, M.K.; Mahdi, A.A.; Pal, R.; Cameotra, S.S. Interaction of silver nanoparticles with Escherichia coli and their cell envelope biomolecules. J. Basic Microbiol 2013, doi:10.1002/jobm.201300457.
  50. Fawaz, F.; Bonini, F.; Maugein, J.; Lagueny, A.M. Ciprofloxacin-loaded polyisobutylcyanoacrylate nanoparticles: Pharmacokinetics and in vitro antimicrobial activity. Int. J. Pharm 1998, 168, 255–259.
  51. Fattal, E.; Rojas, J.; Youssef, M.; Couvreur, P.; Andremont, A. Liposome-entrapped ampicillin in the treatment of experimental murine listeriosis and salmonellosis. Antimicrob. Agents Chemother 1991, 35, 770–772.
  52. Mohammadi, G.; Valizadeh, H.; Barzegar-Jalali, M.; Lotfipour, F.; Adibkia, K.; Milani, M.; Azhdarzadeh, M.; Kiafar, F.; Nokhodchi, A. Development of azithromycin-PLGA nanoparticles: Physicochemical characterization and antibacterial effect against Salmonella typhi. Colloids Surf. B Biointerfaces 2010, 80, 34–39.
  53. Mas, N.; Galiana, I.; Mondragon, L.; Aznar, E.; Climent, E.; Cabedo, N.; Sancenón, F.; Murguía, J.R.; Martínez-Máñez, R.; Marcos, M.D.; Amorós, P. Enhanced efficacy and broadening of antibacterial action of drugs via the use of capped mesoporous nanoparticles. Chem. A Eur. J 2013, 34, 11167–11171.
  54. Chu, Z.; Yin, C.; Zhang, S.; Lin, G.; Li, Q. Surface plasmon enhanced drug efficacy using core-shell Au@SiO2 nanoparticle carrier. Nanoscale 2013, 5, 3406–3411.
  55. Fairweather, I.; McShane, D.D.; Trudgett, A.; Brenna, G.P.; Shaw, L.; Ellison, S.E.; O’Hagan, N.T.; York, E.A.; Trudgett, A.; Brennan, G.P. Development of an egg hatch assay for the diagnosis of triclabendazole resistance in Fasciola hepatica: Proof of concept. Vet. Parasitol 2012, 183, 249–259.
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
